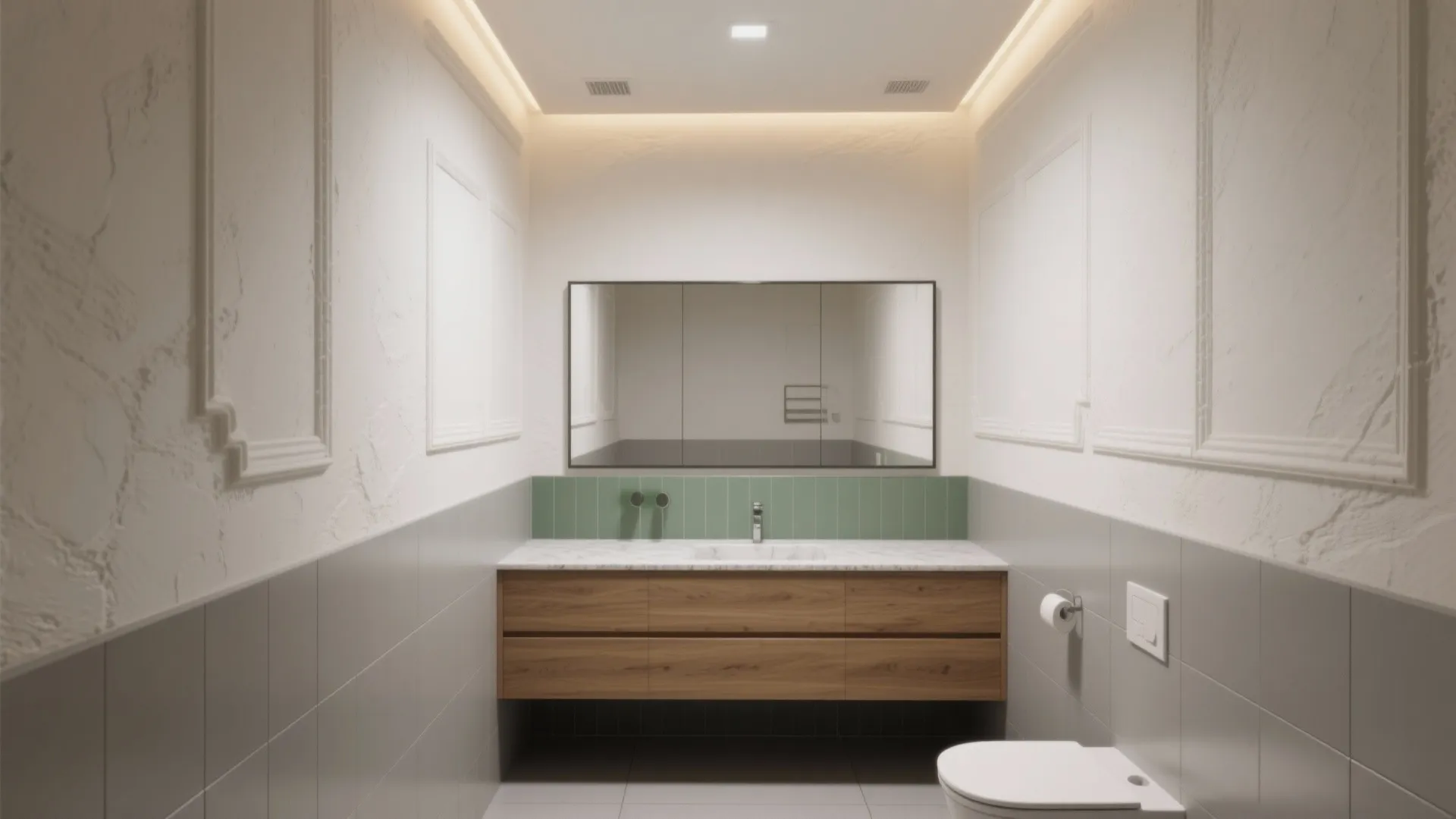

Bathroom POP Design: 5 Ideas, Pros and Cons: A senior interior designer’s friendly guide to bathroom POP design with five ideas, real pros and cons, tips, cost cues, and SEO-friendly insights

As a designer who’s remodeled more small bathrooms than I can count, I’ve seen bathroom POP design go from flashy to thoughtfully minimal. Small spaces really do spark big creativity—especially when you’re working with ceilings, lighting, and storage. In this guide, I’ll share 5 bathroom POP design ideas, with my real-life take, honest pros and cons, and a few data-backed notes so you can decide what truly fits your space and lifestyle. By the way, I’ll point out where POP truly shines—and where it’s not worth the fuss.

Last year, I refreshed a 3.5 m² guest bath for a young couple. We used a restrained POP cove to hide ventilation and add indirect light. It proved what I keep telling clients: good bathroom POP design isn’t about drama—it’s about clarity. If you want more depth on layout planning, I’ve broken down my thinking around “L 型布局释放更多台面空间” in another case that often inspires my bathroom zoning approach: L-shaped layout frees more counter space.

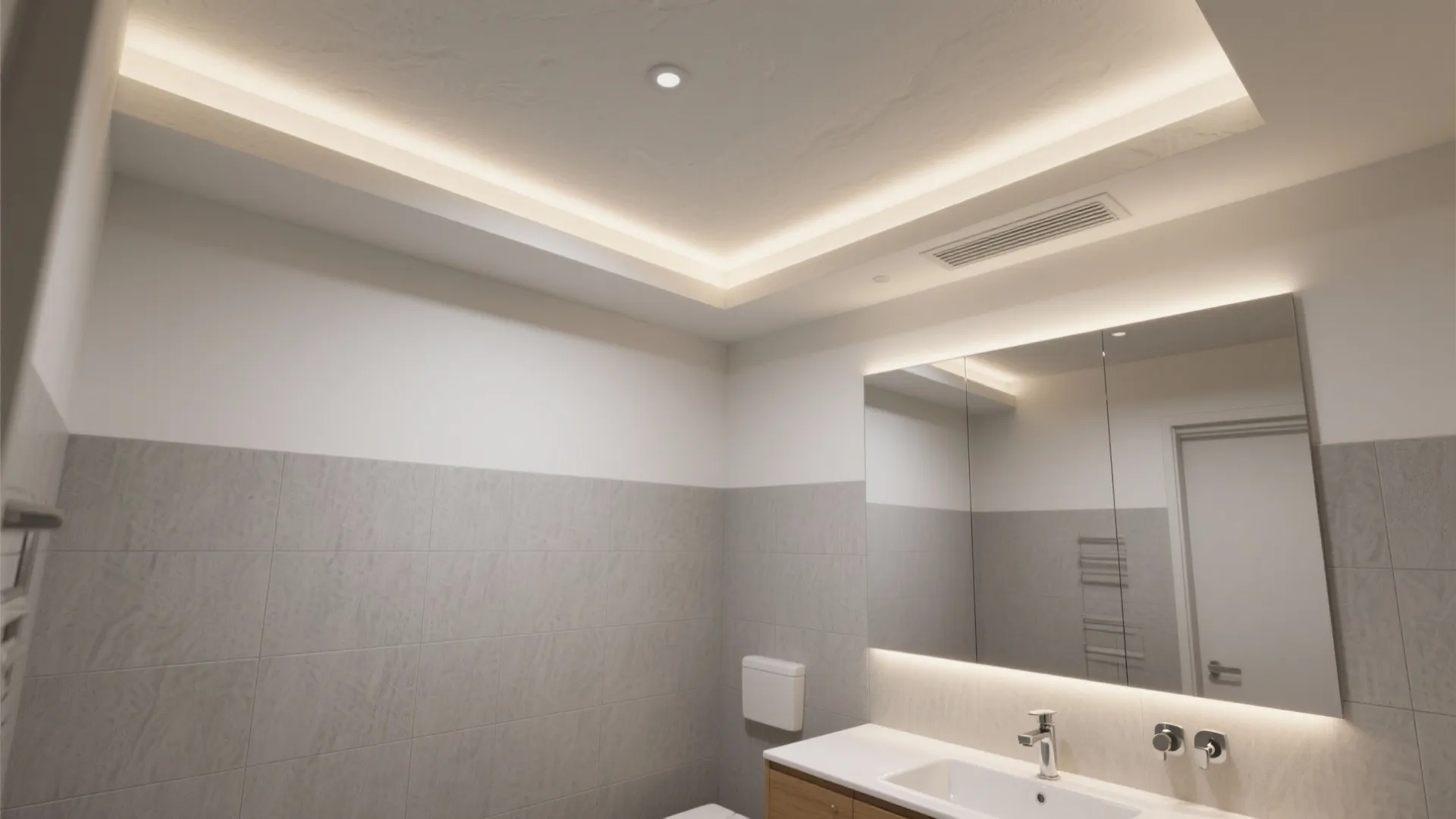

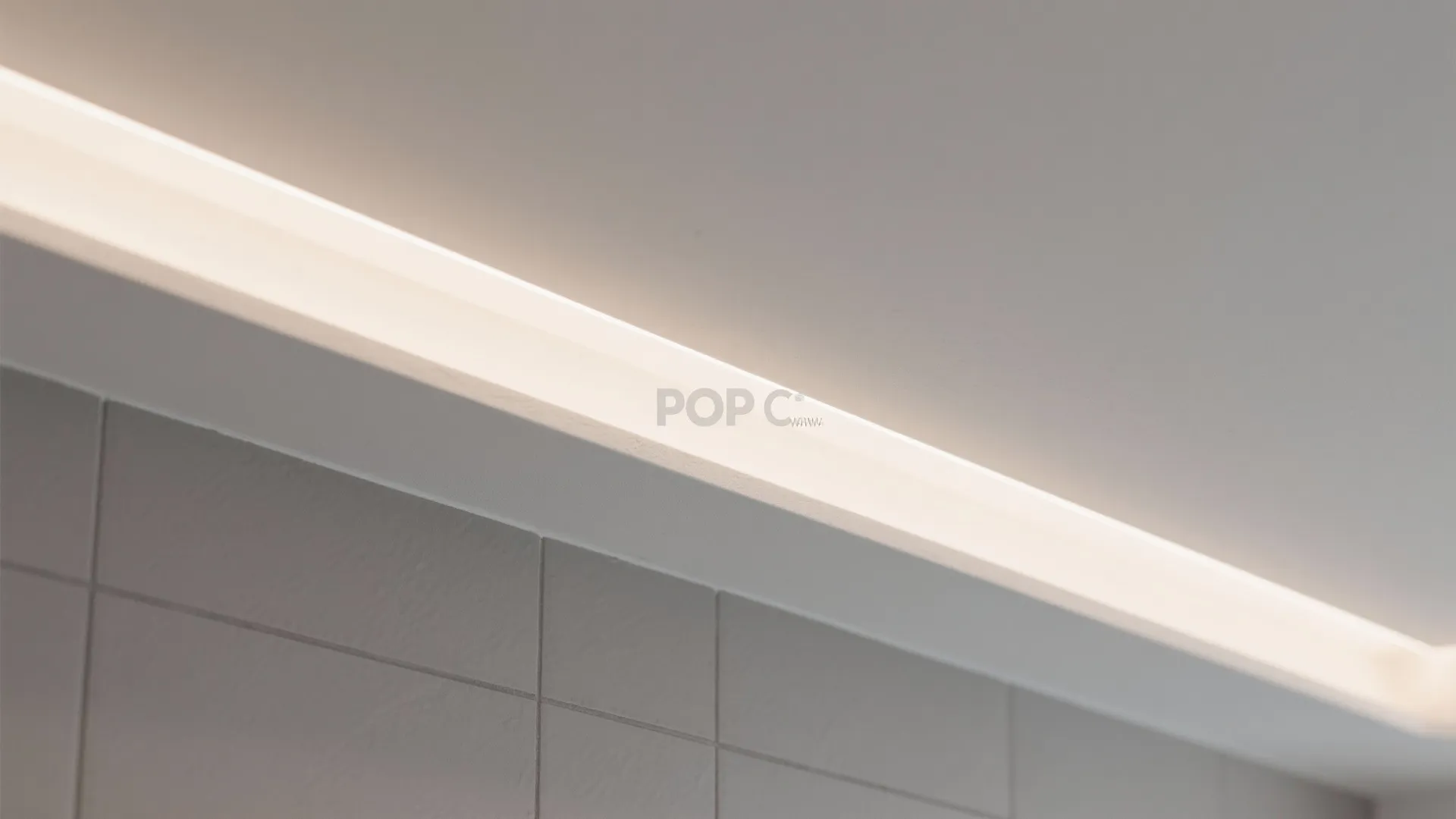

Soft Cove Ceiling with Hidden Lighting

My Take: I love a slim plaster cove that tucks LED strips and conceals exhaust runs. In small baths, this creates calm without eating height. I’ve used this in rental upgrades where we couldn’t touch plumbing but needed a big visual lift.

Pros: Indirect light reduces glare on tile and mirrors, great for morning routines and late-night trips; this is a classic long-tail win for “bathroom POP design with concealed lighting.” A shallow cove can also mask wiring and small ducting, keeping the ceiling clean. Per WELL Lighting Guidelines (IWBI, 2023), diffuse, indirect lighting supports visual comfort and lowers contrast hotspots.

Cons: POP adds layers; even a 60–80 mm drop can feel tight in very low bathrooms. LEDs need proper drivers and heat management—skip cheap strips unless you enjoy flicker-induced regret. Cleaning dust inside the cove requires a soft brush or vacuum tip.

Tip / Cost: Use 2700–3000K LEDs for warmth; CRI 90+ to keep skin tones natural. Budget roughly $18–35 per linear foot including LED and basic POP finishing; add more for dimmable drivers.

save pin

save pin

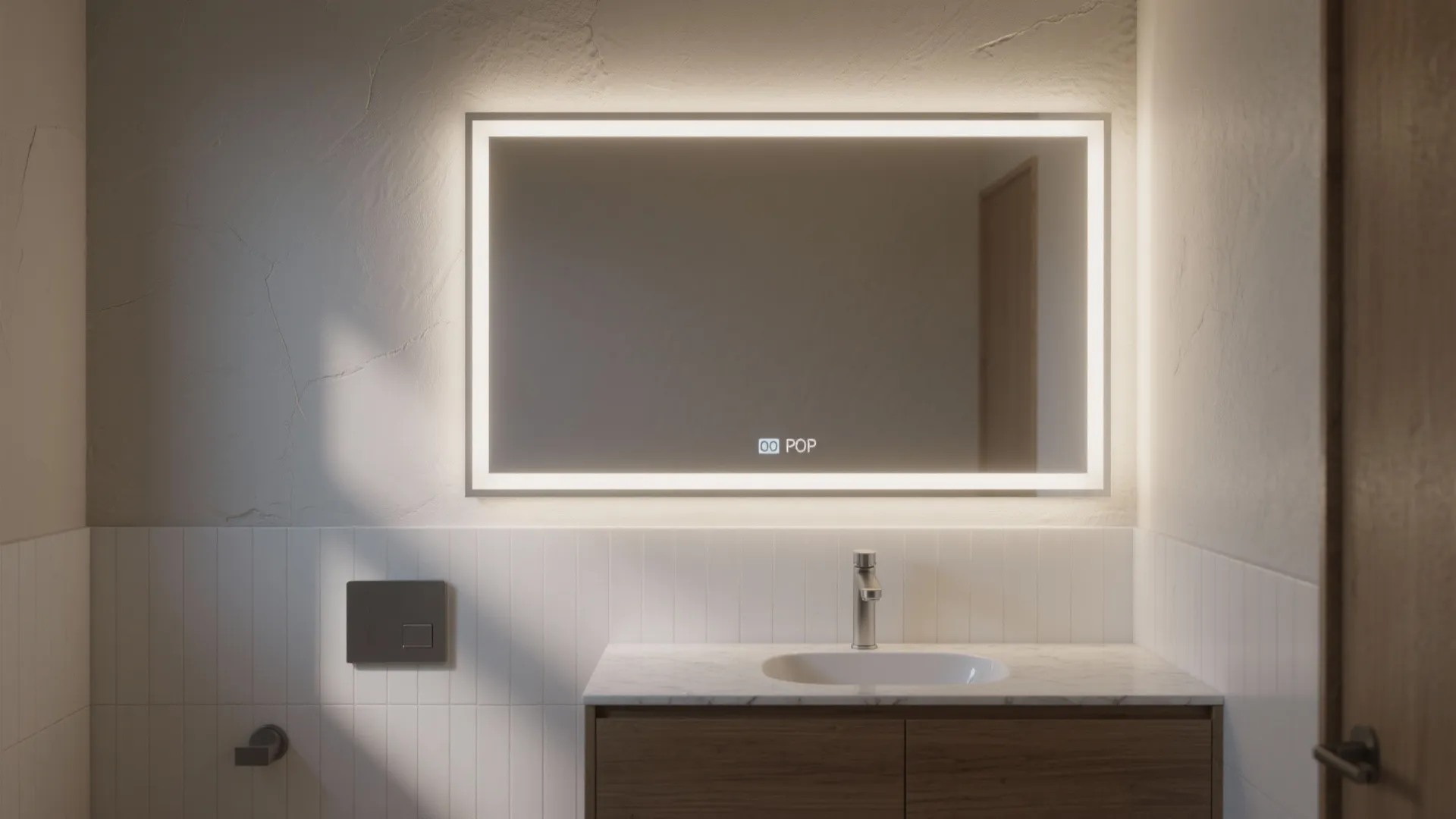

Geometric POP Frames over Vanity Zone

My Take: In a 2.8 m² studio bath, I framed the mirror wall with a 25 mm POP reveal and micro-cove above the vanity. It visually “organizes” the wall and makes a small sink feel intentional.

Pros: A POP frame gives the mirror a built-in look and supports layered task lighting—great for “small bathroom POP framing ideas.” The reveal detail can hide a vanity light cable without channeling the wall. It also defines zones, helpful in open wet rooms.

Cons: Sharp corners chip if the installer rushes the skim coat. Over-scaling the frame can look heavy, especially with narrow vanities. Humidity-prone walls need a solid primer, or hairline cracks may appear at joints.

Tip / Case: Keep frames 20–35 mm thick with a 10–15 mm shadow gap for finesse. For planning layered lighting renders, I often test “3D render home lighting balance” during concept review: soft indirect balance in 3D renders.

save pin

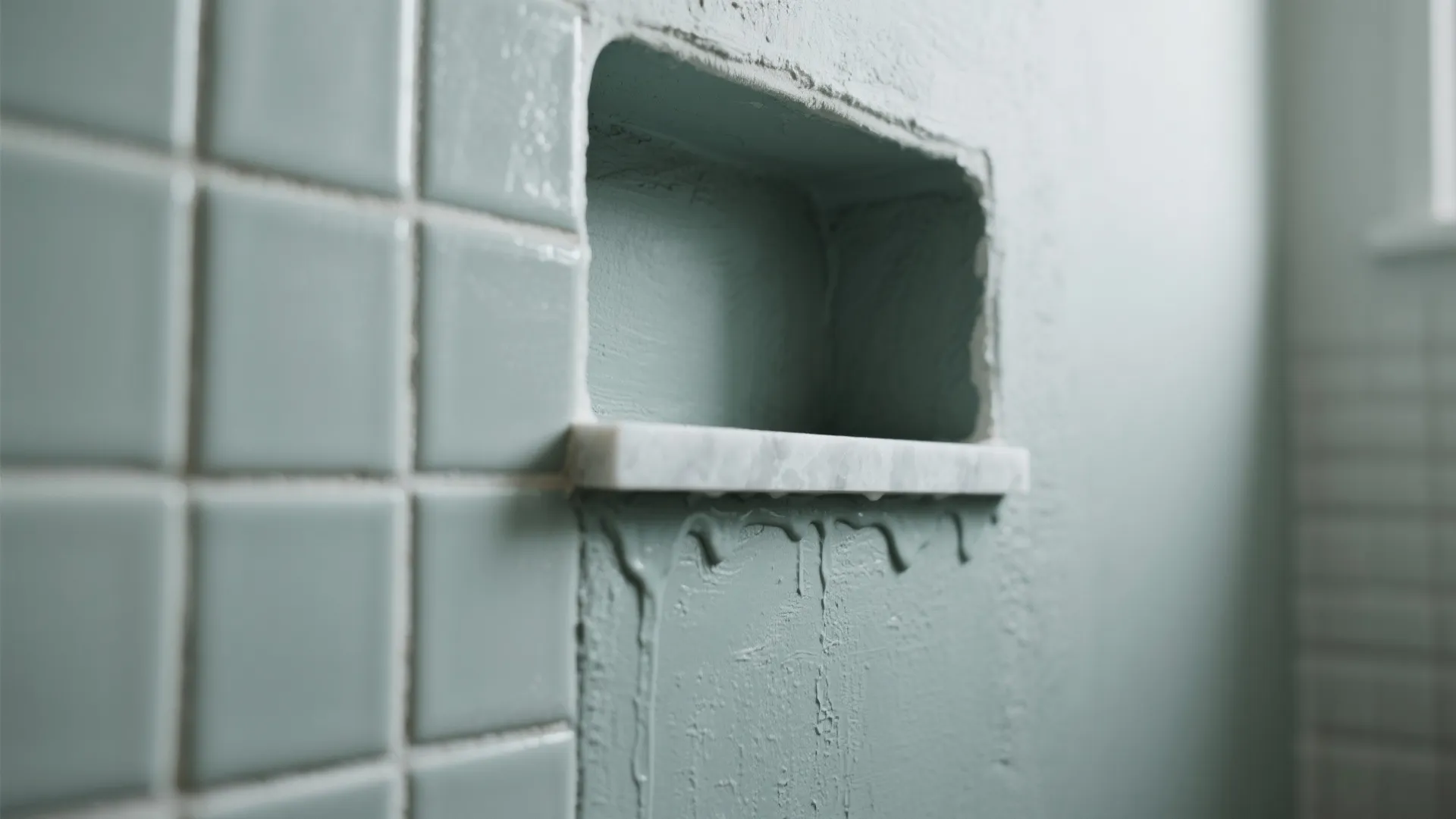

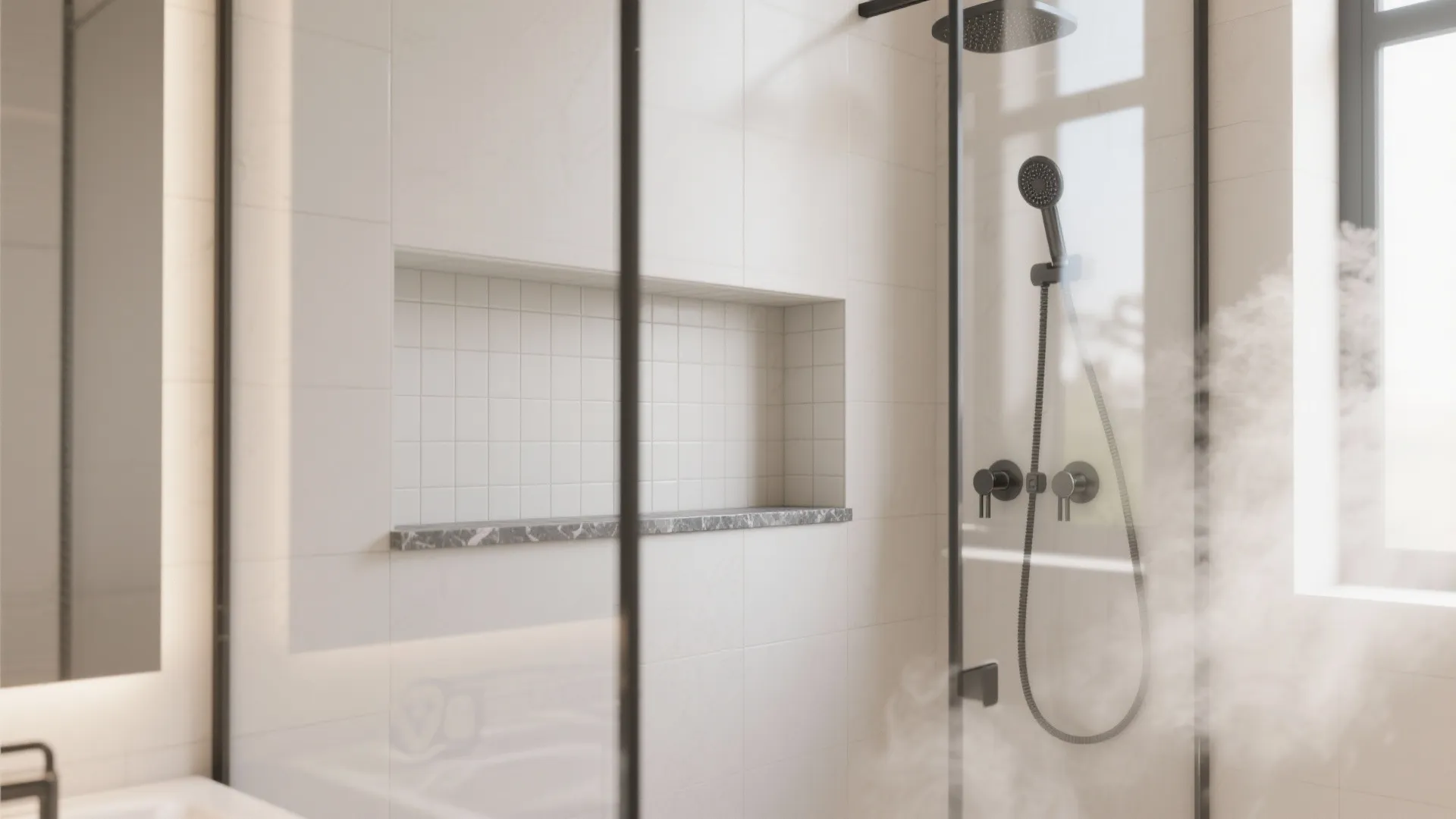

POP Niche with Tiled Back and Integrated Shelf

My Take: I’ve carved dozens of shower niches; when walls can’t be chased deep, a shallow POP build-out creates a neat recess. Add a tiled back and a slim quartz sill and it feels high-end.

Pros: Great for “bathroom POP niche with storage,” keeping bottles off the floor and edges. POP allows precise spacing for grout lines so the niche aligns with tile modules—tiny detail, big payoff. Rounded outer edges reduce chip risk in family baths.

Cons: Not ideal in soaking zones without waterproofing; POP is gypsum-based and must be fully sealed. Depth is limited unless you thicken the wall, which can nibble precious shower width. Glass shelves fog; stone is better but heavier.

Tip / Cost: Specify cementitious waterproofing (Class II or local equivalent) over POP, then tile. Expect $120–240 per niche with tile and sill, depending on tile complexity.

save pin

save pin

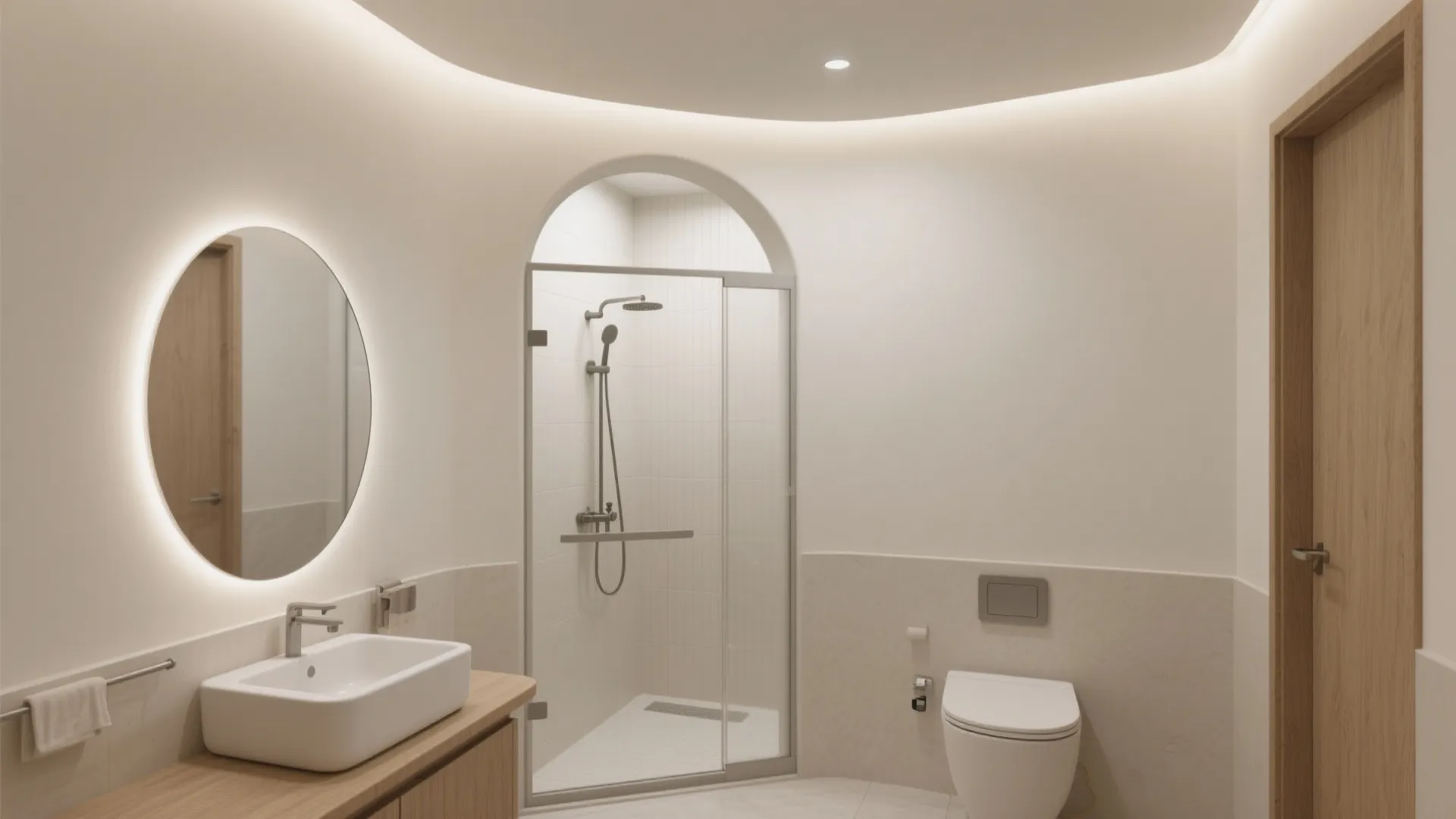

Curved POP Corners to Soften Tight Layouts

My Take: Curves calm small rooms. In a narrow bath for a retiree, we rounded the shower entry and the ceiling-to-wall junction with a gentle POP radius—no bruised elbows since.

Pros: Curved transitions improve circulation in “compact bathroom POP design with curves.” They visually widen corridors, and soft edges pair well with oval mirrors and arched doors. Curves also help airflow around exhaust inlets, reducing dust buildup corners.

Cons: Skilled craftsmanship needed; uneven arcs show under grazing light. Curves complicate crown tiles—plan trims or use paint-grade edges. Repairs are trickier than straight patches.

Tip / Reference: Keep radii between 60–120 mm in tight baths; larger looks luxurious but steals space. Humidity control still matters; the U.S. EPA advises maintaining 30–50% RH to prevent moisture issues and mold growth (EPA, 2023).

save pin

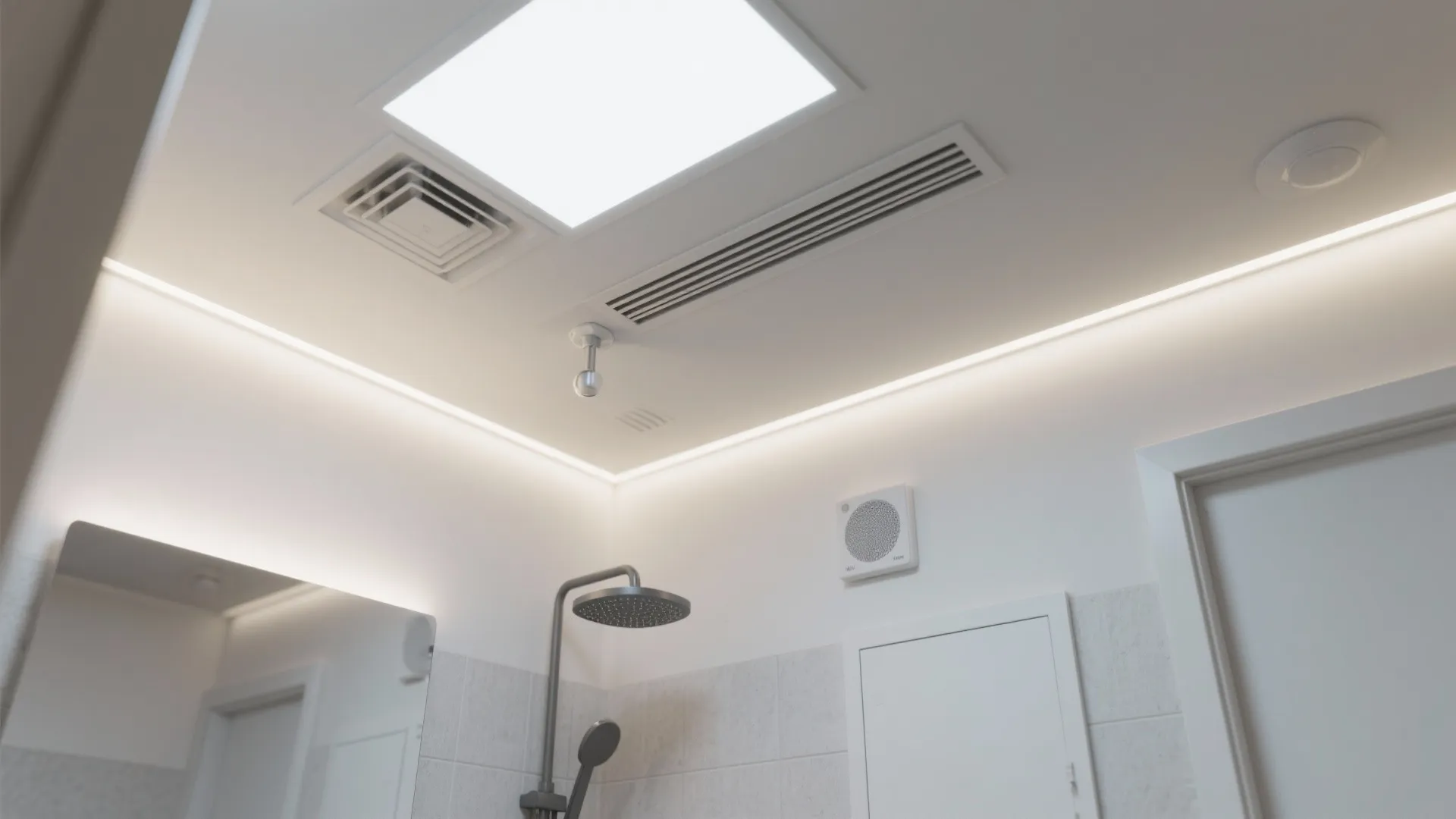

Minimal POP Drop for Vent, Speaker, and Access Panel

My Take: My most pragmatic POP move is a micro-drop zone that hides the exhaust duct, a tiny Bluetooth speaker, and a discreet access panel. It’s the Swiss army knife of small-bath ceilings.

Pros: Bundling services into a slim POP channel solves “bathroom POP drop ceiling with utilities” elegantly. Access panels save future headaches, and acoustic absorption improves slightly with the layered build. You can add a linear slot diffuser for a gallery-like finish.

Cons: More penetrations mean more sealing; every cutout must be moisture-primed. Low ceilings under 2.4 m can feel compressed if the drop spans the whole room—keep it localized. Speakers need IP-rated components and safe low-voltage wiring.

Tip / Planning: I often trial-run the routing and fixture spacing using a space plan mockup. If you’re exploring ceiling routes and service zones, this case overview on “AI interior design zoning study” shows the quick-test approach I use: AI-aided zoning study for services.

save pin

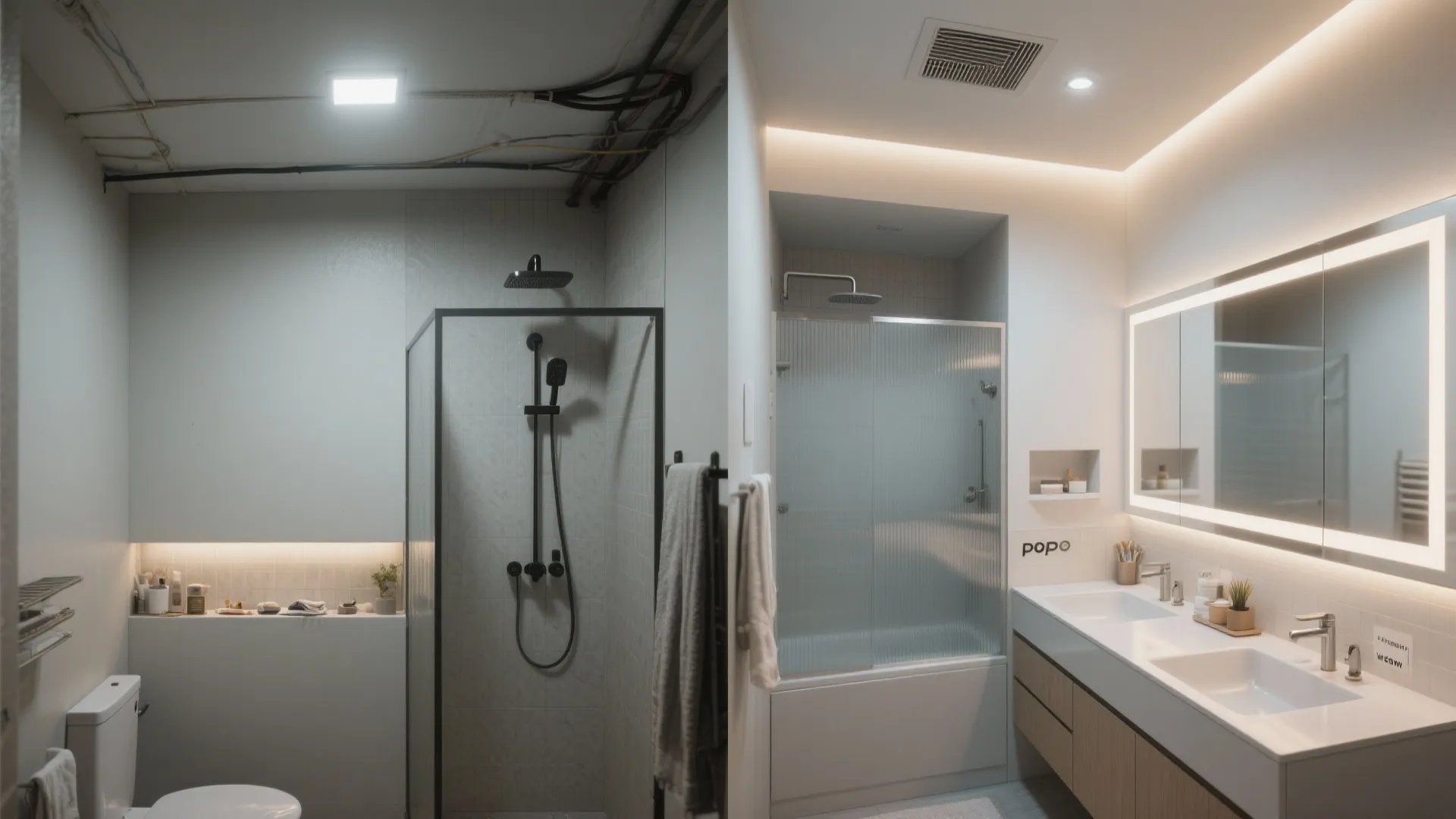

Bathroom POP Design: Plus and Minus at a Glance

My Take: After a decade in small-space design, my rule is simple: POP should solve at least two problems—lighting plus concealment, storage plus waterproofed finish, or zoning plus proportion. If it’s only decorative, I usually scale it back.

Pros: POP excels at tidy concealment, gentle indirect lighting, and subtle architectural character—especially in “modern small bathroom POP design ideas.” It’s relatively affordable, easy to paint, and fast to install with a skilled crew. It also supports smart ventilation layouts, which extends finish life.

Cons: Moisture is the enemy; without primer and paint designed for baths, POP can swell or crack. Poor detailing at edges and fixtures invites maintenance. And yes, it can shrink perceived height if overused—less is often more.

Cost / Timeline: Light cove or frame upgrades run 2–4 days; full drops with utilities can be a week. Materials are modest; labor quality is the real make-or-break.

save pin

Summary

Small bathrooms aren’t a limitation; they’re an invitation to design smarter. Bathroom POP design shines when it solves real problems—lighting, storage, ventilation—while staying visually calm. For credibility, note that diffuse lighting and proper humidity control are repeatedly recommended by WELL and the EPA, and they pair beautifully with restrained POP solutions. Which of these five ideas are you excited to try first?

save pin

FAQ

1) What is bathroom POP design?

It refers to using Plaster of Paris elements—like coves, drops, and frames—for ceilings and walls to integrate lighting, hide services, and add subtle detail. In small baths, it’s best used minimally.

2) Is POP safe for humid bathrooms?

Yes, if it’s properly sealed with moisture-resistant primer and bathroom-grade paint, and the space maintains healthy humidity. The U.S. EPA recommends 30–50% relative humidity to prevent moisture issues.

3) What are the main pros and cons of bathroom POP design?

Pros: concealed wiring/ducts, indirect lighting, and architectural clarity in compact layouts. Cons: potential height loss, moisture sensitivity without sealing, and maintenance at edges and penetrations.

4) How much does a simple POP cove cost?

In many markets, a basic cove with LED can run $18–35 per linear foot, depending on labor rates, LED quality, and finish coats. Complex profiles and dimming control add cost.

5) Can I add a POP niche in a shower?

Yes, but waterproofing is critical. Use cementitious membranes over POP before tiling, and specify a stone or quartz sill to shed water and resist chipping.

6) Will a POP drop ceiling make my bathroom feel smaller?

A full-room drop can, but localized drops—just over the vanity or shower—keep sightlines open. Slim profiles (60–80 mm) and indirect light help preserve height perception.

7) Do I need an access panel in a POP ceiling?

If you’re hiding valves, drivers, or duct junctions, yes. A small, paintable access panel saves invasive repairs later and keeps maintenance simple.

8) Can I plan POP lighting placement before construction?

Absolutely. I often mock up light levels and service routes with quick digital studies; exploring “AI-aided zoning study for services” like this case can reduce on-site changes: conceptual service zoning study.
