Bathroom wash basin cabinet design: 5 smart ideas: Small bathrooms can spark big creativity—here’s how I plan wash basin cabinets that save space, look calm, and actually work day to day.

A client once begged me to fit a double trough sink, a washer, and a linen pull-out into a 1.4 m wall—while the door still swung in. I almost botched it until a quick bathroom mock-up showed the door clipping the basin by 20 mm. That near-miss reminded me: small spaces force smarter choices, and bathroom wash basin cabinet design is where clever planning shines. So I’m sharing five ideas I rely on, honed across real projects and a few funny failures.

Think of your vanity as a mini architecture problem: water, storage, traffic, and light all negotiating a tiny footprint. With the right layout and materials, even a pocket-sized bath can feel generous.

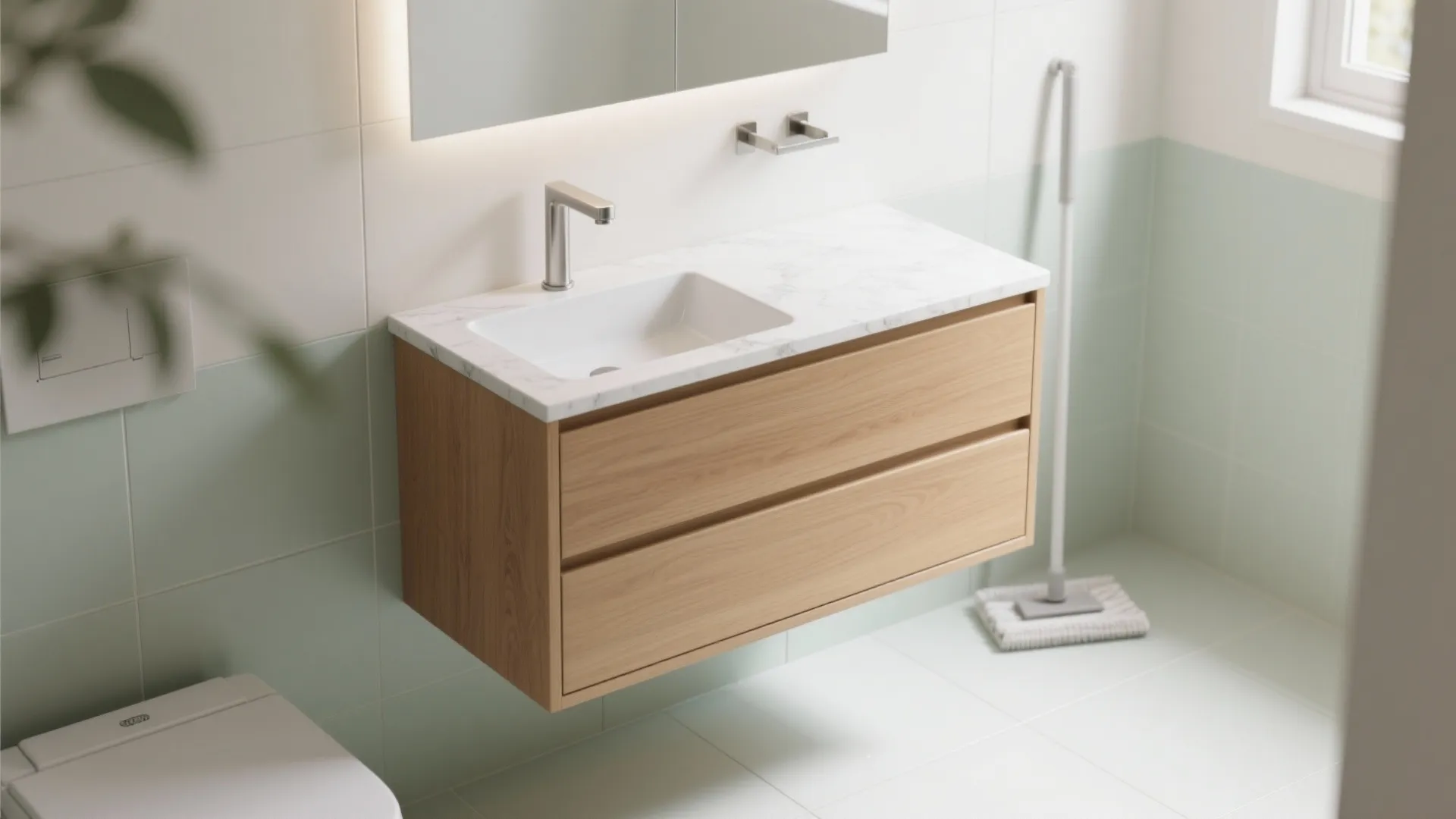

Idea 1: Float the vanity to grow the floor

Wall-hung cabinets keep the floor visible, which tricks your brain into reading more space. I like a 420–480 mm depth, slim drawers, and a basin with a tighter footprint; cleaning under the cabinet is bliss.

You’ll need solid wall backing and careful plumbing reroutes, and the install team must get the height right for your users. If budget’s tight, float the cabinet but keep the basin off-the-shelf—most brands now offer shallow profiles that don’t splash.

save pin

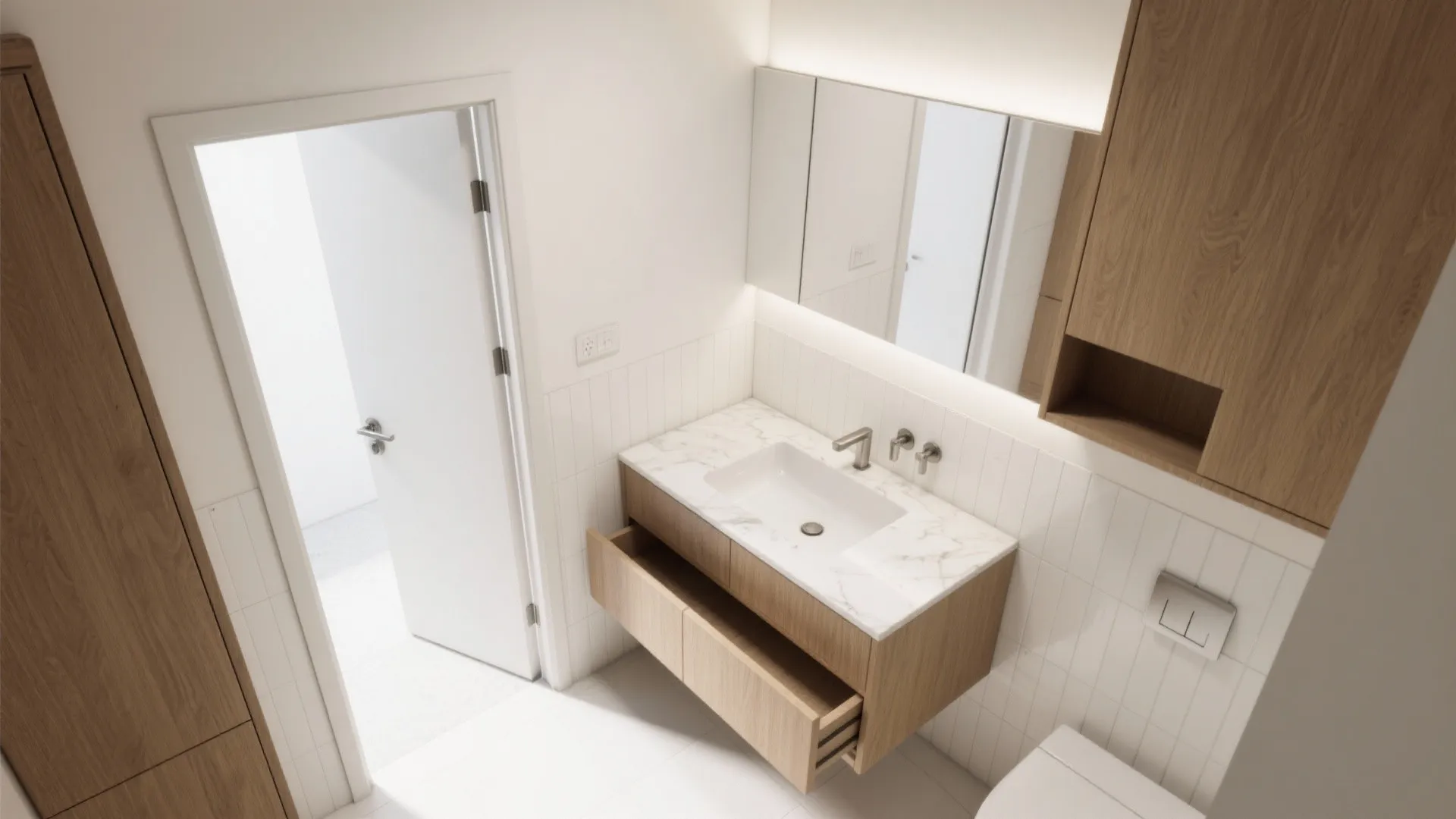

Idea 2: Offset the basin to dodge door swings

Centering a basin is aesthetic, but offsetting it buys you precious elbow room and lets a drawer open fully beside a tight jamb. I’ve saved three make-or-break layouts by shifting the bowl 80–120 mm to one side and letting the countertop overhang where traffic flows.

The trap and waste line will need a small side-step—nothing dramatic, just plan the drawer internals around the plumbing. Bonus: asymmetry looks intentional when you balance with a wall sconce or a taller side panel.

save pin

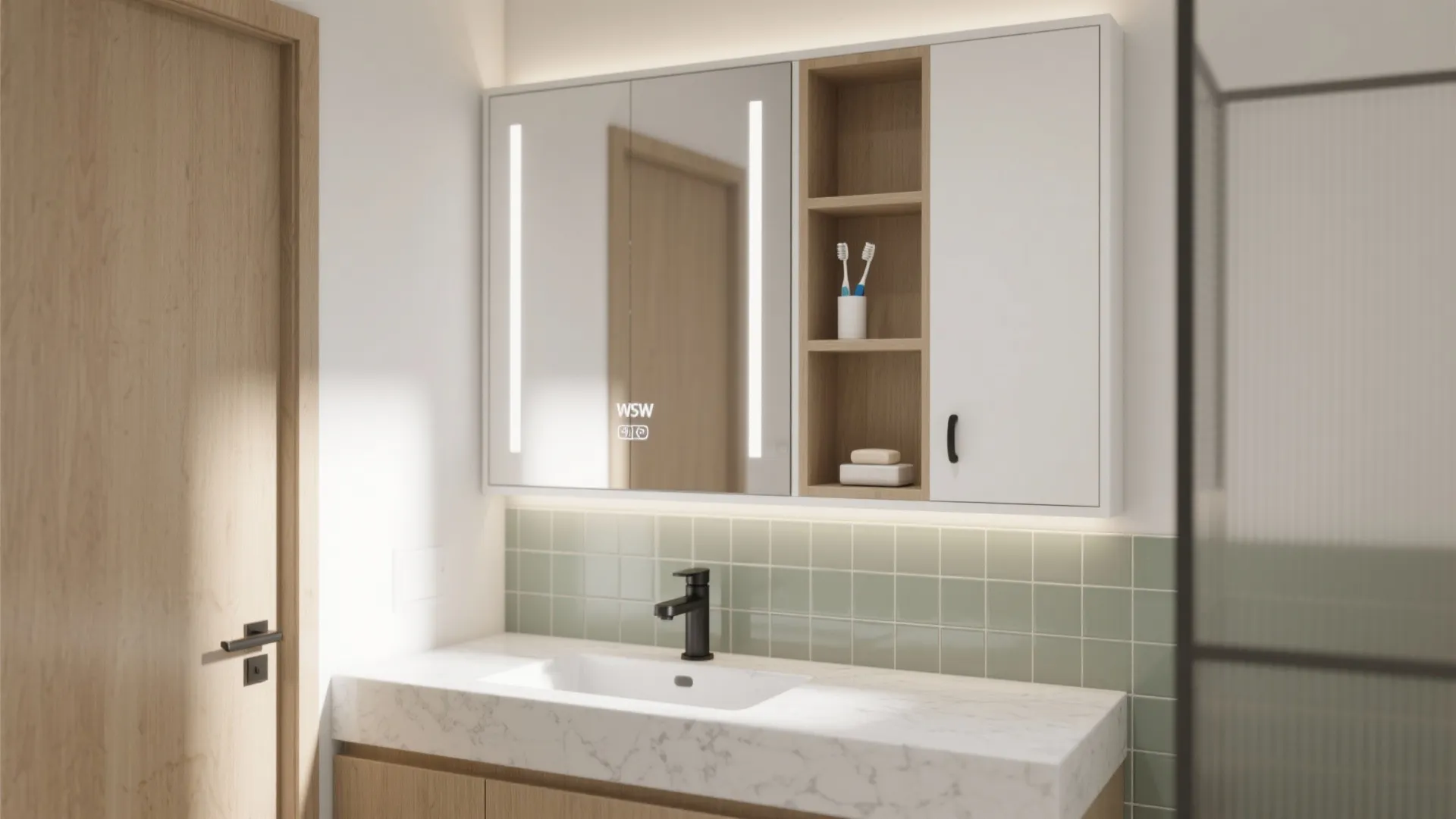

Idea 3: Hide storage in mirrors and wall niches

A mirrored cabinet is the stealth MVP—shallow shelves for daily items, with a recess if the wall allows. Pair that with a tiled niche beside or above the basin so toothbrushes and soaps don’t crowd the counter; it keeps the top clean and your routine calmer.

When I’m sketching options, I map space-saving vanity layouts to check reach zones and eye height for the mirror doors. Watch for wall depth; if you can’t recess, surface-mount and frame it neatly so it feels built-in.

save pin

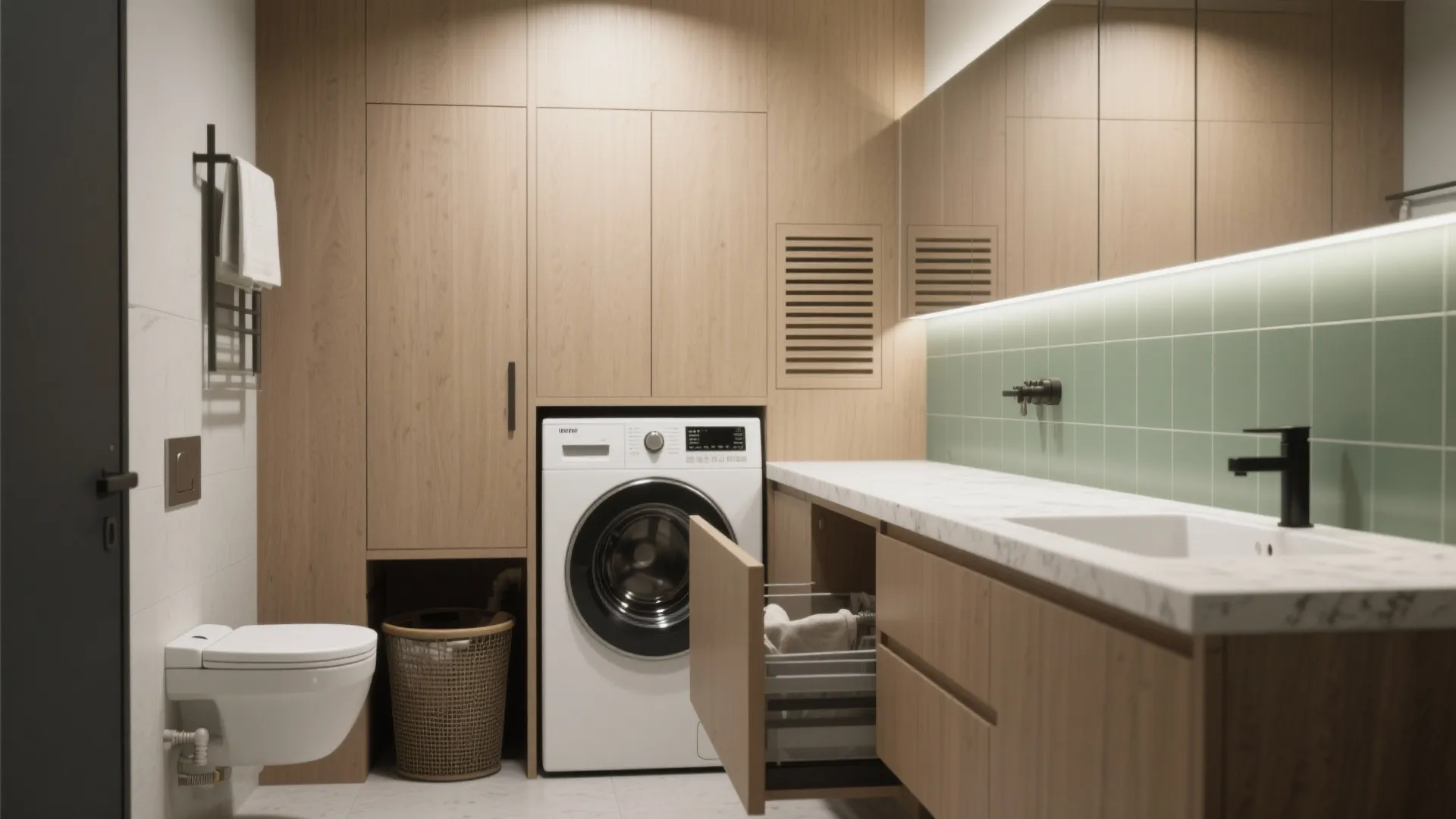

Idea 4: Combine vanity and laundry without the mess

In tight urban baths, a single run that hides a compact washer, a pull-out hamper, and a basin cabinet can be a game-changer. I use moisture-resistant plywood or compact laminate, add a drip edge under the basin, and vent the washer cavity with a discreet grille.

Keep plumbing accessible—an extra removable panel beats swearing at a stuck trap later. It’s slightly pricier for the hardware and ventilation details, but you gain order and lose the visual clutter of multiple units.

save pin

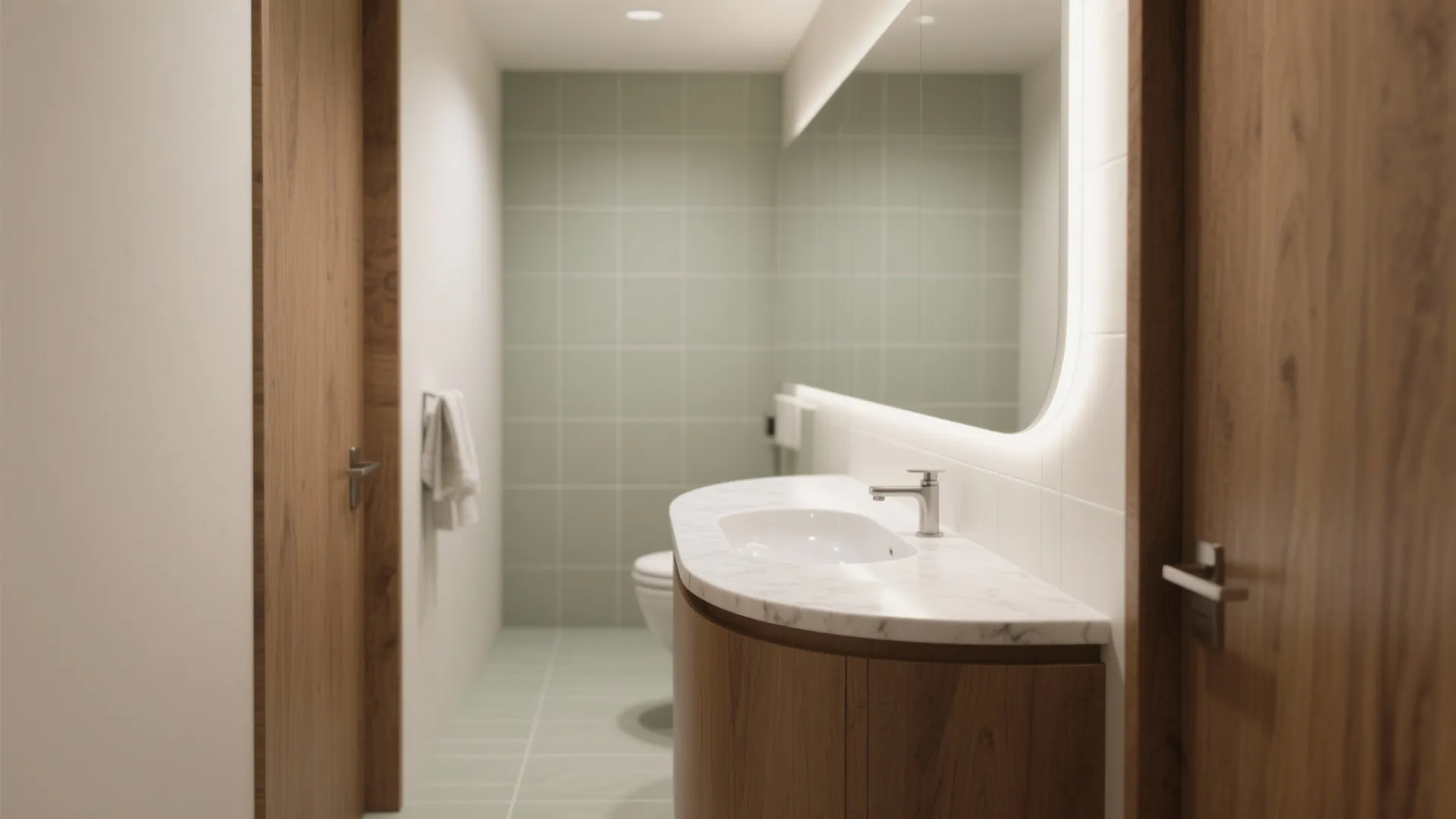

Idea 5: Go curved and compact to save hips and corners

Soft-radius fronts or rounded basin cabinets make narrow passes friendlier; less bruised hips, more glide. A curved top also helps water roll inward rather than pooling at sharp edges.

Before I commit, I test a few rounded corner vanity visualizations to see how shadows and reflections play in the room. Corner curves can trim storage a touch, but the comfort in micro-baths is worth it—especially in powder rooms.

save pin

FAQ

1) What size should a wash basin cabinet be in a small bathroom? For tight rooms, aim for 600–900 mm width and 450–520 mm depth; even 500 mm can work with a shallow basin. Leave clear floor space in front—NKBA recommends 30 in (762 mm), with 21 in (533 mm) as a minimum (NKBA Bathroom Planning Guidelines: https://nkba.org/learn/consumer/bathroom-guidelines/).

2) How high should the vanity be? Typical height is 810–915 mm (32–36 in). If you choose a vessel basin, drop the cabinet height so the rim lands near 900 mm for comfortable use.

3) What materials hold up best to moisture? Moisture-resistant plywood (with proper edge sealing), compact laminate, or marine-grade board are solid choices. MDF can work if it’s high-quality and fully sealed, but avoid steam-heavy zones or use thermofoil fronts.

4) Wall-hung or floor-mounted—what’s better? Wall-hung feels lighter and makes cleaning easier, but requires sturdy framing and careful load planning. Floor-mounted adds capacity and is forgiving in older buildings where walls aren’t ideal for anchors.

5) How do I prevent water damage around the basin? Use a non-porous top like quartz or solid surface, add a backsplash, and silicone all junctions. A subtle drip edge under the front lip helps keep spills off doors.

6) Can I fit a double sink on a 1.5 m wall? Usually not with comfortable clearances; consider a single wide trough with two taps, or an offset basin and a larger mirror. Prioritize drawer function over symmetry in small footprints.

7) Any smart storage ideas for tiny bathrooms? Go vertical with mirror cabinets, slim pull-outs beside the trap, and recessed niches. Inside drawers, use U-shaped organizers around plumbing so every centimeter works.

8) How can I keep costs in check? Combine stock carcasses with custom fronts, and choose a standard-size basin to avoid bespoke plumbing. Hardware matters—good soft-close slides and sealed edges outlast fancy finishes.
