Bungalow Compound Wall Design: 5 Smart Ideas: Practical, stylish, and secure boundary wall ideas I’ve learned the hard way (so you don’t have to)

Years ago, a client wanted a “castle wall” around a tiny bungalow—eight feet high, zero openings. I smiled, sketched a quick scaled site mockup, and showed how the gate wouldn’t clear the street’s turning radius. We ended up with a wall that breathed, looked refined, and still kept the dog in. Lesson burned into my brain: the best compound walls work with the site, not against it.

Small spaces force big creativity—especially at the boundary, where privacy, style, and safety collide. Pull up a chair; I’m sharing five bungalow compound wall design ideas I use in real projects, with the wins, the gotchas, and the tricks that save money and headaches.

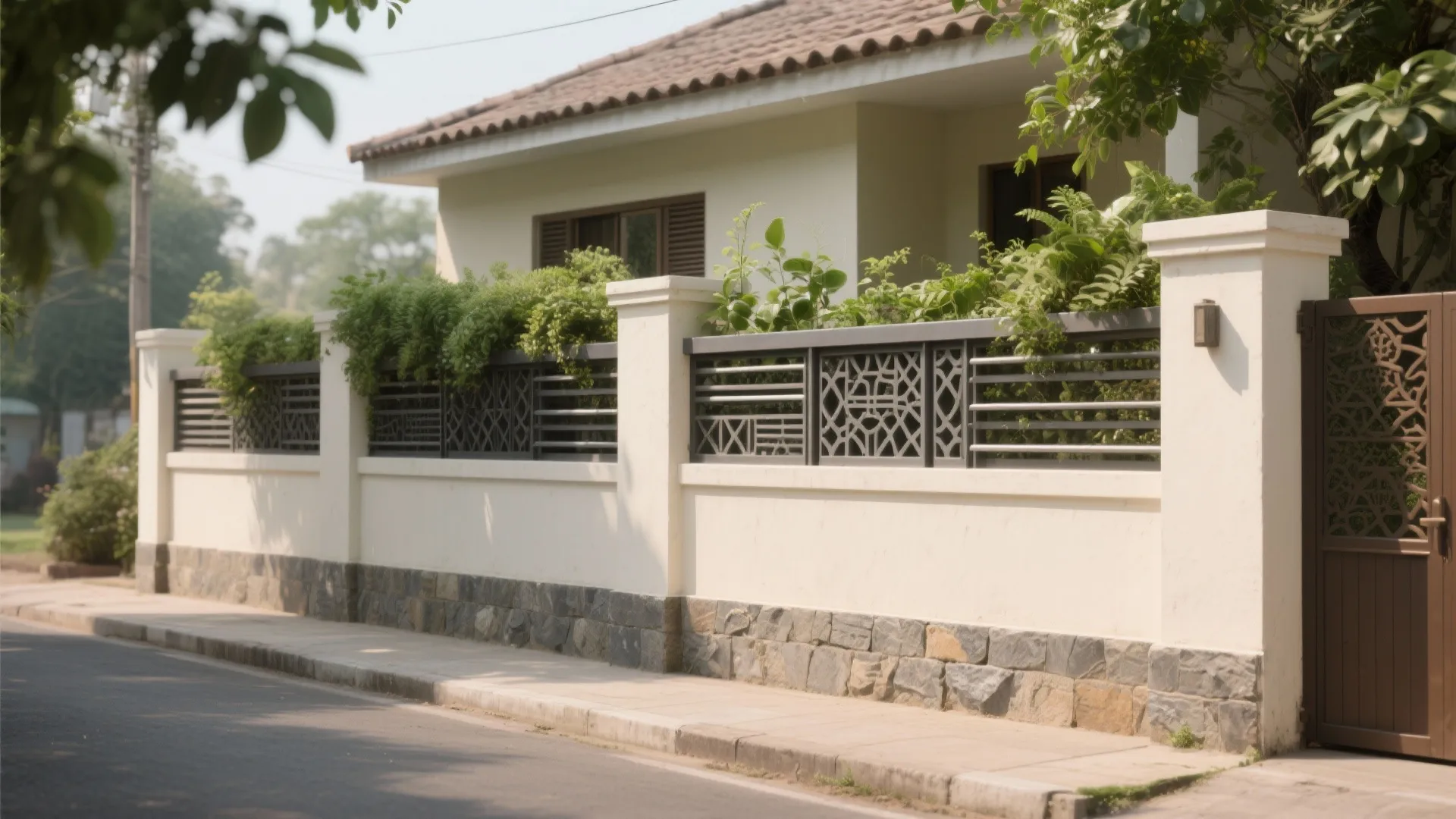

1) Layered privacy that still breathes

I like a “solid–screen–green” stack: a sturdy lower plinth (600–900 mm) for privacy and splash protection, a ventilated mid-band (slats or jaali) to move air, and optional top greenery for softness. It feels lighter than a solid slab but blocks most sight lines at seated and standing heights.

The sweet spot for overall height is typically 1.5–2.1 m, but local bylaws and corner visibility rules can shift that. Slatted metal needs periodic painting in coastal areas, and stone jaali costs more upfront—but the comfort and curb appeal often pay you back daily.

save pin

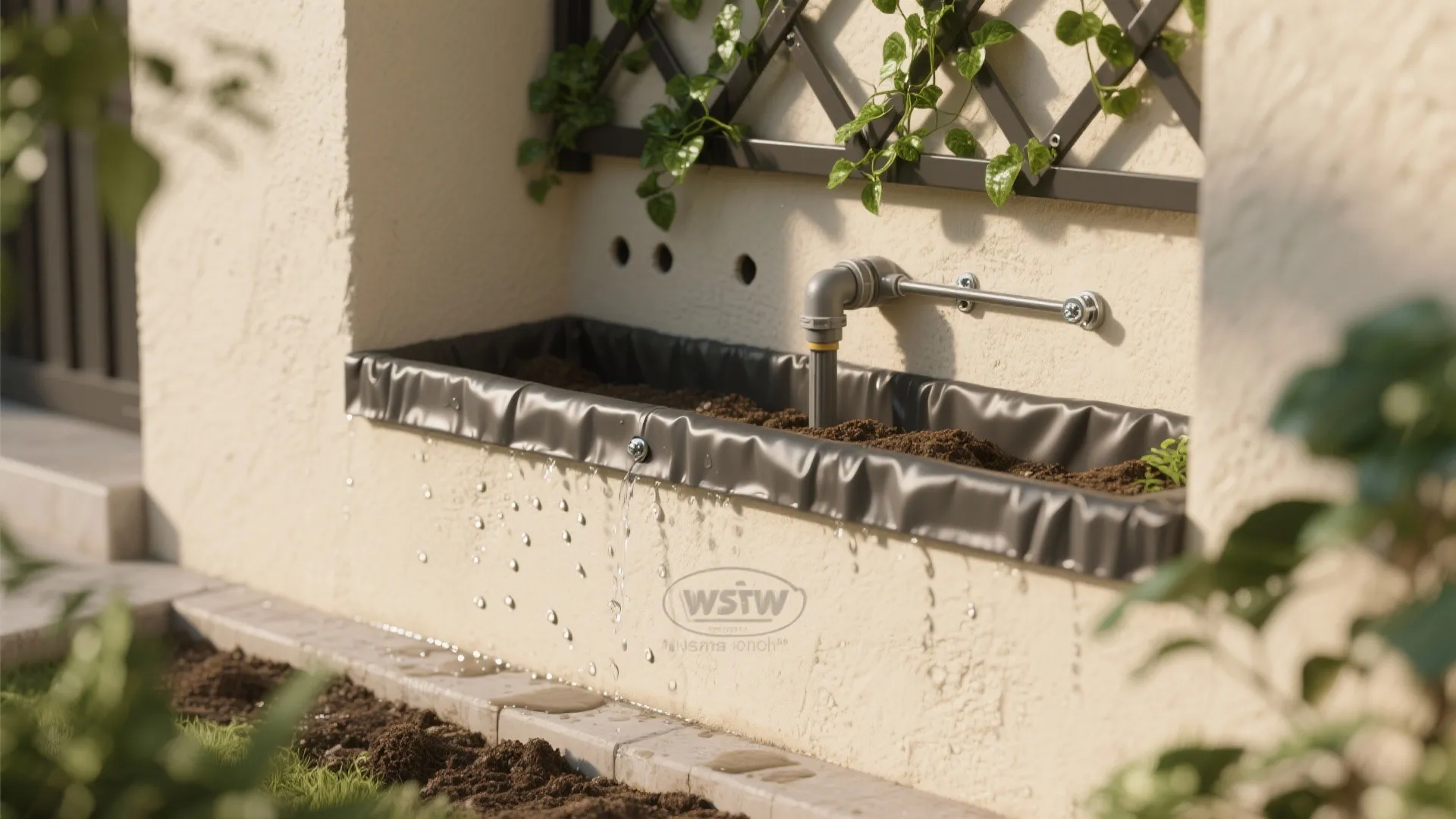

2) Built-in planters and rain-smart details

A shallow planter (200–300 mm) integrated along the inside of the wall turns dead edge space into a living buffer. Creepers on a powder-coated trellis soften the facade, cut glare, and make even a modest bungalow feel lush.

Do add a waterproofing layer on the planter side, a drip line with timer, and weep holes above natural ground to avoid damp. If neighborhood dogs are frequent visitors, choose hardy, pet-safe species and raise the soil line so splashes don’t stain the plaster.

save pin

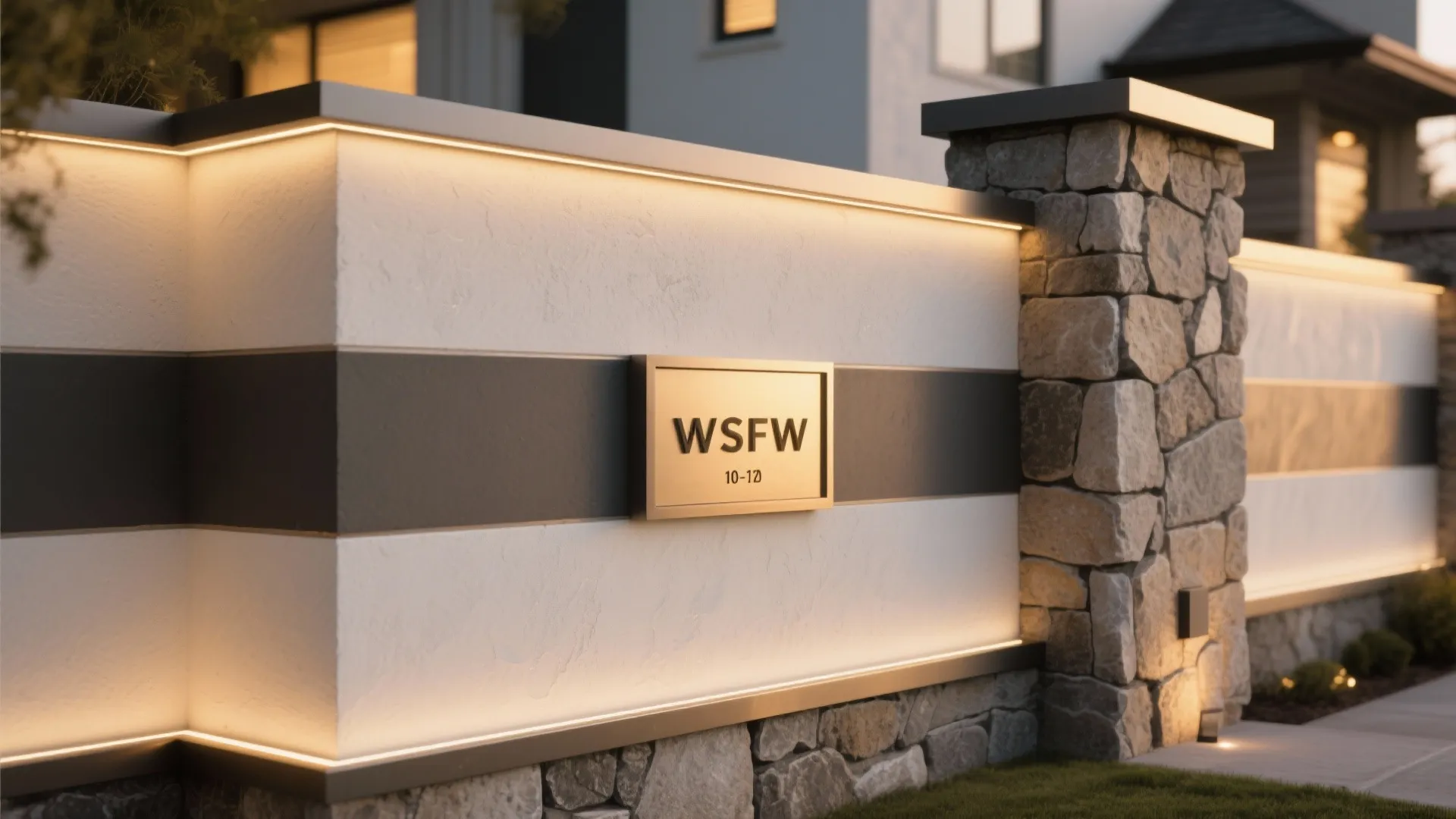

3) Texture bands, reveals, and address niche

When budgets are tight, I rely on rhythm: two-tone paint bands, 10–12 mm shadow reveals, and a clean address niche with a warm backlight. It looks tailored, hides small imperfections, and is quicker to maintain than full-height cladding.

On premium projects, I’ll mix rough-cut stone at the piers with smooth plaster infill for contrast. Before I order materials, I run a quick 3D facade study to preview how light hits textures at sunrise and night—saves costly surprises when the first coat goes on.

save pin

4) Gate geometry, lighting, and CPTED basics

The gate is a moving wall, so I treat it like a machine: hinge placement, swing clearances, driveway slope, and the turning circle of your car (most SUVs are ~5.5–5.8 m) all matter. Align the pedestrian entry where street sightlines are best, and position the intercom or keypad so visitors aren’t stranded in traffic.

For safety and style, I recess warm 2700–3000K step lights in piers, add shielded downlights over the address, and keep plantings low near the gate for visibility. Conduits for cameras and a mail/parcel slot baked into the masonry now will spare you surface wiring later.

save pin

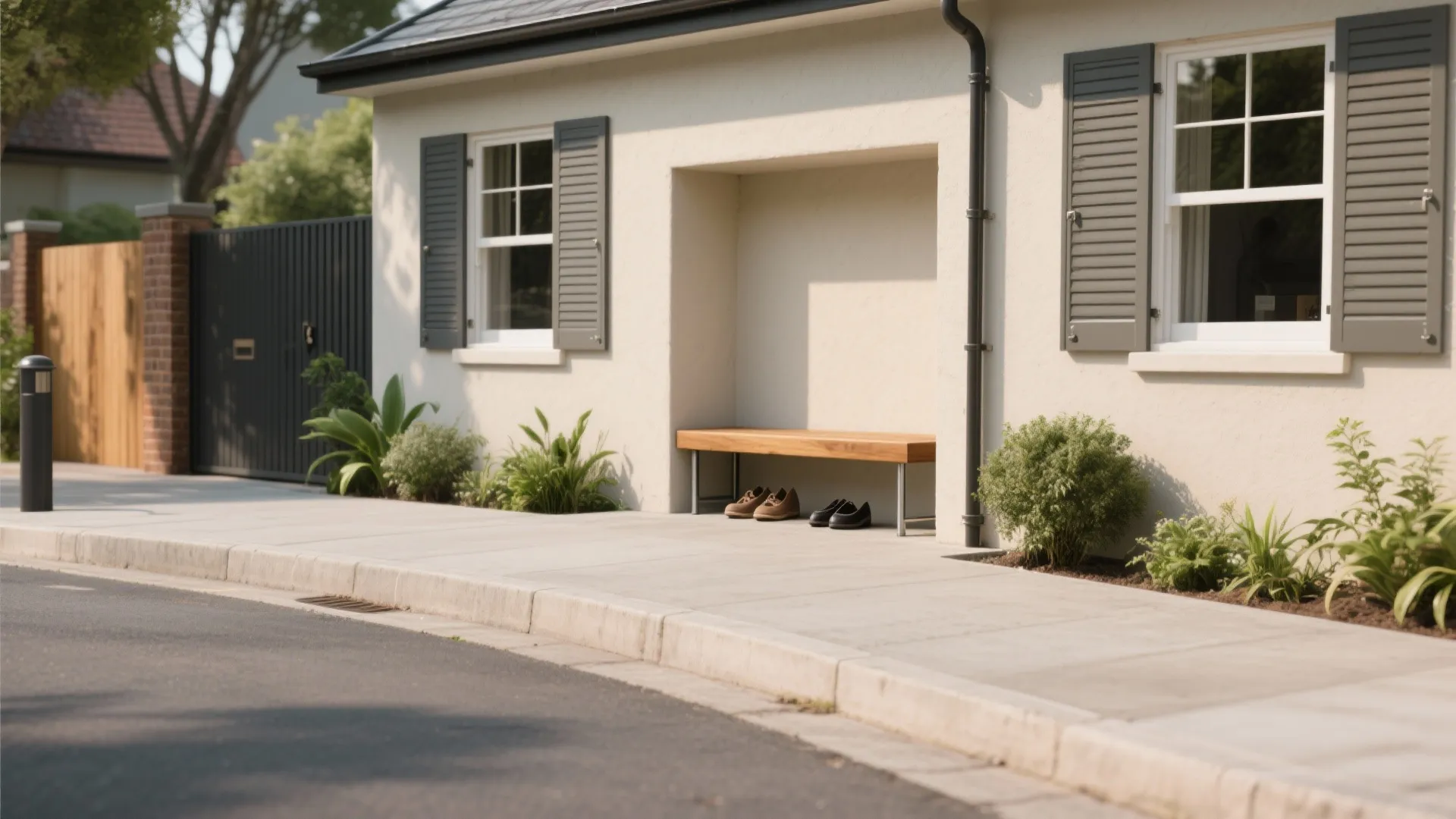

5) Corners, curves, and mini-seating alcoves

Sharp plot corners are where fender-benders happen; a chamfered or gently curved corner pier improves turning and looks elegant. On the inside, I sometimes carve a 1.2 m bench alcove into a thicker section of wall—perfect for shoe-changing or a quick chat with the delivery person.

Curves need good shuttering and a patient mason, so price them early. To pick finishes fast without decision fatigue, I’ll assemble an AI mood board with 2–3 cohesive palettes—then we stress-test them against your sun, dust, and budget realities.

save pin

FAQ

1) What’s the ideal height for a bungalow compound wall?

Most residential walls sit between 1.5–2.1 m for privacy and comfort. Always verify local bylaws and corner visibility rules; some cities cap street-facing walls or mandate transparent upper sections.

2) Which materials work best near the coast?

Reinforced concrete with waterproof plaster, mineral or elastomeric paint, and 304/316 stainless or hot-dip–galvanized steel hold up well. Avoid soft limestone and uncoated mild steel, which can weather and corrode quickly.

3) How do I balance privacy with airflow?

Use a solid base plus a ventilated mid-band (slats, jaali, perforated metal) to block sight lines while letting breezes pass. Plant hedges or creepers inside the wall to add depth without making the facade heavy.

4) Can I integrate planters into the wall?

Yes—just detail waterproofing on the wall face, keep soil off the plaster, and add weep holes and a drip line. Choose roots that won’t pry at masonry, and leave a maintenance path so trimming doesn’t require a ladder circus.

5) How wide should my gate be for an SUV?

For typical SUVs, a clear opening of 3.0–3.6 m feels comfortable if your driveway is short or the street is tight. Pair this with hinge placement that maximizes the opening angle, and check the vehicle’s turning circle in your site plan.

6) How can I light the wall without glare?

Stick to shielded, warm LEDs (2700–3000K) with IP65 or better, and aim light down or across textures, not into eyes. Motion sensors at the gate and low-level path lights reduce energy use and improve safety.

7) Are there safety design principles I should follow?

Yes—CPTED (Crime Prevention Through Environmental Design) supports clear sightlines, appropriate lighting, and controlled access. See: U.S. Department of Justice, COPS Office, “Using Crime Prevention Through Environmental Design in Problem-Solving” (2011).

8) Do I need a structural footing for the wall?

Absolutely; even low walls need proper foundations sized to soil conditions and wall loads. Include movement joints, especially with mixed materials, and consult a local structural engineer for details and rebar schedules.
