Cantilever Balcony Design: 5 Space-Savvy Ideas: A senior designer’s field notes on structure, comfort, and style for small yet stunning cantilevered balconies

[Section: Introduction]

Over the past few years, I’ve watched cantilever balcony design move toward slimmer profiles, calmer lines, and materials that feel light but perform hard. As someone who lives and works in compact urban homes, I’ve learned that small spaces spark big creativity—especially when a balcony literally floats from the facade. In this guide, I’ll share 5 design inspirations rooted in my projects and backed by expert sources, so you can balance structure, comfort, and style with confidence.

[Section: Inspiration List]

Slim Concrete Cantilever: Thin-Slab Confidence

My Take

I still remember the first time a client asked for a balcony that felt like a blade—no heavy droop, just an elegant edge. We achieved it with careful reinforcement and crisp detailing, then rendered the scheme to visualize clean cantilever lines that keep the facade calm before a single bar of rebar went in. The result looked effortless, but beneath the surface it was all about deflection control and waterproofing discipline.

Pros

A properly engineered thin slab cantilever balcony can meet deflection criteria while delivering that minimalist silhouette homeowners love. You’ll work closely with structural engineers to align span, depth, and rebar to meet balcony load requirements per your local code (see IBC 2021 Table 1607.1 for minimum live loads; source: ICC IBC 2021). The long-tail upside is clear: a thin slab cantilever balcony detail often reduces fascia bulk, improves daylight to windows below, and enhances resale appeal.

Cons

Thin doesn’t mean simple. Formwork tolerances, cantilever reinforcement congestion, and careful cover at the edge can slow pours and increase labor. And unless detailing is precise, the very slimness you want can amplify issues like ponding at tiny sags or a wavy drip edge—nobody wants “modern” to wobble in the sunlight.

Tips / Case / Cost

On a recent 1.6–1.8 m projection, we thickened the edge by 20–30 mm on the underside with a very subtle kick—the shadow line hid it, the span thanked us, and the client never noticed. Budget 10–15% extra for meticulous edge tooling and higher grade sealers. If you’re re-cladding below, coordinate drip edge positions early to avoid streaking.

save pin

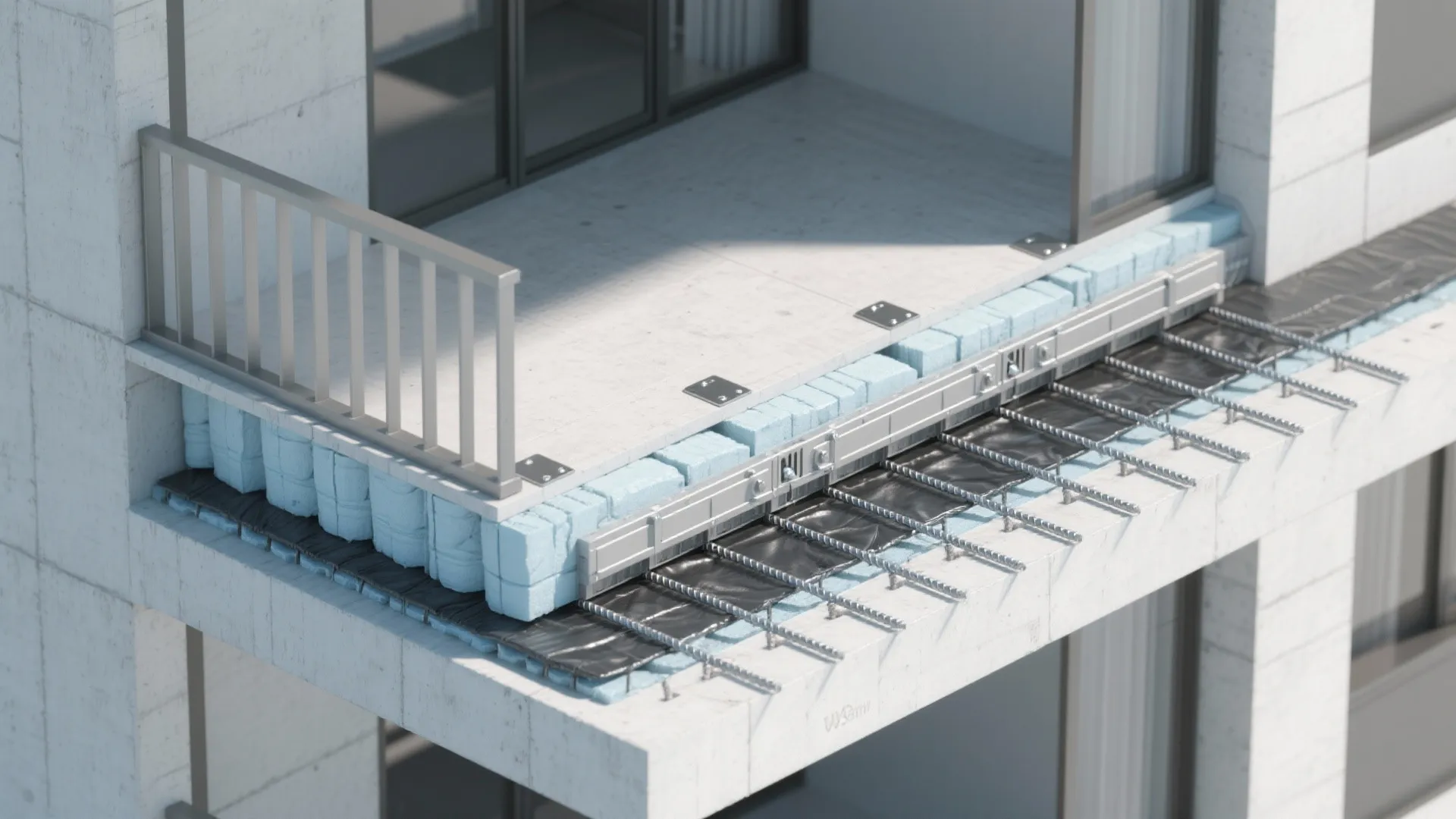

Thermal Break Connectors: Warm Feet, Dry Lines

My Take

Years ago, I learned the hard way that a concrete balcony can siphon heat from an interior slab like a giant cold spoon. We retrofitted a thermal break balcony connector on the next project, and winter comfort jumped while condensation streaks on the interior floor vanished. Now, on new builds, I consider thermal breaks as non-negotiable as a waterproof membrane.

Pros

Using a thermal break balcony connector reduces linear thermal bridge losses (psi-values), helping interior surfaces stay above dew point and improving energy performance. In fact, thermal bridge control is a cornerstone of high-performance envelopes; see guidance from the Passive House Institute on limiting thermal bridging and avoiding surface condensation (Passive House Institute). For long-term comfort, this long-tail strategy—thermal break balcony connector selection—pays back in fewer cold spots and happier toes.

Cons

It adds cost and coordination with structure, especially where rebar patterns are complex. Details at the connector can slightly increase balcony depth or change rebar placement; expect a few rounds of drawings between architect, engineer, and installer. If you skip it in cold climates, you’re signing up for chilly thresholds and potential condensation headaches later.

Tips / Case / Cost

Ask for published thermal performance values (e.g., psi and chi) and confirm fire and structural ratings for your region. In my projects, the premium has run 3–7% of balcony structural cost but saved much more in energy and maintenance over time.

save pin

Steel Retrofits: Bolt-On Box Balconies for Old Facades

My Take

For older masonry buildings, we’ve had great success with steel “cassette” balconies—essentially a pre-engineered frame bolted back to the primary structure. The visual is light, the install is fast, and the interior stays undisturbed. We prototype aesthetic and sightline options first, often with a quick 3D feasibility check to keep projections in proportion to the facade.

Pros

This approach shines for the long-tail need of a steel cantilever balcony retrofit: minimal disruption and modular quality control. Prefabricated frames can integrate drainage, decking, and glass balustrades, reducing on-site chaos. I like to mock up the balcony volume in 3D to test sightlines and privacy angles against neighbors before we drill a single anchor.

Cons

Thermal bridging at the brackets is real; consider thermal pads or isolators where applicable. Vibration can be more noticeable on light steel balconies, especially at the outer edge—test with tuned mass or stiffeners if needed. And yes, permitting can take time when anchors engage heritage masonry—build that into the schedule.

Tips / Case / Cost

Plan for hot-dip galvanizing or high-performance coatings; coastal zones will eat unprotected steel. Add a maintenance note: rinse salt and grime seasonally. Retrofit projects vary wildly, but as a ballpark, the steel balcony package (frame + balustrade + deck) can run 20–40% higher than a simple slab extension, offset by quicker installation and cleaner interfaces.

save pin

Glass Balustrades: Transparent Edges, Safer Heights

My Take

When I’m designing for tight urban views, glass keeps the city alive in the room. A clear balustrade on a cantilever balcony turns a 1.2 m projection into a visual extension of the living space. My favorite moment is that first step outside—no heavy pickets, just air and light.

Pros

A glass balustrade for cantilever balcony edges reduces visual weight and maximizes daylight bounce, which is a real plus for small apartments. Framed or base-shoe systems can meet local wind and impact codes while preserving transparency; check local regulations or ASCE 7 wind design criteria via your engineer. As a long-tail benefit, laminated low-iron glass reduces green tint and keeps color rendering truer inside the home.

Cons

Fingerprints and city dust are honest maintenance tasks—embrace a squeegee or schedule a seasonal clean. Birds can be a concern with highly reflective glass; subtle frit patterns or dot films mitigate collisions. If you’re absolutely smudge-averse, consider a satin or acid-etched panel at hand height.

Tips / Case / Cost

For view-heavy settings, I spec 12.76–16.76 mm laminated glass with a PVB or SentryGlas interlayer, depending on span and code. A slim stainless top rail can protect edges without ruining the vibe. In windy sites, I tune panel widths to reduce drumming and integrate minimal post spacing to keep deflections in check.

save pin

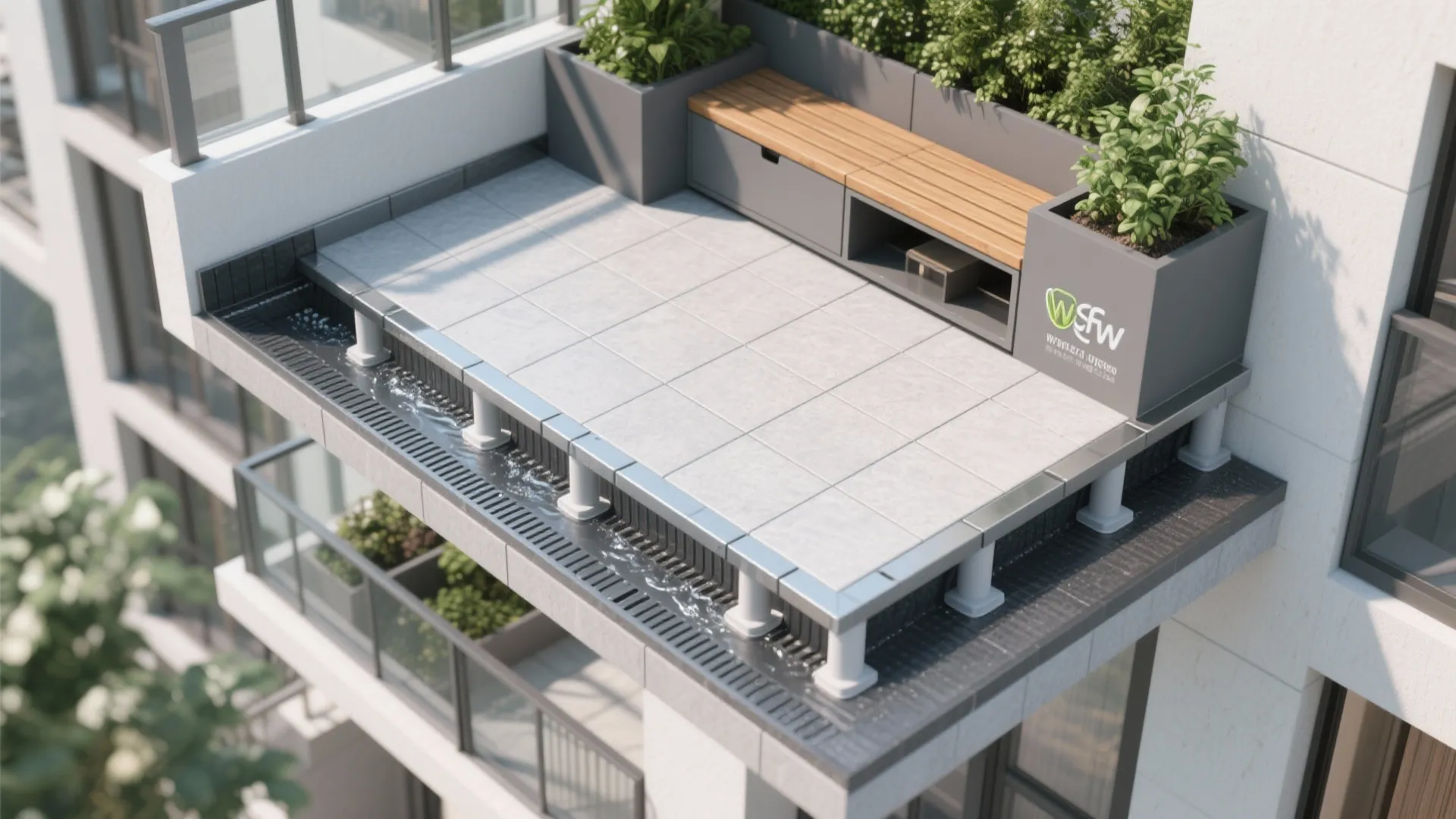

Drainage, Tiling, and Multi-Use: Make Every Millimeter Work

My Take

The best small balconies do three jobs at once—outdoor room, drying zone, and a perch for plants. On one micro-project, we tucked a bench with hidden storage against the wall, added power for a small heater, and detailed a foolproof drainage build-up under deck tiles. Suddenly, a tiny balcony felt like a bonus room rather than a slab in the sky.

Pros

A robust balcony drainage detail (with at least 1–2% fall and a continuous waterproofing membrane) keeps the underside stain-free and the interior dry. Pedestal pavers or deck tiles let water move freely while hiding slopes, and an integrated drip edge prevents tiger-striping on the facade. For small-space gains, I love compact seating that doubles as storage—the long-tail win is clutter-free comfort without crowding.

Cons

Layered build-ups add height, so door thresholds and accessibility must be coordinated early. Tile or stone adds weight; check structural capacity and confirm slip resistance. And I say this with love: under-planting trays need real drainage—the prettiest herb box turns tragic after the first storm if water has nowhere to go.

Tips / Case / Cost

Specify a two-stage drain where possible (surface + membrane level). Use porcelain pavers (20 mm) over pedestals for durability; they’re lighter than thick stone and easier to swap. For power, plan a weatherproof outlet with a drip loop; nothing kills balcony joy like trailing extension cords.

[Section: Summary]

Designing a small cantilevered balcony isn’t a limitation—it’s an invitation to be smarter. From structural backbone to thermal comfort and transparent edges, cantilever balcony design rewards thoughtful detailing and honest maintenance planning. If you want a broader technical view, BS 8579:2020 offers guidance on balcony and terrace design (source: BSI). Which of these 5 ideas are you most excited to try on your next project?

[Section: FAQ]

save pin

FAQ

1) What is cantilever balcony design?

It’s a balcony that projects from the building without visible columns or posts below. Structure within the floor or wall carries the load back into the building, creating a floating appearance that maximizes light and views.

2) How much weight can a cantilever balcony hold?

Loads are set by local code and engineering. For reference, the IBC 2021 assigns minimum live loads to balconies (see Table 1607.1; source: ICC), but your engineer will verify capacity for your specific span and materials.

3) Do I need thermal break connectors?

In cold or mixed climates, yes—thermal break balcony connector systems reduce heat loss and condensation risk. They improve comfort at the threshold and help maintain interior finishes over time.

4) What’s the best railing for a small cantilever balcony?

Glass balustrades keep sightlines open and make the space feel larger. If privacy is key, mix translucent panels with clear corners, or use slender vertical bars to limit views in while preserving airflow.

5) How thick should a thin slab cantilever balcony be?

There’s no one-size answer; the slab thickness depends on span, reinforcement, and deflection limits. In practice, I coordinate with engineers to meet thin slab cantilever balcony goals without sacrificing serviceability.

6) How do I handle drainage on a cantilever balcony?

Provide 1–2% slope to a drip edge or drain, and protect the structure with a continuous waterproofing membrane. Pedestal pavers or deck tiles let you keep a flat walking surface while water flows below.

7) Can I retrofit a cantilever balcony on an older building?

Often, yes—steel box balconies or bracketed systems can be attached to primary structure, subject to engineering and permits. A steel cantilever balcony retrofit can be fast and modular, but mind thermal bridging and anchor details.

8) What finishes work well outdoors?

Porcelain pavers, composite decking, and powder-coated aluminum hold up beautifully with less maintenance. For metal, specify hot-dip galvanizing or marine-grade coatings in coastal zones to limit corrosion.
