Ceiling Design for Living and Dining Room: 5 Ideas: My field-tested ceiling ideas that make small living–dining rooms feel taller, lighter, and more connected

[Section: 引言]

I’ve redesigned dozens of small living–dining combos, and the biggest unlock recently has been ceiling design for living and dining room spaces. With homeowners leaning into layered lighting, acoustic comfort, and soft curves in 2025 trends, I’ve found small spaces spark the biggest creativity. In this guide, I’ll share 5 ceiling design ideas I’ve personally built and tested, blending my experience with expert data so you can plan with confidence.

Before we dive in, here’s a real project mindset shift: when we treat the ceiling as a fifth wall, it visually zones open-plan rooms, improves lighting, and even calms noise. In the first idea below, I’ll show how a subtle lighting trough can double as a visual divider—and how we modeled it with L-shaped layout freeing more counter space in a connected kitchenette to get proportions right.

[Section: 灵感列表]

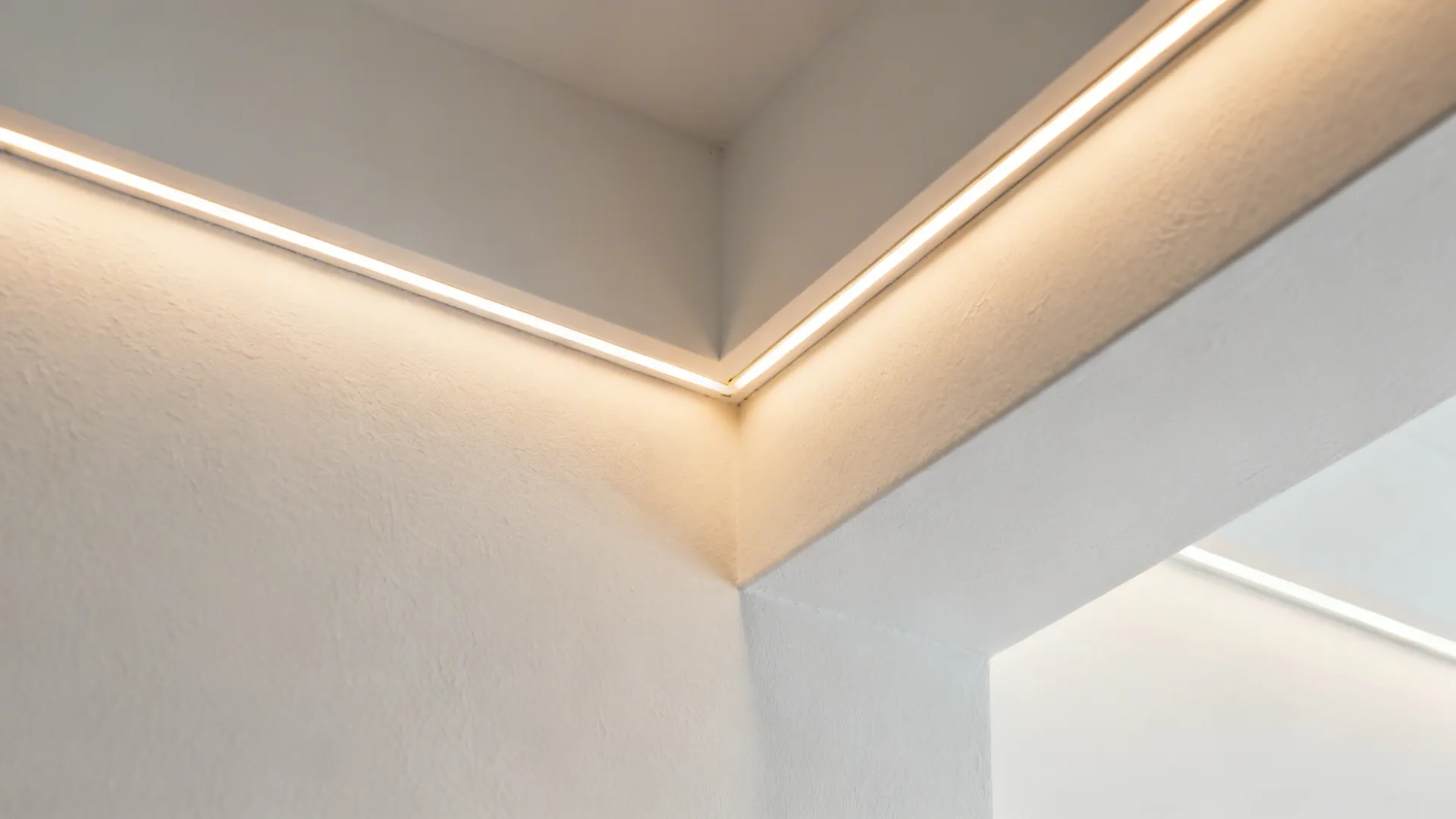

Soft cove with layered lighting

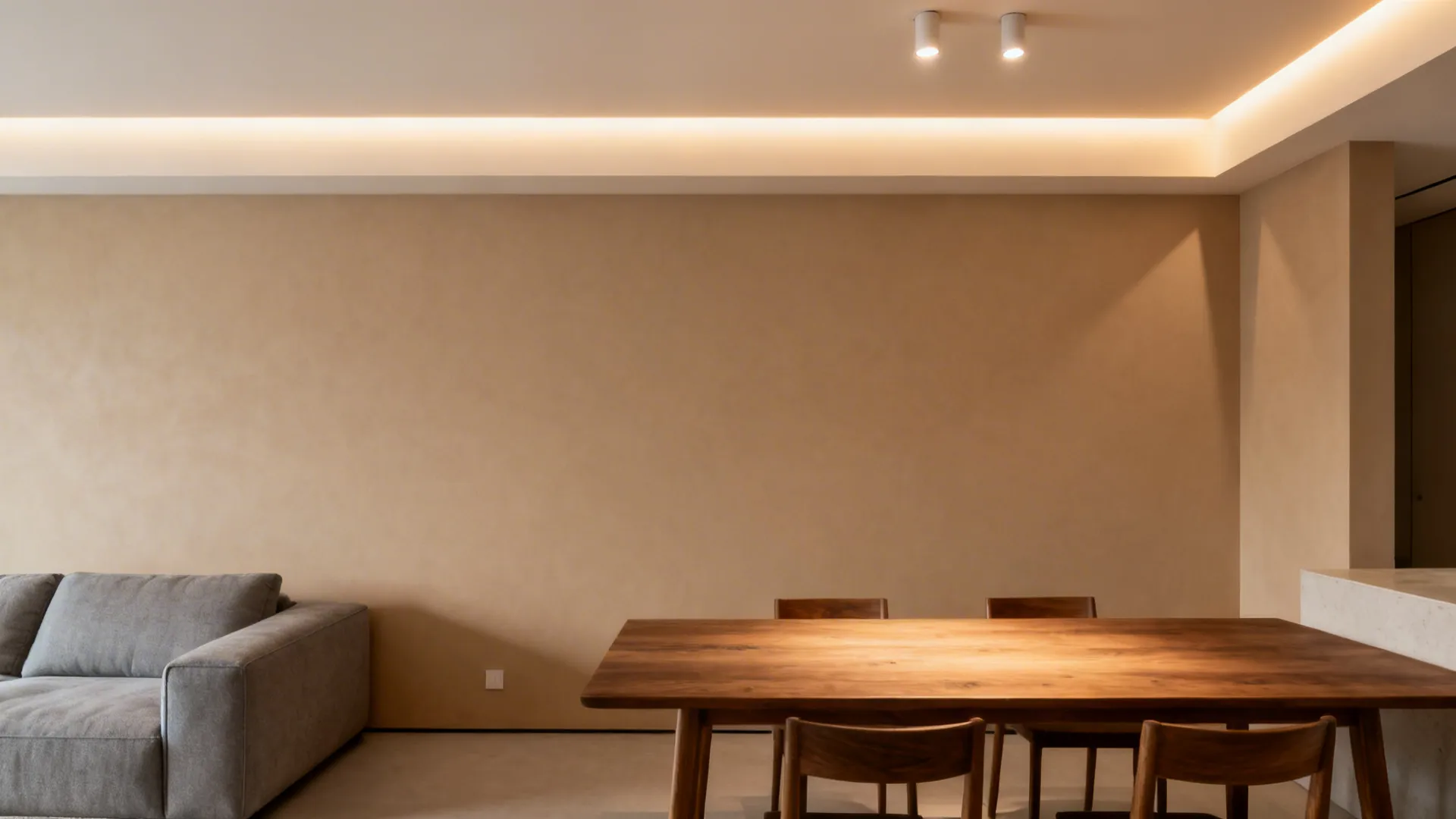

My Take. I once renovated a 24 m² living–dining room where a 60 mm cove transformed the mood—dinners felt intimate, movie nights felt cinematic. I kept the cove shallow to protect ceiling height, then layered warm 3000K LEDs with dimmable spots for task light over the table.

Pros. A cove adds gentle, indirect illumination that reduces glare and makes a low ceiling feel higher—an ideal long-tail approach to ceiling design for living and dining room spaces. Layered lighting lets you tune scenes for dining, reading, or entertaining. The IES Lighting Handbook notes indirect lighting improves uniformity and visual comfort in mixed-use rooms (Illuminating Engineering Society, 2020).

Cons. You’ll lose a few centimeters to framing, and LED strips of poor quality can flicker or color-shift—nothing kills dinner vibe faster. Dust tends to settle in troughs; I budget for a quick quarterly clean and specify silicone-coated strips to resist grime.

Tips / Cost. Aim for 10–15 cm set-back from the wall for a soft wash; choose 90+ CRI LEDs so food and fabrics look right. For a 5–6 m perimeter, materials and pro install often land around $800–$1,800 depending on finish and dimming system.

save pin

save pin

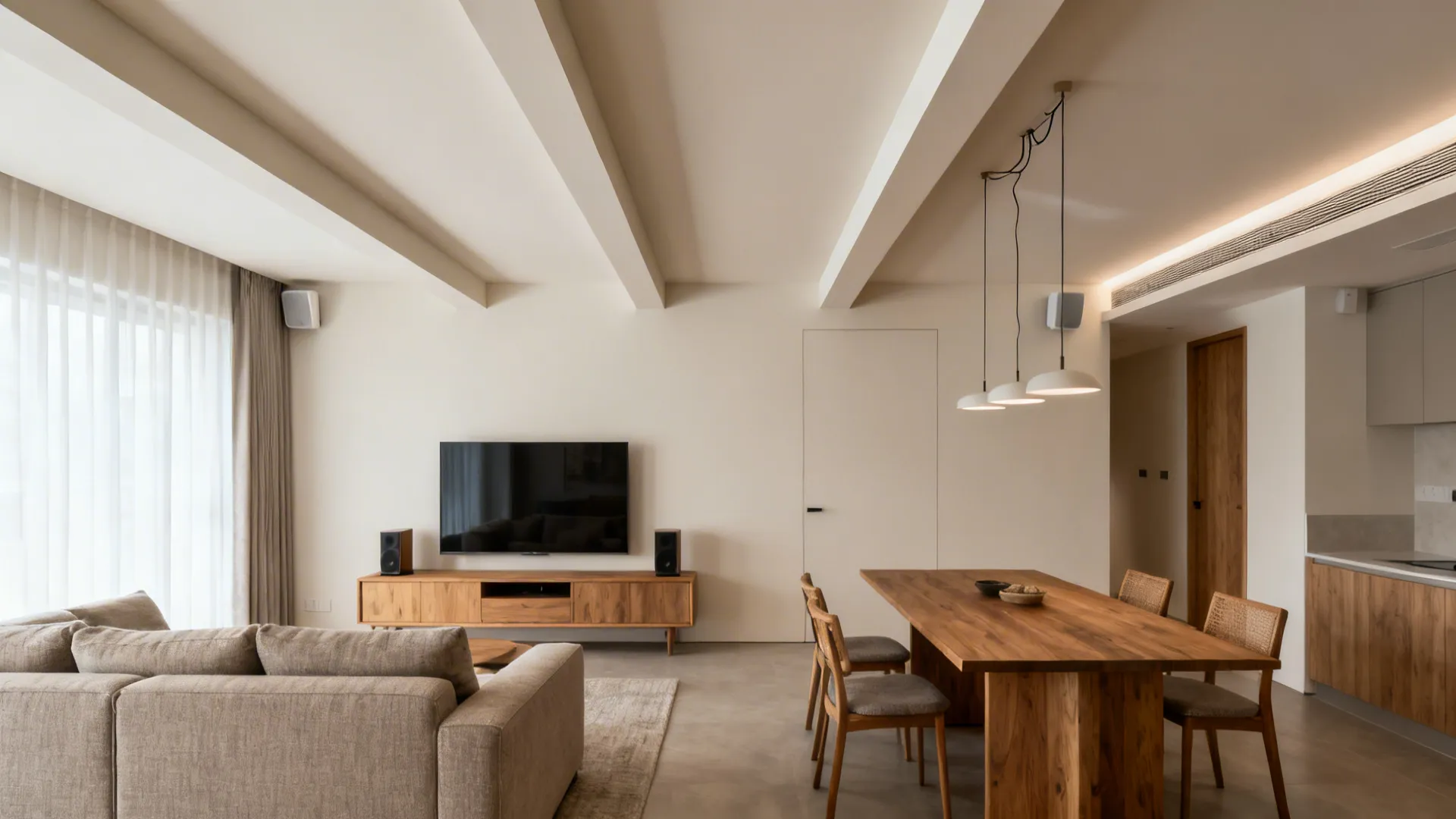

Slim beams for rhythm and zoning

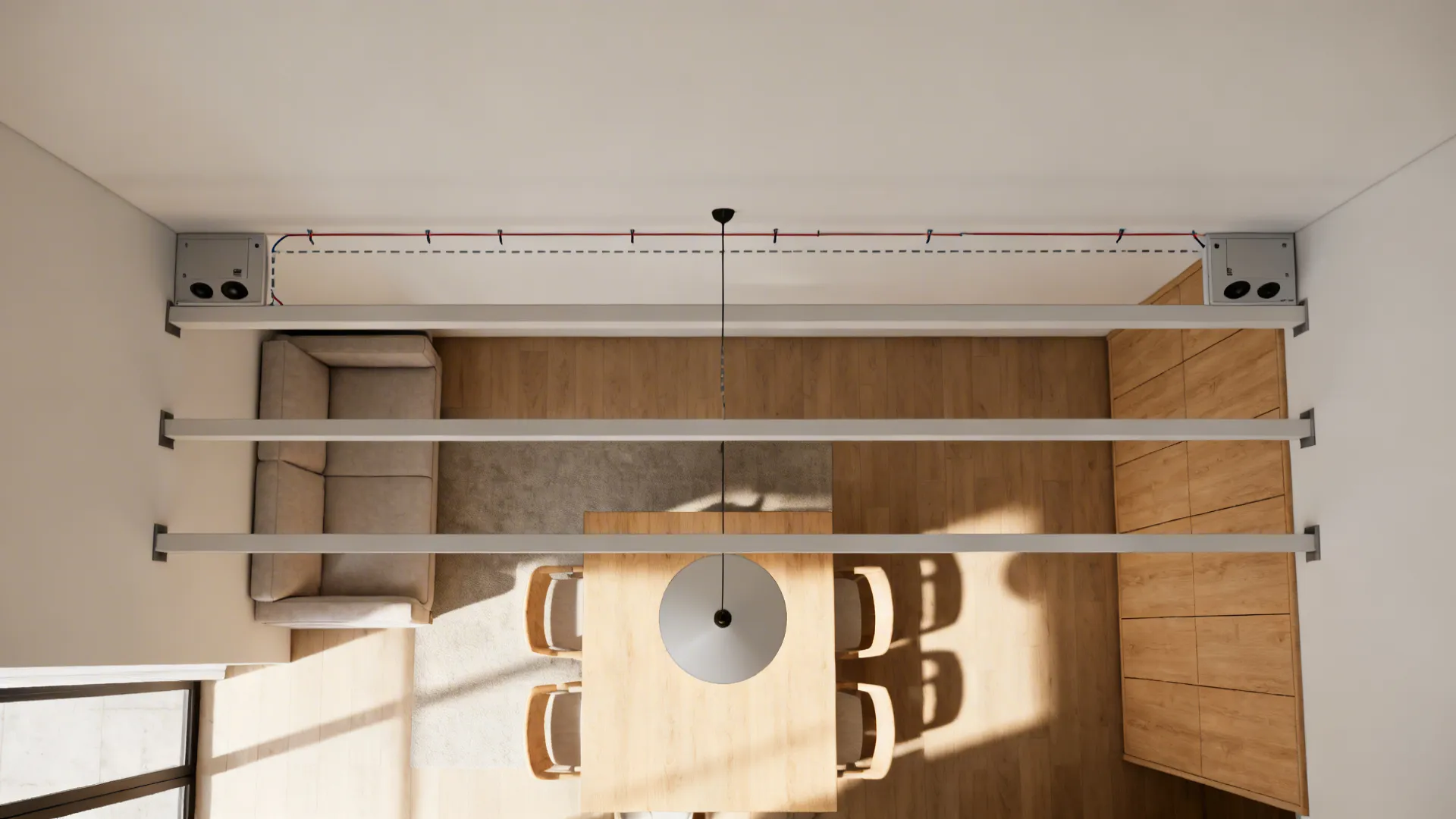

My Take. In a long, narrow room, I introduced three slim, painted MDF beams at 900 mm spacing over the living area only. It created rhythm without heft and subtly zoned lounge versus dining without adding walls.

Pros. Beams add architectural interest and can hide wiring for pendants and speakers—a practical long-tail tactic for multi-use ceiling design for living and dining room layouts. Painted the same color as the ceiling, they read as shadows, not bulk. They also help align lighting with furniture, improving task placement.

Cons. True structural beams are heavy and costly; that’s why I use light MDF or aluminum channels. In very low rooms (≤2.5 m), even slim profiles can feel intrusive if the spacing is tight—test with cardboard mockups first.

Tips / Case. Keep beams under 40–60 mm depth for apartments. If you’re routing cables within, plan junctions before plastering. In one condo, we pre-cut access panels at beam ends—my future self thanked me when the client upgraded to smart controls.

At the midpoint of a project, I often evaluate alternatives with 3D tests. For example, I compared beam rhythm to a shallow tray using a quick scene and evaluated how glass backsplash makes kitchens feel more open in adjacent views to ensure materials harmonized across zones.

save pin

save pin

Color-blocked tray ceiling

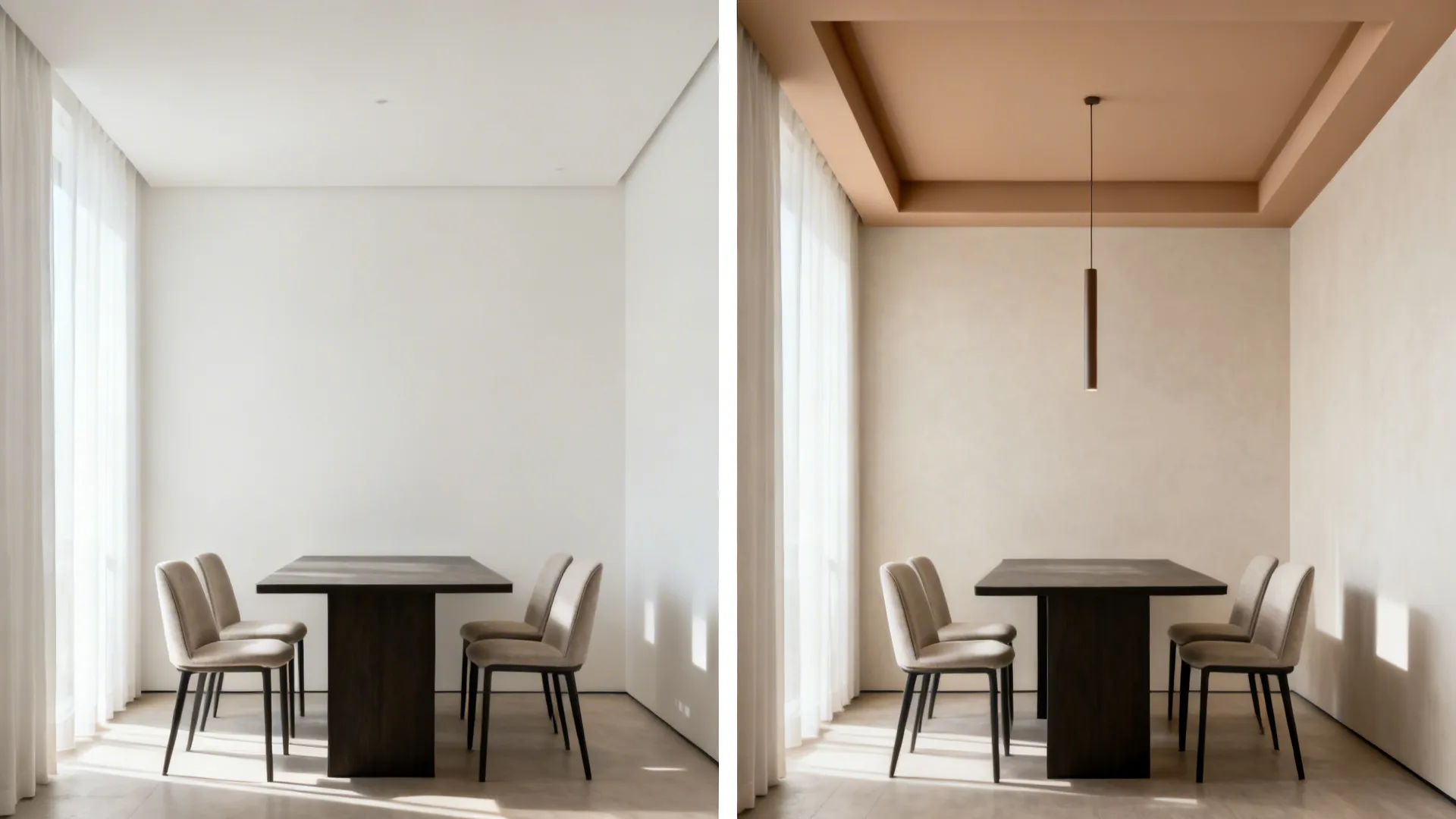

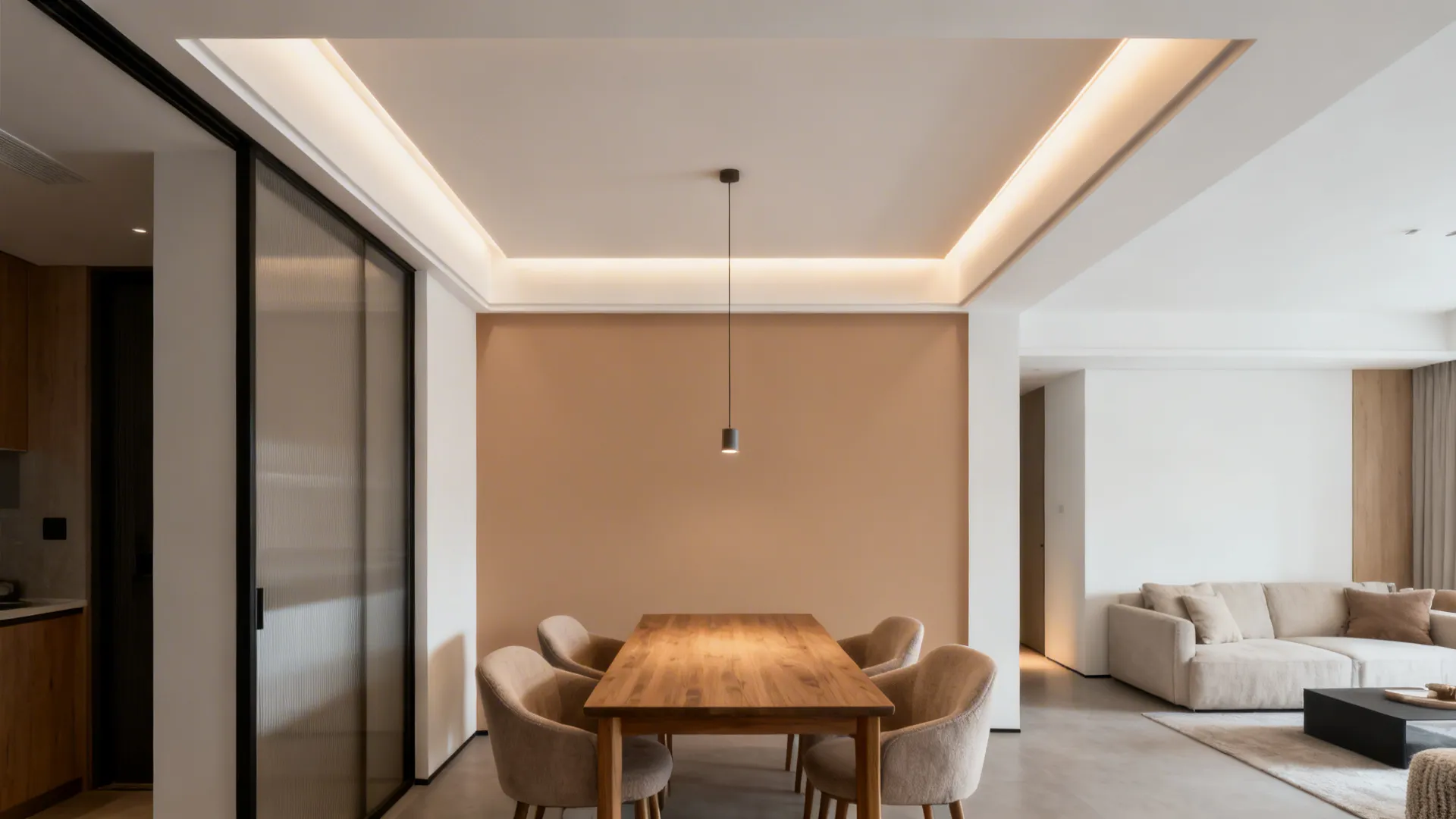

My Take. A 20 mm recess with a contrasting paint color instantly differentiated dining from living in a compact loft I did last year. Instead of lowering the whole ceiling, we only stepped the tray within the dining footprint, then ran a slim pendant dead center.

Pros. A shallow tray gives the illusion of height where you need focus and doubles as a visual boundary—great for a ceiling design for living and dining room that shares one volume. Color blocking adds personality without heavy carpentry. ASID’s 2023 trend survey notes color-driven zoning in open plans is rising as a budget-friendly strategy (ASID, 2023).

Cons. Poor paint lines or uneven drywall joints can be obvious under grazing light—hire a finisher who obsesses over seams. If you overdo the contrast, the dining zone may feel boxed in; keep the delta subtle (e.g., warm white to clay beige).

Tips / Cost. Use a satin finish on the tray verticals to bounce light; keep the ceiling plane matte to avoid hotspots. Expect $400–$1,000 for carpentry and paint in a small zone, more if you add concealed strip lighting.

save pin

save pin

Acoustic panels as a design feature

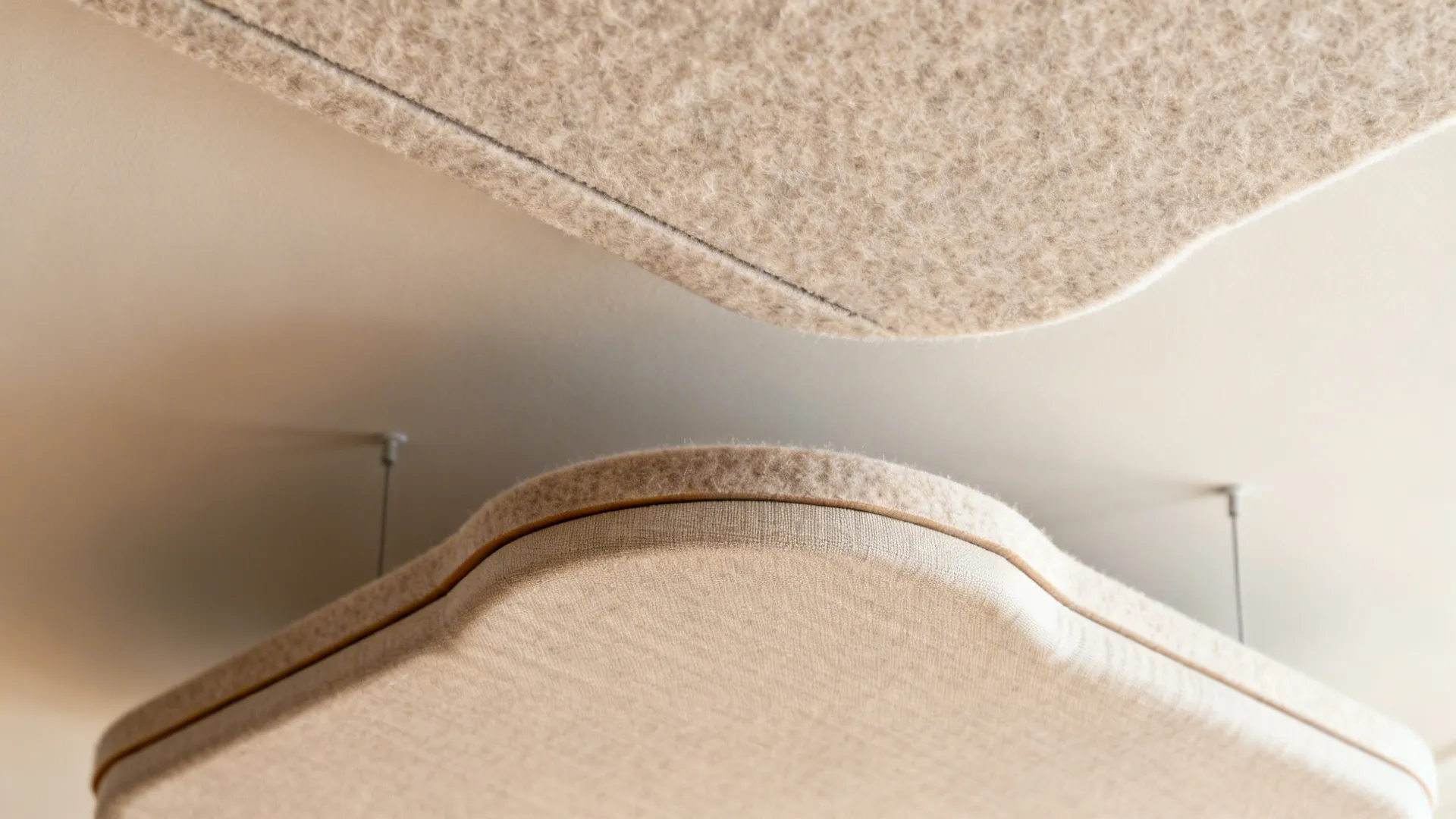

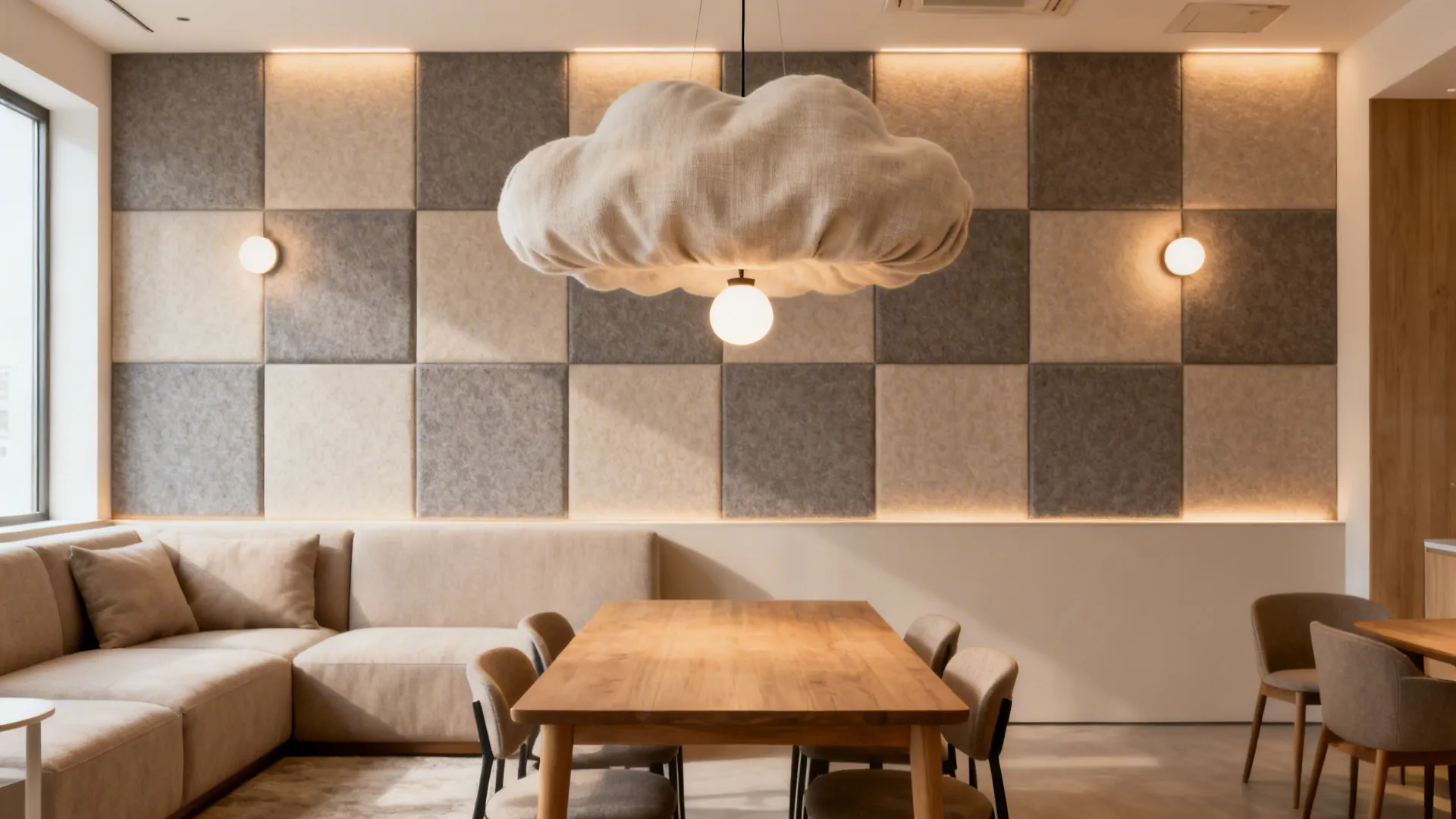

My Take. A family with lively dinners and louder movies asked for calm without carpet. We installed 25 mm PET acoustic panels in a checkerboard over the living half and a fabric-wrapped cloud above the dining table. Suddenly, conversations felt crisp instead of echoey.

Pros. Acoustic panels improve speech clarity and reduce reverberation time—vital for open-plan living–dining cells. The WELL Building Standard recommends controlling noise to support wellbeing; softened ceilings are a legit approach (IWBI, WELL v2). Panels can be decorative, adding texture and pattern while hiding minor ceiling defects.

Cons. Cheap panels can yellow or shed fibers; stick to reputable PET or mineral fiber products with fire ratings. Fabric-wrapped clouds need periodic dusting; I vacuum mine with a soft brush on low suction—otherwise, you’ll end up seasoning them with dinner aromas.

Tips / Case. Start with a target NRC around 0.7 for dining zones; you don’t need a recording studio, just enough absorption to tame clatter. Position clouds directly above the table; either center the pendant through the cloud or use two smaller fixtures to balance.

save pin

save pin

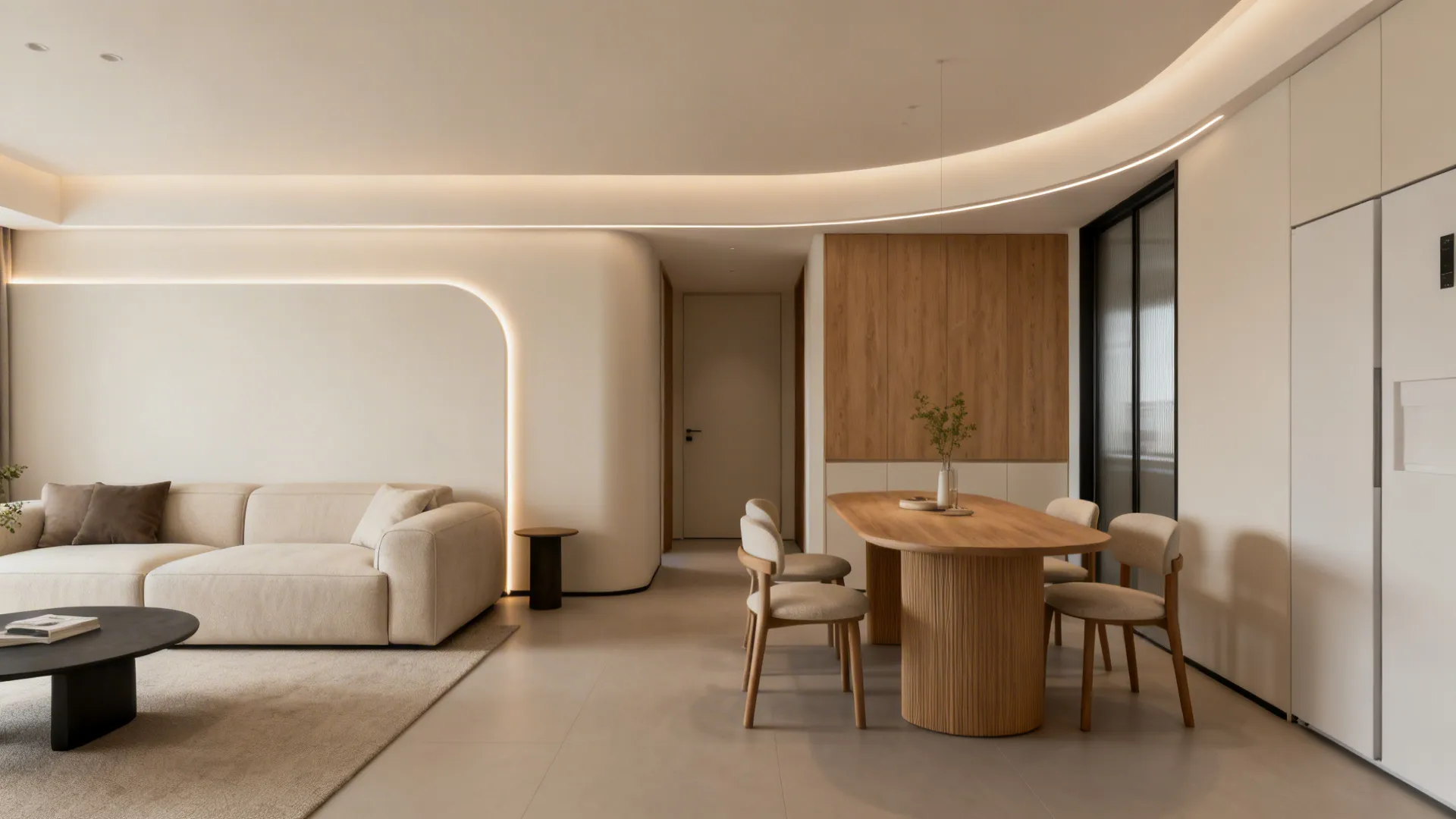

Curved edges and recessed arcs

My Take. The sharpest trick in small rooms is softening corners. I’ve used 300–450 mm radius curves at ceiling–wall junctions and shallow recessed arcs to guide the eye. It’s amazing how a gentle curve makes a compact living–dining room feel calm and continuous.

Pros. Curves reduce visual fragmentation and make circulation feel smoother—ideal for tight walkways between sofa and table. A recessed arc with hidden LEDs can create a floating line that unites both zones, a refined long-tail detail for ceiling design for living and dining room aesthetics.

Cons. Curves are unforgiving: framing must be precise, and skimming compound takes patience. If your space already has many arches (doors, niches), another curve up top can slip into theme-park territory—moderation keeps it sophisticated.

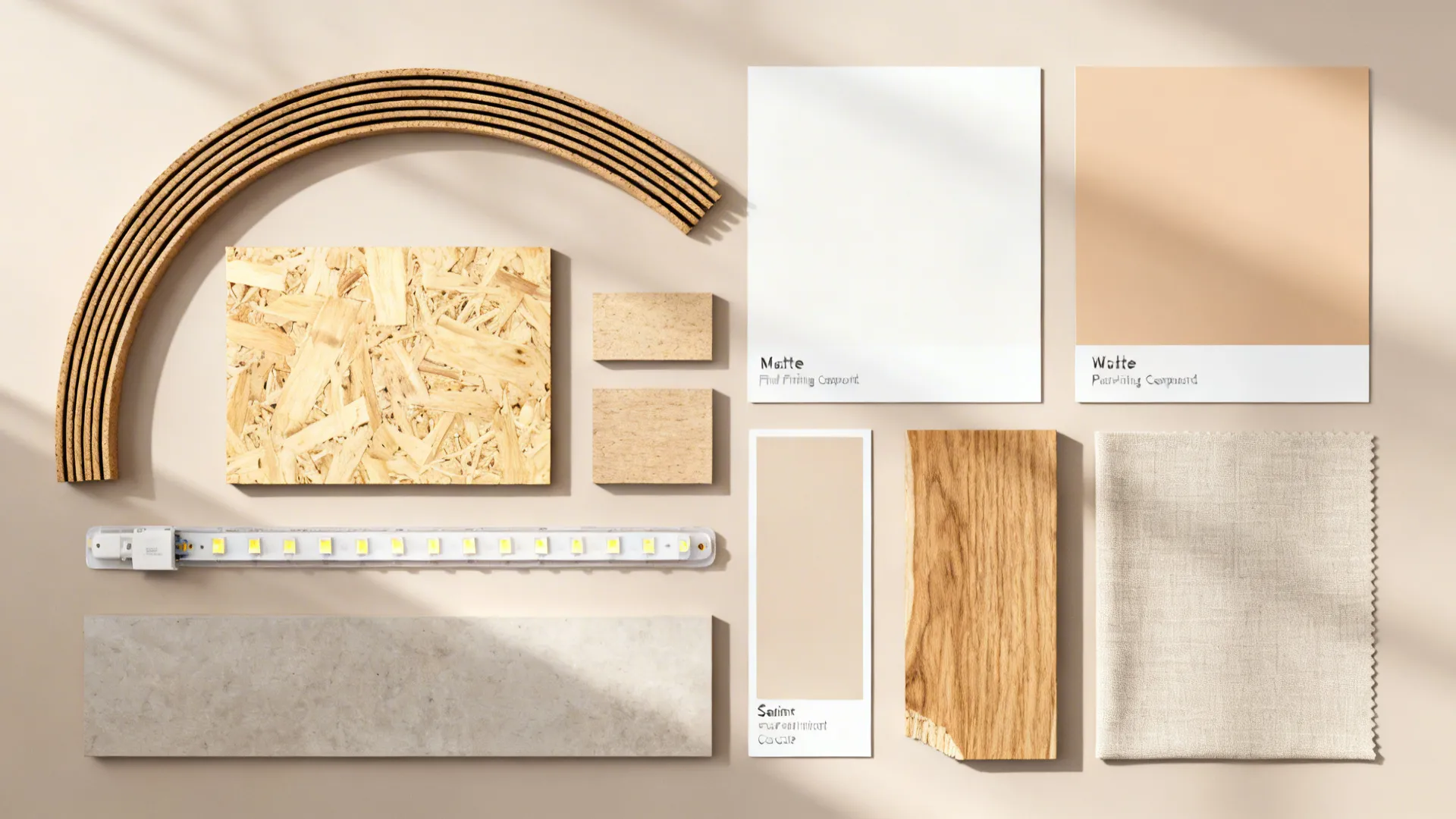

Tips / Cost. Template curves with flexible MDF or kerf-cut plywood; prime thoroughly to avoid flashing under light. Labor is the main cost driver; a single curved transition may range from $600–$1,500 depending on radius and finish. When prototyping curves, I sometimes render a few options alongside finishes—like testing how warm wood accents on built-ins shift the balance with a curved ceiling edge.

[Section: 总结]

Here’s the bottom line: a small living–dining room isn’t a limitation—it’s an invitation to be smarter with the fifth wall. Thoughtful ceiling design for living and dining room layouts can zone, light, and calm your space all at once. ASID’s guidelines and the IES both nudge us toward layered, glare-free light and functional comfort; your ceiling is the perfect canvas. Which of these five ideas are you most excited to try in your home?

[Section: FAQ 常见问题]

save pin

save pin

FAQ

1) What ceiling height works best for a cove in a living–dining room?

For ceilings at 2.6–2.8 m, keep the cove shallow (40–60 mm drop) and use indirect LEDs so you don’t visually lower the room. In taller spaces, you can deepen the profile and add a second lighting layer for drama.

2) How do I choose color temperature for layered lighting?

For mixed-use rooms, 2700–3000K feels warm for dining and relaxing, while 3500K works if you prefer a crisper tone. IES guidance favors consistent CCT within a zone to avoid patchy color rendering.

3) Can ceiling design help with open-plan noise?

Yes. Acoustic clouds or PET panels reduce reverberation so conversations are clearer. The WELL Building Standard (IWBI, WELL v2) highlights acoustic comfort as a wellbeing factor, making ceiling treatments a smart investment.

4) Is a tray ceiling dated?

Not when it’s slim and color-led. A 15–25 mm recess with a soft, earthy tone feels current and helps zone dining without heavy millwork. Keep lines clean and lighting integrated for a modern look.

5) What’s the budget range for a simple ceiling upgrade?

Paint-only color blocking might be $200–$500. A basic cove with LEDs often runs $800–$1,800; acoustic clouds can add $600–$1,200 depending on size and fabric. Smart dimming systems increase costs but boost flexibility.

6) How do I align pendants with seating and beams?

Center the dining pendant at 750–850 mm above the table surface and coordinate beam spacing so a beam doesn’t conflict with the junction box. Pre-plan conduit runs before closing the ceiling to avoid retrofit headaches.

7) Will curves make my ceiling feel lower?

Gentle curves often do the opposite by smoothing transitions and reducing shadow lines that highlight low corners. Keep radii generous (300 mm+) and finishes matte to minimize visual heaviness.

8) How do I integrate smart lighting without clutter?

Use shallow coves or beams to hide drivers and cables, and choose a single ecosystem (e.g., DALI or a reputable smart-dim platform) for consistent dimming curves. For planning, I sometimes mock up wiring paths while testing furniture flow; resources like a minimalist kitchen storage design study can help you visualize adjacent zones and keep the ceiling plan coherent.
