Chimney Position Above a Window in a Parallel Kitchen: 5 Proven Ideas: As a senior interior designer, here are five smart, field-tested ways to place a chimney near or above a window in a galley kitchen without losing ventilation, light, or storage.

I’ve redesigned more than a dozen parallel kitchens where clients insisted on keeping the window, the light, and the view—yet still wanted a powerful chimney. Current kitchen design trends lean toward brighter, airier galley spaces, and I fully agree: small kitchens spark big creativity when we plan mechanicals and storage with intention. In this guide, I’ll share 5 design inspirations for chimney placement around a window in a parallel kitchen, blending my hands-on experience with expert-backed data and buildability tips.

Before we dive in, a quick note: the “chimney above a window” question really means how to place the hood/chimney stack so that you preserve daylight, meet ducting rules, and keep cooktop clearances safe. I’ve tested multiple configurations across compact apartments and suburban remodels—what follows are the five that consistently work.

To help you visualize, I’ll break down my take, practical pros and cons (with long-tail keywords you might be searching for), and a few cost/installation notes. I’ll also link to a couple of visual planning examples for deeper exploration, because seeing the clearances in context can be a game changer for parallel kitchens and window walls.

And yes—small space, big ideas. Let’s get to the five inspirations.

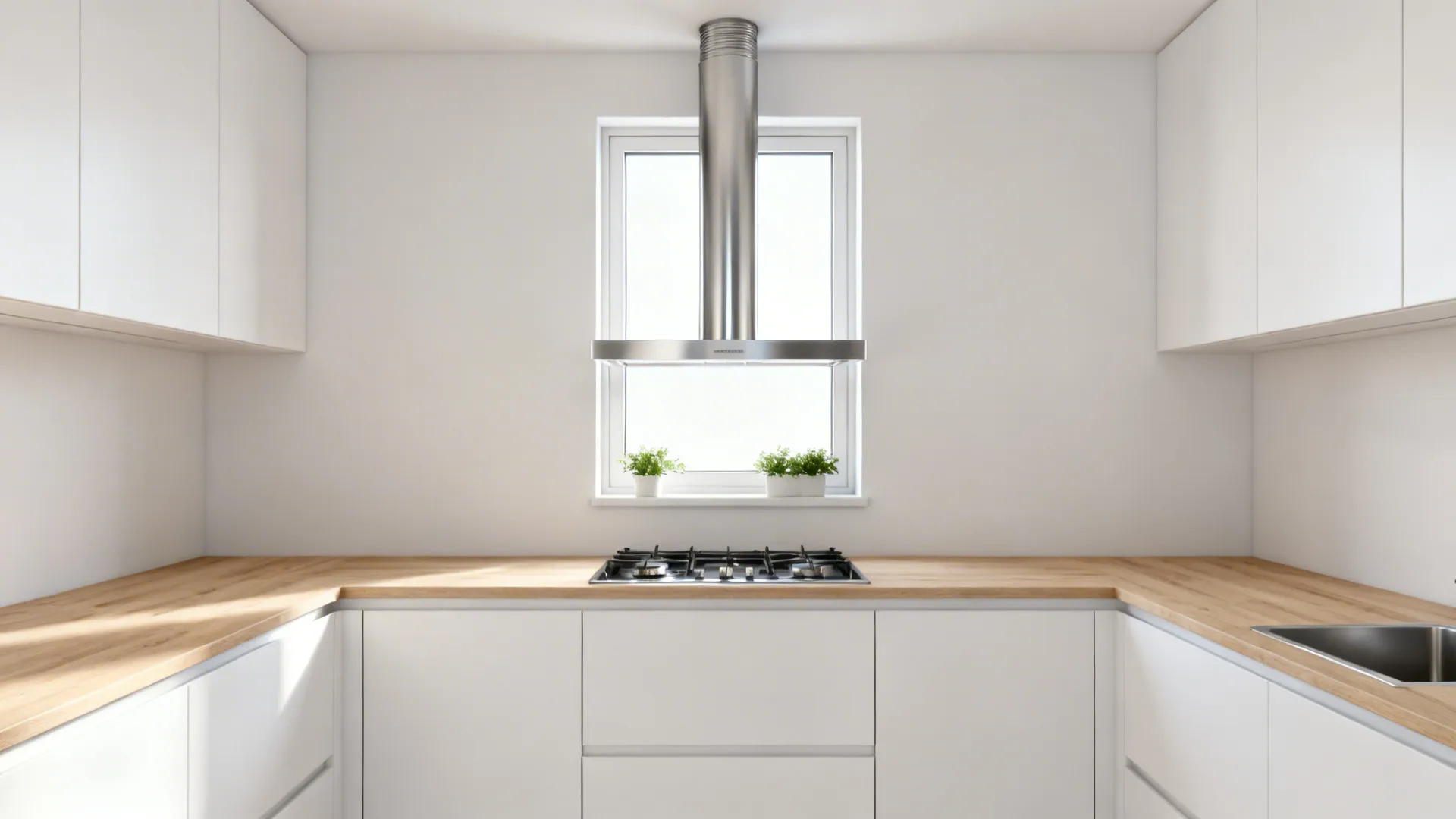

1) Slim-line chimney centered over the window mullion

My Take

I’ve used a compact, slim-line hood centered right over the window mullion when clients had a window that sits directly above the cooktop. In a narrow galley, this keeps the view intact and aligns the chimney vertically for a clean, modern look.

Pros

- With a chimney position above a window in a parallel kitchen design, a slim profile preserves daylight and maintains symmetrical sightlines. It’s great for a minimalist kitchen with a small window wall.

- Centering on the mullion helps the duct run straight up, reducing elbows that can sap effective CFM in slim ducting systems (ideal for compact apartments).

- Many modern hoods include boost modes and baffle filters that handle high-heat cooking even with a shallower body, improving galley kitchen ventilation efficiency.

Cons

- You’ll almost certainly need a custom header or steel angle support if the duct penetrates above the window head; structural coordination can add time (and some dust).

- If your window opens inward or is a tilt-turn type, the hood’s projection may interfere; measure swing arcs before purchase. I learned this the hard way on a 2.4 m-wide kitchen in Shanghai.

Tips / Case / Cost

- Plan duct diameter early; many slim hoods still require 6-inch ducting. Reducing to 4 inches can increase noise and reduce capture. Budget a small carpentry allowance for a neat trim panel over the window head.

To sketch this layout quickly, I often rough a concept and then move to a visual planner so clients can see how L shaped layout frees more counter space on the opposite run without cramping the window wall.

save pin

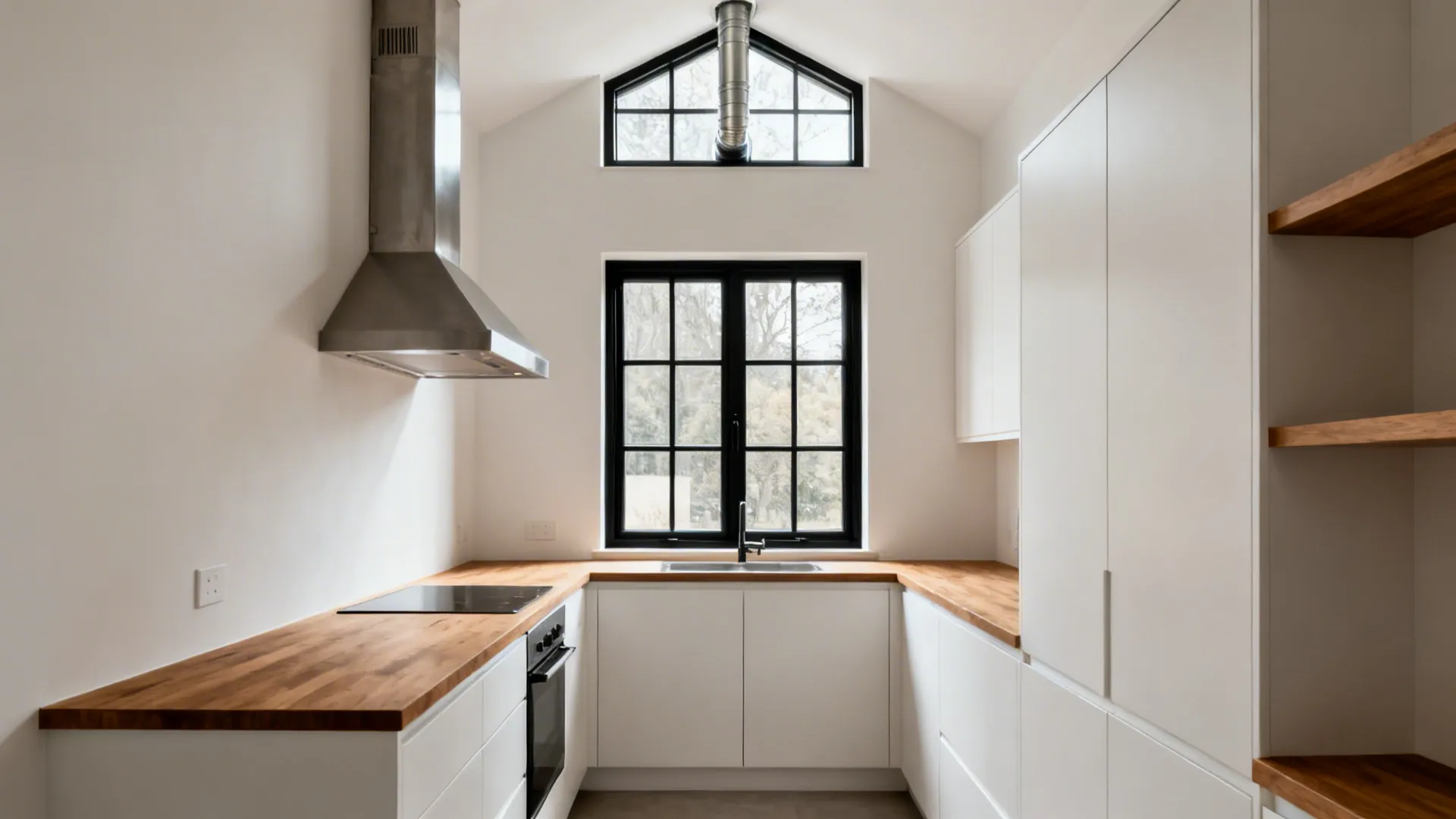

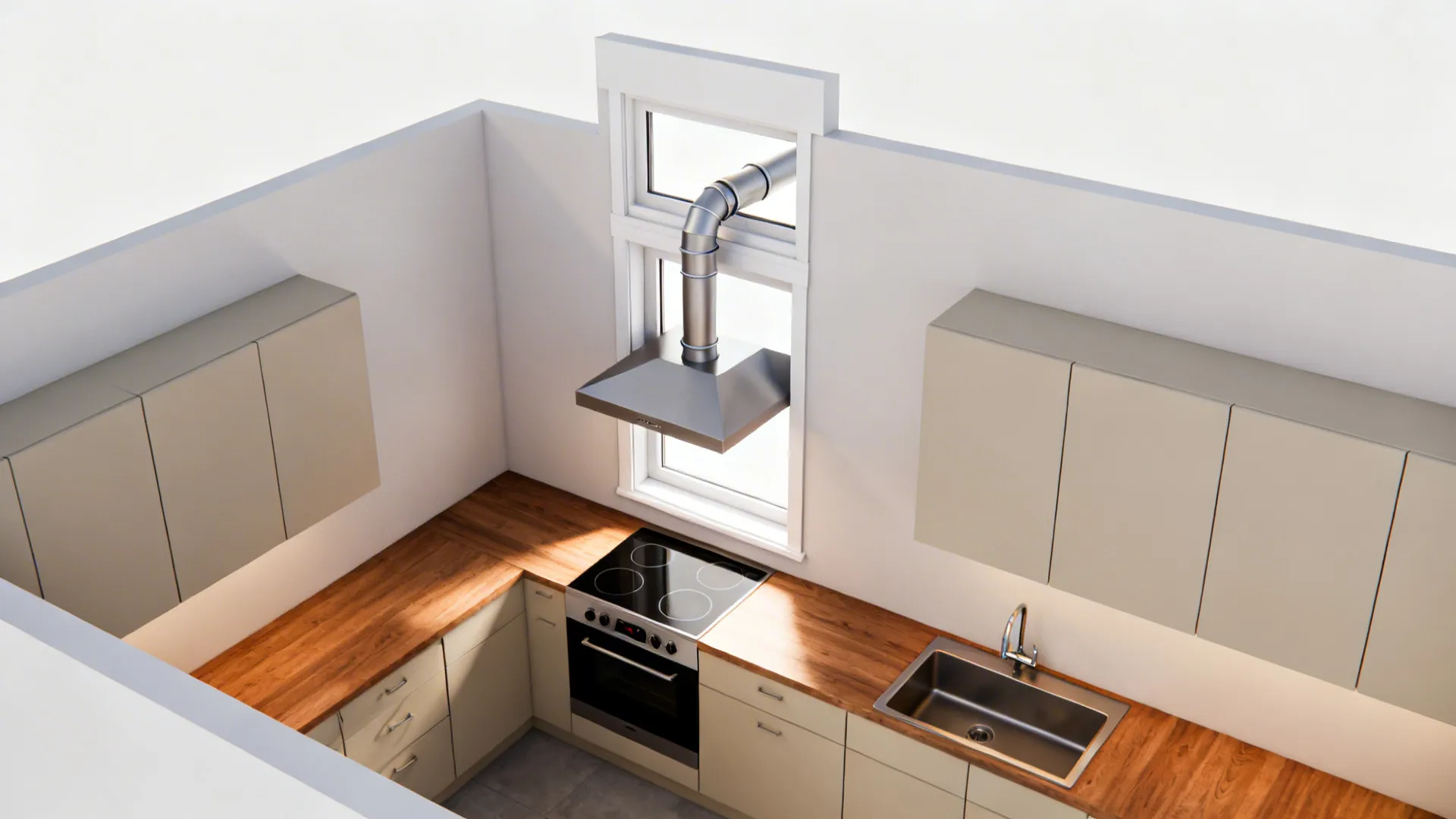

2) Side-shifted chimney with offset ducting and a fixed-glass transom

My Take

When the window sash interrupts a clean upward duct path, I side-shift the hood a few inches and insert a fixed-glass transom above the window to carry the duct neatly. In one Mumbai apartment, this trick saved the light and allowed top-venting without a bulky soffit.

Pros

- Offsetting the hood keeps the galley kitchen with window and chimney bright while threading ducting past operable sashes. The transom holds a clean, sealed panel for penetration.

- You can simplify cleaning by using a straight vertical duct above the offset; fewer elbows preserve CFM and reduce grease buildup, improving parallel kitchen chimney performance long-term.

- Works beautifully with metal-framed windows; the transom becomes a crisp architectural detail.

Cons

- Asymmetry bothers some clients. I’ve had to balance the look with open shelving or a tall pantry at the opposite end for visual equilibrium.

- If you offset too far, capture efficiency drops at the front burners. Choose a hood with a wide capture area or incremental front lip.

Tips / Case / Cost

- A slim, 24–30 inch hood with a 500–650 CFM rating is typically adequate for light-to-medium Indian or Southeast Asian cooking; heavy wok use may need 700+ CFM and make-up air planning.

save pin

save pin

3) Recessed insert hood with a shallow soffit across the window head

My Take

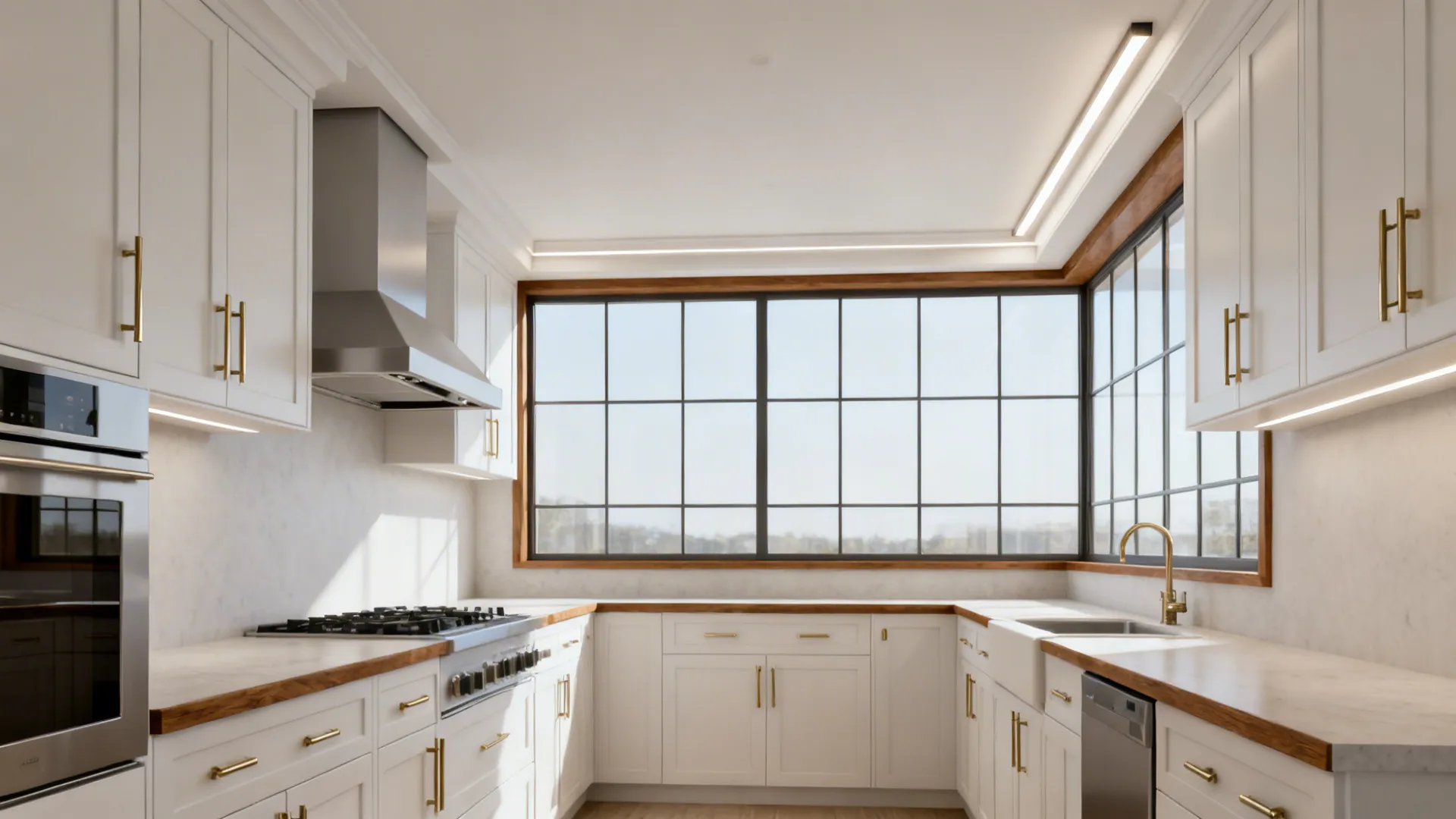

For clients who can’t stand a visible chimney in front of glass, I’ll recess an insert hood into a short cabinet and build a 6–8 inch deep soffit across the window head. It hides the duct, frames the view, and gives a gallery-like finish.

Pros

- An insert hood within a shallow soffit offers excellent hidden chimney solutions for galley kitchens, preserving the panoramic feel while delivering real capture performance.

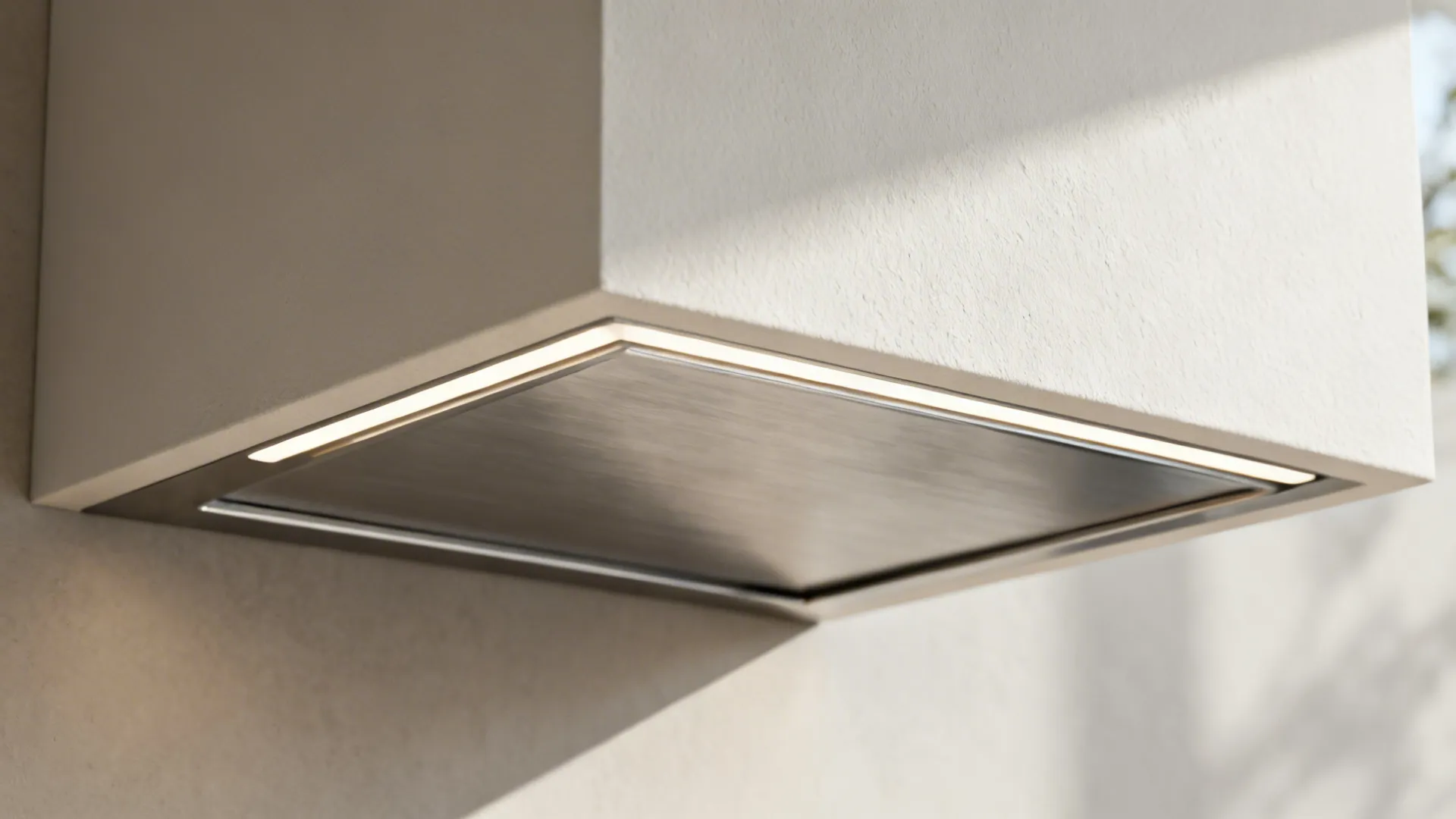

- The continuous band cleans up the ceiling line and can house integrated LED strips, improving task lighting without blocking the window.

- With careful planning, the soffit doubles as a chase for other utilities (audio cables, shade wiring), creating a multifunctional window wall detail.

Cons

- You’re committing to carpentry and drywall work; if you’re renting or planning a quick flip, this is more involved than a wall-mount hood.

- Ceiling height matters. In a sub-2.4 m room, the soffit can feel heavy unless painted to recede or kept extremely shallow.

Tips / Case / Cost

- I like to keep the soffit finish matte and the underside slightly set back; it visually floats. Expect moderate costs: insert hood, custom cabinet, and finishing typically add up to a mid-tier budget.

At the halfway mark of planning, I’ll check proportions and sightlines in a 3D preview to validate that the soffit doesn’t overwhelm the space and that glass backsplash makes the kitchen feel airier across the opposing run.

save pin

save pin

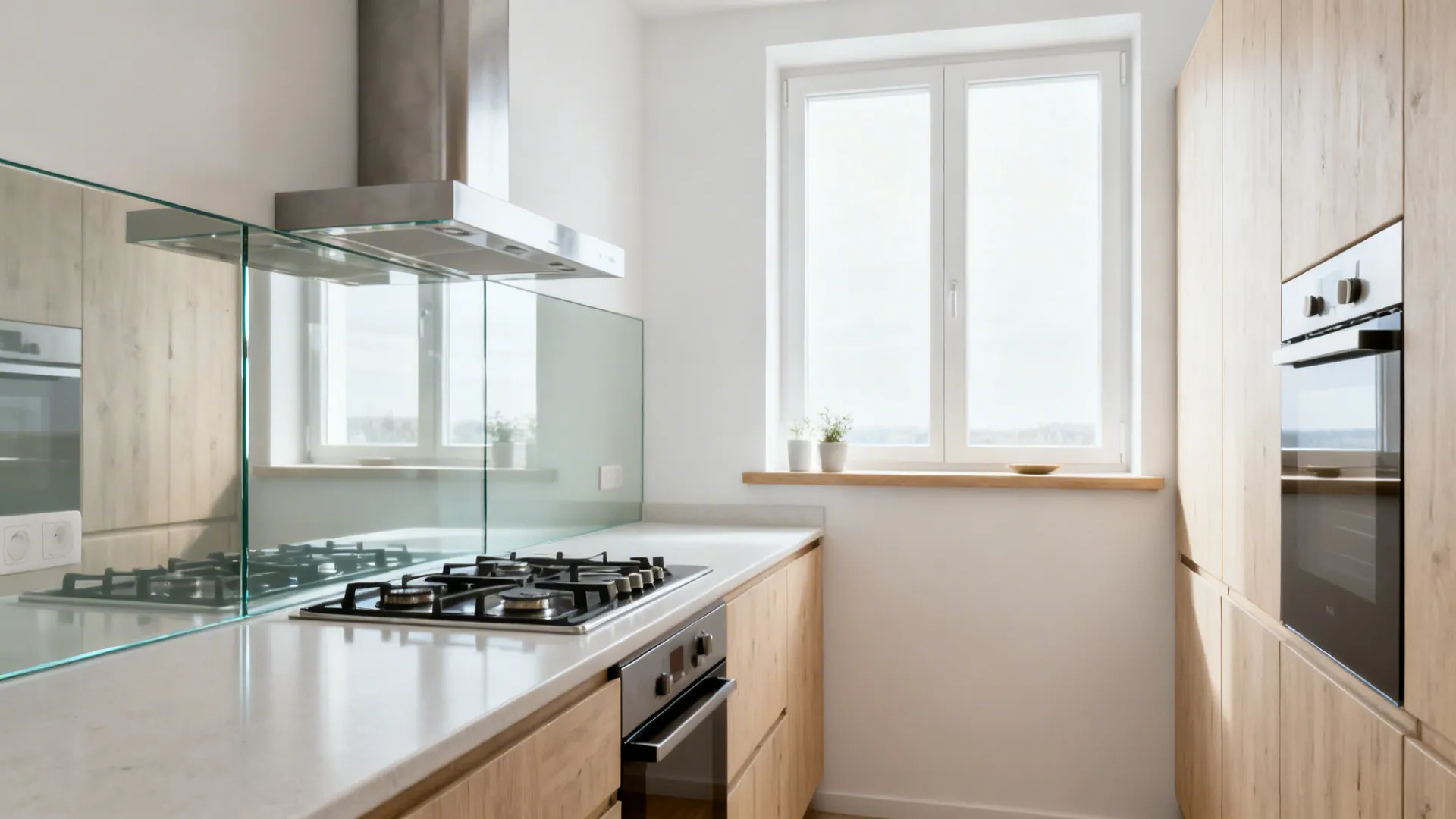

4) Wall-mount chimney with a tempered-glass splash and a high window sill

My Take

Another approach is to raise the window sill slightly and bring in a tempered-glass splash behind the range, then mount the chimney above. I used this in a Scandinavian-inspired parallel kitchen where the client prized easy cleaning and bright reflections.

Pros

- A raised sill plus tempered-glass splash behind the cooktop enhances safety and cleaning, and the reflective surface boosts perceived depth—great for small galley kitchen with window and hood.

- Glass backsplashes resist staining, and with a proper seal at the edges, they stand up to steam and heat in a compact kitchen.

- Keeping the window high means the hood can sit at manufacturer-recommended heights (often 24–30 inches over the cooktop for electric, higher for gas), optimizing chimney clearance above cooktop.

Cons

- Raising the sill isn’t always possible in rental units or heritage windows; you may need landlord or permit approval.

- If there’s extreme sun exposure, plan for low-iron or ceramic-printed glass to minimize glare and color shifts behind pale cabinetry.

Tips / Case / Cost

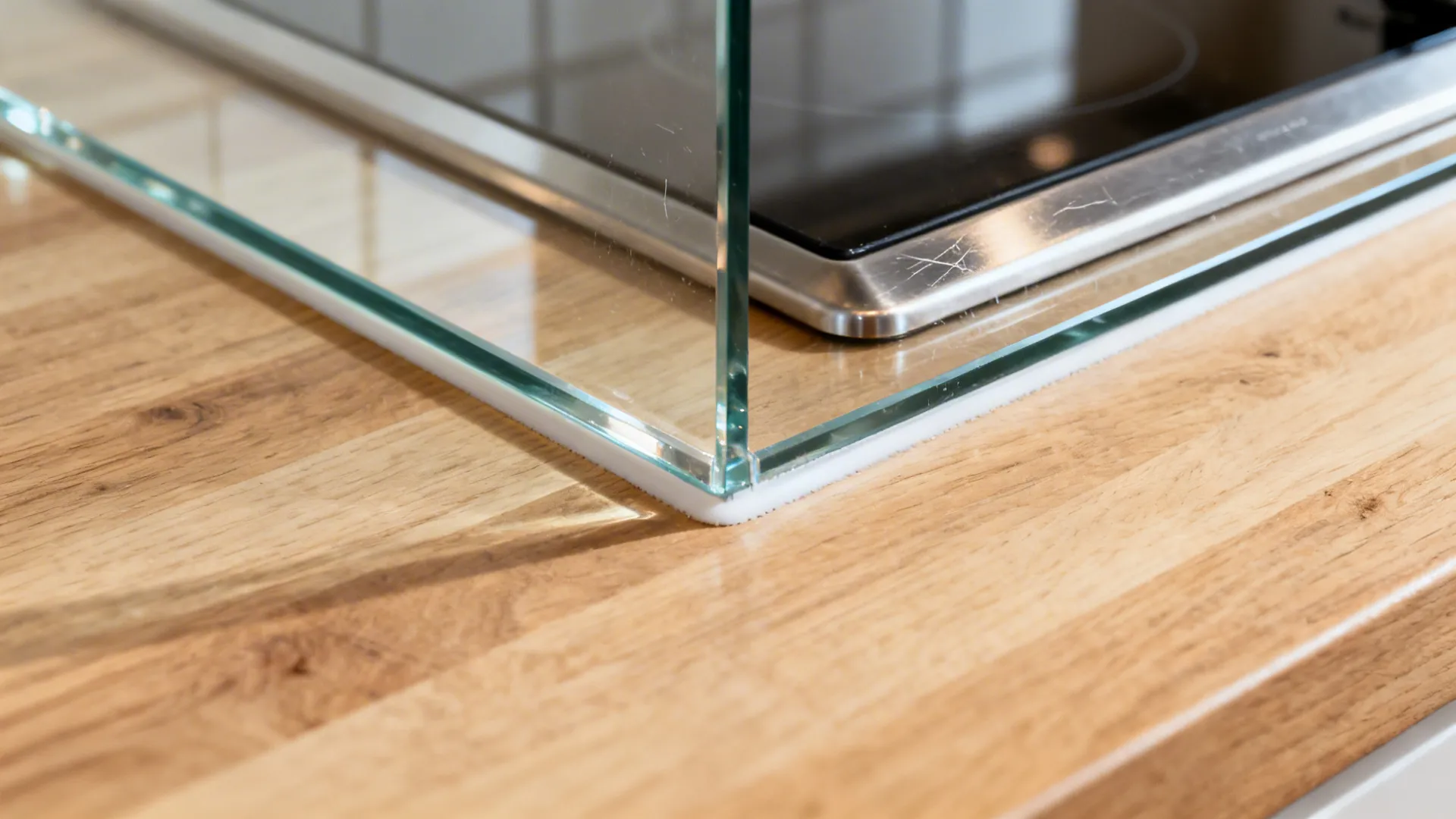

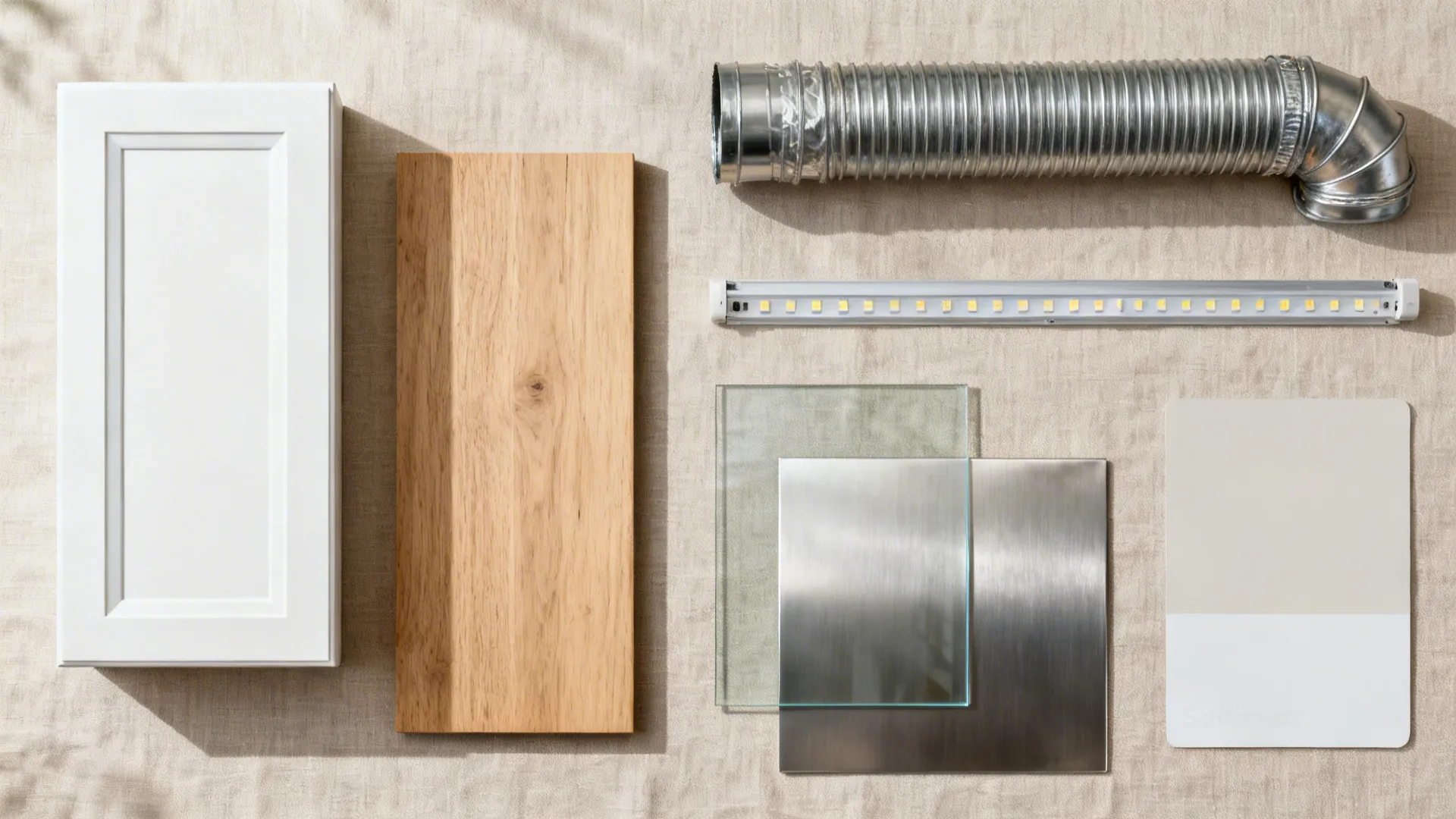

- Choose low-iron tempered glass for true whites. Siliconed edges and proper back-painting are key to longevity. Budget for custom glass cutting and polishing.

save pin

save pin

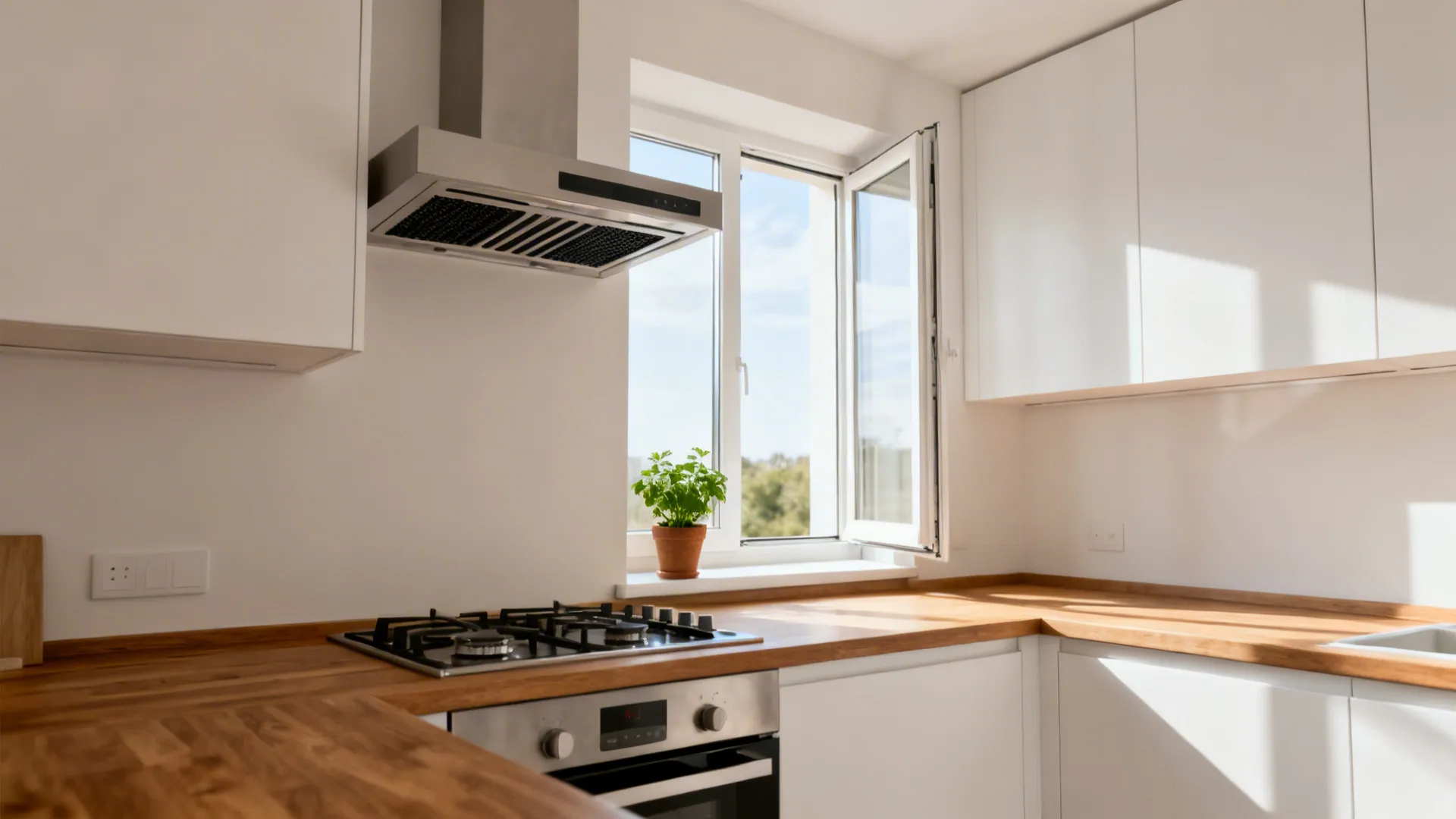

5) Ductless recirculating hood with carbon filters and cross-ventilation

My Take

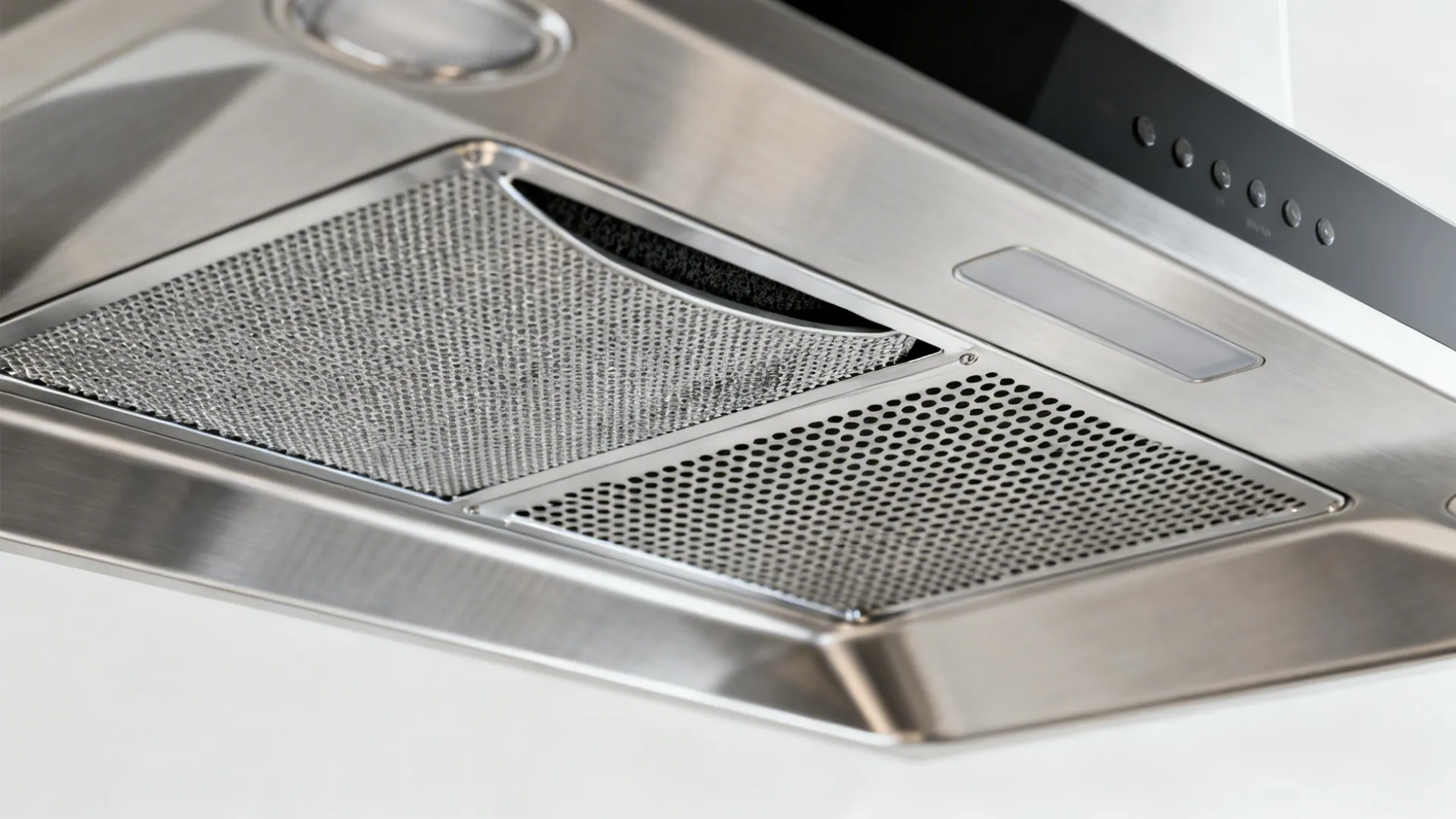

Where ducting is impossible—historical facades, shared walls, lease restrictions—I’ve specified ductless hoods with upgraded carbon filters and optimized cross-ventilation from the window. It’s not my first choice for heavy frying, but for lighter cooking it can be surprisingly effective when sized right.

Pros

- Modern recirculating units with multi-stage filters improve indoor air quality in small apartments, especially when paired with a window that aids cross-breeze.

- Installation is simple, avoiding structural changes; this is a strong option for a parallel kitchen with no external vent.

- Maintenance is straightforward: swap carbon filters on schedule and clean grease filters regularly to maintain airflow and odor control.

Cons

- They don’t remove moisture outdoors, so in humid climates you may need a dehumidifier or more frequent window venting.

- Filters are recurring costs; skipping replacements turns the unit into a noisy decoration. I’ve seen this movie before.

Tips / Case / Cost

- If you cook aromatic dishes often, pick a unit with a high Clean Air Delivery Rate and larger carbon cartridges. Pair with a quiet window fan for the occasional heavy session.

When I need to show clients how the window, hood, and cabinetry will play together before committing, I’ll load a quick scheme and test elevations with a render—seeing how warm wood accents soften a compact kitchen can make decisions easier.

save pin

save pin

Technical checks, clearances, and expert data

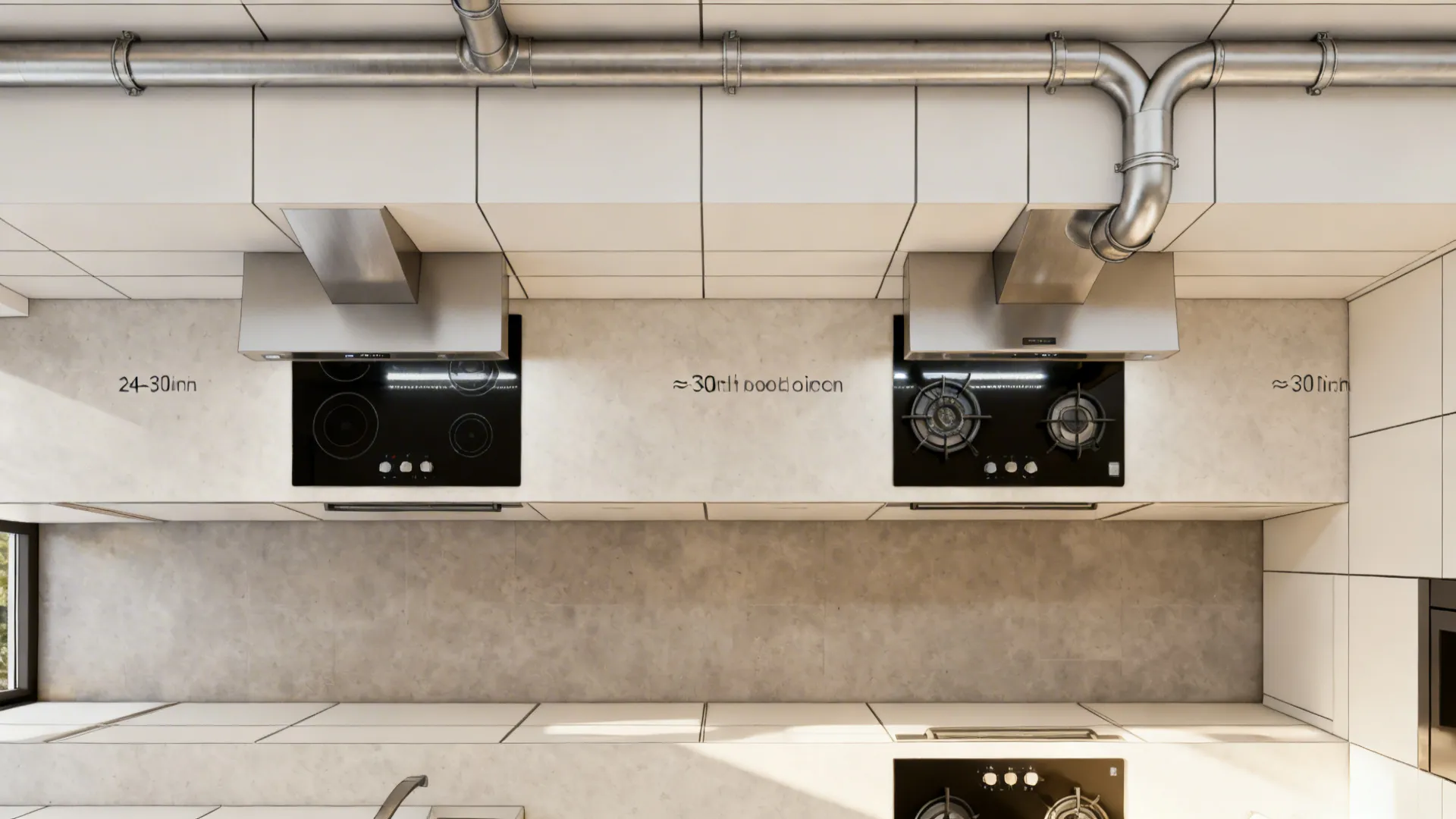

I always confirm two fundamentals: clearance and ducting. For gas cooktops, most manufacturers recommend 30 inches from cooktop to hood bottom; for electric/induction, 24–30 inches is common—always follow the hood maker’s specs. Keep duct runs as straight and short as possible, with smooth-walled, rigid metal ducting and sealed joints. Each 90-degree elbow adds equivalent length penalties, reducing effective CFM.

As for make-up air, many building codes (e.g., the 2018 and later editions of the International Residential Code) require dedicated make-up air for exhaust systems at or above 400 CFM to prevent back-drafting and pressure imbalances. The U.S. Department of Energy and ASHRAE emphasize minimizing duct turns and maintaining tight joints to preserve fan performance. When we route above or near a window, a careful transition and well-flashed exterior termination are non-negotiable for weatherproofing.

In tiny galleys, I also test for glare and reflections. Highly reflective backsplashes behind the hob can bounce light into the user’s eyes during evening cooking, so I’ll adjust LED angles or choose satin finishes if needed. Lastly, verify window operation: tilt-turns, awnings, and sliders need clearance from the hood canopy and duct cover.

save pin

save pin

Summary

A small parallel kitchen doesn’t limit you; it demands smarter choices. The right chimney position above or near a window can keep your view, your light, and your air quality intact—without clunky compromises. Follow manufacturer clearances, keep ducts short and smooth, and plan for make-up air if you’re using high CFM. In the end, small kitchens call for smarter design, not fewer ideas. Which of these five inspirations would you try first in your space?

save pin

FAQ

1) What’s the safest chimney height above a cooktop under a window?

Most manufacturers specify 30 inches above gas cooktops and 24–30 inches above electric or induction. Always follow the hood manual; it overrides general rules. If a window is nearby, ensure the canopy doesn’t block sash operation.

2) Can I place the chimney directly over a window in a parallel kitchen?

Yes, with proper structural coordination and a clean duct path, a slim or insert hood can sit over a window mullion. Make sure the glass behind the cooktop is tempered and properly sealed for heat and steam.

3) Is ductless good enough for a small galley kitchen with a window?

For light cooking, a high-quality recirculating hood with carbon filters can work, especially with cross-ventilation. For frequent frying or high-heat cooking, a ducted system performs better at removing heat and moisture.

4) How wide should the hood be for a 24–30 inch cooktop near a window?

Match the cooktop width or go 6 inches wider if space allows to improve capture. In tight galleys, a same-width canopy with a good front lip and higher CFM can compensate for less overhang.

5) Do building codes affect chimney placement over windows?

Yes. Codes may dictate clearances, duct materials, make-up air, and exterior terminations. For example, IRC sections on kitchen ventilation require make-up air for systems ≥400 CFM; check your local amendments and follow manufacturer instructions.

6) Will a chimney block natural light if it’s near the window?

A slim-line or glass-canopy hood minimizes visual mass and preserves daylight. Positioning on the mullion or using a shallow soffit helps frame the view while keeping ventilation effective.

7) What’s the best duct route when a window sits behind the cooktop?

Straight up and out is best. If the sash blocks the line, consider a transom panel or a short soffit to carry the duct. Use smooth, rigid metal ducting and minimize elbows to maintain effective CFM.

8) How do I choose the right CFM for a small parallel kitchen?

Start with the cooktop type and your cooking style. Many manufacturers and the Home Ventilating Institute recommend sizing to remove smoke and grease without excessive noise; heavy wok cooking often needs higher CFM and make-up air planning. For deeper visualization of configurations, test a quick layout and clearance model where glass backsplash makes the kitchen feel more open can be compared against wall-mount options.
