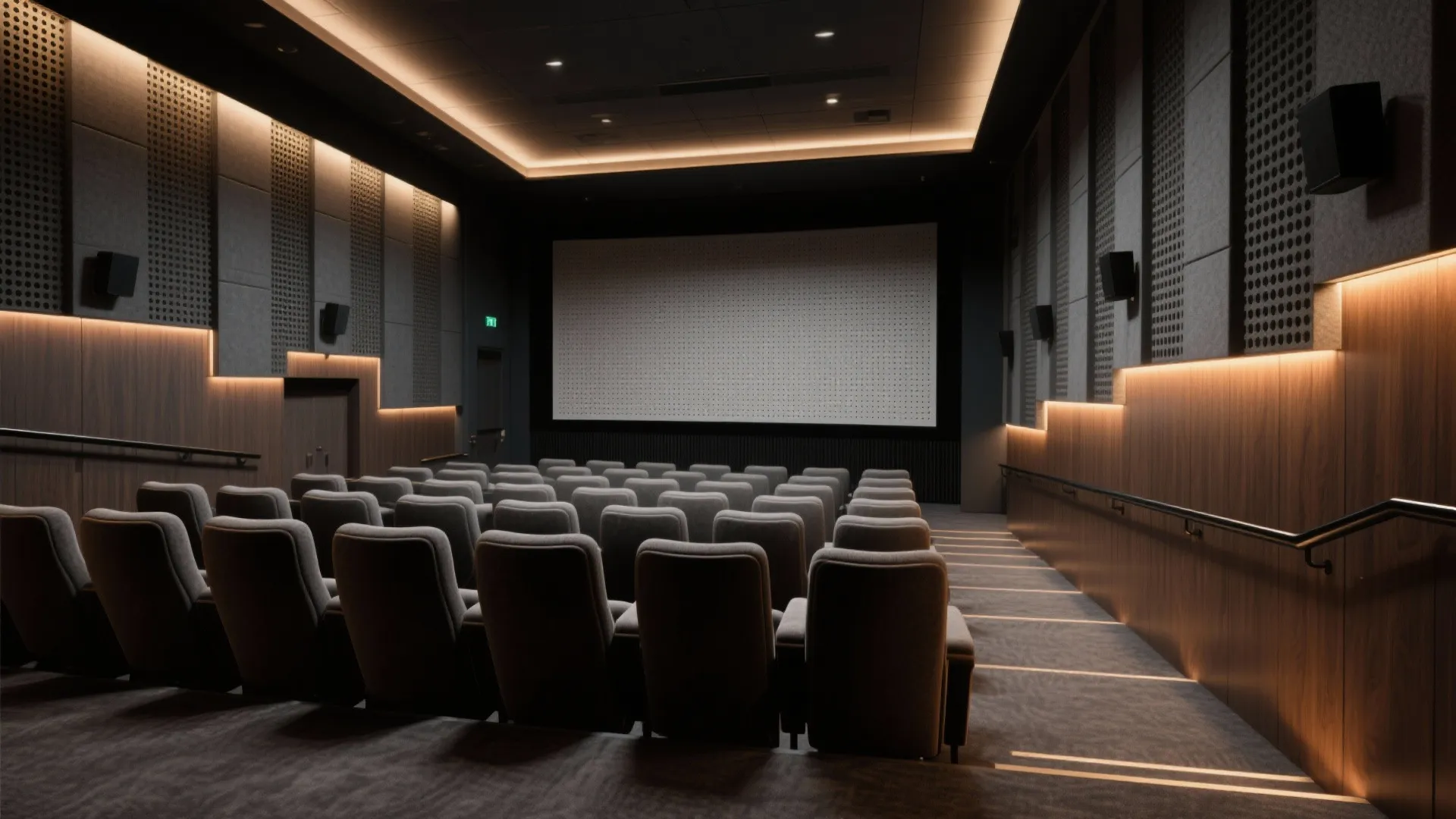

Cinema Hall Design: 5 Expert Ideas for Immersive Spaces: From sightlines to acoustics, my field-tested approach to crafting unforgettable cinema halls—especially when space is tight

[Section: Introduction]

I’ve spent over a decade refining cinema hall design, and the trend I keep seeing is clear: intimate, experience-forward auditoria are winning over audiences. In smaller venues, I’ve learned that staggered seating sightlines and smart acoustic layering can feel more premium than oversized rooms trying to be everything. Small spaces spark big creativity—especially when you’re balancing comfort, code, and cinematic impact.

In this guide, I’ll share 5 cinema hall design ideas I rely on, blending real project wins (and a few hard-earned lessons) with expert data. Whether you’re transforming an existing auditorium or building a boutique screening room from scratch, these tactics work in both compact and mid-size footprints. I’ll keep it practical with budgets, timelines, and what to watch out for.

By the end, you’ll have a clear playbook for seating sightlines, layered acoustics, lighting and egress, screen and projection fundamentals, and quiet HVAC—because cinema hall design is as much about restraint as it is about spectacle.

[Section: Inspiration List]

Sightlines-First Seating Layout

My Take: In a 120-seat retrofit I led, we increased audience satisfaction simply by re-raking the seating and tweaking riser heights. Those few centimeters made the difference between neck craning and total immersion. My rule: design the room around lines of sight first; everything else follows.

Pros: A sightlines-first approach simplifies the theater seating layout, improving comfort and reducing complaints about blocked views. You’ll often fit more usable seats because the geometry is optimized, not just the count. It also supports inclusive design—wheelchair spaces, companion seating, and ADA-compliant viewing angles can be planned into the flow.

Cons: Re-raking floors or adding platforms can eat into headroom and budget, especially in existing shells. If you get aggressive with riser heights, you can create tricky stair nosings and handrail conditions that slow approvals. Too-tight row spacing makes recliners feel luxurious on paper but cramped in real life.

Tips/Case/Cost: For micro-cinemas (40–80 seats), target a modest C-value (clear sight over the head in front) and don’t chase stadium-scale rakes; smaller rooms benefit from gentler, consistent slopes. I test sightlines with simple mockups: a laser level, a borrowed chair, and marked eye heights—cheap and revealing. Allocate 8–15% of the auditorium budget for platforming and stairs if you’re altering the rake.

save pin

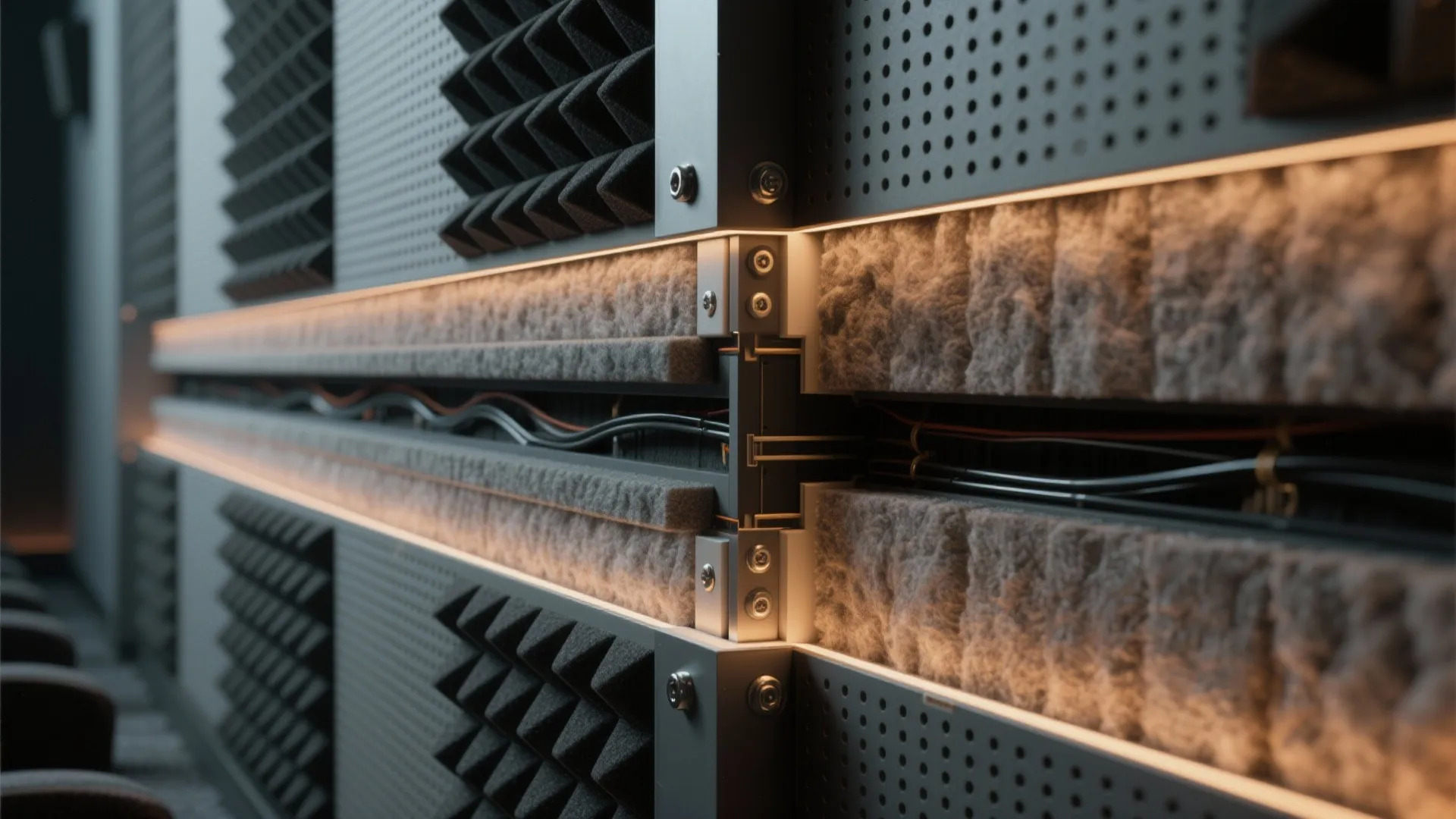

Layered Acoustics with Baffle Walls

My Take: The quietest rooms I’ve built were not the ones with the most expensive panels—they were the ones where we layered the envelope correctly. Think: baffle wall behind the screen, broadband absorption at early reflection points, and bass trapping tucked into corners or soffits. In one 90-seat room, that sequence cut flutter echo before the speakers were even tuned.

Pros: Proper baffle wall construction improves dialog intelligibility and stabilizes imaging; it’s a high-impact move in cinema hall design. Targeted acoustic wall panels tame slap back, while thick corner traps address low-frequency build-up that thin panels miss. With a calibrated strategy, you need fewer decorative panels to get great results, freeing budget for upholstery and lighting.

Cons: Over-damping is a real risk—too much mid/high absorption can make the room feel dead and unforgiving. Hidden cavities for bass trapping can steal precious floor area in small auditoria. Coordination lapses (like not sealing penetrations) let HVAC or projector noise leak in and undercut the gains.

Tips/Case/Cost: Start with performance targets (reverberation time, seat-to-seat uniformity) before picking fabrics. In compact rooms, I like dual-duty elements: fabric-wrapped wall panels that hide broadband treatment and wiring. Budget 12–18% of the auditorium spend for acoustic construction and finishes; prioritize wall thickness and airtight layers over designer perforations that don’t move the needle.

save pin

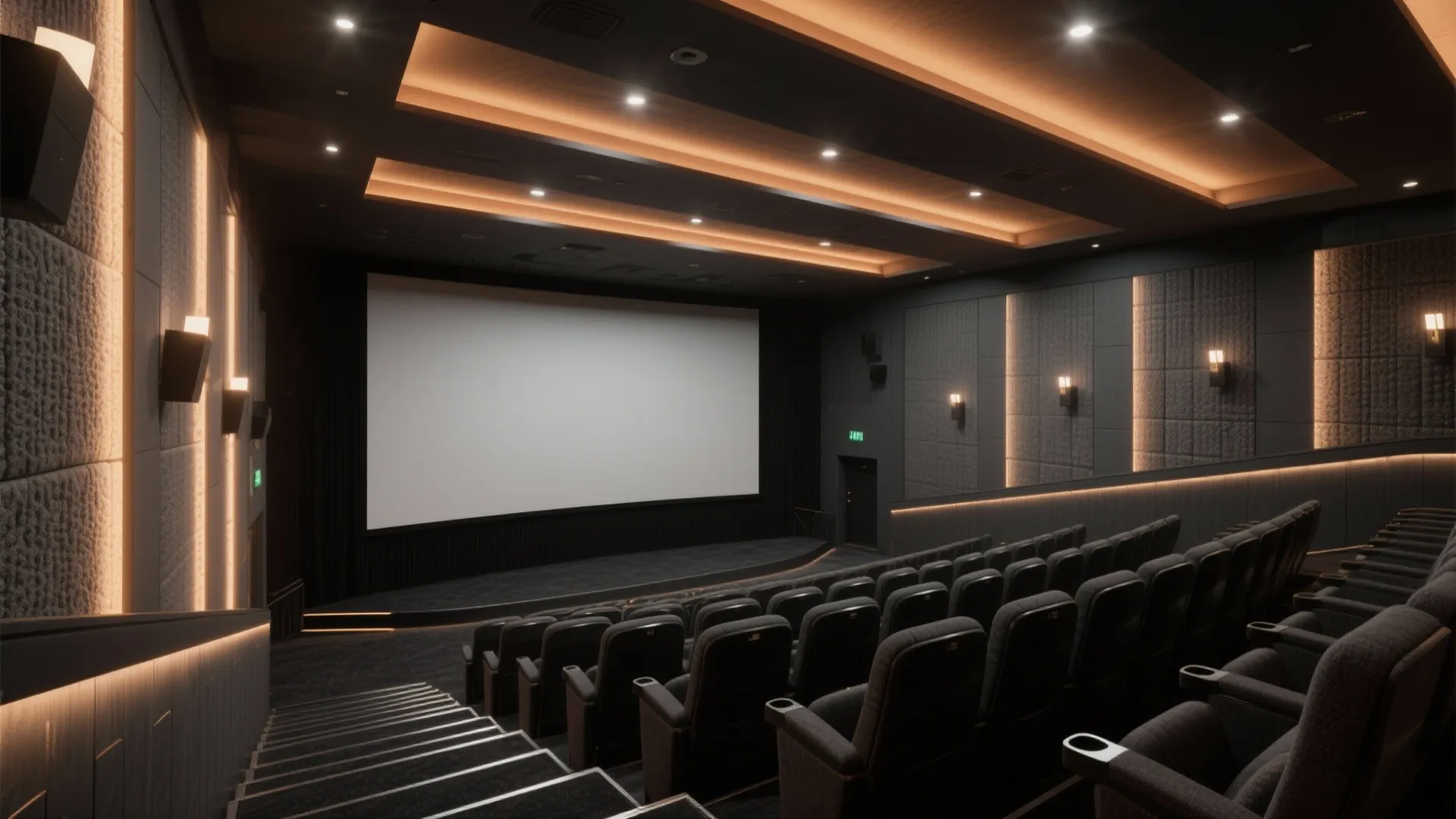

Layered Lighting for Immersion and Safety

My Take: Lighting is where great cinema halls feel orchestrated. I use four layers: soft ceiling ambient, side wall grazers, seat-integrated task lights, and discreet aisle/step lighting. The first time I balanced these on a dimmer console, the pre-show felt like its own curated experience.

Pros: Thoughtful aisle lighting design protects safety without washing out the screen. Wall grazers add scale and texture, while low-glare downlights let patrons find seats without breaking immersion. Properly zoned lighting control scenes (pre-show, trailers, feature, cleaning) streamline staff operations and reduce energy use.

Cons: If step lights are too bright or poorly shielded, they’ll pull eyes off the screen. RGB gimmicks can age quickly and confuse the control system if not documented. Field-aiming takes time; plan it, or you’ll live with hot spots and glare.

Tips/Case/Cost: Keep vertical illuminance at entrances a touch higher for wayfinding, then feather it down toward the seating bowl. For codes, confirm local egress illumination levels early and let that drive your step and aisle fixtures; it’ll save you a second purchase. Reserve 8–12% of the budget for lighting fixtures and controls—most of the magic is in the dimming curves and zoning.

At roughly half my projects, we refine details like acoustic wall panel detailing and light cut sheets together so the trades can coordinate trims, reveal lines, and wiring chases. That coordination keeps the look clean and the sound uninterrupted.

save pin

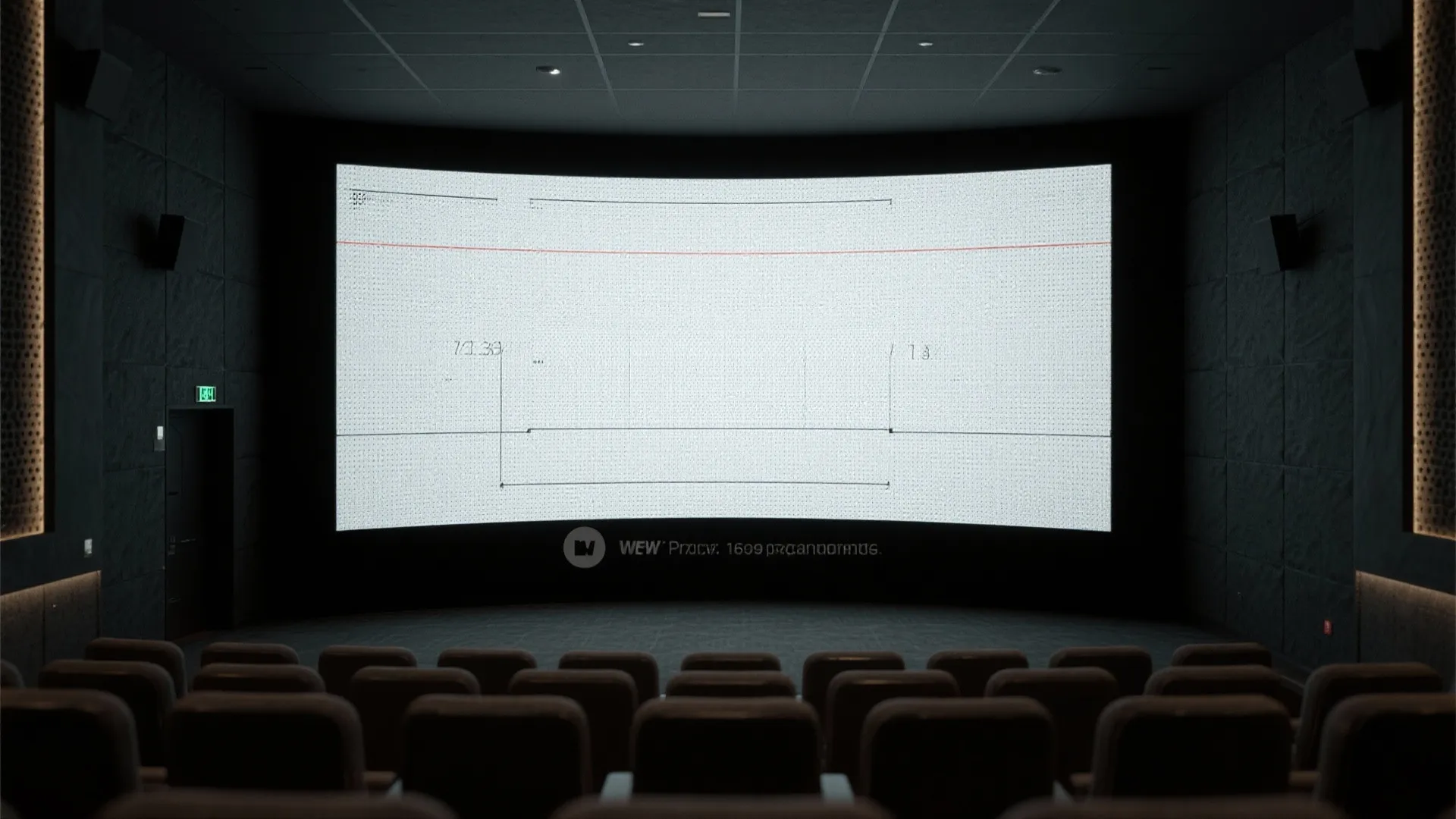

Screen Size and Projection Fundamentals

My Take: The “wow” often comes from a screen that’s correctly sized to the room—not just the biggest possible. In a 10-row boutique cinema, we upsized the height slightly, picked a moderate gain screen, and masked the width for 2.39 and 1.85 content. The perceived sharpness and contrast jumped without touching the projector.

Pros: A thoughtful screen size calculation delivers comfortable viewing angles across the house while maximizing immersion for the center rows. Picking screen gain and perforation type (micro-perf vs. woven) fine-tunes brightness and sound transparency. Proper port glass and throw distance keep focus and brightness uniformity consistent.

Cons: Aggressive viewing angles in the front rows cause fatigue and isolate seats as “bad” inventory. Very high-gain screens can hotspot and narrow the sweet spot. Perforated screens are beautiful for LCR placement but can reduce high-frequency response if not compensated with EQ.

Tips/Case/Cost: For 2D cinema, aim for on-screen luminance near 14 foot-lamberts—a long-standing industry target referenced by SMPTE 196M—for crisp, punchy images. If you’re retrofitting, check throw distance and projector lift clearance early; moving either later is expensive. Budget 10–15% for screen, masking, port glass, and mounts; add contingency if you’re swapping to laser projection.

save pin

Quiet HVAC and Durable Finishes

My Take: The quietest cinema I’ve designed wasn’t “dead”—it breathed softly. We oversized ducts, slowed air, and lined critical runs; it cut mechanical noise more than any single sound panel could. Then we paired it with durable finishes that could handle popcorn, cola, and late-night cleanups.

Pros: Low-velocity supply and returns, lined plenums, and isolated equipment rooms help hit low background noise targets for auditoria. In high-traffic houses, durable upholstery, stain-resistant carpets, and scuff-guard wall bases extend maintenance cycles. Together, they raise perceived quality; audiences equate quiet and clean with premium.

Cons: Oversizing ducts and adding attenuation eats ceiling space—tough in retrofits. Long-life finishes can stretch lead times, and color consistency between lots matters in phased projects. Mechanical isolation details (spring hangers, flexible connectors) require discipline from the trades.

Tips/Case/Cost: I spec wipeable fabric with acoustic backing along aisles and under chair arms—the first line of defense. Plan cleaning scenes in the lighting control so staff actually use them. Expect 18–25% of the build cost to go to HVAC and controls in new-builds; retrofits vary widely depending on shaft access and equipment placement. In tight envelopes, I’ll often prototype airflow with smoke pencils before the ceiling closes.

Don’t forget code-driven components like aisle lighting for safe egress and tactile indicators—integrate them into the design language early so they look intentional, not tacked on. In compact rooms, small moves like rounded seat arms and low-profile end standards prevent bruised shins and speed cleaning between shows.

[Section: Summary]

When I look back at my favorite projects, they all share the same truth: a small cinema hall isn’t a limitation—it’s an invitation to design smarter. Cinema hall design that prioritizes sightlines, layered acoustics, thoughtful lighting, right-sized screens, and quiet HVAC consistently feels more immersive and more premium. The good news is that most of these wins come from planning, not just spending.

Now I’m curious—what’s the one idea you’re most excited to try first? If it’s sightlines, we can sketch a quick rake together; if it’s acoustics, we’ll map reflections and start layering. Either way, the best cinema halls begin on paper and end with an audience leaning in.

[Section: FAQ]

save pin

FAQ

1) What’s the first step in cinema hall design?

Start with seating sightlines and a rough theater seating layout. Once the viewing geometry is right, everything else—acoustics, lighting, and projection—falls into place with fewer compromises.

2) How big should the screen be for my room?

Size the screen for comfortable viewing angles across your seating plan, then refine with screen gain and masking. For 2D, many designers aim near 14 foot-lamberts on-screen brightness per SMPTE 196M to balance punch and comfort.

3) Do I need a baffle wall behind the screen?

If you’re placing LCR speakers behind a perforated screen, a baffle wall helps stabilize imaging and reduce spurious reflections. In small rooms, it’s one of the highest-impact acoustic upgrades.

4) How do I keep the room quiet without shrinking the ceiling?

Use low-velocity duct design, acoustic lining, and smart equipment placement to control HVAC noise. Coordinate early with structural and MEP so you can borrow inches where it matters most.

5) What lighting levels are right during the feature?

Keep aisle and step lights dim and well-shielded, and minimize spill on the screen. Pre-show and cleaning scenes can be brighter; document these scenes so staff can operate consistently.

6) Which finishes survive heavy use?

Choose stain-resistant carpets, wipeable acoustic fabrics, and high-abrasion upholstery for armrests and aisle seats. Dark, matte textures reduce stray reflections and hide scuffs between deep cleans.

7) What codes affect cinema lighting and egress?

Local building codes typically define aisle widths, handrails, and minimum egress illumination. For reference, the International Building Code (IBC 2021) requires at least 1 foot-candle at walking surfaces for means of egress illumination, so verify your jurisdiction’s adoption.

8) How can I get good results in a small auditorium?

Lean into the constraints: prioritize sightlines, tame early reflections, and choose right-sized screens and quiet HVAC. Small rooms can feel bespoke and immersive when each design move earns its keep in the overall experience.
