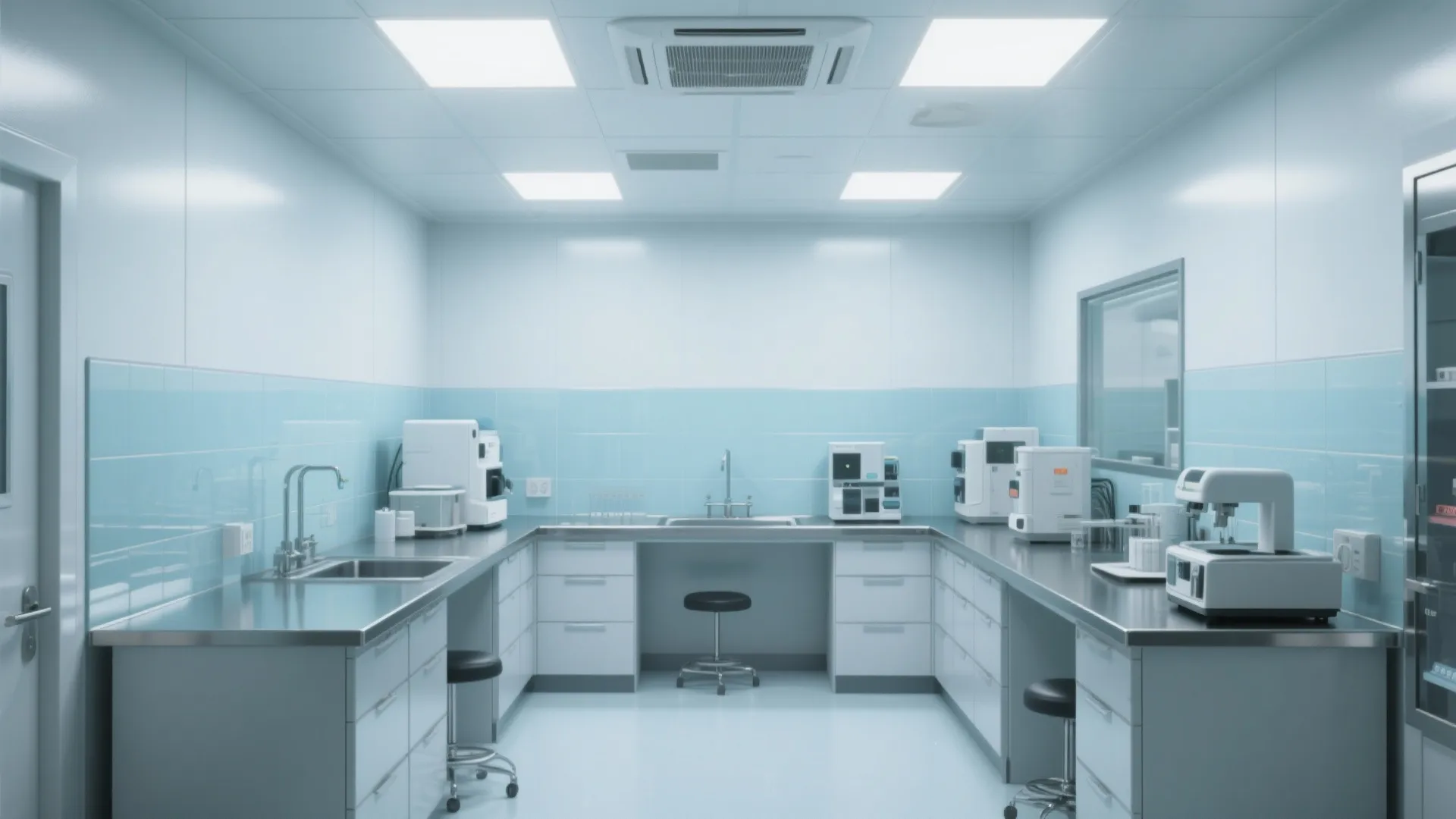

Clean Room Lighting: 5 Smart Ideas That Truly Work: Practical, data-backed clean room lighting tips from a senior interior designer who’s redesigned compact kitchens and small spaces for over a decade

[Section: Meta 信息]

Meta Title and description are included in meta field below.

[Section: 引言]

I’ve been designing compact homes and technical spaces for over a decade, and clean room lighting has become one of those topics where small decisions create big impact. The latest interior design trend blends performance with wellness—think glare-free task beams, circadian support, and ultra-clean finishes. Small spaces truly spark big creativity, and clean rooms are the ultimate proof.

In this guide, I’ll share 5 clean room lighting ideas that I’ve tested in the field, balancing regulatory needs with real-world usability. You’ll get my hands-on perspective plus expert data—so you can make confident decisions without overbuilding or overspending.

[Section: 灵感列表]

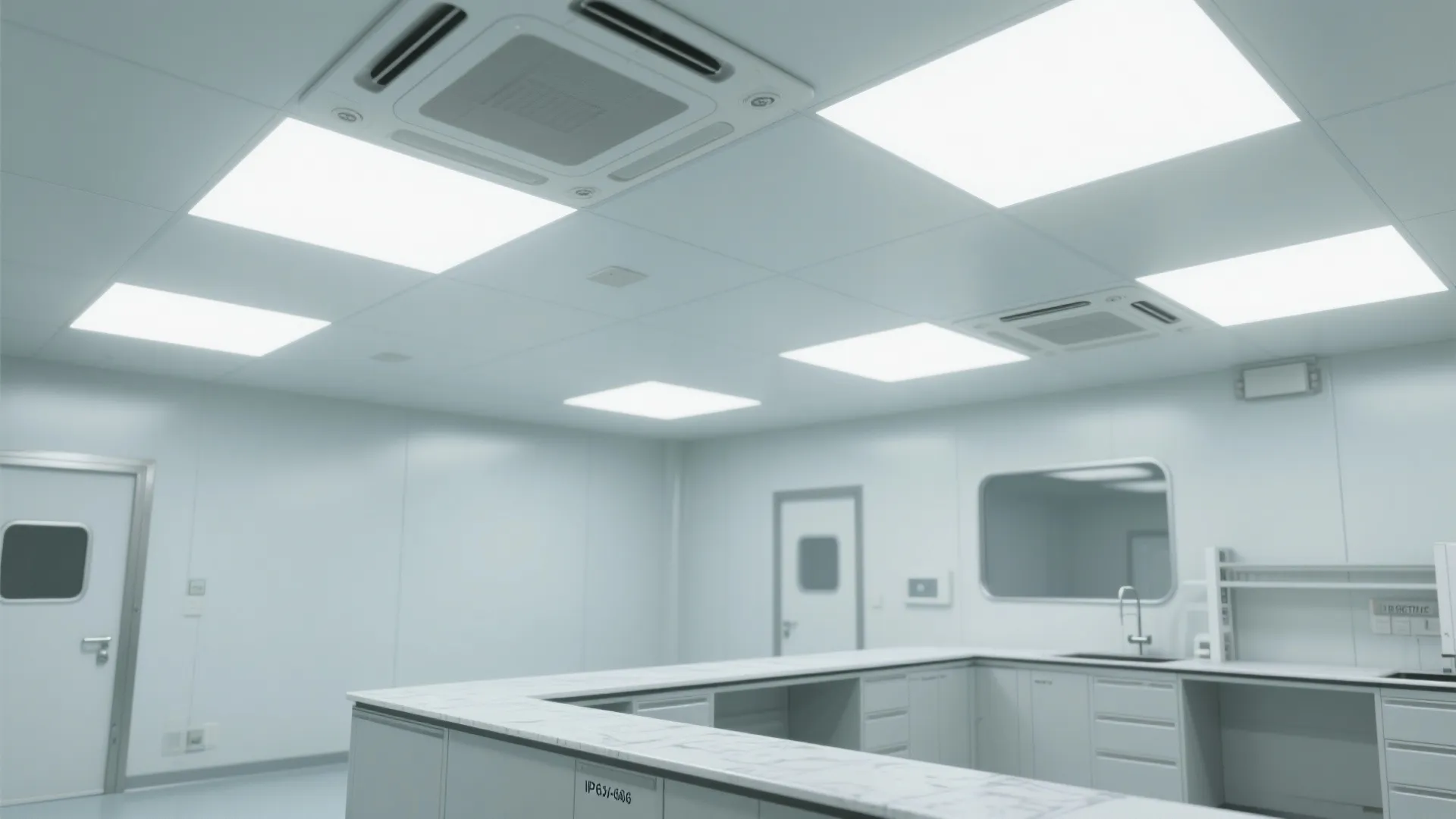

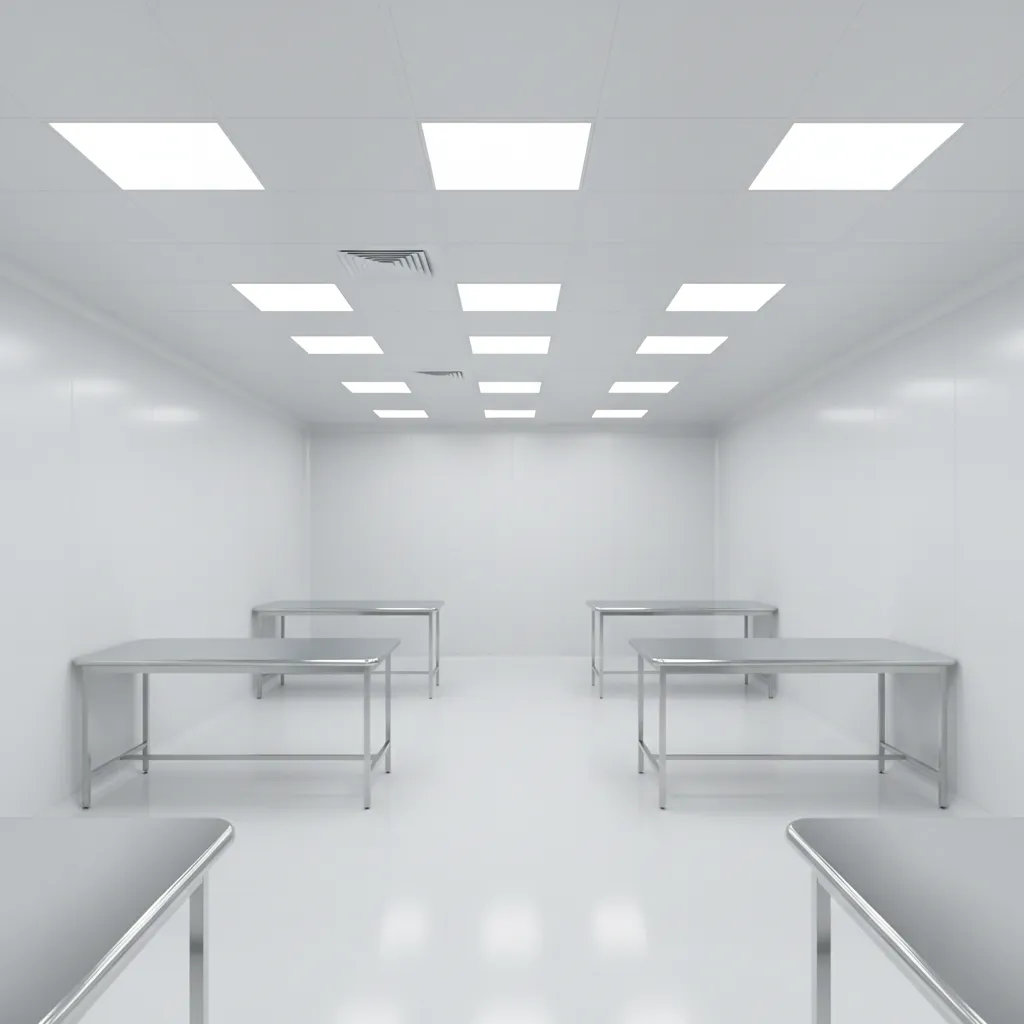

Sealed LED Panels with IP65/66 Ratings

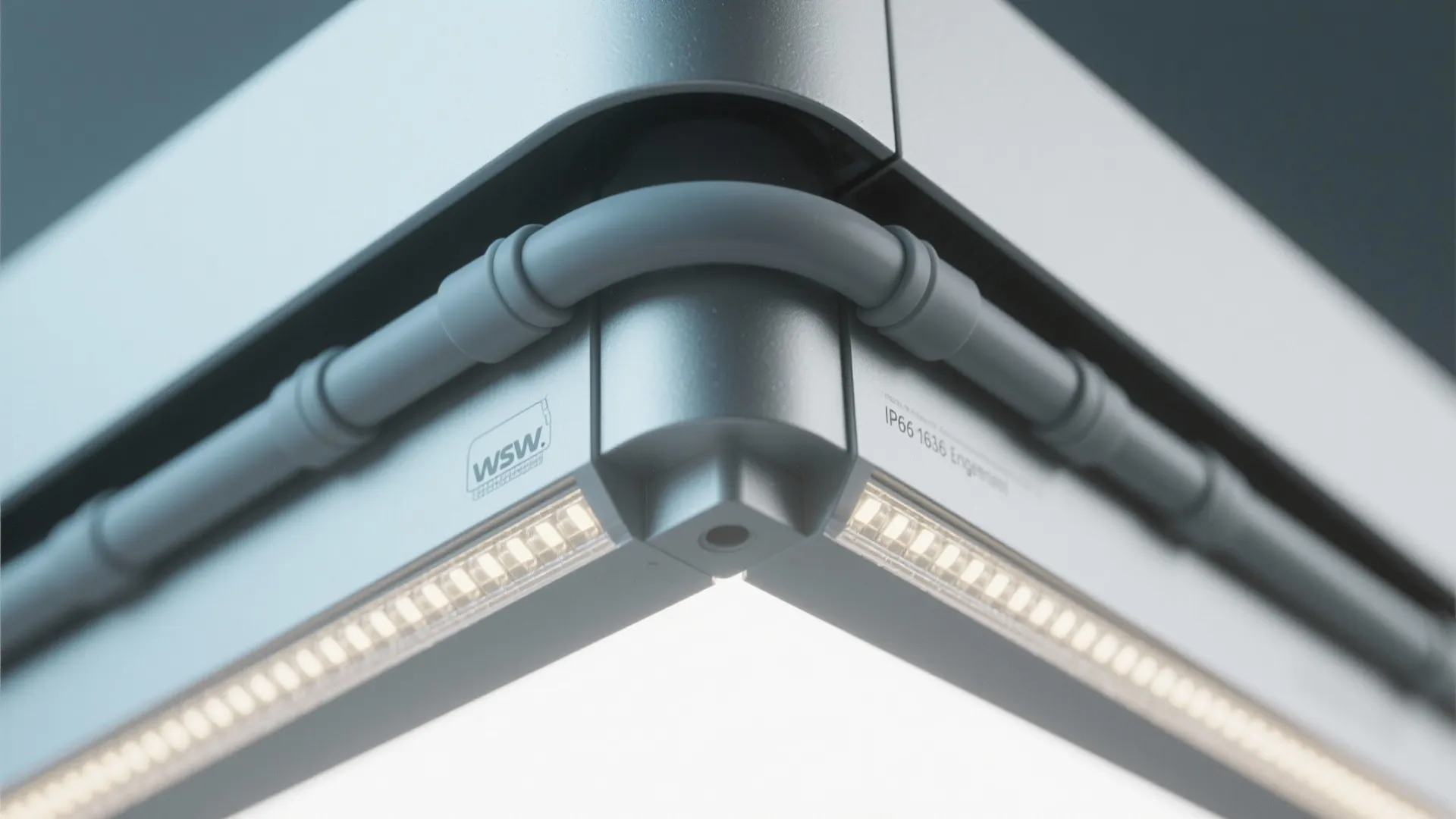

My Take: When I retrofit compact labs, I default to sealed edge-lit LED panels with IP65 or IP66 ratings. They sit flush in cleanable ceilings, prevent particulate traps, and simplify maintenance—my clients love how they “disappear” visually while still meeting specs.

Pros: Sealed luminaires reduce contamination risk and support ISO Class 5–8 environments, a key long-tail query for many teams planning a clean environment. Edge-lit panels also deliver uniform illuminance (≥500 lux for precision prep areas) with low UGR, which aligns with clean room lighting requirements for visual comfort.

Cons: Higher initial cost versus commodity troffers, and specialty gaskets can extend lead times. If you’re upgrading ceilings later, re-gasketing and re-commissioning can add downtime—plan your phases carefully.

Tip / Cost: Budget roughly 20–30% more than standard office panels; factor in antimicrobial finish options if your cleaning protocol is aggressive.

For compact rooms where workflow and layout evolve, I often prototype the grid and utilities first using a digital mockup. Seeing how “L-shaped countertop flow” and ceiling access align helps avoid clashes; here’s how I visualize L shaped layout space testing before any holes are cut.

save pin

save pin

Tunable White for Task Accuracy and Circadian Support

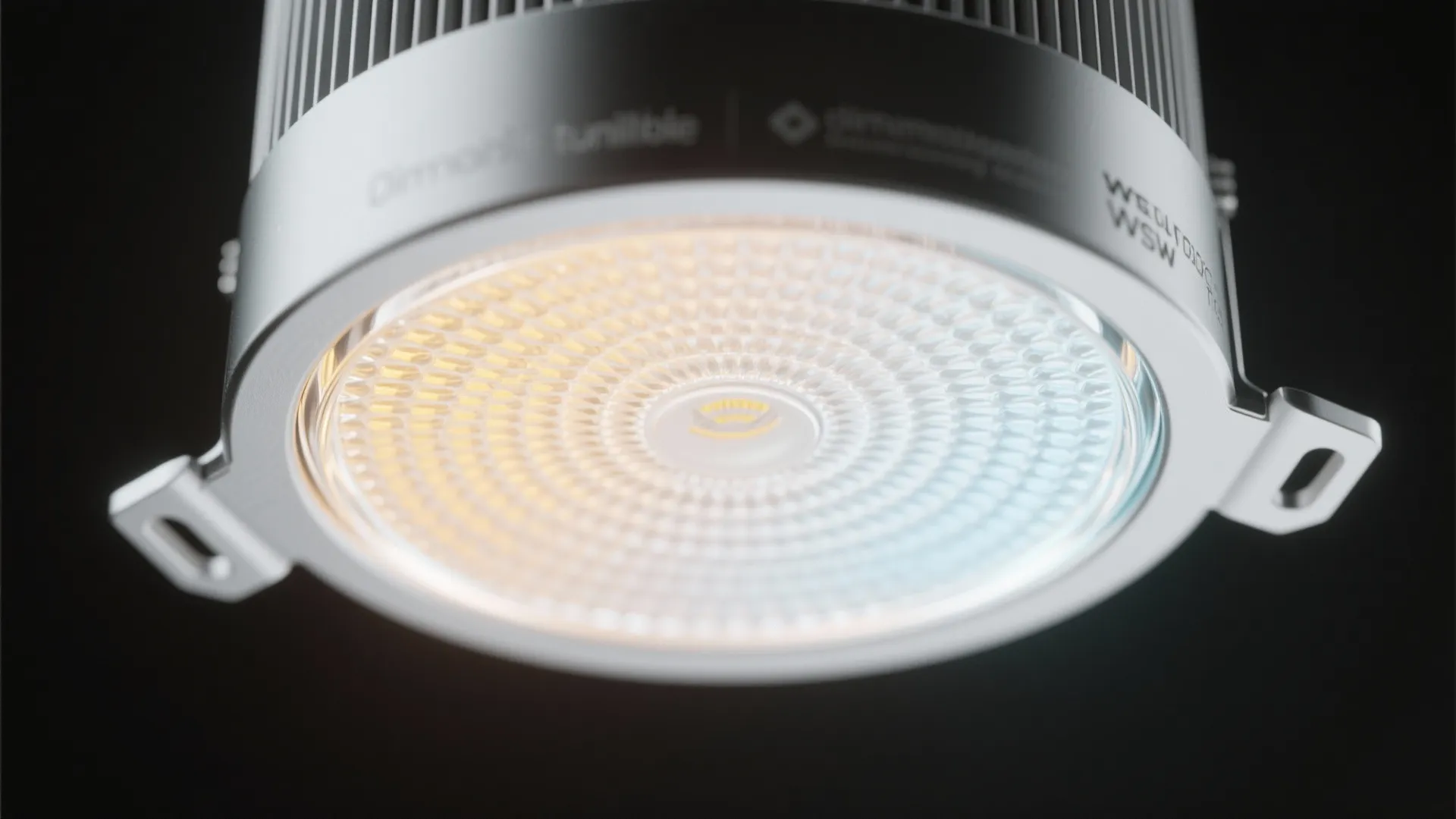

My Take: I’ve specified tunable white (2700–6500K) in small clean rooms where technicians alternate between meticulous inspection and long shifts. Being able to nudge CCT cooler for color-critical tasks and warmer for decompression has improved comfort and consistency.

Pros: Adjustable CCT supports visual acuity for surface inspection and documentation while addressing human-centric needs—a long-tail benefit for shift-based clean room lighting strategies. Studies indicate that circadian-aware lighting can improve alertness during early and late shifts (see WELL v2 L03–L06 guidance; also CIE Position Statement on CIE S 026:2018 for melanopic metrics).

Cons: Dimming curves and CCT shifts can confuse users if controls aren’t intuitive. Without commissioning, tunable systems may drift from target CCT and CRI, undermining color rendering for quality checks.

Tip / Case: Pair tunable drivers with scene presets—“Inspection 6500K,” “Documentation 4000K,” “Break 3000K”—and lock admin access to protect settings.

save pin

save pin

Glare Control with UGR ≤ 19 and High CRI

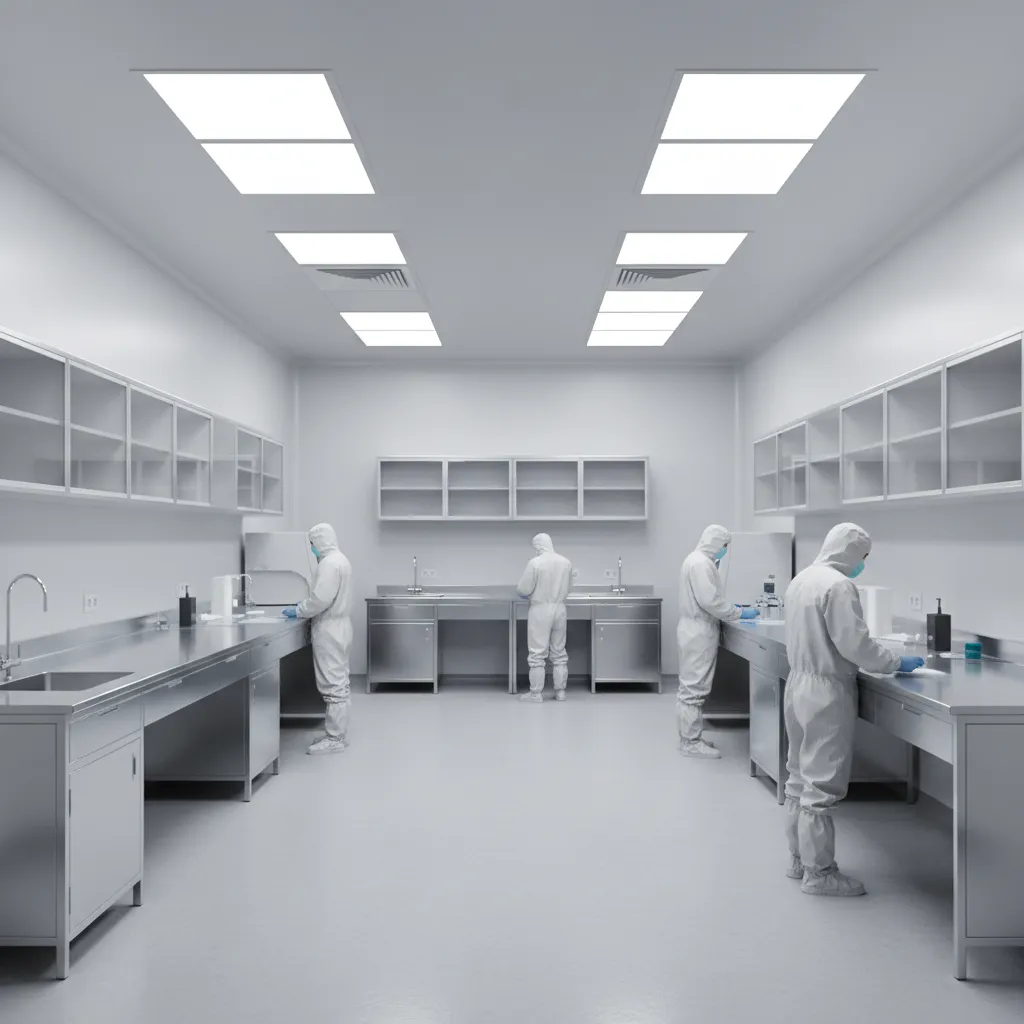

My Take: In small clean rooms, glare bounces everywhere. I learned the hard way that even beautiful luminaires can create reflection hotspots on steel benches and glass backsplashes. Now I specify optics that keep UGR ≤ 19 and CRI ≥ 90 so skin tones and labels stay accurate.

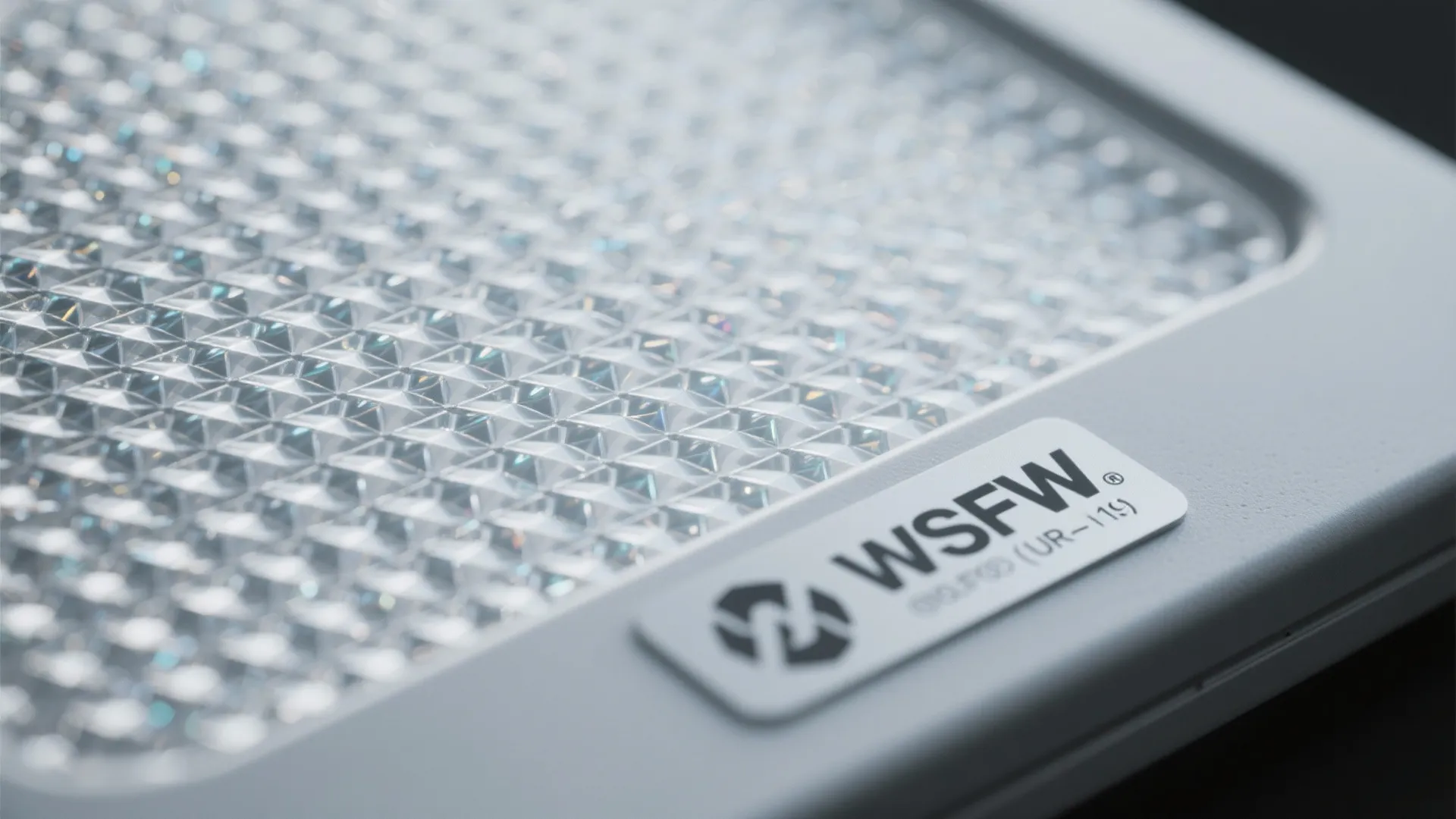

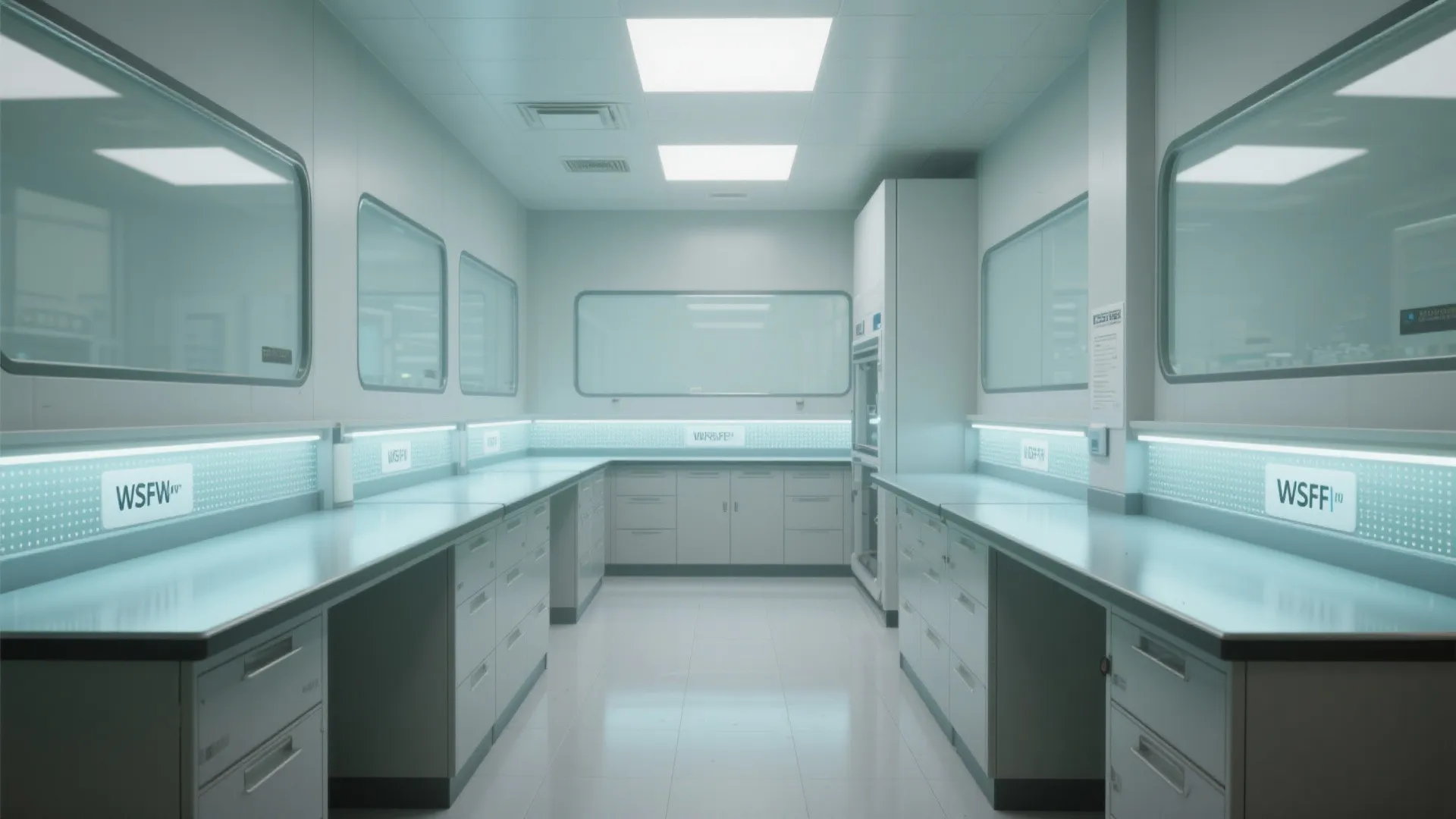

Pros: Low-UGR optics and micro-prismatic diffusers reduce veiling reflections and eye strain—critical for detail work and a common long-tail requirement in clean room lighting specs. High CRI (≥90) ensures reliable color discrimination for wiring, sample coding, and media checks.

Cons: Ultra-low-glare optics can trim efficacy by a few lumens per watt, and the narrower distribution might require more fixtures to hit target uniformity. Costs for premium diffusers add up in longer corridors.

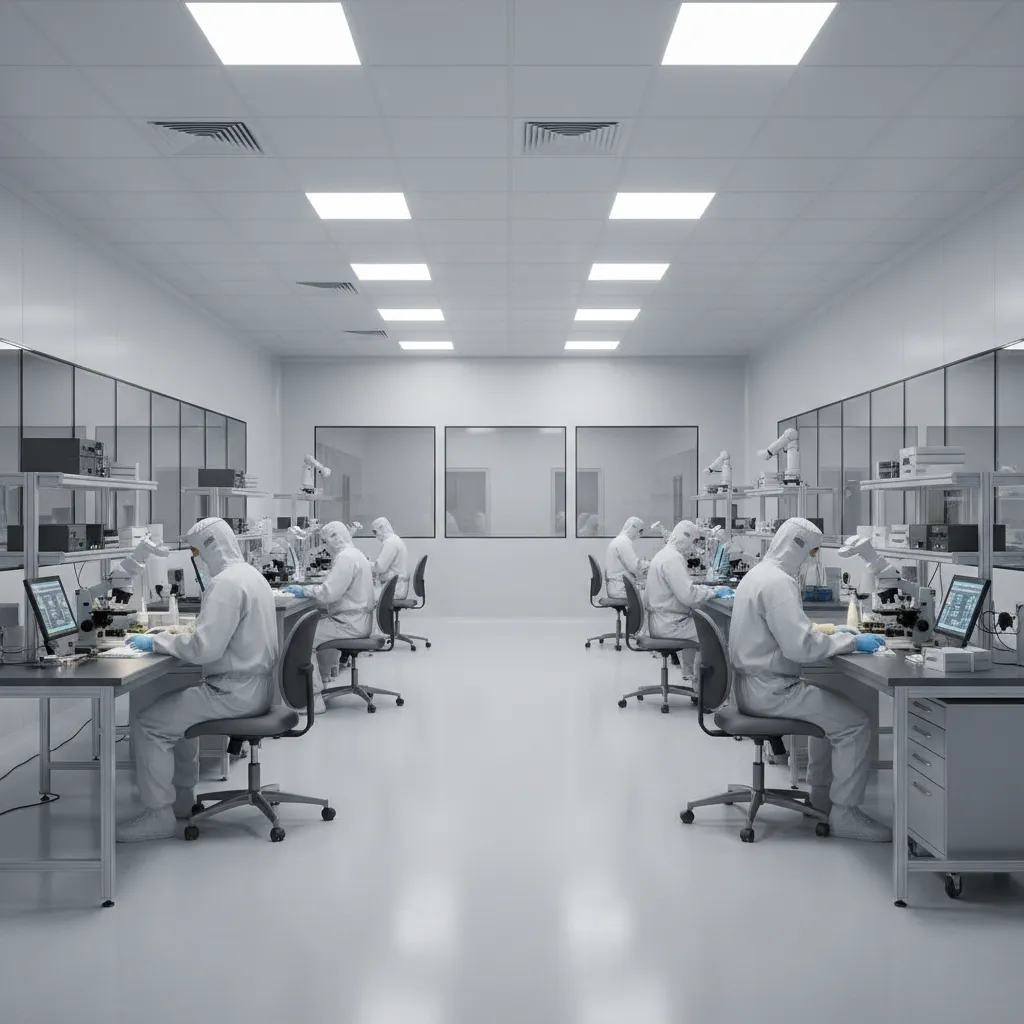

Tip / Data: Aim for average illuminance around 500–1000 lux at benches depending on task, and confirm with a lighting calc. For mid-project layout shifts, I simulate fixture spacing and work triangles using task zone spacing visualization so bench reflections and sightlines are right on the first install.

save pin

save pin

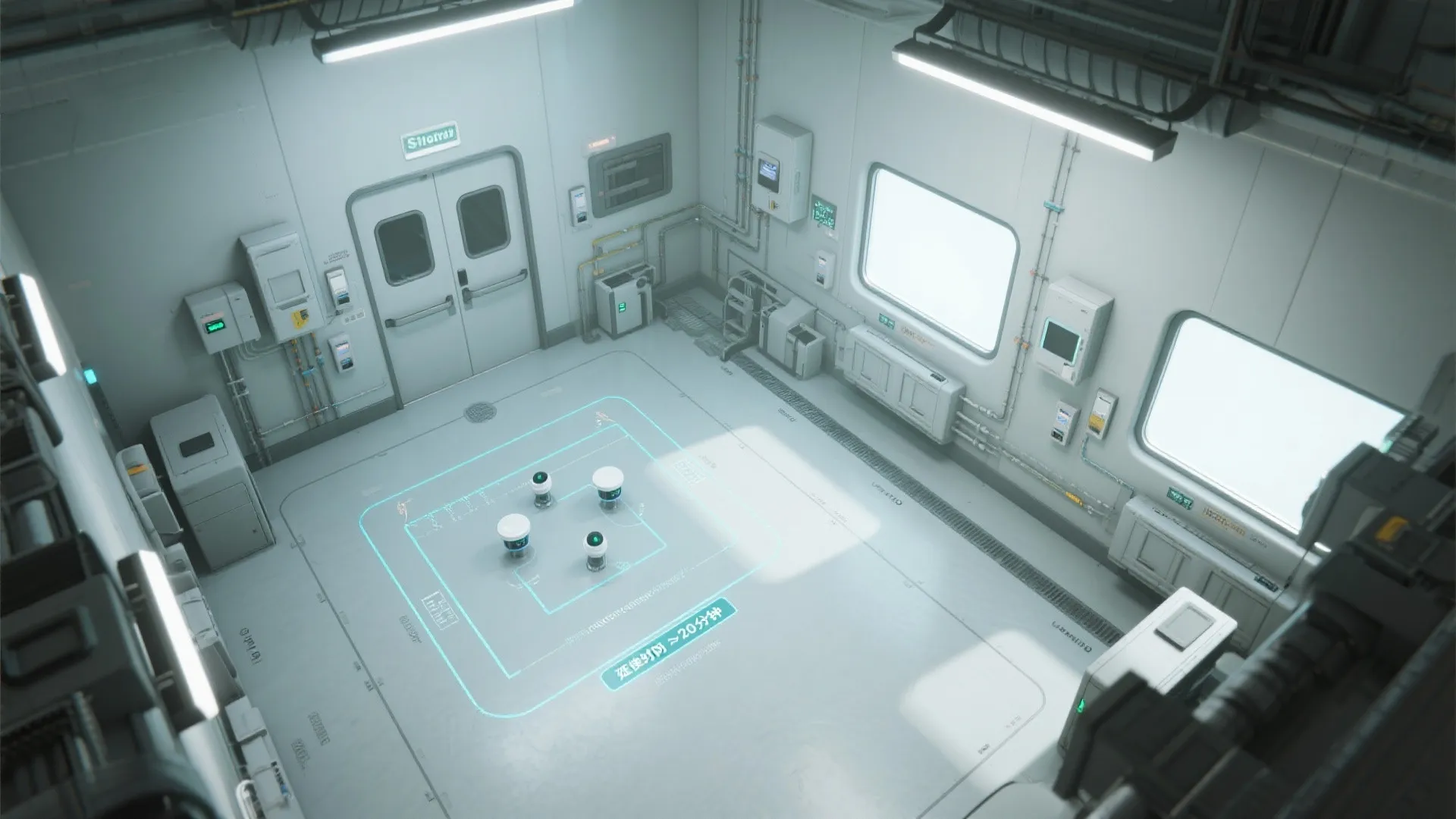

Seamless Controls: Sensor Logic That Respects Protocols

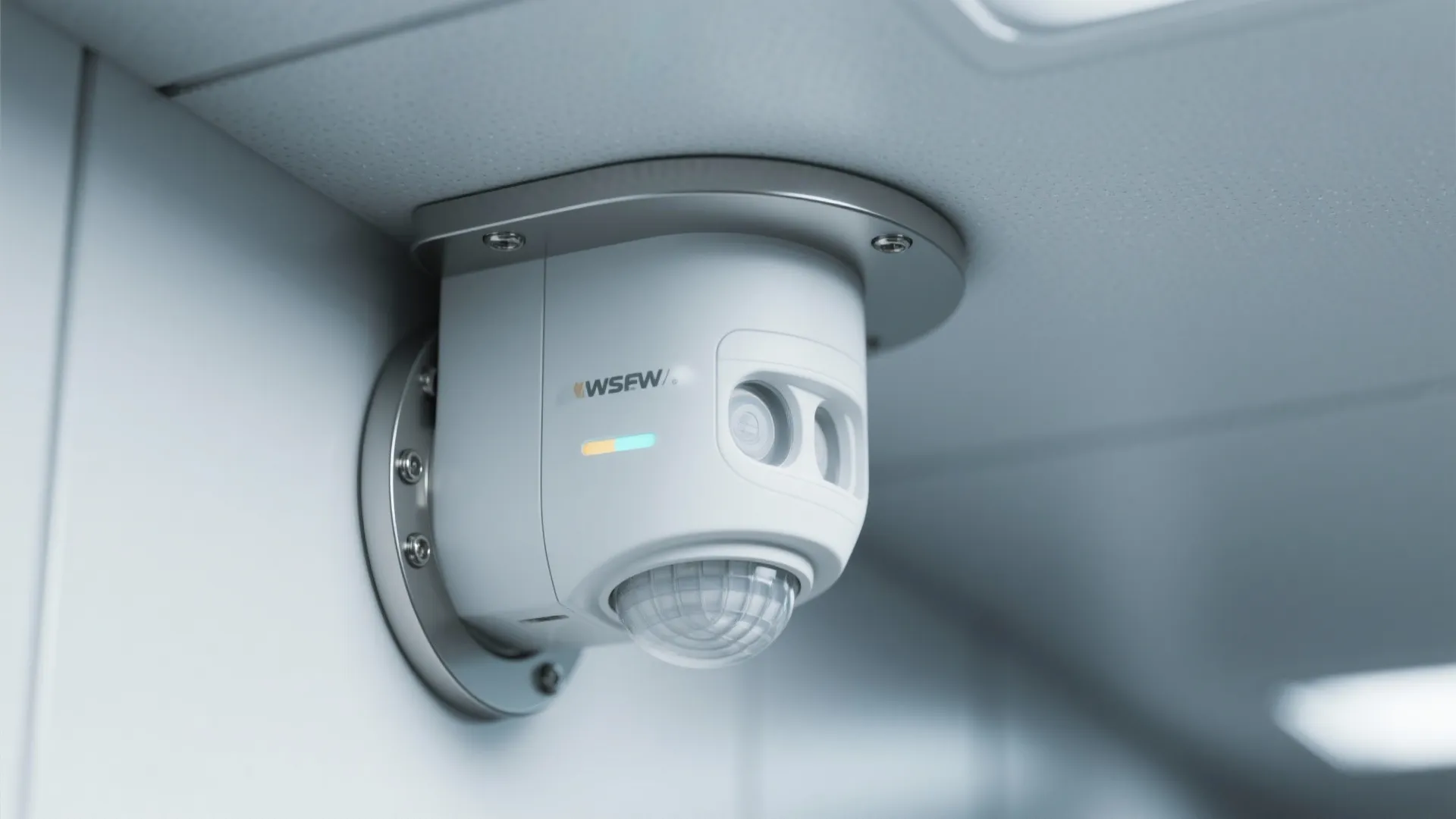

My Take: Motion and door sensors can be a blessing or a menace. In one ISO Class 7 suite, an overactive sensor plunged a tech into semi-darkness mid-inspection—lesson learned. I now use dual-technology sensors, timeouts >20 minutes, and corridor hold so light never drops below safe levels.

Pros: Smart controls trim energy without compromising compliance, an increasingly searched long-tail feature for clean room lighting upgrades. Daylight harvesting at perimeters can work if windows are double-sealed and glare-managed, reducing loads while maintaining uniformity.

Cons: Overlapping sensor zones can “hunt,” causing dips and spikes that annoy staff. BMS integration adds complexity—label every circuit and scene, and document who has override rights.

Tip / Authority: ASHRAE 90.1 and IEC controls standards are good baselines; in regulated environments, align scenes with SOPs and record setpoints in commissioning logs.

save pin

save pin

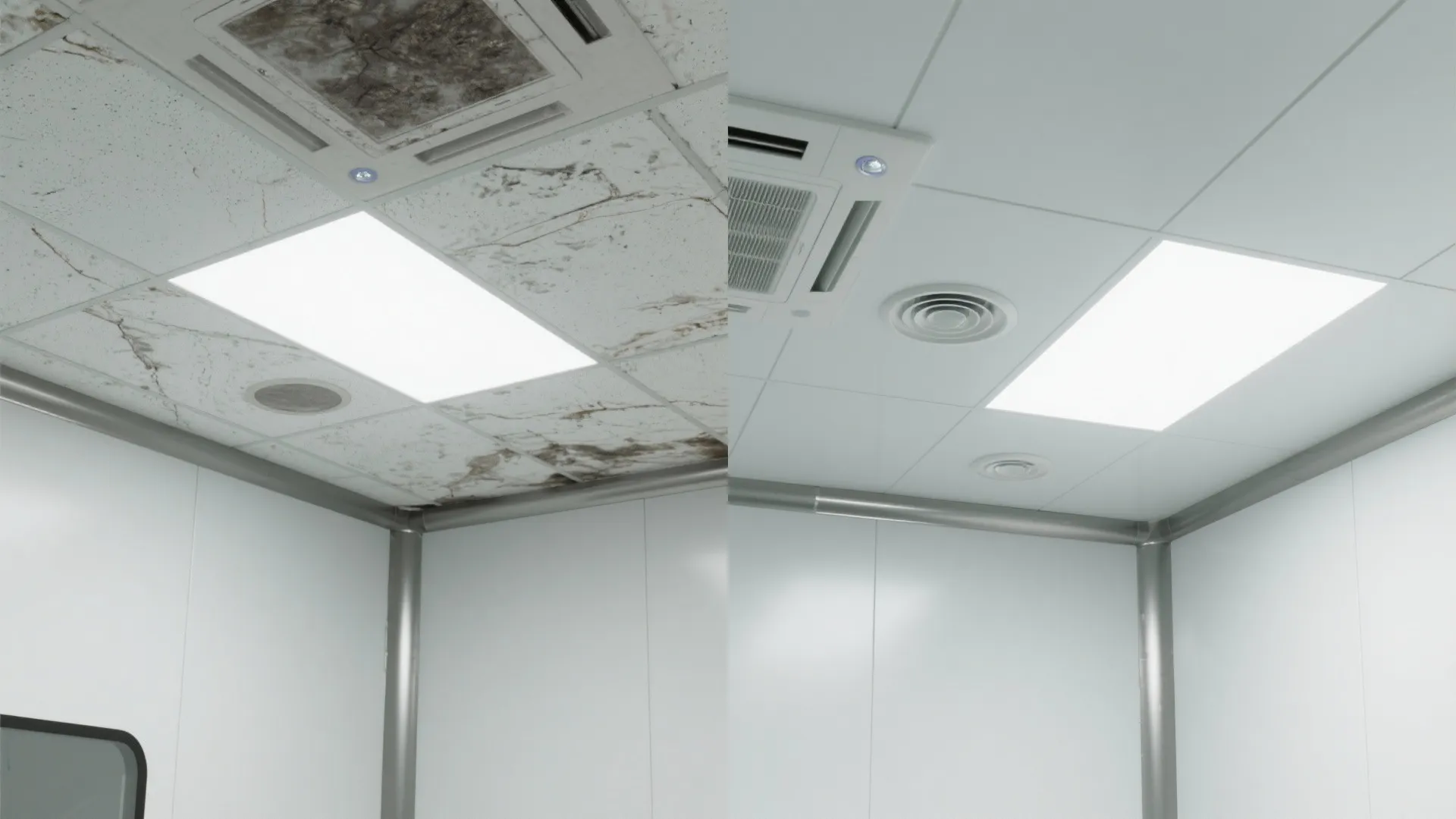

Cleanability First: Materials, Mounting, and Maintenance

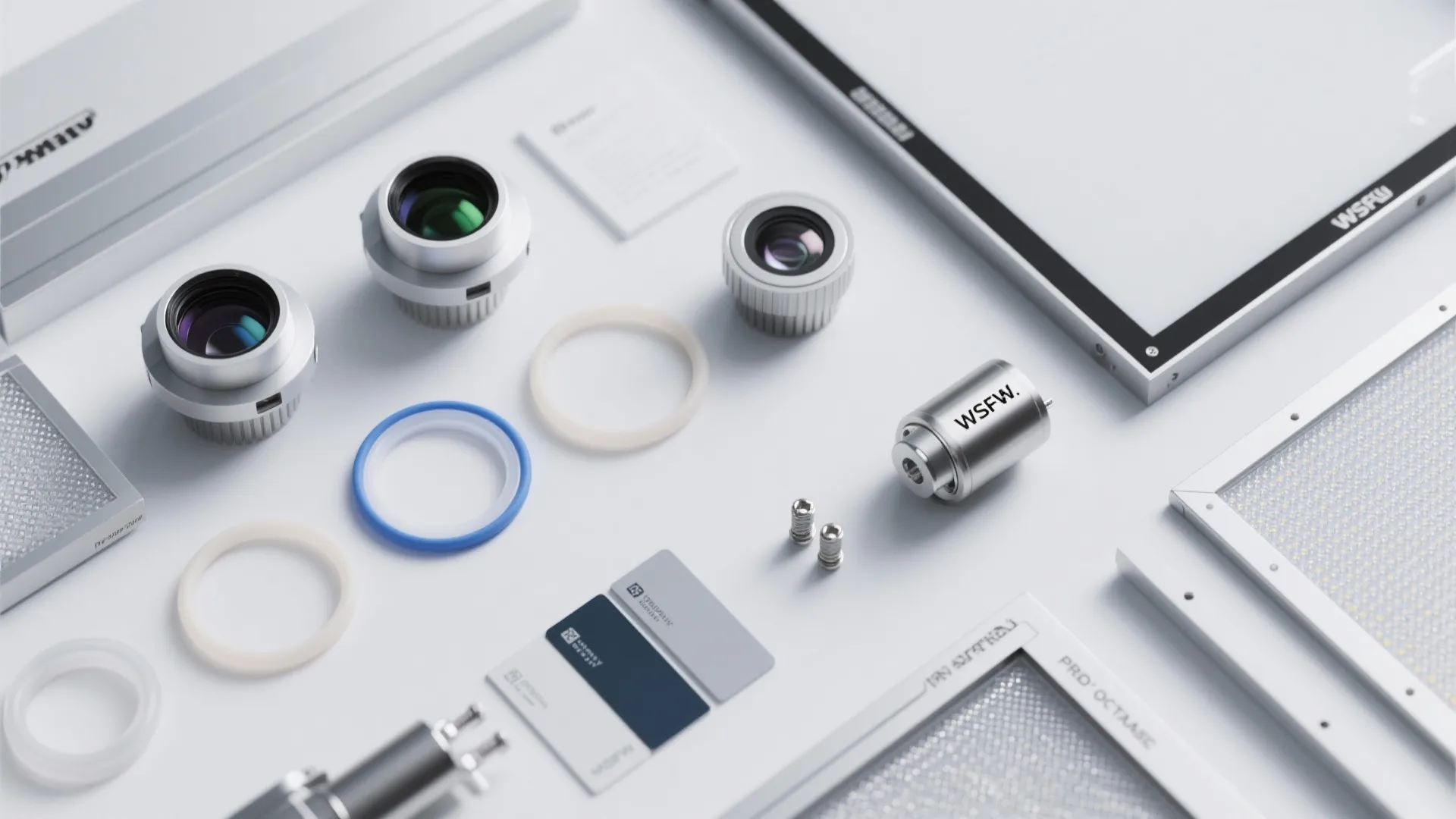

My Take: The most elegant fixture fails if it can’t handle your wipe-down routine. I specify bonded lenses, minimal seams, and stainless or powder-coated hardware that tolerates quats and peroxide. On projects with tight access, hinge-down frames have saved hours during HEPA filter swaps.

Pros: Smooth, non-porous surfaces reduce microbial harborage—exactly what long-tail queries about “clean room lighting cleanability” target. NSF/UL listed luminaires with sealed housings stand up to aggressive cleaning and maintain ingress protection over time.

Cons: Some antimicrobial coatings can yellow under UV or harsh chemicals, affecting visual cues. And if the ceiling plane is uneven, flush mounting becomes a fussy, time-consuming affair.

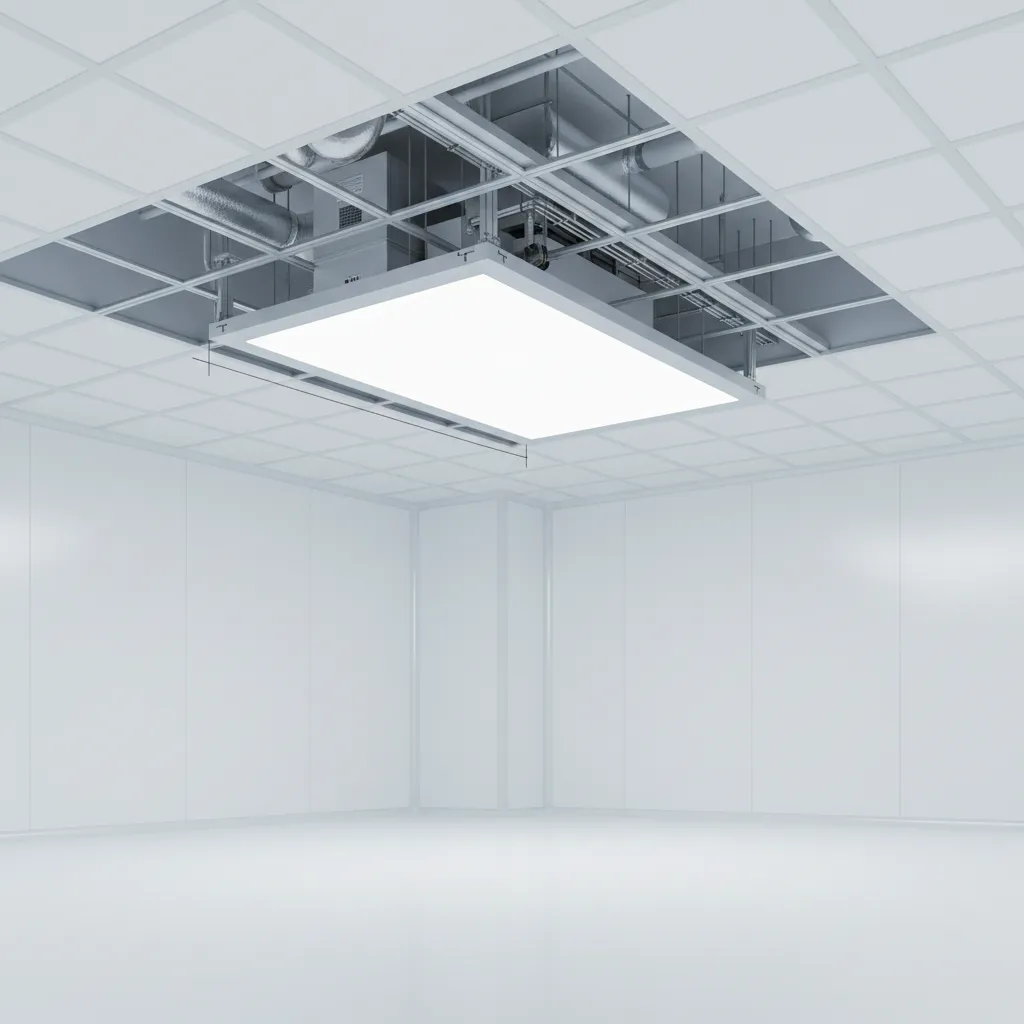

Tip / Reference: For pharma and biotech, consult ISO 14644-4 for facility design and FDA guidance for cleanability. I also pre-visualize ceiling penetrations and fixture service clearances in 3D; a quick pass with reflectance and clearance preview catches conflicts before they’re real.

[Section: 总结]

Clean room lighting isn’t about adding more watts—it’s about smarter sealing, optics, controls, and maintenance. Small rooms ask for sharper thinking, not compromises, and clean room lighting is where meticulous choices pay off. Reference frameworks like ISO 14644 and WELL v2 can keep your decisions grounded. Which of these five ideas would you try first in your space?

[Section: FAQ 常见问题]

save pin

save pin

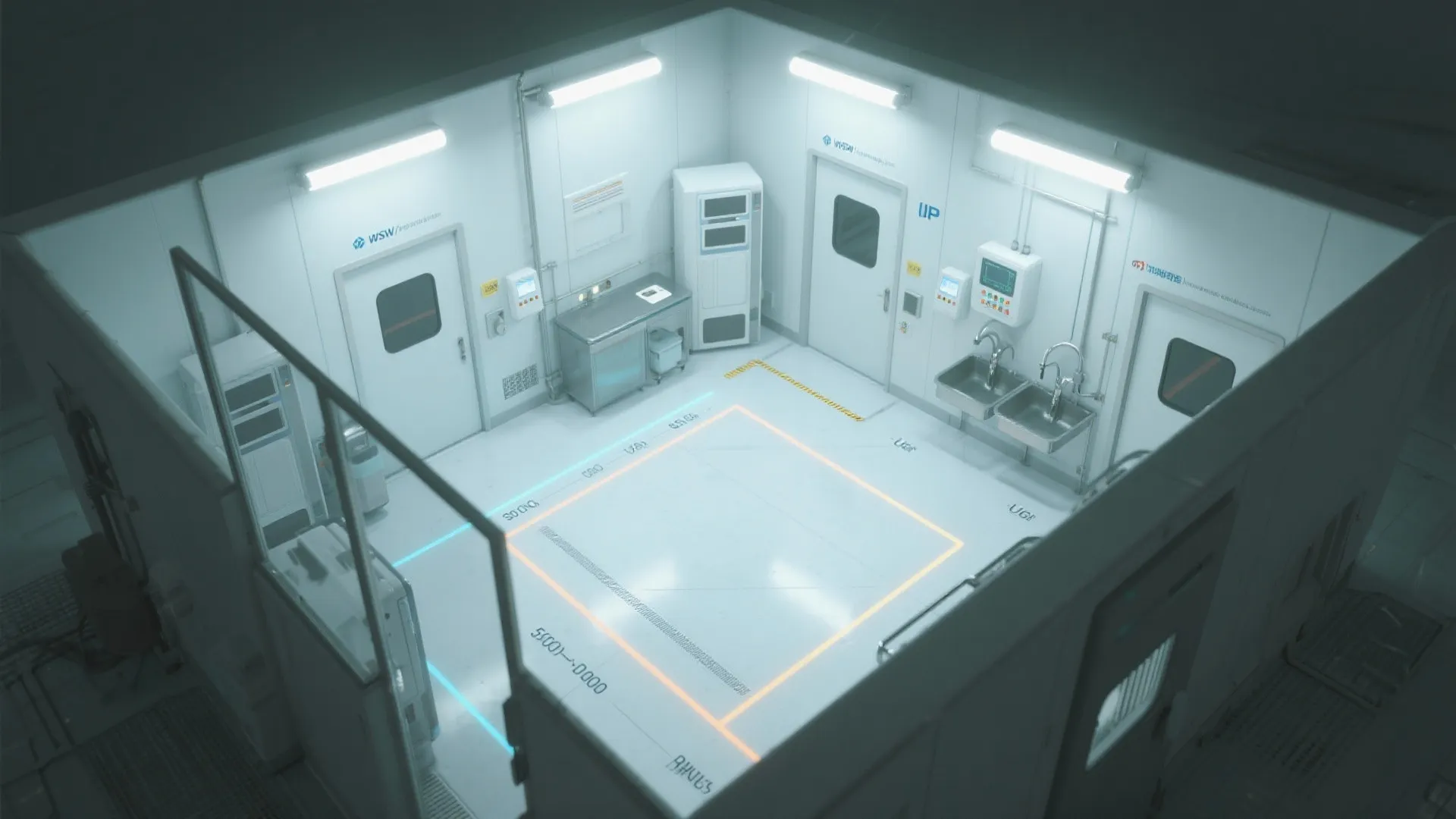

FAQ

1) What color temperature works best for clean room lighting?

For inspections, 5000–6500K supports visual acuity; for general tasks, 4000K balances clarity and comfort. Tunable white lets teams switch between modes without swapping fixtures.

2) How bright should clean room lighting be?

Most bench work targets 500–1000 lux, with higher levels for micro-inspection. Always verify with a lighting calculation to confirm uniformity and shadows around equipment.

3) Do I need IP65 or IP66 fixtures?

In wash-down or high-cleaning-frequency zones, yes—sealed housings protect against moisture and particulates. In drier, controlled rooms, IP54 may suffice if your SOPs allow.

4) Is glare control really necessary?

Yes—low UGR optics reduce eye strain and improve accuracy on reflective benches. It’s especially important in compact rooms where surfaces amplify reflections.

5) What standards apply to clean room lighting?

ISO 14644 covers clean room classifications; WELL v2 and CIE S 026:2018 inform circadian and visual comfort metrics. For energy and controls, see ASHRAE 90.1. (CIE S 026:2018 provides melanopic EDI guidance.)

6) How do I balance energy savings with compliance?

Use scenes with minimum light levels, extended timeouts, and corridor hold to prevent unsafe dimming. Commission the system and document setpoints in your SOPs.

7) What CRI should I specify?

CRI ≥90 is ideal for color-critical tasks and label reading. If you inspect fluids or electronics, test sample materials under your chosen fixtures before approval.

8) Can I visualize layouts before construction?

Yes—3D mockups help optimize spacing, reflections, and maintenance access. In early design, I often simulate task zones and ceiling grids to de-risk installation.
