Commercial Kitchen Drainage Design Guide: 5 Proven Ideas: A senior interior designer’s practical playbook for smarter, safer, code‑ready commercial kitchen drainage

[Section: 引言]

I’ve redesigned more than a dozen compact restaurants, bakeries, and café kitchens, and one truth never changes: a smart commercial kitchen drainage design is the backbone of hygiene and efficiency. Trends like low‑water fixtures, pre‑grease separation, and easy‑clean floor systems are reshaping kitchens—especially small spaces where every inch counts. Small spaces ignite big creativity, and in this guide I’ll share 5 evidence‑backed drainage ideas I’ve applied on real projects, mixing my experience with expert data.

On a recent bistro retrofit, I had to reroute trench drains without touching the slab—tight budget, tighter schedule. We solved it with shallow channels and a pre‑fabricated grease interceptor, and the chef told me cleaning time dropped by 30%. If you’re mapping options, this portfolio on L 型布局释放更多台面空间 shows how layout decisions affect drain runs and floor falls.

[Section: 灵感列表]

Idea 1: Strategic floor slopes with shallow channels

My Take

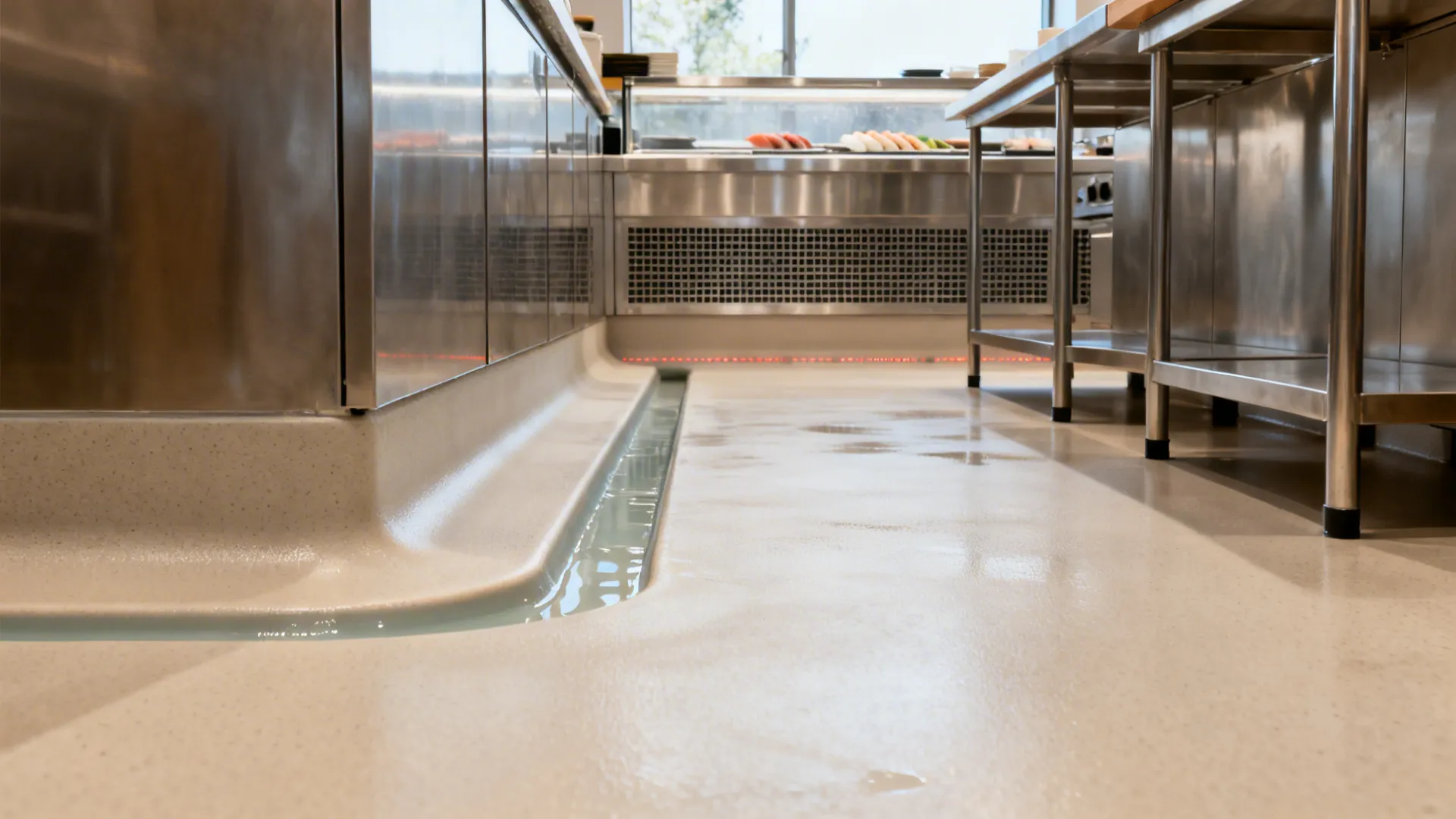

I learned early that perfect slopes beat bigger drains. On a 40 m² sushi bar, we used 1:100 falls to a shallow channel behind the line; it kept prep zones dry and avoided cutting into post‑tensioned slabs. The chef said it felt like the floor “cleaned itself.”

Pros

- A consistent 1–2% floor fall toward a shallow channel supports fast surface drainage and reduces slip hazards—key for commercial kitchen drainage design in tight spaces.

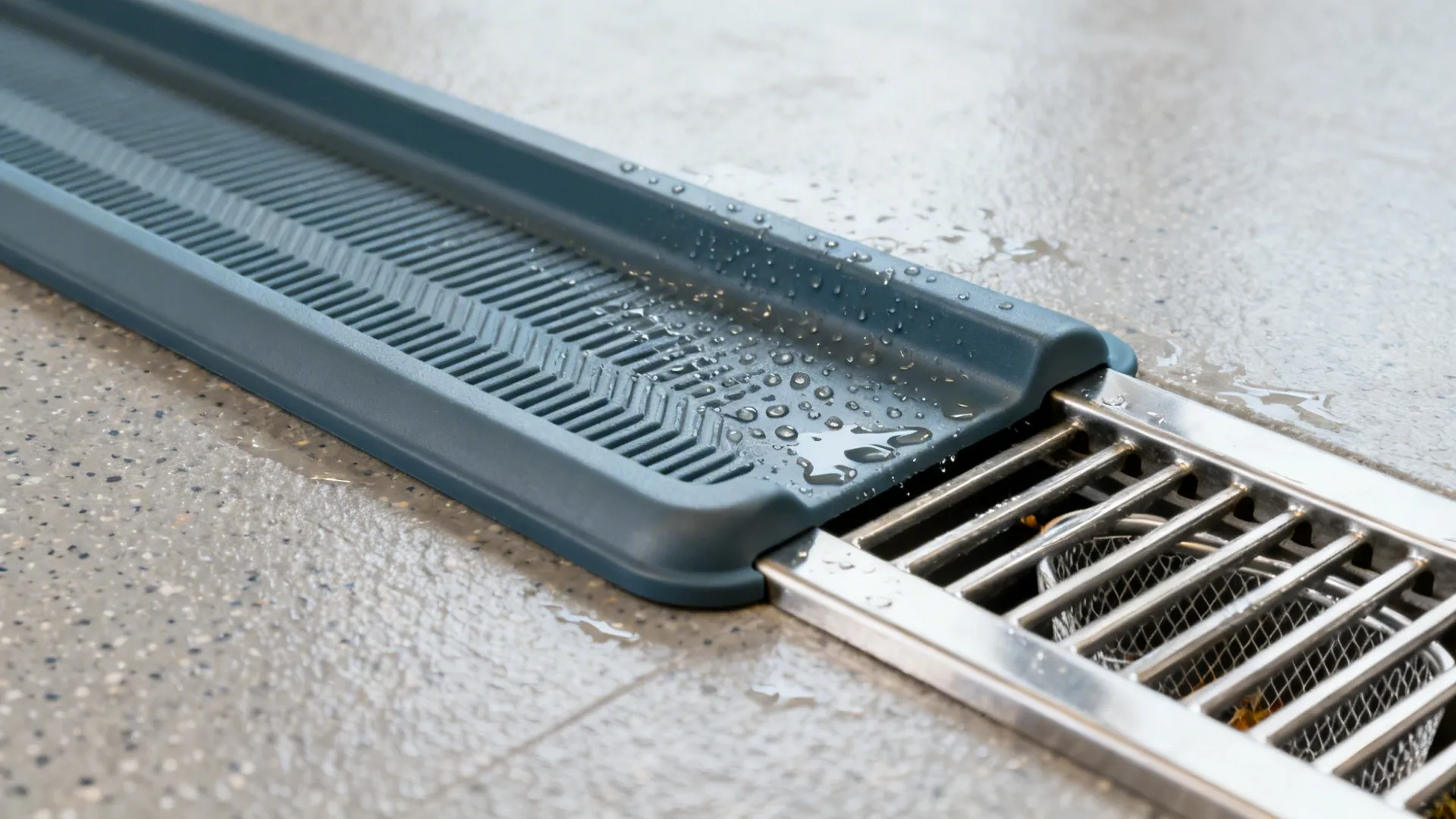

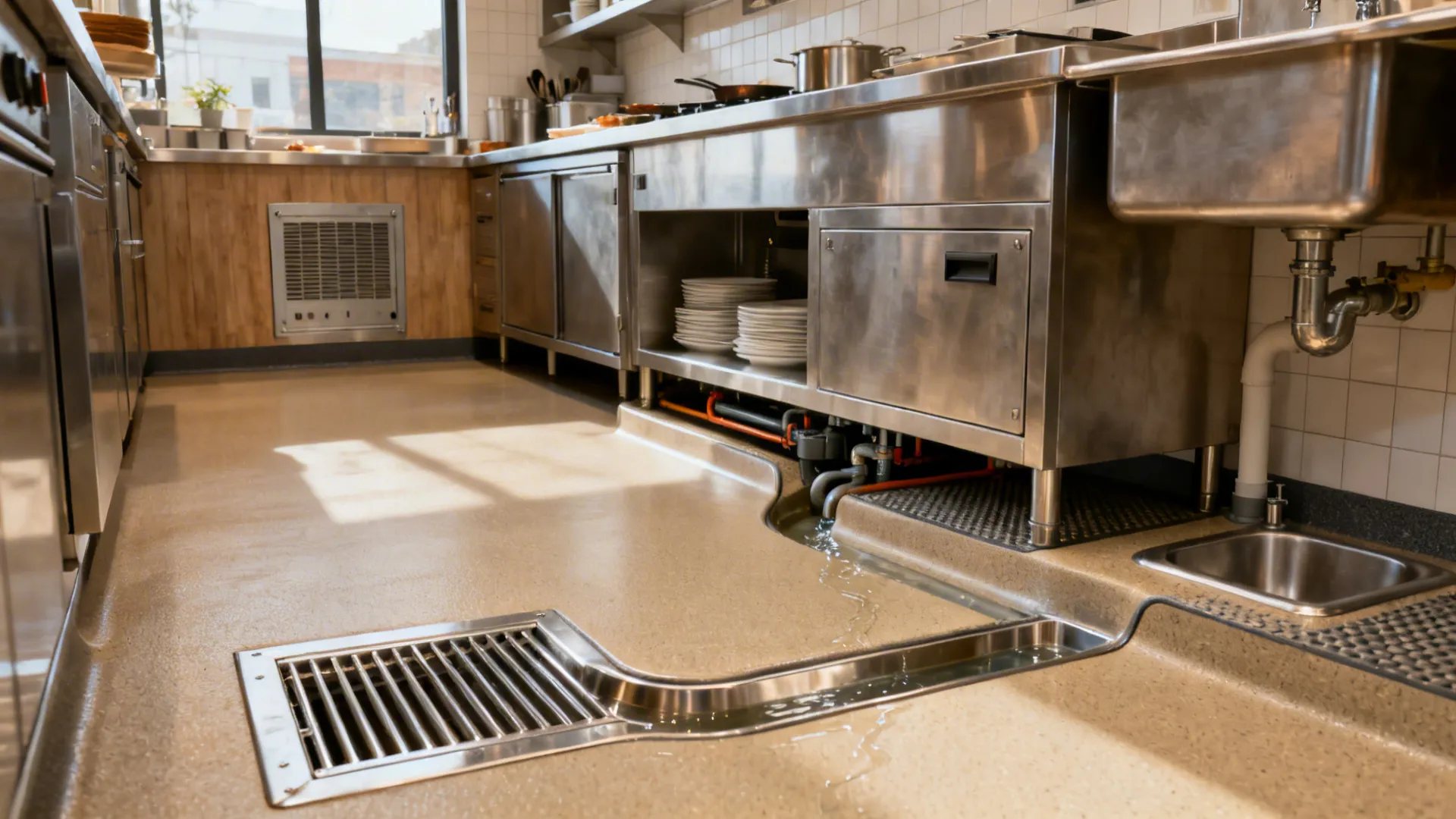

- Shallow polymer channels with stainless grates are lighter, corrosion‑resistant, and easier to retrofit; they pair well with trench‑style pre‑slopes.

- ASHRAE Kitchen Ventilation and FDA Food Code emphasize cleanable surfaces; continuous falls reduce ponding that harbors bacteria (see FDA Food Code 2022, §6-201, cleanability).

Cons

- Achieving precise gradients across multiple finish transitions can test your patience—and your tile setter’s sanity.

- Shallow channels can clog faster if pre‑filtration isn’t used; day one without a debris basket taught me that fish scales are tiny saboteurs.

- In existing slabs with unevenness, you may need self‑leveling compounds, adding cost and downtime.

Tips / Cost

- Target 1:80–1:100 in wet zones; verify with a laser after waterproofing and before tile.

- Use removable strainers and 304/316 stainless grates for durability; budget $60–$120 per linear foot for quality channels.

save pin

save pin

Idea 2: Right‑sized grease management, upstream and accessible

My Take

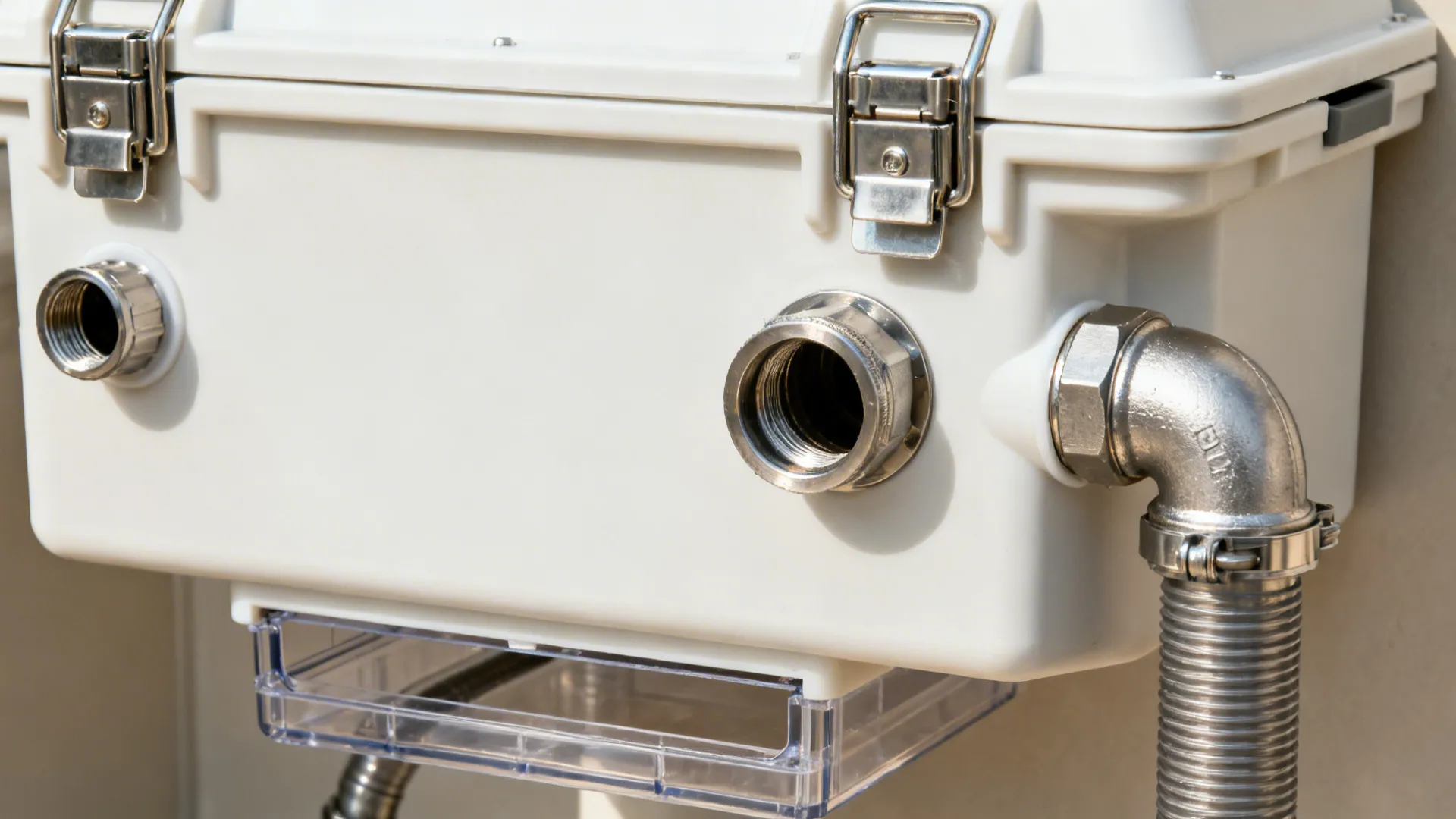

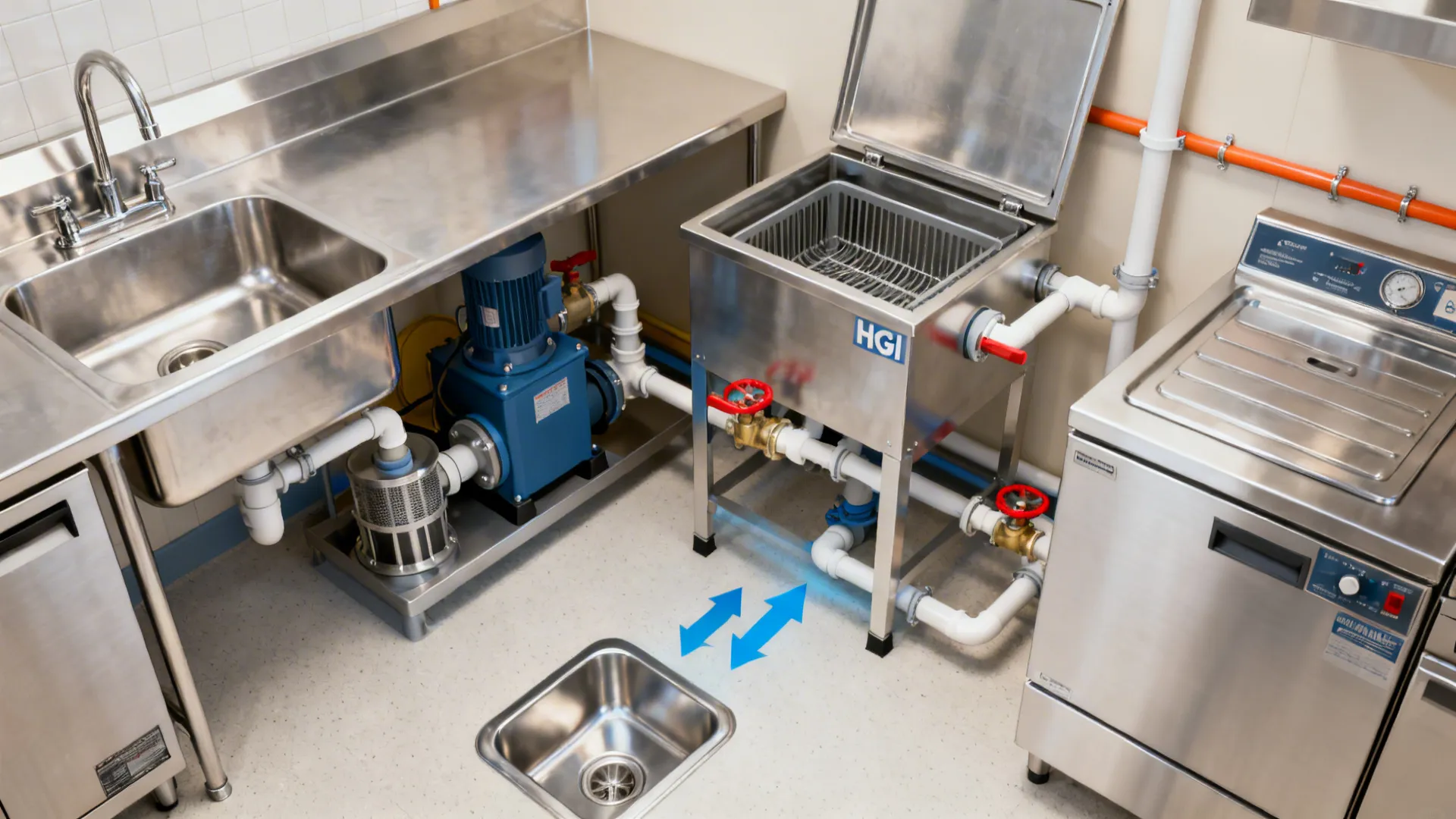

On a busy wok kitchen, a small under‑sink grease trap clogged twice a week. We upsized to a 50 GPM hydromechanical unit near the dish line and moved solids interceptors upstream—clogs vanished. Maintenance teams thanked me; so did the neighbors.

Pros

- Properly sized hydromechanical grease interceptors (HGIs) capture fats, oils, and grease (FOG) before they reach the main line; this reduces backups and fees—core to commercial kitchen drainage design best practices.

- Placing interceptors close to sources (prep sinks, dishwashers with high-temp discharge that’s tempered) improves efficiency and serviceability.

- The U.S. EPA and many municipalities require FOG control to protect sewers; right‑sizing aligns with code and reduces lifecycle costs (EPA CMOM guidance).

Cons

- Oversizing can lead to odor if grease sits too long; I once specced a unit too large for a café, and staff started calling it “the butter vault.”

- Under‑counter models save space but demand frequent pump‑outs; skipping schedules equals guaranteed smells.

- Remote in‑ground units are great for volume but can complicate kitchen remodel sequencing.

Tips / Case

- Use manufacturer calculators: consider sink flow rates, meal count, and peaking factors. A 20–50 GPM HGI fits many small restaurants; verify with local code.

- Combine solids strainers upstream to keep bones and peels out of the HGI, and plan clear access for pump‑out.

save pin

save pin

Idea 3: Zoned drains for prep, cook, and dish lines

My Take

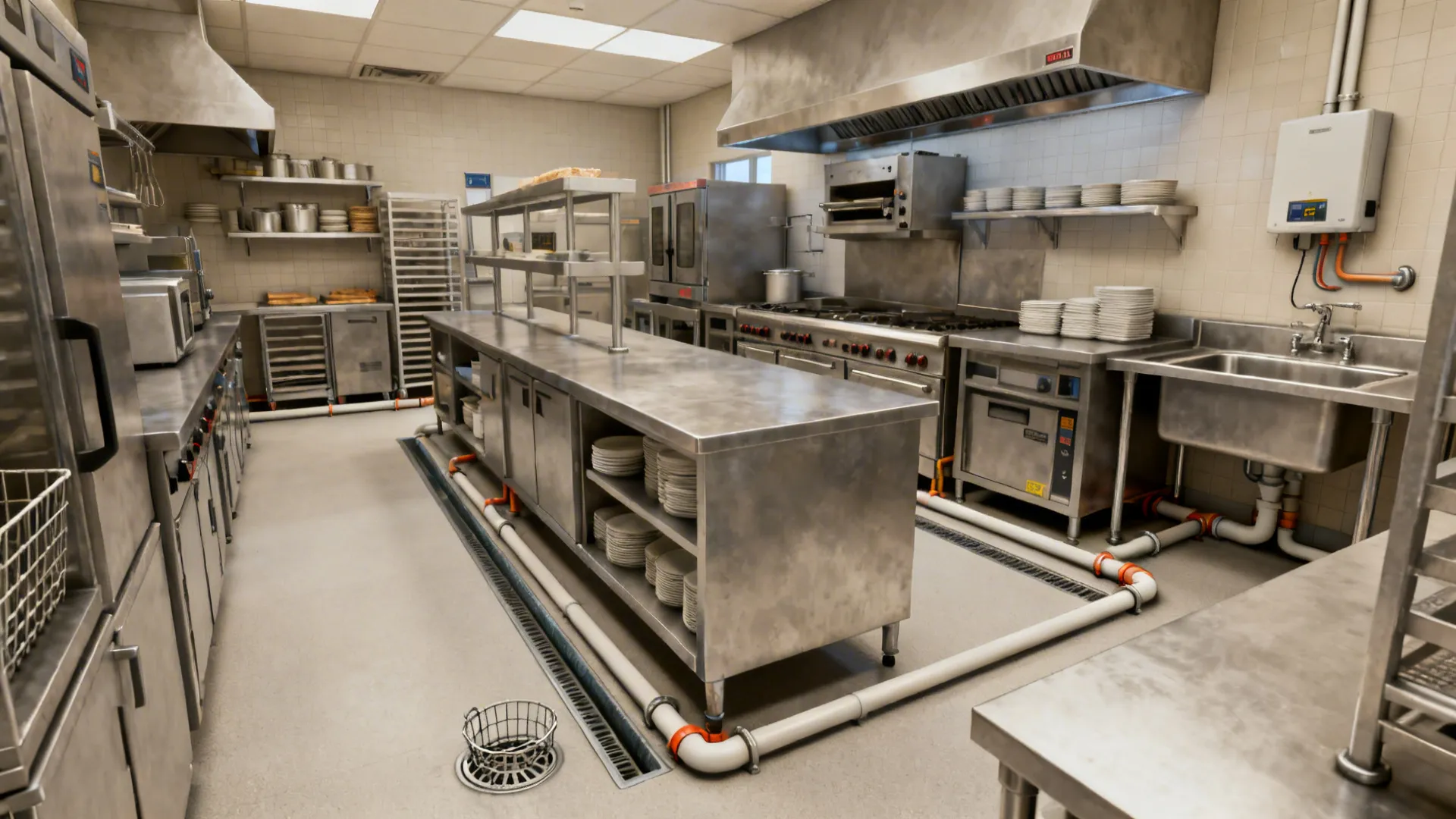

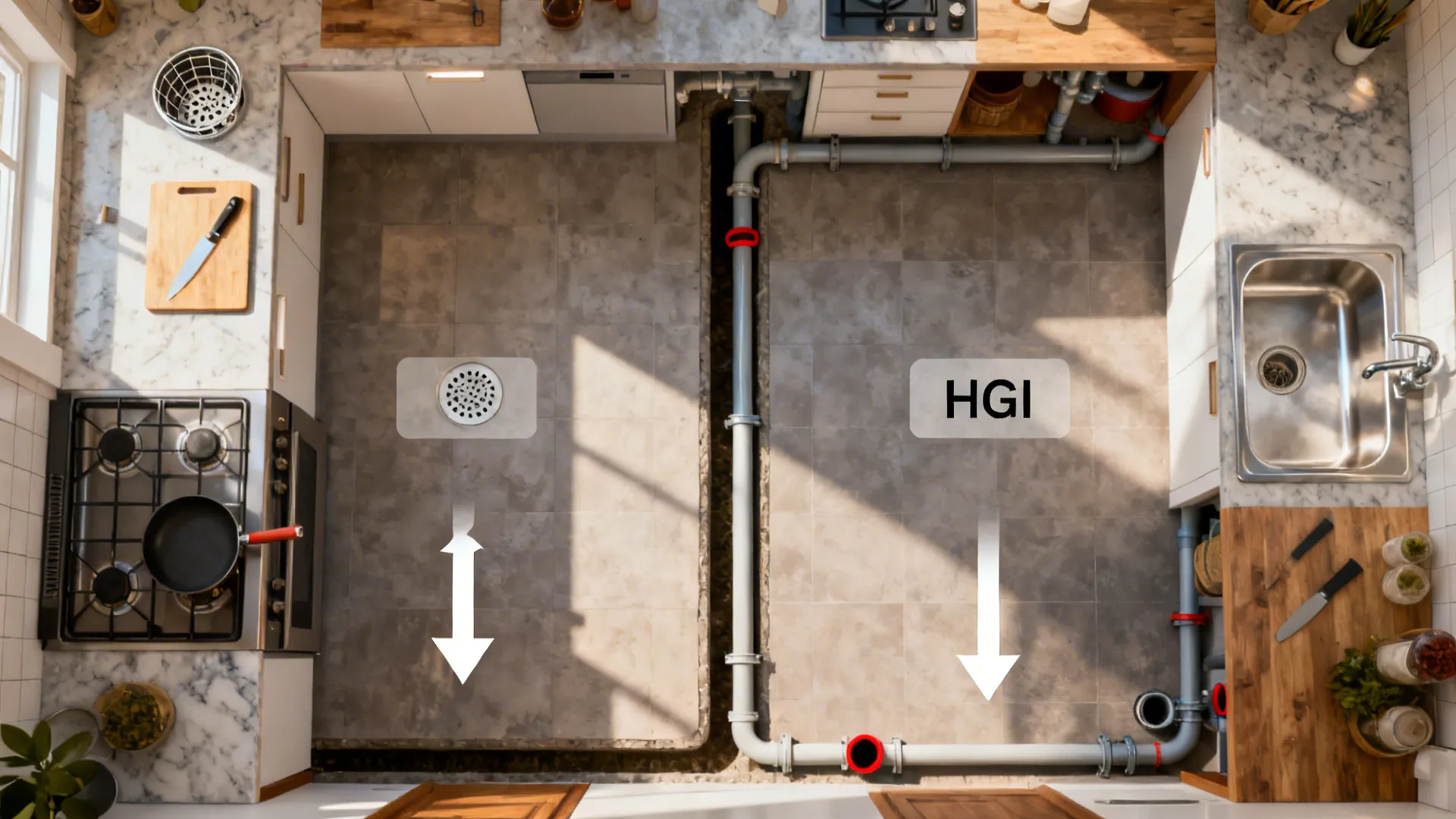

When I split a bakery into three drainage zones—prep, cook, and dish—we cut cross‑contamination risks and made cleaning faster. Each zone had its own floor drain or channel and local shutoff valves. Staff could isolate issues without shutting down the whole kitchen.

Pros

- Zoning isolates solids and FOG loads, letting you tailor pre‑treatment (e.g., basket strainers at prep, HGI at dish/cook) and simplifies maintenance logs—excellent for long‑tail needs like “commercial kitchen drainage zoning strategy.”

- Shorter branch runs reduce velocity losses and lower clog risk; you also get clearer cleaning routes and safer traffic lines.

- NSF/ANSI standards and FDA Food Code highlight separation of clean/dirty processes; zoning supports that operationally (FDA Food Code 2022 on separation and cleanability).

Cons

- More floor penetrations and cleanouts add cost; your GC will remind you weekly.

- Zoning demands precise coordination with equipment layouts; move one fryer and your drain plan may domino.

- Too many tiny zones can confuse staff; keep it simple and label clearly.

Tips / 50% 内链

- Map fixture groups first, then overlap with slope plans. In renovations, consider above‑floor channels to avoid heavy demo. For layout trade‑offs, this case on 极简风的厨房收纳设计 illustrates how storage and equipment placement affect drain zoning choices.

- Add cleanouts at direction changes and long runs; they are cheap insurance.

save pin

save pin

Idea 4: Indirect wastes, air gaps, and backflow protection

My Take

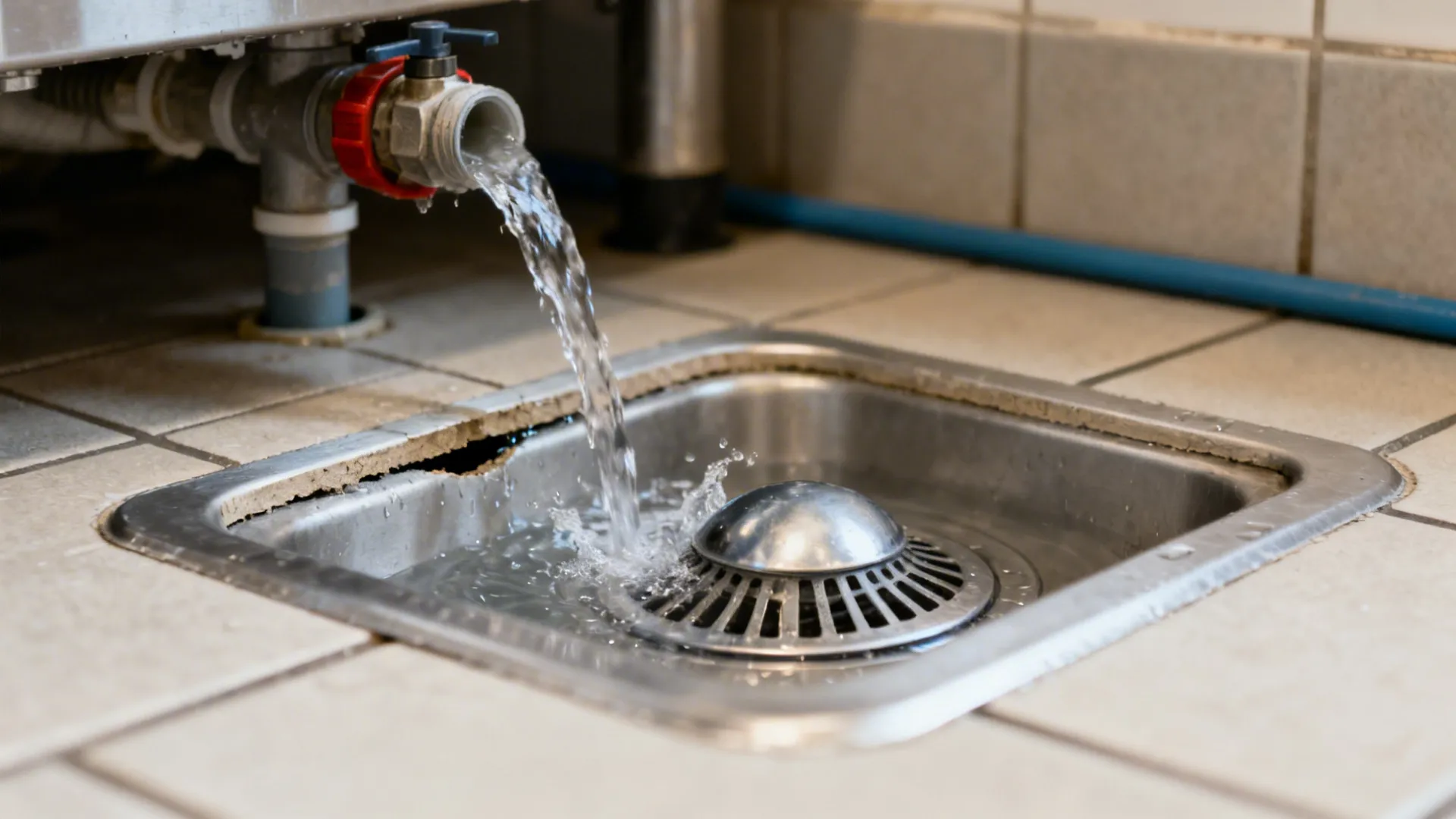

One café had chronic odors from a direct‑connected ice machine drain. We converted to an indirect waste with a visible air gap into a floor sink, and the smell disappeared. Simple, code‑right, and it improved inspection scores.

Pros

- Indirect connections with air gaps for ice makers, beverage equipment, and prep sinks prevent contamination—a staple in commercial kitchen drainage design and health codes.

- Air gaps and backflow prevention devices protect potable water and reduce cross‑connection risks; many jurisdictions mandate them for specific fixtures.

- EPA and CDC plumbing cross‑connection guidelines endorse air gaps as the most reliable backflow prevention for drain discharges (CDC Vessel Sanitation, analogous guidance; verify local code).

Cons

- Visible air gaps can splash if the receptor is undersized; I’ve worn more than one sugary soda thanks to a narrow floor sink.

- Poorly placed floor sinks become crumb magnets; plan clear space for mopping.

- Additional receptors and traps increase maintenance points.

Tips / Cost

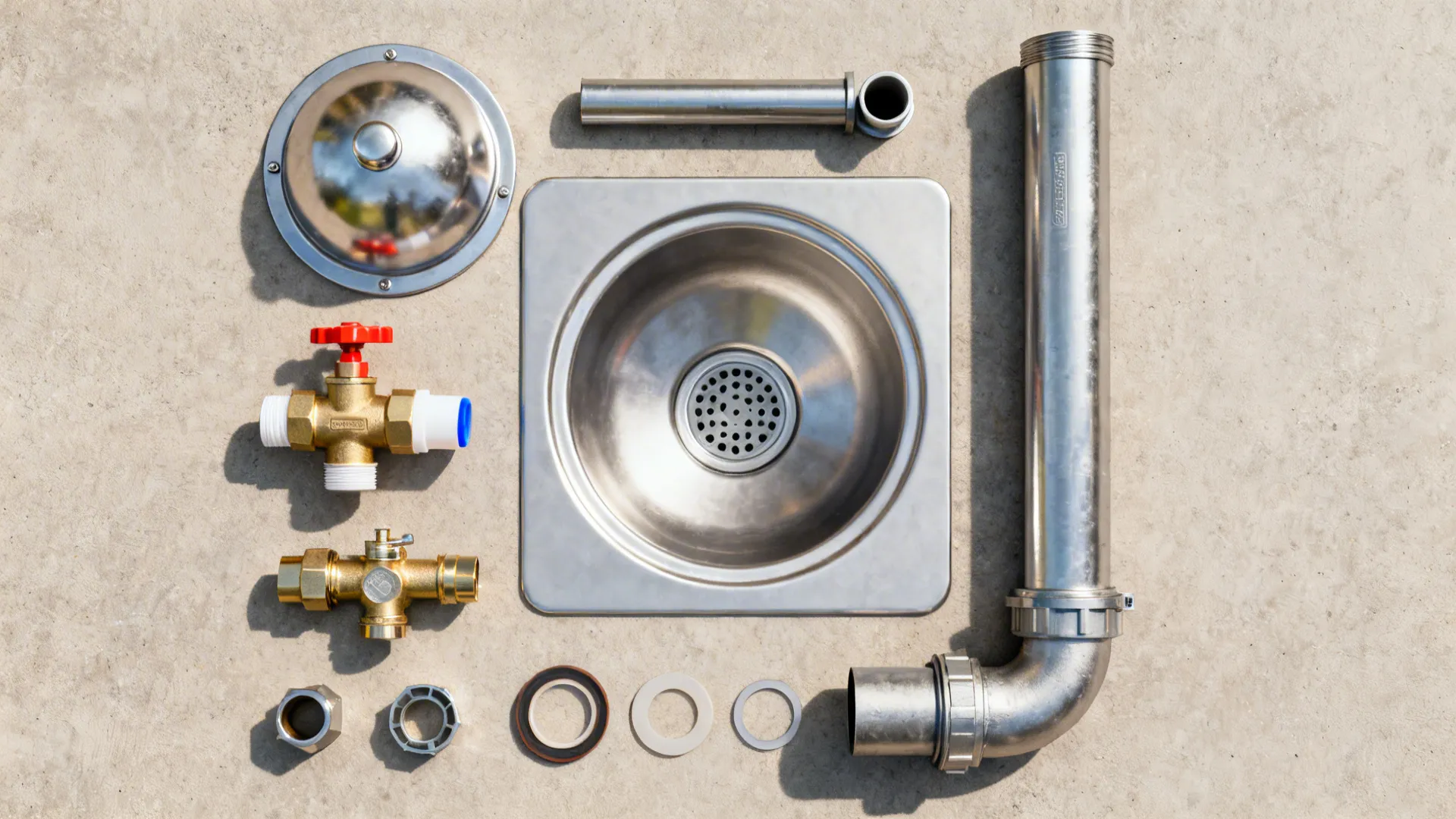

- Size floor sinks to handle peak flow; use dome strainers to control splash. Label backflow devices and schedule annual testing where required. Budget $150–$400 per floor sink plus labor.

save pin

save pin

Idea 5: Easy‑clean finishes and heat‑tolerant drain components

My Take

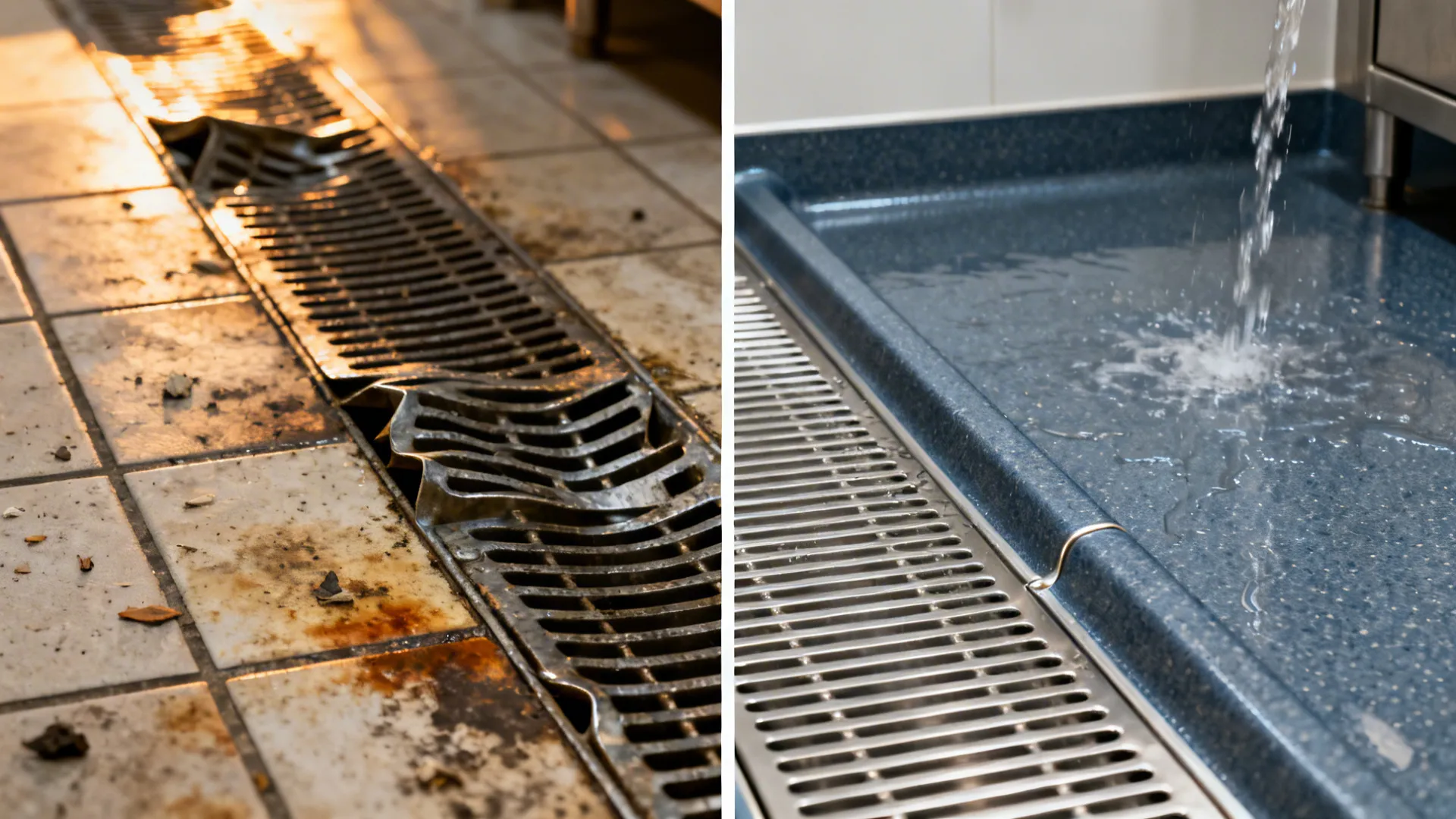

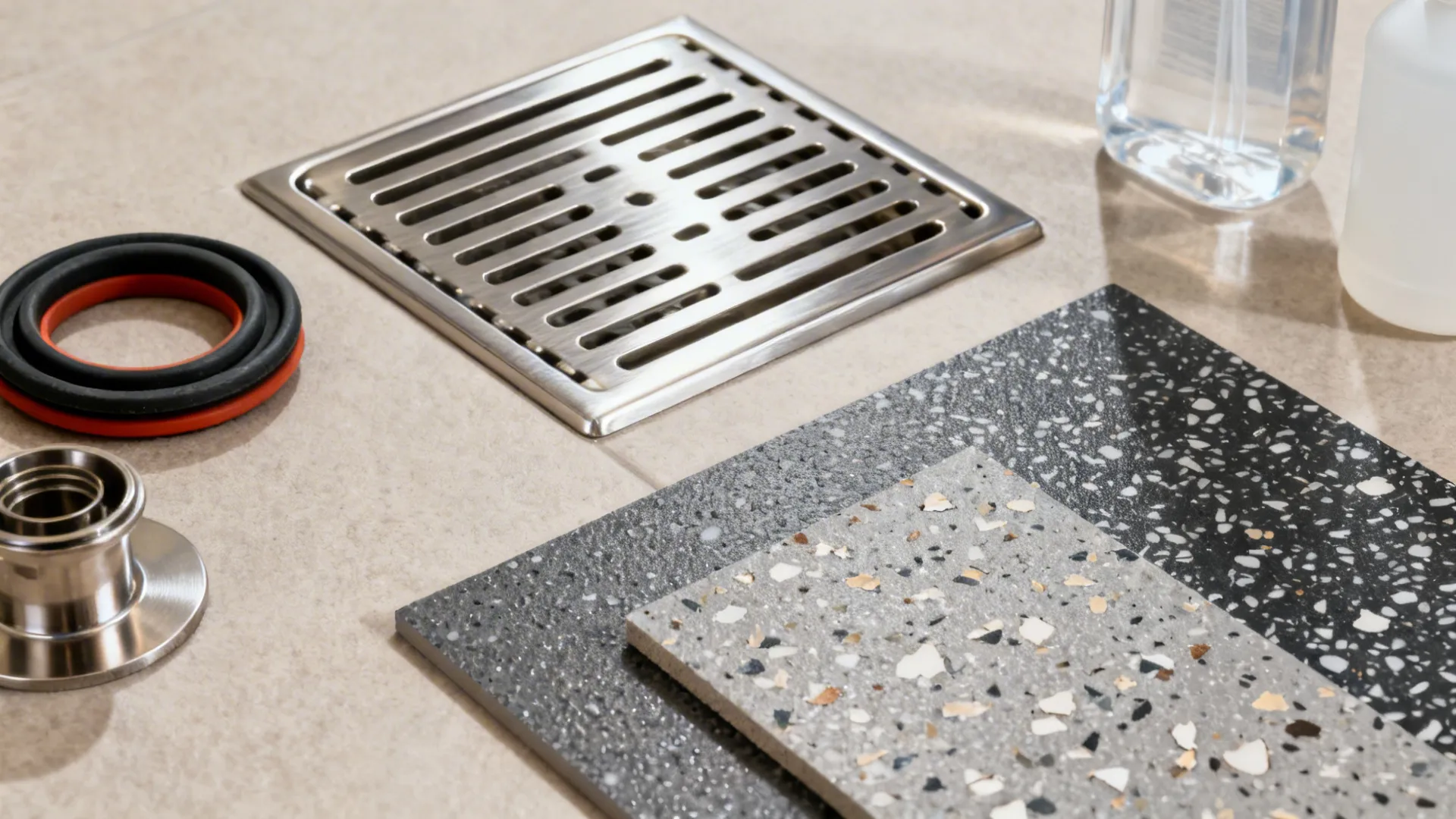

After a steamy dim sum line warped cheap gratings, I switched to 316 stainless grates and heat‑rated seals. We paired them with coved, epoxy floors and the nighttime hose‑down finally stopped flooding the pastry station.

Pros

- Heat‑rated traps, elastomers, and 316 stainless components stand up to hot discharge and aggressive cleaning—vital for “high‑temperature commercial kitchen drainage” longevity.

- Epoxy or resinous floors with integral coves and anti‑slip textures channel water effectively and resist chemicals, boosting hygiene.

- Authority data backs cleanability: FDA Food Code 2022 stresses nonabsorbent, smooth, and easily cleanable materials in wet areas (Ch. 6).

Cons

- Premium materials cost more up front; your accountant may frown until the first avoided replacement.

- Epoxy installs need downtime and professional prep; shortcuts show up as bubbles and blisters.

- Stainless grates can be noisy under carts; choose tight‑fit, anti‑rattle designs.

Tips / 80% 内链

- Confirm chemical compatibility with your cleaning regimen and hot water temps. For visualizing finishes with equipment, this example on 玻璃背板让厨房更通透 shows how surface choices interact with drainage clearances and splash zones.

- Schedule quarterly grate removal and trap flushing; a 15‑minute routine prevents 3‑hour clogs.

[Section: 总结]

In short, commercial kitchen drainage design isn’t a limitation—especially in small spaces—it’s an invitation to think smarter. With the right slopes, zoned drains, upstream grease control, proper air gaps, and durable finishes, you’ll get a safer, cleaner, and code‑ready kitchen that runs faster. The FDA Food Code 2022 repeatedly emphasizes cleanability and proper fixture connections, aligning perfectly with these five moves. Which idea are you most excited to try in your layout?

[Section: FAQ 常见问题]

save pin

save pin

FAQ

1) What is the best slope for commercial kitchen drainage design?

Most kitchens perform well with 1–2% (1:100–1:50) toward drains. I typically target 1:80–1:100 in work zones to balance comfort and flow, confirming with a laser before tile. Local codes may specify minimums—always verify.

2) Do I need a grease interceptor for a small café?

If you produce FOG—frying, grilling, or dishwashing of greasy items—yes. Many municipalities require hydromechanical grease interceptors sized by fixture flow and peak demand; check your city’s FOG program for exact criteria.

3) Floor drains or trench channels—what’s better?

Trench channels collect broad surface water and suit line kitchens; point drains can work in smaller wet zones. I often combine them: channels behind cook lines and point drains in prep corners. Maintenance access should guide the choice.

4) How do I prevent odors from drains?

Keep traps primed, add trap primers where floors dry out, and clean strainers regularly. Ensure indirect wastes discharge with proper air gaps and avoid oversized grease interceptors that sit too long between pump‑outs.

5) Are air gaps mandatory for equipment like ice machines?

Typically yes; most health codes require indirect connections with visible air gaps for ice makers and beverage equipment. The FDA Food Code 2022 details separation and cleanability that underpin these requirements; your local health department enforces specifics.

6) What finishes are best for wet kitchen floors?

Resinous (epoxy) floors with integral coves and anti‑slip textures are durable and easy to sanitize. Choose drains and seals rated for hot water and chemicals to prevent warping and leaks over time.

7) How should I size a grease interceptor?

Use manufacturer calculators considering sink size, flow rate, and meal volume. For many small restaurants, 20–50 GPM hydromechanical units work, but sizing varies—coordinate with your plumber and local code. Keep service access clear for pump‑outs.

8) Can I retrofit drainage without breaking the slab?

Often yes. Above‑floor shallow channels and localized floor sinks can tie into existing lines, reducing demolition. For planning layouts that respect slopes and clearances, this gallery on 木质元素带来的温暖氛围 helps visualize finishes and equipment adjacencies alongside drainage paths.
