Commercial Kitchen Exhaust Fan Design: 5 Proven Ideas: How I plan efficient, quiet, and code-compliant exhaust systems for real-world kitchens

[Section: Meta 信息] [Section: 引言] As a senior interior designer who has rebuilt more than a dozen compact restaurants and café back-of-house spaces, I’ve learned that commercial kitchen exhaust fan design is where safety, comfort, and efficiency truly meet. In small kitchens, big airflow problems appear fast—but small spaces also spark big ideas. In this guide, I’ll share 5 design inspirations grounded in my own projects and supported by industry data, so you can create a quieter, cleaner, and code-compliant system that actually fits your space. In my first ramen shop project, a simple adjustment to capture hood geometry cut smoke migration by half—proof that details matter. Before we dive in, one quick note: I’ll keep things practical and honest. I’ll talk airflow balancing, make-up air, sound control, grease management, and controls you’ll actually use. And because I know many of you are working with tight timelines, I’ll flag cost and install tips as we go. By the way, when we remodeled a narrow galley kitchen last year, a thoughtful hood and return placement made such a difference that diners noticed cleaner air up front—always a good sign of proper exhaust design. [Section: 灵感列表]

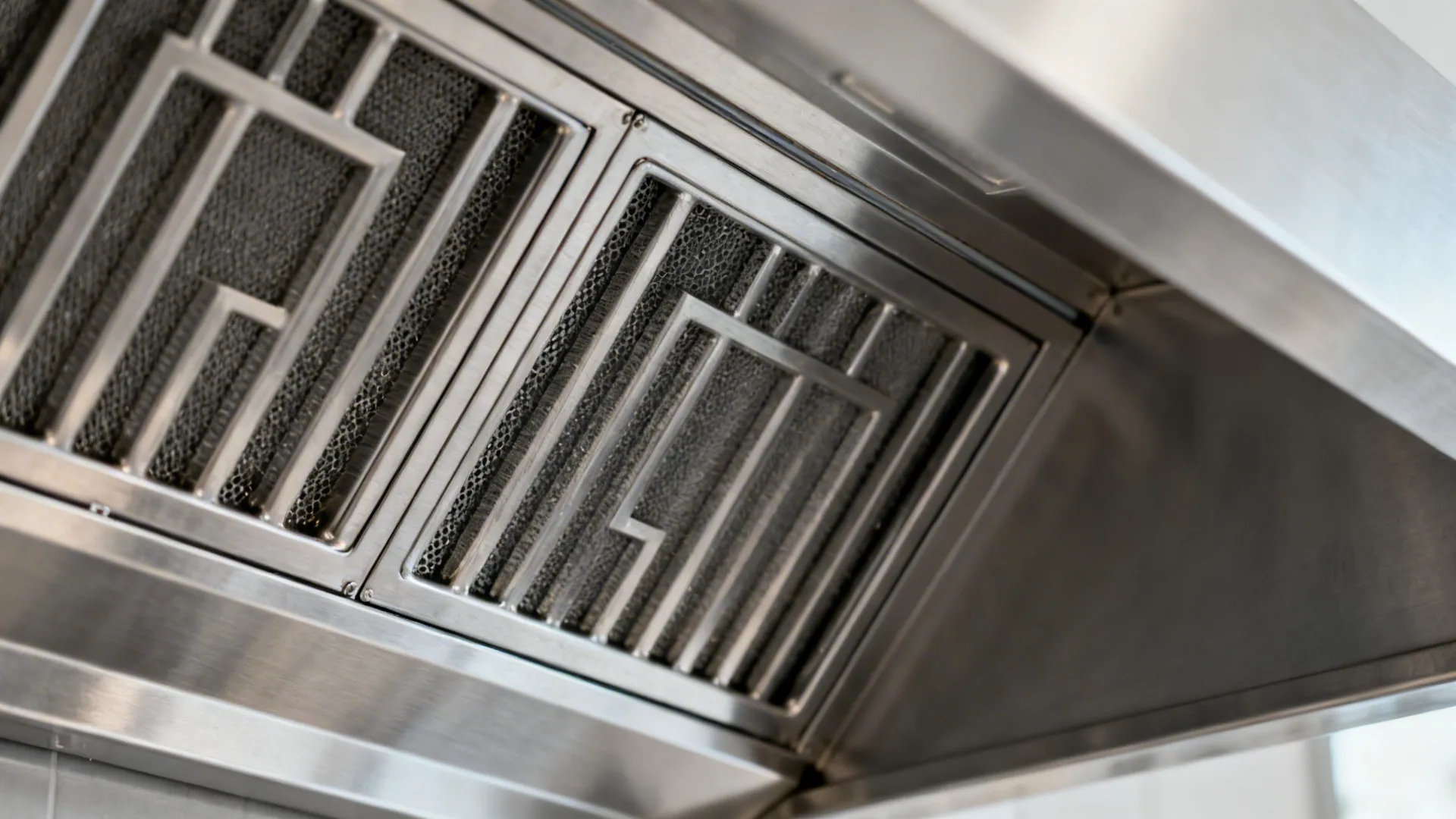

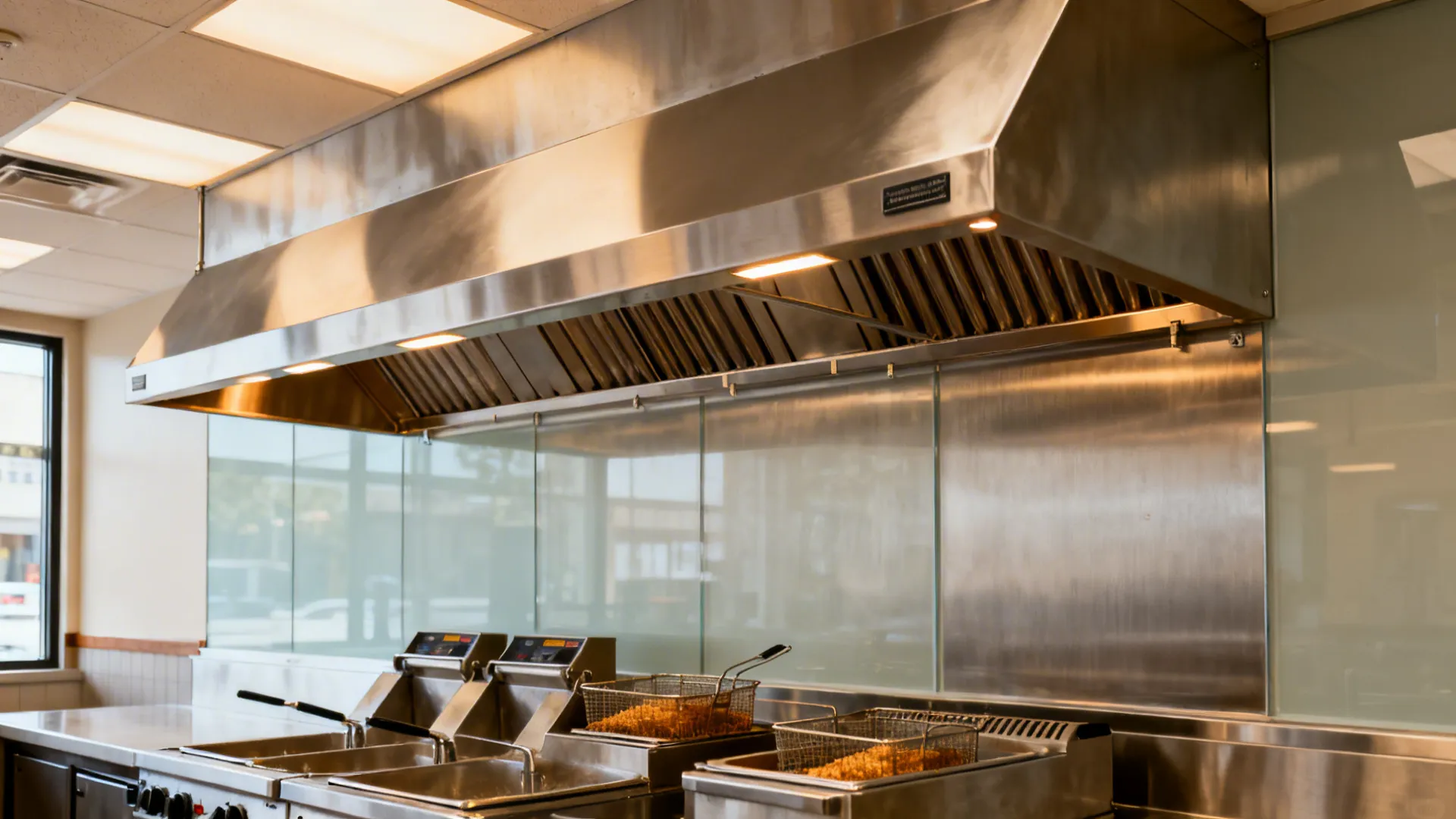

High-capture hoods with right-sized CFM

My Take

I’ve seen chefs struggle under underpowered systems and overpowered wind tunnels. The sweet spot is sizing the exhaust fan to your appliances and hood geometry, not just throwing more CFM at the problem. In a small bistro build, switching to a deeper canopy with a 6-inch overhang improved capture more than adding 20% fan capacity.

Pros

- Properly sized exhaust reduces grease-laden vapor escape, a key long-tail need for “commercial kitchen exhaust fan design for small restaurants.”

- Deeper, enclosed or proximity hoods increase capture efficiency, letting you run lower CFM for the same result. ASHRAE research shows proximity hoods can reduce required airflow compared to wall-mounted canopy hoods when configured correctly (ASHRAE Handbook—HVAC Applications, Commercial Kitchens).

- Right-sized systems often cut energy costs because the make-up air and heating/cooling loads scale down with CFM.

Cons

- Getting sizing right takes coordination—appliance lineup, duty ratings, and hood type all matter; guessing by square footage alone backfires.

- A larger hood canopy with side panels can feel visually heavy in an open kitchen; you’ll need careful lighting and finishes to keep it from dominating the space.

Tip / Cost

- Budget for a performance test after commissioning; I target visible capture at low and peak loads, and fine-tune fan speed via VFD.

- For tight layouts, I sometimes pair an enclosed proximity hood over fryers with a shallower canopy over light-duty equipment to keep both capture and sightlines optimal. For layout exploration, I’ve prototyped options using “L 型布局释放更多台面空间,” then validated hood overhang in the field. For visualizing variations like L-shaped counter runs that free more prep surface, I’ll model airflow zones and sightlines early on.

save pin

save pin

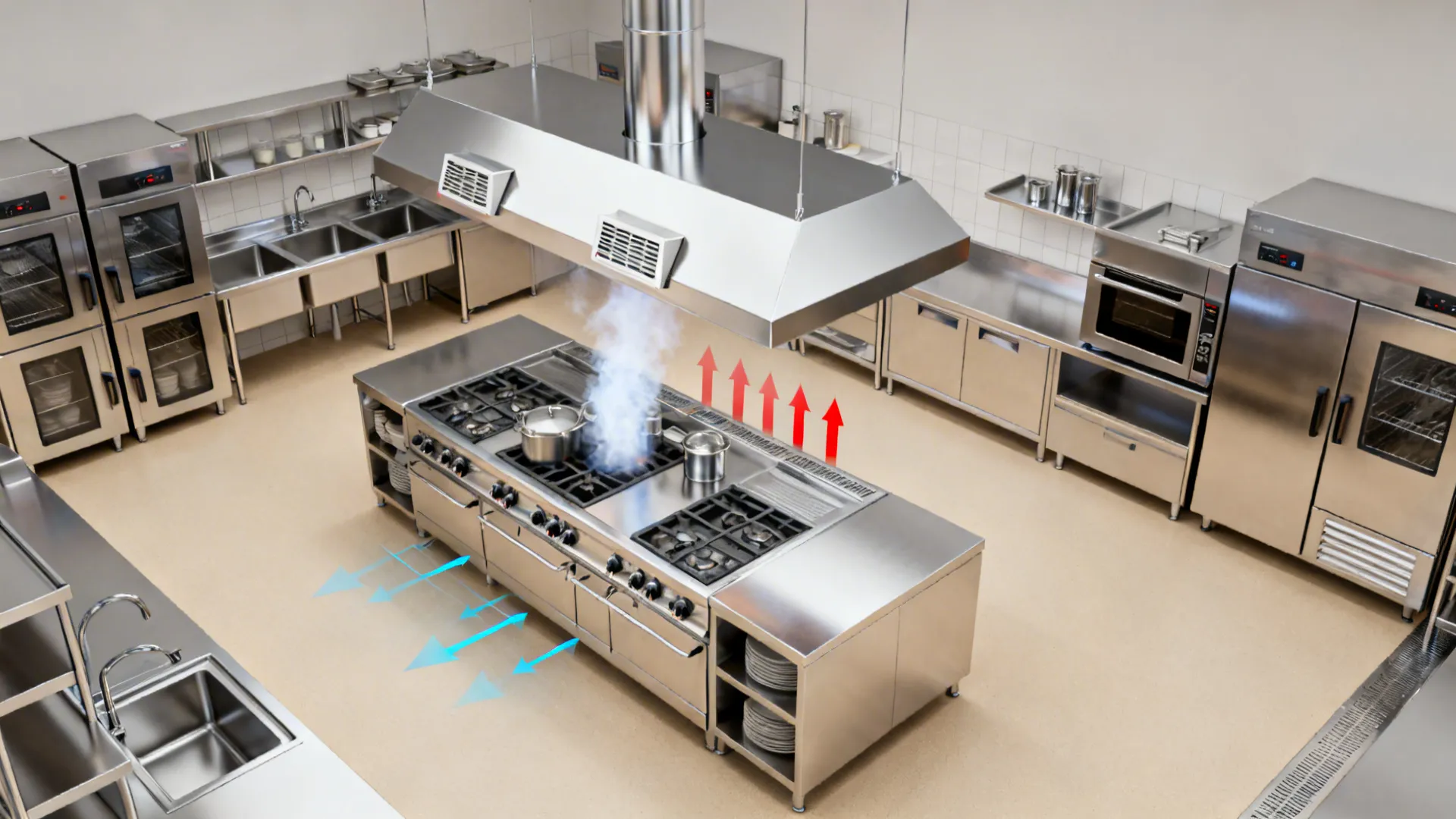

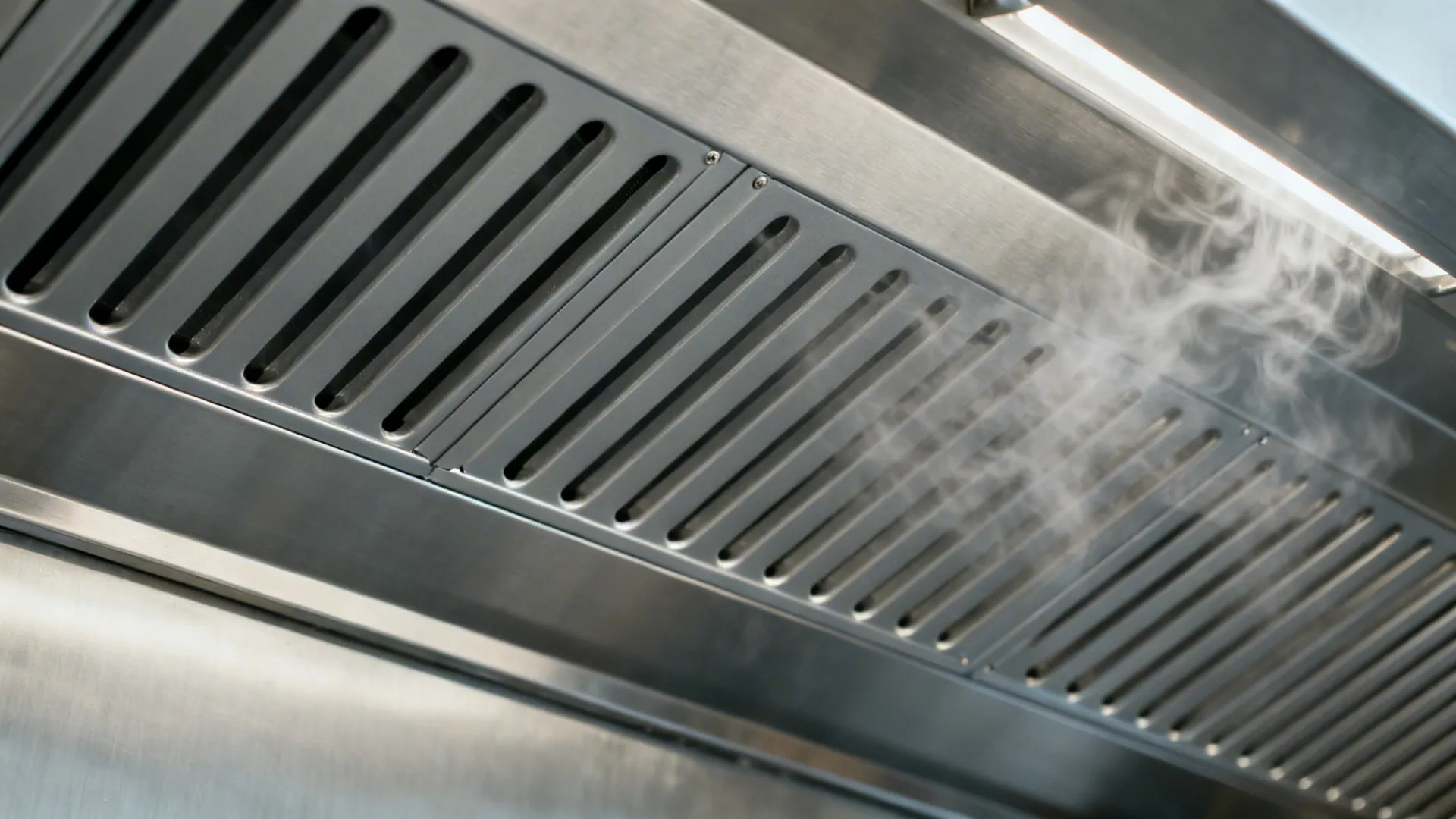

Balanced make-up air to stop drafts and smoke rollback

My Take

The fastest way to ruin a good exhaust fan is starving it of make-up air. In my first hotel breakfast kitchen, negative pressure pulled smells into the dining area until we added tempered make-up air diffusers near the hood face—and the problem vanished overnight.

Pros

- Balanced supply prevents downdrafts and crossflows that blow smoke out from under the hood—critical for “commercial kitchen ventilation with make-up air.”

- Tempered make-up air improves chef comfort and keeps climate costs predictable; conditioned air near the hood face reduces thermal plume disruption.

- Proper diffuser selection (slot or perforated, low velocity) maintains capture without chilling the cook line.

Cons

- Tempering adds equipment and energy costs; in small kitchens, finding space for a dedicated make-up air unit can be tricky.

- Poorly aimed diffusers can create the very crosscurrents you’re trying to prevent—commissioning matters as much as design.

Tip / Case

- I target neutral to slightly negative kitchen pressure (often −0.02 to −0.03 in. w.c.) relative to adjacent dining; coordinate with front-of-house supply to avoid odor migration. The CDC and NFPA emphasize proper hood capture and grease control as part of broader kitchen safety, and maintaining pressure balance is central to that (NFPA 96; CDC NIOSH).

save pin

save pin

Quieter fans, smarter controls, and VFDs that track the heat

My Take

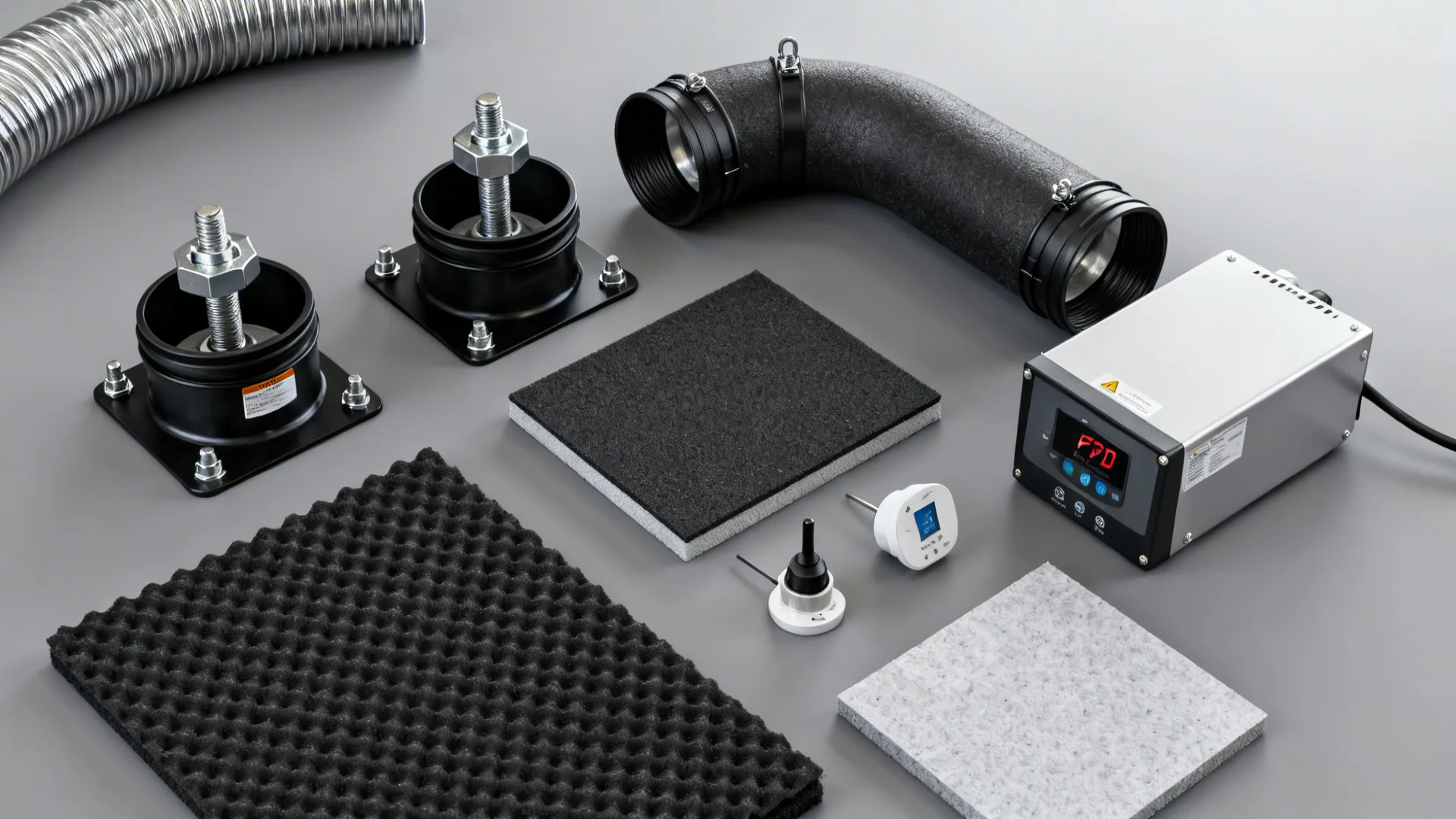

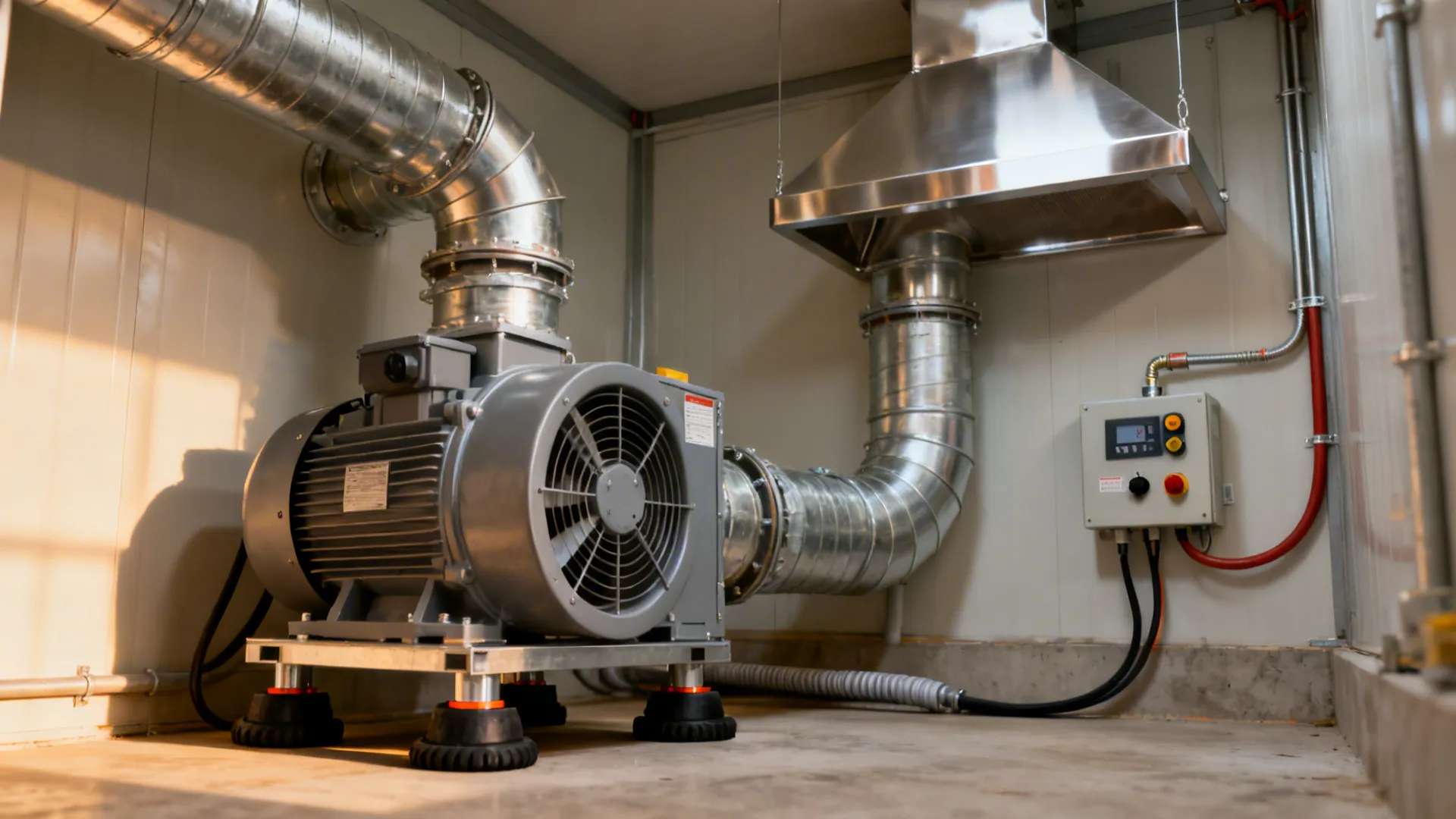

Chefs talk louder when fans roar. I try to design for sound first: direct-drive fans, vibration isolation, and controls that only ramp when heat and smoke spike. In one tapas bar, a demand-controlled exhaust cut noise by a full conversation level and paid back in a single cooling season.

Pros

- Demand-controlled ventilation with temperature or effluent sensors lets you modulate CFM, a popular long-tail strategy for “energy-efficient commercial kitchen exhaust.”

- VFDs and ECM motors reduce energy and extend belt and bearing life; direct-drive fans mean fewer maintenance headaches.

- Acoustic lining and flexible connectors tame structure-borne noise, improving worker comfort and perceived quality.

Cons

- Sensor fouling in greasy environments is real; you’ll need a cleaning schedule and access panels.

- Overly aggressive turndown can allow smoke slip at peak sizzle; I program a minimum CFM floor and short ramp-up delay to avoid lag.

Tip / Cost

- If you can, spec grease-rated sensors upwind of filters and add quick-disconnects for maintenance. For visual coordination and client buy-in, I sometimes show a simple control state mock. When presenting finishes, referencing how “glass backsplashes feel more open” helps owners imagine the quieter, cleaner kitchen; see examples akin to glass backsplash making the kitchen feel airier to pair acoustic design with material choices.

save pin

save pin

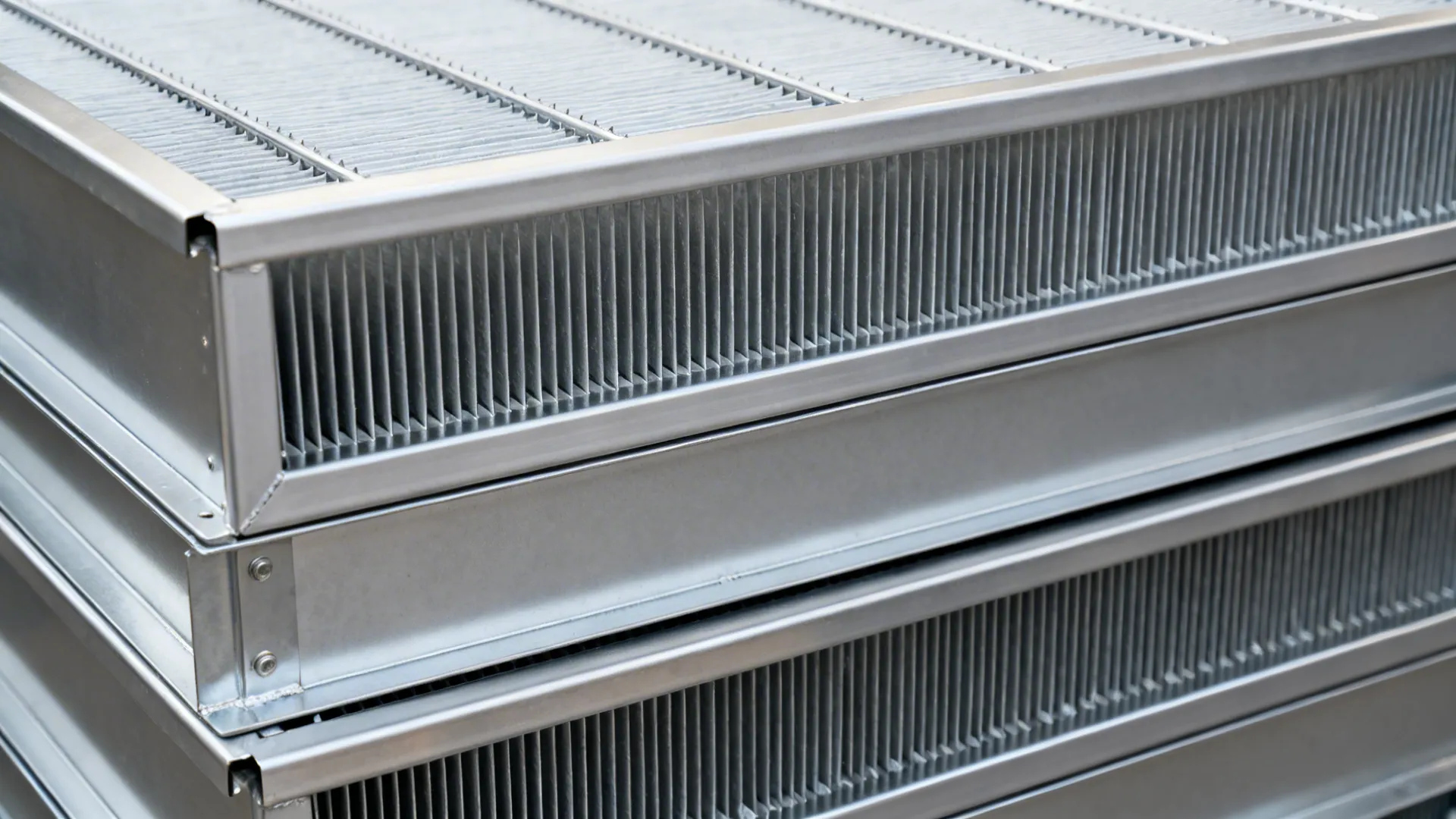

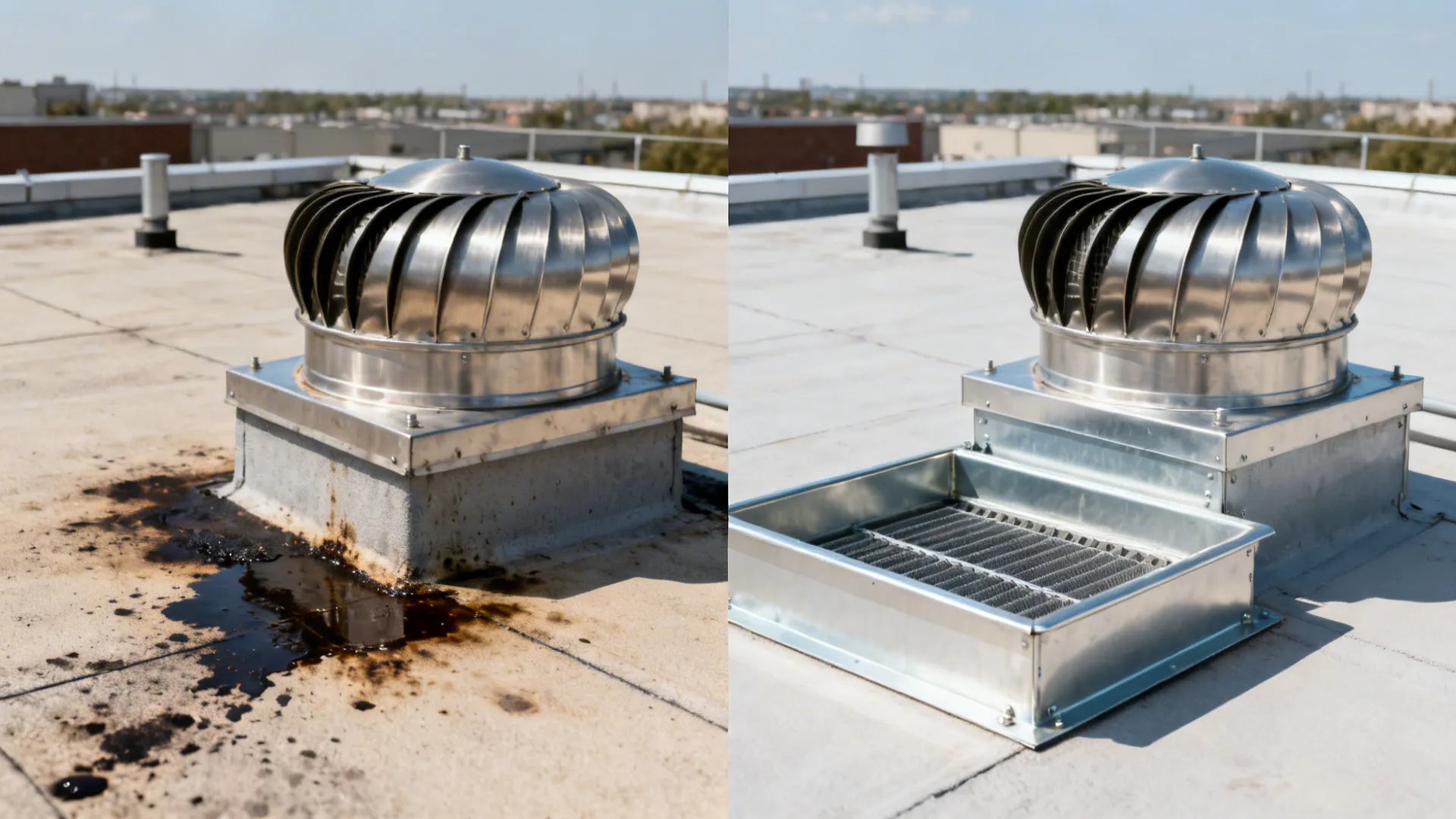

Grease filtration that actually captures, not just clogs

My Take

Baffle filters are the baseline, but adding a multi-stage system (baffle + high-efficiency media or electrostatic precipitator) changed the game in my BBQ concept project. The rooftop and nearby façades stayed clean, and neighbors went from cautious to complimentary.

Pros

- High-efficiency filtration reduces duct grease load, helping NFPA 96 compliance and lowering fire risk—vital for “commercial kitchen grease control.”

- ESPs or high-performance cartridges can reduce odor and particulate before the fan, protecting the wheel and motor and easing downstream cleaning.

- Cleaner exhaust often simplifies neighbor relations and can widen site options in dense urban settings.

Cons

- ESP cells need regular washing; if maintenance slips, pressure drop climbs and capture falls.

- Cartridges add ongoing consumable costs; you’ll need a clear service plan and spares on hand.

Tip / Case

- I design with pressure drop budgets; measure clean vs. loaded filters during commissioning and log it. Per NFPA 96 (Standard for Ventilation Control and Fire Protection of Commercial Cooking Operations), hoods and ducts must be cleaned at defined intervals based on cooking volume; I set reminders tied to POS sales. Halfway through a project, I often revisit layout to improve service clearances—an approach I’ve refined since an early job where tight access doubled filter swap time. For teams exploring space planning variations and hood maintenance clearances, I’ve shared examples like minimalist kitchen storage detailing to illustrate how cleaner lines support easier upkeep.

save pin

save pin

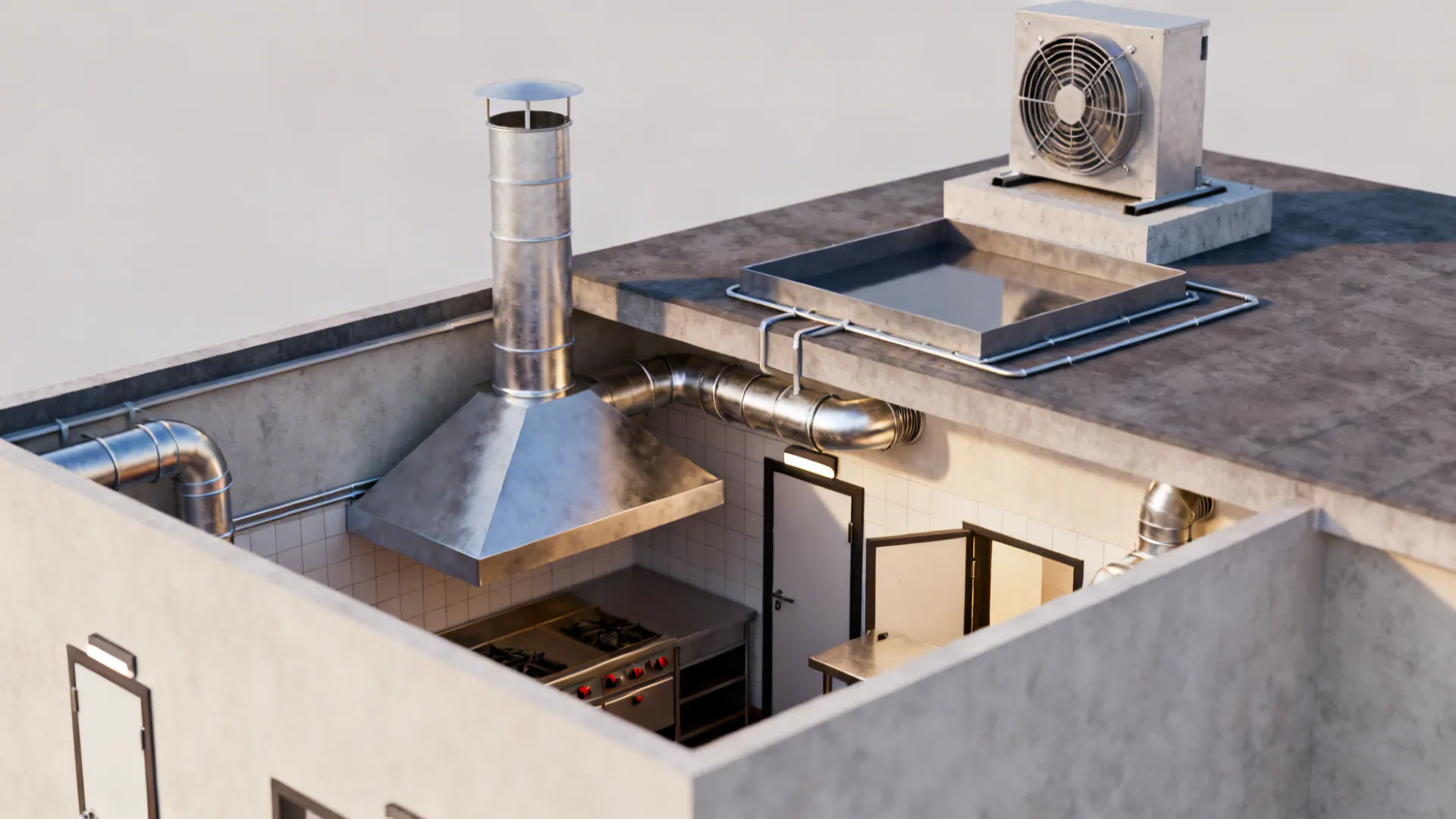

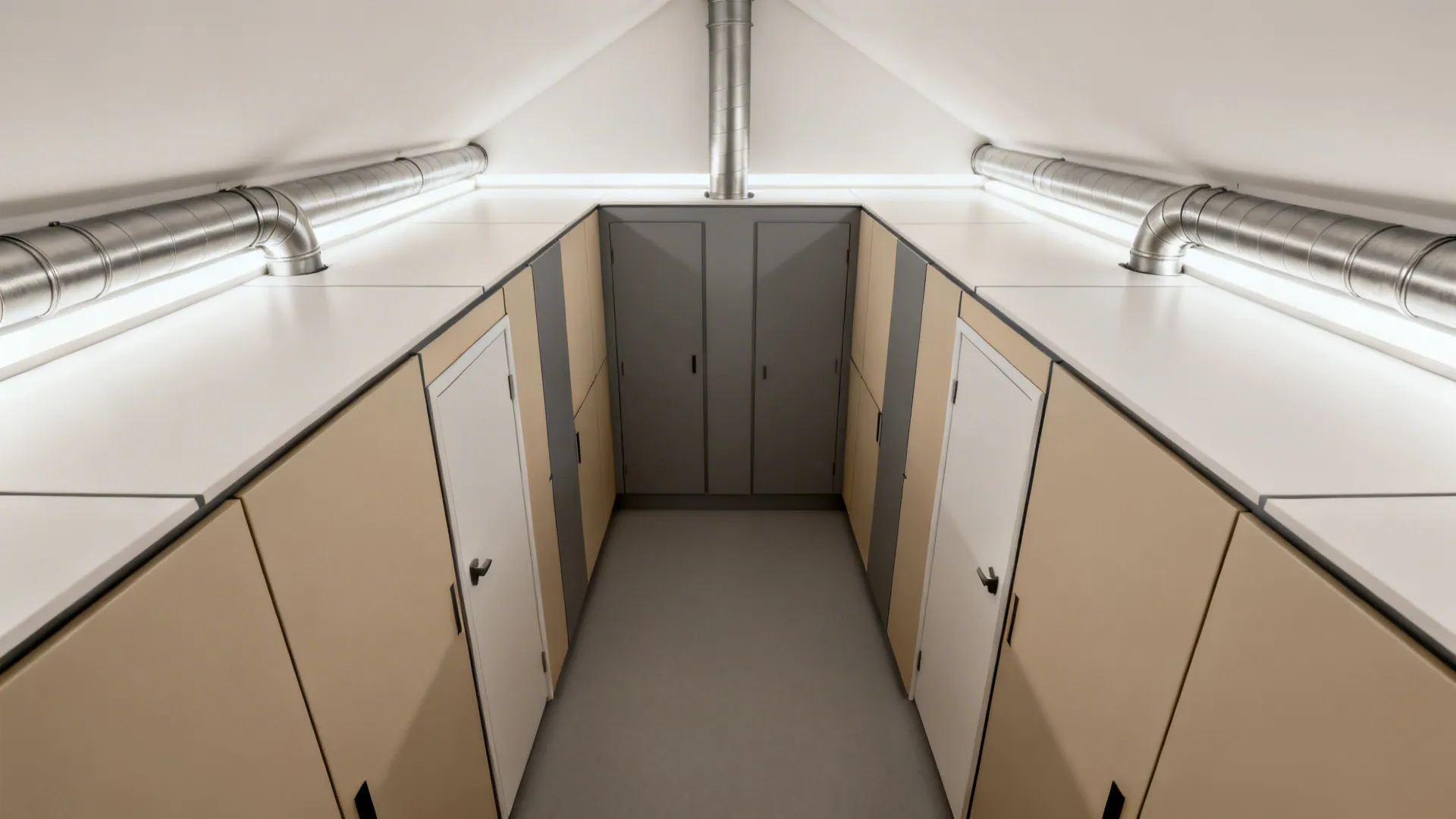

Duct routing, roof terminations, and code that won’t bite later

My Take

Duct length and turns add static pressure and cleaning pain. In a historic townhouse café, we avoided two elbows by rerouting through a service shaft and upsizing the fan wheel—capture improved, and cleaning hatches got safer to reach.

Pros

- Straight, short, and pitched-to-drain grease ducts with proper access doors fit “best practices for commercial exhaust duct design.”

- Correct roof termination height, clearances from intakes, and grease containment trays prevent re-entrainment and stains on the parapet.

- Clear coordination with structure, sprinklers, and fire wrap keeps inspectors happy and reduces opening-day surprises.

Cons

- Fire-rated duct enclosures and shaft work add cost and thickness—tough in tight buildings.

- Roof decks can transmit fan vibration to dining areas if curb isolation is neglected; retrofits sometimes require structural pads.

Tip / Reference

- Cross-check local code with NFPA 96 and IMC; many cities add stricter clearances or odor control rules. ASHRAE and NFPA provide authoritative guidance on capture and duct design (NFPA 96; ASHRAE HVAC Applications). During design development, I run a quick pressure drop calc: baffle + ESP + duct + elbow losses + termination; then select fan to duty with 10–15% margin for filter loading.

[Section: 总结] Small kitchens demand smarter ideas, not compromises. The heart of commercial kitchen exhaust fan design is holistic: get capture right, balance make-up air, keep noise in check, filter grease effectively, and respect code from hood to roof. When you do, the space feels calmer, cooler, and safer—and your staff will thank you. ASHRAE and NFPA 96 continue to be the gold standards I lean on when tough questions arise. Which of these five design ideas are you most excited to try in your space? [Section: FAQ 常见问题]

save pin

save pin

FAQ

1) What CFM do I need for commercial kitchen exhaust fan design?

It depends on hood type, appliance duty, and geometry. As a rough start, wall canopy hoods often range 300–600 CFM per linear foot, while proximity hoods can be lower; verify with ASHRAE guidance and local code.

2) How do I prevent smoke from escaping the hood?

Ensure proper overhang and side panels, balance make-up air at low velocity near the hood face, and avoid cross-drafts from doors and AC. Commission with a smoke test and set a minimum CFM floor.

3) Do I need tempered make-up air?

In most commercial kitchens, yes—especially in conditioned buildings. Tempered supply improves comfort and reduces plume disruption; many jurisdictions mandate it for larger airflow rates under IMC.

4) What filters are best for grease control?

Baffle filters are standard for spark arresting and grease separation. For high-grease cuisines, add ESPs or cartridge stages to reduce particulate and odor, and plan for accessible cleaning.

5) How can I reduce exhaust noise?

Use direct-drive fans, isolation mounts, lined ducts where allowed, and demand-controlled ventilation with VFDs. Keep air velocities reasonable and avoid sharp elbows near the fan inlet.

6) How often should ducts and hoods be cleaned?

NFPA 96 provides intervals based on cooking volume (e.g., high-volume fryers require more frequent cleaning). Always follow your local fire code and document maintenance for inspections—NFPA 96 is the authoritative reference.

7) What’s the best way to plan duct routing in a tight building?

Keep it straight with minimal elbows, include access doors at every change of direction, and coordinate fire-rated enclosures early. Consider fan placement to minimize vibration paths to dining areas.

8) Can demand-controlled ventilation save money?

Yes. By matching fan speed to real-time cooking load, you can reduce exhaust, make-up air, and conditioning energy. Many of my clients see meaningful savings within 12–24 months, especially in long-hour operations.
