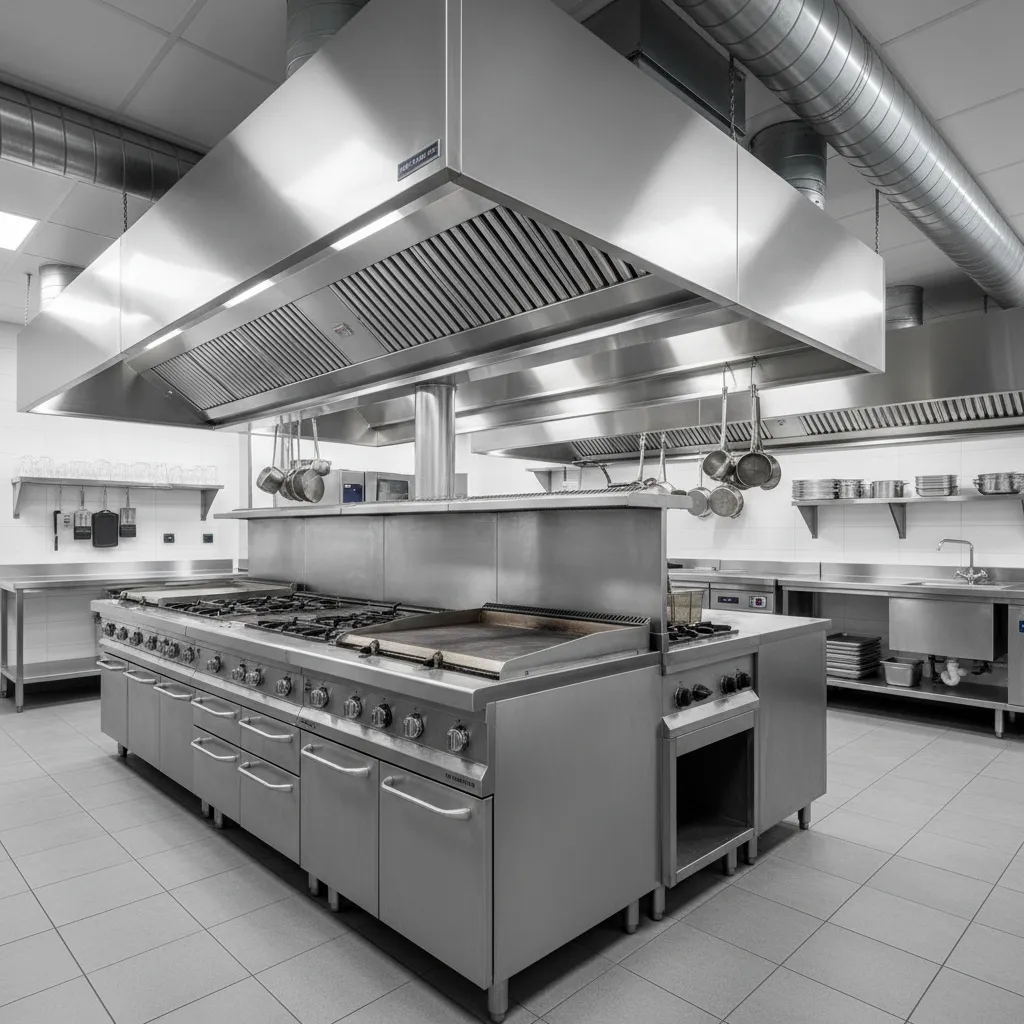

Commercial Kitchen Exhaust Hood Design 5 Proven Ideas: Practical exhaust hood design ideas that improve airflow efficiency, reduce grease buildup, and keep commercial kitchens compliant and comfortable

Direct Answer

The most effective commercial kitchen exhaust hood design focuses on airflow capture, proper hood sizing, strategic placement, and grease management. In real kitchens, the best results usually come from canopy hoods with optimized overhang, short duct runs, balanced makeup air, and easy-clean filtration systems.

After working on dozens of restaurant and hospitality projects, I’ve seen that thoughtful exhaust hood design can dramatically improve kitchen safety, reduce energy costs, and make the entire cooking line more comfortable for staff.

Quick Takeaways

1. Proper hood overhang dramatically improves smoke capture efficiency.
2. Shorter duct runs reduce grease accumulation and maintenance costs.
3. Balanced makeup air prevents negative pressure in busy kitchens.
4. Modular hood systems simplify installation and future upgrades.
5. Accessible filters make daily cleaning far easier for kitchen staff.

Introduction

Commercial kitchen exhaust hood design is one of those things restaurant owners rarely think about—until the kitchen fills with smoke or inspectors start asking questions. Over the past decade working with restaurant layouts, I’ve learned that a well‑designed exhaust hood does much more than remove smoke. It controls heat, improves airflow, protects equipment, and even affects how comfortable chefs feel during a 12‑hour shift.

Many kitchens rely on oversized equipment or poorly placed hoods, which wastes energy and still fails to capture grease vapors effectively. In this guide, I’ll walk through five proven design ideas I’ve seen work repeatedly across restaurants, hotel kitchens, and high‑volume food service spaces.

save pin

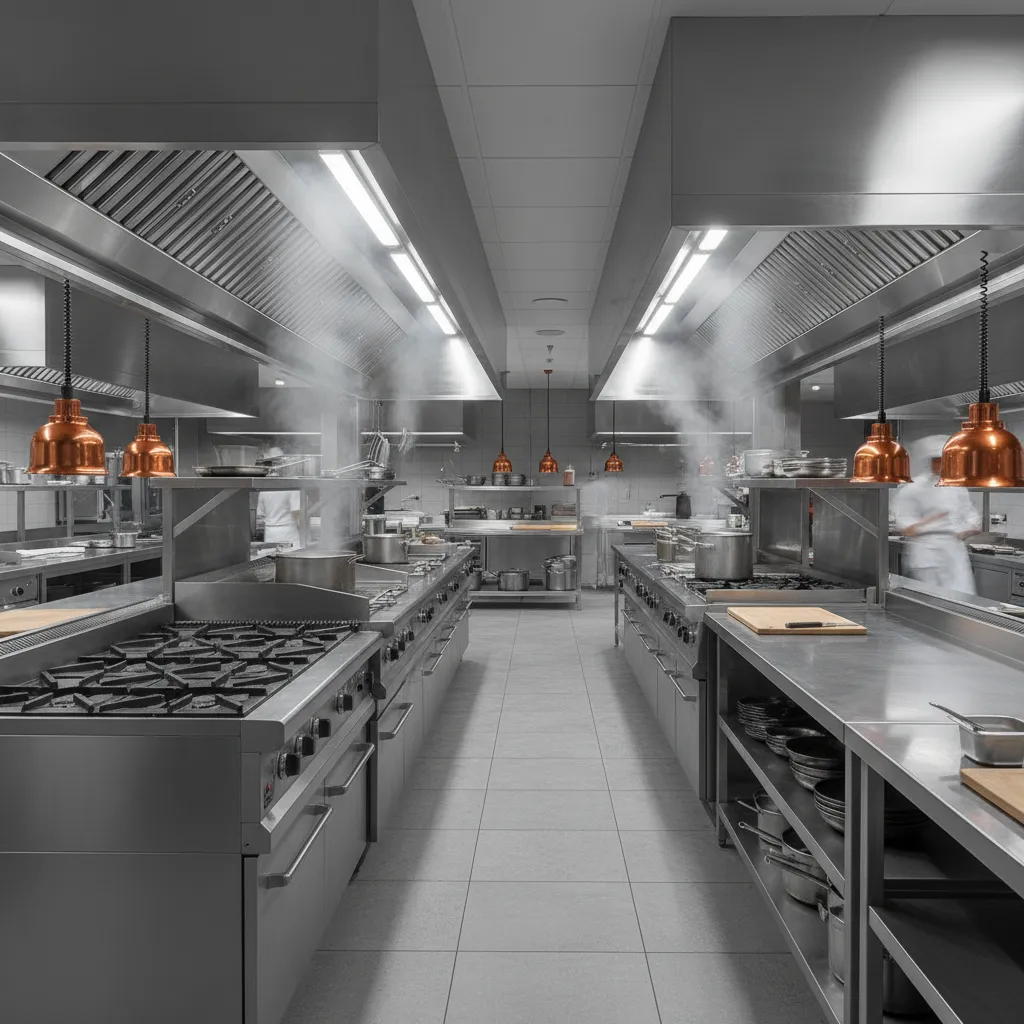

Why Does Exhaust Hood Placement Matter So Much?

Key Insight: The position of a commercial kitchen exhaust hood determines whether smoke and grease are captured efficiently or escape into the room.

In many poorly planned kitchens, the hood is installed directly above equipment without considering airflow patterns. In reality, hot air and grease vapors rise in turbulent plumes. If the hood is too high or misaligned, contaminants escape before reaching the filters.

Best placement practices I typically recommend:

1. Provide 6–12 inches of hood overhang beyond cooking equipment.
2. Keep hood mounting height between 6.5 and 7 feet above finished floor.
3. Align the hood centerline with the cooking line.
4. Avoid placing supply air vents directly in front of the hood.

According to guidance from ASHRAE and many commercial kitchen consultants, proper hood placement can increase capture efficiency by over 20% compared to poorly aligned installations.

What Type of Hood Works Best for Different Cooking Lines?

Key Insight: The right hood type depends on cooking intensity, grease production, and kitchen layout.

Not every kitchen needs the same exhaust hood system. I’ve seen small cafés overspend on large canopy systems while high‑volume kitchens try to get by with underpowered units.

Common hood types and where they work best:

1. Wall canopy hood – Best for most restaurant cooking lines against a wall.

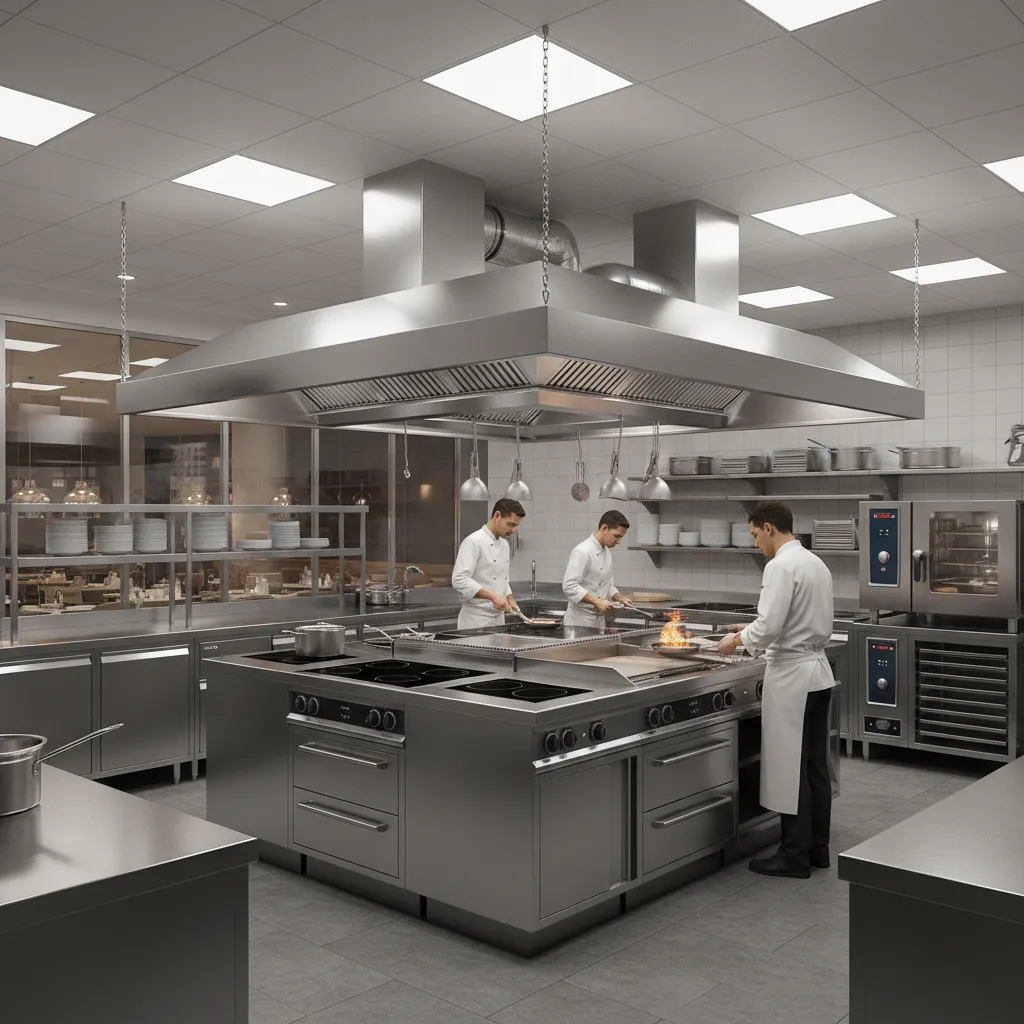

2. Island canopy hood – Ideal for open kitchen layouts or central cooklines.
3. Proximity hood – Great for tight kitchens where ceiling height is limited.
4. Ventless hood – Used where duct installation is impossible.

In full‑service restaurants, wall canopy hoods remain the most reliable option because they combine strong capture performance with simpler duct routing.

save pin

How Can Better Airflow Design Improve Kitchen Comfort?

Key Insight: Balanced airflow between exhaust and makeup air prevents heat buildup and uncomfortable working conditions.

One of the most overlooked mistakes I see is neglecting makeup air. When an exhaust system removes large volumes of air without replacement, the kitchen develops negative pressure. Doors slam, smoke drifts into dining areas, and HVAC systems struggle.

A well‑balanced airflow strategy includes:

1. Dedicated makeup air units supplying fresh air near the cooking line.
2. Airflow balance between exhaust and supply systems.
3. Diffusers positioned to avoid blowing directly into the hood.
4. Temperature‑conditioned makeup air for staff comfort.

In several restaurant retrofits I’ve worked on, adding properly balanced makeup air reduced kitchen temperature by several degrees during peak service.

save pin

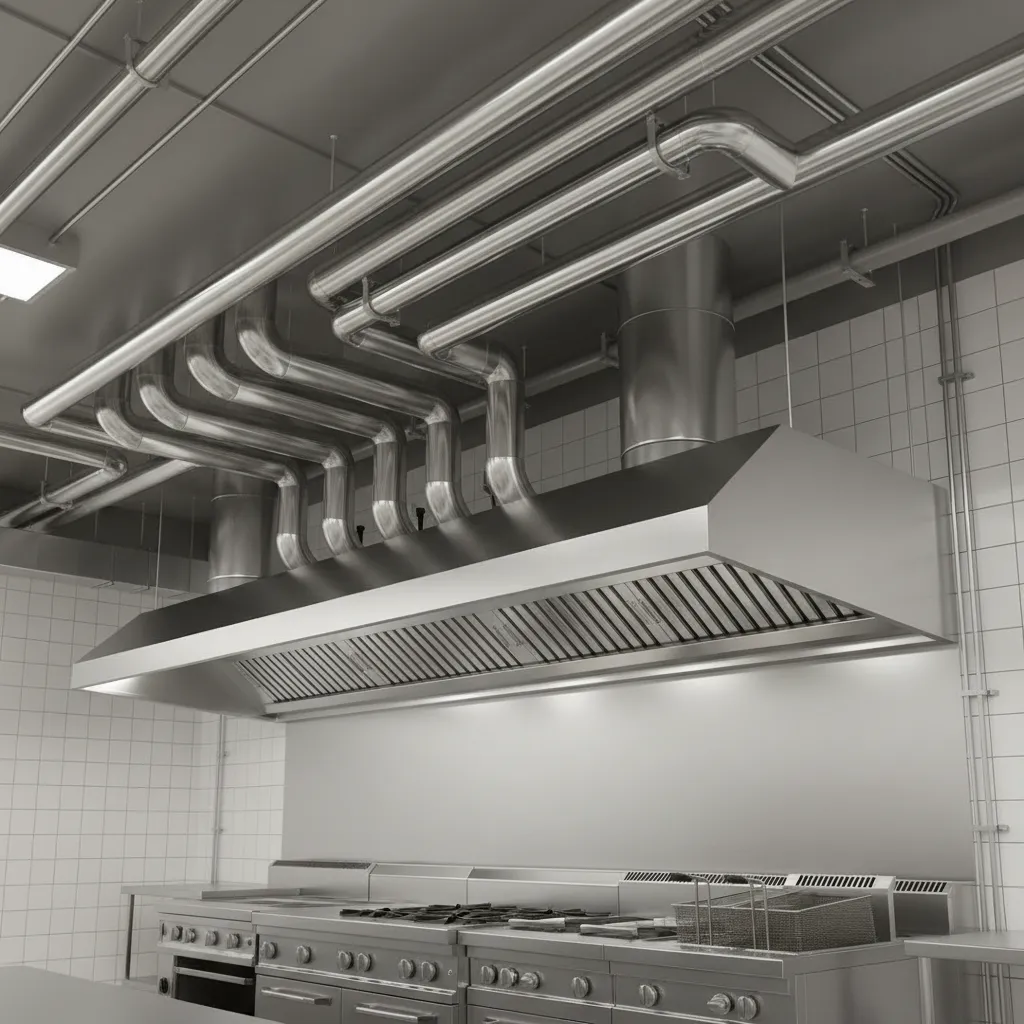

Hidden Design Mistakes That Increase Grease Problems

Key Insight: Many grease issues originate from duct design rather than the hood itself.

Grease buildup is not just a cleaning issue—it’s a design problem. Long duct runs, unnecessary turns, and poor filter access make maintenance much harder.

Common hidden problems include:

1. Excessive duct elbows that trap grease.
2. Filters installed at incorrect angles.
3. Lack of access panels for duct cleaning.
4. Undersized duct diameters reducing airflow velocity.

The National Fire Protection Association (NFPA 96) highlights that grease accumulation inside exhaust systems is one of the leading causes of commercial kitchen fires. Good design reduces this risk dramatically.

Should You Oversize a Commercial Kitchen Exhaust Hood?

Key Insight: Oversizing an exhaust hood often wastes energy and can actually reduce capture efficiency.

This surprises many restaurant owners. Bigger is not always better. An oversized hood pulls excessive air, which increases energy consumption and creates airflow turbulence.

Instead, effective design focuses on:

1. Correct airflow rate based on cooking equipment.
2. Proper hood depth and overhang.
3. Efficient grease filtration systems.
4. Balanced exhaust and makeup air.

In several projects I’ve audited, resizing the exhaust airflow reduced energy use while improving smoke capture.

Answer Box

The most effective commercial kitchen exhaust hood design combines proper hood placement, balanced airflow, efficient filtration, and smart duct routing. Restaurants that focus on airflow engineering—not just equipment size—achieve better smoke capture, safer kitchens, and lower operating costs.

How Do Modern Exhaust Hood Systems Improve Efficiency?

Key Insight: Newer exhaust hood systems use sensors and variable airflow to reduce energy waste.

Demand‑controlled kitchen ventilation is becoming more common in modern restaurants. These systems adjust exhaust speed based on cooking activity.

Key benefits include:

1. Lower energy consumption during slow periods.
2. Reduced HVAC load.
3. Less noise in the kitchen.
4. Longer fan and motor lifespan.

Many hotel kitchens and large food service operations now use smart ventilation systems because they significantly reduce long‑term operating costs.

Final Summary

1. Hood placement and overhang strongly affect smoke capture.
2. Wall canopy hoods remain the most reliable design for many restaurants.
3. Balanced makeup air improves kitchen comfort and airflow stability.
4. Efficient duct routing prevents grease buildup and fire risk.
5. Smart ventilation systems reduce long‑term operating costs.

FAQ

What is the best commercial kitchen exhaust hood design?

A wall canopy hood with proper overhang, balanced airflow, and short duct runs is widely considered the most effective commercial kitchen exhaust hood design.

How big should a commercial kitchen hood be?

The hood should extend 6–12 inches beyond cooking equipment on all open sides to properly capture smoke and grease.

Do all commercial kitchens need exhaust hoods?

Most commercial kitchens require exhaust hoods for equipment producing grease, smoke, or heat, according to building and fire codes.

What is makeup air in kitchen ventilation?

Makeup air replaces the air removed by the exhaust system to prevent negative pressure and maintain balanced airflow.

How often should kitchen exhaust hoods be cleaned?

High‑volume kitchens may require monthly cleaning, while moderate operations are typically serviced every 3–6 months.

Can a commercial kitchen use a ventless hood?

Yes, but ventless hoods are usually limited to electric appliances and locations where traditional duct systems are impossible.

Why is my kitchen still smoky with an exhaust hood?

Improper hood placement, insufficient airflow, or blocked filters are common reasons smoke escapes capture.

Does better exhaust hood design reduce energy costs?

Yes. An optimized commercial kitchen exhaust hood design can reduce fan power, HVAC load, and long‑term energy use.
