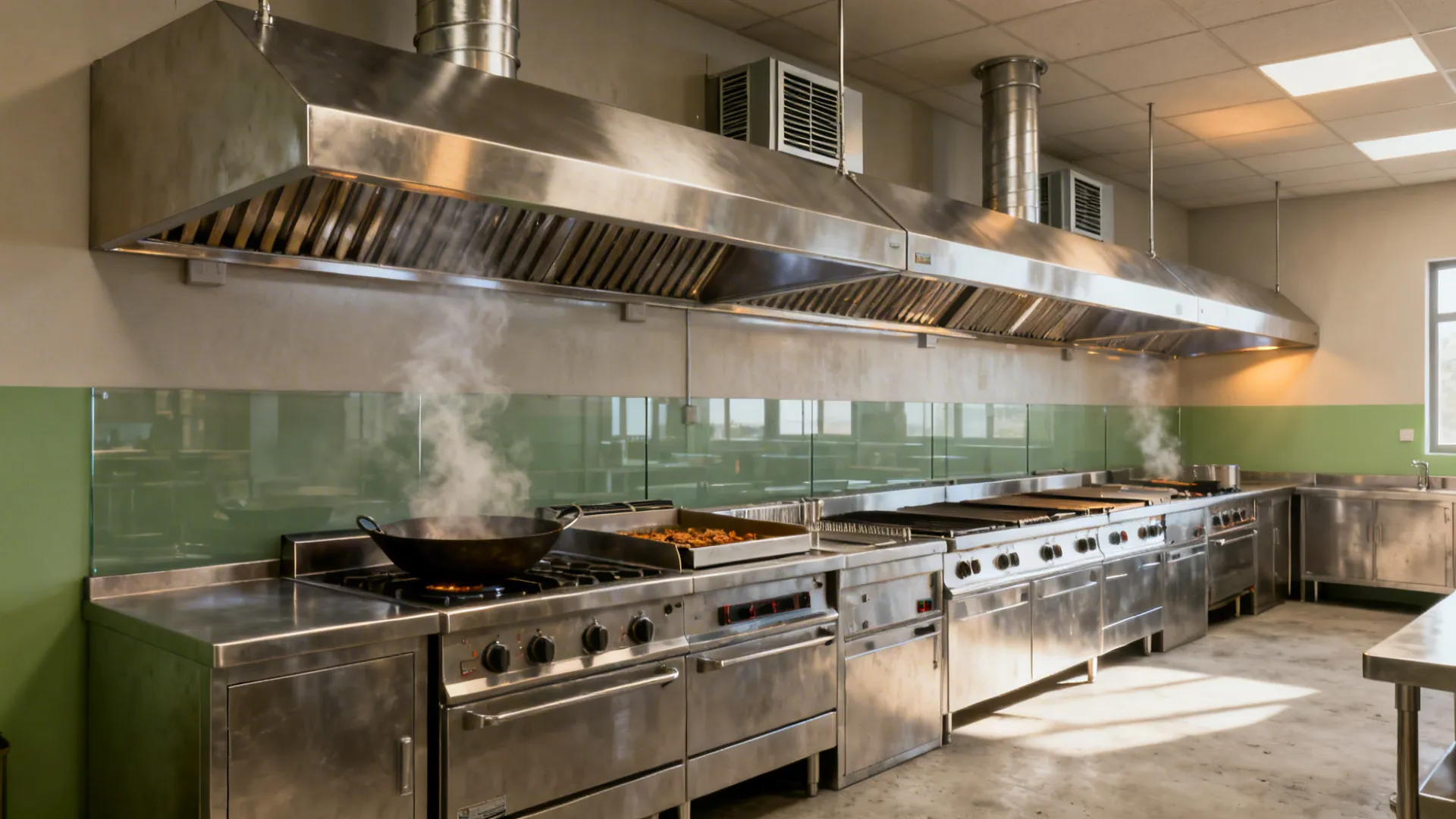

Commercial Kitchen Hood: 5 Design Essentials: Why smart hood design transforms small commercial kitchens and boosts safety, comfort, and efficiency

[Section: Meta Information] Meta Title: Commercial Kitchen Hood: 5 Design Essentials Meta Description: Discover 5 expert-backed commercial kitchen hood design tips for small kitchens—airflow, code compliance, noise, energy, and layout. Real cases, pros/cons, FAQs. Meta Keywords: commercial kitchen hood, kitchen hood design, commercial ventilation, small restaurant kitchen, make-up air system, hood capture efficiency, duct layout, NFPA 96 compliance [Section: Introduction] As a designer who’s led multiple compact restaurant fit-outs, I’ve learned that commercial kitchen hood design can make or break a space. Small spaces trigger big creativity, especially when you’re chasing clean air, quiet service, and code compliance. In this guide, I’ll share 5 design inspirations for commercial kitchen hoods, blending my hands-on experience with expert data. In my first ramen shop project, we squeezed a line cook station, fryer, and griddle under 3 meters—our hood layout solved odors, heat spikes, and neighbor complaints. Those lessons map closely to today’s trend of lean back-of-house footprints and higher capture efficiency requirements. [Section: Inspiration List]

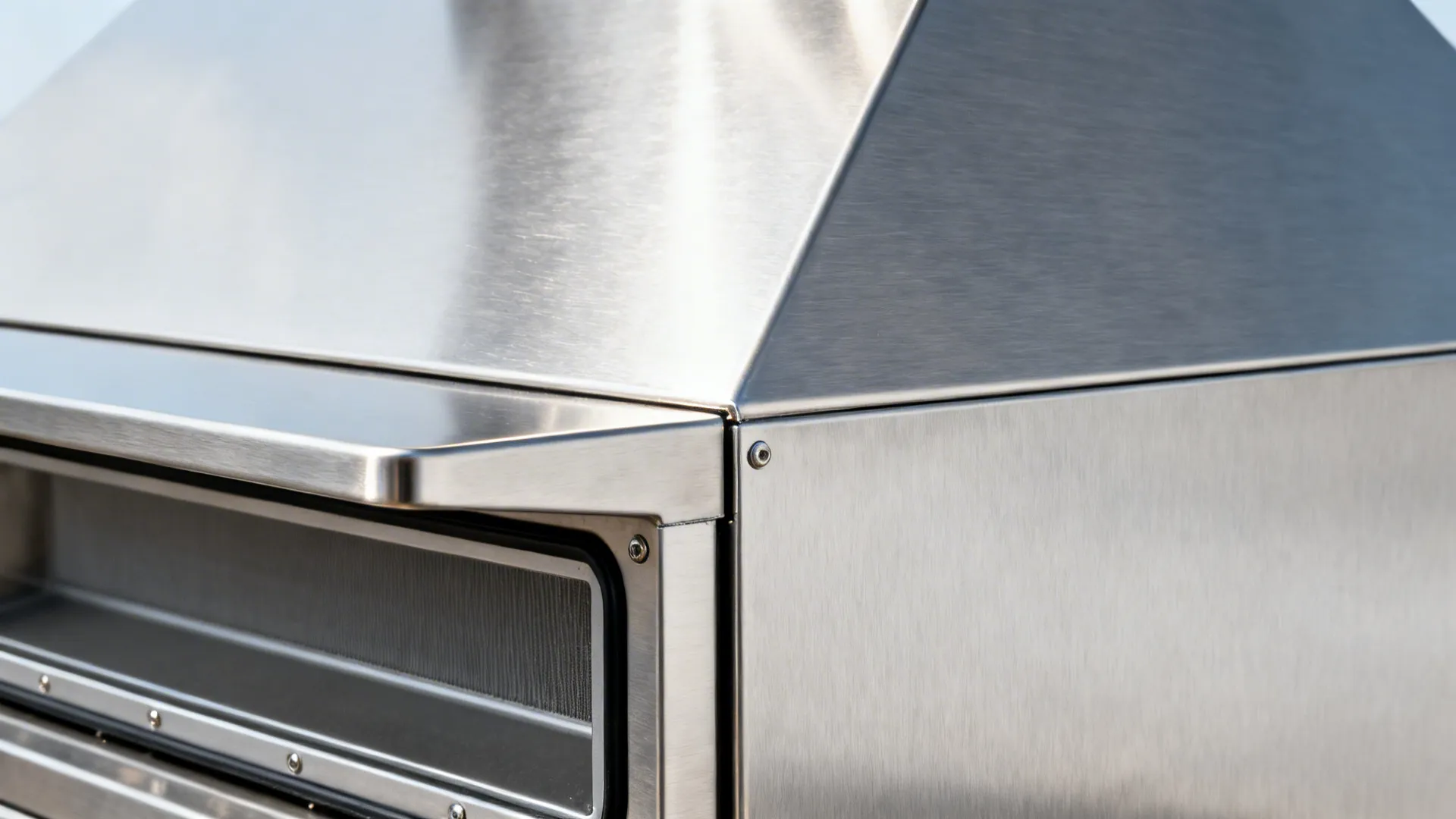

Right-size Capture and Containment

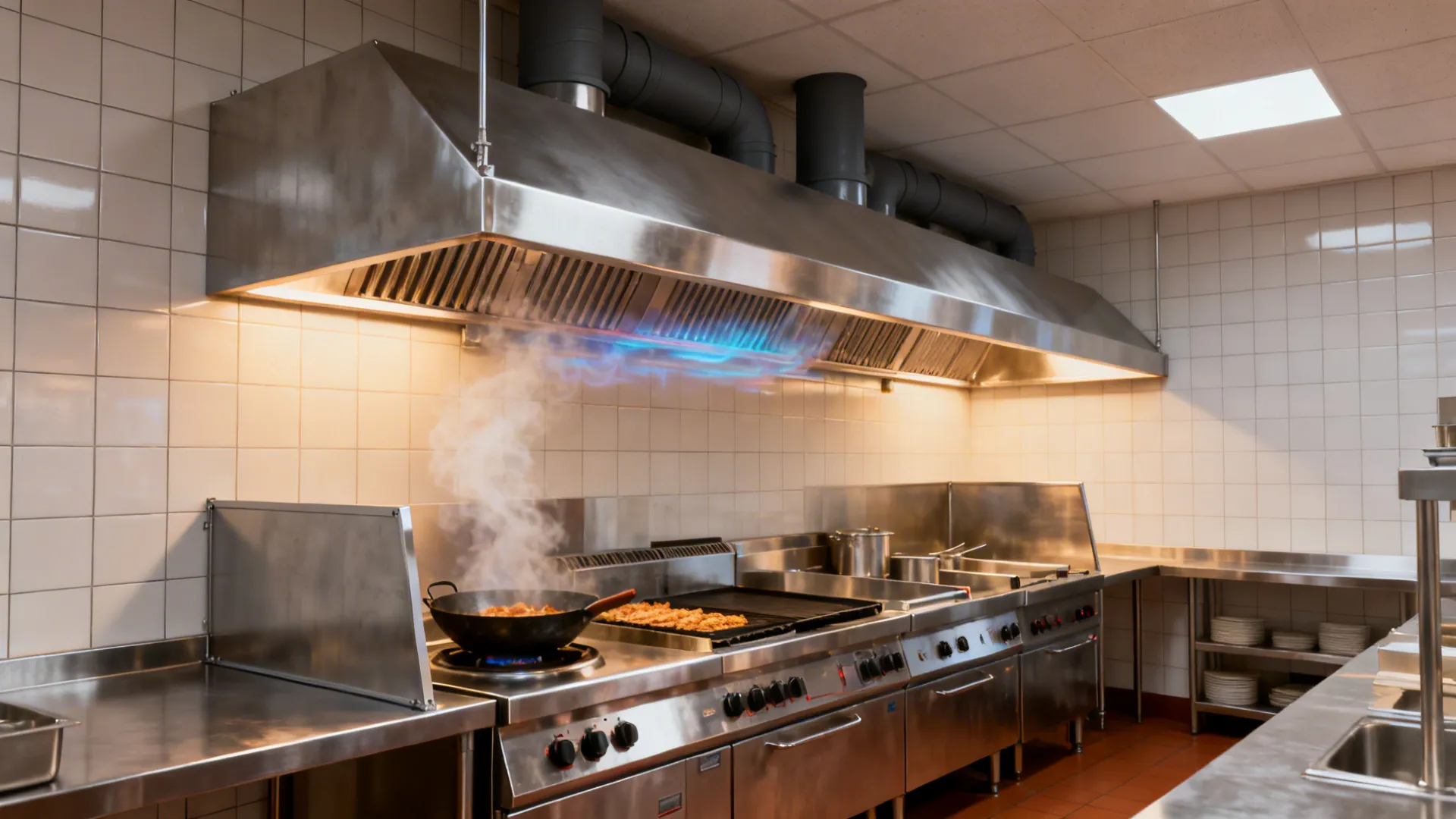

My Take I once underestimated the plume from a high-BTU wok range and had smoke curling out during rush hour. We corrected by extending overhangs and upping face velocity within safe limits. The difference in air quality—and chef morale—was night and day. Pros - Proper hood sizing improves capture efficiency for high-heat appliances and reduces re-entrainment—key long-tail concerns like "commercial hood overhang dimensions" and "plume capture rate" come into play. - Aligning hood type (Type I for grease-laden vapors) with appliance duty avoids lingering fumes and brings you closer to NFPA 96 compliance. - ASHRAE guidance shows that adequate overhangs and side panels enhance containment in small kitchens (ASHRAE Handbook—HVAC Applications, Commercial Kitchens). Cons - Oversizing can spike exhaust CFM, energy use, and make-up air costs—especially painful for tight margins. - If you chase high capture with too much face velocity, you risk drafts that bother cooks and affect burner stability. - Taller hoods and side panels can complicate sightlines in an already cramped line. Tips / Case / Cost - Use side panels to improve containment without massive CFM increases; they’re a budget-friendly retrofit. - For islands, consider ventilated ceilings, but expect higher install costs and duct coordination. - Benchmark appliance duty (BTU and emission profile) before setting hood dimensions. At this 20% mark of the content, I often reference real layouts—check how "L shaped layout frees more counter space" tackled hood reach and duct routing in a compact line: L shaped layout frees more counter space.

save pin

save pin

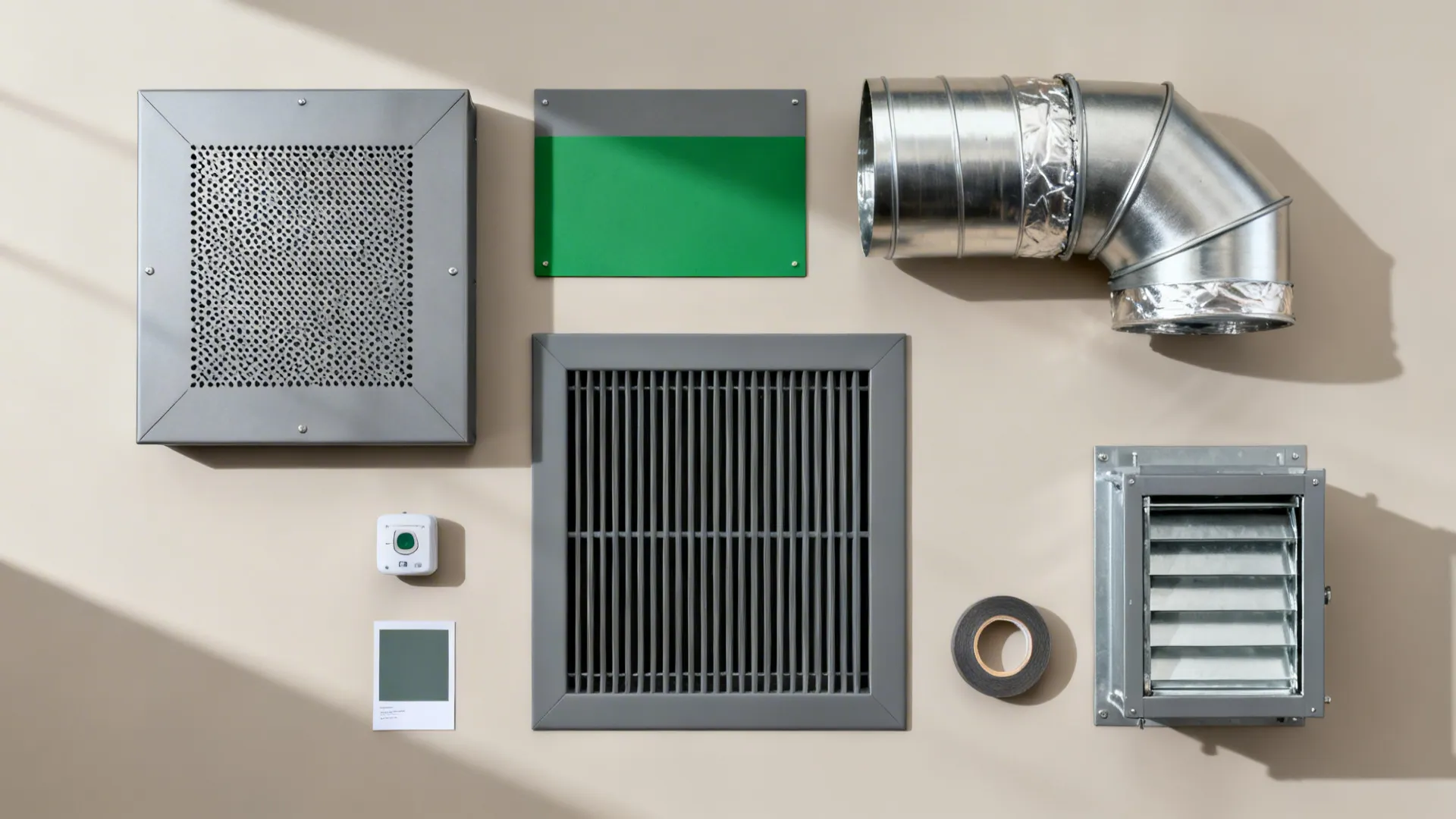

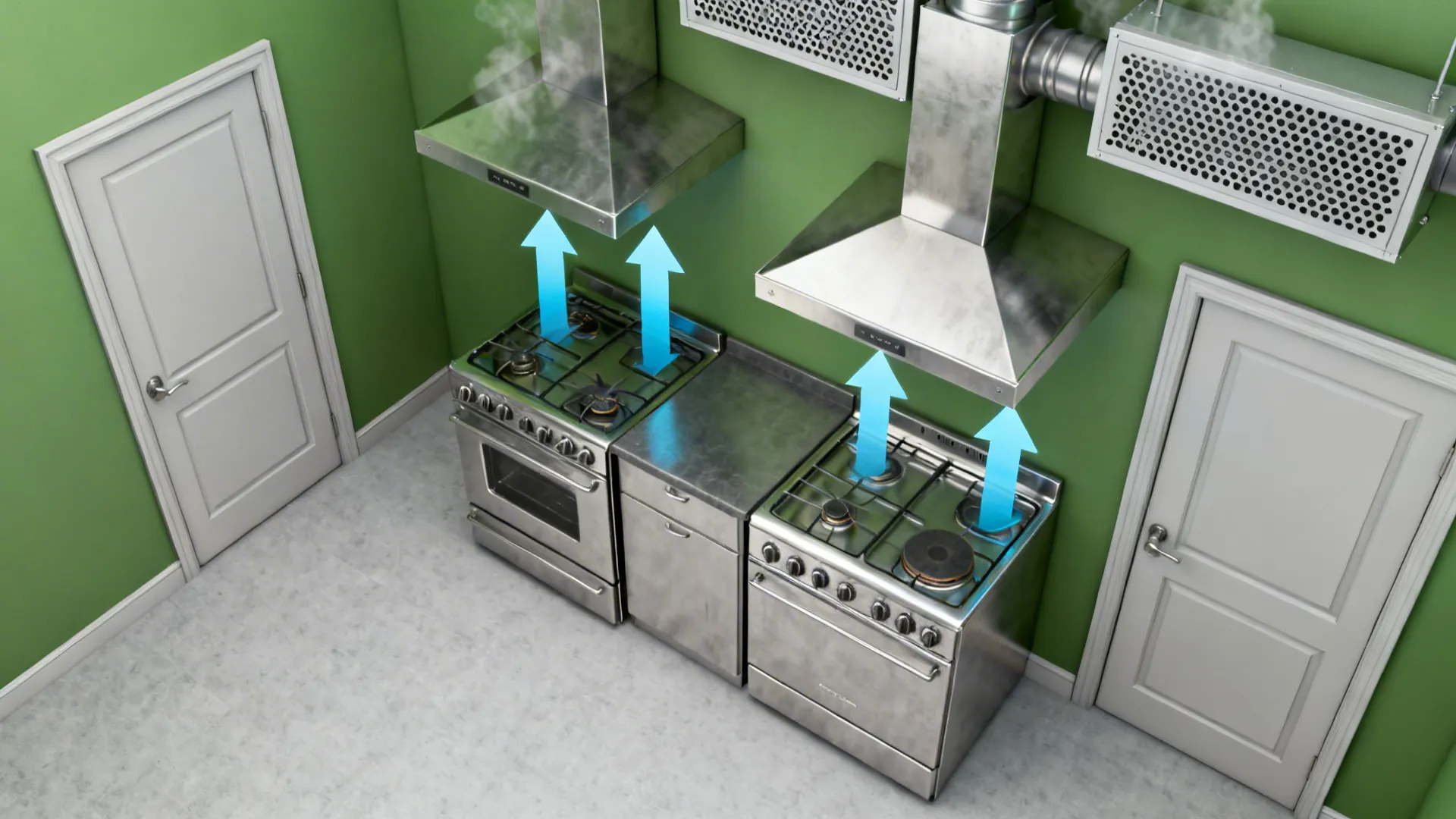

Balanced Make-up Air (MUA) Strategy

My Take In a tiny tapas bar, negative pressure was pulling in odors from the restroom—never again. We rebalanced exhaust and make-up air, warmed the supply slightly, and the kitchen felt calmer and cleaner. Pros - Balanced MUA prevents back-drafting and stabilizes exhaust capture; long-tail terms like "commercial make-up air placement" and "tempered MUA for kitchens" matter. - Slightly tempered MUA improves comfort and reduces condensation on cool surfaces, keeping HACCP workflows happier. - NFPA 96 recognizes the need for adequate air supply to match exhaust volumes; code-aligned design reduces inspection friction. Cons - Tempering MUA adds upfront equipment cost and ongoing energy spend. - Poor diffusers can create cold spots or push smoke out of the hood’s capture zone. - Ceiling height limits in small kitchens make diffuser selection and throw patterns tricky. Tips / Case / Cost - Aim to introduce MUA near or behind the hood to support capture without drafts; consider perforated supply plenums. - Track total building pressure—too negative invites door slamming and pest risks. - Coordinate with dining HVAC so you don’t fight front-of-house comfort.

save pin

save pin

Low-Noise, High-Performance Fans

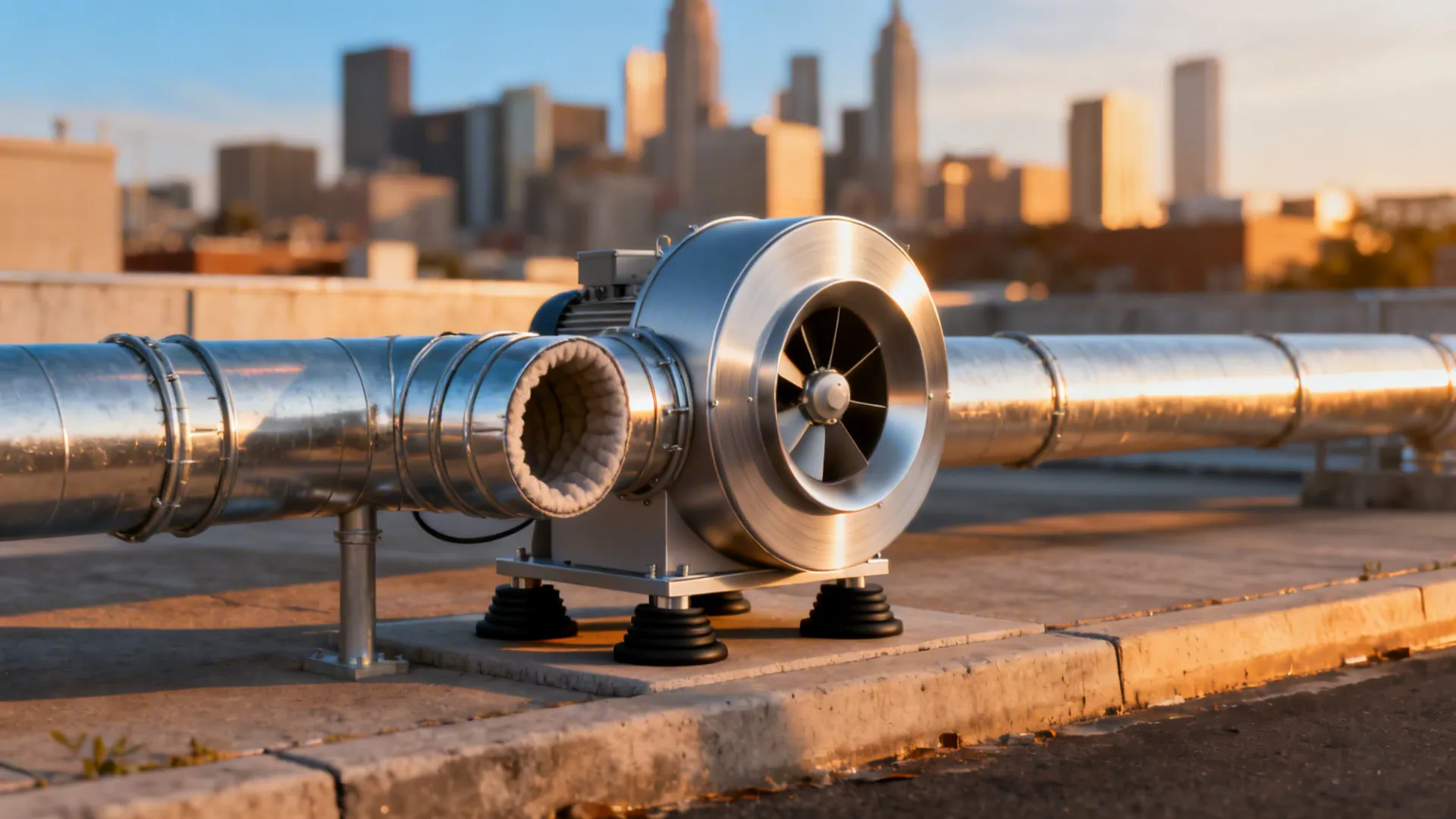

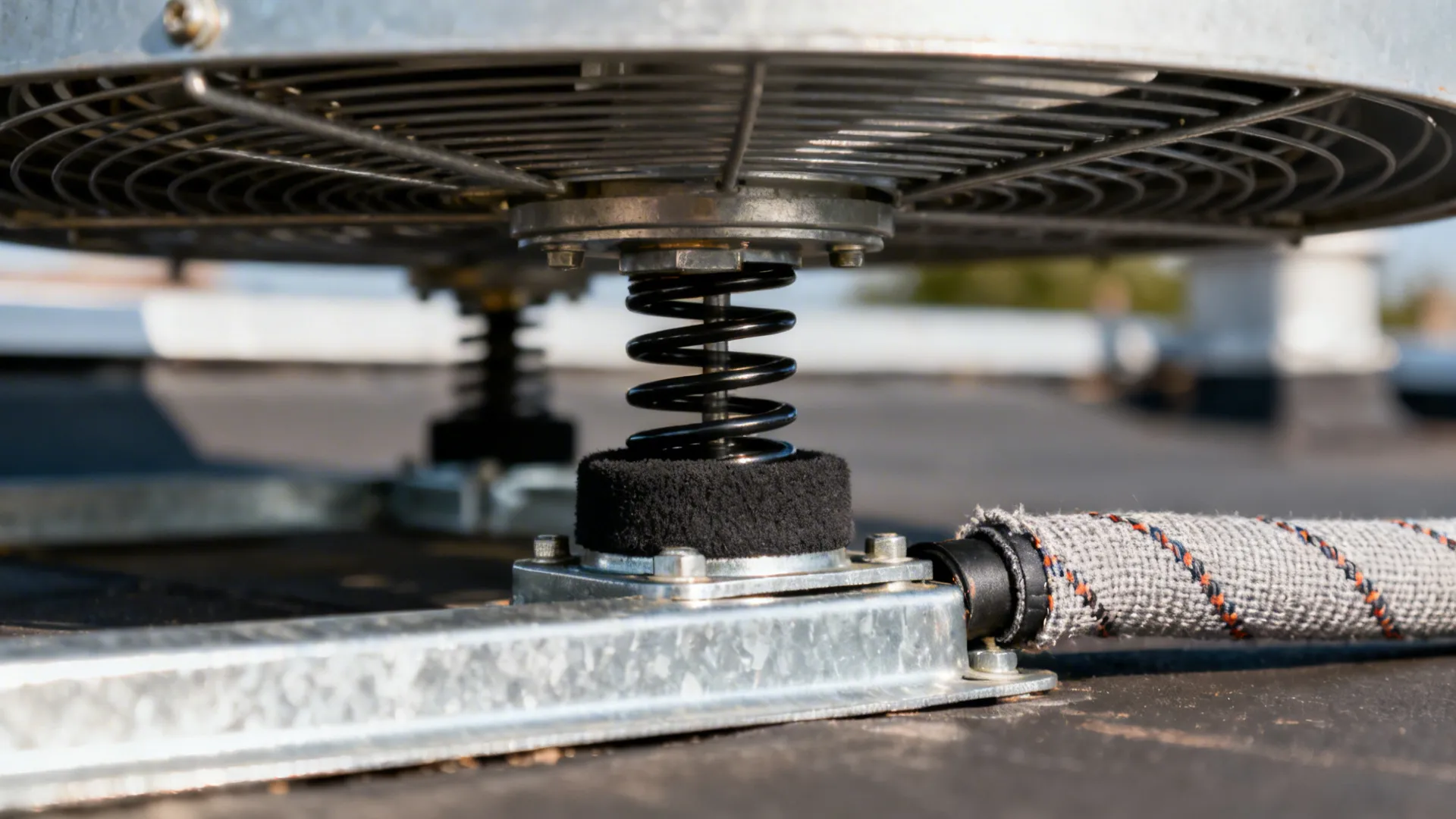

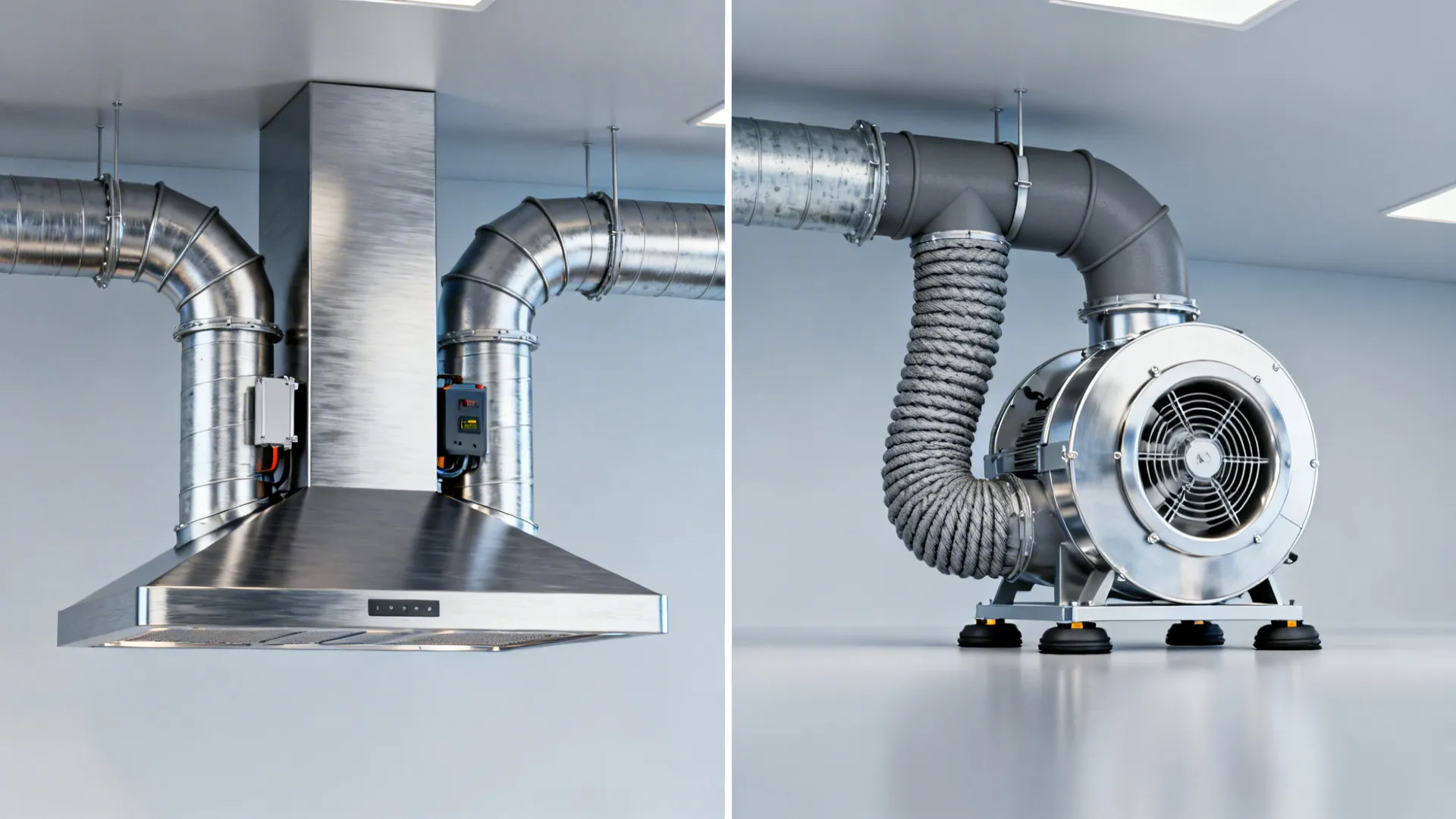

My Take I’ve seen chefs turn up the radio to drown a whining upblast fan—bad sign. After swapping to a well-balanced centrifugal fan and adding vibration isolation, we cut noise enough that you could hear tickets clearly. Pros - Quiet fan selection and isolation mounts reduce dBA at the line—long-tail keywords include "commercial hood fan noise reduction" and "vibration isolation for rooftop fans". - Proper duct transitions minimize turbulence, improving static pressure performance and keeping capture efficient. - ASHRAE data supports that smoother duct paths and correct fan curves reduce energy while maintaining airflow. Cons - Acoustic treatments and isolation add cost and require space you may not have. - If you overspec a fan, you may increase energy and create wind noise through the hood. - Maintenance rises if you add silencers or complex components. Tips / Case / Cost - Use flexible connectors at fans and line-size ducts to avoid whistling. - Keep elbows large-radius; avoid back-to-back turns. - Validate on-site with a simple sound meter during commissioning. At roughly 50% through this guide, here’s a related deep-dive on spatial planning that improved airflow and comfort in a small cafe kitchen: wood elements bring a warmer vibe.

save pin

save pin

save pin

Grease, Filtration, and Cleaning Access

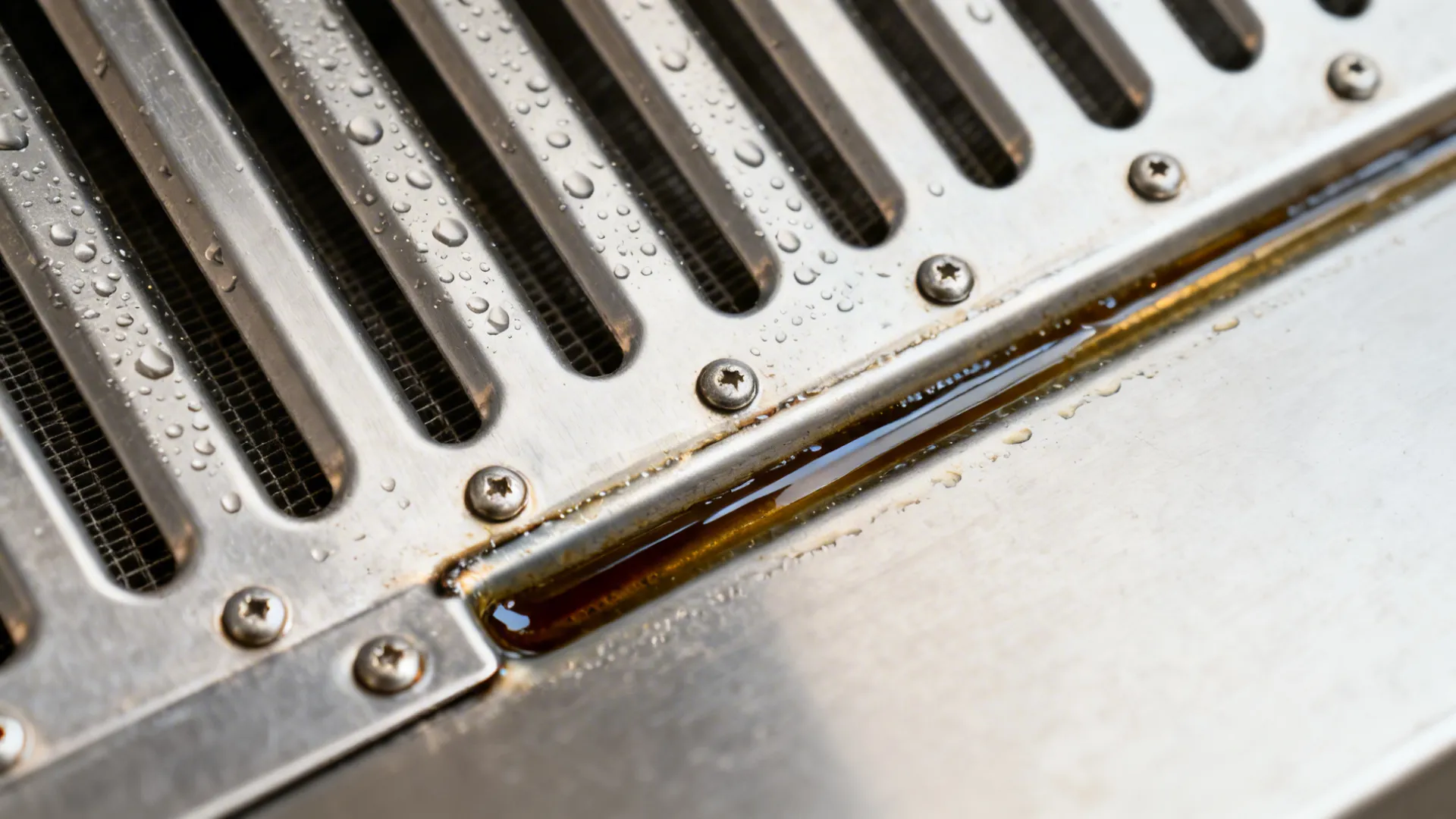

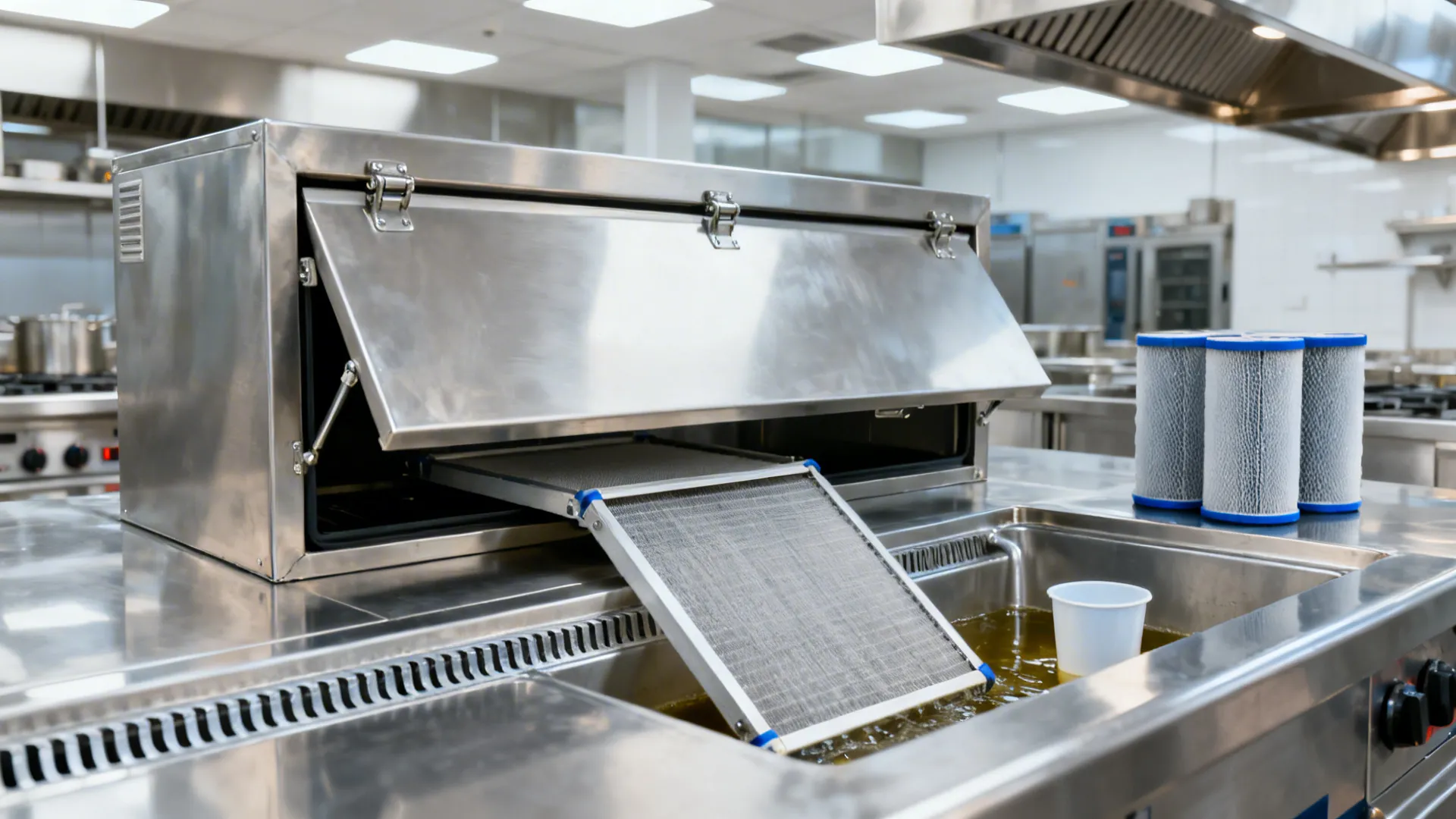

My Take One sushi spot taught me the hard way: if filters are awkward to remove, they won’t get cleaned. We redesigned with hinged access and deeper grease troughs—the nightly routine got faster, and the fire risk went down. Pros - Efficient baffle filters and cartridge systems improve "hood grease filtration efficiency" and cut duct fouling, supporting NFPA 96 cleaning intervals. - Easy access reduces labor time and encourages routine maintenance—key for small teams. - Proper grease management lowers fire load; insurance and inspectors notice. Cons - High-performance filtration increases upfront costs and may bump static pressure. - If staff skip scheduled cleaning, build-up negates benefits fast. - Some washable filters warp under harsh chemicals, leading to replacements. Tips / Case / Cost - Label filter rotation schedules and store spares; make it as easy as swapping fryer baskets. - Confirm that drain paths and cups are sized for your fry line; overflow grease is a mess and a hazard. - Budget for professional duct cleaning per NFPA 96 frequency charts and keep logs for compliance.

save pin

save pin

Energy and Heat Management in Tight Footprints

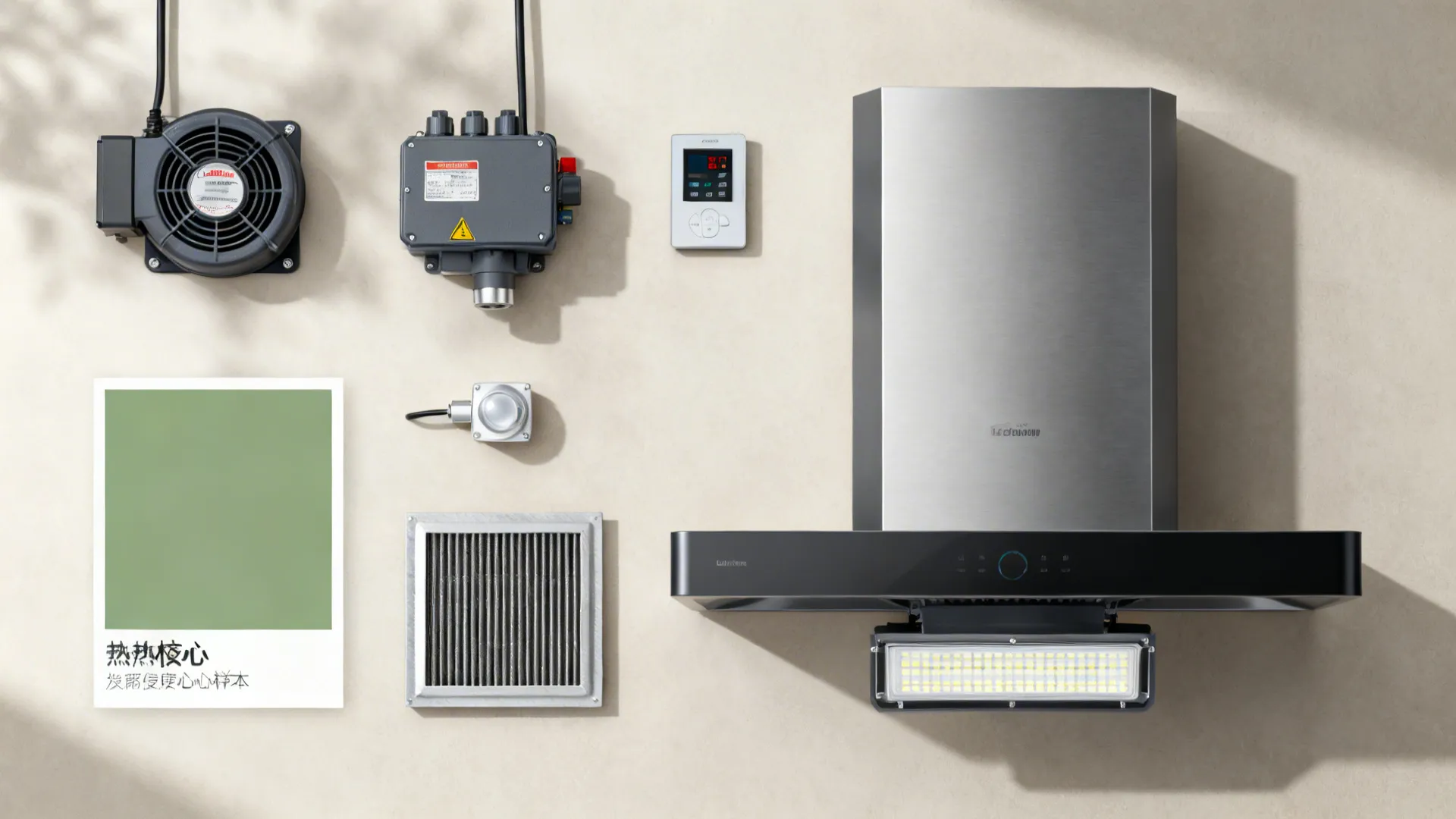

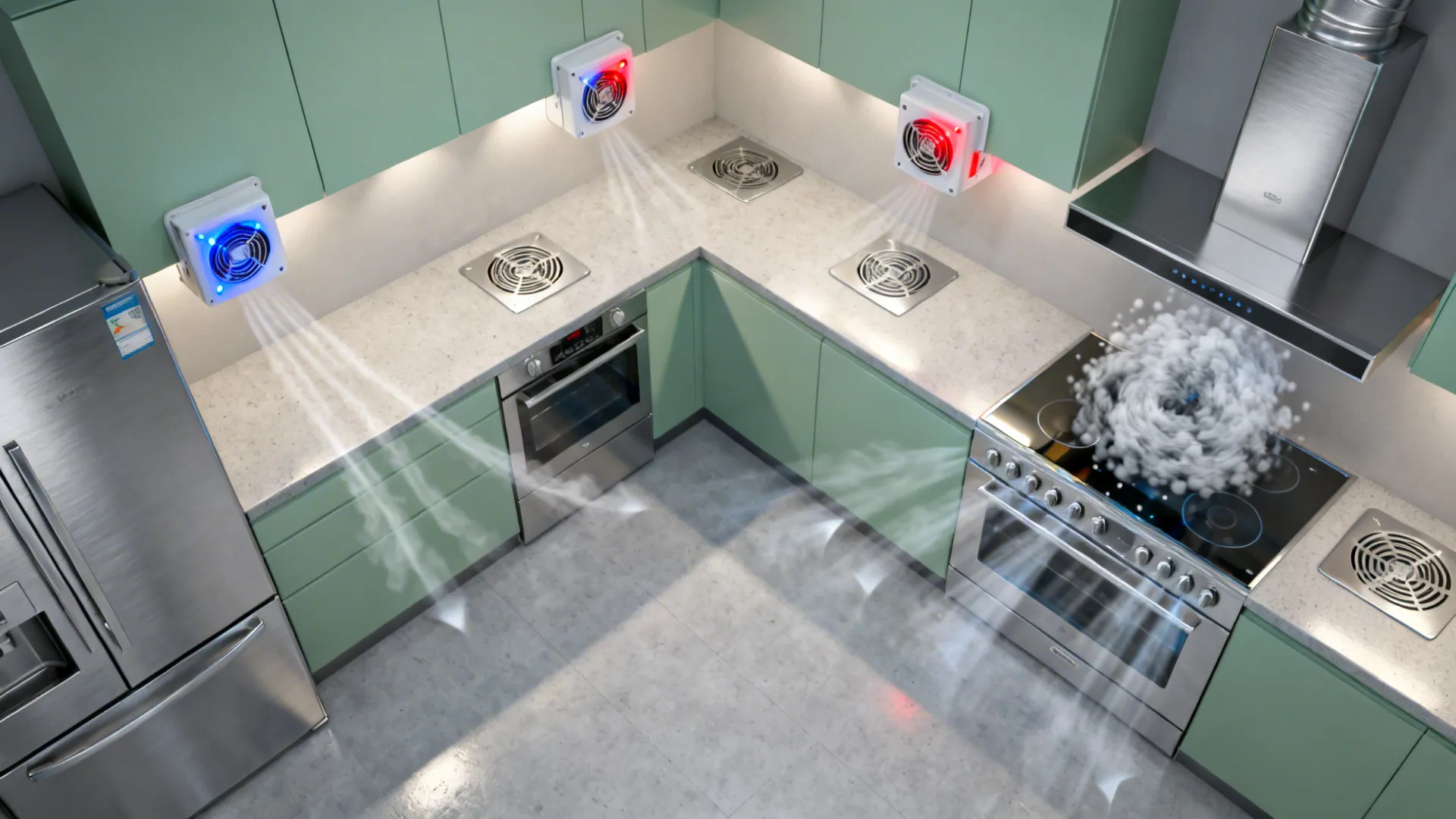

My Take In a 40-seat bistro, summers punished the line until we introduced demand-controlled ventilation and zoned supply air. The result: lower utility bills and fewer chef complaints. Pros - Demand-Controlled Ventilation (DCV) trims exhaust rates during low-load periods; long-tail phrases like "variable speed hood control" and "DCV for commercial kitchens" pay back in energy savings. - Heat recovery on exhaust and properly tempered MUA can improve overall kitchen comfort and reduce HVAC tonnage. - The U.S. Department of Energy notes DCV can cut ventilation energy significantly in commercial kitchens (DOE Better Buildings resources). Cons - Controls and sensors add complexity; commissioning is critical. - Mis-tuned DCV can under-vent during high-load spikes, hurting capture. - Utility incentives vary—some regions make ROI slower. Tips / Case / Cost - Pair DCV with real-time cooking load sensors (optical or temperature) and verify capture during peak service. - Coordinate with hood lighting and make the control interface simple; staff adoption matters. - Track utility bills monthly to confirm savings—share wins with your team. Around the 80% point, if you’re mapping a small kitchen retrofit into a tight shell, review this compact planning case for flow and ventilation alignment: glass backsplash makes the kitchen feel airier. [Section: Summary] Small commercial kitchens don’t limit creativity—they demand smarter hood design. From capture sizing and balanced make-up air to noise control, filtration, and energy strategies, the right decisions boost safety, comfort, and operating costs. ASHRAE and NFPA 96 offer solid guardrails; lean into those standards to guide choices. Which of these 5 design inspirations would you try first in your kitchen hood plan? [Section: FAQ] 1) What is the most important factor in commercial kitchen hood design? Capture efficiency matched to appliance duty is key. Right overhangs, side panels, and balanced airflow help contain plumes and meet NFPA 96 requirements. 2) How do I balance exhaust and make-up air in a small kitchen? Match total MUA to exhaust CFM and place supply near the hood to support capture. Temper the MUA slightly to avoid cold drafts that push smoke away. 3) Are there codes for commercial kitchen hoods I must follow? Yes—NFPA 96 covers ventilation control and fire protection of commercial cooking operations. Local mechanical codes and health codes also apply; always confirm jurisdictional requirements. 4) Can I reduce hood noise without sacrificing performance? Choose well-balanced fans, use vibration isolation, and keep duct transitions smooth. Measure sound during commissioning to verify comfort. 5) What filters are best for grease-laden vapors? Baffle filters are standard for Type I hoods; high-efficiency cartridges can further reduce duct fouling. Follow NFPA 96 cleaning intervals and keep maintenance logs. 6) Does Demand-Controlled Ventilation really save energy? Yes. DOE case studies show DCV can reduce ventilation energy use, especially during off-peak cooking. Proper commissioning ensures capture isn’t compromised. 7) How do side panels affect hood performance? Side panels improve containment, reduce cross-drafts, and can allow lower exhaust rates for the same capture. They’re a cost-effective add-on in tight kitchens. 8) What’s a typical budget impact for a hood upgrade? Expect costs to vary by hood type, fan, filtration, and controls. Adding tempered MUA or DCV increases upfront investment but often lowers operating costs over time.
