Commercial Kitchen Hood CAD Drawing: 5 Pro Tips: A senior interior designer’s playbook for precise, code-ready commercial kitchen hood CAD drawings (with real-world pros/cons, costs, and expert data)

I’ve spent over a decade redesigning compact kitchens and full-service back-of-house spaces, and one thing never lies: a clean, code-ready commercial kitchen hood CAD drawing sets the tone for safety, airflow, and workflow. Small spaces really do spark big creativity—especially when you’re threading ducts through tight soffits or coordinating MEP around low ceilings. In this guide, I’ll share 5 design inspirations I rely on, blending personal project notes with expert references, so you can draft with confidence and build without surprises. You’ll find real pros/cons, budget signals, and a few field-tested shortcuts.

On my last café retrofit, the early hood CAD schematic saved us a week on site because the contractor had accurate clearances and duct runs up front. That’s the point: commercial kitchen hood CAD drawing isn’t just lines—it’s airflow, safety, noise, and maintenance visualized.

1) Minimalist, Service-First Hood Sections

My Take: I learned the hard way that a “beautiful” section is useless if maintenance paths aren’t explicit. Now I draw tight, legible sections that highlight grease duct thickness, double-walled assemblies, and clean-out access. Simple sections reduce RFIs and make inspectors happy.

Pros: Clear service zones and “maintenance arcs” cut downtime during filter swaps and duct cleaning—an underrated long-tail win for commercial kitchen hood CAD drawing. Annotating hood-to-ceiling clearances and mounting fasteners improves constructability and reduces field conflicts. Minimalist details also keep submittals tidy for AHJ review.

Cons: Over-simplifying can hide crucial layers (e.g., fireproofing or vibration isolators). I once omitted a flexible connector callout and paid for it with a noisy line. Also, too few labels can make the drawing feel ambiguous to a new contractor.

Tips / Cost: Standardize section symbols for “access panel,” “cleanout,” and “damper.” Keep a legend on every sheet. Expect added sheet time (1–2 hours) to document maintenance zones, but you’ll save far more in the field.

For a small-kitchen retrofit, the clarity you get from L shaped layout opens more counter space can also inform where your hood and duct drops land in plan. Use the layout to pre-empt clashes before you detail sections.

save pin

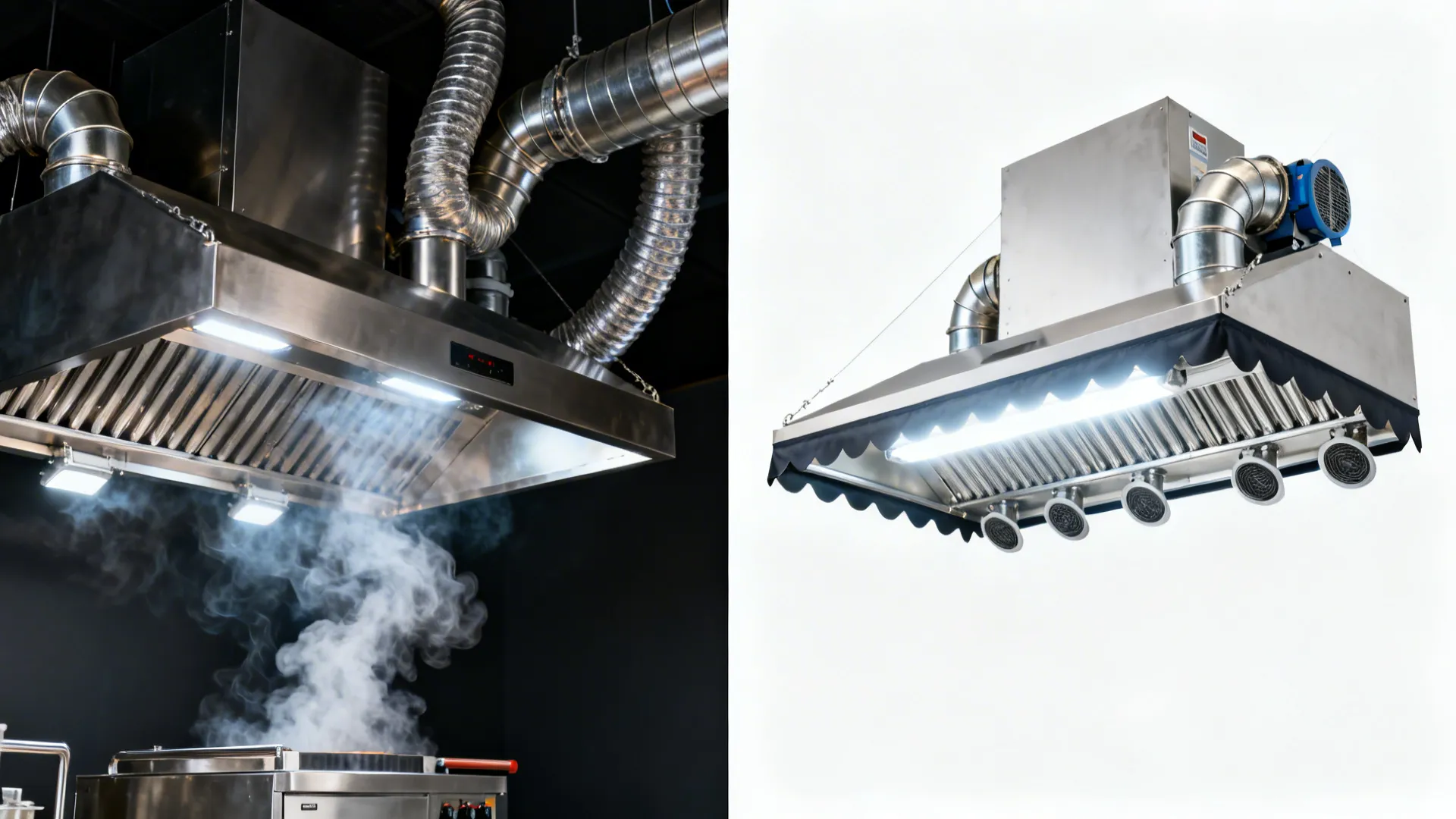

2) Duct Runs That Respect Physics and Code

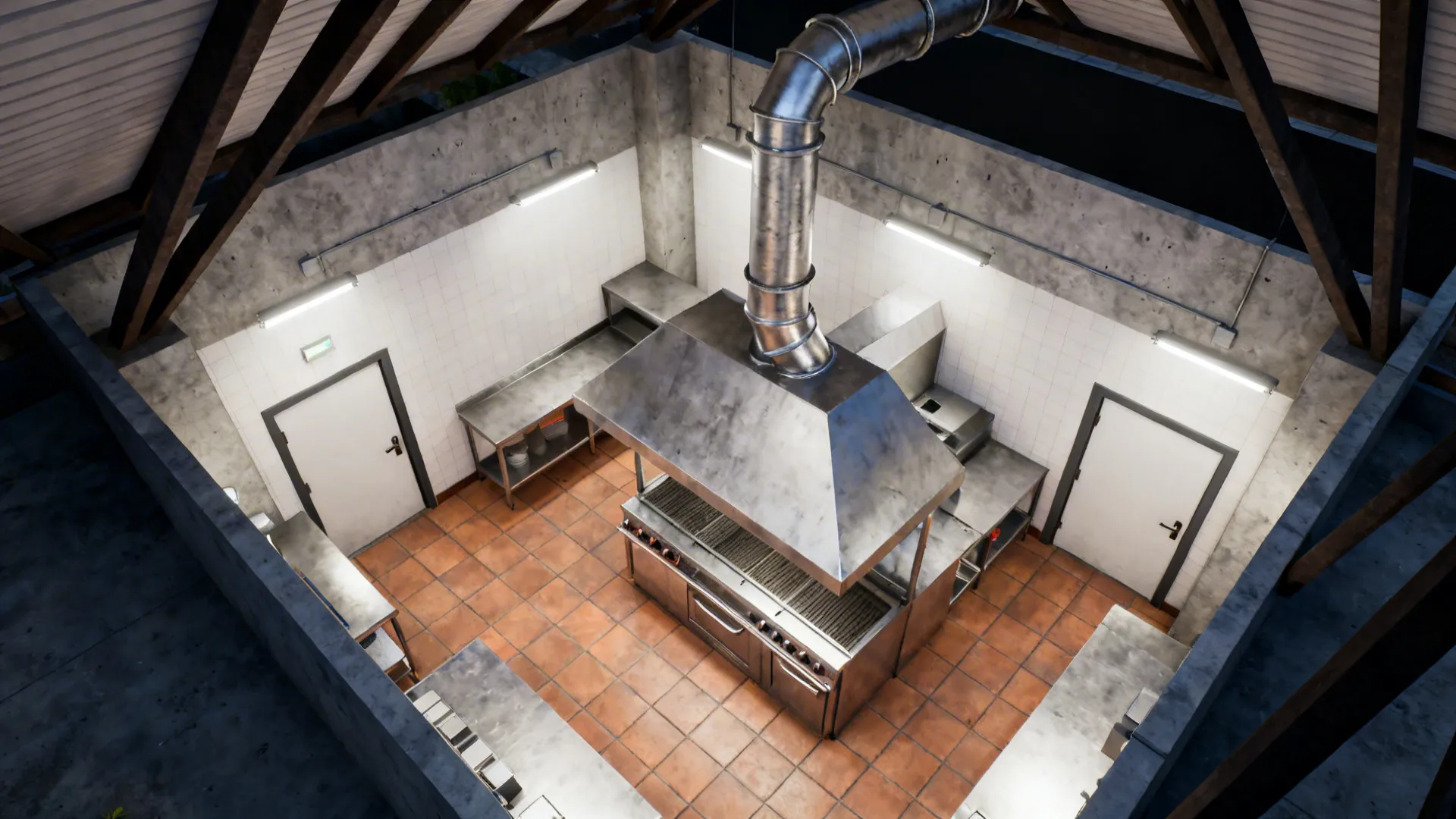

My Take: Early in my career, I tried to “snake” grease ducts around beams. Lesson learned: every bend adds resistance, cleaning difficulty, and cost. Now I model the straightest, steepest feasible path to the exterior with the fewest elbows—then add access doors at every change in direction.

Pros: Fewer elbows reduce static pressure and fan energy, improving capture and containment—key for a performance-first commercial kitchen hood CAD drawing. Straight runs simplify fabrication, lower leakage risk, and make NFPA 96-mandated cleaning easier and safer.

Cons: Purely straight paths rarely fit in renovations; negotiating beams and joists can force offsets. Vertical shafts may demand structural coordination and firestopping details that slow approvals. And yes, steeper runs can eat into headroom in older buildings.

Reference: NFPA 96 (latest edition) requires welded, liquid-tight grease ducts with cleanouts at every change in direction and at set intervals; proper slope toward the hood or grease reservoir is also mandated.

Case / Budget: In a 60-seat bistro, straightening a duct added one floor penetration but cut fan sizing by ~10–15%, offsetting cost in year-one energy savings. Coordinate early with structural and MEP to lock penetrations before slab cores are scheduled.

save pin

3) Demand-Control Ventilation (DCV) with Heat Recovery

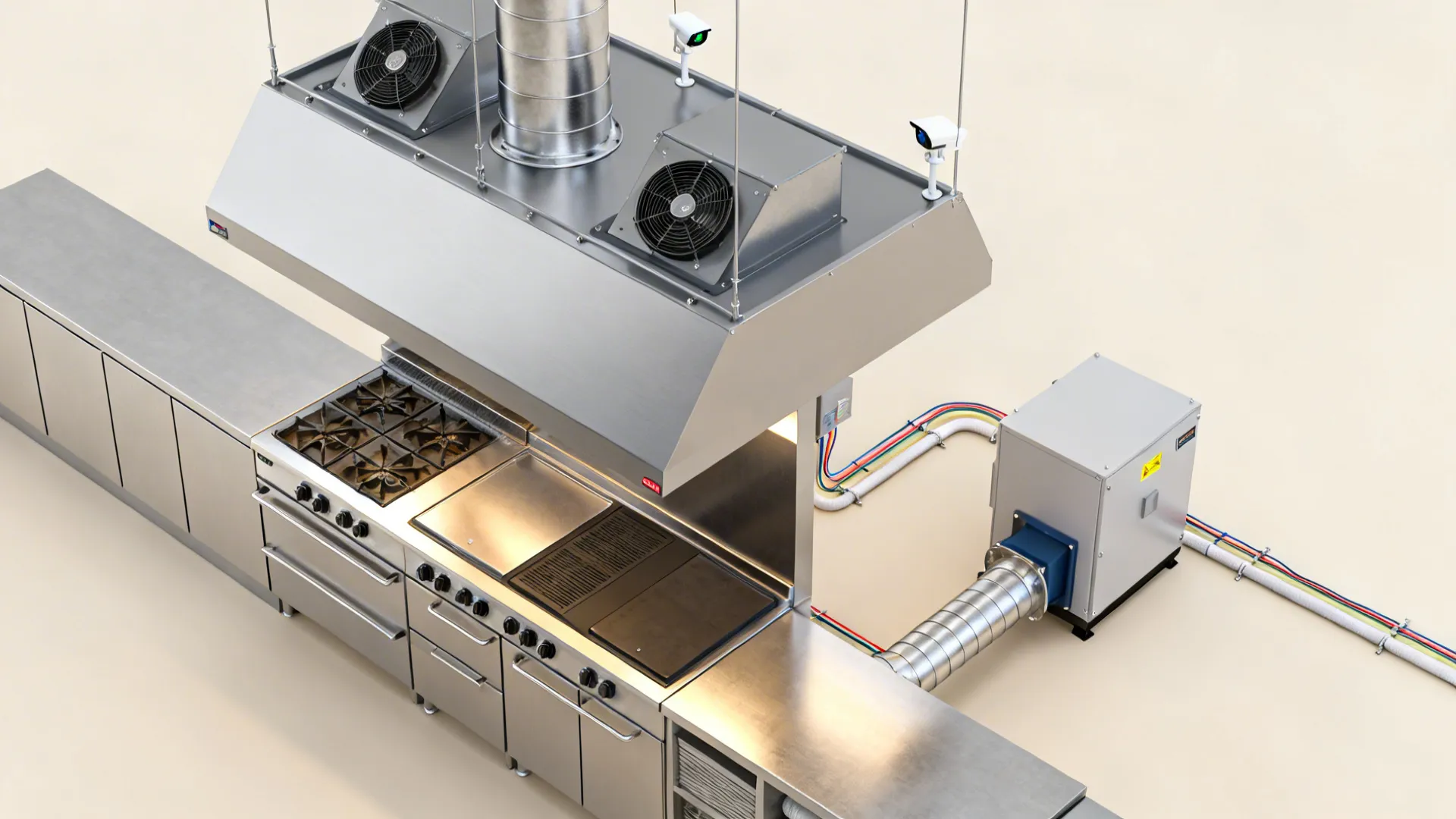

My Take: My favorite upgrades pair variable-speed fans with temperature or effluent sensors—fans ramp up only when cooking peaks. In CAD, I annotate sensor locations, control wiring pathways, and the interlock logic to the make-up air unit. It’s greener, quieter, and easier on staff.

Pros: DCV can lower exhaust rates during off-peak times, cutting operating costs and improving thermal balance—great long-tail ROI for any commercial kitchen hood CAD drawing. Proper intake-exhaust balancing reduces negative pressure that can slam doors or pull odors into the dining room.

Cons: Controls add complexity: if wiring paths, sensor mounting, and commissioning steps aren’t crystal-clear in CAD notes, you’ll get nuisance alarms or poor capture. Initial capital costs and tuning time can spook owners on tight budgets.

Reference: ASHRAE guidance and DOE case studies have documented energy reductions with demand-control kitchen ventilation when sensors and controls are correctly specified and commissioned.

Tips: Include a simple “sequence of operations” diagram right on your sheet set. In renovations, consider short duct routes to a compact energy recovery unit—verify grease compatibility and code allowances with your local AHJ.

If you’re mapping multiple rooms and adjacencies, I like to rough-in a plan using glass backsplash makes the kitchen feel airier as a spatial reference idea—then scale up to full MEP coordination. Seeing the circulation paths helps confirm DCV sensor zones and access.

save pin

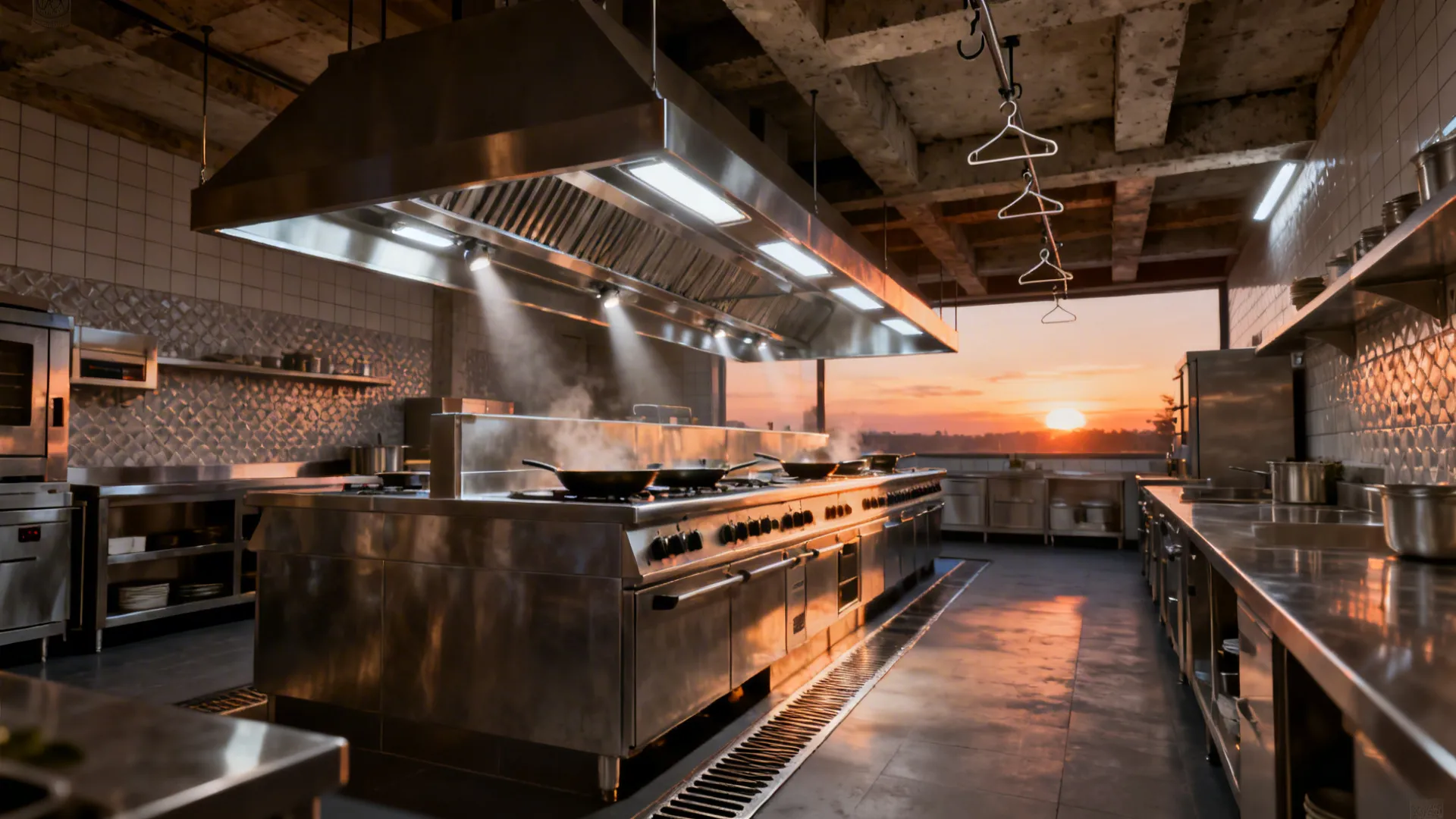

4) Hood Canopy Geometry: Capture, Lighting, and Safety

My Take: In tight kitchens, extending the hood’s front lip and increasing side panels often beats bumping up CFM. I also integrate task lighting and note its beam angles in CAD; chefs want bright pans without glare. I document safety clearances to fryers and charbroilers so there’s no confusion on site.

Pros: Deeper canopies and side skirts improve plume capture without over-ventilating, a smart optimization in commercial kitchen hood CAD drawing. Integrated, sealed fixtures minimize grease accumulation and simplify cleaning. Clear dimensions reduce shop drawing back-and-forth.

Cons: Bigger canopies add weight and may require reinforcement; always show hanger points and slab/joist conditions. Extended skirts can crowd line cooks if not coordinated with equipment depths. Lighting specs must be grease-rated or you’ll be replacing fixtures prematurely.

Reference: Kitchen ventilation best-practice literature (e.g., ASHRAE Handbook—HVAC Applications) notes canopy overhangs and side panels as effective capture strategies, especially over heavy-duty equipment lines.

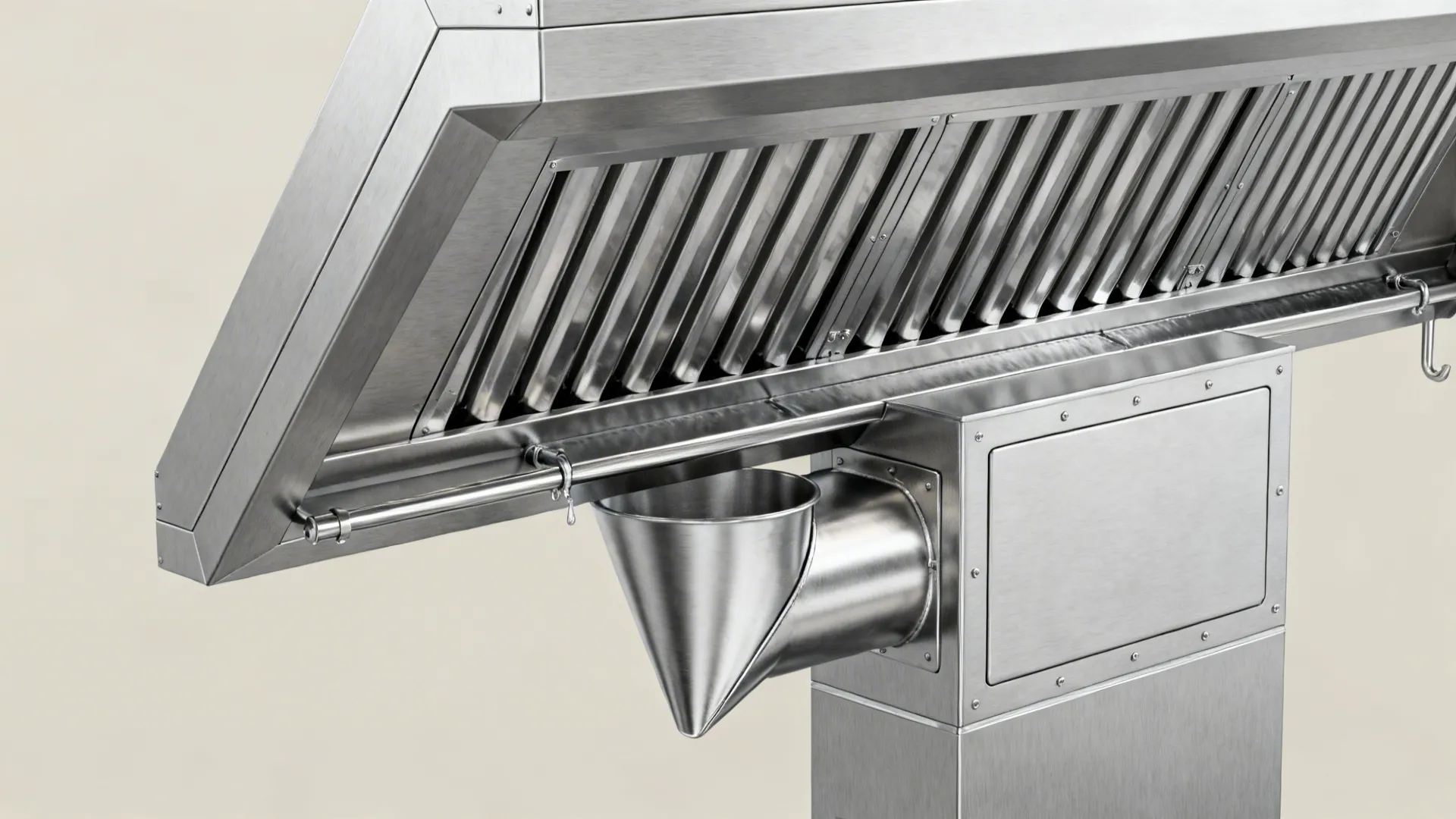

Cost / Detail: Budget 10–15% extra for reinforced hangers and sealed lighting. Provide exploded canopy details showing drip rails, filter angles (about 45 degrees typical), and grease troughs sloped to cup points.

save pin

5) Make-Up Air, Noise Control, and Commissioning Notes

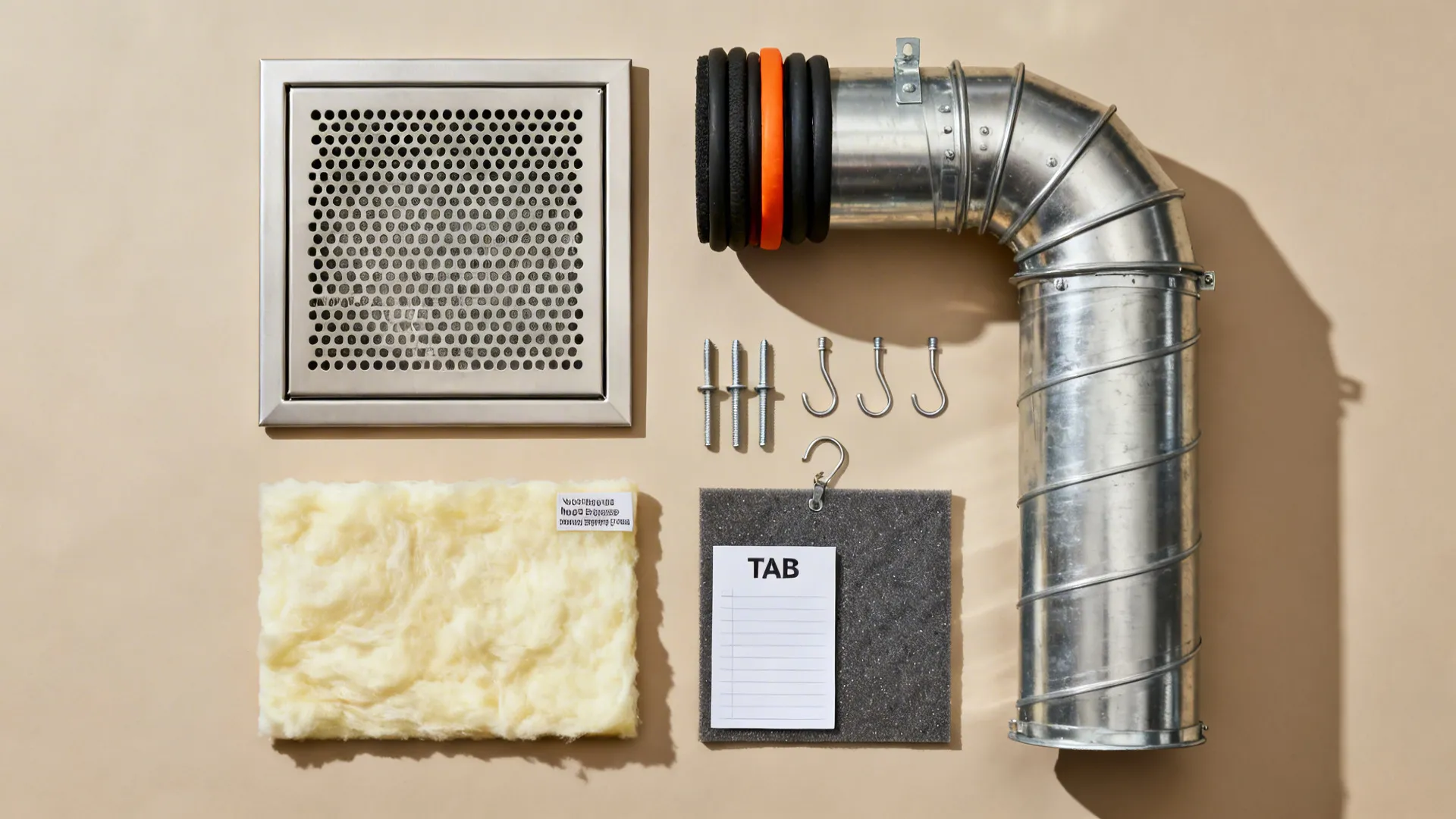

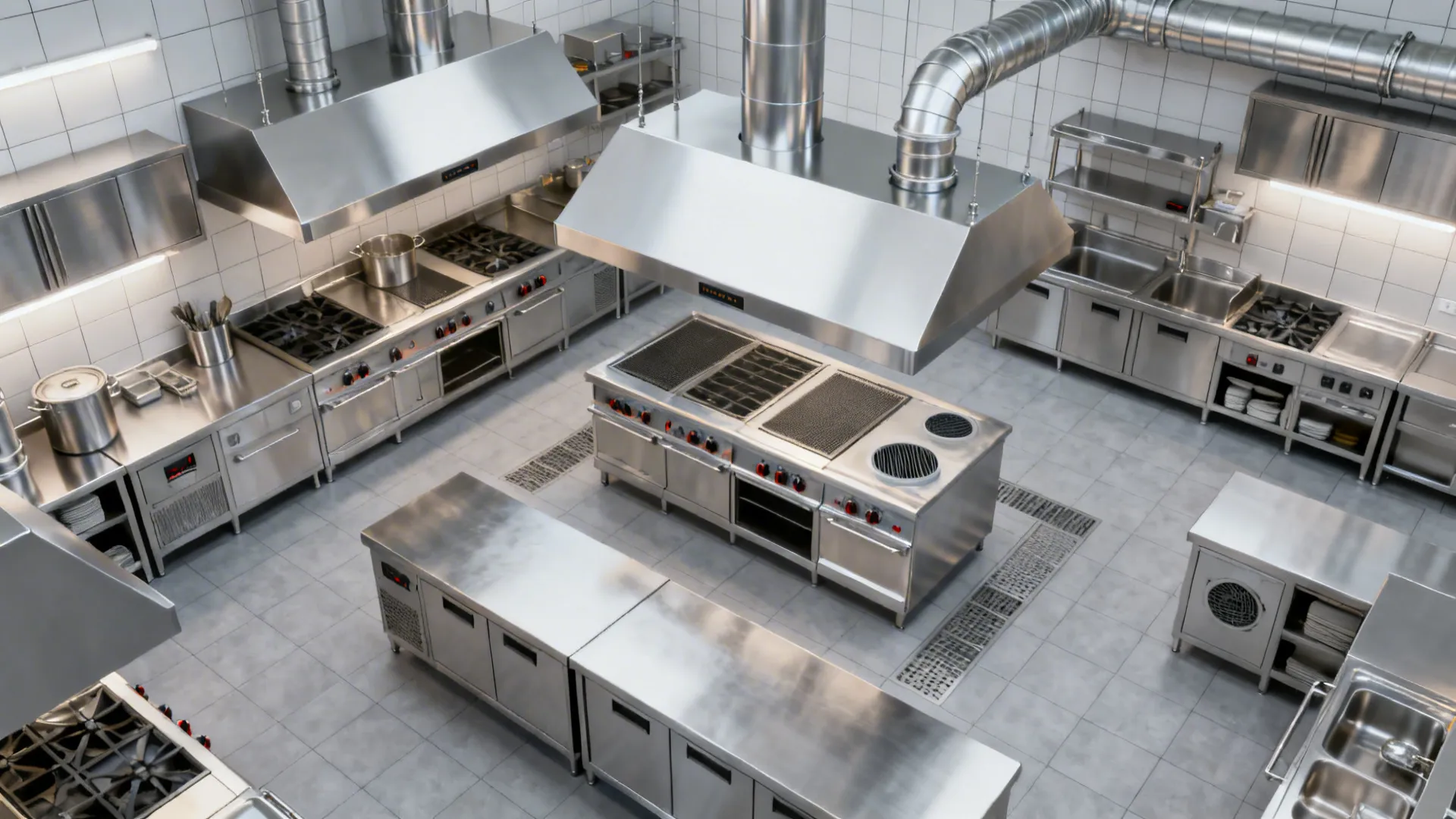

My Take: I once delivered a gorgeous hood plan that turned into a wind tunnel because make-up air was under-specified. Never again. Now I model supply diffusers and show throw patterns that don’t fight the exhaust capture zone, then add acoustic notes on duct liners and isolators.

Pros: Balanced supply and exhaust stabilizes room pressure, improving hood capture efficiency—crucial for a robust commercial kitchen hood CAD drawing. Noise control via lined ducts, flexible connectors, and vibration-isolated mounts keeps chefs sane and communication clear on the line.

Cons: Over-supplying air can create drafts that push smoke past the hood; under-supplying pulls odors into front-of-house. Acoustic treatments add cost and must be compatible with grease-laden airstreams—no flammable liners where they don’t belong.

Reference: NFPA 96 and local mechanical codes govern grease duct construction and clearances; ASHRAE provides diffuser selection and placement guidance for avoiding cross-drafts that impair capture.

Commissioning Tip: Add a simple “TAB checklist” (airflow targets, pressure setpoints, hood face velocity) right on your drawings. Include contact fields for the balancer and controls contractor so the GC can coordinate early.

When I finalize sheet sets, I sanity-check volumes in a quick concept model. Visualizing the line in 3D can reveal conflicts before the shop drawings. If you’re exploring variants, try mapping an early option with warmth from wood accents to study how upper storage and soffits affect diffuser throws and hood clearances—then translate those insights back into your CAD details.

save pin

Summary

Small kitchens don’t limit you—they push you toward smarter geometry, straighter ducts, and better controls. A precise commercial kitchen hood CAD drawing is your best defense against noise, grease, and change orders. From NFPA 96 cleanouts to ASHRAE-informed diffuser placement, stack your drawings with data and field-friendly notes, not just dimensions. Which of these five ideas are you most eager to try on your next project?
