I’ve spent over a decade tuning commercial kitchen HVAC design where every square foot counts. Lately, I’m seeing tighter footprints, higher make-up air efficiency, and smarter demand-control ventilation become the norm. Small spaces really do spark big ideas—especially when grease, heat, and codes collide. In this guide, I’ll share 5 commercial kitchen HVAC design guidelines I’ve used on real projects, blending my experience with expert data so you can design safer, quieter, and more efficient kitchens.

On a recent café retrofit, we rebalanced hoods, added demand-controlled exhaust, and recalibrated make-up air to cut noise and save energy without compromising capture. That project reminded me: the right HVAC decisions show up in staff comfort and the bottom line. To ground this, I’ll point to trusted standards like ASHRAE 154 and IMC where it matters.

[Section: 灵感列表]

Guideline 1: Right‑Size Hoods and Exhaust for Capture, Not Overkill

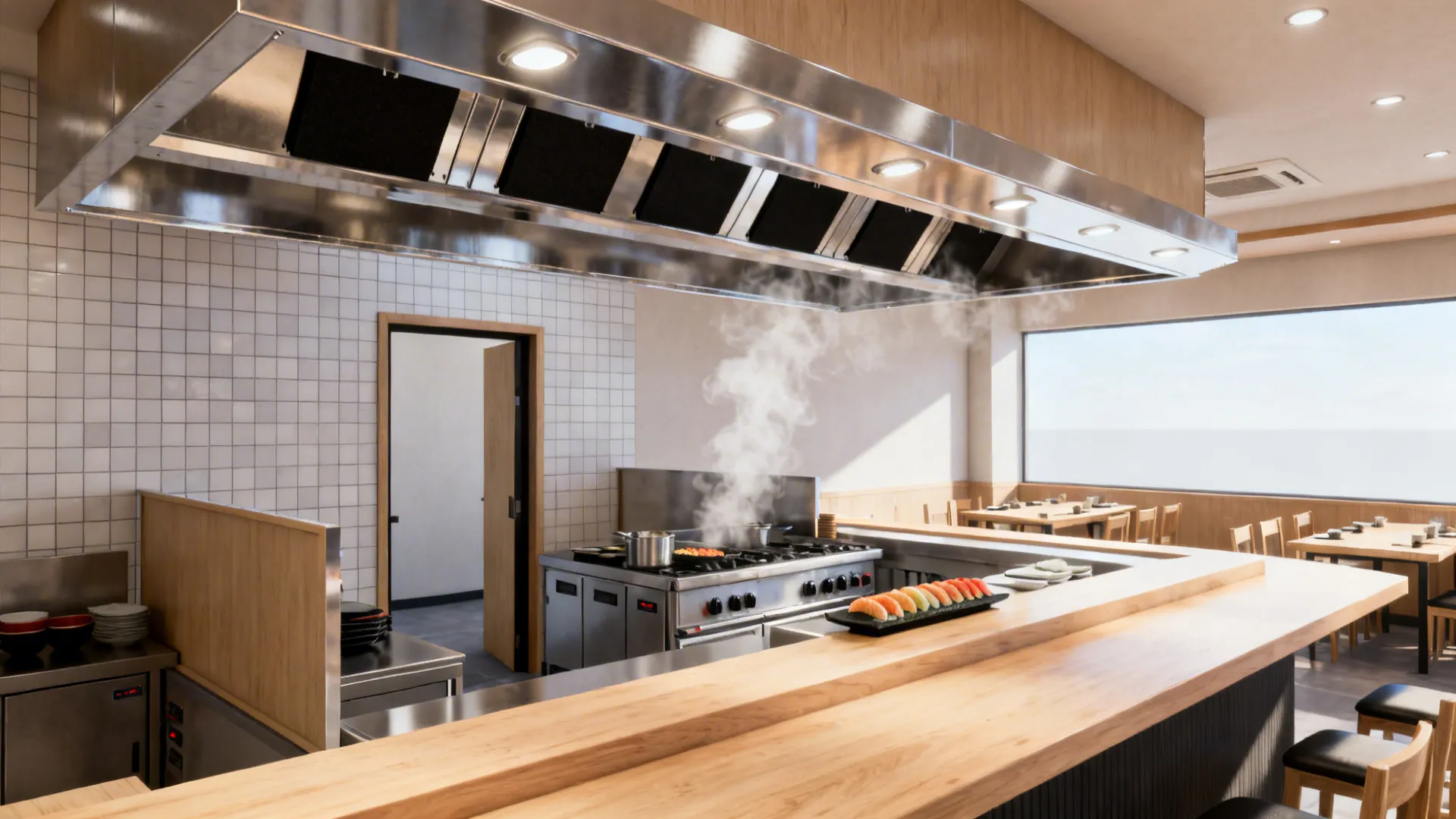

My Take: Early in my career, I inherited a sushi bar with a 4‑foot hood over a 6‑foot griddle. Grease fog leaked into the dining room and the owner cranked the fan to 11. We swapped in a correctly sized Type I hood with full overhang and side panels; suddenly, capture worked at lower CFM and the room calmed down.

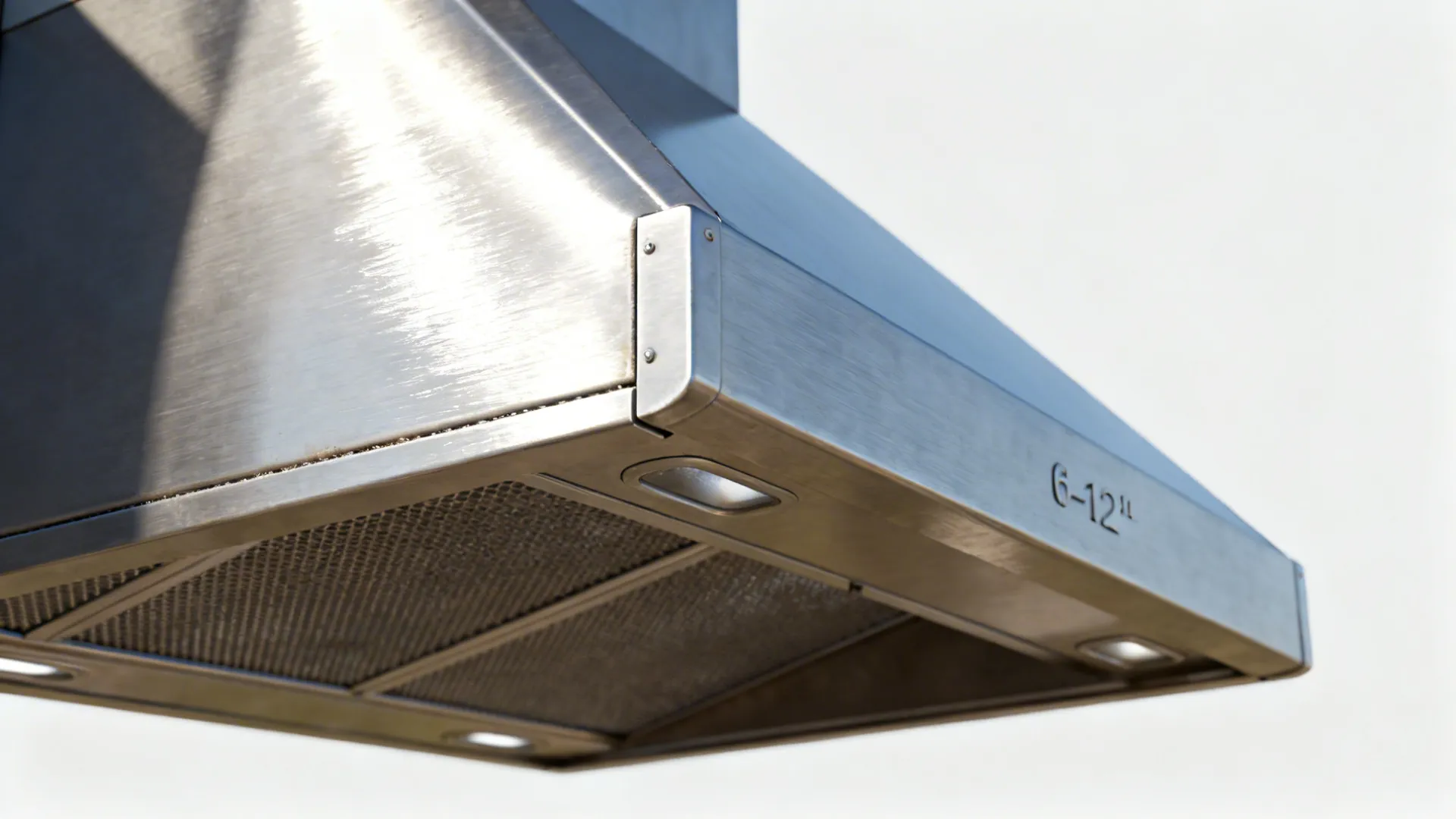

Pros: Proper hood sizing and overhang (per typical 6–12 inch overhang guidance) improve grease vapor capture, lower required exhaust CFM, and stabilize room pressurization—classic commercial kitchen HVAC design guidelines in practice. Following ASHRAE 154/IMC-aligned sizing and using side curtains can reduce cross-drafts and boost effluent capture efficiency.

Cons: Larger or better-profile hoods can squeeze sightlines and cabinets in tight back-of-house plans. Coordinating with ceiling grids and fire suppression drops adds complexity—and if you miss it, you’ll pay twice in rework.

Tips/Cost: Prioritize a UL 710 listed hood matched to appliance duty and line-up; add side panels near doorways. In concept design, model CFM ranges and throw in a 10–15% contingency for future equipment upgrades.

In a compact bakery I designed last year, a modest L‑shaped line under a low‑profile canopy let us keep aisles clear and still hit capture targets—very much like how L shaped layout releases more counter space can ease tight workflows in spatial planning.

save pin

save pin

Guideline 2: Balance Make‑Up Air to Maintain Slightly Negative Pressure

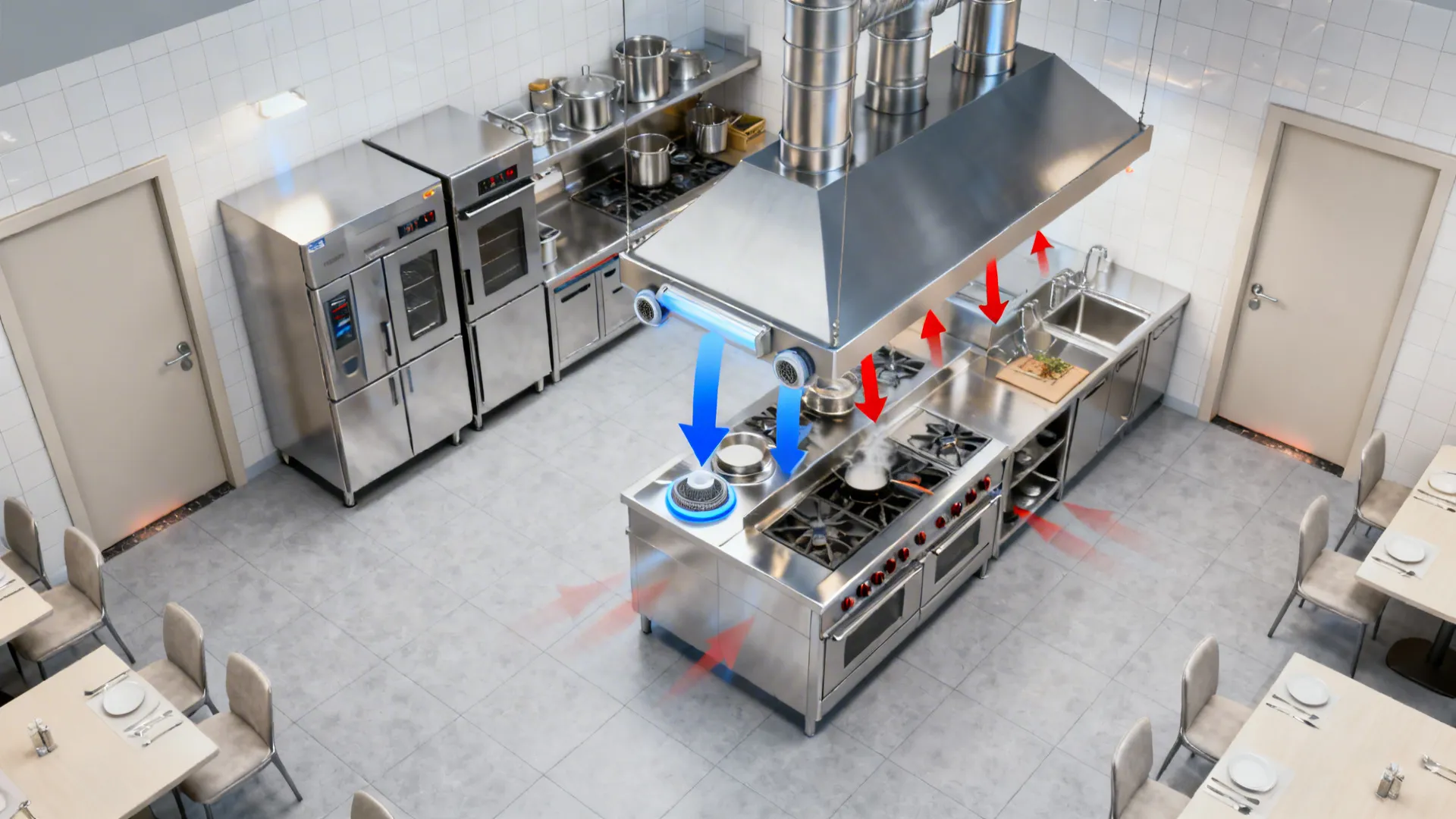

My Take: I’ve seen kitchens swing from wind-tunnel entry doors to smoky pass-throughs simply due to sloppy supply-exhaust balance. The sweet spot is a slight negative pressure in the kitchen relative to dining and outdoors, with tempered make-up air delivered where it helps capture.

Pros: Providing 80–90% of exhaust as tempered make-up air to the kitchen plenum helps keep dining rooms neutral, reduces infiltration, and stabilizes hood capture—core long-tail best practice for commercial kitchen ventilation balance. Per ASHRAE 154 and IMC, dedicated make-up air with displacement or front-lip supply improves performance and energy control.

Cons: Over-tempering MUA is a budget eater, especially in cold or hot climates. Too much supply velocity at the hood face creates spill; too little raises drafts at doors and pulls odors into the FOH.

Tips/Cost: Target supply air temperatures within comfort range and keep face velocities low at the hood (avoid exceeding ~150–200 fpm at capture zones). On rooftops with tight loads, consider energy recovery to precondition outside air.

save pin

save pin

Guideline 3: Demand‑Controlled Ventilation (DCV) for Energy and Noise Wins

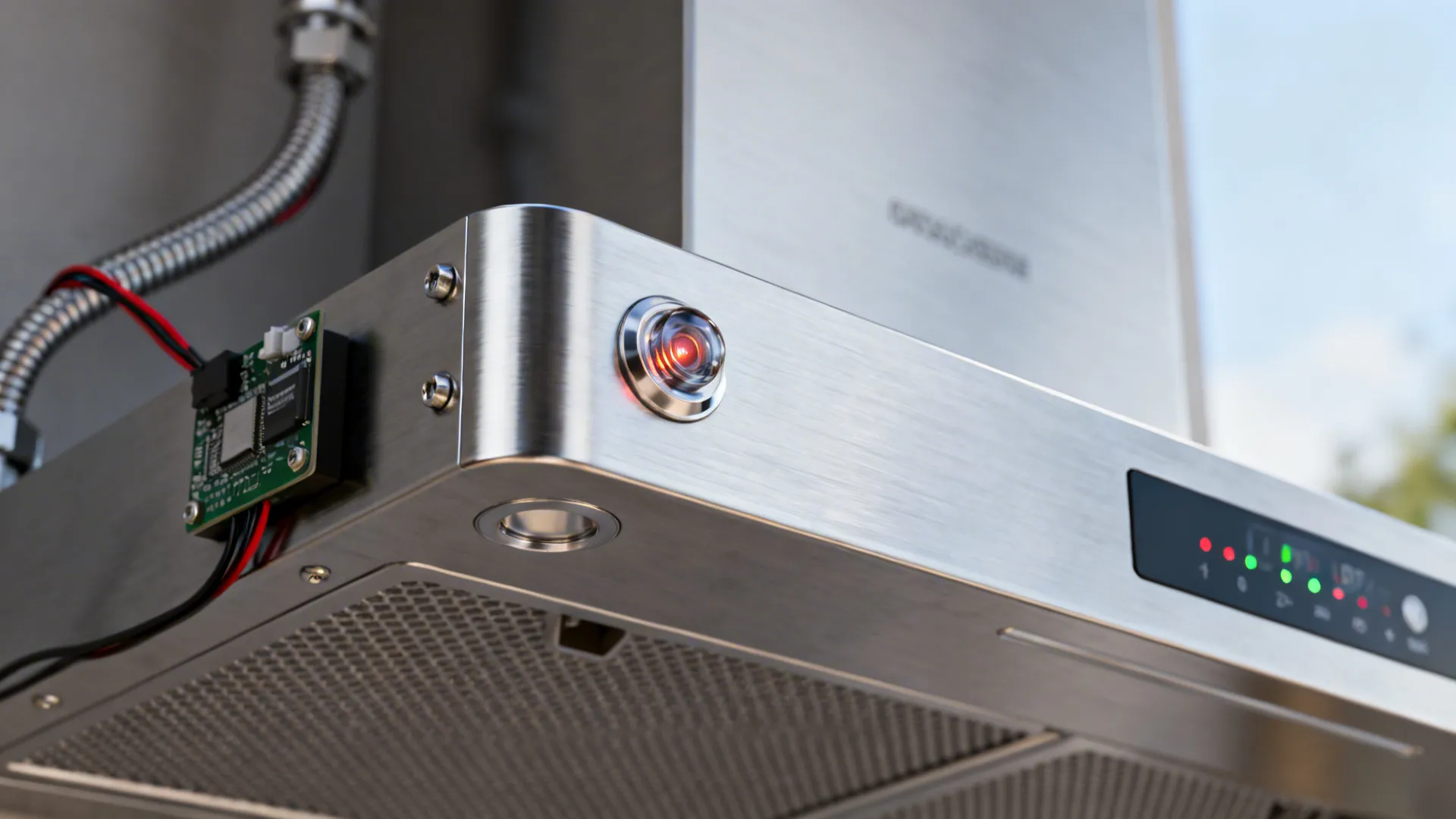

My Take: A bistro I retrofitted cut fan energy by over 50% after we added temperature and effluent sensing to modulate both exhaust and MUA. The chef noticed the difference first—less roar on slow brunch days, full draw during sear-heavy dinner rush.

Pros: DCV aligns fan speed with cooking load, trimming kWh and gas for make-up air heating/cooling while sustaining capture—an evidence-based commercial kitchen HVAC energy efficiency tactic. The U.S. Department of Energy and utility programs cite 30–60% fan energy savings on variable-speed systems with proper sensing and control.

Cons: Controls commissioning is not optional—bad tuning causes smoke alarms at peak load or needless cycling at low load. Upfront cost rises with sensors, VFDs, and integration to BMS.

Tips/Case: Start with staged setpoints tied to hood thermal sensors and stack tests; log trend data for two weeks and refine. Where rooftops are space-limited, pairing compact hoods with DCV can reduce equipment tonnage, much like how glass backsplash makes the kitchen feel airy—small design moves that improve perceived and actual performance.

save pin

save pin

Guideline 4: Ductwork, Clearances, and Fire Safety—No Compromises

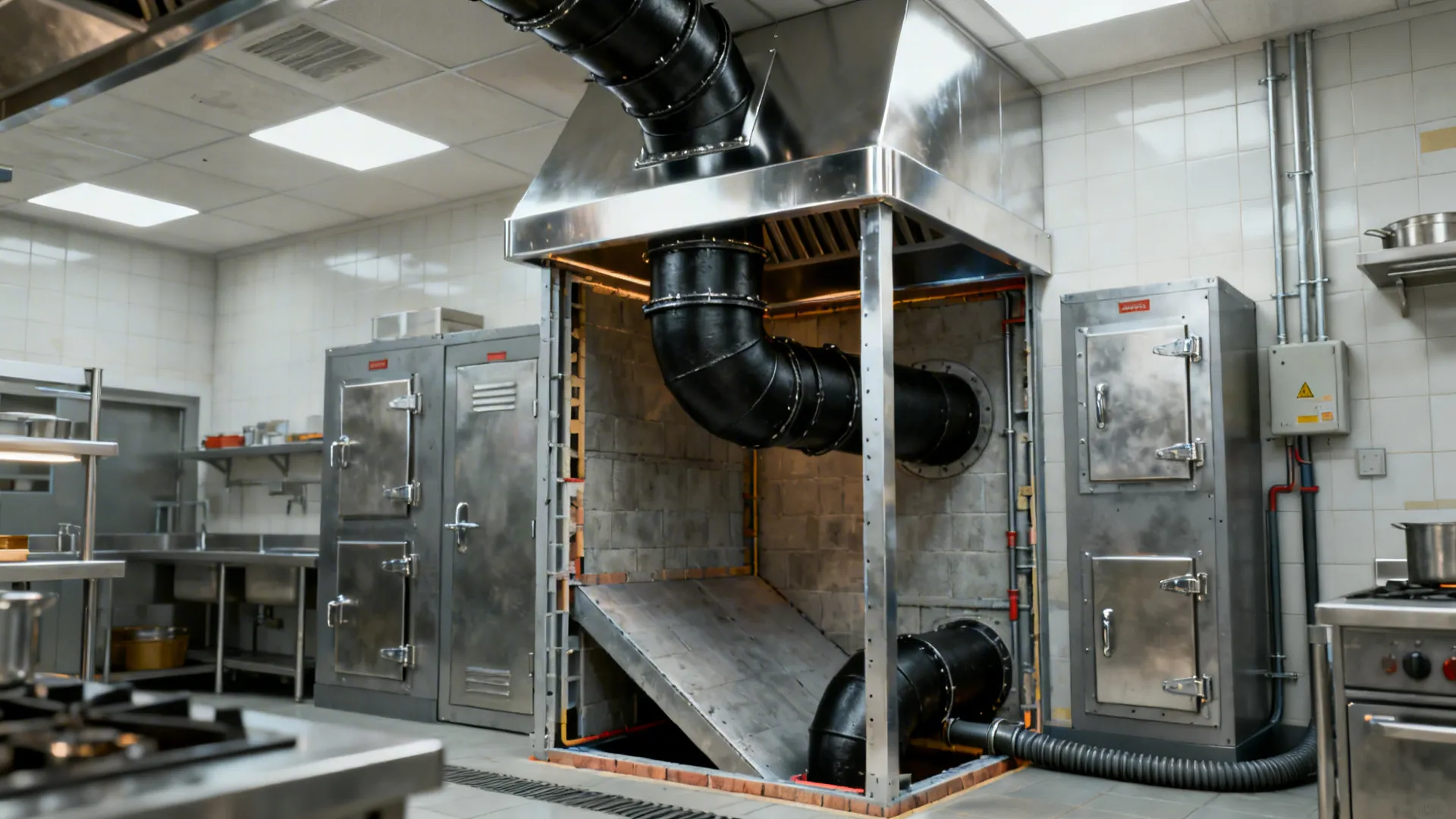

My Take: I once opened a soffit on a renovation and found a greasy 90° elbow above a fryer with zero access. We redesigned the riser with welded black steel, proper slope to drains, and cleanouts. The fire inspector became our biggest ally afterward.

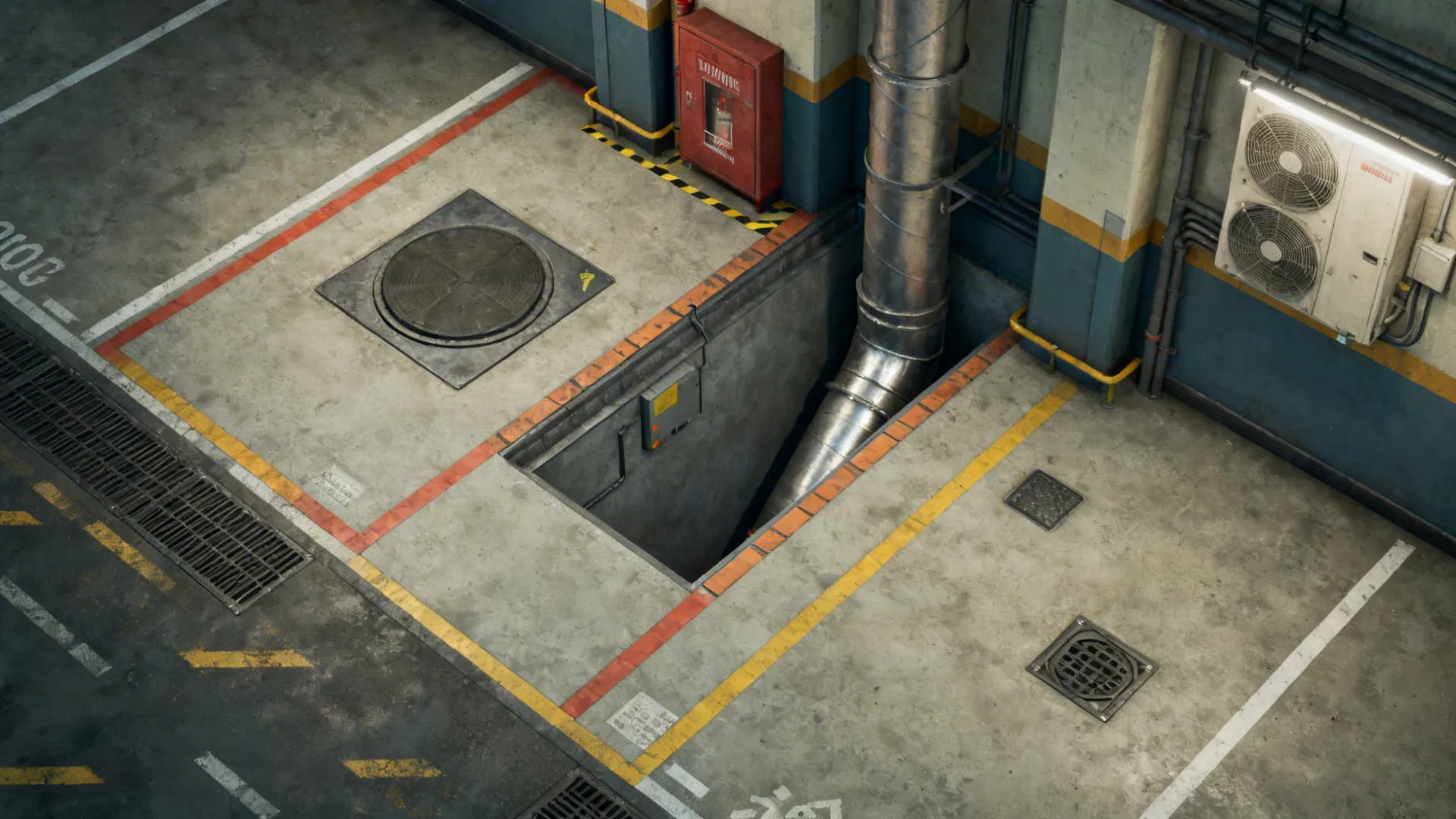

Pros: Grease duct construction per IMC and NFPA 96—welded liquid-tight steel, limited offsets, and serviceable cleanouts—cuts fire risk and improves static pressure predictability, a cornerstone of commercial kitchen HVAC safety. Keeping required clearances to combustibles and providing listed grease duct enclosures safeguards adjacent spaces.

Cons: Fire-rated shafts and long, straight duct runs eat space you thought belonged to dry storage. Insulated enclosures and access doors add cost and coordination with structural and architectural trades.

Tips/Authority: NFPA 96 details duct access, slope, and cleanout spacing; ASHRAE 154 provides exhaust flow guidance by duty rating. When in doubt, give yourself room to service fans and filters—future you will thank present you.

Mid-project coordination matters. I often mock up ceiling zones and shaft lines in 3D to catch conflicts between grease ducts, gas risers, and sprinkler mains—akin to testing L shape layout freeing more counter surface in a virtual layout before committing in the field.

save pin

save pin

Guideline 5: Filtration, Heat Recovery, and Comfort for People Who Cook

My Take: The best praise I’ve had from a line cook: “I can hear the tickets again.” Good filtration and acoustic/thermal strategies don’t just polish a spec—they protect people and productivity.

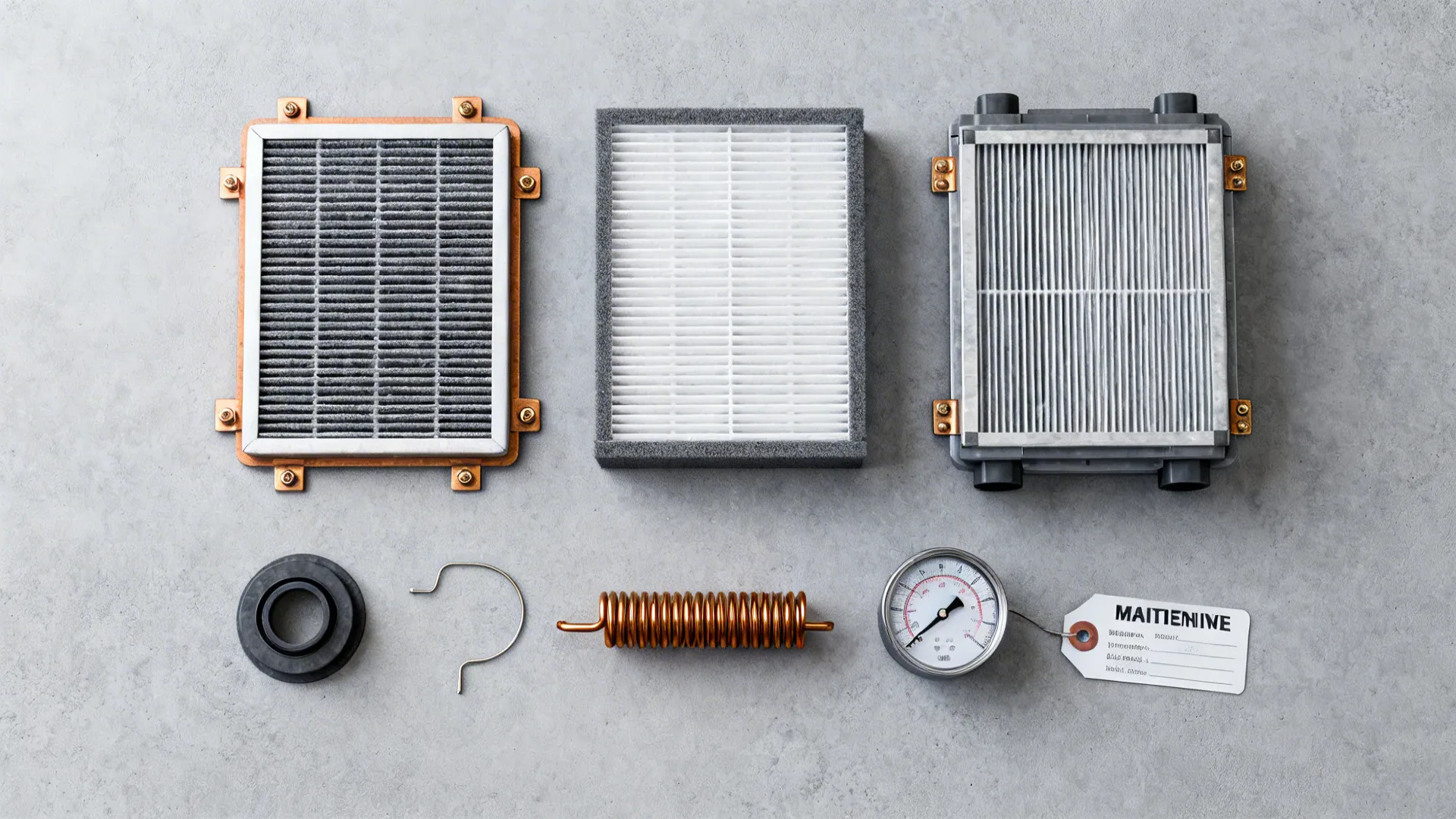

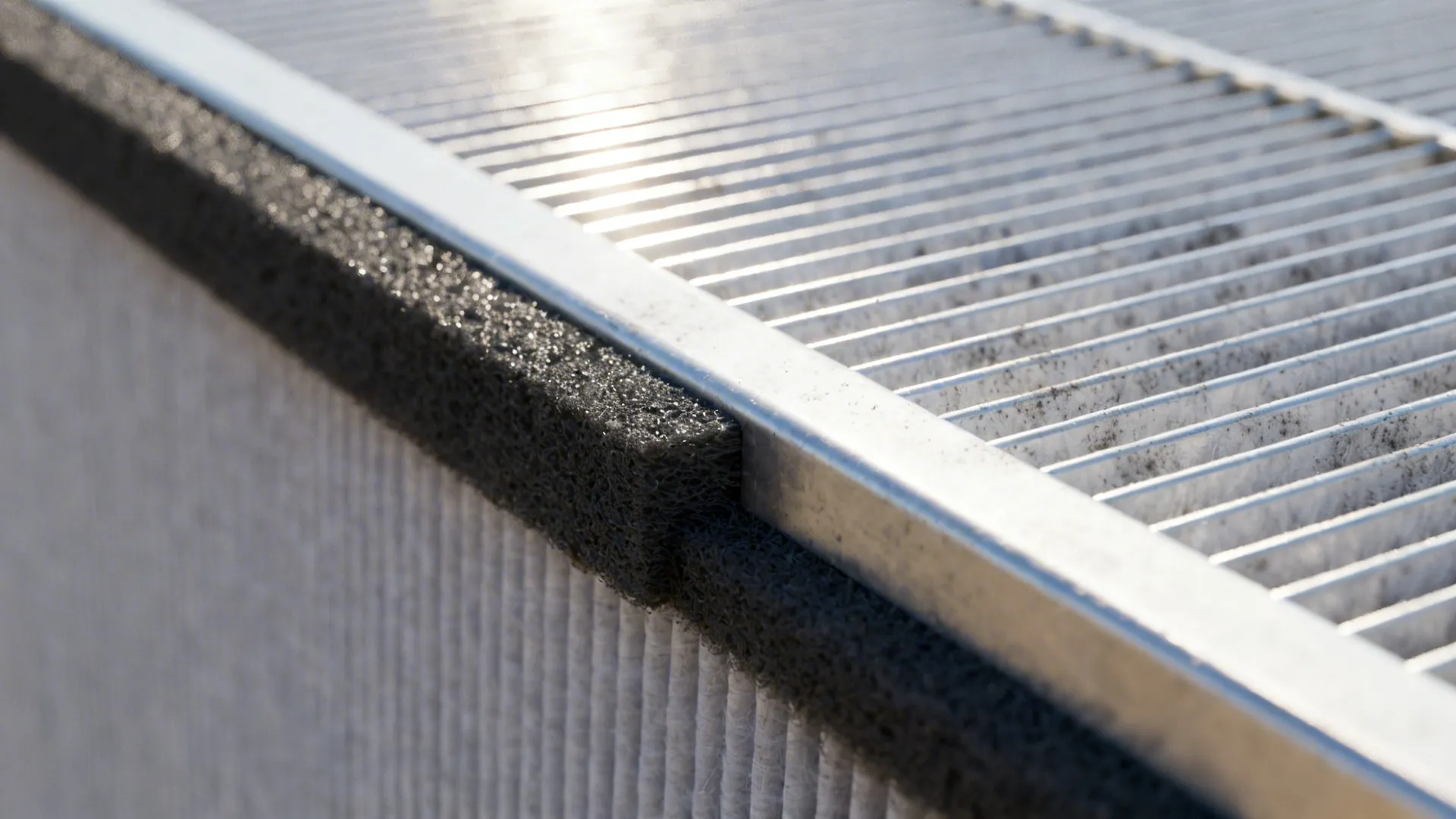

Pros: Multi-stage filtration (grease baffles, then MERV-rated prefilters/HEPA where required, and pollution-control units for recirculating or sensitive sites) improves air quality and can enable heat recovery without fouling—smart commercial kitchen HVAC air quality design. According to ASHRAE guidance and manufacturer data, heat recovery on MUA (with suitable separation from grease-laden airstreams) can trim conditioning loads significantly while maintaining IAQ.

Cons: Pollution control units and ERVs/HRVs add pressure drop, complexity, and maintenance. Poorly maintained filters nullify the benefit—and nothing tanks morale faster than a clogged PCU on a Saturday night.

Tips/Authority: Reference ASHRAE 154 for effluent categories and consult NFPA 96 for pollutant control installations; set a maintenance schedule tied to pressure-drop alarms. For staff comfort, keep radiant loads in check near the line, and consider spot cooling at the pass to avoid drafts at the hood face.

In constrained urban projects, combining compact recirculating PCUs with diligent maintenance has kept neighbors happy and permits clean—like testing warmth from wood accents virtually to validate comfort before you build.

[Section: 总结]

Thoughtful commercial kitchen HVAC design guidelines aren’t about throwing CFM at the problem; they’re about smarter capture, balance, and safety. Small kitchens simply ask us to design smarter, not smaller—getting the hood right, balancing make-up air, tuning demand, protecting the shaft, and caring for air quality. ASHRAE 154 and NFPA 96 remain my north stars when details get thorny. Which of these five guidelines are you most eager to try on your next project?

[Section: FAQ 常见问题]

save pin

save pin

FAQ

1) What are the core commercial kitchen HVAC design guidelines I should start with?

Focus on correct hood type and size, balanced make-up air with slight negative pressure, demand-controlled ventilation, code-compliant grease ducts, and robust filtration. These five pillars stabilize capture, comfort, and safety.

2) How much make‑up air should I provide relative to exhaust?

Common practice is to supply roughly 80–90% of exhaust as tempered make-up air to keep the kitchen slightly negative to dining and outdoors. Fine-tune based on door behavior, odor migration, and hood capture tests.

3) Do ASHRAE 154 and NFPA 96 really apply to small kitchens?

Yes. ASHRAE 154 addresses ventilation for commercial cooking operations across sizes, and NFPA 96 governs fire safety for hoods, ducts, and equipment. Even tiny kitchens benefit from these references to maintain capture and reduce fire risk.

4) Is demand‑controlled ventilation worth the cost?

In most cases, yes. Variable-speed exhaust and MUA tied to cooking load can cut fan energy 30–60% and reduce heating/cooling for make-up air, while lowering noise during off-peak periods. Commissioning is essential to protect capture.

5) How do I prevent odors from reaching the dining room?

Maintain slight negative pressure in the kitchen, ensure hood capture with proper overhang and side panels, and temper/supply make-up air so it supports—not disrupts—capture. Door sweeps and vestibules help in windy sites.

6) What filtration levels are recommended?

Start with listed grease baffles at the hood, then add MERV 8–13 prefilters on MUA and consider pollution-control units for sensitive sites or recirculating configurations. Monitor pressure drop to schedule service rather than guessing.

7) Can I use heat recovery on kitchen exhaust?

Grease-laden airstreams complicate traditional ERV/HRV. Use run-around coils or heat recovery on the make-up air side with proper separation, and ensure filtration protects coils. Manufacturer and code guidance should be verified for each case.

8) How often should ducts and hoods be cleaned?

NFPA 96 provides schedules based on cooking type and usage; high-grease operations may need monthly cleaning, while lighter duty can be quarterly or semiannual. Keep access doors and cleanouts serviceable so crews can do the job right.
