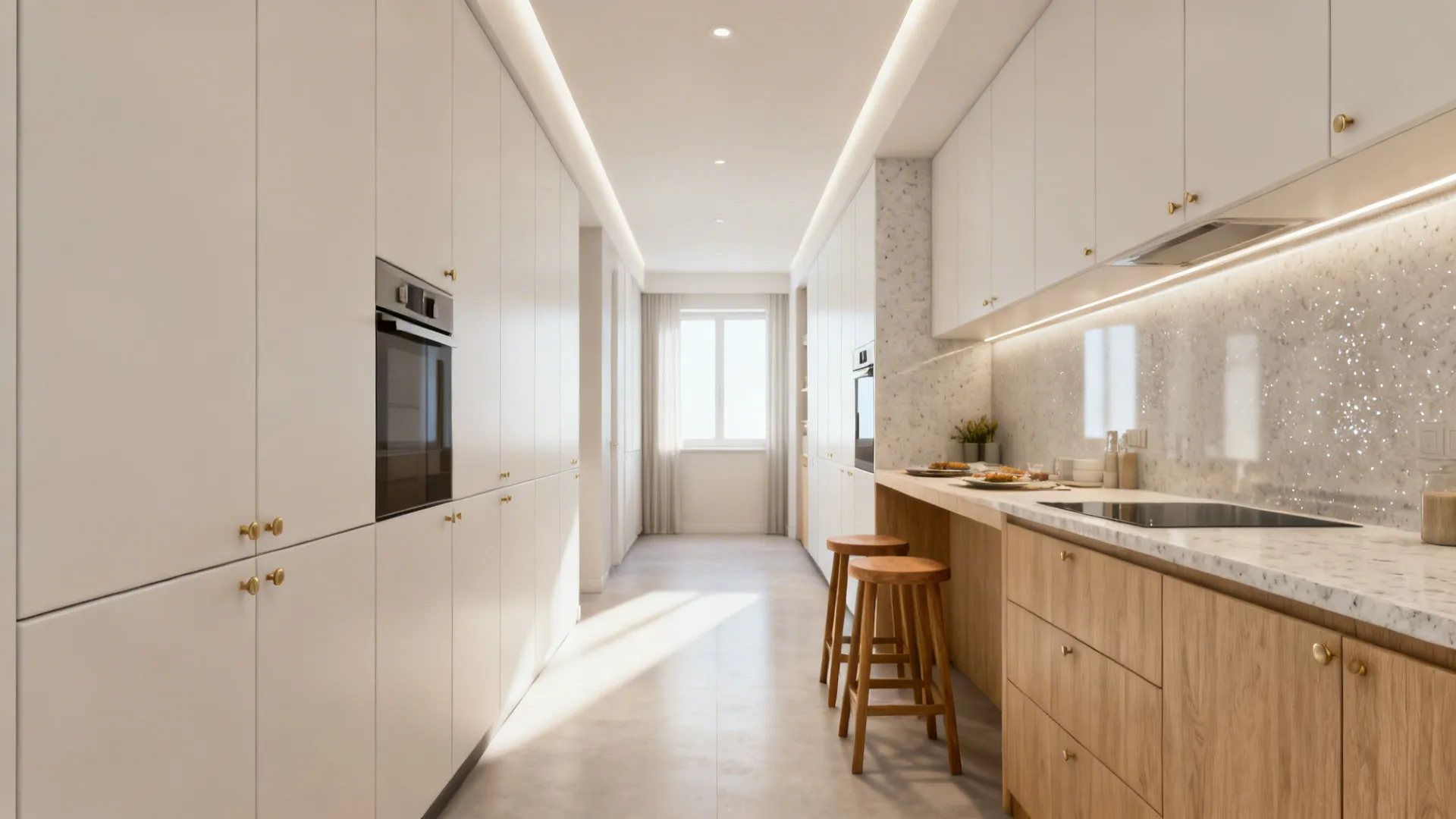

Corridor Kitchen Layout with Dining: 5 Ideas: 10+ years of small-space design experience distilled into five smart, warm, data-backed ideas for a corridor-shaped kitchen layout with dining

As a designer who’s remodeled more galley and corridor-shaped kitchens than I can count, I’ve seen how current interior trends—lighter palettes, slimmer profiles, and integrated storage—can turn a tight footprint into a social hub. A corridor-shaped kitchen layout with dining doesn’t limit you; it actually forces the kind of clarity and creativity that makes daily cooking simpler and gatherings feel cozy. In this guide, I’ll share 5 design inspirations I’ve used in real homes, blending my hands-on lessons with expert data, so you can plan a corridor kitchen that cooks well and dines better. For a visual deep dive into how L-shaped layout frees more counter space, I’ll reference a few case-style examples along the way.

1) Slimline storage and banquette seating

My Take

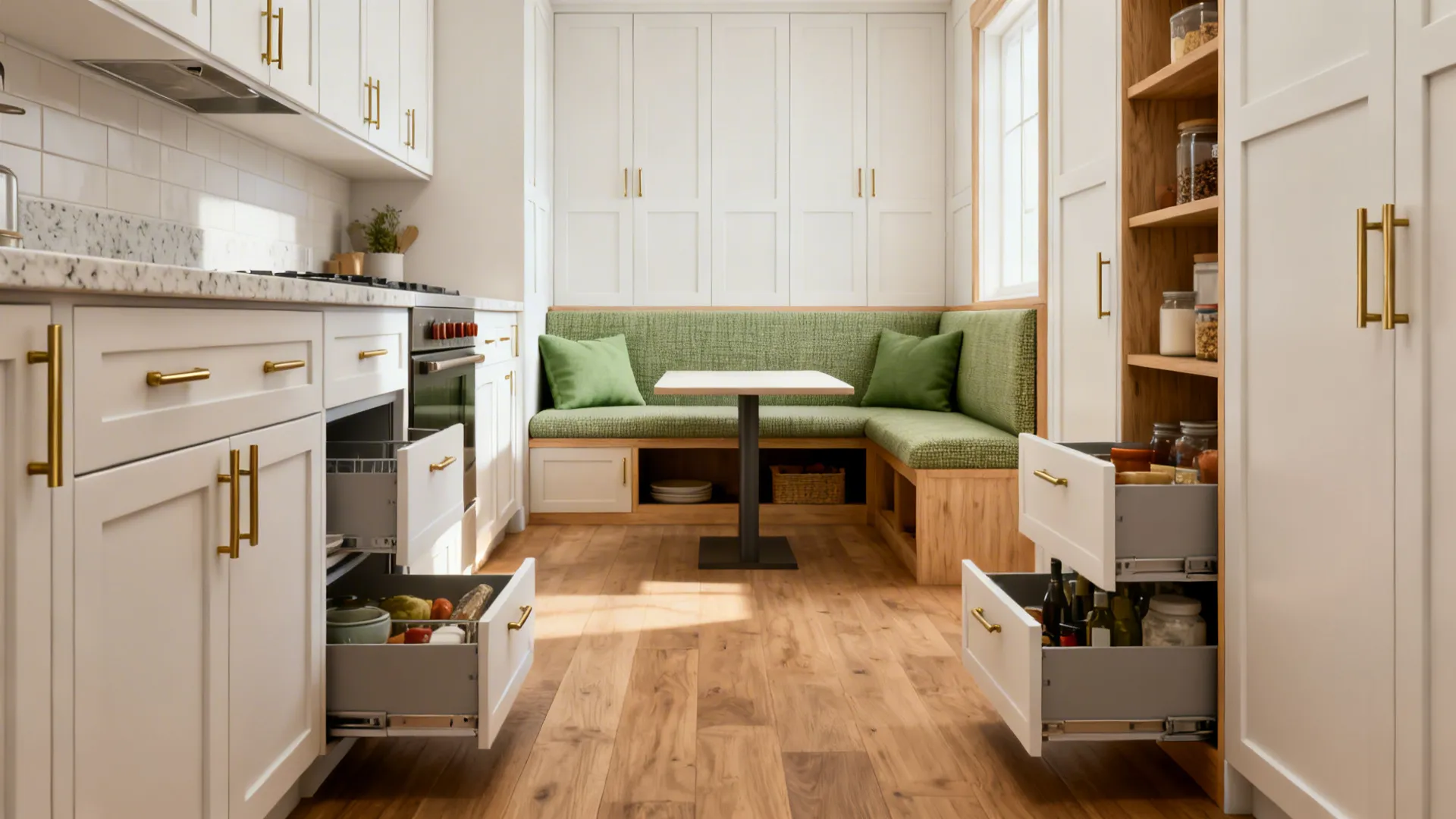

I once transformed a 7-foot-wide corridor kitchen by swapping bulky base units for slimline pull-outs and adding a banquette opposite the cook zone. The result: walkable clearance, hidden clutter, and a dining nook that doubled as a family command center.

Pros

Slim cabinetry (12–15 inches deep) and bench seating create continuous circulation while supporting a corridor-shaped kitchen layout with dining. Tall, narrow pull-outs keep staples visible—an easy win for small kitchen storage ideas. Built-in benches also hide seasonal cookware and bulk goods.

Cons

Shallower cabinets demand discipline; oversize mixing bowls won’t magically fit. Banquettes can be too upright if you skimp on cushion depth—my first attempt had friends perching like birds instead of lounging.

Tips / Cost

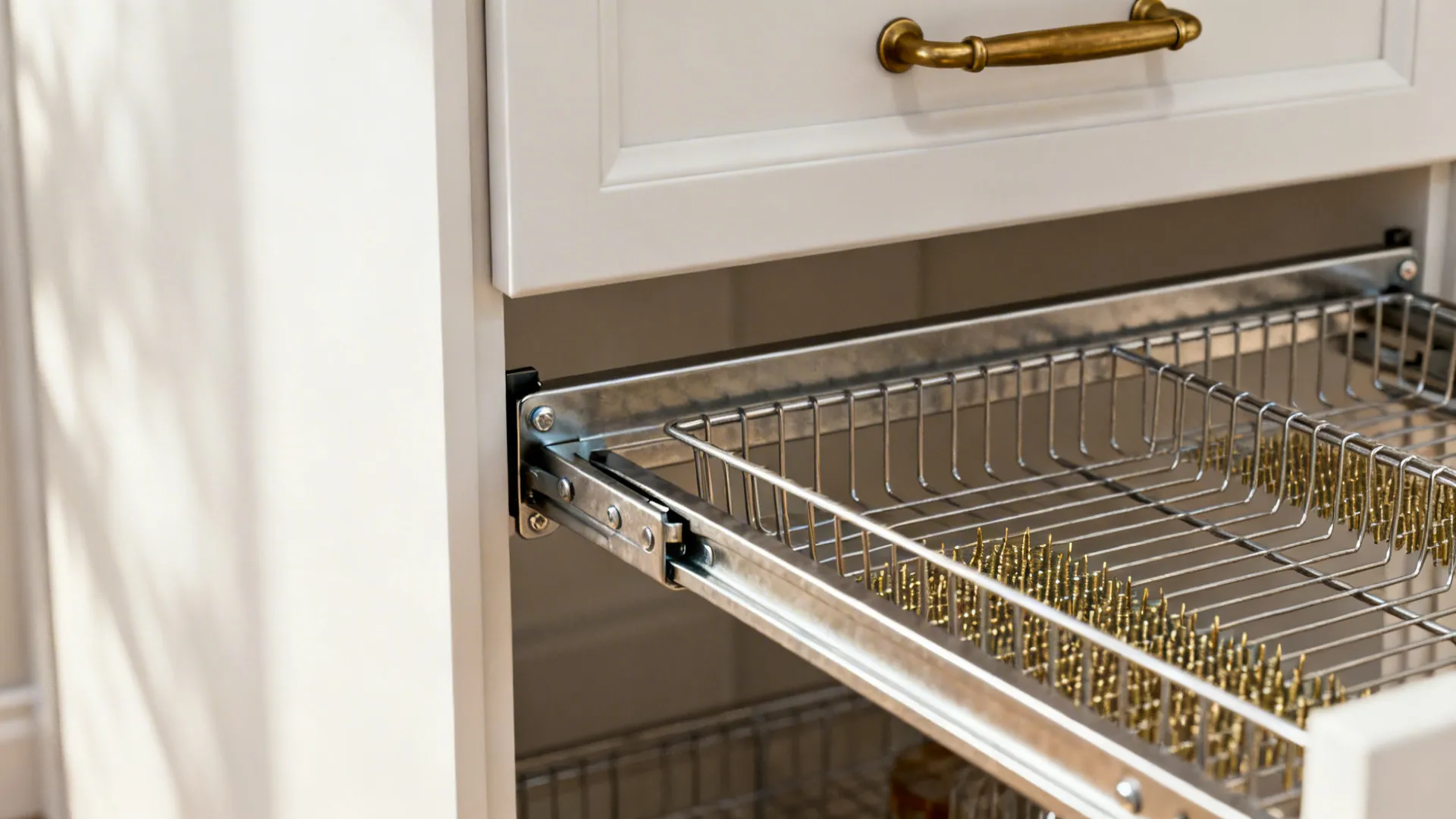

Opt for 100-lb full-extension slides for slim pull-outs; they feel premium and last. Cushion foam at 4 inches with a 5–7 degree backrest tilt converts sit-and-scoot into sit-and-stay. Expect moderate costs: custom bench frames can be DIY-friendly; drawers and hardware add up.

save pin

save pin

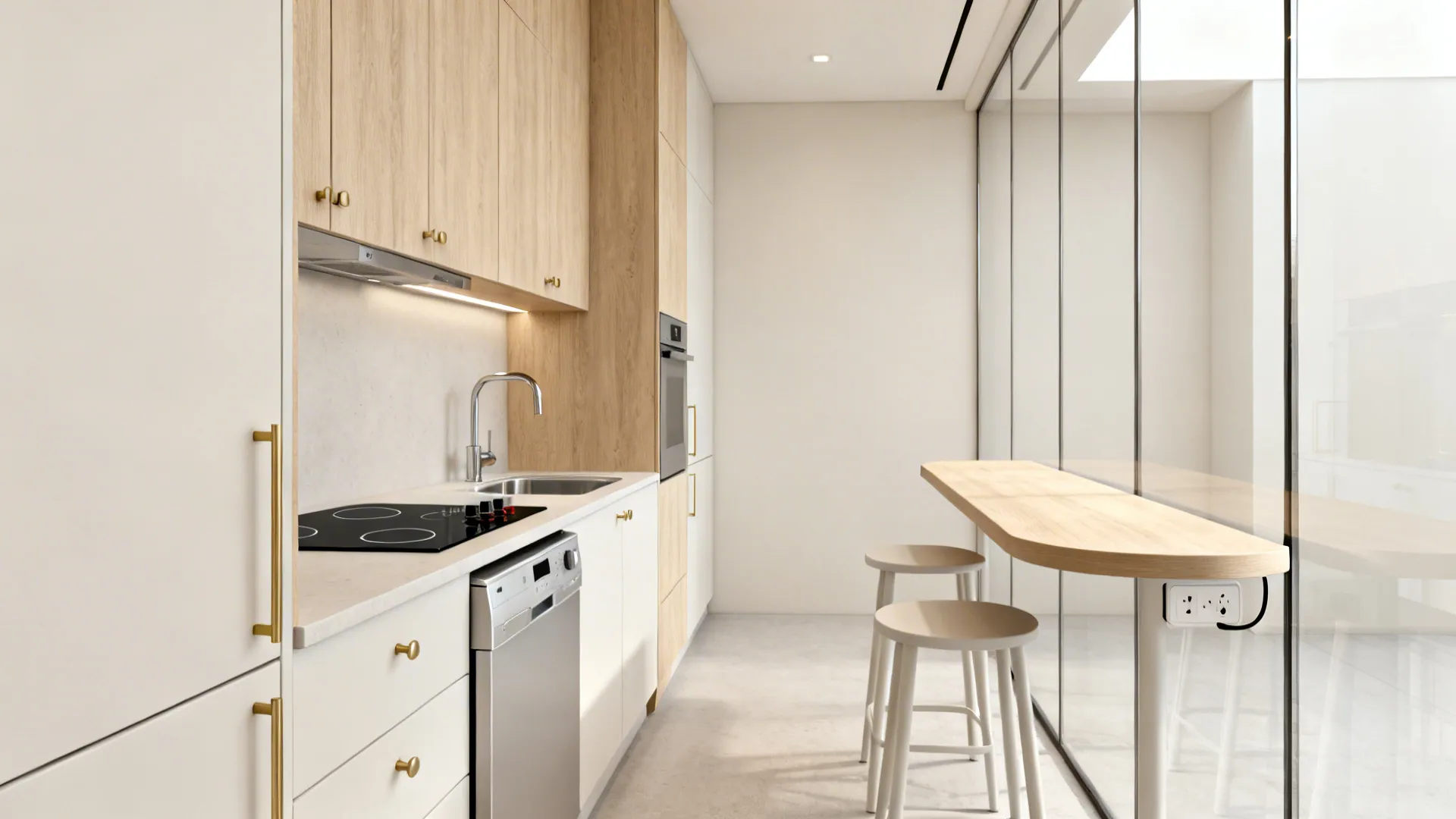

2) One-wall cook run with opposite dining ledge

My Take

When clients ask for maximum walkway space, I consolidate cooking, prep, and cleanup on one wall and float a narrow dining ledge opposite. In a 9-foot segment, we fit a 24-inch cooktop, 24-inch sink, and a compact dishwasher—then faced it with a 15–18 inch deep counter-height ledge for two.

Pros

A single-wall run reduces crossing traffic and clarifies the workflow—ideal for a corridor kitchen layout plan with dining. A ledge can double as buffet service during parties and as a laptop bar on weekdays, aligning with multipurpose small-space kitchen design. National Kitchen & Bath Association (NKBA) suggests maintaining at least 36 inches of clear aisle where possible; a one-wall run helps you keep that.

Cons

A single wall can feel visually heavy without texture contrast; I’ve had to break up monotony with vertical slat panels or mixed finishes. The dining ledge caps capacity—cozy for two, tight for four, so it’s best as casual seating rather than the primary dining spot.

Tips / Case

Use durable countertop materials for the ledge (compact laminate or quartz) and round the front edge to soften bumps. Consider plug strips under the ledge for laptop or appliance use. Curious how glass backsplash adds more openness across from a dining perch? I’ve found reflective finishes visually widen the corridor without clutter.

save pin

save pin

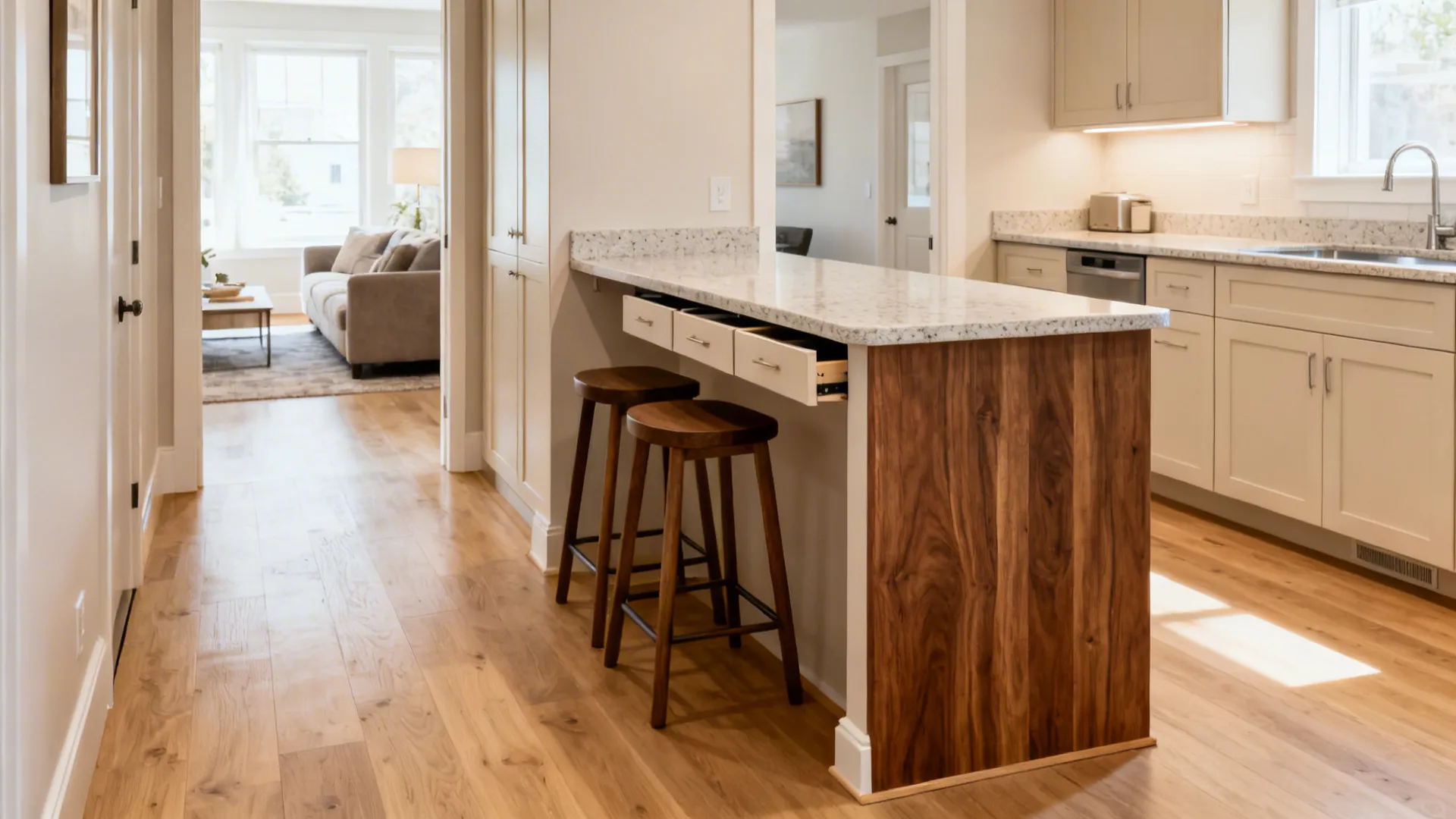

3) Peninsula perch at the corridor mouth

My Take

In elongated apartments, I often use a short peninsula at the living-room end of the corridor kitchen to “catch” the dining function. We clip the corner radius for ergonomic flow and tuck two stools underneath—keeping real estate for cooking while creating a social edge.

Pros

A compact peninsula introduces a landing zone and increases counterspace—key for a corridor-shaped kitchen layout with dining where square footage is scarce. It also becomes the social anchor; guests park there while you plate and chat, improving kitchen-to-living transitions.

Cons

Peninsulas can pinch aisles if not sized carefully; I learned the hard way with a 27-inch clearance that felt like airport turbulence. They also attract clutter—mail, keys, that random screwdriver—so plan a drop-spot with drawers.

Tips / Cost

Target a 36–42 inch aisle around the peninsula where possible; 39 inches is a sweet spot for two-way traffic. Specify 12-inch overhang with hidden supports for knee comfort. Budget-wise, a small run of base cabinets plus top is often cheaper than a freestanding table and provides storage. Mid-point reminder: tools that simulate reach and clearance help validate whether wood accents create a warmer atmosphere or if a lighter finish better suits your corridor footprint.

save pin

save pin

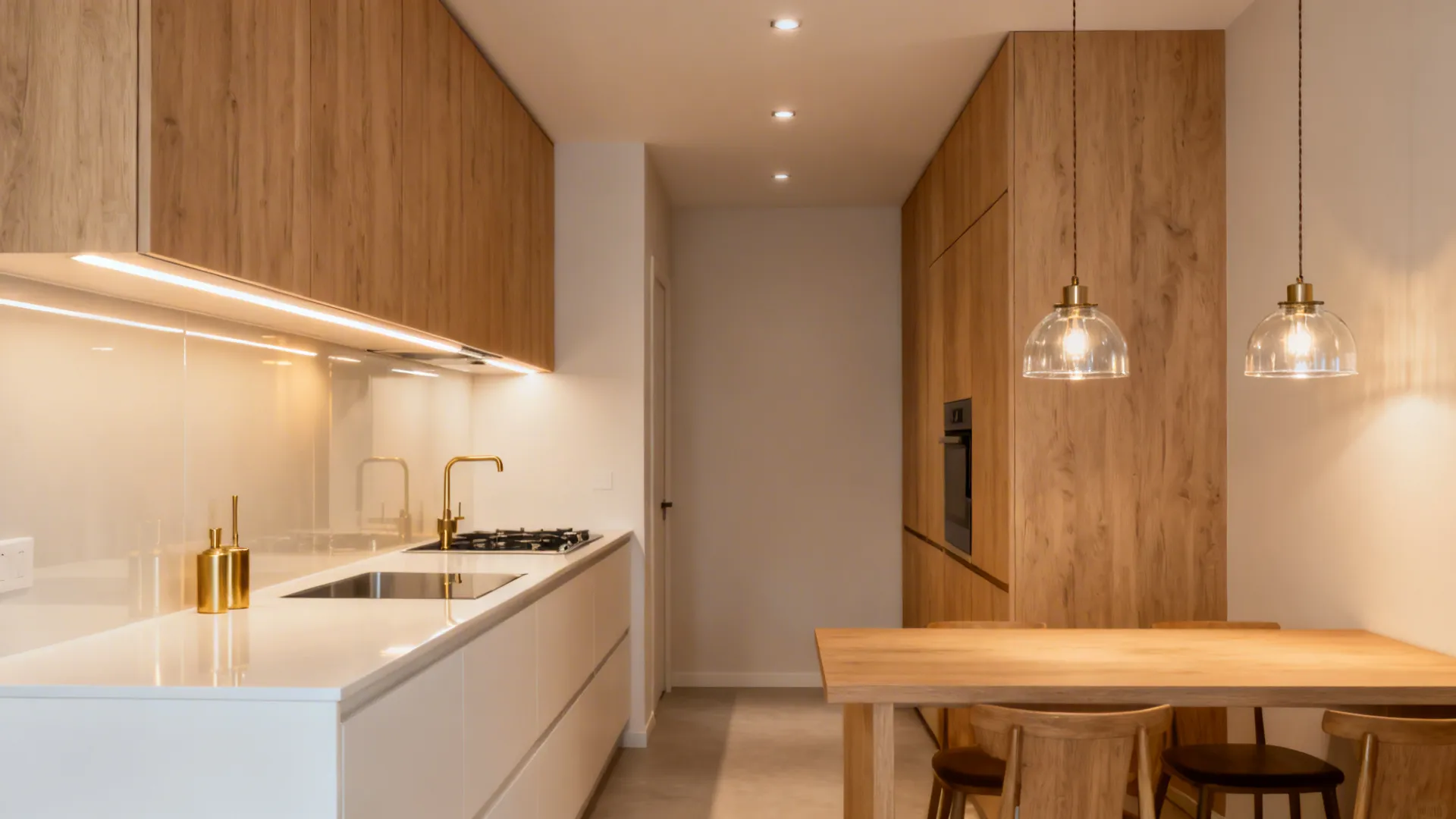

4) Lighting layers and reflective finishes

My Take

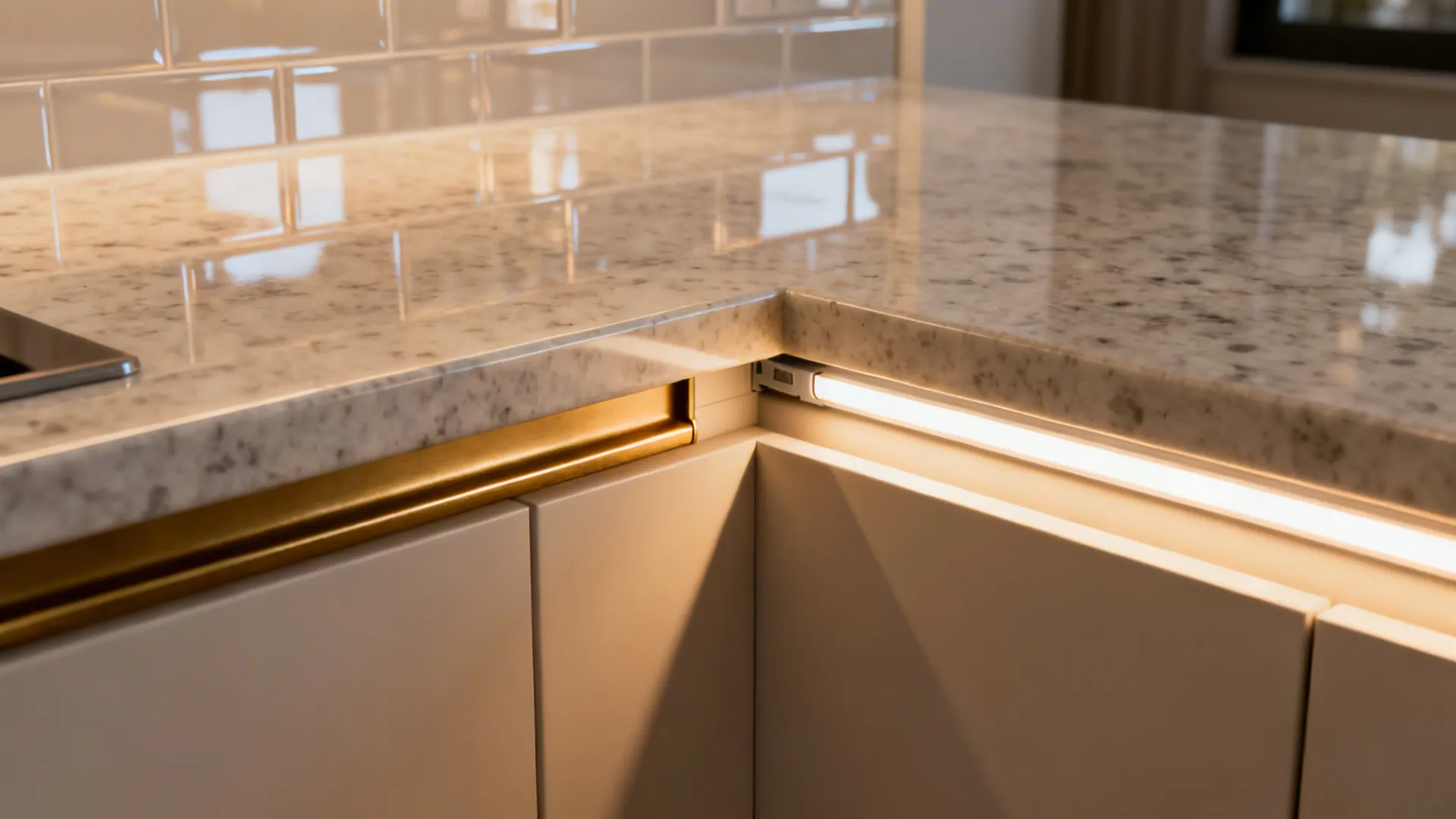

Lighting makes or breaks narrow kitchens. In one rental upgrade, we combined low-glare LED strips under uppers, shallow canless downlights, and a pair of glass pendants over the dining edge. We kept walls satin and backsplashes glossy to bounce light without glare.

Pros

Layered lighting brightens prep zones and the dining nook, elevating a corridor kitchen layout with dining from cave-like to convivial. High-CRI (90+) LED strips render ingredients accurately—a detail cooks appreciate. A 2023 DOE Solid-State Lighting fact sheet shows high-CRI LEDs now approach the efficacy of standard LEDs, so you don’t have to sacrifice efficiency for color quality.

Cons

Too much gloss can telegraph every fingerprint; I once spent a wine night polishing the splash instead of pouring. Poorly placed downlights cast shadows on the counter—use the cabinet front lip as a guide to place task strips just behind it.

Tips / Case

Consider dim-to-warm LEDs over the dining area to shift mood for evening meals. If you love patterned tile, use it behind the cooktop and keep adjacent planes subtler for balance. Reflectance aside, keep the color temperature consistent (2700–3000K for dining comfort). For space planning clarity at this stage, I sometimes mock up on-screen to test how reflective planes interact with clearances.

save pin

save pin

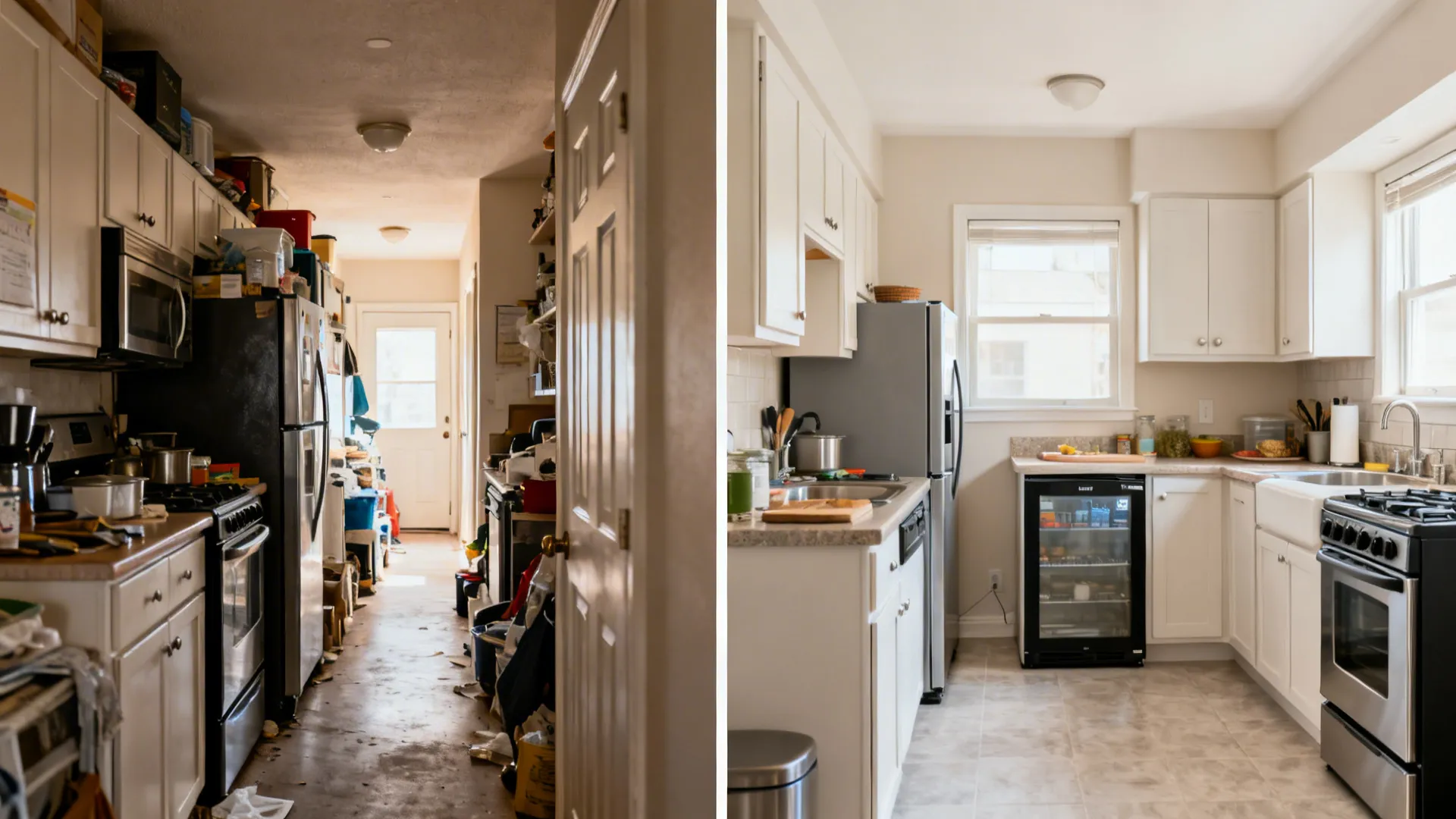

5) Appliance downsizing and zone clarity

My Take

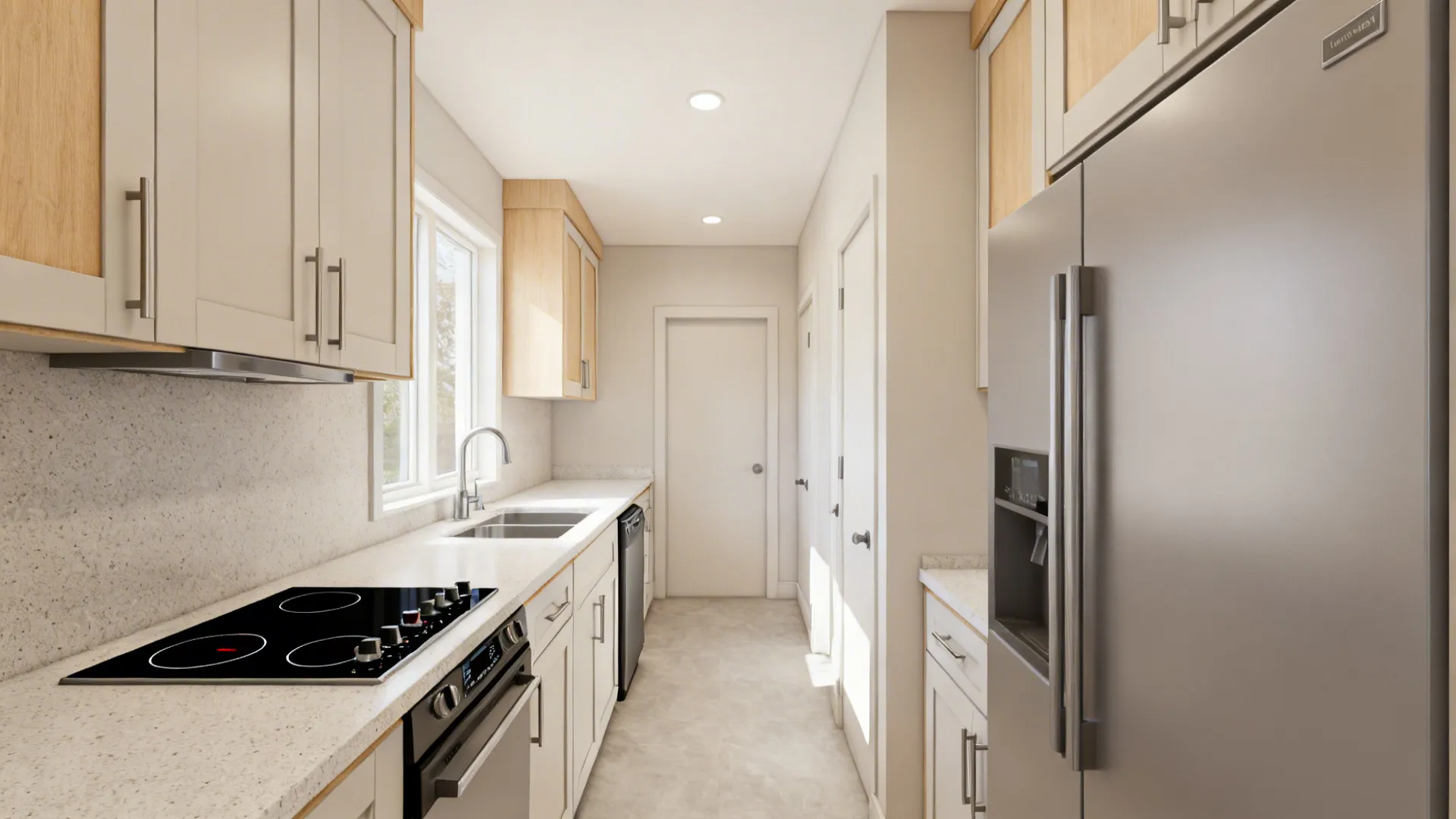

My smallest corridor kitchen with a dining corner used 24-inch appliances, an 18-inch dishwasher, and a counter-depth fridge. With compact units, we kept a full prep zone and carved a two-person table into the plan without bumping hips.

Pros

Going compact supports the corridor-shaped kitchen layout with dining by reclaiming counter length and circulation. Induction with a bridge zone fits griddles without upsizing; counter-depth refrigerators align better with slim aisles. The NKBA recommends minimum 24 inches of clear counter frontage for prep; right-sizing appliances helps you meet that even in tight plans.

Cons

Small appliances mean smaller oven cavities; my holiday turkey once wore a jaunty tilt to fit. Narrow dishwashers are louder unless you choose a good model; check decibel ratings to keep dinner conversation pleasant.

Tips / Budget

Bundle compact appliances during seasonal sales; savings often offset custom panel costs. Mark zones—prep between sink and cooktop, cleanup by the dishwasher, serve opposite the cook line—to keep traffic calm. If you’re mapping zones and wondering whether minimalist kitchen storage design or hybrid open-closed systems fit your style, test both layouts virtually before you buy.

save pin

save pin

Summary

Small kitchens aren’t limitations—they’re invitations to design smarter. A corridor-shaped kitchen layout with dining succeeds when you streamline storage, right-size appliances, carve social edges, and layer light. NKBA planning guidelines remain a useful compass for clearances and task zones, even when you bend them to suit your space. Which of these five ideas are you most excited to try in your own corridor kitchen?

save pin

FAQ

1) What is the minimum aisle width for a corridor-shaped kitchen with dining?

As a baseline, aim for 36 inches for one-cook traffic; 42 inches is more comfortable if two people cross. In tighter homes, I’ve delivered workable plans at 34 inches with slim pulls and flush handles, but it requires discipline.

2) Can I fit a full table in a corridor kitchen layout plan with dining?

Yes—choose a narrow, wall-hugging table (24–28 inches deep) or a drop-leaf against one wall. I prefer a banquette plus a slim table; it improves circulation and adds storage.

3) Is an L-shaped plan better than a straight galley for dining?

If your corridor opens at one end, an L can free counter space for a two-stool perch while maintaining prep flow. When the envelope is fixed and narrow, a disciplined one-wall run with an opposite ledge can outperform an L.

4) How do I place lighting for both cooking and dining?

Use under-cabinet task strips for prep, ambient downlights for overall brightness, and dimmable pendants or a sconce for the dining edge. Keep color temperature consistent around 2700–3000K for comfort.

5) What appliances work best in a corridor-shaped kitchen layout with dining?

Compact 24-inch ranges or induction tops, 18-inch dishwashers, and counter-depth fridges. Panel-ready options visually calm the corridor and make the dining zone feel integrated.

6) How can I add warmth without shrinking the space?

Introduce wood accents via stool seats, a slim wood ledge, or fluted oak panels rather than bulky cabinets. Balanced with light cabinetry, wood adds comfort without visually narrowing the corridor.

7) Are there any data-backed guidelines I should follow?

Yes—the NKBA kitchen planning guidelines provide evidence-based clearances and counter frontage recommendations. Maintaining around 36 inches of aisle and 24 inches of prep frontage is a solid starting point, adjusted to your actual constraints.

8) Can software help me validate my corridor kitchen plus dining plan?

Absolutely—mockups help you test reach, clearances, and sightlines before you commit. If you’re comparing storage strategies like “glass backsplash makes the kitchen feel airier,” previewing reflective finishes alongside seating is useful for decision-making.
