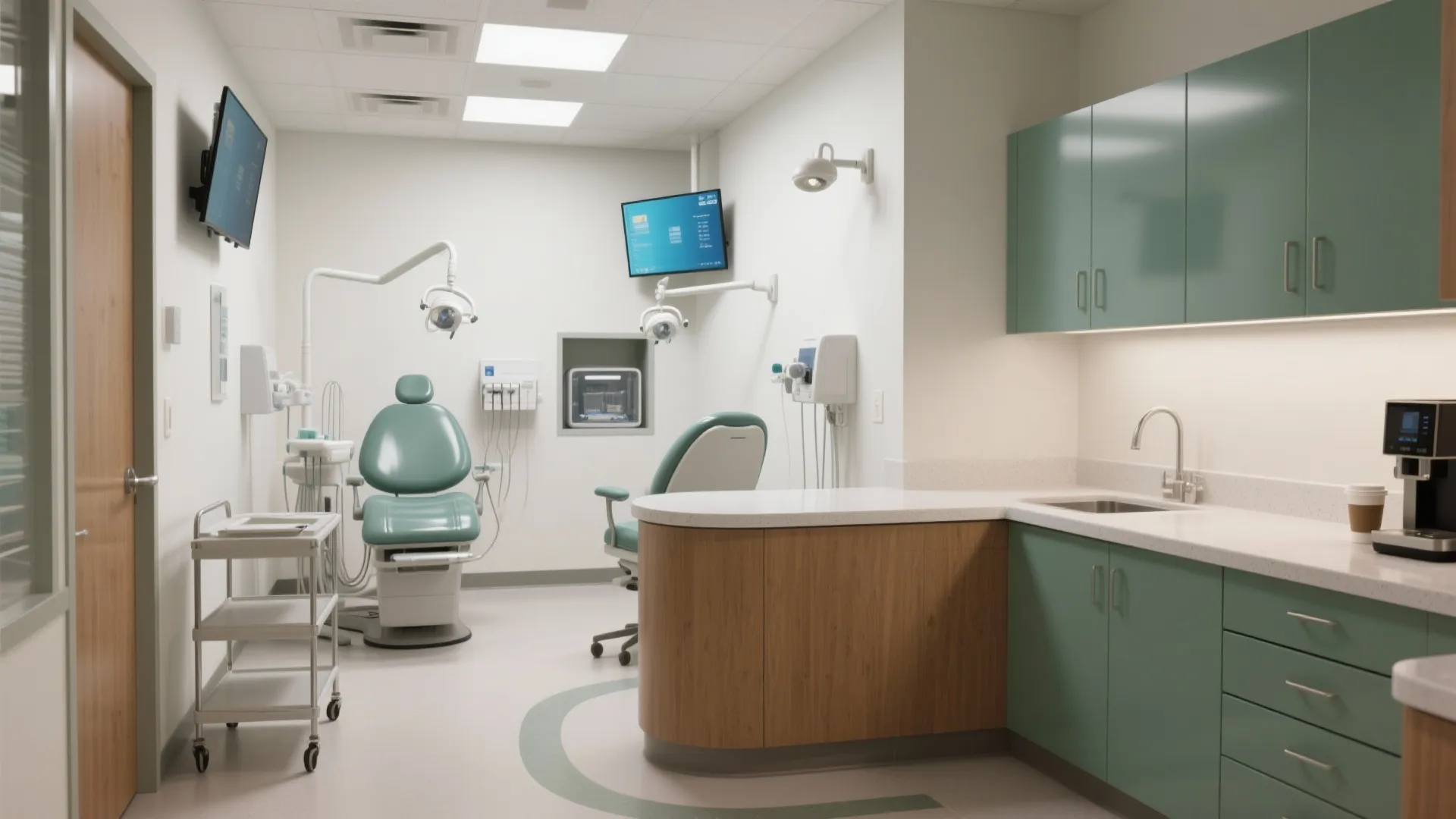

Dental Room Design: 5 Expert Ideas for Small Clinics: I’ve redesigned dozens of compact operatories—here’s how I squeeze comfort, compliance, and calm into tight dental rooms without sacrificing flow or aesthetics.

Once, a dentist asked me to fit two operatories, a sterilization niche, and a coffee bar into a space smaller than my first dorm room. I laughed, then made a few room planning mockups—and we actually pulled it off. Small spaces force big thinking, especially in dental room design. Today I’ll share 5 ideas I use in real projects to make tiny clinics work beautifully.

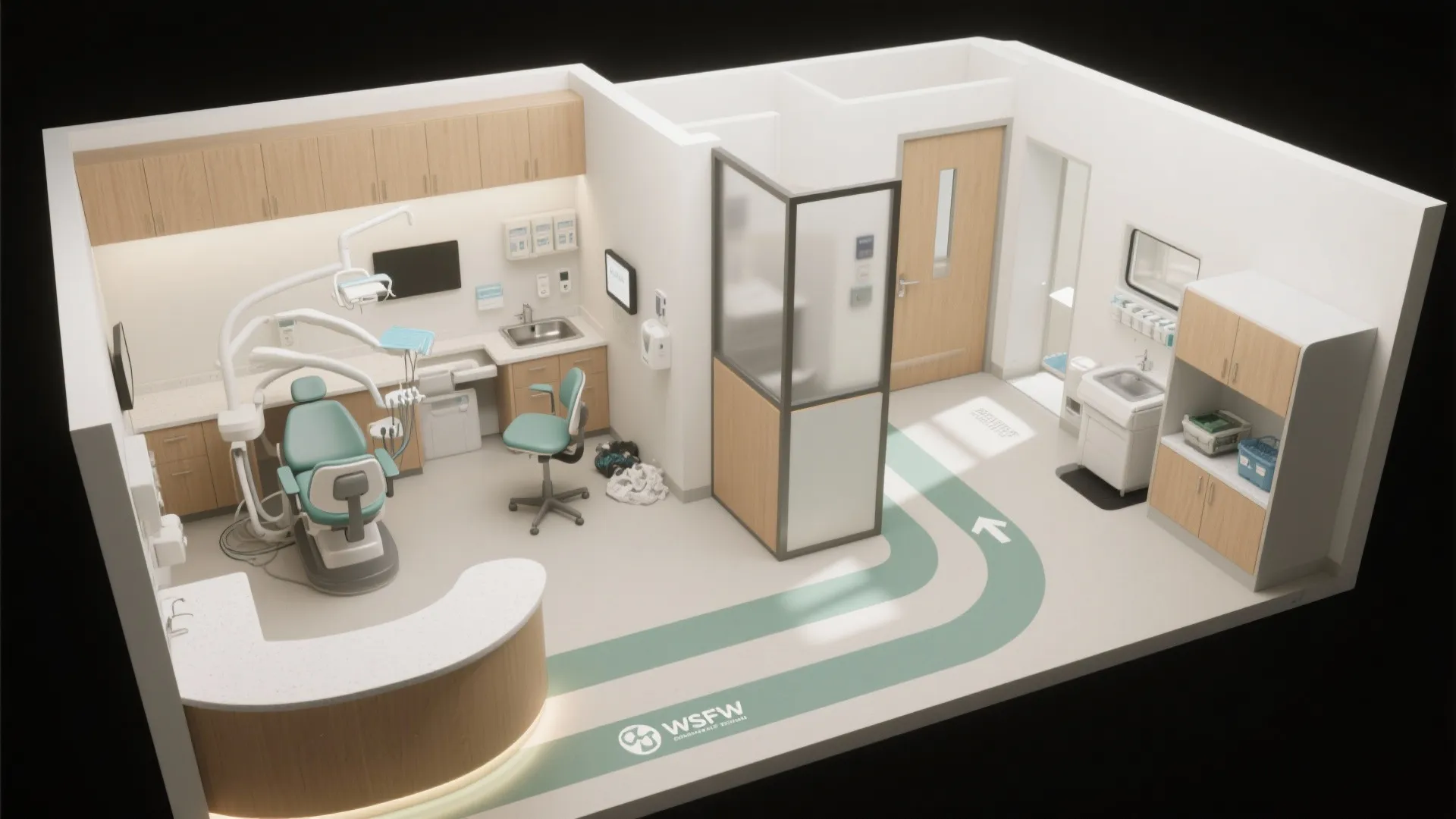

Idea 1: Design the clean–dirty flow like a racetrack

I always start by separating clean and dirty paths so instruments never backtrack. Think of it as a one-way racetrack: patient entry, operatory, dirty drop, sterilization, clean storage, and back to the bay. It reduces cross‑traffic, speeds turnover, and keeps inspectors happy. The challenge is carving a clear route when walls are fixed—sometimes a pocket door or a half‑height partition is the magic move.

save pin

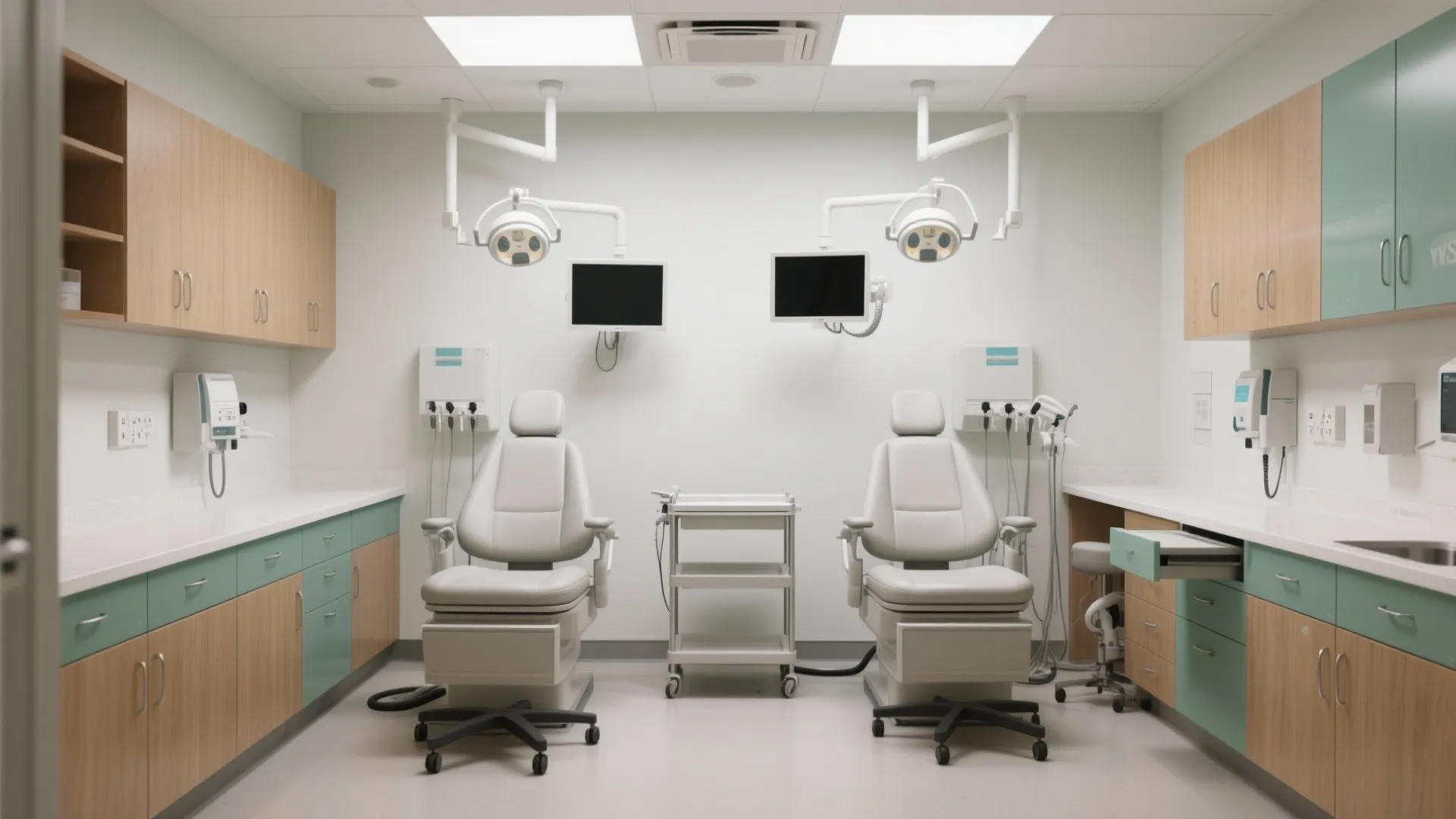

Idea 2: Make equipment do double duty (and roll when needed)

In tight rooms, I favor wall‑mounted lights, ceiling‑mounted monitors, and slim carts that slide under counters. A mobile assistant cart can serve two chairs if power and vacuum points are smartly placed. You’ll save upfront by buying fewer duplicates, but plan outlets and quick‑connects early or you’ll spend more relocating utilities later.

save pin

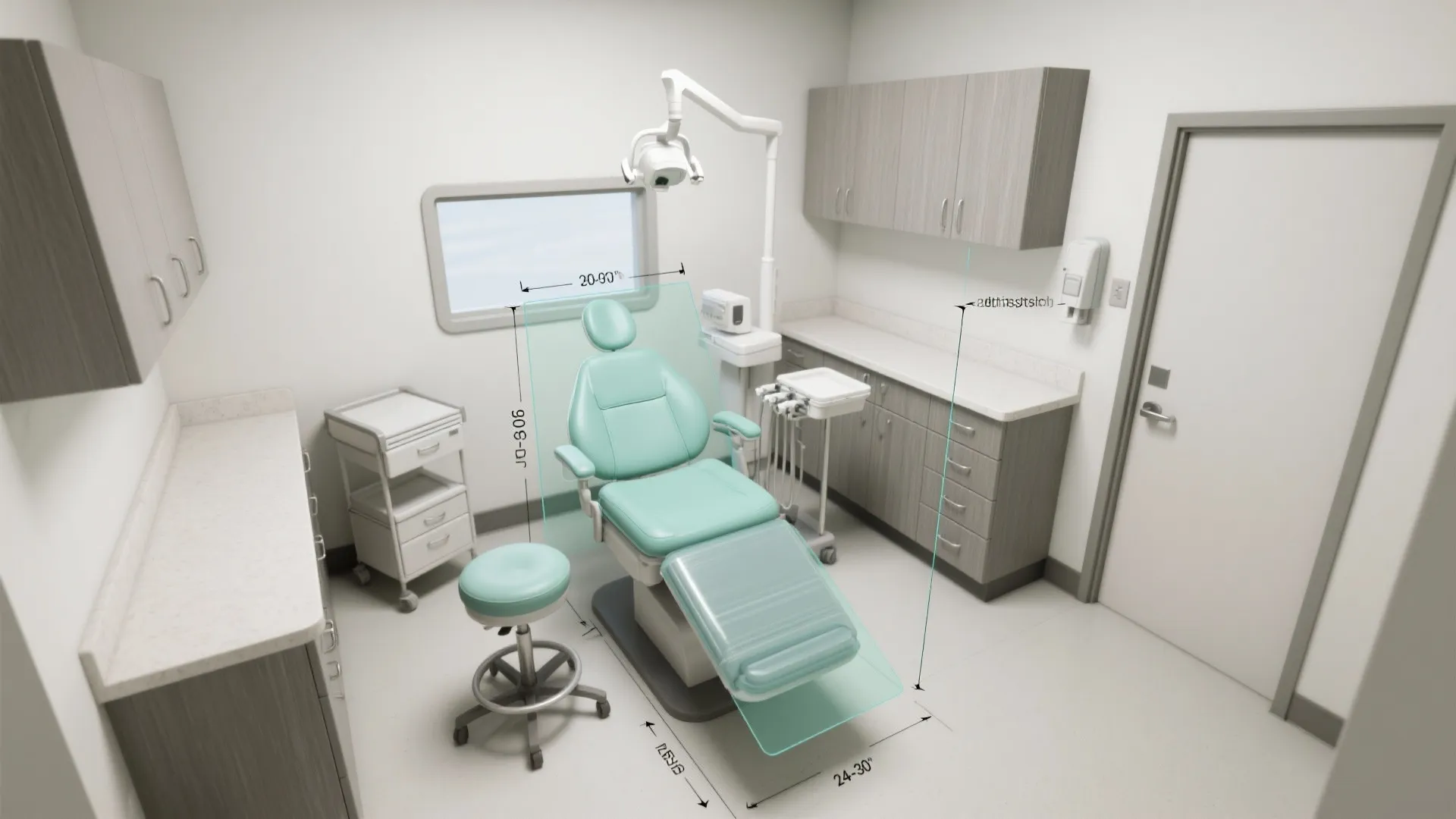

Idea 3: Draw clearances you can actually work in

Operator comfort is clinical performance—I block 30–36 inches beside the chair for the dentist and 24–30 inches for the assistant, plus swing space for drawers and doors. ADA clearances (like a 32-inch clear door opening) matter for both patients and compliance. I often simulate chair clearances with equipment models before we order cabinetry, which prevents those “drawer hits the stool” surprises. The only downside: getting precise manufacturer specs takes a bit of chasing—worth it.

save pin

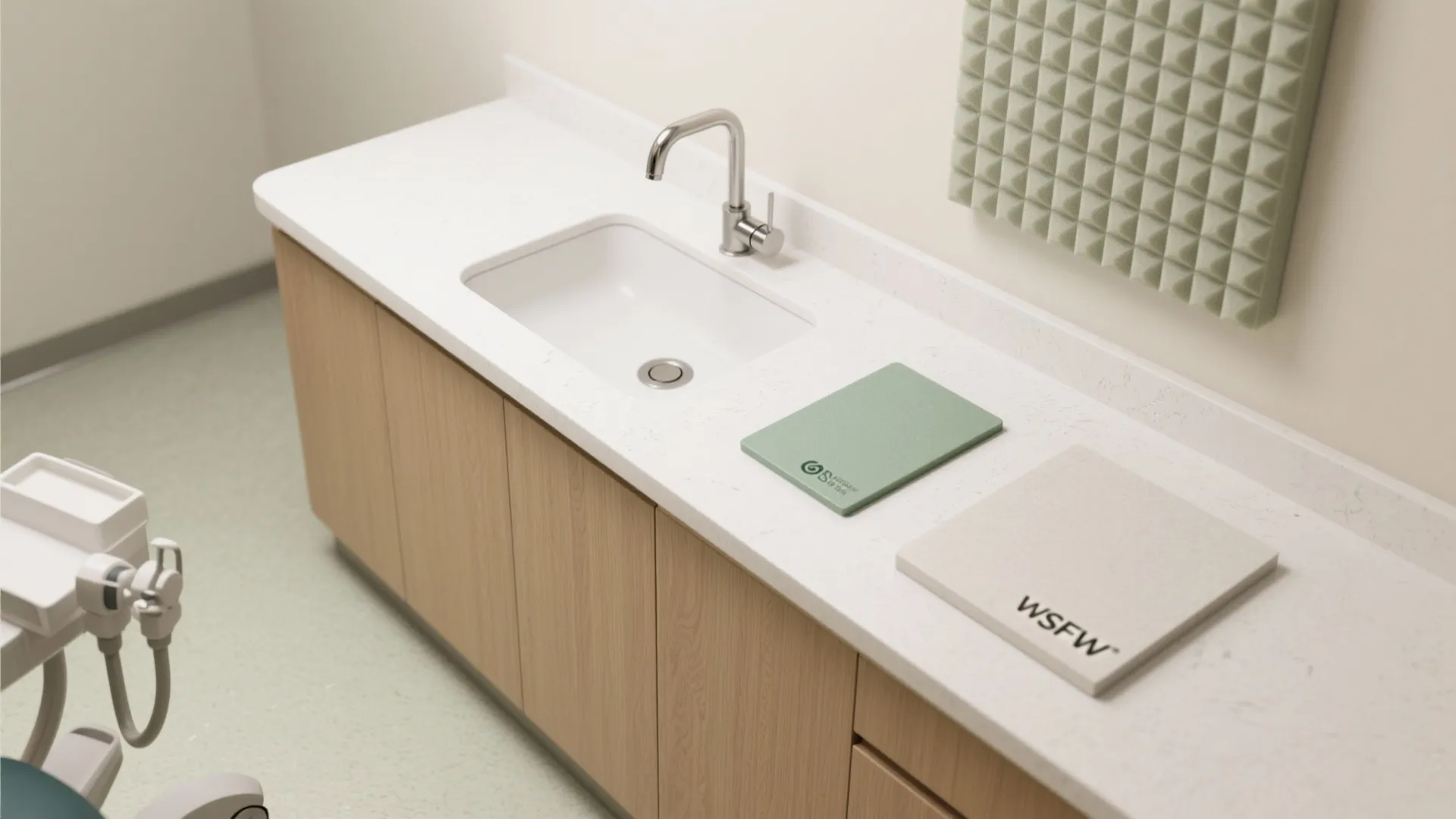

Idea 4: Choose surfaces that fight bugs—and noise

Seamless counters, coved bases, and minimal seams are my go‑tos because they clean fast and look crisp. Hands‑free faucets, foot pulls, and easy‑wipe fronts save minutes every turnover. Don’t forget acoustics: an NRC 0.7+ ceiling tile and soft finishes tame the whir of handpieces. It’s pricier than basic finishes, but lower stress and faster cleaning pay dividends daily.

save pin

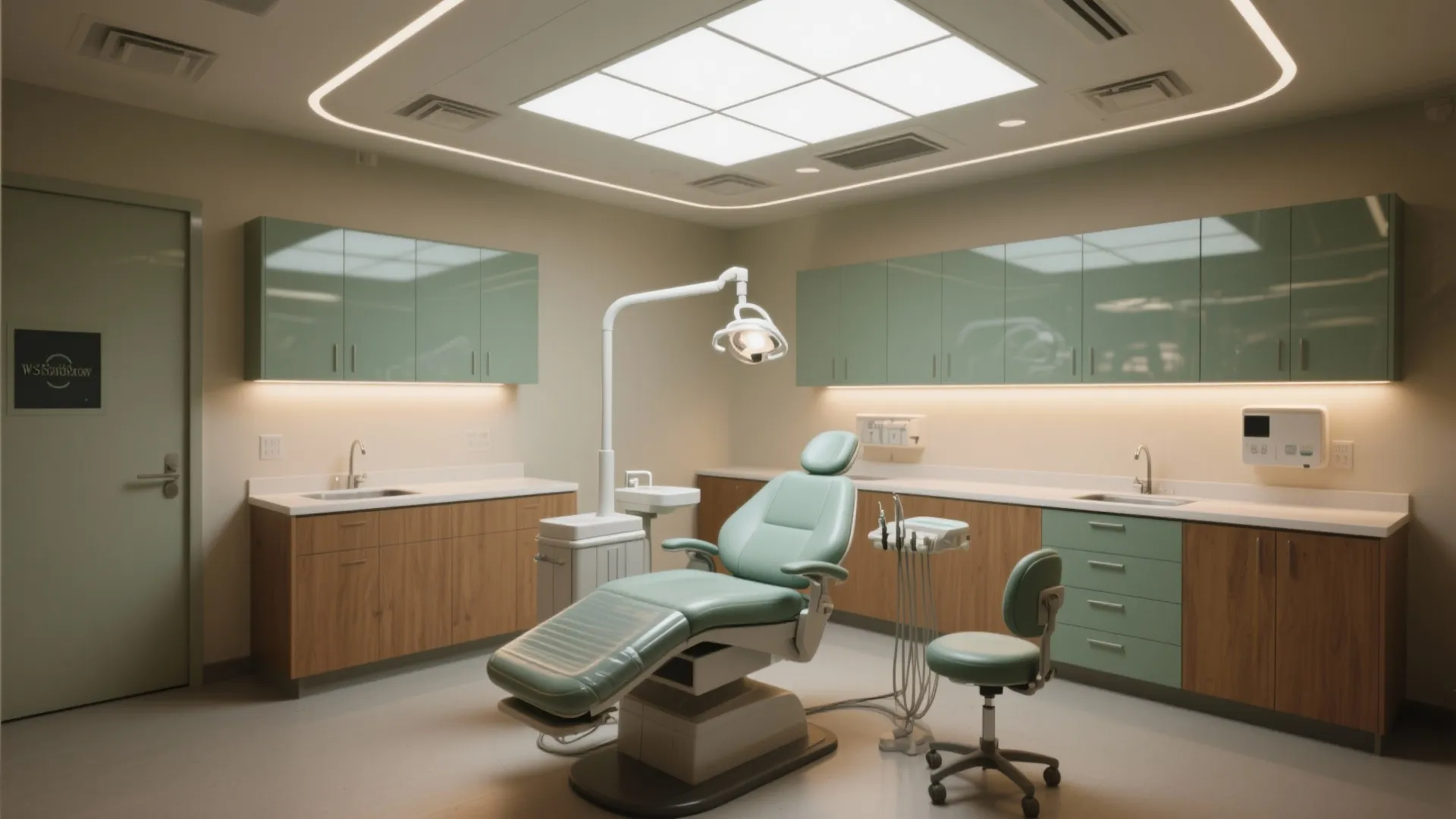

Idea 5: Light for precision, calm the mind

Layer your lighting: bright, shadow‑free task light at the chair; warm, glare‑free ambient light; and a soft feature—like a dimmable ceiling panel—to relax patients. I keep color temp around 3500–4000K with CRI 90+ so shades read true. Before finalizing, I show clients high-fidelity 3D renderings to judge reflections on glossy surfaces and sightlines from the reclined position. Expect a little trial‑and‑error with dimming curves, but the mood shift is huge.

save pin

FAQ

1) What is the ideal size for a dental operatory?

For general dentistry, I aim for roughly 10' x 11' to 10' x 12', but I’ve made smaller rooms work with careful zoning. Factor door swing, chair model, and assistant space before locking in dimensions.

2) How do I separate clean and dirty workflows in a small clinic?

Create a one‑way path: dirty drop near the operatory, through sterilization, then to clean storage on the return side. Even a short pony wall or pass‑through cabinet can enforce directionality.

3) What lighting is best for dental room design?

Use layered lighting: high CRI task lights plus warm ambient lighting to reduce glare. I prefer 3500–4000K for accurate shade matching without feeling clinical.

4) Which surfaces are easiest to disinfect?

Solid surface or compact laminate counters, coved resilient flooring, and minimal seams help. Hands‑free hardware and integral backsplashes reduce touch points and grime traps.

5) How much clearance do I need around the dental chair?

Plan 30–36 inches on the dentist’s side and 24–30 inches for the assistant, plus space for drawer swings and carts. Confirm your chair’s exact footprint—models vary more than you’d think.

6) Any guidance on infection control standards?

Yes—follow the CDC’s “Summary of Infection Prevention Practices in Dental Settings” for evidence‑based protocols (https://www.cdc.gov/oralhealth/infectioncontrol/index.html). Pair that with local codes and equipment manufacturer instructions.

7) How can I reduce noise in operatories?

Combine acoustic ceiling tiles (NRC 0.7+), door seals, and soft finishes where clinically appropriate. White‑noise masking in corridors also keeps conversations private.

8) What’s a smart way to budget a small dental room?

Prioritize utilities and ergonomics first, then finishes. Invest in durable surfaces and flexible power/vacuum locations so you can reconfigure as your practice grows.
