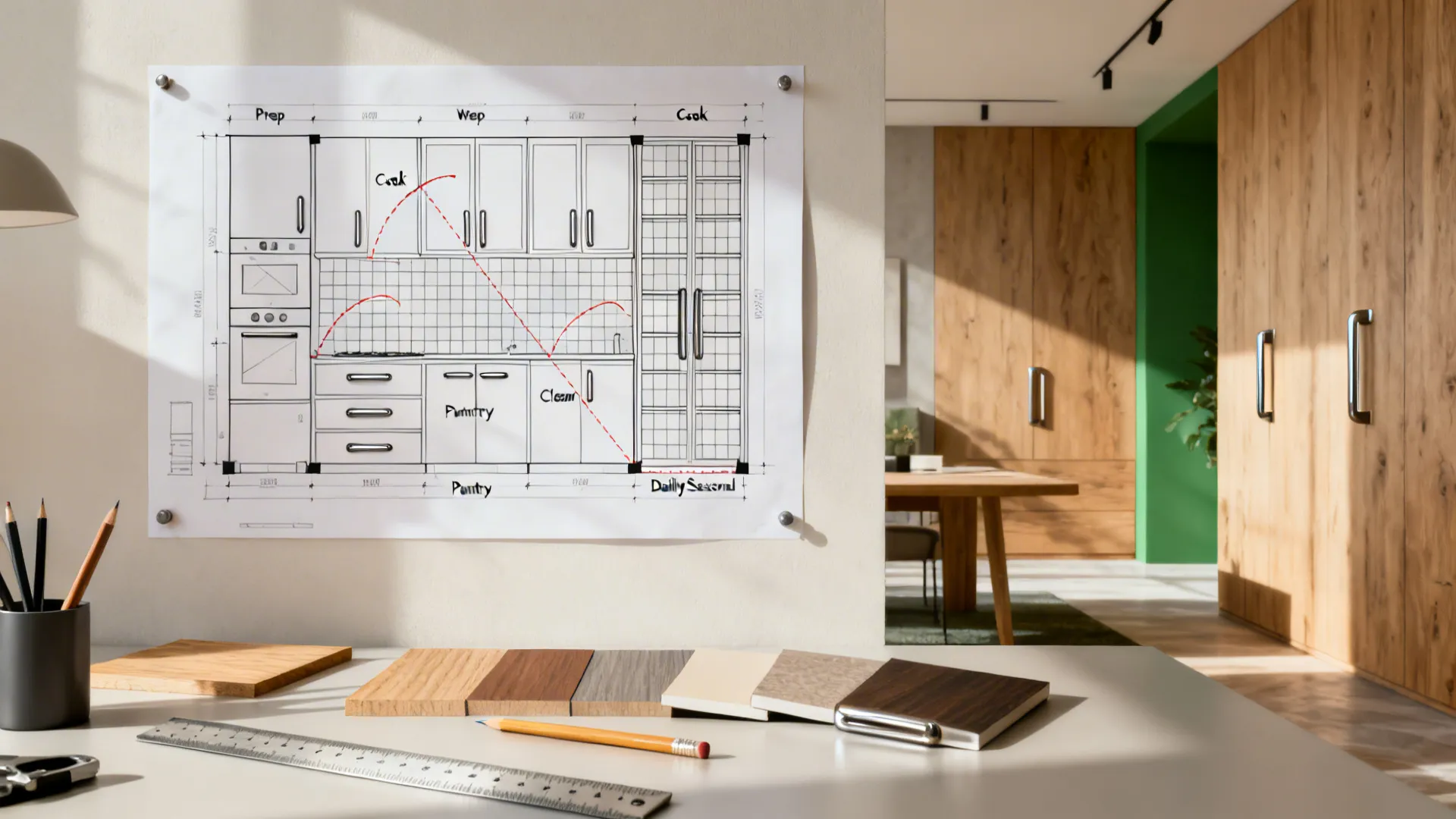

Design a Modular Kitchen and Wardrobe in 2D: 5 Proven Ideas: My 10-year pro playbook for small homes: five 2D planning ideas that turn tiny kitchens and wardrobes into highly functional spaces

I’ve spent a decade designing modular kitchens and wardrobes for compact apartments, and the current trend is clear: smart 2D planning before any 3D render. Small spaces spark big creativity, especially when every millimeter counts. In this guide, I’ll share 5 design inspirations—grounded in my own projects and backed by expert data—so you can design a modular kitchen and wardrobe in 2D with confidence.

Before we dive in, I always start clients with a clean 2D plan: fixed points first (plumbing, electrical, doors, windows), then circulation, then storage. The core keyword here is “design a modular kitchen and wardrobe in 2D,” and everything that follows helps you nail that, one layer at a time.

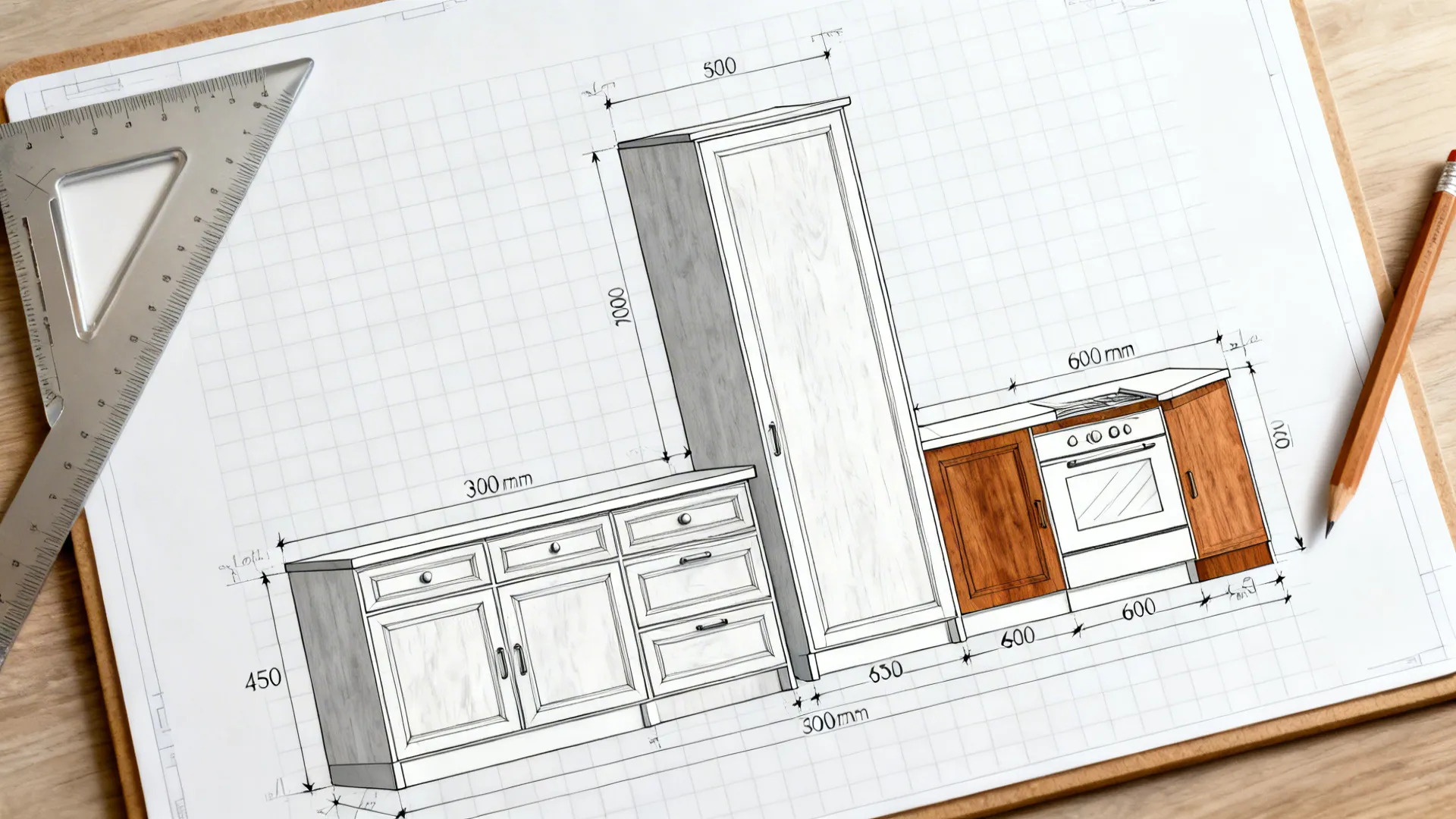

Minimal grid planning for cabinets

My Take

I map kitchens and wardrobes on a 300 mm grid in 2D, which makes modules, fillers, and appliances line up without guesswork. On a small condo job last year, snapping every base unit to the grid cut site adjustments to almost zero.

Pros

- A grid helps you place tall units, corner modules, and wardrobe carcasses using repeatable dimensions—ideal for “2D modular kitchen layout planning.”

- Consistent 600/450/300 mm widths reduce offcuts and speed up ordering; it also keeps hinges and drawer runners standardized.

- According to the Kitchen Manufacturers Association guidelines, working within module increments improves fit and reduces install errors (source: NKBA planning dimensions, 2023 update).

Cons

- Grids can feel rigid; if your wall is out-of-square (it often is), expect a few millimeters of scribing.

- In awkward alcoves, strict modules create dead corners—be ready with fillers or pull-outs.

- I once forced a perfect grid in a century-old loft; the result looked crisp, but the carpenter silently cursed me for days.

Tips / Case / Cost

- Use 300 mm increments for wardrobes and kitchen bases; 600 mm for appliances; 900 mm for wardrobe hanging zones.

- Keep one 50–80 mm filler per run in the 2D plan. It’s your installation insurance.

- At this stage, focus on the shell: carcass sizes, door swings, and service voids before fancy fronts.

To see how a consistent grid translates to clear space planning, I’ve referenced examples like L shaped countertop flow in 2D right from the start. It’s a quick visual to keep the discipline of the grid while still allowing real-life circulation.

save pin

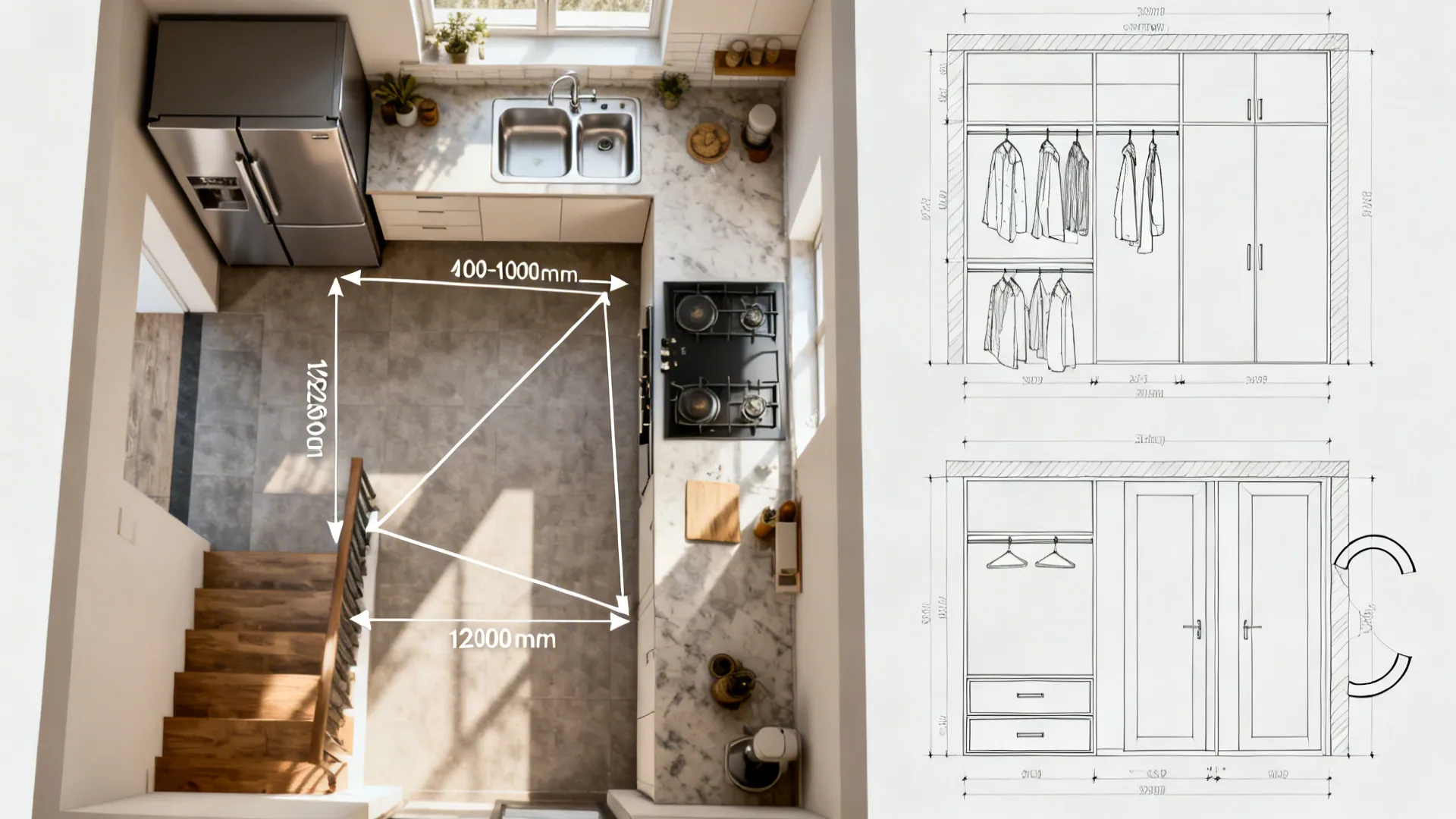

Work triangle, clearances, and wardrobe ergonomics

My Take

In 2D, I always block out the work triangle (fridge–sink–cooktop) and key clearances first, then fit storage around them. For wardrobes, I sketch hanging zones (long/short), drawers at hip height, and a clear swing or slide path for doors.

Pros

- A functional “2D modular kitchen work triangle” keeps travel distance between 4.5–7.5 m total; it reduces back-and-forth during cooking.

- 900–1050 mm aisle widths accommodate two users; 1200–1250 mm feels generous in an open galley.

- The National Kitchen & Bath Association (NKBA) suggests minimum 400 mm landing space beside the fridge and 300 mm beside the cooking zone to improve safety and prep flow (NKBA, Kitchen Planning Guidelines, 2023).

Cons

- In tight kitchens, the triangle becomes a line; you’ll compromise and rely more on zone planning than the classic triangle.

- For wardrobes in tiny bedrooms, sliding doors seem like a cure-all, but poor tracks can wobble; always specify quality hardware.

Tips / Case / Cost

- In 2D, draw appliance doors at full swing and show handles; more than once, a handle-to-handle clash saved by 10 mm.

- For wardrobes: 600 mm internal depth for hanging, 650–680 mm overall with doors; 1000–1200 mm clear in front for swing doors, 800–900 mm works if sliding.

- Mark toe-kicks and skirting lines in 2D—they prevent drawer rub and save you from costly post-fit tweaks.

save pin

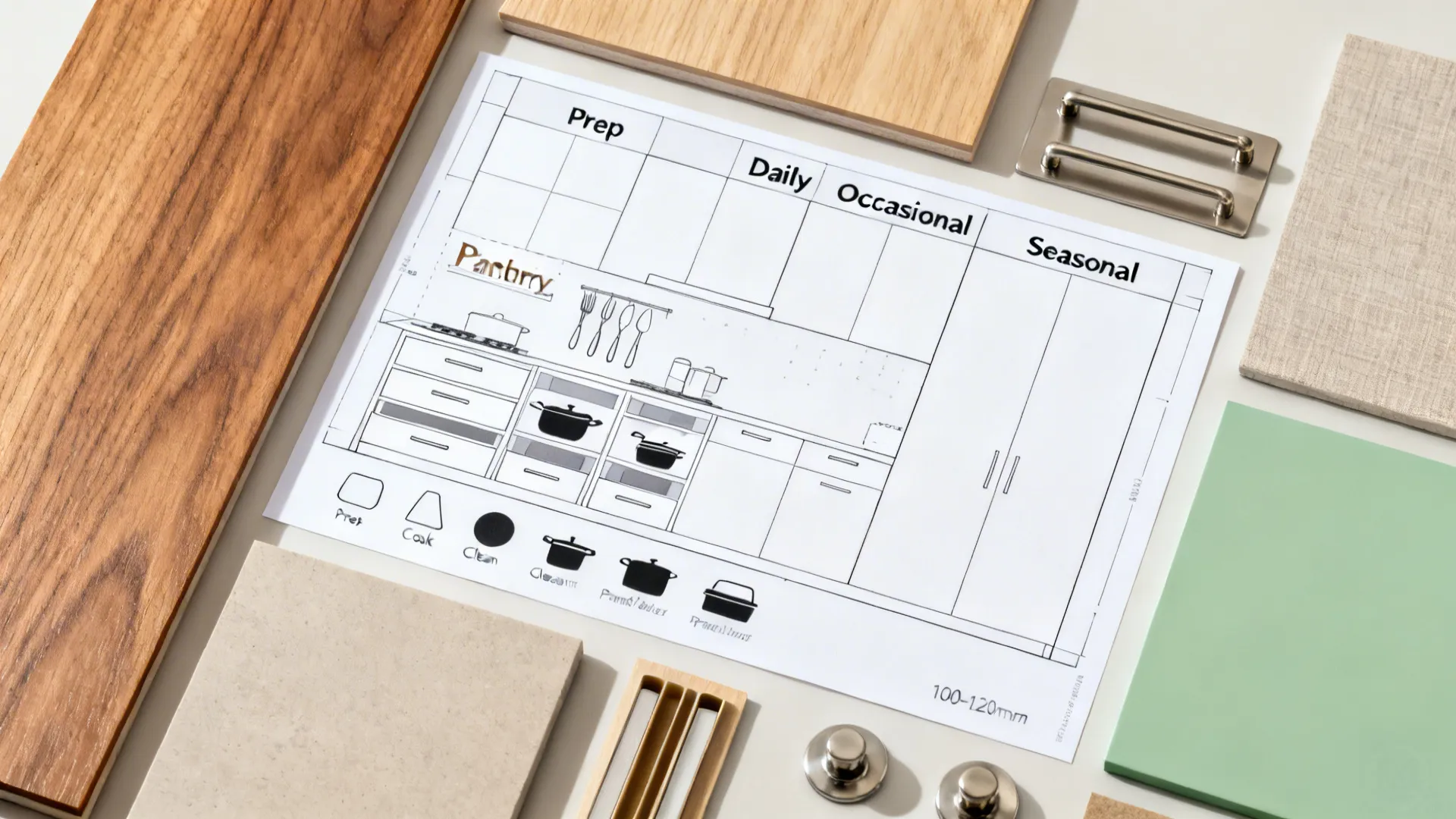

Zone-based storage mapping

My Take

Clients often ask where the magic happens—this is it. I divide kitchens into Prep, Cook, Clean, and Pantry zones in 2D, then assign drawers, inserts, and heights accordingly. For wardrobes, I map Daily, Occasional, and Seasonal zones—what you grab every day needs to be between knee and shoulder height.

Pros

- Zone planning plus “2D cabinet elevation mapping” improves access: spices at cook zone, cutlery near prep, dish storage near clean-up.

- In wardrobes, double-hang rails and shallow drawer stacks (400–500 mm depth) keep daily essentials visible; fewer deep, bottom drawers that become black holes.

- The Work Design and Human Factors literature supports waist-to-shoulder reach zones for efficiency and reduced strain (ISO 11228, manual handling guidelines).

Cons

- Zones demand discipline; once the plan is set, resist the urge to scatter functions for visual symmetry.

- Inside corner cabinets can wreck zones; plan pull-outs or use a dead corner if budget is tight—better flow beats tortured access.

Tips / Case / Cost

- Label every drawer in the 2D plan (CUTLERY, POTS, BOWLS); it’s not overkill—it’s future you saying thanks.

- For wardrobe zones, allocate 1000–1200 mm for long hang, 900–1000 mm double hang, then 3–4 drawers at 150–200 mm heights for socks/tees.

- Add vertical dividers in pantry modules on paper first; cutting boards and trays stand neatly in 100–120 mm slots.

At the halfway mark, if you’re refining layouts, I like referencing examples of L shaped layout frees more countertop to double-check that storage zones don’t choke prep space. It’s a simple visual reminder to keep counters usable.

save pin

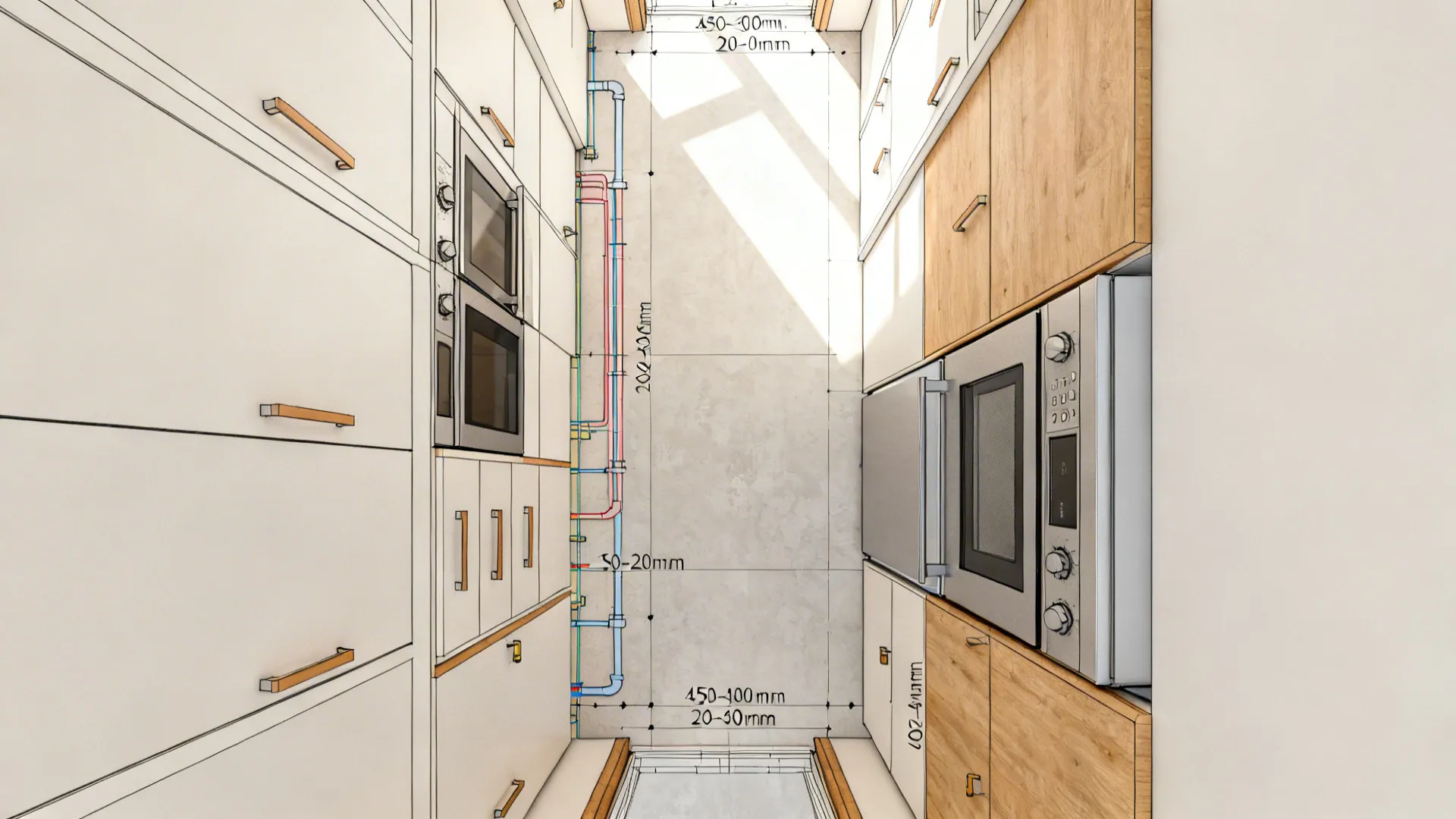

Door swings, slides, and service lines

My Take

Nothing ruins a plan like clashing doors and blocked sockets. In 2D, I draft every door swing radius, drawer extension, and appliance hatch. I also trace plumbing and electrical runs early—moving them later is where budgets cry.

Pros

- “2D door swing and drawer path planning” prevents oven-door-overlap and fridge-handle clashes—common in narrow galleys.

- Marking service zones (water lines, drains, 220–240V outlets) ensures base units and tall larders are buildable without ugly cutouts.

- Clearances around cooktops and ovens improve safety and ventilation; per manufacturer datasheets, maintain listed side and rear offsets.

Cons

- Over-detailing in 2D takes time; you’ll feel like you’re animating a kitchen in slow motion.

- In wardrobes, fully extended drawers can hit bedside tables—measure those too, or your socks will be negotiating with nightstands.

Tips / Case / Cost

- Draw drawer boxes at full extension: 450–500 mm. Note handle projections (20–40 mm).

- For sliding wardrobe doors, add 10–15 mm overlap and a 90–100 mm head for tracks; show this in sectioned 2D lines.

- Keep a 150–200 mm service void behind kitchen carcasses for pipes; it avoids carving the backs later.

save pin

Material, module, and budget alignment in 2D

My Take

When clients bring a dream finish board, I translate it into modules and edge details in 2D first. The trick is aligning materials (ply/MDF), hardware (hinges, lifts), and fronts (slab/shaker) to the exact module sizes you’ve drawn.

Pros

- “2D modular kitchen and wardrobe bill of materials” keeps your cut list clean and budget honest; fewer custom infills, more standard panels.

- Front and handle choices affect internal widths; planning in 2D avoids conflicts with pull-outs and bin systems.

- According to BIFMA and cabinet hardware standards, correct hinge choice and overlay allowances reduce failure and misalignment.

Cons

- Price creep hides in hardware; beautiful pocket doors or corner pull-outs can double line-item costs.

- Matte black handles look fantastic on paper, then attract every fingerprint in real life—test samples before locking in.

Tips / Case / Cost

- Assign a per-module budget line in your 2D schedule (e.g., Base 600 drawer stack = $X, Tall pantry 600 pull-out = $Y).

- For wardrobes, mix open shelves with 1–2 glass-front sections; in 2D, mark glass to control weight and hinges.

- Keep finishes consistent across module widths; it simplifies edge-banding and reduces color mismatch.

As you finalize, review a gallery like wood accents bringing warmth to cross-check how materials and handles read across modules. Seeing finishes across consistent widths helps you stick to the plan.

save pin

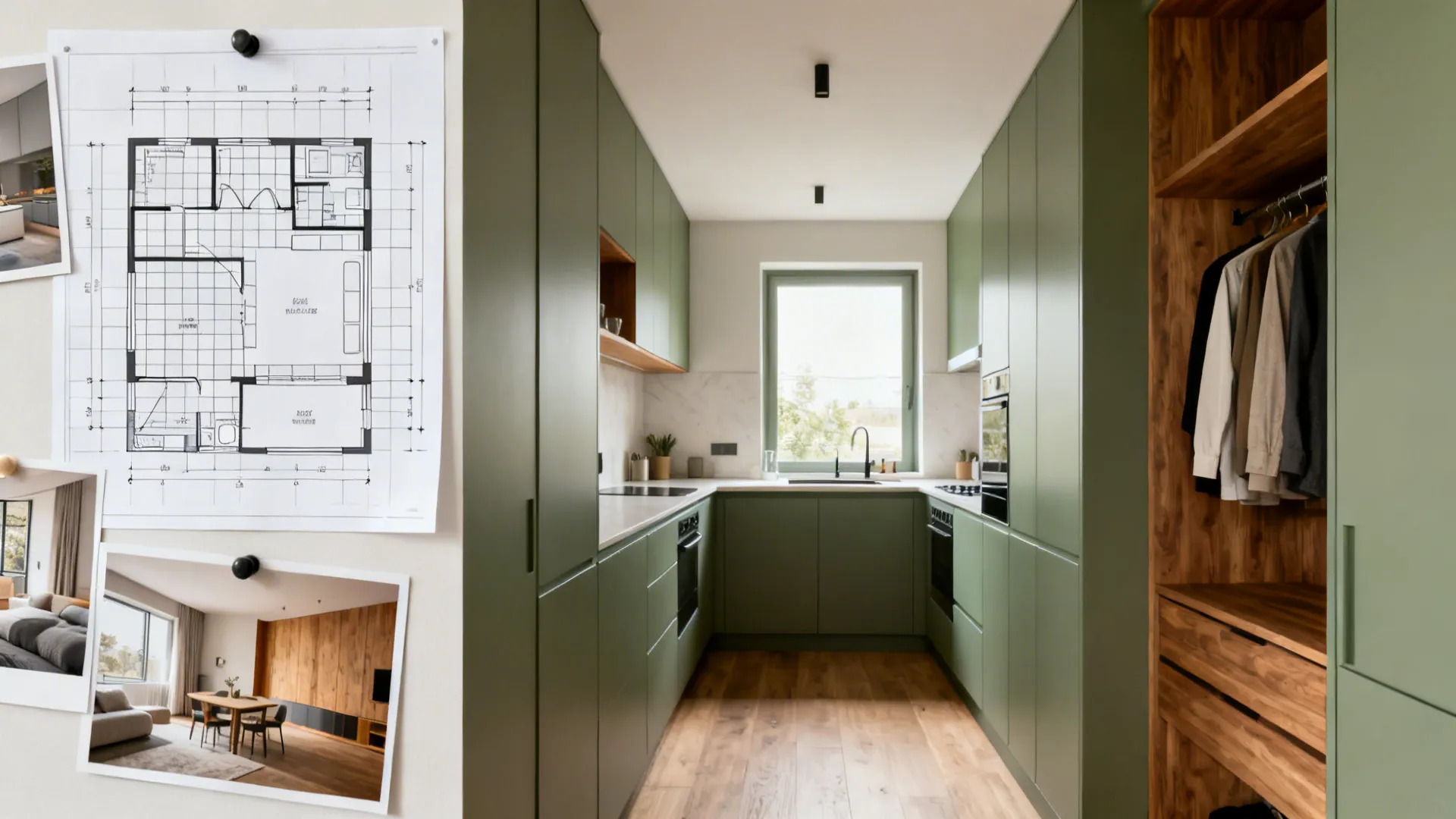

Summary

Designing a modular kitchen and wardrobe in 2D isn’t a limitation—it’s the smartest path to a better build. Small spaces demand sharper thinking, not fewer ideas. Plan the grid, protect the work triangle and clearances, map zones with intent, detail every swing and service line, and lock materials to modules before you spend. As NKBA guidelines reiterate, aligning dimensions and clearances upfront prevents costly field changes. Which of these five inspirations are you most excited to try in your own 2D plan?

save pin

FAQ

1) What’s the first step to design a modular kitchen and wardrobe in 2D?

Start by marking fixed points: walls, doors, windows, plumbing, and electrical. Then layer modules in 300 mm increments and test door swings and drawer paths early.

2) What are ideal aisle widths in a small modular kitchen?

Aim for 900–1050 mm for single-cook spaces; 1200–1250 mm feels comfortable for two. If you’re tighter, keep fronts to drawers and minimize protruding handles.

3) How deep should a wardrobe be for hanging clothes?

Internal 600 mm depth is standard for hangers; 650–680 mm overall with doors is typical. For very tight rooms, consider slim hangers and sliding doors.

4) How do I plan the kitchen work triangle in 2D?

Keep the total distance between sink, cooktop, and fridge within 4.5–7.5 m. Also add landing spaces beside each station to prevent crowding during prep.

5) What long-tail details should I include for “2D modular kitchen layout planning”?

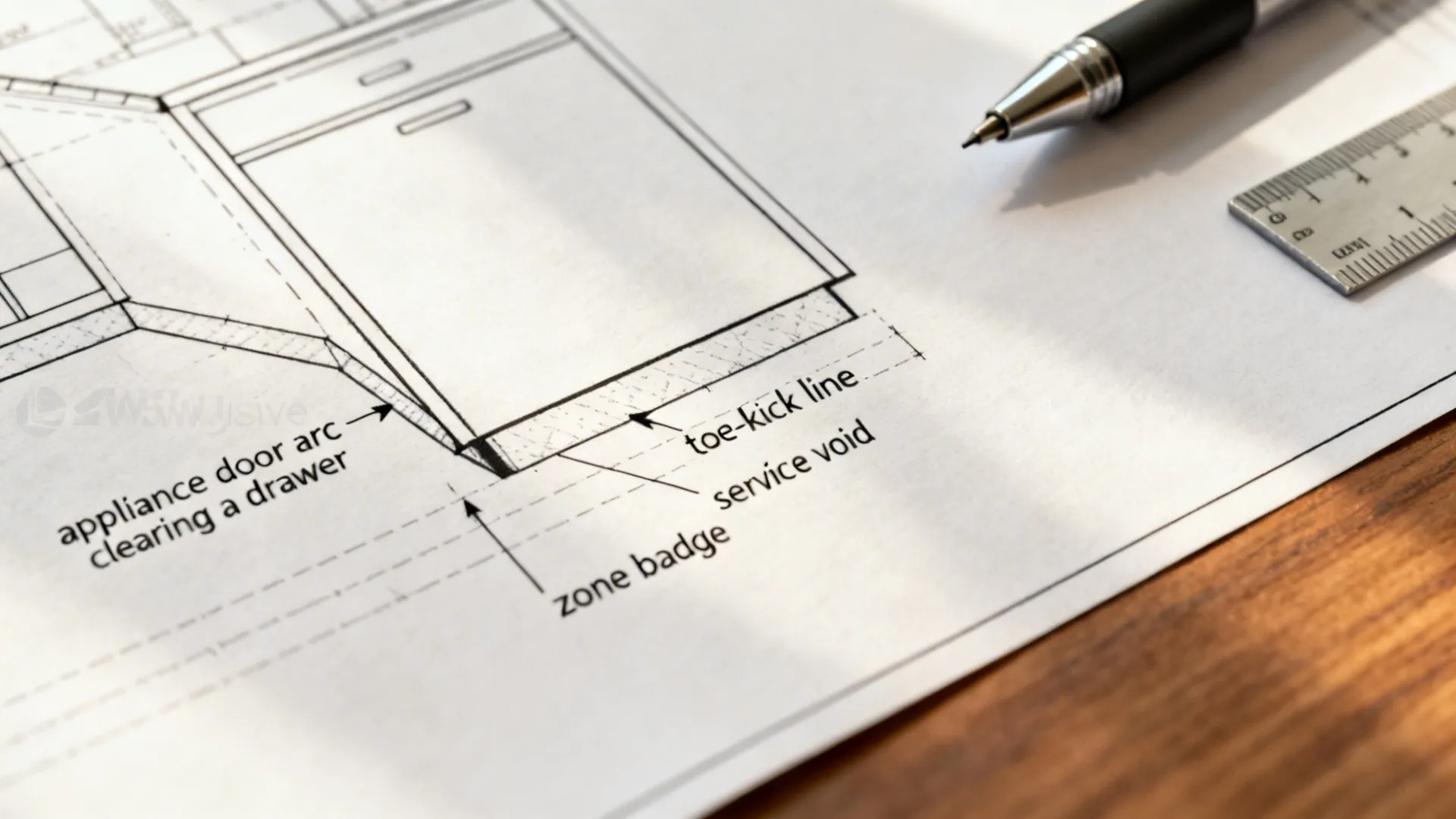

Draw appliance door arcs, drawer extensions, toe-kicks, service voids, and handle projections. Label zones (Prep, Cook, Clean, Pantry) and mark each drawer’s content.

6) Are there authoritative guidelines I can follow?

Yes. The NKBA Kitchen Planning Guidelines (2023) cover clearances and landing spaces; ISO 11228 offers ergonomic reach zones. Following these cuts errors and improves comfort.

7) How do I balance budget while keeping a modular look?

Stick to standard widths (300/450/600 mm) and repeat modules. Use drawers where access matters and shelves where it doesn’t; assign per-module costs in your 2D schedule.

8) Can I combine L-shaped kitchens with wardrobe planning in a studio?

Absolutely. Map the L run, protect a 900–1000 mm aisle, and position wardrobe sliding doors so they don’t conflict with appliance doors. For visual cues, review glass backsplash to make kitchens airier while ensuring circulation remains clear.
