Double Swing Restaurant Kitchen Doors: 5 Proven Design Ideas: My 10+ years of kitchen remodels condensed into five smart, code-conscious ideas for double swing restaurant kitchen doors—small spaces, big creativity.

As a residential and small-space designer who’s also spent time fixing tight commercial kitchens, I’ve learned this: small spaces spark big creativity—especially around double swing restaurant kitchen doors. Over the last decade, I’ve refined layouts, clearances, and finishing details to make these doors safer, quieter, and easier for staff to use. In this guide, I’ll share 5 design inspirations for double-action doors, backed by personal experience and expert data, to help you get the function and flow right from day one. For a related look at streamlined layouts, see L 型布局释放更多台面空间.

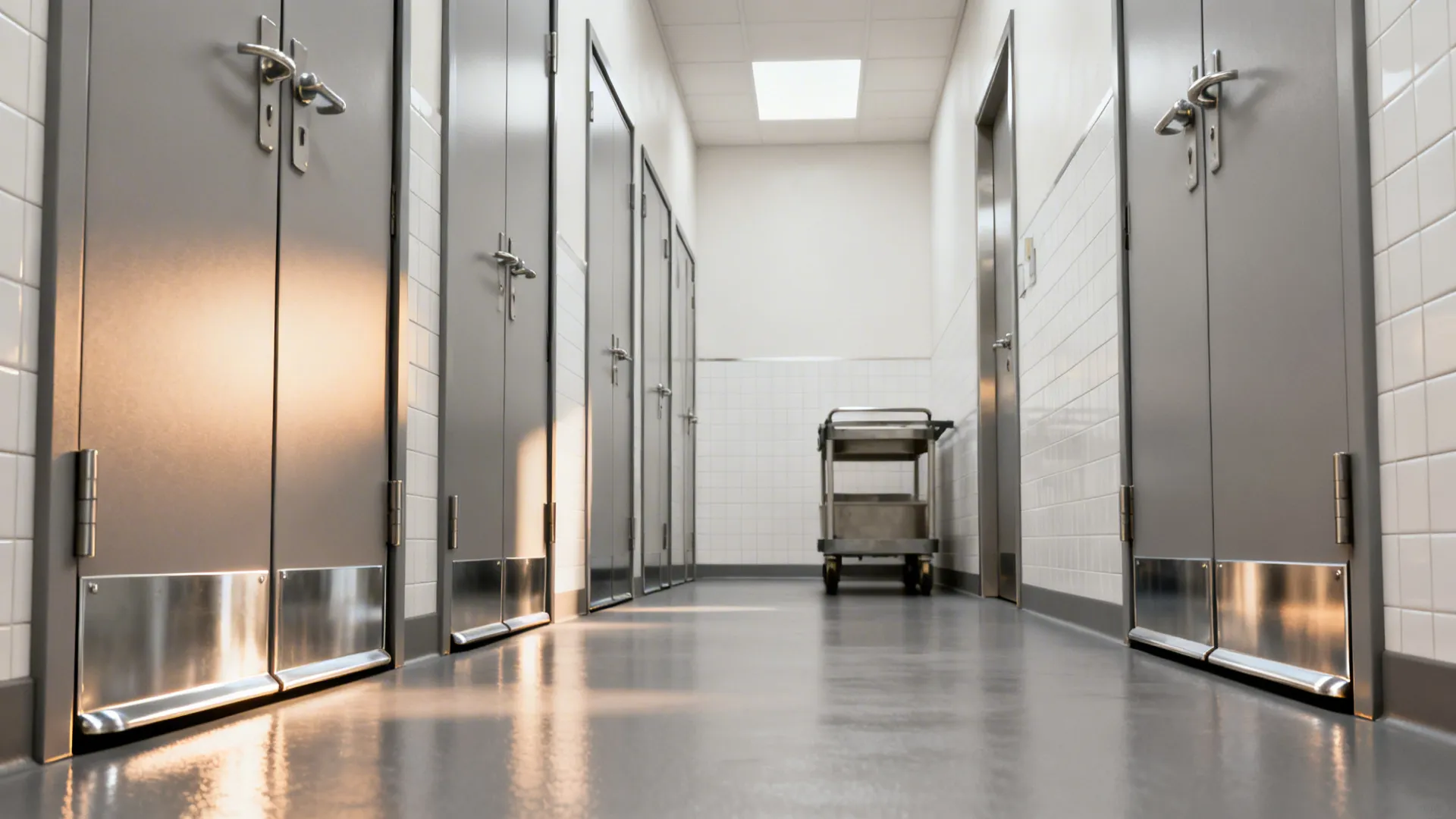

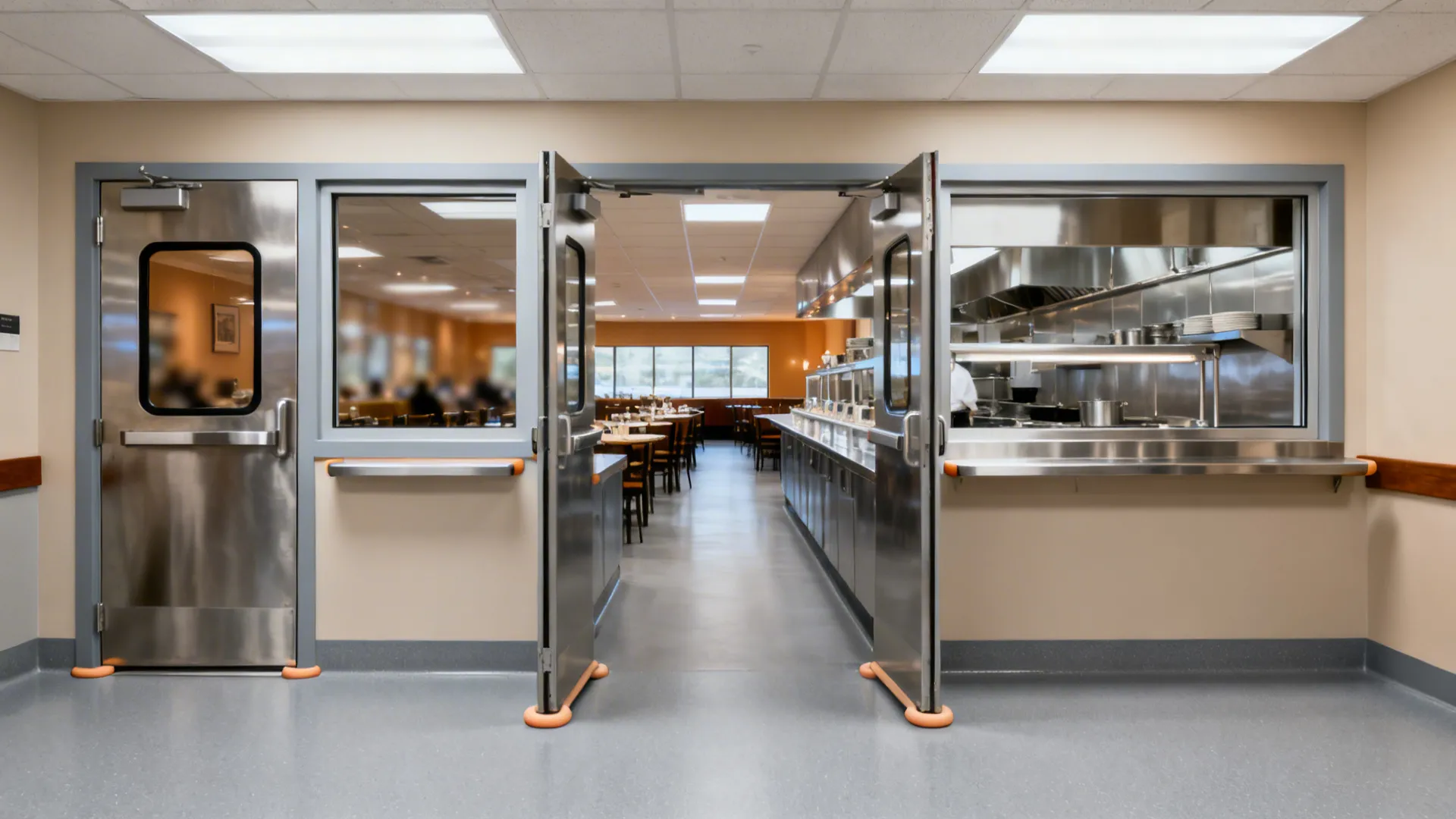

1) Minimal-Profile Double Swing Doors for Tight Aisles

My Take: I’ve renovated several galley-style commercial kitchens where every inch mattered. Slim double-action doors—with narrow stiles and low-projection kick plates—kept the path clear for carts and fast-moving staff. In one bistro, we reduced door thickness by a few millimeters and prevented countless shoulder bumps during dinner service.

Pros: Minimal-profile double swing restaurant kitchen doors reduce corridor pinch points and improve circulation in back-of-house. With a tight frame and concealed closer, you get better sightlines and fewer snags, supporting safer egress and ADA-friendly paths in compact spaces. The slim construction also helps standardize clear openings without major structural changes.

Cons: Ultra-slim doors can transmit more noise if you skimp on core density. They may also be less forgiving of hardware misalignment—if hinges or pivots aren’t shimmed perfectly, you’ll feel drag and hear squeaks. Expect a slightly higher upfront cost for sturdy cores and precision hardware.

Tips / Cost: Choose a solid-core or mineral core for durability; budget mid- to high-range for commercial-grade pivots. If carts are common, specify low-profile, rounded kick plates to protect without adding bulk. Keep reveal gaps consistent to prevent rubbing as humidity shifts.

save pin

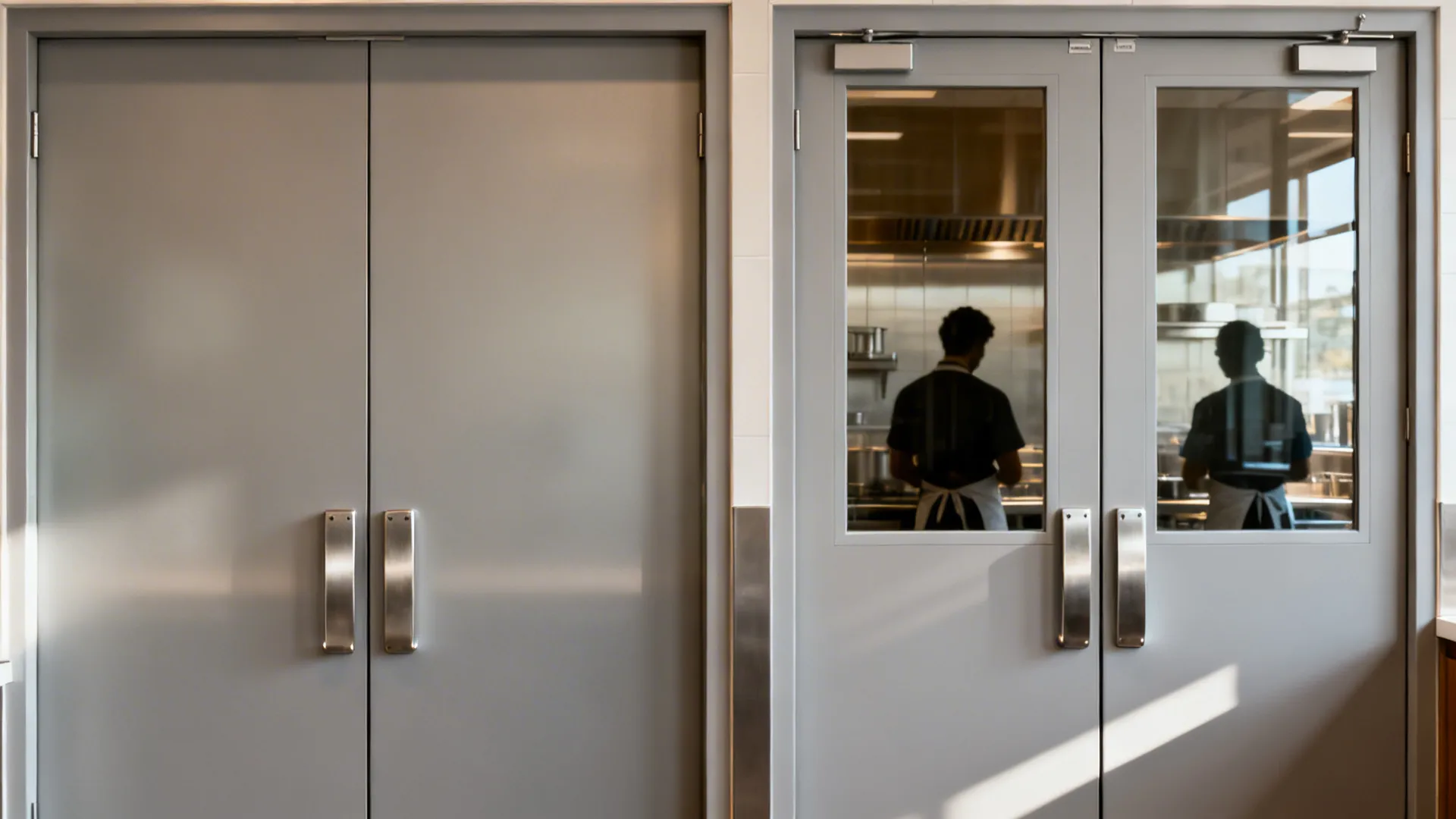

2) Vision Panels for Safety and Flow

My Take: The first time I added full-height vision panels, the client’s staff told me the kitchen “felt bigger.” With clear sightlines, servers could anticipate traffic before pushing through, and the chef could scan the pass without stepping away from the line.

Pros: Vision panels on double swing restaurant kitchen doors improve collision avoidance and reduce shoulder checks, crucial in high-traffic service zones. Tempered or laminated safety glazing helps maintain hygiene while supporting quick visual communication between cookline and dish area. OSHA kitchen safety guidance emphasizes visibility and safe workflow to reduce accidents, aligning with this design approach (see OSHA 1910 general duty principles).

Cons: Larger glass areas can raise costs and, if not specified properly, may compromise fire-rating requirements. Fingerprints are inevitable—plan on daily cleaning near the pass. In very bright dining rooms, glare can distract unless you choose a low-reflectance finish.

Tips / Case: If you need a 20- or 60-minute fire rating, confirm listed, labeled vision kits that meet the door’s certification. Stippled or lightly frosted interlayers maintain privacy while preserving motion visibility. For a deeper dive into whole-plan flow, the case study on 玻璃背板让厨房更通透 echoes how transparency aids space perception.

save pin

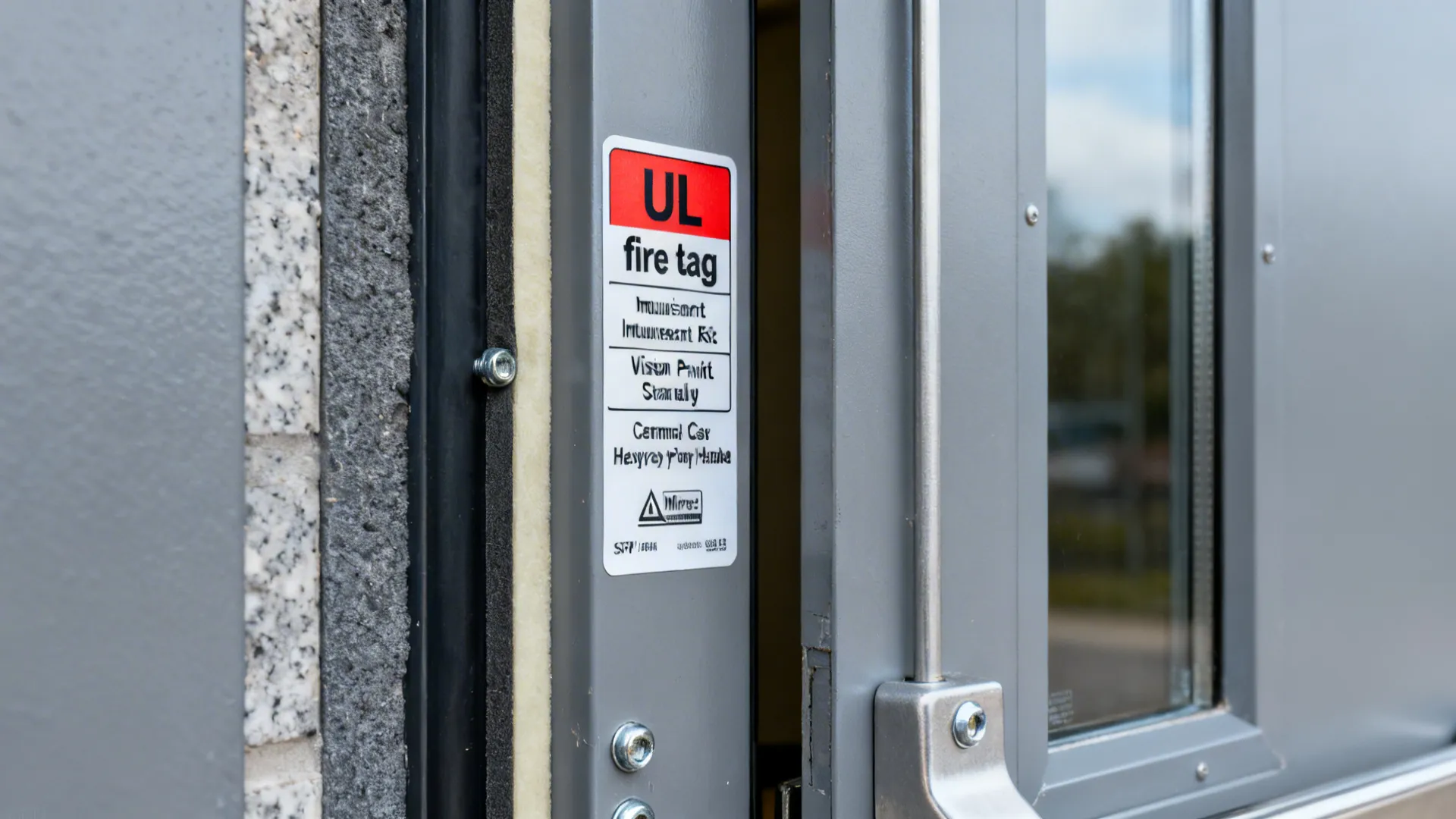

3) Code-Ready Fire-Rated Double-Action Doors

My Take: I’ve had projects stall at inspection because the door label didn’t match the specified rating. Since then, I coordinate early with the AHJ (Authority Having Jurisdiction), confirm UL-listed assemblies, and lock down hardware that preserves the door’s rating.

Pros: Fire-rated double swing restaurant kitchen doors with listed vision panels and intumescent seals can satisfy mixed-occupancy code demands between kitchen and dining areas. Correctly paired pivot hardware maintains self-closing functionality and helps contain smoke migration—critical for life safety and insurance compliance. The right door keeps your schedule and budget on track by avoiding rework.

Cons: Ratings and hardware options narrow quickly at higher minutes; lead times can stretch 6–10 weeks. Costs climb with specialty cores, labeled glazing, and listed closers. Be ready to coordinate thresholds and floor conditions so doors self-close reliably without dragging.

Authority Data: The International Building Code (IBC) and NFPA 80 govern fire door assemblies and labeling; ensure field modifications don’t void ratings (NFPA 80-2019). Fire-rated vision panels must be certified to the same rating as the door.

Tips / Budget: Build a contingency for lead times and shop drawings. Confirm strike side clearances for serving carts and HACCP-friendly floor coves. If acoustics matter, consider rated cores with better STC performance, but verify that any seals don’t impede double-action swing.

save pin

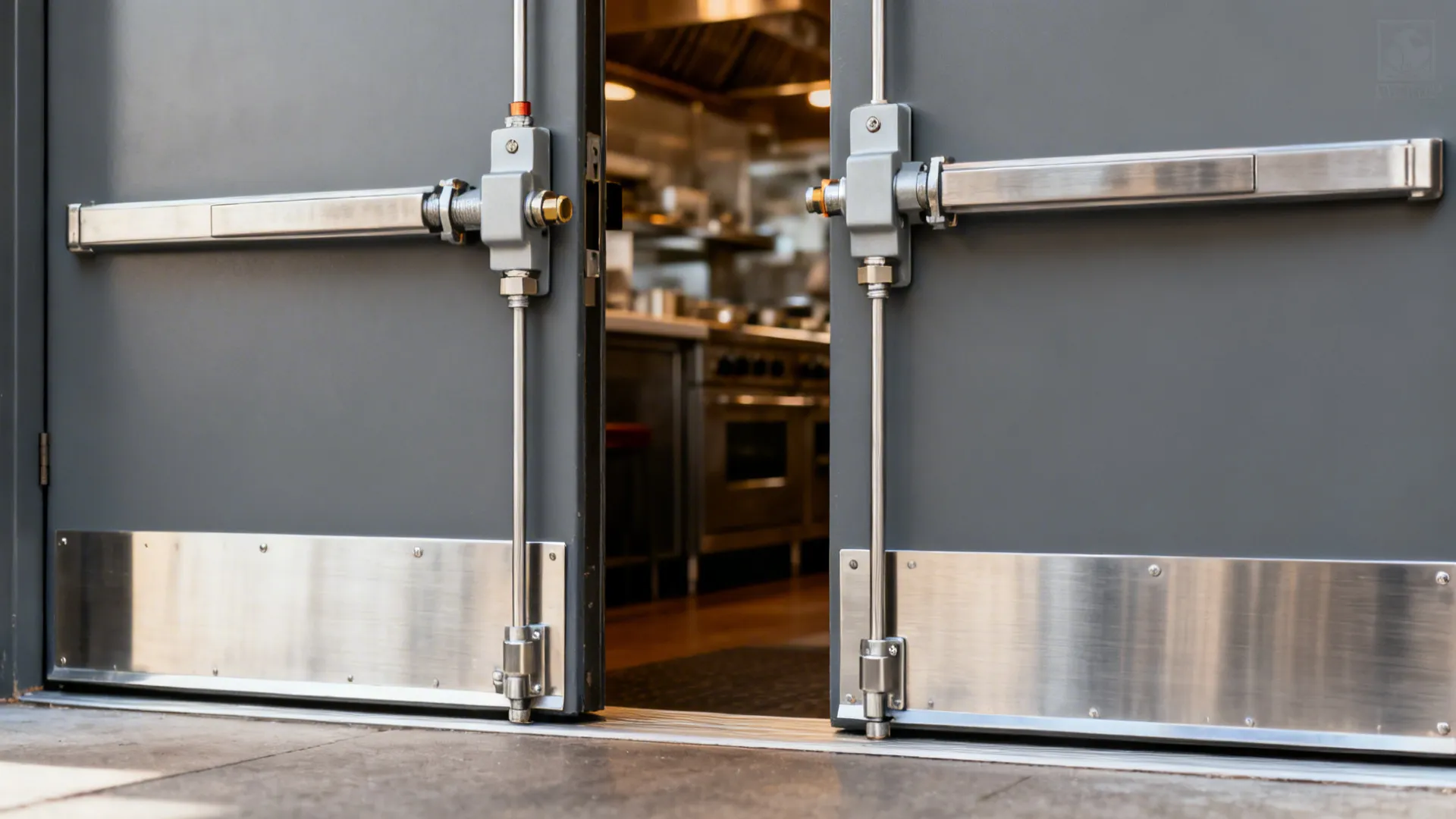

4) Quiet Hardware and Soft-Return Pivots

My Take: In a compact open kitchen, clattering doors drown out conversation. After we upgraded to soft-return pivot sets with adjustable closing speeds, the dining room felt calmer, and the chef stopped joking about “the saloon swing.”

Pros: Soft-close or controlled-return pivots on double swing restaurant kitchen doors reduce impact, noise, and bounce-back, improving both staff safety and guest experience. Adjustable closing valves help tune speed for lunch rush versus late-night cleanup. With lower peak forces, you extend door and frame longevity and reduce maintenance.

Cons: These pivots cost more than basic spring hinges, and improper setup leads to sluggish action or doors that don’t fully return. Grease, flour, and steam can gum up cheap mechanisms—choose sealed, commercial-grade hardware and schedule routine maintenance.

Tips / Maintenance: Specify floor or top-center pivots rated for door weight plus a margin. Use hold-open at a safe angle only if allowed by code and desired for loading cycles. A quarterly tune-up—wipe, test valves, check fasteners—pays off in quieter service and fewer complaints.

save pin

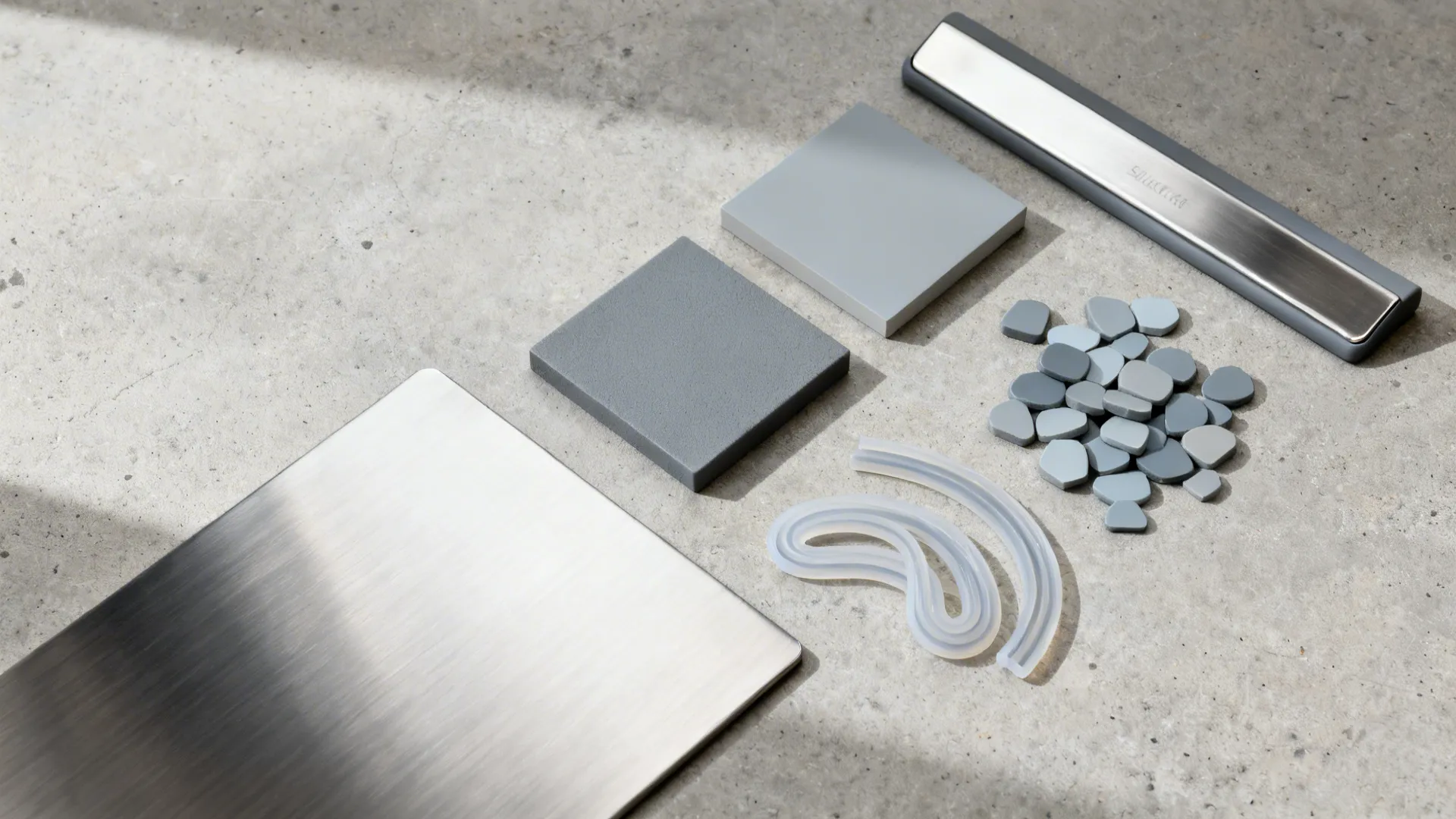

5) Hygienic Finishes: Stainless, HDPE, and Antimicrobial Coatings

My Take: I’ve worked with operators who battled perpetual scuffs and staining near the pass. Upgrading to stainless cladding on the push side and HDPE edges cut cleaning time, and the doors looked sharp after a year of hard use.

Pros: Stainless steel faces and kick plates resist corrosion and daily sanitizing agents, aligning with foodservice hygiene standards for double swing restaurant kitchen doors. HDPE or PVC edge guards shrug off impact from trays and carts. Antimicrobial powder coats on frames can add an extra layer of cleanliness in high-contact zones, supporting HACCP-oriented cleaning protocols.

Cons: Stainless shows fingerprints; you’ll need proper cleaners and consistent routines. Antimicrobial coatings add cost and need reputable third-party test data to justify the premium. Some plastics can discolor near fryers if you don’t specify heat-tolerant grades.

Authority Data: The FDA Food Code (latest edition) emphasizes cleanable, nonabsorbent surfaces in food areas; while it doesn’t dictate door materials, stainless and sealed polymers help meet those outcomes.

Tips / Case / Cost: Consider a hybrid: stainless on kitchen push faces, durable HPL or powder-coat on the dining side to match the brand aesthetic. If you want to visualize material swaps in context, explore 木质元素带来的温暖氛围 for how finishes shift perceived warmth without compromising function. Budget for commercial cleaners and train staff on quick wipe-down techniques to avoid streaking.

save pin

Choosing Door Sizes, Clearances, and Swing Behavior

My Take: On most restaurants I audit, the door size isn’t the issue—it’s the approach angle and collision zone. I sketch staff paths, plate heights, and cart widths, then set door width and swing force accordingly.

Sizing: A common clear opening for a single leaf is 36 inches (914 mm), but verify equipment and cart widths plus 2–3 inches of buffer. For double leaves, decide if both need to be active or if one stays passive except during deliveries. For ADA-accessible employee areas, check local adoption of ICC A117.1 and required clearances.

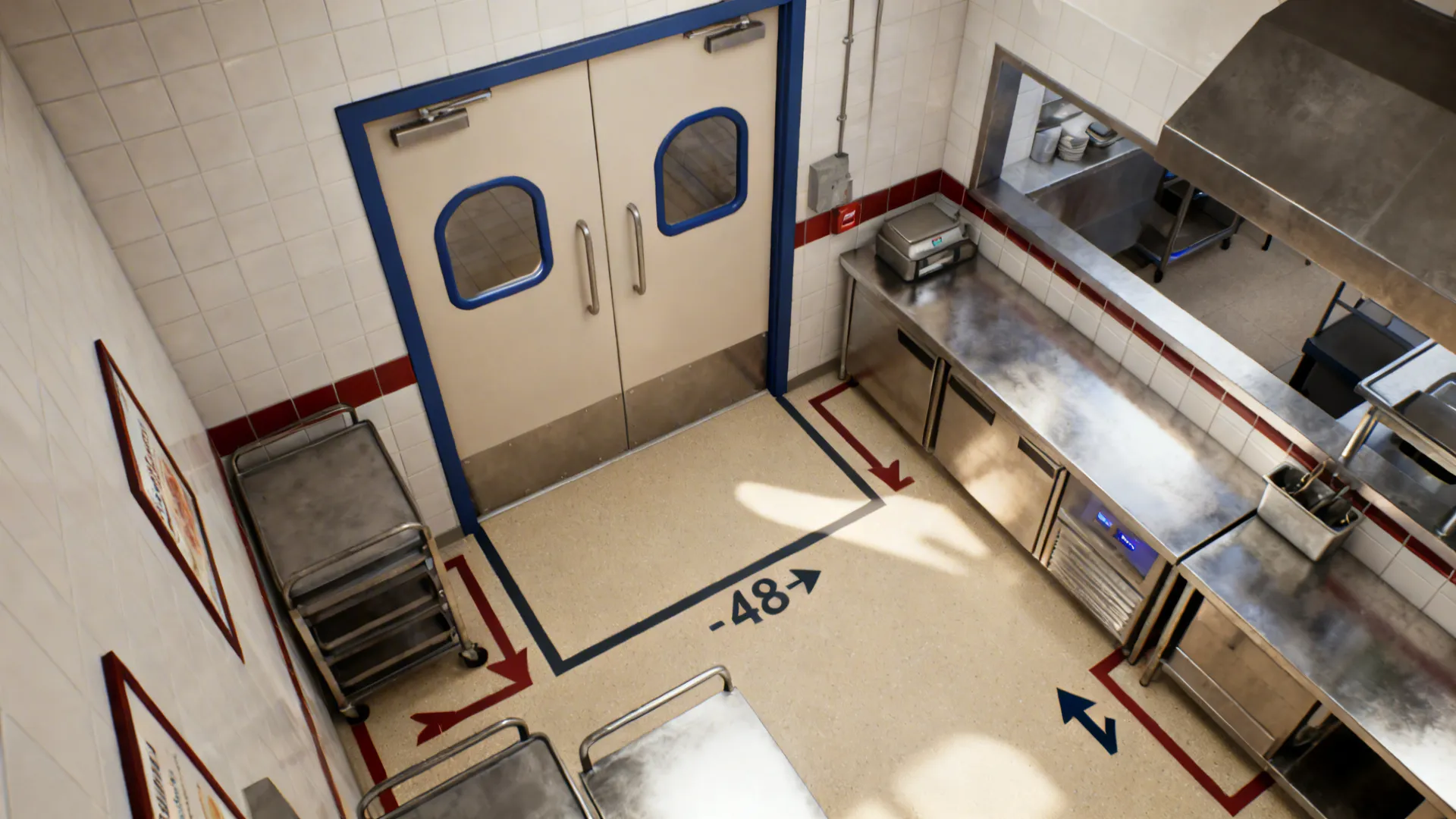

Clearances: Maintain landing zones on both sides—ideally 48 inches of depth—so staff can queue without blocking the swing arc. Coordinate baseboards, wall guards, and panic hardware projection. Keep door sweeps minimal to avoid drag on commercial flooring.

Swing & Safety: Double-action allows quick pass-through, but set return forces low enough for users with limited strength. Add push plates or paddle handles at ergonomic heights (about 42 inches to top) to keep hands off faces and improve leverage. Use contrasting edge bands or door color to boost visibility in low light.

save pin

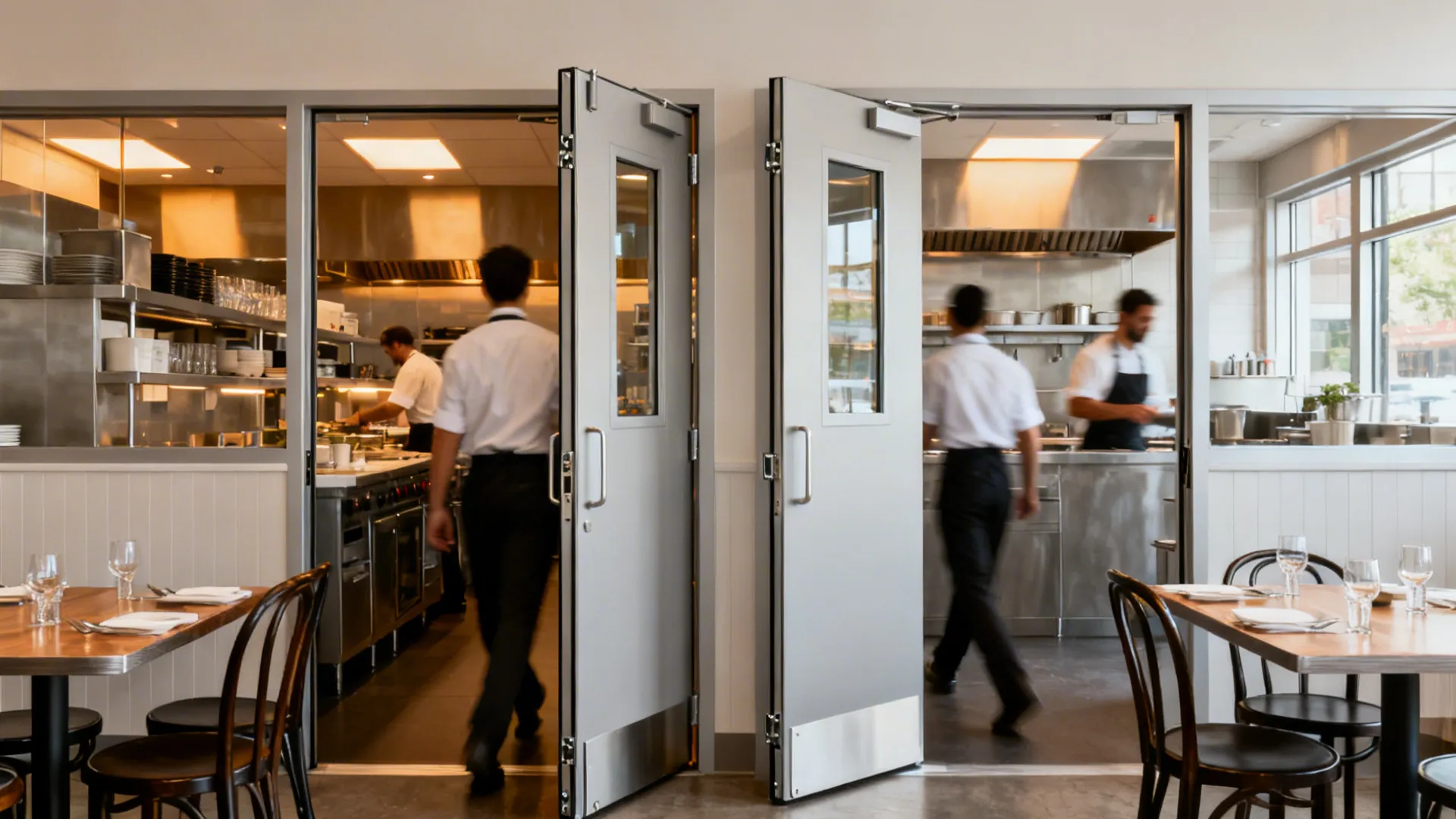

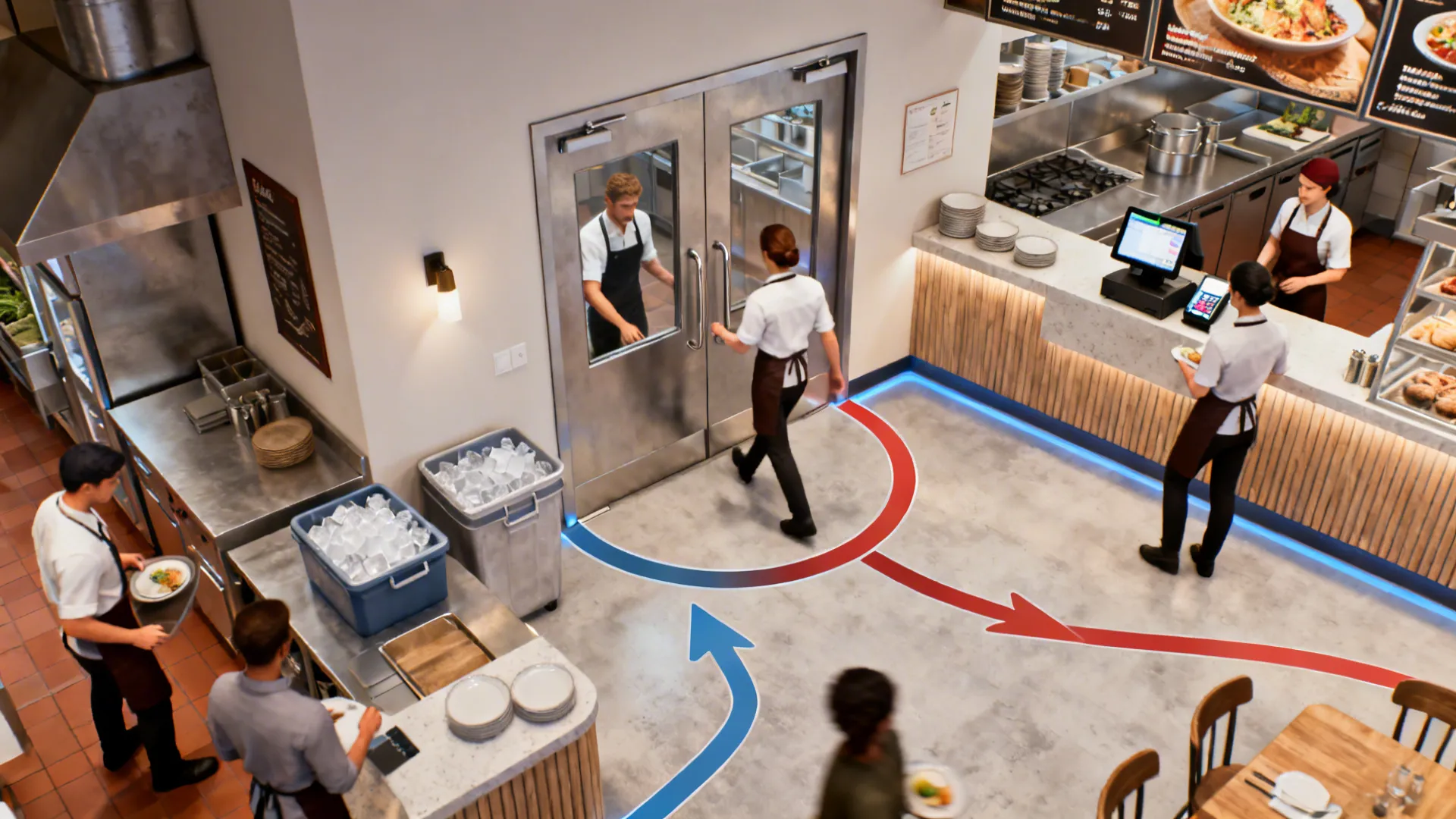

Traffic Mapping: Where Collisions Hide

My Take: I run a “Saturday night” drill on paper: dishes out, bussers in, expo staff hovering. The problem spots show up fast—usually an ice bin too close to the swing or a POS terminal in the swing’s backdraft.

Plan the Flow: Put handwashing stations and garbage access outside the door’s immediate arc. Keep plating shelves perpendicular to the door to avoid cross-traffic. If possible, split in/out traffic with a second leaf or a dedicated service lane.

Signage & Cues: Add subtle floor tape or wall graphics near the door, not on it, to avoid cleaning wear. Small “IN/OUT” decals help when training new staff, though I find consistent plate direction works even better.

save pin

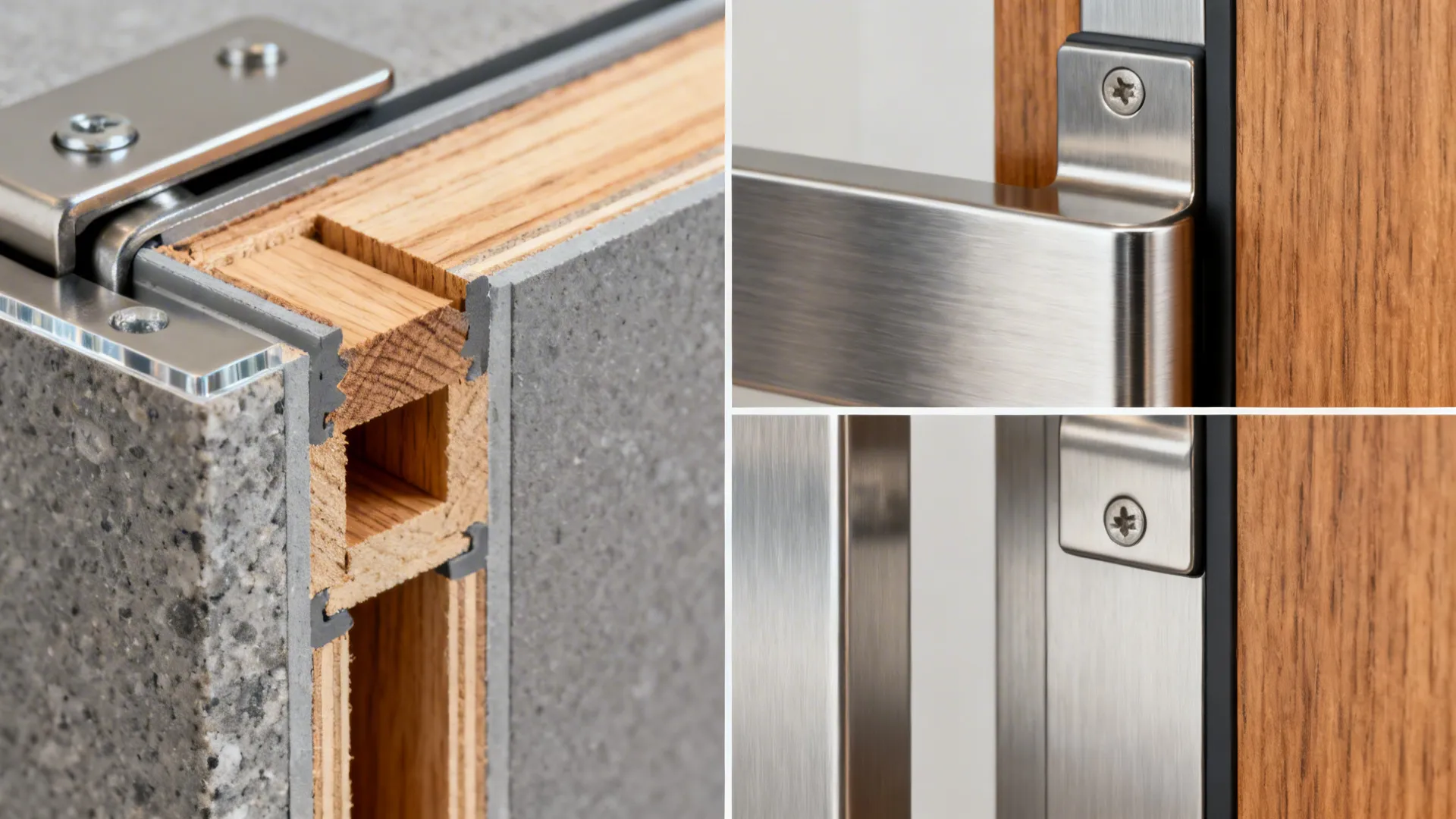

Hardware Details that Matter

My Take: After years of callbacks, I’ve learned to spec hardware like I’m a line cook: fast, durable, and forgiving. When doors slam or drift, it’s usually a hardware mismatch, not the door panel itself.

Core Picks: Choose mineral or solid wood cores for heft and quieter operation. For wet zones, consider composite cores that resist swelling. Confirm all screws bite into reinforced blocking—especially at kick plates and plates for push paddles.

Hinges & Pivots: Center-hung pivots create a true double swing and hide hardware nicely; offset pivots can help when you need a wider effective opening. Ask for tested cycle counts and check weight limits with a 20–30% safety margin.

save pin

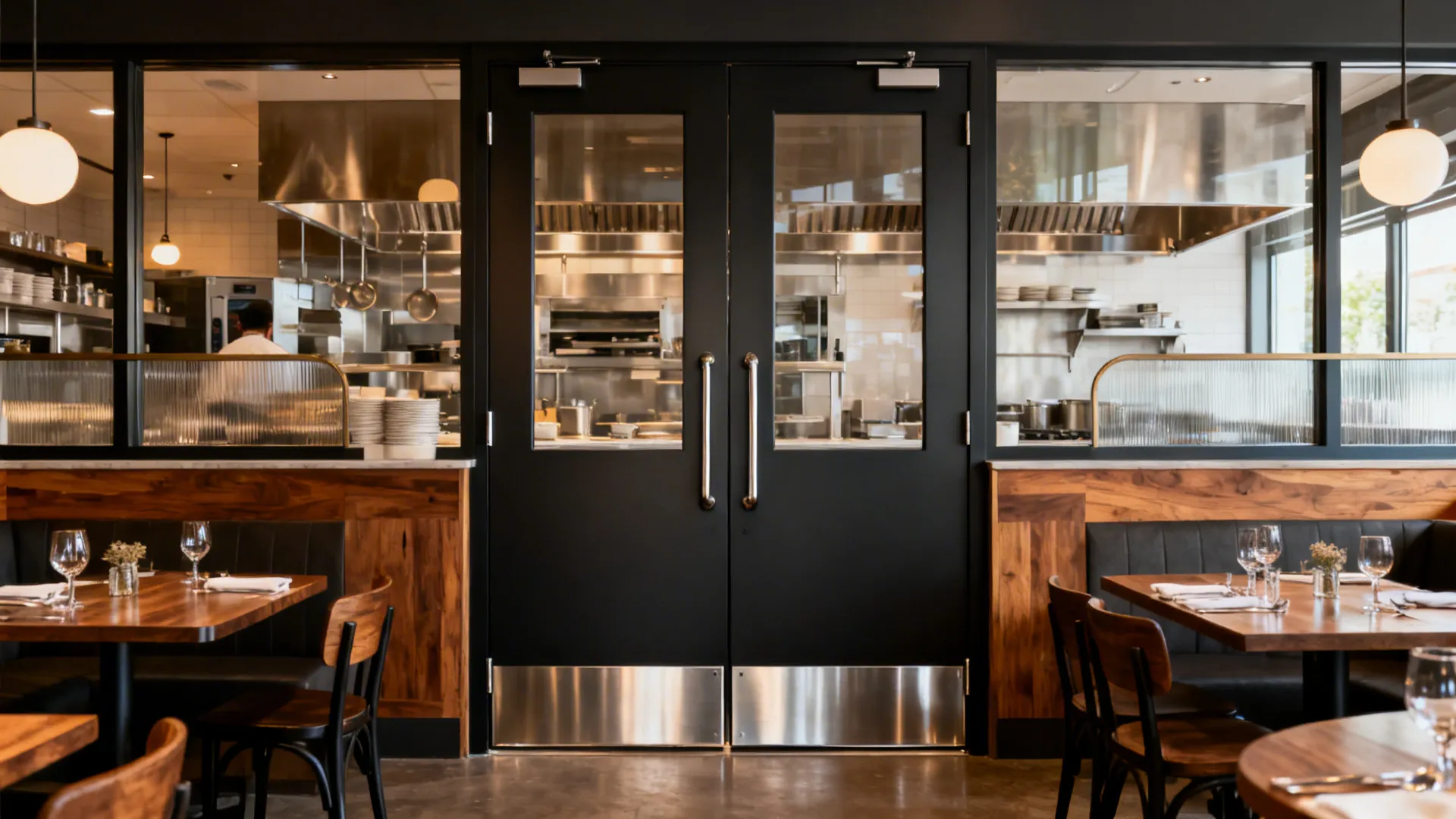

Finishing Touches for Guest-Facing Doors

My Take: In open kitchens, the door is part of the brand. I’ve matched powder-coat colors to logo hues and paired them with brushed stainless kick plates—clean, consistent, and durable.

Design Moves: Use a darker, satin finish on the dining side to hide smudges. Consider rounded vertical edges for a softer look and fewer chips. If you add graphics, protect them under a clear laminate rated for commercial cleaning.

Lighting: Avoid spotlight glare on vision panels—angle fixtures or choose low-reflectance glass. A slight contrast between frame and wall can make the opening easier to read for staff carrying trays.

save pin

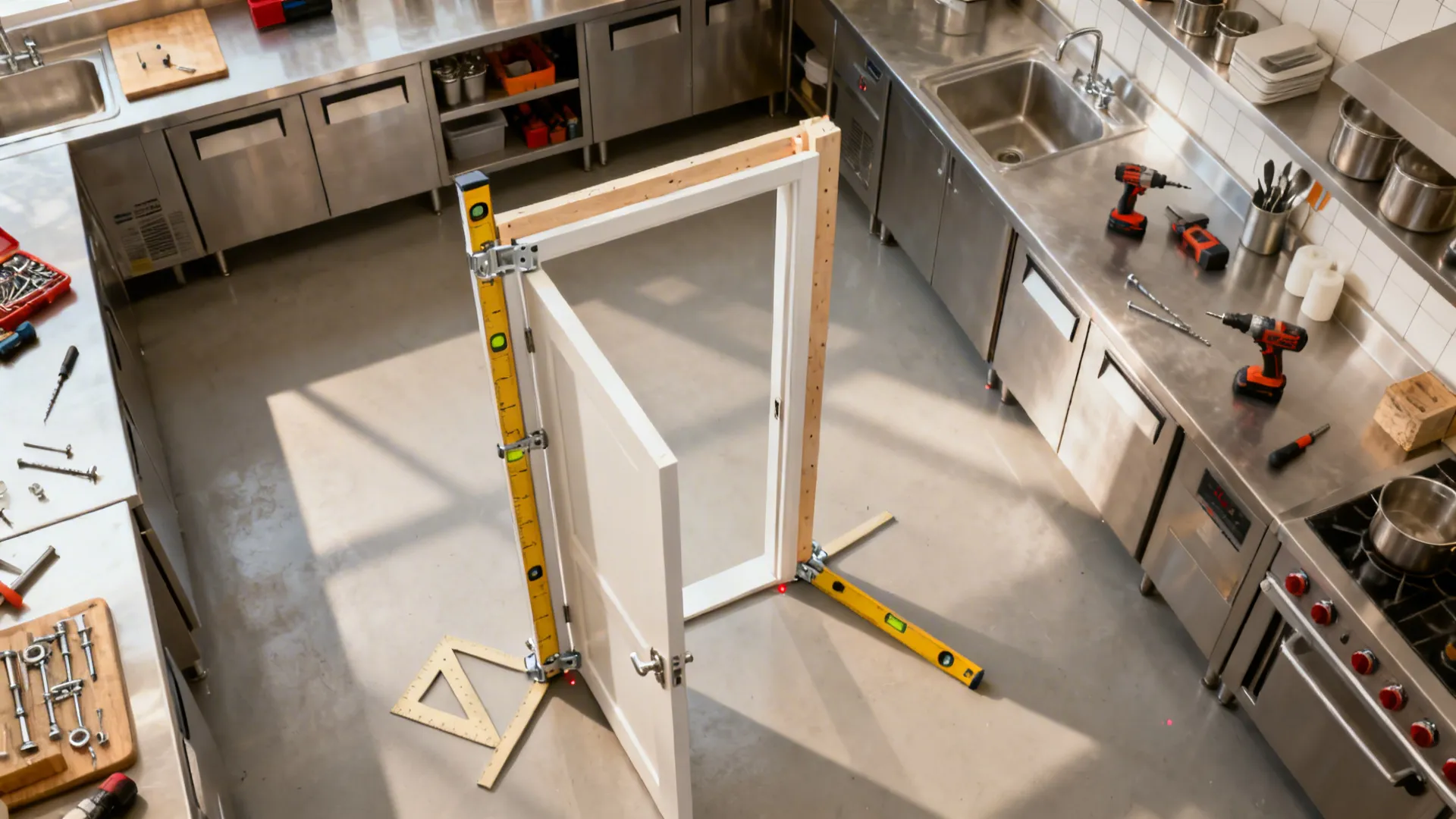

Installation & Maintenance Playbook

My Take: The cleanest installs happen when the GC, door supplier, and health inspector are looped in before framing closes. One missed shim can cause a season of squeaks.

Install Steps: Verify plumb, level, and square framing; pre-drill for hardware; and test the return action before finalizing plates. On tile or epoxy floors, confirm anchor compatibility and seal any penetrations.

Maintenance: Create a weekly checklist: wipe smudges, check fasteners, test swing speed, and inspect seals. Quarterly, re-balance pivots, lubricate per manufacturer guidance, and document any adjustments for compliance records.

save pin

Budget Snapshot

Entry Level: Basic double-action assemblies with small vision lites and stainless kick plates typically start mid-hundreds per leaf, excluding installation.

Mid-Range: Add soft-return pivots, larger glazing, and better cores, and you’ll be in the low-thousands per opening. Lead times tighten, but the user experience improves dramatically.

Premium: Fire-rated, acoustically improved, custom-colored assemblies with antimicrobial finishes and branded graphics can reach several thousand per opening. Build in 6–10 weeks for fabrication and coordination.

save pin

Drawings & Documentation You’ll Need

My Take: Good drawings prevent on-site improvisation. I include a door schedule, head/jamb details, hardware sets, and a swing-diagram overlay on the kitchen plan.

What to Include: Plan and elevation with clear opening, door thickness, core, finish, vision lite size and height, kick plate dimensions, pivot type, and return force range. Call out clearances at floors, base, and ceiling soffits. Note any code ratings and label requirements prominently.

Coordination: Share drawings early with your millwork vendor (pass counter height), MEP (airflow and pressure differentials), and health inspector (cleanability). For a planning sandbox to test adjacencies in 3D, review 极简风的厨房收纳设计 as a reference on tidying zones before you finalize hardware.

save pin

Conclusion

Small kitchens aren’t a limitation—they’re an invitation to smarter double swing restaurant kitchen doors that enhance flow, safety, and cleanliness. From vision panels to soft-return pivots, small decisions compound into a smoother service and happier staff. The IBC and NFPA 80 give the safety framework; your design choices deliver the day-to-day comfort and speed. Which design idea are you most excited to try on your next build-out?

save pin

FAQ

1) What size should double swing restaurant kitchen doors be?

Most single leaves target a 36-inch clear opening, but measure your widest carts and add 2–3 inches. For double leaves, decide if both need to be active; a wider active leaf can handle daily service while the passive leaf opens for deliveries.

2) Do I need fire-rated double swing doors between kitchen and dining?

It depends on occupancy separation and local code. Consult the IBC as adopted in your jurisdiction and NFPA 80 for labeled door assemblies; your AHJ will confirm required ratings and hardware.

3) Are vision panels allowed in rated doors?

Yes, if they use listed and labeled fire-rated glazing and kits matching the door’s rating (per NFPA 80). Always verify maximum lite size and mounting height with the door manufacturer.

4) How do I reduce noise from double swing doors?

Specify soft-return or controlled-close pivots, solid or mineral cores, and adhesive-backed silencers at stops if present. Keep hardware tuned; a quarterly adjustment prevents slam-back and squeaks.

5) Which finishes are most hygienic?

Stainless steel faces and kick plates are durable under frequent sanitizing, while HDPE edge guards resist impact. The FDA Food Code underscores nonabsorbent, cleanable surfaces—these materials fit that standard.

6) What drawings should I prepare for permitting and fabrication?

Include plan/elevation, door schedule, vision lite details, hardware sets, and code ratings. Add swing diagrams to the kitchen plan so collision points and clearances are obvious to all trades.

7) How do I prevent collisions during rush?

Use vision panels for sightlines, map traffic flows on the plan, and consider IN/OUT decals for training. Keep high-use stations out of the swing arc and maintain landing zones on both sides.

8) Can I model door swings in 3D before ordering?

Yes—3D planning helps spot conflicts with equipment and soffits and test clearances around carts and POS stations. It’s a quick way to validate swing behavior and landing zones before fabrication.
