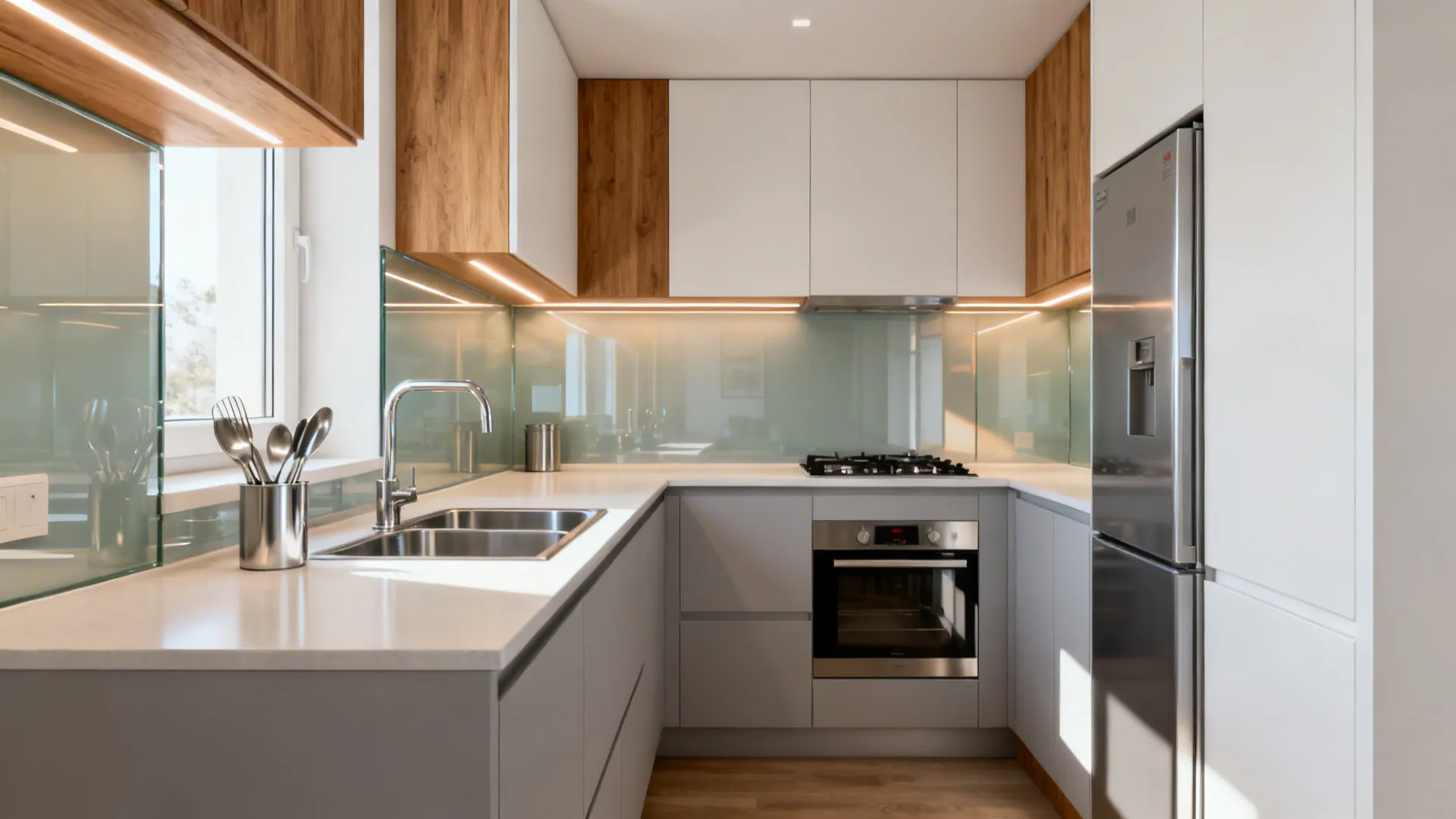

Ergonomic Design for Modular Kitchen: 5 Proven Measurements: My 5 field-tested ergonomic rules to size a modular kitchen that feels effortless, even in small spaces

As a senior interior designer, I’ve watched “human-first” ergonomics become a major interior trend—especially in compact homes where every millimeter matters. Small spaces spark big creativity, and modular kitchens are the perfect playground. In this guide, I’ll share 5 ergonomic design inspirations with exact measurements I use on real projects, blending personal anecdotes and expert data so you can build a kitchen that fits like a glove.

Right up front, if you’re exploring how a reflective surface can visually expand tight cooking zones, I break down why glass backsplash makes a kitchen feel lighter in one of my favorite case collections. It’s a small change that pairs beautifully with ergonomic layouts.

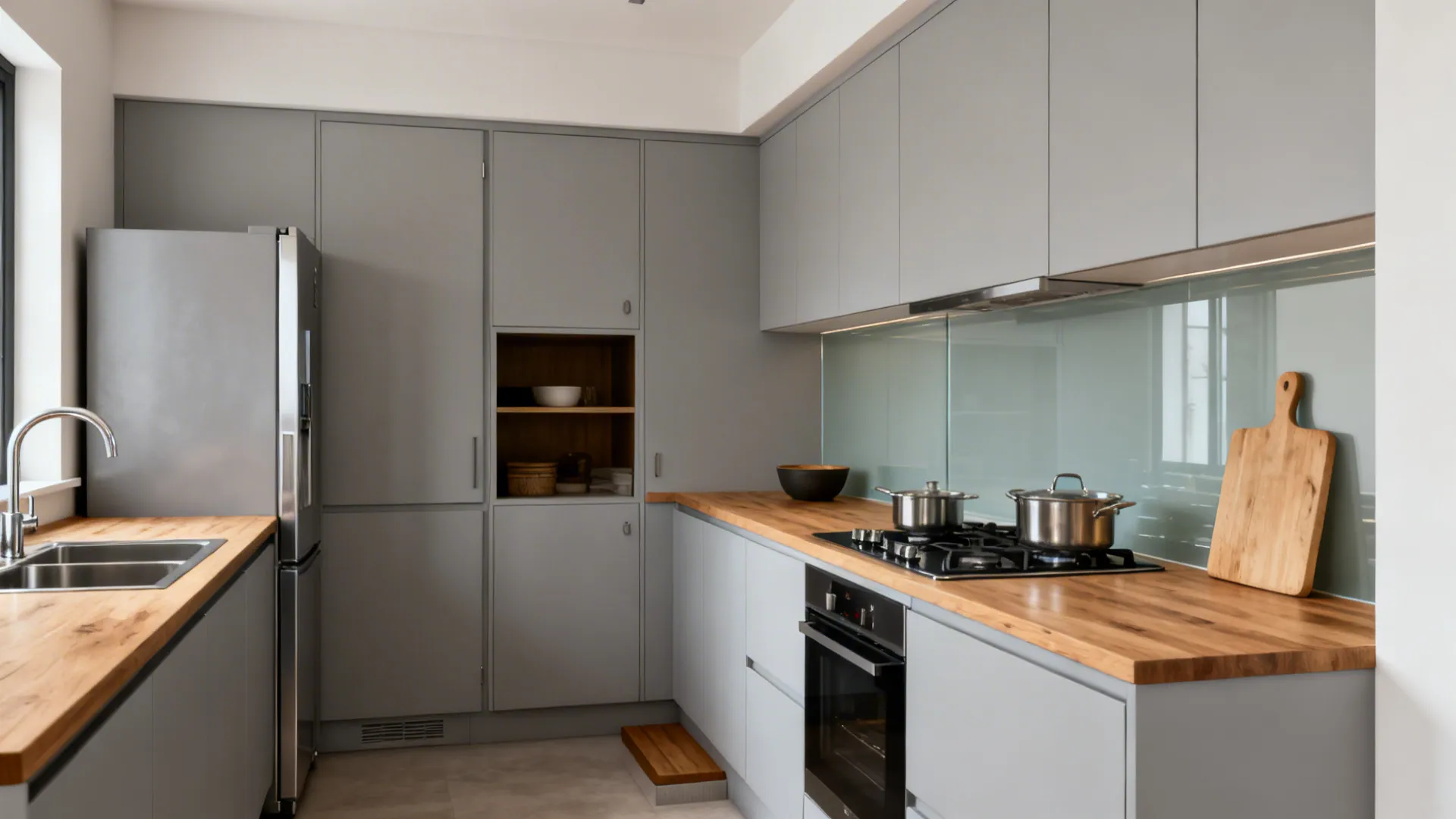

Ergonomic Work Triangle, Optimized for Small Kitchens

My Take

I still sketch the classic work triangle first: sink, cooktop, and fridge. In tiny apartments, I compress it without cramping movement. My benchmark: 4–7 meters total triangle perimeter, with a bias toward a shorter walk from sink to cooktop.

Pros

A compact 4–6 m triangle reduces steps and speeds up prep—ideal for “one-cook” kitchens. Prioritizing the sink–cooktop leg at 1.2–1.8 m aligns with ergonomic kitchen measurements that cut repetitive motion. The National Kitchen & Bath Association (NKBA) notes triangle legs of 1.2–2.7 m each as a best-practice range, which tracks with my field testing.

Cons

If you shrink the triangle below 4 m total, stations feel congested, especially with a side-opening fridge. Too long, and you’ll end up pacing—think “cardio while cooking,” which sounds healthy until your risotto needs stirring.

Tips / Cost

save pin

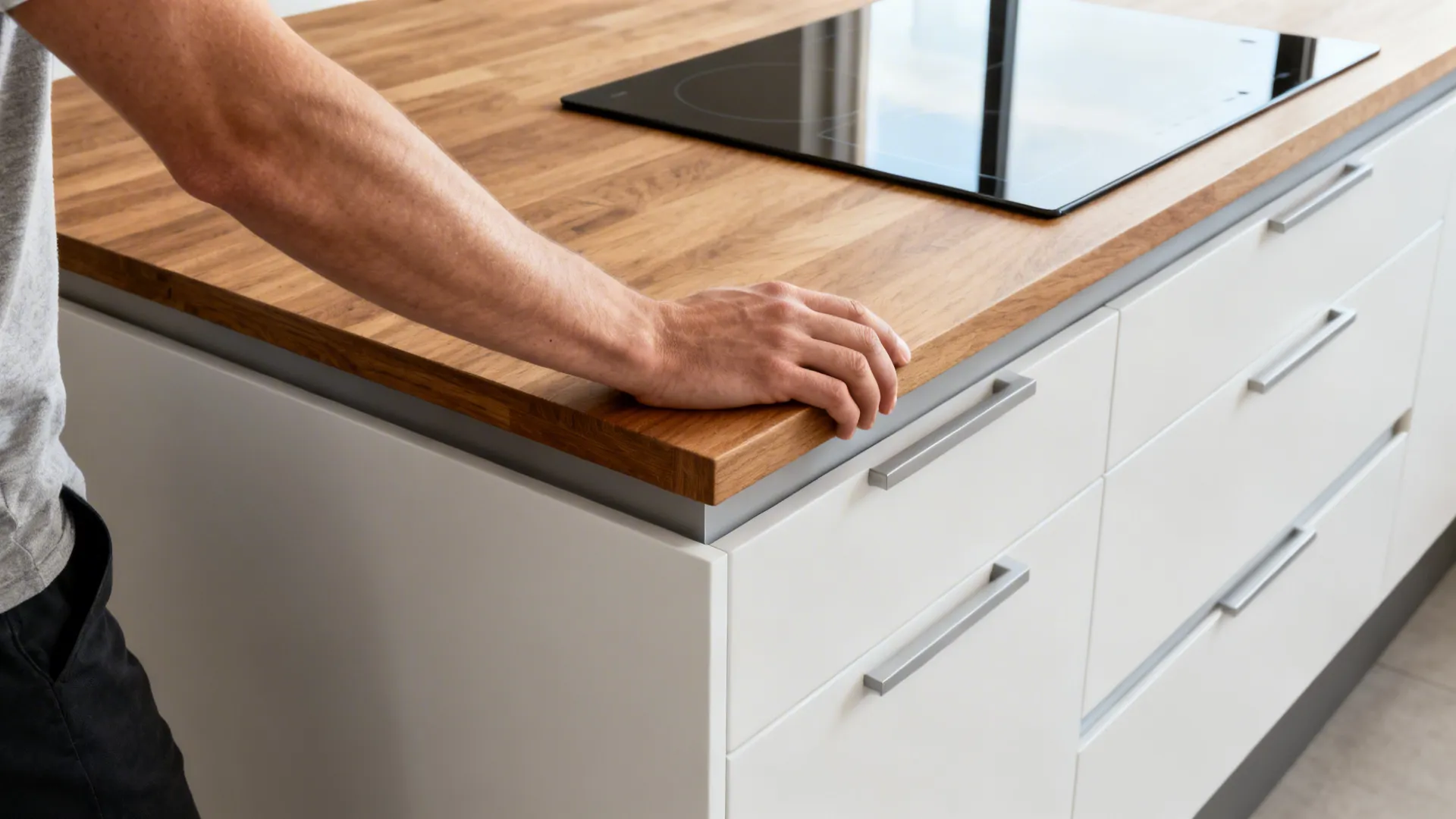

Counter Heights That Fit Your Body, Not the Brochure

My Take

The most common mistake I fix is a “one-size-fits-none” counter height. I ask clients to simulate chopping with a cutting board on stacks of books—then measure. My baseline: 860–920 mm counter height, adjusted by user stature and shoes.

Pros

For most adults, 900 mm works for prep while minimizing shoulder lift; taller cooks may prefer 920–950 mm for heavy chopping. The rule of thumb: worktop should sit ~50 mm below your bent elbow height, a long-tail ergonomic kitchen measurement that reduces wrist extension and back strain. NKBA also supports adjustable ranges for user comfort, which mirrors my outcomes across projects.

Cons

Multiple-height counters look beautiful in renderings but can blow the budget with extra carcass sizes. If a family varies greatly in height, someone will compromise—keep a thick cutting board (40–50 mm) to give shorter users a boost.

Tips / Cost

-Induction cooktops often sit flush; if you do a lot of wok cooking, a slightly lower cooking zone (by ~20 mm) can be kinder to wrists.

-Toe kicks at 100–150 mm height and 50–75 mm recess let you stand closer, improving posture for long prep sessions.

save pin

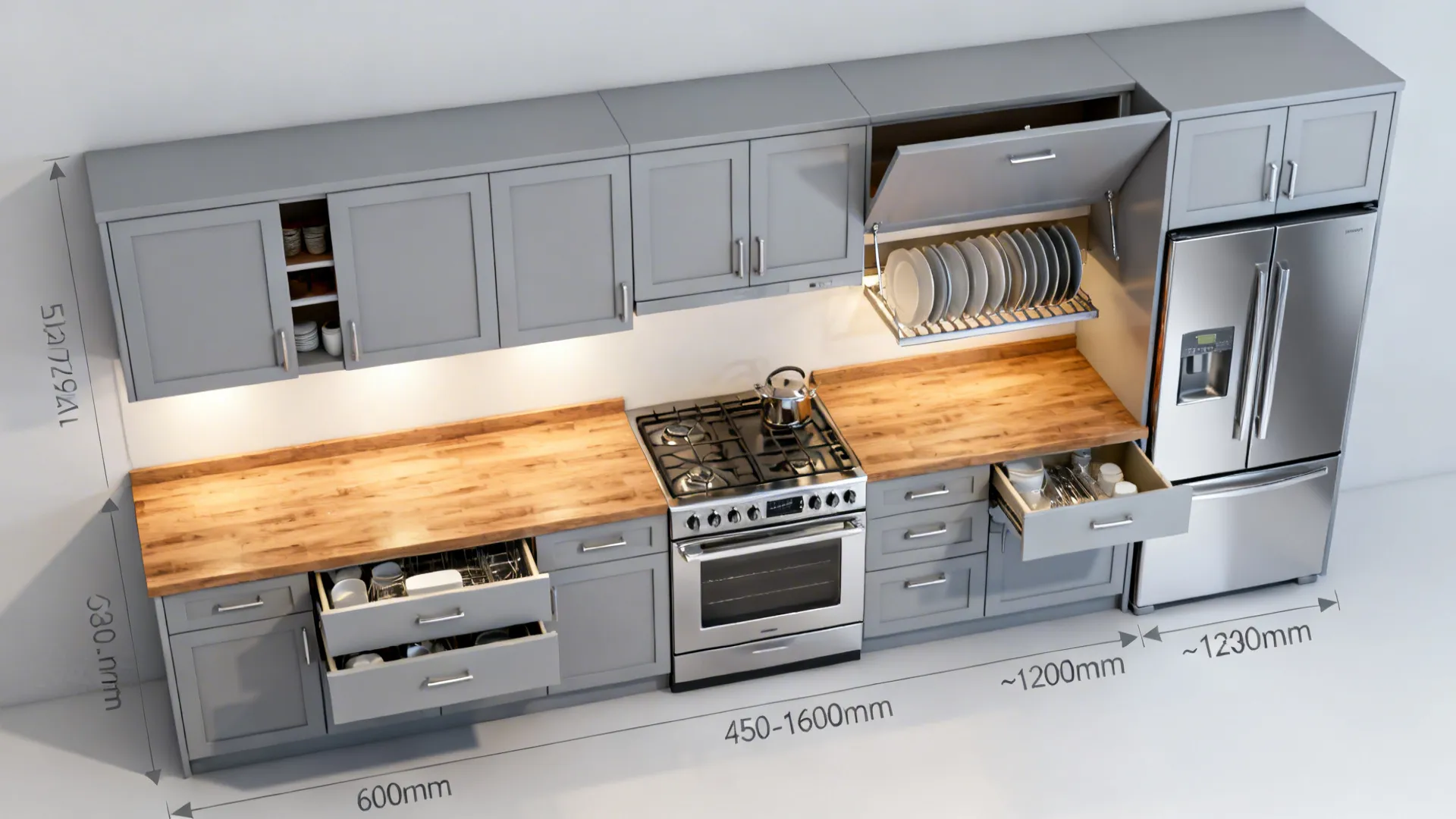

Reach Zones: Drawers and Wall Units That Don’t Strain

My Take

I design around comfortable reach: 450–1650 mm from finished floor is the golden “no-stretch” band for most users. That means heavy items in drawers, daily plates in the first shelf of uppers, and seldom-used gear up high.

Pros

Full-extension drawers at 600 mm width maximize visibility and reduce deep bending—an ergonomic modular kitchen measurement that clients love immediately. Mount upper cabinets so the lowest shelf lands ~1200–1250 mm from the floor, keeping daily dishes in the safe reach zone. Lift-up doors or pocket sliders reduce head bumps and make vertical access smoother.

Cons

Deep drawers (over 800 mm wide) can sag or stress runners if you load them with cast iron—stick to quality hardware or split into two 400–600 mm modules. Very tall wall cabinets can look top-heavy in small kitchens unless you balance them with a light backsplash and slimmer handles.

Tips / Case

-Use organizers: 1/3 for utensils, 1/3 for prep tools, 1/3 for spices near the cook zone.

-Consider 300 mm shallow pantries beside fridges for easy-reach snacks.

-For visual lightness and planning ideas, see how an L-shaped layout creates more counter run while keeping uppers within reach.

save pin

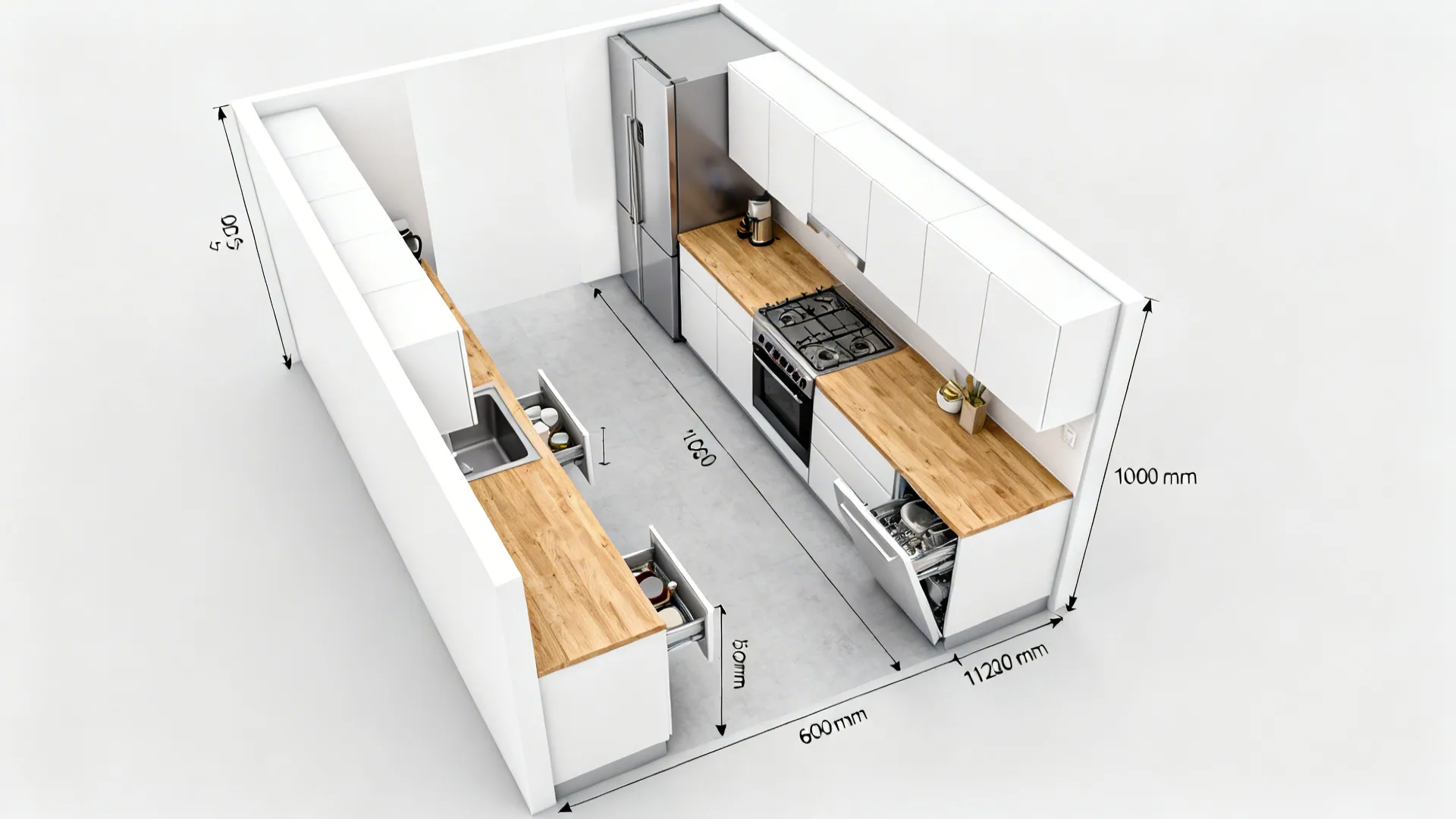

Clearances That Keep You Moving: Aisles, Doors, and Appliances

My Take

Clearance numbers can make or break usability. I target 1000–1050 mm for one-cook aisles; 1100–1200 mm if two people share the space. In galley kitchens, I bias more room on the prep side and keep the opposing side slimmer.

Pros

At 1000 mm, you can open a 600 mm drawer and still slide past—core to ergonomic design for modular kitchen measurements in tight homes. Dishwashers need a 600 mm door swing, plus 500–600 mm standing clearance; placing them to the right of the sink suits most right-handed users. Refrigerators with 90° open clearance need at least 50–75 mm side breathing room to avoid handle clashes.

Cons

Anything under 900 mm center aisle feels like airport economy—doable, not delightful. Oversized handles and bar stools can nibble away clearance; I’ve had to swap bulky pulls for edge profiles more than once to win back precious centimeters.

Tips / Cost

-Corner solutions: 900 x 900 mm blind corners with pull-outs beat dead space; LeMans units are pricier but ergonomic.

-If you bake often, allocate a 600–900 mm uninterrupted “landing runway” beside the oven for trays.

-Plan plug points at 1050–1150 mm above finish floor along the backsplash to keep cords off the worktop.

save pin

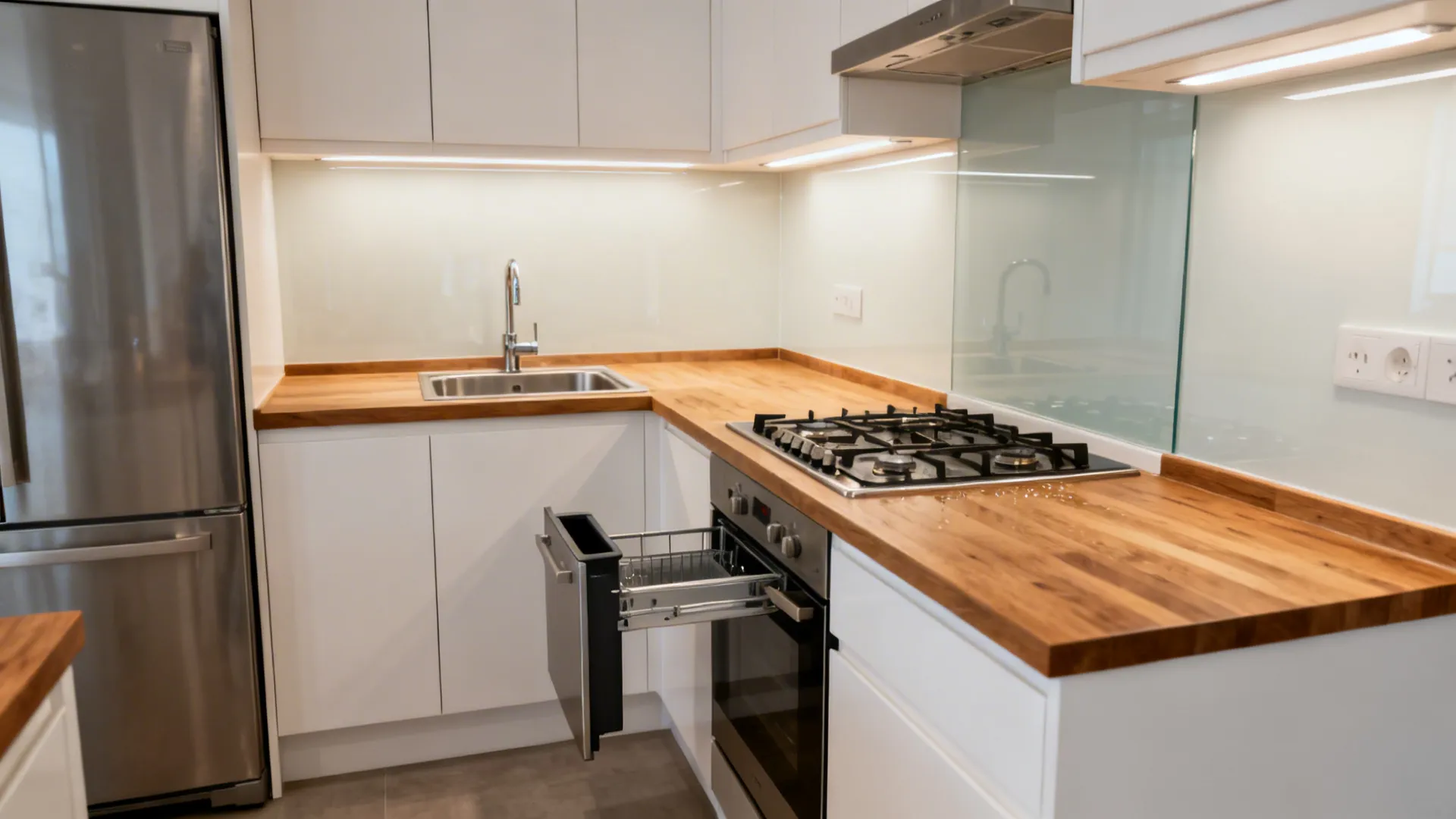

Prep-to-Cook Flow: Zoning, Landing Spaces, and Lighting

My Take

When a kitchen flows, you feel it. I set a wet zone (sink, dishwasher), prep zone (chopping near sink), and hot zone (cooktop, oven) in a straight line or L, then underscore each with lighting and landing space.

Pros

Give the sink 600–900 mm of uninterrupted counter on at least one side; pair it with a 600 mm pull-out waste near the prep zone for efficient cleanup. Maintain 300–450 mm counter on both sides of the cooktop for safe pot handling—an ergonomic modular kitchen measurement that consistently reduces spill risks. Task lighting at 300–500 lux over prep zones sharpens visibility without glare; under-cabinet LEDs are energy-smart and shadow-free.

Cons

Too many small appliances break up prep space—cluster them on a 300–400 mm appliance garage to keep the main run clean. Over-bright cool LEDs can feel clinical; I mix 3000–3500K warmth for comfort without sacrificing clarity.

Tips / Case

-Mount hoods 650–750 mm above cooktops (per many manufacturer specs; always confirm your unit).

-If you’re designing from scratch, a quick digital mockup helps you test flows—see how minimalist kitchen storage ideas translate into real movement patterns and landing spaces.

save pin

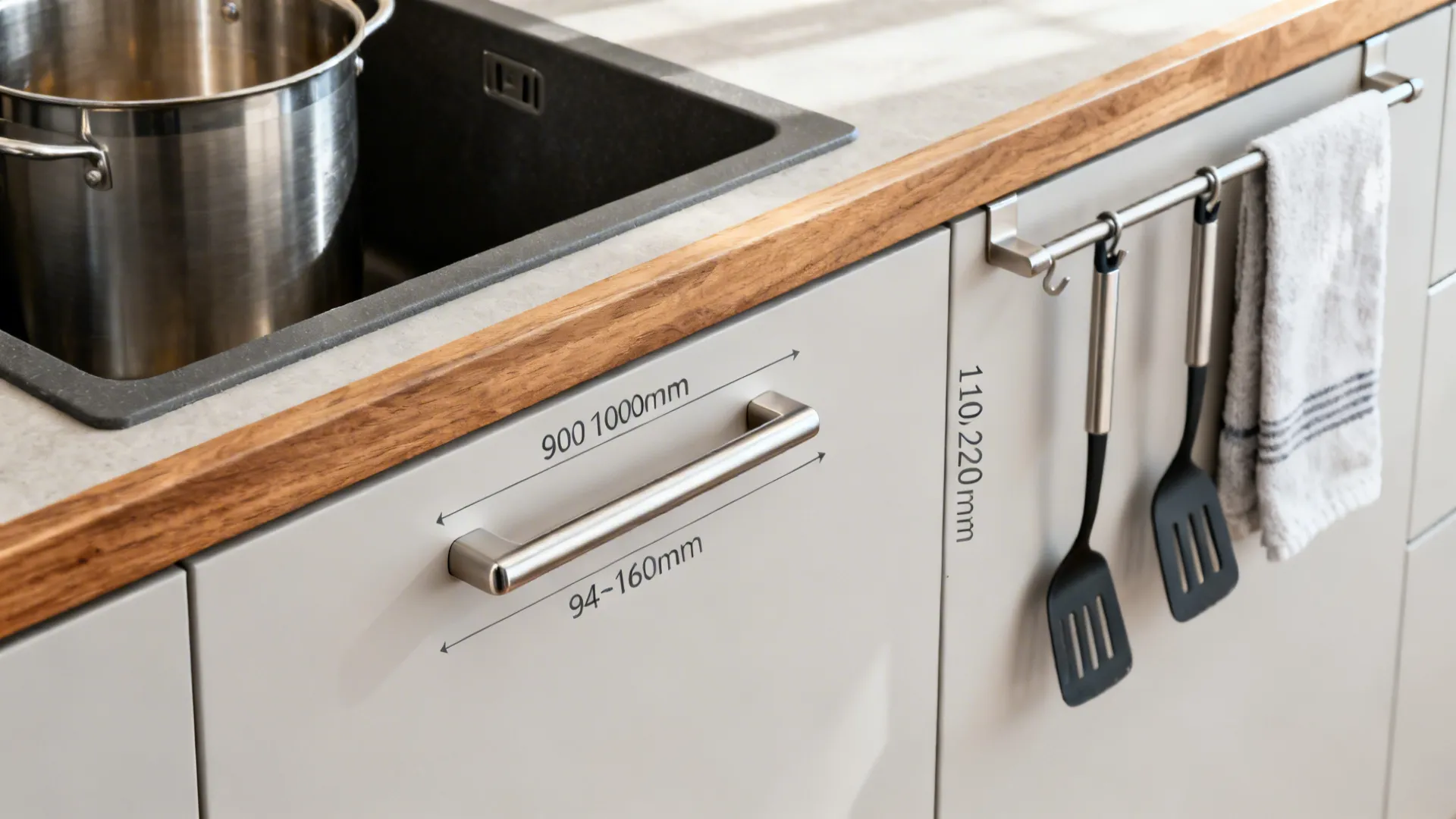

Handle Heights, Sink Depths, and Micro-Details That Add Up

My Take

Micro-ergonomics are the daily comforts: handle placement, sink depth, and even the height of the backsplash accessories rail. These details separate a “nice kitchen” from a “never-think-about-it” kitchen.

Pros

Pull handles centered at 900–1000 mm above floor on base units are easy to grasp without wrist twist; consider 96–160 mm handle lengths for a comfortable 3–4 finger grip. Sink depths of 180–220 mm reduce splash and keep tall pots upright—an ergonomic kitchen measurement that saves your shirt. Accessories rails at 1100–1200 mm height keep spatulas and towels within neutral reach.

Cons

Ultra-deep sinks (230+ mm) can stress shoulders and hide knives—ask me about the time I “rescued” a peeler like a deep-sea diver. Handle-free push-to-open looks sleek but can smudge easily; if you cook daily, consider slim pulls or J-profile edges.

Tips / Cost

-For aging-in-place, swap knobs for D-shaped pulls—they’re easier for arthritic hands.

-Rubber mats in front of the sink reduce fatigue during marathon meal-prep.

-If you’re mapping modules and measurements from scratch, a structured plan helps—study how an L-shaped configuration opens up more countertop without increasing footprint.

save pin

Summary

Ergonomic design for modular kitchen measurements is not about restriction—it’s about smarter, kinder choices that fit your body and your space. From triangle legs to counter heights and reach zones, small kitchens reward precision and creativity. NKBA guidelines are a solid baseline, but your comfort test—how it feels when you chop, stir, and plate—matters most. Which of the five ideas are you most excited to try in your own kitchen?

save pin

FAQ

1) What is the ideal work triangle for a modular kitchen?

Aim for 4–7 m total perimeter, with each leg 1.2–2.7 m. Keep the sink–cooktop leg shortest for faster prep. This aligns with NKBA’s classic guidance for ergonomic kitchen planning.

2) What counter height suits most people?

Start at 900 mm; adjust to about 50 mm below your bent elbow height. Taller users may prefer 920–950 mm, while shorter users can add a thicker cutting board to fine-tune.

3) How wide should a kitchen aisle be?

Target 1000–1050 mm for one cook; 1100–1200 mm for two. In very tight spaces, 900 mm is the minimum workable clearance but may feel cramped.

4) How high should upper cabinets be installed?

Set the first shelf at ~1200–1250 mm from the floor to keep daily items in the comfortable reach zone (450–1650 mm). Use lift-up doors to avoid head bumps.

5) What are safe landing space measurements near appliances?

Keep 300–450 mm on each side of the cooktop and 300–400 mm beside the oven and microwave. Near the sink, reserve 600–900 mm of uninterrupted counter for prep.

6) How deep should the sink be for ergonomics?

Choose 180–220 mm. It’s deep enough for pots but shallow enough to avoid shoulder strain and reduce splashing during daily use.

7) Do authoritative guidelines back these measurements?

Yes. NKBA provides widely referenced standards for ergonomic kitchen layouts, including triangle legs, landing areas, and clearances. See NKBA Kitchen Planning Guidelines for verified ranges.

8) What’s a good way to test my layout before building?

Mock up zones with painter’s tape and cardboard boxes at real measurements. If you want a visual companion to compare L vs. galley, this L-shaped layout creates more counter run example helps you evaluate flow and reach.
