I’ve redesigned dozens of compact living rooms in the past decade, and one truth keeps surfacing: small spaces spark big ideas. When clients ask for a false ceiling design for drawing room with fan, the challenge is balancing airflow, lighting, and style without crowding the room. In this guide, I’ll share 5 fan-friendly ceiling design inspirations I’ve implemented—what worked, what to watch out for, and data-backed tips.

Right up front, if you’re exploring layouts alongside ceiling planning, this gallery on L 型布局释放更多台面空间 shows how spatial thinking translates across rooms. Ceiling or kitchen, good planning is universal.

[Section: 灵感列表]

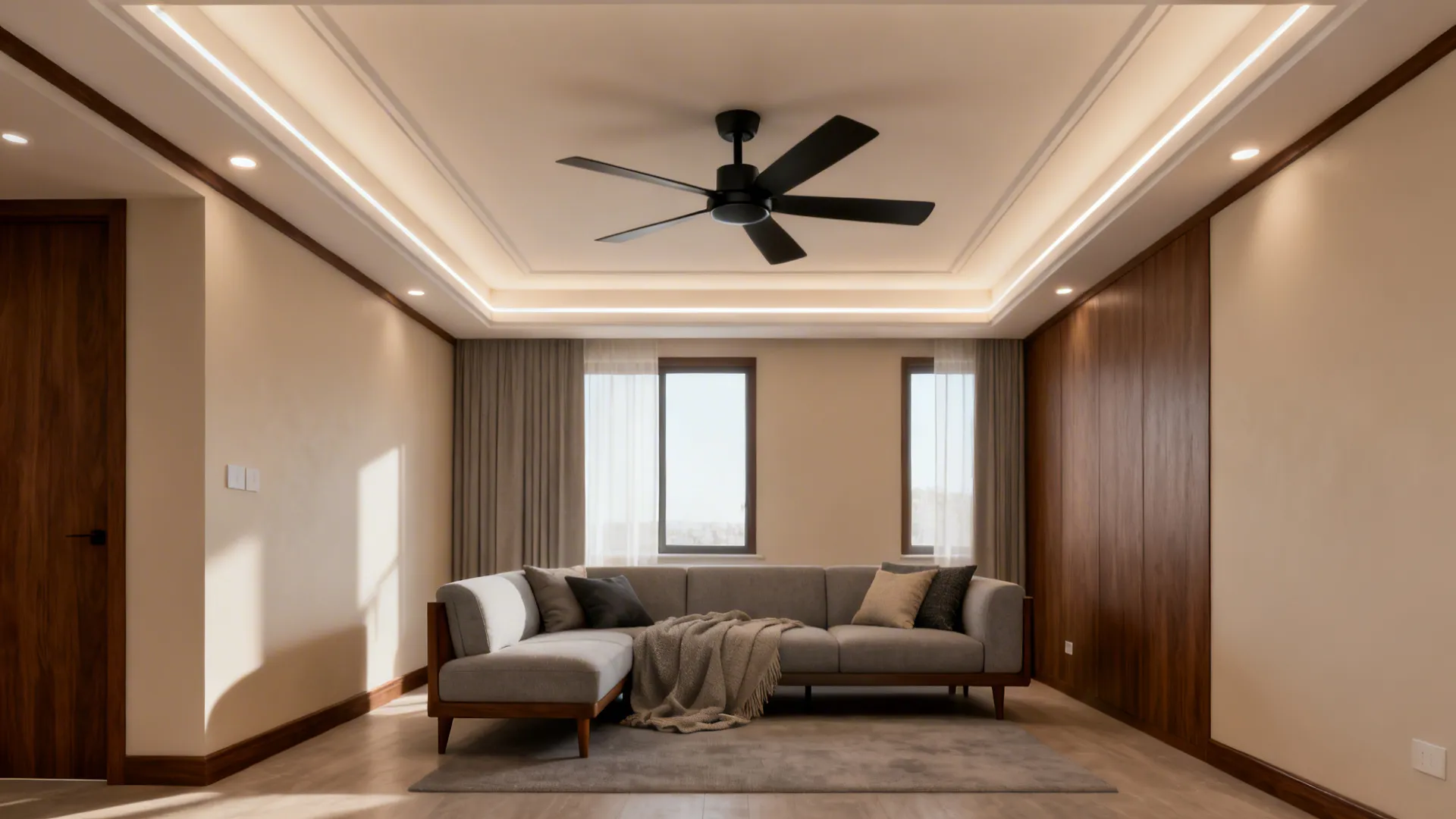

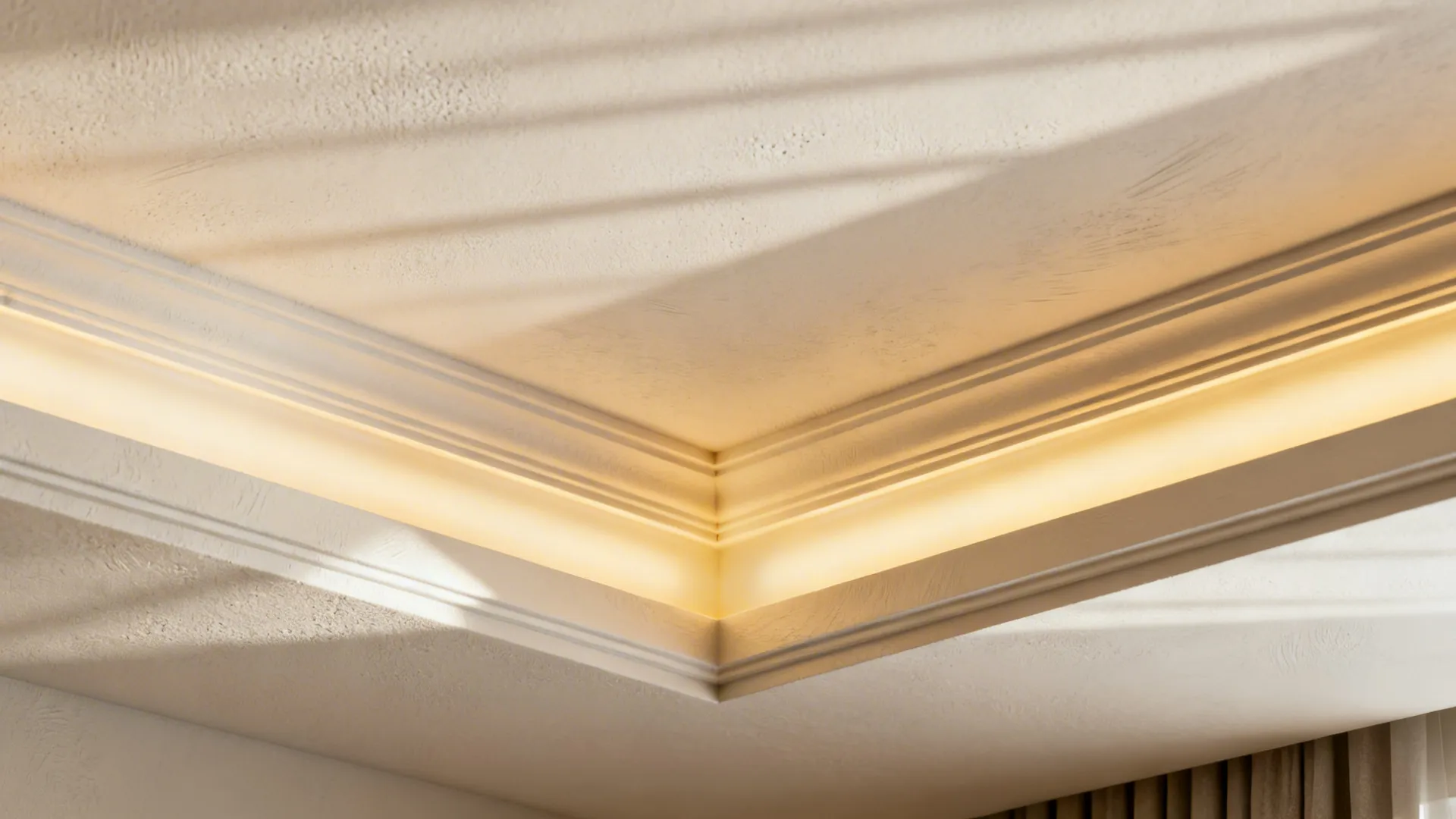

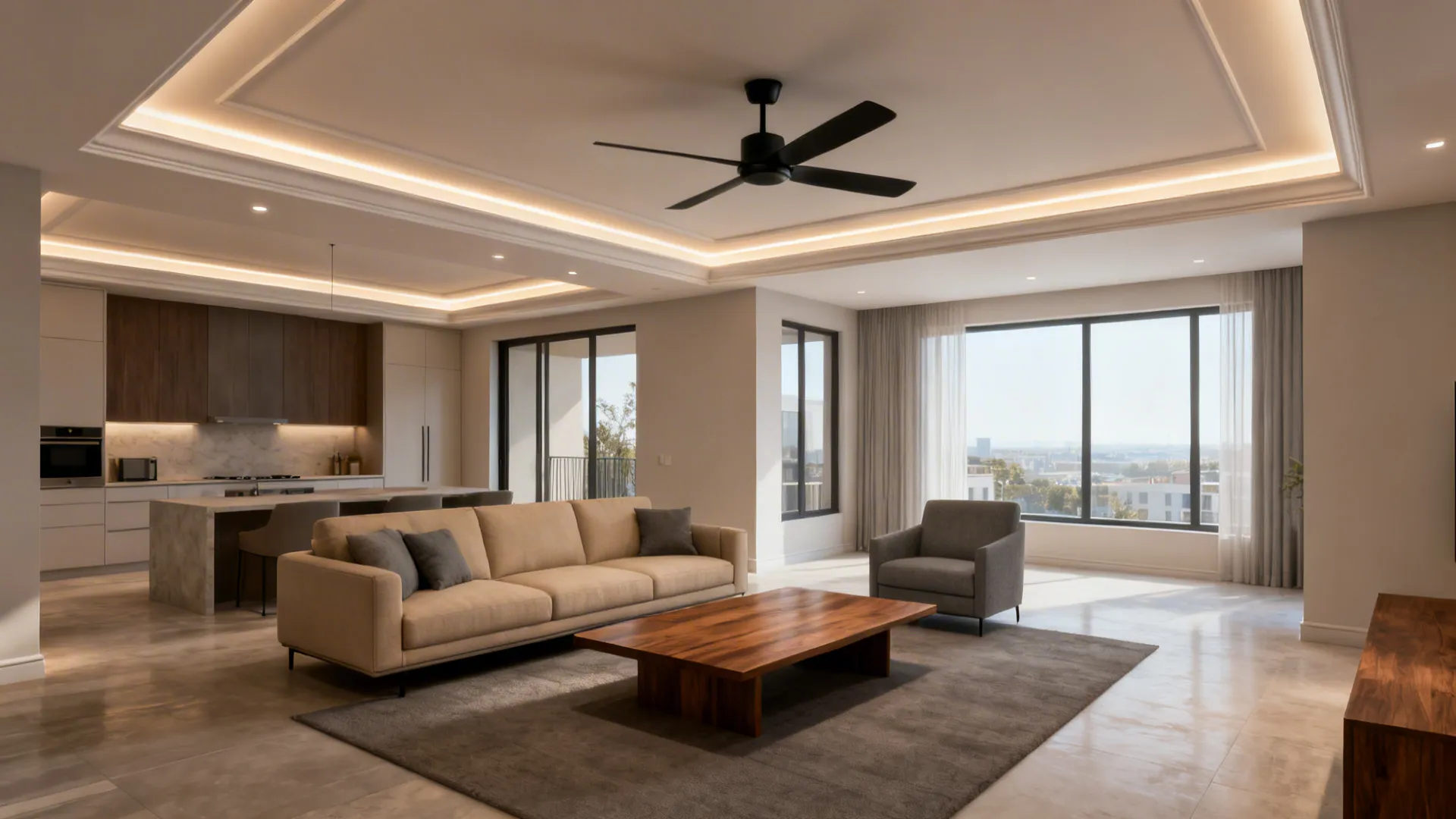

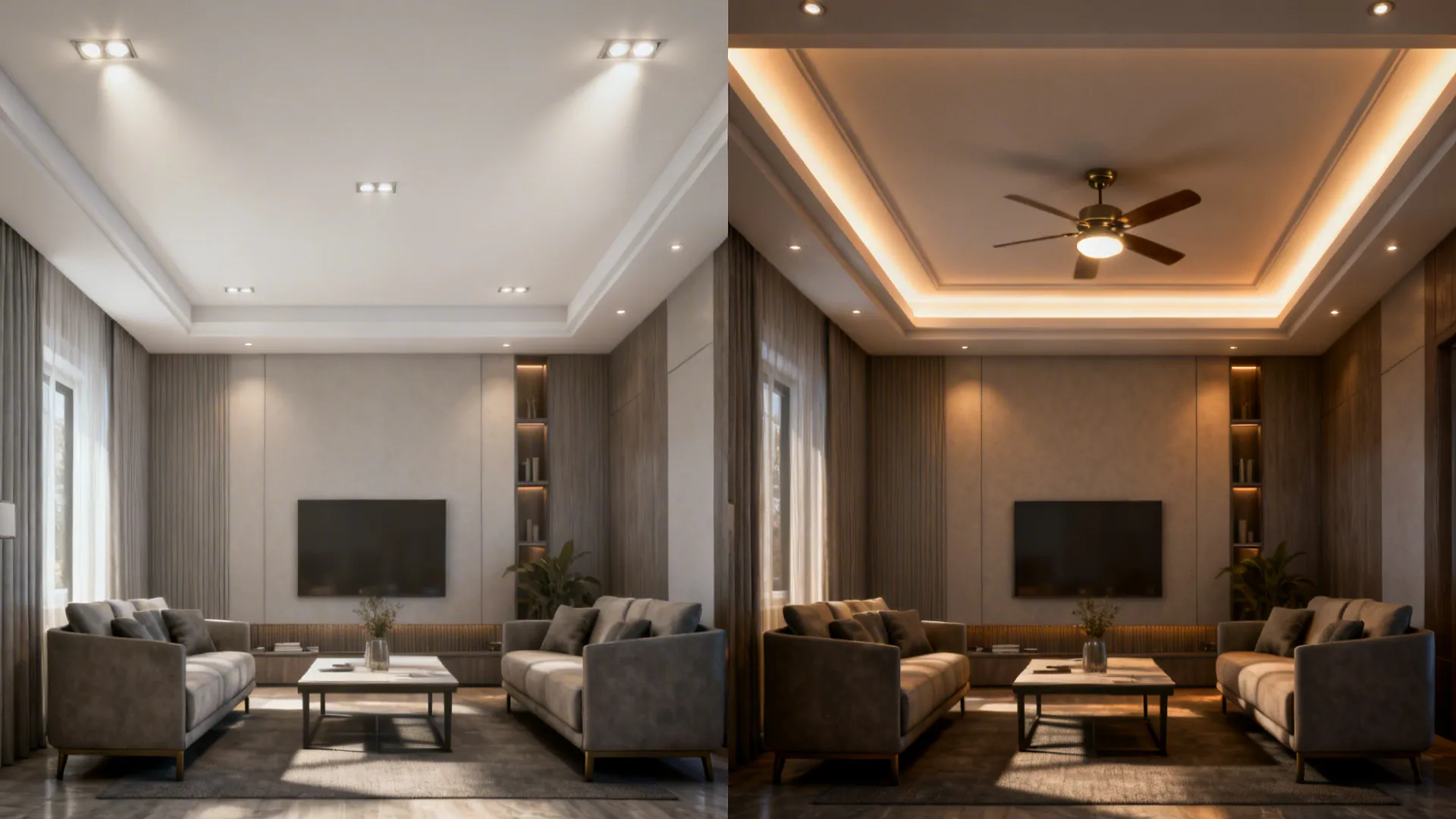

Recessed Tray with Central Fan

My Take: I often start with a recessed tray in apartments where ceiling height is modest (2.6–2.8 m). In one Mumbai flat, this let me center a 52-inch fan and conceal dimmable strips, instantly elevating the drawing room without visual heaviness.

Pros: A tray creates a natural focal point for the fan while keeping blades clear of obstructions—a practical win for a false ceiling design for drawing room with fan. The lowered perimeter hides wiring and LED strips, giving layered ambient light without glare. Per the U.S. DOE’s ventilation guidance, ceiling fans improve perceived cooling by 4°F (≈2.2°C), letting you raise AC setpoints to save energy.

Cons: If the tray drop is too deep (over 150 mm), the room can feel shorter, especially with tall furniture. Also, cleaning cove lips collects dust—my own home’s tray proves this every spring.

Tips/Cost: Keep the tray depth 75–125 mm for a lean look; use 3000–3500K LEDs for a living-room glow. Most gypsum trays run $7–12/ft² locally, excluding paint.

save pin

save pin

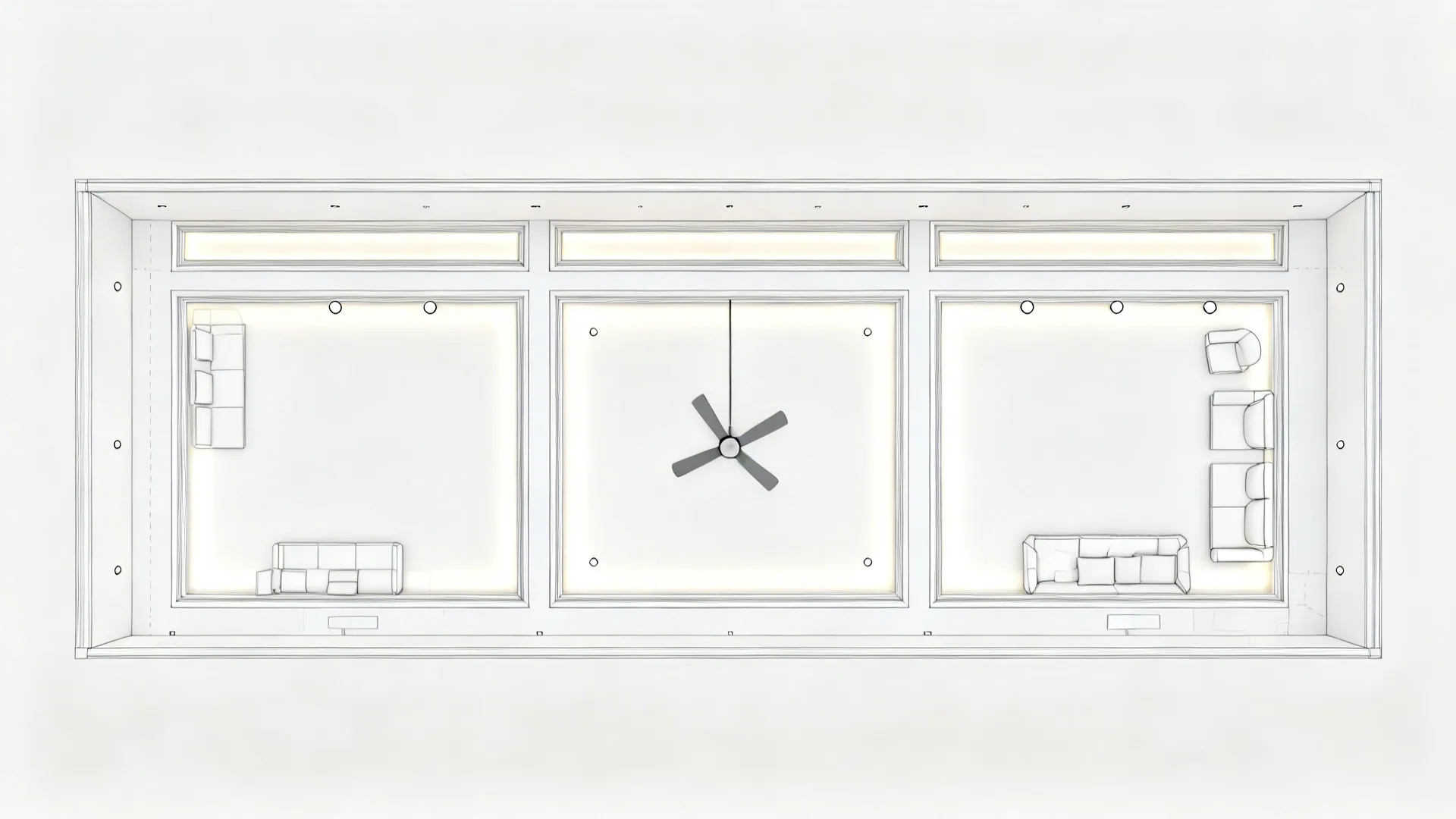

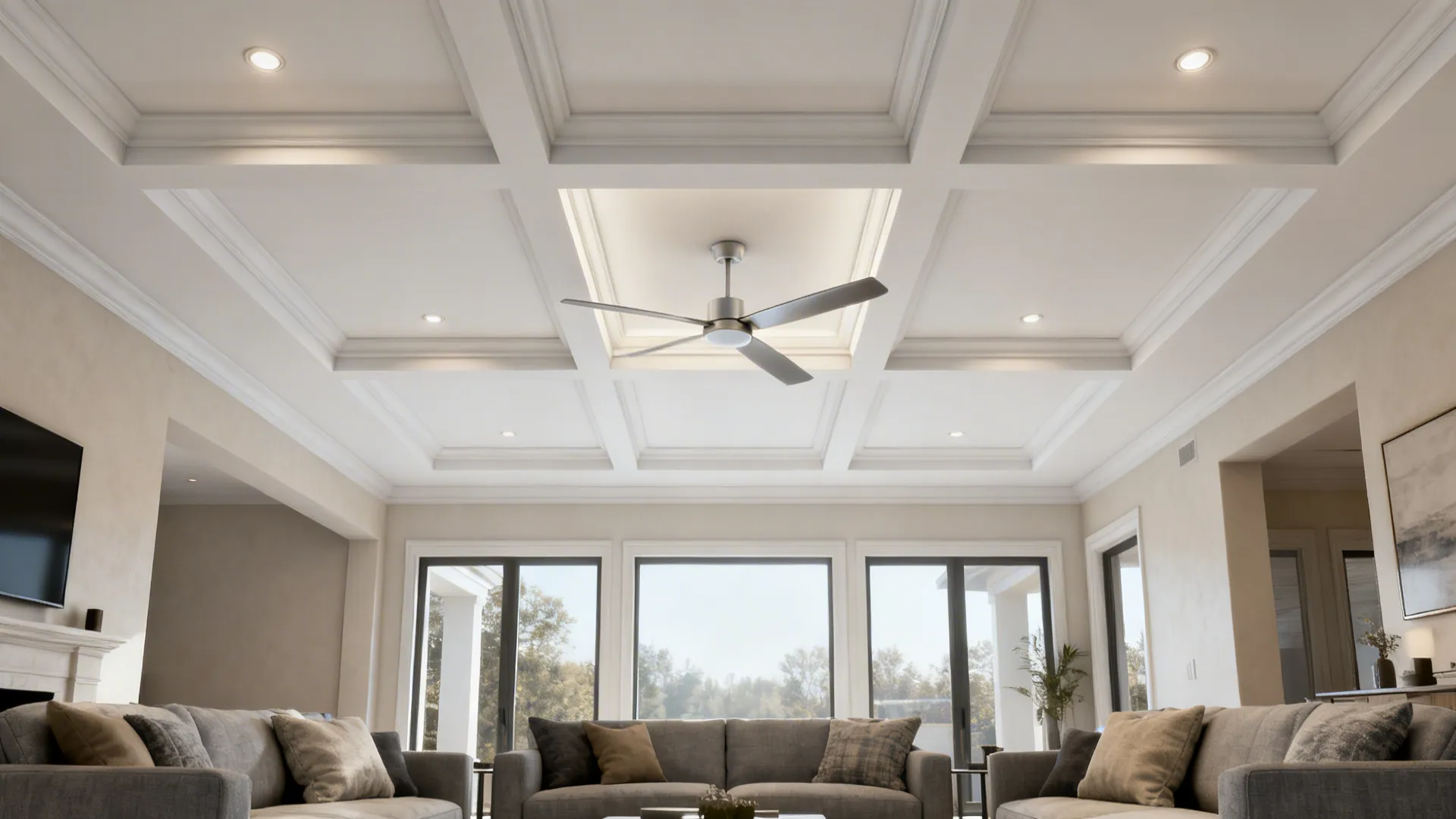

Slim Coffered Grid with Fan Bay

My Take: A shallow coffer grid feels bespoke without eating height. In a rental-friendly update, I designed a three-bay coffer where the center bay aligned with the fan—lightweight, sharp, and easily repainted for the next tenant.

Pros: The coffered rhythm frames the fan and improves acoustics by breaking flat surfaces—a subtle perk in lively drawing rooms. With a central fan bay, you avoid the long-tail issue of fan blade clearance in false ceiling design for drawing room with fan while gaining symmetrical lighting.

Cons: Overly busy grids can fight with crown moldings or wall paneling. And yes, every extra joint is another line to caulk and repaint later.

Tips/Case: Keep coffers to 25–40 mm depth and 600–900 mm spacing for modern proportions. If your home leans minimal, limit to two or three bays to avoid visual clutter.

save pin

save pin

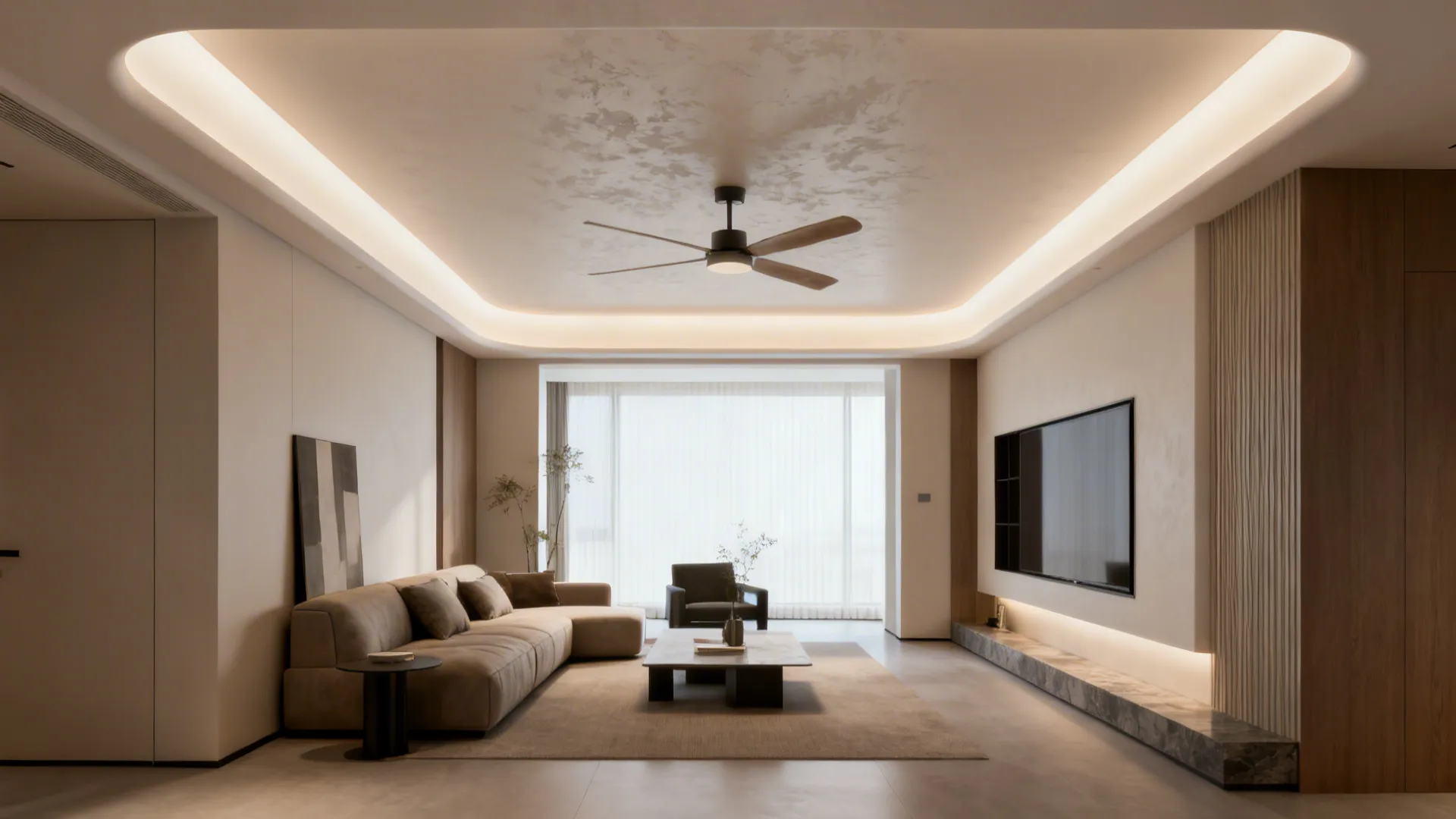

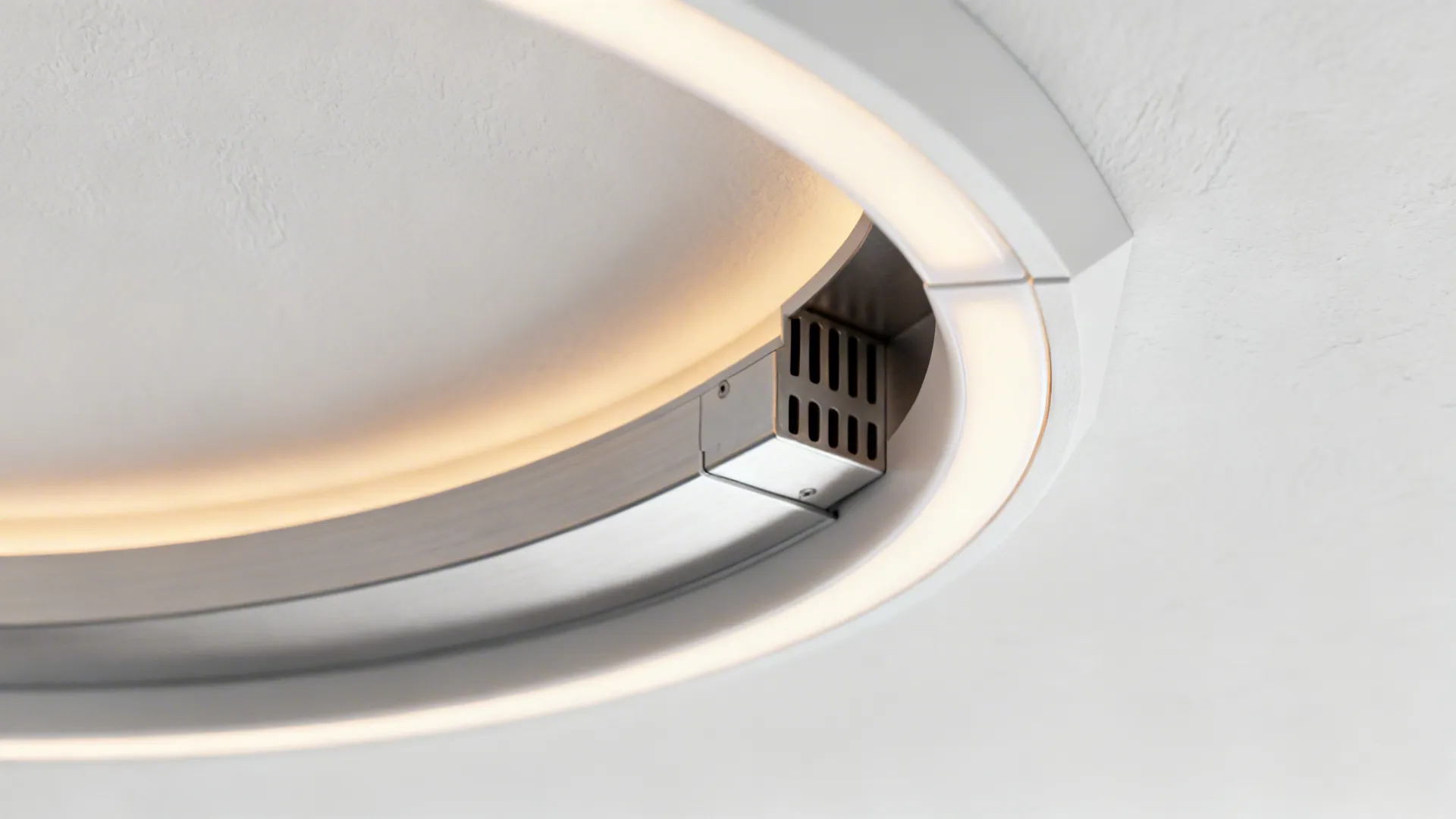

Floating Perimeter Ring with Fan in the Void

My Take: This is my go-to for long, narrow drawing rooms. I float a perimeter ring (a U or full rectangle) and leave the center slab untouched for the fan—clean airflow, dramatic LED grazes on the edges, and no structural headaches.

Pros: Because the fan mounts directly to the slab, vibration is minimized and maintenance is simple—perfect for a false ceiling design for drawing room with fan. The floating effect and hidden RGBW options create scene lighting for movie nights or hosting.

Cons: If the ring is too wide, the center can look like a bare “hole.” Been there—my fix was a subtle texture paint above the fan for depth. Also, installers sometimes over-pack LED drivers; specify venting to avoid heat buildup.

Tips/Cost: Keep the ring 300–450 mm wide; use continuous diffusers at the inner edge for a halo. Budget around $6–10/ft²; add $150–250 for quality aluminum profiles.

Halfway note: For visualizing lighting layers and viewpoints, this set of glass backsplash makes the kitchen brighter scenes translates well to testing reflective surfaces in living rooms too.

save pin

save pin

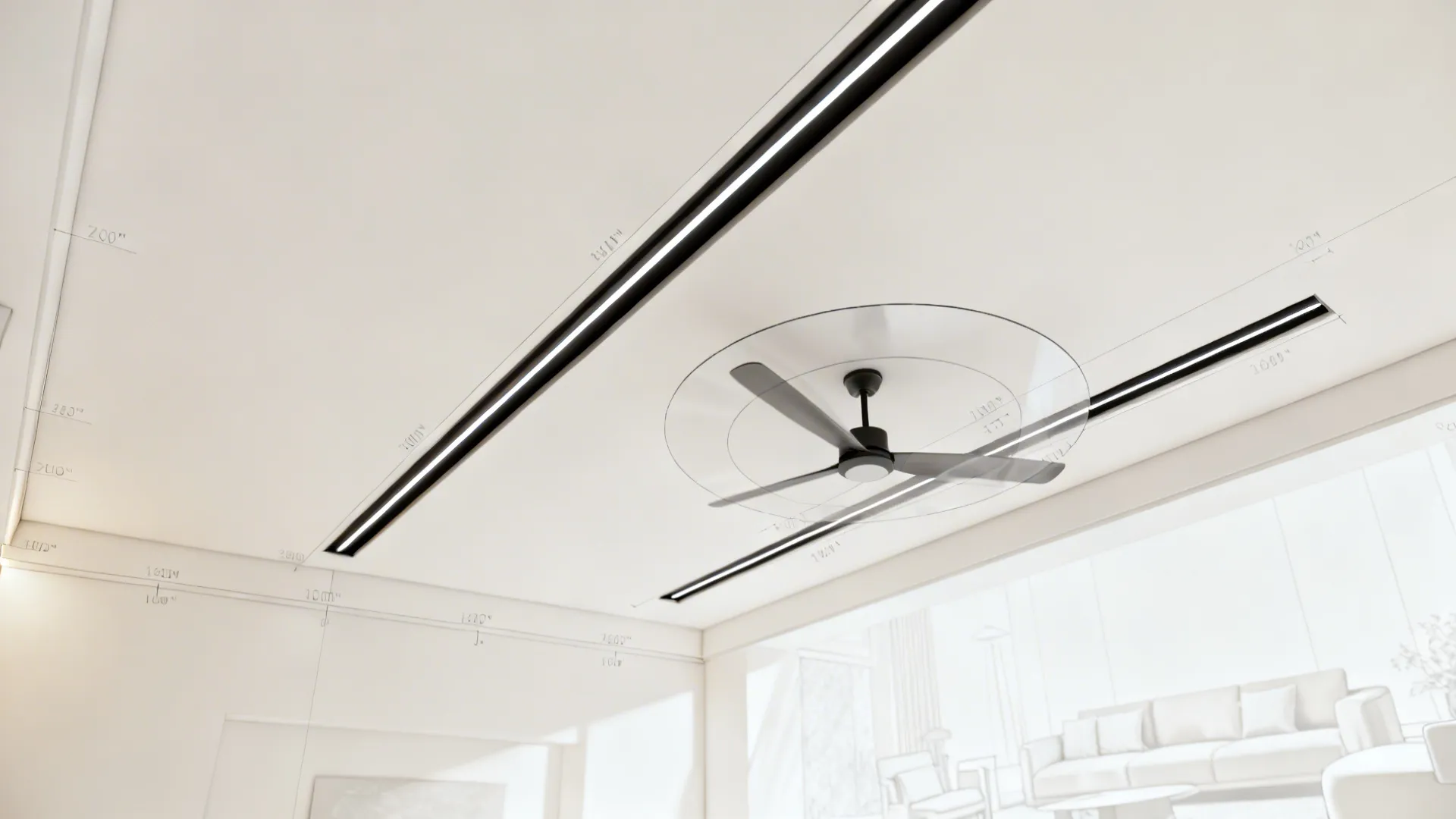

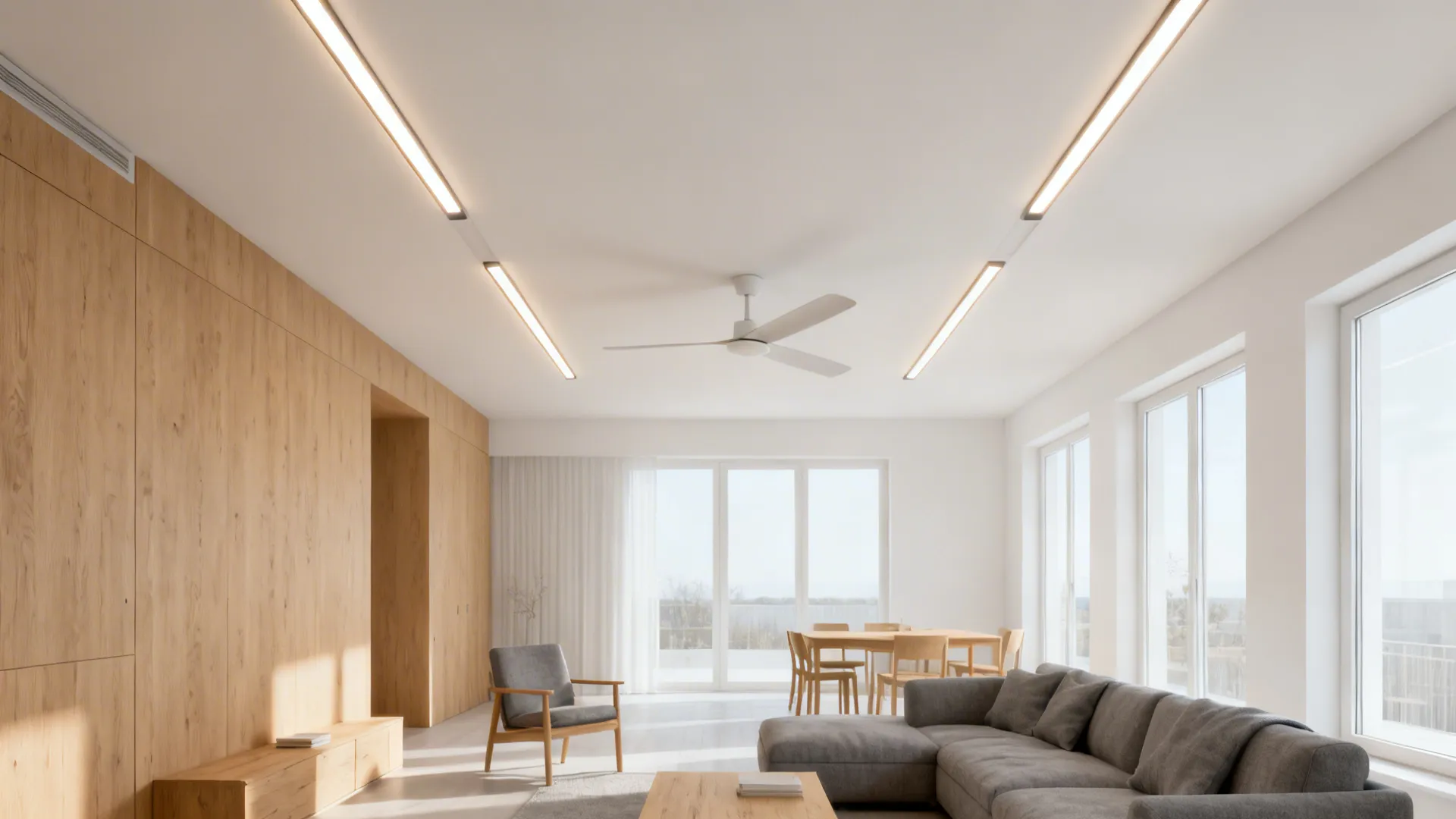

Minimalist Slot Lighting with Fan Offset

My Take: In Scandinavian-inspired spaces, I’ve used two parallel light slots and a slightly offset fan to balance asymmetry with function. The room reads calm and architectural without pendants.

Pros: Slot lights deliver even, shadow-free illumination—great when the fan spins above seating. This approach supports long-tail needs like “minimal false ceiling for drawing room with fan and LED strip” while keeping sightlines clean for wall art or a projector.

Cons: Slots show every gypsum joint error; choose a meticulous contractor. Also, if the fan is too close to a slot, strobing can appear; keep at least 300 mm clearance from blade tips to the diffuser edge.

Tips/Reference: For comfort, the American Lighting Association recommends diffuse ambient layers paired with task lighting—slot beams plus floor lamps do the trick. Stick to 2700–3000K for warmth; 4000K can feel clinical in living spaces.

save pin

save pin

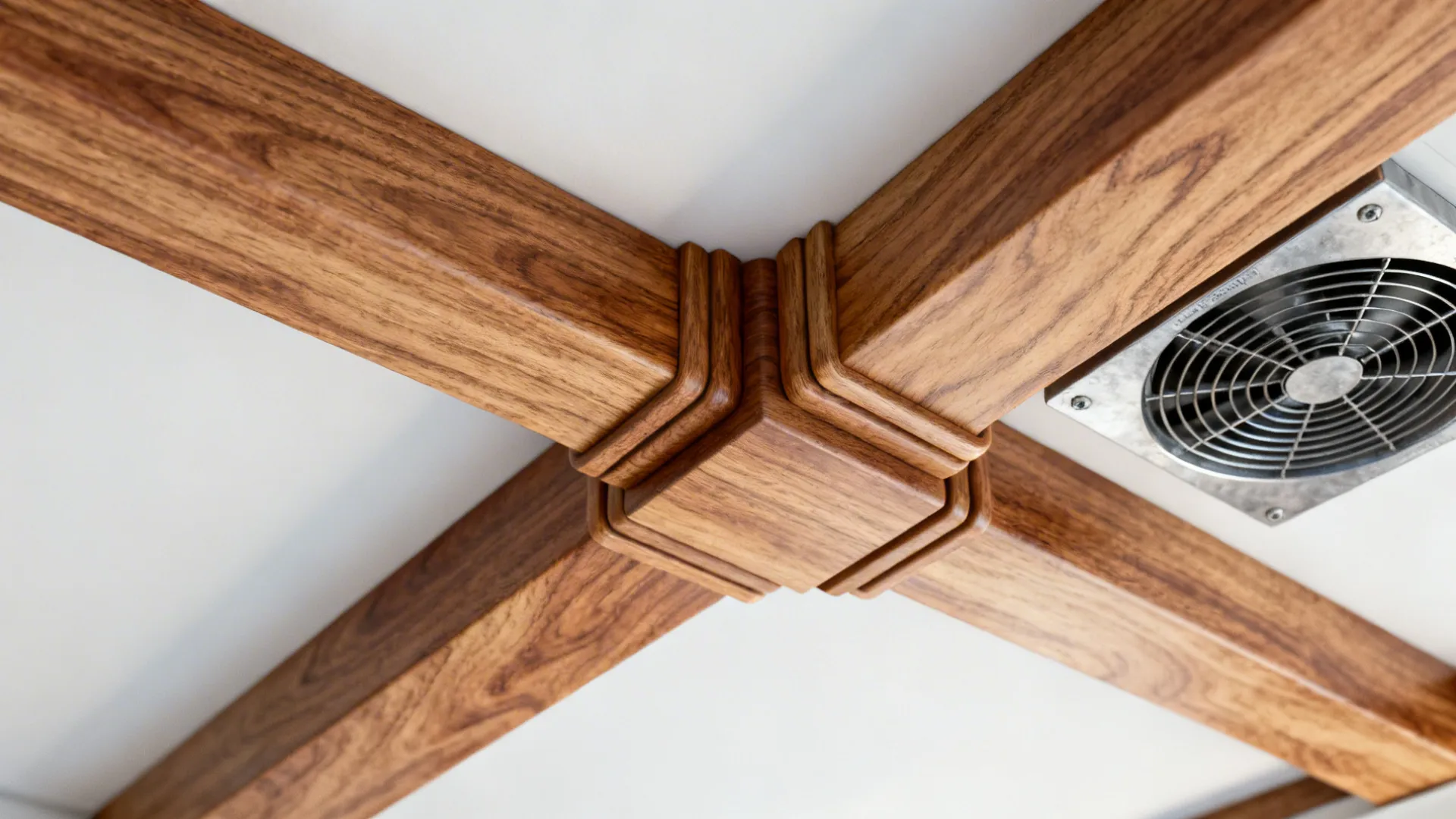

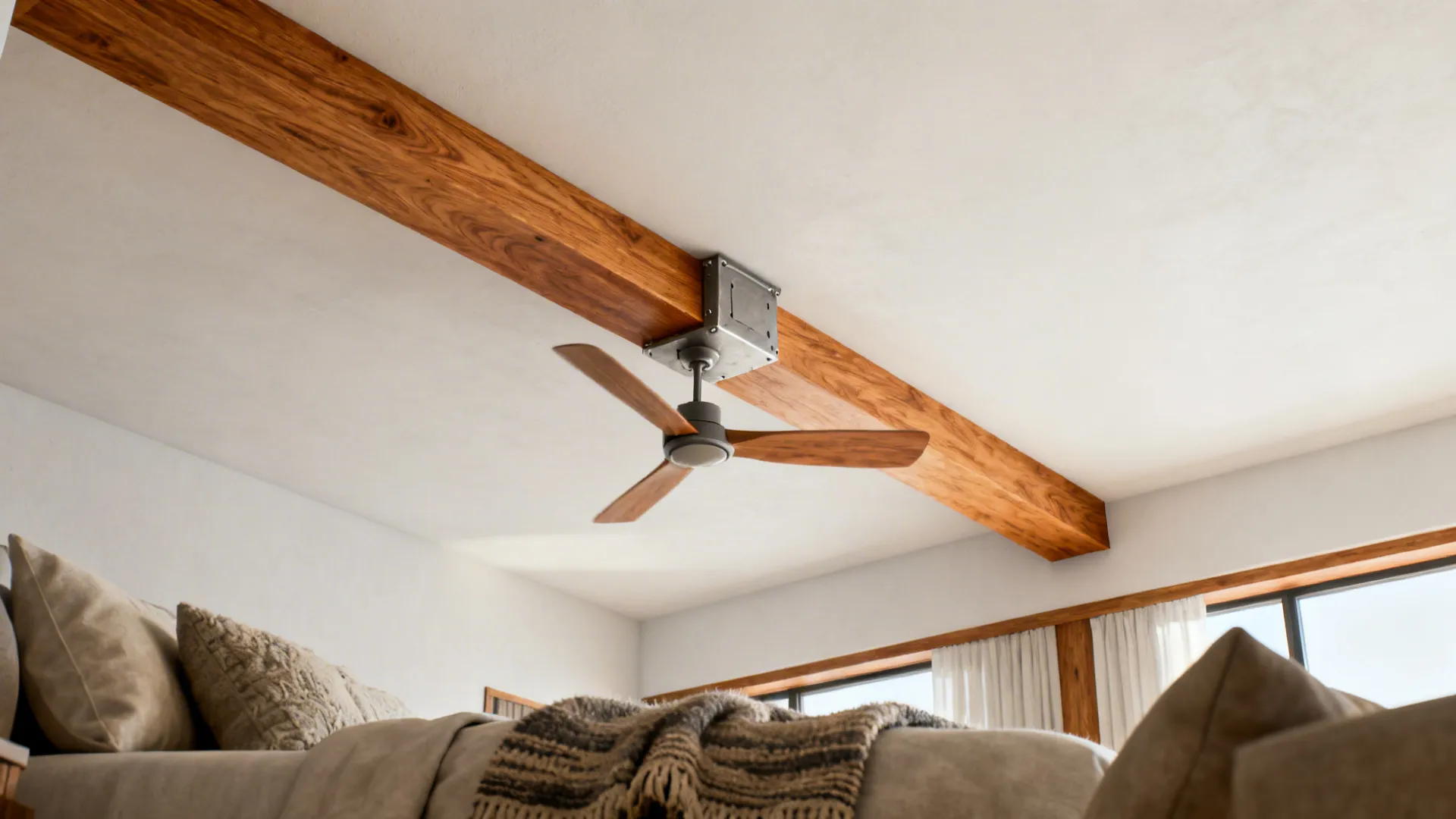

Timber Beam Accent with Concealed Fan Mount

My Take: In a compact heritage flat, a shallow faux-wood beam concealed the fan’s wiring while adding warmth that tied into walnut furniture. It felt artisan without locking us into heavy construction.

Pros: A single beam or pair grounds the room, giving the fan a “reason” to be where it is—ideal for a false ceiling design for drawing room with fan that aims for coziness. Wood tones also absorb some echo, making conversation areas feel intimate.

Cons: Faux finishes can look cheap if the grain repeats—get hand-finished laminates or real veneer. Mind blade clearance: for 52-inch fans, I keep 230–250 mm between blade tip and beam.

Tips/Cost: Use moisture-stable HDF or lightweight pine; plan a metal fan box fixed to the slab, not the beam. Veneered beam wraps can be $18–35/linear foot including finish.

[Section: 设计要点与数据]

Fan Size & Height: For most drawing rooms, a 48–52 inch fan works; ensure 2.3–2.7 m clearance from floor to blade as per common safety guidance. In low ceilings, choose a hugger (flush-mount) model.

Airflow & Energy: ENERGY STAR notes efficient fans can move 15–20% more air using 20–30% less energy; pair with LED dimming for further savings. Raising AC setpoint by 1–2°C can cut cooling costs per DOE guidelines.

Mounting & Safety: Always mount the fan box to the concrete slab or a structural joist. Never rely solely on false ceiling framing for loads—your installer should know this, but I’ve seen risky shortcuts.

Lighting Harmony: Avoid downlights directly under the fan to prevent flicker. Instead, push general lighting to the perimeter and use wall washers for art.

Planning tools matter when you juggle clearances, sightlines, and lighting. If you’re mapping furniture and walkways, try a scene like wood tones bringing warmth to test color temperature and material pairing before committing.

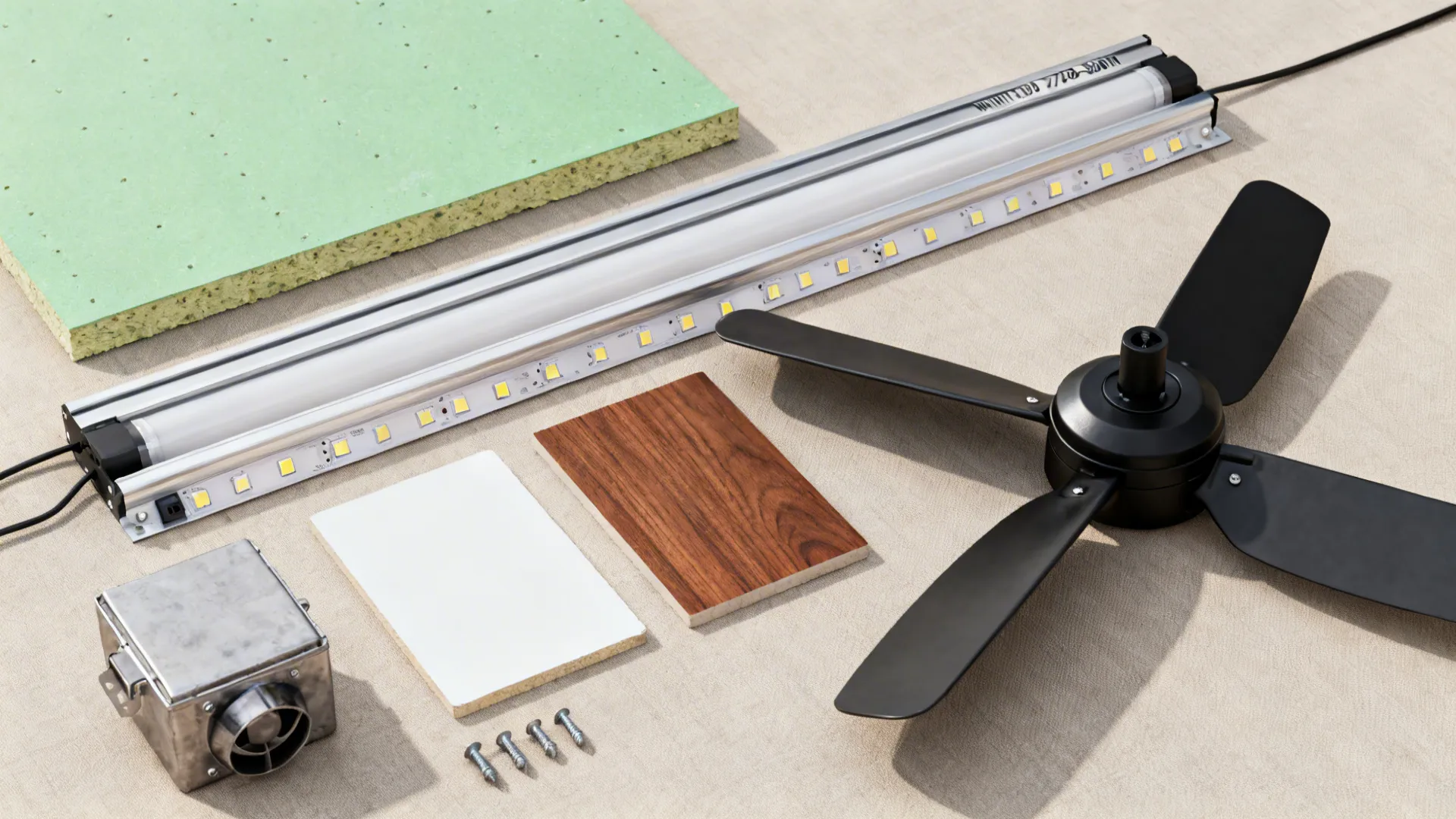

[Section: 材料与施工建议]

Gypsum Board: Use moisture-resistant boards in humid climates and double-screw at 200 mm spacing to reduce cracking. Allow for access hatches near driver locations.

Profiles & Diffusers: Aluminum channels dissipate heat better and keep LED lines crisp; opal diffusers reduce diode spotting at lower costs than microprismatic options.

Paint & Sheen: A matte or eggshell ceiling finish minimizes reflections from fan blades; semi-gloss can exaggerate movement.

Acoustics: Soft furnishings and rugs matter more than ceiling tweaks for echo. Still, coffers and beams help scatter sound.

Controls: Pair a quiet DC motor fan with a wall dimmer for lights and a 3–5 speed controller. App controls are fine, but a tactile switch near entry keeps guests happy.

Near the finish line: If you want to iterate on room proportions and lighting before ordering materials, browse scenes like minimalist kitchen storage ideas to spark space-saving thinking that applies just as well to living rooms.

[Section: 总结]

A smart false ceiling design for drawing room with fan isn’t a compromise—it’s a chance to fine-tune light, airflow, and style. Small rooms invite sharper decisions: shallower drops, cleaner lines, and multi-layer lighting. As the DOE and ENERGY STAR guidance suggest, efficient fans plus sensible lighting make comfort affordable. Which of these five fan-friendly ceiling ideas would you try first?

[Section: FAQ 常见问题]

save pin

save pin

FAQ

1) What ceiling height do I need for a false ceiling with a fan?

Keep at least 2.3 m from floor to fan blades. If your slab is low, use a hugger fan and limit the false ceiling drop to 75–100 mm.

2) Can I mount the fan on the false ceiling frame?

No—always mount to the concrete slab or a structural joist. The false ceiling should only carry its own weight and lighting tracks.

3) How do I avoid flicker from lights under the fan?

Push general lighting to coves or perimeter slots, and keep spotlights outside the fan sweep. Diffused LEDs reduce strobing.

4) What fan size suits a small drawing room?

Rooms around 12–16 m² usually fit 48–52 inch fans. Smaller than 10 m² may benefit from a 42 inch model to maintain clearance.

5) Are ceiling fans energy-efficient with AC?

Yes. According to the U.S. Department of Energy, fans let you raise the thermostat by about 4°F (≈2.2°C) without losing comfort, cutting cooling costs when used properly.

6) Which lighting temperature works best with a fan in living rooms?

Warm white (2700–3000K) feels cozy and masks motion shadows better than cool white. Mix ambient coves with floor lamps for zones.

7) Can I include a chandelier along with the fan?

In compact rooms, avoid center chandeliers to prevent airflow obstruction. Consider a ring cove or wall sconces for drama instead.

8) How do I plan the layout to fit a fan and ceiling design?

Start with furniture zones, then align the fan over seating. If you need visual references, curated scenes like glass backsplash makes the kitchen brighter can help you explore lighting/material interplay conceptually.
