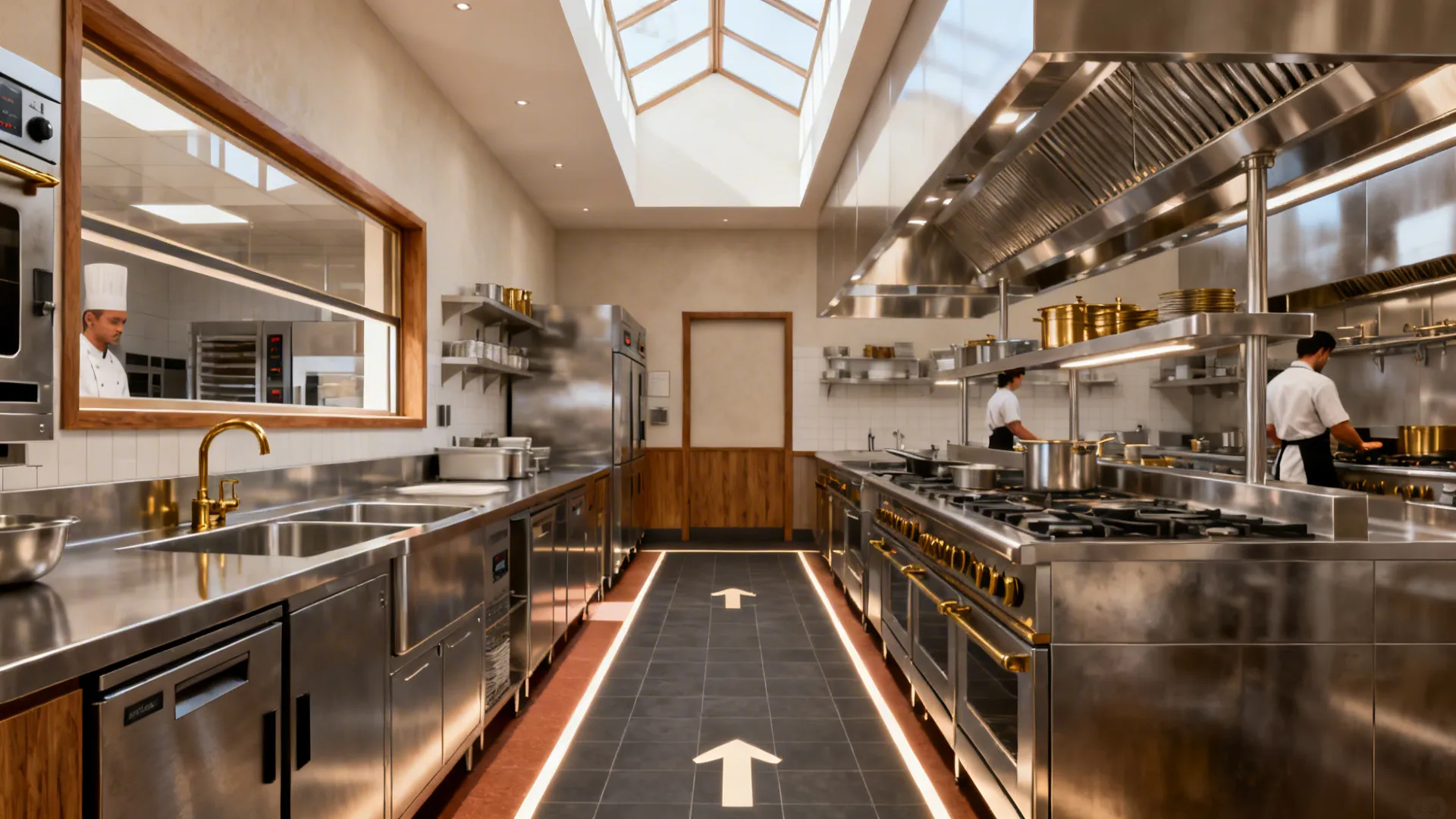

Free Commercial Kitchen Layout Design: 5 Expert Ideas: My 10+ years of real projects distilled into 5 smart, free ways to plan a commercial kitchen layout that’s fast, compliant, and scalable

I’ve designed and renovated plenty of compact commercial kitchens—from artisan coffee bars to 30-seat bistros—and one thing never changes: small spaces trigger big creativity. With free commercial kitchen layout design tools now more capable than ever, we can test ideas quickly, validate workflows, and avoid costly rework. In this guide, I’ll share 5 layout inspirations that I’ve used in real kitchens, blending hands-on experience with expert data to help you plan smarter, spend less, and move faster.

Before we dive in, a quick note on trends. Operators are leaning into flexible equipment, clear staff circulation, and sanitation-first planning. Ghost kitchens and small-footprint eateries are pushing us to do more with less—which is exactly where free commercial kitchen layout design shines. Below are my five go-to strategies, complete with pros, cons, and practical tips grounded in actual projects.

To help you visualize early, I often block out a test workflow and compare prep-to-pass distances. For a starter reference, try mapping your prep triangle and hot line in a simple planner—something that lets you mock up zones and simulate flows like “deliveries → dry/cold storage → prep → cook → plate → pass.” It sounds basic, but it’s the fastest way to spot bottlenecks. I’ll reference a few data points along the way and show where free planning can save you a full round of revisions.

And yes, I stand by this: small kitchens aren’t limitations—they’re invitations to think sharper. Let’s get into the 5 layout ideas I rely on.

First, if you want a quick visual check of line-of-sight, service window placement, and cold storage proximity, sketch it in a free layout and iterate fast. I like pairing sketches with a quick digital mockup so I can measure walking distances and ensure the expo station can see the pass. For an example visualization approach, explore how an L-shaped line unlocks more pass-through efficiency in tight footprints—seeing it to scale makes a world of difference.

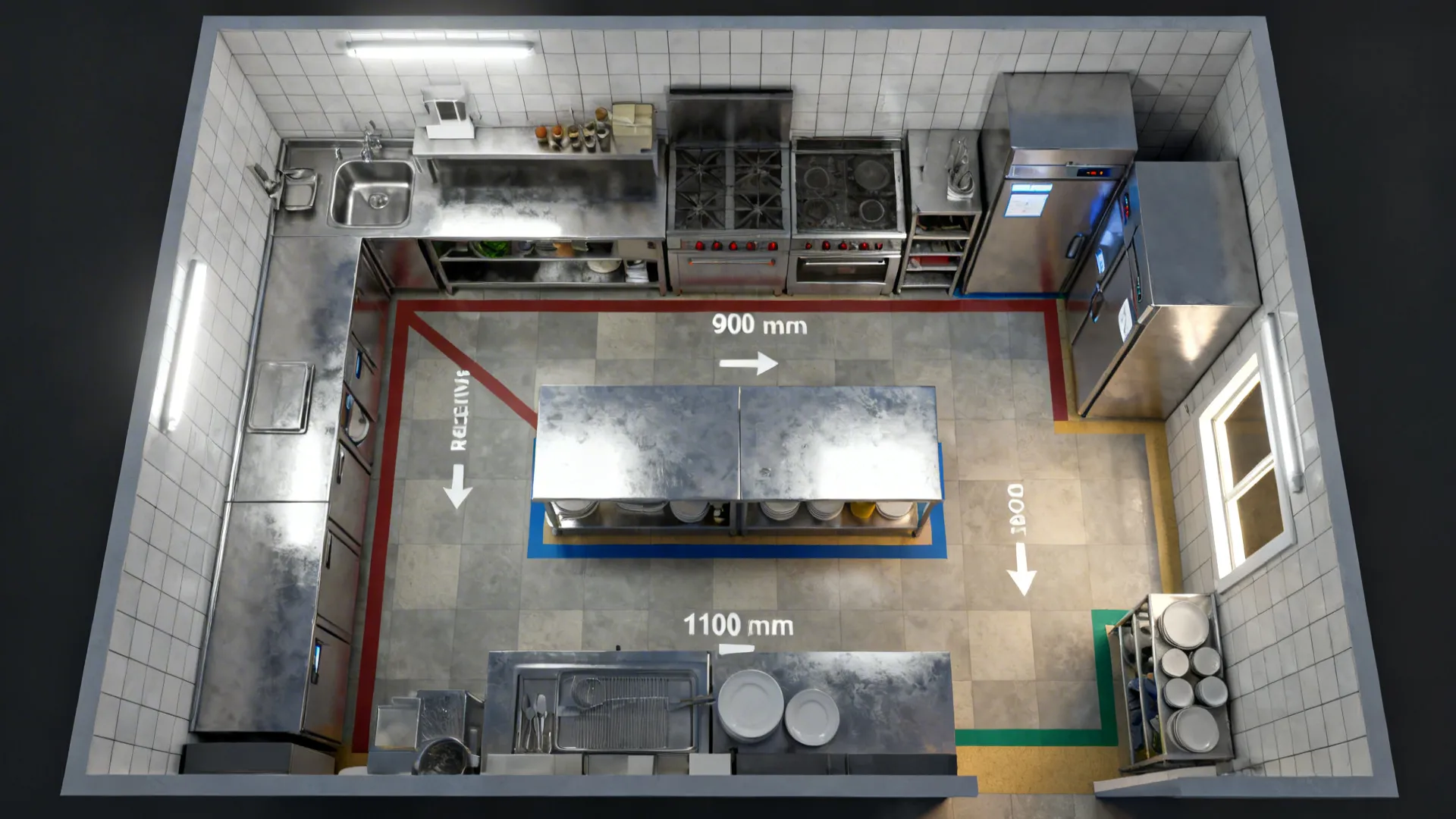

Zone-Based Flow With a Tight Work Triangle

My Take

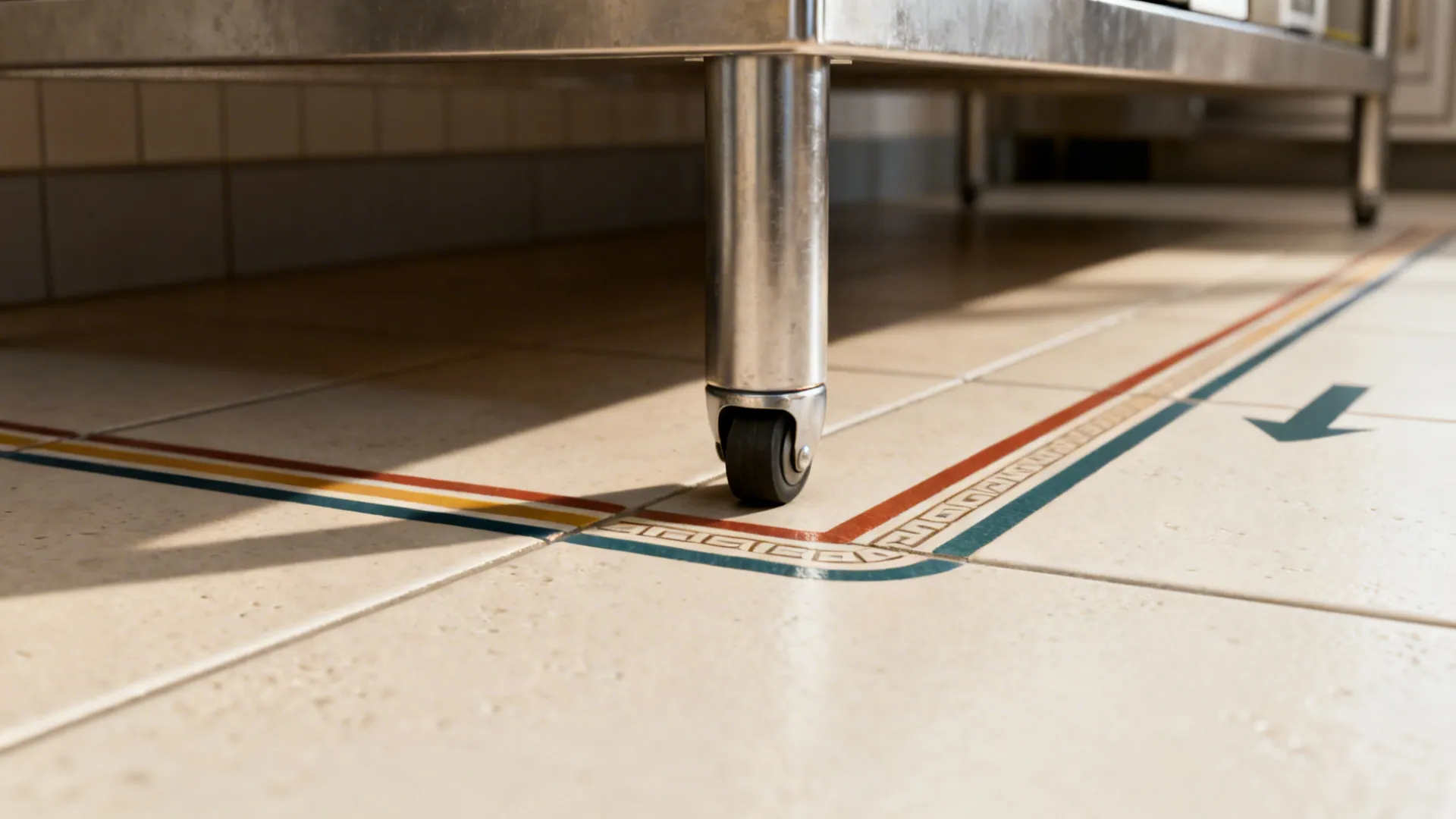

I learned early that zoning wins service. In one 28 m² café kitchen, we color-coded floor tape for receiving, cold storage, veg prep, hot line, and dish. That simple visual plan—backed by a free commercial kitchen layout design mockup—cut cross-traffic by about 25% on opening week.

Pros

- Clear zones reduce collisions and help new staff learn fast; this is crucial for high-turnover teams and aligns with long-tail queries like “commercial kitchen zone planning for small restaurants.”

- A defined work triangle between prep sink, range, and pass speeds plating and improves food safety separation when combined with “raw-to-ready” directionality.

- According to the FDA Food Code (latest update 2022), minimizing cross-contamination through physical or procedural separation is foundational; zoning is the easiest way to operationalize that guideline.

Cons

- Over-zoning can make a small kitchen feel fragmented, especially if you carve too many micro-stations. I did that once in a ramen shop; we lost precious counter runs to unnecessary dividers.

- Rigid zones can limit menu pivots. If your fry and sauté stations are locked by ducts and drains, changing the concept mid-season becomes expensive.

Tips / Cost

- Start with painter’s tape on the floor to test queue lines and landing zones, then translate to a free digital plan. Mark raw intake paths and ensure they never intersect with plated food routes.

- Keep clearance: aim for 900–1,100 mm aisle widths for two-way traffic. For a one-way hot line, 800–900 mm often works if you have strict flow rules.

save pin

save pin

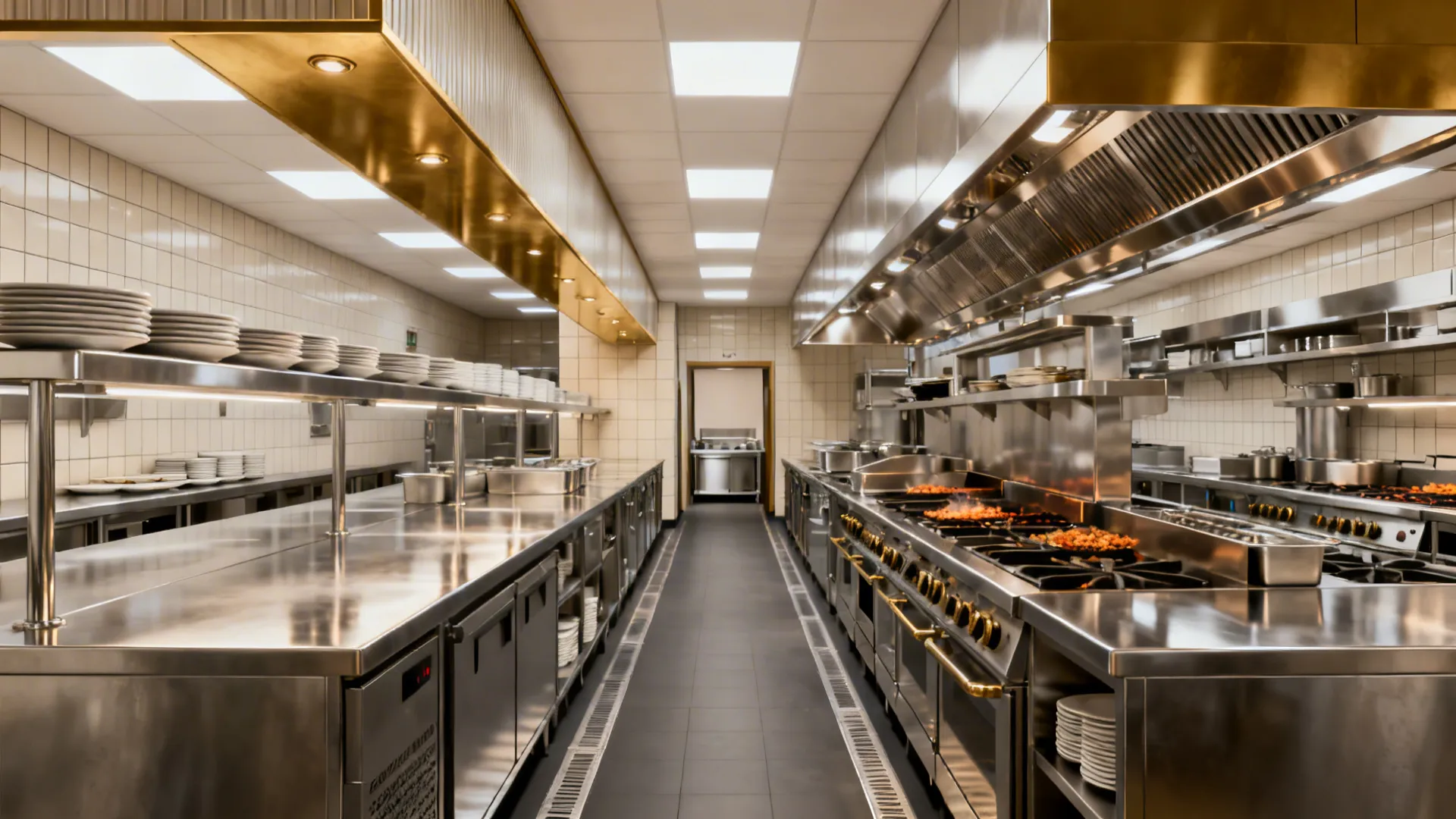

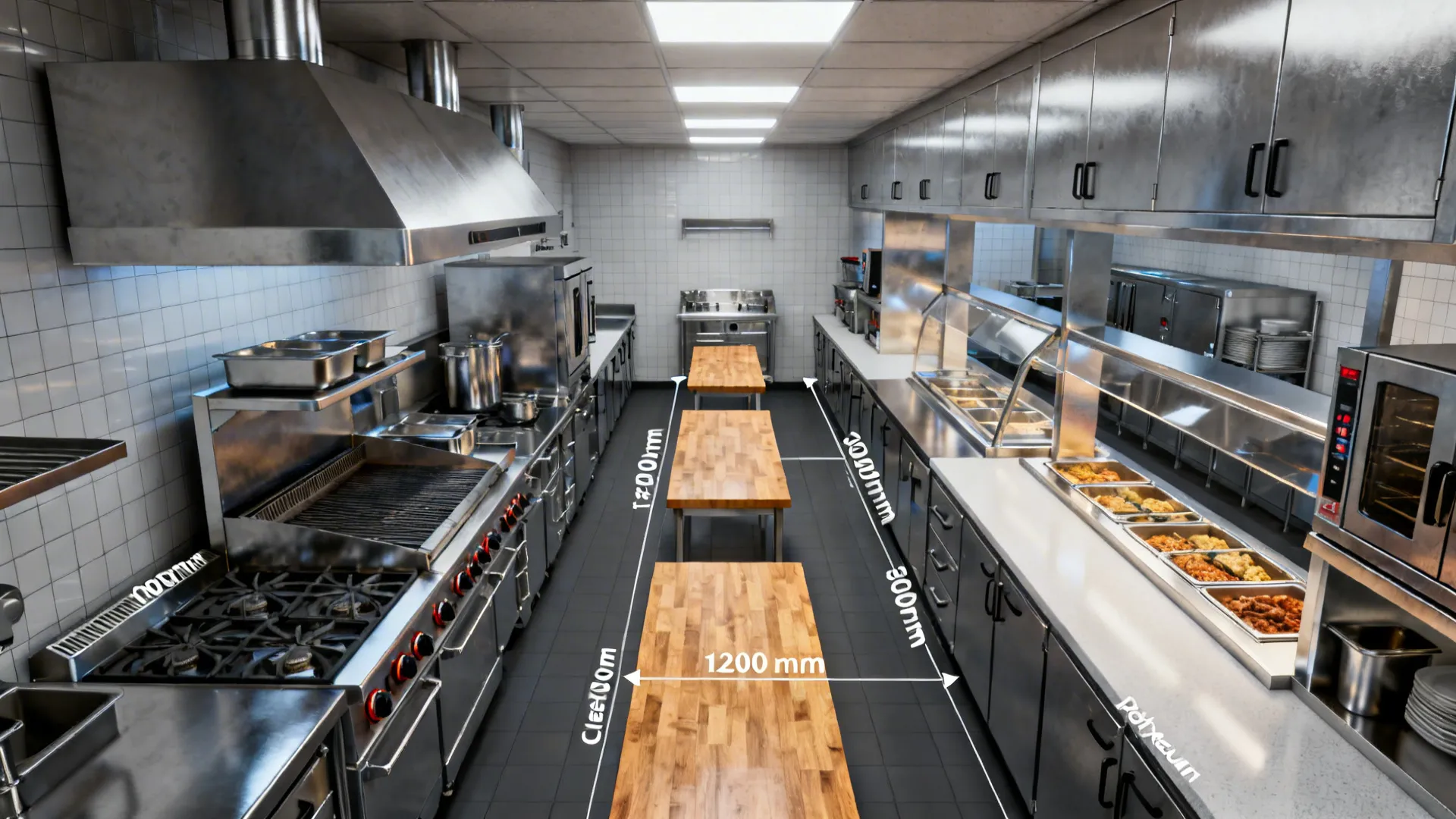

Linearity First: Galley and Corridor Lines That Fly

My Take

When I design for speed, I favor a galley or tight corridor line. In a brunch spot with 40 covers, shifting to a double-sided galley (pass on one side, hot on the other) cut ticket times by 6 minutes on average. We mapped it in a free tool before moving a single appliance.

Pros

- Galley layouts excel in narrow shells and support long-tail needs like “commercial galley kitchen layout for high throughput.” Staff can move in straight lines, which boosts rhythm during rushes.

- Linear hoods and shared utility runs reduce install cost; fewer turns mean simpler ductwork and easier compliance checks.

- Dish return can be placed at the corridor end, minimizing dirty plate cross-over with the expo path.

Cons

- The straight shot can create bottlenecks if one station lags. I’ve seen the grill become the cork in the bottle when the menu was burger-heavy.

- If the space is too narrow, door swings and low-boy fridges can clash. Plan clearances meticulously—and confirm with scaled elevations, not just a floor plan.

Tips / Case

- Standardize prep tables (e.g., 600 mm depth) to align under a single hood bank. Keep hot equipment contiguous to optimize hood capture and make fire suppression planning simpler.

- Consider pass-through warming drawers near expo to stabilize timing when the fry station spikes.

save pin

save pin

Flexible Stations and Modular Prep

My Take

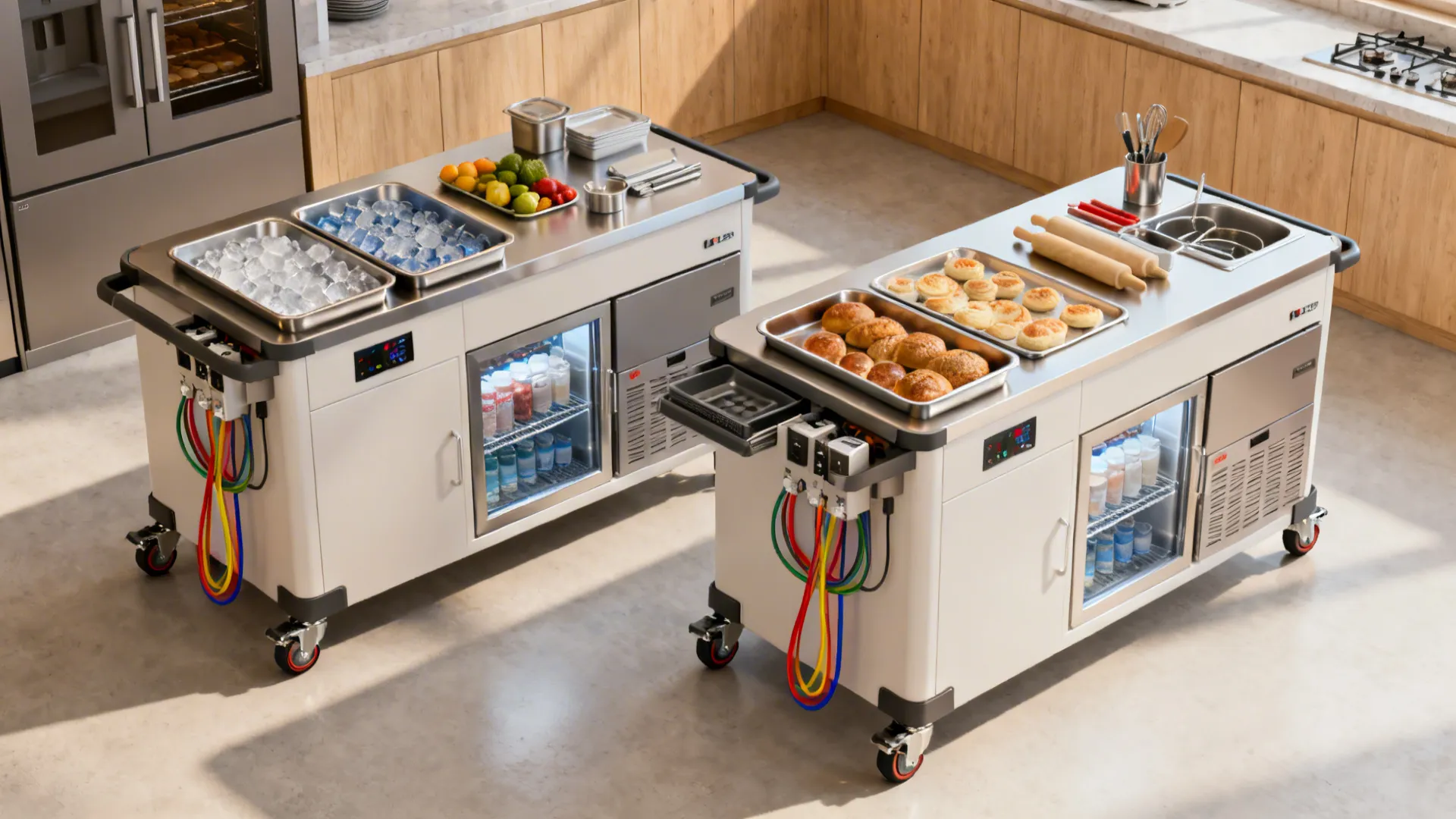

I love modularity for evolving menus. In a wine-bar kitchen, we built two rolling prep stations with locking casters. On tasting nights, they became cold stations; on brunch service, they flipped to pastry and garde manger.

Pros

- Modular benches and undercounter refrigeration support “free commercial kitchen layout design for seasonal menus,” letting you pivot without new MEP work.

- Swappable inserts (GN pans, cutting boards, heat lamps) compress setup time and keep mise en place tight.

- Flex stations reduce training time: the layout looks consistent even when tasks change.

Cons

- Too much flexibility can muddle accountability. In one pop-up, nobody “owned” the roaming cold station, so we kept losing tongs and deli labels.

- Rolling stations need perfectly flat floors; thresholds and tile lips can make moves noisy and unsafe.

Tips / Cost

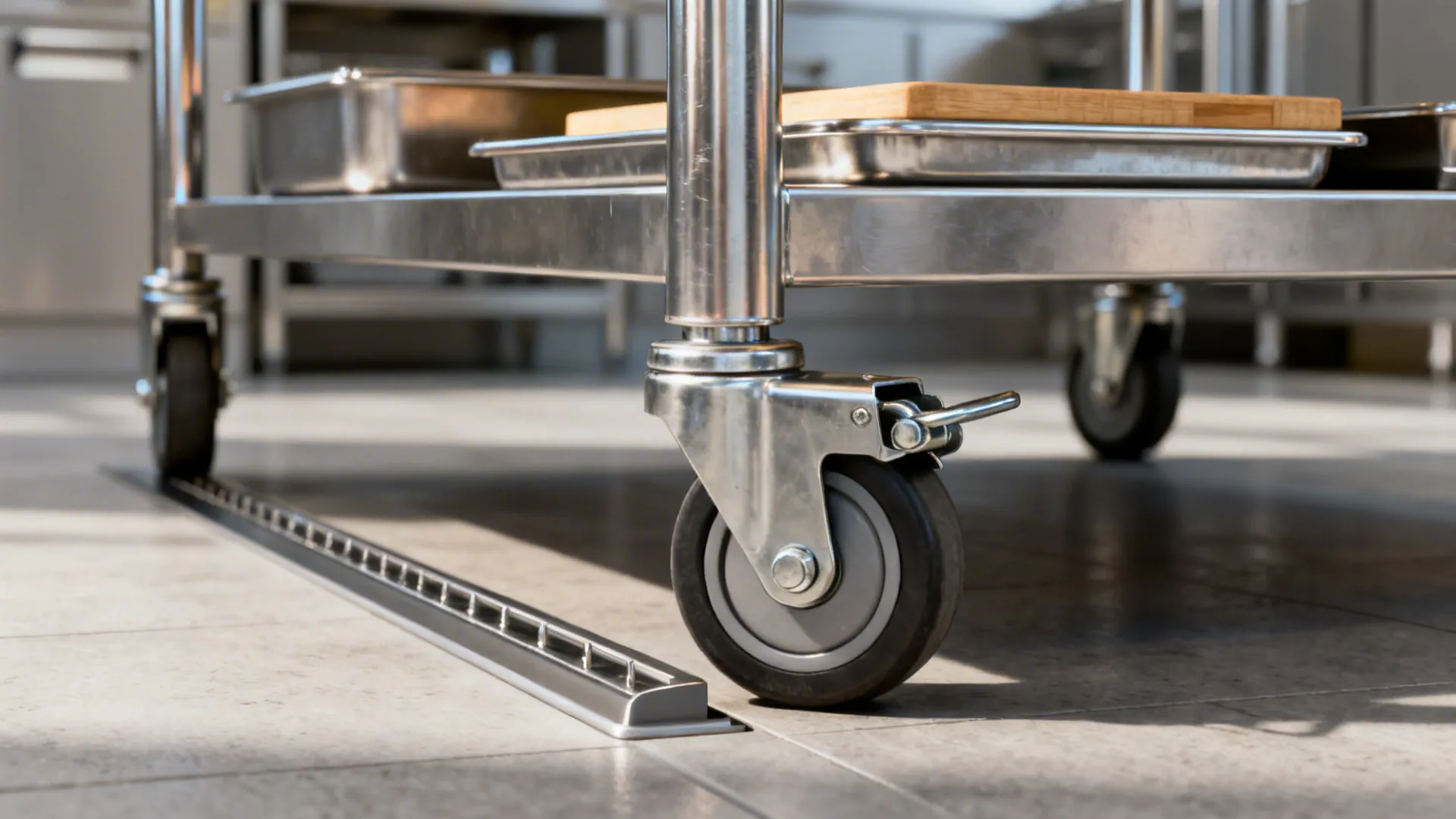

- Invest in heavy-duty casters and brakes; cheap wheels wobble under loaded GN pans.

- Color-code station power cords and label outlets to avoid trip hazards and downtime during service.

At this point, you should be roughly halfway through planning scenarios. If you’re testing linear vs. modular lines, create two scaled versions and compare walking distances, hood lengths, and pass visibility. For a 1:1 visual of linear vs. L-shape, I sometimes generate a quick 3D to verify sightlines from expo to dish. Try a sample rendering flow that shows how back-of-house visibility impacts expo timing—even a basic model helps you catch blind spots before build-out.

save pin

save pin

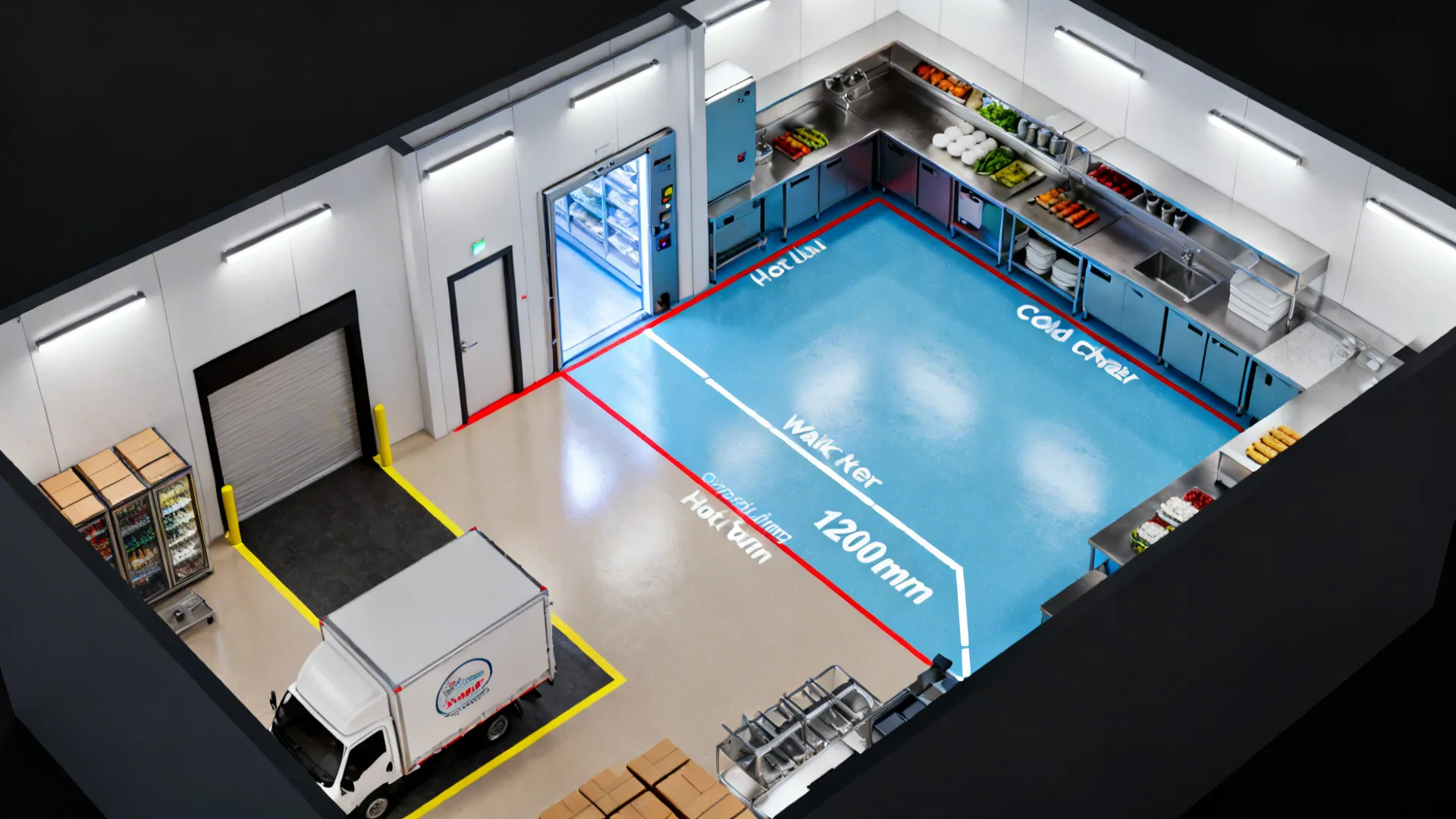

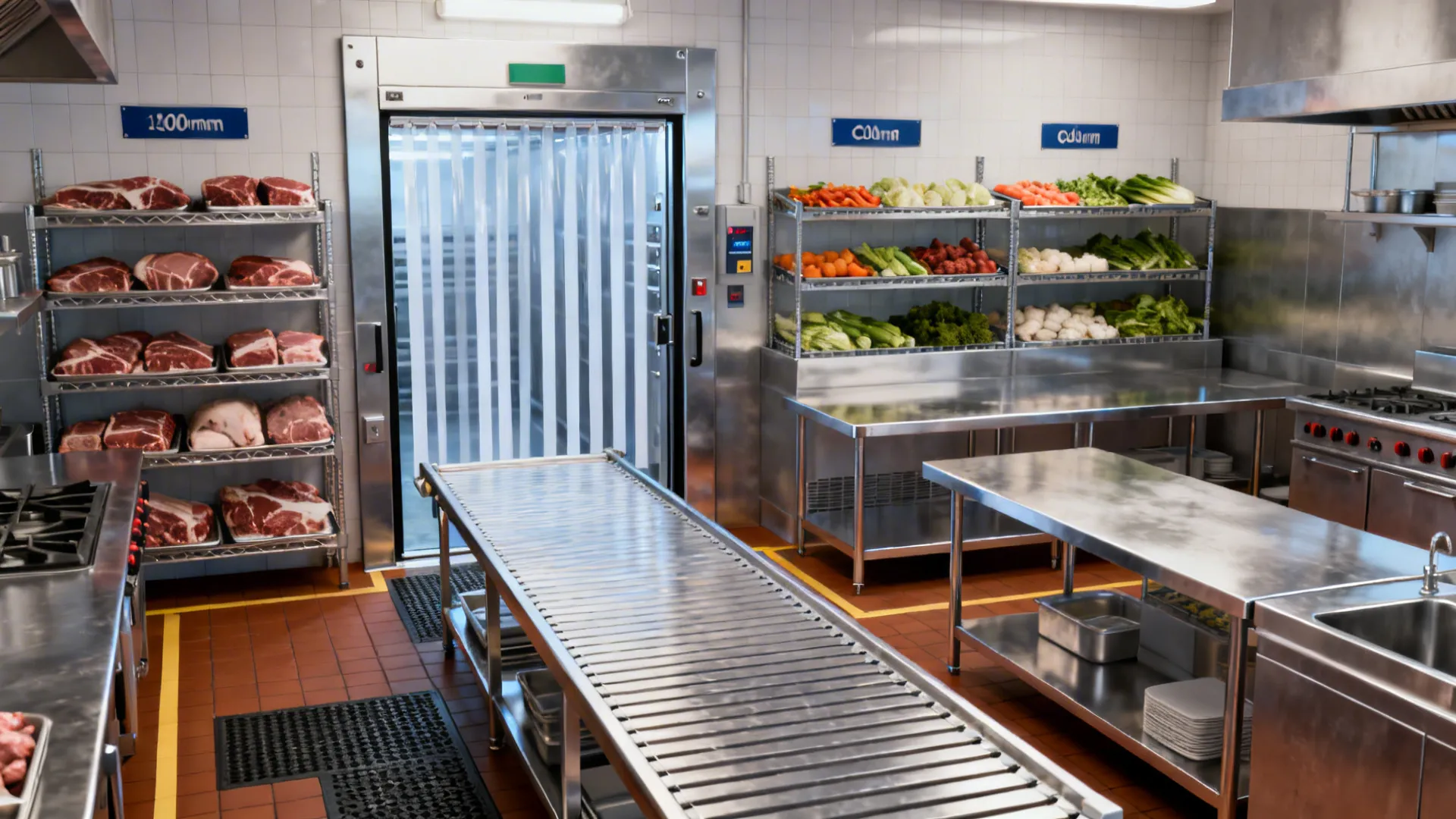

Cold-Chain Discipline: Storage to Prep Without Cross-Back

My Take

Nothing tanks a service faster than poor cold chain logic. In a deli kitchen I reworked last year, we shifted walk-in door orientation and shaved 20 seconds per trip from cold storage to prep—sounds tiny, but across 300 covers, it’s huge.

Pros

- Direct routes from receiving → walk-in → cold prep align with HACCP principles and “commercial kitchen cold chain layout best practices.” The FDA Food Code (2022) stresses maintaining time/temperature controls for safety; shorter paths help.

- Proper shelf zoning (raw below, ready-to-eat above) and labeling stations adjacent to the walk-in reduce open-door time and temperature drift.

- Fewer backtracks mean fewer slip-and-fall risks around the walk-in threshold.

Cons

- Walk-in placement can be dictated by the building core. I’ve had to choose between ideal flow and realistic refrigerant line runs more than once.

- If the walk-in is too close to the hot line, you’ll battle condensation and staff congestion at pass time.

Tips / Case

- Keep at least 1,200 mm clear in front of cold storage and ensure door swing doesn’t cut into your main aisle.

- Use strip curtains to reduce thermal loss, and schedule bulk pulls pre-service to avoid peak-door moments.

save pin

save pin

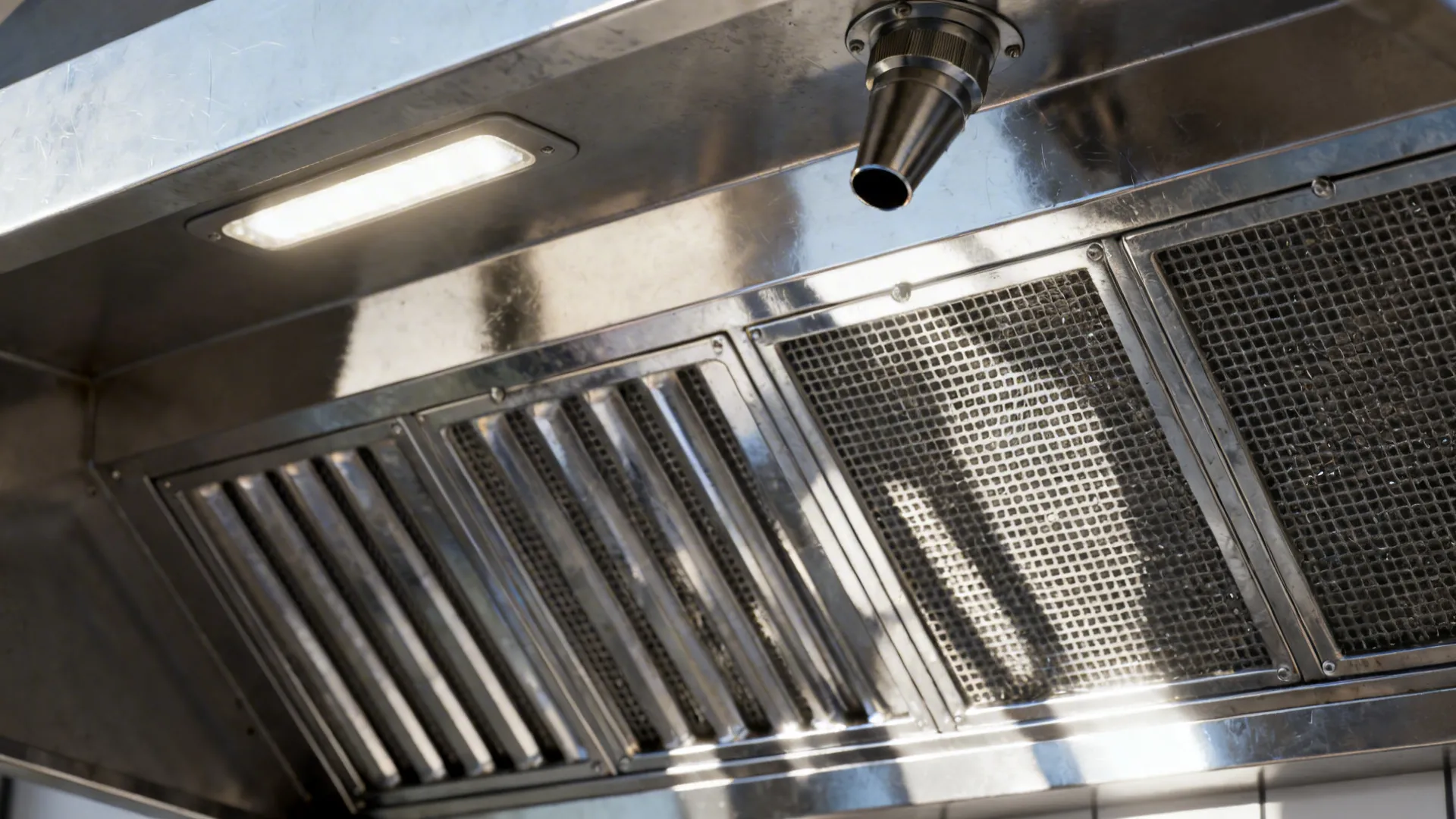

Ventilation-First Hot Lines

My Take

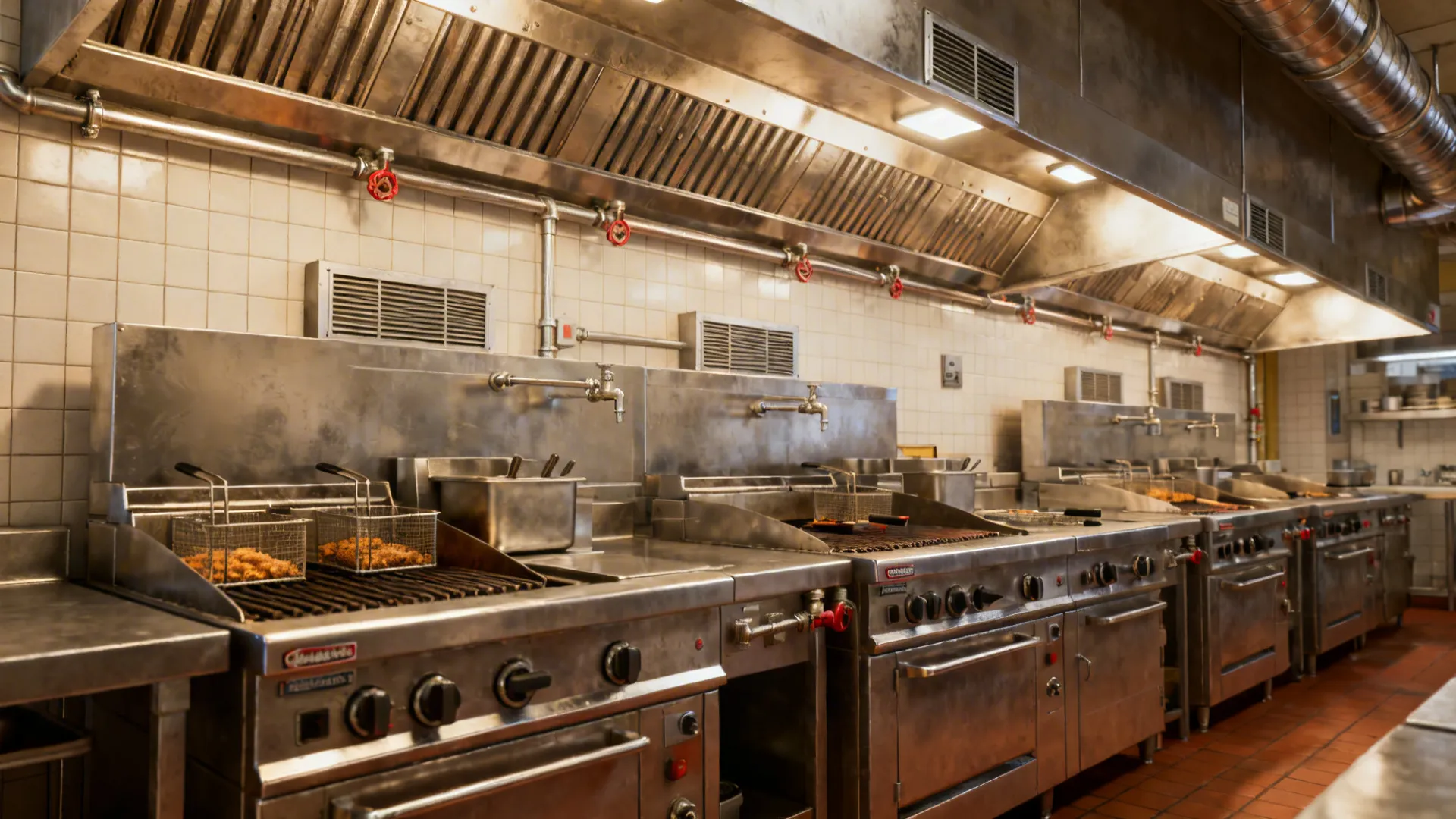

In commercial kitchens, your hood line is the spine. I once re-stacked fryers, grill, and range purely to shorten the hood run, which saved on ducting and improved capture. We validated spacing and make-up air in a free layout before calling the engineer.

Pros

- Grouping high-heat equipment under a continuous hood supports “commercial kitchen hood layout design,” often reducing fire suppression complexity and cost.

- Good capture and containment improve air quality, lower grease migration, and help with local code approvals faster.

- According to ASHRAE research, balanced exhaust and make-up air can reduce energy penalties while maintaining comfort; aligning equipment under one hood helps balance planning.

Cons

- Chasing the perfect hood can override workflow. I’ve seen beautifully balanced ductwork that puts sauté way too far from the pass.

- Some shells make straight ducting impossible; elbows add cost and reduce efficiency.

Tips / Cost

- Keep side clearances per manufacturer specs; don’t rely on “almost” distances—inspectors won’t.

- Consider low-wall returns for make-up air to avoid drafts across the pass; your expo will thank you.

As your plan solidifies, pressure-test it with a fast digital mockup of queueing, dish return, and expo views. If you’re weighing aisle widths or station adjacency, it helps to compare multiple scaled options. I sometimes test how AI-assisted zoning highlights collision points so I can tweak station boundaries before final MEP drawings.

save pin

save pin

Conclusion: Design Small, Think Smart

Free commercial kitchen layout design isn’t about cutting corners—it’s about investing thinking time before construction dollars. A small back-of-house pushes us to be sharper with zoning, ventilation, and cold-chain logic. As the FDA Food Code reminds us, clear separation and flow aren’t just good ideas; they’re safety essentials. My rule of thumb: let the menu write the layout, then let the layout protect the menu. Which of the five ideas do you want to try first in your space?

save pin

FAQ

1) What is the best free commercial kitchen layout design approach for a tiny café?

Start with a galley layout and a tight work triangle. Use modular prep stations to pivot between breakfast and lunch without moving plumbing or power.

2) How wide should aisles be in a compact commercial kitchen?

Plan for 900–1,100 mm for two-way traffic, and 800–900 mm for one-way lines. Always verify clearances for door swings and undercounter units against scaled drawings.

3) How do I keep raw and ready-to-eat items separate in a small back-of-house?

Use directional flow: receiving → storage → prep → cook → plate. The FDA Food Code (2022) emphasizes preventing cross-contamination through separation and controls.

4) What’s the quickest way to test multiple layouts for my menu?

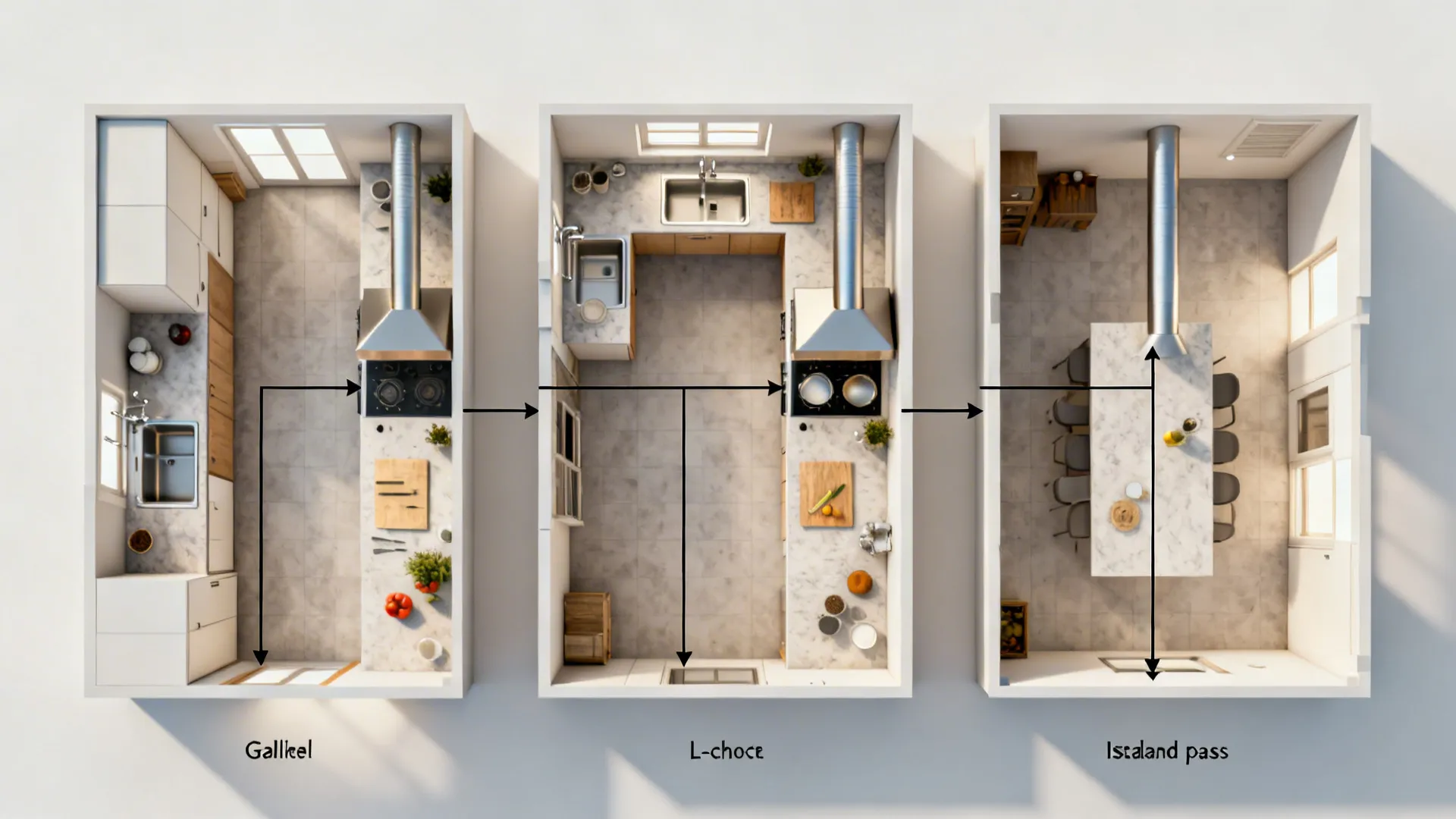

Create two or three digital mockups (galley vs. L-shape vs. island pass) and compare walking distances and hood lengths. If helpful, generate simple 3D views to check sightlines from expo to dish.

5) Can I design a commercial kitchen layout that scales for seasonal menus?

Yes—plan flexible stations with modular inserts and standardized table depths. This supports swift reconfiguration without changing your MEP backbone.

6) How do I plan the hood line in free commercial kitchen layout design?

Group hot equipment under a continuous hood, maintain manufacturer clearances, and coordinate make-up air. Balanced ventilation reduces grease migration and energy penalties.

7) Where should the walk-in be placed in a small kitchen?

Prioritize short paths from receiving to cold prep, with ample clearance at the door. Avoid positioning the walk-in adjacent to the hot line to limit congestion and condensation.

8) Is there a layout that works for both dine-in and takeout?

Yes—use a split pass with a dedicated takeout finishing station near the exit path. This keeps dine-in plating steady while minimizing courier cross-traffic.
