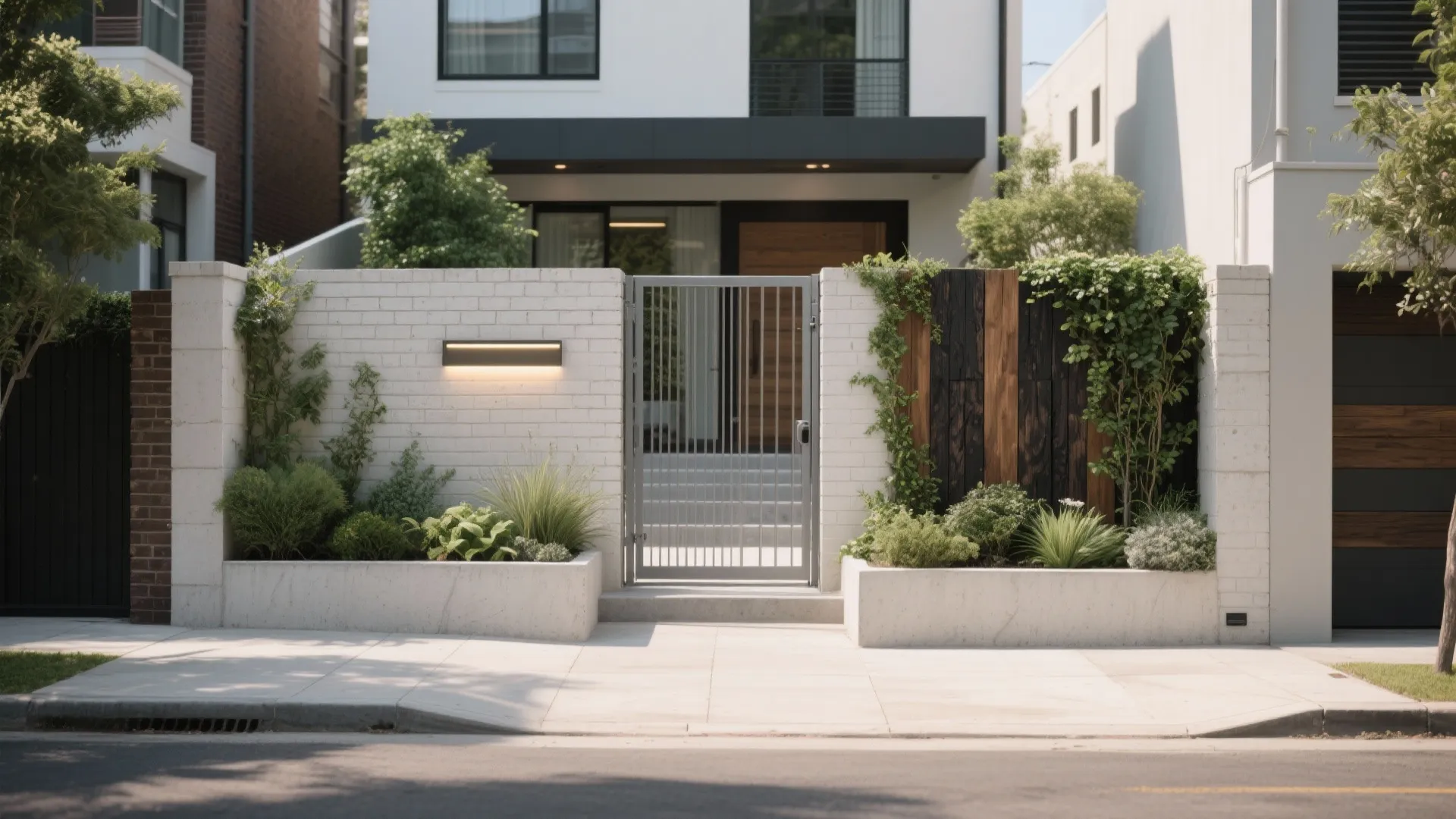

Gate and Wall Design: 5 Smart Ideas: Small frontage, big curb appeal—my proven gate and wall design moves for tight sites and townhouses

I once designed a gate that looked perfect on paper—until the first rainy day when the swing scraped the driveway. Lesson learned: slope is a silent troublemaker. These days I always sketch a quick layout before I choose hinges or a track. Small spaces spark big creativity, especially at the threshold, and today I’m sharing five ideas I use on real projects.

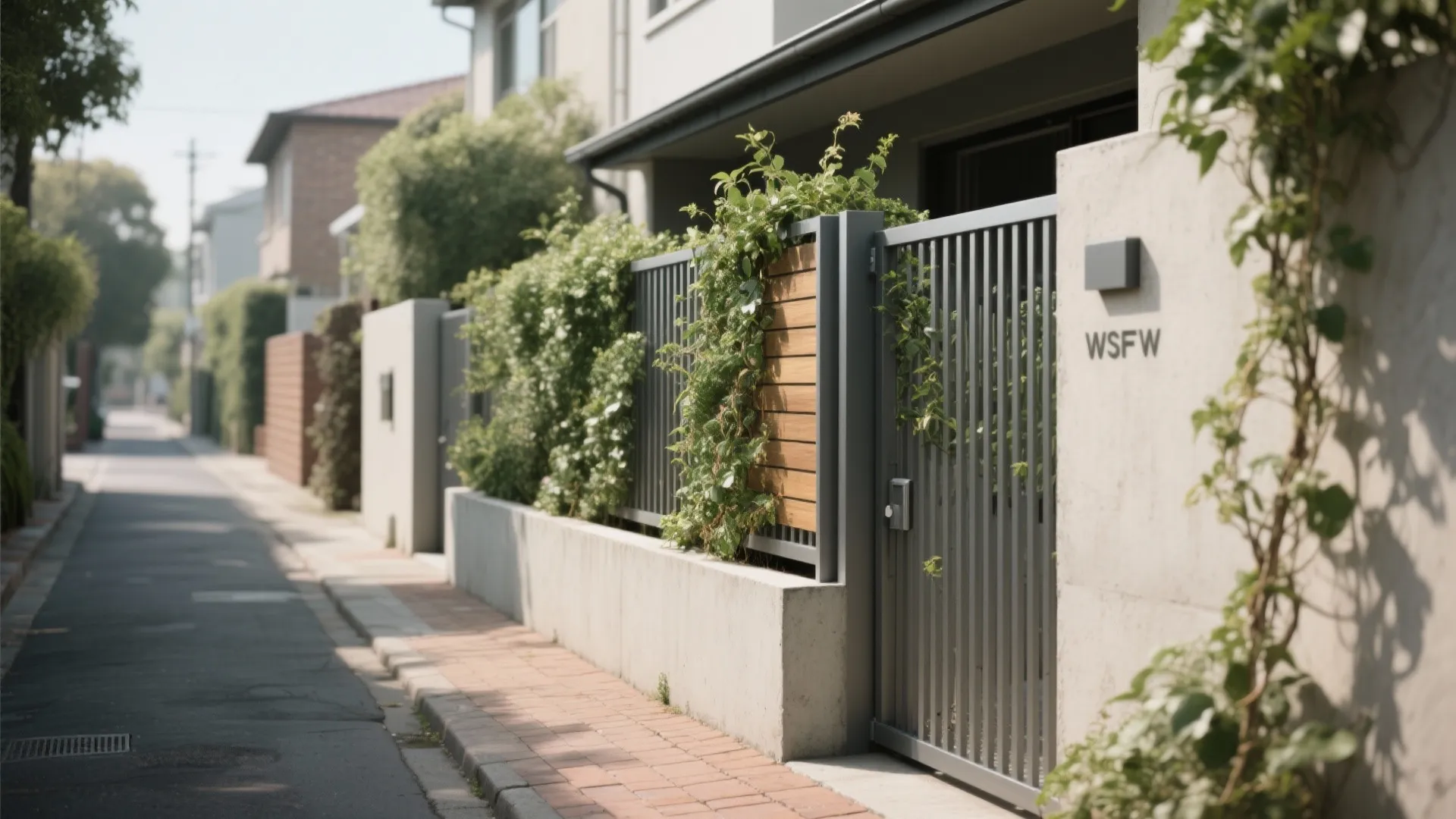

Layered Privacy: Low Wall + Light Gate + Greenery

On narrow frontages, a solid six-foot wall can feel heavy. I love pairing a 900–1100 mm low wall with a lighter, semi-open gate and climbing plants—privacy improves as the foliage fills in, and the street still feels friendly.

The upside is balance: you get screening, daylight, and airflow. The trade-off is patience; plants and patina take time. If you pick steel, commit to proper galvanizing and a powder coat, or be ready to embrace a bit of rust-chic.

save pin

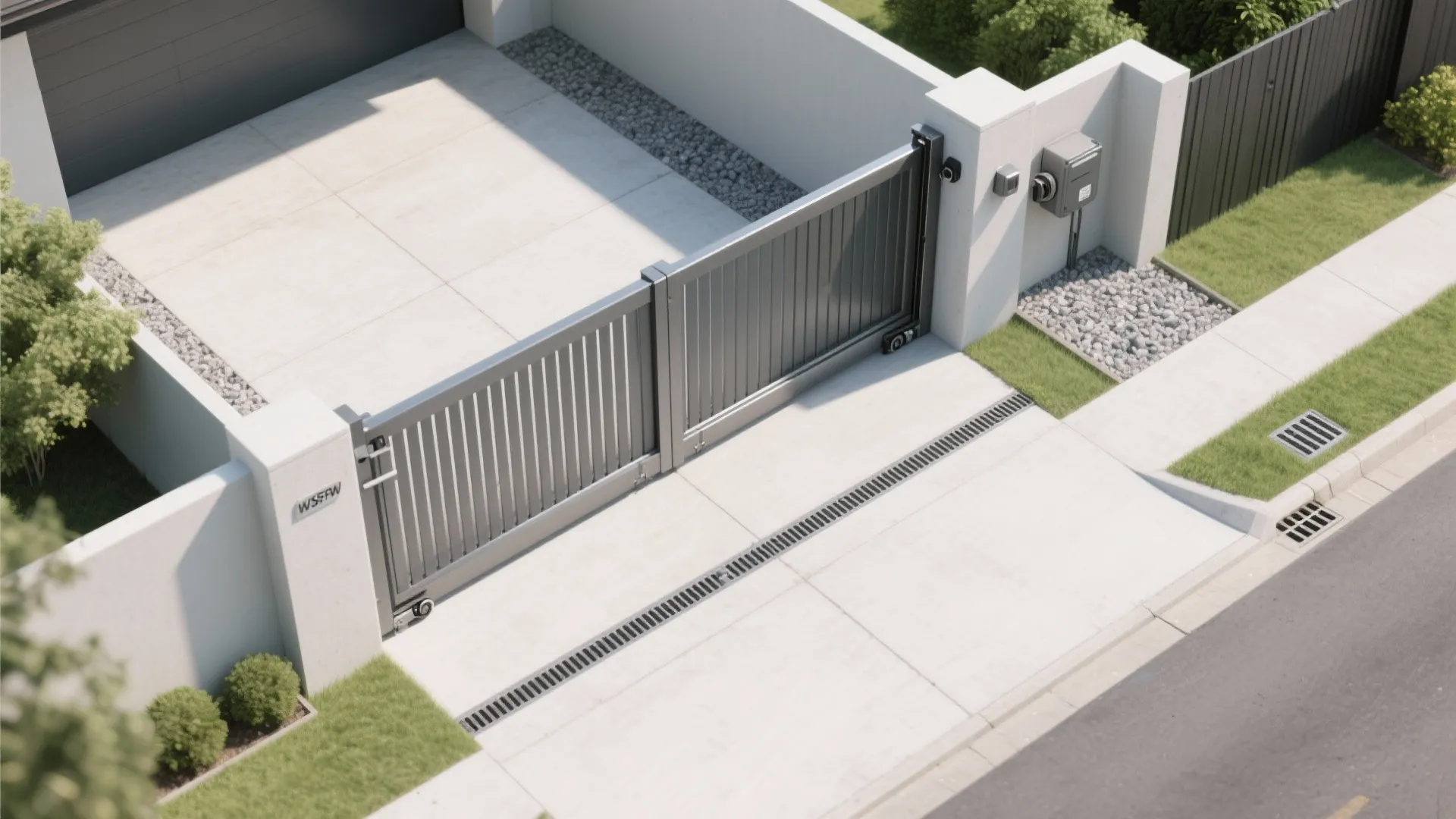

Go Sliding on Tight Drives

If swing clearance is tight (or the driveway slopes), a sliding gate is a lifesaver. Cantilever designs avoid ground tracks and perform better with debris, while tracked sliders are simpler and often cheaper—just mind leaves, ice, and grit.

I set posts and counterweights where they won’t steal turning radius, and I keep the gate’s weight within what the rollers and motor can happily handle. Before choosing hardware, I like to map the property lines so column spacing and setback are crystal clear.

save pin

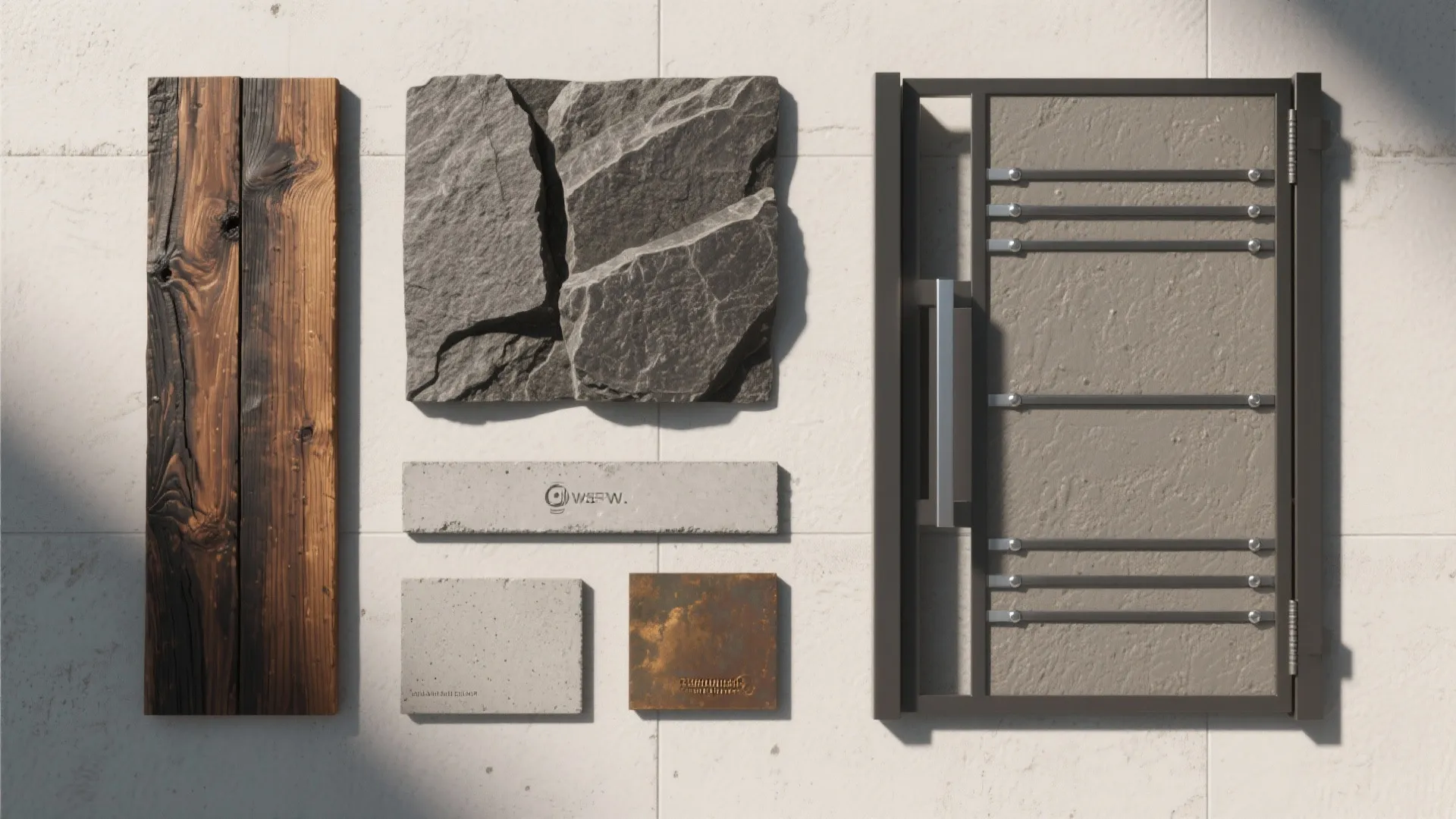

Textured Materials Make Small Frontages Feel Rich

When space is modest, texture is your friend. Board-formed concrete with a charred-wood gate feels boutique; split-face stone with a slim steel frame reads timeless; even fiber-cement panels with clean battens can look sharp.

The win is depth without bulk. Just watch maintenance: woods need re-oiling, steel needs touch-ups, and stone joints appreciate annual checks. I’d rather specify fewer materials and detail them beautifully than create a busy patchwork.

save pin

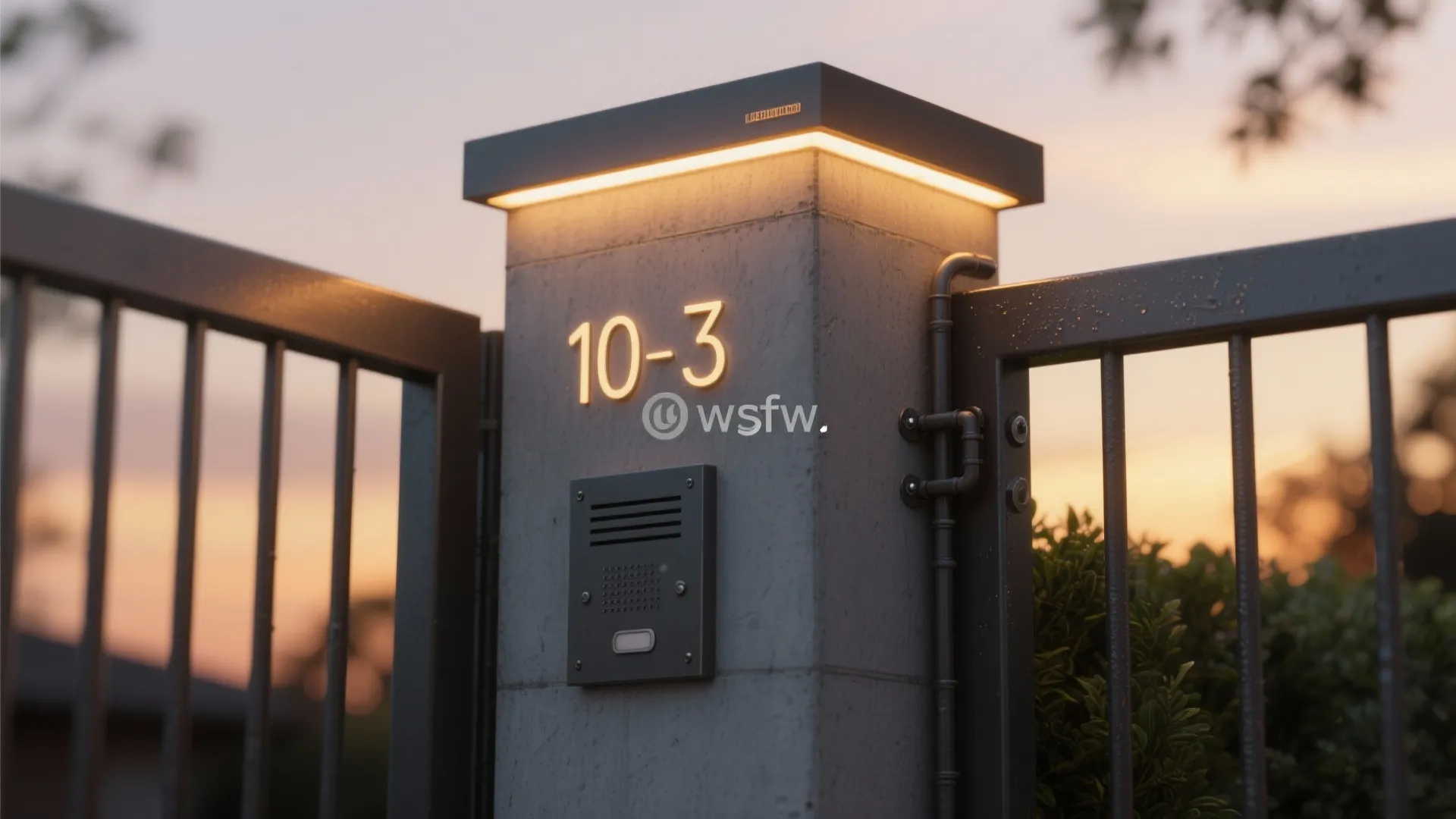

Light the Threshold: Backlit Numbers and Low-Voltage LEDs

Nothing says “welcome” like thoughtful lighting. I use low-voltage LEDs along the wall cap, a warm glow at the intercom, and backlit house numbers for legibility; it’s safer for guests and delivery drivers, and it looks great in photos.

Motion sensors reduce energy use, while a tiny photocell keeps things elegant at dusk. Cable routing is the fussy part—plan conduits at the footing stage, not as an afterthought, or you’ll be drilling where you wish you weren’t.

save pin

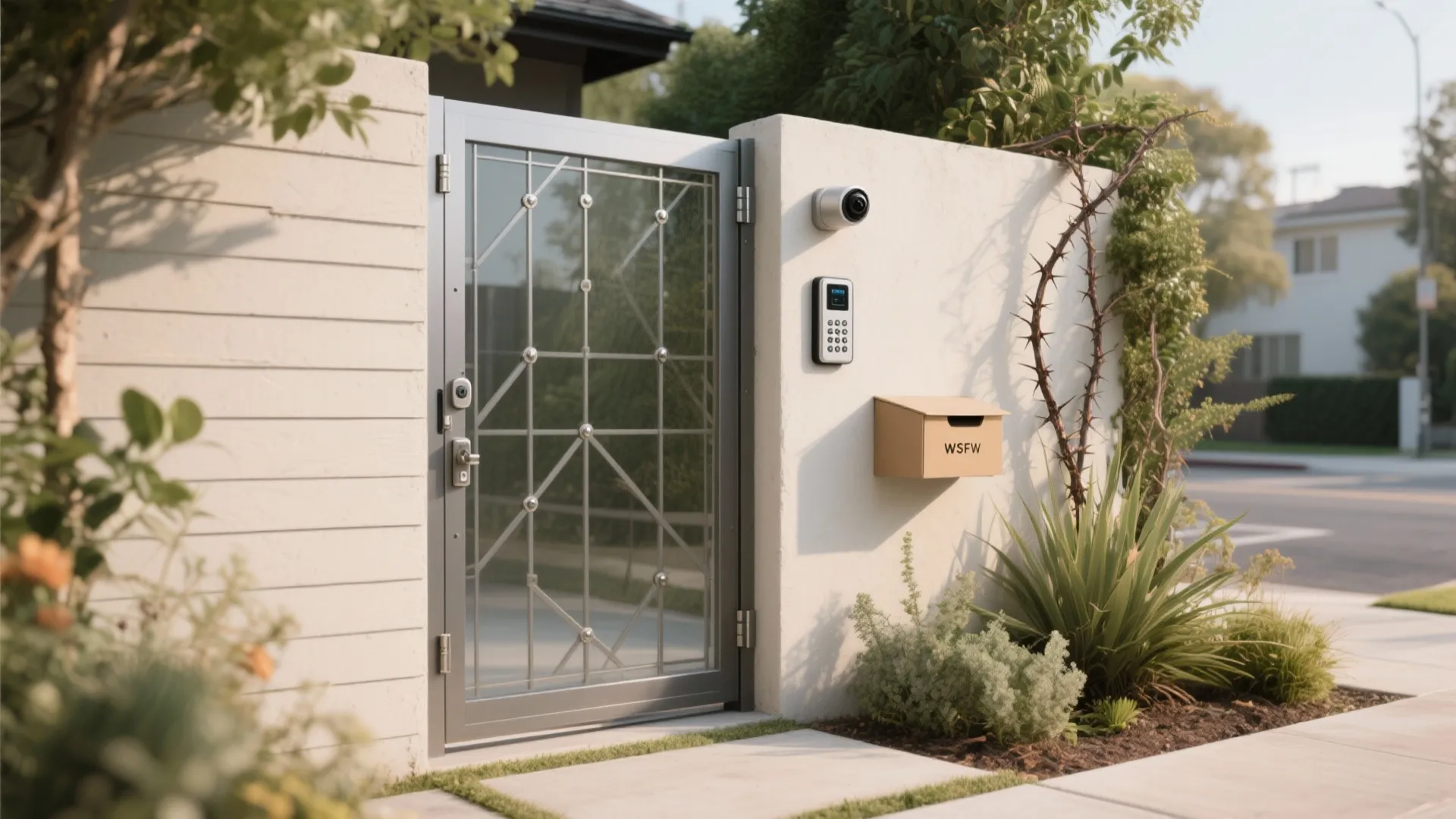

Soft Security: Smart Lock, Camera, and Planting

Security can be subtle. A smart lock with a keypad, a doorbell camera tucked into the gate post, and thorny or dense planting at climbable spots sets the right tone—safe, not fortressy. I also add a package niche to keep the entry tidy.

Run data and power in a protected path, and keep sightlines to the street open so the space feels watched-in-a-good-way. When I’m balancing privacy and visibility, building crisp 3D visuals helps me test angles, glare, and how much of the interior garden peeks through.

save pin

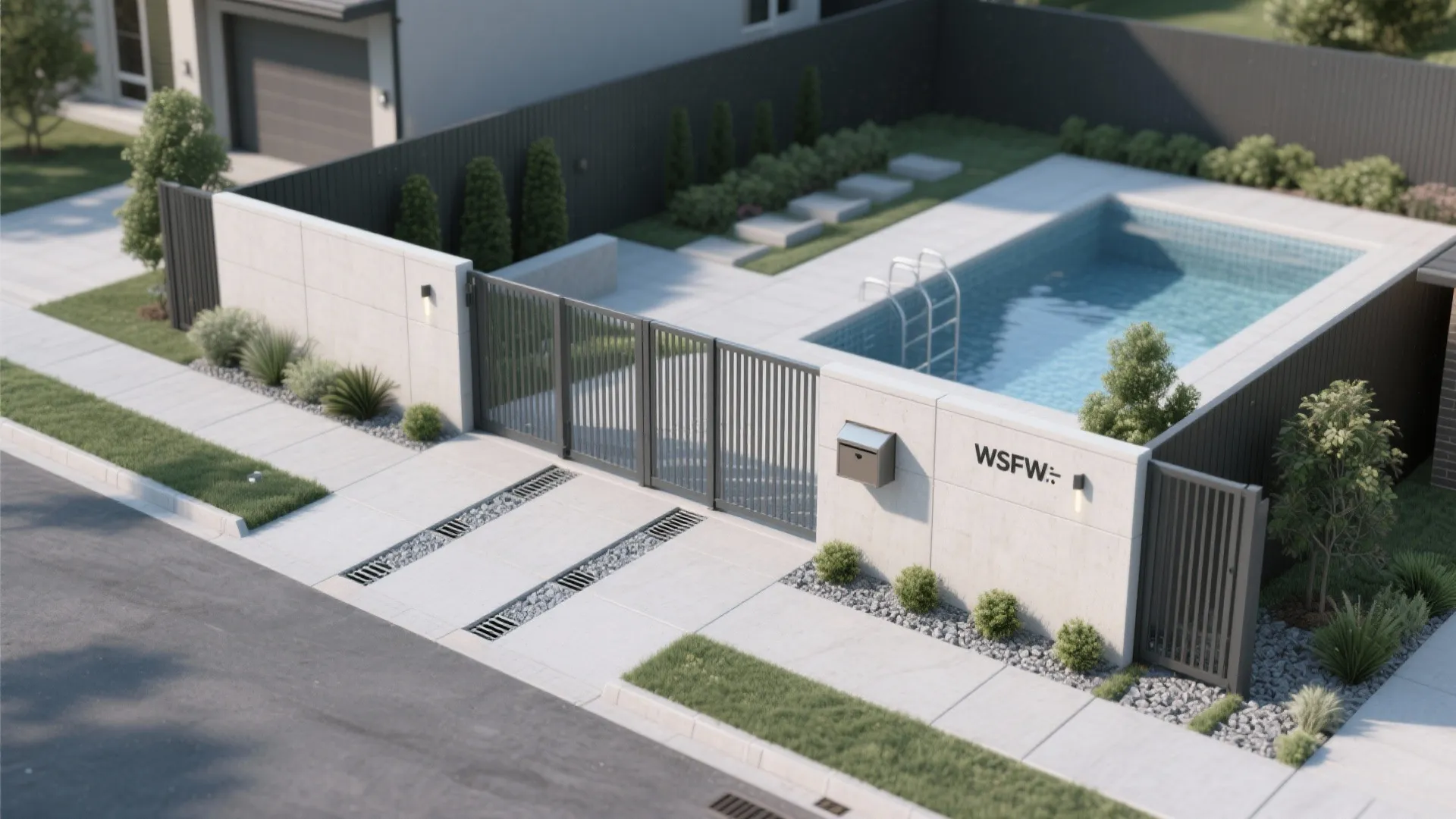

FAQ

How tall should my boundary wall and gate be for privacy? For most urban frontages, 1.8–2.0 m provides privacy without feeling imposing. Corner lots or sightline-sensitive streets may benefit from 1.5 m with layered planting. Always confirm local zoning limits before finalizing height.

What’s the best solution for a narrow driveway? Go sliding. Cantilever gates avoid tracks that collect debris; tracked sliders can be more budget-friendly if the ground is level. Measure your vehicle’s turning radius and ensure the gate’s open width is at least 300–400 mm wider than the car’s widest point.

Which materials hold up in coastal climates? Powder-coated aluminum or hot-dip galvanized steel with stainless fasteners performs well near salt air. If you use steel, look for galvanizing per ASTM A123/A123M, and rinse salt spray periodically to extend coating life.

How do I add security without making it look like a fortress? Combine a semi-transparent gate pattern, good lighting, and a discreet camera. Solid walls can be softened with planting and warm finishes. The feel should be “curated” rather than “defensive.”

What’s the difference between cantilever and tracked sliding gates? Cantilever gates hang on rollers and don’t need ground tracks, so they glide over uneven surfaces. Tracked gates rely on a ground rail; they’re simpler but can jam with grit or ice. Your site conditions and budget will decide which wins.

How should I plan drainage and footings for my wall? Include weepholes, a gravel base, and a gentle grade to shed water away from structures. Footings should go below frost line, and retaining walls need engineered design and proper back drainage to prevent hydrostatic pressure.

Can I integrate mailboxes and package drop into the wall? Absolutely—design a recessed niche with weather protection and clear signage. Check local postal guidelines for slot sizes and accessibility, and place it within easy reach of the sidewalk.

What are safe standards for pool-side gates and fences? The U.S. CPSC’s Safety Barrier Guidelines for Residential Pools (Pub. No. 362) recommend a minimum 48-inch barrier, self-closing and self-latching gates, and limited openings to prevent climbing. It’s a solid starting point—then verify your local code requirements.
