Heights of Chimneys in Kitchen: 5 Expert-Backed Ideas: A senior interior designer’s practical guide to kitchen chimney heights with real-world tips and technical drawing basics

As a residential designer, I’ve watched kitchen ventilation evolve alongside today’s clean-lined, functional interiors. When clients ask about heights of chimneys in kitchen plans, I always say: small spaces spark big ideas—especially where airflow, safety, and aesthetics meet. In this guide, I’ll share 5 design inspirations that blend field experience with expert data, so you can set your kitchen chimney height right and read technical drawings with confidence.

If you’re renovating a compact kitchen, the sweet spot is getting the chimney (range hood) height and ducting correct from day one. I’ll walk you through practical clearances, wall vs. island setups, duct sizing, and the must-know symbols in a technical drawing. We’ll balance what looks good with what performs beautifully.

Before we start, one quick resource that aligns with today’s minimalist storage trend: I often prototype layouts with examples like minimalist kitchen storage layouts to pressure-test chimney placement and line-of-sight early on—especially in tight galley kitchens.

Ideal Mounting Height for Wall-Mounted Hoods

My Take

I’ve installed dozens of wall hoods in small city apartments where ceiling heights vary wildly. My go-to guideline: measure from the cooktop, not the counter, and confirm the appliance manual before drilling a single hole. The “right” height is a performance-safety balance, not just a number.

Pros

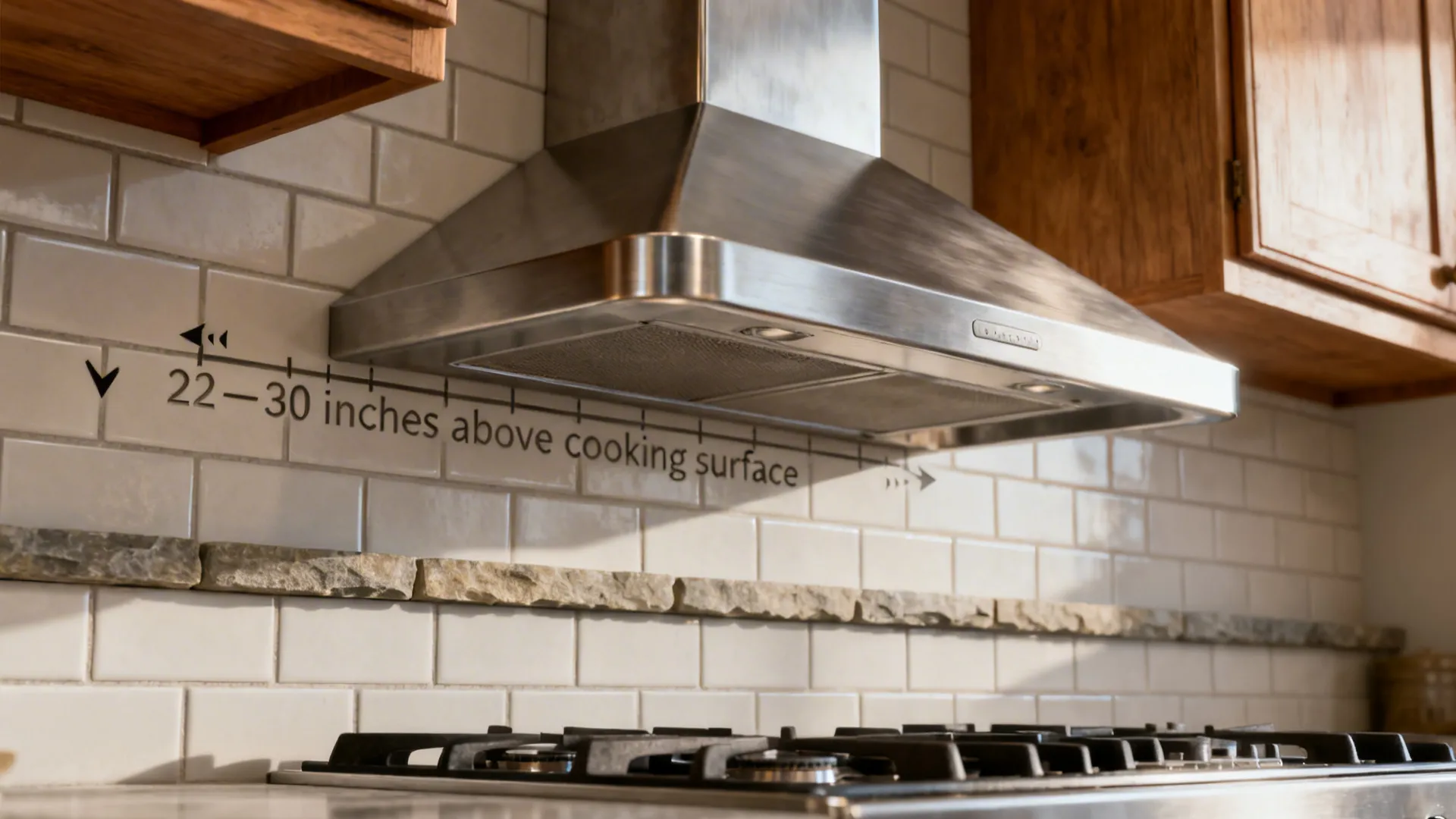

- For most gas cooktops, a mounting height of 24–30 inches (610–760 mm) above the cooking surface efficiently captures fumes while protecting cabinetry; many manufacturers specify similar ranges, and aligning to the mid-point often optimizes capture efficiency for compact kitchens (long-tail: ideal height for wall mounted kitchen chimney).

- With induction or electric tops, 20–24 inches (510–610 mm) is commonly acceptable, which keeps the hood visually integrated and improves capture velocity in small spaces (long-tail: chimney height for induction cooktop).

- Following the manufacturer’s minimum/maximum ensures compliance and airflow performance; it also aligns well with typical ceiling heights of 96–108 inches.

Cons

- Mounting too high looks airy but reduces capture efficiency; in a studio, that can mean lingering odors—and your sofa might “remember” last night’s stir-fry.

- Too low, and taller users feel cramped; I’ve seen foreheads graze the hood edge in older renos with short backsplashes—never fun.

- If your backsplash has thick stone or slab rails, fastening points can get tricky and may require blocking.

Tips / Case / Cost

- If your range has high BTU burners (e.g., 15K–22K BTU), gravitate toward the upper end of recommended height and increase CFM by 10–20%.

- Use a paper mock-up at the intended height to test head clearance and sightlines.

- Budget an extra 5–10% for wall blocking and accurate vent collar alignment—cheap insurance for a clean install.

save pin

Chimney Heights for Island Hoods (Open-Plan Kitchens)

My Take

Island hoods are gorgeous in loft layouts, but cross-drafts from open plans can undermine capture. I usually aim slightly lower than a wall hood—within the manufacturer spec—to tighten the “capture zone” over the island.

Pros

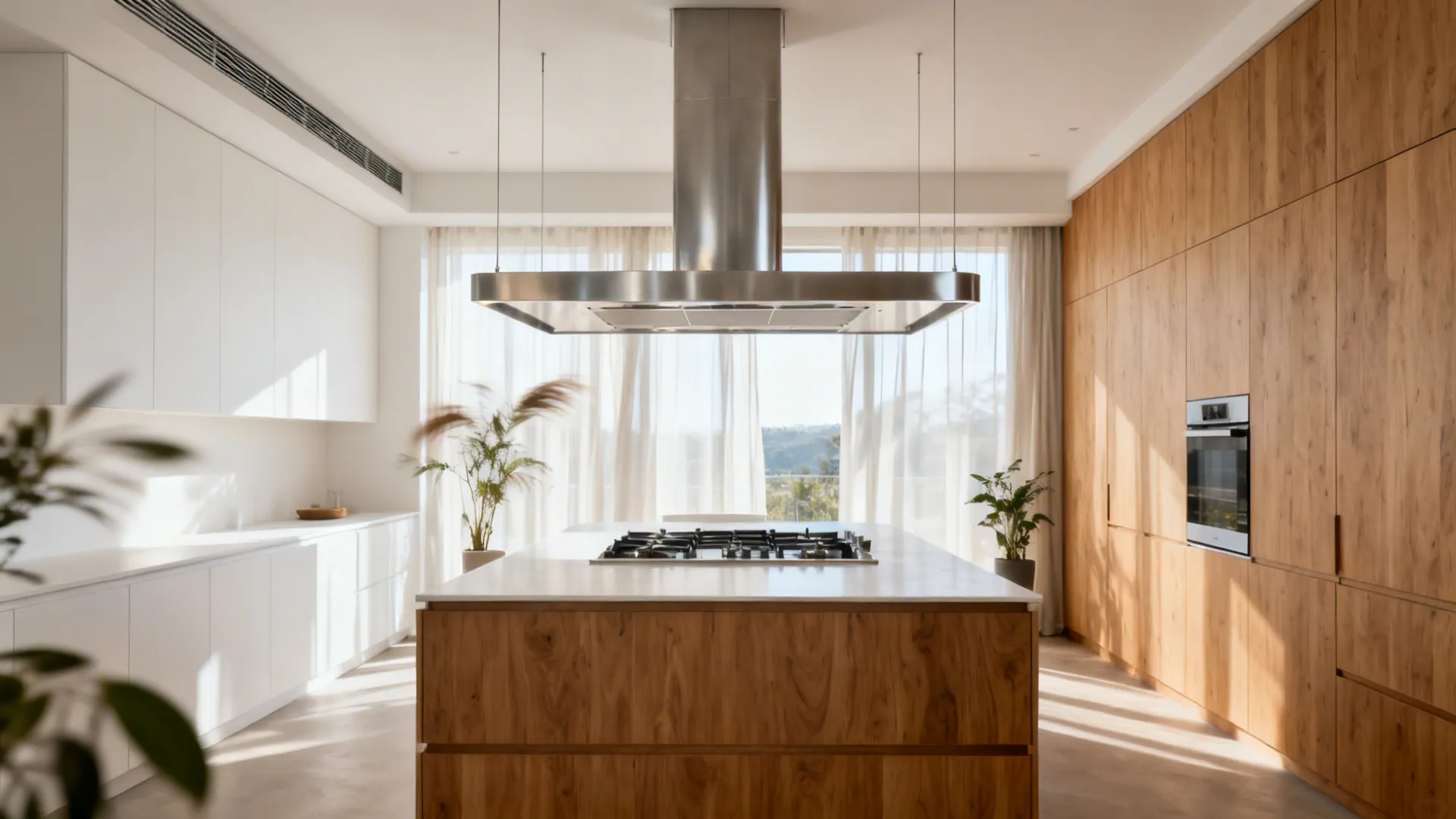

- Mounting around 28–34 inches (710–865 mm) above gas cooktops often balances aesthetics with performance for island hoods (long-tail: recommended height for island kitchen chimney).

- A deeper canopy (wider than the cooktop by 3 inches on each side) can allow a tad higher placement without sacrificing capture efficiency.

- In high ceilings, telescopic chimneys and custom soffits make the height look intentional and keep ducting concealed.

Cons

- Go too high, and your island hood becomes decorative more than functional—smoke will wander in open plans.

- Oversized canopies can dominate a small kitchen visually; I’ve re-specified more than one oversized hood to avoid “UFO over island” syndrome.

- Extra bracing and longer duct runs can raise costs 15–25% vs wall hoods.

Tips / Case / Cost

- If your space is open on three sides, consider make-up air or a higher CFM rating to counter cross-ventilation.

- For ceilings over 9 ft, a dropped soffit can anchor the hood visually and hide the duct path—often a cleaner solution than an overly long stainless chimney.

save pin

Technical Drawing Basics: Clearances, Sections, and Symbols

My Take

Clients often tell me technical drawings feel intimidating. I promise—once you learn the few key conventions, you’ll read chimney height diagrams like a pro. I always annotate two things boldly: the hood’s mounting datum and duct centerline.

Pros

- Standard notations show finished floor (FFL), counter height (typically ~36 in/914 mm), cooktop thickness, and hood bottom elevation—so you can verify the specified chimney height for kitchen safety at a glance (long-tail: kitchen chimney height technical drawing).

- A simple section (cut through cooktop and wall) clarifies vertical stacking: counter, backsplash, hood body, flue cover, and ceiling junction. Labeling C/L (centerline) of duct keeps installers aligned.

- According to ASHRAE Fundamentals and typical manufacturer guides, documenting equivalent duct length on plans reduces performance surprises by accounting for elbows and transitions.

Cons

- Over-dense drawings hide critical dimensions; I’ve seen beautiful linework where the one dimension that matters—the hood bottom—was missing.

- In small renovations, existing walls may not be plumb; the drawing is perfect until you meet reality—so note tolerances.

- If you skip indicating stud blocking or anchor points, you invite on-site guesswork and extra holes.

Tips / Case / Cost

- Include: (1) hood bottom height A.F.F., (2) duct diameter and route, (3) power outlet location, (4) makeup air notes if >400 CFM, (5) max equivalent length.

- Provide a scaled elevation (1:20 or 1/2"=1'-0") and a plan view with clearance circles for adjacent cabinetry doors. This saves hours of on-site rework.

Midway check-in: when I prototype, I test options like L-shaped counter layouts with accurate elevations to ensure the hood’s section aligns with cabinetry reveals and backsplash terminations. This keeps drawings and real kitchens in sync.

save pin

Ducting, CFM, and Noise: Getting Performance Right

My Take

Height is only half the story; duct and CFM make it work. I’ve rescued many projects by upsizing the duct and trimming equivalent length—quiet performance beats brute force every time.

Pros

- For most 30–36 in ranges, 300–500 CFM suits light to moderate cooking; heavy wok or searing may need 600–900 CFM. Pairing proper CFM with the correct chimney height improves capture efficiency in small kitchens (long-tail: best CFM for small kitchen chimney).

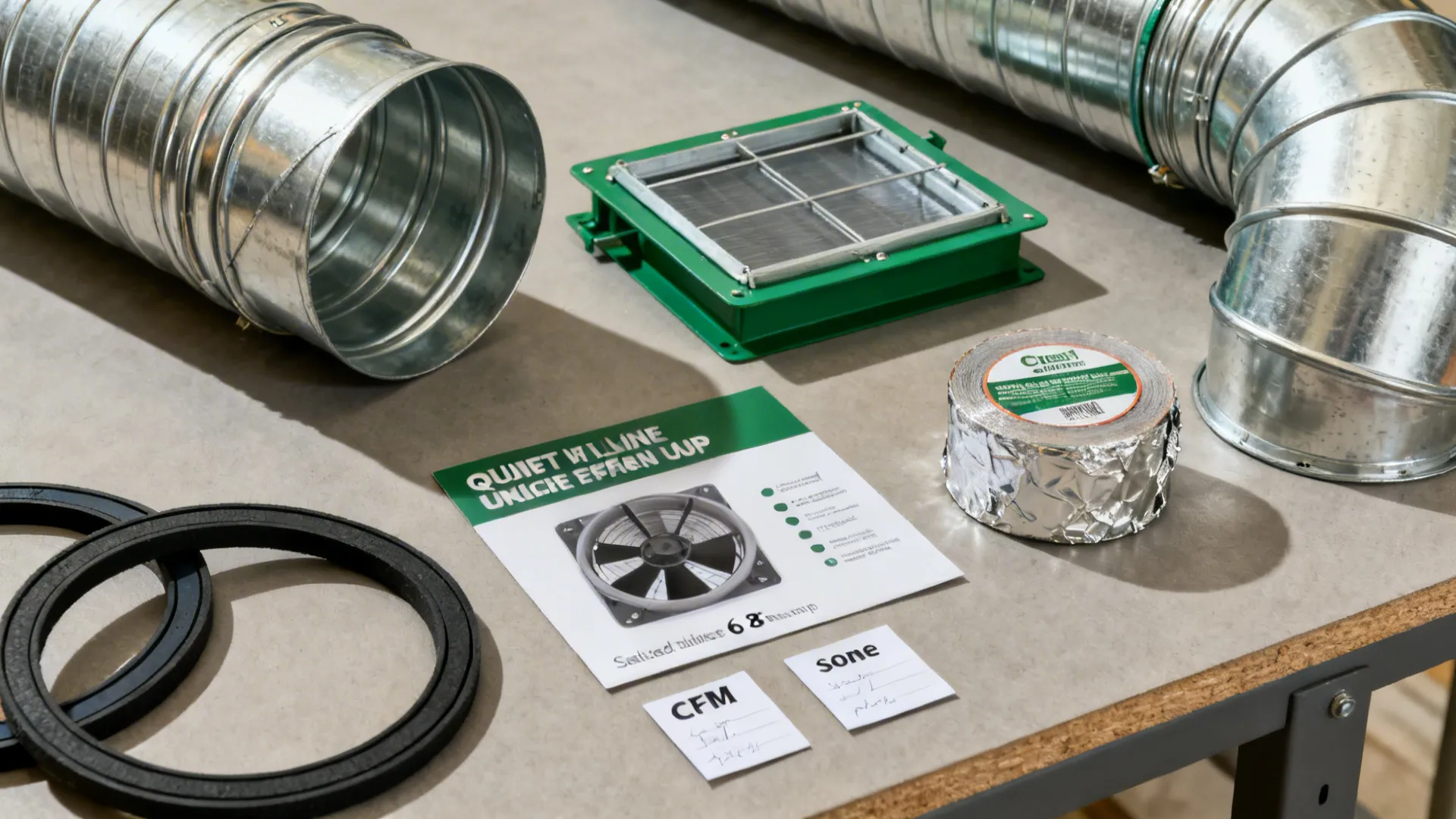

- Short, straight duct runs with smooth-wall metal and sealed joints cut noise and increase airflow; a 6–8 in (150–200 mm) round duct is common for mid-range hoods.

- Per the Home Ventilating Institute (HVI) listings, verified airflow ratings and sone levels help you compare apples to apples; look for HVI-certified specs for reliable data.

Cons

- Oversized CFM without makeup air can backdraft appliances and pull conditioned air out—your HVAC will complain.

- Long runs with many elbows raise static pressure; the hood gets loud and less effective.

- Recirculating (ductless) setups are easy to install but won’t remove moisture; your windows may fog during simmer season.

Tips / Case / Cost

- Keep total equivalent length within manufacturer limits (e.g., each 90° elbow may count as 10–15 ft). Fewer bends, better result.

- Consider a low-sone, multi-speed hood. Use boost only when needed; 90% of cooking lives happily at lower speeds.

save pin

Code, Safety, and Real-World Exceptions

My Take

In real renovations, we often juggle code, structure, and layout quirks. The best chimney height is the one that respects safety standards and your actual cooking habits. I document decisions so future you—and future inspectors—understand the why.

Pros

- Many manufacturers and industry bodies suggest mounting ranges: 24–30 in for gas, 20–24 in for electric/induction; the National Kitchen & Bath Association (NKBA) and HVI offer planning guidance that aligns with these practical bands (long-tail: NKBA kitchen chimney height guidelines).

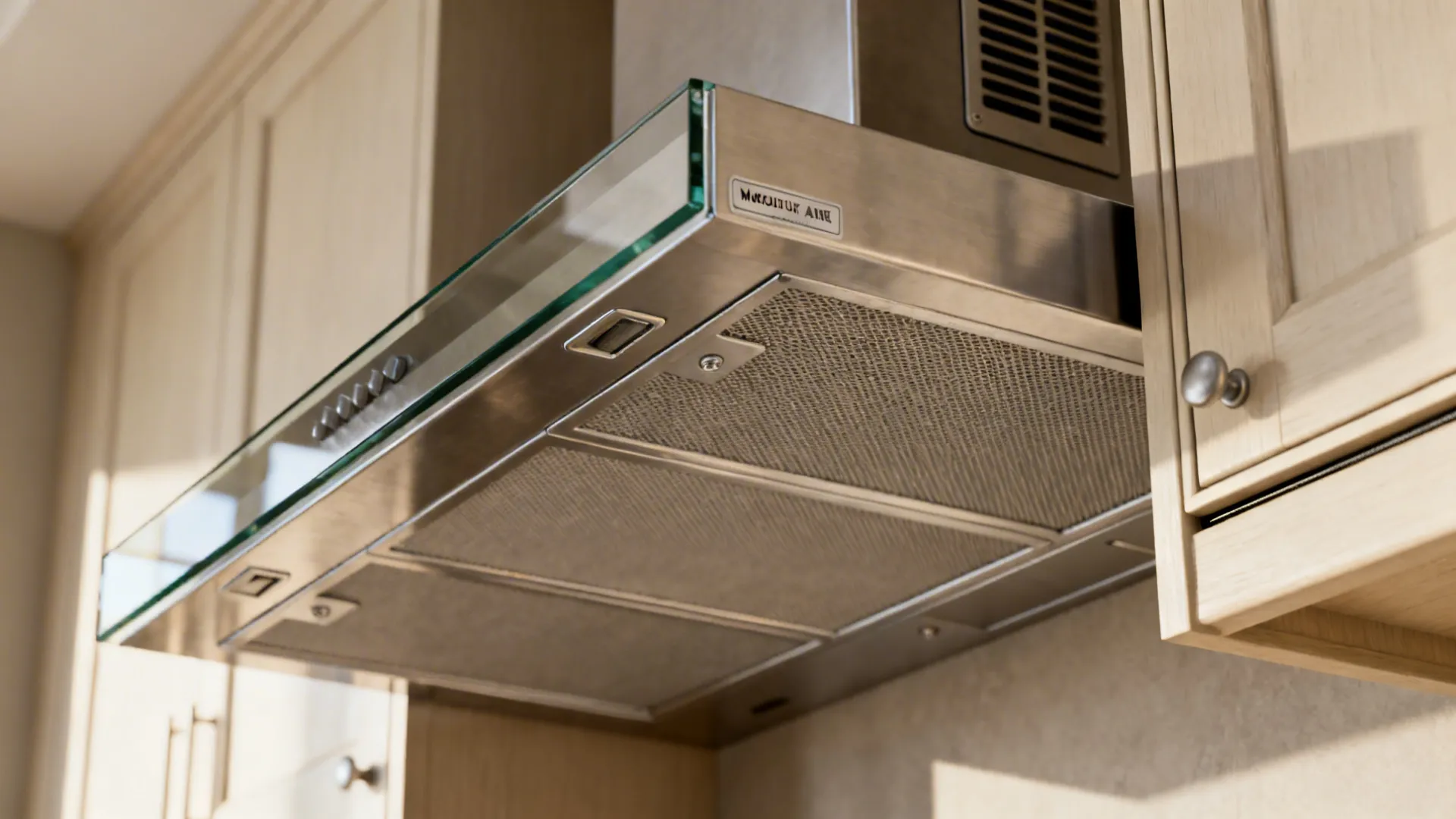

- Keeping combustible cabinets at least the manufacturer’s clearance from the cooktop edge reduces heat damage risks; stainless baffles and tempered glass trims add protection.

- Where codes require makeup air above certain CFM thresholds (often ~400 CFM in North America), planning early prevents inspection hiccups.

Cons

- Historic buildings may forbid exterior wall penetrations; you may be limited to recirculating filters—acceptable for odor reduction, not moisture removal.

- Sloped ceilings complicate chimney covers; custom trim kits raise costs and lead times.

- Some jurisdictions are strict about damper types and termination caps—expect a little paperwork dance.

Tips / Case / Cost

- Cross-check your appliance manual, local code, and NKBA/HVI recommendations; when in doubt, default to the strictest requirement. The NKBA Kitchen & Bathroom Planning Guidelines and the HVI Certified Products Directory are solid references.

- Plan a service loop for the power cable and a removable panel for filter access—maintenance is part of safety too.

As projects get specialized—say, a wall hood that needs to align with a tall pantry—I’ll mock up elevations using references like wood accents that add warmth around stainless to visualize how the chimney intersects trim, reveals, and lighting. It’s a style-performance handshake that keeps the space cohesive.

save pin

How to Measure and Verify On Site

My Take

The tape measure is your best friend. I verify three times: rough-in, pre-mount, and post-level. Small kitchens amplify small errors, so millimeters matter.

Pros

- Start from finished floor, confirm counter at 36 in (or your actual), measure cooktop surface, then mark hood bottom height—this yields an accurate heights of chimneys in kitchen installation (long-tail: how high should a kitchen chimney be above stove).

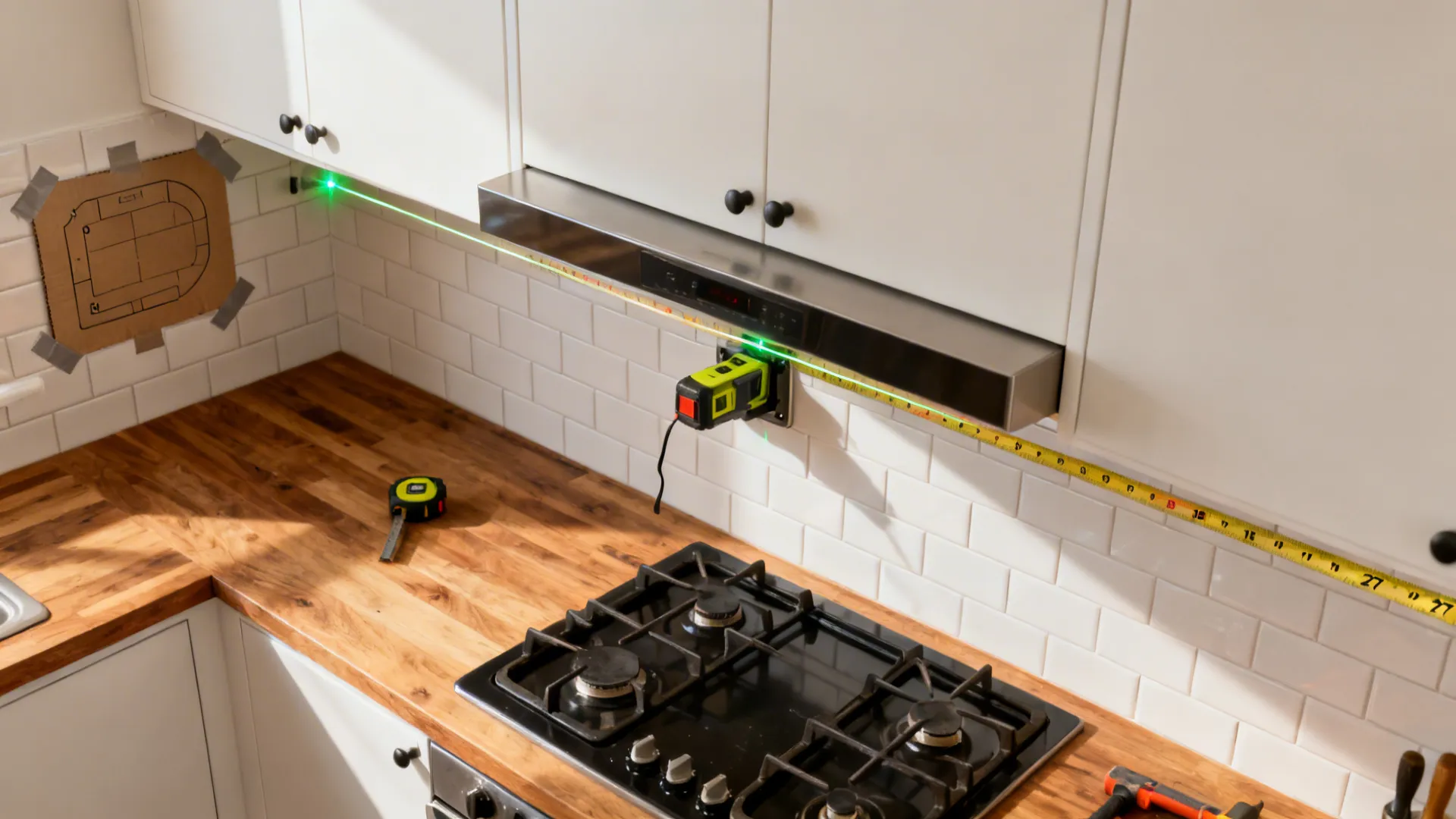

- Laser levels and a cardboard template ensure the bracket sits perfectly; no “Swiss cheese” walls from guesswork.

- Photograph every step with a tape in frame. Future troubleshooting becomes simple, and warranties love documentation.

Cons

- Tile thickness, shims, or out-of-plumb walls can throw your line off—what’s 1/4 inch on paper is suddenly visible under task lighting.

- If you forget to account for hood filters hanging below the shell, you can lose a crucial 1/2 inch of clearance—yes, I’ve learned that one the hard way.

- Rushing the final level check often leads to a hood that “looks tipsy” against grid tile.

Tips / Case / Cost

- Mark the hood bottom at, say, 27 in above gas cooktop, dry-fit, then step back and simulate cooking motions to confirm sightlines. Adjust within spec as needed.

- Keep a small contingency for a higher-CFM insert or a different chimney cover if your ceiling height surprises you.

save pin

Summary

Here’s the takeaway: a small kitchen doesn’t limit you—it asks you to design smarter. Get the heights of chimneys in kitchen plans right by anchoring to the cooktop, following manufacturer ranges (about 24–30 in for gas and 20–24 in for electric/induction), and using clear technical drawings to communicate ducting, CFM, and clearances. For further planning context, the Home Ventilating Institute (HVI) listings and NKBA planning guidelines remain reliable touchstones. Which of these five ideas are you most excited to try in your own kitchen?

FAQ

1) What is the ideal height for a kitchen chimney above a gas stove?

Common guidance is 24–30 inches (610–760 mm) above the cooktop, but always follow your hood manufacturer’s specification. Mid-range mounting often balances capture efficiency and head clearance.

2) Does an induction cooktop change the chimney height?

Yes. Many manufacturers allow 20–24 inches (510–610 mm) above induction or electric since there’s less rising combustion heat. Confirm your model’s manual before final mounting.

3) How do I reflect chimney height in a technical drawing?

Show a section with finished floor, counter height, cooktop thickness, and hood bottom elevation. Label the duct centerline, diameter, and equivalent length. A scaled elevation keeps installers aligned.

4) What CFM is best for small kitchens?

For light to moderate cooking, 300–500 CFM works well; heavy searing or wok cooking may need 600–900 CFM. Short, straight ducting improves real-world performance at any CFM rating.

5) Are there authoritative sources for chimney height and ventilation?

Yes. The Home Ventilating Institute (HVI) provides certified ratings and planning resources, and the National Kitchen & Bath Association (NKBA) outlines kitchen ventilation guidelines. Using manufacturer specs plus HVI/NKBA guidance gives the most reliable results.

6) What if my ceiling is very high?

Use a telescopic chimney, a dropped soffit, or a custom trim kit to keep the hood within the recommended height range. This also helps conceal ducting and maintain proportions in the room.

7) Can I use a recirculating (ductless) chimney?

You can for odor reduction, but it won’t exhaust moisture outdoors. For frequent high-heat cooking, a ducted setup is strongly preferred to manage humidity and byproducts.

8) How do I plan island hood heights with cross-breezes?

Mount within the manufacturer’s island range (often 28–34 inches above gas) and consider a wider canopy. If you want a planning reference, reviewing L-shaped layouts that free more counter space can help visualize hood placement in open plans.
