Hotel Kitchen Layout: 5 Expert Ideas That Work: Small spaces spark big creativity—my 5 hotel kitchen layout inspirations with real-world pros, cons, and tips

I’ve redesigned more than a dozen compact hotel kitchens, and the trend is clear: tighter back-of-house footprints, faster service expectations, and smarter, safer circulation. Small spaces really do spark big creativity. In this guide, I’ll share 5 hotel kitchen layout ideas that I’ve tested in the field—why they work, where they struggle, and how to budget time and cost. We’ll blend my on-site lessons with data-backed standards, so you can adapt them to your property’s flow and menu. And yes, the core keyword—hotel kitchen layout—will be your compass throughout.

Before we dive in, a quick note: hotel kitchen layout isn’t just about squeezing stations together. It’s about choreography—who moves where, how hot and cold zones coexist, and how food safety weaves through every step. To give you a visual feel of line-of-sight and station spacing, I often start concept sketches and refine them with "L-shaped layout frees up more prep counter" thinking when the footprint is tight.

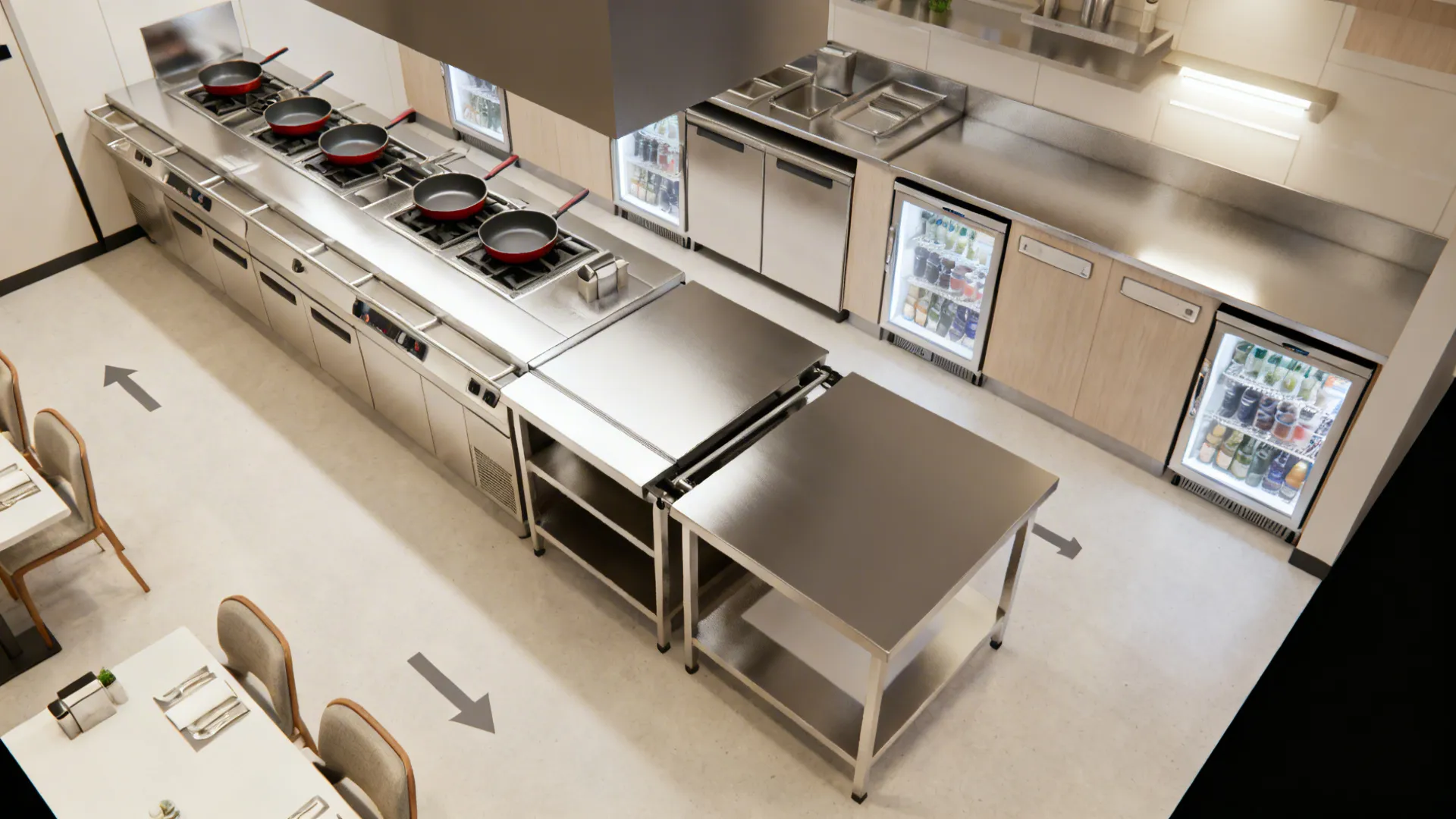

1) Minimalist mise en place line

My Take

I learned this approach in a boutique hotel where the kitchen was barely 22 m². We trimmed every nonessential movement, pulled prep close to the hot line, and standardized container sizes. The result: fewer steps, faster plates, calmer team.

Pros

- Reduces travel distance and cross-traffic, a key win in any hotel kitchen layout for breakfast-to-dinner transitions. It supports long-tail needs like “hotel breakfast line efficiency” by keeping cold, hot, and plating tightly linked.

- Improves consistency because mise en place is visually standardized and replenished in micro-cycles.

- Plays nicely with off-peak staffing; one cook can leap between stations without chaos.

Cons

- Over-minimalizing backfires if the menu spikes in variety; you’ll run short on backup mise storage at rush hour.

- Tight lines can feel claustrophobic for taller chefs or when you add a seasonal station—been there, bruised there.

Tips / Cost

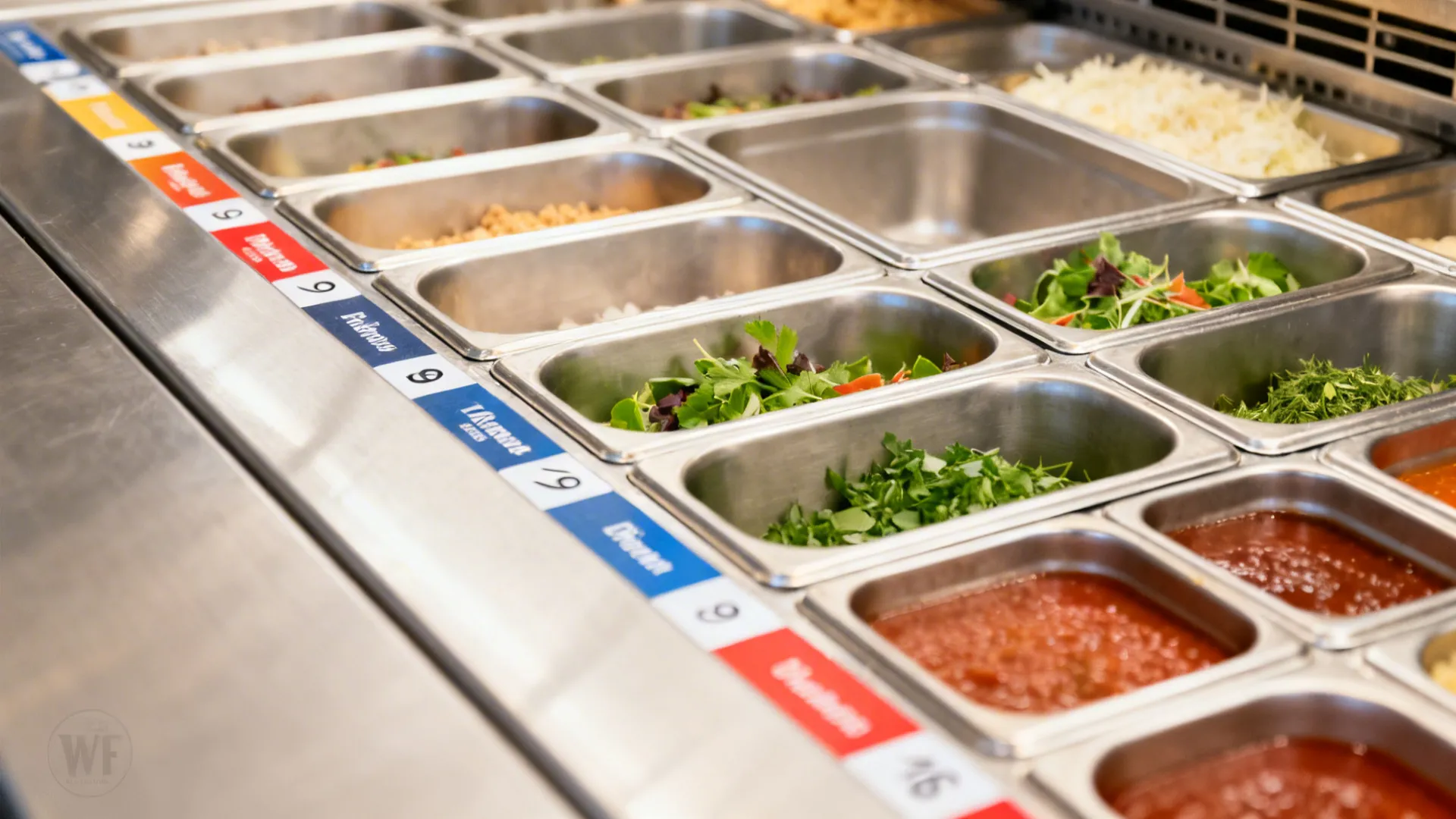

- Use 1/9 and 1/6 pans with color-coded labels; restock every 30 minutes during peak.

- Budget: modest; main investment is in standardized inserts and undercounter refrigeration.

save pin

save pin

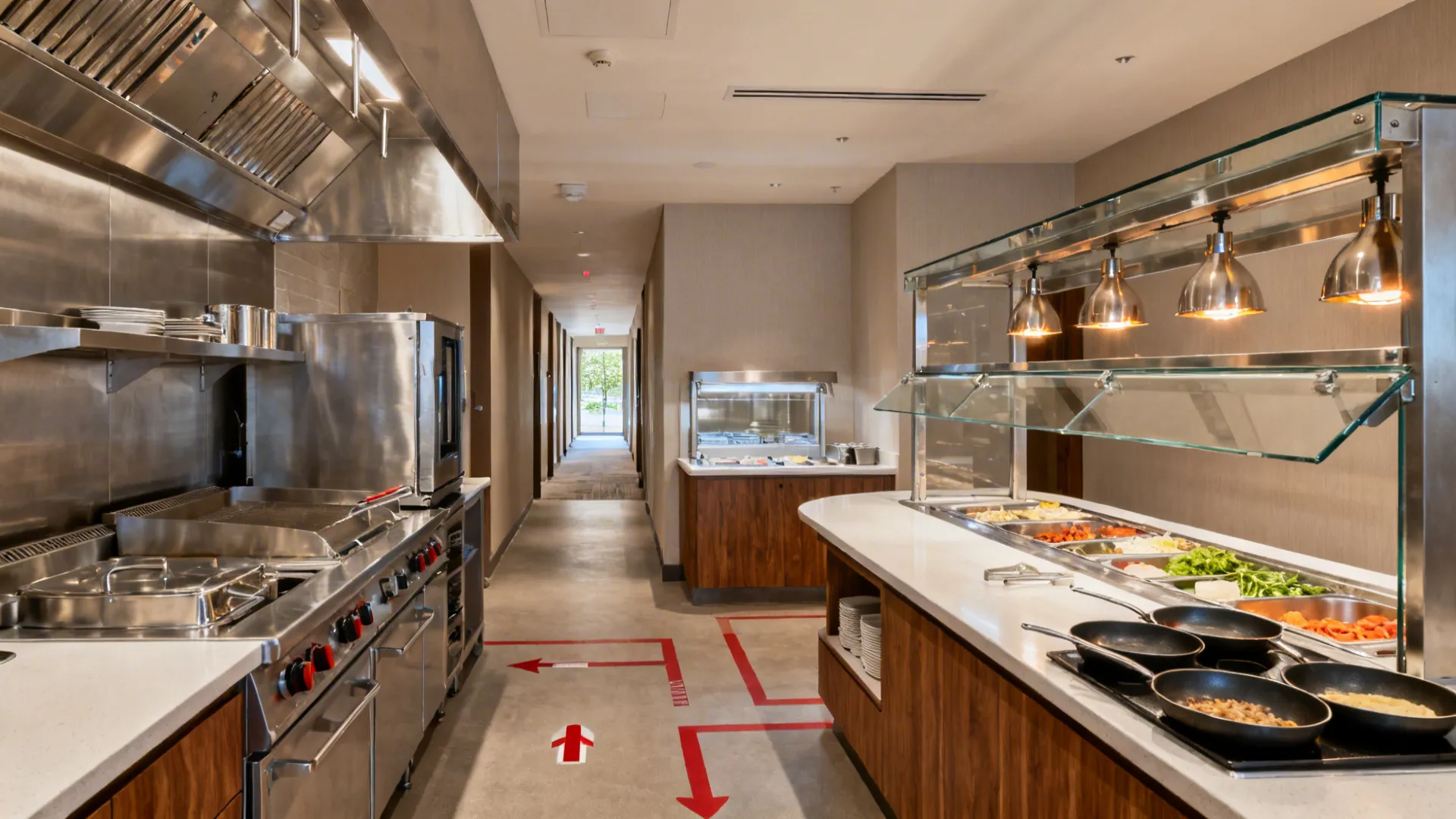

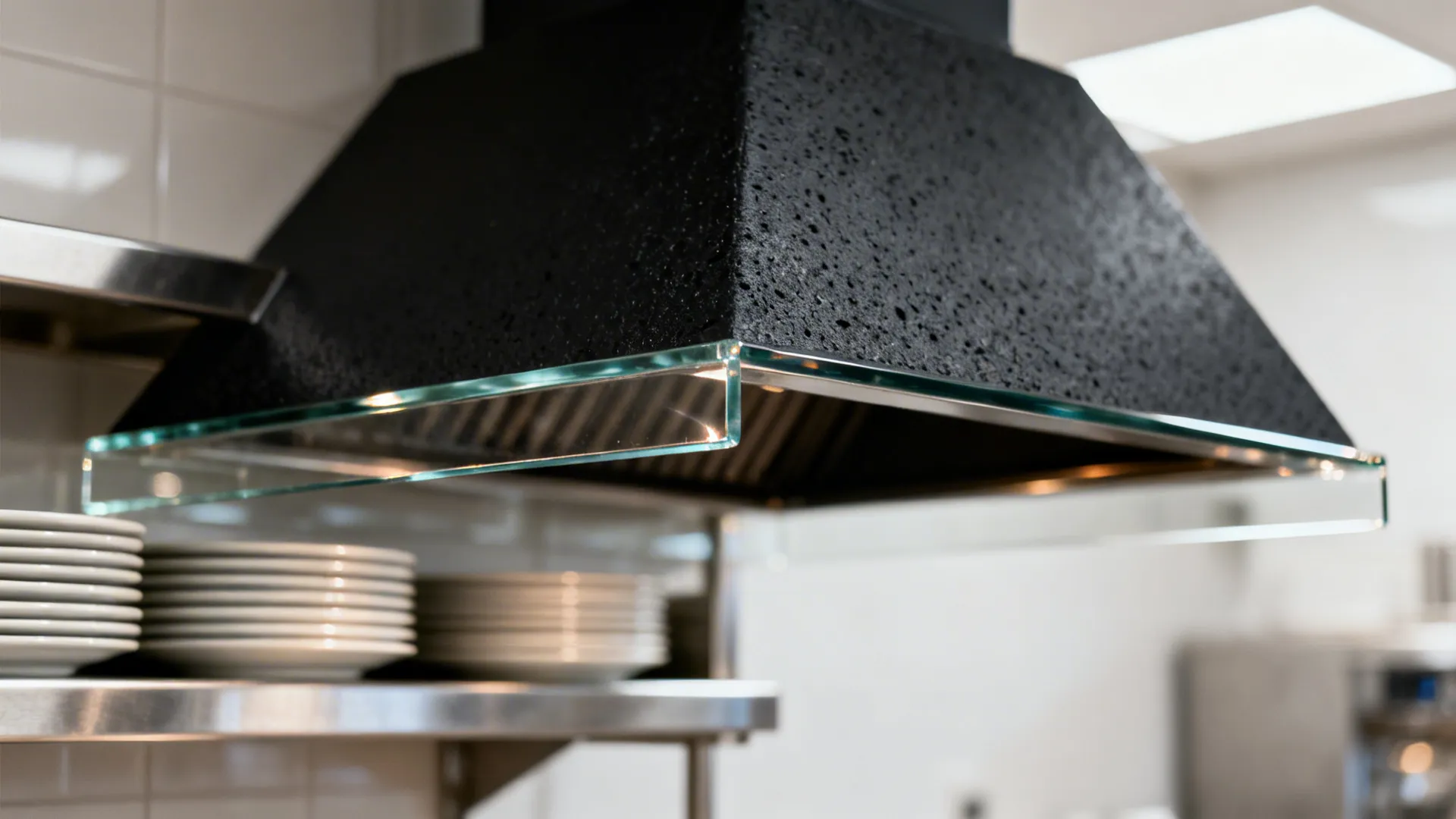

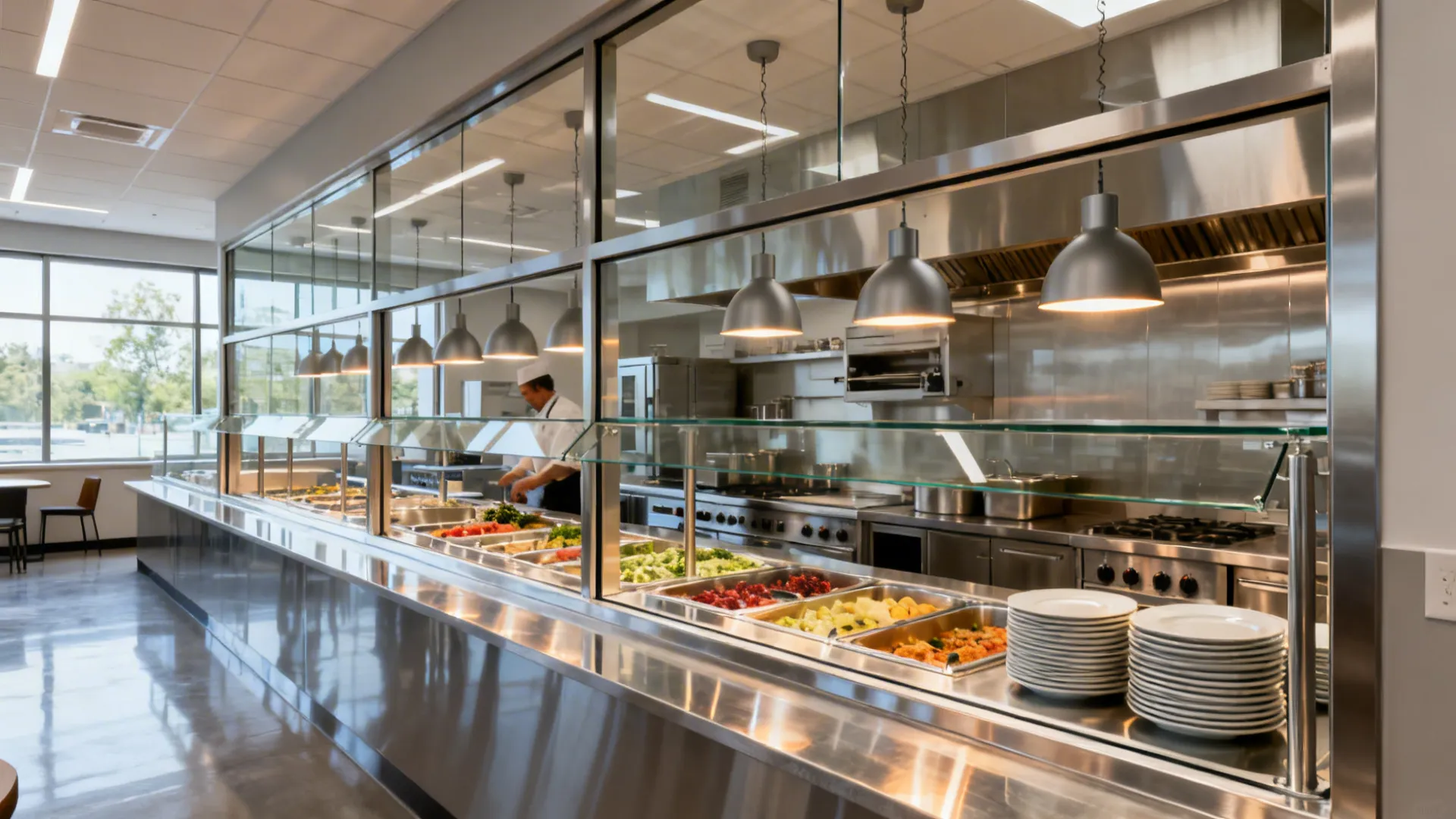

2) Glass pass-through and clear sightlines

My Take

We added a tempered-glass pass with heat lamps in a 150-room business hotel. Suddenly, expo could see the whole line, and FOH pickups sped up without shouting. It made service feel orchestrated, not frantic.

Pros

- Enhances expo oversight, which improves ticket times in a hotel kitchen layout with mixed room-service and dine-in demand.

- Better hygiene and plate checks; visual QA catches garnish and allergen errors early. The “transparent pass” becomes an operational long-tail upgrade for “hotel room-service efficiency.”

- Natural light (if borrowed) boosts team stamina.

Cons

- Fingerprints and heat-lamp glare—prepare for constant wiping and calibrated bulbs.

- If the pass is too wide, staff will park items there, turning it into a clutter magnet.

Tips / Case

- Use low-iron tempered glass and matte-finish heat-lamp hoods to reduce glare.

- Keep the pass depth to 350–400 mm to discourage storage creep.

save pin

save pin

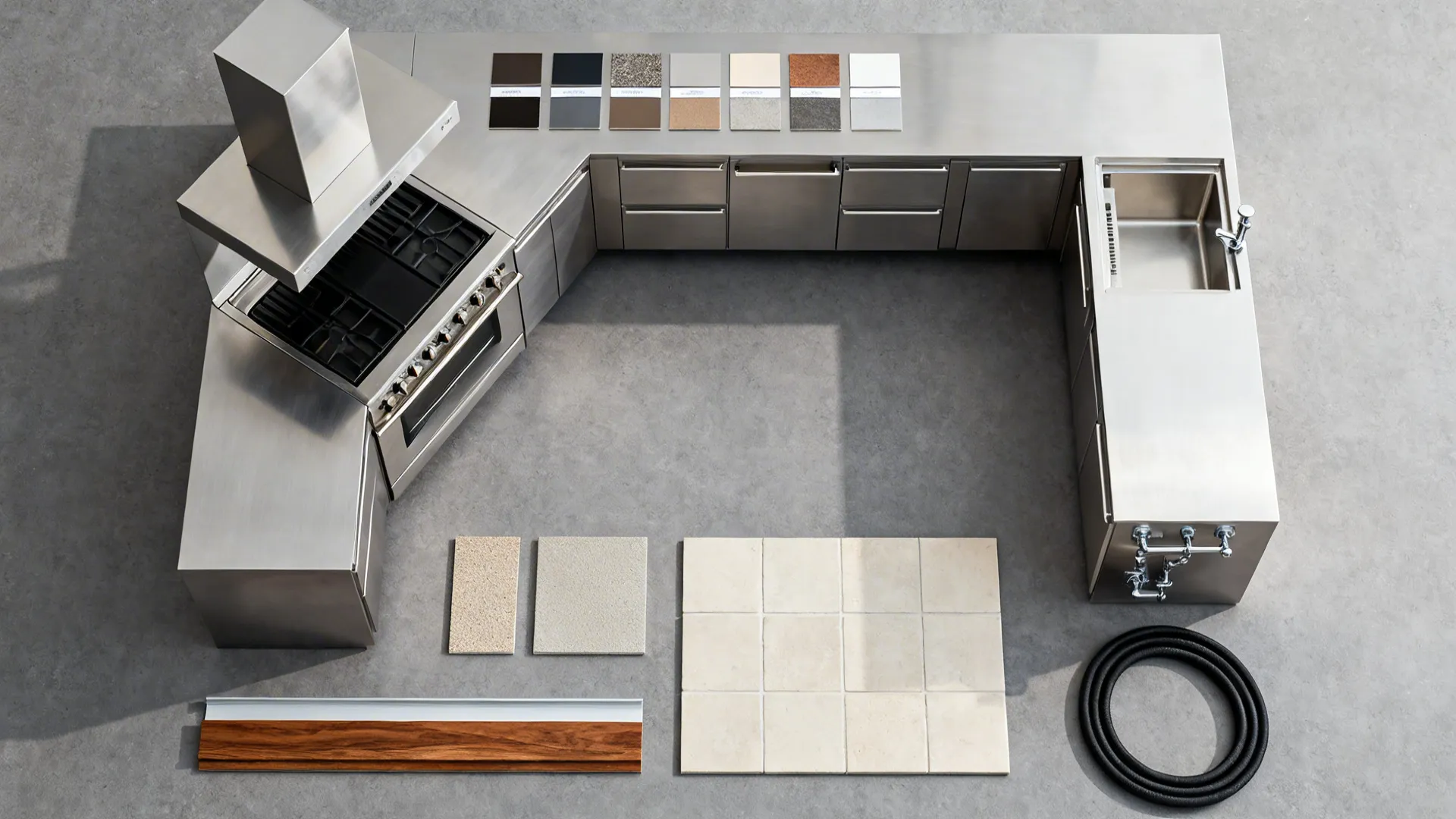

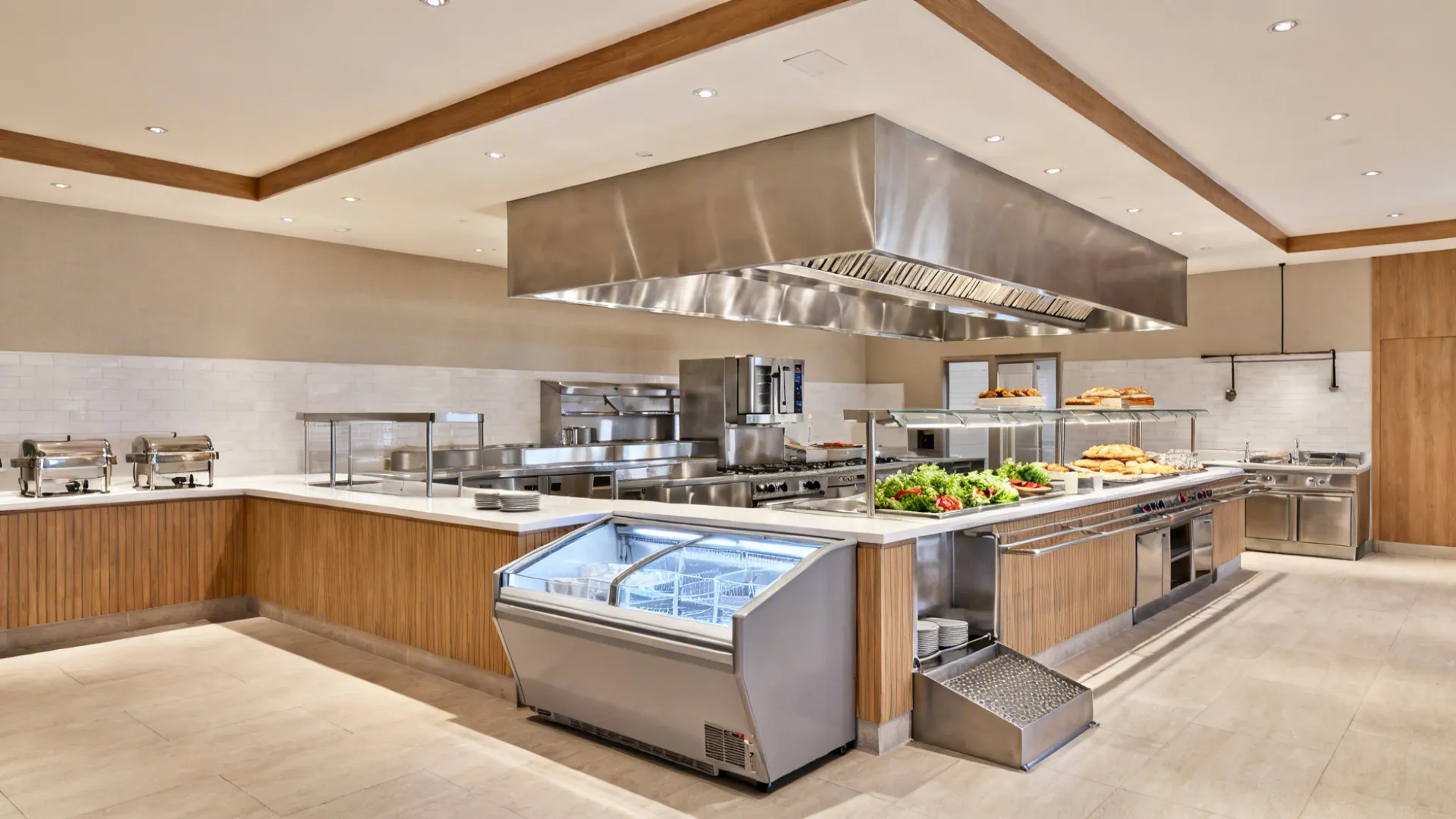

3) L-shaped hot line with cold prep return

My Take

For a seaside resort, we ran an L-shaped hot line along the wall with a short return leg for garde manger. It cut pivot time from 6 seconds to 2.5, and we reclaimed a full meter of landing space near the dish drop.

Pros

- The L optimizes corner volume, a classic hotel kitchen layout move when ducts and columns limit straight-line planning.

- Keeps cold prep adjacent but thermally buffered; the 90-degree turn reduces radiant heat creep to salad and pastry.

- Long-tail gain for “compact hotel kitchen design” where every counter millimeter matters.

Cons

- Corners can become dead zones if you don’t fit custom corner refrigeration or angled shelving.

- Adds complexity to hood and make-up air balancing; your MEP consultant will want precise BTU loads.

Tips / Cost

- Specify corner drawers or a 45-degree refrigerated well; it turns the corner into prime mise space.

- Mid-range cost due to custom stainless and possible hood extension. Around 10–15% over a straight line in my projects.

At this point—about halfway through planning—I usually validate adjacencies with quick concept diagrams, then test traffic and reach zones using a digital mockup. It’s where I stress-test things like landing zones, pass width, and expo angles, often iterating on "glass backsplash makes the kitchen feel more open" concepts when I need visual relief and reflectivity in compact spaces.

save pin

save pin

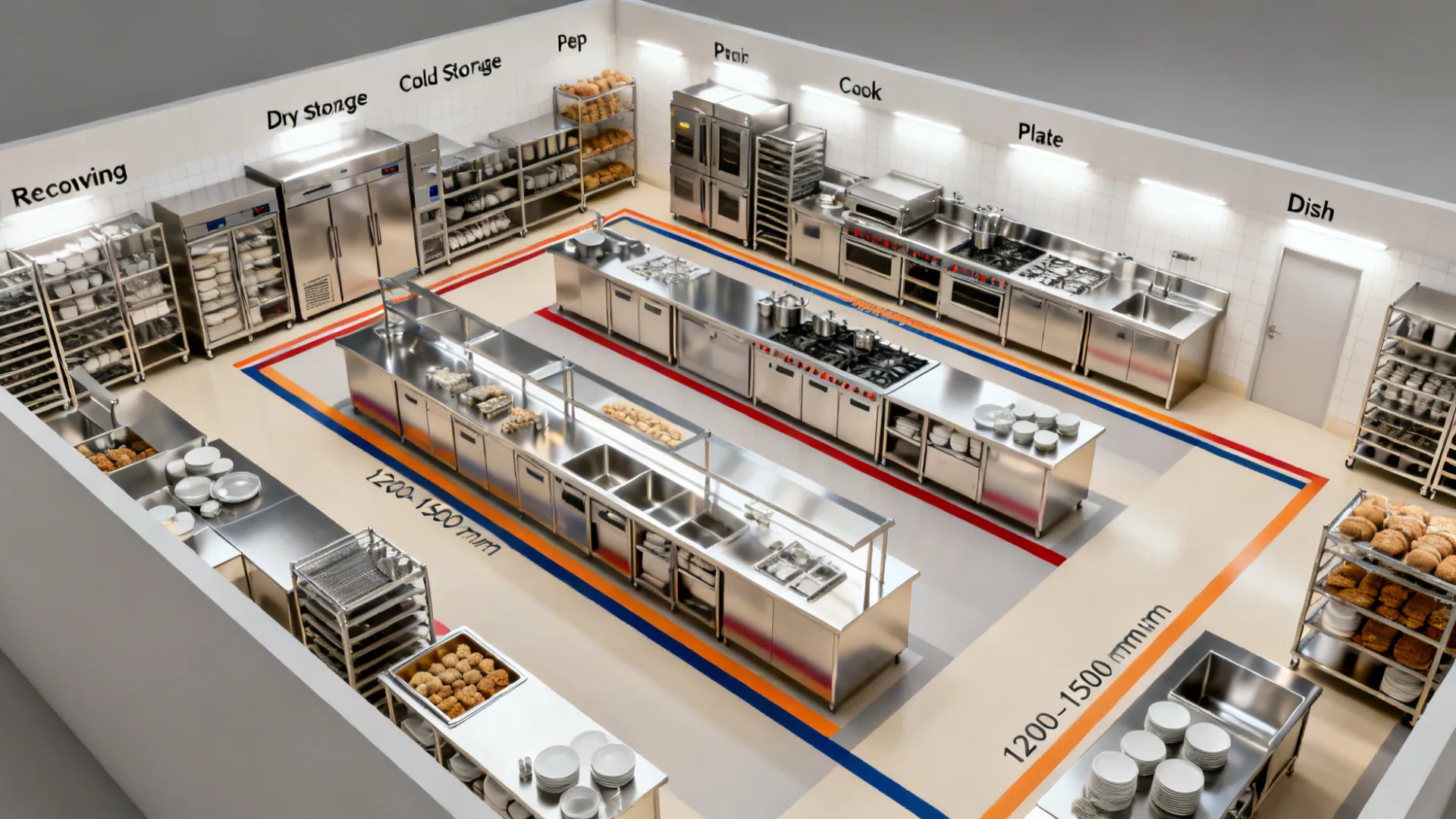

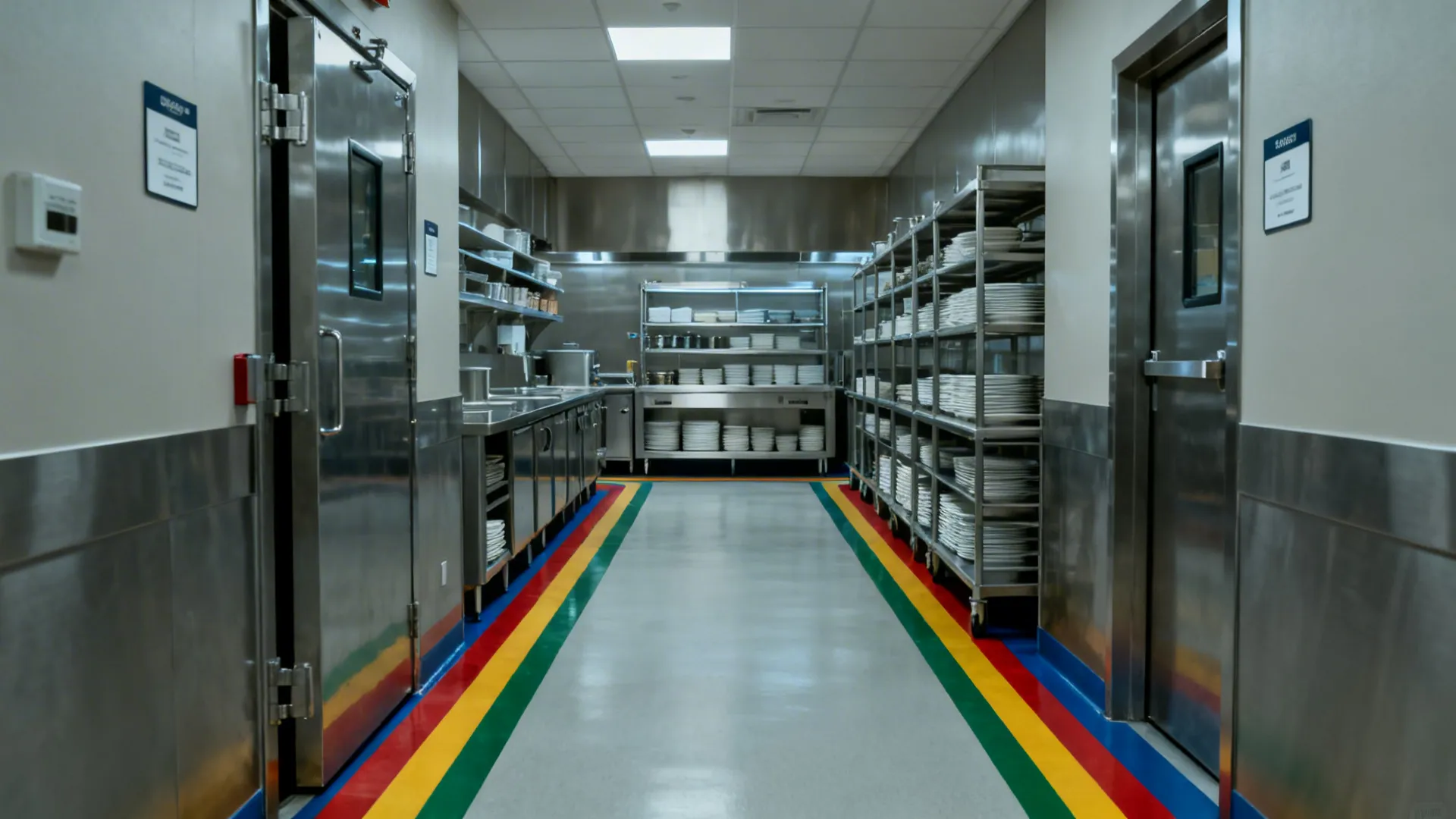

4) Zoned flow: receiving → dry/cold storage → prep → cook → plate → dish

My Take

Hotels live and die by logistics. In one city-center property, our biggest win was zoning rigor: deliveries landed near storage, prep floated between cold and hot, and dish stayed quarantined with dedicated returns. We cut crisscrossing to almost zero.

Pros

- Aligns with food safety best practices; the flow from clean-in to clean-out is unidirectional—a core principle for any hotel kitchen layout handling banquets and room-service simultaneously.

- Supports long-tail compliance goals like “commercial kitchen HACCP workflow” by separating raw, ready-to-eat, and allergen processes.

- Scales for banquet spikes with temporary staging within the same flow.

Cons

- Requires space discipline; if storage overflows, the whole system clogs.

- New staff need a week to adapt; muscle memory resists change.

Tips / Authority

- Reference HACCP zoning and temperature control guidance. The FDA Food Code (latest edition) and Codex HACCP principles outline process segregation and holding temps; these standards underpin my zoning diagrams.

- Color-zone the floor or edges of counters to reinforce the flow; cheap and effective training aid.

save pin

save pin

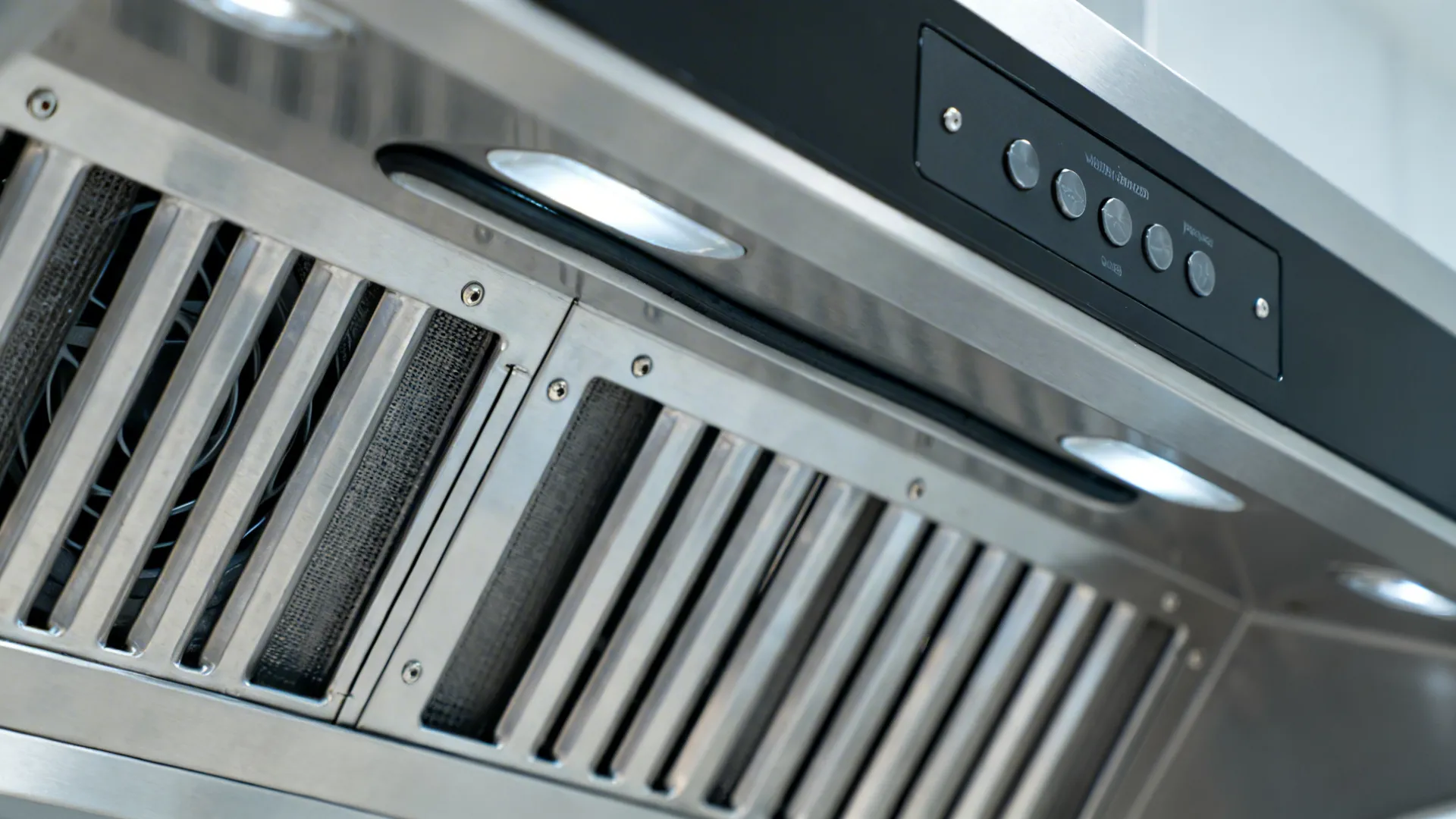

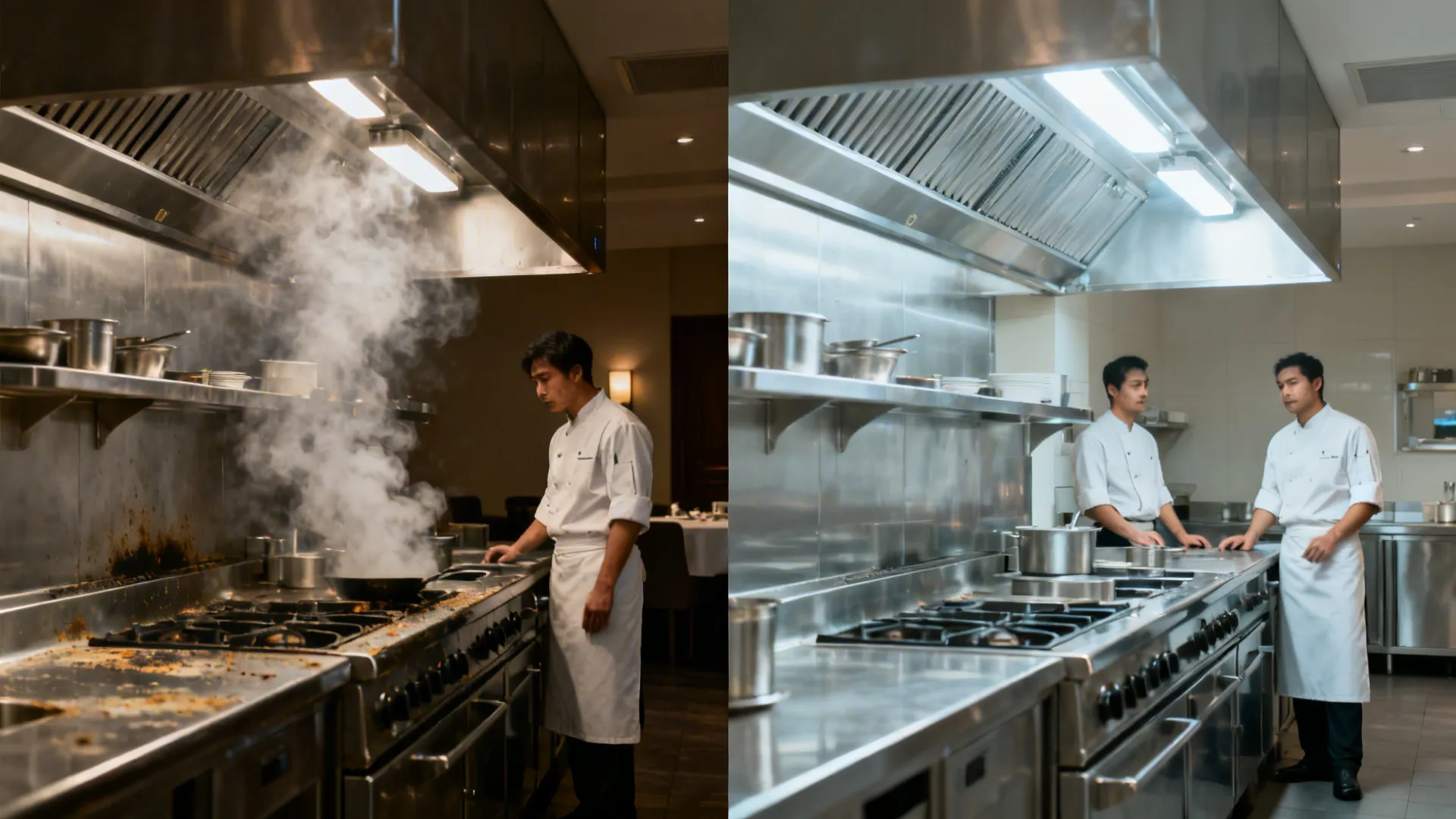

5) Ventilation-first planning with make-up air balance

My Take

I once retrofitted a heritage hotel where the hood was an afterthought—bad idea. We flipped the script: sized hoods by actual BTU, balanced make-up air, and suddenly cooks weren’t battling cross-drafts or smoke alarms.

Pros

- Stable capture velocity makes the entire hotel kitchen layout safer and cooler, especially on long saute lines.

- Reduces grease migration to adjacent areas—critical when the pastry alcove or cold room is nearby.

- Long-tail boost to “energy-efficient commercial kitchen ventilation.”

Cons

- Upfront cost can sting; custom hoods and variable-speed fans aren’t cheap.

- If you undershoot commissioning, you’ll chase hot spots for months.

Tips / Authority / Cost

- Follow ASHRAE 154 and NFPA 96 for hood exhaust, clearance, and ducting standards; commissioning day is sacred—bring the GC, MEP, and chef lead.

- Cost: significant CAPEX, but OPEX drops with demand-controlled ventilation and good gasketing.

As build documents take shape, I like to run a last-mile circulation test and a 3D pass to validate line of sight, worker turns, and conflict points between expo and dish returns. If we’re juggling breakfast buffets and banquet plating in the same footprint, a quick parametric tweak to station spacing is worth it. That’s when a scenario-led mockup grounded in "warmth from wood accents" can reveal both ergonomic wins and guest-facing style opportunities for open pass views.

save pin

save pin

Summary

A great hotel kitchen layout isn’t a compromise—it’s proof that smaller footprints demand smarter choreography. From minimalist mise lines to L-shaped returns and zoning rigor, the right sequence raises consistency, safety, and speed. Industry standards like FDA Food Code, Codex HACCP, ASHRAE 154, and NFPA 96 give you the guardrails; our job is tailoring them to your menu and team. Which of these five ideas would you try first in your space?

save pin

FAQ

1) What is the best hotel kitchen layout for a small footprint?

For compact sites, an L-shaped hot line with a nearby cold prep return keeps pivots short and heat controlled. Pair it with strict zoning so dish returns never cross prep paths.

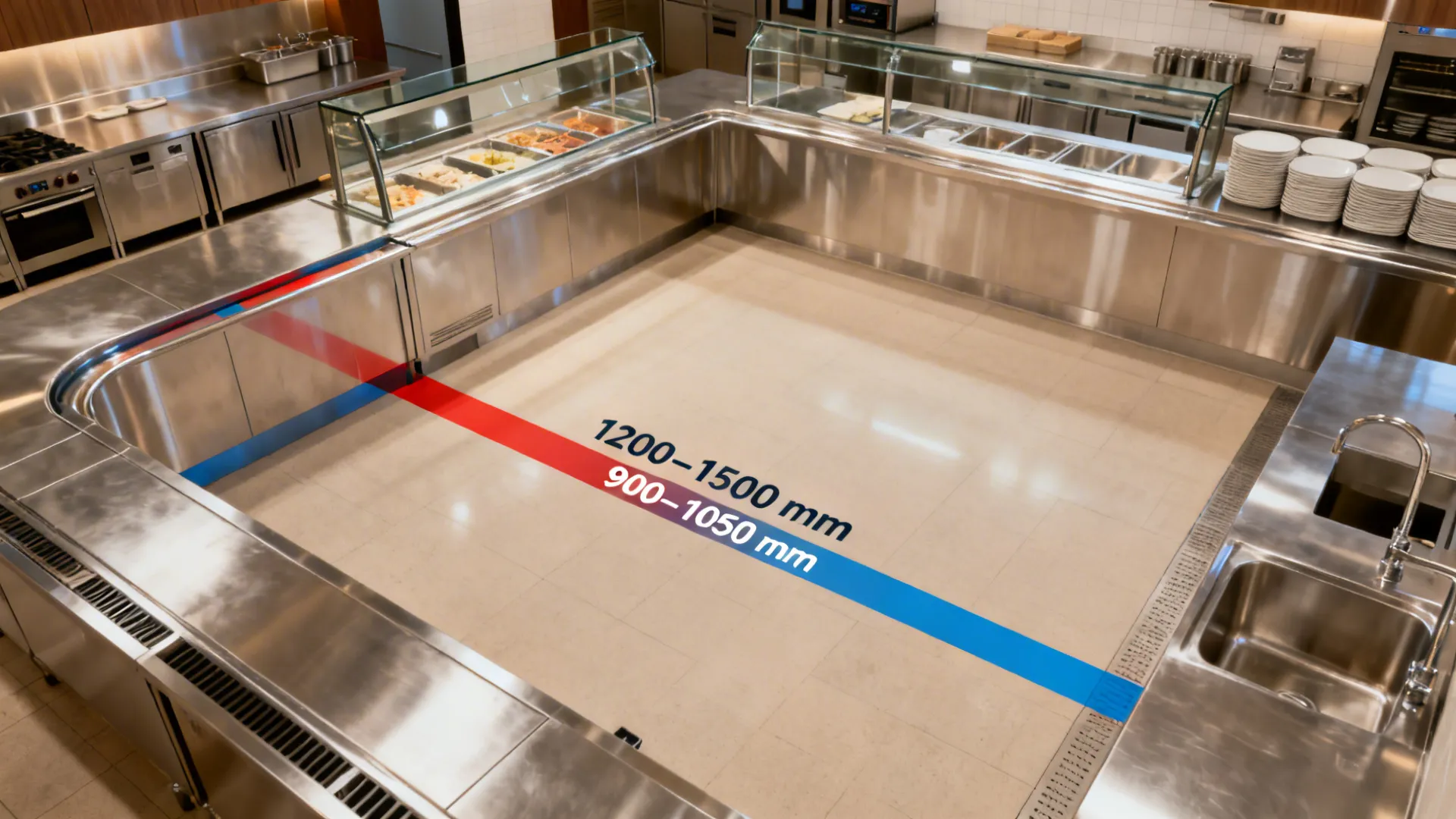

2) How wide should aisles be in a hotel kitchen layout?

Typically 1,200–1,500 mm for two-way traffic, with 1,800 mm near the pass for service peaks. Keep 900–1,050 mm for single-file corridors behind fixed equipment.

3) How do I separate hot and cold zones effectively?

Use the layout: place cold prep at a 90-degree return, insulate with low-heat equipment, and add air curtains or baffles if needed. Monitor temps during peak with data loggers.

4) What standards should guide a hotel kitchen layout?

Lean on the FDA Food Code and Codex HACCP for process flow and food safety, and ASHRAE 154/NFPA 96 for ventilation and fire protection. These sources define safe clearances and temperature controls.

5) How can I speed up room-service without enlarging the kitchen?

Improve expo sightlines with a glass pass, use standardized mise containers, and dedicate a hot-hold shelf for delivery runs. A quick digital mockup using "more counter space with an L-shaped layout" logic can expose bottlenecks before build-out.

6) What’s a realistic budget focus when reworking ventilation?

Plan for higher CAPEX on hoods, make-up air, and VFD fans, but expect lower OPEX with demand control. Commission thoroughly to avoid costly rework.

7) How do I plan storage in a hotel kitchen layout?

Stage receiving at the perimeter, then dry and cold storage in closest adjacency to prep. Use adjustable racking, corner refrigeration, and FIFO labeling to keep flow clean.

8) How do I manage allergens in a mixed hotel menu?

Dedicate color-coded tools and bins, schedule allergen prep in segregated time blocks, and store items below ready-to-eat foods. HACCP-based plans help document and train staff effectively.
