How Are Kitchen Cabinets Attached to the Wall?: A practical breakdown of cabinet mounting methods, hardware, and structural rules most homeowners never notice

Direct Answer

Kitchen cabinets are attached to the wall by anchoring them directly into wall studs using long structural screws through a reinforced mounting rail on the back of the cabinet. This distributes weight safely and prevents cabinets from pulling away from the wall.

Professional installers also use temporary support rails, shims for leveling, and precise stud alignment to ensure the cabinets remain stable under hundreds of pounds of load.

Quick Takeaways

1. Kitchen cabinets are secured into wall studs with long structural cabinet screws.
2. A mounting rail or hanging strip distributes weight across the cabinet back.
3. Installers level cabinets with shims before tightening screws.
4. Upper cabinets can hold 300+ pounds when properly anchored.
5. Incorrect stud placement is the most common installation failure.

Introduction

One of the most common questions I hear from homeowners during remodels is surprisingly simple: how are kitchen cabinets attached to the wall? It usually comes up when someone sees installers hanging what looks like a 100‑pound cabinet box with just a few screws.

After working on residential kitchen projects for more than a decade, I can tell you the process is both simpler and more engineered than people expect. Cabinets aren't just "screwed to drywall." They rely on structural framing, reinforced cabinet backs, and careful load distribution.

In fact, when cabinets fail or sag years later, it's rarely because of cabinet quality. It's usually because someone missed the studs, skipped leveling, or installed them in the wrong sequence.

Before installers even start drilling, many designers plan the structure and spacing digitally. If you're curious how layout planning happens before installation, you can see how a professional kitchen layout is mapped before cabinets are mounted. Proper layout planning prevents structural conflicts later.

In this guide I'll break down exactly how cabinets are secured to walls, the hardware involved, and the installation details that separate a professional job from a risky DIY attempt.

save pin

What Structural Parts Allow Cabinets to Mount to a Wall?

Key Insight: Kitchen cabinets are designed with reinforced back panels and mounting rails specifically built to anchor into wall studs.

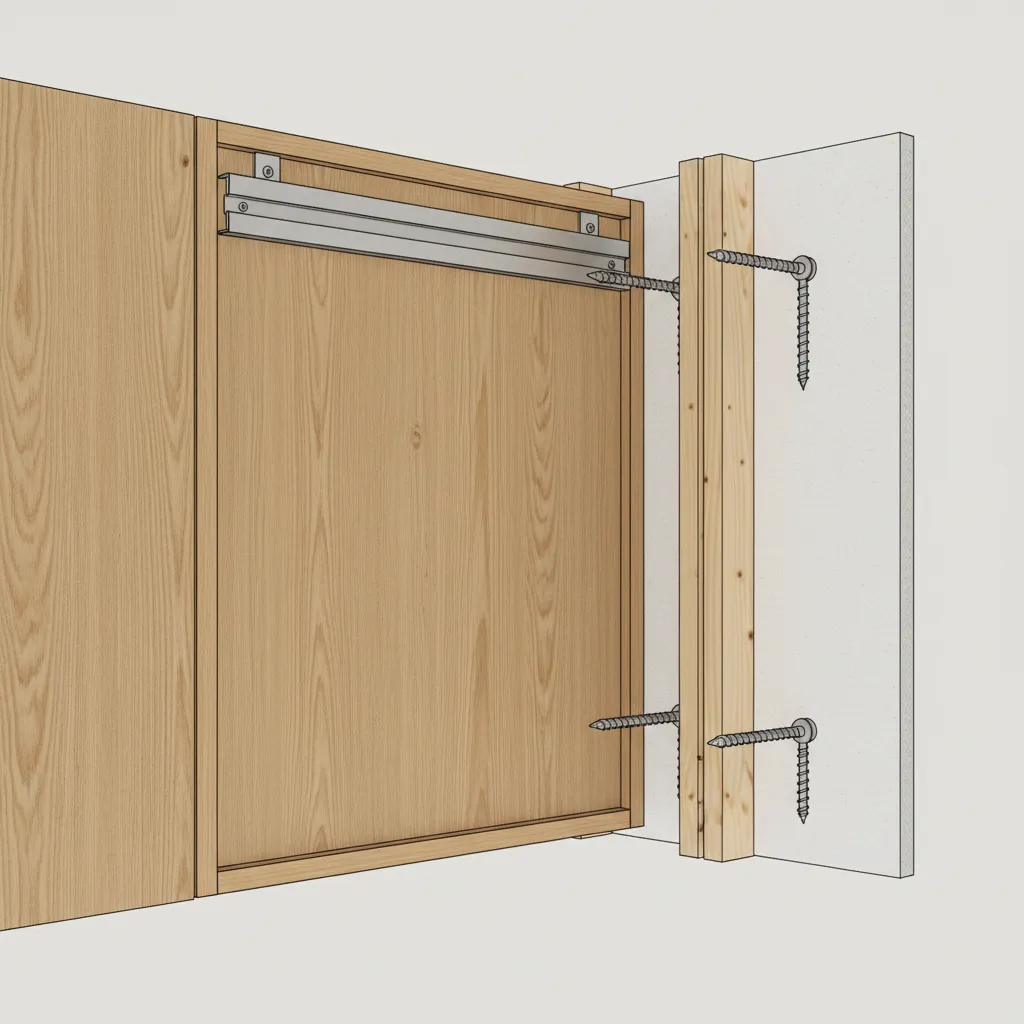

Most modern cabinets include a structural strip called a mounting rail or hanging rail. This is a thick horizontal section built into the cabinet back that spreads weight across the entire cabinet frame.

Instead of relying on the thin back panel, screws pass through this reinforced rail directly into the studs.

Main structural components:

1. Mounting rail: A thick wood strip that supports screw loads.
2. Cabinet back panel: Provides structural stability.
3. Wall studs: Vertical framing members that carry weight.
4. Cabinet screws: Long hardened screws designed for structural loads.

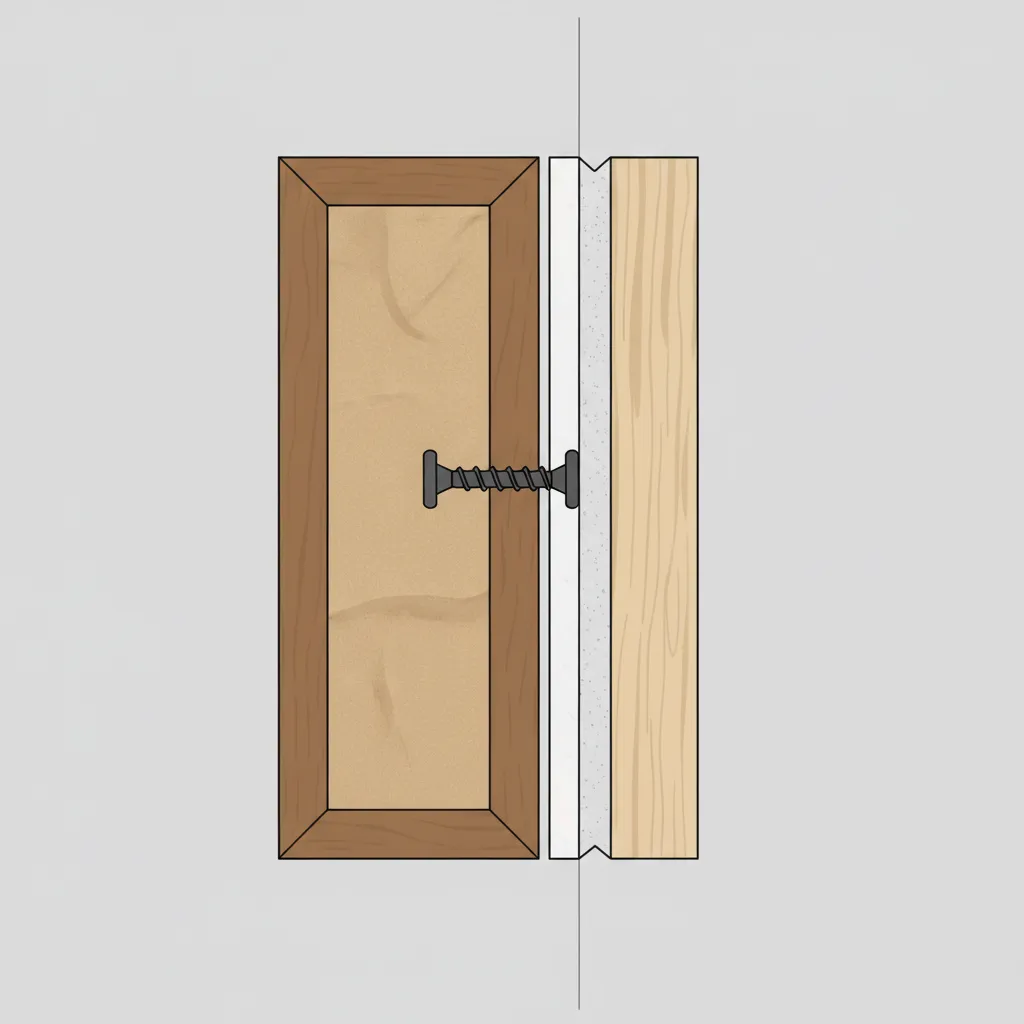

In a typical installation, screws are 2.5–3.5 inches long so they pass through the cabinet, drywall, and deep into the stud.

According to guidelines from the Kitchen Cabinet Manufacturers Association, properly installed upper cabinets can support several hundred pounds of distributed weight.

Step‑by‑Step: How Installers Actually Mount Upper Cabinets

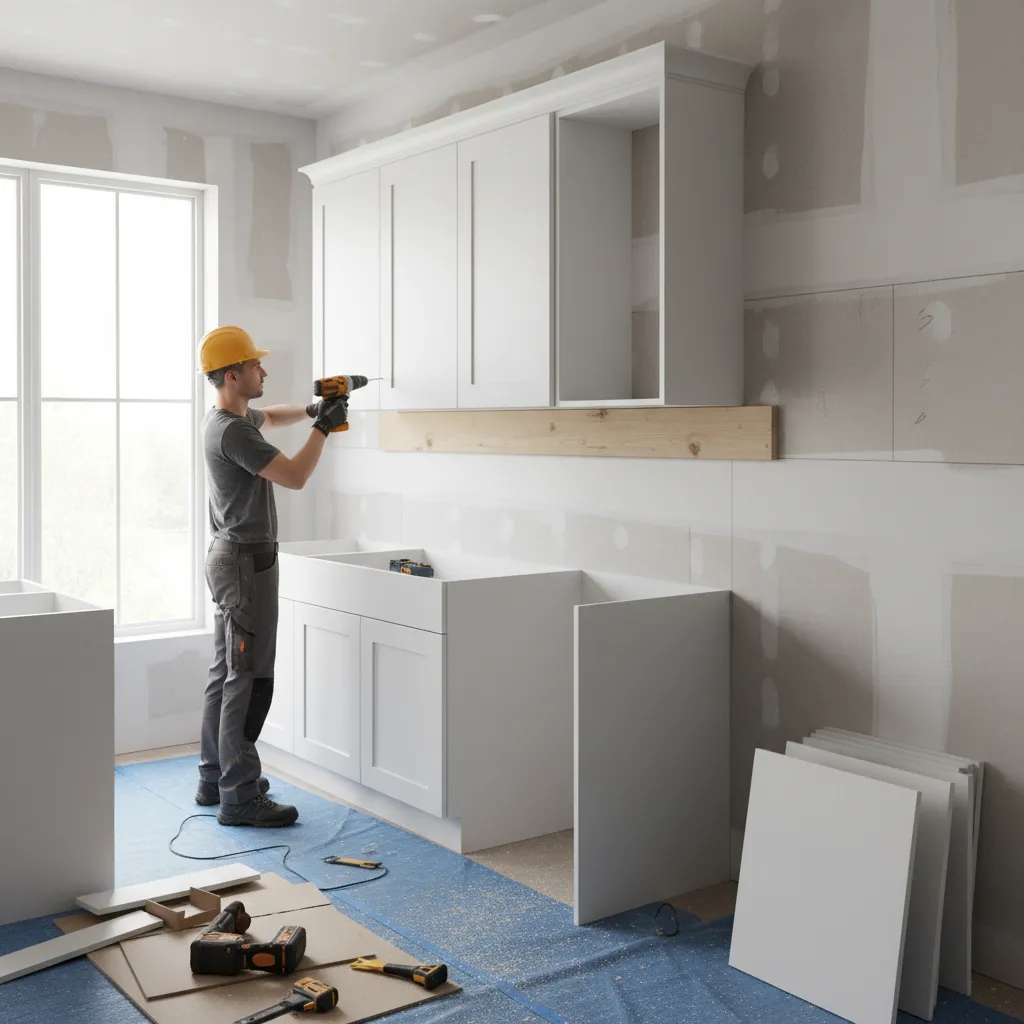

Key Insight: Professional installers mount upper cabinets first using a temporary ledger board to support the weight during alignment.

This is where many DIY installations go wrong. People try to hold cabinets in place while drilling. Professionals never do that.

Typical installation process:

1. Locate and mark all wall studs.
2. Draw a level line where cabinet bottoms will sit.
3. Install a temporary ledger board under that line.
4. Lift the cabinet onto the ledger board.
5. Drill pilot holes through the mounting rail.
6. Drive cabinet screws into studs.
7. Shim behind the cabinet to keep it perfectly level.
8. Connect adjacent cabinets together.

The ledger board acts like a shelf so installers can focus on alignment rather than supporting weight.

save pin

Why Stud Placement Matters More Than Cabinet Weight

Key Insight: Cabinets rarely fail because they're too heavy; they fail because screws miss the studs.

Drywall alone cannot support cabinet loads. A single loaded kitchen cabinet can weigh 150–250 pounds once dishes and cookware are added.

That's why installers always anchor into studs spaced roughly 16 inches apart.

Common installation mistakes I see:

1. Screwing only into drywall anchors
2. Missing studs due to inaccurate stud finders
3. Using short screws
4. Overtightening and stripping studs

During design planning, wall structure and cabinet width must align. If cabinets fall between studs, installers often add horizontal blocking behind drywall.

This is one reason layout planning tools are useful early in the design phase. You can visualize wall structure and cabinet spacing in a 3D kitchen layout before construction begins, which helps avoid awkward stud conflicts.

How Do Base Cabinets Stay Stable Without Wall Support?

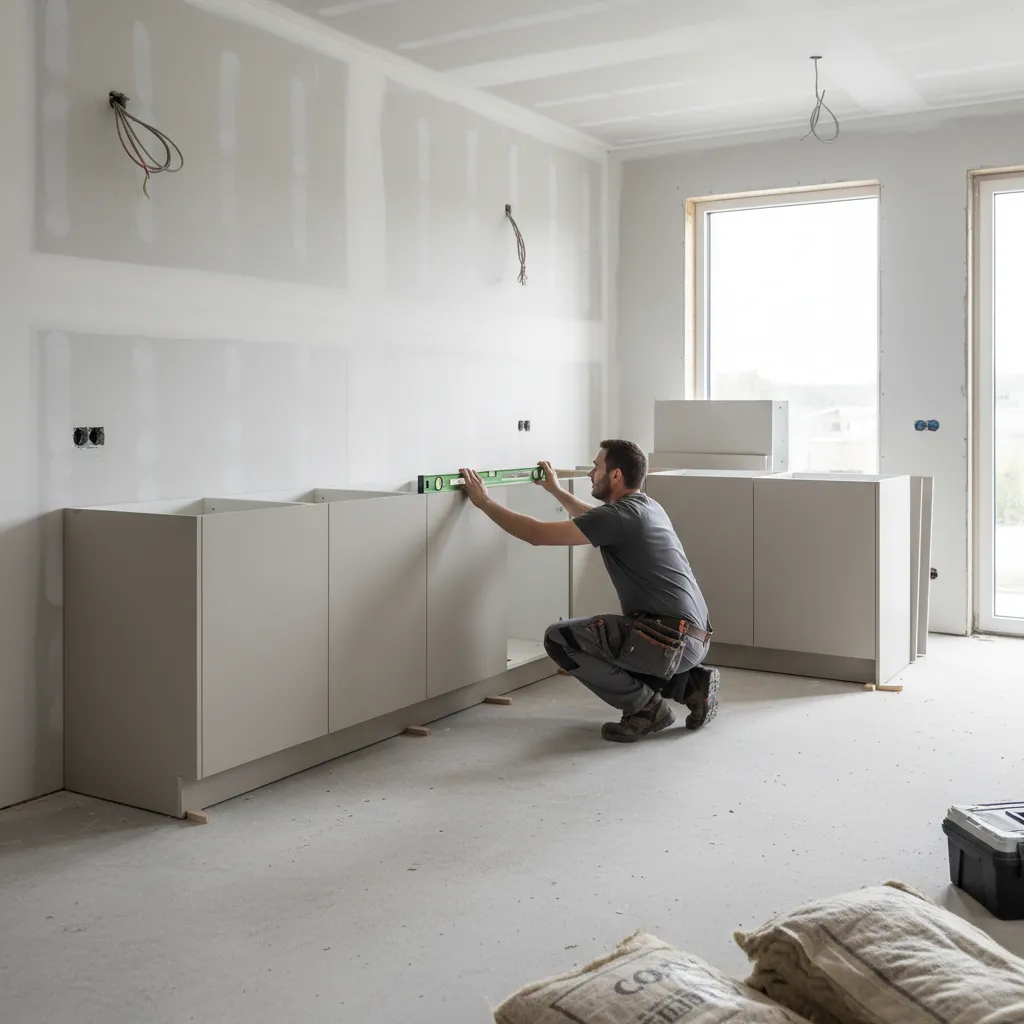

Key Insight: Base cabinets primarily sit on the floor, but they are still lightly anchored to the wall to prevent shifting.

Unlike upper cabinets, base cabinets carry most of their load through the floor. The wall connection mainly prevents tipping or movement.

Base cabinet installation structure:

1. Cabinet sits on floor or adjustable legs
2. Leveling shims correct uneven flooring
3. Screws anchor cabinet backs into studs
4. Adjacent cabinets are clamped and screwed together

Once countertops are installed, the entire system becomes even more rigid because the counter locks multiple cabinets into one structure.

save pin

Hidden Costs and Problems Most Install Guides Ignore

Key Insight: The hardest part of cabinet installation isn't hanging the cabinets—it's correcting imperfect walls.

In real homes, walls are rarely straight. I regularly see walls that lean 1/2 inch across a standard cabinet run.

Installers compensate using shims placed behind cabinet mounting rails.

Common hidden issues:

1. Walls not plumb
2. Studs misaligned with cabinet widths
3. Drywall thickness variations
4. Ceilings not level

Without correcting these problems, cabinets will look crooked even if they are structurally secure.

Answer Box

Kitchen cabinets are attached to walls by driving long cabinet screws through reinforced mounting rails into structural wall studs. Installers level cabinets with shims and often use a temporary ledger board to support upper cabinets during installation.

When properly mounted into studs, cabinets can safely hold hundreds of pounds of kitchen storage.

Can You Install Kitchen Cabinets Without Studs?

Key Insight: Cabinets should almost never be installed without stud anchoring unless specialized structural mounting systems are used.

In rare situations—such as concrete walls or metal framing—installers use alternative anchors.

Possible alternatives:

1. Concrete expansion anchors
2. Structural toggle bolts
3. Metal track hanging systems
4. French cleat mounting rails

However, most residential kitchens in North America rely on wood studs because they provide the strongest long‑term support.

If you're experimenting with layout changes before installation, it's helpful to explore different kitchen configurations in a realistic room planning workflowso cabinet placement works with structural constraints.

save pin

Final Summary

1. Kitchen cabinets attach to walls using structural screws driven into studs.
2. Upper cabinets rely on reinforced mounting rails for load distribution.
3. Ledger boards help installers safely mount cabinets during alignment.
4. Most cabinet failures happen when screws miss the studs.
5. Wall imperfections require shimming for a perfectly level installation.

FAQ

How are kitchen cabinets attached to the wall studs?

Installers drive long cabinet screws through the cabinet mounting rail into wall studs. This creates a structural connection capable of supporting heavy loads.

Can kitchen cabinets be mounted on drywall only?

No. Drywall cannot support cabinet weight. Cabinets must be anchored into studs or structural backing.

How much weight can wall cabinets hold?

Properly installed kitchen cabinets can often support 300 pounds or more when anchored into multiple studs.

Do installers mount upper or lower cabinets first?

Upper cabinets are usually installed first so installers can work without base cabinets blocking access.

What screws are used for mounting kitchen cabinets?

Special cabinet screws, typically 2.5–3.5 inches long, designed for structural wood framing.

How far apart are wall studs in kitchens?

Most homes have studs spaced 16 inches apart, though some may be 24 inches apart.

Can you remove and reinstall kitchen cabinets?

Yes. Cabinets can usually be unscrewed from the studs and remounted if done carefully.

How do you know where studs are before installing kitchen cabinets?

Use a stud finder, inspect framing plans, or drill small pilot holes to confirm stud positions.

Meta TDK

Meta Title: How Are Kitchen Cabinets Attached to the Wall?

Meta Description: Learn how kitchen cabinets are attached to the wall, including studs, mounting rails, and professional installation methods that keep cabinets secure.

Meta Keywords: how are kitchen cabinets attached to the wall, cabinet installation method, kitchen cabinet mounting, cabinet screws into studs, wall cabinet installation

Featured Image

fileName: kitchen-cabinets-wall-mount-structure.jpg

size: 1920x1080

alt: kitchen wall cabinets securely mounted to wall studs during installation

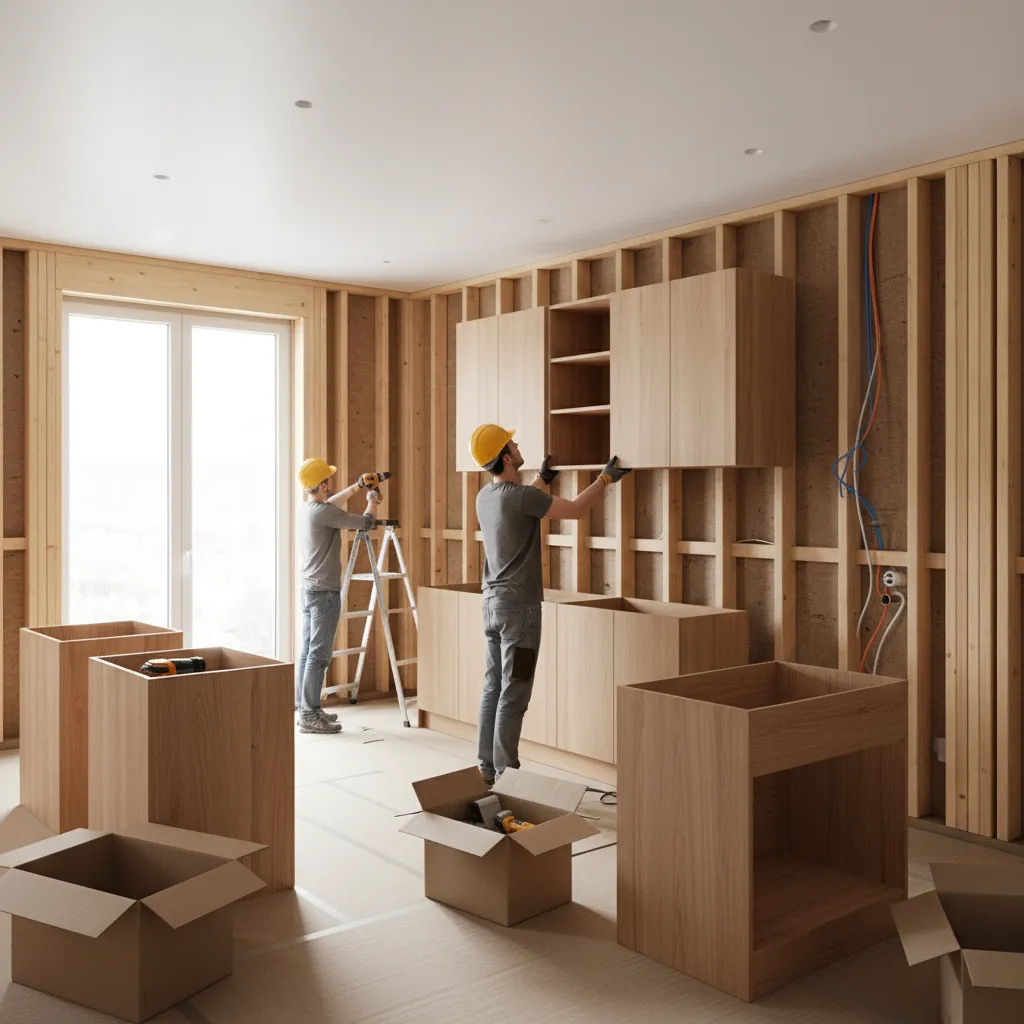

caption: Proper wall stud mounting keeps cabinets secure.
