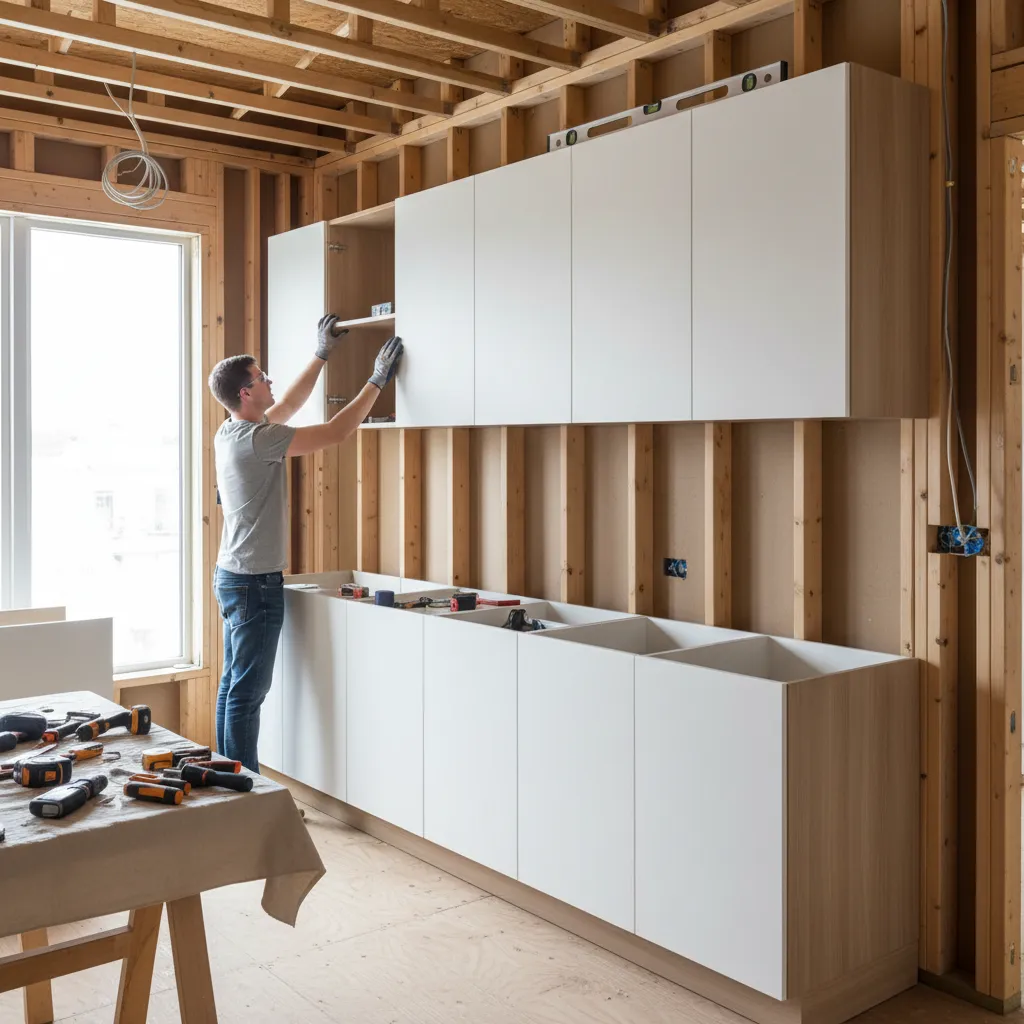

How Are Kitchen Cabinets Attached to the Wall?: A designer explains the real installation structure behind secure, level, long‑lasting kitchen cabinets.

Direct Answer

Kitchen cabinets are attached to the wall by screwing the cabinet back rails or hanging rails directly into wall studs. Installers first locate studs, level a ledger board or reference line, and drive long cabinet screws through the cabinet frame into structural framing.

This method ensures the cabinet load transfers into the wall structure instead of drywall, which prevents sagging, separation, or cabinet failure over time.

Quick Takeaways

1. Wall cabinets are secured with long structural screws driven into wall studs.
2. A temporary ledger board helps hold cabinets level during installation.
3. The cabinet's hanging rail or back panel distributes weight across multiple studs.
4. Most installers mount upper cabinets before base cabinets for easier access.
5. Incorrect stud alignment is the most common reason cabinets become loose.

Introduction

One of the most common questions homeowners ask during a remodel is surprisingly simple: how are kitchen cabinets attached to the wall? After working on kitchen renovations for more than a decade, I can tell you the answer matters more than most people realize.

Cabinets are heavy before you even add dishes, cookware, and appliances. A typical upper cabinet can easily hold 150–300 pounds once fully loaded. If that weight isn’t transferred into the wall structure correctly, the results can range from crooked doors to cabinets literally pulling away from the wall.

Before I finalize layouts for clients, I usually walk them through the structural logic of cabinet installation. Understanding where cabinets anchor into framing also helps when planning layouts using tools like this step‑by‑step kitchen layout planning guide for efficient cabinet placement, because spacing often depends on stud locations and load distribution.

In this guide, I’ll explain exactly how professionals mount cabinets, the hardware involved, common installation mistakes, and a few structural details most online tutorials completely miss.

save pin

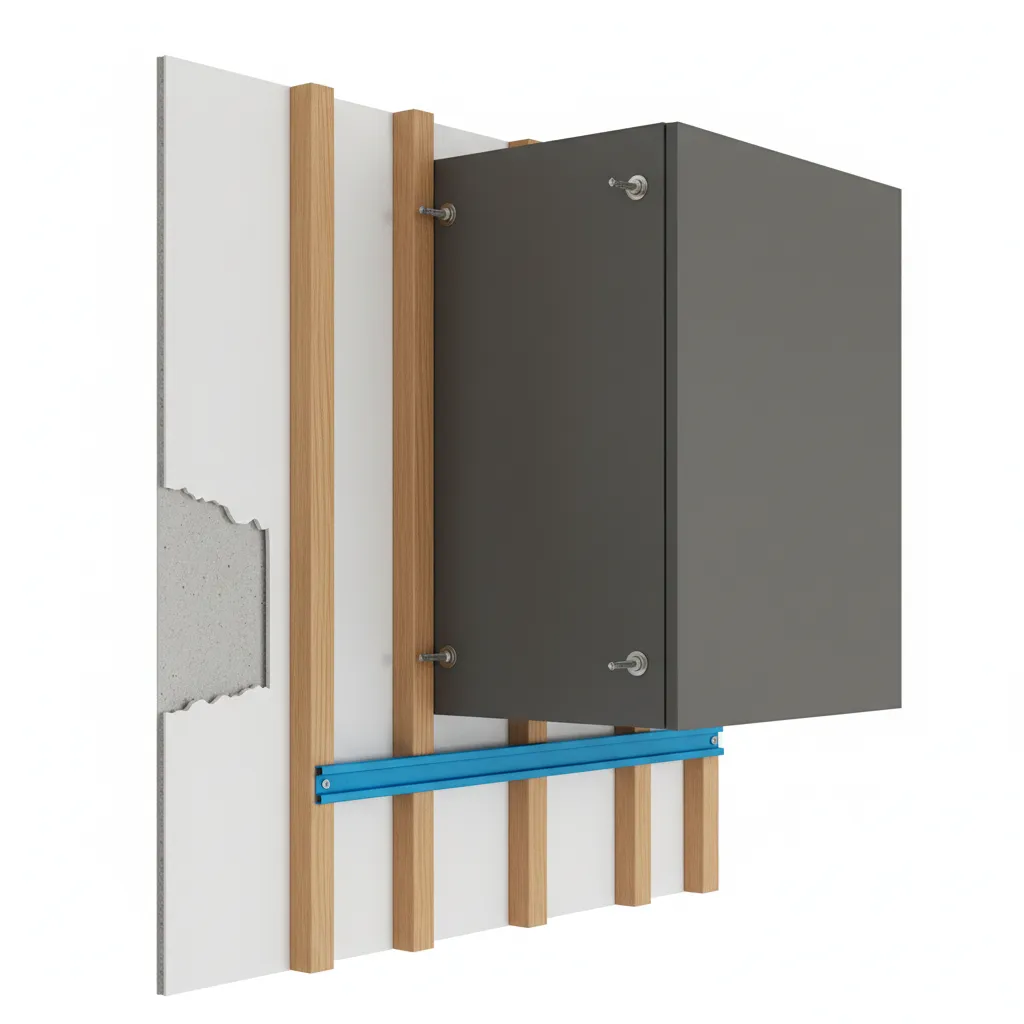

Why Cabinets Must Be Anchored Into Wall Studs

Key Insight: Kitchen cabinets stay secure because screws penetrate wall studs, not drywall.

Drywall alone cannot support cabinet weight. A single cabinet filled with plates can exceed 200 pounds, and drywall anchors simply aren't designed for that sustained load.

Wall studs—typically spaced 16 inches apart—form the structural frame behind the wall surface. When cabinet screws bite into these studs, the load transfers into the house framing instead of the wall covering.

Professional installers typically follow this process:

1. Locate studs using a stud finder or inspection holes
2. Mark vertical stud lines across the wall
3. Align cabinets so mounting rails intersect multiple studs

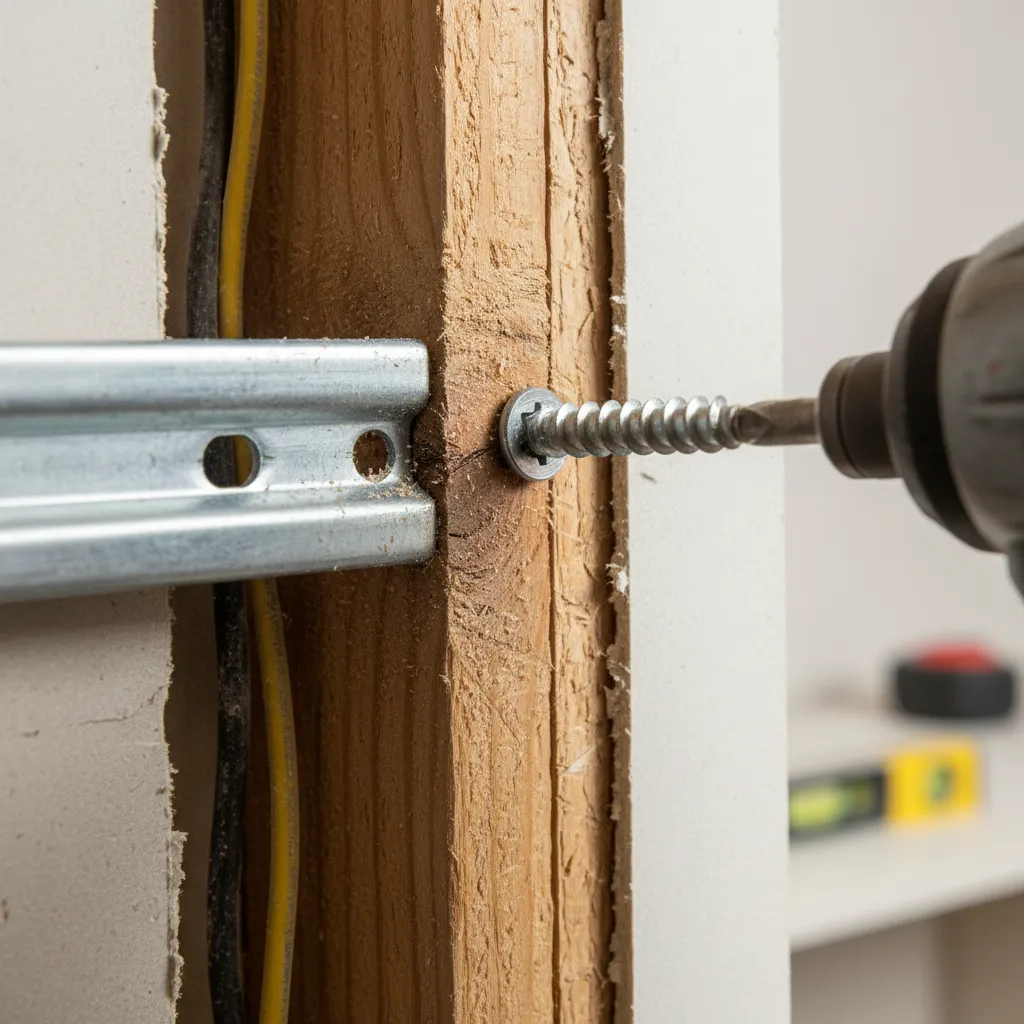

4. Drive 2.5–3 inch cabinet screws through the back frame

In most kitchens, every cabinet is anchored into at least two studs. Wider cabinets may hit three.

From a design perspective, this is why cabinet widths often follow 12", 15", 18", 24", and 30" increments—they align more easily with stud spacing.

What Hardware Is Used to Mount Kitchen Cabinets?

Key Insight: Structural cabinet screws—not generic wood screws—are used to mount cabinets safely.

Many DIY tutorials gloss over this detail, but hardware choice matters a lot. Cabinet installers use specialized screws designed to carry heavy loads without snapping.

Typical mounting hardware includes:

1. Cabinet installation screws (2.5–3 inches long)
2. Washers or washer-head screws to prevent frame damage
3. Temporary ledger boards for support during installation
4. Shims to level cabinets against uneven walls

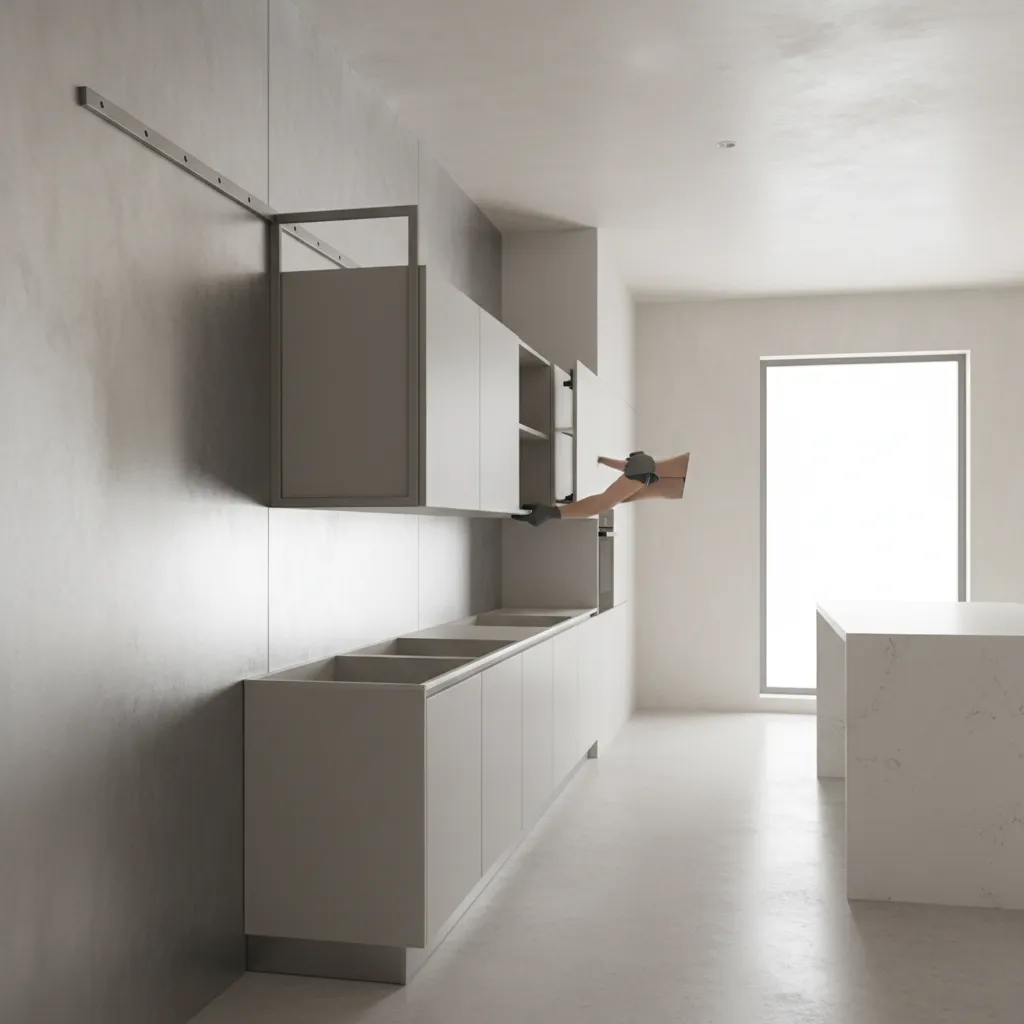

In high-end European cabinet systems, you may also see a metal hanging rail system. Cabinets hook onto a wall-mounted rail, which distributes weight evenly across multiple studs.

This approach speeds up installation and improves leveling accuracy.

save pin

What Is a Cabinet Hanging Rail or Mounting Strip?

Key Insight: Most cabinets include reinforced rails that act as structural mounting points.

If you look inside a wall cabinet, you'll often see a thick horizontal strip at the top and sometimes at the bottom of the cabinet back. These are called mounting rails or hanging rails.

They serve three structural purposes:

1. Distribute screw pressure across the cabinet frame
2. Prevent the cabinet back panel from cracking
3. Create solid wood contact for mounting screws

In frameless European cabinets, the mounting system may instead use concealed metal brackets connected to a wall rail.

Both systems work—but rail systems allow faster adjustments when leveling multiple cabinets across a long wall.

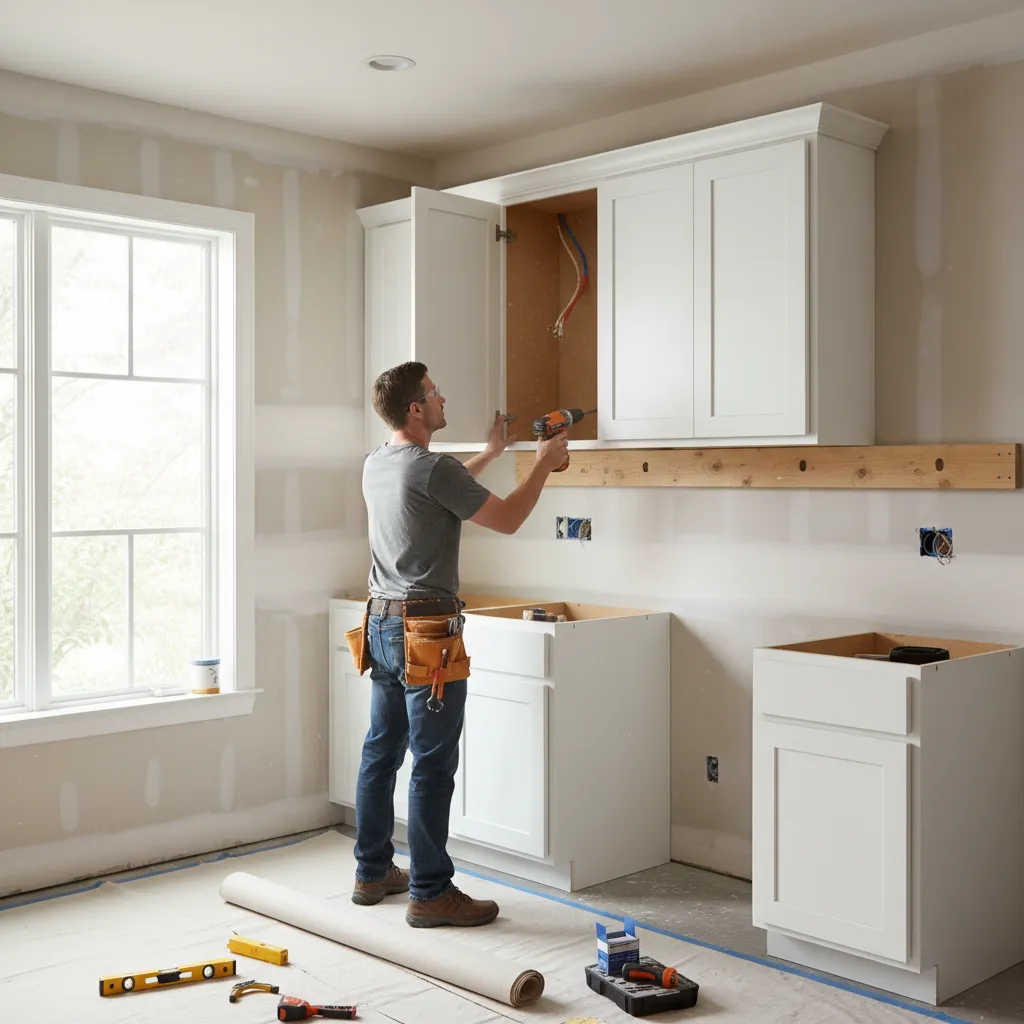

How Do Installers Keep Cabinets Perfectly Level?

Key Insight: Installers rarely rely on the floor or ceiling—they create their own reference line.

One thing that surprises homeowners: kitchen walls are rarely perfectly straight. Floors slope, drywall bows, and ceilings shift slightly over time.

To solve this, installers create a controlled reference system:

Typical leveling process:

1. Mark the desired height of upper cabinets
2. Draw a perfectly level horizontal line across the wall
3. Install a temporary ledger board along that line
4. Rest cabinets on the ledger during mounting
5. Shim behind cabinets to correct wall irregularities

This ledger board trick is one of those details professionals rely on constantly but most DIY guides barely mention.

save pin

Common Installation Mistakes That Cause Cabinets to Fail

Key Insight: Cabinet failures usually come from missing studs, poor leveling, or incorrect screws.

Over the years I've inspected dozens of kitchens where cabinets started separating from the wall. The cause is almost always installation shortcuts.

Frequent problems include:

1. Screws driven only into drywall
2. Cabinets anchored to a single stud
3. No shims used on uneven walls
4. Using short screws that barely reach framing
5. Skipping a ledger board during installation

Another overlooked issue is layout planning. If cabinet widths don't align well with studs, installers may be forced to mount them awkwardly.

This is why many designers pre‑visualize cabinetry using tools like this interactive 3D floor planner for testing cabinet alignment and wall spacing before construction begins.

Answer Box

Kitchen cabinets are mounted by driving long cabinet screws through reinforced rails into wall studs. Proper installation also uses ledger boards, shims, and leveling lines to keep cabinets straight and structurally secure.

Can Kitchen Cabinets Be Mounted Without Studs?

Key Insight: Cabinets should almost never rely solely on drywall anchors.

In rare cases—such as concrete walls, brick walls, or steel framing—different anchors are used. But drywall anchors alone are not safe for full kitchen loads.

Alternative mounting methods include:

1. Concrete anchors for masonry walls
2. Toggle bolts combined with stud mounting
3. Continuous steel mounting rails

In professional installations, at least part of every cabinet run connects to structural framing.

If you're planning cabinet placement ahead of renovation, tools like this simple floor plan creator for mapping cabinet walls before remodelingcan help determine where structural supports should align.

save pin

Final Summary

1. Kitchen cabinets are secured by screwing into wall studs.
2. Mounting rails distribute load across cabinet frames.
3. Ledger boards keep cabinets level during installation.
4. Incorrect hardware or missed studs cause most cabinet failures.
5. Proper layout planning improves structural alignment.

FAQ

How are kitchen cabinets attached to the wall securely?

They are screwed through the cabinet mounting rails directly into wall studs using long cabinet installation screws.

Can kitchen cabinets be mounted on drywall only?

No. Drywall anchors alone cannot safely support the weight of loaded kitchen cabinets.

How many screws hold a wall cabinet?

Most cabinets use at least four structural screws, usually two per stud connection.

Do upper cabinets need to hit studs?

Yes. Upper cabinets must be anchored into studs or another structural surface to safely support weight.

How far apart are cabinet mounting screws?

They are usually placed where studs occur—typically every 16 inches in standard framing.

Are rail systems better for cabinet installation?

Rail systems distribute weight more evenly and allow easier leveling, which is why many European cabinets use them.

Do base cabinets attach to the wall the same way?

Base cabinets also screw into studs, but much of their weight is supported by the floor.

How much weight can wall cabinets hold?

Properly installed cabinets attached to studs can safely hold 150–300 pounds depending on design.
