How to Design a Commercial Kitchen Layout That Actually Works: A practical guide to planning an efficient, safe, and scalable commercial kitchen layout based on real design experience.

Direct Answer

A commercial kitchen layout should organize cooking, prep, cleaning, and storage zones to minimize movement and maximize workflow efficiency. The most effective layouts follow a logical food flow—from receiving and storage to preparation, cooking, plating, and dishwashing. A well-designed commercial kitchen layout reduces labor friction, improves safety, and increases service speed.

Quick Takeaways

1. An efficient commercial kitchen layout follows the natural food preparation workflow.
2. Separating prep, cooking, and cleaning zones prevents congestion and contamination.
3. Clear walking paths often improve productivity more than adding extra equipment.
4. Ventilation, safety clearance, and storage planning matter as much as appliance placement.

Introduction

Designing a commercial kitchen layout is one of those tasks that looks simple on paper but quickly becomes complicated in real life. After working on restaurant, hotel, and café projects for over a decade, I can tell you that the biggest problems rarely come from the appliances themselves. They come from workflow mistakes.

I've walked into kitchens where chefs were crossing paths with dishwashers every few minutes, servers were squeezing between prep tables, and the fridge door blocked the entire cooking line. These issues slow down service and create safety risks.

Today, many operators experiment with digital planning before construction. Tools that help you visualize a professional kitchen workflow before installationcan reveal circulation problems early—something I wish more restaurant owners did before purchasing equipment.

In this guide, I'll break down the exact principles I use when planning a commercial kitchen layout—from zoning and traffic flow to the common mistakes most online guides completely ignore.

save pin

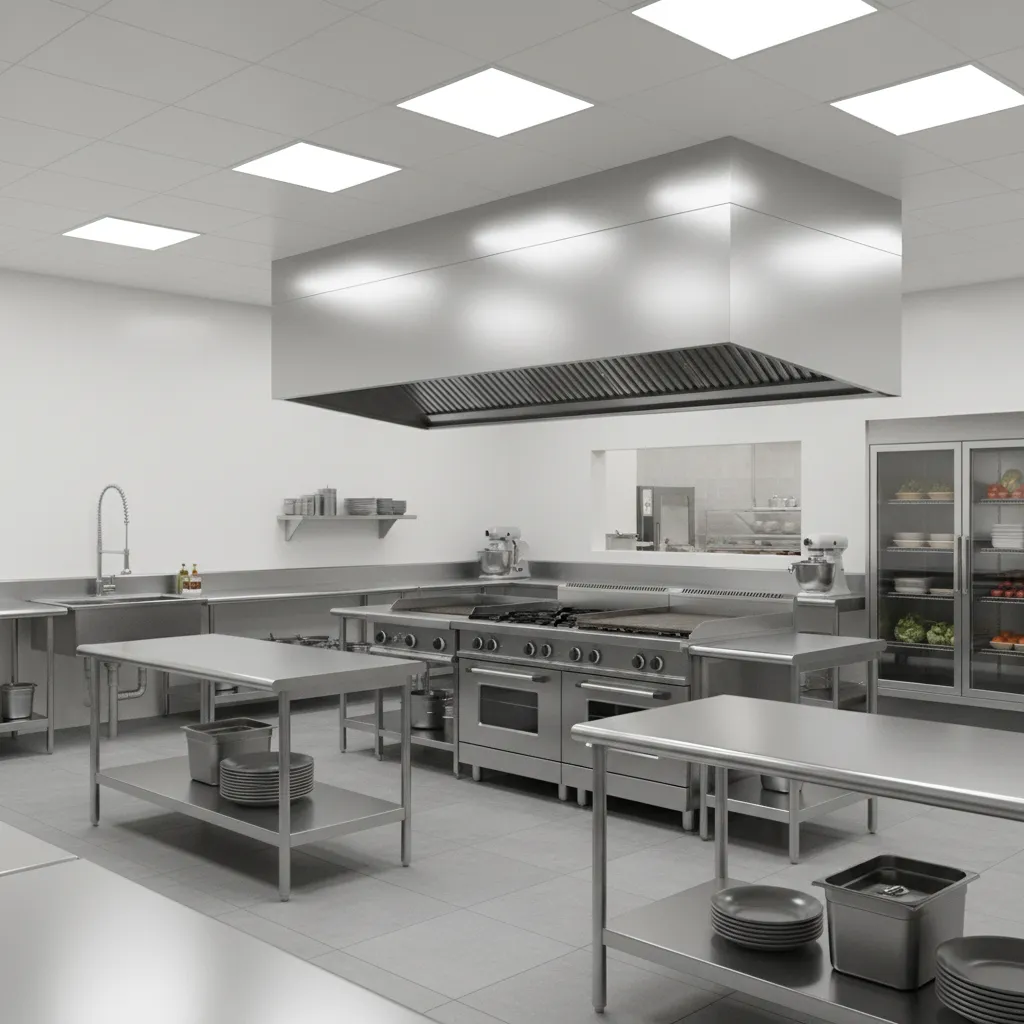

Why Workflow Is the Foundation of Every Commercial Kitchen Layout

Key Insight: The best commercial kitchen layout is designed around movement patterns, not equipment lists.

Many first-time restaurant owners start by selecting appliances: ranges, fryers, ovens, refrigerators. That approach almost always leads to inefficient kitchens.

Professional kitchen design starts with workflow. Food should move forward through the kitchen without backtracking.

A typical workflow looks like this:

1. Receiving ingredients
2. Cold and dry storage
3. Preparation stations
4. Cooking line
5. Plating / pass station
6. Dishwashing

When I redesign underperforming kitchens, the biggest productivity gains usually come from eliminating unnecessary crossing paths. A study from the Foodservice Consultants Society International also highlights that poor workflow design increases labor time significantly during peak hours.

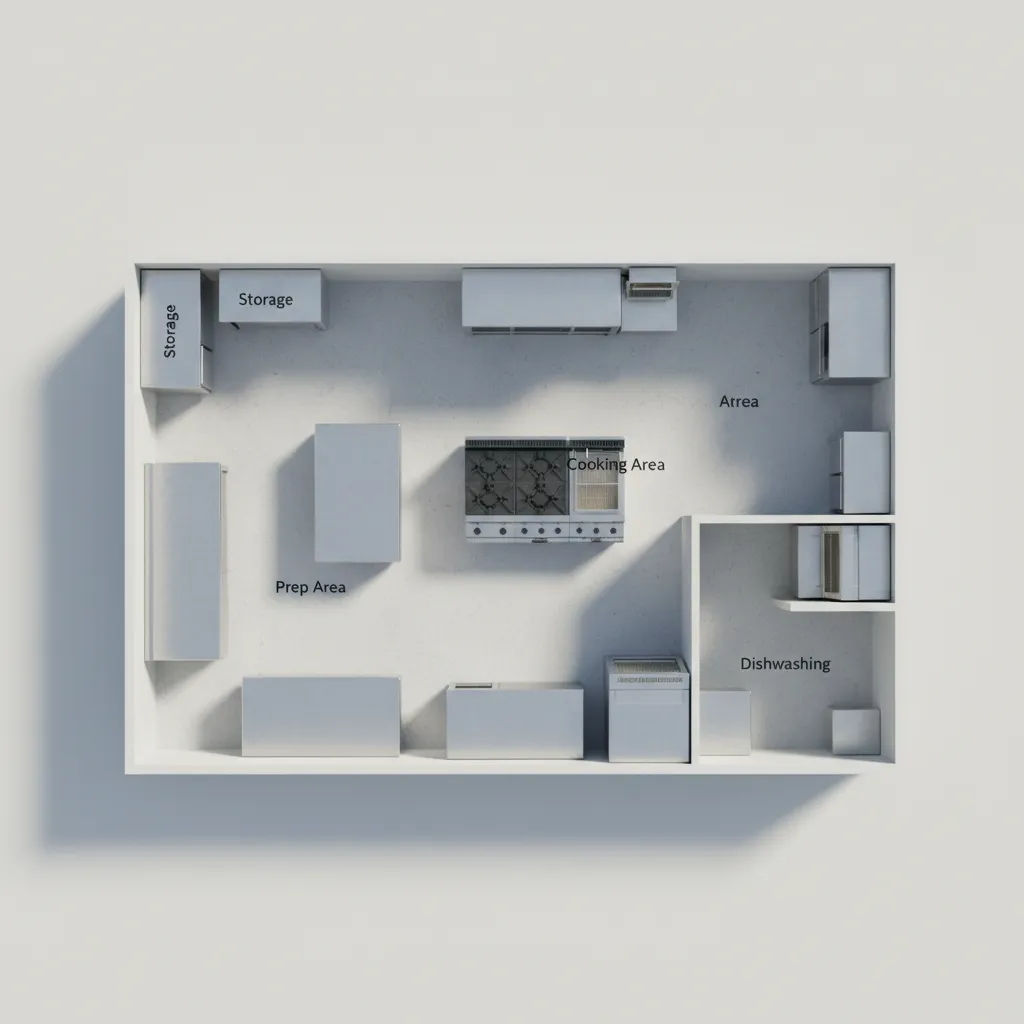

What Are the 5 Core Zones in a Commercial Kitchen?

Key Insight: Every functional commercial kitchen layout separates the space into five operational zones.

Regardless of restaurant size, most professional kitchens rely on the same core spatial structure.

1. Receiving Zone – deliveries, inspection, and initial storage
2. Storage Zone – walk‑in refrigeration, freezers, and dry goods
3. Food Prep Zone – chopping, mixing, portioning
4. Cooking Zone – ranges, grills, fryers, ovens
5. Cleaning Zone – dishwashing and sanitation

One mistake I see often: placing the dishwashing station near the cooking line. It seems convenient, but steam, noise, and dirty plates create constant congestion.

The cleaning zone works best near the service exit where dishes return naturally.

save pin

Which Commercial Kitchen Layout Type Works Best?

Key Insight: The best layout type depends on menu complexity, staff size, and available square footage.

In practice, most commercial kitchens fall into a few common layout categories.

1. Assembly Line Layout – ideal for fast food or pizza operations.
2. Island Layout – central cooking equipment with prep stations surrounding it.
3. Zone Layout – separate sections for different cooking methods.
4. Galley Layout – parallel work lines used in narrow kitchens.

The island layout is increasingly popular because it improves supervision and communication between chefs.

When testing options, many designers use tools that help experiment with multiple kitchen layout configurations in 3D. Seeing equipment clearances in three dimensions often reveals spacing problems that 2D sketches hide.

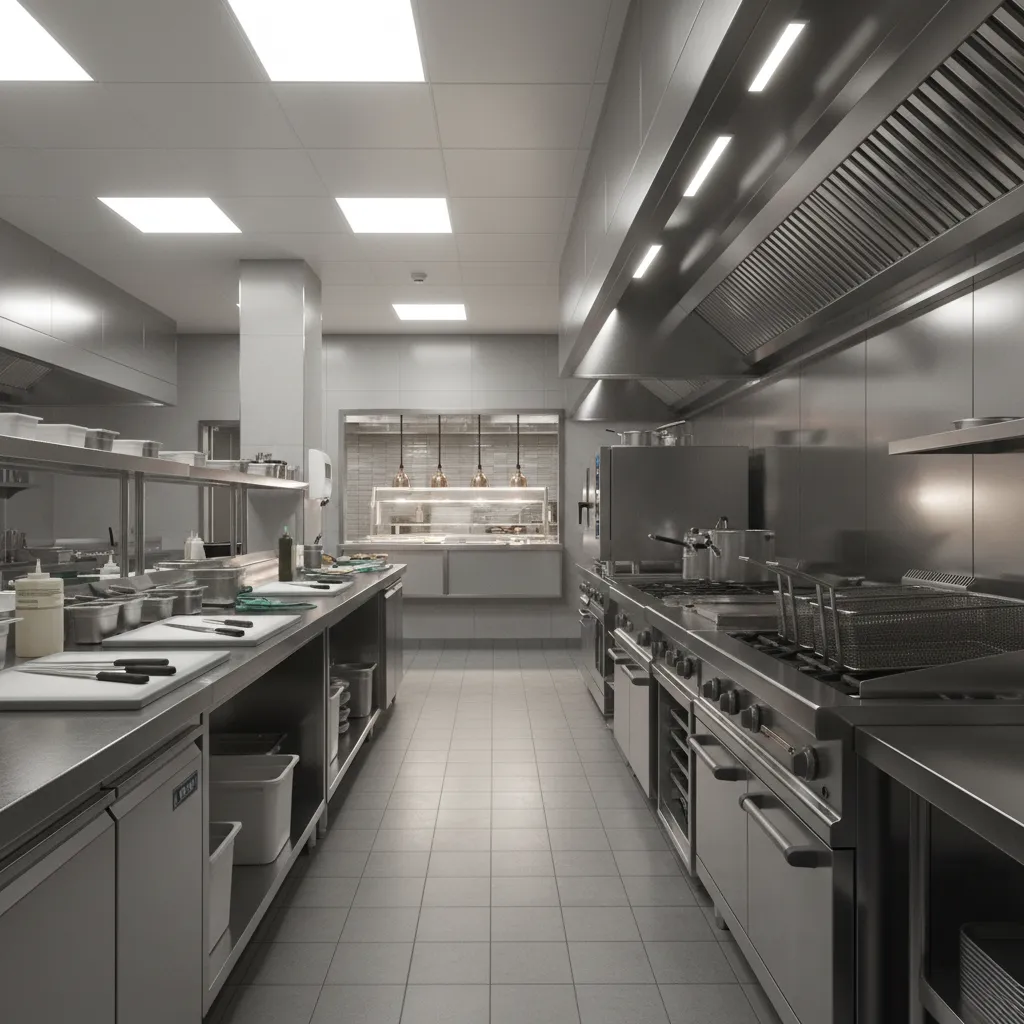

How Much Space Does Each Kitchen Station Need?

Key Insight: Adequate clearance between equipment stations prevents bottlenecks during service.

Professional kitchens must allow enough room for staff movement, equipment doors, and safety clearances.

Typical spacing guidelines:

1. Cooking line clearance: 40–48 inches
2. Prep stations: 36–42 inches
3. Main aisles: at least 48 inches
4. Walk‑in cooler access: 60 inches clearance

One hidden issue I frequently encounter is refrigerator door swing. On several projects, relocating a cooler door improved traffic flow more than replacing expensive equipment.

save pin

Hidden Design Mistakes That Hurt Kitchen Efficiency

Key Insight: Most kitchen inefficiencies come from small layout mistakes rather than major design flaws.

After reviewing dozens of restaurant kitchens, I repeatedly see the same problems.

1. Overcrowded equipment lines – owners buy too many appliances.
2. Poor ventilation placement – hoods misaligned with cooking equipment.
3. Insufficient landing space – no counter area near ovens or fryers.
4. Storage too far from prep – staff constantly walking for ingredients.

Interestingly, simplifying the equipment lineup often improves productivity more than expanding the kitchen footprint.

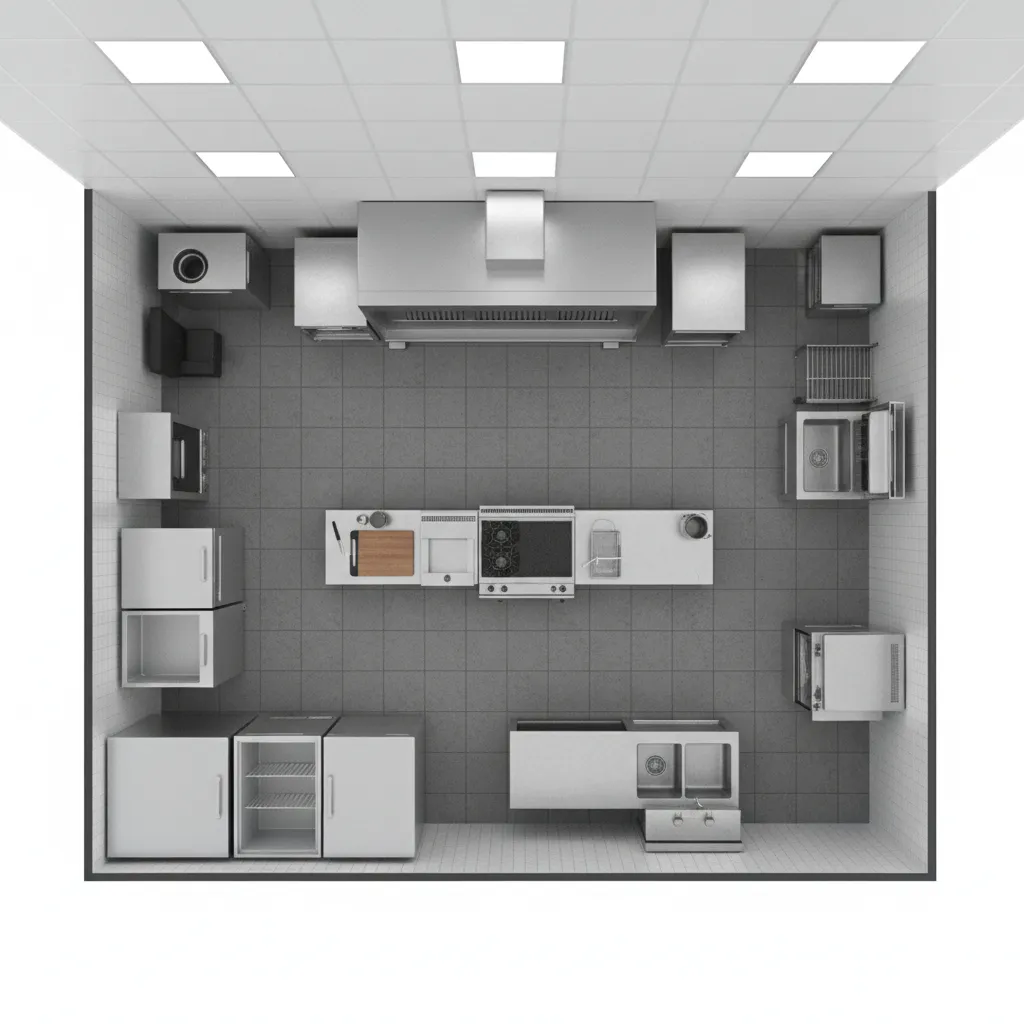

Can Digital Planning Tools Improve Kitchen Layout Design?

Key Insight: Visualizing the kitchen before construction prevents expensive layout mistakes.

Ten years ago, most kitchens were designed with static blueprints. Today, designers increasingly simulate layouts before construction.

Being able to create and test a commercial kitchen floor plan before buildingallows owners to test walking paths, appliance spacing, and service flow.

In my projects, this approach regularly reveals issues such as blocked circulation routes or undersized prep stations long before contractors arrive.

save pin

Answer Box

The most effective commercial kitchen layout prioritizes workflow, zoning, and safe circulation. Designing around how food and staff move through the space consistently produces faster service and fewer operational problems.

Final Summary

1. Design the commercial kitchen layout around workflow, not appliances.
2. Separate prep, cooking, cleaning, and storage zones clearly.
3. Maintain generous aisle clearances for safety and efficiency.
4. Test layouts digitally before purchasing equipment.
5. Small adjustments often improve productivity dramatically.

FAQ

What is the best commercial kitchen layout?

The best commercial kitchen layout depends on menu style and space. Assembly line and zone layouts are the most common because they support efficient workflow.

How big should a commercial kitchen be?

A commercial kitchen typically uses 30–40% of the restaurant's total space, though quick‑service restaurants may require larger kitchen areas.

Why is workflow important in a commercial kitchen layout?

Workflow determines how efficiently staff move through prep, cooking, and cleaning tasks. Poor workflow increases service time and labor cost.

What are the main areas of a commercial kitchen?

The five main areas are receiving, storage, food preparation, cooking, and dishwashing.

How wide should aisles be in a commercial kitchen?

Main working aisles should be about 48 inches wide to allow safe movement for multiple staff members.

Can a small restaurant still have an efficient commercial kitchen layout?

Yes. Small kitchens often benefit from galley or zone layouts that reduce walking distance and keep stations organized.

Do I need software to design a commercial kitchen layout?

It's not mandatory, but visual planning tools help identify workflow issues before construction begins.

What is the biggest mistake in commercial kitchen design?

The biggest mistake is overcrowding equipment and ignoring workflow, which causes congestion during busy service periods.
