How to Design a Kitchen in SketchUp (Step‑by‑Step Guide): A practical workflow interior designers use to model accurate kitchen layouts in SketchUp

Direct Answer

To design a kitchen in SketchUp, start by modeling the room dimensions, then place cabinets, appliances, and work zones using accurate measurements. Organize elements with groups and components, and finish by applying materials and lighting to visualize the final layout. The key is building the layout first, then refining details like storage, finishes, and lighting.

Quick Takeaways

1. Start with accurate room dimensions before adding cabinets or appliances.
2. Use components for cabinets and appliances to keep the model organized.
3. Design around the kitchen work triangle for functional movement.
4. Model layout first, then add materials, lighting, and details.
5. A clean layer structure makes future revisions dramatically easier.

Introduction

When people first try learning how to design a kitchen in SketchUp, they usually jump straight into placing cabinets. I see this mistake constantly when reviewing junior designers’ models.

After working on residential kitchen projects for more than a decade, I can tell you the fastest way to break a kitchen model is skipping the layout phase. In real projects, the layout determines everything: circulation, appliance placement, storage efficiency, and even lighting plans.

If you want to understand how designers actually build kitchen concepts digitally, it helps to first visualize the workflow professionals use. One helpful way to see this process is by exploring a complete example of how designers visualize layouts in 3D before committing to cabinetry.

In this guide, I’ll walk through the exact workflow I teach interns and junior designers: building the room shell, organizing components, creating a functional layout, and finishing the visualization so clients can clearly understand the design.

Most tutorials focus only on software buttons. Instead, we’ll focus on the design thinking behind the model — because that’s what actually makes a kitchen work.

save pin

Why Start With the Kitchen Layout Instead of Cabinets?

Key Insight: Professional kitchen models always begin with spatial planning, not furniture placement.

The biggest hidden mistake beginners make is dropping cabinet models into an empty file. It feels productive, but it leads to awkward spacing, blocked circulation, and appliance conflicts.

In real residential design projects, we first establish the spatial framework:

1. Room dimensions
2. Door and window locations
3. Plumbing and ventilation walls
4. Primary traffic paths

Only after this framework exists do we start placing cabinets.

According to the National Kitchen and Bath Association (NKBA), poor early layout planning is the most common cause of kitchen redesign during construction. Digital modeling helps prevent this — but only if the layout comes first.

Step‑by‑Step: How to Design a Kitchen in SketchUp

Key Insight: A structured workflow prevents messy geometry and keeps the model editable.

Here is the workflow I use when building kitchens in SketchUp.

Step 1: Create the Room Shell

1. Draw the floor plan using the Rectangle tool
2. Push/Pull walls to the correct height
3. Add windows and door openings

Step 2: Define Kitchen Zones

1. Cooking zone
2. Prep zone
3. Cleaning zone
4. Storage zone

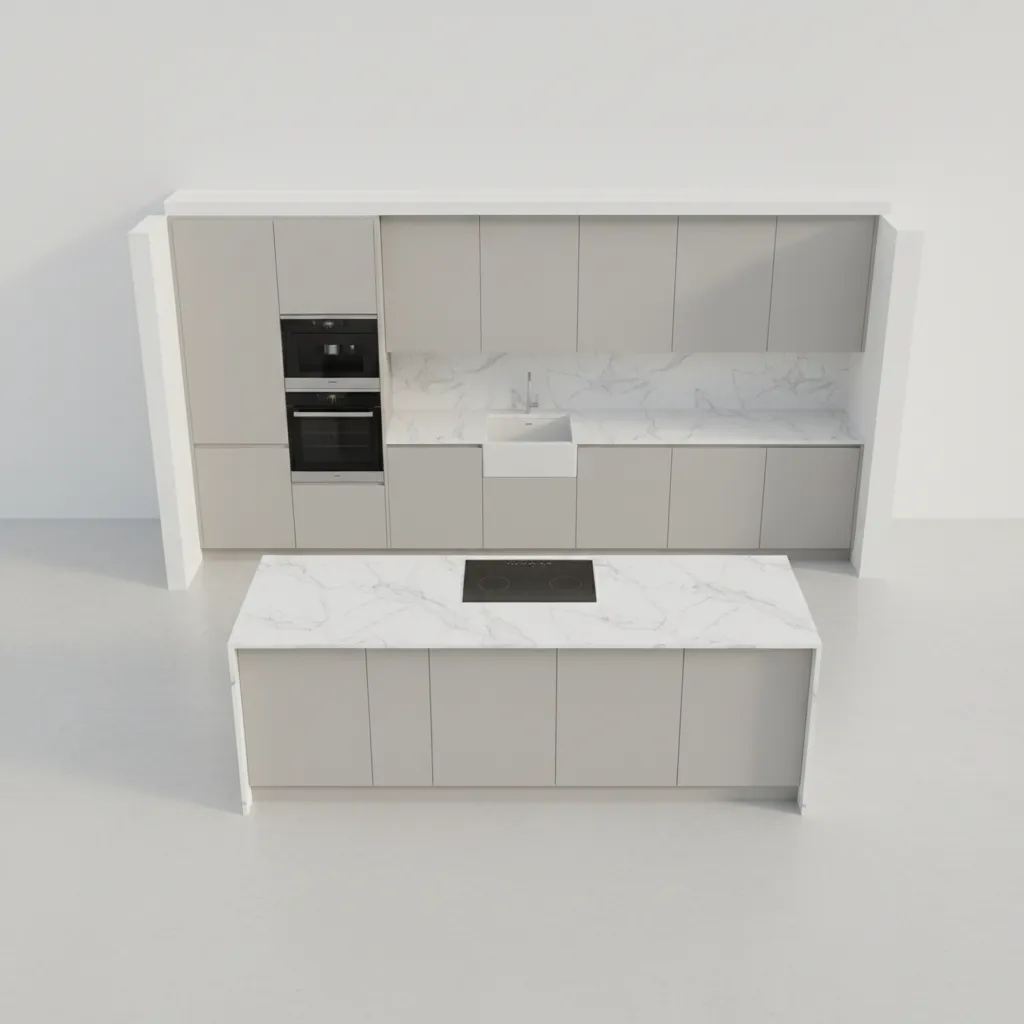

Step 3: Insert Base Cabinets

1. Standard base cabinet depth: 24 inches
2. Countertop height: 36 inches
3. Typical cabinet widths: 12"–36"

Step 4: Add Appliances

1. Range
2. Refrigerator
3. Dishwasher
4. Microwave or wall oven

Step 5: Convert Objects Into ComponentsThis is critical. Components allow you to update repeated items instantly.

For example, if you adjust one cabinet width, all identical cabinets update automatically.

save pin

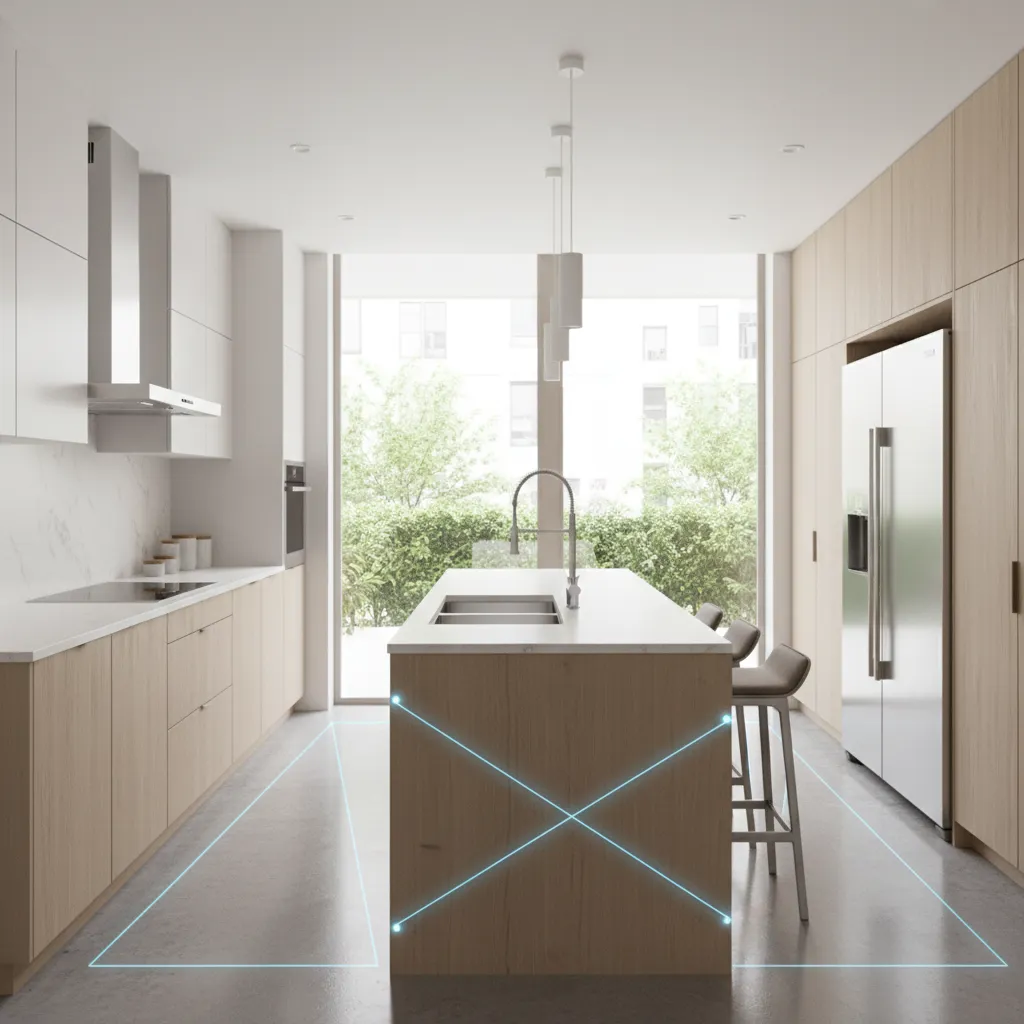

What Is the Kitchen Work Triangle and Why Does It Matter?

Key Insight: The work triangle still influences modern kitchen layouts even in open-plan homes.

The kitchen work triangle connects three primary areas:

1. Sink
2. Refrigerator
3. Cooktop

The concept dates back to efficiency studies from the early 20th century, but the logic still holds. When modeling kitchens in SketchUp, this triangle helps test whether movement between zones feels natural.

Recommended triangle distances:

1. Each leg: 4–9 feet
2. Total triangle perimeter: 13–26 feet

If one appliance ends up too far away in your model, the layout likely needs adjustment.

Many designers today combine the triangle concept with modern visualization workflows. For example, some teams prototype layouts using tools that simulate realistic cooking zones, like this interactive workflow designers use to test kitchen work zones before finalizing cabinetry.

save pin

How Do You Keep a SketchUp Kitchen Model Organized?

Key Insight: A messy model becomes impossible to edit once materials and lighting are added.

After years reviewing contractor models, I can usually tell in 30 seconds whether a file will cause problems later.

The difference is always organization.

Use this structure:

1. Groups for structural elements (walls, floors)
2. Components for repeating objects (cabinets, handles)
3. Tags/Layers for categories (appliances, lighting, furniture)

A typical kitchen model tag structure might include:

1. Walls
2. Base cabinets
3. Wall cabinets
4. Appliances
5. Lighting
6. Decor

This makes it possible to toggle entire categories on and off while editing.

Common Mistakes When Designing Kitchens in SketchUp

Key Insight: Most kitchen modeling mistakes are design mistakes disguised as software problems.

Here are issues I see repeatedly in beginner models:

1. Ignoring real appliance dimensions
2. No clearance space around doors
3. Overcrowded islands
4. Improper cabinet spacing

Typical clearance guidelines:

1. Walkway between cabinets: 36–48 inches
2. Island clearance: 42 inches minimum
3. Dishwasher opening clearance: 21 inches

Another overlooked issue is visualization. Clients often struggle to understand flat cabinet layouts.

That’s why many designers eventually move from basic modeling to AI‑assisted interior visualization that quickly turns kitchen layouts into realistic scenes. It dramatically improves client communication.

save pin

Answer Box: The Fastest Workflow for Kitchen Modeling

The most reliable way to design a kitchen in SketchUp is to build the room shell first, define work zones, insert cabinets as components, and maintain a clean layer structure. Designers who follow this workflow avoid layout conflicts and produce models that remain easy to edit throughout the project.

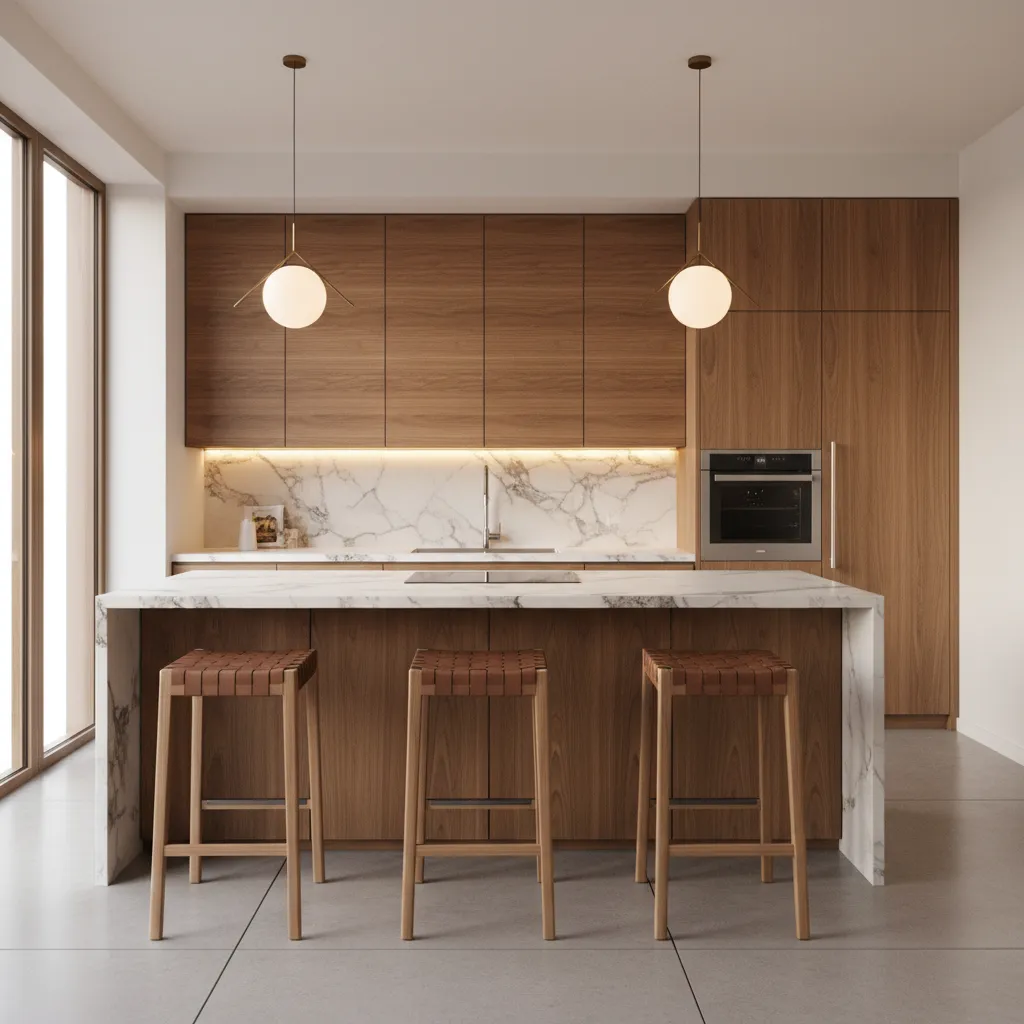

How Designers Turn SketchUp Models Into Client‑Ready Visuals

Key Insight: A technically correct model is only half the job — presentation determines whether clients understand the design.

Once the layout is finished, professionals usually enhance the model with:

1. Realistic materials
2. Under‑cabinet lighting
3. Backsplash textures
4. Soft shadows and daylight

This stage transforms a technical model into a persuasive design proposal.

In my own projects, a well‑rendered kitchen concept can reduce client revision requests by nearly half because they can finally visualize the space clearly.

Final Summary

1. Always model the room structure before placing cabinets.
2. Use components to keep cabinet systems editable.
3. Follow work triangle principles for functional layouts.
4. Maintain a clean tag and grouping structure.
5. Realistic rendering dramatically improves client understanding.

FAQ

1. Is SketchUp good for kitchen design?

Yes. SketchUp is widely used for kitchen design because it allows precise measurements, 3D visualization, and flexible cabinet modeling.

2. How long does it take to design a kitchen in SketchUp?

For beginners, a simple kitchen can take 2–4 hours. Experienced designers can build a full layout in under an hour.

3. Do I need SketchUp Pro for kitchen design?

The free version works for basic modeling. SketchUp Pro adds advanced features like layout documentation and professional export options.

4. What measurements are most important when modeling a kitchen?

Wall lengths, ceiling height, cabinet depth (24 inches), and walkway clearance are the most critical dimensions.

5. Can beginners learn how to design a kitchen in SketchUp?

Yes. With basic modeling tools like Push/Pull, Rectangle, and Components, beginners can quickly build functional kitchen layouts.

6. Where can I find cabinet models for SketchUp?

Many designers download cabinets from the SketchUp 3D Warehouse or build parametric cabinet components.

7. What is the best kitchen layout for small spaces?

Galley and L‑shaped kitchens are usually the most space‑efficient layouts for compact homes.

8. What is the first step when designing a kitchen in SketchUp?

The first step is drawing the room’s exact floor plan and wall height before inserting cabinets or appliances.
