How to Design AC for a Room: Practical Layout & Sizing Guide: A designer’s practical approach to choosing AC size, placement, and airflow for comfortable, energy‑efficient rooms.

Direct Answer

Designing AC for a room means matching the correct cooling capacity (BTU), placing the unit where airflow spreads evenly, and minimizing heat gain from windows, lighting, and insulation gaps. A well-designed AC layout balances airflow direction, room size, and furniture placement so the entire room cools evenly without wasting energy.

Quick Takeaways

1. Correct AC capacity depends on room size, ceiling height, and sun exposure.
2. Install indoor units where airflow can reach the longest dimension of the room.
3. Avoid placing AC directly above beds or sofas to prevent cold drafts.
4. Good insulation and window shading can reduce cooling demand by 20–30%.
5. Air circulation matters as much as cooling power for comfort.

Introduction

After working on residential interiors for more than a decade, I've learned that designing AC for a room is rarely just about picking a machine with enough power. The real challenge is airflow behavior.

Homeowners often complain that their room still feels warm even after installing a large air conditioner. In most cases, the issue isn't the AC capacity—it’s the placement, air circulation, or heat sources inside the room.

When I design a bedroom or living space, I always start by studying the room layout first. Understanding furniture placement and movement flow makes a huge difference. If you're still shaping your layout, exploring a simple way to visualize room layouts before placing cooling equipmentcan prevent expensive mistakes later.

In this guide, I'll break down how professionals think about AC sizing, placement, airflow, and common mistakes that most online guides completely miss.

save pin

What Size AC Does Your Room Actually Need?

Key Insight: Oversized AC units are one of the most common comfort problems because they cool too quickly without removing humidity.

Most people assume a bigger air conditioner means better cooling. In reality, an oversized unit short cycles—turning on and off rapidly—which leaves humidity in the air and makes the room feel sticky.

Professionals typically estimate cooling needs using BTU (British Thermal Units). While detailed load calculations exist, a quick design rule works surprisingly well in residential projects.

1. 100–150 sq ft room → 5,000–6,000 BTU
2. 150–250 sq ft room → 7,000–9,000 BTU
3. 250–350 sq ft room → 10,000–12,000 BTU
4. 350–450 sq ft room → 12,000–14,000 BTU

However, experienced designers adjust this based on hidden heat sources:

1. Large windows facing west
2. Top-floor rooms under roofs
3. Rooms with multiple electronics
4. High ceilings above 9 ft

According to the U.S. Department of Energy, improper AC sizing is one of the biggest causes of inefficient cooling in residential buildings.

Where Should You Place the AC Unit in a Room?

Key Insight: The best AC placement allows airflow to travel across the longest dimension of the room.

Air conditioners cool by circulating air—not by blasting cold air in one direction. If airflow is blocked by furniture or walls, the cooling effect becomes uneven.

In most residential layouts, these placement rules work best:

1. Install the indoor unit 7–8 feet above the floor.
2. Face airflow toward the center of the room.
3. Avoid direct airflow toward beds or desks.
4. Keep at least 6–12 inches clearance above the unit.

I also advise clients to avoid placing AC units directly opposite large windows. Sunlight heats incoming air, forcing the unit to work harder.

save pin

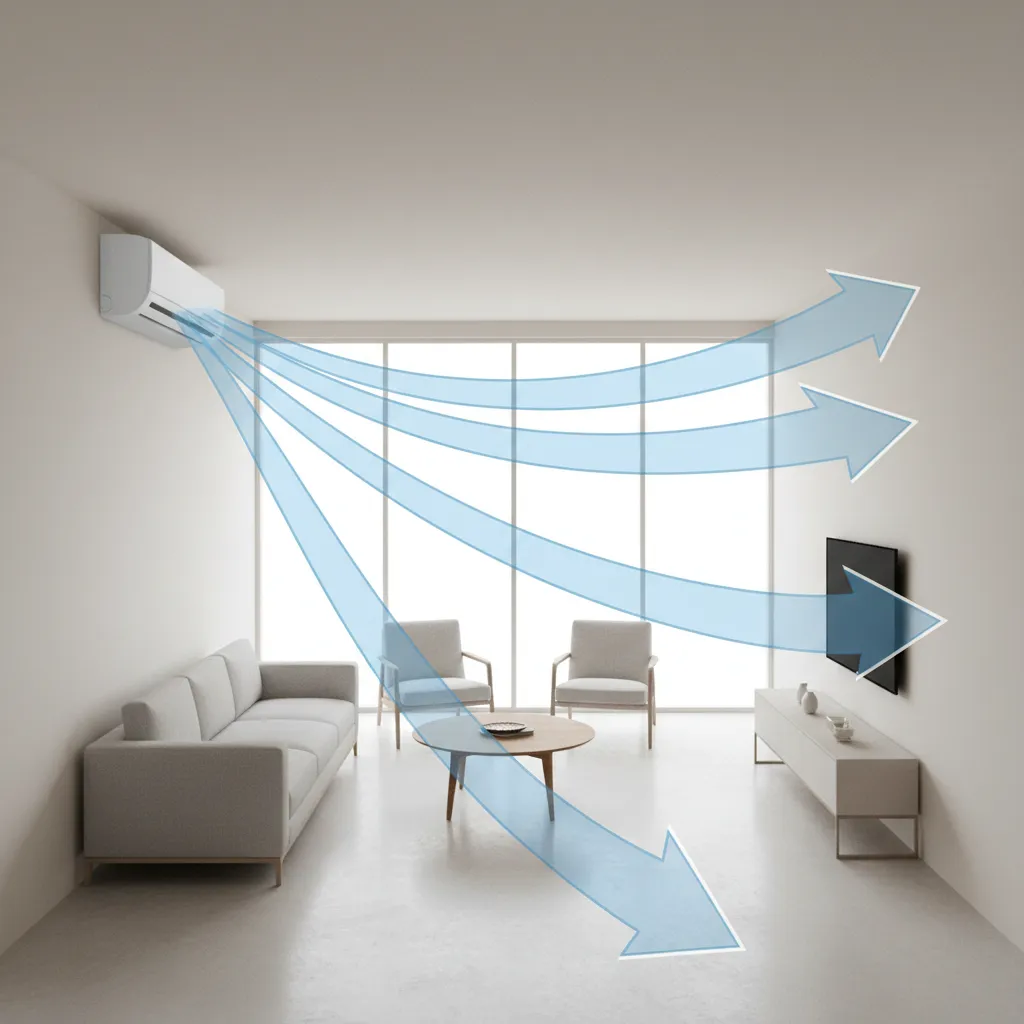

Why Airflow Design Matters More Than AC Power

Key Insight: Poor airflow distribution can make a powerful AC feel weak.

One overlooked design factor is airflow circulation. Many rooms cool unevenly because cold air stays near the ceiling while warm air collects near the floor.

Designers solve this with simple layout adjustments:

1. Use ceiling fans to push cooled air downward
2. Keep pathways clear between AC and opposite wall
3. Avoid tall cabinets blocking airflow
4. Use lighter curtains to reduce heat buildup

If you're designing a new layout or renovating, planning airflow alongside layout planning—like testing layouts with a 3D floor planning layout for airflow and furniture spacing—helps visualize where cool air will travel.

This is something most HVAC calculators ignore, but interior designers see it constantly in real homes.

save pin

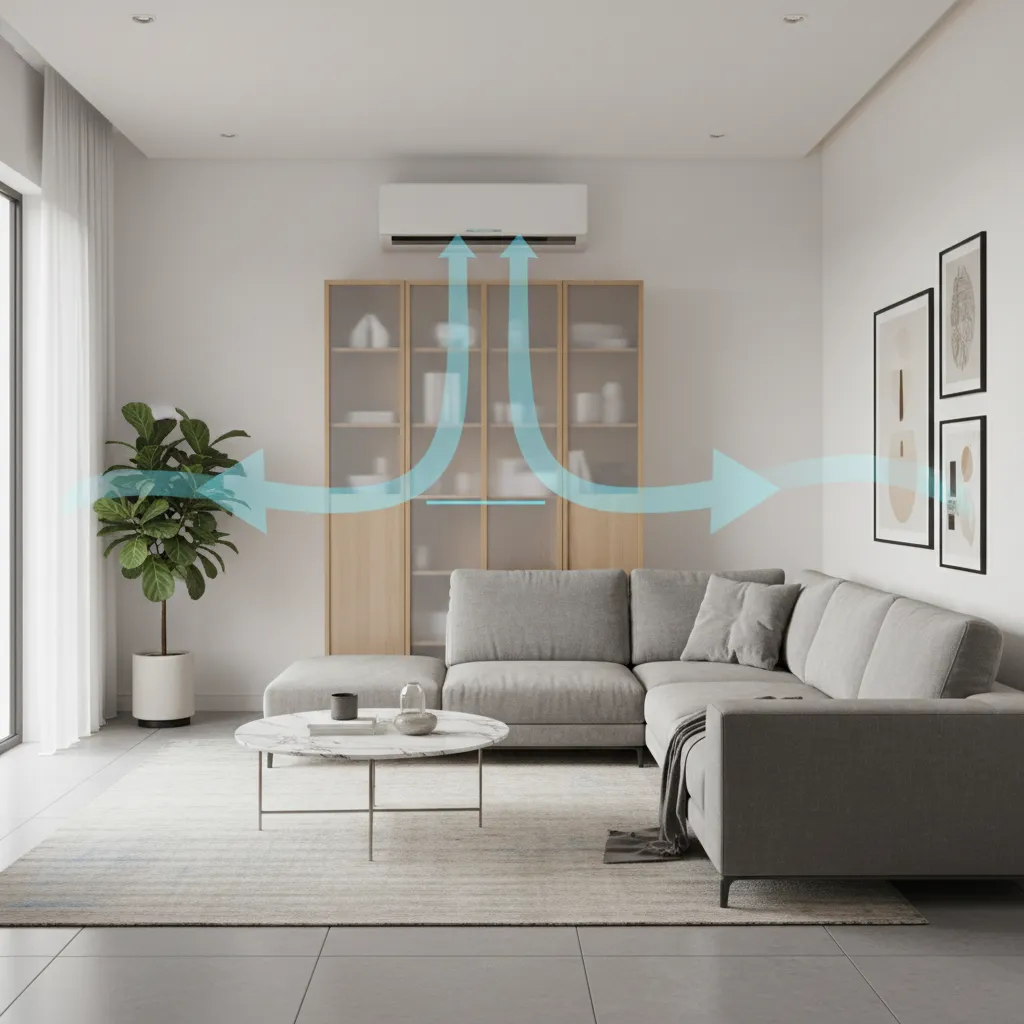

Common AC Design Mistakes Most Homeowners Make

Key Insight: Many cooling problems come from room design mistakes, not the AC system itself.

Across dozens of residential projects, the same issues appear repeatedly.

1. AC above the bed: Causes uncomfortable cold drafts at night.
2. Blocked airflow: Wardrobes or shelving stop circulation.
3. Ignoring insulation: Heat leaks increase cooling load.
4. Wrong thermostat location: Leads to inaccurate readings.

One surprising hidden cost is sunlight. South- or west-facing windows can increase cooling demand dramatically.

The International Energy Agency notes that building envelope improvements—like insulation and shading—often reduce cooling loads more effectively than installing larger AC systems.

save pin

Can Room Layout Improve AC Efficiency?

Key Insight: A thoughtful furniture layout can improve cooling efficiency without upgrading the AC unit.

Furniture affects airflow more than most people realize. Large sofas, wardrobes, and partitions can trap cooled air and create warm zones.

In design practice, I recommend:

1. Keep the central airflow path clear.
2. Avoid placing tall furniture directly under the AC.
3. Use breathable furniture layouts instead of dense clusters.
4. Maintain circulation space along walls.

When clients are redesigning a room, I often suggest testing layouts using tools that simulate room arrangements, such as experimenting with a visual floor plan creator for optimizing furniture placement. Seeing airflow paths visually often reveals layout problems instantly.

Answer Box

The best AC design for a room combines correct cooling capacity, smart airflow direction, and layout planning that prevents circulation blockages. Proper placement and room insulation often improve comfort more than simply installing a larger unit.

Final Summary

1. Correct AC sizing prevents humidity and short cycling.
2. Placement should follow the room’s longest airflow path.
3. Furniture layout strongly influences cooling efficiency.
4. Sunlight and insulation significantly affect AC performance.
5. Air circulation design is often overlooked but critical.

FAQ

How do I calculate AC size for a room?

Multiply room area by about 20 BTU per square foot, then adjust for sunlight, ceiling height, and electronics.

What is the best position for an air conditioner in a room?

Install the AC high on a wall facing the room's longest dimension so airflow spreads evenly.

Can an AC be too big for a room?

Yes. Oversized units cool too quickly and fail to remove humidity, reducing comfort.

Should AC blow directly on the bed?

No. Direct airflow can cause discomfort, dry air exposure, and sleep disturbance.

Does room height affect AC design?

Yes. Higher ceilings require greater cooling capacity and better air circulation.

How can furniture affect air conditioning performance?

Large furniture can block airflow paths, creating uneven cooling zones.

Is ceiling fan helpful with AC?

Yes. Fans distribute cooled air more evenly and can reduce energy consumption.

How do you design AC for a room with large windows?

Use window shading, curtains, or films to reduce solar heat gain before increasing AC capacity.
