How to Design an Air Conditioning System for a Room: A practical designer’s guide to sizing, airflow planning, and layout decisions that make room cooling actually work.

Direct Answer

To design an air conditioning system for a room, you need to calculate the cooling load, choose the correct AC capacity, plan airflow direction, and position vents or units for even air distribution. Proper layout, insulation awareness, and furniture placement all influence real cooling performance.

In professional interior projects, the difference between a comfortable room and a constantly warm one usually comes down to airflow planning—not just AC size.

Quick Takeaways

1. Room cooling performance depends more on airflow design than on AC power alone.
2. Correct AC sizing requires room volume, sun exposure, insulation, and occupancy.
3. Poor vent placement can create hot and cold zones even with powerful systems.
4. Furniture layout can block airflow and reduce cooling efficiency by 20–30%.
5. Designing air circulation early prevents expensive ceiling and duct changes later.

Introduction

When homeowners ask me how to design an air conditioning system for a room, they usually expect a simple answer like “buy a bigger AC unit.” After working on residential projects for more than a decade, I can tell you that’s rarely the real solution.

I’ve walked into plenty of homes with oversized systems that still felt uncomfortable. The problem wasn’t cooling power — it was poor airflow planning, blocked vents, or bad room layout decisions.

Before I finalize HVAC placement in a project, I usually map the entire room layout first, including circulation paths and furniture zones. Tools that help visualize layouts early—like a visual room layout planning workflow for furniture and airflow—make it much easier to predict where cooling will actually reach.

In this guide, I’ll walk through the same process we use in real interior design projects: calculating cooling needs, choosing the right system type, and designing airflow so the entire room stays comfortable.

save pin

Why Proper AC System Design Matters More Than AC Size

Key Insight: Increasing AC capacity rarely fixes comfort issues if airflow and room layout are poorly designed.

One of the most common mistakes I see is oversizing the air conditioner. People assume a bigger unit means faster cooling, but oversized systems often cycle on and off too quickly, creating uneven temperatures and humidity problems.

According to HVAC engineering guidelines, short cycling reduces efficiency and comfort because the system doesn’t run long enough to properly dehumidify the air.

In real projects, poor design usually shows up as:

1. Hot zones near windows
2. Cold air blowing directly on seating areas
3. Weak airflow reaching corners of the room
4. Temperature differences between floor and ceiling

The real goal is balanced air distribution, not maximum cooling power.

How Do You Calculate the Cooling Load for a Room?

Key Insight: Accurate cooling load calculation determines the correct AC capacity and prevents both undersized and oversized systems.

In residential design, we typically estimate cooling load using BTU (British Thermal Units). While HVAC engineers run detailed Manual J calculations, interior designers often use simplified planning estimates during early layout stages.

Basic cooling load estimation:

1. Room size (square footage)
2. Ceiling height
3. Window size and orientation
4. Sun exposure
5. Number of occupants
6. Heat from electronics

A common rule of thumb:

1. 20 BTU per square foot for standard rooms

Example:

1. 200 sq ft room × 20 BTU = 4,000 BTU base load
2. Add 10–20% if the room receives strong sunlight

But here's something many guides ignore: ceiling height dramatically changes cooling requirements. A 10‑foot ceiling can increase cooling demand by 20–25%.

What Is the Best AC Placement in a Room?

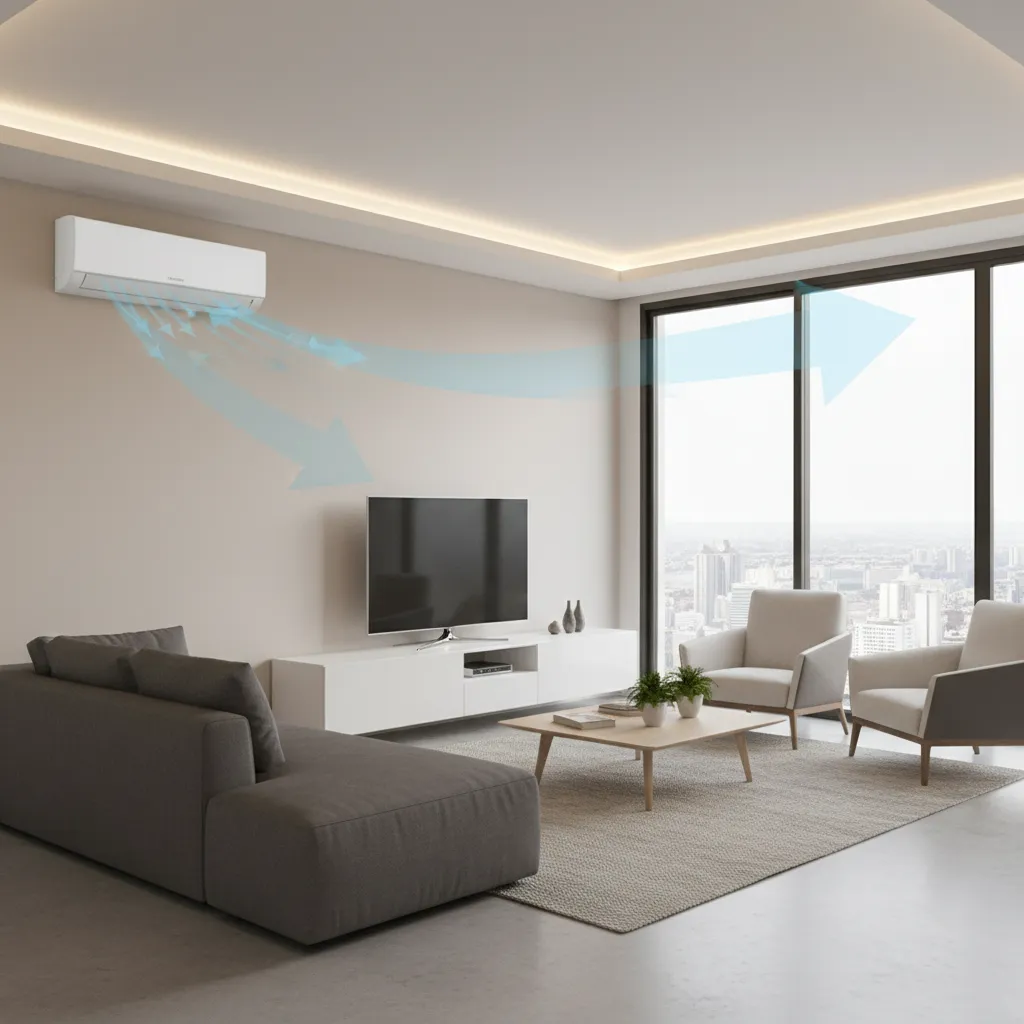

Key Insight: AC units should be placed where airflow can travel across the longest dimension of the room.

In most residential interiors, improper AC placement creates “dead zones” where cool air never reaches.

Good placement principles:

1. Install units on the longest wall
2. Avoid blowing directly onto beds or sofas
3. Keep airflow unobstructed by tall furniture
4. Position return air paths opposite supply air

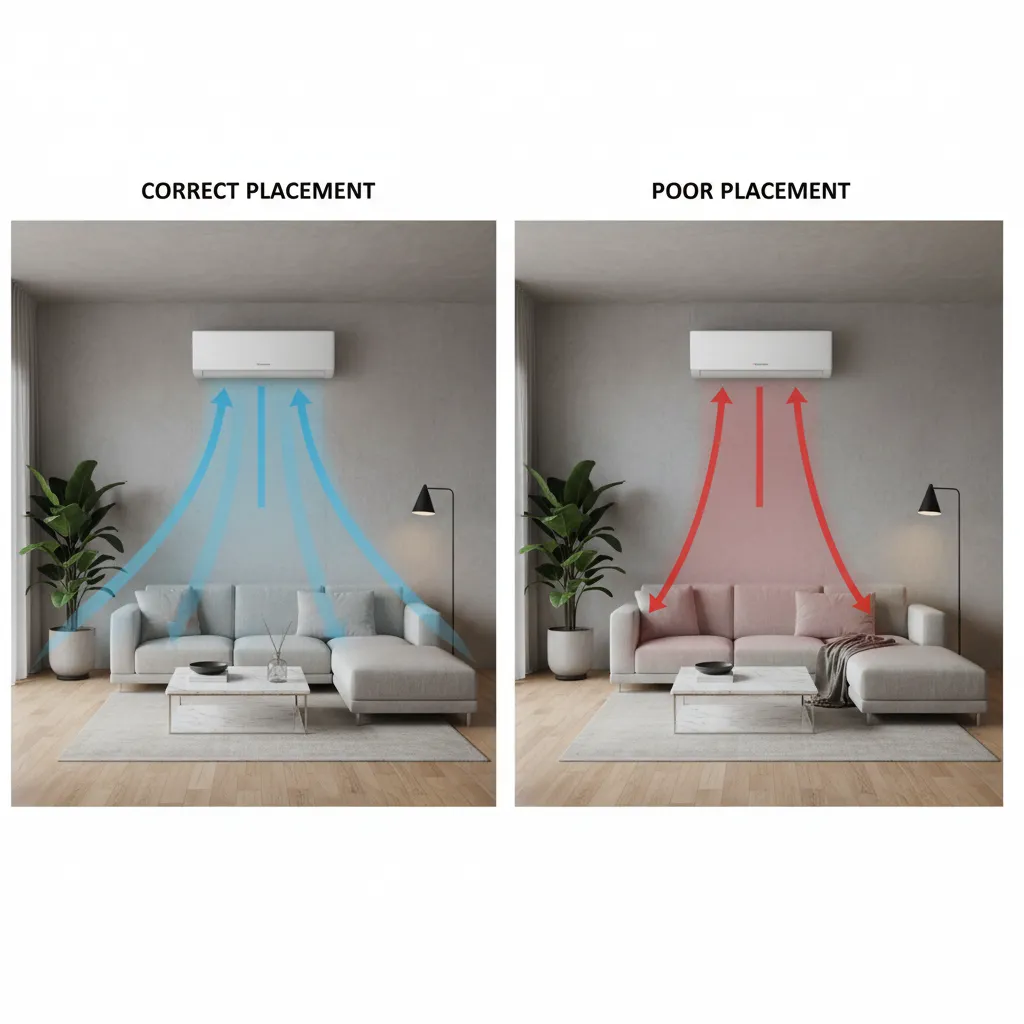

Typical layout comparison:

1. Good layout: airflow crosses the entire room
2. Poor layout: air immediately hits a wall or cabinet

When designing larger spaces, I often test layouts first using a

save pin

3D floor planning approach for testing airflow and furniture placement. It helps identify blocked circulation paths before construction begins.

Can Furniture Layout Affect Air Conditioning Efficiency?

Key Insight: Furniture placement can reduce cooling effectiveness by blocking airflow and trapping warm air pockets.

This is one of the most overlooked problems in residential design.

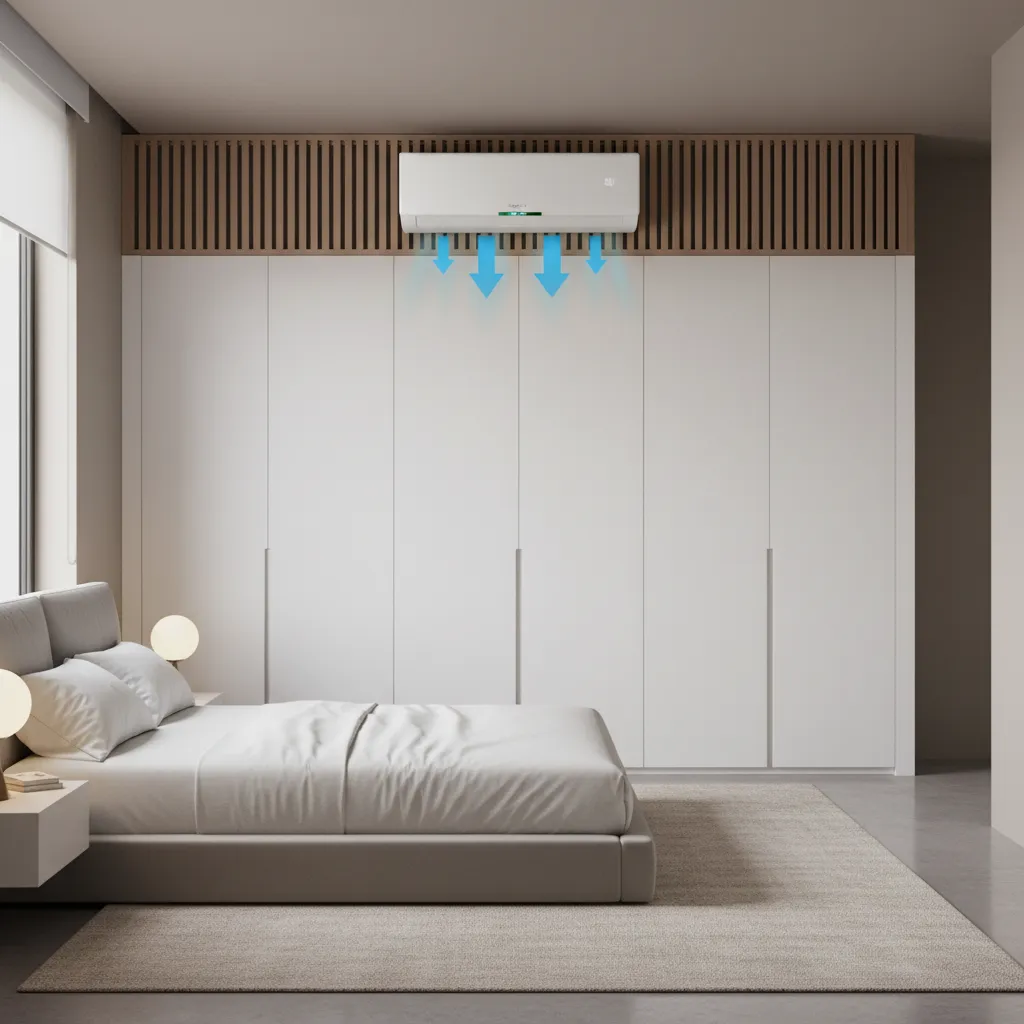

I’ve seen rooms where a tall wardrobe was placed directly under a wall-mounted AC unit. The air hit the cabinet and dropped straight down, leaving half the room warm.

Common airflow blockers include:

1. Wardrobes placed under wall units
2. Large bookshelves near vents
3. High headboards directly under airflow
4. Curtains covering supply vents

Simple layout adjustments can dramatically improve cooling distribution.

save pin

Should You Use Split AC, Window AC, or Central Air?

Key Insight: The right AC type depends on room size, building structure, and installation flexibility.

Here’s a quick comparison from projects I’ve worked on:

1. Split AC: Best for bedrooms and living rooms; quiet and energy efficient
2. Window AC: Budget option but less efficient and noisier
3. Central AC: Ideal for whole-home cooling but requires duct planning

For most single rooms, split systems deliver the best balance between efficiency and installation simplicity.

But here’s the hidden trade‑off many homeowners miss: split systems depend heavily on airflow direction. Poor placement can reduce perceived cooling even when the unit is powerful.

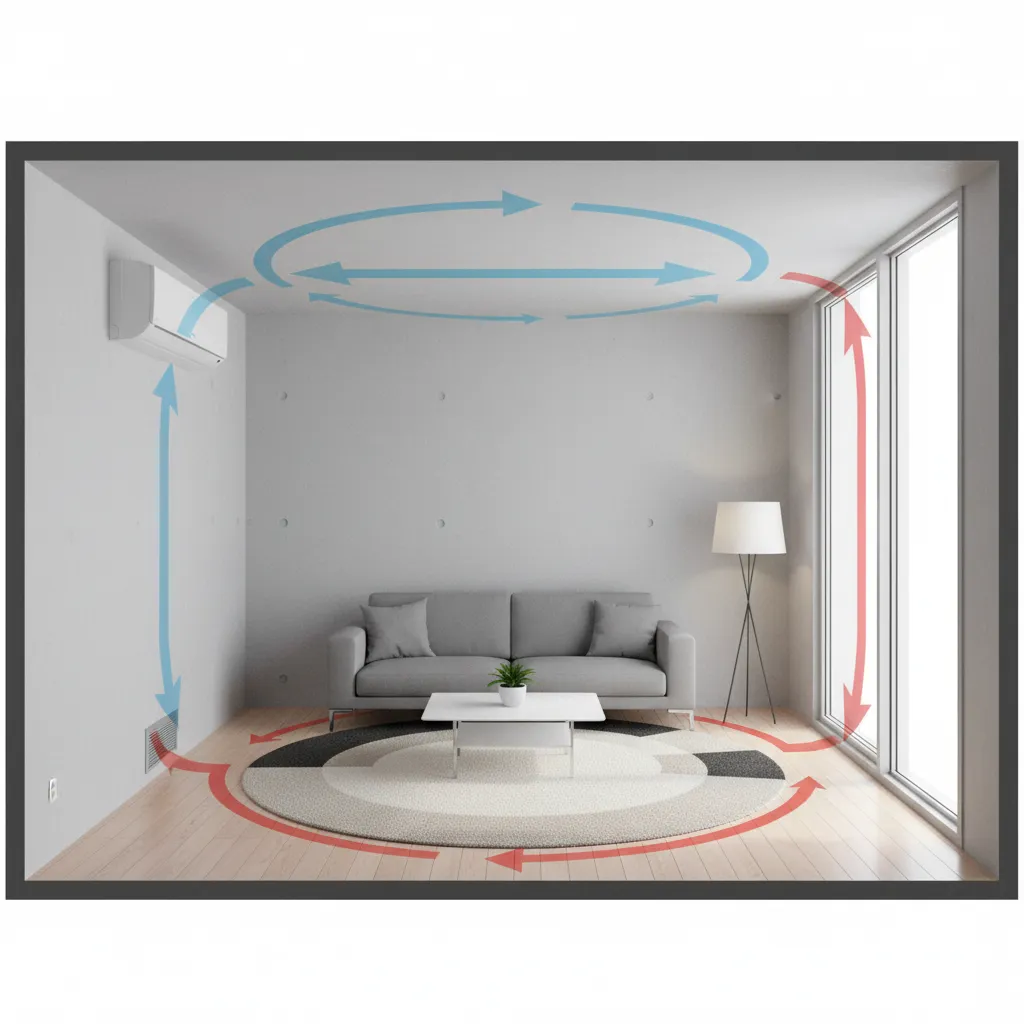

Designing Airflow Paths Inside the Room

Key Insight: Effective cooling depends on creating a circular airflow path instead of a single cold air blast.

Professional HVAC design aims to create air circulation rather than direct cooling.

A simple airflow strategy:

1. Supply cool air from the upper wall
2. Allow air to travel across the room
3. Return warmer air from the opposite side
4. Maintain open pathways for circulation

In larger residential layouts, planning the airflow alongside the floor plan is essential. I often model both at once using a floor plan visualization method for mapping HVAC layout early, which prevents expensive redesigns later.

save pin

Answer Box

The most effective way to design an air conditioning system for a room is to balance three factors: correct AC capacity, smart unit placement, and unobstructed airflow. Oversizing the unit cannot compensate for poor airflow or blocked circulation paths.

Final Summary

1. Correct AC sizing starts with cooling load calculation.
2. Airflow direction matters as much as AC capacity.
3. Furniture layout can significantly affect cooling efficiency.
4. Split systems work best for most single-room applications.
5. Design airflow circulation, not just cold air delivery.

FAQ

How do I calculate AC size for a room?

Multiply the room's square footage by about 20 BTU. Adjust upward for high ceilings, strong sunlight, or multiple occupants.

What is the best place to install a wall AC?

Install it high on a long wall where airflow can travel across the entire room without hitting large furniture.

Is bigger AC always better?

No. Oversized systems short cycle, reduce humidity control, and often create uneven cooling.

Can furniture block air conditioning airflow?

Yes. Large cabinets, curtains, or tall furniture near vents can significantly reduce cooling efficiency.

How high should an AC unit be installed?

Wall-mounted units are typically installed 7–8 feet above the floor to distribute cool air effectively.

What is the best AC type for a bedroom?

Split AC systems are usually best because they are quiet, efficient, and provide consistent airflow.

Do ceiling fans help air conditioning systems?

Yes. Ceiling fans improve air circulation and help distribute cooled air more evenly.

Why does one side of my room stay warm?

Poor airflow distribution, blocked vents, or incorrect AC placement usually causes uneven cooling.
