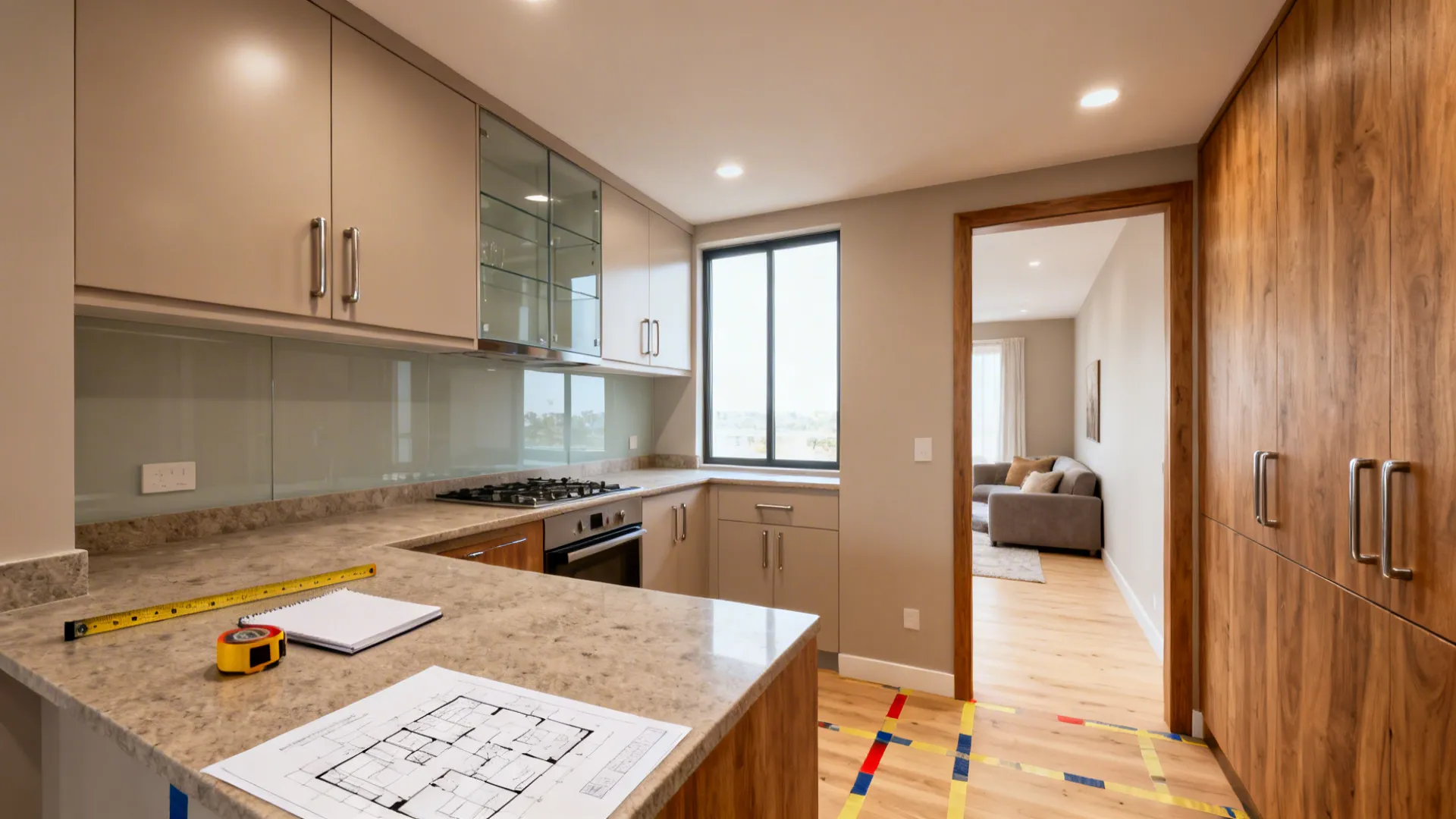

How to Draw a 3D Room Step by Step: 5 Practical Ideas: A senior interior designer’s friendly guide to building a clean, accurate 3D room—without the overwhelm

I’ve spent over a decade turning small apartments into functional, beautiful homes, and the trend is clear: simple, well-measured 3D rooms beat flashy clutter every time. Small spaces spark big creativity—especially when you can visualize them in 3D before you buy a single cabinet. In this guide, I’ll walk you through how to draw a 3D room step by step, share 5 design inspirations I use with clients, and layer in practical tips, budgets, and a few lessons I learned the hard way. You’ll see where to start, how to keep things accurate, and where to add the wow factor. To kick things off, here’s a real-world example I love—"L 型布局释放更多台面空间"—a compact kitchen move that can save your sanity and make prep-time smoother. I’ll reference it as we go.

Minimal measurements, maximum accuracy

My Take

I always start a 3D room by measuring the shell: length, width, height, and every bump—niches, columns, radiators, and window sills. Early in my career, I skipped a door swing once; the fridge blocked it by 4 cm. Never again. Precise dimensions make your 3D draw go from guesswork to reliable plan.

Pros

• Clean measurements reduce redraws and help your step-by-step 3D room plan stay on budget and schedule.

• Accurate wall heights and window positions improve daylight studies and furniture fit (key long-tail: “how to draw a 3D room with accurate measurements”).

• According to the National Kitchen & Bath Association (NKBA) planning guidelines, mapping clearances (like 915 mm in front of appliances) prevents costly mistakes.

Cons

• Measuring is tedious—you’ll crawl behind a sofa, bonk your head on a sill, and discover walls that aren’t quite square.

• Old buildings lie; tape measures can sag and laser measures may bounce off glass, so expect small discrepancies.

Tips / Cost Factors

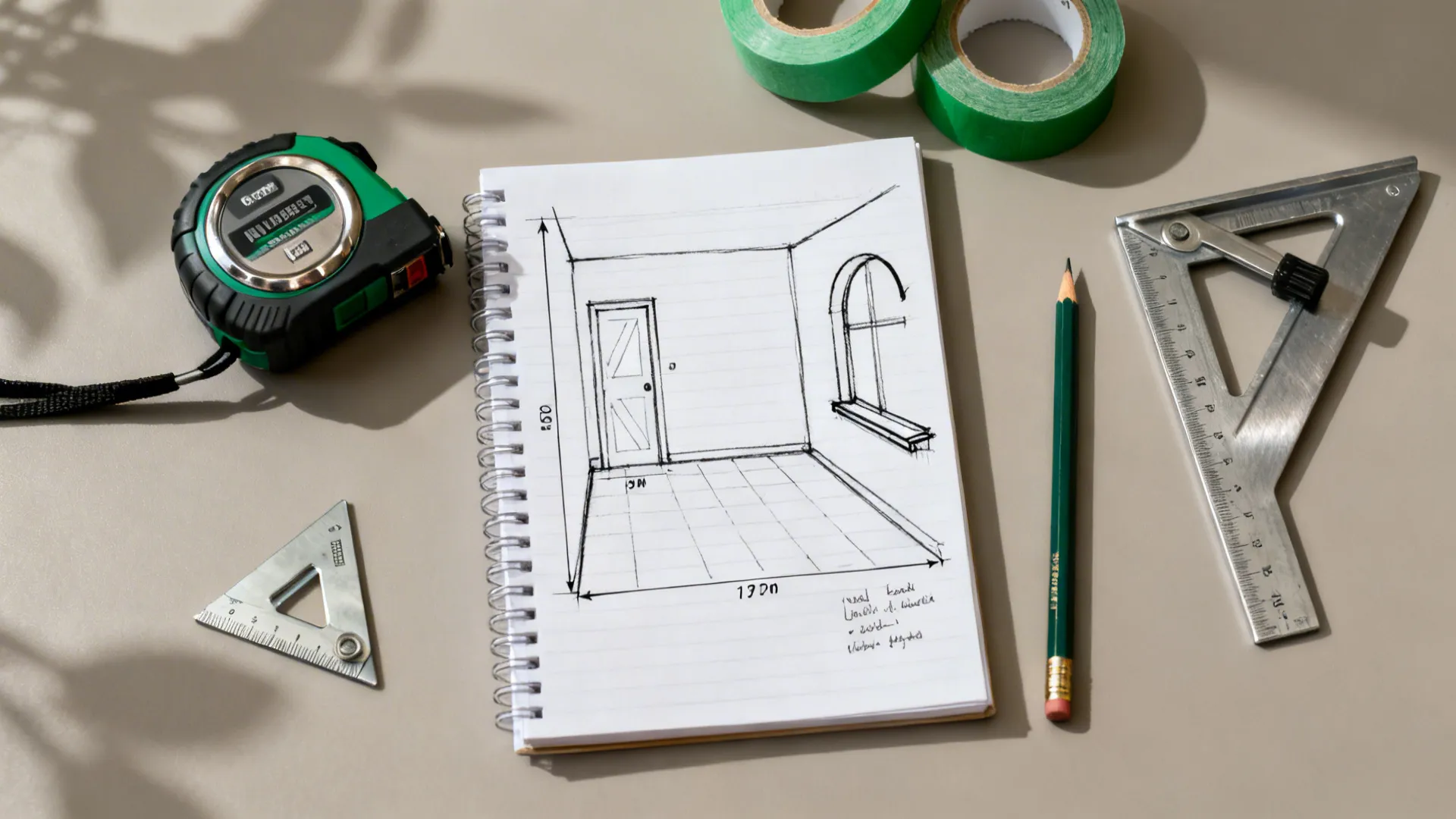

• Tools: laser measure ($40–$120), steel tape (5–8 m), painter’s tape, and a notebook. Draw a quick 2D sketch first with all dimensions, then translate to 3D.

• Measure twice, input once. Note floor-to-ceiling height at least in two corners; ceilings often slope.

• If you plan millwork, capture thicknesses: baseboards, trims, and door casings—it all matters.

Before we move on, if you’d like to see how "极简风的厨房收纳设计" looks when planned in 3D with tight dimensions, here’s a case I often show clients: minimalist kitchen storage idea.

save pin

save pin

Build the shell: walls, floors, and openings first

My Take

Once I’ve got reliable numbers, I build the box: perimeter walls, floor thickness, and structural columns. Then I cut in doors and windows with exact widths, heights, and sill levels. It’s like framing a photograph—get the frame right and the picture hangs straight.

Pros

• A clean shell lets you iterate layouts quickly (long-tail: “step-by-step 3D room drawing with doors and windows”).

• Consistent wall thickness (100–200 mm typical) helps with true-to-life furniture gaps and trim details.

• Following basic building codes (egress widths, window heights) makes your digital plan more realistic when you go to build.

Cons

• Angled walls and bay windows add time—expect to finesse odd angles and off-center openings.

• If you skip sill heights, your kitchen backsplash and window line may clash in 3D (and in real life).

Tips / Case

• Start orthogonal; add diagonals later. Lock each wall after input to avoid accidental nudges.

• Doors: model swing direction and clearance. Windows: set head height for consistent curtain tracks.

save pin

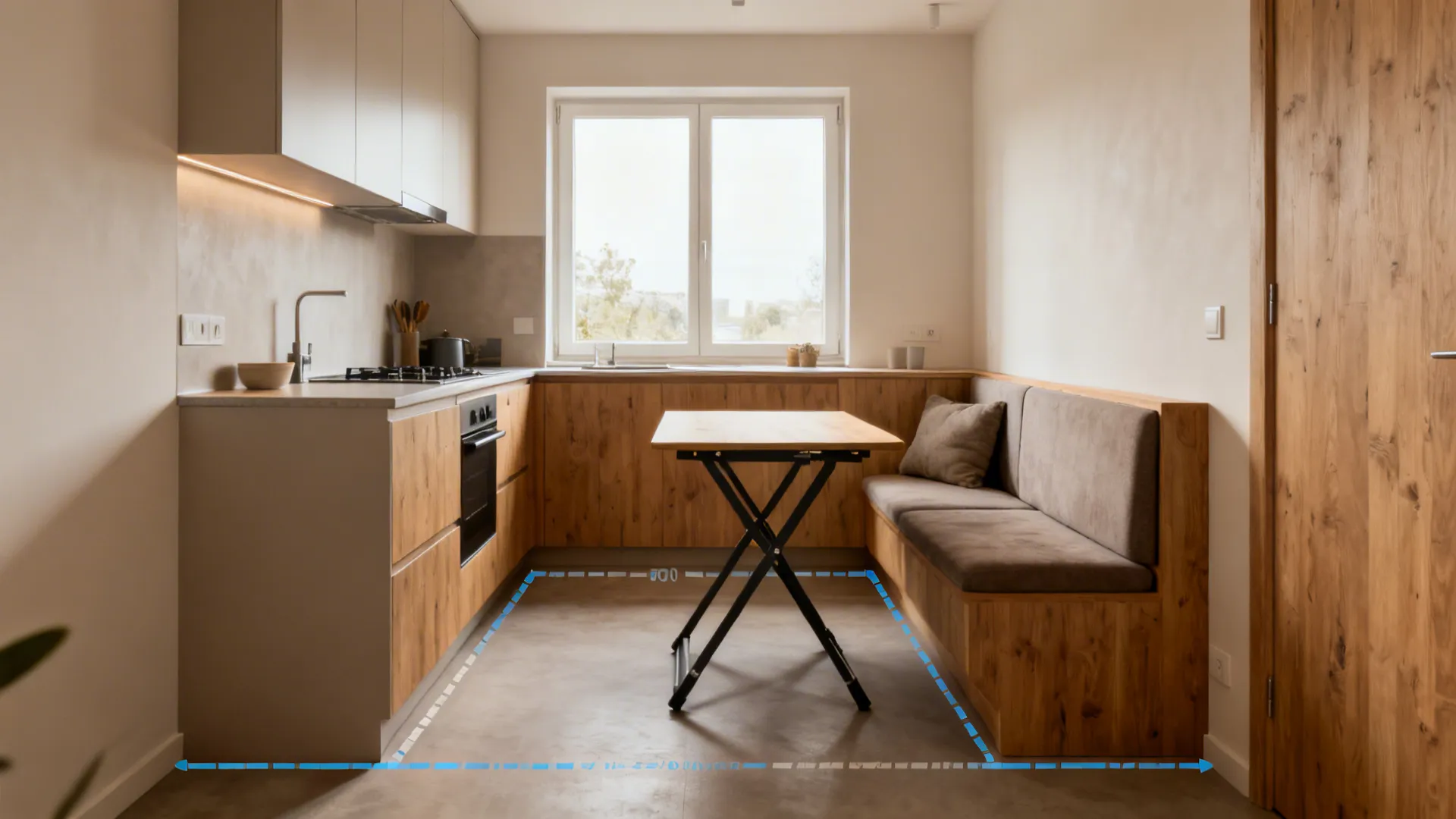

Plan the layout: zones, flow, and clearances

My Take

This is where small spaces shine. I treat a room like a mini city: circulation is the streets, furniture the buildings. I sketch two or three options—like an L-shaped kitchen for daylight and counter run, or a compact living/dining combo with a folding table—then test them in 3D.

Pros

• Zoning improves function and makes a small room feel bigger (long-tail: “3D room layout planning for small spaces”).

• Clearances—like 600–900 mm walkways—reduce bumps and bruises, and align with NKBA and BSI recommendations for comfortable movement.

• L-shaped layouts work brilliantly in narrow rooms; they unlock more counter length without crowding the center.

Cons

• Too many layout options can create analysis paralysis. I cap it at three schemes to keep momentum.

• Open-plan layouts can echo sound; soft materials are your friend.

Tips / Cost Factors

• Use painter’s tape on the floor to mock critical footprints—sofa, bed, table—before committing in 3D.

• If budget is tight, prioritize storage and circulation first. Fancy finishes can come later.

At this halfway point, if you want to see a compact kitchen iteration like "玻璃背板让厨房更通透" modeled in 3D and tested for flow, this example is a great reference: glass backsplash that opens the space.

save pin

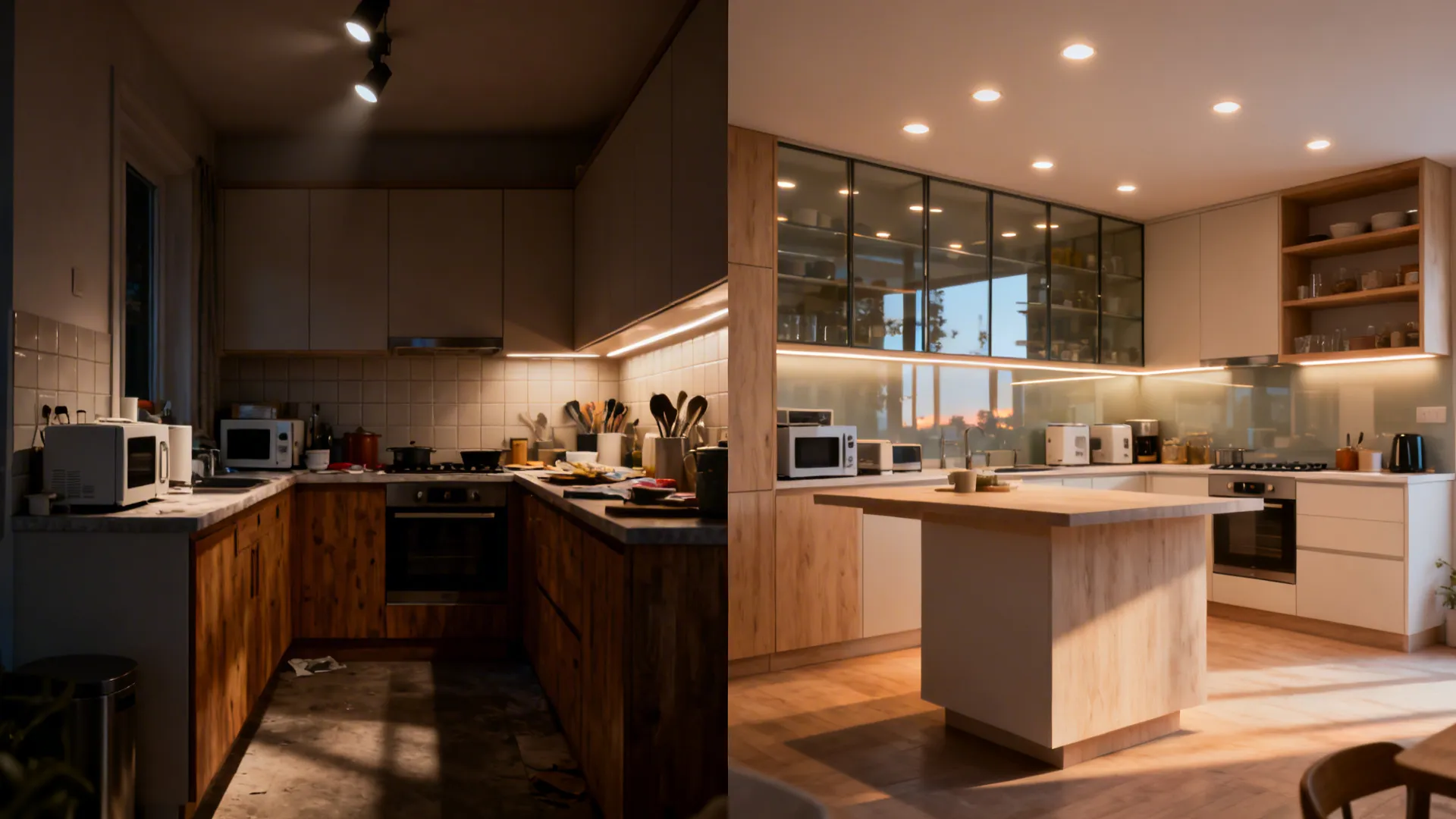

Light and materials: visualize depth and mood

My Take

Light is your best friend in 3D. I set one daytime scene (cool daylight) and one evening scene (warm ambient + task) to stress-test the room. The goal is depth: layered light, reflective surfaces, and textures that read in perspective.

Pros

• Good lighting plans clarify your 3D room step-by-step process and reveal how finishes behave (long-tail: “3D room lighting and material planning”).

• High Light Reflectance Value (LRV) paints bounce daylight, making tight rooms feel bigger; mirrors and pale woods help too.

• The Illuminating Engineering Society (IES) provides recommended light levels; aiming for ~300–500 lux in work zones keeps tasks comfortable.

Cons

• Over-shiny materials look fake in 3D and smudge in real life. Balance matte and gloss.

• Too many spotlights produce the “airport runway” effect—harsh shadows and glare.

Tips / Case

• Combine three layers: ambient (ceiling or wall wash), task (under-cabinet, desk), and accent (art, shelves).

• Materials: vary rough/smooth, warm/cool. If the floor is mid-tone wood, try satin walls and a matte rug for depth.

save pin

save pin

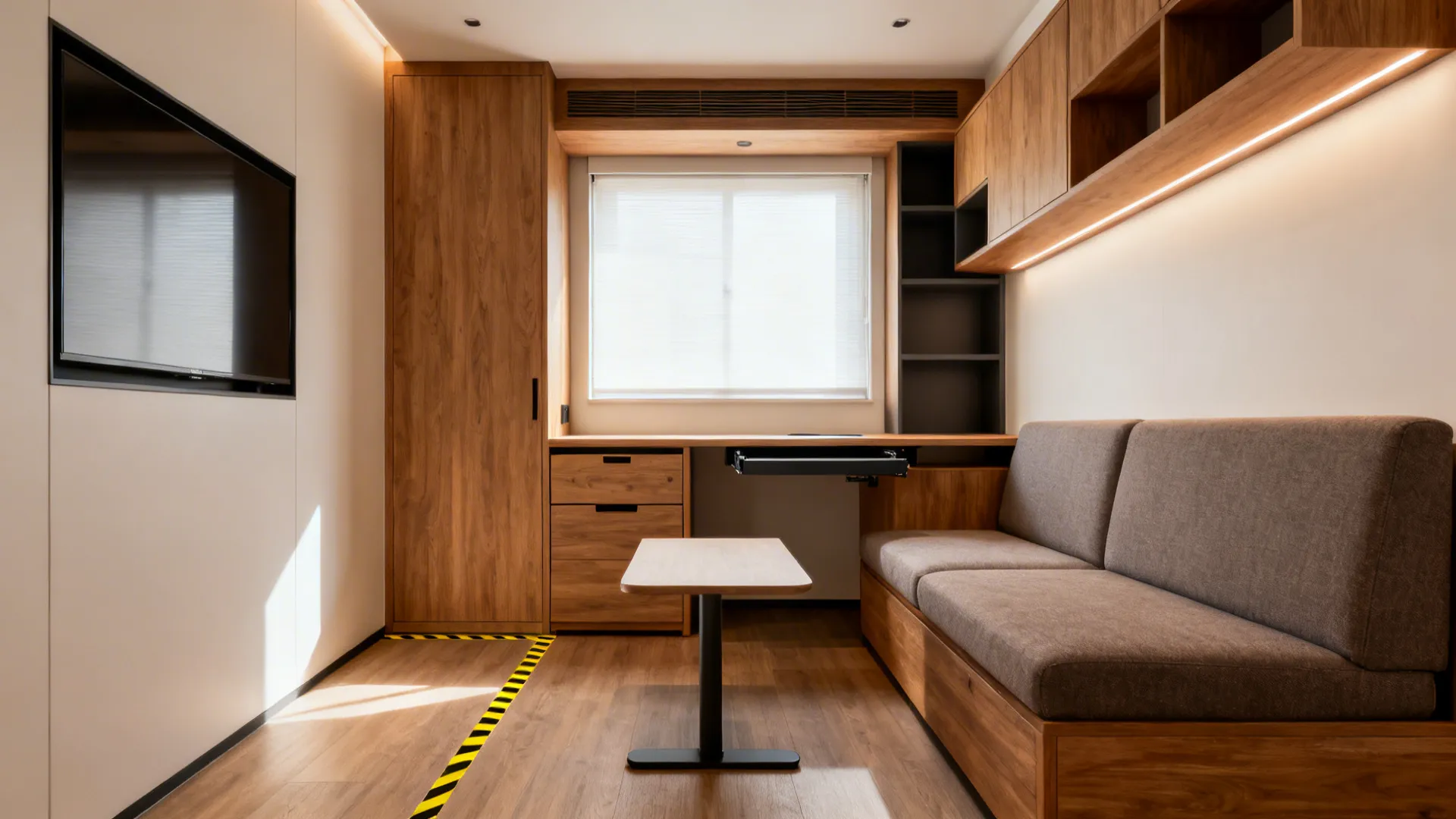

Furnish and refine: scale, storage, and human factors

My Take

Furniture can make or break small rooms. I start with the largest piece (sofa, bed, dining table) at realistic dimensions, then weave in storage. I’m ruthless about scale: a 2.2 m sofa in a 2.6 m nook is a no-go, no matter how plush.

Pros

• Right-size pieces keep circulation clear and ergonomics intact (long-tail: “ergonomic furniture spacing in 3D rooms”).

• Built-ins or wall-mounted units reclaim floor area and photograph beautifully in 3D renders.

• Using standard anthropometric ranges—like 430–460 mm seat height—helps your 3D model translate into comfort.

Cons

• Multifunction furniture can be heavy or complex to install; test clearances in open and closed positions.

• Tiny side tables look cute in 3D but disappear under real-life coffee mugs and chargers.

Tips / Cost Factors

• Budget trick: spend on one anchor piece (sofa or bed), save on side pieces and open shelving.

• Aim for one closed storage zone per room for visual calm; the rest can be open and styled.

When you’re about 80% finished, it’s the perfect moment to preview materials and lighting in a realistic scene—here’s a helpful showcase of "木质元素带来的温暖氛围" with balanced lighting and texture: warmth from wood elements.

save pin

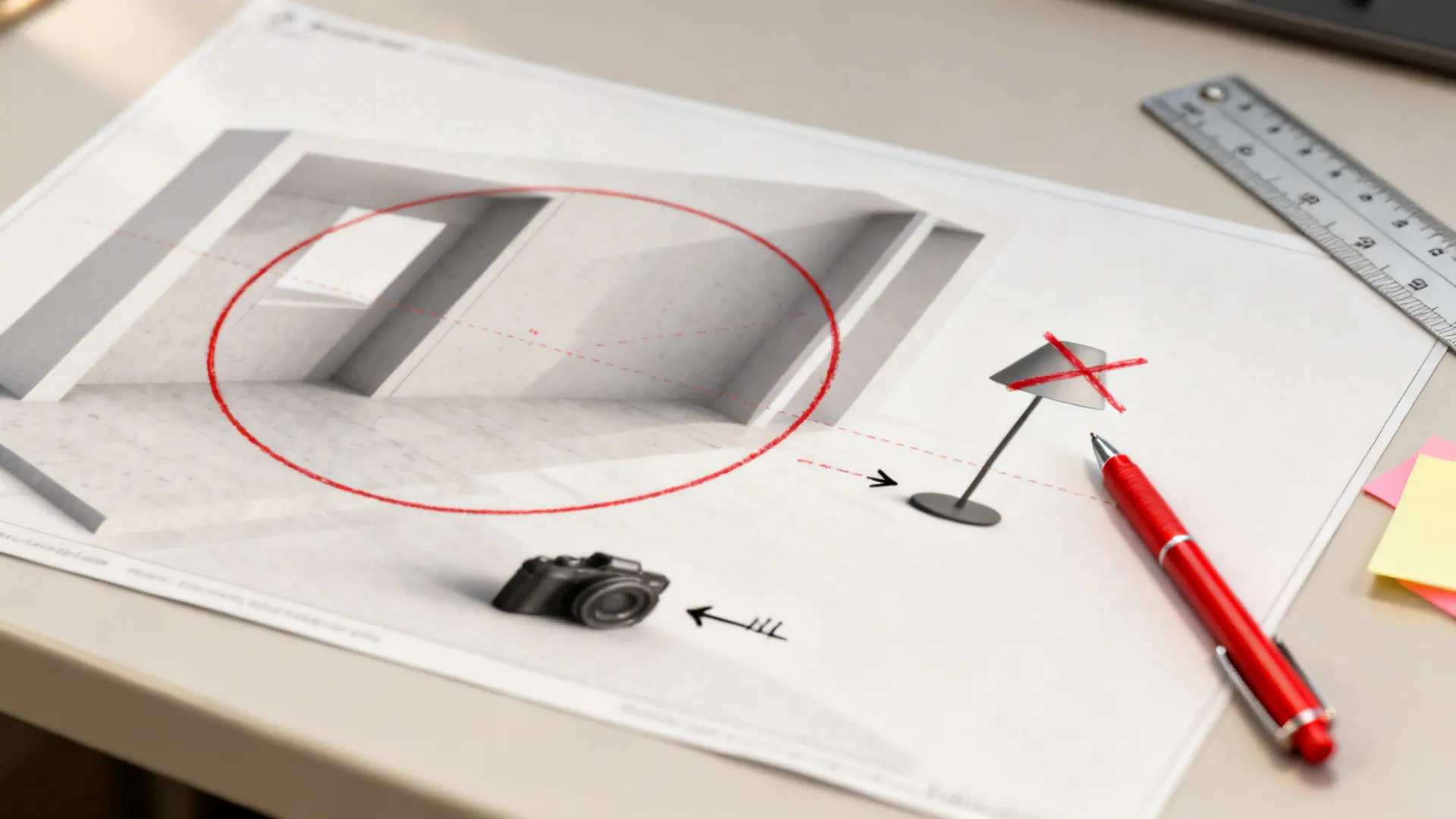

Rendering and review: iterate before you build

My Take

I always do at least two renders per view: one neutral, one styled. Then I print the plan and mark it up with a red pen—old-school, but it catches everything from awkward sight lines to lampshade clashes.

Pros

• Rendering exposes proportion issues and color casts you might miss on the fly (long-tail: “how to draw a 3D room and render realistically”).

• Camera heights around 140–150 cm mimic standing eye level for honest perspectives.

• Cross-checking with a simple daylight study helps confirm glare and shadow positions, aligning with IES daylight insights.

Cons

• High-quality renders take time and can seduce you into over-styling—remember, function first.

• It’s easy to chase photorealism and forget buildability; keep materials and dimensions grounded.

Tips / Cost Factors

• Label every elevation (A, B, C…) and export with dimensions for contractors.

• Keep a “value-engineer” list: alternative finishes that look similar but cost less.

save pin

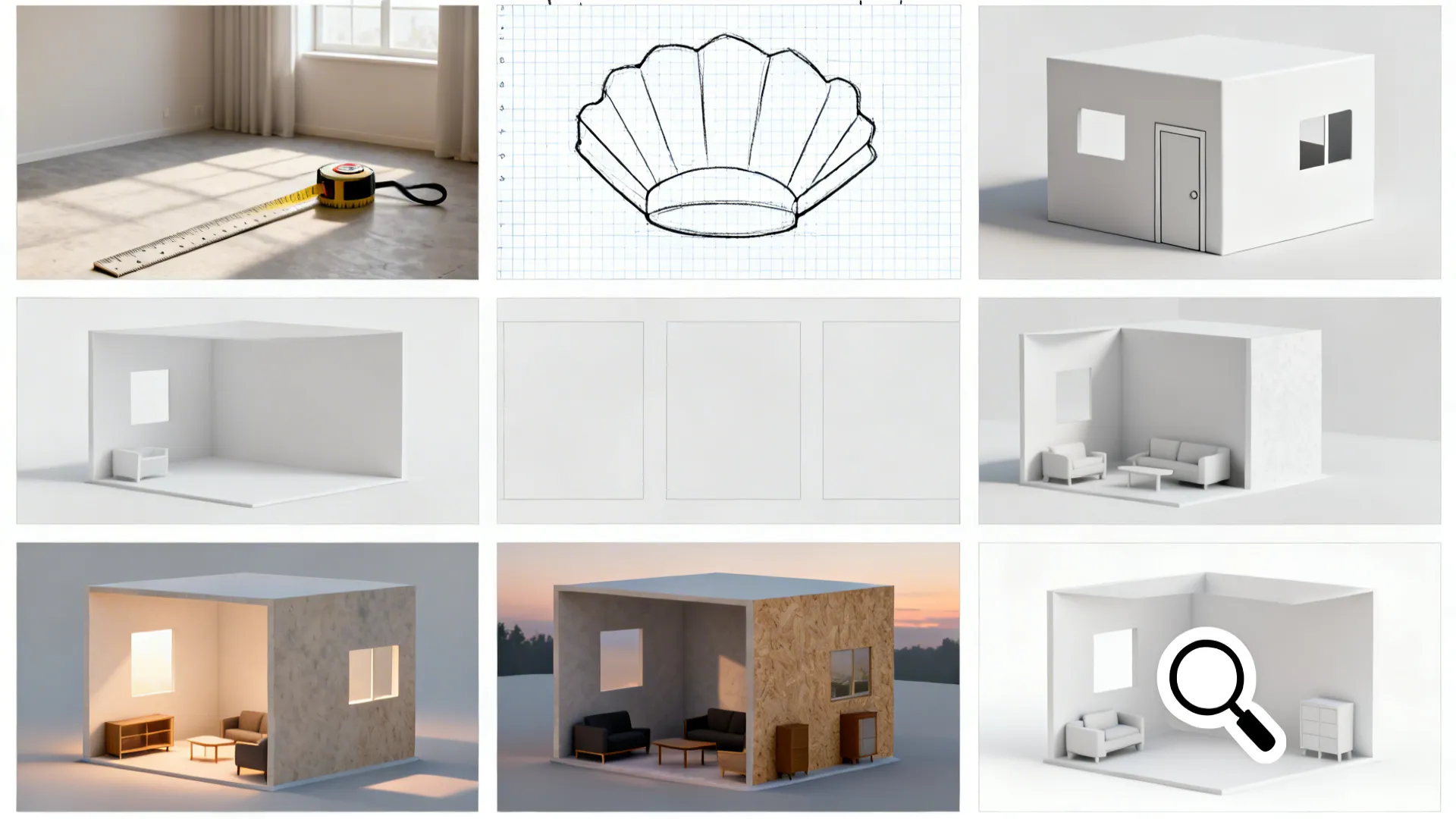

Step-by-step summary: how to draw a 3D room

1) Measure the space: length, width, height, and all openings/obstructions. Note door swings, sill heights, trims.

2) Draft the shell in 2D: set wall thicknesses, then extrude to 3D; insert doors/windows with exact sizes and elevations.

3) Plan 2–3 layouts: test circulation, zones, and clearances. Favor compact, functional runs (eg, L-shaped kitchen).

4) Add lighting and materials: create day/evening scenes; layer ambient, task, accent light; select textures with balanced sheen.

5) Place furniture to scale: start with the biggest pieces; respect ergonomic spacing; integrate storage early.

6) Render and review: produce neutral and styled views; check proportions; prepare dimensioned drawings and a budget-friendly finish list.

7) Iterate: tweak based on real-world feedback—mock up with tape, then fine-tune the 3D model.

save pin

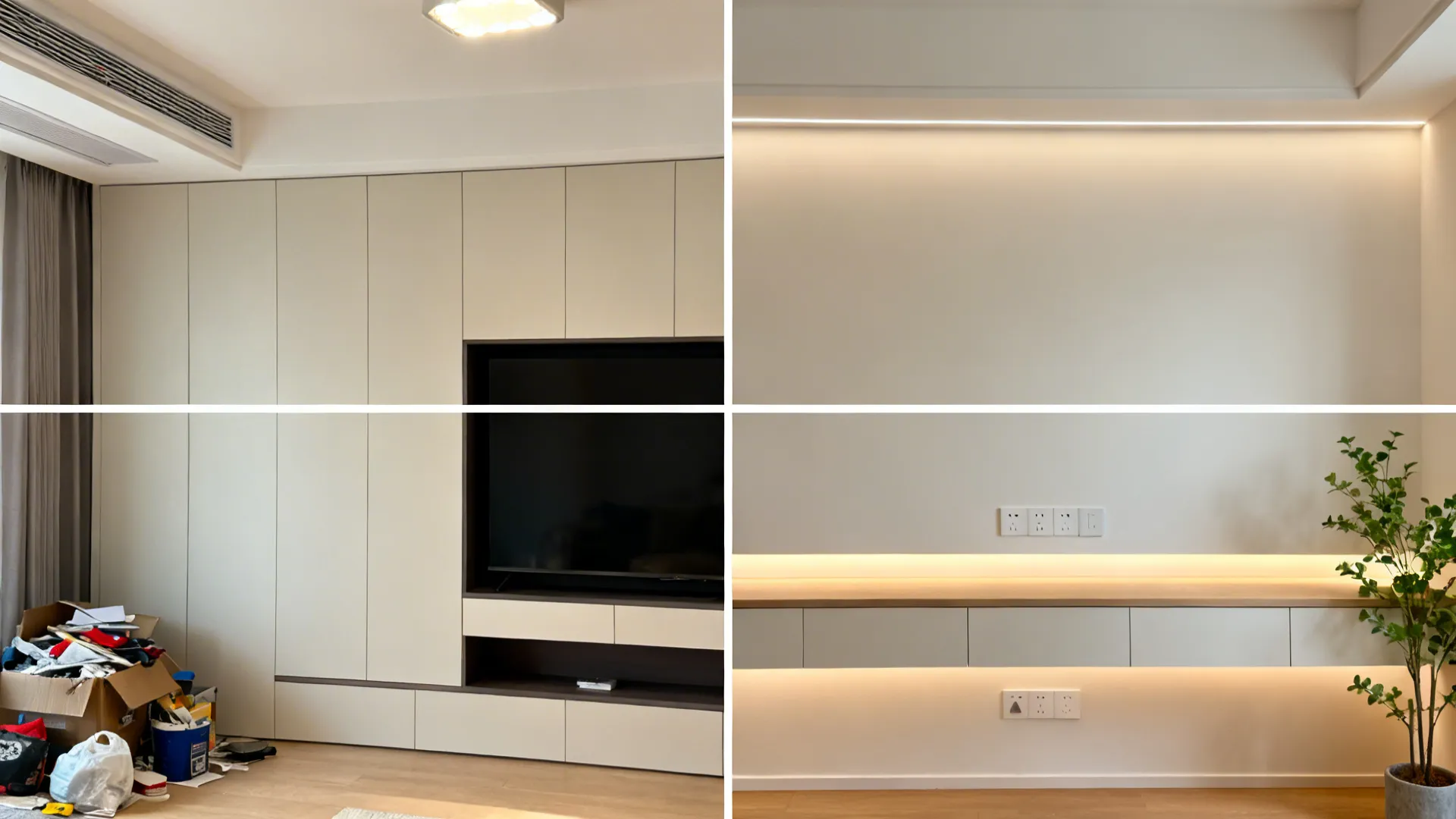

Common pitfalls I see (and how to avoid them)

• Ignoring ceiling height changes: bulkheads and beams will ambush tall cabinets. Measure multiple points.

• Forgetting power and data outlets: your beautiful media wall needs juice. Mark outlets early in 3D.

• Overfilling corners: keep at least one “breathing corner” to make small rooms feel bigger.

• Underestimating trims: baseboards and casings eat width; model them to avoid tight fits.

• One-light-fits-all: diversify the lighting plan; dimmers help shift modes from work to rest.

save pin

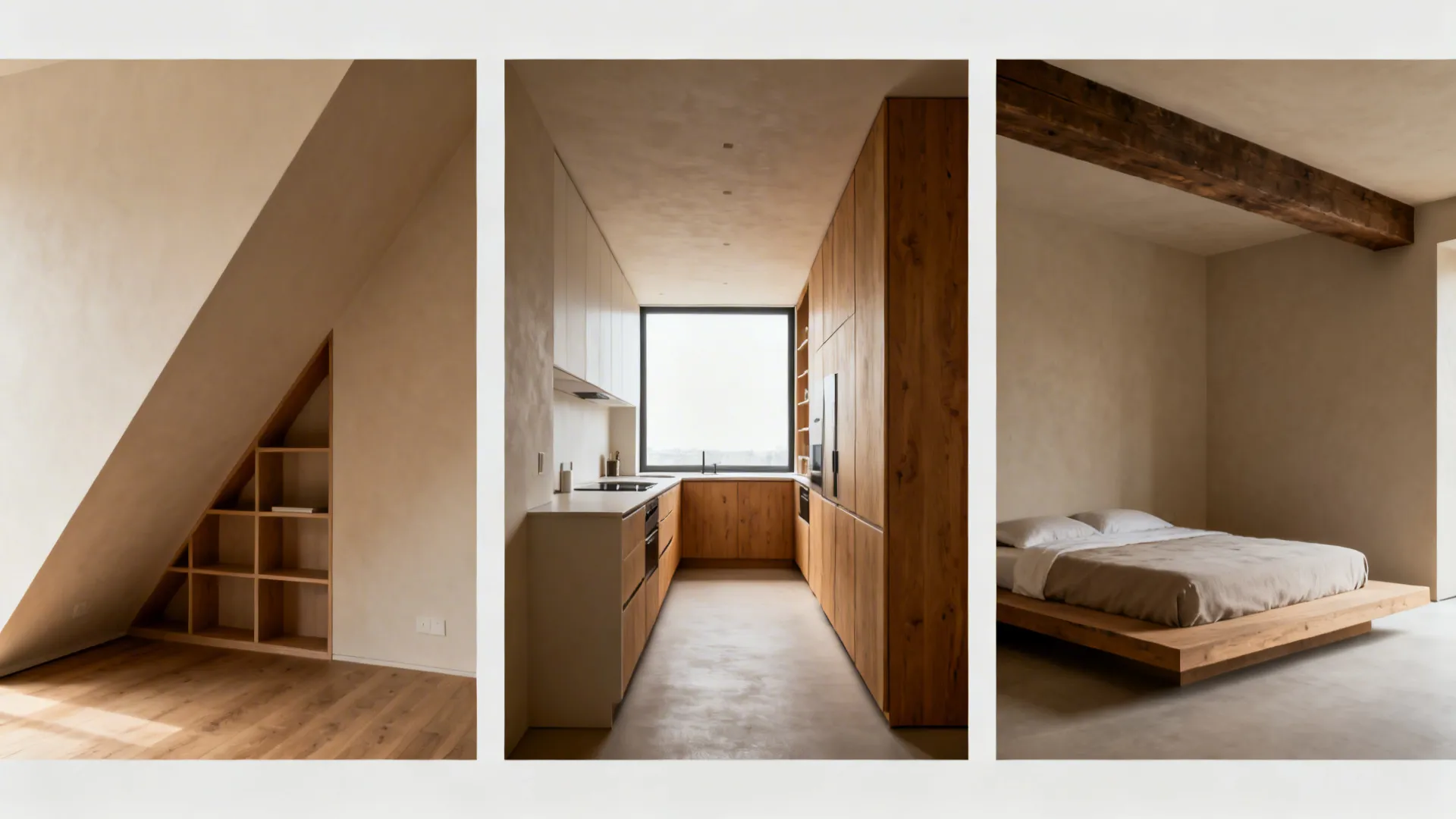

Case mini-studies from my projects

• Studio with a diagonal wall: we squared the furniture grid to the longest wall, then used a custom shelf to “absorb” the angle—worked beautifully in 3D and real life.

• Skinny kitchen: L-shaped run under a broad window, tall pantry on the short leg; the 3D test confirmed that 650 mm aisle was too tight—we widened to 800 mm before ordering.

• Bedroom with a low beam: modeled a 2100 mm head height under the beam, switched to a platform bed; the 3D render helped the client visualize comfort without claustrophobia.

save pin

Budget and timeline reality check

• Software and tools: basic measuring kit ($60–$150). Allow learning time for your chosen 3D workflow.

• Iterations: two to three cycles are typical; keep each pass focused—layout, then materials, then lighting.

• Build alignment: the clearer your 3D, the fewer site surprises. Contractors love dimensioned elevations.

save pin

Final thoughts

Small kitchens and compact rooms aren’t limitations—they’re invitations to design smarter. When you draw a 3D room step by step, you make better choices before spending real money, and you’ll spot issues when they’re still pixels, not plywood. The IES and NKBA guidelines are great guardrails for light and clearances, but your lived habits matter most—how you cook, read, and host. Which of these five design inspirations are you most excited to try in your own 3D room?

save pin

FAQ

1) What’s the first step to draw a 3D room accurately?

Measure the shell: length, width, height, door/window sizes, and sill heights. Sketch a simple 2D plan with all dimensions, then build the 3D shell from that. Accurate input saves a ton of rework.

2) How do I choose the best layout for a small room?

Limit yourself to 2–3 options and test circulation widths (ideally 700–900 mm). Try an L-shaped or single-wall arrangement if you’re tight on space; it often unlocks more usable counter or floor area.

3) How can I make a 3D room look realistic in renders?

Use layered lighting (ambient, task, accent) and mix matte with satin materials. Set camera height around 140–150 cm for natural perspective, and avoid over-glossy finishes that look artificial.

4) What are standard clearances I should model?

For living areas, aim for 450–600 mm between a sofa and coffee table; circulation paths of 800–900 mm feel comfortable. In kitchens, follow NKBA guidance—keep working aisles around 1065 mm for two cooks and at least 915 mm for one.

5) Do I need daylight data for my 3D room?

It helps. Place windows at accurate heights and sizes, then preview one daytime and one evening scene. The Illuminating Engineering Society (IES) recommends target light levels; aiming for 300–500 lux in work zones is a solid start.

6) How do I manage storage without crowding the room?

Prioritize vertical space with wall-mounted units and one closed storage zone for visual calm. In 3D, test door swings and drawer pulls to avoid clashes in real life.

7) What’s the simplest workflow for beginners?

Measure → draw 2D shell → place doors/windows → test 2–3 layouts → add lights/materials → furnish to scale → render and review. Keep versions labeled so you can roll back easily.

8) Any reliable resources for lighting and clearances?

Yes. The IES Lighting Handbook offers illumination guidance, and NKBA publishes kitchen and bath planning guidelines. Modeling their recommendations in your 3D room step-by-step process reduces trial and error.
