How to Draw a Kitchen Floor Plan: 5 Proven Ideas: A senior interior designer’s step‑by‑step inspiration for small kitchens (and smarter layouts)

[Section: Meta 信息]

Core keyword: how to draw a kitchen floor plan

[Section: 引言]

I’ve spent over a decade refining tight kitchens into calm, efficient spaces, and the latest trend keeps proving itself: smart zoning over sheer size. Small spaces spark big creativity—especially when you know how to draw a kitchen floor plan with intention. In this guide I’ll share 5 design inspirations I use with clients, blending my hands-on experience with expert data to help you plan faster and avoid expensive rework.

Before we dive in, I often begin by roughing mechanicals and traffic flow first, then layering storage and light. If you want to see how an L-shaped counter improves prep space, check the “L 型布局释放更多台面空间” approach I referenced in a recent project via L-shaped layout creates extra counter space. This article distills what actually works in real homes, not just on mood boards.

[Section: 灵感列表]

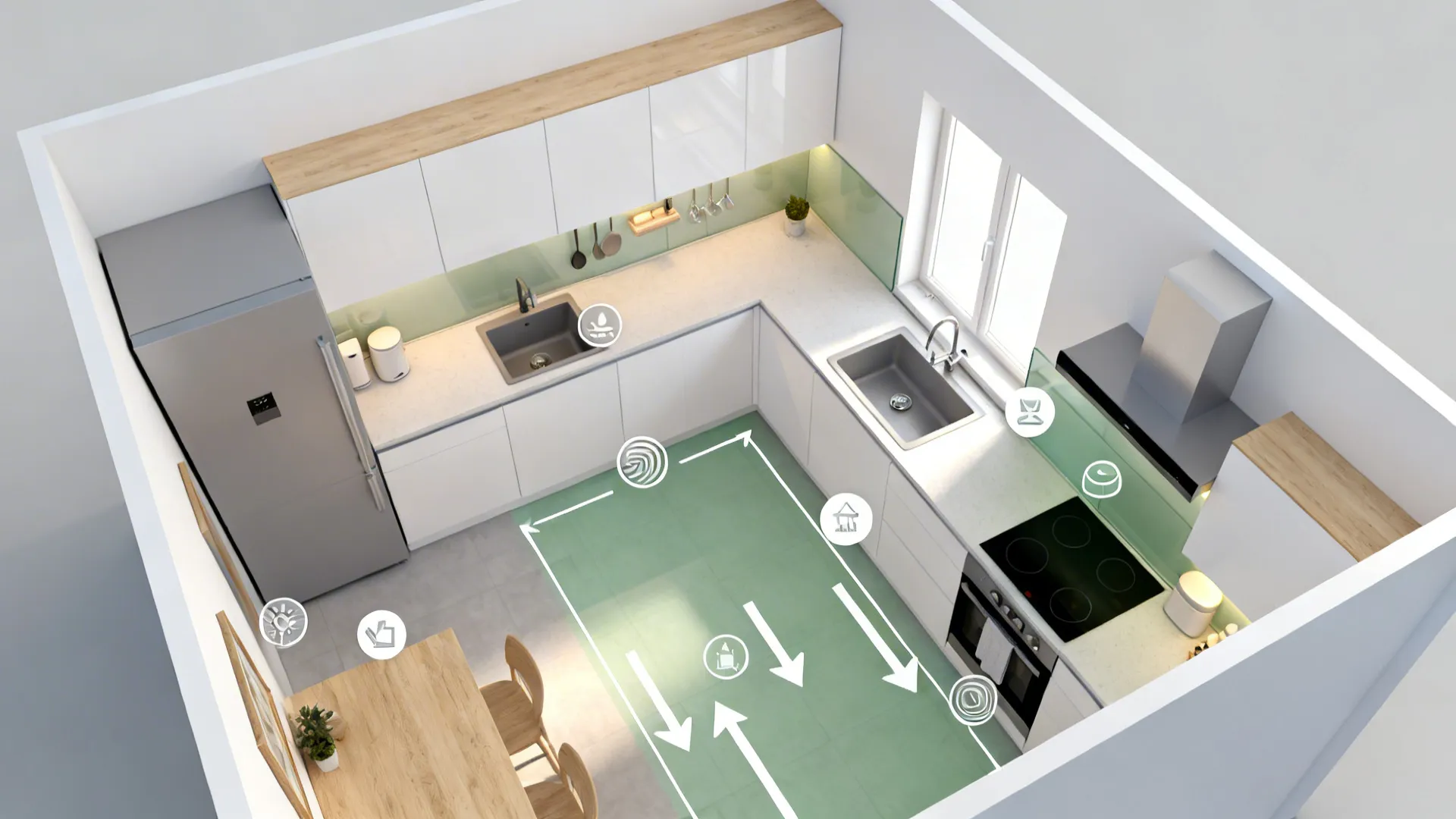

1) Minimalist storage that maps your workflow

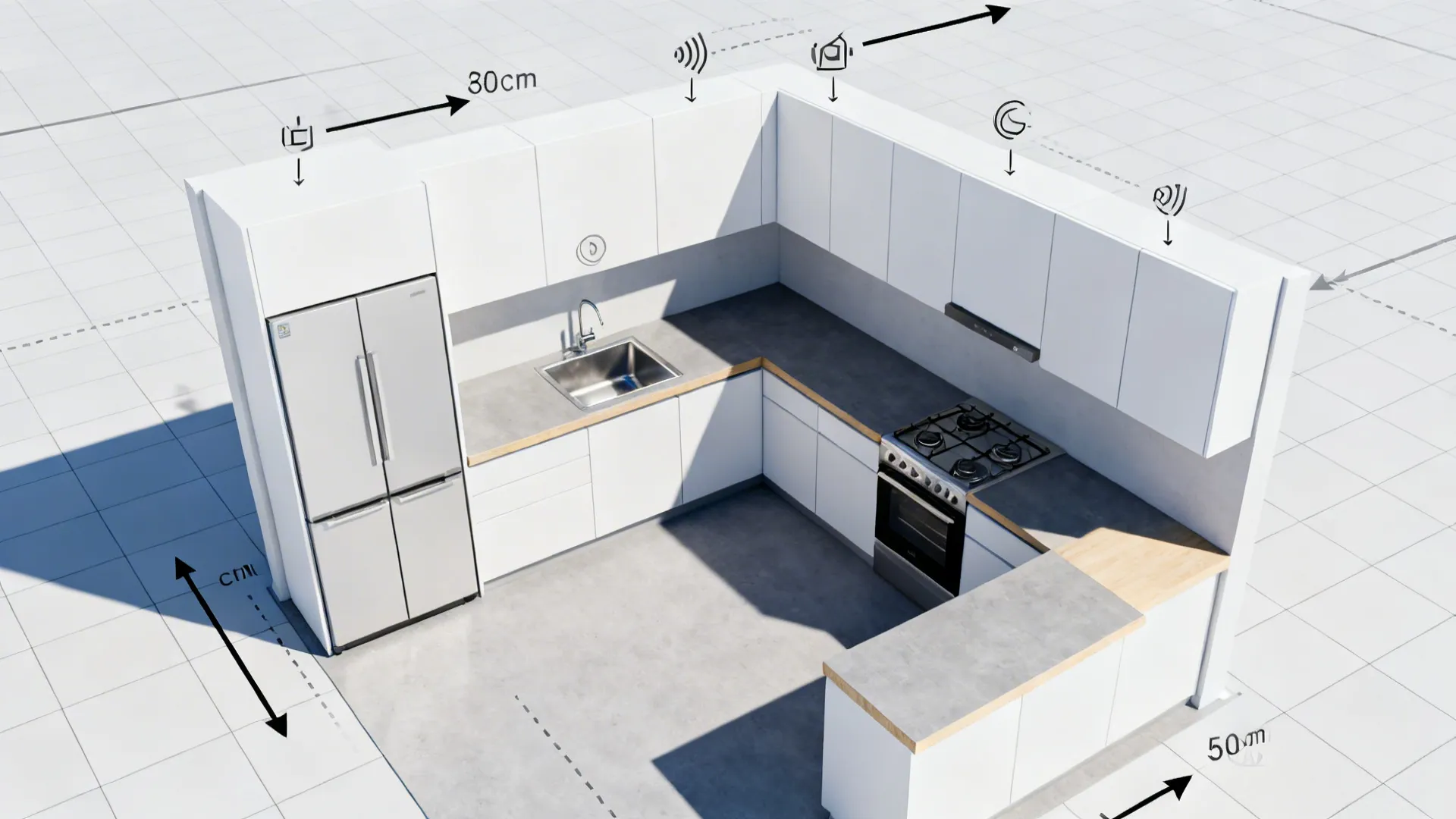

My Take: When I start drawing a kitchen floor plan, I sketch the cooking path I naturally take: fridge → sink → prep → cook. In my own 7.5 m² galley, mapping that path onto the plan cut my average dinner prep by 10 minutes. Minimalist doesn’t mean less storage—it means only the right storage, exactly where your hands expect it.

Pros: A workflow-first plan reduces steps and visual clutter, which is crucial in small kitchens. It also supports long-tail best practices like “work triangle vs. work zones” by placing tall storage near the fridge and keeping a clear landing zone by the cooktop. When you draw your kitchen floor plan with zones, labeling cabinets by task (baking, snacks, breakfast) keeps daily routines effortless.

Cons: Over-editing storage can backfire if you later buy larger appliances or bulk goods. Ultra-minimal hardware-free fronts look great but show fingerprints and need consistent wipe-downs—ask me how I know after a pasta night with friends.

Tip/Cost: Use uniform cabinet widths (e.g., 60 cm modules) to simplify measuring and reduce custom cuts. If you’re on a budget, keep plumbing and gas in place and shift only the cabinetry; that single decision can save 15–25% of your remodel costs.

save pin

2) Glass backsplash for light and continuity

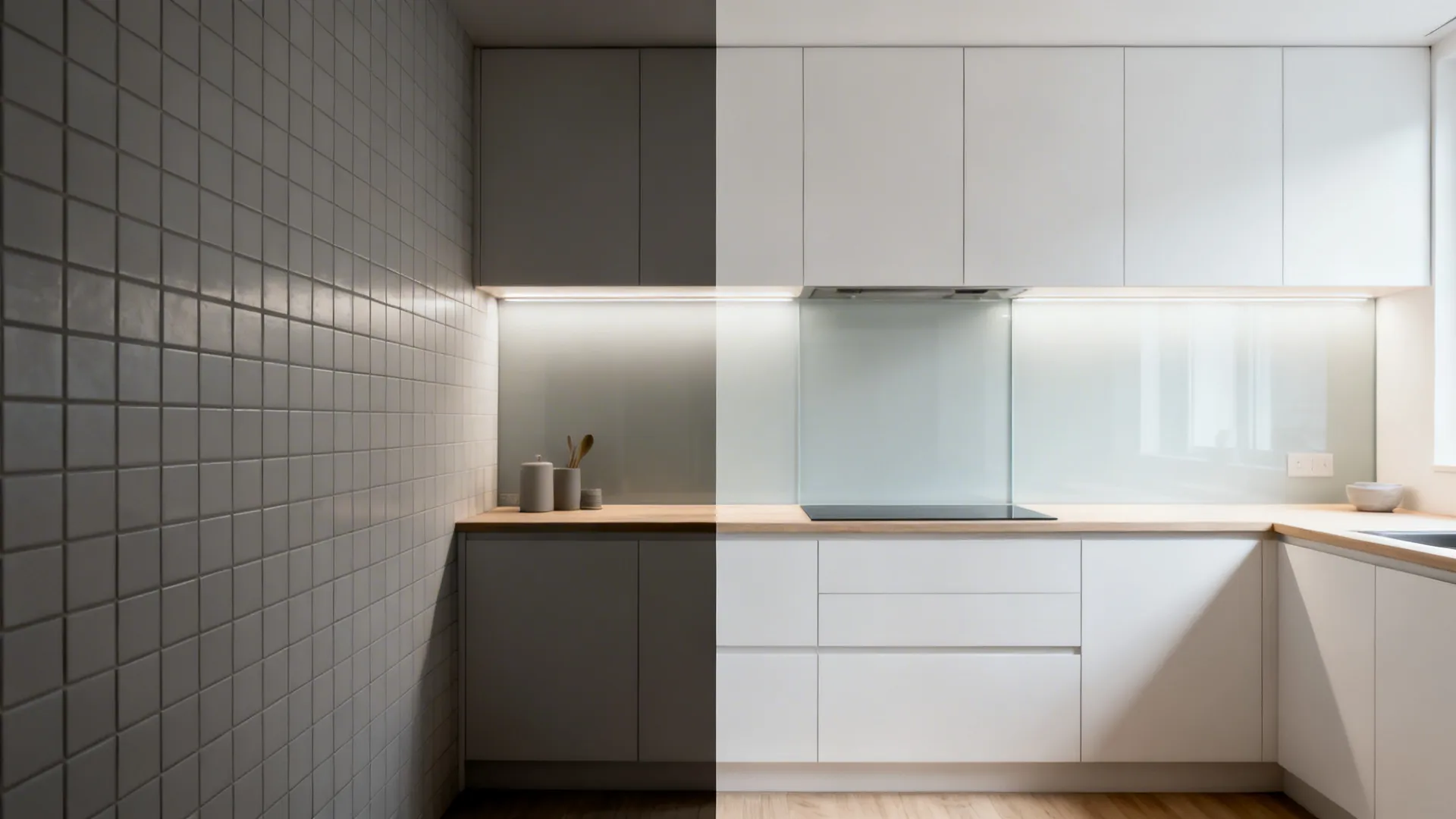

My Take: In narrow rooms, I love drawing a single, uninterrupted backsplash line before placing wall cabinets. A back-painted glass panel bounces light, visually stretches the wall, and cleans up with one swipe—bless. It’s my go-to when a client wants brightness without adding windows.

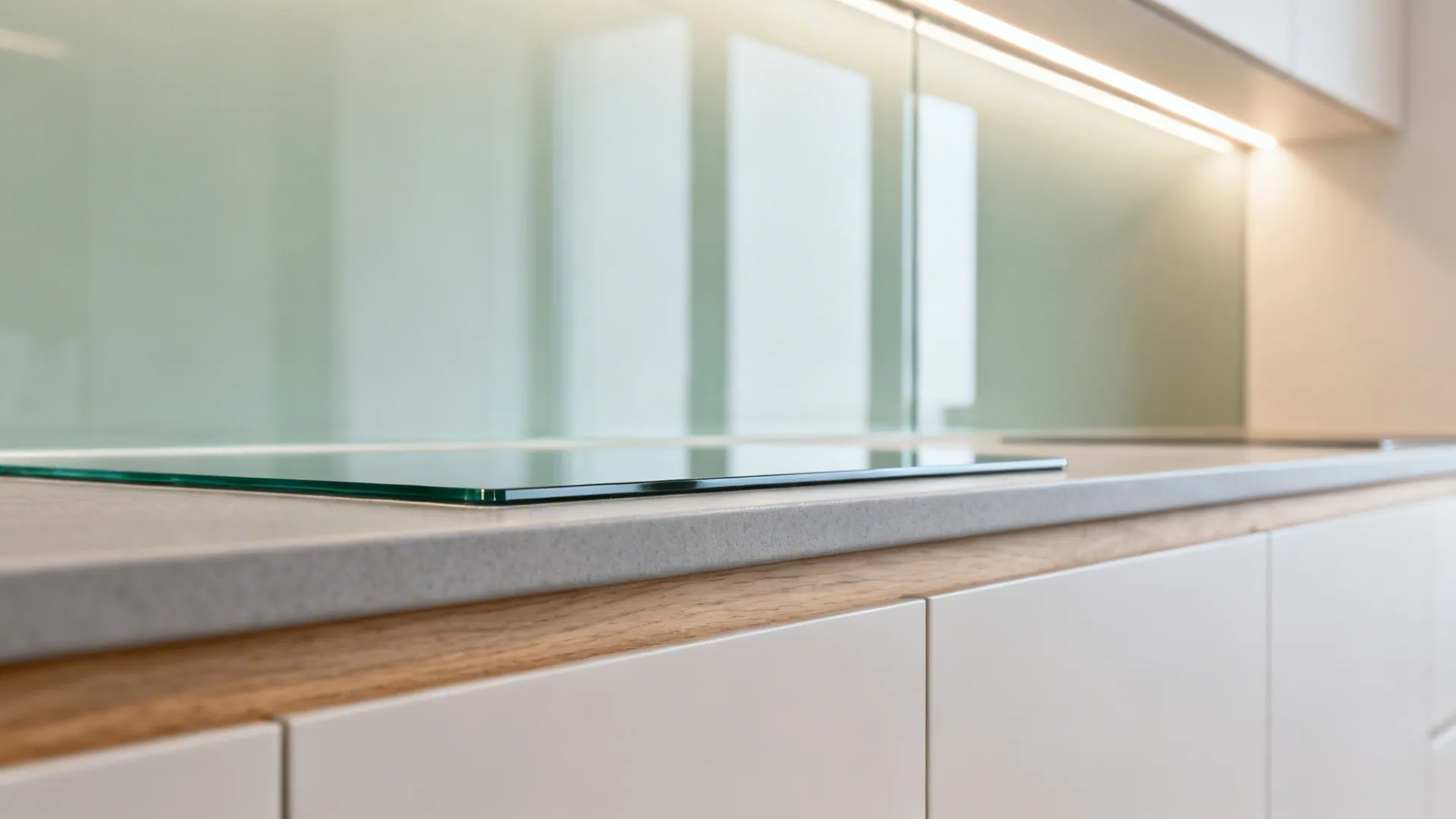

Pros: A glass backsplash amplifies task lighting, supporting the long-tail idea of “how to draw a kitchen floor plan with reflective surfaces for depth.” It also reduces grout lines, cutting maintenance and mold risk. Research on visual perception shows continuous surfaces reduce perceived clutter, which is gold in compact kitchens.

Cons: Glass requires precise site measurements; a 3–5 mm error can derail installation. If you love open shelving, reflections can double the look of items—great for minimalists, less so for collectors.

Tip/Case: For renters or phased upgrades, start with a peel-and-stick tempered-look panel behind the stove, then commit to a full-span sheet during your main renovation.

save pin

save pin

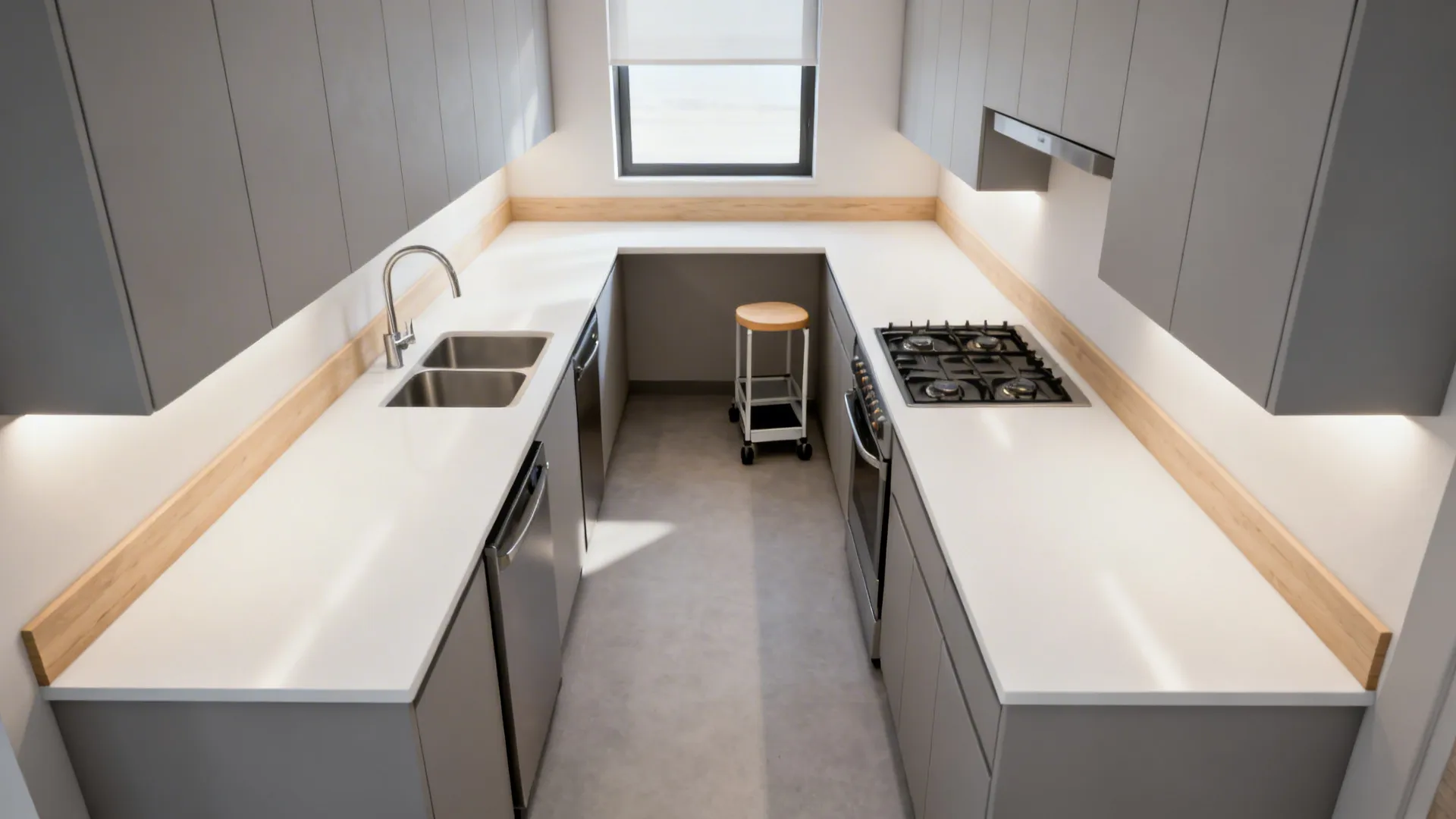

3) L-shaped layout that frees more counter space

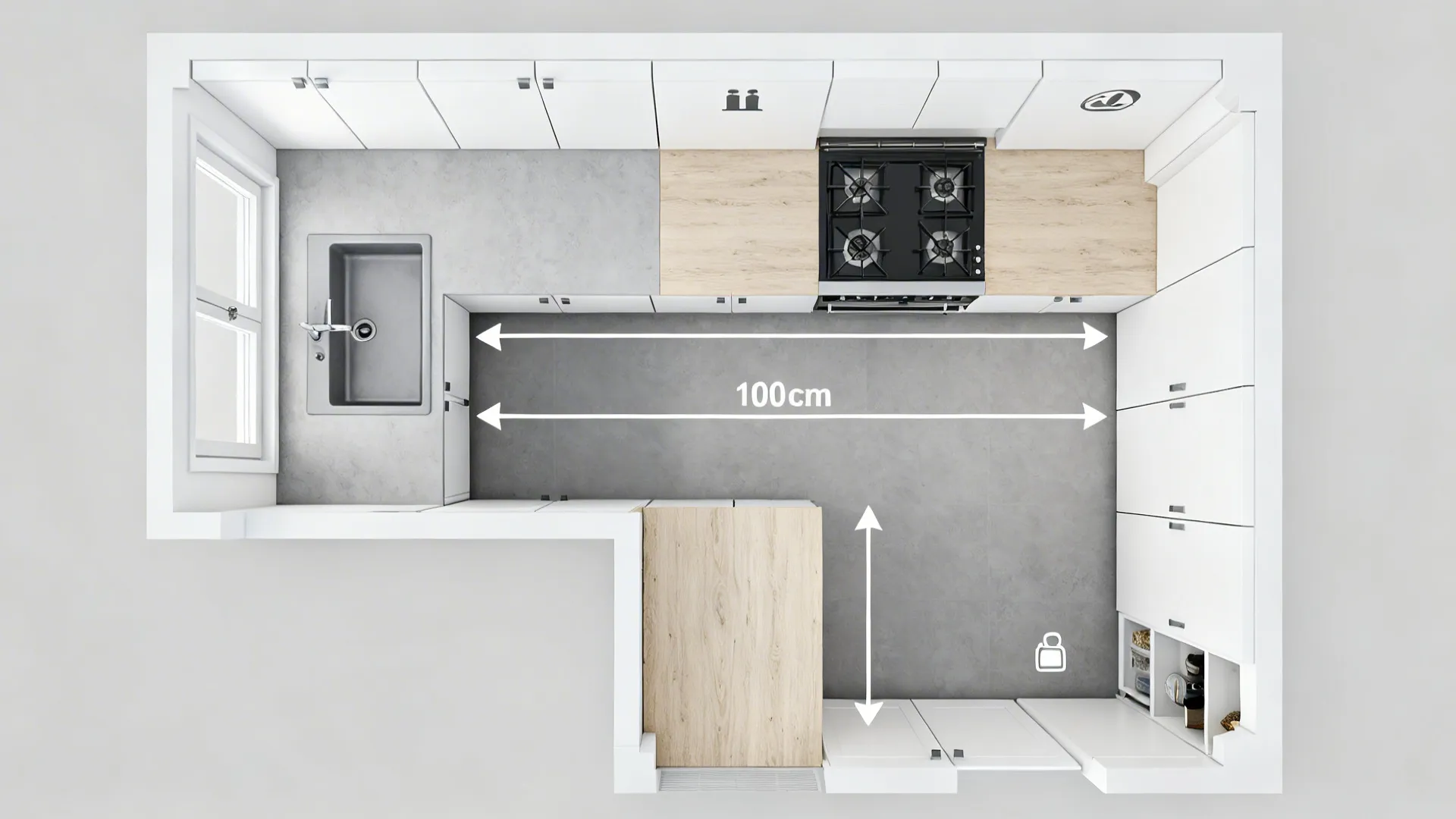

My Take: The L is my quiet workhorse. When I draw an L-shaped kitchen floor plan, I anchor the sink on the short leg and the cooktop on the long one, giving a generous prep zone between them. In a recent 9 m² condo, this tweak alone created a 120 cm uninterrupted prep run—and the client started baking again.

Pros: L-shapes support “small kitchen work zone planning” by opening a corner for either seating or a mobile cart. They also allow better appliance door swings and safer traffic flow, which aligns with National Kitchen & Bath Association (NKBA) clearances for aisles and landings (NKBA Kitchen Planning Guidelines).

Cons: Corners need smart solutions; lazy Susans or blind-corner pullouts can be pricey. If your space is extremely narrow, the second leg may crowd circulation and break code clearances.

Tip/Authority: Per NKBA, target 104–122 cm for single-cook aisle width. Planning within these ranges while you draw your kitchen floor plan helps avoid costly field changes later. Around the project midpoint, I validate my sketch using a quick spatial test via 3D counter and aisle visualization to spot pinch points before ordering cabinets.

save pin

save pin

4) Warmth from wood elements (without visual bulk)

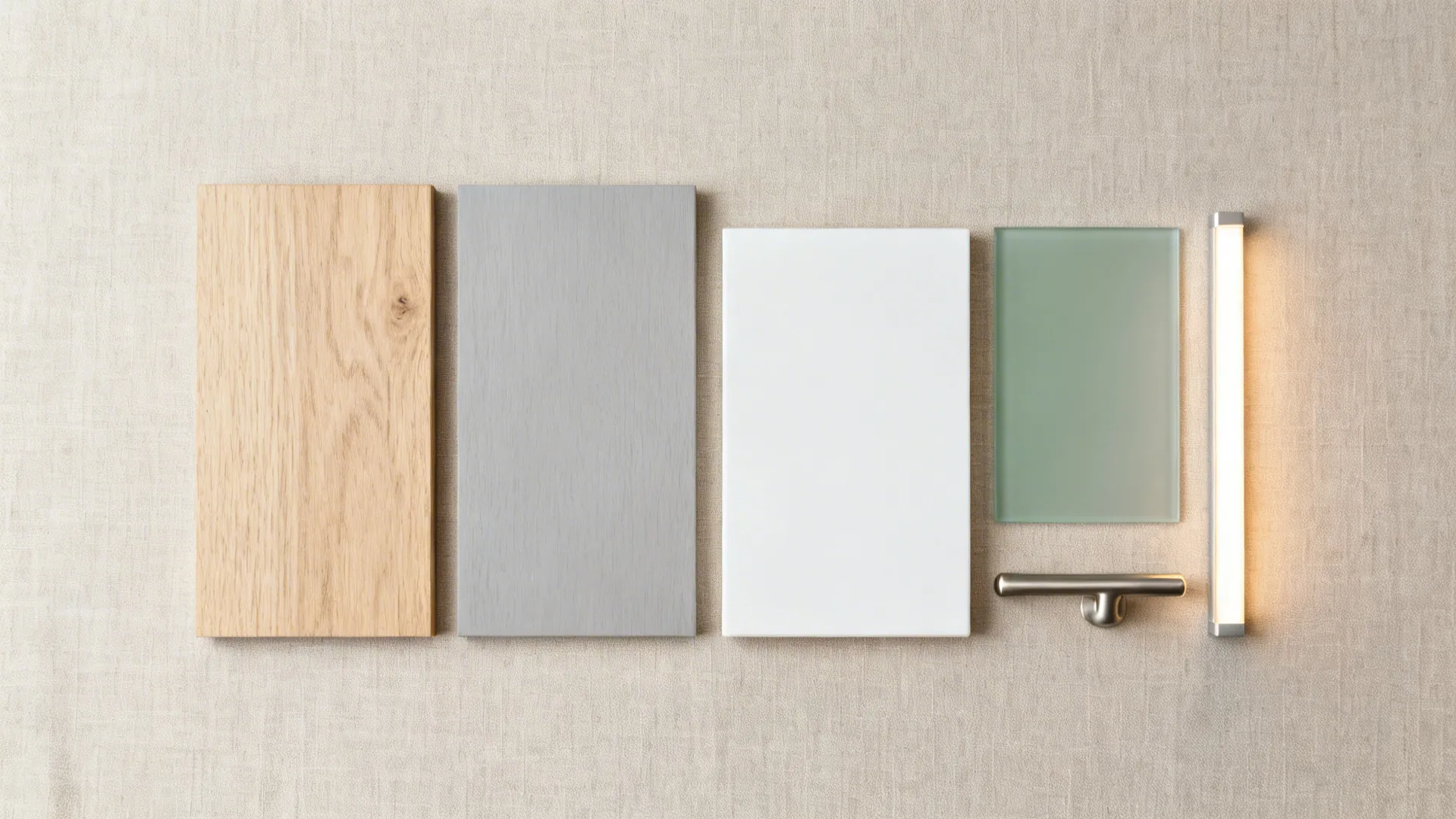

My Take: I’m a fanatic for one-warm-element-only in compact kitchens—usually a wood counter edge, a butcher-block insert, or fluted oak panels on the island back. It makes the plan feel intentional and cozy without overeating the volume.

Pros: Natural wood adds tactile comfort and supports the long-tail goal of “biophilic cues in small kitchen planning.” Pale oak or ash pairs well with matte laminates, easing the eye from task to rest. It’s also a timeless layer, so you can redraw accessories over the years without redoing the bones.

Cons: Wood needs sealing and routine oiling; hot pans and standing water are its enemies. If you cook daily and love bright sauces, expect patina—and embrace it, or pick a wood-look compact laminate instead.

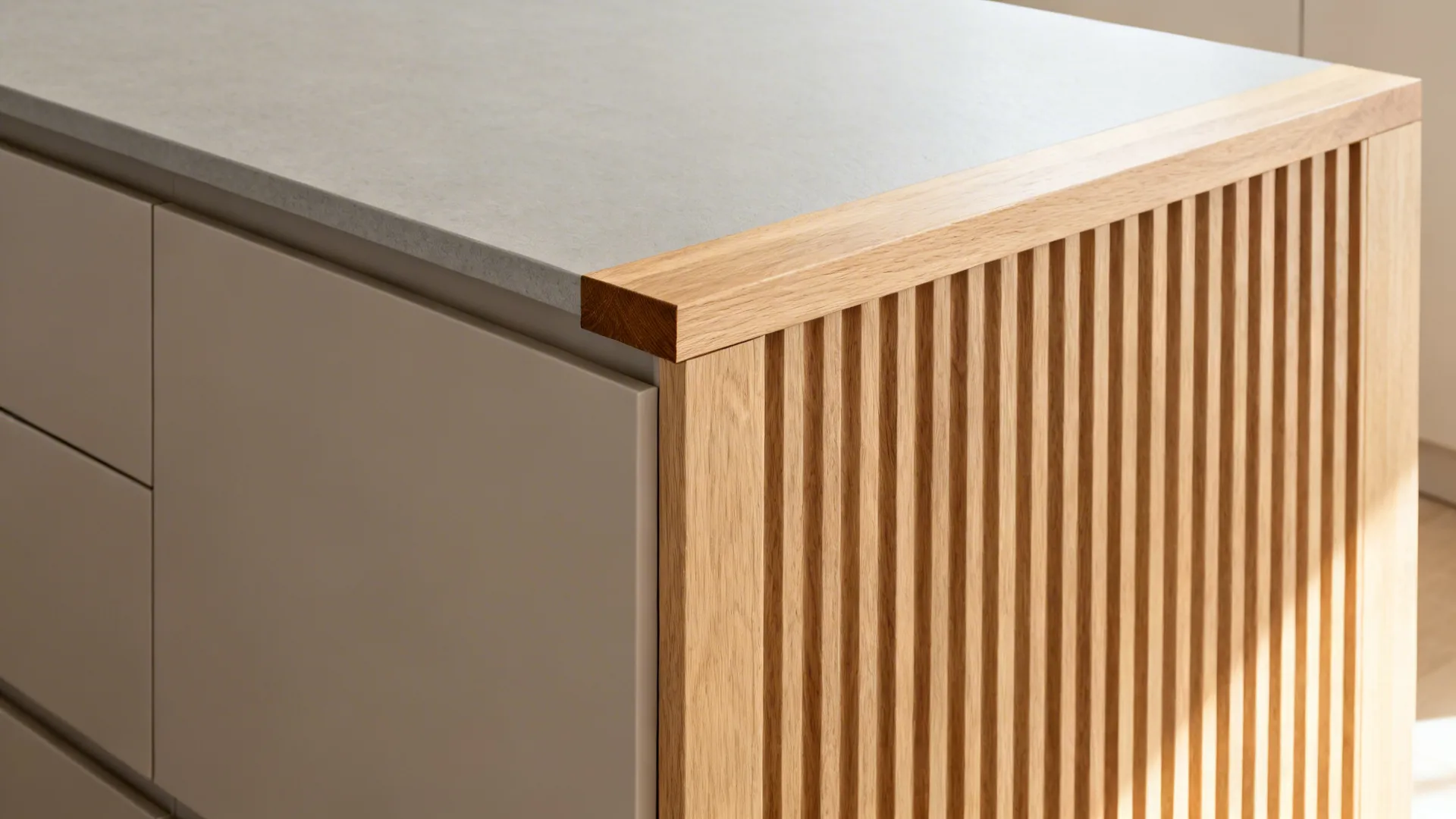

Tip/Cost: Use wood for vertical accents (end panels, trim rails) rather than full countertops to keep costs predictable. In a studio project, a 12 cm wood edge detail along one counter delivered the warmth clients wanted at one-third the price of solid tops.

save pin

save pin

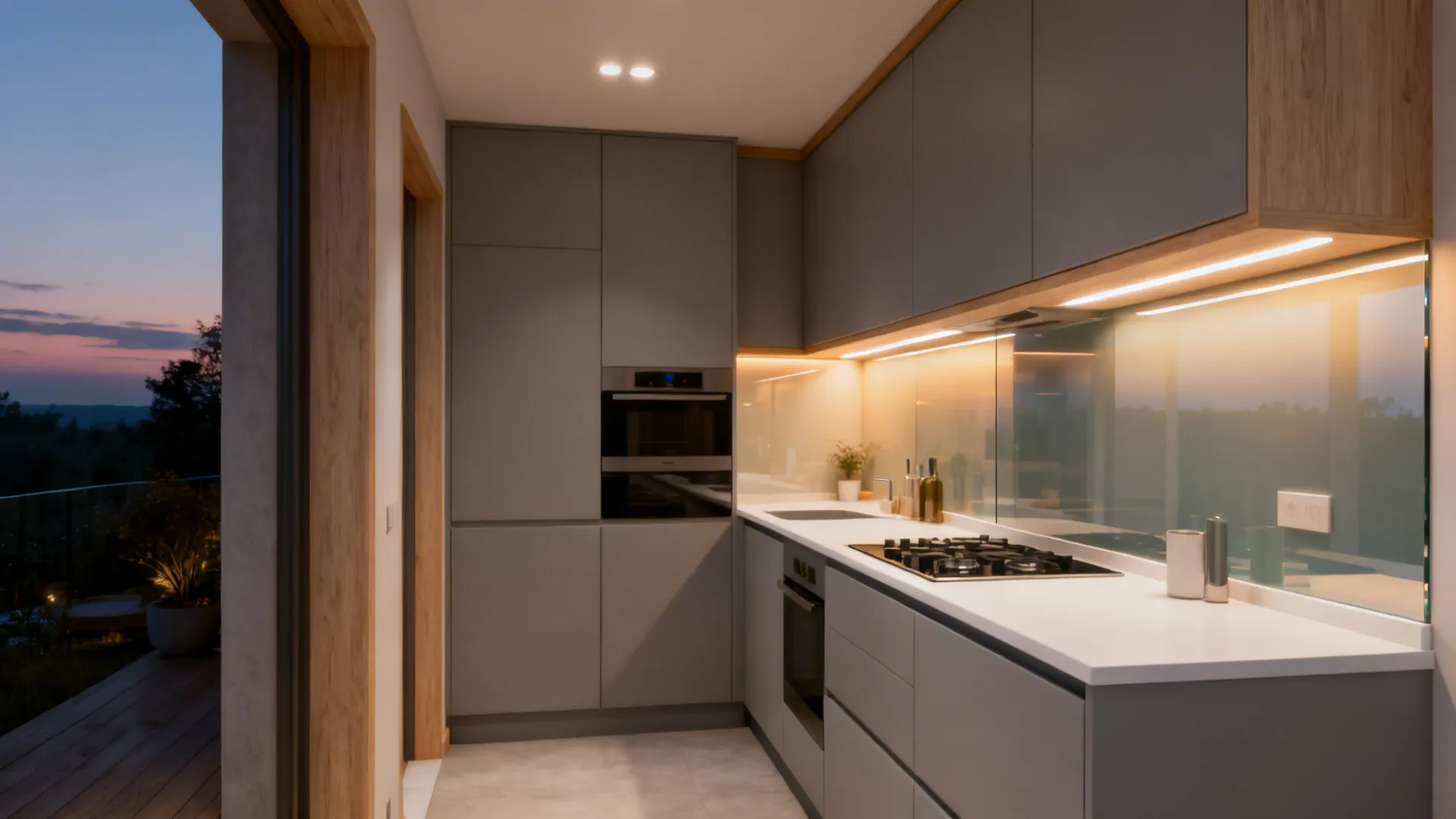

5) Lighting layers that guide the drawing (and the cooking)

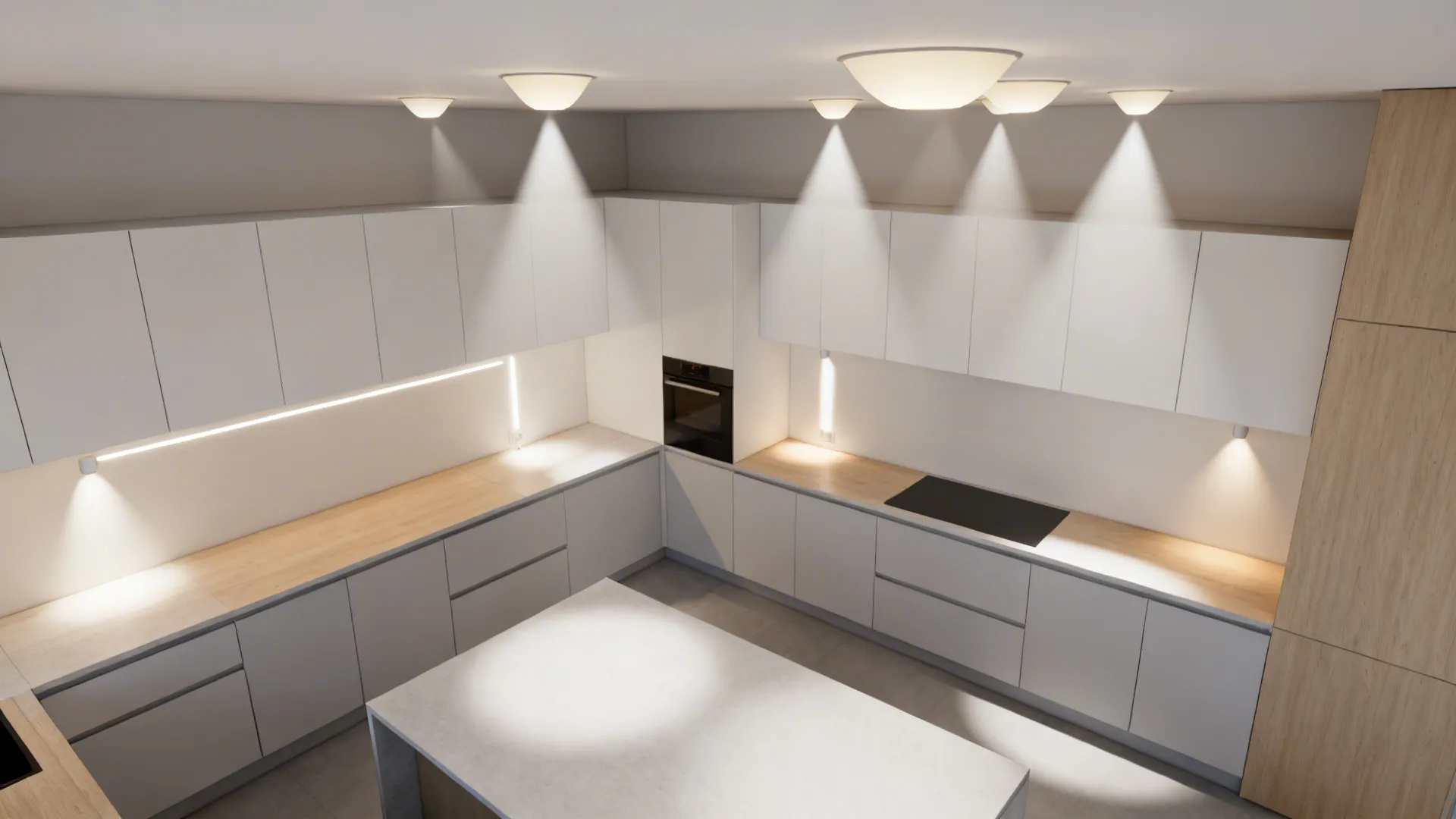

My Take: I used to draw cabinets first and “fix lighting later.” Rookie mistake. Now I sketch three layers together: ambient, task, and accent. When your plan shows where the light hits, your storage decisions become obvious.

Pros: Layered lighting supports “how to draw a kitchen floor plan with task illumination” by clarifying landing zones and knife-safe prep areas. Under-cabinet LEDs eliminate shadows, and a soft ambient layer makes small spaces feel calm and bigger. A 2022 Lighting Research Center brief notes vertical surface illumination strongly influences perceived brightness.

Cons: Multiple circuits add cost and complexity, especially in older buildings. Overly bright, cool temperatures can make natural wood look flat—choose 2700–3000K for warmth in residential kitchens.

Tip/Authority: Plan outlets and switching early so you’re not chasing wires after cabinetry arrives. To test clearances at about 80% of your drawing process, I like running a printable plan and quick render for sightlines using daylight and task-light mockups—it’s saved me from more than one poorly lit corner.

[Section: 实操步骤（面向初学者）]

Here’s my field-tested approach to how to draw a kitchen floor plan from zero:

1. Measure the shell twice: wall lengths, ceiling height, window and door locations, sill heights, and all utilities (water, gas, vents, electrical). Note structural columns and radiators. Photograph everything.
2. Sketch the room perimeter to scale (1:20 or 1:25 works well). Mark swing directions for doors/appliances; note minimum clearances for ovens and dishwashers.
3. Place the big three: fridge, sink, cooktop. Decide triangle or zone strategy based on lifestyle (solo cook vs. family). Keep at least 38–45 cm landing space on either side of the cooktop if possible (NKBA guideline).
4. Map counters and storage next. Aim for one uninterrupted prep run of 90–120 cm. If space is tight, consider a flip-up or pull-out counter extension near the sink.
5. Draw verticals: where do wall cabinets end? Use alignment rules—cap wall cabs 5–10 cm before window trim for breathing space.
6. Layer lighting and power: under-cabinet LEDs for task, pendants or track for ambient, and a small wall washer for texture. Pre-assign circuits on the plan.
7. Check circulation: single-cook aisles 104–122 cm; two-cook aisles 122–137 cm (NKBA). Ensure the fridge opens fully without blocking the main path.
8. Finalize finishes and edges: continuous backsplash lines, easy-clean corners, integrated handles where it helps, not everywhere.
9. Print to scale and run a “tray test”: place common items (baking sheet, cutting board) on the paper plan to visualize landings and prep flow. Adjust before you order.

[Section: 成本与时间预估]

Budget ballparks for a compact urban kitchen (prices vary by region):

1. Design and drawings: 5–10% of total budget. Worth it—precise plans reduce change orders.
2. Cabinetry: 35–45%. Save by standardizing widths and avoiding custom corners.
3. Appliances: 20–30%. Counter-depth units protect aisle space.
4. Electrical/lighting: 8–12%. Plan early to avoid drywall rework.
5. Backsplash and counters: 10–15%. Consider composite for durability and cost control.

[Section: 小空间实战经验]

In micro-kitchens, I treat every centimeter like oceanfront. Vertical dividers hold cutting boards near the sink; a 20 cm pull-out next to the range stores oils and spices; toe-kick drawers hide sheet pans. If your ceiling is high, stop tall cabinets 30 cm short and add a light ledge for visual lift—cleaning is easier too.

For ventilation, sketch duct runs early. Shorter, straighter paths improve performance and noise. If you can’t vent outside, choose a recirculating hood with a charcoal filter and plan yearly replacements.

[Section: 进阶技巧（避免坑）]

Three mistakes I see in DIY plans: pushing the fridge into a corner so doors won’t open fully; skipping a landing zone by the oven; and crowding the sink against a side wall. Fix them on paper first and you’ll save weeks onsite.

When you’re unsure between U, L, or galley, draft two scaled options. Compare counter length, corner complexity, and aisle width. Then choose the one that best supports your daily routine—not the one with the prettiest render.

[Section: 总结]

Small kitchens don’t limit you—they force smarter choices. If you’re wondering how to draw a kitchen floor plan that feels bigger and works better, start with workflow, honor clearances, and light the tasks. Industry references like NKBA guidelines are there for a reason, and they’ll keep your plan honest from day one. Which of these 5 inspirations are you most ready to try in your space?
