How to Draw a Kitchen Floor Plan (Step‑by‑Step Guide): A practical designer’s method for planning an efficient kitchen layout before renovation or remodeling.

Direct Answer

To draw a kitchen floor plan, start by measuring the room, mark fixed elements like windows and doors, place the sink, stove, and refrigerator according to the kitchen work triangle, and then add cabinets, counters, and walking space. A good kitchen floor plan balances workflow, storage, and traffic flow before any design details are added.

Professional designers usually begin with measurements and functional zones first, then refine circulation and storage placement to ensure the kitchen works efficiently in everyday use.

Quick Takeaways

1. Always measure the room and fixed structures before drawing the kitchen layout.
2. The sink, stove, and refrigerator should form a practical work triangle.
3. Leave at least 36–42 inches of walkway space for comfortable movement.
4. Plan storage zones early to avoid inefficient cabinet placement.
5. Test your kitchen floor plan with realistic cooking movement paths.

Introduction

After working on kitchen renovations for more than a decade, I can tell you one thing: the success of a kitchen rarely depends on the color of the cabinets or the countertop material. It almost always comes down to the kitchen floor plan.

Many homeowners start with inspiration photos, but professionals start with layout. A well‑drawn kitchen floor plan determines how you cook, move, store food, and interact with the space every day.

If you're planning a remodel or building a kitchen from scratch, learning how to draw a kitchen floor plan will save time, money, and a lot of frustration. I often recommend starting with a simple digital layout tool so you can experiment with kitchen layouts before committing to construction. Even rough drafts help reveal circulation problems early.

In this guide, I’ll walk you through the same practical process I use when planning residential kitchens for clients—from measuring the room to placing appliances and cabinets in a way that actually works.

save pin

Why Is a Kitchen Floor Plan So Important?

Key Insight: A kitchen floor plan determines efficiency, safety, and storage long before design finishes are chosen.

One of the biggest mistakes I see homeowners make is focusing on aesthetics before layout. Cabinets and countertops can change later; a bad layout is expensive to fix.

In real projects, layout issues often lead to problems such as:

1. Appliances blocking walking paths
2. Insufficient prep space near the stove
3. Refrigerators placed too far from cooking areas
4. Islands that make the kitchen feel cramped

According to guidelines from the National Kitchen & Bath Association (NKBA), an efficient kitchen layout must balance work zones, circulation, and safety spacing. This is why designers always start with a floor plan before selecting materials or decor.

How Do You Measure a Kitchen Before Drawing the Plan?

Key Insight: Accurate measurements are the foundation of any usable kitchen floor plan.

Before drawing anything, document every physical constraint in the room. In real projects, this step prevents major installation problems later.

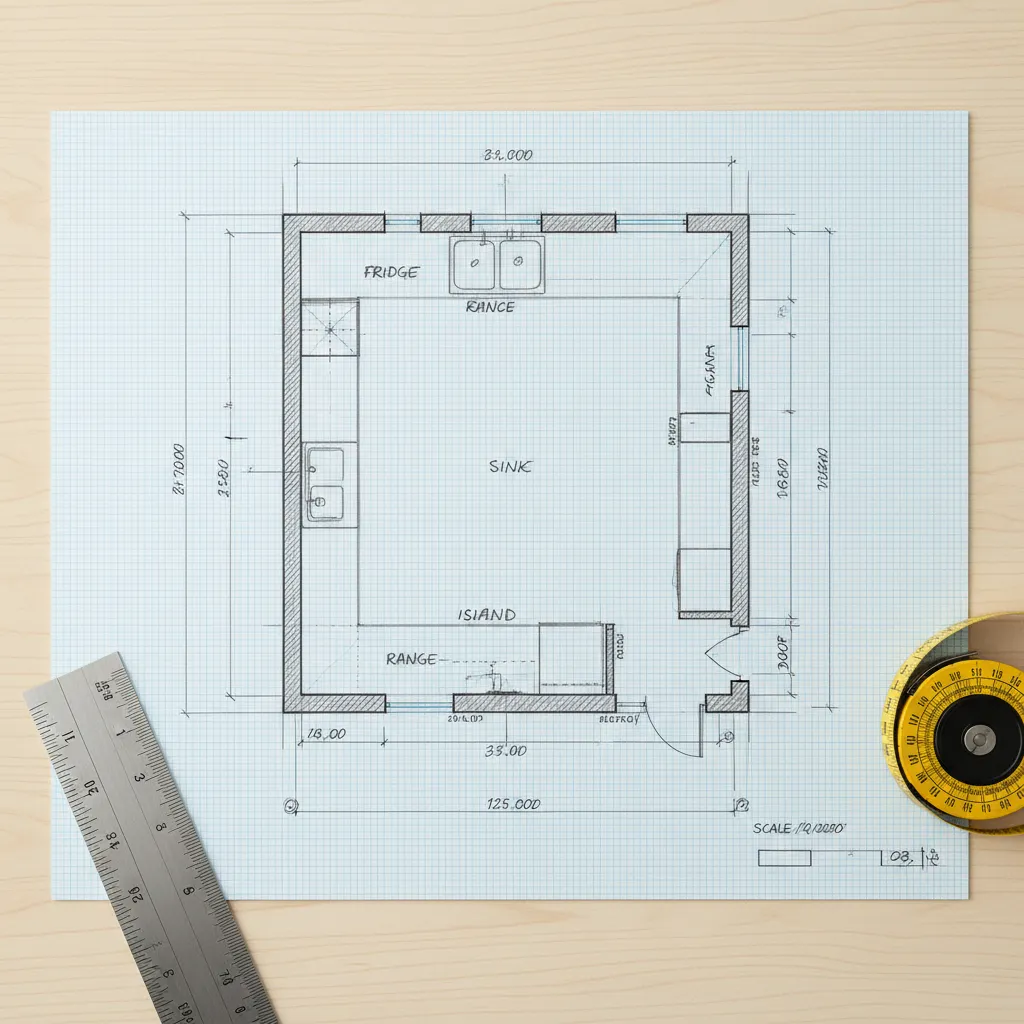

Step‑by‑step measuring checklist:

1. Measure wall lengths from corner to corner
2. Record ceiling height
3. Mark door and window locations
4. Measure window sill heights
5. Note plumbing and electrical outlets
6. Identify structural columns or bulkheads

Designers usually sketch a rough rectangle of the room and label all dimensions before moving into digital planning. This simple step eliminates most layout mistakes early in the process.

save pin

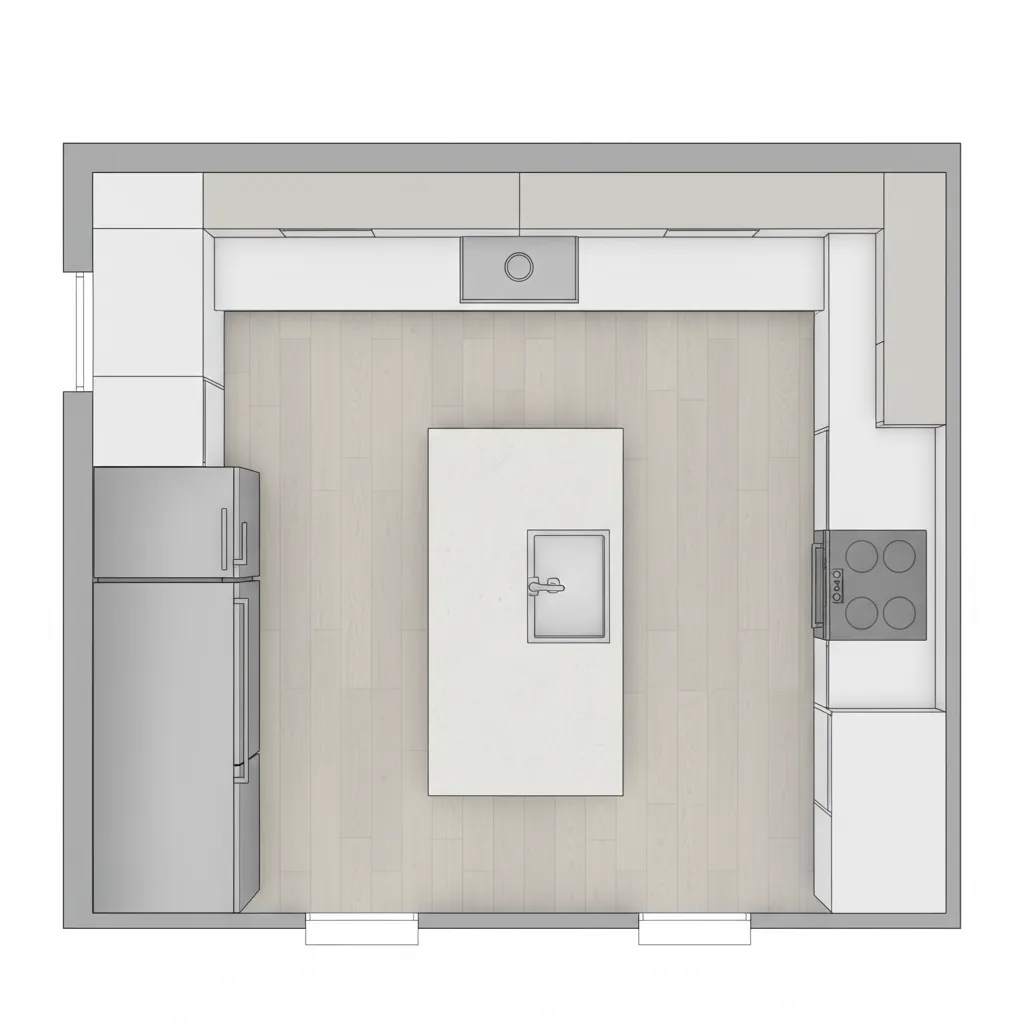

What Is the Kitchen Work Triangle and Why Does It Matter?

Key Insight: The sink, refrigerator, and stove should form a triangular workflow to minimize unnecessary movement.

The "kitchen work triangle" is one of the oldest planning principles in residential design, and despite new trends, it still works remarkably well.

The triangle connects three main work points:

1. Sink – cleaning and prep
2. Stove – cooking
3. Refrigerator – food storage

Design guidelines typically recommend:

1. Triangle sides between 4 and 9 feet
2. Total triangle distance between 13 and 26 feet
3. No major obstacles cutting through the triangle

In modern kitchens with islands, the triangle may stretch into zones rather than strict points, but the principle—minimizing walking distance while cooking—still applies.

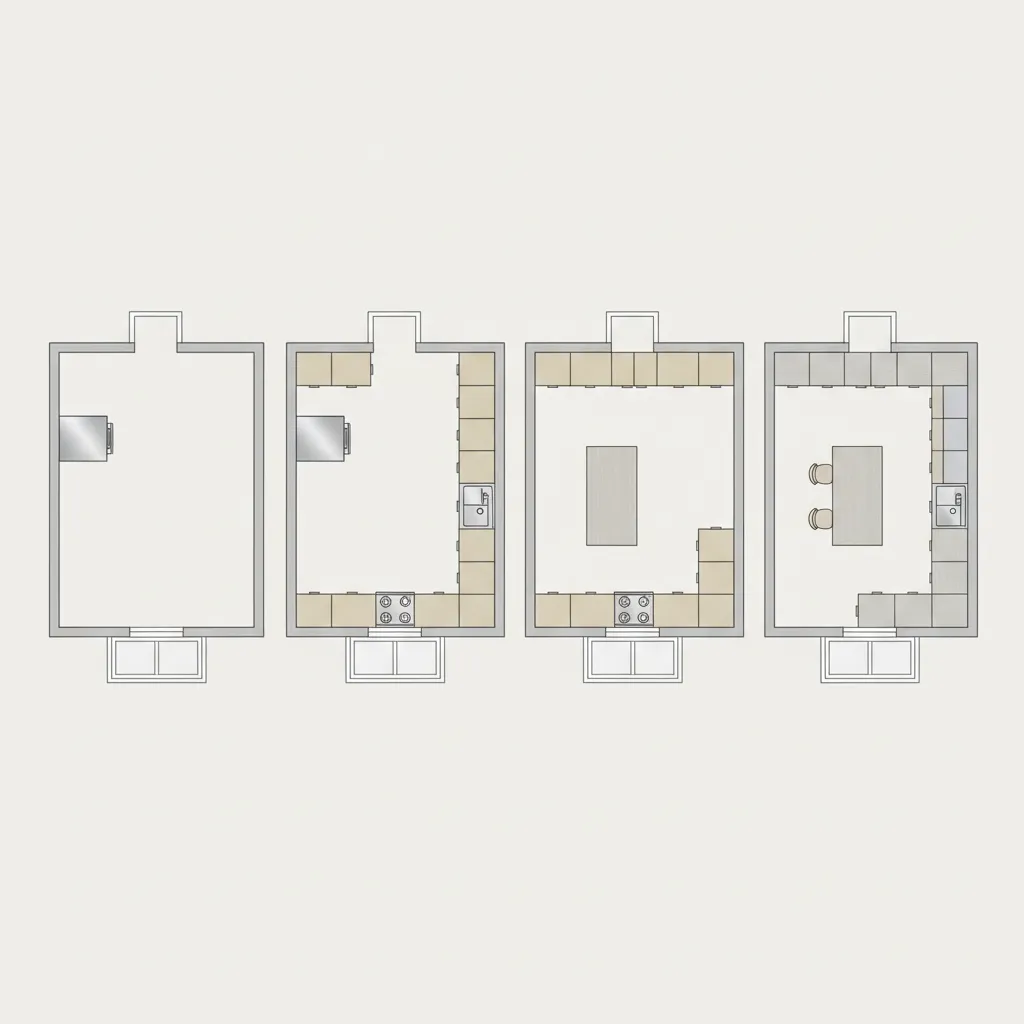

How to Draw a Kitchen Floor Plan Step by Step

Key Insight: Professional kitchen layouts are built in layers: room structure first, then appliances, then storage.

Here’s the practical sequence I use when sketching kitchen layouts for clients.

1. Draw the room outline
2. Start with the exact wall dimensions and ceiling height.
3. Add doors and windows
4. Include swing direction and clearance areas.
5. Place major appliances
6. Position sink, refrigerator, and stove according to the work triangle.
7. Plan counter space
8. Ensure prep areas exist beside the stove and sink.
9. Add cabinets and storage
10. Base cabinets, wall cabinets, and pantry units.
11. Define walking space
12. Maintain at least 36–42 inches of clearance.

For homeowners who want to visualize the layout more clearly, I often suggest trying a visual kitchen layout planner to test appliance placement and cabinet spacing. Being able to see the room in 3D usually reveals problems that a flat sketch hides.

save pin

What Are the Most Common Kitchen Layout Types?

Key Insight: Most kitchens follow one of five fundamental layouts, each suited to different room sizes.

Understanding these patterns helps you choose a structure before drawing details.

1. L‑Shaped Kitchen – ideal for open spaces and small homes
2. U‑Shaped Kitchen – maximizes counter and storage space
3. Galley Kitchen – highly efficient for narrow rooms
4. Island Kitchen – popular in modern open‑plan homes
5. Peninsula Kitchen – island alternative for smaller spaces

In recent residential projects, the L‑shape with an island has become the most requested configuration because it balances openness with storage capacity.

Hidden Layout Mistakes Most People Make

Key Insight: The biggest kitchen design failures are usually circulation problems, not style mistakes.

After reviewing hundreds of kitchen plans, these issues appear again and again:

1. Oversized islands that block movement
2. Refrigerators placed in corners that restrict door swing
3. No landing space beside appliances
4. Walkways under 36 inches
5. Poor lighting zones around prep areas

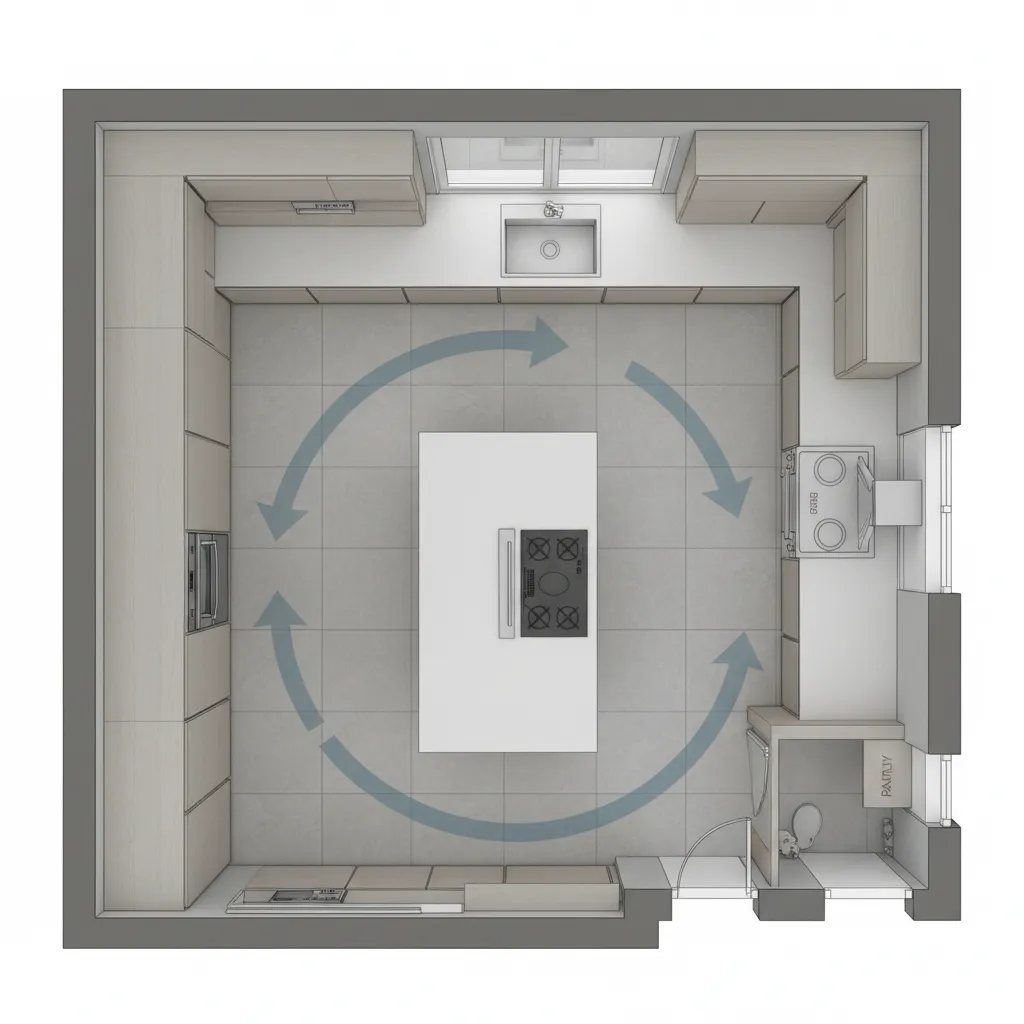

One practical solution is testing your design with a simple spatial visualization. Many homeowners use tools that allow them to visualize kitchen circulation and furniture spacing in a 3D floor planbefore construction begins.

save pin

Answer Box

The most effective way to draw a kitchen floor plan is to measure the room accurately, place the sink, stove, and refrigerator according to the work triangle, and then design storage and walking space around them. Functional movement should guide the layout before aesthetic decisions.

Final Summary

1. A kitchen floor plan always starts with accurate measurements.
2. The work triangle improves cooking efficiency.
3. Most kitchens follow L‑shape, U‑shape, galley, or island layouts.
4. Maintain 36–42 inches of walking space for comfort.
5. Testing layouts digitally prevents costly remodeling mistakes.

FAQ

1. What is the easiest way to draw a kitchen floor plan?

The easiest method is measuring the room and using graph paper or a digital planner to place appliances and cabinets to scale.

2. How detailed should a kitchen floor plan be?

A kitchen floor plan should include walls, doors, windows, appliances, cabinets, and clear walking spaces.

3. Can I draw a kitchen floor plan myself?

Yes. Many homeowners successfully draw a kitchen floor plan using simple layout tools before consulting contractors.

4. What size walkway is recommended in kitchens?

Most design guidelines recommend 36–42 inches for comfortable kitchen circulation.

5. What is the kitchen work triangle rule?

The rule positions the sink, refrigerator, and stove in a triangle to minimize movement while cooking.

6. Do modern kitchens still use the work triangle?

Yes, although modern kitchens sometimes expand it into work zones, the core concept still guides kitchen floor plan efficiency.

7. How big should a kitchen island be?

Most islands are 4–7 feet long and require at least 36 inches of clearance around them.

8. Should appliances be included when drawing a kitchen floor plan?

Yes. Appliance placement is critical because it defines workflow and cabinet spacing.
