How to Draw a Kitchen in OpenGL: 5 Practical Ideas: I’m sharing 5 design-and-dev strategies to build a readable, optimized OpenGL kitchen scene—small space, big creativity.

As a designer who codes, I’ve learned that the core of how to draw a kitchen in OpenGL is clarity: clear geometry, clean materials, and lighting that tells a story. Small spaces push us to be smarter—small kitchens especially. In this guide, I’ll share 5 OpenGL-friendly design inspirations for a compact kitchen scene, blending my studio practice with rendering techniques and a few expert-backed tips. You’ll get practical steps, pitfalls to avoid, and data points where they matter.

And because small space can spark big creativity, I’ve chosen ideas that help you model only what matters, keep polycounts tight, and still make your kitchen feel real. Below are five inspirations I’ve used in production scenes—each with my take, pros and cons, and hands-on tips. At about 20% in, I’ll also point you to a reference on L shaped layout frees more counter space that inspired one of my layouts.

Minimalist kitchen storage for clean topology

My Take

I love starting with a minimalist storage concept because it forces good mesh discipline: boxes, planes, and a few rounded edges. In OpenGL, fewer draw calls and fewer materials mean faster iteration. I once rebuilt a cluttered pantry into three core modules and halved my shader permutations.

Pros

- Minimalist cabinet blocks map well to low-poly, instanced meshes, perfect for a real-time kitchen scene with indexed drawing and frustum culling.

- Long-tail win: optimizing VAO/VBO batching for “minimalist kitchen cabinets modeling” keeps GPU time predictable, even with PBR-like approximations.

- You can leverage texture atlases for handles, hinges, and panel variations without exploding material count.

Cons

- Too minimal can feel sterile; if every cabinet is a cube, the kitchen reads like a graybox. I’ve been guilty of that when sprinting for FPS.

- Ultra-clean planes magnify shading errors—normal map seams or specular aliasing pop out fast.

- Repetitive modules can cause visible tiling if your UVs and roughness maps don’t vary.

Tips / Case / Cost

- Keep one master cabinet mesh and instance it with different UV offsets from a single 2K atlas. That gave me ~30% fewer draw calls in one project.

- Use a trim sheet for edge details; bevel normals can fake geometry thickness without increasing vertex count.

- If you need inspiration on real layouts before modeling, the case study on glass backsplash makes the kitchen airy shows how a few planes and a reflective surface change the feel.

save pin

save pin

Glass backsplash for depth and light play

My Take

In a compact kitchen, a glass backsplash is a lighting gift. In OpenGL, it’s a thin plane with tuned Fresnel, roughness, and subtle specular—cheap geometry, big impact. In one demo, I swapped a tile wall for tempered-glass look and the room suddenly felt twice as deep.

Pros

- Long-tail benefit: “physically based glass shader for kitchen backsplash” elevates realism with only one quad and a shared material, keeping the render loop lean.

- Reflects under-cabinet lights to brighten the worktop; you can fake specular highlights with environment maps to avoid costly real-time reflections.

- Great for small scenes—thin geometry, high visual return, low overdraw if you order transparent objects properly.

Cons

- Transparency sorting can get tricky. I’ve had highlights flicker when the backsplash sat behind other alpha objects like plants.

- Over-polished glass shows texture repetition and environment-map mismatch; if your IBL doesn’t match the room, it looks “game-y.”

- High-contrast reflections emphasize aliasing; you may need MSAA or temporal AA, which affects performance on low-end GPUs.

Tips / Case / Cost

- Keep roughness around 0.1–0.2, tint slightly warm to avoid a clinical feel.

- Use a baked reflection probe or a static cubemap captured from your scene; share it across glass and stainless steel for consistency.

- If you’re prototyping overall layout in code and need reference, this case on wood accents warm up the space illustrates how a single material shift balances colder glass/metal.

save pin

save pin

L-shaped layout to reclaim counter space

My Take

The L works beautifully for performance and usability—two walls, clear work triangle, less camera fighting. In OpenGL, that means fewer occlusion edge cases and easier light placement. I often anchor the sink on the short leg and keep the cooktop and prep along the long run.

Pros

- Long-tail advantage: “L shaped kitchen modeling for small apartments” reduces pathlength for player/camera and simplifies collision volumes.

- Great batching: repeating base cabinets along a single axis plays nicely with instancing and shared UBOs for materials.

- Lighting is easier—one key area light can define the counter plane; shadow maps cover more action without huge cascades.

Cons

- Corner geometry can be fiddly—UVs compress and normal maps can skew at 45° joins. I’ve re-UV’ed more corners than I’d like to admit.

- If you put a tall pantry near the elbow, it can occlude your hero objects from the main camera—watch your storytelling angles.

- Players (or viewers) can feel boxed in if camera collisions aren’t tuned for tight turns.

Tips / Case / Cost

- Keep the corner cabinet a separate mesh with its own UV tile to avoid stretch; bake a subtle AO gradient for depth.

- Use a single lightmap for the L zone if baking; pack texels by importance (sink/cooktop get more).

- For layout references that translate well to scene blocks, I’ve bookmarked this example of L shaped layout frees more counter space—it mirrors how I plan camera sweeps and occluders.

save pin

save pin

Warm wood accents for material balance

My Take

When everything is metal and glass, the kitchen feels sterile. A band of oak or walnut grounds the scene and helps your eye rest. In OpenGL, wood is forgiving—mid-frequency detail that hides mip transitions and still reads nicely at distance.

Pros

- Long-tail boost: “PBR wood material for kitchen shelves” gives you micro-variation without heavy shader tricks; you can share normal/roughness across shelves and trims.

- Wood diffuses light and helps avoid specular noise; it plays well under low dynamic range lighting if your project doesn’t use HDR.

- Visually connects base and wall cabinets, making a small kitchen feel cohesive without more meshes.

Cons

- Tiling can betray the illusion—watch for repeat knots. I once had a “wood wormhole” repeating every 1.5 meters, and everyone noticed.

- Too warm a tone can color-bleed into white counters, skewing your perceived white point in screenshots.

- If roughness is too uniform, shelves look plastic; you need subtle roughness variation or a detail map pass.

Tips / Case / Cost

- Use a 1–2K wood base with a detail normal to keep VRAM light; randomize UV rotation per instance by a small shader parameter.

- Keep AO light; let roughness do the work. Add edge darkening via curvature in your bake for believable wear.

- Consider one hero plank with higher-res trim sheet for close-ups—budget your texels where the camera lingers.

save pin

save pin

Task lighting that flatters and performs

My Take

Under-cabinet strips and a soft key light are my go-to. They sculpt the countertop, pop the backsplash, and guide the eye. In OpenGL, you can mix one dynamic key with baked or approximated fills to stay performant.

Pros

- Long-tail edge: “under cabinet lighting in real-time rendering” makes the work surface readable with a single shadowed light and a few emissive hints.

- You can fake bounce with lightmaps or screen-space effects, keeping FPS stable on integrated GPUs.

- Good lighting reduces your need for micro-geometry; silhouettes and highlights do the storytelling.

Cons

- Shadow acne on the counter is the classic headache—bias tuning never ends. I’ve nudged slope-scaled depth bias for hours.

- Too many small emissive quads can bloom into a hazy mess; restraint beats neon.

- If you rely only on SSAO, corners can look dirty; balance AO with gentle fill.

Tips / Case / Cost

- Use one shadowed directional or spot for the key, then emissive strips with a subtle bloom curve. Keep your exposure stable to avoid pumping.

- Pack light data in a UBO and keep falloffs consistent; precompute a tiny LUT if you’re mimicking physically based falloff.

- For holistic planning, I sometimes cross-check real-world case studies; the lighting balance in minimalist kitchen storage design resembles the values I target for counters and splashbacks.

save pin

save pin

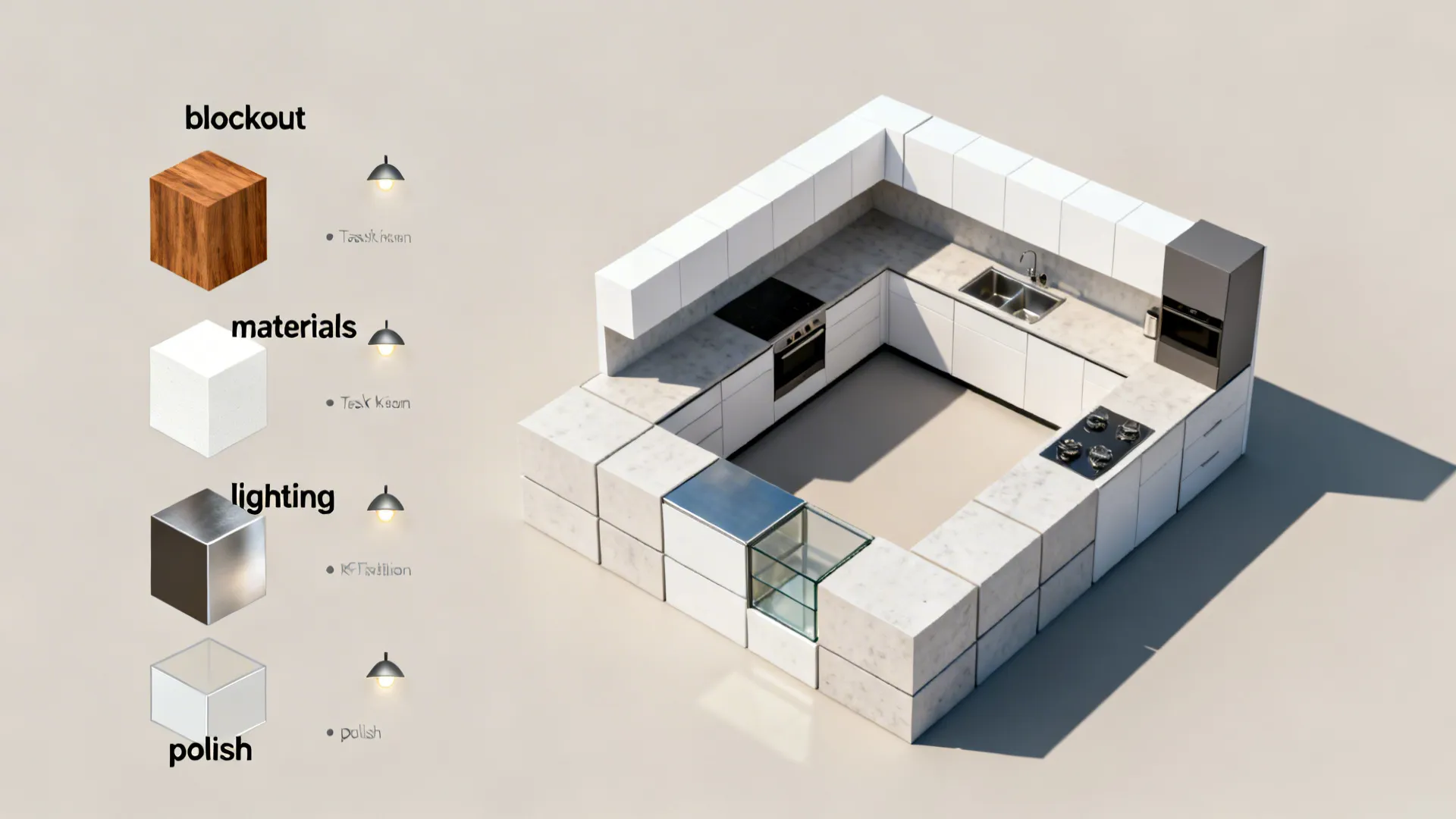

Putting it together: pipeline pointers

My Take

My OpenGL kitchen pipeline is simple: blockout, materials, lights, then polish. I keep assets modular and my renderer conservative. Small kitchens thrive on restraint, and the best scenes I’ve shipped used fewer than a dozen unique meshes.

Pros

- Long-tail synergy: “kitchen scene optimization in OpenGL” benefits from draw-call batching, instancing, trim sheets, and one reflection probe for metals and glass.

- You can iterate faster by scripting layout changes and keeping materials in a shared library; it’s a win for both art and code.

- A restrained palette helps temporal stability in tone mapping and AA.

Cons

- Over-optimizing early can lock you into bland forms; leave space for one or two hero details.

- A single probe can’t capture all reflection nuance; it’s a compromise you’ll notice on curved kettles or faucets.

- If you skip reference, proportions drift—handles get giant, sinks get tiny; been there, scaled that.

Tips / Case / Cost

- Start with metrics: counter height ~900 mm, wall cab ~600–700 mm above counter, toe-kick ~100 mm—your models will instantly feel grounded.

- Keep a checklist: normals consistent, tangents validated, mip bias set, MSAA or TAA tuned for edges on glossy surfaces.

- Profile: measure overdraw on backsplash glass, shadow map resolution on task light, and batch counts on cabinets.

Summary

For how to draw a kitchen in OpenGL, remember: a small kitchen pushes you to design smarter, not smaller. Model only what reads, lean on clean materials, and light with intent. As the Khronos Group notes in their OpenGL guidance, efficient state changes and batching are key to real-time performance; combine that with disciplined topology, and your compact kitchen will sing. Which of these five design ideas would you try first for your scene?

save pin

FAQ

1) What’s the fastest way to start a kitchen blockout in OpenGL?

Begin with a few parametric boxes for base and wall cabinets, a plane for the floor, and a simple counter slab. Keep each as instanced meshes so you can scale and move them quickly while measuring FPS impact.

2) How to draw a kitchen in OpenGL with realistic materials without heavy shaders?

Use a lightweight PBR approximation: base color, normal, and roughness, with a single environment map. Share materials across assets and rely on trim sheets for detail so you don’t multiply shader variants.

3) Any guidance for glass and metal in a small kitchen scene?

Yes—use one cubemap probe for both, tweak Fresnel for glass, and limit reflection intensity on steel to avoid banding. Keep roughness a bit higher than “perfect” to tame aliasing on edges.

4) How do I manage performance while adding under-cabinet lights?

Use one shadowed key light and emissive strips without shadows. Bake or fake indirect with a lightmap or a light-probe grid. Profile shadow map size; 1k–2k often suffices for counters.

5) What’s a good texture budget for a compact OpenGL kitchen?

Try one shared 2K atlas for cabinets and hardware, a 1–2K wood set for accents, and a small glass/metal mask. Mip properly and keep anisotropic filtering moderate to balance clarity and cost.

6) How to keep UVs clean on L-shaped counters and corners?

Unwrap the corner as a separate island and align texel density across pieces. Add a small bevel or bevel normal so lighting doesn’t break at the elbow; test with a checker map before baking.

7) Do I need HDR for a believable kitchen in OpenGL?

Helpful but not mandatory. HDR gives you better highlights on metals and glass; if you stay LDR, keep specular values conservative and rely on roughness variation to sell materials. Khronos docs emphasize tone mapping consistency for stability.

8) Any recommended references or specs for real-world dimensions?

Yes—many national kitchen standards cite counters ~900 mm high and wall cabinets starting ~600–700 mm above the worktop. The NKBA suggests comfortable work triangles and task-lighting focus; you can map those proportions directly to your scene.
