How to Draw a Kitchen Plan: 5 Ideas That Actually Work: A senior interior designer’s step-by-step ideas for small kitchens—with real pros, cons, and practical budgets

[Section: Meta 信息]

Core Keyword: how to draw a kitchen plan

[Section: 引言]

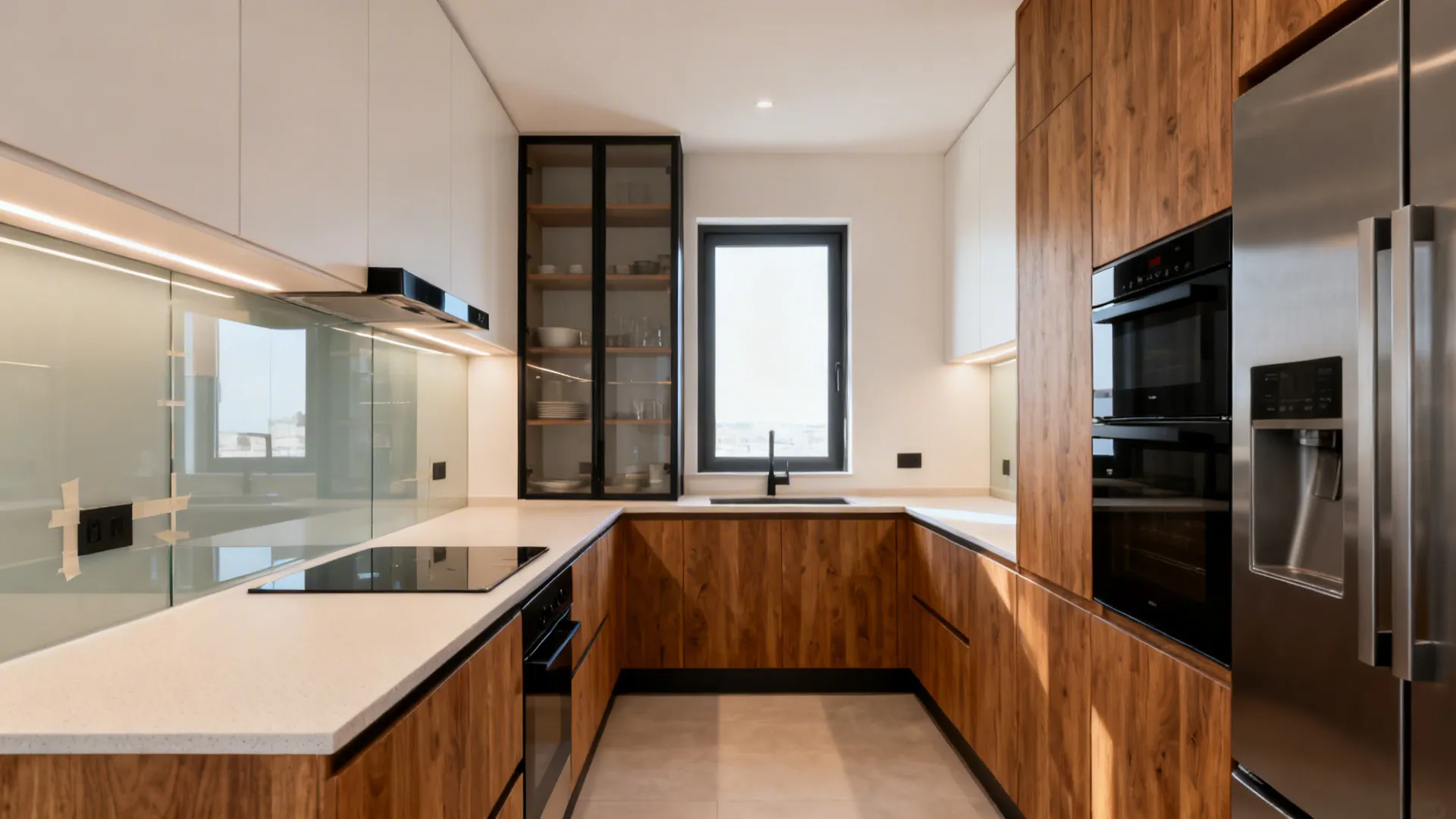

I’ve spent over a decade redesigning compact apartments where every inch matters, and the current trend is clear: smart, flexible layouts beat flashy finishes. Small spaces spark big creativity—especially in the kitchen. If you’re asking how to draw a kitchen plan, this guide shares 5 design inspirations I use in real projects, blending my field notes with expert data so you can map a kitchen that cooks.

In the first step, I always capture the room’s true size, doors, windows, and utilities—then I layer storage, zones, and circulation. To kick-start your planning mindset, here are five practical directions you can adapt to your space. And yes, I’ll call out honest pros and cons so you avoid the mistakes I made early in my career. For a visual case study of L-shaped layout releasing more counter space, you can peek at this example as you read.

[Section: 灵感列表]

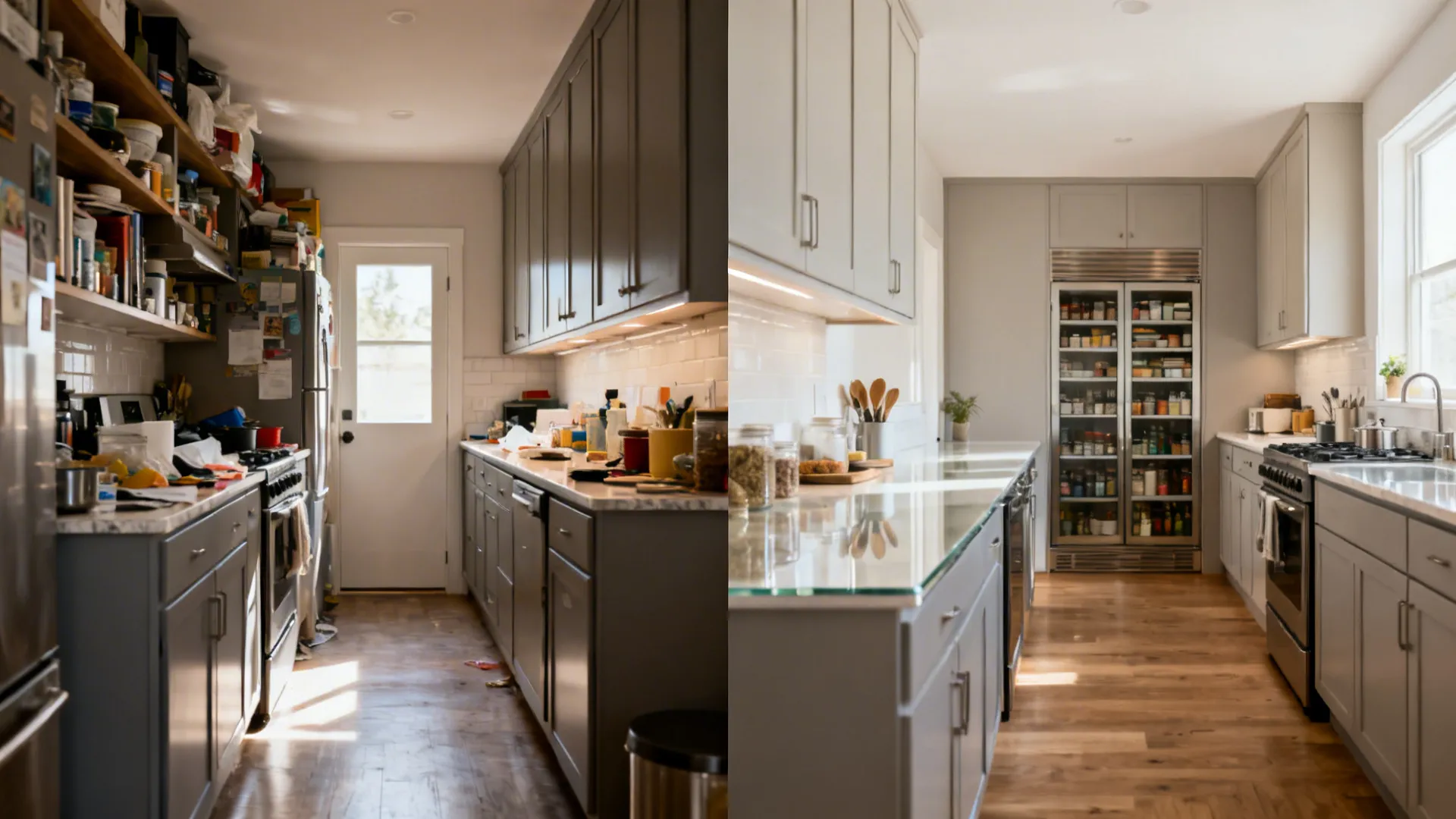

Minimalist Storage That Resets the Plan

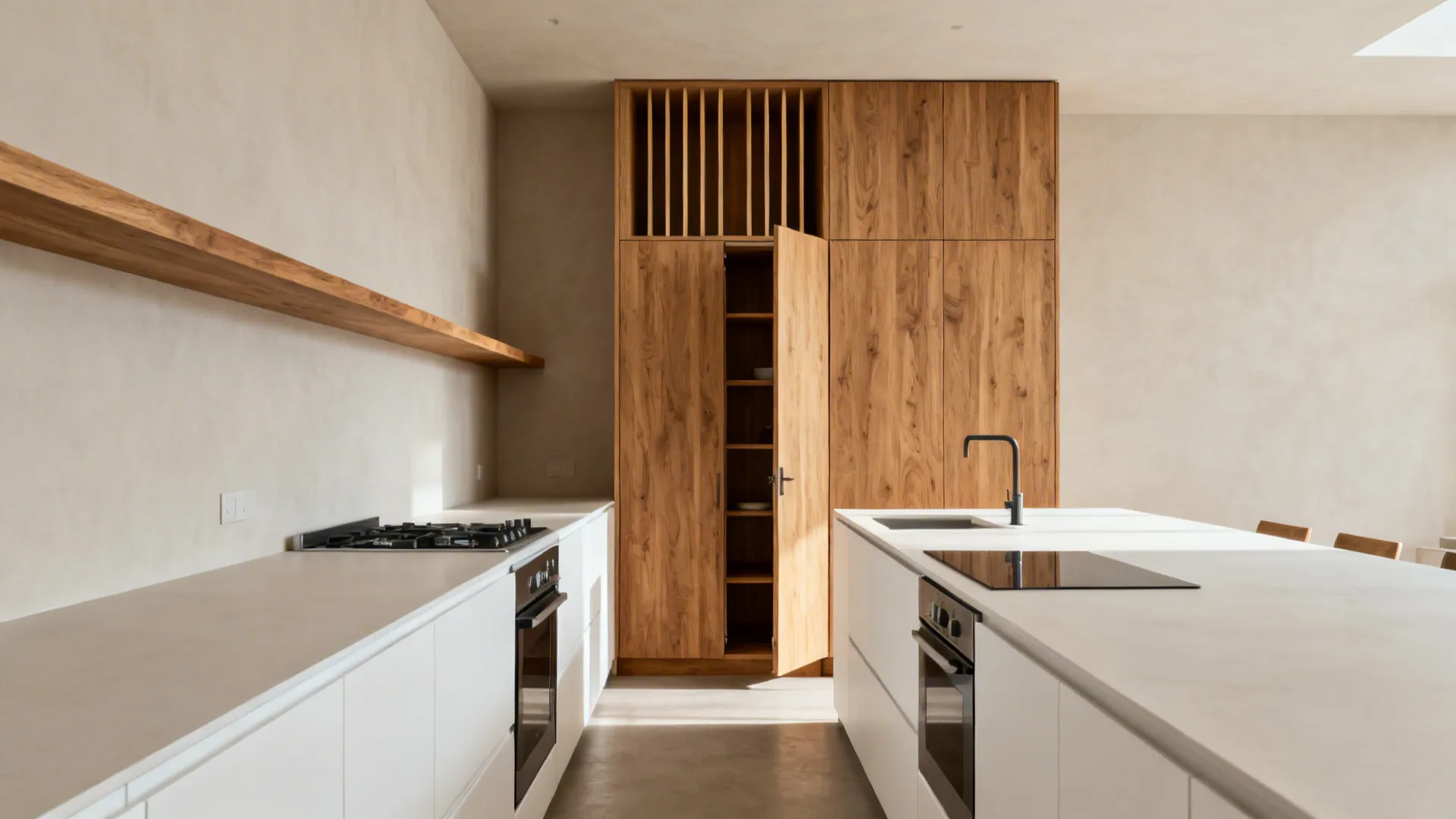

My Take: Years ago, a 7.5 m² galley felt hopeless—until I stripped upper cabinets on one wall and added full-height storage at the end. The drawing clicked: clean lines, clear zones, and a counter that finally breathed. When I draft, I now start with storage as the backbone instead of an afterthought.

Pros: Minimalist, full-height storage creates a clear circulation path and boosts usable counter length—two essentials when you learn how to draw a kitchen plan for small spaces. Tall pantry modules also simplify appliance placement and improve workflow by clustering utilities. According to the NKBA Planning Guidelines, maintaining at least 40–48 inches (about 102–122 cm) of aisle width improves safety and reach in compact kitchens.

Cons: Removing uppers can cut immediate grab-and-go storage; I’ve had clients panic when they lose a mug wall. Tall units also demand precise wall plumb and can reveal crooked floors—your drawing may be straight, but your walls might not be.

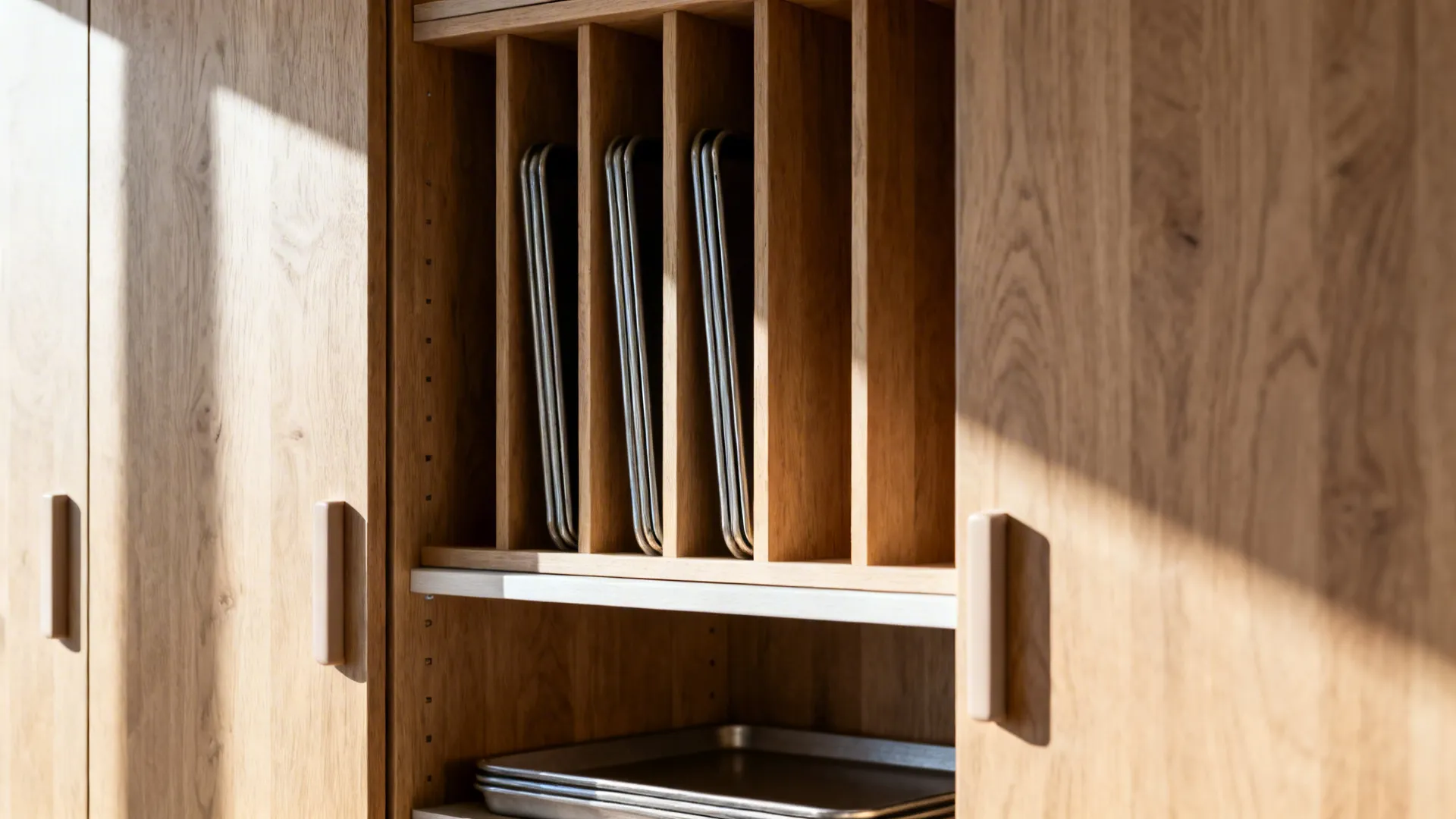

Tip: If you pull back on upper cabinets, add one open shelf run for daily items and draw vertical dividers inside the tall pantry for trays and baking sheets. Use a simple legend in your plan to mark “daily use” vs. “bulk storage”—it keeps the build-out aligned with your drawing.

save pin

save pin

save pin

Glass Backsplash for Light and Sightlines

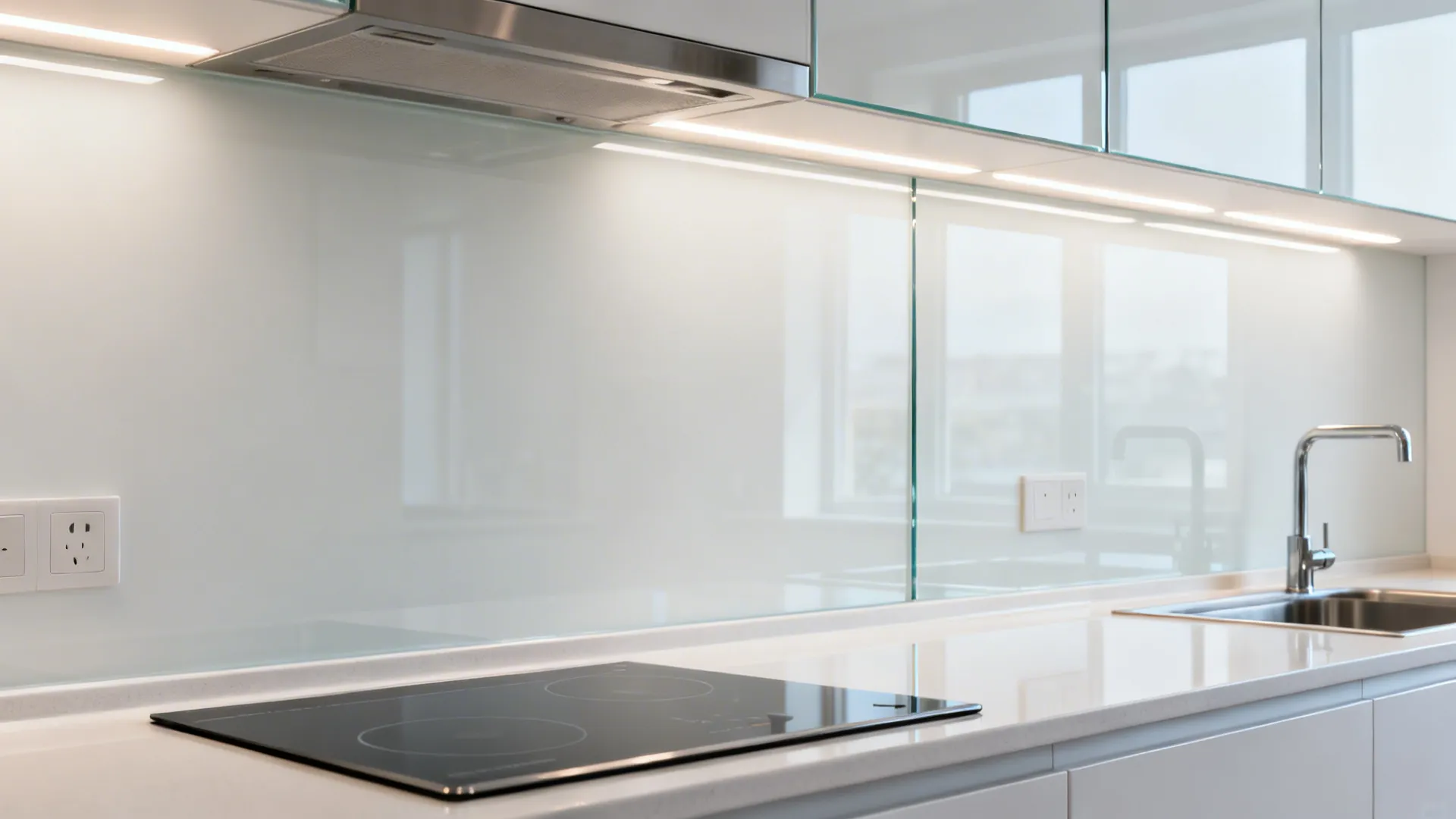

My Take: In a windowless kitchen I revamped, a tempered glass backsplash over a soft-white wall bounced light into the room and made the cooktop zone feel deeper. On paper, it looked like a small move—on site, it lifted the entire mood.

Pros: A glass backsplash expands perceived depth and distributes task lighting, a big win when you draft small kitchen plans with limited natural light. It’s easy to wipe clean, which supports hygienic zones around sinks and hobs. Per the Illuminating Engineering Society (IES), layered task lighting at counters reduces eye strain and improves prep accuracy.

Cons: Fingerprints love glass, and polished finishes can show grease splatter fast. If you’re noise-sensitive, tapping utensils against glass can be a tiny symphony you didn’t ask for.

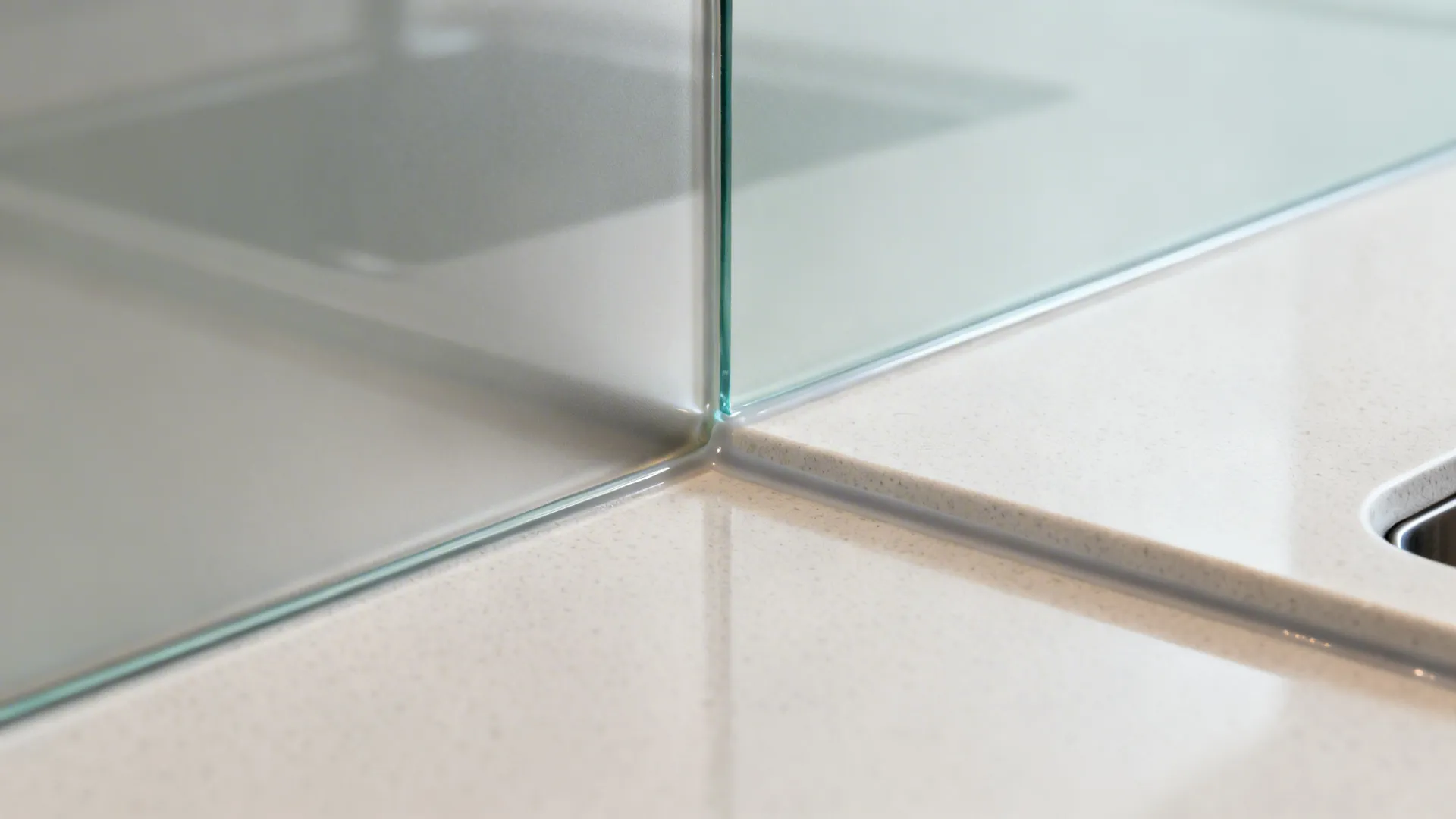

Tip: When drawing elevations, specify low-iron tempered glass for truer color and add a matte or satin finish if reflections bother you. Plan a 2 cm reveal behind sockets in your drawing so installers can clean edges without messy silicone lines.

save pin

save pin

save pin

L-Shaped Layout That Frees Counter Space

My Take: I once transformed a clumsy one-wall kitchen by wrapping the counter around a corner. The L instantly created a prep zone between sink and hob—and on the drawing, that triangle felt natural rather than forced.

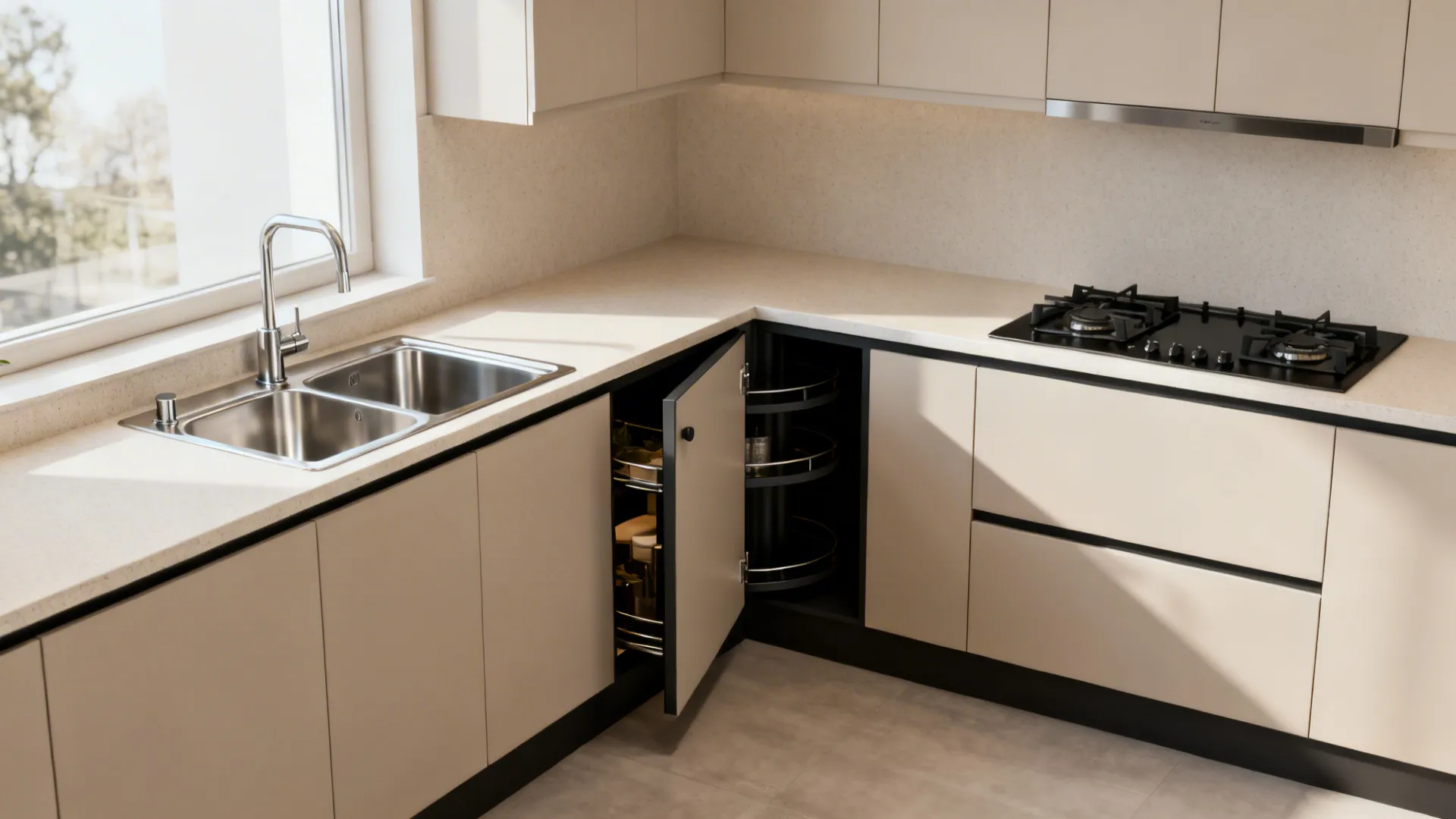

Pros: L-shaped layouts concentrate the work triangle and open up a clear landing area for hot pans—an ideal outcome when exploring how to draw a kitchen plan for efficiency. Corner base storage with carousels or diagonal doors maximizes volume otherwise wasted. The NKBA suggests placing 24 inches (61 cm) of landing space beside the sink and cooktop, which an L layout often achieves.

Cons: Corner units can bust your budget fast; good hardware isn’t cheap. Also, if the room is too narrow, the L can cramp one leg and break the flow—you may end up dancing around the dishwasher.

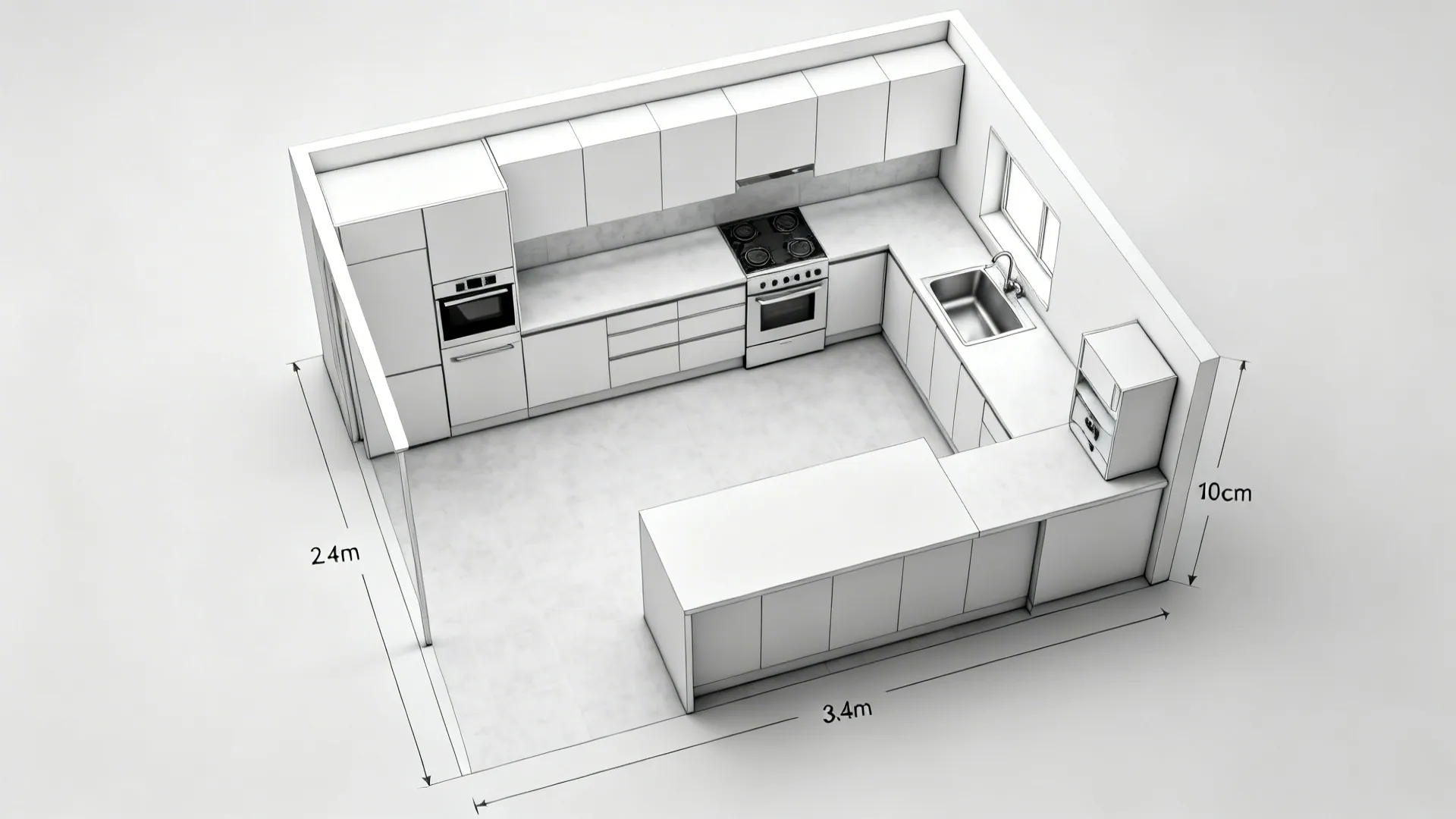

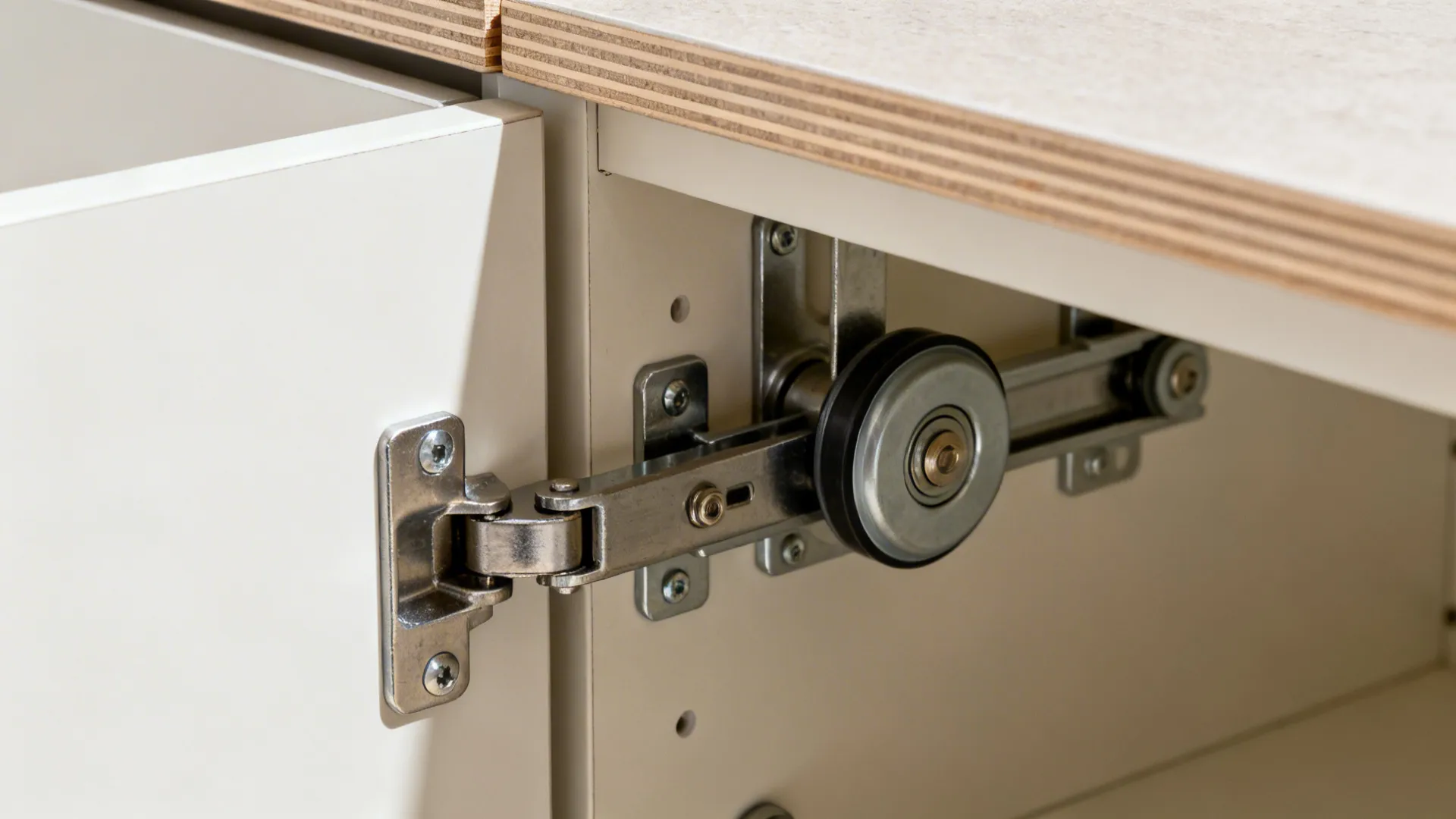

Case & Budget: For a 2.4 m × 3 m room, budget $350–$600 for a quality corner mechanism and $150–$300 for reinforced corner worktop brackets. If you want to study an example with diagrams, look at L-shaped layout releasing more counter space for inspiration you can translate into your own sketch.

save pin

save pin

save pin

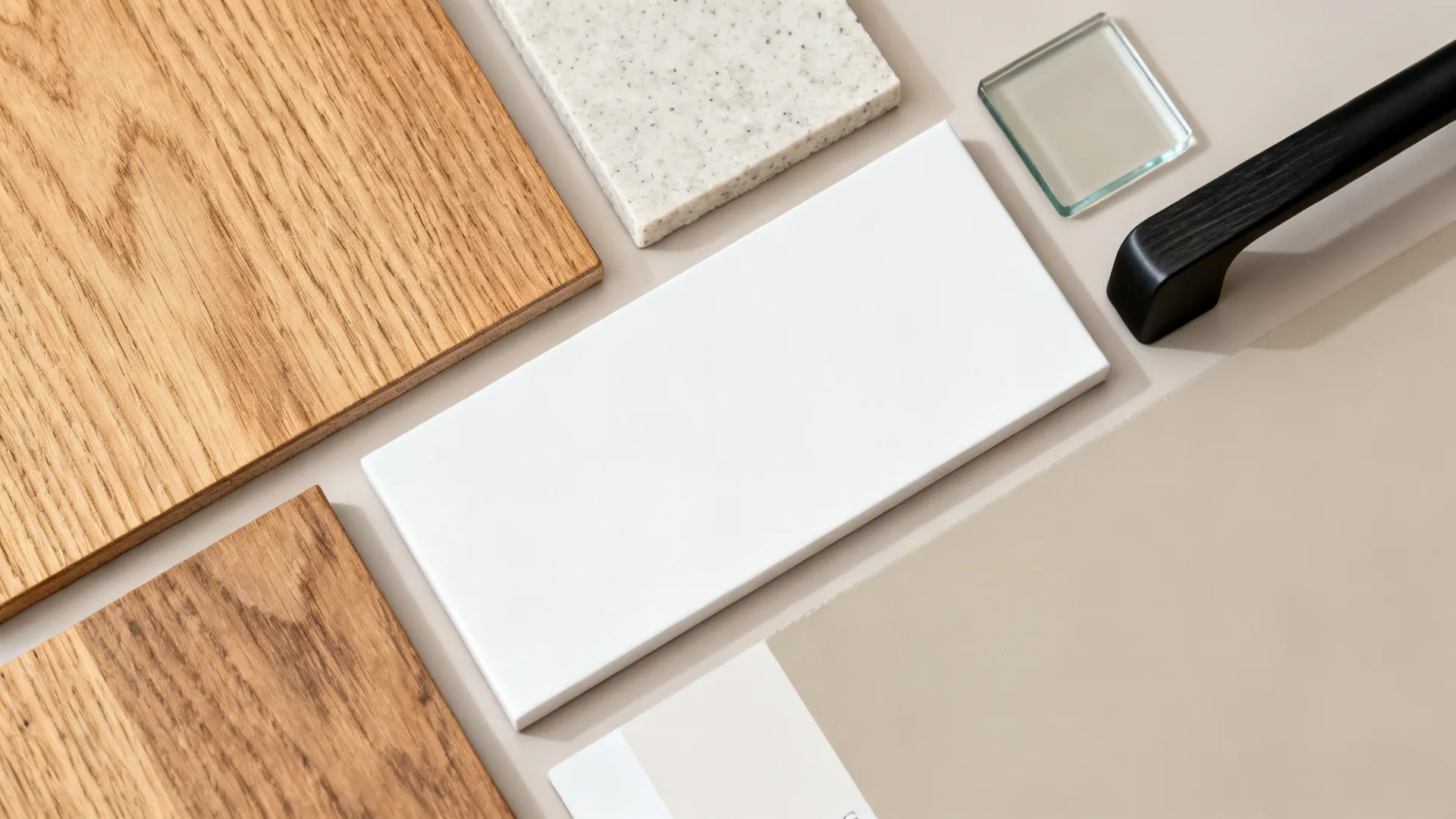

Warmth Through Wood, Balanced by Durable Surfaces

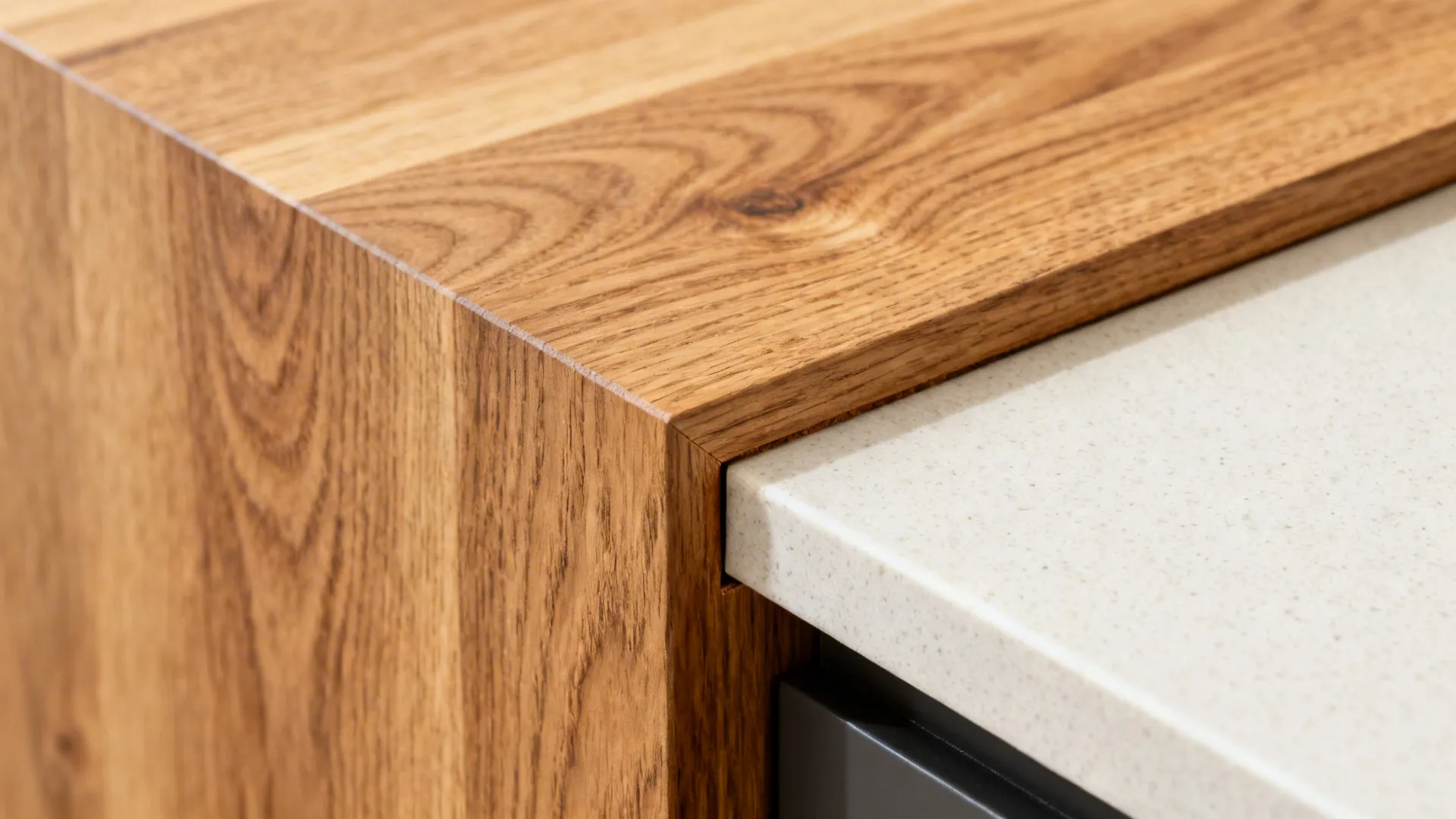

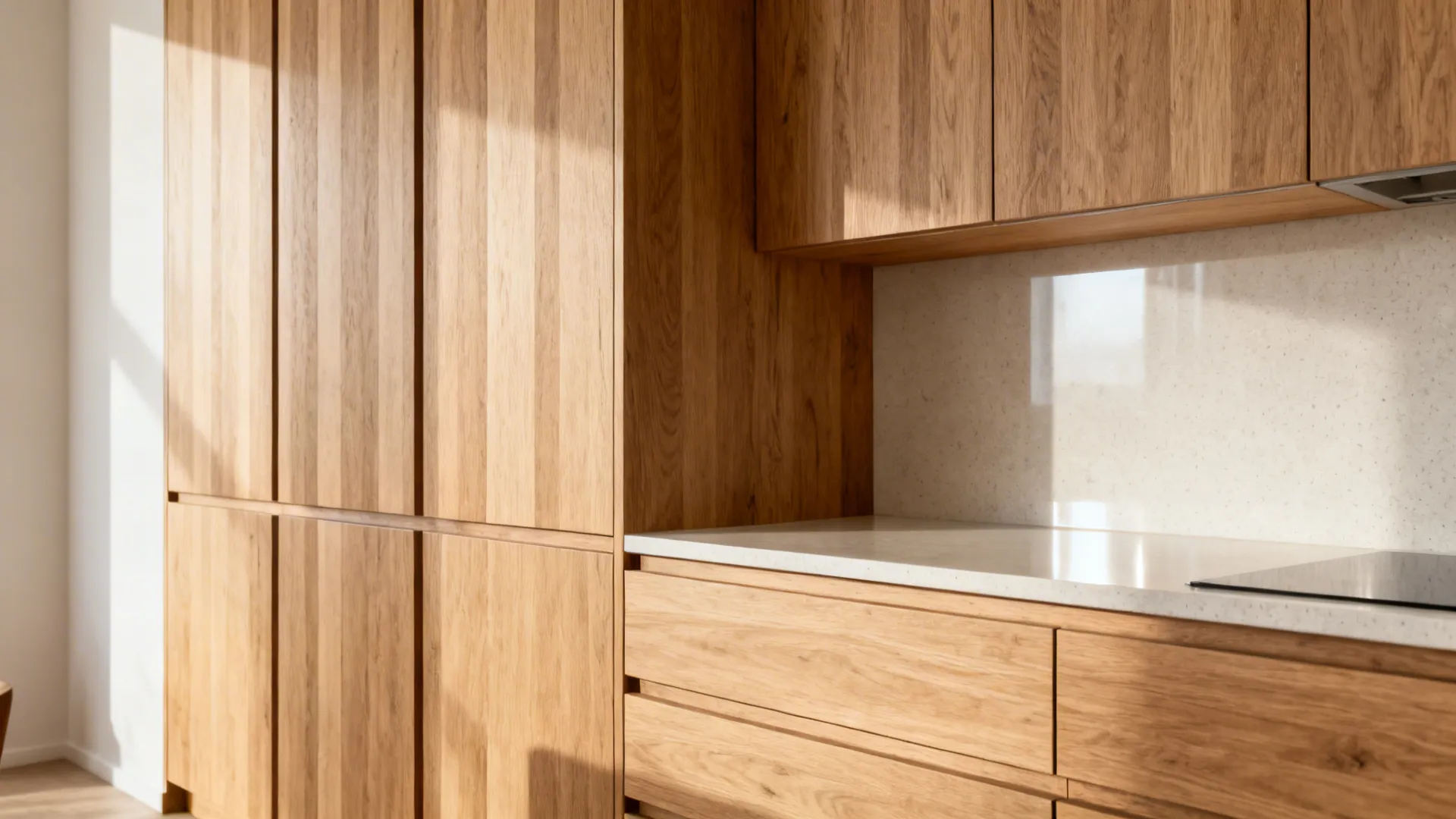

My Take: A client of mine obsessed over café vibes, so we used rift-cut oak fronts with a durable composite countertop. On the plan, I zoned wood vertically to keep it away from the splash zone—design is in the details you draft before you buy.

Pros: Wood introduces visual warmth and texture, which softens compact kitchens and creates a welcoming focal line in elevation drawings. Using wood as vertical rhythm (panels, trims) while keeping counters stone or composite balances maintenance and style. Responsible forestry certifications (e.g., FSC) help ensure sourcing aligns with healthy-home goals.

Cons: Real wood moves with humidity; if your plan skimps on expansion gaps, doors may bind and paint may crack. In very tight kitchens, too much wood tone can make the room feel smaller—think tone and grain scale carefully in your drawings.

Tip: In your plan notes, specify 2–3 mm expansion gaps around panels and confirm humidity levels (40–60%) before install. Draw vertical grain for tall units and horizontal grain for drawer stacks to visually widen a narrow run.

save pin

save pin

save pin

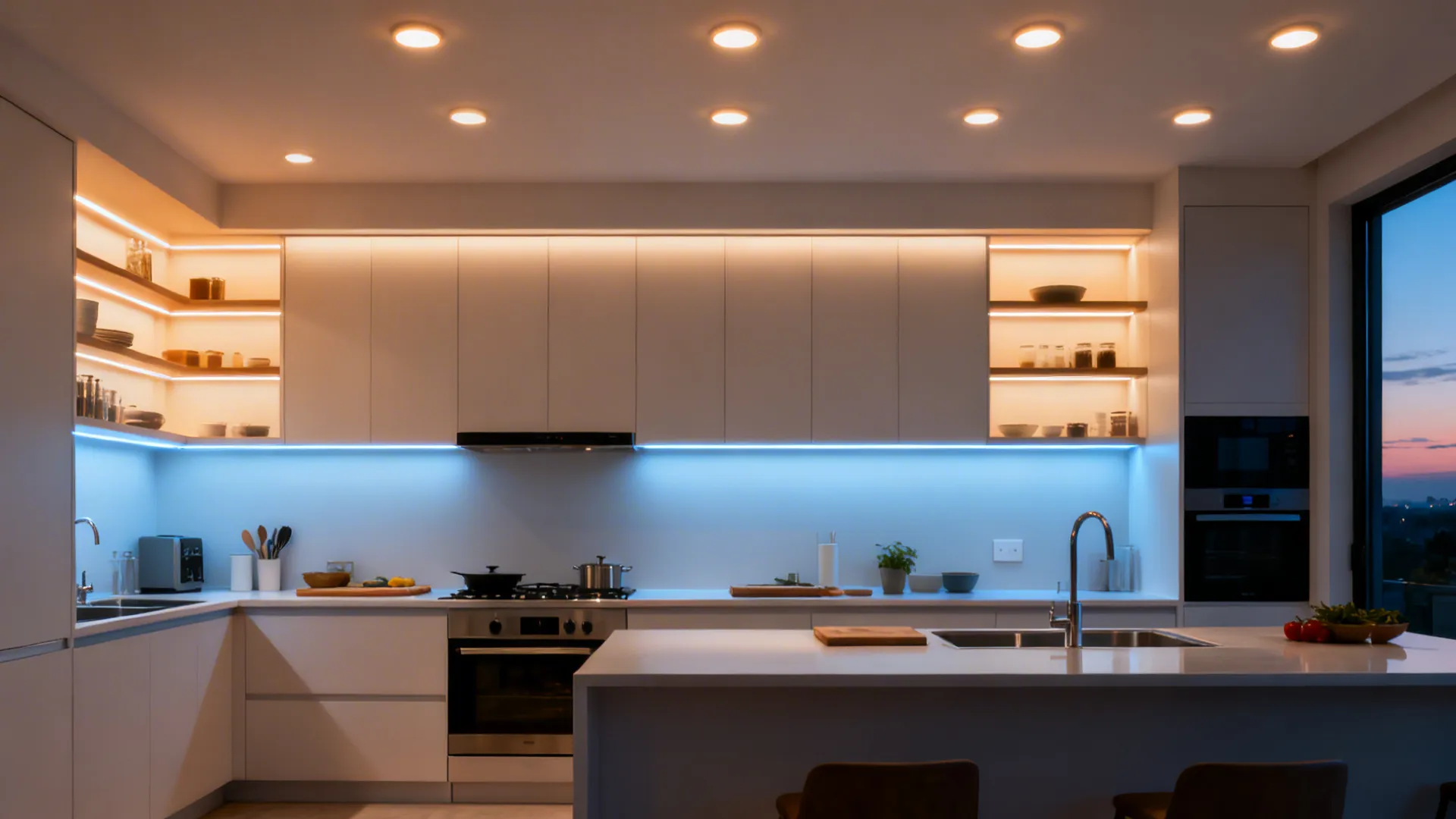

Zone Lighting and Clear Workflow Lines

My Take: The biggest drafting upgrade I made wasn’t cabinets—it was lighting. When I started overlaying task, ambient, and accent lighting directly onto the plan, my kitchens felt finished before construction even began.

Pros: Layered lighting supports prep accuracy and safety—task lights under cabinets, ambient in the ceiling, and subtle accents for mood. When you learn how to draw a kitchen plan with lighting zones, you clarify wiring early and avoid costly changes. The IES recommends 300–500 lux for kitchen task areas, which you can achieve with continuous LED strips and focused spots.

Cons: More circuits mean more switches and more decisions; clients sometimes feel like they’re piloting a plane. Overbright LEDs can make surfaces glare—your drawing should include color temperature and dimming notes to keep comfort in check.

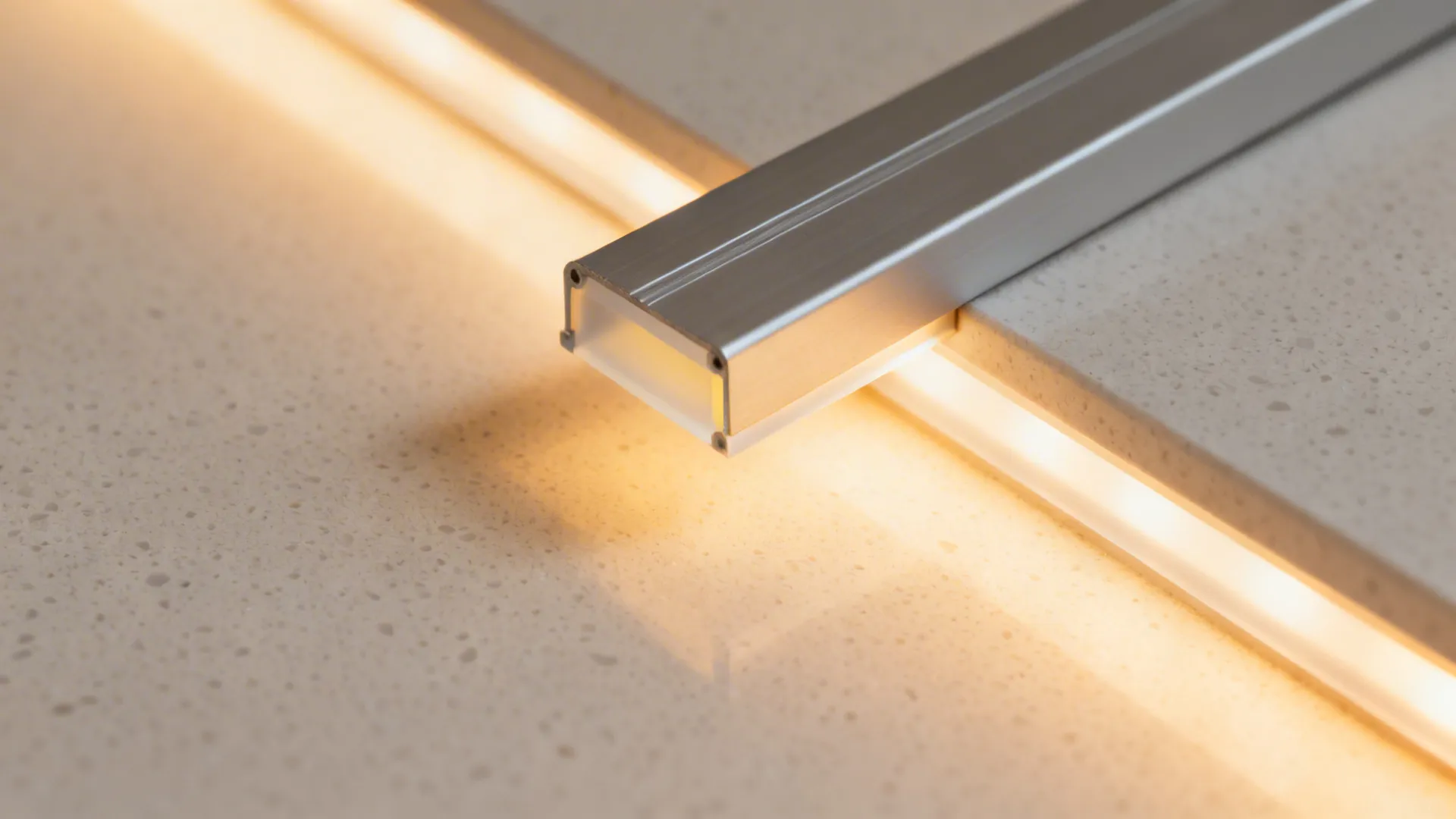

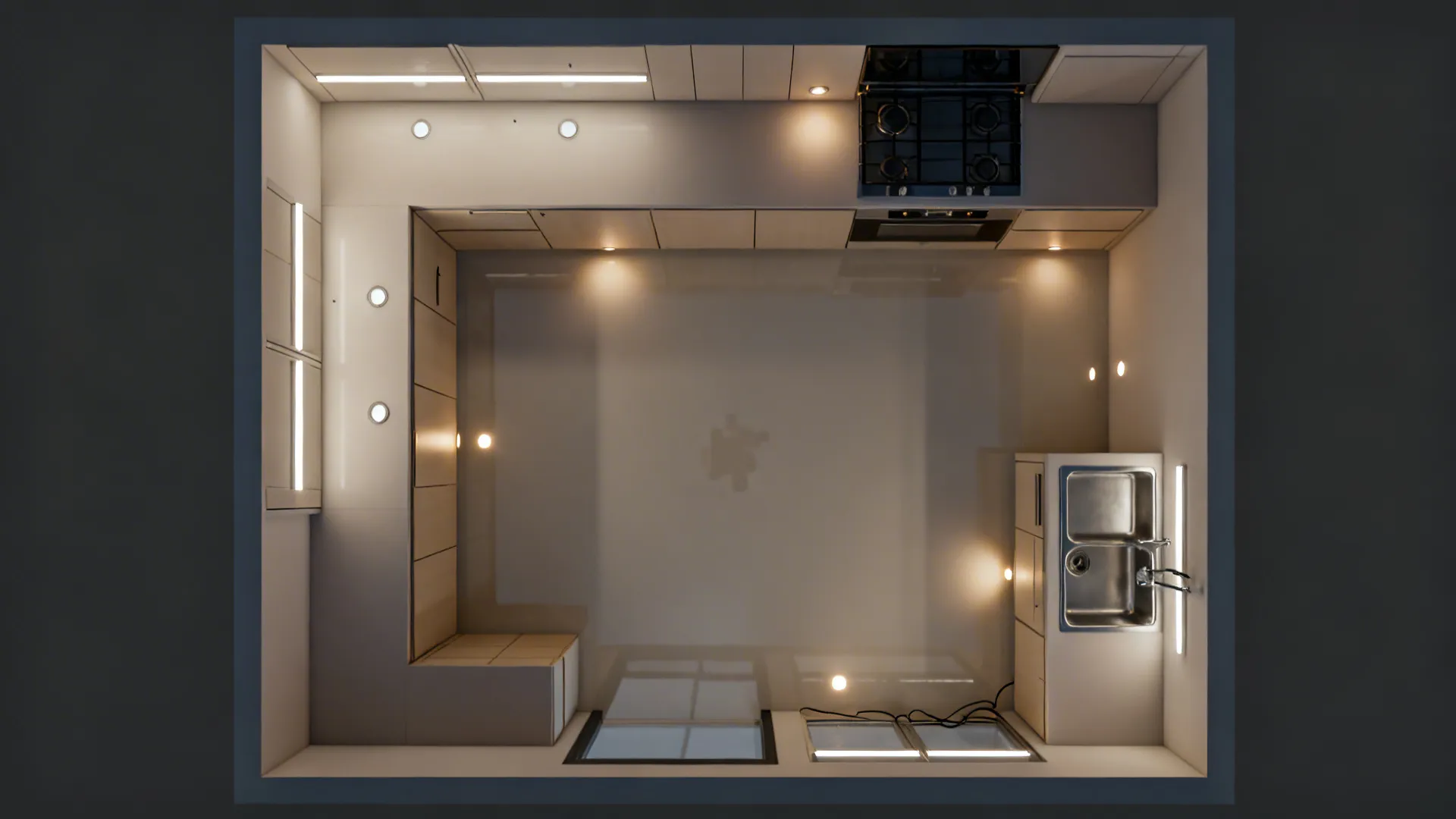

Tip: In the RCP (reflected ceiling plan), annotate 2700–3000K for ambient and 3000–3500K for task. Note continuous diffused strips under 600–800 mm upper cabinets for shadow-free prep. If you want to test lighting and layout in 3D, this case with glass backsplash making the kitchen feel airy shows how reflections and sightlines play together.

[Section: 正文拓展：Step-by-Step to Draw Your Kitchen Plan]

1) Measure precisely. Sketch the room outline and measure wall lengths, ceiling height, and all openings. Log sill heights, pipe chases, radiators, gas lines, vents, and existing electrical points. A laser measure reduces error; I double-check with tape at least once.

2) Set fixed elements first. In your drawing, place windows, doors (swing arcs!), and utilities. Mark the no-go zones: structural columns, beam drops, and required clearances for appliances (refrigerator door swing, oven ventilation, dishwasher pull-out).

3) Plan circulation and zones. Aim for 100–120 cm aisles where possible; 90 cm is the tight minimum I accept in micro-kitchens. Define prep, cook, clean, and storage zones with colored overlays so clashes are visible early.

4) Draft the layout. Choose among single-wall, galley, L, U, or peninsula. In small spaces, L or galley often wins; keep the sink and hob separated by at least 40–60 cm of counter. Leave 5 cm scribble margins in your plan so installers can shim walls and still hit your design lines.

5) Elevations and sections. Draw elevations for each run with appliance heights, backsplash type, and shelf spacing. Section the corner units and sink base—these are the hotspots for errors on site.

6) Specify materials and lighting. Add notes for countertop overhangs (20–30 mm typical), splash heights (450–600 mm), lighting types, and color temperature. Include GFCI outlets near wet zones per local code (check your jurisdiction).

7) Check clearances and ergonomics. Dishwasher should be near the sink; bin pull-out in the prep zone; microwave at 900–1200 mm above floor if not in a tower. Confirm vertical reach for upper shelves: everyday use below 1.6 m, seldom-use above.

8) Validate with a mock-up. Tape outlines on the floor and set cardboard boxes to simulate cabinet depths. Walk the routine: retrieve, prep, cook, clean. If you stumble in the mock-up, you’ll stumble in real life—update the drawing before ordering.

[Section: 材料与成本快照]

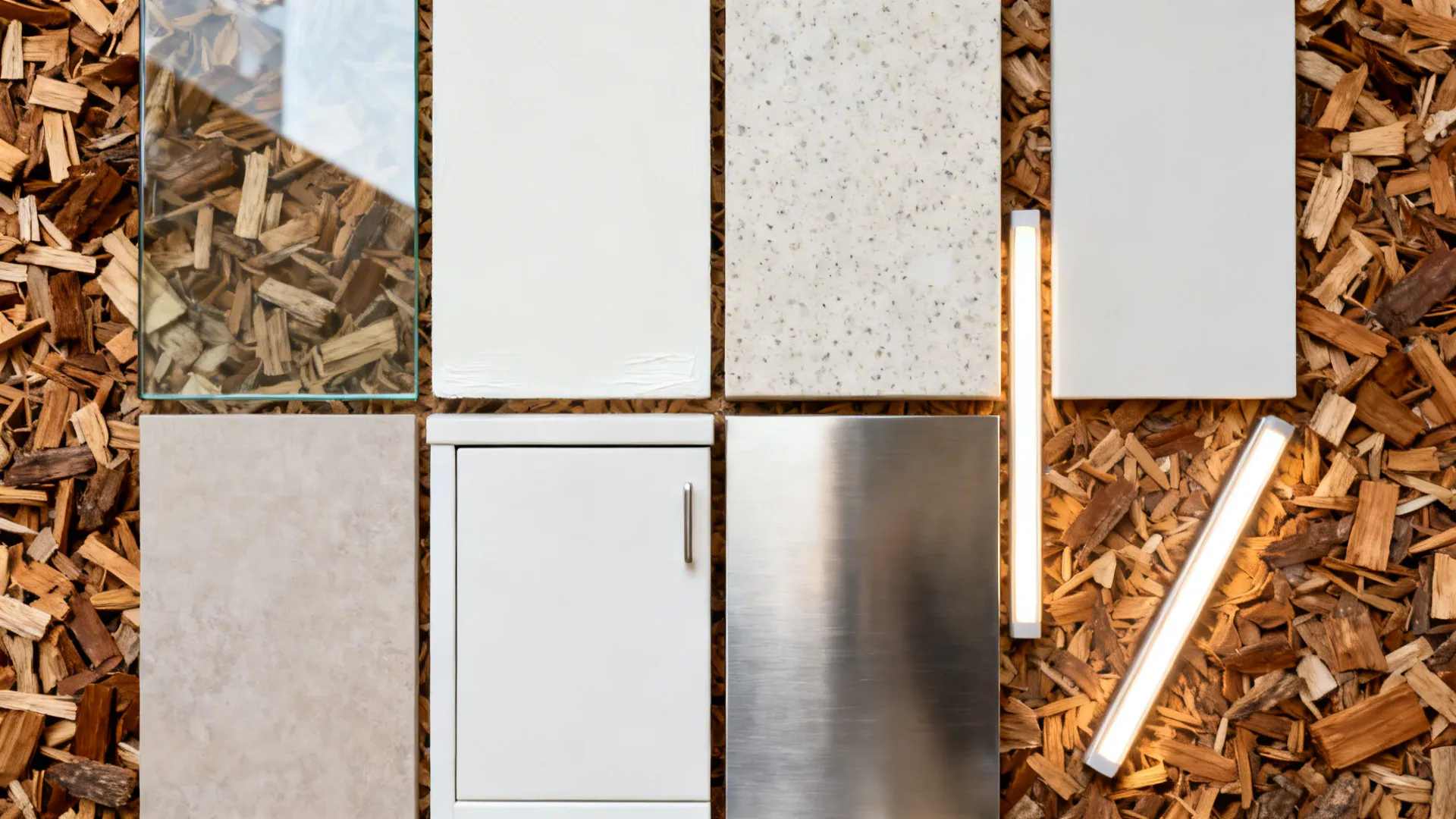

- Cabinet carcasses: $120–$250 per linear foot (melamine to plywood).

- Worktops: Laminate $25–$50/sq ft; Quartz $60–$120/sq ft; Solid surface $50–$90/sq ft.

- Backsplash: Tempered glass $35–$75/sq ft; Tile $10–$40/sq ft.

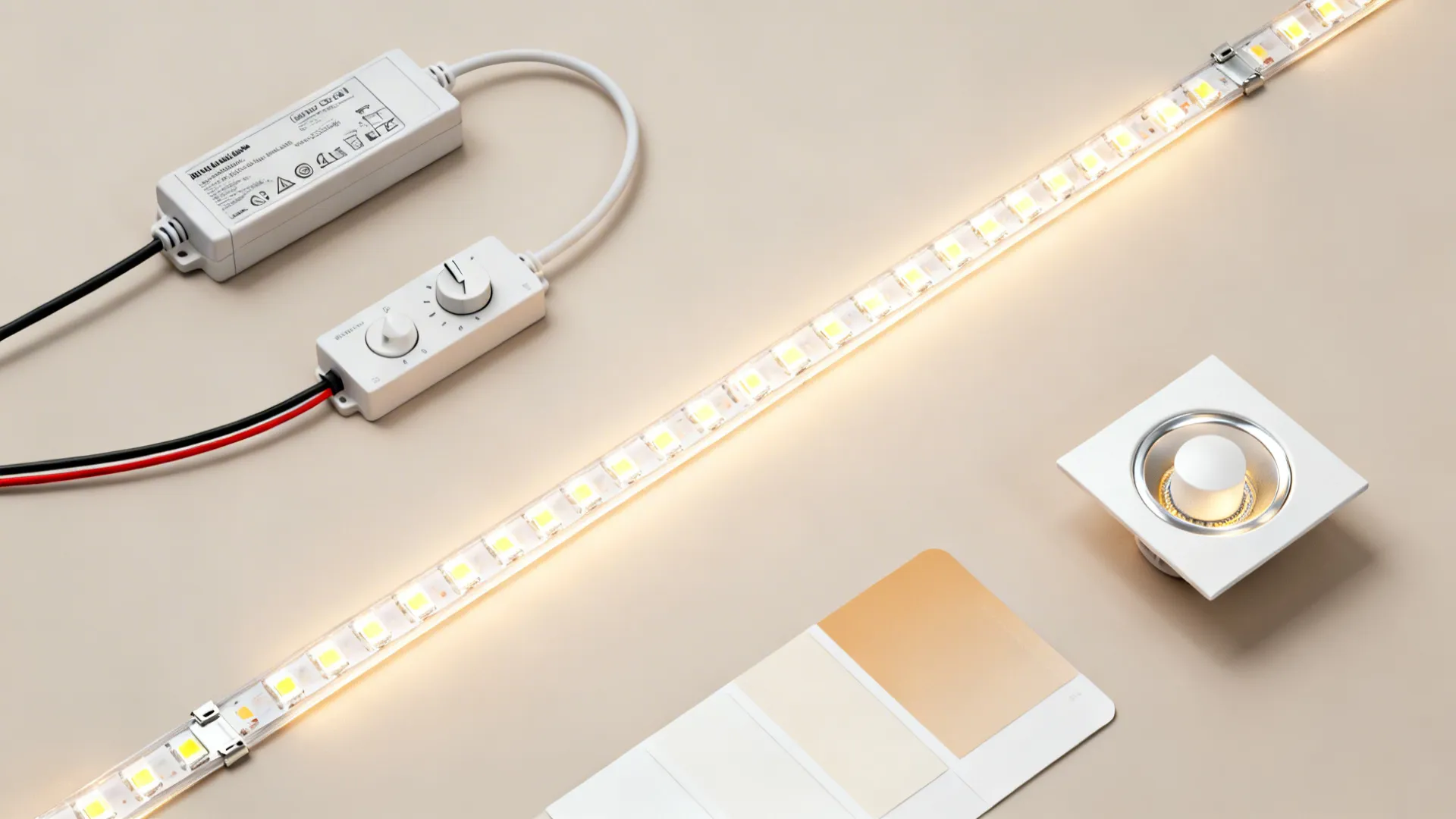

- Lighting: Under-cabinet LED strips $20–$40 per meter plus drivers/dimmers.

- Hardware: Corner mechanisms $250–$600; Soft-close hinges $6–$12 each.

Build your plan around priorities: I spend on hinges, drawer slides, and lighting before splurging on door finishes—you feel quality in the parts you touch daily.

[Section: 权威参考]

- NKBA (National Kitchen & Bath Association) Kitchen Planning Guidelines: clearances, work zones, and landing spaces.

- IES (Illuminating Engineering Society) lighting recommendations for task and ambient levels.

[Section: 总结]

Learning how to draw a kitchen plan isn’t about perfection—it’s about clarity, flow, and making small decisions add up. A small kitchen doesn’t limit you; it demands smarter design, tighter measurements, and deliberate materials. NKBA-aligned clearances plus IES lighting basics will carry most projects. Which of these five ideas are you most excited to try in your own plan?

[Section: FAQ 常见问题]

save pin

save pin

save pin

save pin

FAQ

1) What’s the first step in how to draw a kitchen plan?

Start with precise measurements and mark every opening, utility, and obstruction. Build your drawing around fixed elements, then layer zones and circulation so the plan reflects how you actually cook.

2) How wide should aisles be in a small kitchen?

Target 100–120 cm (40–48 inches). The NKBA Kitchen Planning Guidelines recommend these ranges for comfort and safety, even in compact layouts.

3) Where should the sink, hob, and fridge go?

Keep the sink and hob separated by 40–60 cm of counter and position the fridge near the entry to the kitchen zone. This supports a smooth retrieve–prep–cook sequence in your plan.

4) What’s the best layout when I draw a tiny kitchen plan?

Galley or L-shaped layouts often maximize counter length and storage. Choose based on window/door positions and utilities; avoid forcing a U-shape if aisle width drops below 90 cm.

5) How do I include lighting in the drawing?

Add a reflected ceiling plan (RCP) and annotate ambient, task, and accent lighting with color temperature notes. The IES suggests 300–500 lux for prep zones; continuous under-cabinet LEDs are a reliable way to achieve that.

6) What materials are easiest to maintain in small kitchens?

Quartz or solid surface counters with tile or tempered glass backsplashes keep cleaning simple. If you love wood, use it on doors or panels, not on high-splash horizontal surfaces.

7) Any tools to visualize before building?

Yes—create a simple 2D plan and then validate in 3D to check clearances, light, and sightlines. For a case-driven example, peek at glass backsplash making the kitchen feel airy to understand how reflections affect depth.

8) How much budget should I set when drawing the plan?

Allocate more to hardware and lighting than to door skins: quality hinges and smooth drawer slides elevate daily use. Start with a basic bill of quantities from your drawing and add 10–15% contingency.

[Section: 自检清单]
