How to Draw a Kitchen Plan in AutoCAD: 5 Pro Tips: A senior interior designer’s step‑by‑step approach with five battle‑tested ideas for small kitchens

I’ve spent over a decade redesigning compact homes, and one thing is clear: small spaces spark big creativity. When clients ask how to draw a kitchen plan in AutoCAD, I tell them it’s less about fancy commands and more about smart decisions—scale, clearances, and material choices. In this guide, I’ll share five design inspirations I rely on, blending my field notes with expert data, so you can draft confidently and build wisely.

Before we dive in, I always start with a measured survey: wall-to-wall lengths, ceiling height, window sill and head, door swings, and service points (water, gas, ventilation, electrical). Calibrate your AutoCAD units to millimeters or inches (match your region), set a clean layer system (Walls, Fixtures, Casework, Text/Dimensions), and draw with consistent line weights. For first-time drafters, I also like to prepare a quick reference model in 2D, then verify clearances in a simple 3D check or with a detailed reference case like L型布局释放更多台面空间 for layout logic and appliance positioning.

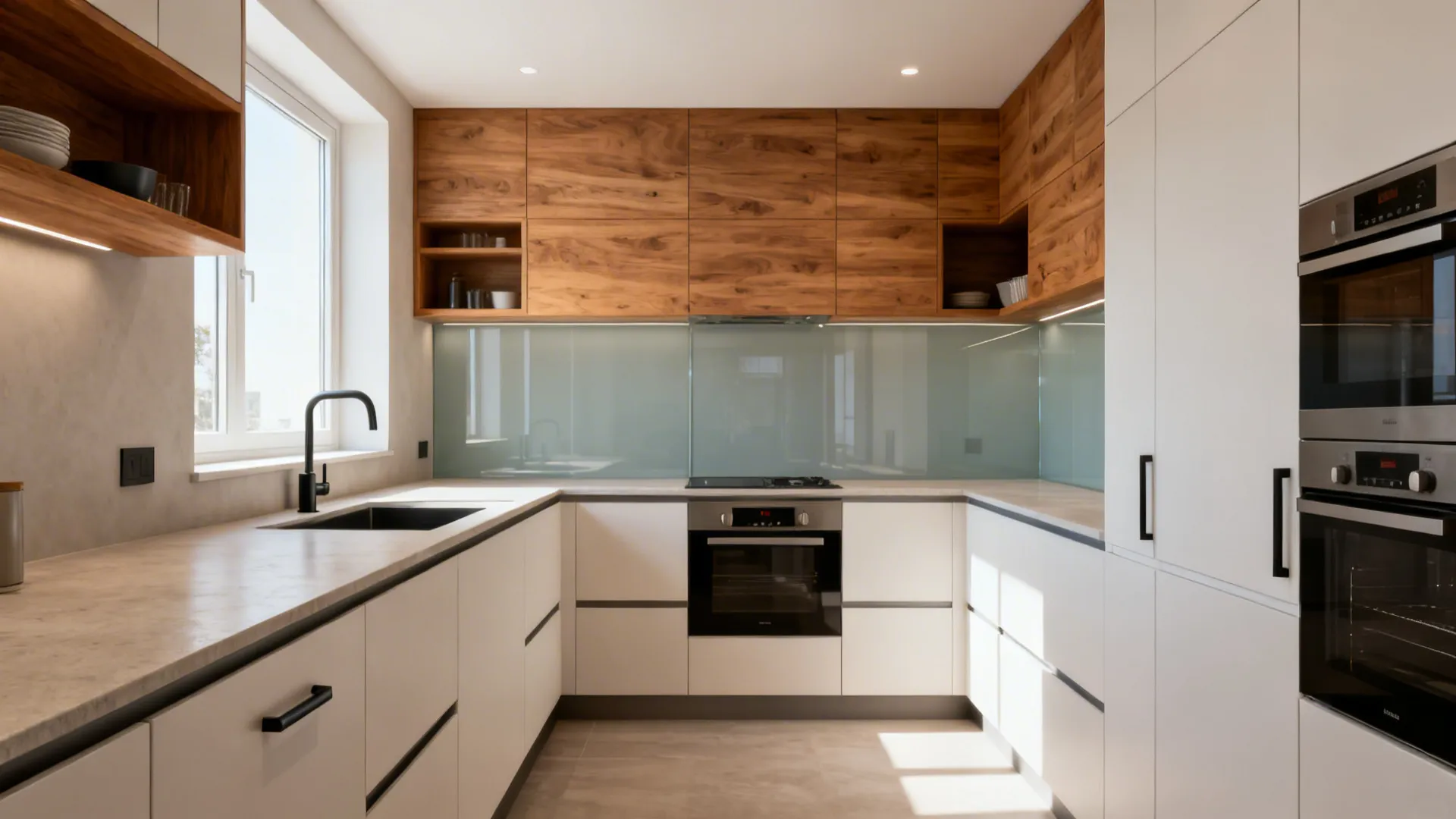

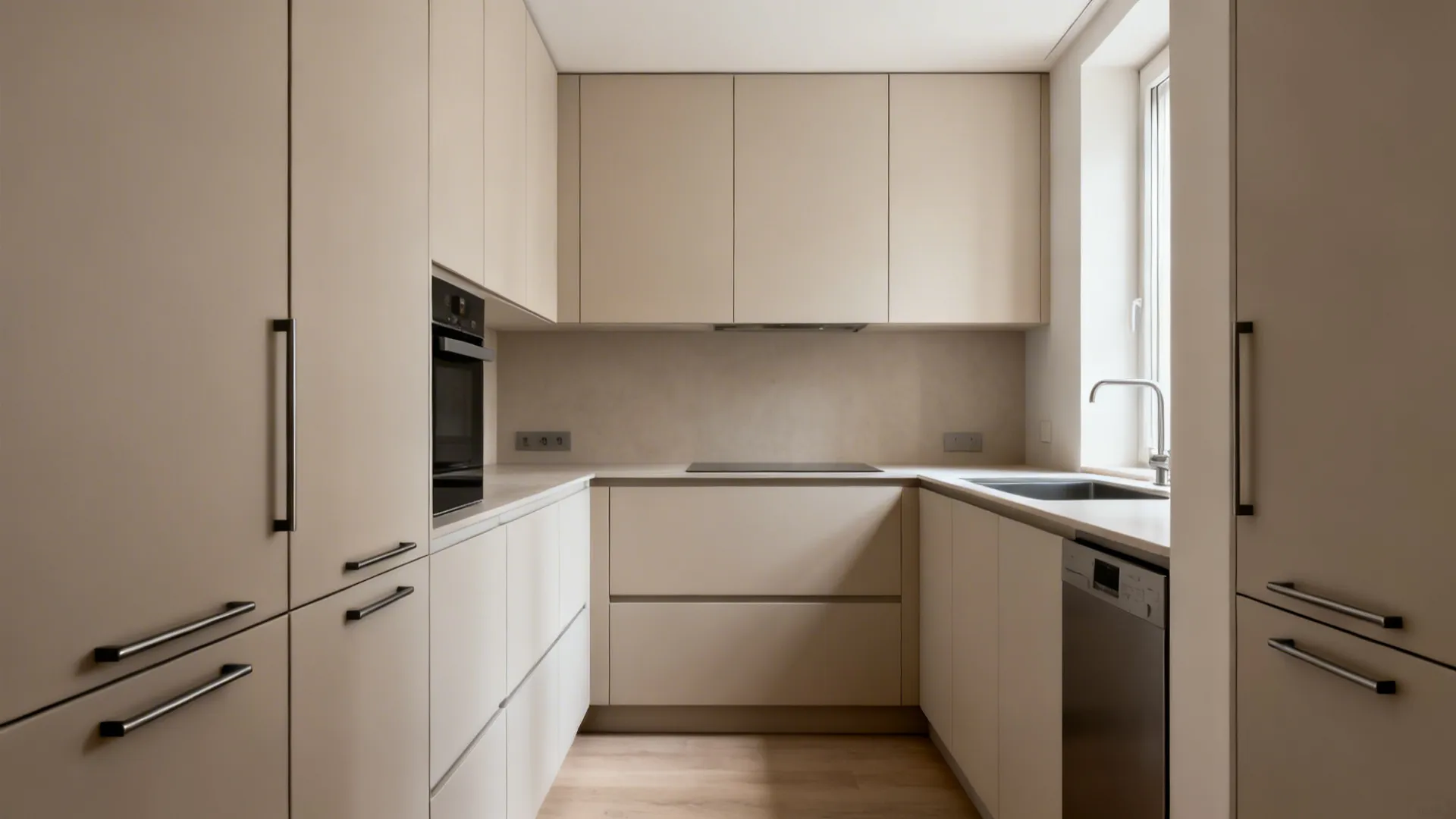

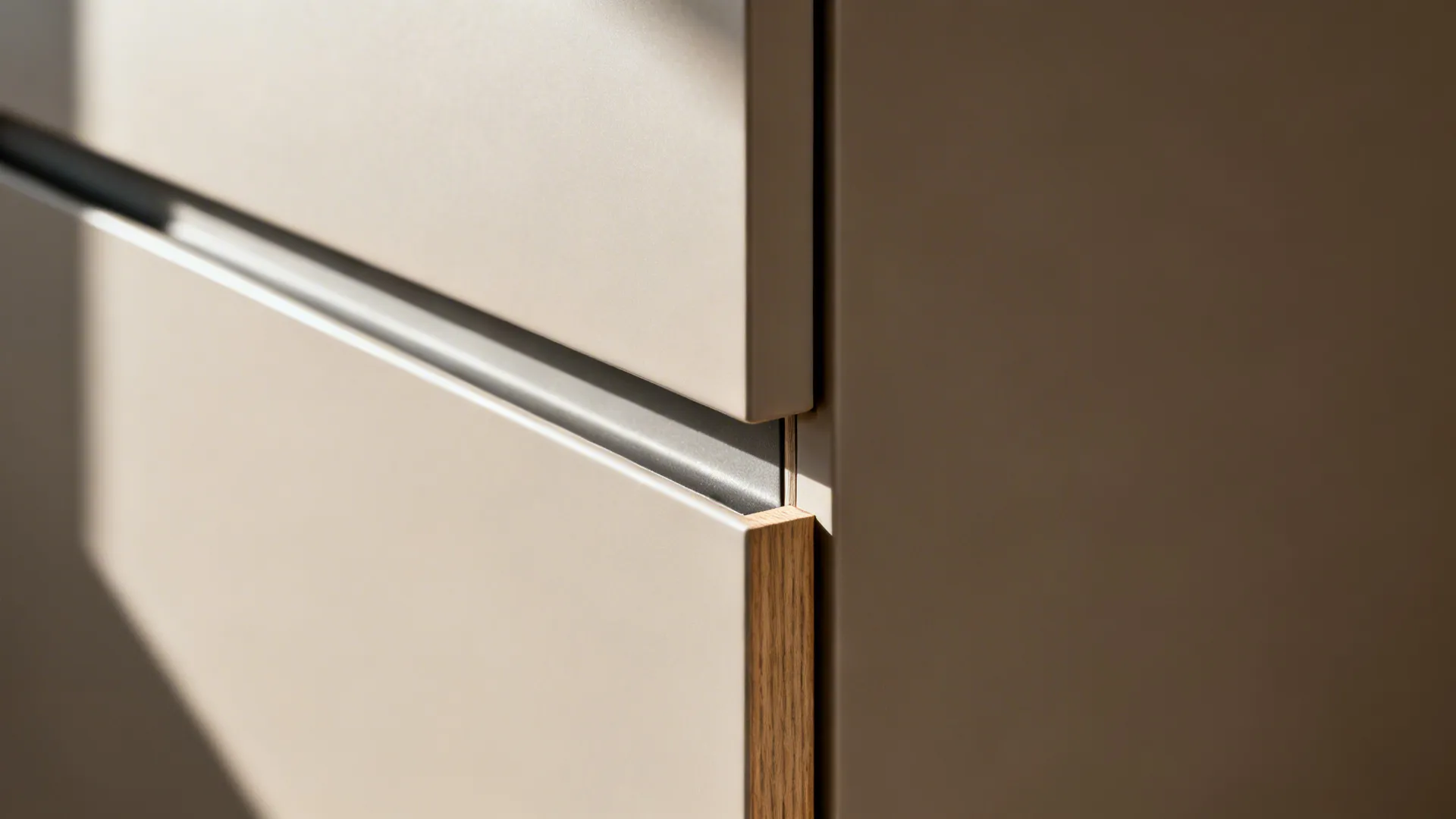

Minimalist Kitchen Storage

My Take

I learned early that clutter kills kitchens, especially in city apartments. In AutoCAD, I start by blocking upper and base cabinets as clean rectangles, then refine with door swings and handle offsets—keeping the plan visually calm helps me make better storage calls.

Pros

Streamlined cabinetry reduces visual noise and improves circulation; it’s ideal for a small kitchen floor plan. Using long-tail staples like “minimalist kitchen cabinet layout in AutoCAD” helps you focus on consistent module sizes (e.g., 300/400/600mm) for efficient drafting. Research by the NKBA notes that clear work zones and consistent storage heights improve usability in compact kitchens.

Cons

Minimalism can hide too much—if you oversimplify, you might miss specialized inserts or trash pull-outs. In AutoCAD, generic blocks can mask critical clearances; I’ve had to redraw base units when a client insisted on a mixer lift.

Tips / Cost

Create dynamic blocks for standard cabinet modules (Depth, Door Swing, Drawer Stack). Keep a separate layer for appliance clearances, so you can toggle tolerances on/off. Budget-wise, minimal fronts can save on hardware, but interior organizers will add cost.

save pin

save pin

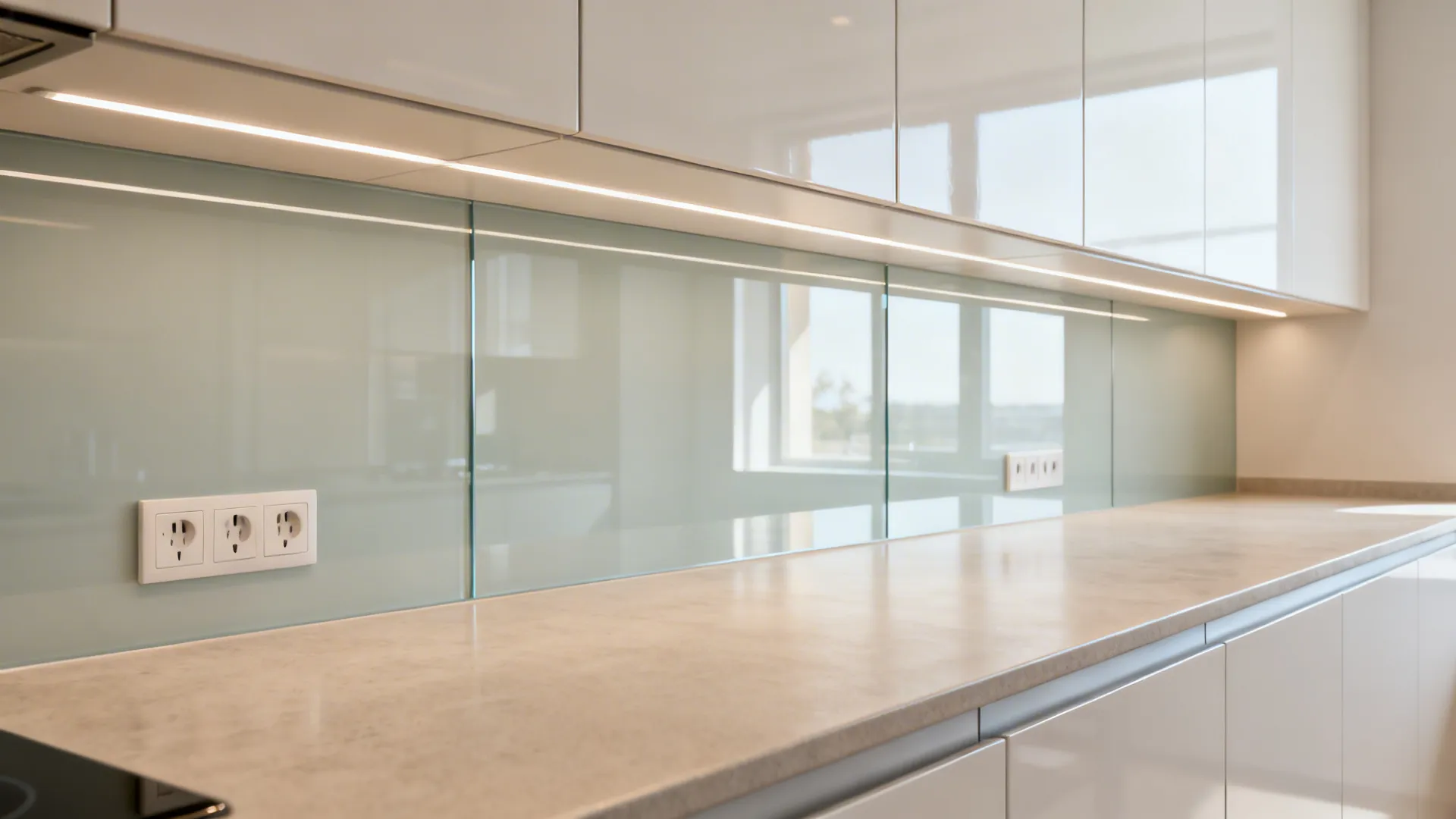

Glass Backsplash for Light and Depth

My Take

One of my favorite city-kitchen tricks is a back-painted glass backsplash. In AutoCAD plans, I mark its extents precisely (countertop height to bottom of upper cabinets), then annotate the thickness and electrical cutouts so the fabricator gets it right.

Pros

A glass backsplash adds reflected light and a sense of depth—great for a small kitchen layout plan where every millimeter counts. Low-maintenance surfaces also reduce grout lines, useful in tight cooking zones. As the American Cleaning Institute notes, non-porous surfaces can simplify hygienic upkeep in high-splash areas, improving daily cleanability.

Cons

Cutouts for outlets and switches must be perfect; minor measurement errors become costly remakes. Gloss can reveal splatters—my clients either love the shine or request a satin finish.

Tips / Case

Dimension all outlet centers from finished floor and side walls in your AutoCAD elevations. For 2D, add a hatch to distinguish glass from tile. If you’re testing light distribution, I like to validate proportions with a quick look at “玻璃背板让厨房更通透” in similar case studies and then map those proportions back into my CAD elevations.

save pin

save pin

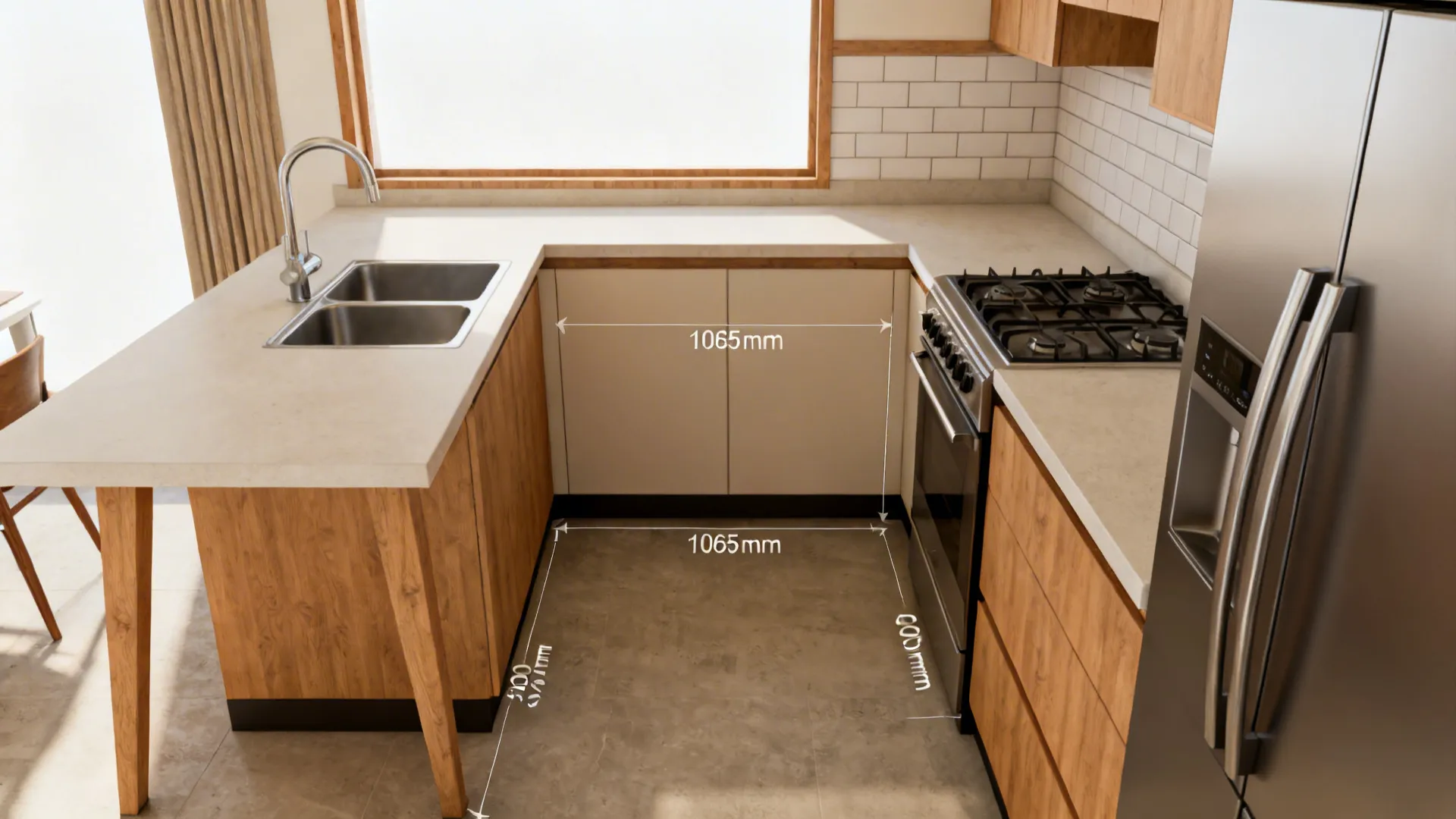

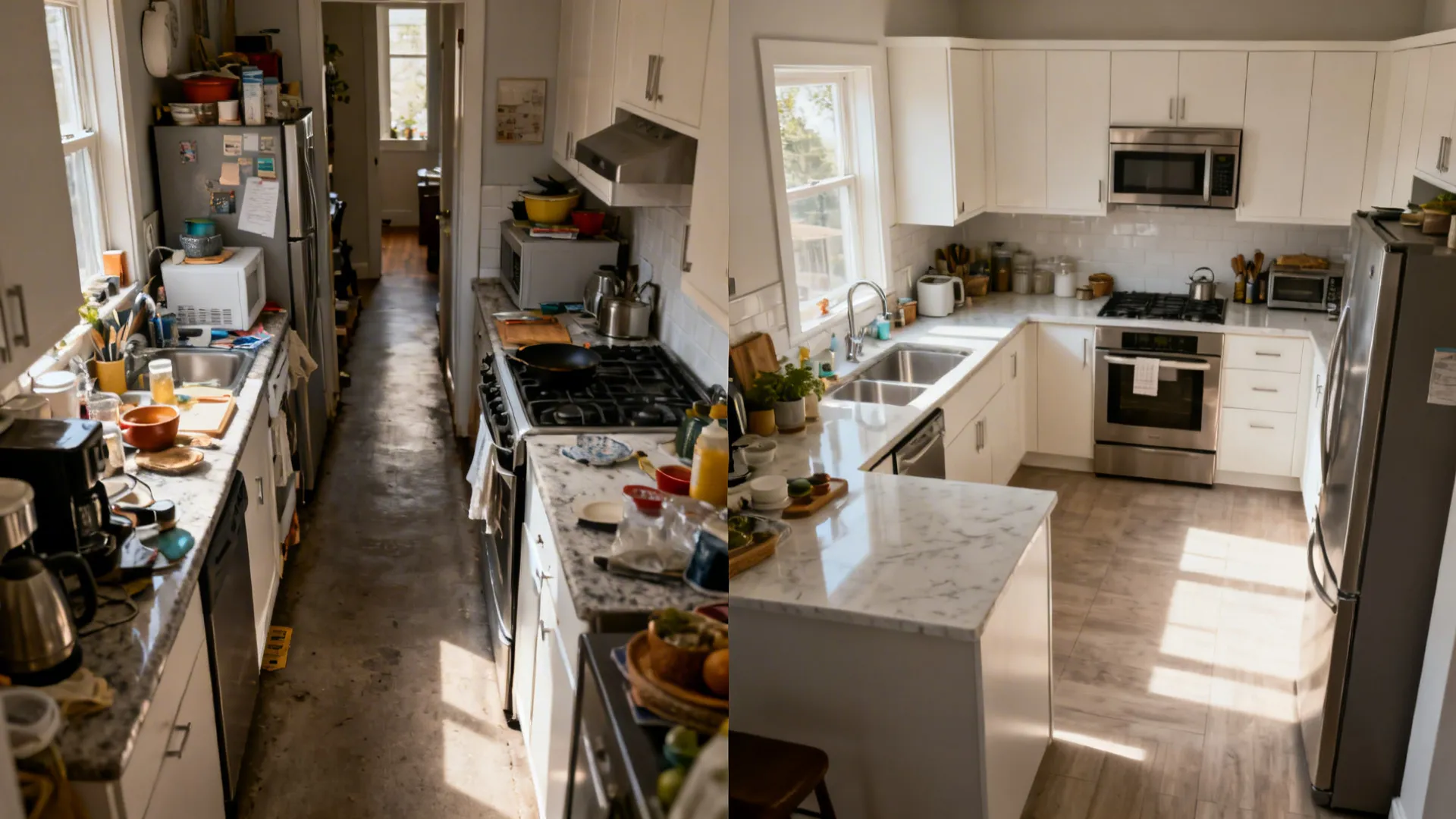

L-Shaped Layout That Frees Counter Space

My Take

When space is tight, I often pivot to the L: it opens up turning radii and places the sink and cooktop on adjacent legs. In AutoCAD, I start with a 600mm deep run, offset walls for backsplash thickness, and block in appliances with manufacturer cut sheets.

Pros

An L-shaped kitchen plan supports a compact work triangle and maximizes corner storage—perfect for “small L-shaped kitchen AutoCAD layout” queries. According to the National Kitchen & Bath Association (NKBA) Guidelines, placing primary work centers within comfortable reach reduces steps and improves workflow (NKBA Kitchen Planning Guidelines, 2023).

Cons

Corner solutions can get pricey; if you forgo a corner unit, you might end up with dead space. Also, if the room is narrow, a full-depth fridge on the short leg can cramp the aisle.

Tips / Cost

Use diagonal or 45-degree corner cabinets sparingly; blind corners with pull-outs can be more cost-effective. Keep passage clearances of 915–1065mm (36–42 inches) where possible; dimension those consistently in AutoCAD. For deeper exploration of L-shaped flow and appliance spacing you can preview L 型布局释放更多台面空间 in similar planning scenarios, then translate the logic into your CAD blocks.

save pin

save pin

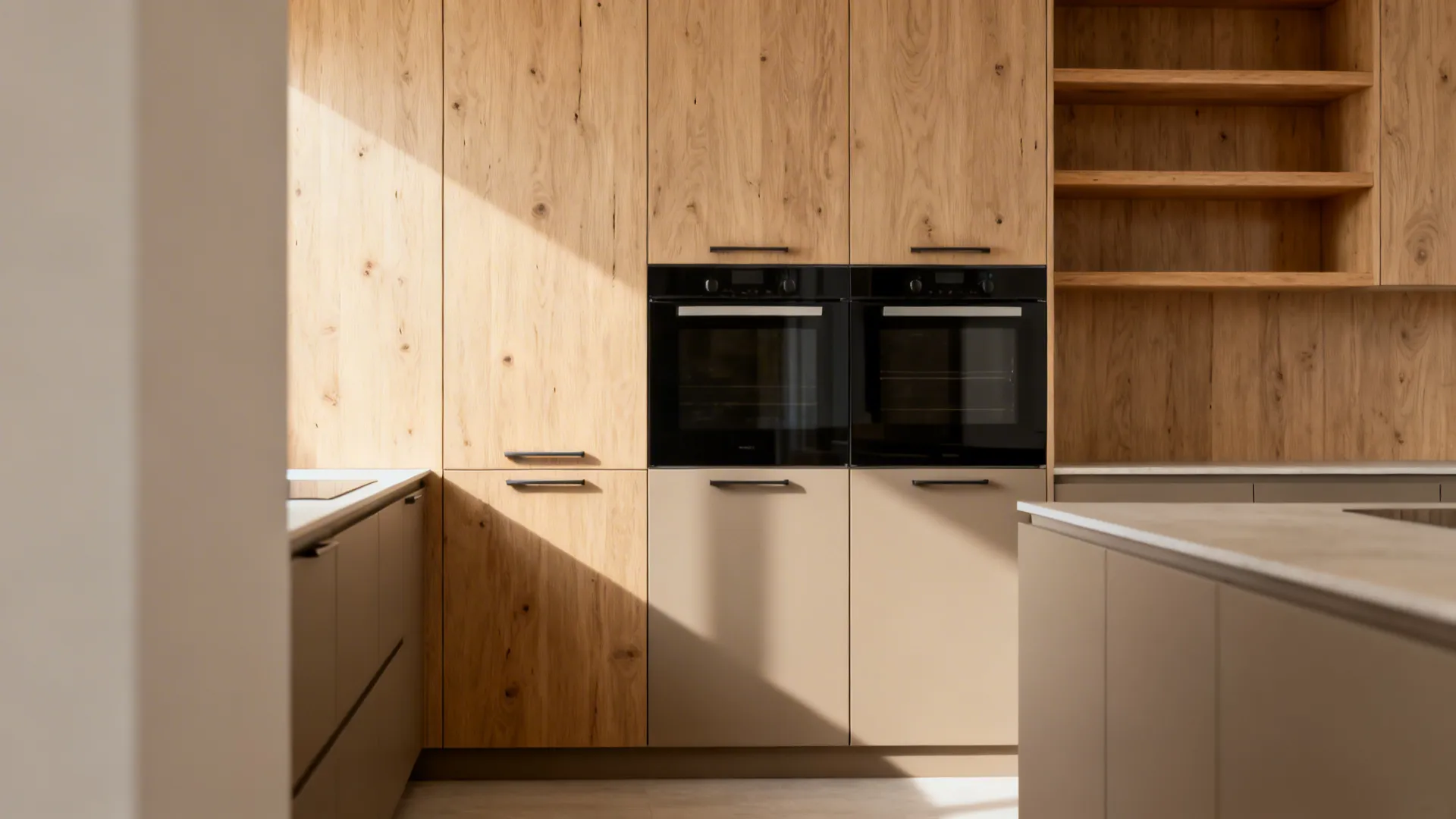

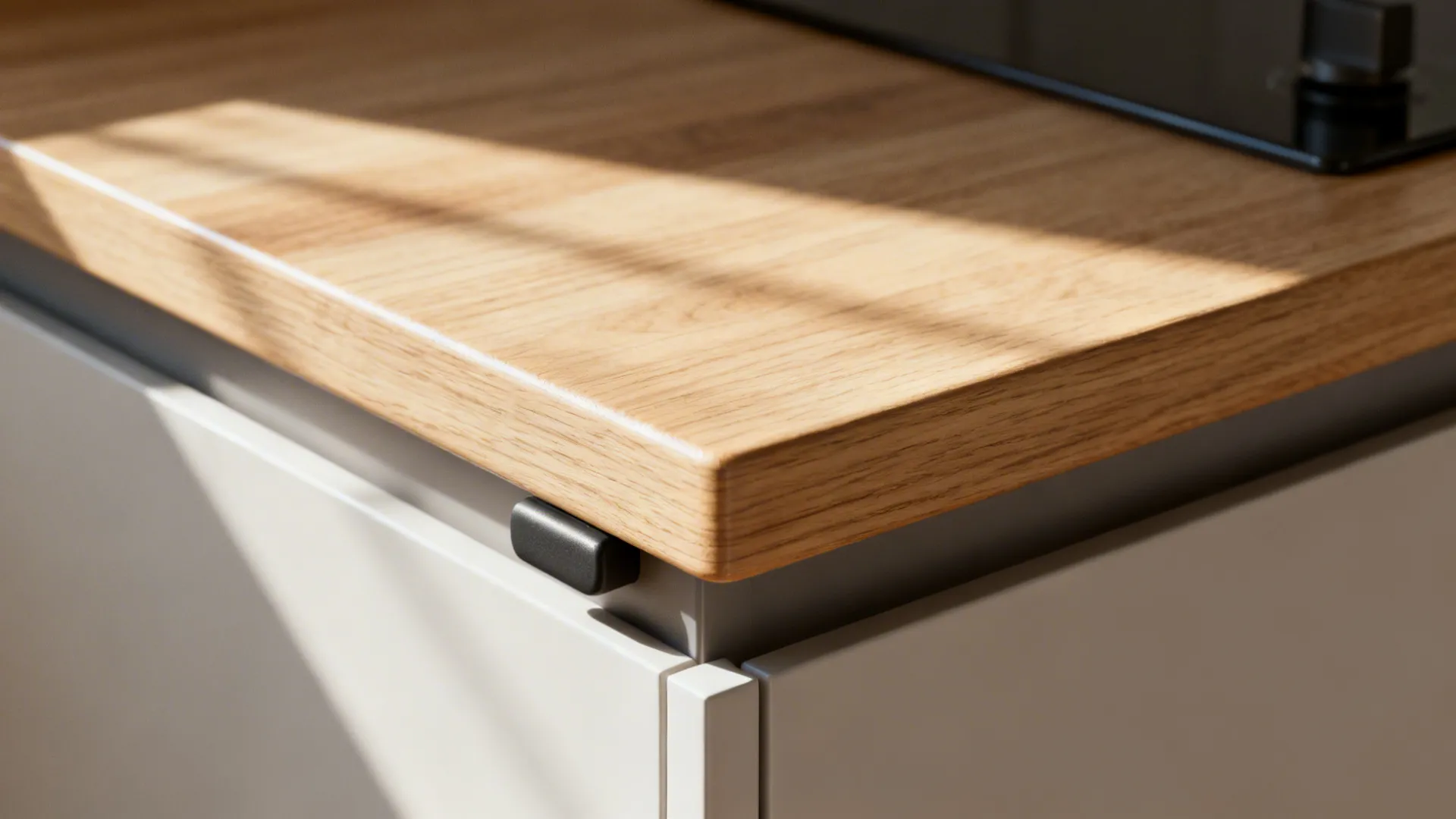

Warmth with Wood Accents

My Take

Clients often fear that small kitchens feel clinical; wood tones fix that instantly. In AutoCAD, I annotate material keys and grain directions for doors and panels so the shop drawings stay faithful to the design intent.

Pros

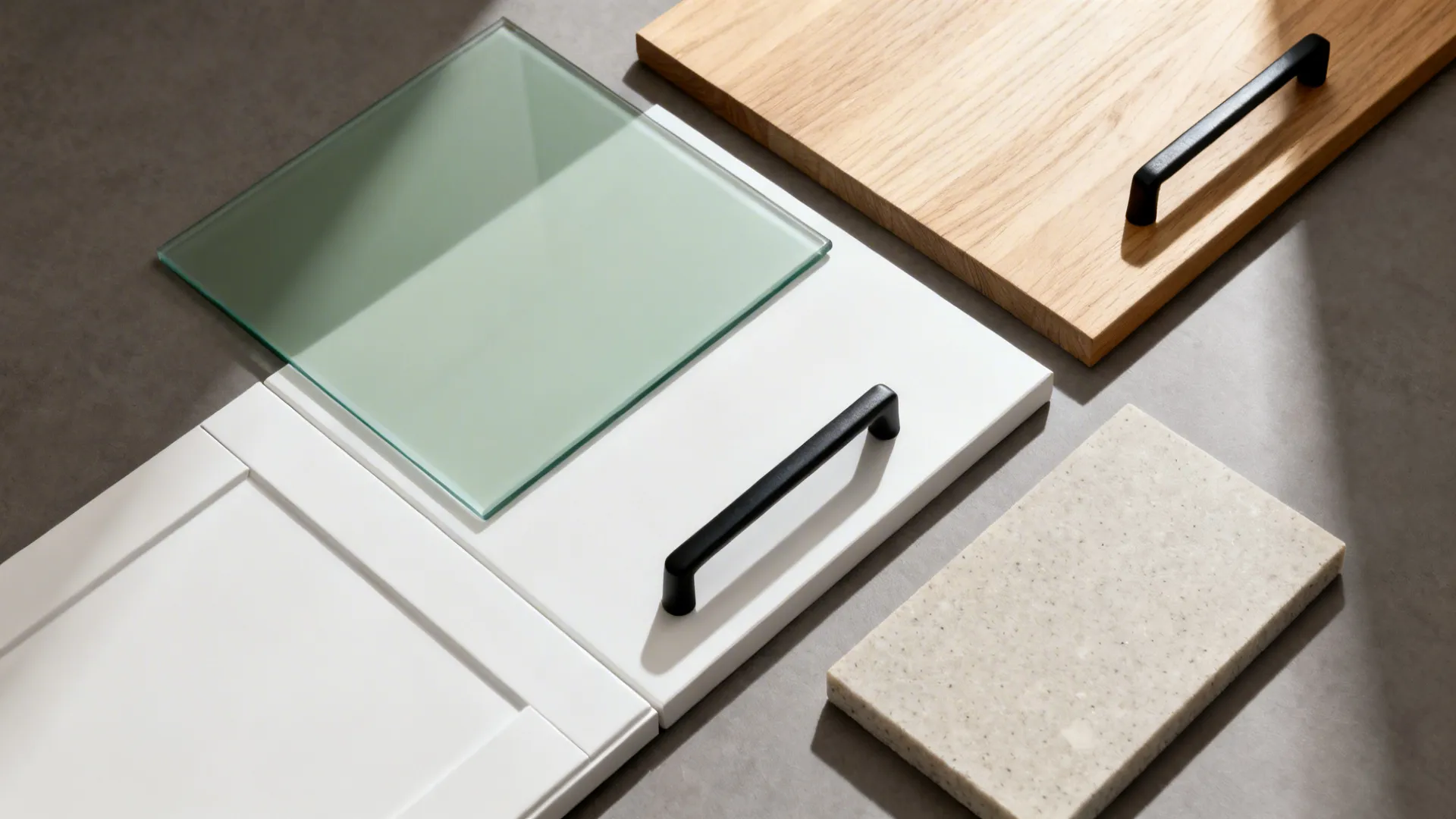

Wood trims or panelized appliance fronts create a cohesive look, which supports “small kitchen material schedule in AutoCAD” workflows. Combining wood with matte hardware reduces glare and visually softens tight spaces.

Cons

Natural wood needs maintenance; in wet areas, veneer edge protection is critical. Overdoing wood can darken a small kitchen—if the room faces north, keep hues lighter.

Tips / Case

Define finish codes in your legend (e.g., W1 = white oak veneer, matte lacquer). Use hatches or subtle line patterns on elevations only; avoid cluttering plans. For landlords, faux wood laminates save cost while keeping the vibe warm; I note laminate spec IDs directly in my AutoCAD keynote schedule.

save pin

save pin

Precision Clearances and Code-Savvy Planning

My Take

The most beautiful kitchen fails if the oven door blocks the aisle. I learned the hard way on a prewar walk-up: lovely millwork, but a 28-inch aisle at the dishwasher—never again. Now, I layer in clearances for every swing and pull.

Pros

Dimensioning to standards like “kitchen appliance clearance requirements” ensures function for tight spaces. NKBA suggests a minimum 915mm (36-inch) walkway; building codes and manufacturer specs should drive your CAD dimensions. Adding a clearance layer in AutoCAD makes clash detection fast and reduces change orders.

Cons

Over-optimizing clearances can make the drawing look busy—contractors may miss the key callouts. Also, not all existing walls are square; perfect dimensions on paper can betray reality on site.

Tips / Data / Tooling

Always verify site measurements; I annotate a field-verified note on drawings. Use manufacturer blocks with precise appliance door swings; save them in a shared library. For a faster iteration loop and to preview photorealistic clearances before drafting in detail, I sometimes review case studies like 极简风的厨房收纳设计 to sanity-check workflow and aisle spaces, then finalize exact dimensions in AutoCAD.

save pin

save pin

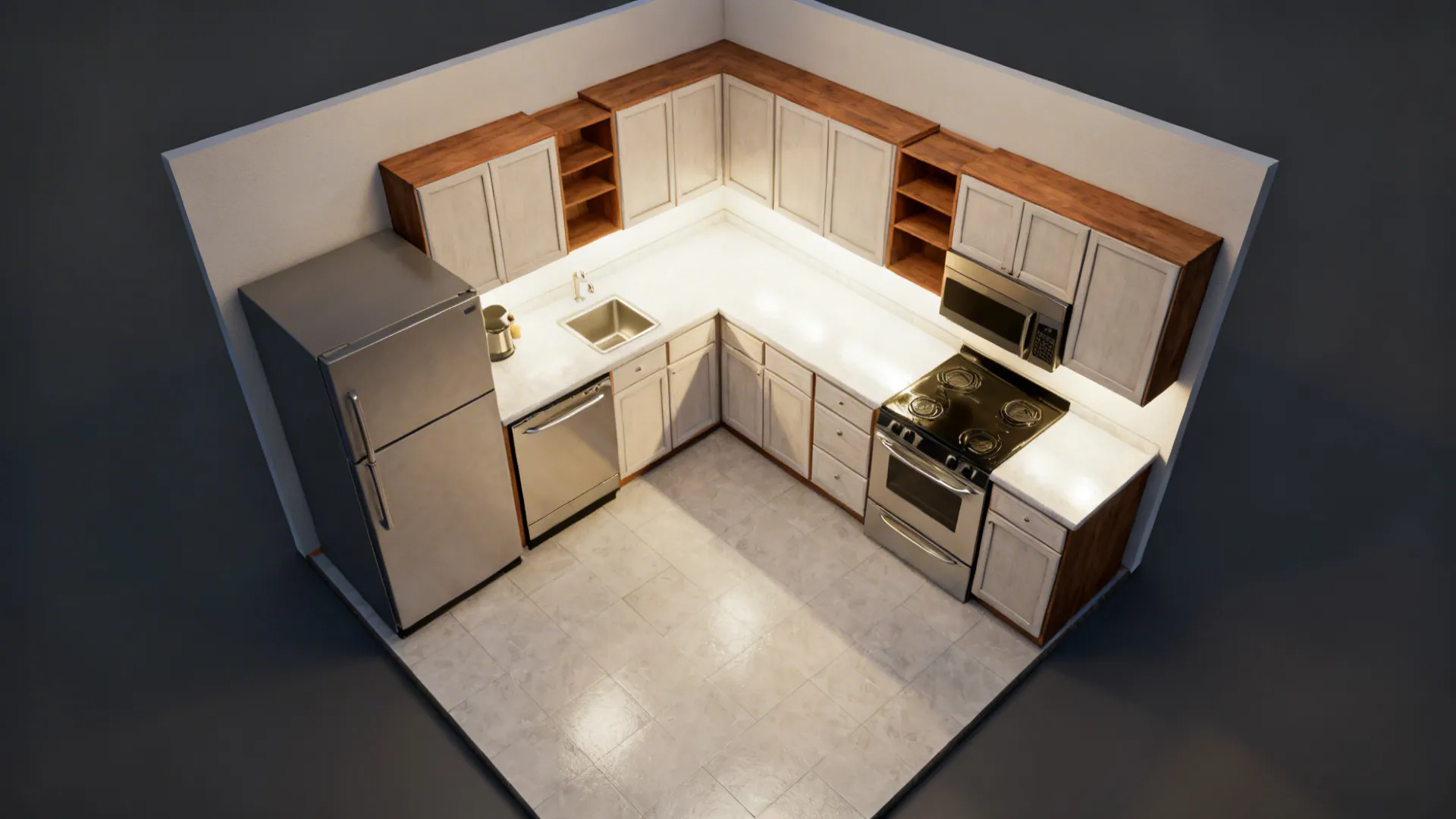

How I Draft a Kitchen Plan in AutoCAD (Step by Step)

1) Set up units and layers: Decide on mm or inches. Layers: A-WALL, A-CASEWORK, A-APPL, A-TEXT, A-DIMS, A-CLRN (clearances), A-ELEC, A-PLUM. Assign colors/lineweights for clarity.

2) Draw shell: Trace walls at correct thickness (100–150mm typical interior; verify local standards). Add doors with swings, window openings with sill/head, and annotate structural columns or chases.

3) Place fixtures: Insert sink, cooktop/range, fridge, dishwasher as blocks. Use manufacturer dimensions and door-swing arcs. Set toe-kick and counter heights (e.g., 870–920mm typical; adapt to user).

4) Layout cabinetry: Base cabinets 600mm deep (24 in), uppers 300–350mm deep. Use standard modules (300/400/600/800/900mm) and corner solutions. Add panels, fillers, and end panels.

5) Dimension and label: Provide overall dims, centerlines for appliances, and critical clearances: oven door open, dishwasher pull, fridge swing, handle projections. Add notes for ventilation and hood height per manufacturer specs.

6) Services: Draw plumbing points (hot, cold, drain) and electrical (outlets, dedicated circuits). For gas, dimension to valve access and gas-rated hoses; annotate shutoff location.

7) Elevations and sections: Generate interior elevations for each run. Tag materials, backsplash height, undercabinet lighting, and shelf spacing. Use simple hatches and a materials legend.

8) Printing and revision control: Set viewports with proper scales (1:25 or 1/2" = 1'-0"). Title sheets clearly: Floor Plan, Elevations, Electrical, Plumbing. Cloud changes and maintain version dates.

Data note: NKBA’s Kitchen Planning Guidelines and local building codes are my baseline; manufacturers’ install manuals override generic clearances when they conflict. Where available, I link to specific spec sheets within the drawing set for contractor reference.

save pin

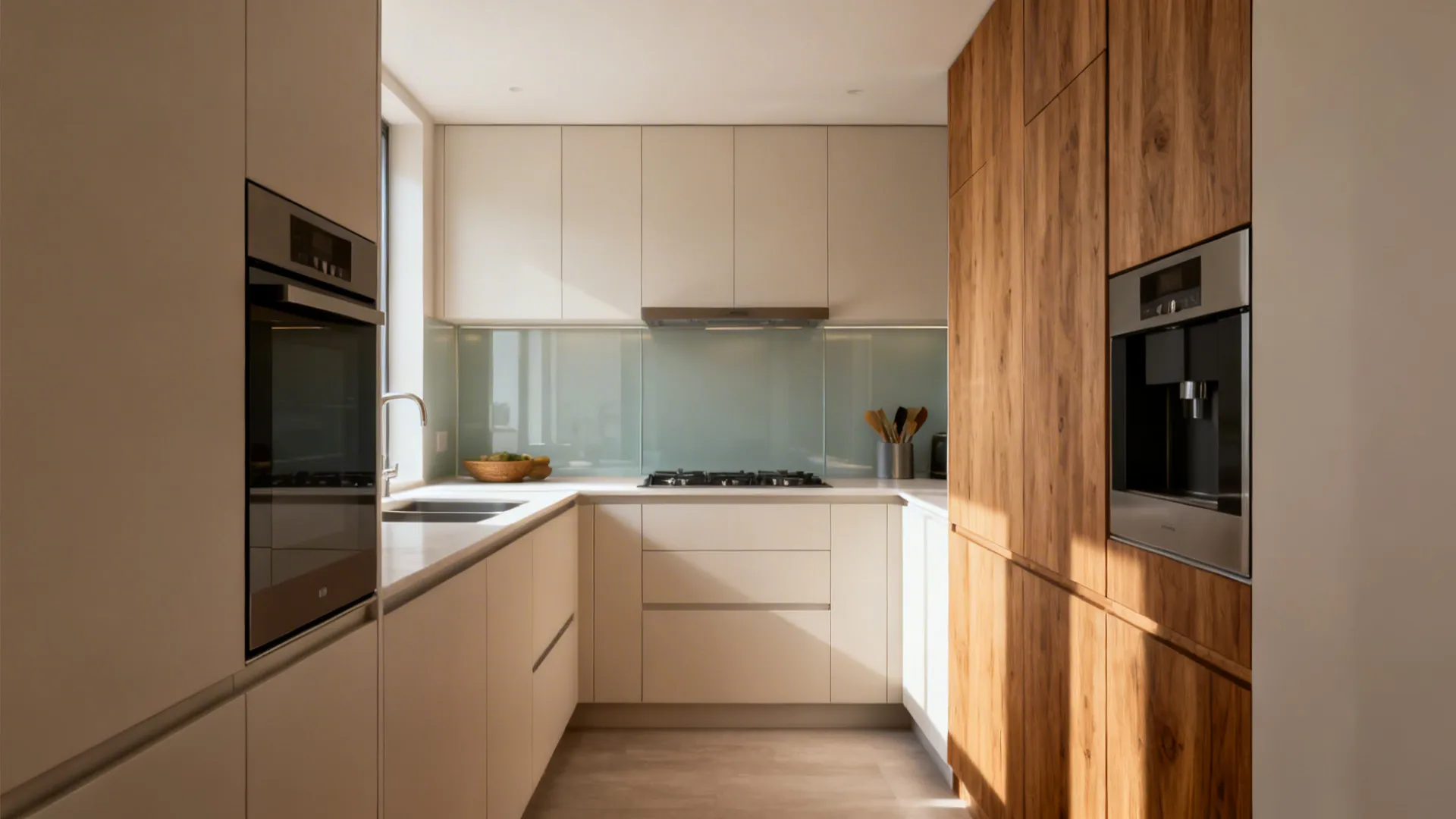

Summary

Small kitchens aren’t a limitation—they’re a call for smarter design. If you’re learning how to draw a kitchen plan in AutoCAD, remember: precise measurements, clear zones, and thoughtful materials matter more than flashy details. The NKBA’s evidence-based guidelines back this up: good ergonomics and verified clearances save time and money during install. Which of these five design inspirations are you most excited to try in your next draft?

save pin

FAQ

1) What scale should I use when drafting a kitchen plan in AutoCAD?

For metric, 1:20 or 1:25 is common; for imperial, 1/2" = 1'-0" works well for interior plans. Pick a scale that fits your sheet while keeping dimensions legible.

2) How do I set minimum clearances in a small kitchen layout?

Follow NKBA’s guidance: target 915mm (36 inches) for walkways and confirm appliance door swings with manufacturer specs. Always dimension to real, verified site measurements.

3) Should I draw in 2D or 3D for a kitchen plan?

Start with 2D for speed and clarity. Use 3D only to verify complex intersections or to present to clients; keep your 2D plans as the contract documents.

4) How do I block appliances accurately in AutoCAD?

Use manufacturer cut sheets for width, depth, height, and door-swing arcs. Save them as reusable blocks with dynamic grips for different models.

5) What’s the ideal small L-shaped kitchen dimension?

It varies, but many compact L layouts work within 2400–3000mm on the long run with a shorter return. Maintain at least 915mm clearance for the main passage to avoid congestion.

6) How can I show a glass backsplash in AutoCAD?

In plan, it’s a thin zone at the counter edge; in elevations, dimension height and outlet cutouts. Use a distinct hatch and add a material key with thickness and finish notes.

7) Where can I find credible planning guidelines?

Refer to the NKBA Kitchen Planning Guidelines (2023) and your local building codes; these are authoritative references used across the industry. Manufacturer installation manuals are equally critical for exact appliance clearances.

8) What’s the fastest way to iterate a kitchen layout before detailed drafting?

Rough in zones with simple rectangles and clearance circles, test the work triangle, and check appliance swings. If you want visual validation before final CAD, preview a case like 玻璃背板让厨房更通透 for spatial flow, then finalize dimensions in AutoCAD.
