How to Draw Kitchen Cabinets in 3ds Max (Importing from AutoCAD): 5 Pro Tips: A senior interior designer’s step-by-step guide with 5 practical design inspirations, real-world pros and cons, and SEO-rich insights for small kitchens

As a kitchen-focused interior designer, I’ve seen a clear trend: clients want precise, build-ready models and photoreal visuals—fast. That’s where the core keyword—how to draw kitchen cabinets in 3ds Max importing from AutoCAD—shines. Small spaces push big creativity, and clean CAD-to-3D workflows let us nail millimeters and textures. In this guide, I’ll share 5 design inspirations for cabinet modeling that I use in real projects, blending personal experience with expert data, so you can go from DWG to beautiful, optimized cabinets with confidence. For a real-world vibe, I’ll also link to case-style examples, like “L 型布局释放更多台面空间,” which mirror what I do when I prototype small kitchens in 3D: L 型布局释放更多台面空间.

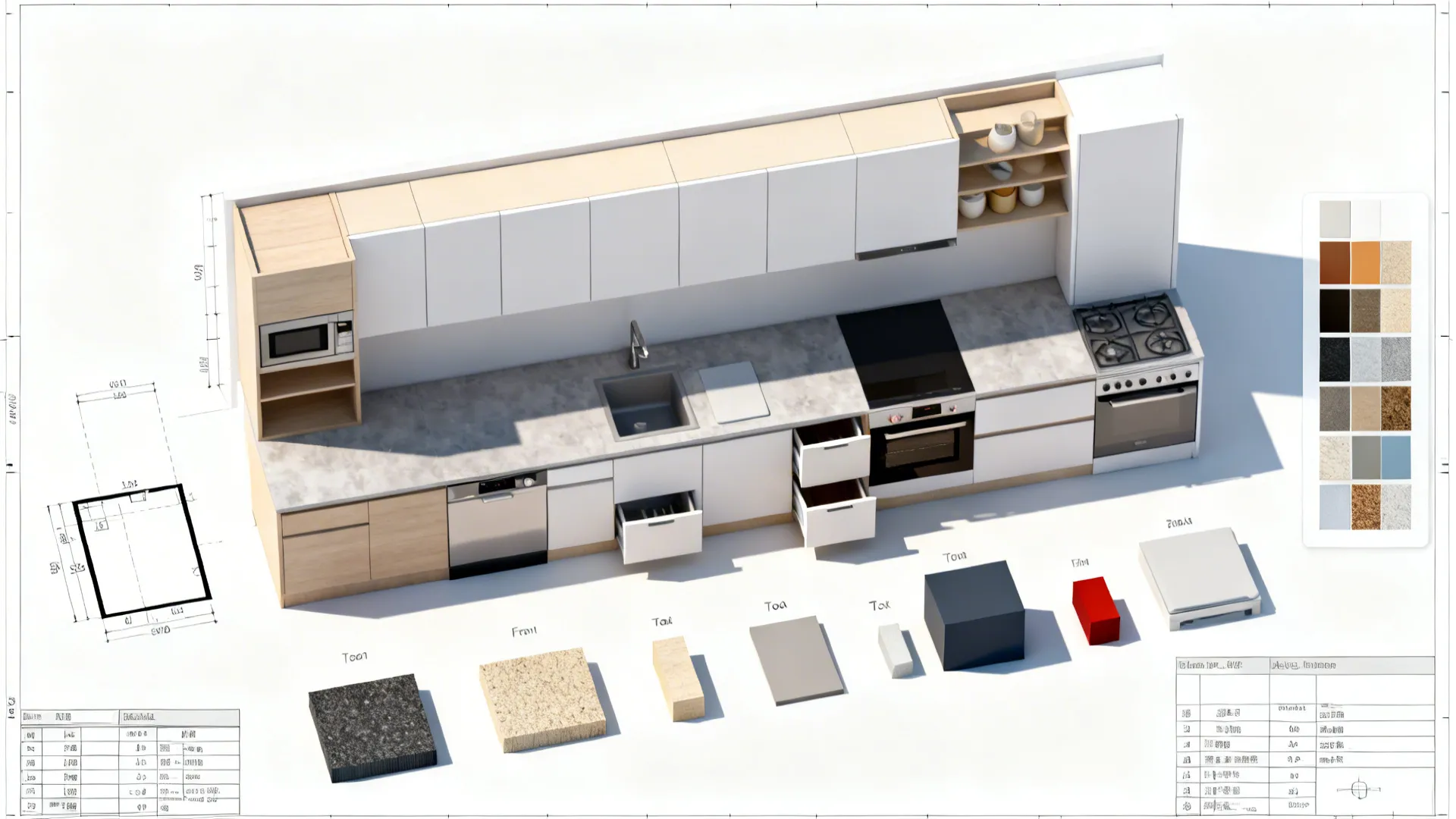

Minimalist Cabinet Modeling with Clean CAD Layers

My Take: I learned the hard way that a messy DWG doubles your cleanup in 3ds Max. Now, I prep AutoCAD layers ruthlessly—separating carcass, fronts, toe kicks, appliances—so when I import, I can assign materials and modifiers in seconds. It’s the foundation for repeatable, accurate cabinet modeling.

Pros: Clean layers accelerate the how to draw kitchen cabinets in 3ds Max importing from AutoCAD workflow by enabling fast object selection, smoothing groups, and material IDs. You’ll reduce polygon bloat and achieve consistent UVs for wood grains and laminates. For small kitchens, precise layers ensure toe kick cutbacks and appliance reveals are right the first time.

Cons: Layer housekeeping is not glamorous; it adds front-loaded time. If your consultant sends an unlayered DWG, you’ll spend an evening sorting geometry (been there, binging podcasts while relabeling lines). Also, over-layering can confuse collaborators if the naming system isn’t documented.

Tips / Case / Cost: In AutoCAD, purge blocks and explode only when necessary; keep cabinet modules as blocks for alignment, not for export. Use a consistent naming convention (e.g., CAB_B24, FRNT_W600). In 3ds Max, import by layer and enable “Combine by Layer” for quick isolation of cabinet groups.

save pin

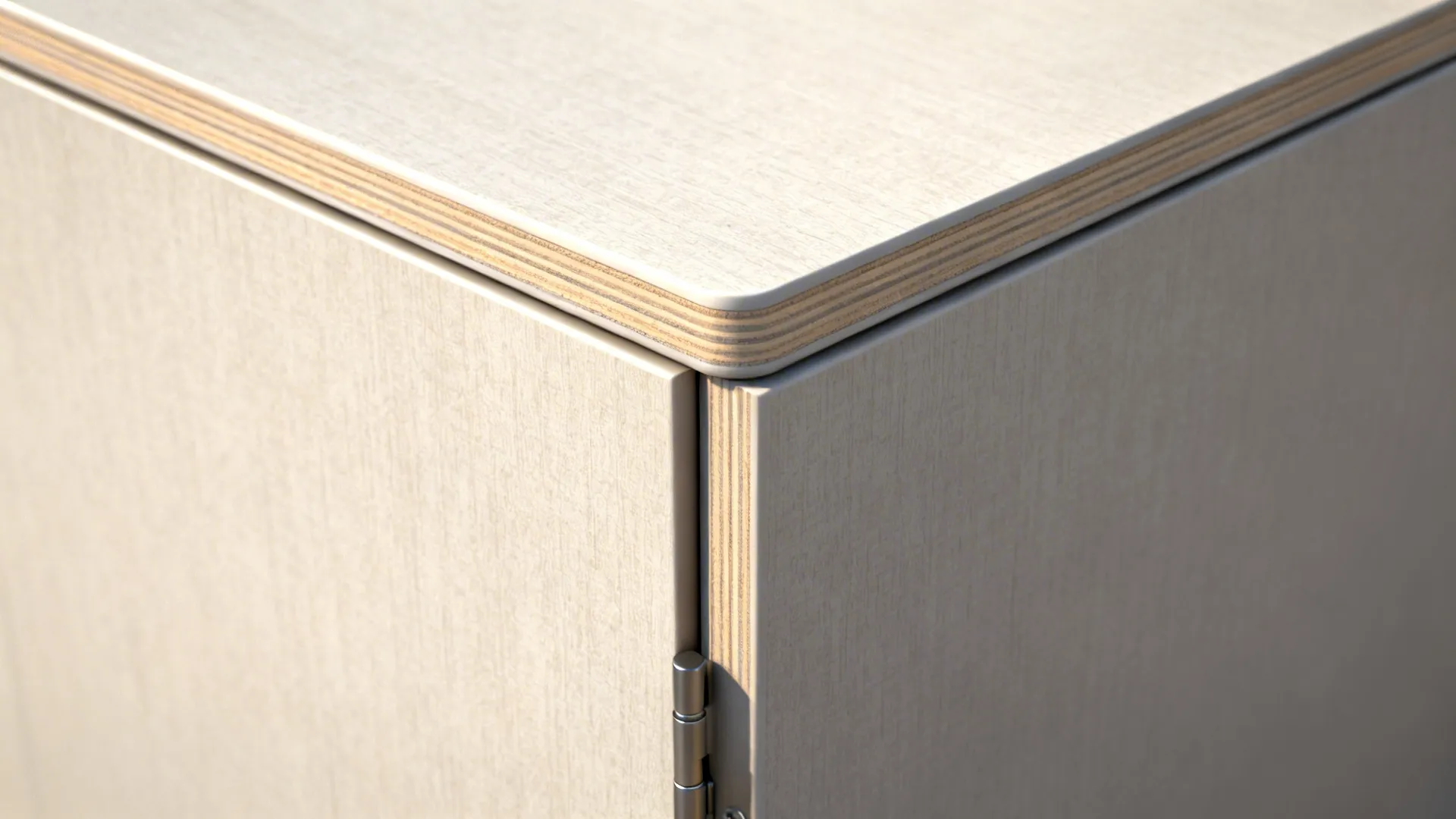

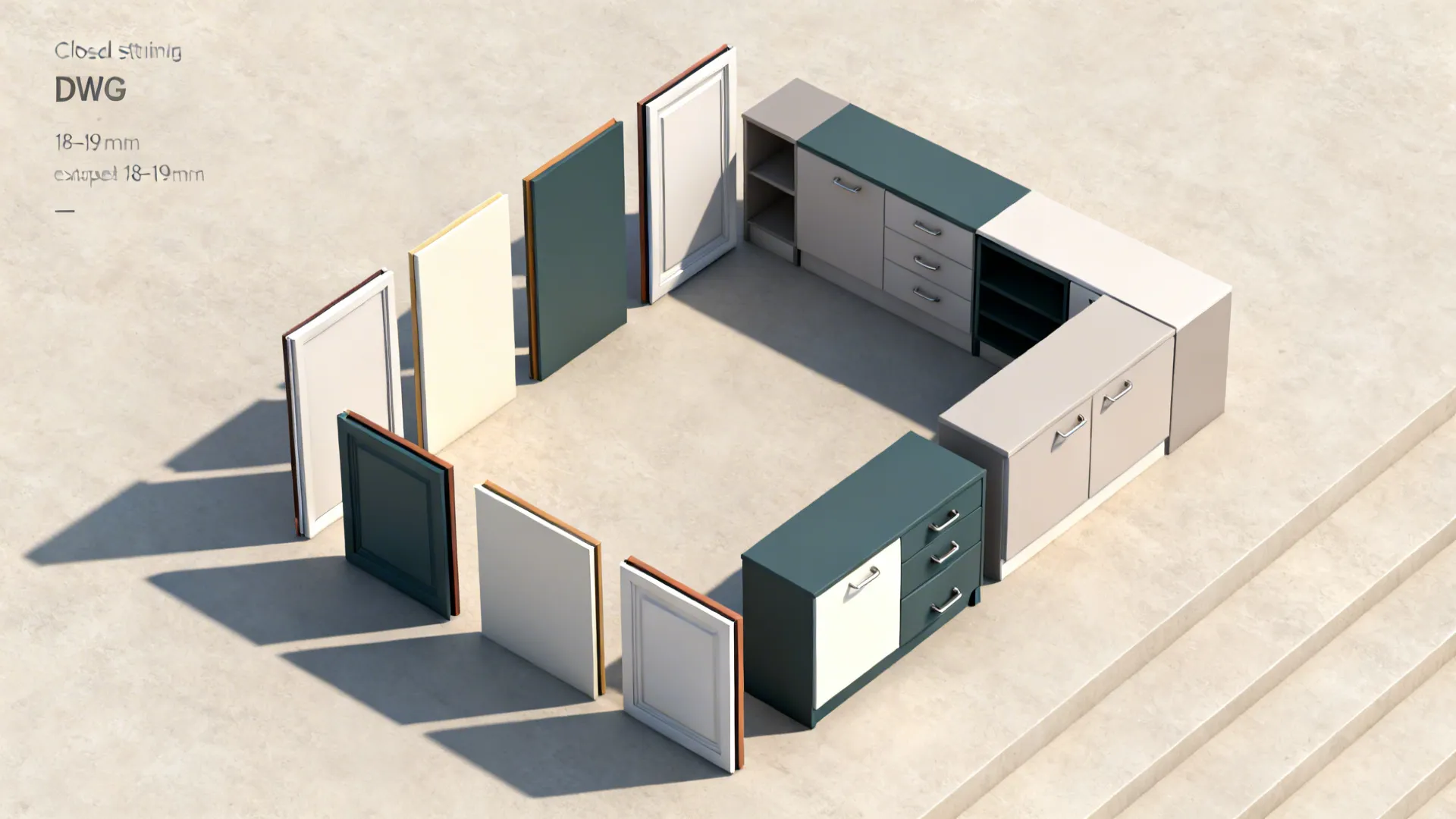

Solid Modeling: Closed Polylines to Clean Meshes

My Take: When you import open polylines, you’re inviting gaps and shading artifacts. I trace cabinet profiles as closed polylines in AutoCAD, then extrude with precise thickness (18–19 mm for carcass panels, 22 mm for fronts if needed) to get watertight geometry in Max. It’s the most reliable way to get build-like geometry.

Pros: Closed profiles extruded in Max produce predictable topology that’s easy to unwrap and texture. For the long-tail query importing cabinets from AutoCAD to 3ds Max with correct dimensions, this approach minimizes scale errors and aligns perfectly with edge banding widths. You’ll also avoid backface culling issues when rendering interiors.

Cons: Over-detailing every panel (e.g., shelf pins, hinge cups) increases polycount and slows your scene. You also risk double faces when extruding imported splines if the normals get flipped—nothing like a black-rendered cabinet to ruin a deadline mood.

Tips / Case / Cost: In AutoCAD, set units to millimeters consistently across DWG and Max. In 3ds Max, use “Cap Start/End” on extrusions and apply a Normal modifier to fix flipped faces. Keep carcass modules simple; add hardware only for close-ups.

save pin

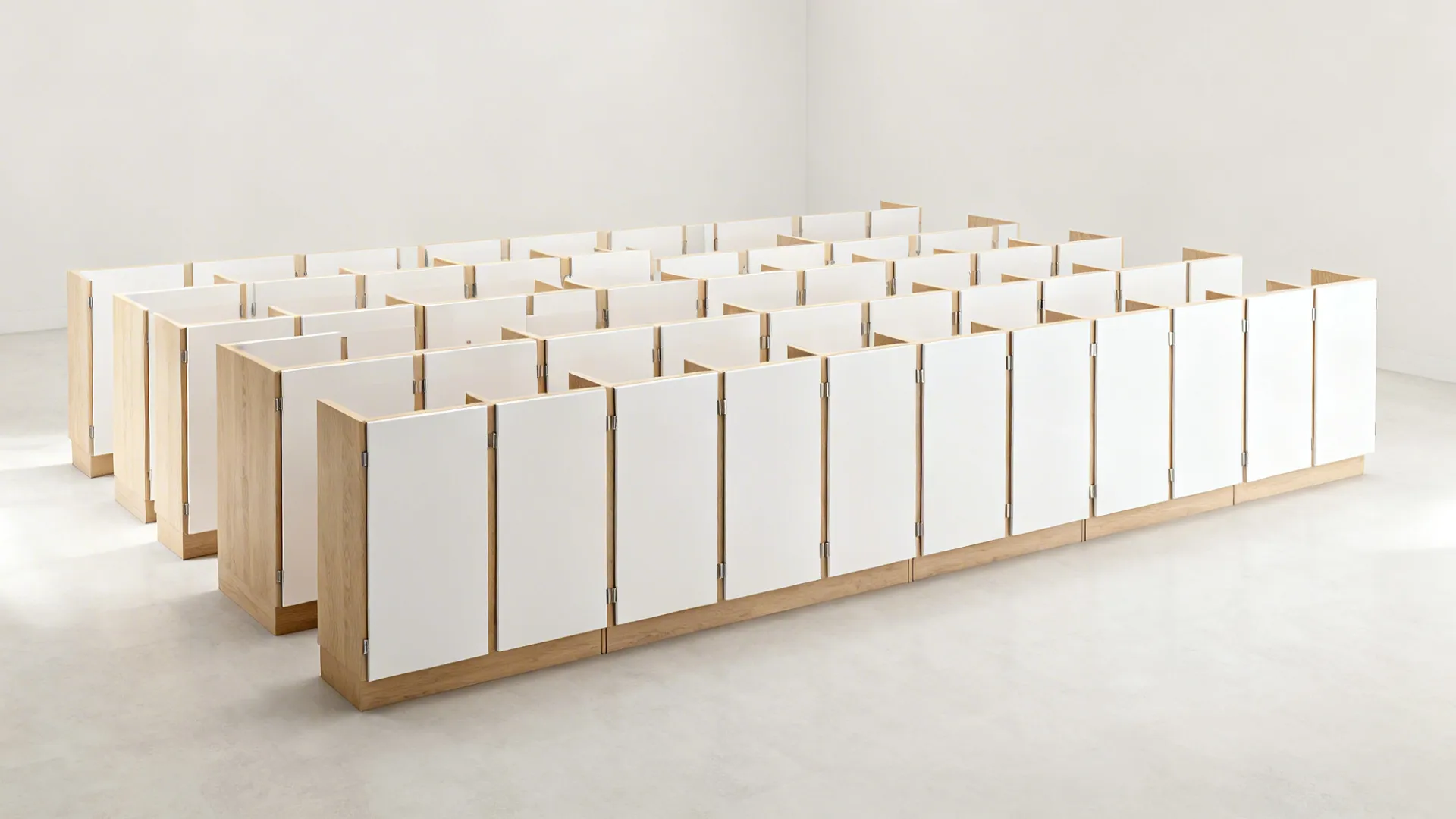

Parametric Efficiency: Instances, Arrays, and Modifiers

My Take: For production work, I build cabinet modules as parametric parts—one door front, instanced across the kitchen. Change the bevel, and every door updates. It’s the fastest way I’ve found to iterate finishes and edge details without rework.

Pros: Instances and arrays accelerate 3ds Max cabinet modeling from AutoCAD by letting you reuse geometry for base, wall, and tall units. You’ll keep file sizes manageable and ensure consistent gap lines (2–3 mm typical). Modifier stacks (Edit Poly + Chamfer + UVW Map) become your playbook for clean, repeatable details.

Cons: Instanced geometry can bite you when you need one-off edits—break the instance, and you lose sync. Arrays require discipline with pivots; misaligned pivots will scatter your cabinets like dominos. I’ve had a whole bank of wall units rotate off the wall due to one sloppy pivot.

Tips / Case / Cost: Place pivots at hinge edges for doors and at the back-bottom corner for carcasses to keep placement logical. Use Named Selection Sets for fronts vs. carcasses, and save iteration states with Scene States. For practical layout inspiration midway through your project, browse examples like 玻璃背板让厨房更通透 to see how wall reflections and cabinet gaps read in space.

save pin

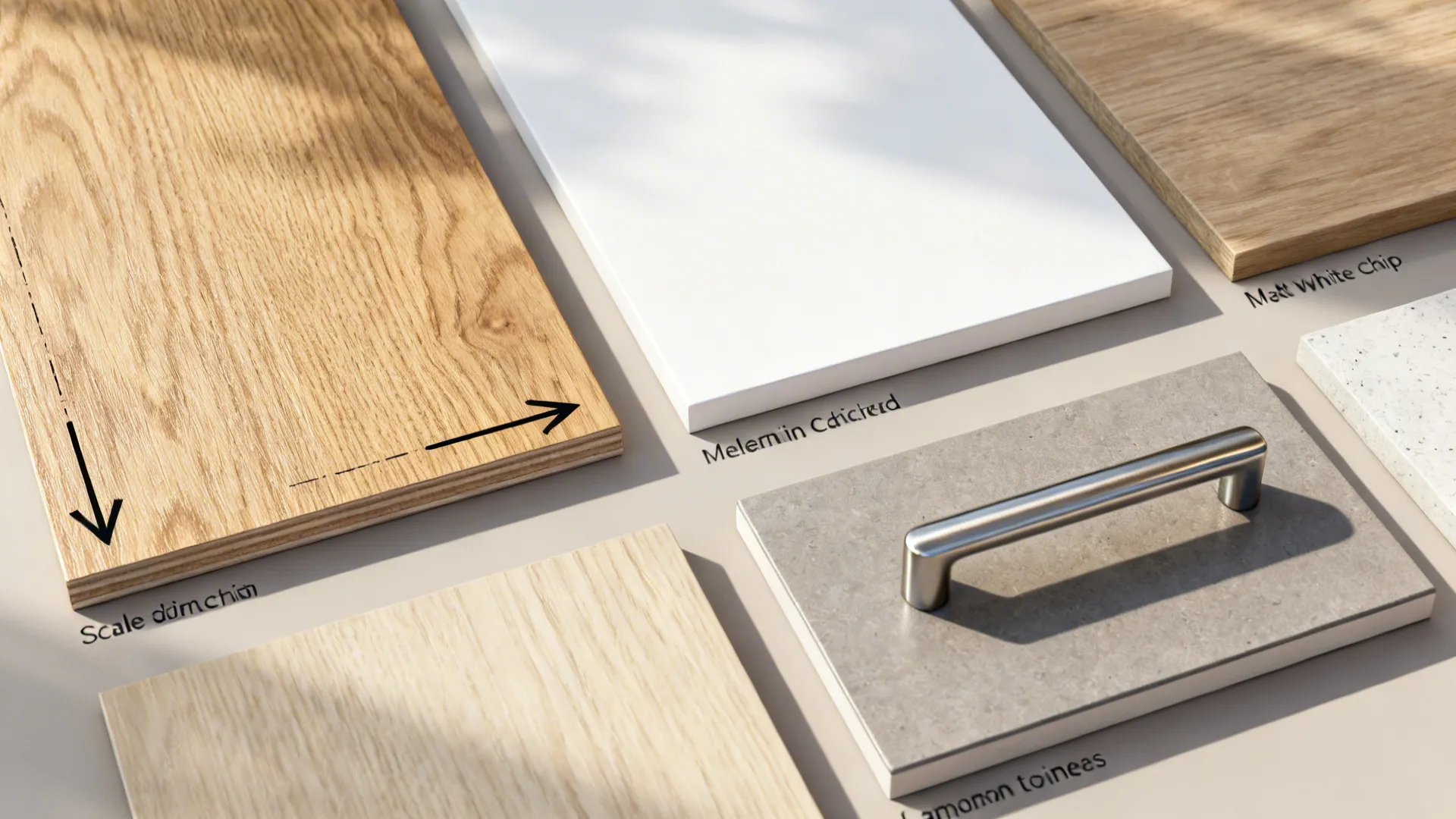

Material Accuracy: Realistic Textures, UVs, and Edge Details

My Take: Nothing sells a kitchen like convincing materials. I assign distinct material IDs to carcass, fronts, kickboards, and counters, then apply UVW Map per component. A subtle 0.7–1.2 mm bevel makes MDF or plywood edges catch light realistically—tiny details, big realism.

Pros: Accurate UVs align wood grain across panels and match 3ds Max kitchen cabinet rendering from AutoCAD expectations for clients. Using physically based materials (PBR) with measured roughness values helps match real laminates and veneers. Studies from ASHRAE on lighting reflectance show that proper gloss selection improves perceived brightness in small kitchens—helpful when you design for tighter spaces.

Cons: High-res textures and displacement can bloat render times. Edge chamfers everywhere can cause smoothing artifacts if you overdo them or skip smoothing groups. Also, color shifts between monitor profiles might cause your “natural oak” to look like “pumpkin spice” on the client’s screen.

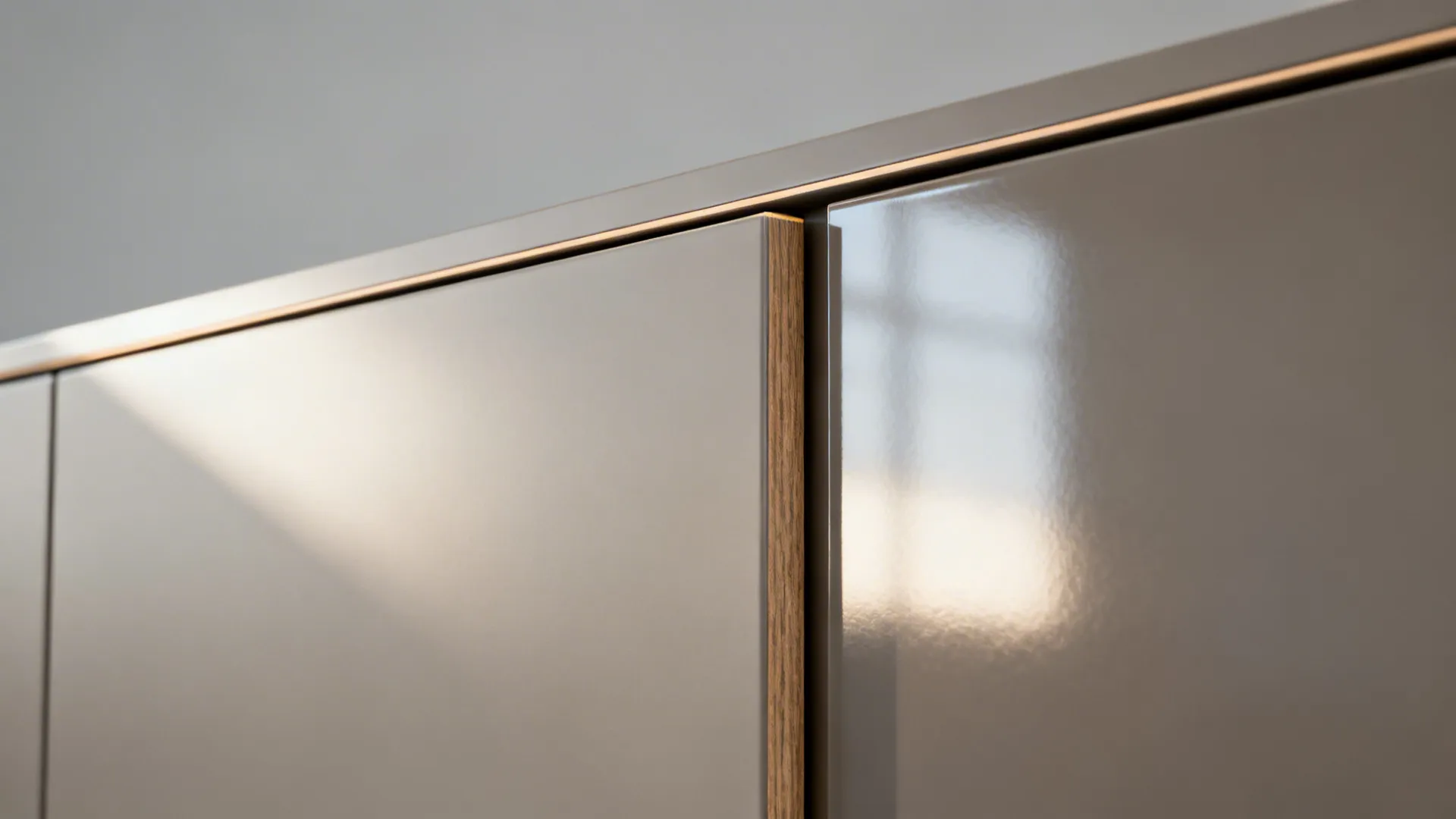

Tips / Case / Cost: Standardize material IDs: 1-carcass, 2-fronts, 3-edges, 4-counter, 5-backsplash. Use Triplanar mapping for interiors where UV seams are tricky. For small kitchens, go semi-matte on upper fronts to keep reflections controlled and space feeling calm.

save pin

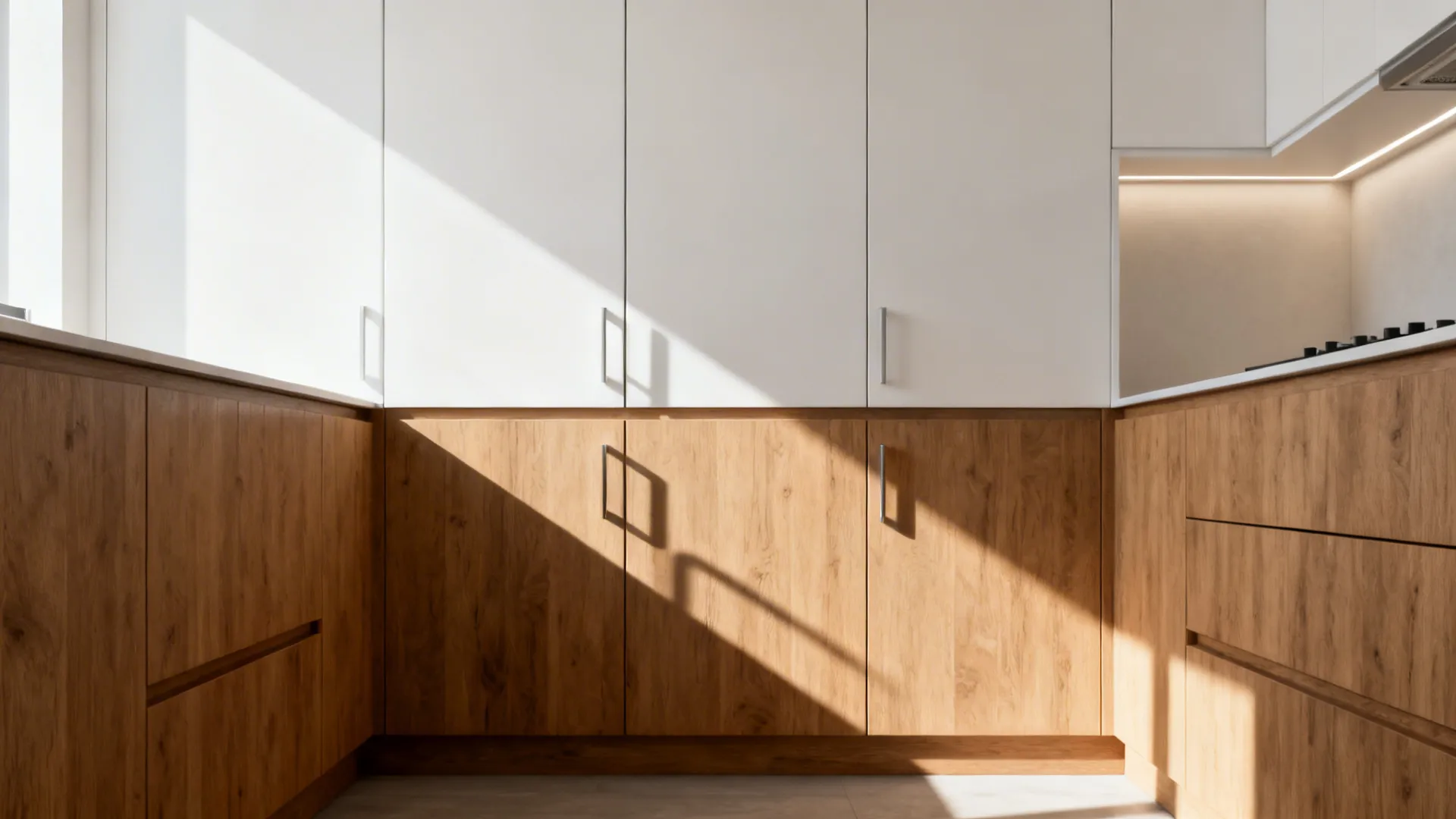

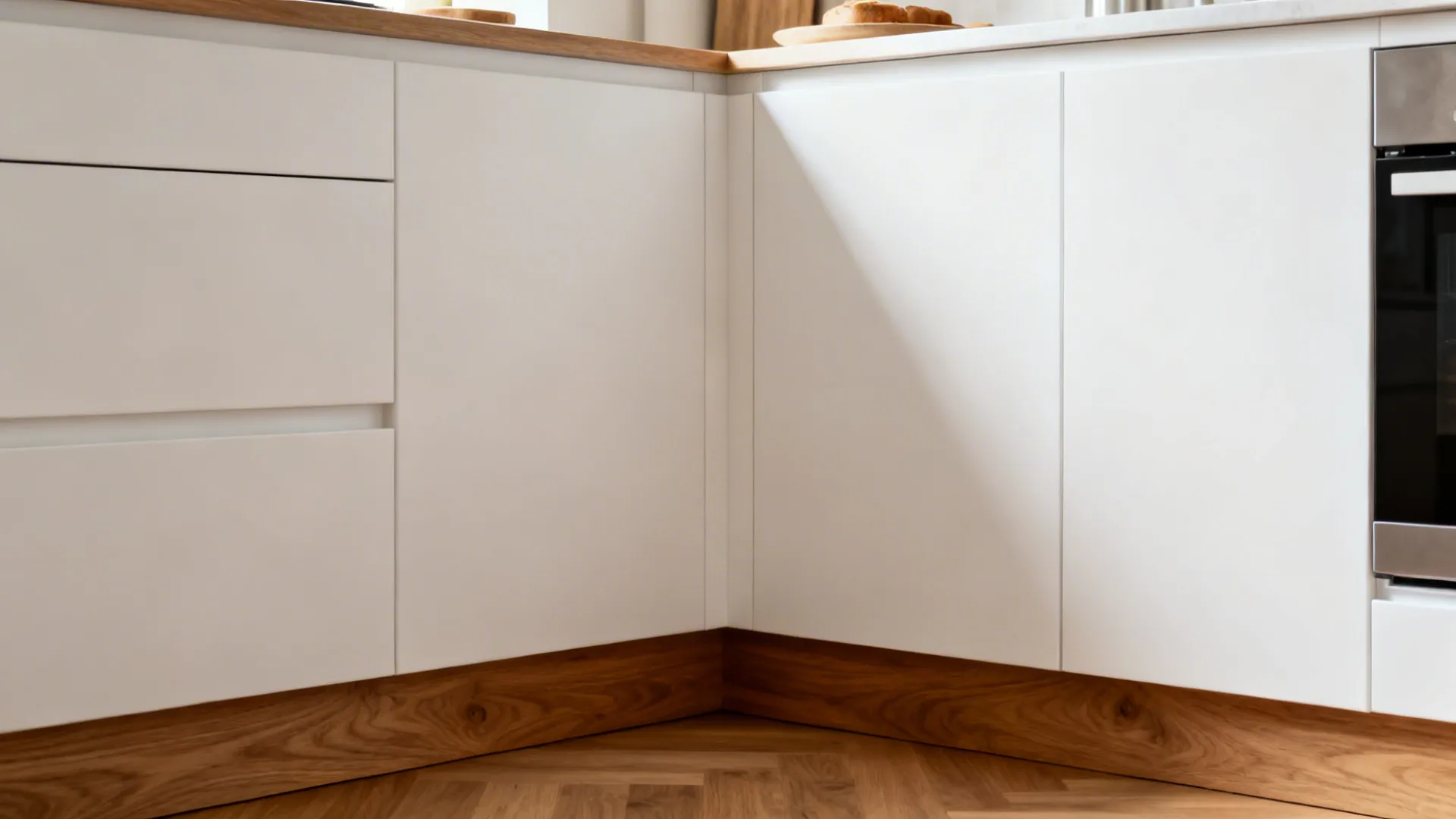

Lighting and Presentation: Verify Gaps, Reveals, and Hardware

My Take: I run a quick daylight plus soft area light setup to verify reveal lines and door clearances. You don’t need full-blown GI for checks—just enough to see gaps, hinge swing, and handle shadows. It’s the fastest sanity check before sending proofs.

Pros: Simple lighting emphasizes the precision of how to draw kitchen cabinets in 3ds Max importing from AutoCAD workflows by showcasing consistent reveals and shadow continuity. It helps you catch interference with appliances, tall unit doors, and internal drawers. According to IES Lighting Handbook recommendations, balanced task lighting improves visual clarity in small kitchens, which translates well in previsualization too.

Cons: Fast lighting tests can give you a false sense of security if your gamma or LUT is off—materials may wash out in the final render. Also, hardware with complex geometry (like textured pulls) can spike render times if left unoptimized.

Tips / Case / Cost: Use override materials (light gray) for early checks; reintroduce final materials for sign-off. Keep hardware as low-poly proxies until hero shots. For advanced visual references close to project wrap, study scenes such as 木质元素带来的温暖氛围 to see how warm finishes and lighting interplay in compact layouts.

save pin

Step-by-Step: Importing AutoCAD Cabinets into 3ds Max

I promised practical steps, so here’s my go-to workflow distilled from countless projects:

1) Clean the DWG in AutoCAD: purge, audit, and set consistent units (mm). Lock non-cabinet layers (architecture, MEP) and isolate cabinets. Convert open polylines to closed polylines for panels. Name layers logically (BASE_720H, WALL_360H, TOE_100H).

2) Prepare profiles: for each cabinet module, draw closed profiles for side panels, shelves, back, and door fronts if you want panelized control in Max. Keep hardware as separate blocks for optional import.

3) Export settings: Save as 2007/2010 DWG if your Max prefers older formats. Maintain layer colors or names for easy mapping on import.

4) Import into 3ds Max: use File > Import > DWG, choose “Combine by Layer” if you want grouped geometry per layer. Set scale to millimeters and verify with a known dimension (e.g., 600 mm base carcass width).

5) Convert and clean: convert imported splines to editable splines (if needed), then Extrude with precise thickness (18–19 mm). Cap ends, apply Normal modifier if faces flip. Attach related panels into a carcass object and assign Material IDs per part.

6) Instancing & arrays: build one base cabinet module (e.g., 600 mm two-door), set pivot logically, then instance across the run. For varied widths, clone as instance when possible; convert to unique only when necessary.

7) Detailing: add subtle chamfers (0.7–1.2 mm) on visible edges. Model toe kicks as separate objects for flexible finishes. Doors: set 2–3 mm reveals; align handles with a helper object for consistency.

8) Materials: load PBR materials (melamine, lacquer, veneer). Assign correct roughness/IOR; ensure UV scale matches real wood planks (e.g., 120–180 mm grain repeat for oak plank visuals).

9) Lighting checks: add an HDRI for ambient and a soft panel light over worktops. Check for door collisions and shadow continuity. Use Clay render first, then finalize materials.

10) Export/Render: save a clean version with layers collapsed where needed; render medium samples for client approvals, then crank settings only for hero shots.

save pin

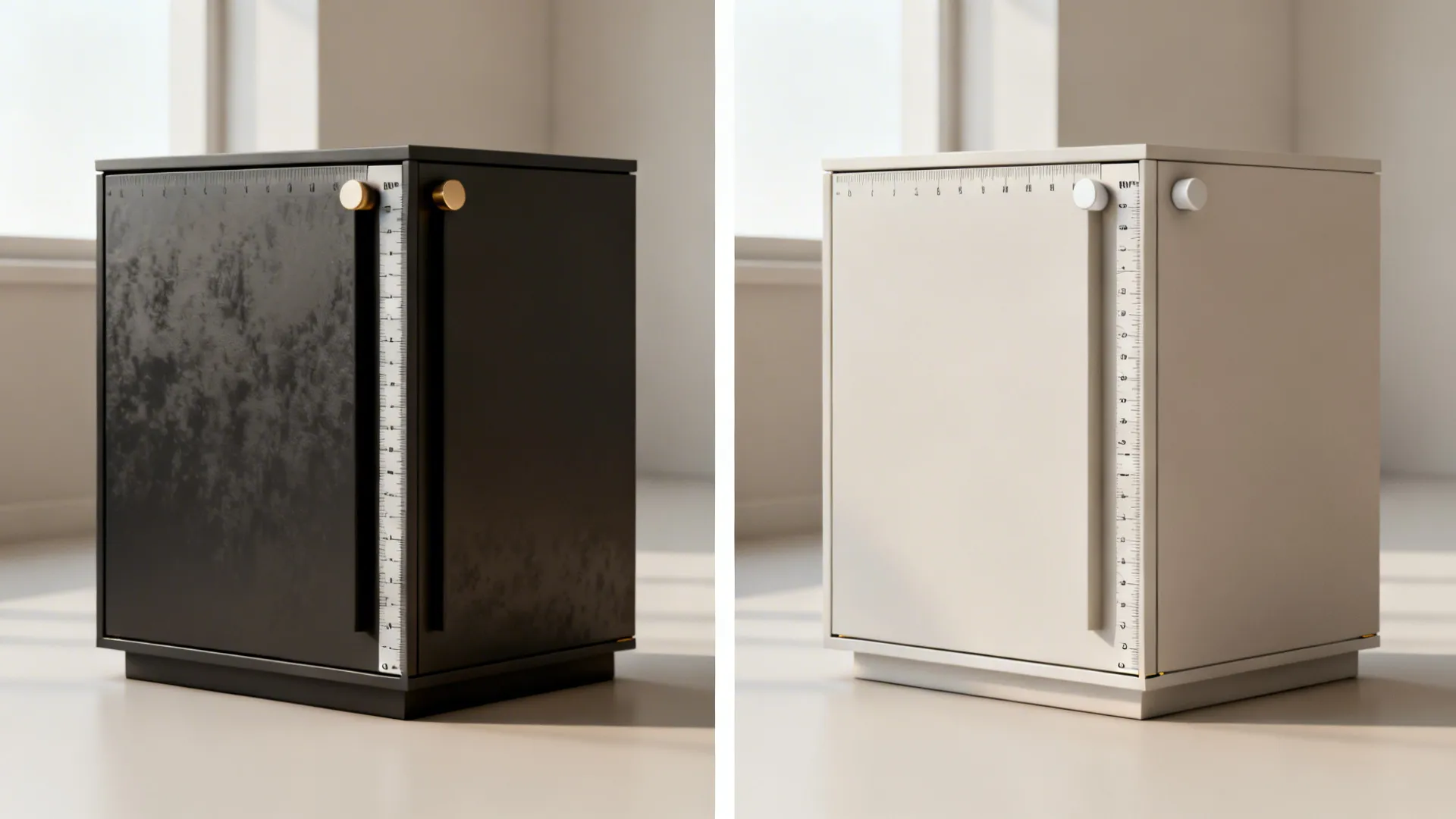

Common Pitfalls and Fixes

- Scale mismatch: if your 600 mm cabinet imports as 0.6 units, check System Unit Setup in Max and DWG units—keep both in millimeters.

- Double surfaces: avoid overlapping faces when extruding splines; weld vertices first and check for stray segments.

- Smoothing chaos: set explicit smoothing groups before chamfering; use Weighted Normals when needed for flat panel realism.

- UV stretching: apply Box mapping per panel; for continuous wood grain across fronts, unwrap and align island rotation.

- Heavy scenes: instance doors and shelves; keep hardware as proxies; use display layers to hide internals during layout.

save pin

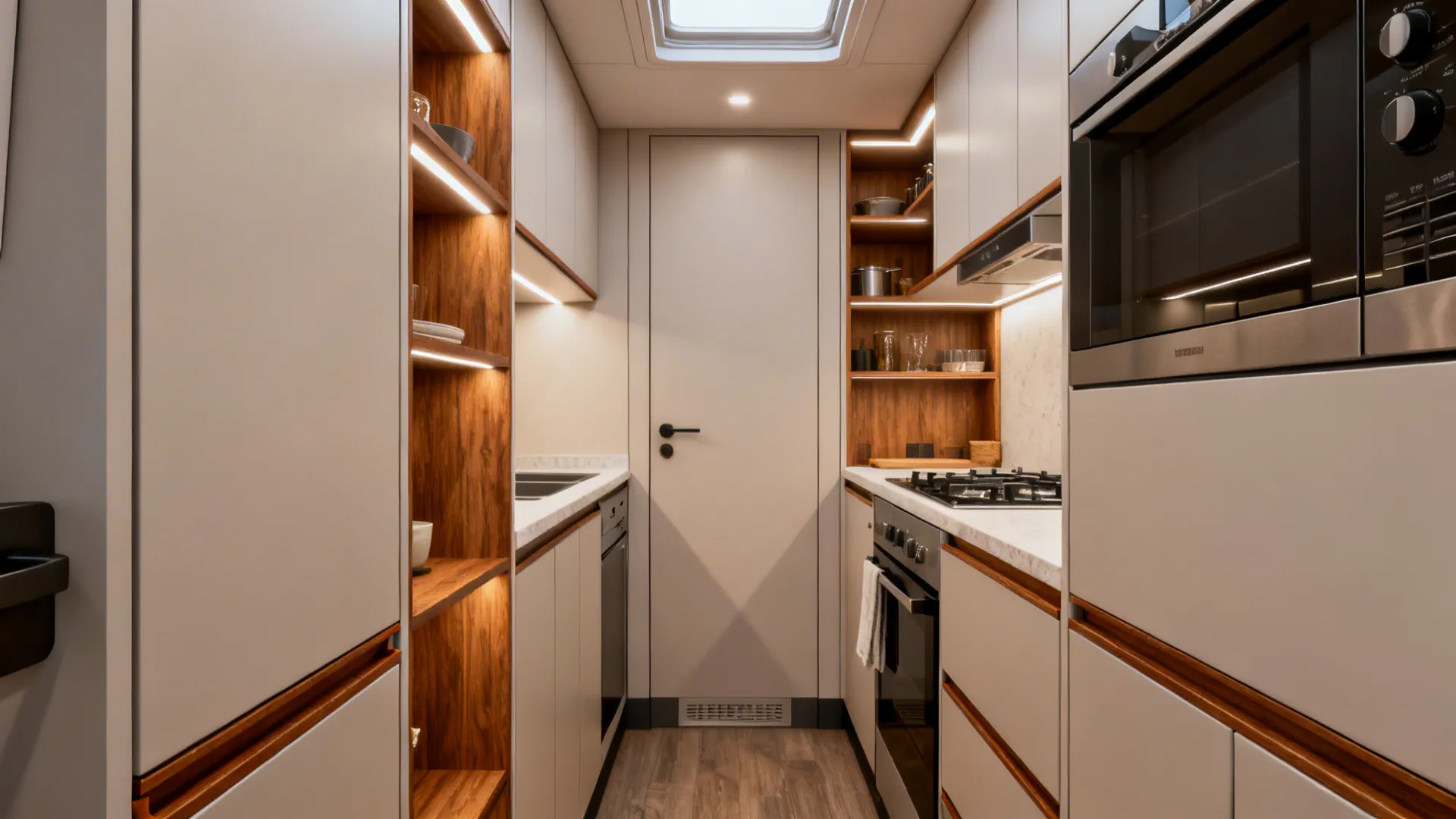

Why Small Kitchens Benefit Most

Small spaces demand smarter design, not compromise. A precise AutoCAD-to-3ds Max cabinet workflow lets you manage millimeter-perfect clearances, maximize storage, and sell ideas with honest visuals. When I work on tight galley kitchens, the accuracy of reveals and toe kicks often makes or breaks appliance integration and ergonomic flow.

save pin

Data and Sources

- IES Lighting Handbook (Illuminating Engineering Society) emphasizes task and ambient balance for visual comfort—principles that directly influence how reveals and materials read in renderings.

- ASHRAE lighting/reflectance studies indicate surface finishes affect perceived brightness; semi-matte fronts can stabilize reflections in compact kitchens.

Where possible, align your material choices and luminance levels to these standards for renderings that feel closer to real-world outcomes.

save pin

Conclusion

In short, how to draw kitchen cabinets in 3ds Max importing from AutoCAD is about preparation, precision, and presentation. Small kitchens don’t limit creativity—they demand smarter design. From clean layers to parametric instances and measured materials, this workflow gives you control over details that clients actually notice. If you keep units consistent and geometry clean, your cabinets will look great and build right. Which of these five design ideas will you try first in your next compact kitchen?

save pin

FAQ

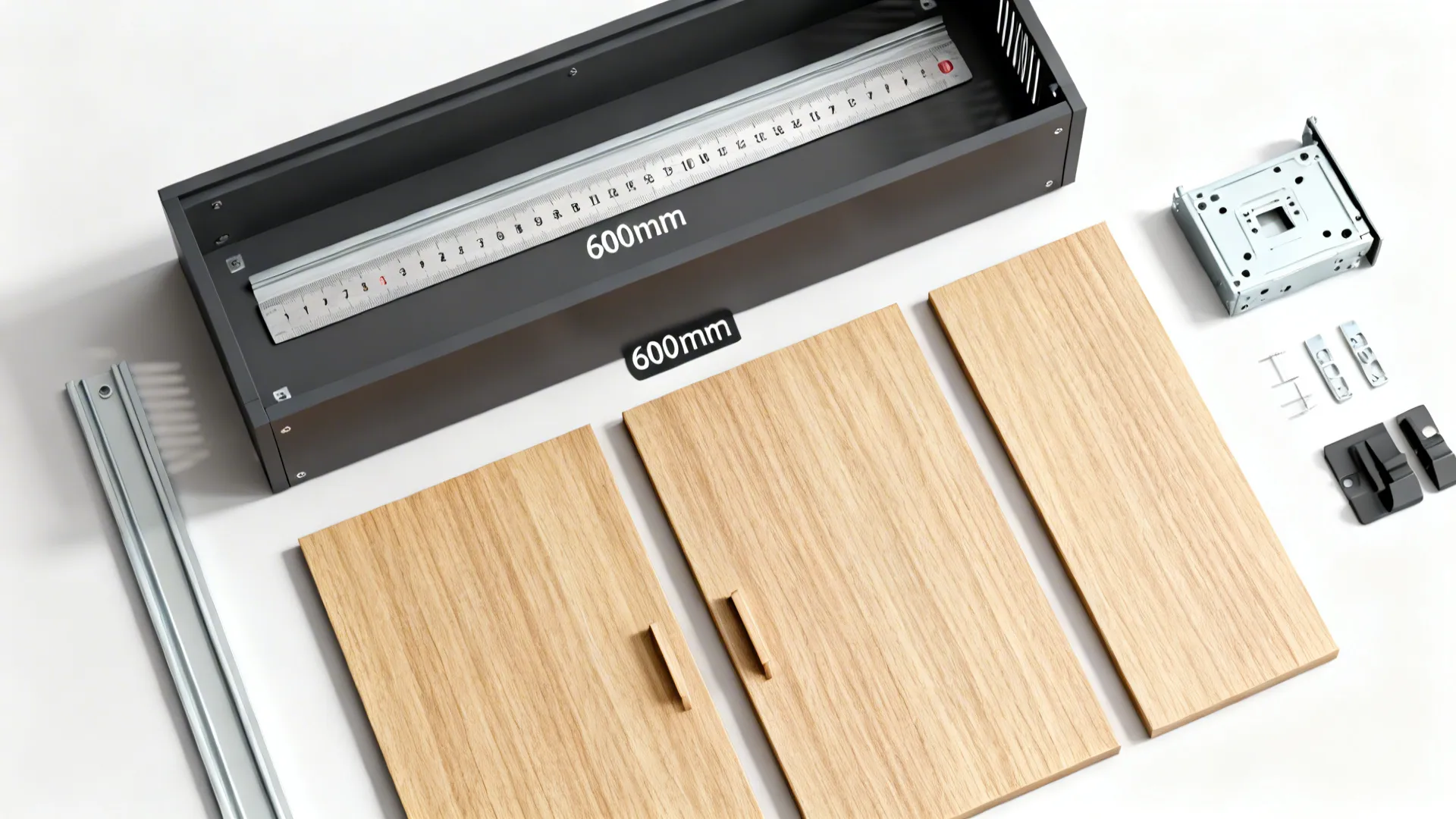

1) What’s the best way to keep scale correct when importing DWG into 3ds Max?

Set both AutoCAD and 3ds Max to millimeters. In Max, check System Unit Setup and Import dialog scale. Verify a known dimension (e.g., a 600 mm cabinet) after import before modeling further.

2) Should I model cabinet hardware in detail?

Only for hero shots. Use low-poly proxies or simple cylinders for checks, then swap high-detail pulls and hinges for final renders to keep the scene fast and responsive.

3) How do I avoid flipped faces after extruding AutoCAD splines?

Enable Cap Start/End in Extrude and add a Normal modifier if faces appear dark or invisible. Ensure splines are closed and vertex directions are consistent before extrusion.

4) What edge bevel size looks realistic for cabinets?

Between 0.7 and 1.2 mm works for most MDF or laminated fronts. Too large and panels look cartoonish; too small and highlights disappear under typical render lighting.

5) How do I align wood grain across multiple doors and drawers?

Assign consistent UVW Map scaling and use Unwrap UVW to rotate islands so grains run continuously. Match texture origin on one door and instance the rest for perfect alignment.

6) Is it better to extrude in AutoCAD or 3ds Max?

Extruding in Max offers better control over caps, normals, and modifiers. Import closed splines from AutoCAD, then extrude in Max to maintain a clean stack and easy edits.

7) How much reveal should I leave between door fronts?

2–3 mm is typical for European frameless cabinets. Test swings in Max to ensure handles and internal drawers clear adjacent fronts and appliances.

8) Any lighting standards I should reference for kitchen visualization?

The IES Lighting Handbook provides guidance on task and ambient lighting that helps validate brightness and contrast in visuals. For layout inspiration, seeing reflections and gaps in context can help—check references like 极简风的厨房收纳设计 to understand how cabinet lines read under varied lighting.
