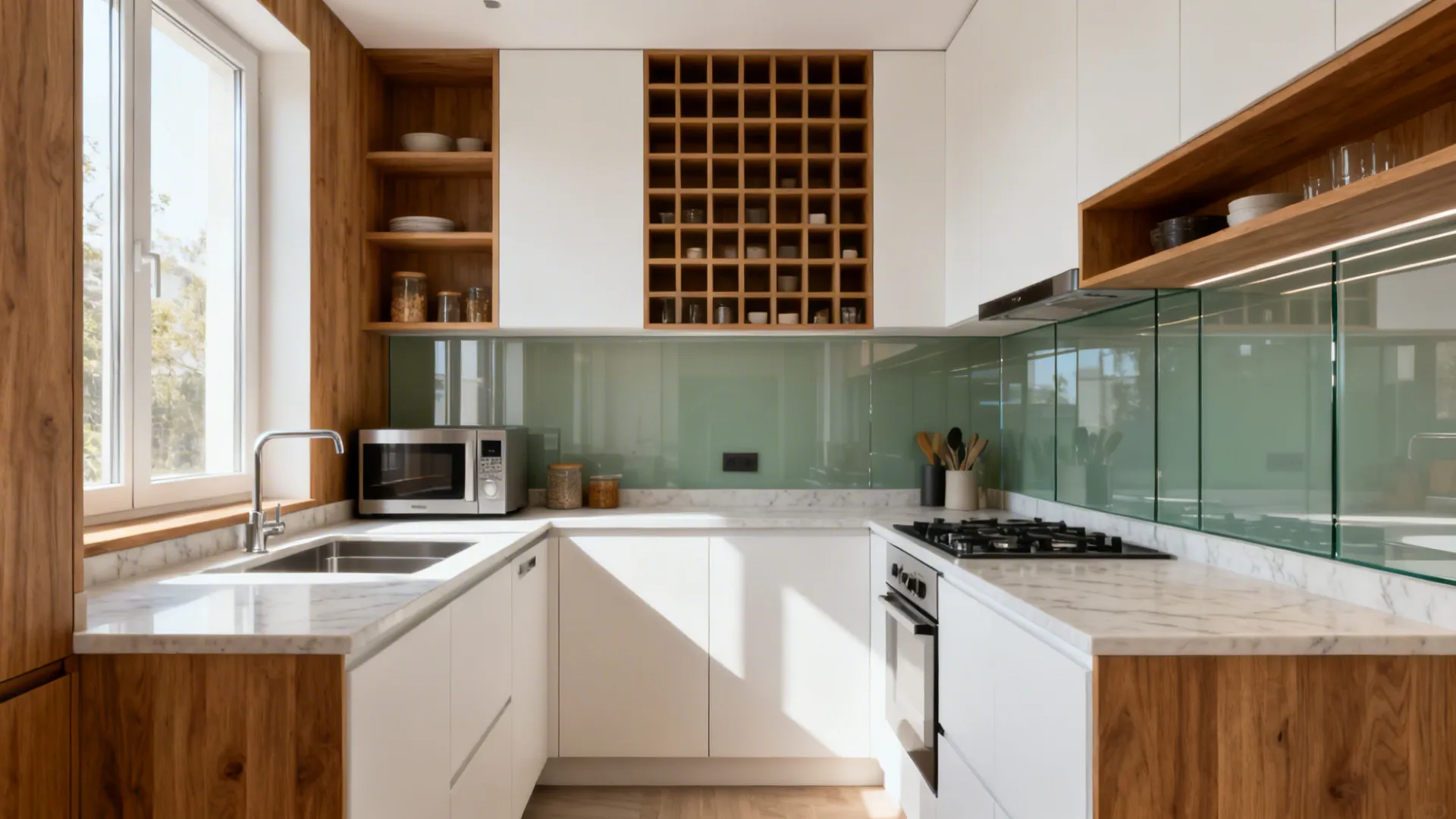

How to Draw Kitchen Design in AutoCAD: 5 Pro Steps: A senior interior designer’s friendly guide to planning a small kitchen in AutoCAD—5 practical ideas with pros, cons, budgets, and real-world tips

[Section: 引言]

I’ve spent a decade designing small kitchens that punch way above their weight, and the current interior design trend is all about lean, efficient layouts with clean lines and warm materials. Small spaces spark big creativity—especially when you draft smart. In this guide, I’ll share 5 kitchen design ideas tailored for AutoCAD workflows, blending my real project experience with expert data to help you draw a kitchen design in AutoCAD with confidence.

Before we dive in, here’s a resource I’ve often referenced when I need to sanity-check a compact plan: L-shaped layout adds more counter run. It’s one of those practical patterns that adapts well from sketch to finished CAD.

[Section: 灵感列表]

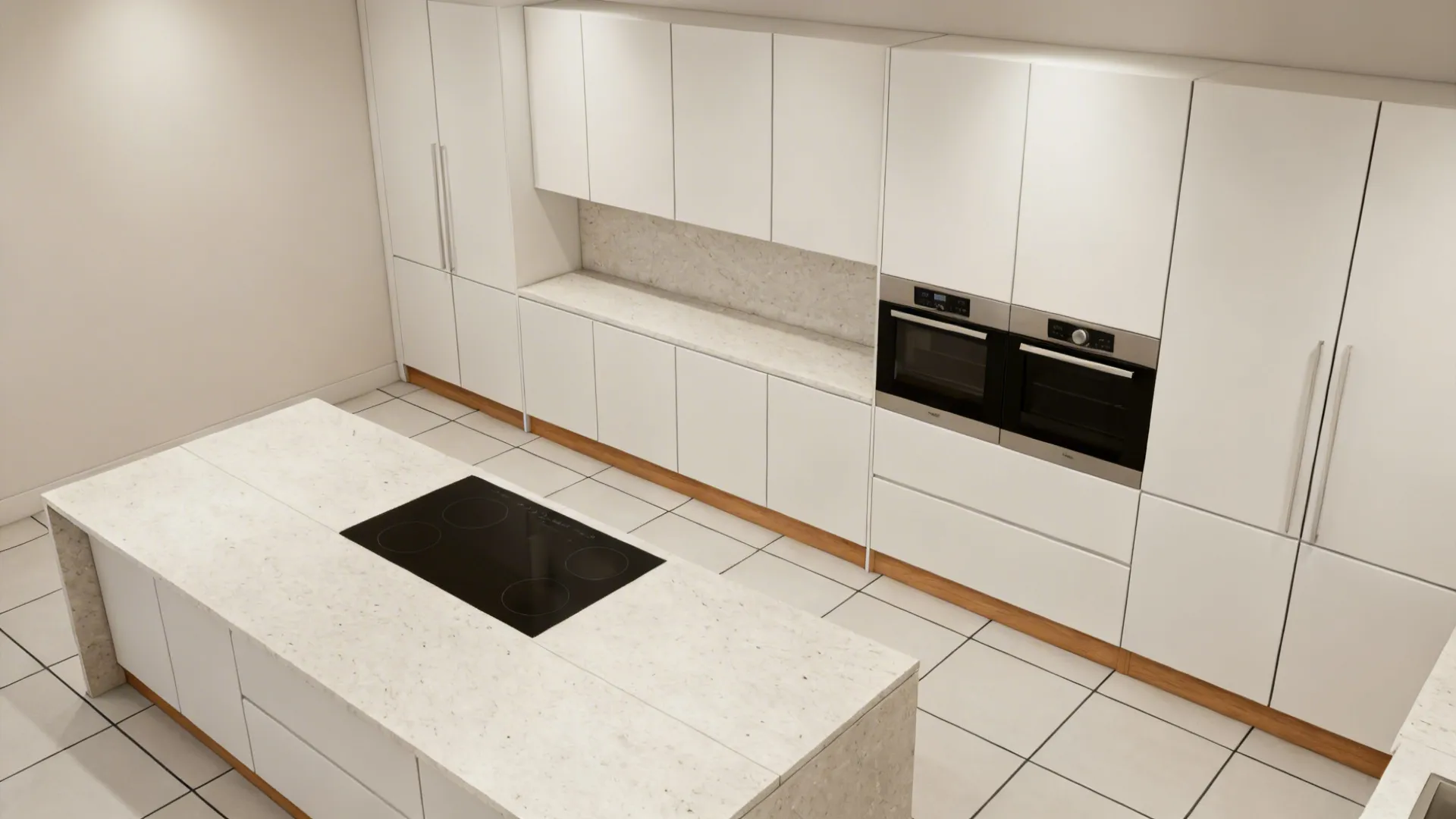

Minimalist Storage That Follows the Grid

My Take: When I model cabinets in AutoCAD, I start with a strict grid (usually 100mm or 4-inch modules) and lock layers for base, wall, and tall units. In one city apartment, this grid-first approach kept my dimensions consistent and made late-night revisions painless.

Pros: A grid helps you draw kitchen design in AutoCAD with fewer errors and faster edits, especially for long cabinet runs and appliance clearances. Modular widths make parametric tweaks simpler and improve alignment with standard 600mm appliances and 900mm worktop heights. According to the NKBA, base cabinet depths of 24 inches (about 610 mm) and 15-inch wall cabinet depths remain a functional baseline for most kitchens (NKBA Kitchen Planning Guidelines).

Cons: A strict grid can feel rigid when a wall is out-of-square—your neat elevation might not match site reality. Also, custom appliance sizes (say, a 30-inch pro range) can break the rhythm and force redrawing.

Tips/Cost: Create dynamic blocks for cabinet widths (300/400/600/800 mm) with attributes for door swing. Set up layer filters (Base_Cabs, Wall_Cabs, Appliances) so you can freeze linework while dimensioning. Budget-wise, modular systems stay cost-efficient; bespoke widths escalate fabrication time and price.

save pin

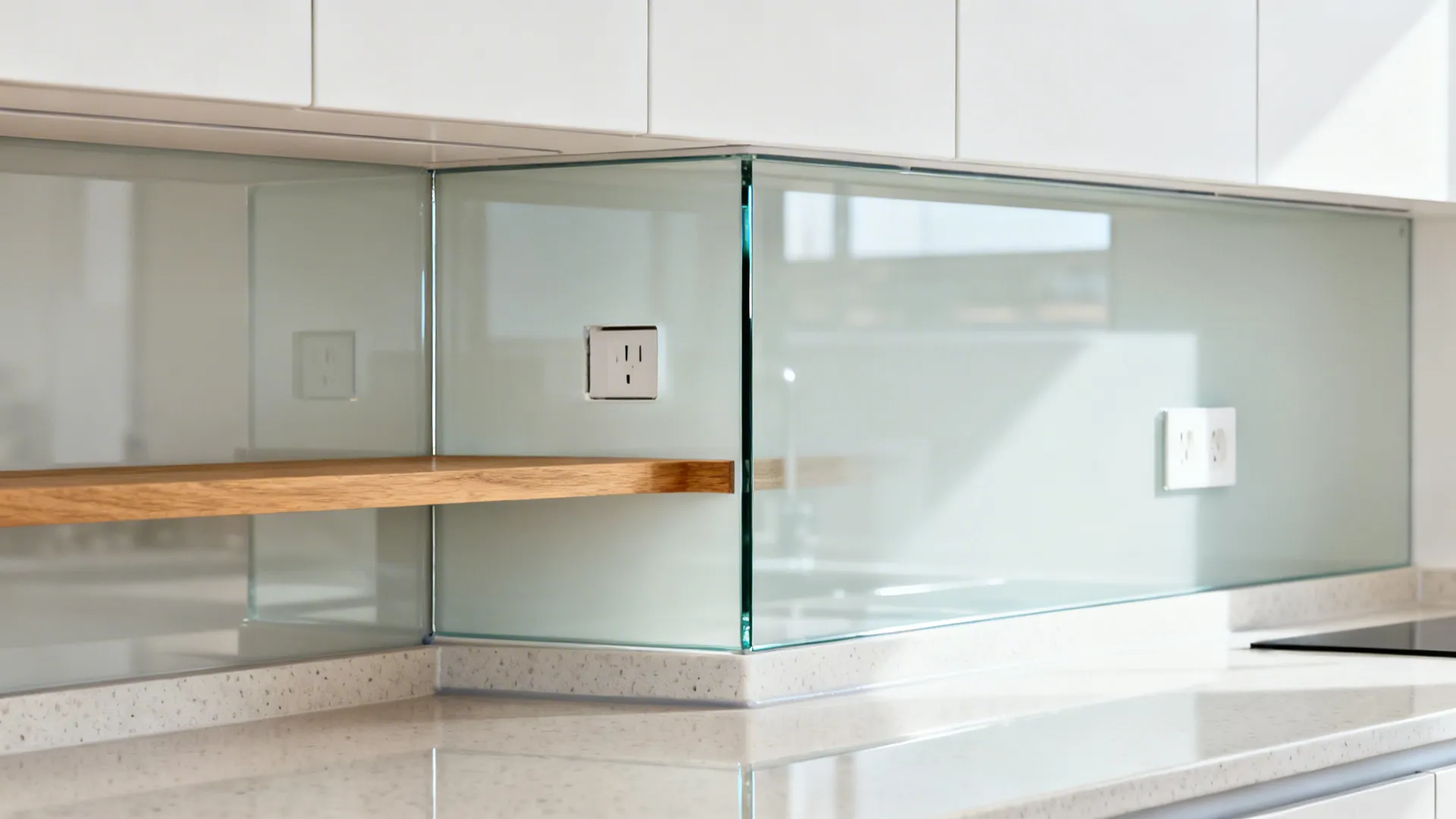

Glass Backsplash for Light and Depth

My Take: I once swapped a standard tile backsplash for low-iron glass in a narrow galley, then drafted its precise cutouts in AutoCAD for sockets and rails. The kitchen instantly felt wider, and reflections doubled the perceived daylight.

Pros: A glass backsplash increases reflectance and enhances task lighting, a strong long-tail win for small kitchens aiming for a brighter workspace. It’s easy to represent in CAD with a hatch or solid fill for clarity. The American Lighting Association notes that boosting vertical surface reflectance can measurably improve overall illumination levels with fewer fixtures (ALA lighting guidance).

Cons: Glass demands exact measurements; even a 3 mm mismatch at outlets becomes obvious. Fingerprints and smudges can be a daily chore—beautiful, but needy.

Tips/Case: Dimension outlet cutouts in paper space with a dedicated detail view at 1:5 or 1:10. Include silicone expansion gaps in your sections. If you’re considering layout alternatives for more counter continuity, this case study offers a helpful lens: “glass splashback makes the kitchen feel more open”—a good reminder that materials and planning go hand-in-hand.

save pin

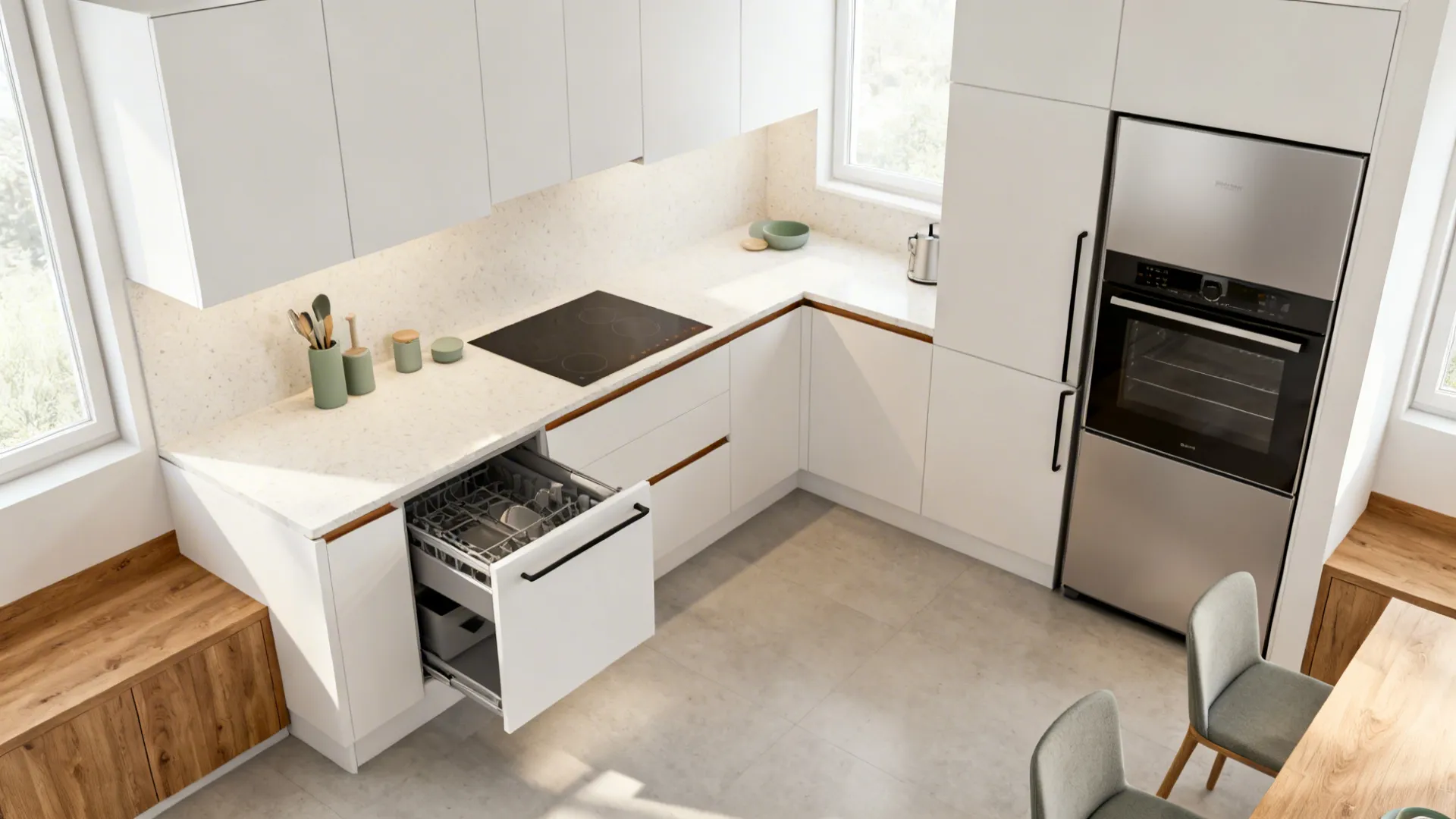

L-Shaped Layout for Counter Efficiency

My Take: L-shapes are my go-to in tight spaces: they unlock a second run of worktop without creating a corridor trap. In AutoCAD, I block the corner as a 900x900 mm zone and test clearances for fridge and oven doors before settling appliance positions.

Pros: An L arrangement boosts prep area and supports an efficient work triangle, a common long-tail query for people learning how to draw kitchen design in AutoCAD. It also improves traffic flow compared with a parallel galley and makes it easier to add seating on the opposite side. The Kitchen & Bath Industry Show trend reports consistently spotlight corner solutions as a small-space multiplier (KBIS trend briefs).

Cons: Corners can be dead zones if you don’t plan hardware—blind corners waste valuable space. Corner sinks can complicate plumbing and eat into base cabinet organization.

Tips/Cost: In plan, allocate 1,100–1,200 mm for a comfortable working aisle. Use dynamic blocks for corner pull-outs; keep 50 mm fillers near appliances to absorb tolerances. For deeper exploration of plan geometry and 3D checks, see how an “L-shape layout creates more counter surface” can be validated in visualization before you lock the CAD.

save pin

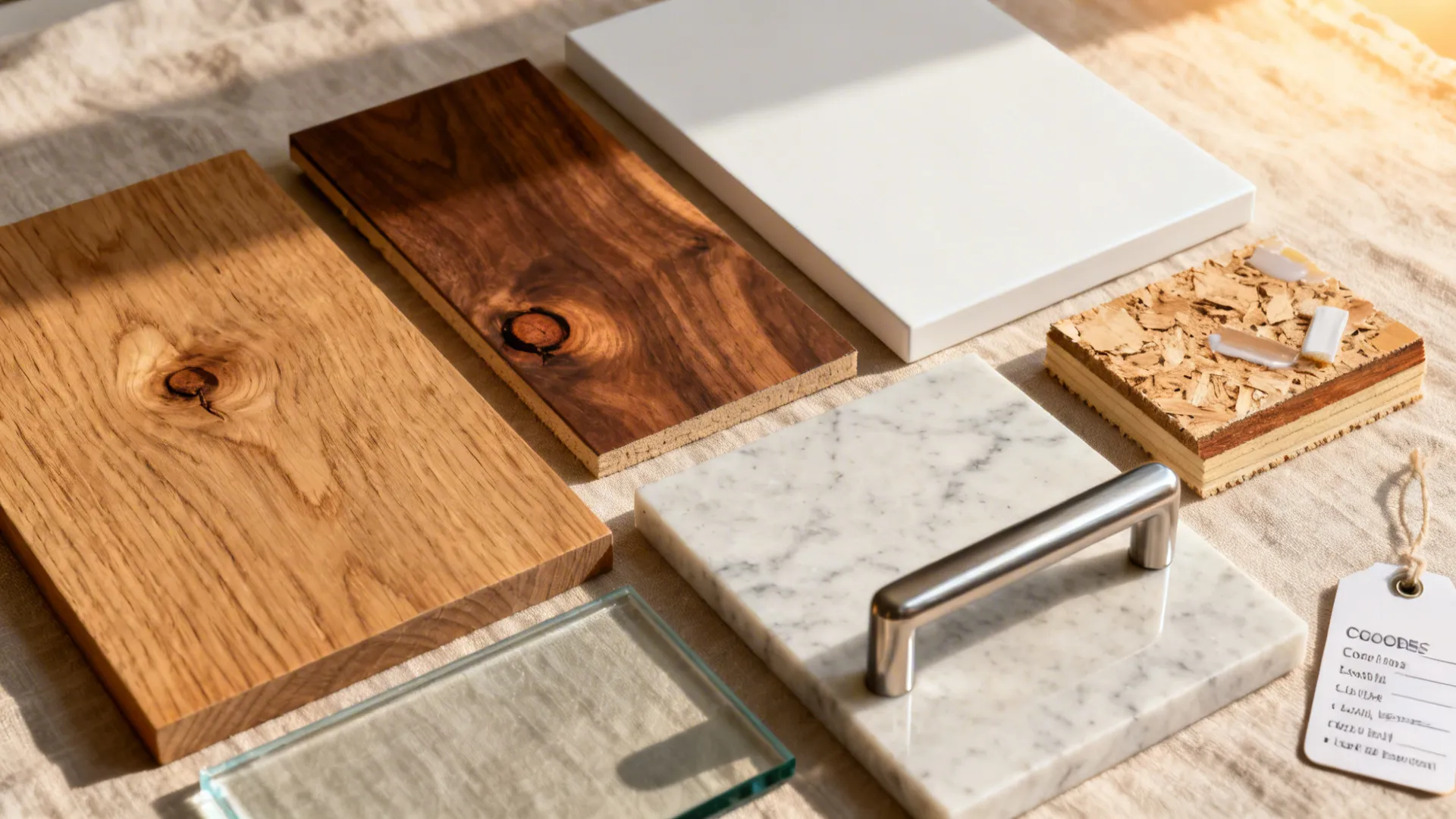

Warmth with Wood Accents

My Take: After a cool-toned CAD plan, I’ll layer wood textures in plotted elevations to preview vibe: rift oak doors, walnut shelves, or even a wood-framed niche. In a 6 m² kitchen, a modest wood band above the backsplash softened the entire look.

Pros: Wood accents add tactile warmth and contrast, a proven long-tail strategy to offset the clinical feel of compact kitchens. Veneer panels are easy to detail in CAD with standardized thicknesses (16–19 mm), and edge-banding notes keep fabricators aligned. Studies in environmental psychology (e.g., biophilic design literature summarized by Terrapin Bright Green) associate natural materials with perceived comfort and well-being.

Cons: Wood near cooktops needs heat and moisture protection, or it may cup or discolor. Not all veneers color-match across batches; drafting’s the easy part—specifying consistent lots is the hard part.

Tips/Case: Add sections for end-grain and protective reveals; call out finish codes (e.g., 2K polyurethane, 20–25 gloss). In small budgets, use wood on horizontals or open shelves; keep carcasses in melamine to save costs. If you’re exploring AI-assisted iterations for material palettes, this showcases how “wood accents bring a cozy atmosphere” can be previewed before production drawings.

save pin

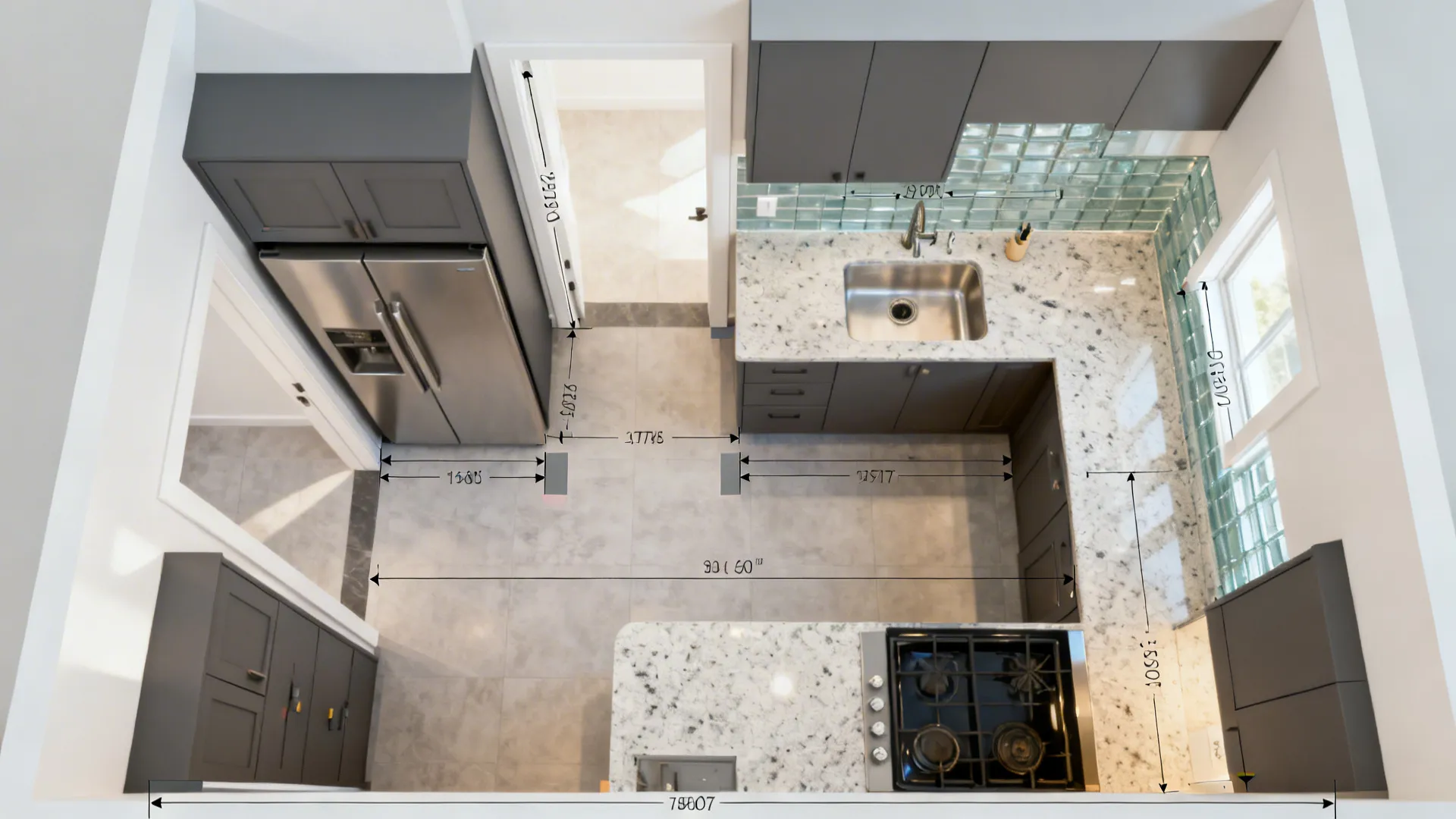

Dimensioning, Clearances, and Codes

My Take: My AutoCAD model is only as good as its dimension logic. I xref the shell, lock major grids, and build a dedicated annotation layer for clearances—dishwasher door arc, fridge swing, and toe-kick set-backs—so no one misses them on site.

Pros: Clear dimensioning is the backbone when you draw kitchen design in AutoCAD: consistent baselines (finished wall to cabinet face), explicit appliance rough-ins, and centerlines reduce RFIs. Long-tail gains include smoother fabrication drawings and fewer site surprises. Per the NKBA, recommended clearances include at least 15 inches (381 mm) of landing area on the handle side of a refrigerator, and 24 inches (610 mm) on one side of a sink (NKBA Planning Guidelines).

Cons: Over-dimensioning clutters drawings and hides the few dimensions that truly matter. Field deviations still happen—when walls are wavy, your crisp dimension strings won’t magically straighten them.

Tips/Cost: Use associative dimensions with styles tuned for 1:20 and 1:50; build blocks for appliance connection diagrams (water, gas, electric). Always request a site remeasure after rough-in to catch variance before ordering. Printing wise, keep lineweights disciplined so installers can read at a glance.

[Section: 总结]

Small kitchens don’t limit design—they demand smarter choices, and AutoCAD is a terrific canvas for precision. From modular grids and reflective backsplashes to L-shaped efficiency, warm wood accents, and rock-solid clearances, these strategies let you confidently draw kitchen design in AutoCAD and build what you’ve envisioned. The NKBA’s planning guidelines remain a reliable benchmark for ergonomic dimensions if you need a second opinion. Which one of these ideas are you most keen to test in your next plan?

[Section: FAQ 常见问题]

save pin

FAQ

1) What’s the first step to draw kitchen design in AutoCAD?

Start by importing or drawing the architectural shell to scale, then set up layers for base cabinets, wall cabinets, appliances, and dimensions. Build a cabinet grid (e.g., 100 mm modules) so components align and edits are predictable.

2) Which dimensions are critical in a small kitchen plan?

Aisles of 1,000–1,200 mm, 600 mm base depth, and 900 mm counter height are common baselines. NKBA also recommends clear landing areas around appliances for safety and function (see NKBA Kitchen Planning Guidelines).

3) How do I handle corners in an L-shaped kitchen in AutoCAD?

Reserve a 900x900 mm corner footprint, test appliance swings, and use blocks for corner pull-outs or carousels. Dimension to faces and centerlines to avoid compounding errors.

4) What’s the best way to dimension a backsplash with outlets?

Create a detail view with a larger scale (1:5 or 1:10), call out exact cutouts, and specify tolerances. For reflective surfaces like glass, include a small expansion joint note in your section detail.

5) Should I draft in 2D only, or also model in 3D?

2D is efficient for layouts and shop drawings; 3D helps validate sightlines, clearances, and material interplay. Many designers draft in 2D and use a 3D check to catch coordination issues mid-process.

6) How can I ensure real-world fit from my AutoCAD drawing?

Use verified dimensions from site remeasurements, not just as-built drawings. Keep a tolerance strategy (fillers, scribe panels) and note it clearly in sections and elevations.

7) Any advice on lighting placement in small kitchens?

Plan task lighting under wall units and coordinate with upper cabinet depths; reflective surfaces like glass backsplashes amplify lumens. The American Lighting Association highlights vertical surface illumination as a key factor for perceived brightness.

8) Are there tools to sanity-check my L-shape geometry before fabrication?

Yes—run a quick visualization pass to review appliance swings and counter lengths; resources like this case on how an “L-shaped arrangement frees more prep area” can complement your CAD workflow with a visual double-check.
