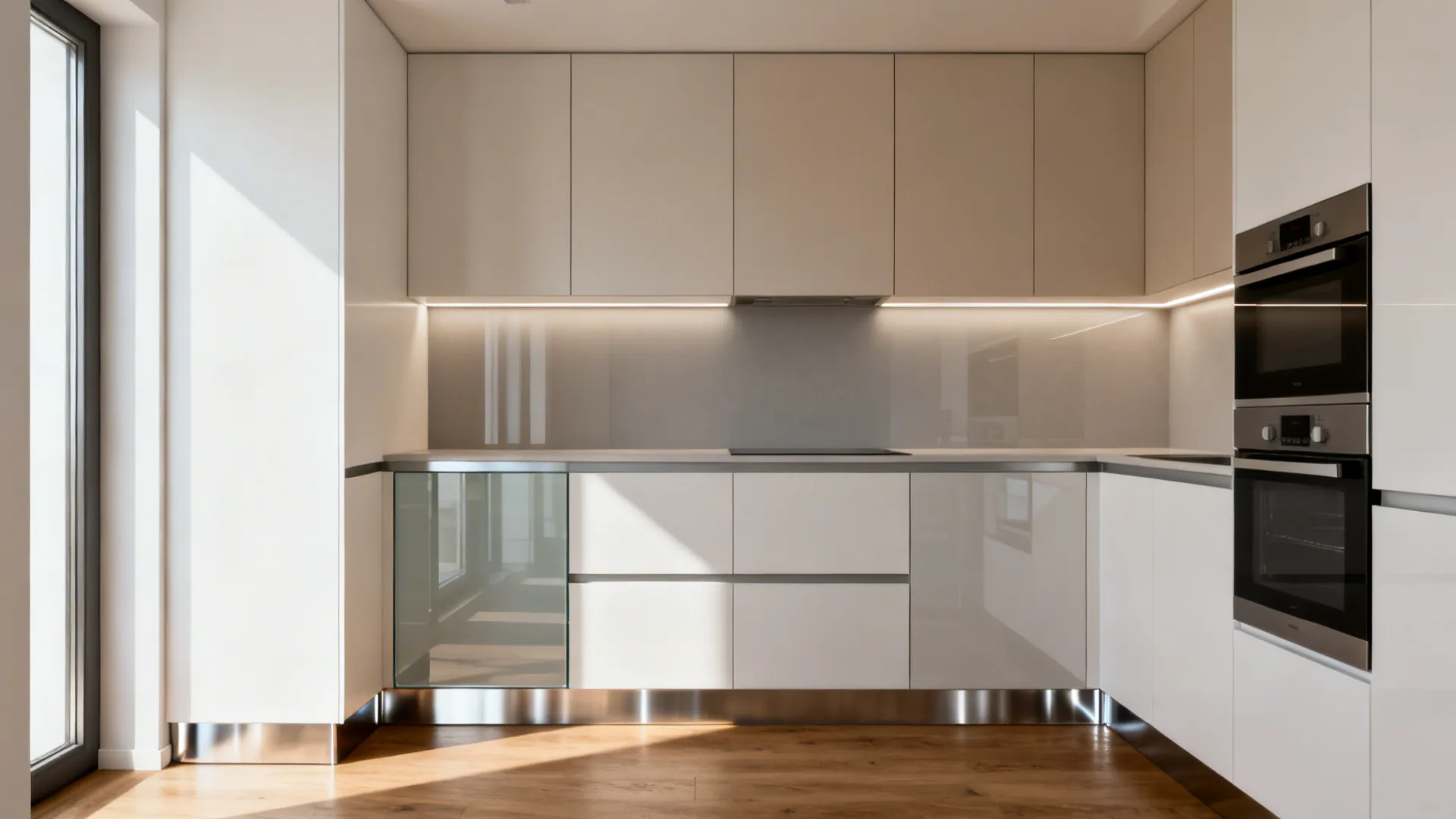

How to Draw Kitchen Elevations: 5 Pro-Level Ideas: A senior interior designer’s step-by-step take on kitchen elevations, with small-space strategies, pros & cons, costs, and expert sources

Kitchen elevations are having a moment. With the rise of clean lines, integrated storage, and compact living, a well-drawn elevation is the fastest way to align finish choices and construction details—especially in tight apartments I often design. I’ve learned that small spaces spark big creativity: the more compact the kitchen, the more precise our elevations must be. In this guide, I’ll share 5 design inspirations for drawing kitchen elevations, blending my field experience with expert data to help you get it right the first time. By the end, you’ll have a clear blueprint (pun intended) to develop accurate, buildable drawings.

Early on, I realized elevations are not just pretty pictures—they’re contracts between design intent and reality. When we map heights, reveals, and junctions, we avoid surprises onsite. If you’re new to elevations, don’t worry: I’ll walk through real-world tips, pros and cons, and where to focus your time. For a quick look at how I balance storage and sightlines in small kitchens, I often reference L-shaped layout extending counter runs in my early elevation sketches to reserve clear prep zones and backsplash terminations.

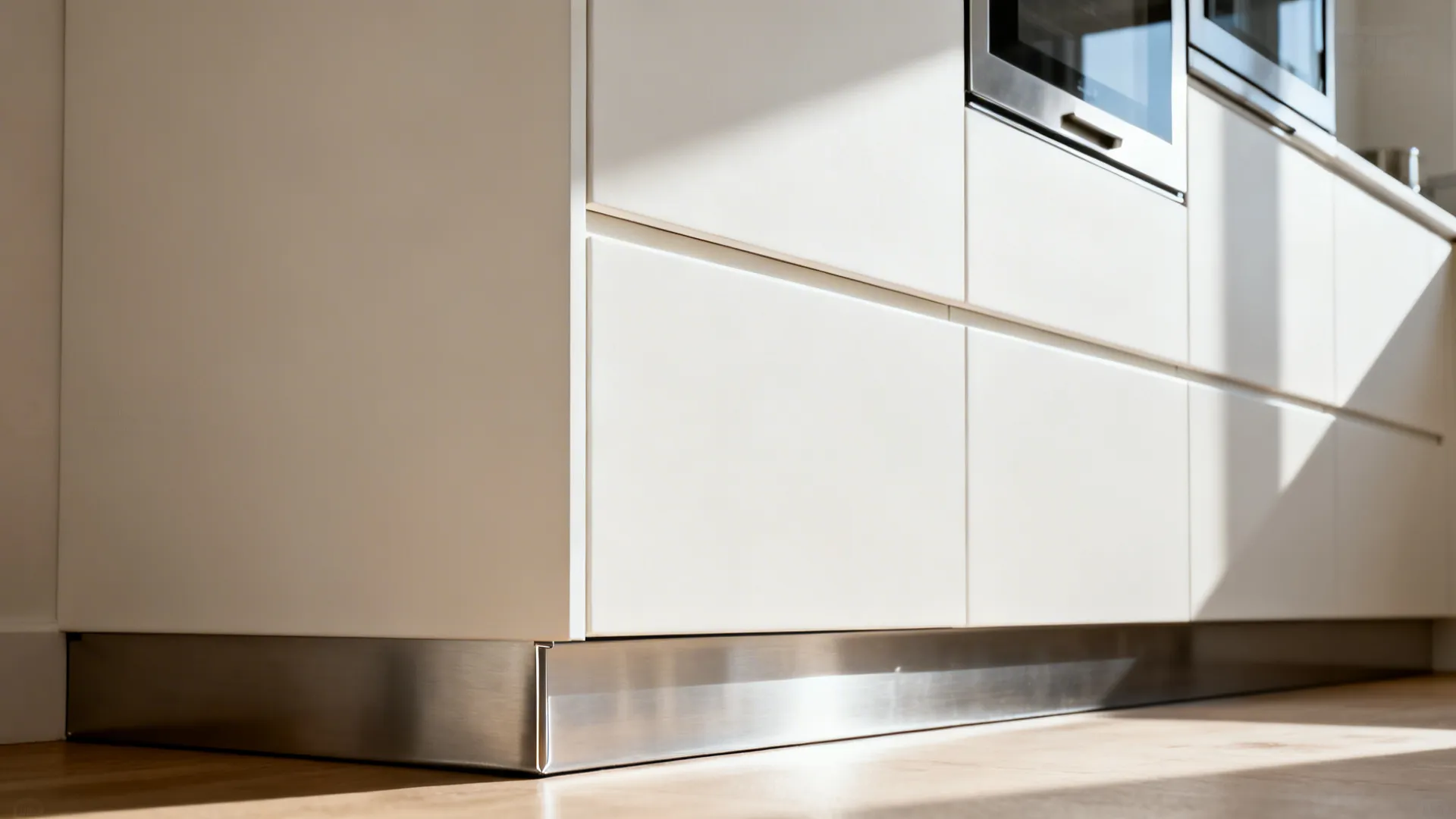

Minimalist Storage Elevations with Hidden Lines

My Take

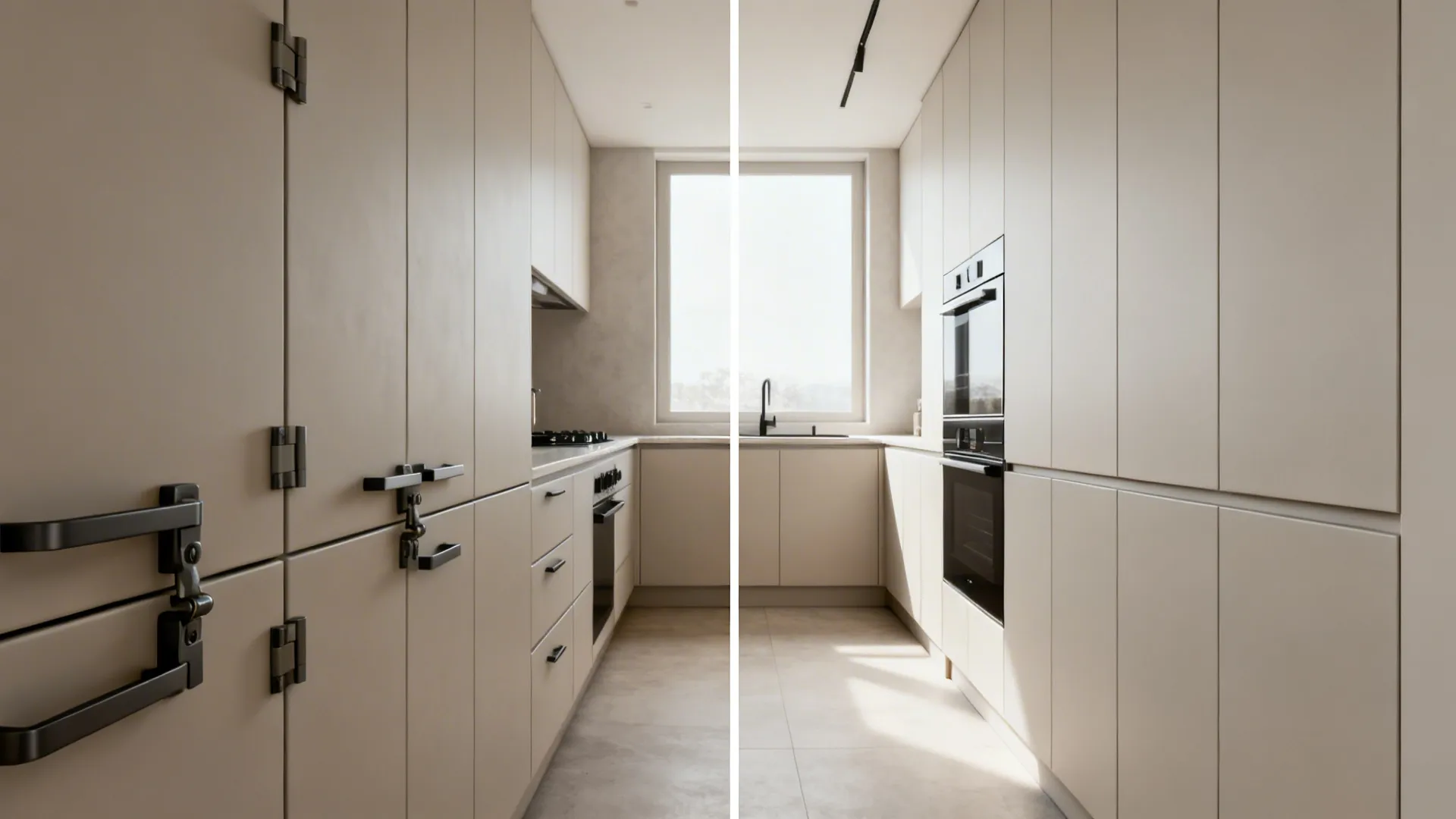

I cut my teeth on micro-kitchens where every millimeter counts. My most reliable elevation move is to hide as much visual noise as possible—continuously aligned doors, integrated pulls, and appliance panels that read like cabinetry. In one 7-foot galley, I aligned reveals to 3 mm and the result felt twice as calm.

Pros

- Cleaner elevations help clients picture the final look, especially with minimalist kitchen storage design that reduces visual clutter.

- Fewer hardware interruptions mean easier long-run dimensioning in the elevation drawing and fewer collision points with appliances.

- Research from the National Kitchen & Bath Association (NKBA) notes that consistent sightlines and clearances improve usability in compact kitchens, aligning with streamlined, handle-less concepts.

Cons

- Push-to-open hardware adds cost and can misalign if installers rush—been there, fixed that.

- Ultra-tight reveals are unforgiving; even a slightly bowed wall can break the perfection (I now always spec thicker scribe panels).

- Clients may perceive minimalism as "too plain" on paper; elevations sometimes need texture callouts to sell the warmth.

Tips / Cost

- In your elevation, annotate reveal sizes, door/gap alignment, and panel continuity as dimensions, not just notes.

- Budget for premium hinges and magnetic latches; expect a 10–15% cabinet hardware uplift with handle-less systems.

- Show appliance panelization explicitly in the elevation—front views reduce field confusion more than plan notes.

save pin

save pin

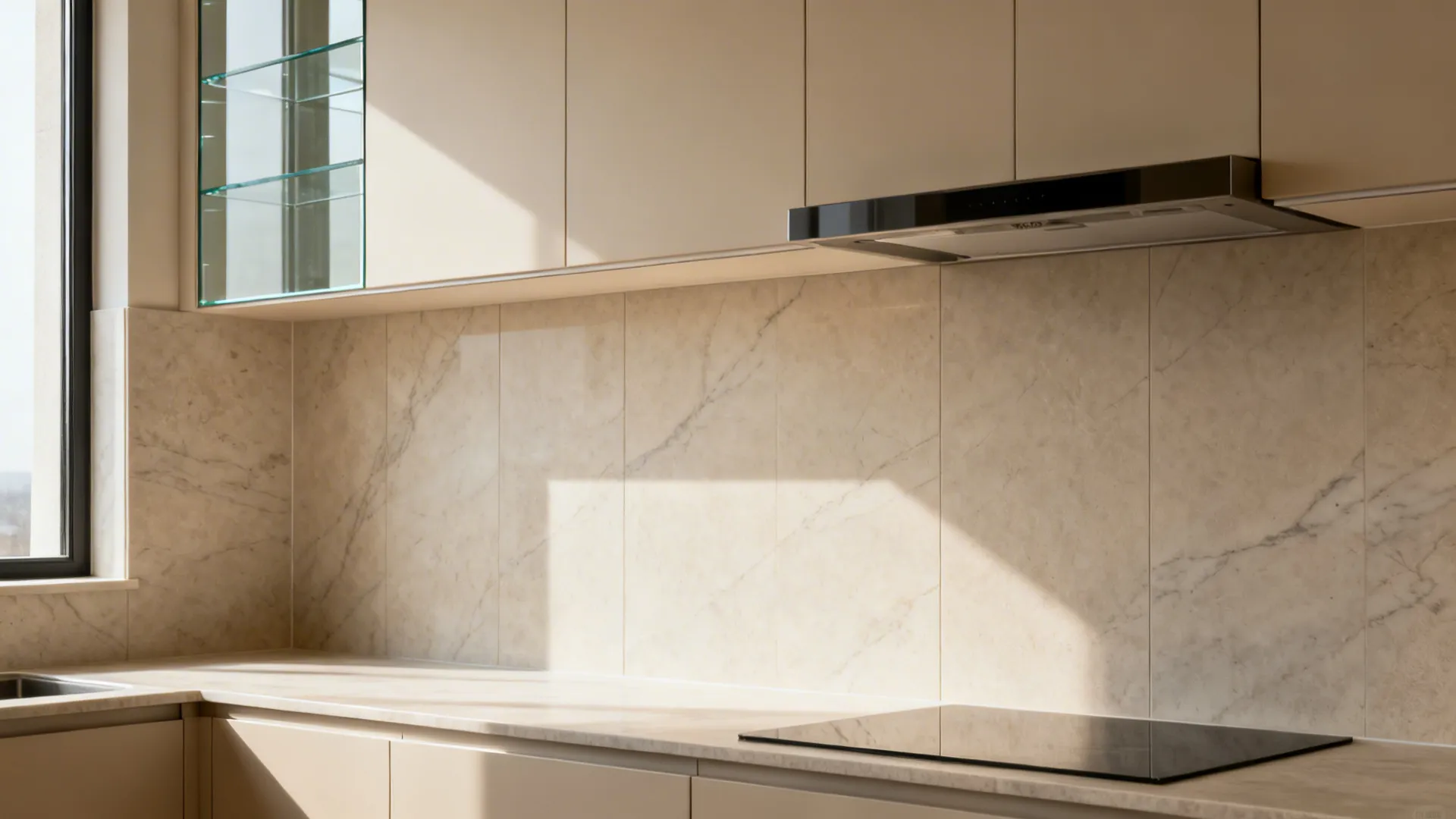

Backsplash and Wall Finish as a Continuous Plane

My Take

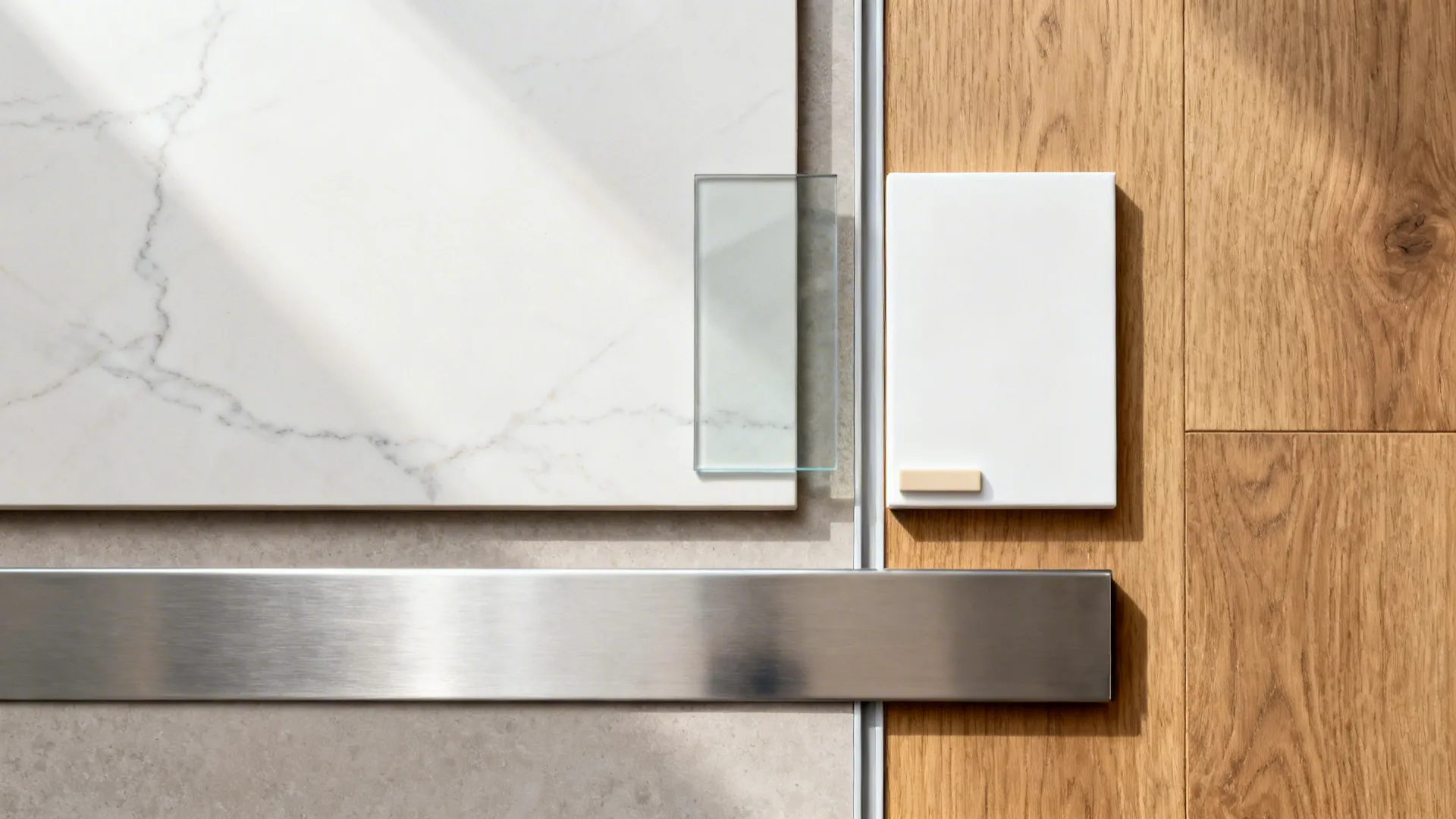

When I draw kitchen elevations, I treat the backsplash as a unifying canvas. Slab stone, glass, or large-format porcelain reads cleanly and simplifies grout lines in small spaces. In a recent condo, a single-sheet porcelain panel visually widened a 2.1 m wall.

Pros

- A continuous surface simplifies your elevation: fewer gridlines, clearer height callouts, and a strong focal band for lighting elevations.

- Long-tail keyword note: a continuous backsplash elevation improves small kitchen visual width and reduces maintenance lines.

- The Tile Council of North America (TCNA) details substrate prep and movement joints for large formats—following these specs reduces future cracking risk.

Cons

- Large slabs require careful site measure; field tolerances can force last-minute trim strips (no one loves that).

- Material cost spikes—slab fabrication and handling can be 2–3× tile cost.

- Electrical boxes complicate clean planes; in the elevation, you’ll need precise centerline coordinates to keep symmetry.

Tips / Case

- Elevation must show exact finished height of the backsplash, window sill conflicts, and any cap trims or shadow reveals.

- For glass backsplashes, spec low-iron glass to avoid green tint; note it explicitly in the elevation material key.

- If your concept relies on a long, continuous run, set a tolerance line in the elevation for material joints and note permissible shift.

save pin

save pin

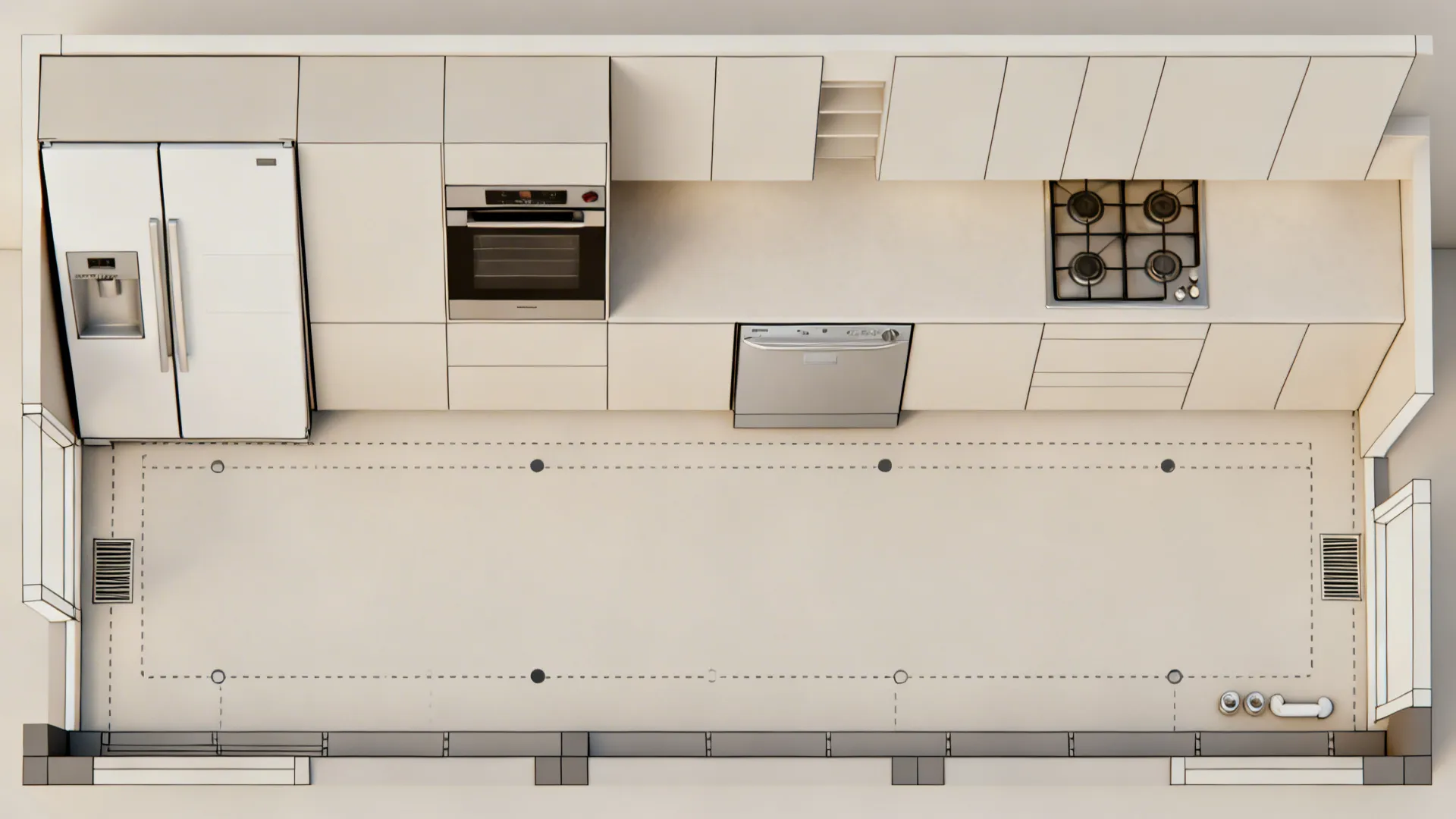

Appliance Zoning and Power in Elevations

My Take

I learned the hard way that an elevation without appliance clearances is a change order waiting to happen. Now, I embed dotted-line service zones, vent paths, and door swing arcs on the elevation. It keeps the contractor, electrician, and cabinetmaker on the same page.

Pros

- Annotating appliance zones in the elevation ensures ergonomic working triangles and reduces field clashes with tall units.

- Long-tail keyword: integrated appliance elevation details help align panel gaps, toe-kick continuity, and venting requirements.

- According to the NKBA Kitchen Planning Guidelines, maintaining clearances for ovens, refrigerators, and dishwashers prevents obstruction and improves safety.

Cons

- The elevation can look crowded; use line weights and layers judiciously or the drawing becomes a maze.

- Some installers still rely on plans; you’ll need to reiterate elevation notes during site walkthroughs.

- Venting paths change if joists or beams surprise you—keep a revision buffer in the schedule.

Tips / Cost

- Call out exact centerline heights for outlets, water lines, and gas—elevations with centerline dimensions reduce relocation costs by up to 30% in my projects.

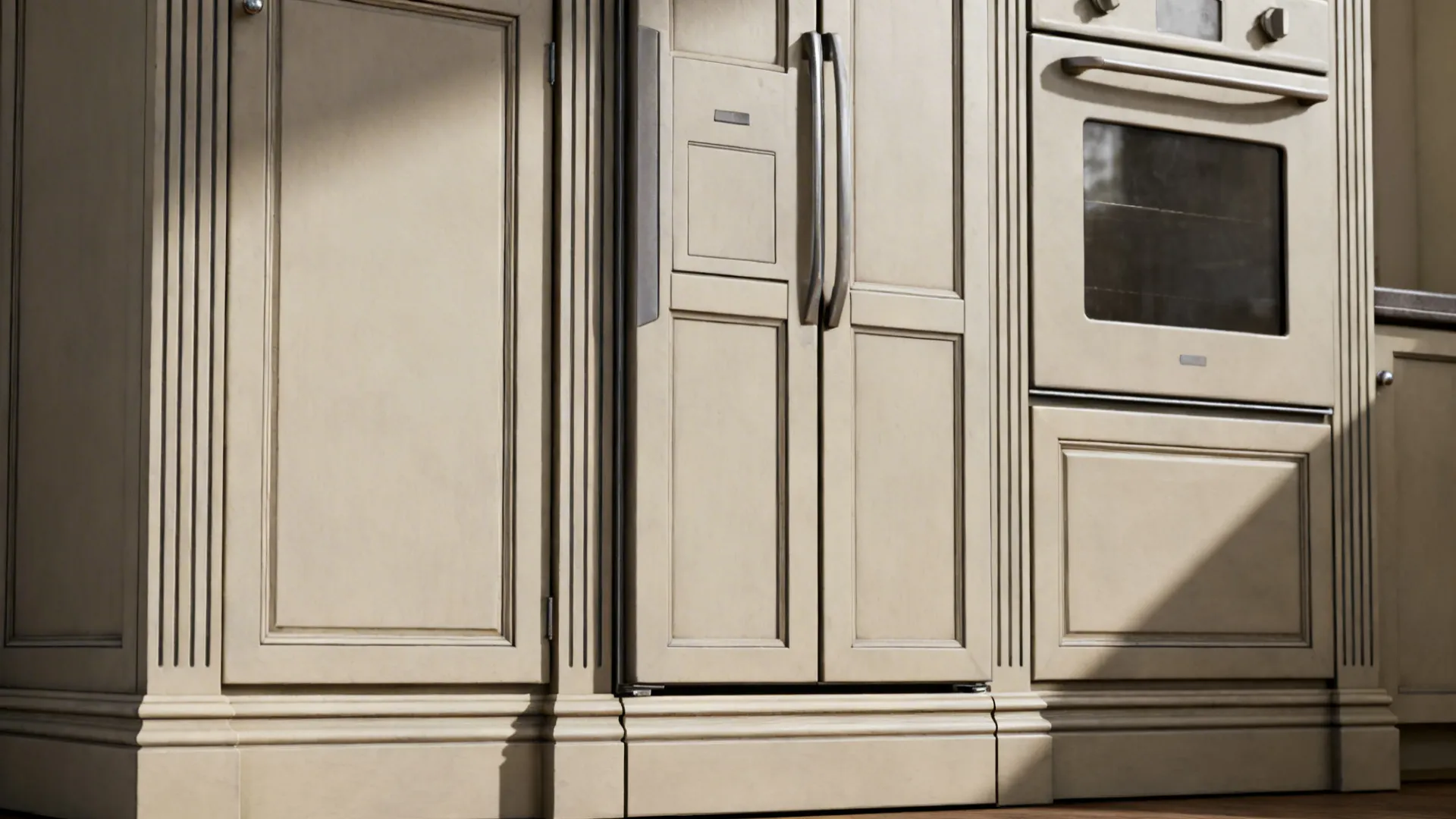

- Show micro-elevations for tall units (fridge, oven stack) on separate sheets for clarity.

- Mid-project measures: verify appliance models and cut sheets before issuing final elevations; substitutions can shift panel gaps.

Halfway through your elevation set, don’t forget to sanity-check the plan-to-elevation relationship. I often pair my elevations with a quick visualization to ensure sightlines are consistent with cabinet heights—especially in small remodels. For deeper dives, I’ve explored how visualizing tall cabinet proportions early helps align crown lines, ceiling reveals, and appliance stacks before fabrication.

save pin

save pin

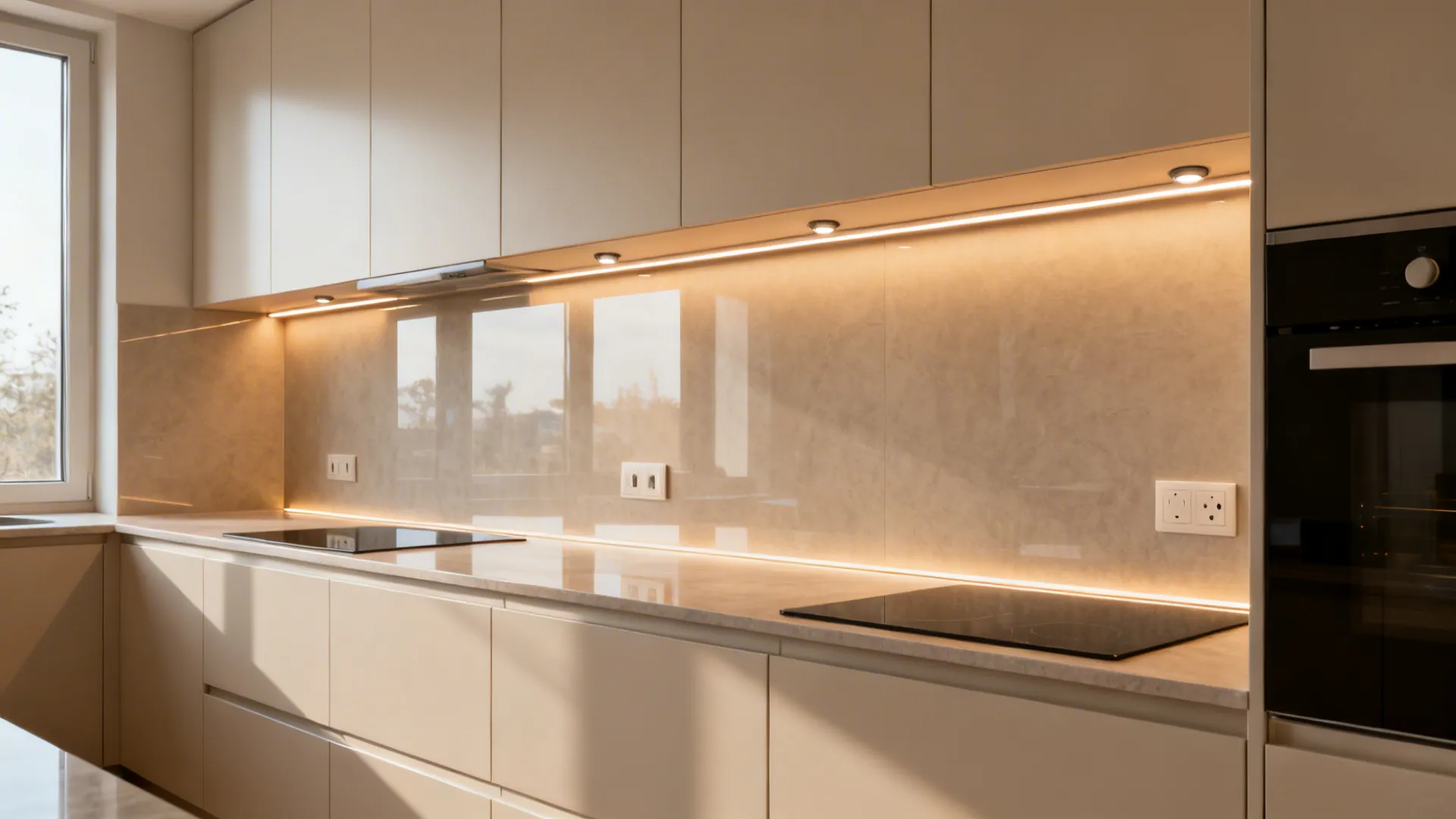

Task Lighting and Switching Shown in Elevation

My Take

Lighting is where many drawings fall short. In my practice, I overlay under-cabinet LED strips, puck lights, and switch heights directly on the elevation, with a small section detail. It’s saved me from dark corners and awkward switch placements more times than I can count.

Pros

- Elevation-based lighting layouts clarify under-cabinet height, diffuser visibility, and backsplash glare lines.

- Long-tail keyword: under-cabinet task lighting elevations improve small kitchen usability, especially for prep zones near sinks and cooktops.

- The Illuminating Engineering Society (IES) recommends task lighting levels of roughly 300–500 lux for kitchens; drawing it into elevations helps meet targets consistently.

Cons

- Too many lighting notes can obscure millwork dimensions; keep a separate legend with symbol references.

- LED drivers and access panels need planning—add a service note in the elevation or risk a teardown later.

- Dimmers and smart controls complicate switching diagrams; coordinate with the electrician early.

Tips / Case

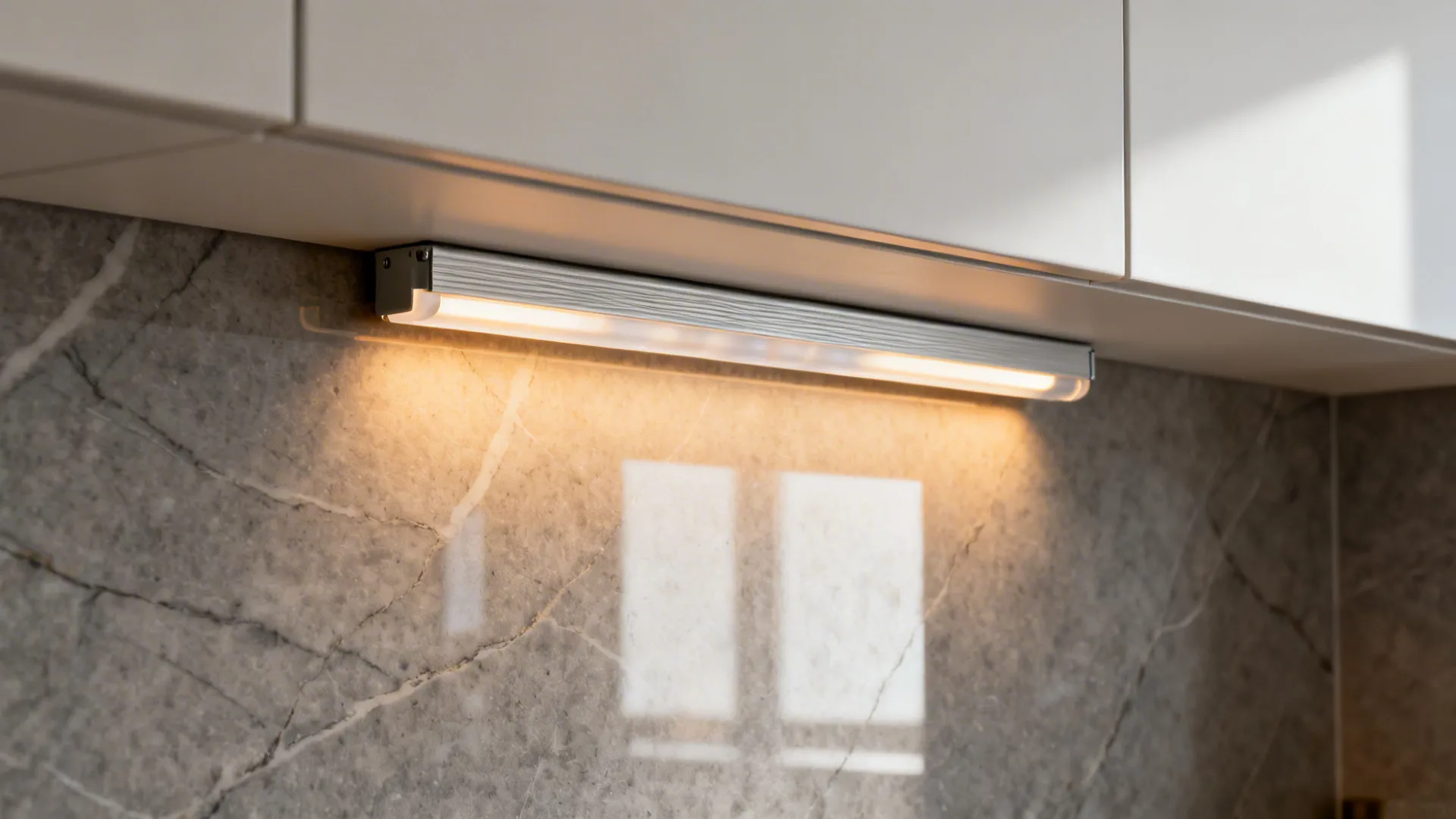

- Show the light strip’s setback from the cabinet face in the elevation (often 50–70 mm) to avoid glare.

- Call out color temperature (2700K–3000K for warmth in residential kitchens) and CRI 90+ for better color rendering.

- If you’re using a stone backsplash, note reflective hotspots in elevation and angle your strip placement accordingly.

save pin

save pin

Material Layering and Section Callouts

My Take

Great elevations are part drawing, part script. I use them to tell the story of layers—substrate, finish, hardware, lighting, and trim—so the contractor knows what comes first. On tight renos, I add section bubbles in elevations to show junctions at windows, end panels, and toe-kicks.

Pros

- Layered notes and section callouts make elevations buildable, reducing RFIs and preserving timelines.

- Long-tail keyword: kitchen elevation detail sections clarify corner treatments, end panel thickness, and countertop overhangs for fabricators.

- Citing experience from casework shops I’ve collaborated with, adding 1:2 or 1:5 detail sections linked from elevations improves shop-drawing accuracy by a notable margin.

Cons

- More detail equals more time—expect an extra 3–6 hours per elevation sheet if you include multiple section cuts.

- Over-annotation can intimidate homeowners; I keep a simplified client-facing set and a trade set with full details.

- If the project scope shifts, those carefully referenced bubbles can turn into a relabeling marathon.

Tips / Cost

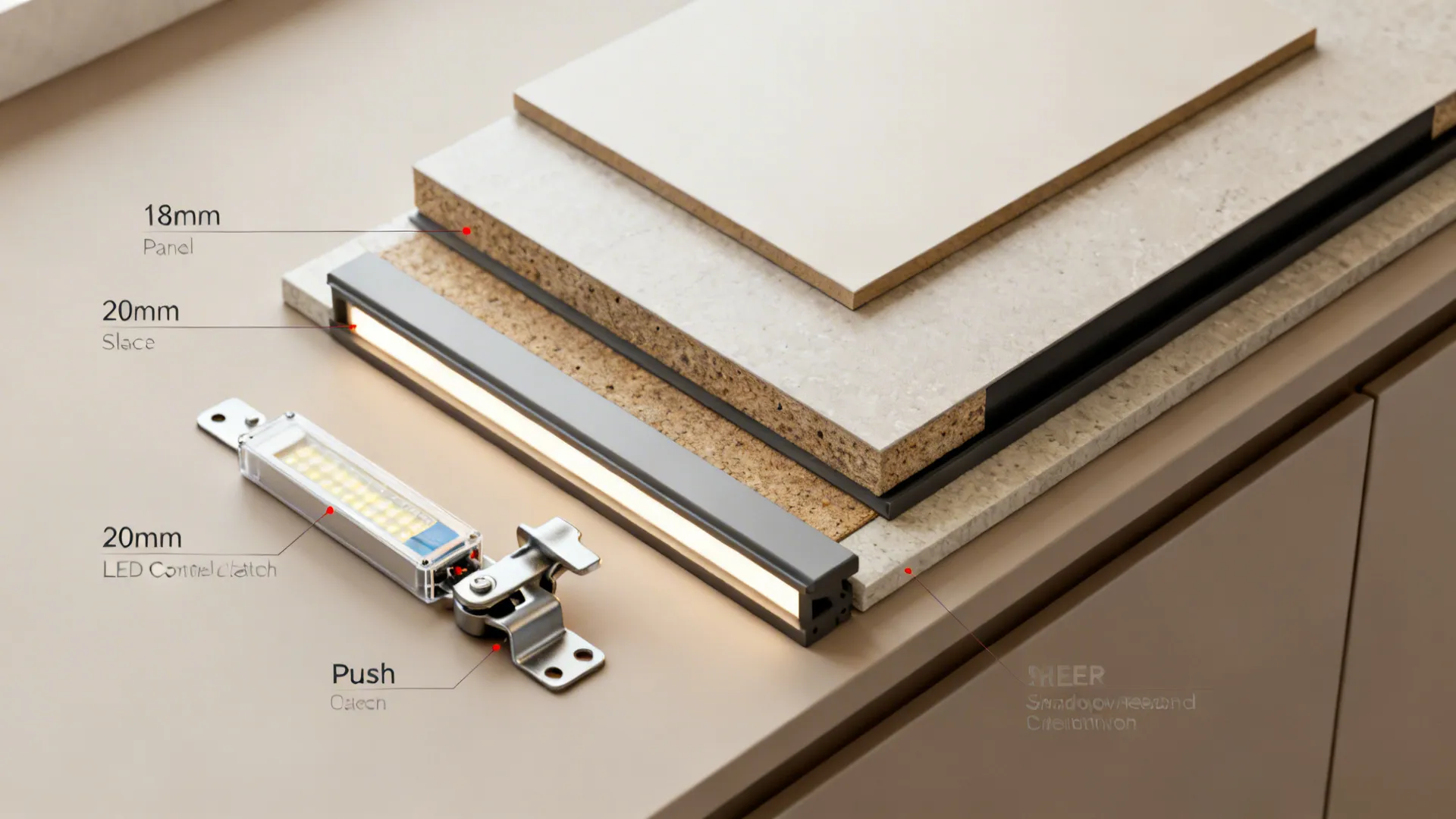

- Establish a consistent key for materials and thicknesses (e.g., 18 mm panels, 20 mm tops) and repeat it across elevations.

- Use line weights: heavier for primary millwork outlines, lighter for finishes and hidden lines.

- For budget tracking, I tag finishes with a cost range right in the elevation notes—helps keep value engineering clear.

As you near the end of your elevation package, I recommend running a quick coordination pass with plumbing, electrical, and ventilation. In my studio, we wrap up by checking door swings against adjacent walls and confirming backsplash terminations at ends and windows. When I’m fine-tuning layouts for efficiency, notes from AI-driven proportion studies for upper-lower cabinet balance have helped me spot odd gaps before they reach the shop drawing stage.

save pin

save pin

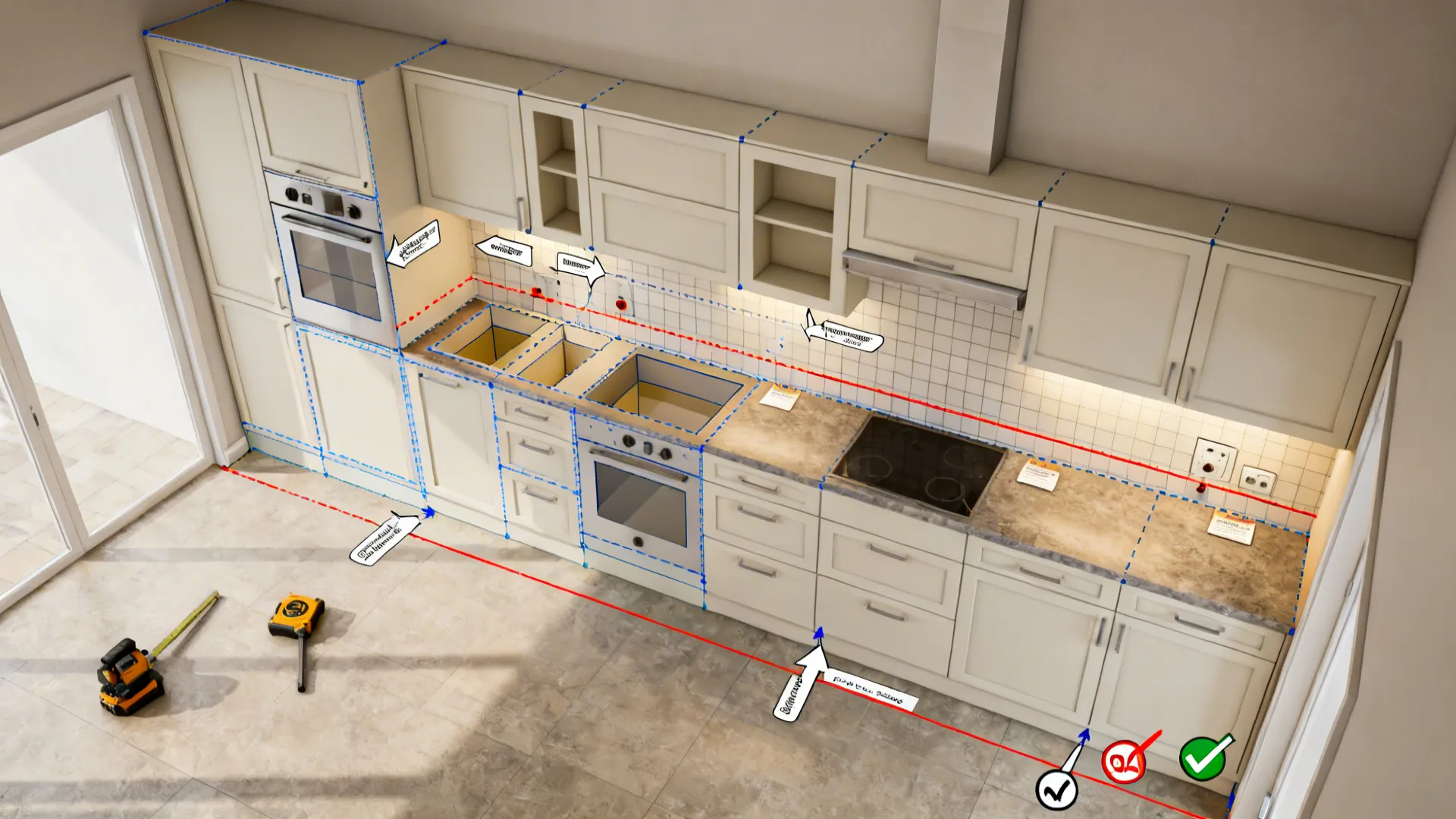

Putting It All Together: A Step-by-Step for Drawing Kitchen Elevations

My Take

Here’s the sequence I actually follow in real projects. It’s the checklist that’s kept my drawings tight and my contractors happy. Adapt it to your workflow, but keep the logic: measure, block, align, annotate, and verify.

Step 1: Field Measure

- Capture finished floor to ceiling heights at multiple points; note out-of-square walls.

- Photograph each wall; label obstacles (vents, columns).

- Draft a plan first—elevations reference wall centerlines and cabinet runs from that plan.

Step 2: Block the Massing

- In elevation, draw the base and wall cabinet bands as simple rectangles with benchmark heights (e.g., 870–920 mm base heights, 450–600 mm backsplash band, 600–750 mm upper heights depending on ceiling).

- Add tall units as separate blocks with appliance cutouts.

Step 3: Align Grids and Reveals

- Set a consistent door/drawer module (e.g., 300/450/600 mm).

- Align vertical joints from base to wall units for a calm rhythm; call out reveal widths.

Step 4: Insert Appliances with Clearances

- Add manufacturer model numbers; dimension required side and top clearances.

- Show door swing arcs and ventilation zones as dashed lines.

Step 5: Add Lighting and Switching

- Draw under-cabinet lines, switch heights (typically 1050–1150 mm AFF, adjust locally), and driver access locations.

- Note color temperature and CRI in the material legend.

Step 6: Detail the Backsplash Plane

- Show material joints, slab sizes, and edge trims.

- Dimension the top edge relative to uppers and any window/hood constraints.

Step 7: Material and Hardware Notes

- Specify panel thicknesses, edge treatments, pull types or handle-less systems.

- Tag finishes with codes linked to a schedule.

Step 8: Sections and Callouts

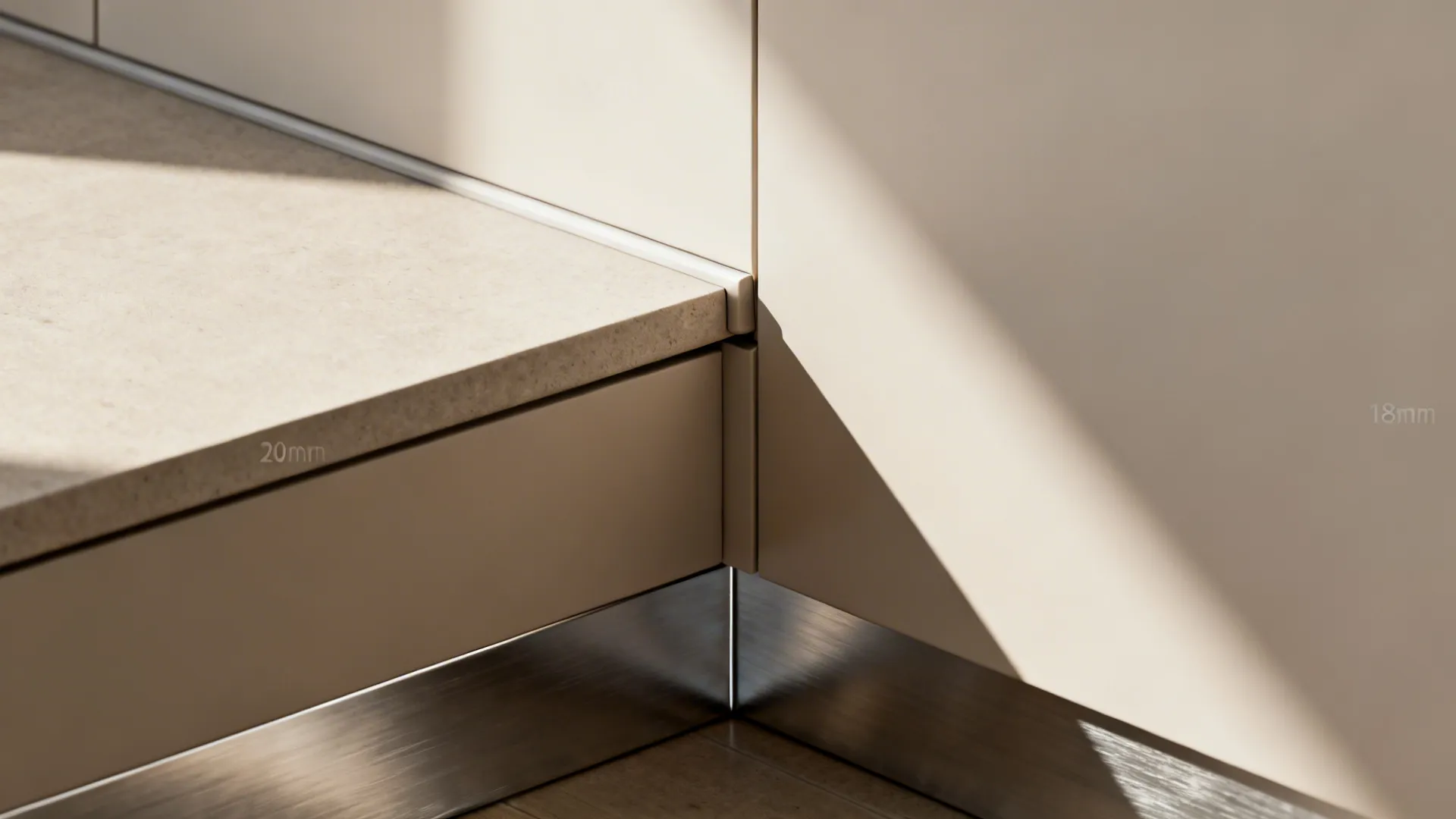

- Add bubbles to key junctions—end panels, toe-kick returns, floating shelves, window aprons.

- Reference detail drawings with scales for fabricator clarity.

Step 9: Coordinate Services

- Place outlets, water lines, and gas as centerline dimensions; verify with trades.

- Include a service void note behind tall units where applicable.

Step 10: QA and Print

- Cross-check plans and elevations for consistent dimensions.

- Issue a client set (simplified) and a trade set (full notes).

- Schedule a site walk to review critical elevations before ordering cabinets.

Tools and Workflow Notes

- Whether you draft by hand or in CAD, keep line weights legible: primary millwork, secondary elements, annotations.

- For 3D checks, a quick model can validate your elevation rhythm against real proportions.

- Use revision clouds and dates—elevation sets evolve; clarity saves time.

save pin

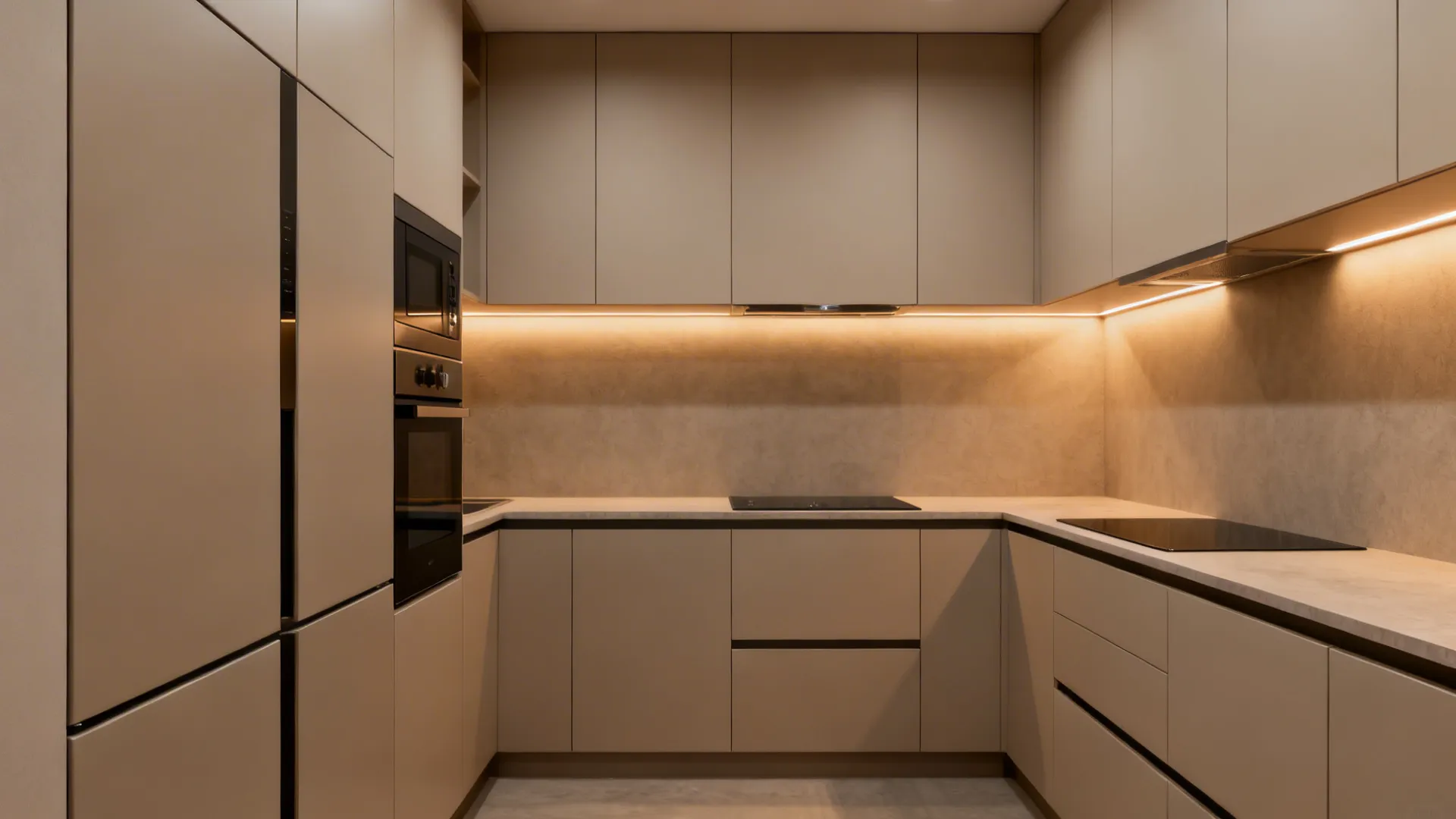

Summary

Small kitchens don’t limit design—they demand smarter drawings. When you build elevations that align storage rhythm, clean backsplash planes, appliance zones, and lighting, the space feels intentional and generous. The NKBA and IES guidelines are great companions to your field experience; pairing standards with thoughtful detailing consistently delivers better builds. Which of these five elevation strategies are you most excited to try in your next kitchen?

save pin

FAQ

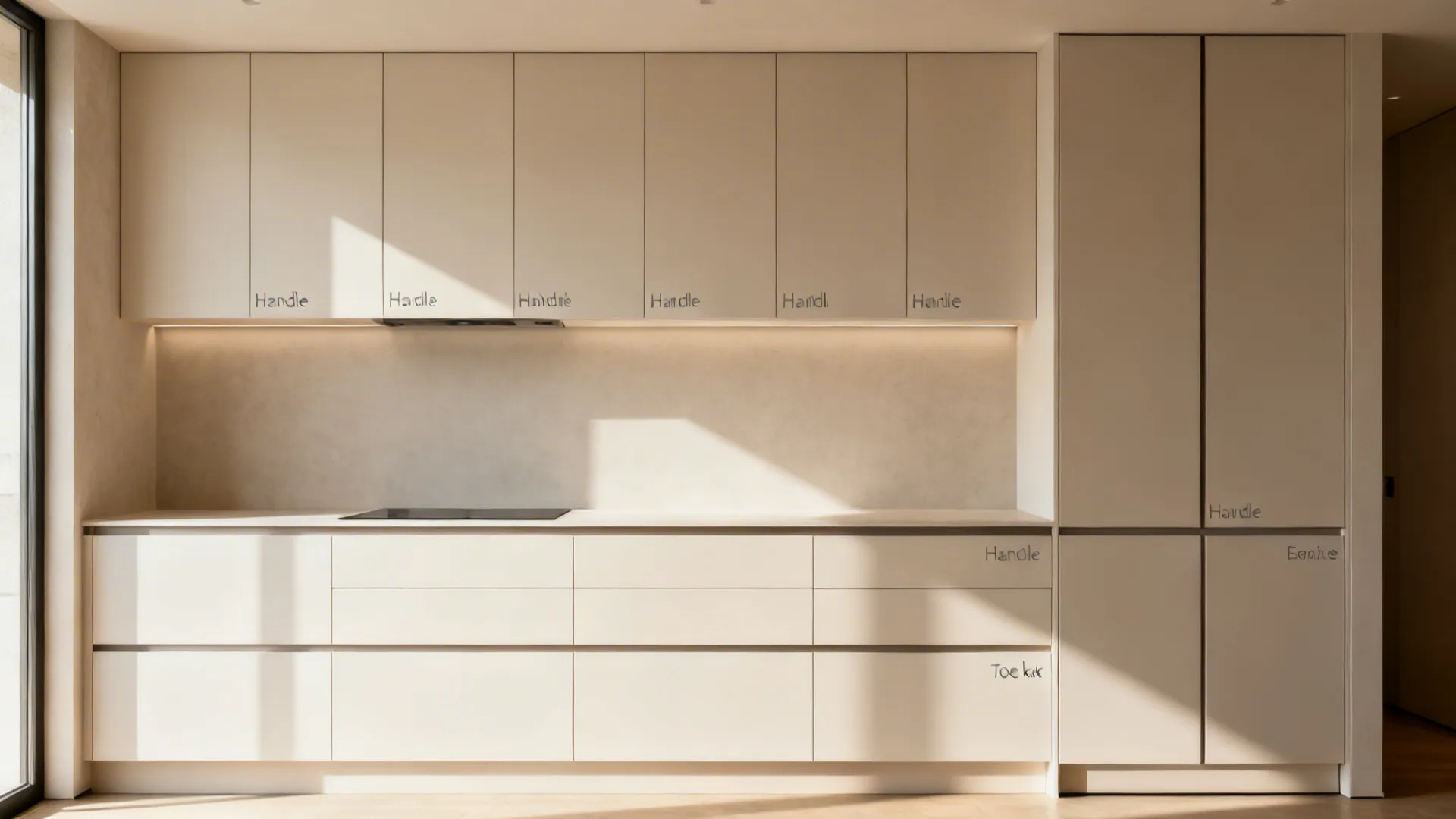

1) What is the core purpose of a kitchen elevation?

A kitchen elevation translates your plan into a front-on view that clarifies heights, finishes, and appliance alignment. It’s the most effective way to communicate buildable details and avoid onsite surprises.

2) How do I start drawing kitchen elevations in a small kitchen?

Begin with accurate field measurements and a simple massing: base, backsplash band, uppers, and tall units. Align door modules and reveals to create a calm rhythm, then layer in appliances, lighting, and services.

3) What dimensions should I include?

Include overall heights, base and wall cabinet bands, appliance clearances, backsplash height, and centerline locations for outlets and plumbing. Door swing arcs and toe-kick heights also belong on elevations.

4) How do I show lighting in an elevation?

Draw under-cabinet strip lines and puck locations, add switch heights, and note driver access. Specify color temperature and CRI; IES guidance suggests task lighting levels around 300–500 lux for kitchen prep zones.

5) Should I show backsplash materials in detail?

Yes—note material type, joint lines, and trim profiles. For large-format slabs or glass, detail joints and edge conditions to align with cabinet heights and window constraints.

6) How do I coordinate appliances in elevations?

Insert actual model numbers and dimension clearances per manufacturer specs. Show vent paths and door swings; this reduces conflicts in tight layouts and keeps panels aligned.

7) Are there standards I should follow?

Refer to NKBA Kitchen Planning Guidelines for clearances and workflow, and the IES for lighting levels. For tile and slab installations, the TCNA Handbook provides substrate and movement joint guidance.

8) What software or workflow helps check proportions?

Pair your CAD elevations with quick 3D checks to validate cabinet heights and sightlines. I often cross-reference tall unit alignment using studies based on balanced upper-to-base visual ratios before finalizing shop drawings.
