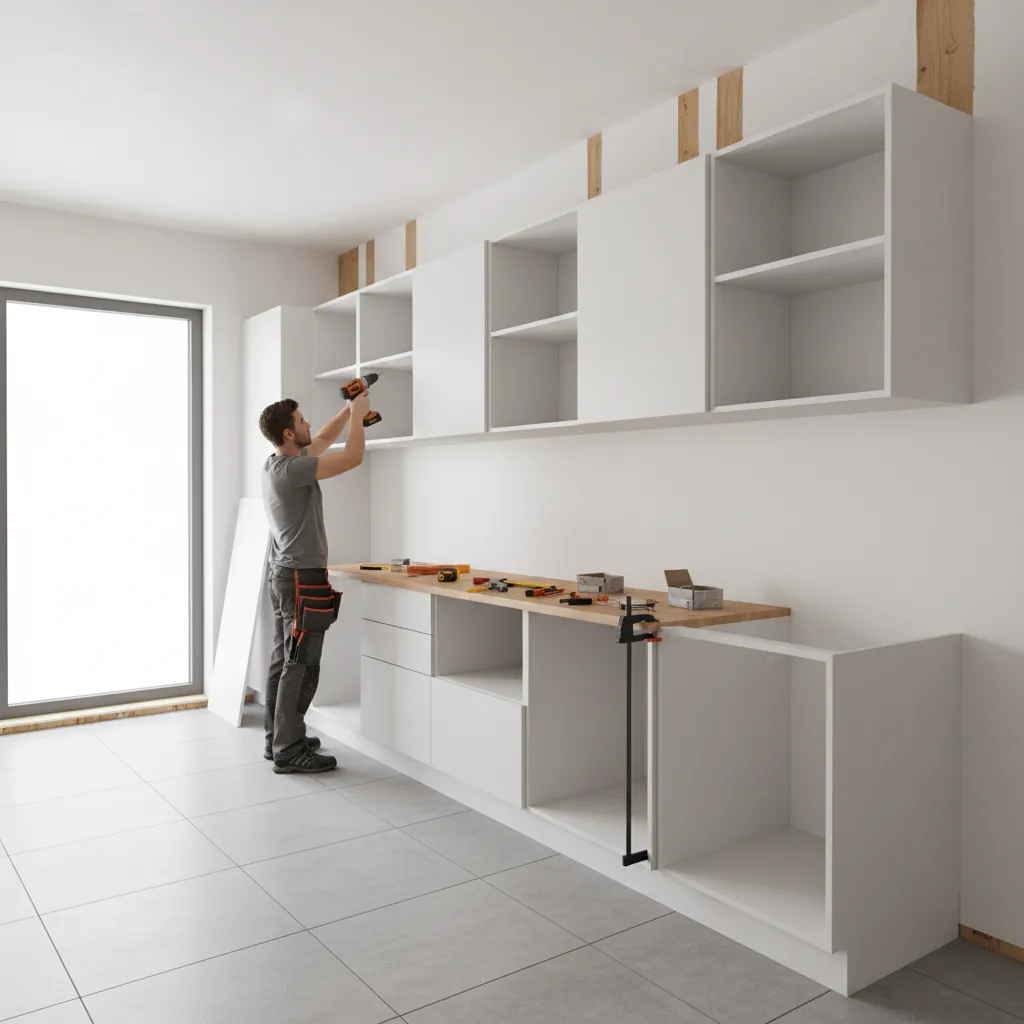

How to Install Kitchen Cabinets on Wall (Step‑by‑Step Guide): A professional installer’s approach to mounting wall cabinets safely, level, and perfectly aligned

Direct Answer

To install kitchen cabinets on a wall, first locate wall studs, mark a level reference line, temporarily support the cabinets, and secure them directly into the studs using cabinet screws. Professional installers typically mount upper cabinets first to maintain alignment and prevent base cabinets from getting in the way.

The key to a safe installation is accurate stud placement, perfectly level reference lines, and fastening cabinets through their structural rails—not the thin back panel.

Quick Takeaways

1. Always mount upper cabinets before base cabinets to simplify installation and alignment.
2. Wall cabinets must be screwed directly into studs for structural safety.
3. A temporary ledger board keeps cabinets level during installation.
4. Cabinets should be connected to each other before fully tightening wall screws.
5. Most installation problems come from skipping proper leveling at the start.

Introduction

Learning how to install kitchen cabinets on wall surfaces is one of those tasks that seems straightforward—until you actually try to lift a 70‑pound cabinet while keeping it perfectly level.

Over the last decade working on residential kitchen remodels, I’ve seen homeowners struggle with the same issues: cabinets drifting off level, screws missing studs, and uneven gaps that make even expensive kitchens look poorly installed.

The surprising part is that most of these problems don’t come from bad cabinets—they come from poor preparation. When installers skip layout planning or reference lines, alignment issues multiply across the entire wall.

Before mounting anything, I usually map the full kitchen layout digitally so cabinet heights and spacing are clear. If you're planning a kitchen from scratch, it helps to explore a visual way to test different kitchen layout ideas before installation begins. Knowing exact cabinet placement prevents a lot of headaches during installation.

In this guide, I’ll walk through the same process professional installers use on real projects—along with a few mistakes I see even experienced contractors make.

save pin

What Tools and Materials Do You Need Before Installing Wall Cabinets?

Key Insight: Proper tools matter more than experience—most installation errors happen because cabinets weren't properly supported or leveled during mounting.

Before touching the cabinets, professionals stage the workspace and tools. This ensures the cabinet can be lifted, positioned, and secured without rushing.

Essential Tools Checklist

1. Stud finder
2. 4–6 ft level or laser level
3. Power drill or impact driver
4. Cabinet mounting screws (2.5–3 inch)
5. Shims for leveling
6. Clamps for connecting cabinets
7. Temporary ledger board

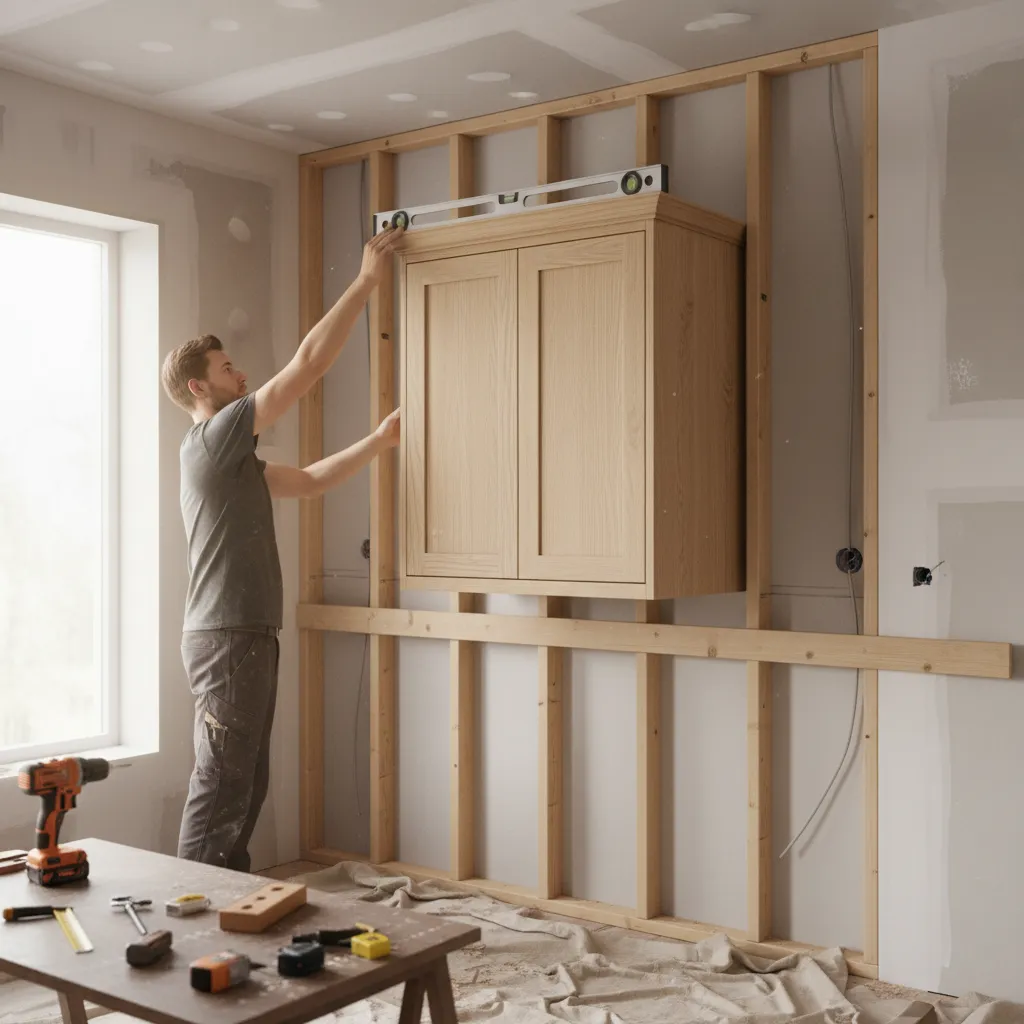

Why the Ledger Board Matters

A ledger board is a temporary wooden strip mounted along your reference line. It holds the cabinet weight while you screw it into studs.

In professional installations, this simple trick eliminates 90% of alignment mistakes.

Should You Install Upper or Lower Kitchen Cabinets First?

Key Insight: Upper cabinets should always be installed first because they are harder to lift and align once base cabinets are in place.

This is one of the most misunderstood steps among DIY installers.

Why Professionals Start With Upper Cabinets

1. No base cabinets blocking ladders or movement
2. Easier to support cabinet weight
3. Reduced risk of damaging lower cabinets
4. Better alignment across the entire wall

Once the uppers are secured, base cabinets can be positioned directly underneath for perfect alignment.

During layout planning, I often create a quick visual reference using tools similar to a 3D kitchen space layout preview that shows cabinet placement and wall dimensions. Seeing cabinet heights relative to appliances avoids spacing errors later.

save pin

Step‑by‑Step: How to Install Kitchen Cabinets on Wall

Key Insight: A perfectly level reference line is more important than the floor—because floors are rarely level.

Follow this installation sequence used by professional cabinet installers.

Step 1: Locate Wall Studs

1. Use a stud finder
2. Mark every stud across the wall
3. Confirm by drilling a small pilot hole

Step 2: Draw the Level Reference Line

1. Standard upper cabinet height: 54 inches from floor
2. Use a laser level for accuracy

Step 3: Install a Temporary Ledger Board

1. Mount directly on the reference line
2. Ensure it is perfectly level

Step 4: Mount the First Corner Cabinet

1. Place cabinet on ledger board
2. Drill pilot holes into studs
3. Drive cabinet screws through mounting rails

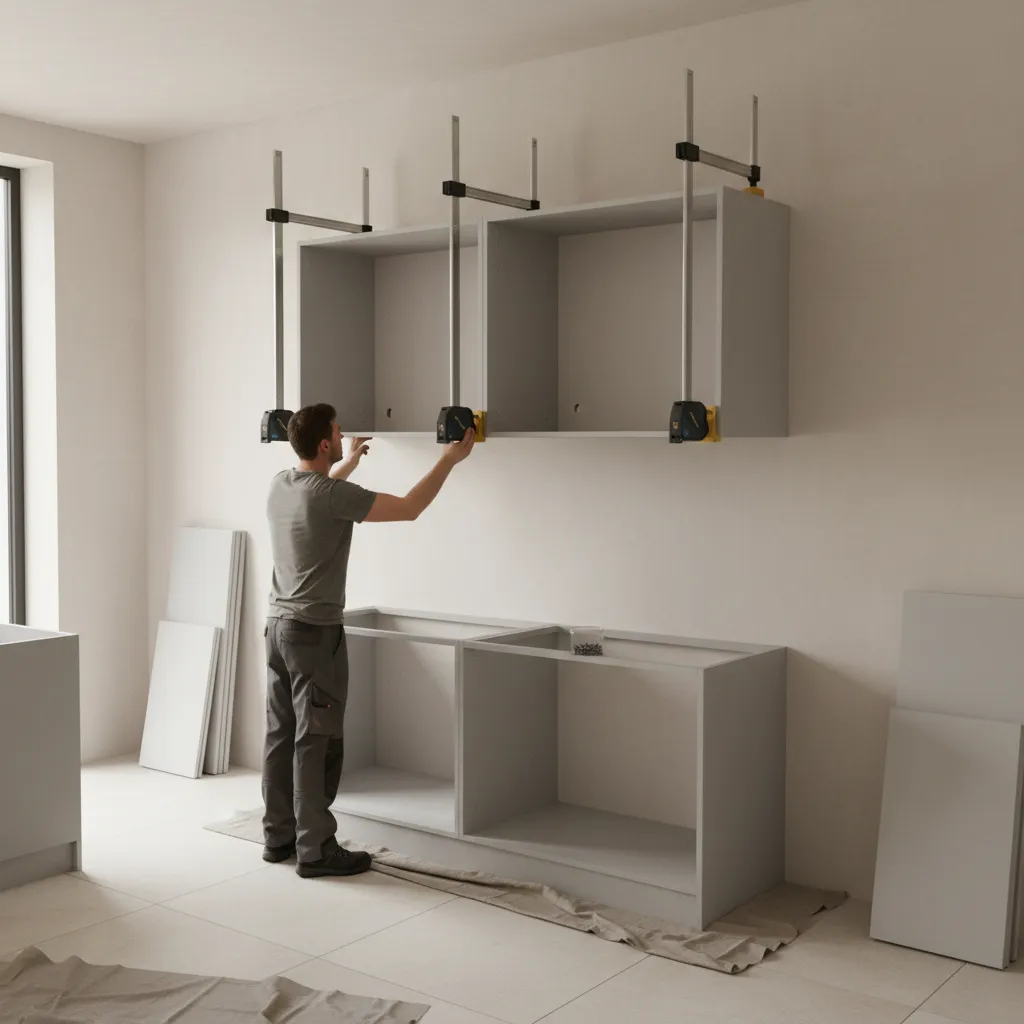

Step 5: Attach Adjacent Cabinets

1. Clamp cabinet faces together
2. Screw them together through the face frame
3. Then fasten to studs

Step 6: Check Level and Adjust With Shims

1. Insert shims where wall gaps appear
2. Trim excess shims after tightening

save pin

Common Hidden Mistakes When Mounting Wall Cabinets

Key Insight: The biggest installation failures usually happen behind the cabinets—where mistakes are hidden until doors start misaligning.

After inspecting hundreds of kitchen installations, these are the most common errors.

Hidden Mistakes to Avoid

1. Screwing only into drywall instead of studs
2. Skipping the ledger board support
3. Not checking cabinet level after each install
4. Mounting cabinets individually without clamping together
5. Ignoring wall unevenness

Walls in most homes are rarely perfectly flat. Even new construction often has 1/4 inch variation across a few feet.

Shimming between cabinet and wall is normal—and expected in professional installations.

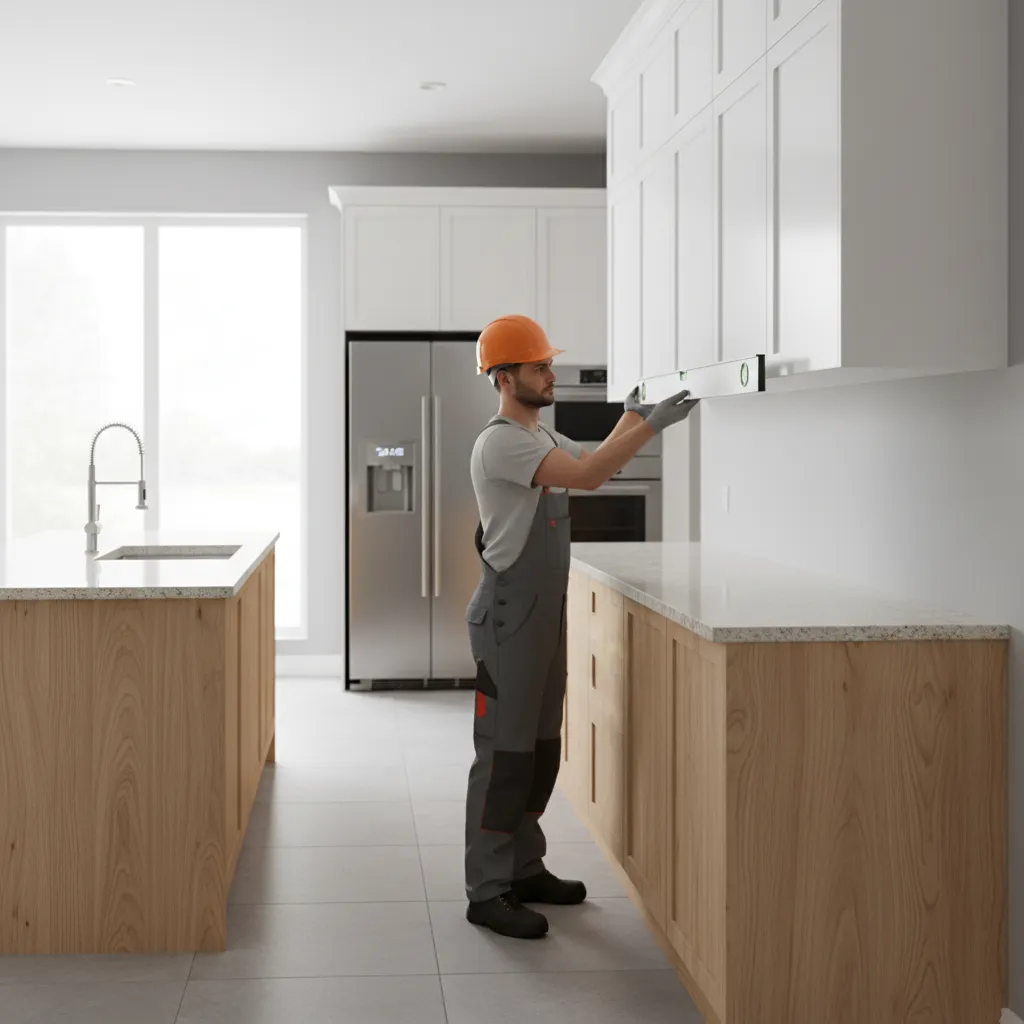

How Do Professionals Keep Cabinets Perfectly Level?

Key Insight: Installers level cabinets relative to each other—not to the floor.

This small shift in thinking changes everything.

Professional Alignment Method

1. Establish one perfectly level reference line
2. Install the first cabinet perfectly square
3. Attach every additional cabinet to that first cabinet
4. Check level horizontally and vertically

When the first cabinet is correct, the rest of the run stays aligned.

If you're planning a full remodel, visualizing cabinet alignment with a realistic kitchen layout preview before constructioncan reveal spacing issues before drilling a single hole.

save pin

Answer Box

The safest way to install kitchen cabinets on a wall is to mount upper cabinets first, secure them directly into wall studs, and support them with a temporary ledger board during installation. Proper leveling and connecting cabinets together ensures long‑term alignment and structural safety.

When Should You Call a Professional Installer?

Key Insight: DIY cabinet installation works well for straight walls—but complex kitchens often require professional precision.

Consider professional help when dealing with:

1. Corner cabinet systems
2. Uneven plaster or brick walls
3. Heavy solid‑wood cabinets
4. Ceiling‑height cabinetry
5. Integrated appliances

Professional installers also adjust doors, fillers, and crown molding—details that dramatically affect the finished look.

Final Summary

1. Always install upper kitchen cabinets before base cabinets.
2. Secure cabinets directly into wall studs using cabinet screws.
3. A ledger board makes installation safer and easier.
4. Level cabinets to each other, not the floor.
5. Most alignment issues start with poor layout planning.

FAQ

1. How high should kitchen wall cabinets be installed?

Most wall cabinets are installed with the bottom about 54 inches above the floor, creating an 18‑inch backsplash space above countertops.

2. Can drywall hold kitchen cabinets?

No. Kitchen cabinets must be anchored into wall studs. Drywall alone cannot support the weight safely.

3. What screws are used for installing kitchen cabinets?

Cabinet installation typically uses 2.5–3 inch cabinet screws designed to penetrate studs while supporting heavy loads.

4. Do you install upper cabinets before base cabinets?

Yes. Installing uppers first prevents base cabinets from blocking installation space and reduces damage risk.

5. Can one person install kitchen wall cabinets?

It’s possible with a ledger board or cabinet lift, but two people make alignment and lifting significantly safer.

6. How do you keep cabinets level during installation?

Use a long level or laser level and install a temporary ledger board along the reference line.

7. What if my wall is not flat?

Use wood shims between the cabinet and wall until the cabinet is level, then tighten screws.

8. How long does it take to install kitchen cabinets on wall?

A standard run of wall cabinets usually takes 2–4 hours for experienced installers.
