How to Plan a Kitchen Layout Free: A Practical Guide: A step‑by‑step approach designers use to create functional kitchens without paying for professional planning software.

Direct Answer

You can plan a kitchen layout free by measuring your space, mapping the work triangle, placing appliances first, and using a free digital planner to test different layouts before renovation. A simple planning process helps avoid costly spacing mistakes and improves daily cooking workflow.

Quick Takeaways

1. Start kitchen planning with accurate room measurements, not appliance shopping.
2. The refrigerator, sink, and stove should form a compact work triangle.
3. Most kitchen problems come from poor walkway spacing, not cabinet style.
4. Testing layouts with a free digital planner prevents expensive remodel errors.
5. Storage zones matter more than cabinet quantity.

Introduction

After designing kitchens for more than a decade, I've noticed something interesting: most homeowners don't struggle with style choices. They struggle with layout. Cabinets, colors, and finishes are easy decisions compared to figuring out where everything should actually go.

If you're searching for how to plan a kitchen layout free, you're probably either renovating, building, or trying to make a small kitchen more functional. The good news is that you don't need expensive design software or a professional designer just to test layout ideas.

In many of my early client consultations, I discovered that people already had good instincts about their space. What they lacked was a simple process to turn those instincts into a workable floor plan. That's why I often recommend starting with a simple visual layout tool that lets you experiment with appliance placement and cabinet spacing before committing to construction. A good starting point is exploring a visual kitchen layout planning workflow for testing cabinet and appliance placement, which makes it easier to see circulation and spacing problems early.

In this guide, I'll walk through the exact process I use with clients to design functional kitchens—from measuring the room to choosing the best layout type. I'll also highlight a few hidden mistakes that most online guides ignore.

save pin

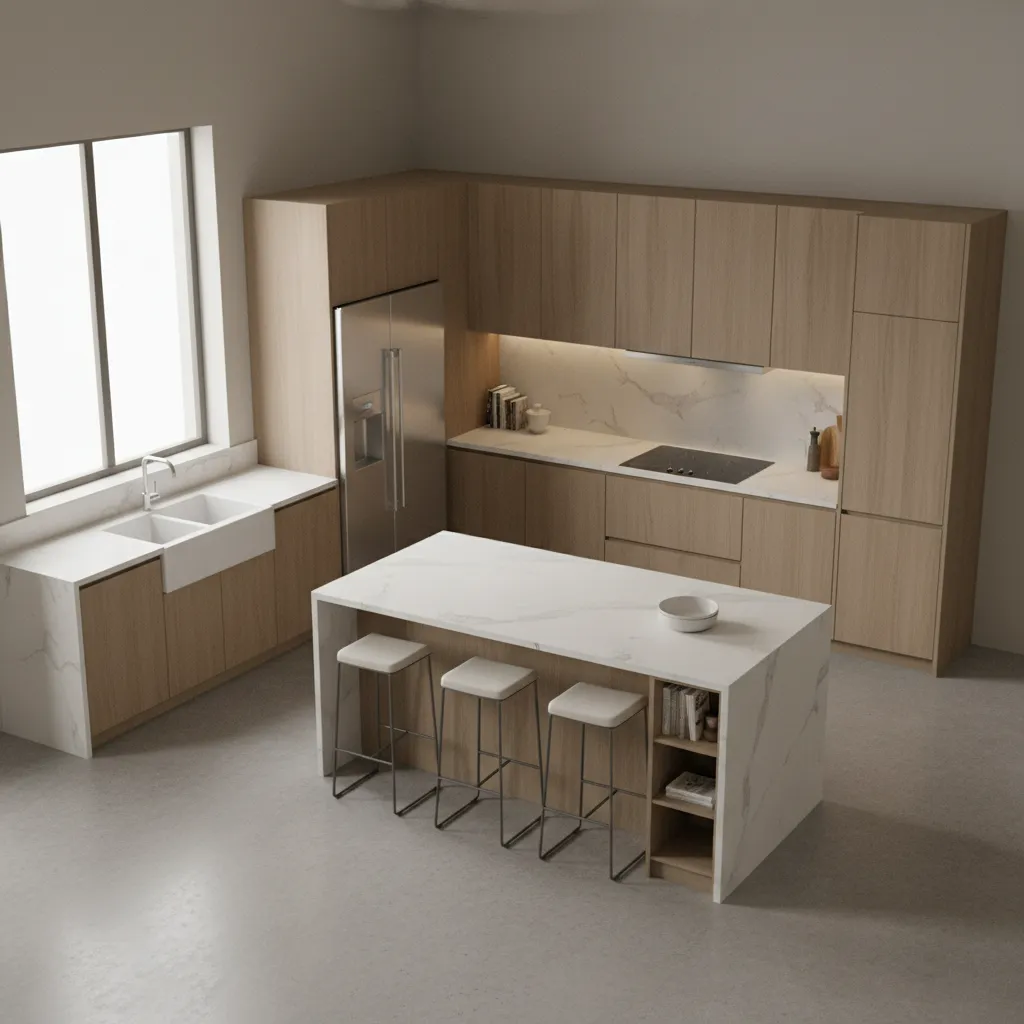

Why Is Kitchen Layout More Important Than Cabinet Style?

Key Insight: A kitchen that flows well will feel expensive even with basic cabinets, while a poorly planned layout ruins even luxury kitchens.

One of the biggest misconceptions I see online is the obsession with cabinet style before layout decisions are made. In reality, layout determines 80% of kitchen usability.

Across hundreds of projects, three factors consistently determine whether a kitchen works well:

1. Movement flow between prep, cooking, and cleaning zones
2. Clear walking paths for multiple people
3. Logical storage placement near task areas

According to the National Kitchen & Bath Association (NKBA) planning guidelines, walkway clearance should typically be at least 36 inches in a single‑cook kitchen and 42–48 inches in multi‑cook kitchens. Ignoring this rule is the most common layout mistake I see.

Designers always solve layout first and aesthetics second. That approach saves both money and frustration.

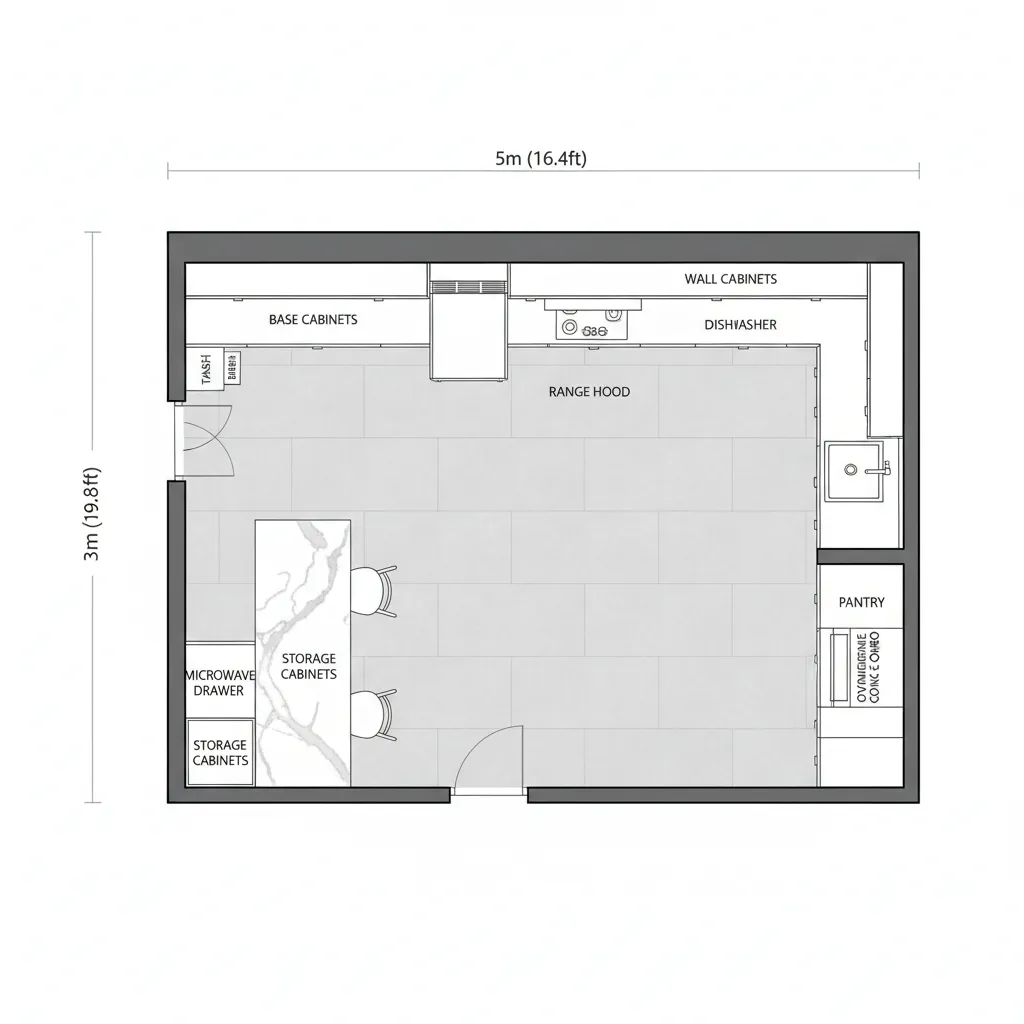

What Measurements Do You Need Before Planning a Kitchen Layout?

Key Insight: Accurate measurements prevent layout problems that digital tools can't fix later.

Before opening any planning tool, take precise measurements of the room. Even small measurement errors can make appliance placement impossible.

Essential measurements include:

1. Total wall lengths
2. Ceiling height
3. Window and door positions
4. Distance from corners to openings
5. Existing plumbing and gas lines

I always recommend sketching a quick floor outline on paper first. This doesn't need to be perfect—it's just a reference for transferring dimensions into a planner.

If you want to visualize the space digitally, many homeowners start by mapping the room using a simple floor plan creator that lets you recreate room dimensions accurately. Seeing the space scaled properly helps you avoid the classic mistake of overcrowding cabinets.

save pin

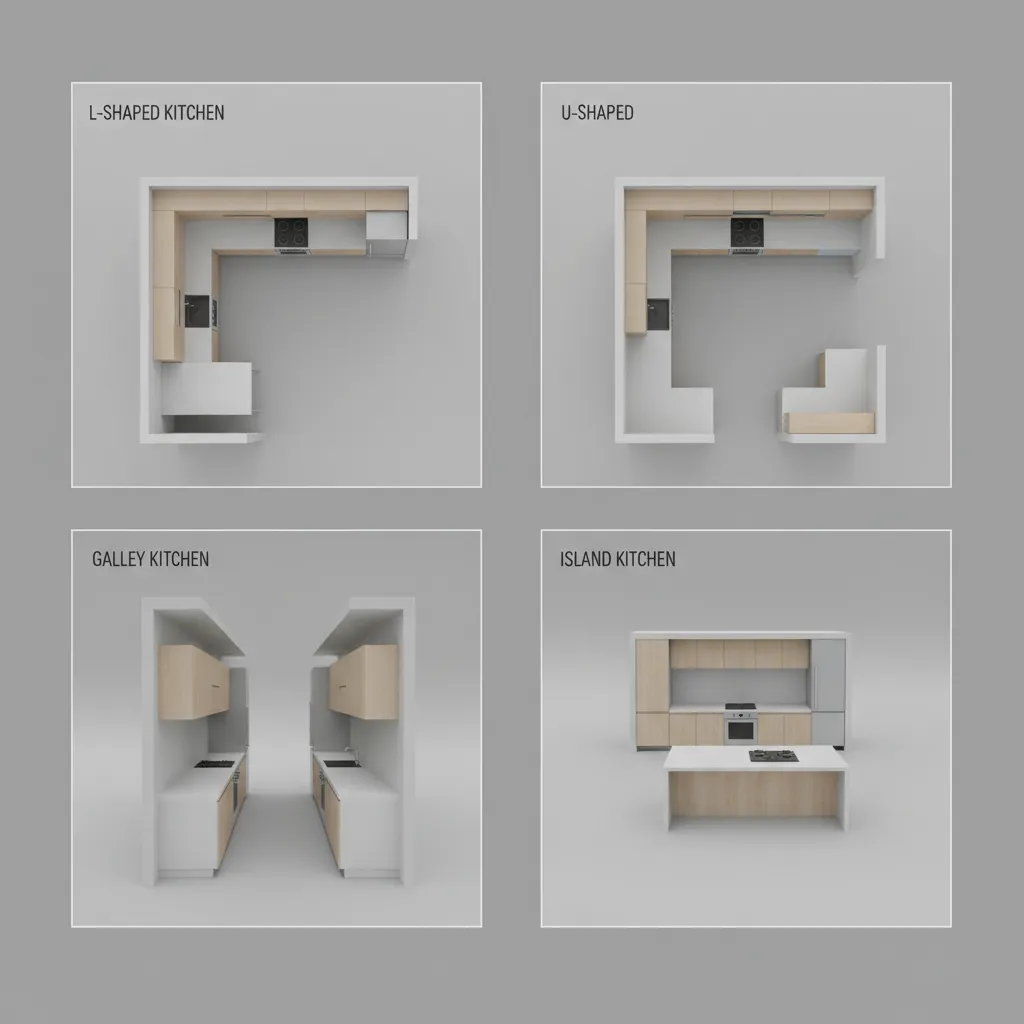

Which Kitchen Layout Type Works Best?

Key Insight: The best kitchen layout is determined by room shape, not design trends.

Online inspiration often pushes trendy layouts like large islands or open kitchens. But the correct layout always depends on room dimensions.

Here are the five layouts I use most frequently in projects:

1. Single Wall Kitchen – Best for small apartments and studios.
2. Galley Kitchen – Highly efficient for narrow spaces.
3. L‑Shaped Kitchen – Flexible and great for open layouts.
4. U‑Shaped Kitchen – Maximizes storage and counter space.
5. Island Kitchen – Works best in large open rooms.

Hidden design trade‑off: islands require at least 40–48 inches of clearance on each side. Many kitchens simply don't have the space, which is why forcing an island often creates traffic problems.

save pin

How Do You Use the Kitchen Work Triangle Correctly?

Key Insight: The work triangle should minimize steps while preventing appliance crowding.

The classic kitchen work triangle connects the three most used areas:

1. Refrigerator
2. Sink
3. Stove

Professional guidelines recommend:

1. Total triangle distance: 13–26 feet
2. No major traffic paths cutting through the triangle
3. Each side between 4 and 9 feet

But here's the modern twist many guides ignore: today's kitchens often function as multi‑zone spaces. Dishwashers, prep sinks, and coffee stations mean the triangle should guide layout—not rigidly control it.

In family kitchens, I usually design additional "prep zones" to prevent multiple cooks from blocking each other.

What Hidden Mistakes Ruin Kitchen Layouts?

Key Insight: Most layout failures happen because homeowners underestimate space required for movement and appliance doors.

After reviewing dozens of renovation mistakes, I see the same problems repeatedly.

Common hidden layout errors include:

1. Appliance door conflicts – fridge or dishwasher blocking pathways
2. Insufficient counter space near the stove
3. No landing space next to the refrigerator
4. Overcrowded islands
5. Poor lighting zones

A practical design trick I use: simulate movement. Imagine cooking dinner and track each step from fridge to sink to stove. If any step feels awkward on paper, it will feel worse in real life.

Answer Box

The easiest way to plan a kitchen layout free is to measure the room, choose a layout type based on the space, place appliances using the work triangle principle, and test multiple arrangements with a digital planner before renovating.

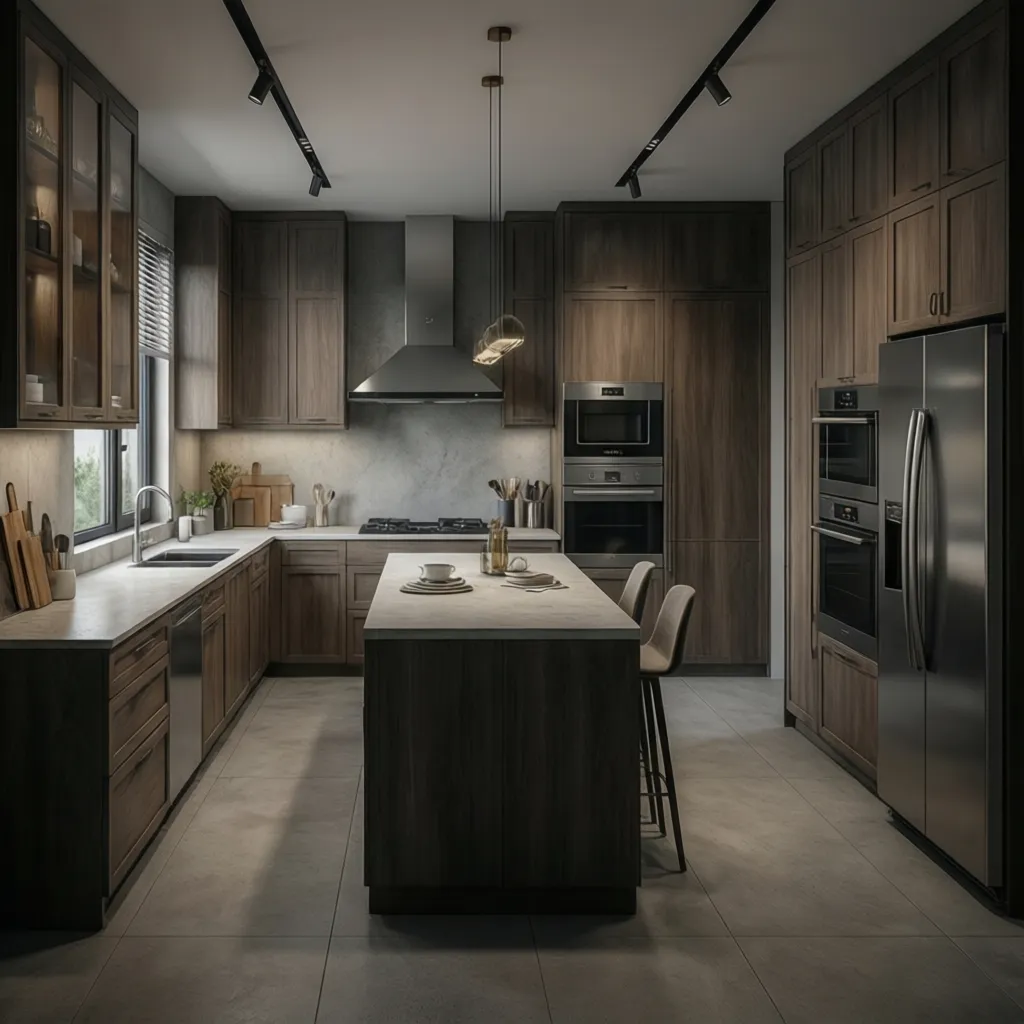

Can You Design a Kitchen Layout Without Professional Software?

Key Insight: Free layout planners can replicate much of the early design process used by professionals.

When clients want to explore ideas before hiring a designer, I recommend experimenting with simple 3D planning tools. These tools help visualize cabinet spacing, appliance placement, and movement paths.

Benefits of digital planning include:

1. Testing multiple layouts quickly
2. Checking walking clearance
3. Visualizing cabinet depth
4. Understanding overall room balance

If you're experimenting with layouts yourself, a useful starting point is exploring a visual 3D floor planning workflow that shows kitchen circulation and spacing. Seeing the room in three dimensions often reveals issues that flat sketches hide.

save pin

Final Summary

1. Kitchen layout determines functionality more than cabinet style.
2. Always measure the room before designing any layout.
3. Choose layout type based on room shape, not trends.
4. The work triangle improves efficiency but shouldn't restrict modern kitchen zones.
5. Testing layouts digitally prevents expensive renovation mistakes.

FAQ

1. What is the easiest way to plan a kitchen layout free?

Measure the room, sketch the layout, and test appliance placement using a free kitchen planner. Digital tools make spacing and workflow easier to visualize.

2. How do I start designing my kitchen layout?

Begin with accurate measurements, identify appliance locations, then choose a layout style such as L‑shape, galley, or U‑shape.

3. What is the best kitchen layout for small spaces?

Galley kitchens or L‑shaped layouts usually work best in small spaces because they maximize counter space without blocking movement.

4. How large should a kitchen walkway be?

At least 36 inches for single‑cook kitchens and 42–48 inches for multiple cooks, based on NKBA planning recommendations.

5. Can beginners design a kitchen layout themselves?

Yes. Many homeowners successfully plan kitchens using free planners before consulting contractors.

6. How important is the kitchen work triangle?

The work triangle still improves efficiency, but modern kitchens often add multiple prep zones and storage areas.

7. Do I need software to plan a kitchen layout free?

No. You can sketch by hand, but digital planners make it easier to test spacing and avoid layout mistakes.

8. What is the biggest kitchen layout mistake?

The most common mistake is ignoring walkway clearance and appliance door swing space.
