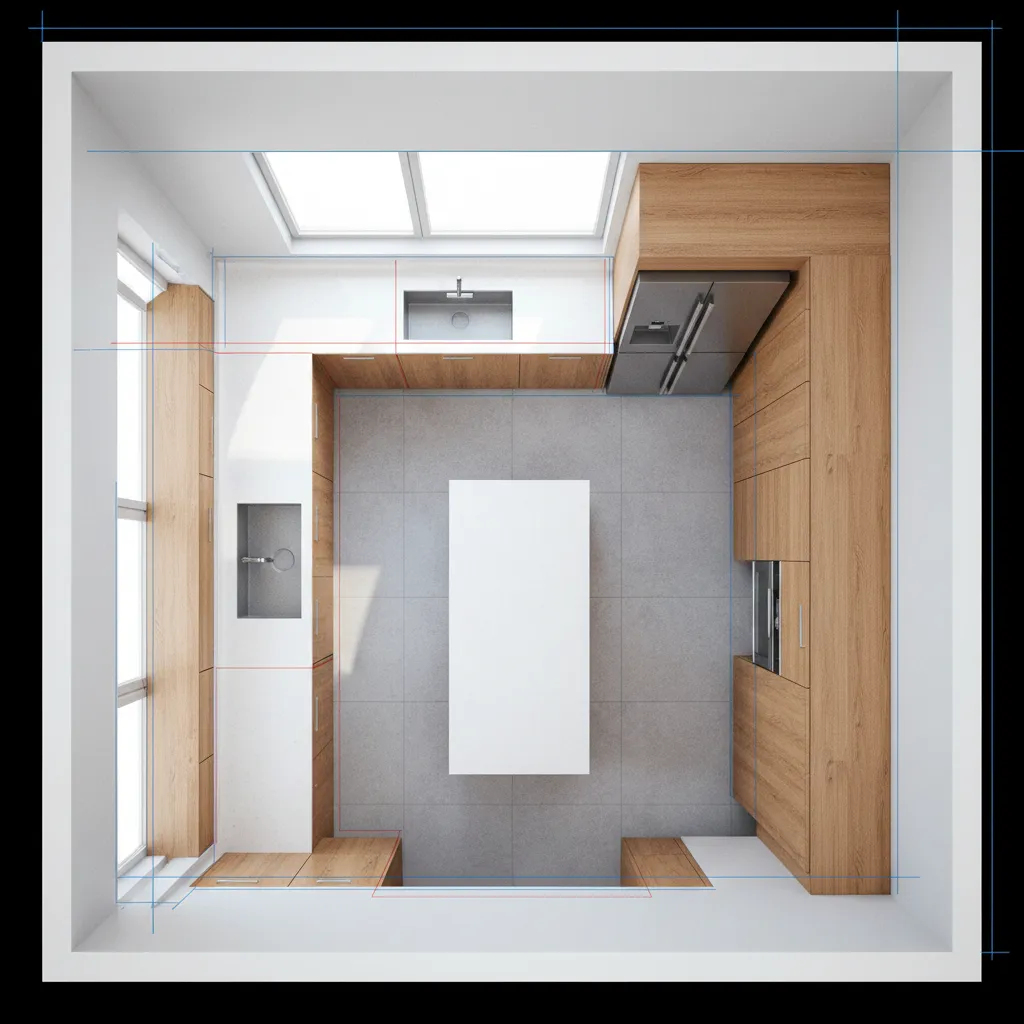

How to Plan a Kitchen Layout Free (Step‑by‑Step Guide): A practical designer workflow to create a functional kitchen layout without paying for professional software.

Direct Answer

You can plan a kitchen layout for free by measuring your space, mapping work zones, choosing a layout style, and testing appliance placement using a free digital floor planner. The key is focusing on workflow first—sink, stove, and fridge positioning—before thinking about cabinets or finishes.

Professional designers follow the same process. The difference is simply using structured steps and visual planning tools to test layouts before committing.

Quick Takeaways

1. A functional kitchen layout prioritizes workflow between sink, stove, and refrigerator.
2. Free digital planners allow you to test cabinet and appliance placement quickly.
3. Most layout mistakes come from ignoring clearance space and traffic flow.
4. Small kitchens benefit most from zone-based planning instead of rigid layouts.
5. Visualizing the layout in 3D helps catch expensive design mistakes early.

Introduction

After designing kitchens for more than a decade, I can tell you something surprising: the hardest part of kitchen design isn't choosing cabinets or countertops. It's getting the layout right.

When homeowners ask me how to plan a kitchen layout free, they're usually worried about cost. But the real risk isn't money—it's committing to a layout that doesn't work once the kitchen is built.

I've seen beautiful $40,000 kitchens that function terribly because the fridge blocks the walkway or the dishwasher collides with a cabinet door.

The good news is you don't need expensive design software to avoid those mistakes. Today there are powerful planning tools that let you experiment with layouts visually before construction starts. If you want to quickly visualize ideas, you can try mapping your kitchen zones and cabinet placement with an interactive planning toolbefore committing to a final configuration.

In this guide, I'll walk you through the same layout process professional designers use—simplified so anyone can do it for free.

save pin

Why the Kitchen Work Triangle Still Matters

Key Insight: Even in modern open kitchens, the sink–stove–refrigerator relationship still determines how efficient the kitchen feels.

The "work triangle" concept dates back to the 1940s, but after working on hundreds of kitchen remodels, I can confirm the core idea still holds up.

These three areas handle most kitchen activity:

1. Sink – cleaning and prep
2. Stove – cooking
3. Refrigerator – food access

If these points are too far apart, the kitchen becomes exhausting to use. If they're too close together, the space feels cramped.

Professional guideline ranges:

1. Total triangle distance: 13–26 feet
2. No major obstacle between points
3. Each leg ideally 4–9 feet

One mistake I frequently see online guides ignore: islands can break the triangle if they're oversized. A beautiful island can easily turn into a daily obstacle.

What Are the 6 Most Common Kitchen Layout Types?

Key Insight: Nearly every residential kitchen layout falls into six structural patterns.

When you're planning a kitchen layout free, identifying the base structure first makes the rest of the decisions much easier.

Here are the six layouts I see most often in real projects:

1. Single Wall – everything along one wall, common in small apartments.
2. Galley – two parallel counters, extremely efficient.
3. L-Shaped – flexible layout ideal for open spaces.
4. U-Shaped – maximum storage and countertop space.
5. Island Layout – adds workspace and social seating.
6. Peninsula Layout – island alternative for tighter rooms.

Hidden design trade-off most guides miss:

save pin

1. Islands improve social interaction but can disrupt cooking flow.
2. Galley kitchens are extremely efficient but limit multiple cooks.
3. L-shaped kitchens offer flexibility but sometimes waste corner space.

Choosing the layout that matches your room shape matters more than following design trends.

How Do You Measure a Kitchen for Layout Planning?

Key Insight: Accurate measurements are the foundation of every successful kitchen layout.

Before placing cabinets or appliances, measure these critical elements:

1. Wall lengths
2. Ceiling height
3. Window positions
4. Door swing directions
5. Existing plumbing and gas lines

Recommended workflow:

1. Sketch the room outline on paper.
2. Measure each wall corner-to-corner.
3. Mark windows, doors, and utilities.
4. Note clearance space around openings.

Once measurements are recorded, many homeowners find it easier to test layouts visually using a digital floor planner. A simple way to do this is by turning your measurements into a scaled kitchen floor planand experimenting with cabinet arrangements.

In my projects, this stage often reveals problems early—like realizing a fridge door would block a hallway.

save pin

Where Should Appliances Go in a Kitchen Layout?

Key Insight: Appliance placement should follow workflow zones rather than visual symmetry.

Many homeowners try to center appliances aesthetically, but kitchens function better when organized into task zones.

Professional zone strategy:

1. Prep Zone – counter space near the sink
2. Cooking Zone – stove with nearby utensils
3. Cleaning Zone – sink and dishwasher
4. Storage Zone – refrigerator and pantry

One hidden mistake I often see: placing the refrigerator at the far end of the kitchen. This forces everyone walking through the kitchen to cross the cooking zone.

A better approach is placing the refrigerator near the entrance so quick access doesn't disrupt cooking.

save pin

Can You Design a Kitchen Layout Online for Free?

Key Insight: Yes—modern 3D planners allow homeowners to design realistic kitchen layouts without professional software.

In the past, kitchen design required expensive CAD tools. Today, free web-based planners allow you to:

1. Build room dimensions
2. Add cabinets and appliances
3. Test multiple layout options
4. Visualize the kitchen in 3D

If you want to see how the finished kitchen might actually look, it's useful to preview the kitchen with realistic lighting and materialsbefore construction starts.

This step often prevents costly renovation mistakes. In several projects I've worked on, clients changed the island size after seeing how cramped it looked in a 3D preview.

save pin

Answer Box

The easiest way to plan a kitchen layout free is to measure the room, choose a layout style that fits the space, and test appliance placement using a digital planner. Visualizing the layout before renovation helps prevent costly workflow and clearance mistakes.

What Mistakes Do People Make When Planning Kitchens?

Key Insight: Most kitchen layout failures come from ignoring movement space.

Based on real renovation projects, these mistakes appear most often:

1. Island clearance smaller than 36 inches
2. Dishwasher blocking cabinet doors
3. Refrigerator opening into traffic paths
4. Too little prep counter space near the sink
5. Upper cabinets installed too low

Professional spacing guidelines:

1. Walkway clearance: 36–42 inches
2. Island clearance: 42–48 inches
3. Prep counter: at least 24 inches

These details seem small during planning—but they determine whether the kitchen feels effortless or frustrating.

Final Summary

1. Start with measurements before placing cabinets.
2. Design around workflow, not aesthetics.
3. Choose a layout that matches the room shape.
4. Test ideas with a free digital kitchen planner.
5. Always check clearance space before finalizing.

FAQ

How can I plan a kitchen layout free online?

You can plan a kitchen layout free using browser-based floor planners that let you add cabinets, appliances, and walls. These tools allow you to visualize the kitchen before renovation.

What is the best kitchen layout for small spaces?

Galley and L-shaped layouts typically work best in small kitchens because they maximize wall space and keep the work triangle compact.

How much space should be between kitchen cabinets and an island?

Most designers recommend 42–48 inches between cabinets and an island to allow comfortable movement and appliance access.

Is the kitchen work triangle still important?

Yes. Even in modern open kitchens, the relationship between sink, stove, and refrigerator still determines efficiency.

Can beginners design their own kitchen layout?

Yes. With accurate measurements and a digital planner, homeowners can create functional layouts before consulting contractors.

How long does it take to design a kitchen layout?

Most homeowners can create a basic layout in 30–60 minutes once room measurements are ready.

Do I need a professional designer for kitchen planning?

Not always. Many people successfully plan a kitchen layout free online and only hire professionals for final adjustments.

What is the easiest way to visualize a kitchen design?

Using a 3D planner is the easiest way to understand scale, spacing, and cabinet placement before construction.
