How to Remove Kitchen Drawers With Bottom Slides: A step‑by‑step method designers and installers use to safely remove drawers with undermount slide systems.

Direct Answer

To remove kitchen drawers with bottom slides (also called undermount slides), fully extend the drawer, locate the release clips underneath near the front corners, press or squeeze the clips, then lift the drawer upward and pull it forward. The drawer will disengage from the slide tracks attached to the cabinet.

This method works for most modern soft‑close and undermount systems used in contemporary kitchens.

Quick Takeaways

1. Most bottom‑slide drawers release using clips located underneath the front corners.
2. Always pull the drawer fully open before attempting removal.
3. Lift the drawer slightly after releasing the clips to disengage the slide hooks.
4. Never force the drawer out—bottom slides can bend easily.
5. Soft‑close systems usually require pressing both release levers simultaneously.

Introduction

Knowing how to remove kitchen drawers with bottom slides is surprisingly important. I’ve worked on dozens of kitchen remodels where homeowners struggled with something as simple as removing a drawer to clean, repair, or repaint cabinetry.

The confusion usually comes from the slide system. Traditional side‑mounted slides are obvious—you pull a lever and the drawer comes out. But bottom‑mounted systems hide the hardware underneath the drawer box, which makes them look sleek but also makes the release mechanism easy to miss.

In modern kitchen projects I design, undermount slides are actually the standard. They allow full‑extension drawers, soft‑close motion, and cleaner cabinet interiors. If you're planning layout changes or experimenting with cabinet arrangements, tools that help you visualize kitchen flow and cabinet placement before remodelingcan save serious time.

Below, I’ll walk through the exact removal process, the small details most guides skip, and a few mistakes I regularly see during real installations.

save pin

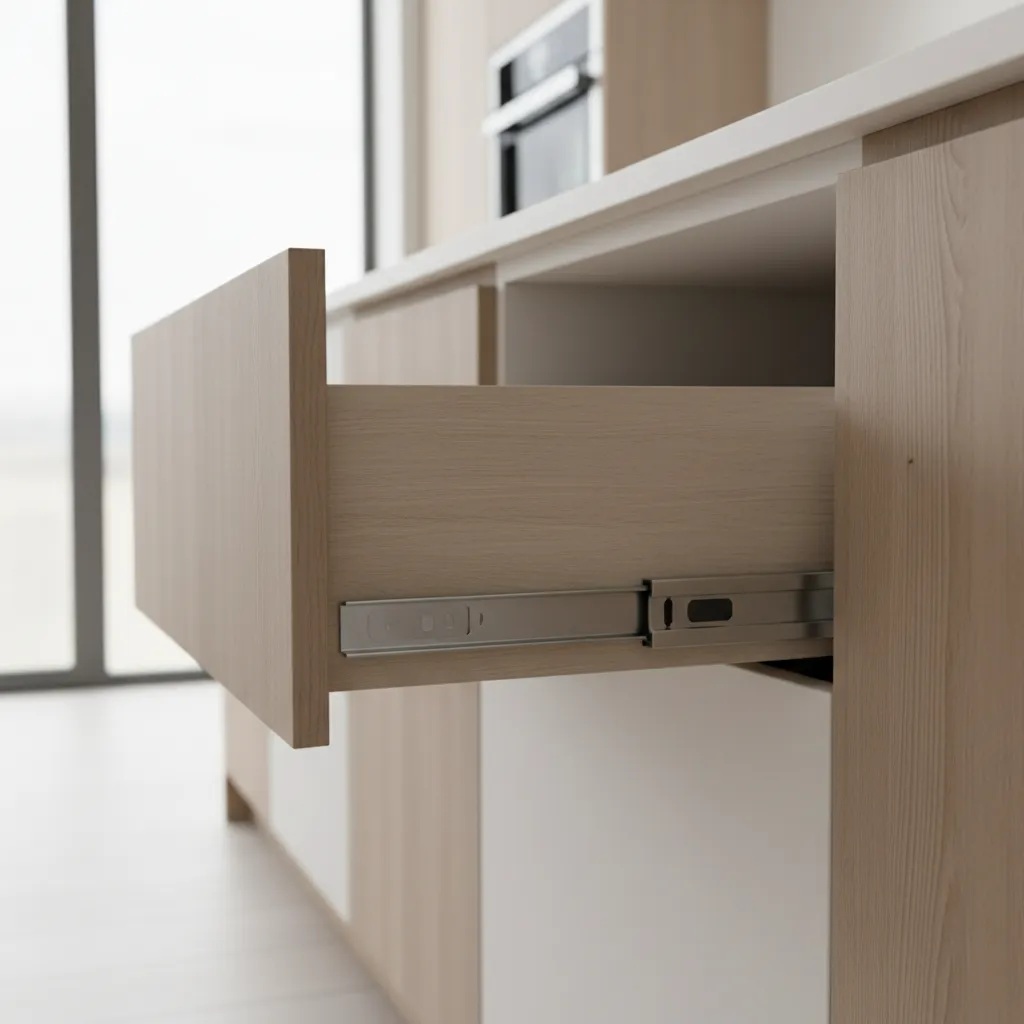

What Are Bottom Slide Kitchen Drawers?

Key Insight: Bottom slide drawers use hidden undermount tracks attached beneath the drawer box instead of visible rails on the sides.

Most modern cabinet manufacturers—especially European brands—use undermount slides because they create a cleaner aesthetic and smoother motion.

Instead of rails on each side, the drawer sits on two concealed tracks mounted inside the cabinet. Small locking devices or clips connect the drawer to these tracks.

Common characteristics:

1. Slides mounted under the drawer
2. Soft‑close mechanisms
3. Full‑extension access
4. Hidden hardware for cleaner design

Industry note: Brands like Blum and Hettich popularized undermount slide systems in modern kitchens, and they now dominate higher‑end cabinetry.

How Do You Remove Kitchen Drawers With Bottom Slides?

Key Insight: Almost every bottom‑slide drawer releases by unlocking two clips under the drawer front.

Here is the exact process installers typically follow.

Step‑by‑step method:

1. Open the drawer completely until it stops.
2. Look underneath the drawer near the left and right front corners.
3. Find the plastic release tabs or levers.
4. Press or squeeze both clips simultaneously.
5. Lift the drawer slightly upward.
6. Pull the drawer forward and out of the cabinet.

Once released, the drawer lifts off the slide hooks and slides out easily.

Pro tip from installation work:Keep one hand under the drawer base while lifting. Heavier drawers—especially those filled with cookware—can suddenly drop when disengaged.

save pin

Why Do Some Bottom Slide Drawers Feel Stuck?

Key Insight: Drawers rarely jam because of the slides; they usually feel stuck because the release clips aren’t fully engaged.

In renovation projects, homeowners often assume the drawer is screwed in. In reality, one of three things is happening.

Common causes:

1. Only one release clip is pressed
2. The drawer is not fully extended
3. The drawer is overloaded and binding the slides
4. Soft‑close dampers are resisting the lift

If a drawer refuses to release:

1. Open it completely.
2. Press both clips firmly.
3. Lift the drawer front slightly higher than the back.

This small angle shift is often the missing trick.

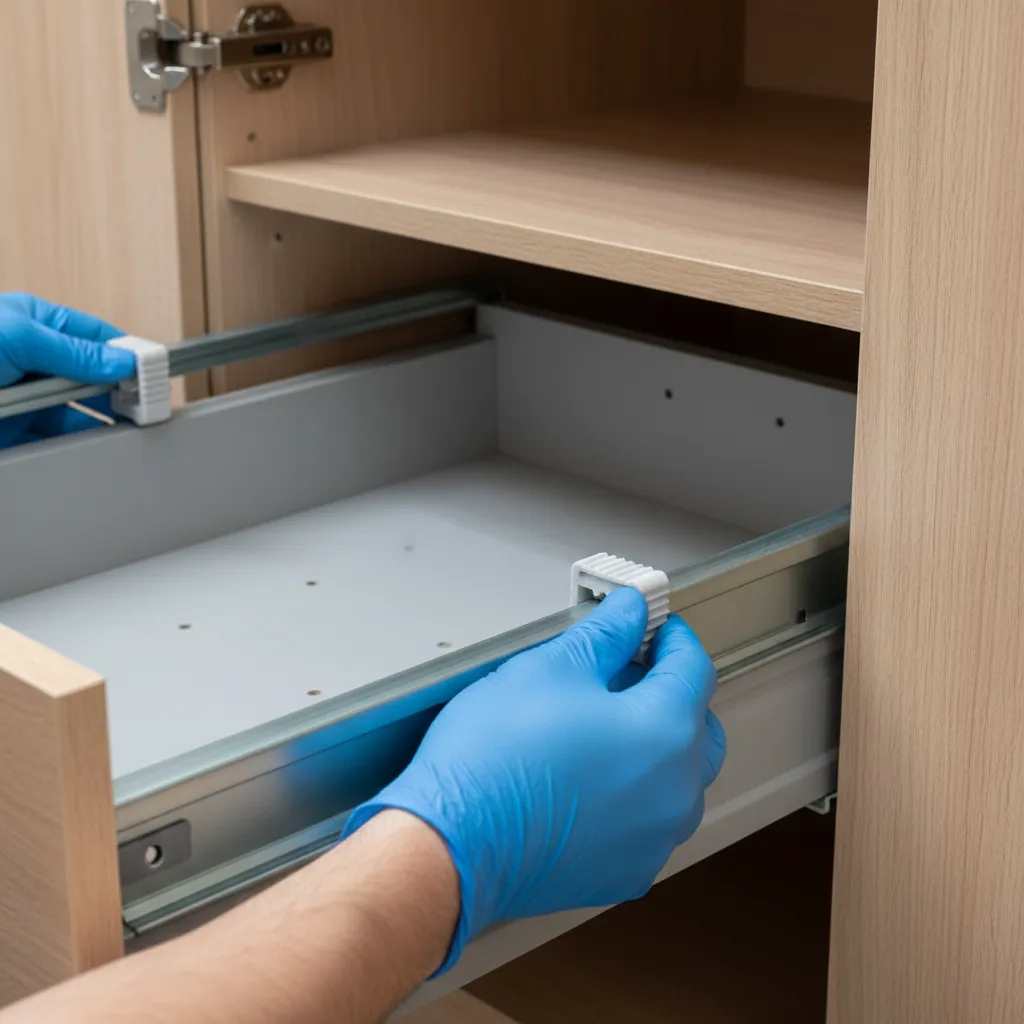

What Do Bottom Slide Release Clips Look Like?

Key Insight: Release clips are usually small plastic levers located underneath the drawer front corners.

They vary slightly by manufacturer but usually follow the same layout.

Typical clip styles:

1. Squeeze tabs
2. Push levers
3. Sliding locking clips

In many kitchens I’ve worked on, the clips are color‑coded:

1. Orange or red clips for release mechanisms
2. Gray clips for adjustment

These clips also allow vertical adjustment during cabinet installation.

save pin

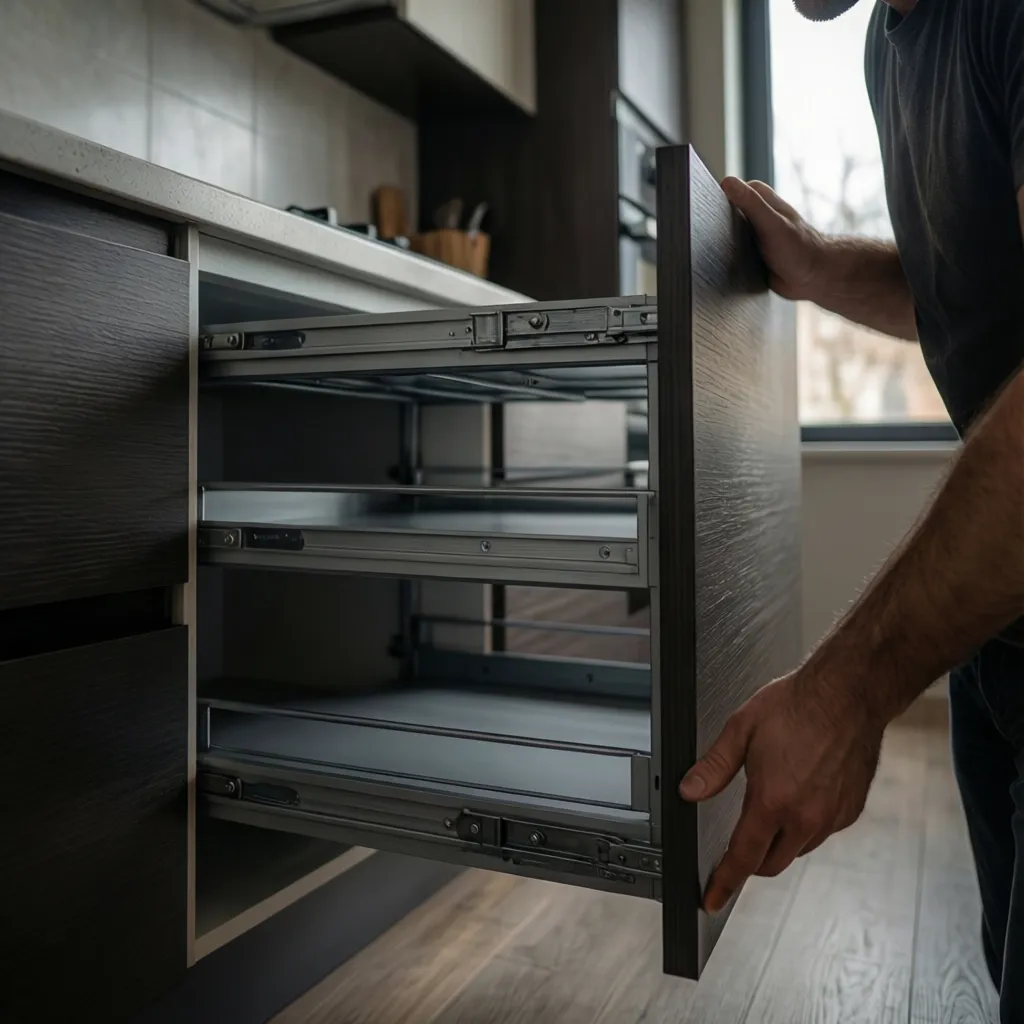

Hidden Mistakes People Make When Removing Drawers

Key Insight: The biggest mistake is pulling the drawer straight out without lifting.

Undermount slides hook into the bottom of the drawer. If you skip the lifting motion, the drawer won’t disengage.

Common errors I see in projects:

1. Forcing the drawer out and bending the slide rails
2. Pulling from one side only
3. Trying to remove the drawer while it’s half open
4. Ignoring the release clips entirely

Replacing damaged undermount slides can be expensive because they are installed deep inside the cabinet frame.

If you're redesigning cabinetry or reorganizing storage, it's helpful to experiment with kitchen cabinet layouts and storage zones before changing hardware or drawer systems.

Answer Box

The fastest way to remove kitchen drawers with bottom slides is to fully extend the drawer, press the two release clips underneath the front corners, then lift and pull the drawer forward. Most modern soft‑close undermount systems use this exact mechanism.

Can You Remove Soft‑Close Bottom Slide Drawers the Same Way?

Key Insight: Yes—soft‑close drawers use the same removal method because the damper mechanism sits inside the slide track.

Soft‑close systems simply add a hydraulic damper inside the rail. The connection between the drawer and the slide still uses the same clips.

Removal differences:

1. Drawer may resist slightly near the end of extension
2. You may hear a small click when disengaging
3. Heavier drawers require lifting more firmly

In many modern remodels, homeowners also like previewing the finished cabinetry using tools that can generate realistic kitchen renderings before installation. Seeing drawer spacing and cabinet depth in advance helps avoid design mistakes.

save pin

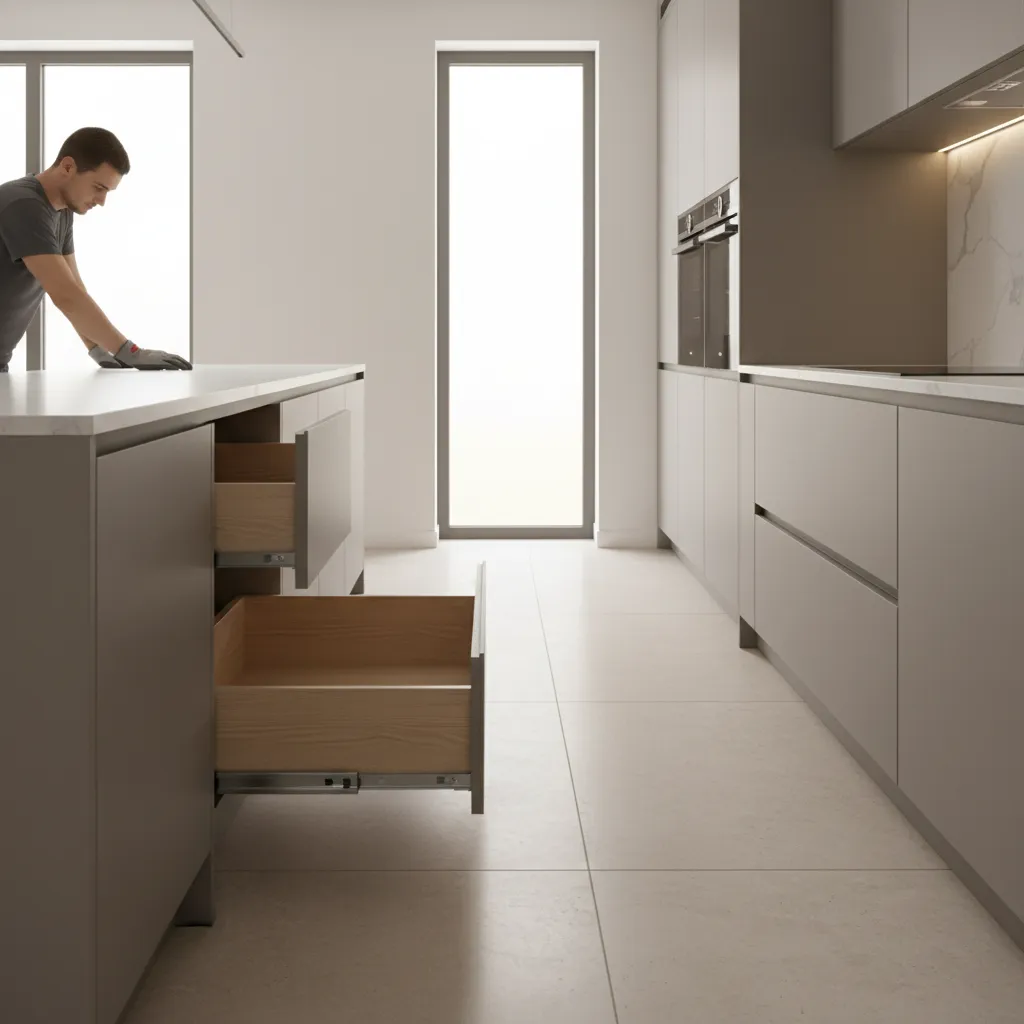

How Do You Reinstall the Drawer After Removing It?

Key Insight: Reinstallation is easier than removal—simply align the drawer with the slide rails and push until the clips lock.

Steps to reinstall:

1. Extend both cabinet slides fully.
2. Place the drawer onto the slide rails.
3. Align the hooks underneath the drawer.
4. Push the drawer inward.
5. Listen for both clips clicking into place.

Once installed correctly, the drawer should glide smoothly and close with soft‑close tension.

Final Summary

1. Bottom slide drawers use hidden undermount tracks.
2. Release clips under the drawer front control removal.
3. Always extend the drawer fully before unlocking clips.
4. Lift slightly while pulling to disengage slide hooks.
5. Soft‑close drawers remove using the same method.

FAQ

1. How do you remove kitchen drawers with bottom slides without clips?

Some older undermount systems require lifting the drawer straight up once fully extended. If no clips exist, the drawer usually disengages from rear hooks.

2. Are bottom slide drawers better than side slides?

Bottom slides provide smoother motion, hidden hardware, and full extension. They are common in modern kitchens but cost more than side‑mounted systems.

3. Can all kitchen drawers with bottom slides be removed?

Yes. Nearly every undermount slide system allows removal for cleaning or repairs using release clips or lift‑off hooks.

4. Why won't my kitchen drawer come out?

The most common reason is that the release clips are not pressed at the same time or the drawer is not fully extended.

5. How do I identify undermount drawer slides?

If you don't see metal rails on the sides and the hardware sits under the drawer box, it’s an undermount slide system.

6. Do soft‑close drawers remove differently?

No. Soft‑close drawers with bottom slides use the same release clips and lifting method.

7. Can removing drawers damage the slides?

Yes if forced. Always press the clips and lift slightly before pulling forward.

8. How long does it take to remove a kitchen drawer?

Once you know the release mechanism, removing a drawer with bottom slides usually takes less than 10 seconds.
