How to Set Up a Small Commercial Kitchen Efficiently: A practical layout, equipment, and workflow guide for building a profitable small commercial kitchen

Direct Answer

To set up a small commercial kitchen efficiently, focus on workflow first: receiving, storage, prep, cooking, plating, and cleaning must follow a logical path. Choose compact commercial equipment, prioritize ventilation and safety codes, and design zones that minimize staff movement. In tight kitchens, layout decisions matter more than equipment size.

Quick Takeaways

1. Workflow matters more than kitchen size when designing a commercial kitchen.
2. Divide the kitchen into clear zones: storage, prep, cooking, service, and cleaning.
3. Compact multi‑function equipment saves both space and energy costs.
4. Poor ventilation and storage planning are the most common hidden mistakes.
5. A well‑planned layout can increase kitchen productivity by over 20%.

Introduction

Small commercial kitchens are far more common than people think. Over the past decade, I've worked on restaurant renovations, ghost kitchens, café kitchens, and food truck prep spaces where every square foot had to earn its keep.

When people ask how to set up a small commercial kitchen, they usually focus on equipment first—ranges, fryers, refrigerators. But in almost every project I've seen, the real success factor is workflow. A poorly organized 200‑square‑foot kitchen can feel chaotic, while a well‑planned 120‑square‑foot space can run smoothly during peak service.

Before placing equipment, I usually map the kitchen workflow visually. If you're exploring layout ideas, it helps to see examples of efficient kitchen layouts for compact restaurant spacesto understand how zones interact.

This guide walks through the practical decisions that matter most—layout logic, equipment selection, safety regulations, and the hidden mistakes that often make small kitchens inefficient.

save pin

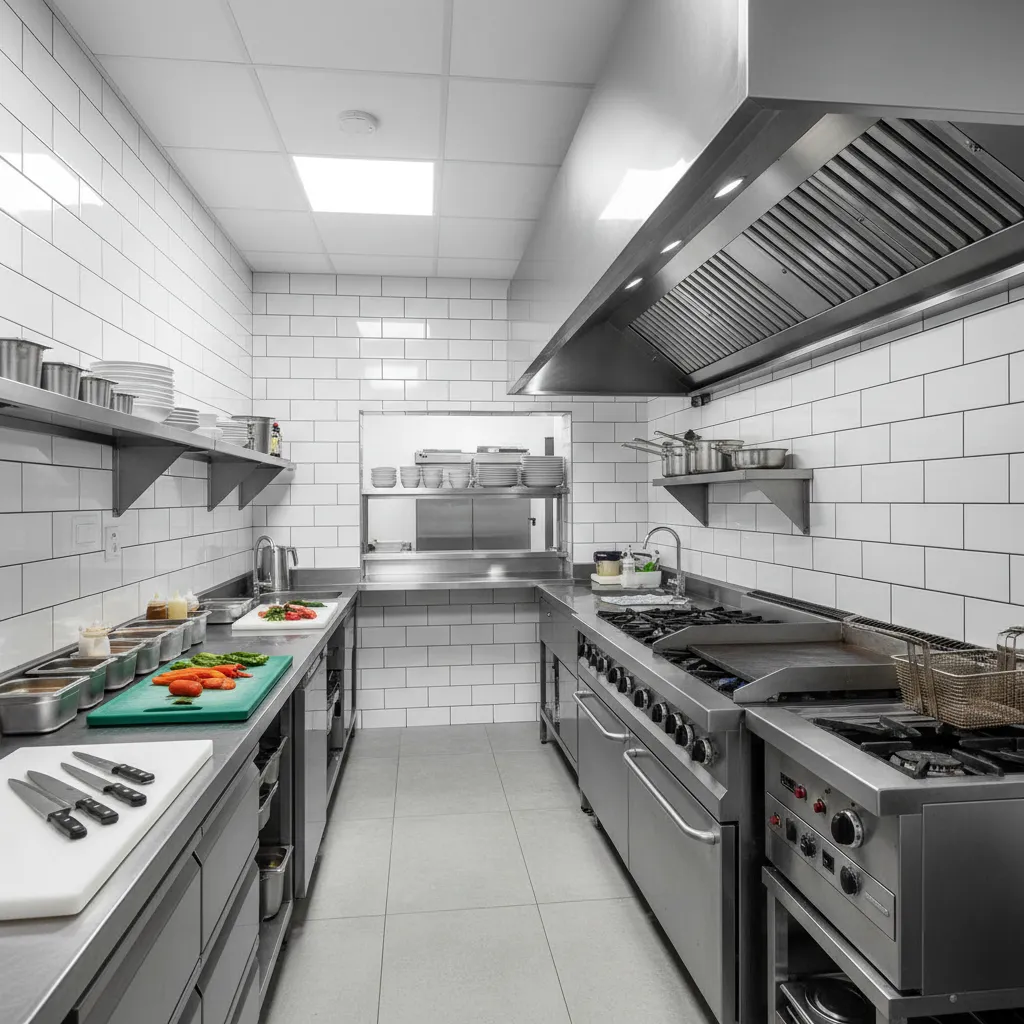

Why Workflow Is the Most Important Factor in a Small Commercial Kitchen

Key Insight: The best small commercial kitchens are designed around movement patterns, not equipment lists.

In tight spaces, every extra step slows service and increases staff stress. The kitchens that perform best follow a clear directional flow from ingredients entering the space to dishes leaving the pass.

A typical efficient flow looks like this:

1. Receiving ingredients
2. Dry or cold storage
3. Prep station
4. Cooking line
5. Plating / pass
6. Dishwashing

In many small restaurants I audit, one common mistake is crossing paths between raw food prep and dishwashing areas. Health inspectors often flag this immediately because it increases contamination risk.

Restaurant design consultants from organizations like the National Restaurant Association consistently emphasize linear or L‑shaped flows as the most efficient solution for compact kitchens.

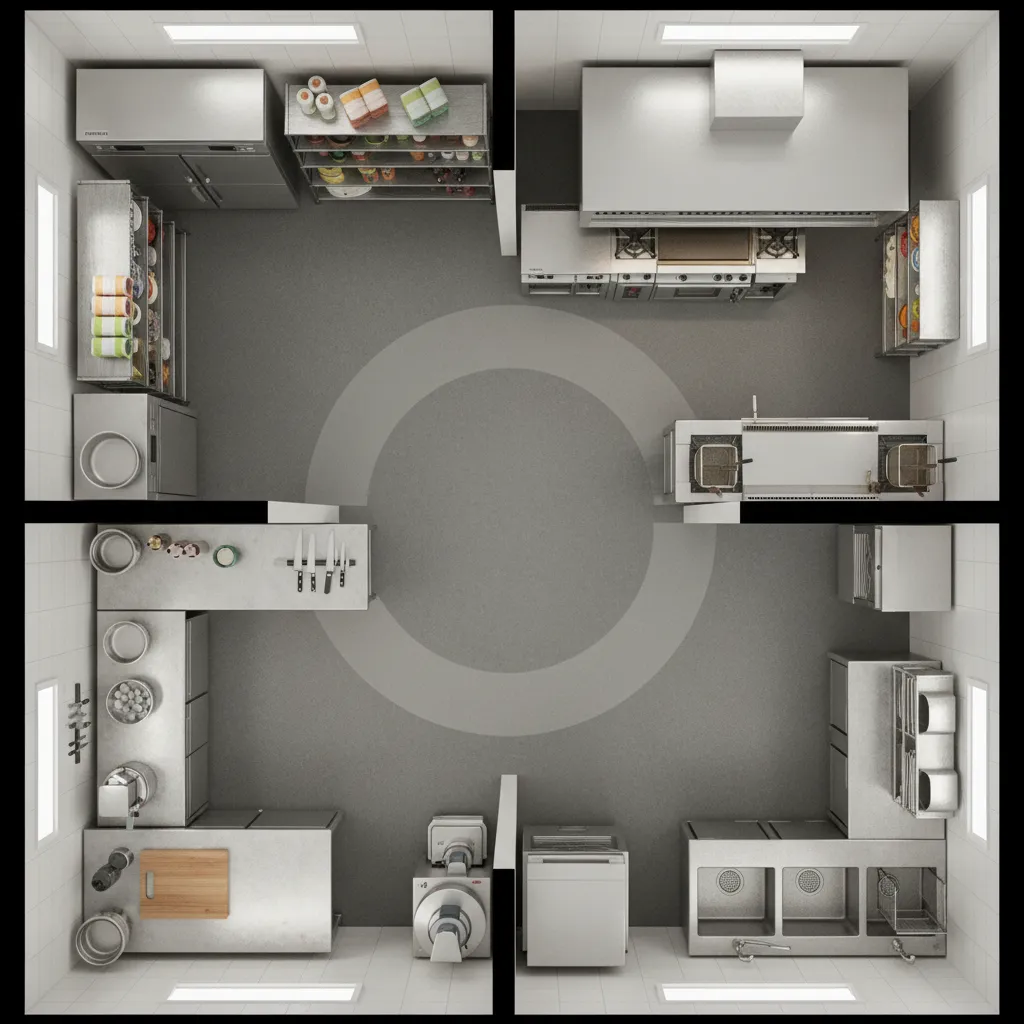

What Zones Should Every Small Commercial Kitchen Include?

Key Insight: Even the smallest commercial kitchens should contain five essential functional zones.

Trying to merge everything into one flexible counter usually backfires. Separation improves both efficiency and food safety.

Essential kitchen zones:

1. Storage Zone – refrigerators, freezers, and dry storage shelving
2. Prep Zone – cutting boards, sinks, mixers, and ingredient prep space
3. Cooking Zone – ranges, ovens, grills, fryers
4. Service Zone – plating and order pickup
5. Cleaning Zone – dishwashing and sanitation

In small kitchens, these zones often overlap spatially but should never overlap functionally. For example, prep surfaces should not double as dishwashing stations during service hours.

save pin

How Much Space Do You Actually Need?

Key Insight: Most small restaurants operate efficiently with 150–400 square feet of kitchen space.

Many new owners overestimate the size they need. In reality, space efficiency is driven by layout density rather than square footage.

Typical kitchen sizes by concept:

1. Coffee shop kitchen: 120–200 sq ft
2. Small café: 150–300 sq ft
3. Takeout restaurant: 200–350 sq ft
4. Ghost kitchen: 150–250 sq ft

The bigger constraint is clearance. Health and safety standards often require:

1. 36–48 inches between equipment lines
2. Clear access to exits
3. Dedicated hand‑washing sinks
4. Proper ventilation hoods

When testing layouts, I often recommend using tools that allow you to visualize a commercial kitchen layout in 3D before installation. It helps spot circulation problems early.

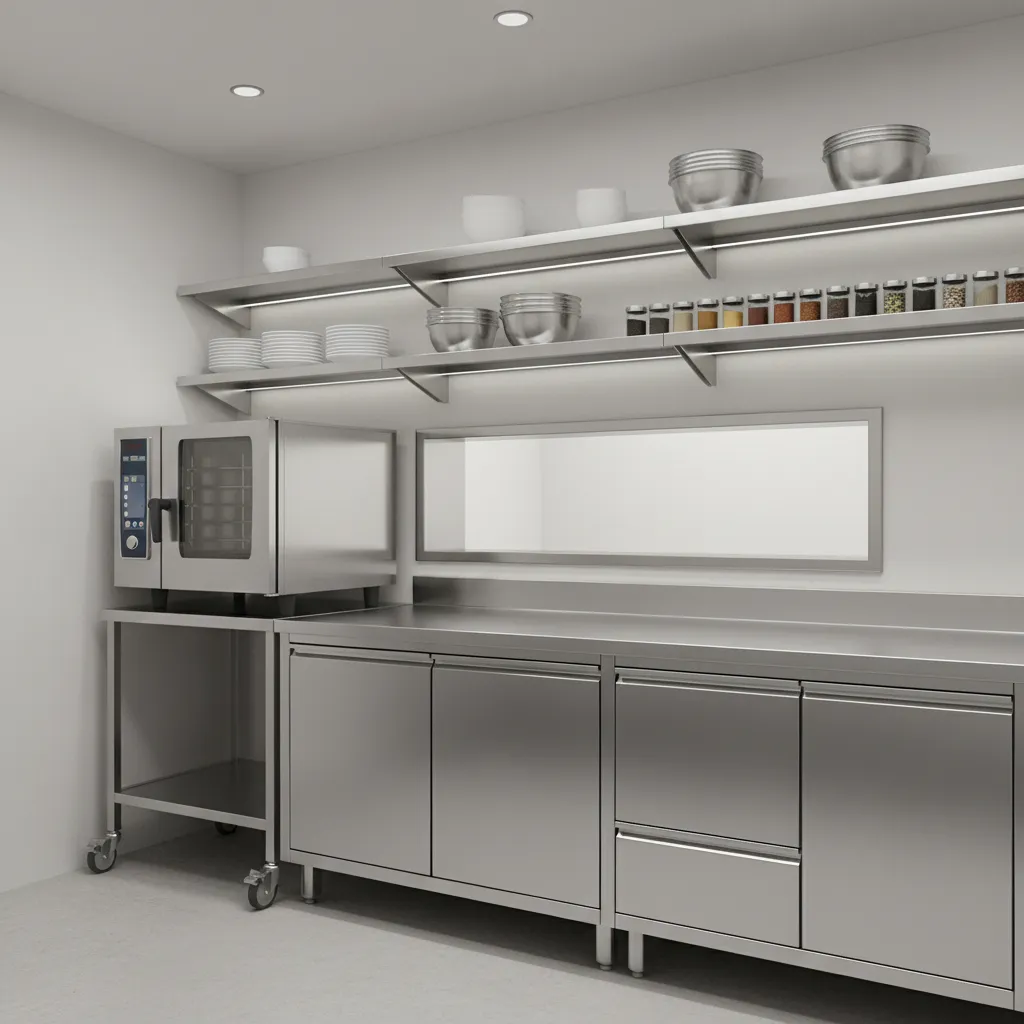

Choosing Equipment for a Small Commercial Kitchen

Key Insight: Multi‑purpose equipment dramatically improves efficiency in compact kitchens.

In many of my restaurant projects, the best space-saving upgrades come from reducing redundant appliances.

Smart equipment choices include:

1. Combi ovens replacing multiple cooking appliances
2. Undercounter refrigerators instead of large upright units
3. Stacked convection ovens
4. Induction ranges for compact cooking lines
5. Wall‑mounted shelving instead of floor storage

A hidden cost many operators miss is ventilation capacity. High‑heat equipment like charbroilers requires larger hood systems, which can dramatically increase installation costs.

save pin

Common Design Mistakes That Ruin Small Kitchens

Key Insight: The most expensive kitchen problems usually come from overlooked layout details.

After reviewing dozens of restaurant layouts, I consistently see the same avoidable mistakes.

Common small kitchen design errors:

1. Placing refrigeration too far from prep stations
2. Insufficient counter space near cooking equipment
3. Poor ventilation planning
4. Ignoring delivery and ingredient receiving paths
5. Overcrowding with unnecessary appliances

Another issue many designers ignore is vertical storage. Wall-mounted racks, hanging utensil rails, and high shelving can double usable storage without increasing the footprint.

Answer Box

A successful small commercial kitchen depends on efficient workflow, clear zoning, compact equipment, and smart storage. When layout supports movement and safety standards, even a tiny kitchen can operate like a much larger one.

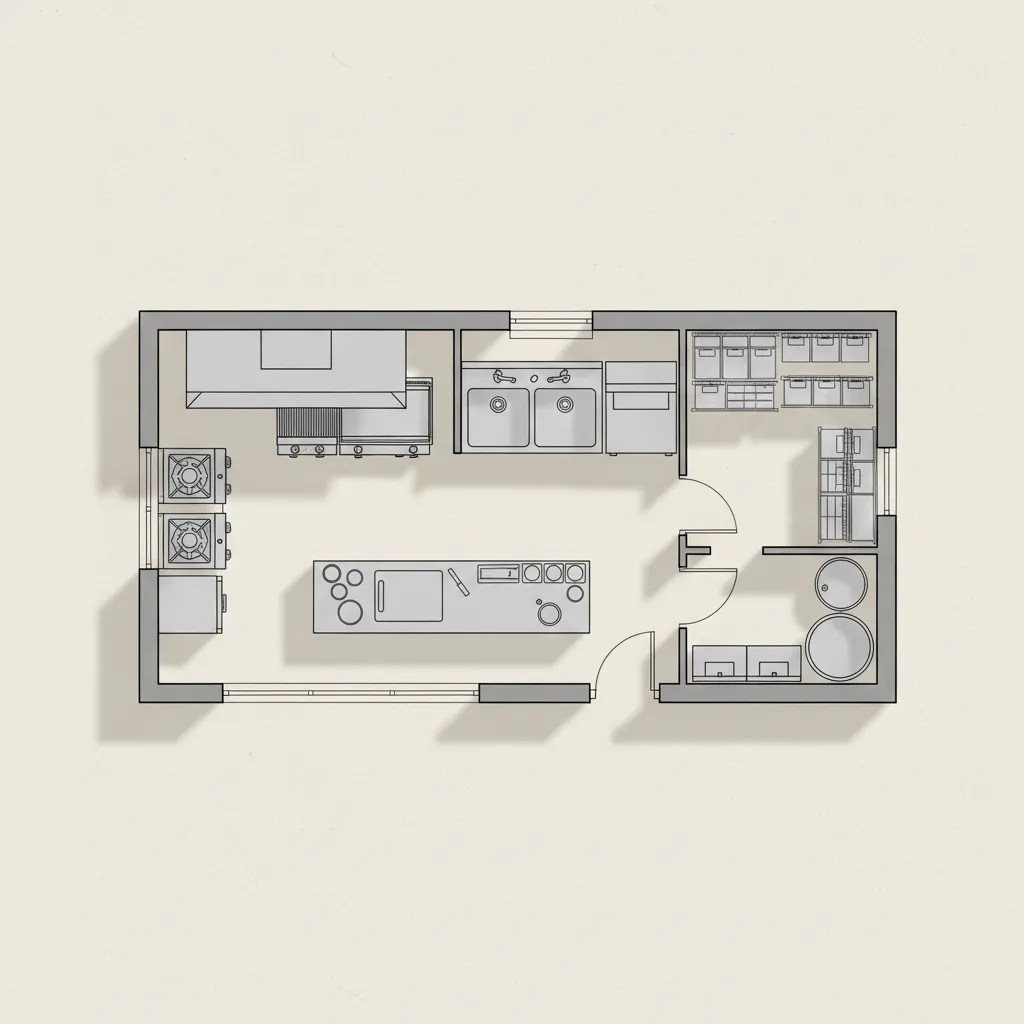

How Do You Plan a Small Kitchen Layout Before Construction?

Key Insight: Testing layouts digitally prevents costly installation mistakes.

In many restaurant renovations I've worked on, layout revisions during construction were the most expensive changes.

Before installing equipment, follow this planning process:

1. Measure the full room including doors and utilities
2. Define workflow zones
3. Place major appliances first
4. Add prep surfaces and sinks
5. Test staff movement paths

If you're experimenting with different configurations, you can experiment with different kitchen floor plans before committing to construction. Visual testing often reveals space conflicts you wouldn't notice on paper.

save pin

Final Summary

1. Workflow design is the foundation of any small commercial kitchen.
2. Divide the kitchen into clear functional zones.
3. Choose compact multi‑purpose equipment whenever possible.
4. Ventilation and safety clearance are common hidden costs.
5. Testing layouts early prevents expensive construction changes.

FAQ

1. What is the minimum size for a small commercial kitchen?

Most functional small commercial kitchens operate between 150 and 400 square feet depending on the menu and equipment requirements.

2. How much does it cost to set up a small commercial kitchen?

Costs typically range from $15,000 to $100,000 depending on equipment, ventilation, plumbing, and local health code requirements.

3. What equipment is essential in a small commercial kitchen?

Essential equipment usually includes a commercial range, refrigeration, prep tables, sinks, storage shelving, and a ventilation hood.

4. Can a small commercial kitchen support a full restaurant menu?

Yes, but menus must be optimized for the equipment available. Many successful restaurants design menus around compact cooking stations.

5. How do you improve efficiency in a small commercial kitchen?

Focus on workflow, minimize unnecessary equipment, and place prep areas close to refrigeration and cooking stations.

6. Do small commercial kitchens require special ventilation?

Yes. Most jurisdictions require commercial ventilation hoods and fire suppression systems for cooking equipment.

7. What layout works best for a small commercial kitchen?

Galley or assembly‑line layouts are usually the most efficient for small commercial kitchen operations.

8. How can I design a small commercial kitchen layout?

Start by mapping workflow zones, then place major equipment and test staff movement paths before finalizing the design.
