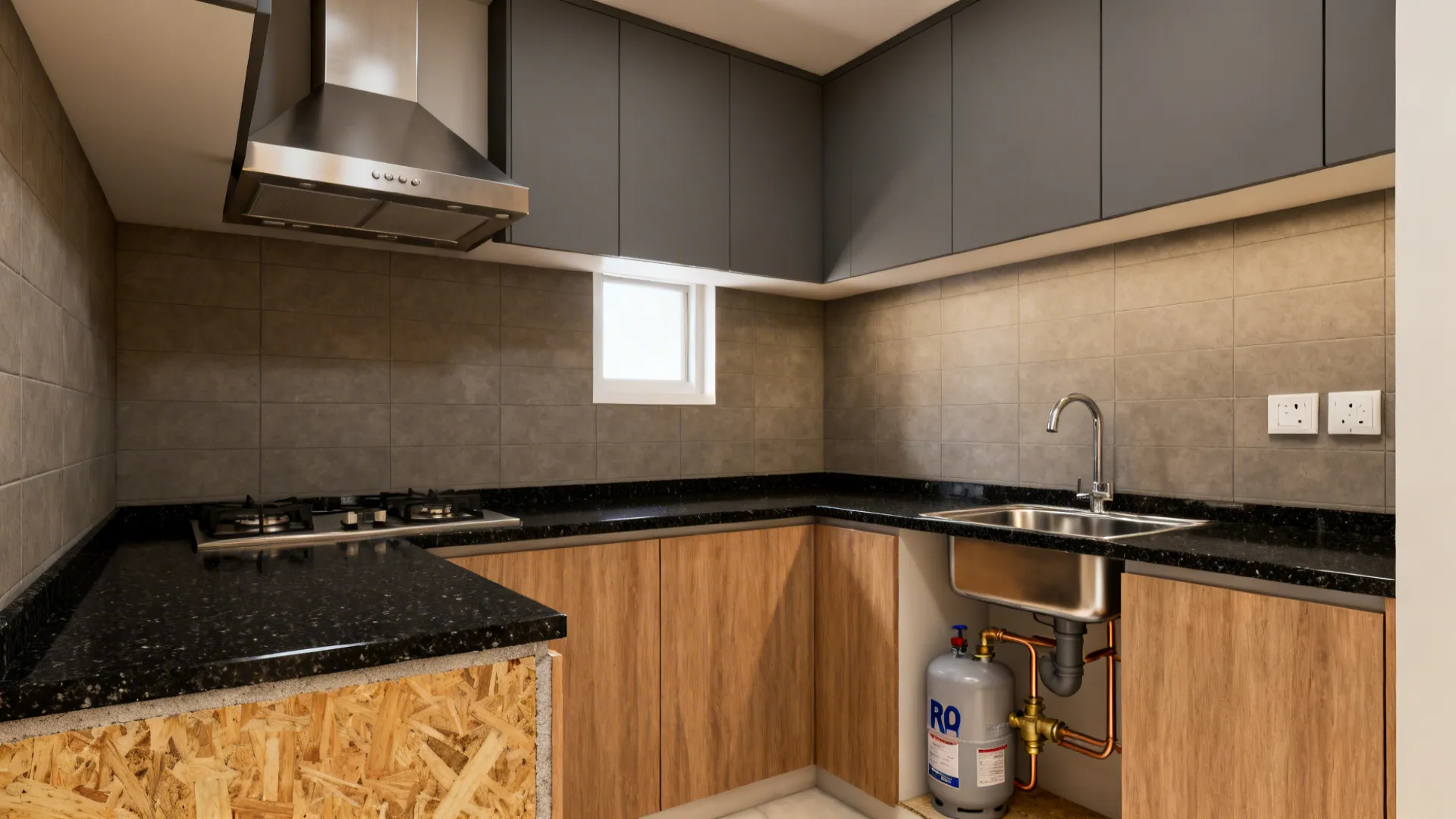

Indian Kitchen Counter Detail Drawing: 5 Pro-Level Ideas: How I plan, draw, and build smarter Indian kitchen counters for small spaces

[Section: Meta 信息] Meta Title: Indian Kitchen Counter Detail Drawing: 5 Expert Ideas Meta Description: Learn 5 expert ideas for Indian kitchen counter detail drawing. Practical layers, heights, materials, and services—small-space smart design with pro tips. Meta Keywords: indian kitchen counter detail drawing, counter height in india, modular kitchen detail, granite counter section, backsplash detail india, L-shaped kitchen india, LPG piping layout kitchen [Section: 引言] As a residential designer who’s rebuilt more than a dozen compact Indian kitchens, I’ve seen how today’s trend—function-first minimalism with easy-to-clean materials—meets the realities of tadkas, pressure cookers, and daily roti. Small spaces spark big creativity, especially when the counter detail drawing does the heavy lifting. In this guide, I’ll share 5 design inspirations for Indian kitchen counter detail drawing. I’ll blend personal field notes, client stories, and expert-backed data to help you sketch, specify, and build with confidence. [Section: 灵感列表]

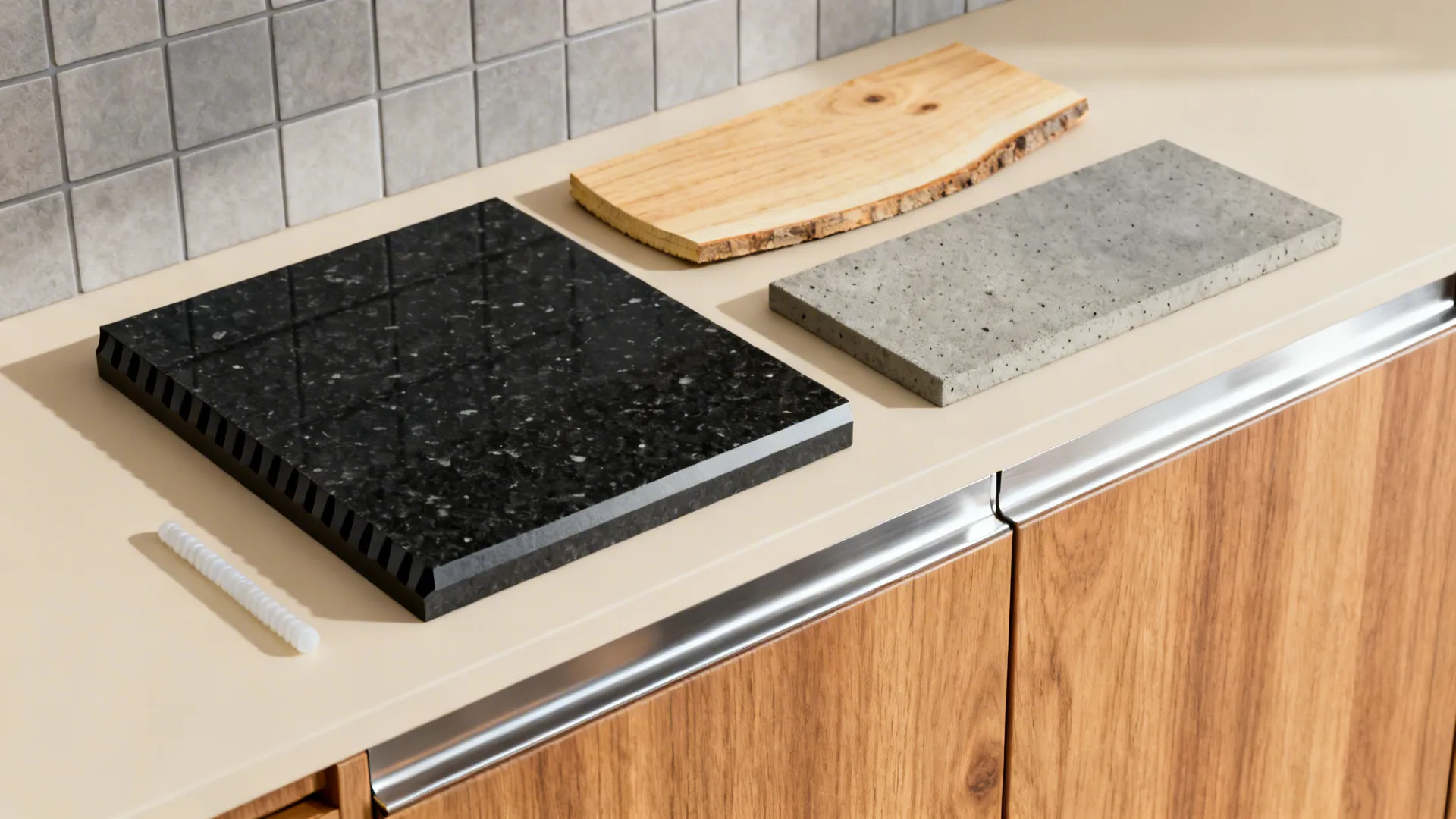

1) Minimal, Layered Counter Sections for Heat, Oil, and Moisture

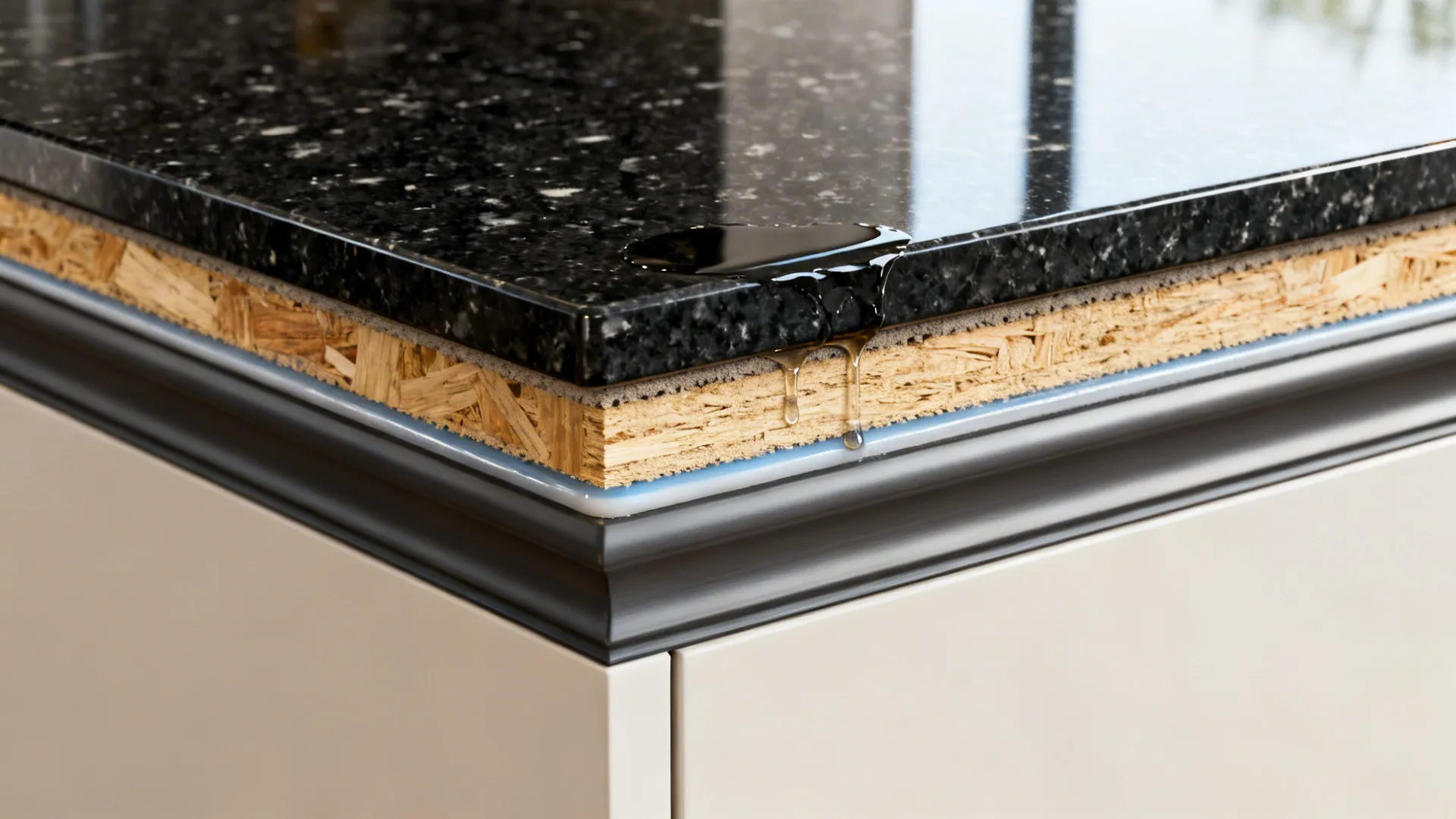

My Take I learned early that a neat elevation isn’t enough; the section must narrate heat and oil movement. In Mumbai humidity, I spec a 20 mm granite top with a 6 mm drip edge, plus a sandwich of (top) stone, (core) marine ply or RCC, and (finish) sealed skirting—because wiping down after tadka should be one cloth, not three. Pros - A layered indian kitchen counter detail drawing forces clarity on stone thickness, drip-edge, and backsplash return—perfect for long-tail queries like “granite counter section india with drip edge.” - Moisture control improves longevity: marine ply underlay or RCC slab resists swelling near the sink zone; an upstand/backsplash detail keeps oil off paint. Cons - More layers mean more trades to coordinate; your mason, carpenter, and plumber must read the same drawing. - Granite edges chip if the profile is too sharp; I’ve switched to a 3 mm chamfer on busy family kitchens after one memorable curry night. Small Tip / Cost - Budget roughly ₹2,500–₹5,000 per running foot for granite with edge profiling in Tier-1 cities; add 10–15% for complex cutouts. - First internal link (20% mark): If you’re exploring an L-kitchen, this visual guide to “L 型布局释放更多台面空间” is handy: L-shaped layout frees more counter space.

save pin

save pin

2) Right Heights: Hob, Prep, and Sink Ergonomics

My Take After a few sore-shoulder complaints, I started drawing three height bands: 860–900 mm for prep, 800–840 mm for hob (to keep heavy kadhais comfortable), and 900–920 mm for sink rims to reduce back splash. On site, I always mock these with a cardboard top and a volunteer home cook. Pros - Ergonomic counter height in India reduces fatigue; detailing “counter height for Indian kitchen with hob clearance” in drawings avoids last-minute shim fixes. - Including knee clearance and plinth ventilation in modular kitchen detail drawings keeps trolleys gliding and reduces musty odors. Cons - Mixed-height counters complicate backsplash lines; you’ll need stepped tile terminations and careful silicone joints. - Taller users may still prefer 930 mm; it’s tough to please a multi-height family without at least one compromise. Small Tip / Case - Note appliance base heights in the section: many Indian hobs need 50–65 mm drop; sinks vary 180–230 mm deep—mark the P-trap zone clearly.

save pin

3) The Wet Zone: Sink, Backsplash, and Skirting That Actually Last

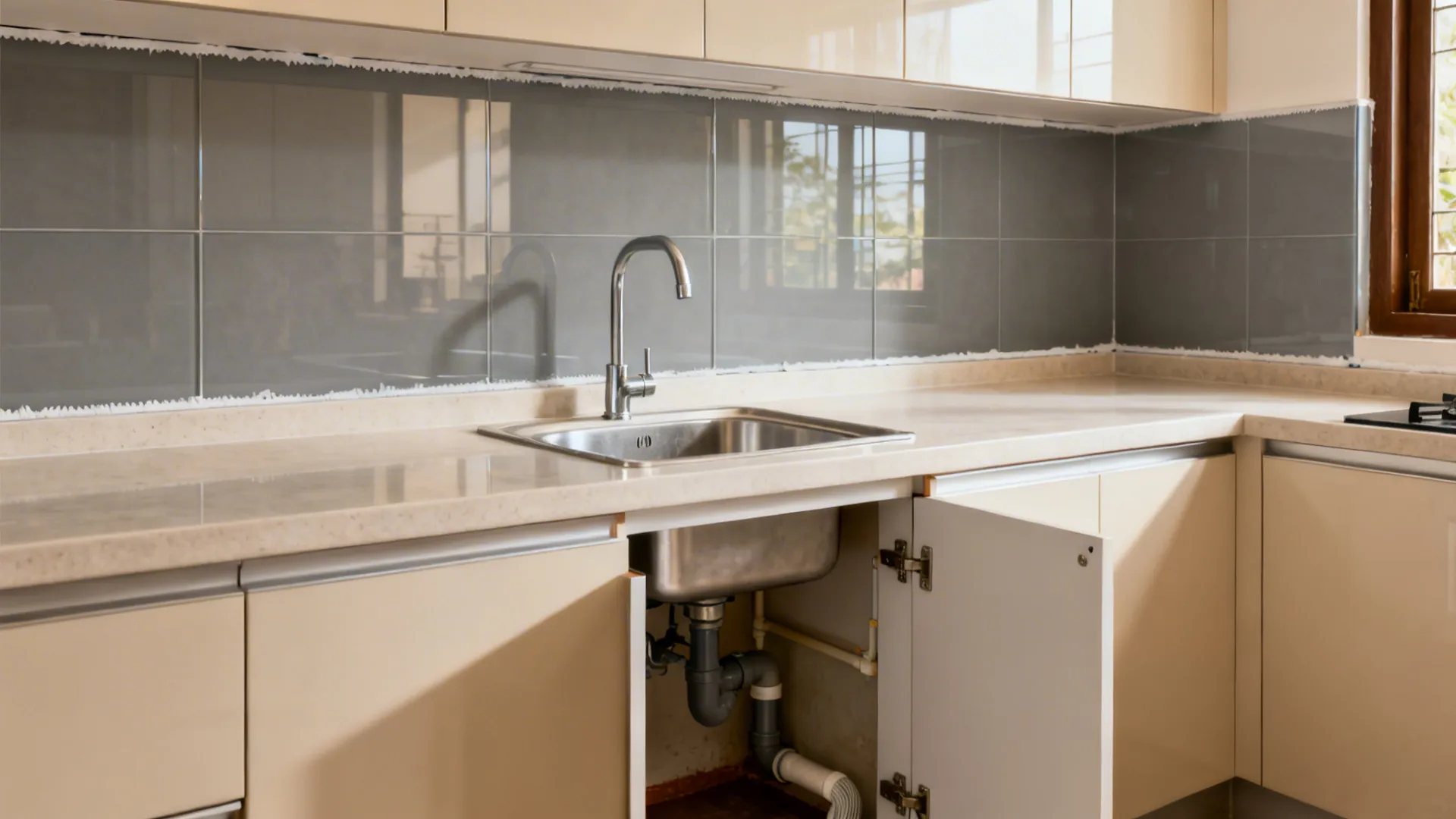

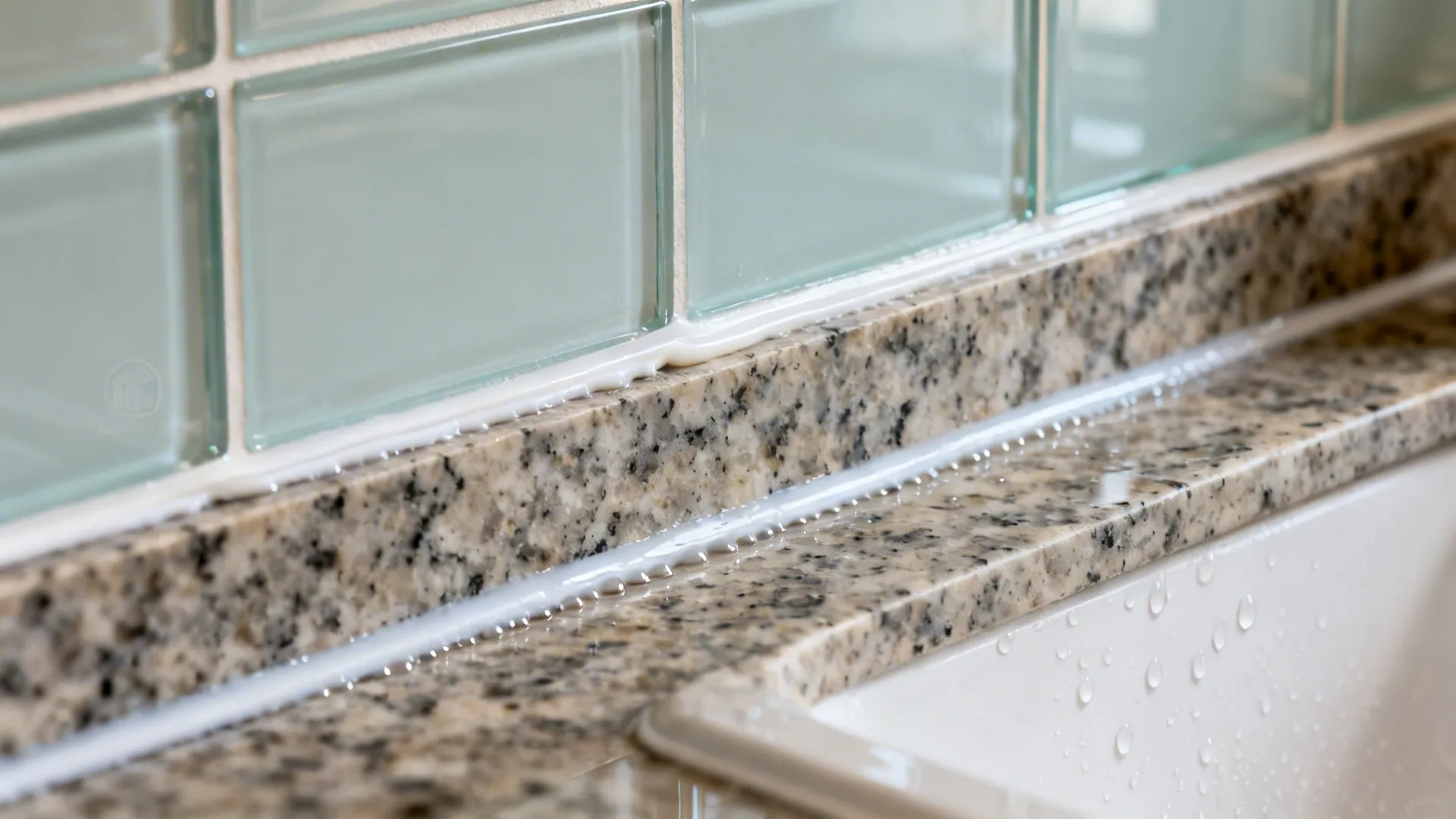

My Take I once had a client who loved matte paint behind the sink—until the first monsoon. Now I specify a 450–600 mm backsplash in easy-clean tile or back-painted glass, plus a 75–100 mm skirting kick with a waterproof sealant bead. I also detail the sink’s front set-back to limit apron drips. Pros - Including “backsplash detail india with moisture barrier” in the drawing ensures the tile bed, waterproof coat, and silicone joints are sequenced. - A raised skirting with a 5–8 mm shadow gap hides mop marks and reduces capillary rise—less swelling, more lifespan. Cons - Back-painted glass looks stunning but needs perfect substrate; any waviness telegraphs through. - Taller backsplashes cost more in both tile and trim, especially with steel or aluminum edge profiles. Small Tip / Authority - The Indian Plumbing Association’s guidance on trap seals and venting aligns with specifying 50 mm water seal P-traps under sinks; ensure the section reserves maintenance space. - Mid-article internal link (≈50% mark): For a deep dive into spatial testing in 3D, this case on “玻璃背板让厨房更通透” is worth a look: Glass backsplash makes the kitchen feel airier.

save pin

save pin

4) Heat Zones: Hob Cutouts, Vent Paths, and Oil Guard

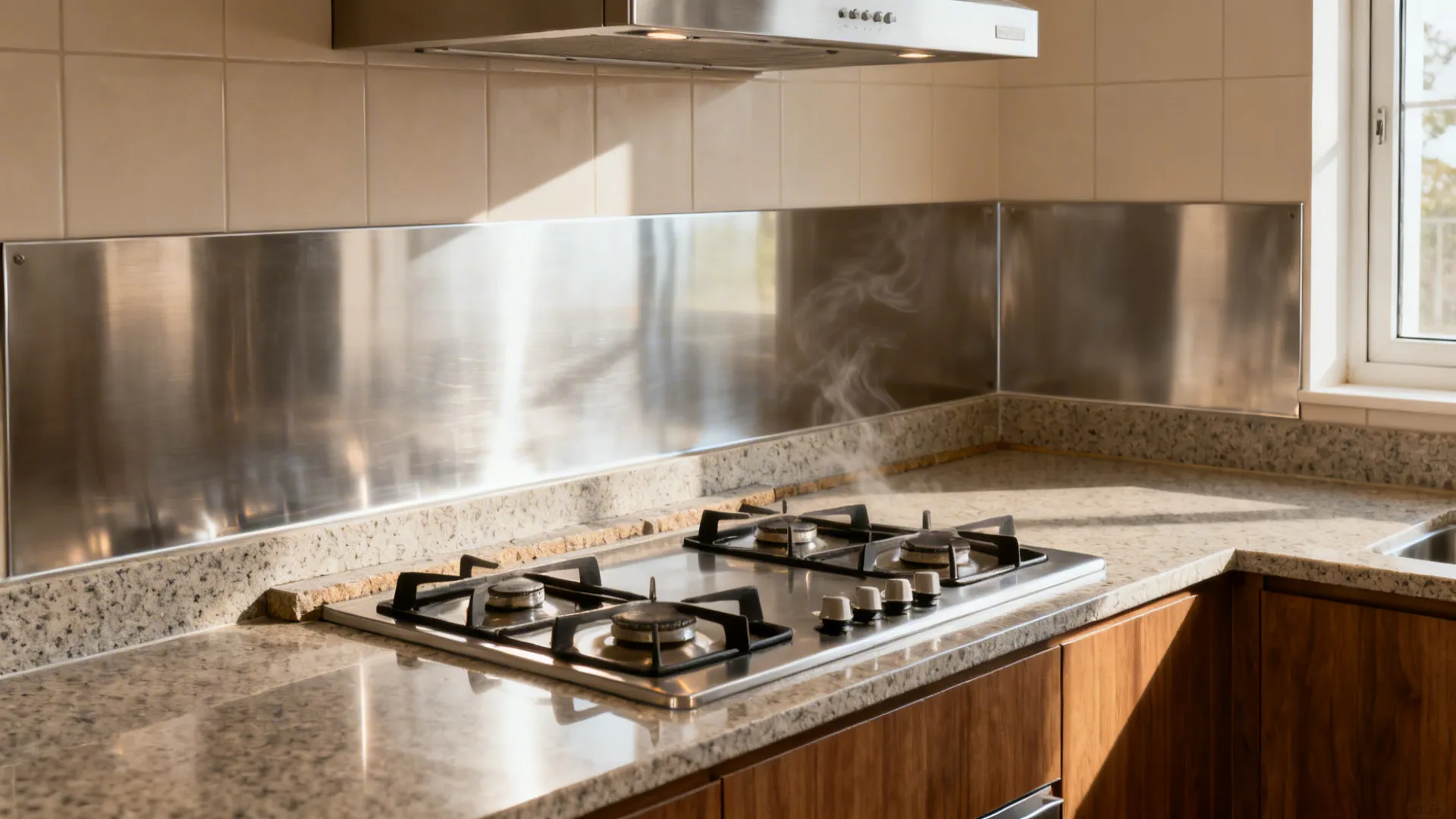

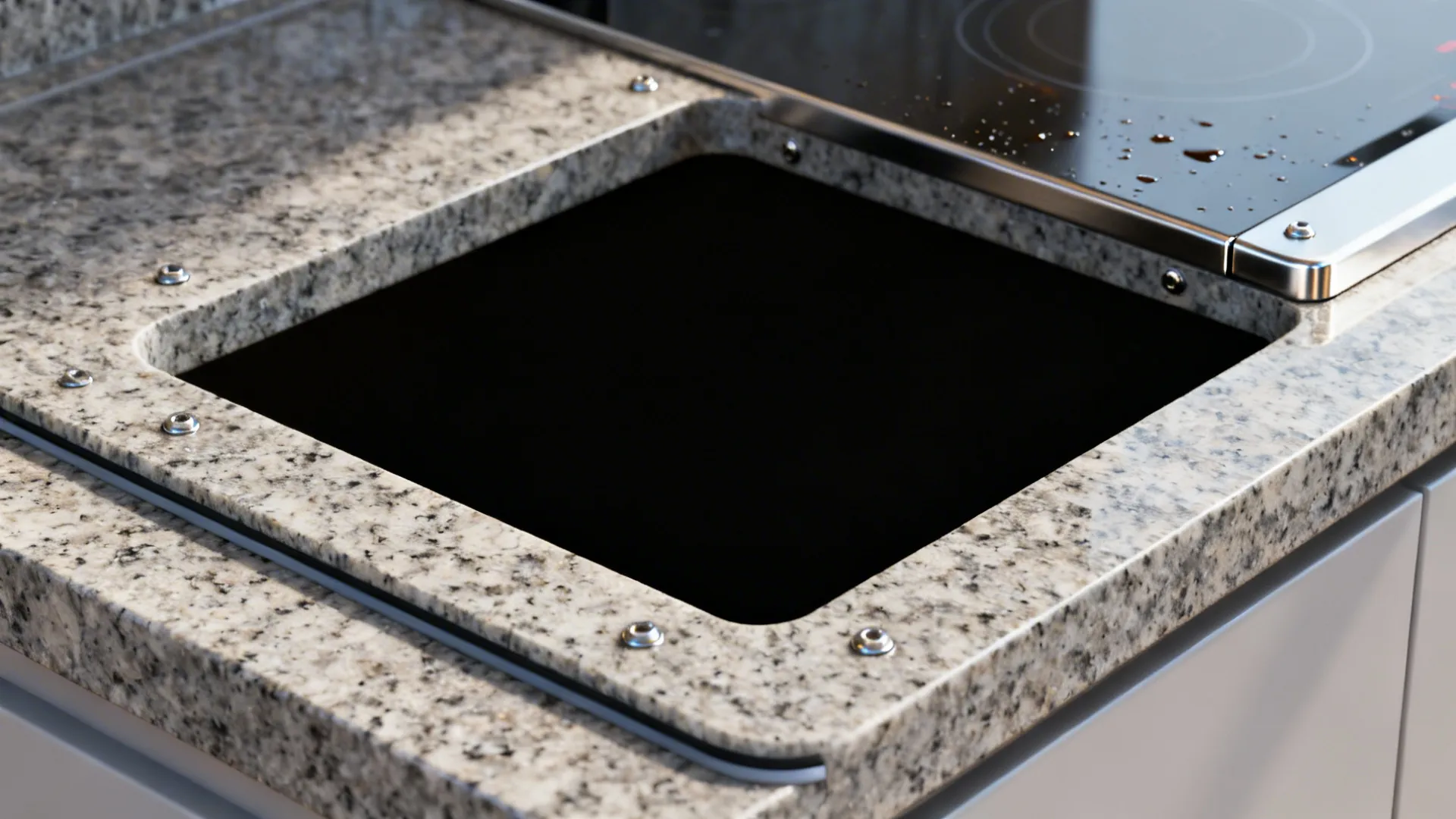

My Take On gas, I center the hob with 600 mm clear each side for thalis and hot pans, and I mark a 650–750 mm hood height in section. I detail a stainless steel or quartz upstand right behind the hob for easy scrub-down—and include a 20 mm stone “speed breaker” to stop oil running to the corner. Pros - A “hob cutout detail india with vent clearance” reduces warranty issues; wind from windows and cross-vent are marked, avoiding flame flutter. - Stainless splash panels over tile add durability without retiling—great for renters or phased renovations. Cons - Too-tall hoods reduce capture efficiency; too low and you’ll bump your forehead (ask me how I learned that). Always verify manufacturer specs. - Steel upstands can rattle if not bonded well; include fixing details with countersunk screws and silicone. Small Tip / Cost - Allow 75–90 minutes for a proper hob cutout and seal; budget ₹1,500–₹3,000 for fabrication, more for quartz. Authority - IS 1641 and manufacturer manuals typically recommend 650–750 mm hood clearance; always annotate brand-specific ranges in your detail.

save pin

save pin

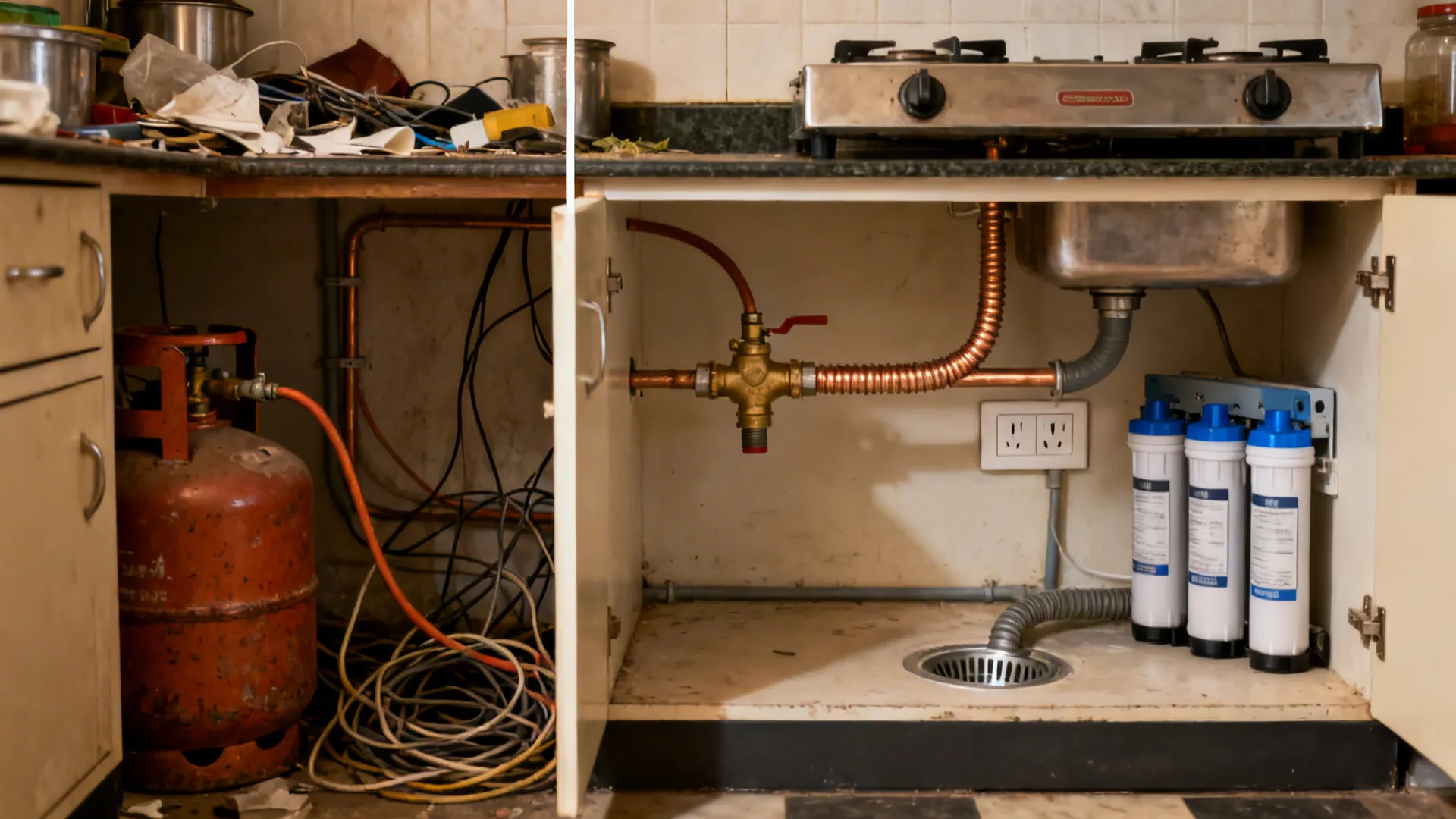

5) Services That Don’t Surprise You Later: LPG, RO, and GFCIs

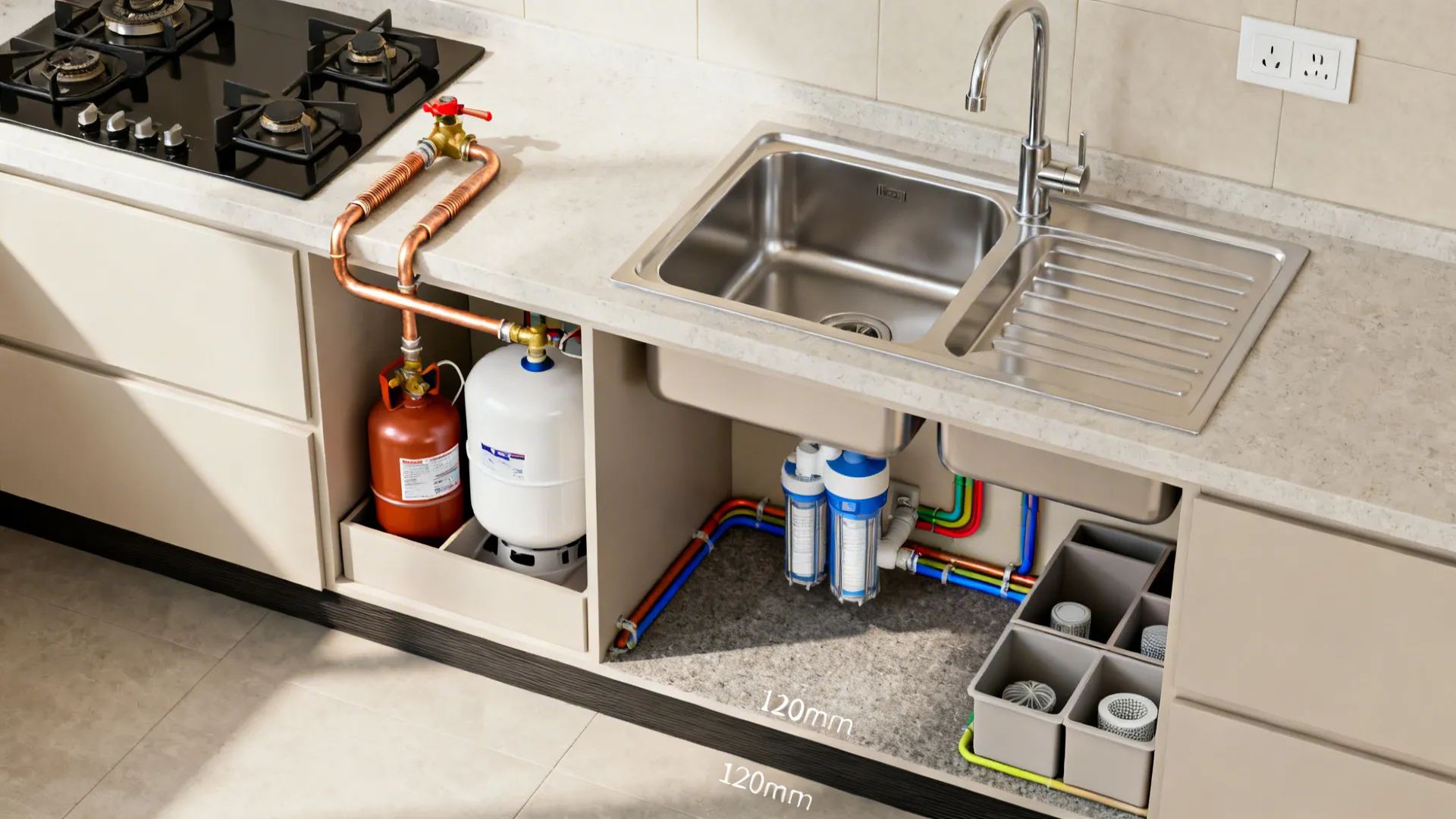

My Take The best indian kitchen counter detail drawing maps services before tiles are chosen. I show the LPG line with a copper sleeve, shut-off valve within 600 mm of the hob, RO inlet/outlet with air gap, and a dedicated GFCI outlet for mixers and microwaves. Pros - “LPG piping layout kitchen india” with sleeve, valve, and height in section keeps approvals smooth and avoids hidden joints. - Marking RO drain and air-gap in the sink section prevents backflow and messy retrofits. Cons - Extra outlets and isolators add cost upfront; clients sometimes push back—until their first mixer trips a breaker mid-festival prep. - Space inside sink cabinets gets tight; your drawing must dimension cartridges, filters, and bins. Small Tip / Link - Color-code services in your drawing set—blue (cold), red (hot), green (drain), orange (gas), yellow (electrical). Leave a service plinth of 120 mm for future runs. - Late-article internal link (≈80% mark): If you’re rearranging zones, this visual example of “极简风的厨房收纳设计” helps model carcass and service clearances: Minimalist kitchen storage detailing. [Section: 总结] A small Indian kitchen isn’t a limitation—it’s an invitation to draw smarter. When your indian kitchen counter detail drawing captures layers, heights, wet zones, heat paths, and services, execution becomes smoother and the kitchen feels bigger because it works harder. As the National Building Code of India and appliance manuals reiterate, clearances and services drawn early save rework later. Which of these five ideas are you most excited to try in your next kitchen detail drawing? [Section: FAQ 常见问题] 1) What is the ideal counter height for Indian kitchens? - Most households land between 860–900 mm for prep. For gas hobs, 800–840 mm can feel more comfortable for heavy pots; always mock up before finalizing. 2) Which countertop material is best for Indian cooking? - Granite is popular for heat resistance and value; quartz offers uniform looks but needs care with high heat near the hob. Seal all cut edges and specify a drip edge in the section. 3) How thick should the countertop be in detail drawings? - 18–20 mm stone is common, often laid over RCC or marine ply. Show edge profiles, overhang, and support battens to avoid sag or chip. 4) What backsplash height works best in oily cooking? - 450–600 mm in tile or back-painted glass is practical. Include substrate prep and silicone joints to keep moisture out. 5) How do I detail LPG lines safely? - Use sleeved copper with minimal joints, an accessible shut-off valve within 600 mm of the hob, and ventilation. Refer to Oil Industry Safety Directorate (OISD) guidelines for domestic LPG. 6) What is the recommended hood clearance above the hob? - Typically 650–750 mm, but follow your hood manufacturer’s manual and note it in the section. This aligns with common Indian appliance specs and NBC India ventilation principles. 7) Can I combine different counter heights? - Yes—draw stepped sections: lower at the hob, standard at prep, slightly higher at the sink. Note backsplash transitions and edge protection. 8) Any trusted references for plumbing and ventilation? - The National Building Code of India and the Indian Plumbing Association provide authoritative guidance on trap seals, ventilation, and service routing. Linking specs in your drawing set keeps contractors aligned.
