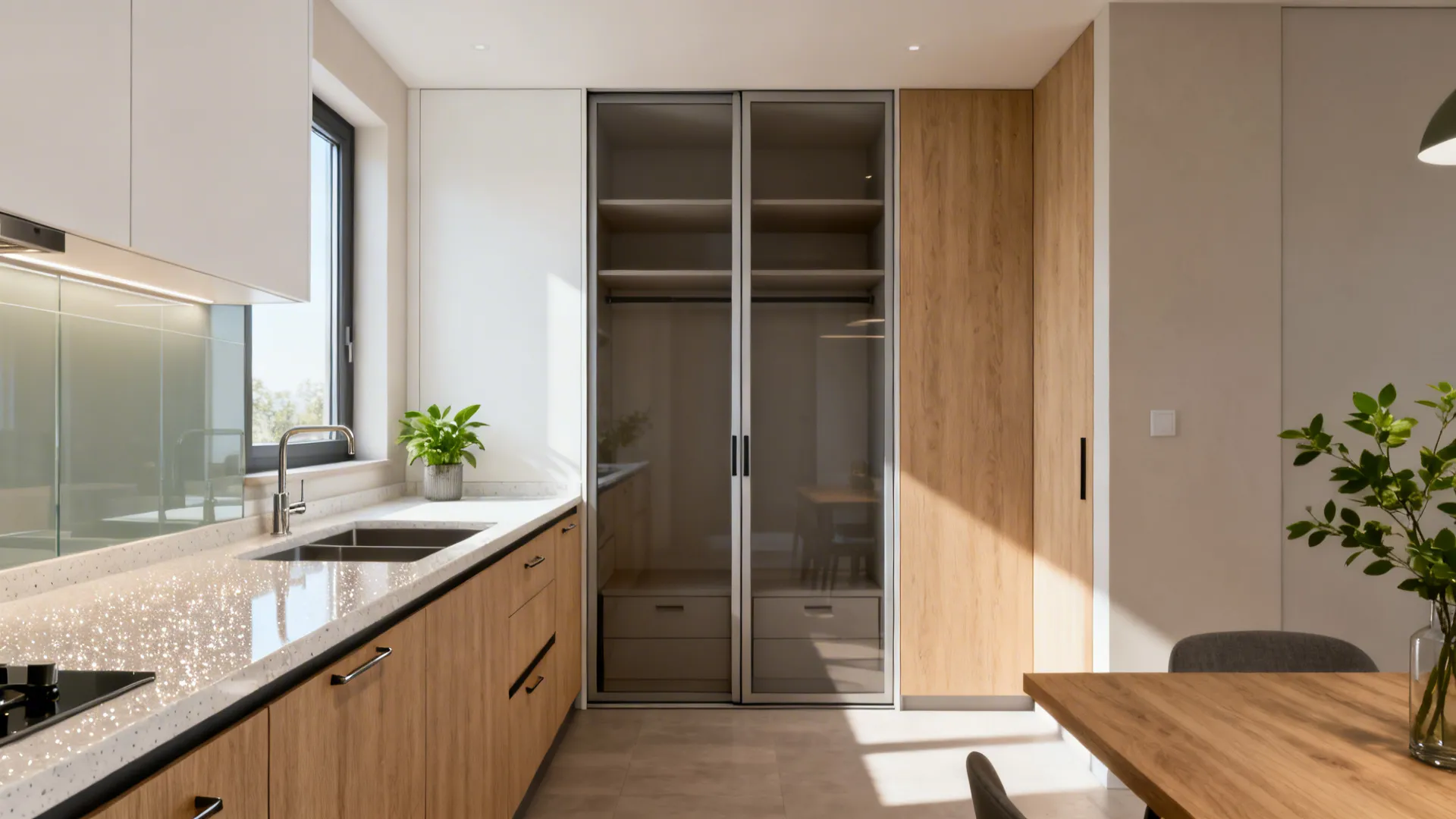

Interior wardrobe and kitchen design: 5 must-know dimensions: My field-tested guide to small-space wardrobe and kitchen dimensions (with pro tips, trade-offs, and real budgets)

I’ve spent over a decade designing compact homes, and the 2026 trend is clear: efficient storage and clean lines rule. When it comes to the core of daily living—wardrobes and kitchens—smart dimensions decide 80% of your comfort. Small spaces spark big creativity, and today I’ll share 5 design inspirations with dimension details I use on real projects, blending my experience with expert data. You’ll get field-proven clearances, cabinet sizing, ergonomic heights, and practical trade-offs. If you’re exploring layouts, my client loved how “L 型布局释放更多台面空间” translated into an airy workflow—see how planners simulate that in English via L-shaped layout frees more counter space.

1) Minimal wardrobe modules that actually fit your clothes

My Take

I learned early that a pretty wardrobe is useless if sleeves crush and drawers jam. On a Hong Kong micro-flat, we solved it with precise modules: 600 mm internal hanging for coats, 450 mm for shirts, 350 mm drawers for underwear and socks. The client told me it was the first time every item had a home.

Pros

- A standard 600 mm internal hanging depth prevents shoulder pinch and hanger clash—an essential long-tail wardrobe dimension for coats and suits.

- Double hanging zones at 950–1000 mm and 850–900 mm maximize linear storage for shirts and pants; adjustable rails keep the system future-proof.

- Doors at 500–550 mm width swing comfortably without overloading hinges; for sliding doors, 600–900 mm panels glide better and reduce track friction, boosting small apartment wardrobe efficiency. Per ISO 7170 cabinetry guidance, consistent internal sizing improves load performance and durability.

Cons

- Deep 600 mm carcasses eat floor area; in ultra-tight rooms, 520–550 mm internal can work, but bulky coats may brush the doors—been there, heard the whoosh.

- Sliding doors save swing space but reduce internal access by ~80–100 mm because of overlap and thicker tracks.

- Too many narrow drawers (under 300 mm) look neat on paper but waste usable width due to runners and side gaps.

Tips / Cost

- Go 18 mm carcass boards for rigidity; lighter 16 mm works on upper modules only.

- Include a 150–200 mm toe-kick to open the visual plane and avoid toe bumps.

- Budget guide: Basic melamine wardrobe modules run $220–$350 per linear meter; add $60–$120/m for soft-close hardware.

save pin

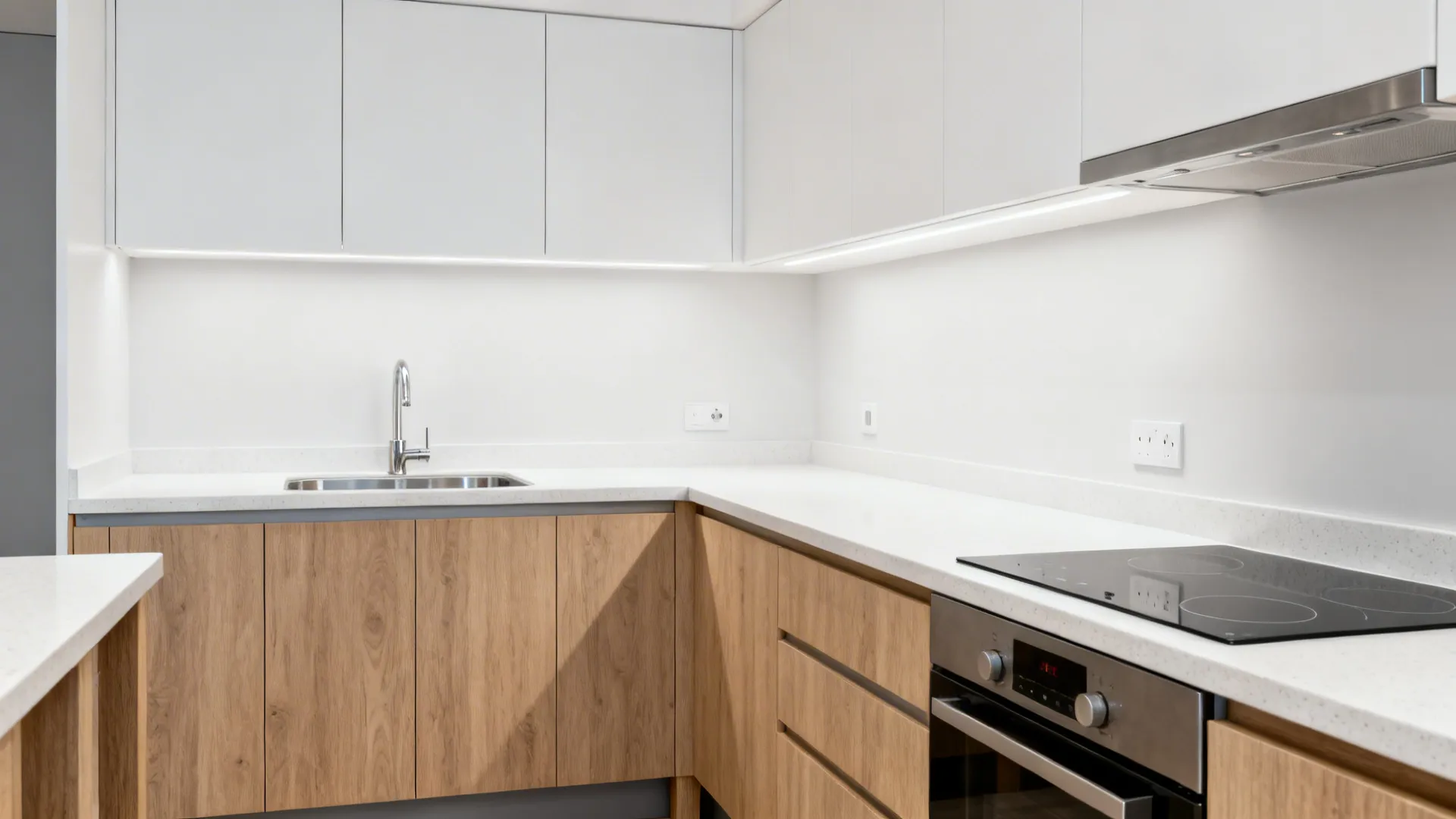

2) Kitchen counter height and depth that save your back

My Take

After two slipped-disc clients (and one near-miss for me), I standardized ergonomic kitchen counter heights. For most users, 900 mm is the sweet spot, but I test with the “elbow rule”: top of worktop ~100–150 mm below elbow height. Depth matters too: 600–650 mm hits the outlet zone and splash radius just right.

Pros

- 900 mm counter height suits users 160–175 cm; for tall cooks, 920–950 mm improves prep comfort—an evidence-based kitchen ergonomics dimension for small spaces.

- 600–650 mm counter depth fits cooktop, sink, and back outlets without forcing you to lean; reach to the wall stays under 500 mm, a key long-tail kitchen reach parameter.

- Task zoning (prep near sink, cook near hob) reduces steps; National Kitchen & Bath Association (NKBA) suggests 600–900 mm landing areas beside sinks and hobs for safe transfer.

Cons

- Varying heights (e.g., 950 mm bake zone) adds complexity and costs in countertop joints and support rails.

- Deep counters over 650 mm can hide items at the back; you’ll find that lost spatula a year later—ask me how I know.

- Undermount sinks reduce usable drawer height; plan for a U-shaped top drawer cutout.

Tips / Cost

- Typical base cabinet: 720 mm box + 150 mm leg + 30 mm top = ~900 mm finished height.

- Leave 50–75 mm behind appliances for plugs and hoses; total counter depth 630–650 mm solves most conflicts.

- Quartz worktops range $80–$150/sq ft installed; compact laminate can halve that for budget builds.

save pin

3) Upper cabinet clearance, range hood reach, and backsplash logic

My Take

Clients often ask why their head hits the cabinet. The culprit is vertical stacking. I design 500–600 mm between counter and bottom of wall cabinets, 700–750 mm above cooktops for most range hoods, and a backsplash tall enough to catch splatter—usually 400–600 mm visible.

Pros

- 500–550 mm counter-to-cabinet clearance keeps reach under 600 mm—ideal for daily cups and spices; a tried-and-true kitchen wall cabinet dimension for compact kitchens.

- 700–750 mm between hob and hood suits most gas cookers (check manufacturer). This improves capture efficiency and reduces grease spread; per EU range hood directives, minimum separations typically fall within this band.

- Taller backsplashes (up to wall units) protect paint and simplify cleaning; in tiny kitchens, a reflective glass panel boosts perceived depth. For visualization, see how “玻璃背板让厨房更通透” is interpreted in English in this case: Glass backsplash makes the kitchen feel lighter.

Cons

- Higher wall units (over 2100–2200 mm total) look elegant but become a step-stool routine.

- Shallow wall cabinets (300–320 mm internal) won’t fit large dinner plates; measure yours before committing.

- Glass backsplashes show every fingerprint; keep a microfiber cloth handy unless you enjoy daily polishing.

Tips / Cost

- Wall cabinet internal 300–350 mm works for most dishes; go 370–400 mm only if door swings clear of taps and handles.

- Induction hobs allow slightly lower hood placement, but never below the manufacturer’s minimum.

- Tempered glass backsplash runs $35–$70/sq ft; porcelain slab $50–$120/sq ft but fewer grout lines.

save pin

4) Corner solutions and the magic of the L-shaped workflow

My Take

In small apartments, the L shape wins for circulation. I like a 1050–1200 mm aisle so two people can pass without bumping. For the corner, a 900 x 900 mm blind with a pull-out or a 1000 x 1000 mm carousel makes the dead zone work.

Pros

- L layouts naturally separate wet (sink) and hot (hob) while keeping the prep zone between—an L-shaped kitchen layout dimension that protects workflow.

- A 1050–1200 mm aisle supports dishwasher door clearance (600 mm) plus standing room—vital long-tail kitchen aisle dimension data for micro kitchens.

- Corner pull-outs reclaim 30–40% more usable space than fixed shelves; closing dampers also protect doors from stress.

Cons

- Corner hardware isn’t cheap; quality LeMans or carousel kits can exceed the value of the cabinet itself.

- Deep corners hide clutter; if you’re a “shove and forget” person, you’ll need labels—or a periodic declutter ritual.

- Tight Ls with less than 900 mm on one leg make prep cramped; elbows will stage a protest.

Tips / Cost

- Target 1200–1800 mm prep run between sink and hob for a comfortable “golden strip.”

- If the fridge is on the other wall, leave 1000–1200 mm swing clearance or specify a reversible door.

- Hardware cost: corner pull-outs $250–$600; soft-close hinges $4–$12 each.

save pin

5) Sliding doors, pocket systems, and millimeter-true wardrobes

My Take

When bedrooms barely clear 2500 mm width, sliding or pocket doors rescue circulation. I’ve delivered 600 mm-deep wardrobes with 2-track sliders where each leaf is 700–900 mm wide—smooth, quiet, and zero swing. Tolerances matter: we template on site to avoid heartbreak.

Pros

- Two-track sliders need 80–100 mm for tracks and facias; the net internal depth remains workable at 520–560 mm, a critical sliding wardrobe depth dimension for small rooms.

- Full-height doors (2400–2700 mm) elongate the space visually and allow vertical storage: add a luggage shelf at 2100–2300 mm.

- Pocket doors clear bedside tables and circulation zones; combine with motion lighting for a premium touch. To map variations, check a practical example I often reference in English: wood textures and warm ambient lighting.

Cons

- Poorly aligned tracks cause racking and door chatter; cheap rollers are a 2 a.m. regret.

- Pocket walls need structure; you’ll lose a bit of acoustic isolation and need a strict no-wires zone.

- Full-height sliders are heavy; plan for reinforced top rails and verified ceiling loads.

Tips / Cost

- Standard hanger width needs 420–450 mm internal; for bulkier jackets, allow 500 mm and curved hangers.

- Drawer heights: 120 mm (socks), 180 mm (tees), 240 mm (sweaters); runners rated 30–45 kg for longevity.

- Sliding systems cost $300–$900 per opening; pocket kits $600–$1200 plus carpentry.

save pin

Dimension cheat sheet (wardrobe + kitchen)

- Wardrobe internal depth: 520–600 mm (600 mm ideal for coats).

- Wardrobe door widths: hinged 500–550 mm; sliding 600–900 mm per leaf.

- Double hang: 850–900 mm lower, 950–1000 mm upper; long hang 1450–1700 mm clear.

- Drawer internals: 300–450 mm width, 120–240 mm height; runners 450–500 mm depth.

- Kitchen counter height: 900 mm baseline (920–950 mm for tall users).

- Counter depth: 600–650 mm; leave 50–75 mm service void behind appliances.

- Counter to wall cabinet: 500–600 mm; hob to hood: 700–750 mm (check manufacturer).

- Aisle width: 1050–1200 mm for two users; 900 mm minimum in solo kitchens.

- Corner base: 900 x 900 mm (blind with pull-outs) or 1000 x 1000 mm carousel.

- Fridge door swing: 1000–1200 mm clearance; dishwasher door + standing: 1100–1200 mm.

save pin

Planning workflow I use on projects

- Start with user heights and dominant cook to set bench height; test with cutting board mockups.

- Map appliances first: sink, hob, fridge triangle with shortest prep path; protect 300–400 mm landing space each side where possible.

- In wardrobes, plot categories by frequency: eye-level for daily wear, low for heavy items, high for seasonal.

- Prototype with painter’s tape on the floor and blue foam blocks for volume checks; 15 minutes of mockup saves weeks of regret.

- Document all dimensions in a shared PDF sheet with elevations, section depths, and tolerances (±3 mm for cabinetry, ±5 mm for walls). If you like exploring render previews before committing to millwork, study how “极简风的厨房收纳设计” translates into layered shelving in English here: minimal kitchen storage design.

save pin

Sources and standards I keep on hand

- NKBA Kitchen Planning Guidelines (landing zones, clearances).

- ISO 7170 (Furniture—storage units—determination of strength, durability and stability).

- Manufacturer manuals for hobs/hoods (clearances vary).

- BSI/EN cabinetry hardware ratings for load and cycle life.

- Ergonomic studies on elbow height vs. bench height; the elbow-minus-100–150 mm rule is widely referenced in workplace ergonomics literature.

save pin

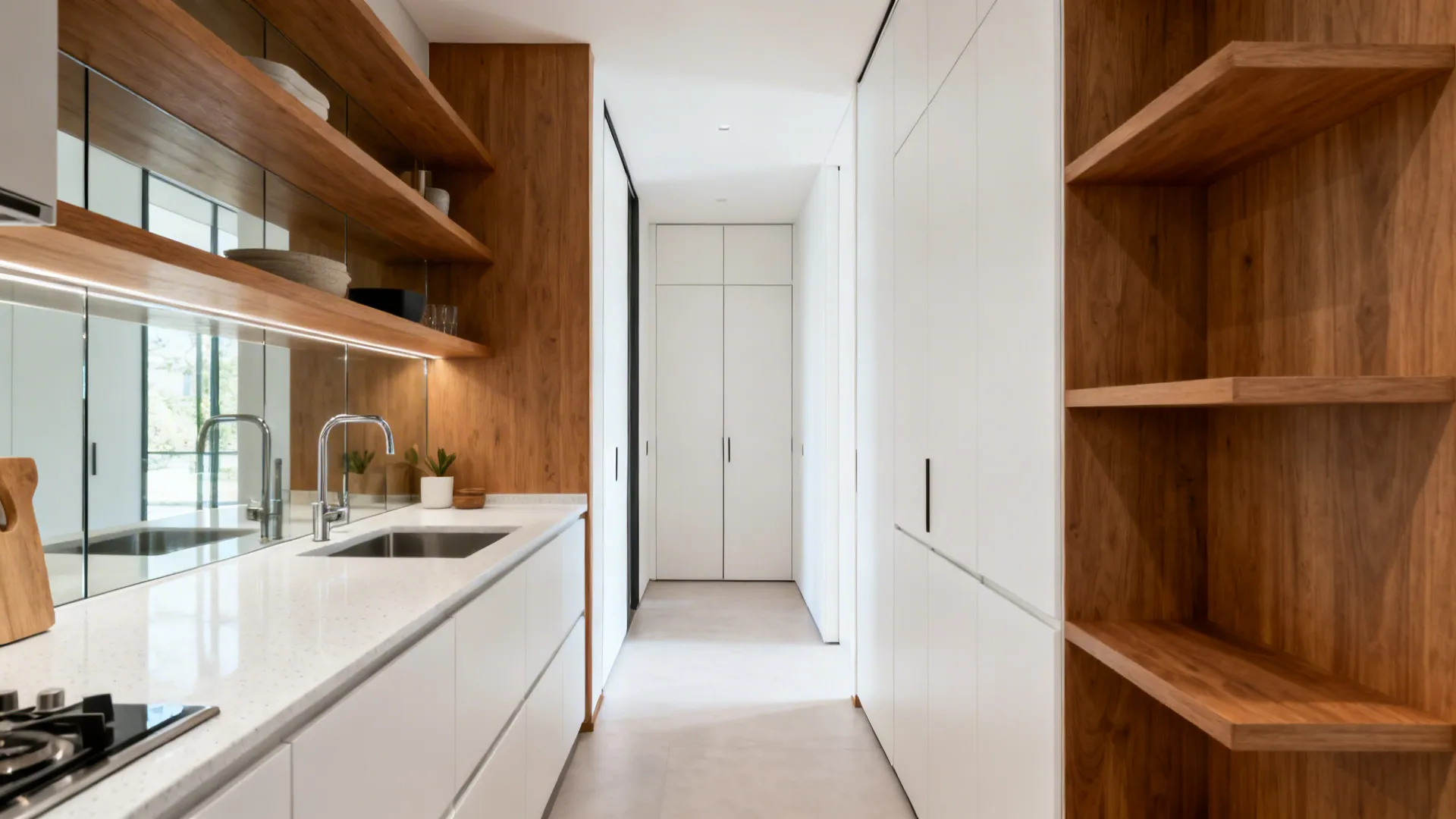

Summary

Small kitchens and compact wardrobes don’t limit you—they demand smarter design. With tested dimensions (900 mm benches, 500–600 mm wall clearances, 520–600 mm wardrobe depths) and thoughtful layouts, you can unlock comfort without adding square footage. NKBA’s guidance on landing zones and aisle widths reinforces that smart clearances drive safety and ease. Which one of these dimension-driven ideas are you most excited to try first?

save pin

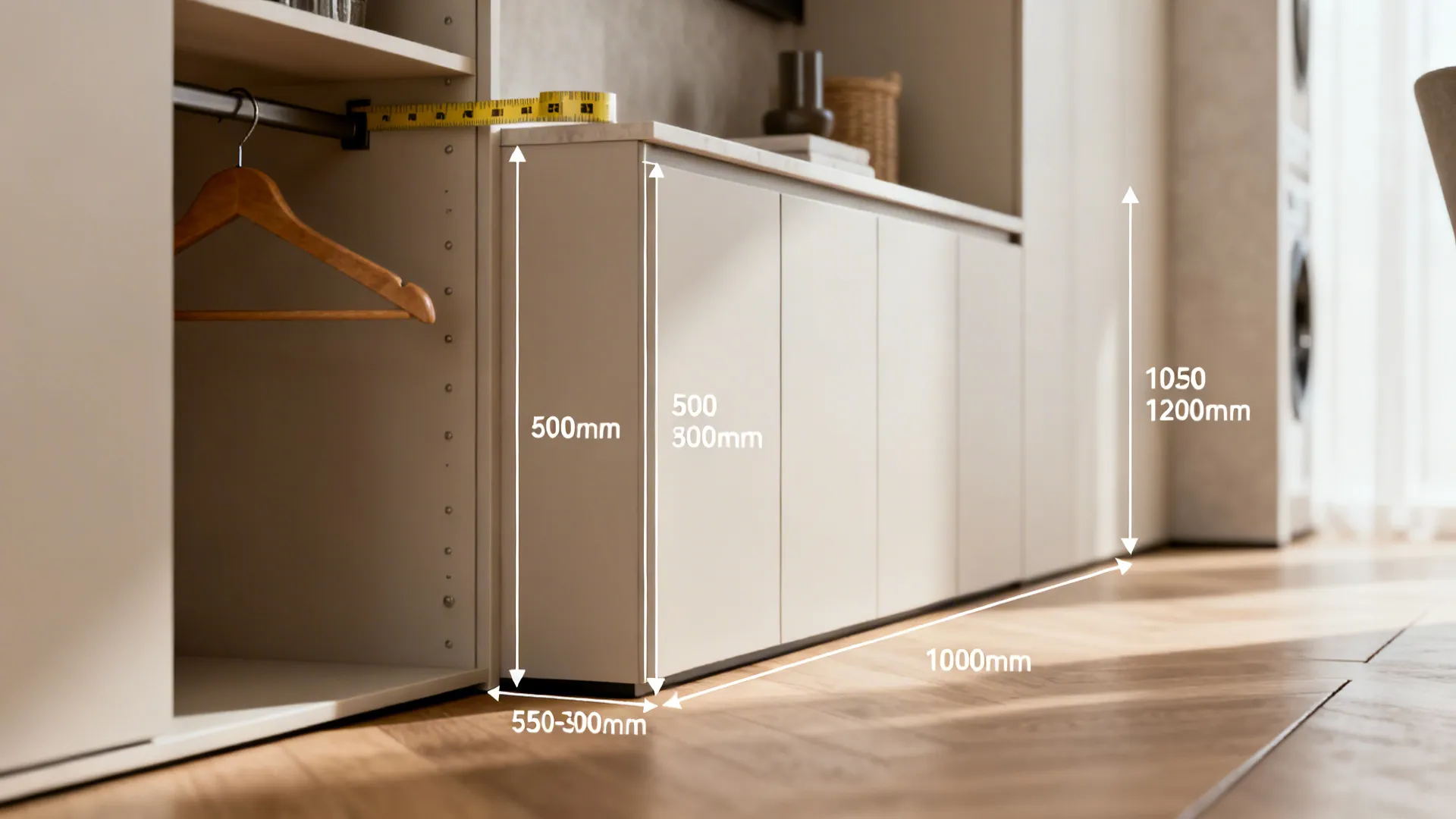

FAQ

1) What is the best wardrobe depth for small bedrooms?

For hanging coats and suits, 600 mm internal is ideal. If space is tight, 520–550 mm can work with slim hangers, but sleeves may brush doors.

2) What’s the standard kitchen counter height?

900 mm suits most users. Adjust to 920–950 mm for taller cooks using the elbow rule: countertop 100–150 mm below your elbow height.

3) How much space between countertop and wall cabinets?

Keep 500–600 mm so everyday items are reachable without a step stool. Over the hob, stay within the hood manufacturer’s minimum clearance, often 700–750 mm.

4) What’s the minimum aisle width in a small kitchen?

900 mm works for solo use; for two people or appliance doors open, target 1050–1200 mm. NKBA recommends wider aisles where possible for safety and comfort.

5) Are sliding wardrobe doors good for tight rooms?

Yes—no swing intrusion and tidy sightlines. Deduct 80–100 mm for tracks; aim for 520–560 mm internal depth to keep hangers comfortable.

6) How high should a backsplash be?

400–600 mm visible height protects walls from splashes. Full-height to the cabinets is best near cooktops, especially with gas.

7) What landing space do I need beside the hob and sink?

Allow 300–400 mm minimum each side; 600–900 mm is ideal if space permits. This follows NKBA planning guidelines for safe transfer of hot pots.

8) Where can I preview a layout before building?

Use a planning case study to visualize zones and clearances; for instance, this English example shows how an L-shaped plan supports prep flow: L-shaped layout frees more counter space. Build a taped mockup at home to confirm reach and comfort.
