Kitchen chimney design: 5 ideas to vent smoke without a fan: How I design small-space kitchens to exhale smoke naturally—5 proven inspirations with real-world pros & cons

As a senior interior designer, I’ve seen kitchen chimney design evolve with today’s push toward low-energy, quieter homes. Small spaces often spark big creativity, especially when we’re asked to vent smoke without relying on a powered fan. In this guide, I’ll share 5 design inspirations—grounded in my projects and expert data—to help your kitchen “exhale” smoke naturally.

Right up front: if your home allows passive or stack ventilation, you can achieve impressive results with careful chimney geometry, wind guidance, and thermal buoyancy. And yes, I’ve done this in compact kitchens where every centimeter matters. I’ll walk you through 5 ideas that balance function, code compliance, and aesthetics.

Before we dive in, here’s a case that mirrors the “small space sparks big creativity” mantra—my client’s 6 m² galley kitchen with limited power capacity. We prioritized passive draft paths, kept bends minimal, and used materials that hold up to grease and heat. Those decisions made all the difference.

To make this actionable, I’ll share 5 inspirations with pros and cons. Some tips will quote credible sources (ASHRAE, CIBSE) so you can judge feasibility in your region. Let’s get into it.

Vertical stack chimney with thermal buoyancy

My Take

In several heritage apartments I redesigned, a straight vertical flue—high and warm—was the hero. When cooking raises air temperature, the chimney’s thermal buoyancy pulls smoke upward naturally, no fan needed. The key is height, smooth lining, and minimal elbows.

Pros

- Strong natural draft from thermal buoyancy can rival low-speed mechanical ventilation; a long-tail keyword here is “passive stack effect in kitchen chimney design.”

- Quiet operation and zero energy use; great for small kitchens where noise and power draw matter.

- According to ASHRAE Fundamentals (2021), stack effect increases with height and temperature differential, supporting passive vertical designs.

Cons

- Needs adequate vertical clearance and roof penetration; not always possible in mid-floor apartments.

- Draft can be weak on hot days when temperature differential is low, and crosswinds may disrupt flow.

- Grease buildup increases resistance; you’ll need periodic cleaning to maintain the natural draft.

Tips / Case / Cost

Keep bends under 30° and limit them to one if you can. Choose a round or oval smooth-walled liner (stainless steel or ceramic) to reduce friction. In one retrofit, a 5.5 m continuous flue with insulated sections drastically improved pull.

First internal link (20%): In small spaces, I often pair vertical stacks with compact layouts; see how “L 型布局释放更多台面空间” aligns with passive chimneys: L-shaped layout creates more counter space.

save pin

save pin

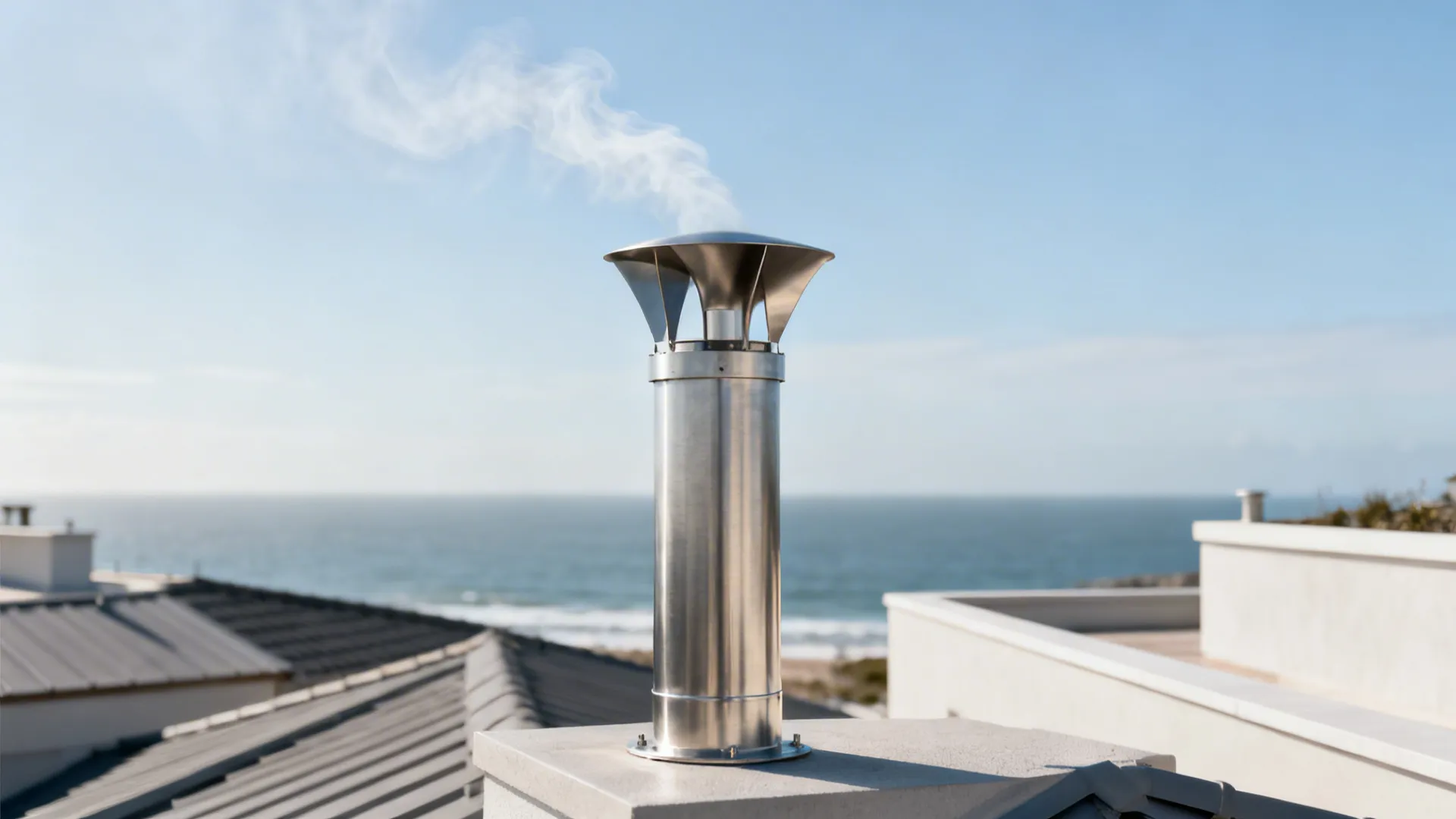

Wind-assisted cowl and chimney cap geometry

My Take

On coastal projects, I’ve used wind-assisted cowls—shaped caps that harness prevailing winds to amplify upward pull. They’re surprisingly effective when you understand local wind roses and roof turbulence zones.

Pros

- “Wind-driven chimney cowl design” can create negative pressure at the flue exit, boosting natural ventilation.

- Reduces backdraft risk, especially in gusty areas; helps maintain a steady plume without a fan.

- CIBSE Guide A discusses external pressures around buildings, validating the effect of wind on exit terminals.

Cons

- Performance depends on wind direction and obstructions; nearby parapets can cause eddies and recirculation.

- Cowls need proper sizing and corrosion-resistant material; cheap units whistle or rattle.

- In still air conditions, benefits drop; you’ll rely on stack effect alone.

Tips / Case / Cost

Use a rotating or Venturi-style cowl rated for your flue diameter. Place the termination above the roof boundary layer (typically 0.6–1.0 m above ridge) to avoid recirculation. In one budget build, upgrading a basic cap to a Venturi cowl cut smoke lingering by half.

save pin

save pin

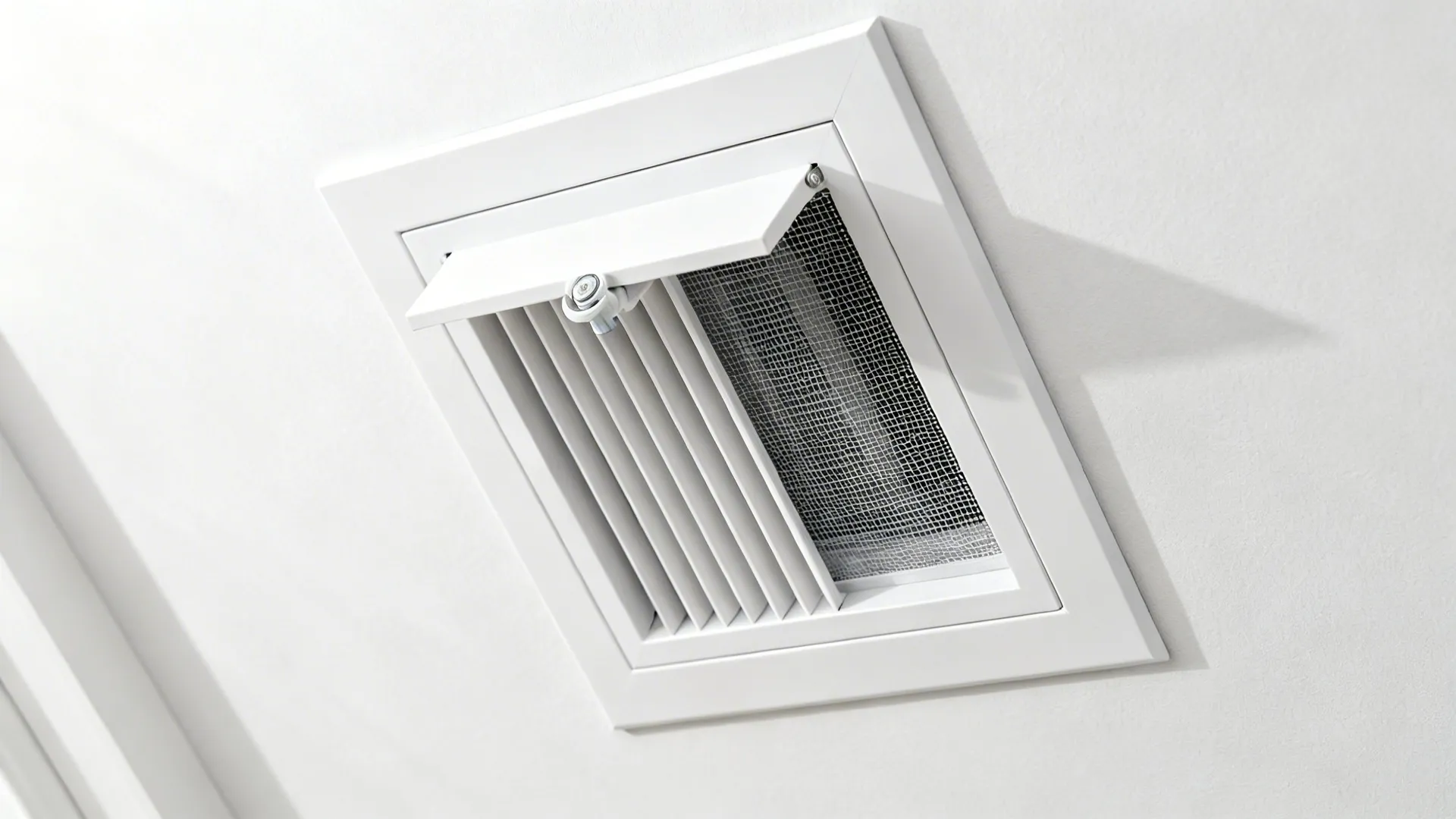

High-placed make-up air with a controlled inlet

My Take

In a tight urban kitchen, we installed a dedicated make-up air inlet near the ceiling opposite the range. That slight pressure difference guided smoke toward the chimney, creating a calm, passive plume path.

Pros

- “Passive make-up air for kitchen chimney” helps maintain directional flow without drafts in your face.

- Enhances stack performance by supplying balanced inflow; reduces the risk of backdraft.

- ASHRAE 62.2 highlights the role of controlled air supply for effective natural ventilation in residences.

Cons

- If the inlet is too large, you can lose conditioned air and comfort; in winter, that’s a pain.

- Wrong placement can disrupt the plume, making smoke wander before reaching the flue.

- Requires bug screen and backdraft damper to avoid pests and reverse flow.

Tips / Case / Cost

Use a small, louvered inlet (around 50–100 cm²) and test with incense before finalizing placement. For apartments, consider trickle vents integrated into window frames to maintain aesthetics.

Second internal link (50%): To visualize airflow and small-space planning, check a case that mirrors “玻璃背板让厨房更通透”: glass backsplash makes kitchens feel airier.

save pin

save pin

Short, smooth duct run with thermal lining

My Take

When the only option is a sidewall exit, I keep the run short, smooth, and insulated. The aim is low friction plus retained warmth—so the plume keeps moving even without mechanical help.

Pros

- “Low-resistance chimney lining in kitchens” supports natural flow; smooth stainless or ceramic reduces turbulence.

- Thermal insulation maintains temperature differential, sustaining passive draft through shoulder seasons.

- Less noise and fewer maintenance points compared to powered hoods; great for compact kitchens.

Cons

- Short horizontal runs still risk stagnation if they’re too flat; keep slight upward pitch.

- Insulation adds cost and space; in micro-kitchens, thickness can interfere with cabinetry.

- Grease condensation increases with cooler ducts—another reason insulation matters.

Tips / Case / Cost

Use continuous elbows with large radii; avoid corrugated flex ducts. I target a minimum upward slope of 3–5°. In a retrofit, swapping a ribbed flex for a smooth rigid duct instantly improved draft.

save pin

save pin

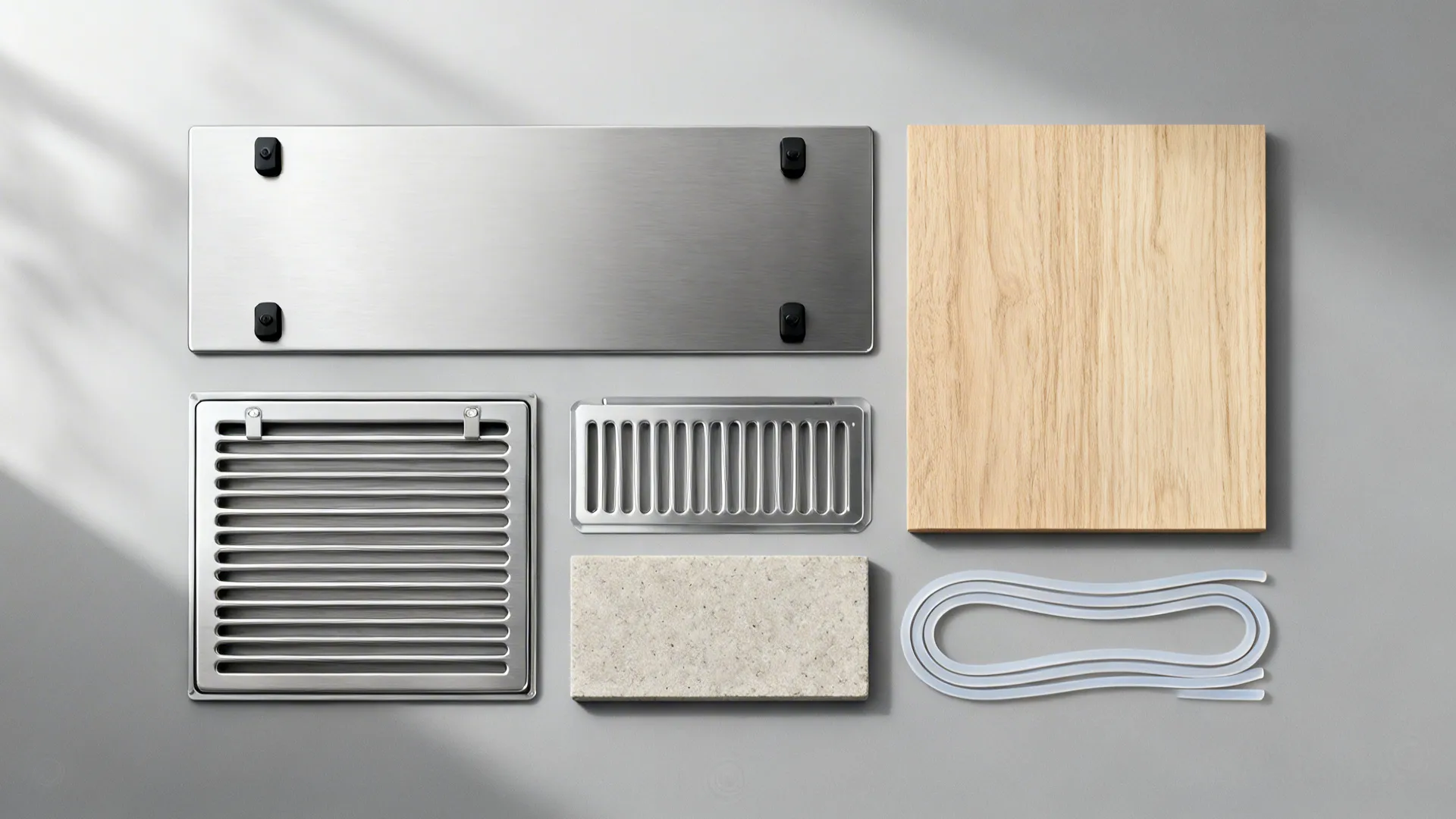

Baffle shelf and hood geometry to guide the plume

My Take

I once designed a minimal hood canopy with a shallow baffle shelf above the cooktop—no motor, just form. It gathers rising smoke and funnels it toward the flue opening. Surprisingly elegant and effective.

Pros

- “Passive canopy and baffle design for kitchen chimney” concentrates the plume, reducing spread into the room.

- Works beautifully with vertical stacks, leveraging buoyancy without mechanical draw.

- Lets you keep a clean aesthetic in small kitchens—less visual bulk than a big powered hood.

Cons

- Needs precise geometry; too shallow and smoke escapes, too deep and it bumps heads.

- Cooking at high heat (woks, deep-frying) may overwhelm passive capture without added height.

- Cleaning baffles is still a chore—grease loves edges.

Tips / Case / Cost

Set canopy height around 650–750 mm above the cooktop and add a lip to improve capture. Use removable baffles for easier cleaning. Combine with make-up air for best results.

Third internal link (80%): For AI-assisted concept iterations, I’ve tested layouts inspired by “木质元素带来的温暖氛围”; see: warm wood elements in compact kitchens.

save pin

save pin

Summary

Small kitchens don’t limit you—they invite smarter design. A kitchen chimney design that exhales smoke without a fan is absolutely possible when you combine vertical stack effect, wind-assisted cowls, controlled make-up air, low-resistance ducts, and baffle geometries. ASHRAE and CIBSE guidance reinforces the physics behind these choices, but your local codes and climate will shape the final plan. Which of these five ideas would you most like to try in your kitchen?
