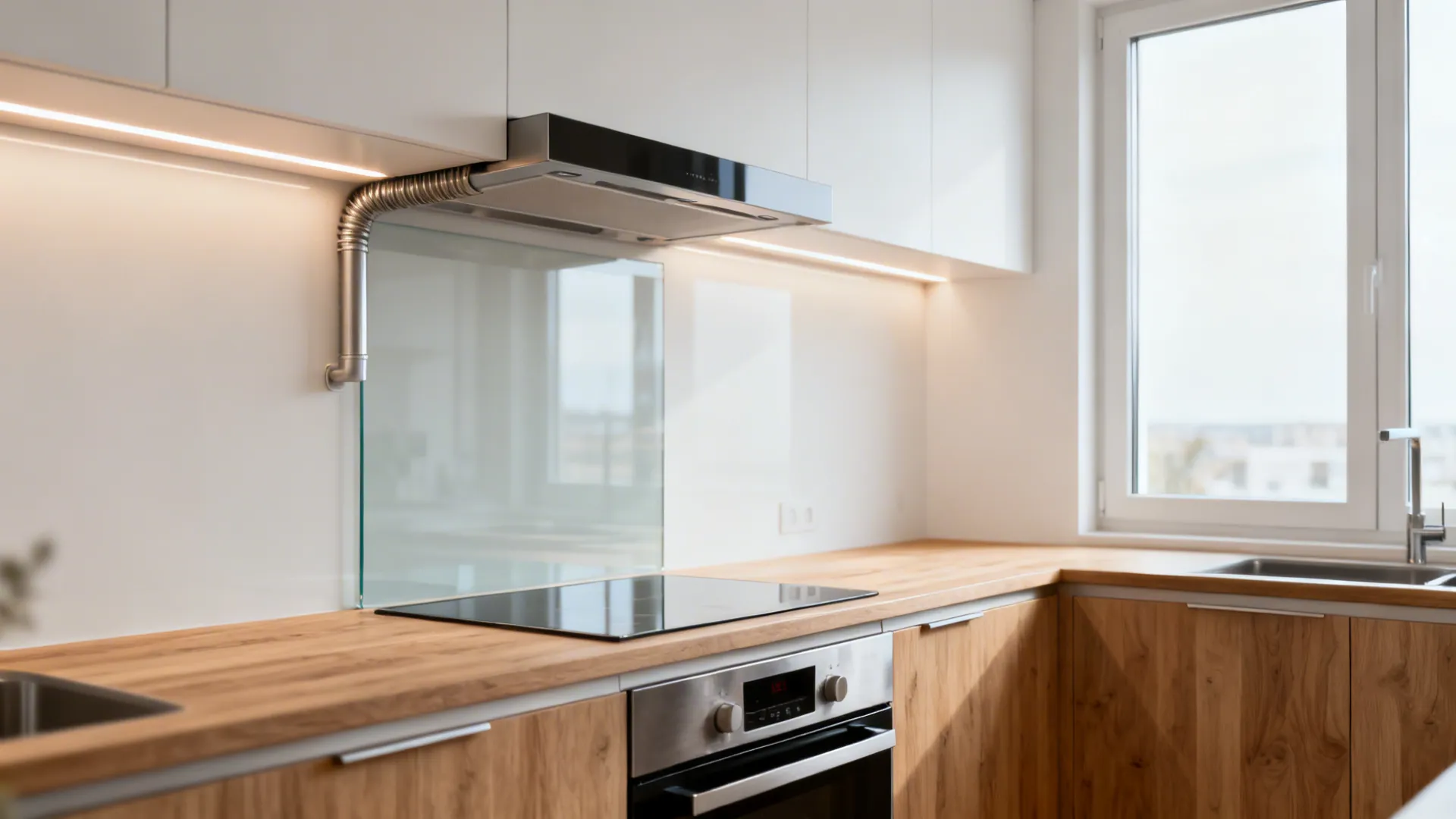

Kitchen chimney design with side exhaust: 5 ideas: Small kitchens, big creativity: my proven side-exhaust chimney playbook with real pros, cons, costs, and tips

As a senior interior designer, I’ve seen kitchen chimney design with side exhaust rise alongside compact urban homes and open-concept micro apartments. Small space really sparks big creativity, and side-exhaust routes can save height, improve capture, and fit tighter wall runs.

In this guide, I’ll share 5 design inspirations I’ve used on real projects—woven with my hands-on experience and expert data—so you can make a confident, code-compliant choice.

By the way, if you love how a minimalist kitchen hides storage while keeping airflow efficient, check out minimalist kitchen storage design for visual inspiration I often reference early in planning.

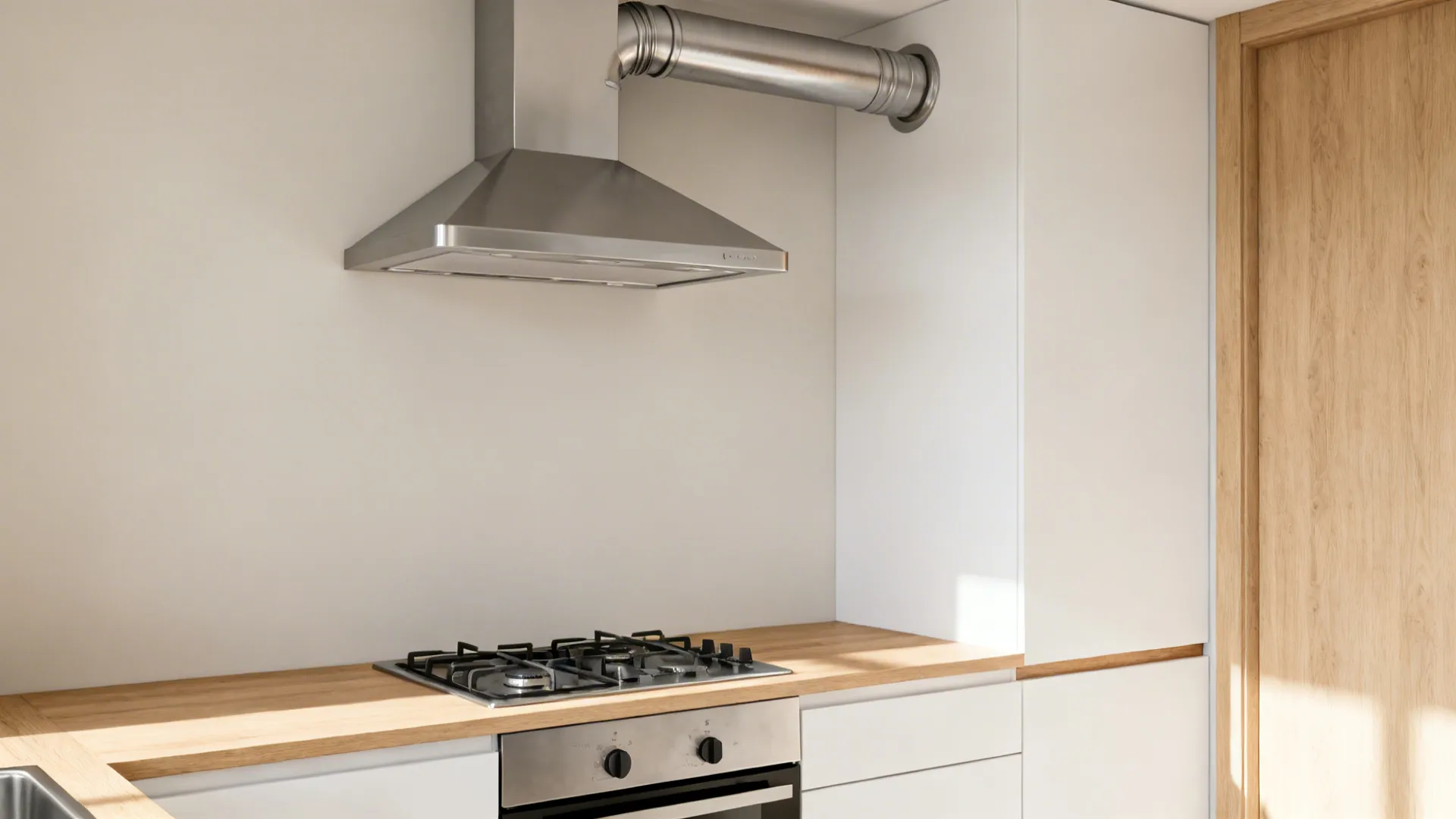

Low-profile side-exhaust chimney above an L-shaped counter

My Take

I’ve installed several sleek, shallow-depth chimneys set slightly higher above an L-shaped layout, then pushed the duct sideways through a short exterior wall run. It keeps sightlines clear, which really matters in small kitchens where a bulky hood can feel overpowering.

Pros

- Side-exhaust routing can reduce duct length and turns, improving static pressure and helping a high-cfm range hood maintain performance. In an L-shaped layout, the run often stays under 2–3 meters—great for efficiency and quieter operation.

- You can preserve upper cabinet storage near the corner while using a low-profile canopy that still offers strong capture efficiency for wok cooking or oily fumes, a common long-tail need in compact Asian kitchens.

Cons

- Corner cabinets might need custom fillers or a reduced depth to avoid clashing with the chimney body or duct sleeve. I’ve had to shave 20 mm a few times to keep door swing clear—tiny change, but you’ll notice it.

- If your exterior wall is brick with a deep cavity, core drilling raises cost and dust. A short, direct run is fantastic; a complex substrate can offset the simplicity with messy work.

Tips / Case / Cost

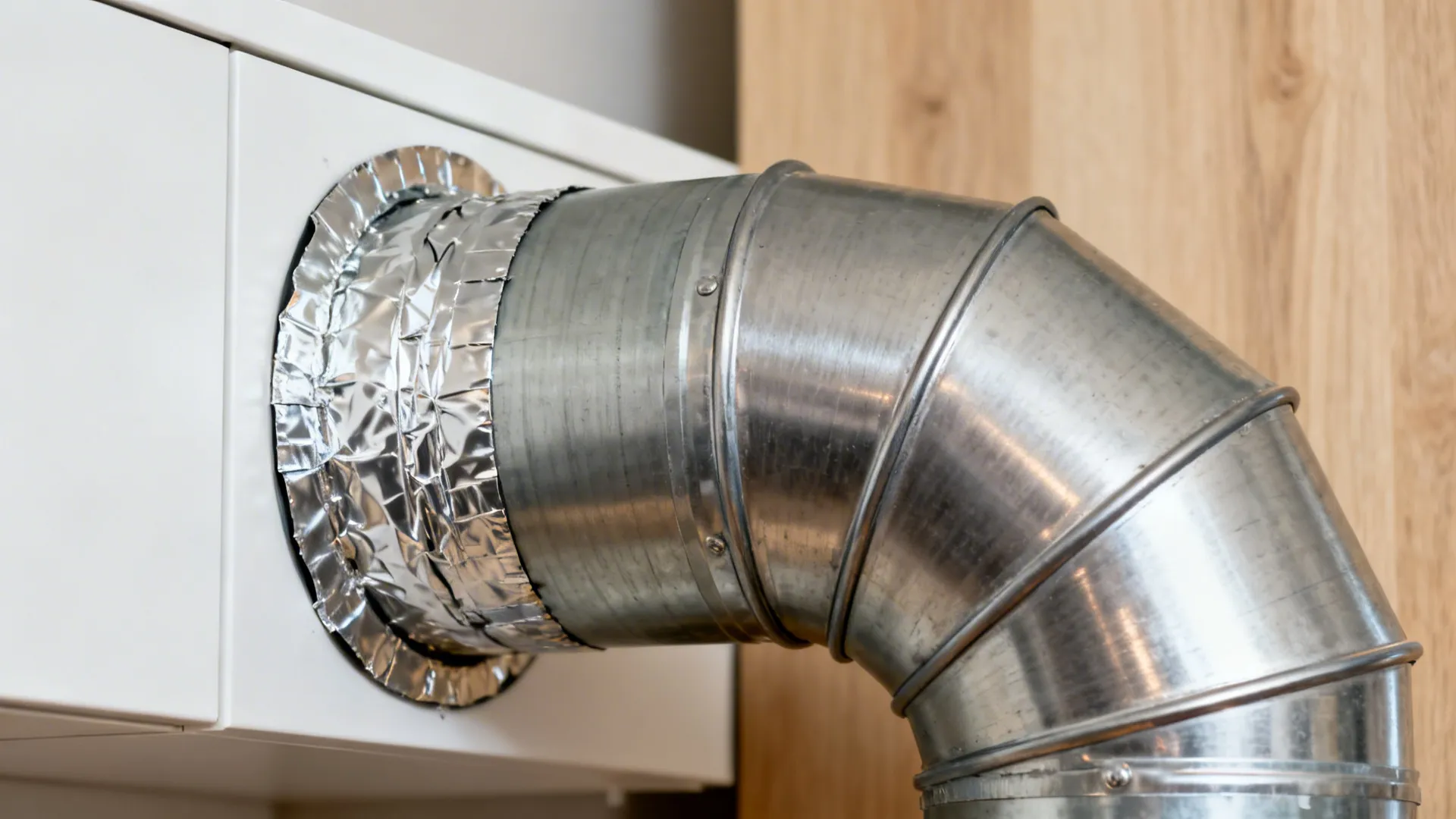

- Aim for one gentle 45° elbow instead of a sharp 90° to keep airflow smooth. Maintain at least 150–200 mm duct diameter for high-cfm models. Seal joints with metal foil tape, not fabric duct tape.

- Budget-wise, I see $250–$600 for ducting and penetration in standard drywall/wood-frame walls; masonry or reinforced concrete can push it to $800–$1,500. A good installer will camera-scan the wall to avoid hidden pipes.

save pin

save pin

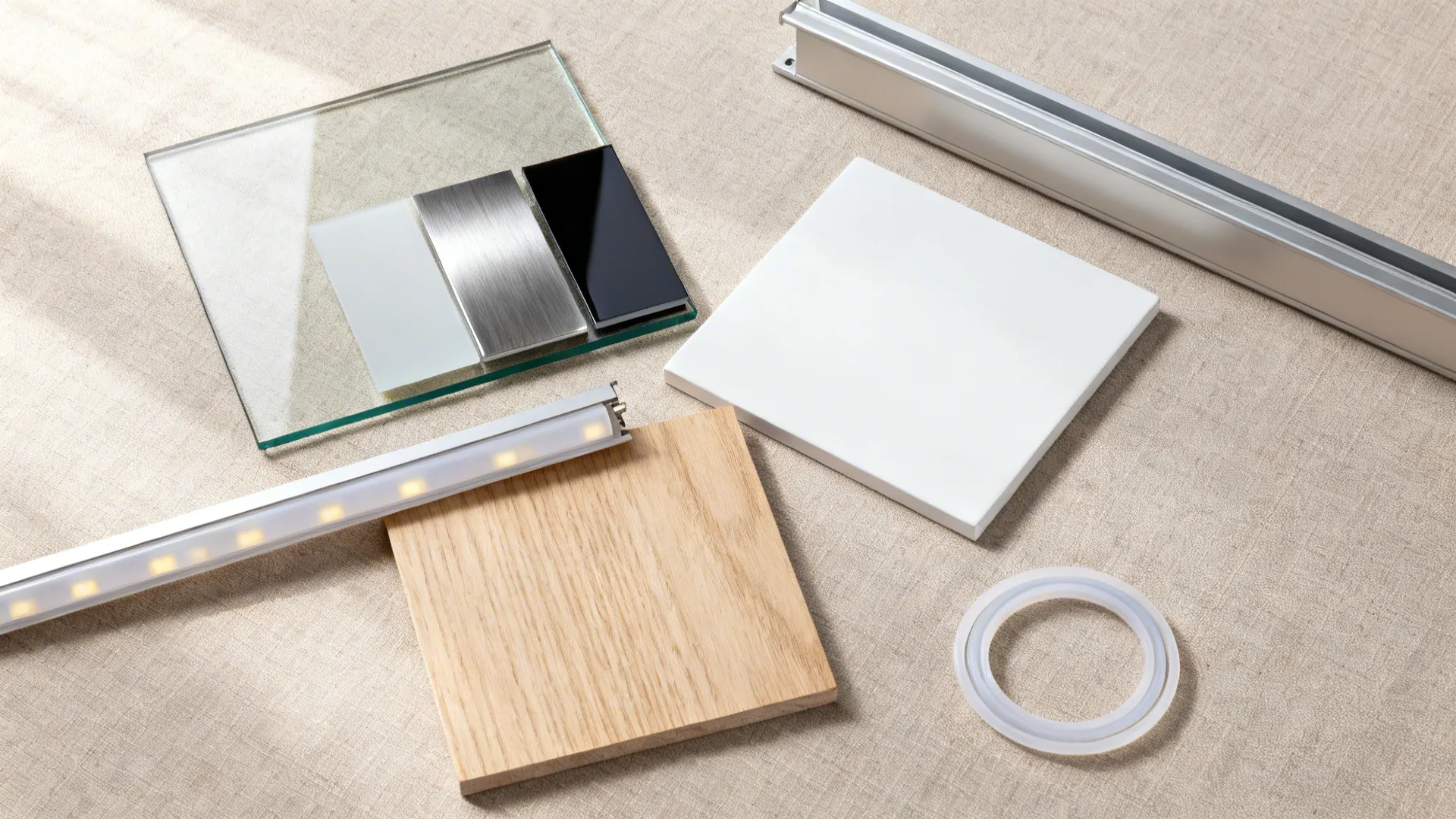

Glass backsplash with concealed side duct

My Take

I adore pairing a glossy tempered-glass backsplash with a color-matched, shallow duct raceway running laterally. It feels airy, reflects light, and keeps the side-exhaust line visually quiet. Clients love that easy wipe-down finish.

Pros

- A glass panel makes cleanup effortless and reflects ambient light, boosting perceived space—perfect for small kitchens where smoke control and brightness are both priorities. The side duct can hide behind a slim valance without bulk.

- Tempered glass with heat-resistant silicone gaskets handles typical cooktop temperatures, and the lateral duct minimizes bends for better performance, supporting the long-tail need of “compact kitchen chimney design with side vent.”

Cons

- Fingerprints show more on glossy glass. I usually recommend a low-iron satin finish if clients are touch-sensitive; it balances sheen and smudge control.

- If you plan under-cabinet LED strips, ensure the duct cover doesn’t create odd shadow bands. I’ve repositioned light tape 20–30 mm to keep the glow even.

Tips / Case / Cost

- Keep a 450–600 mm hood width matched to your cooktop to maintain capture. For lateral ducting behind panels, leave a removable access slot (100 x 300 mm) for service.

- Expect $400–$900 for glass backsplash fabrication and installation; add $200–$500 to build a painted MDF or aluminum valance to hide the side duct. For visual planning of reflective surfaces improving spatial feel, see glass backsplash that brightens a compact kitchen used in one of my concept packages.

save pin

save pin

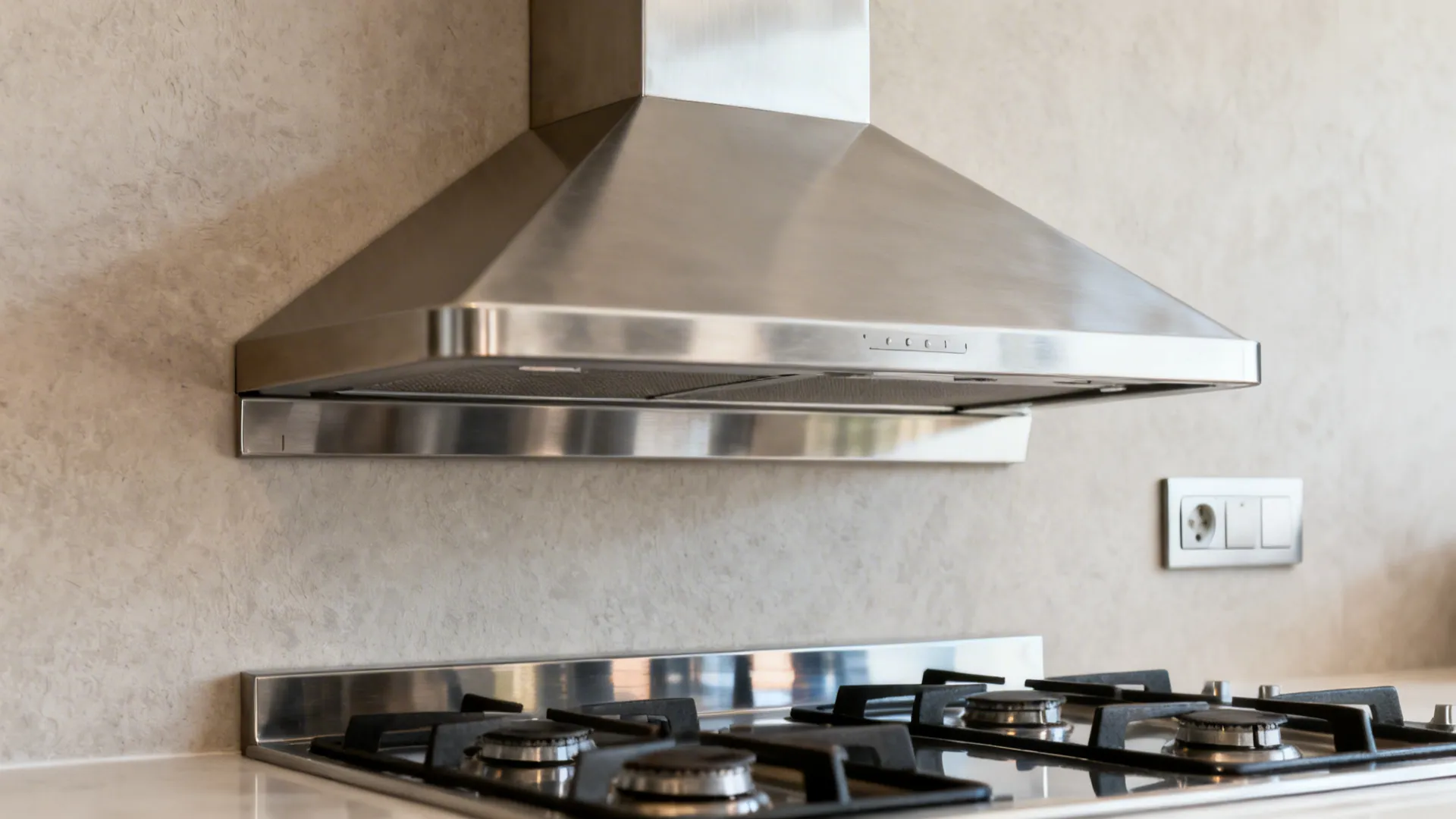

Wall-mounted chimney with offset cooktop for cleaner airflow

My Take

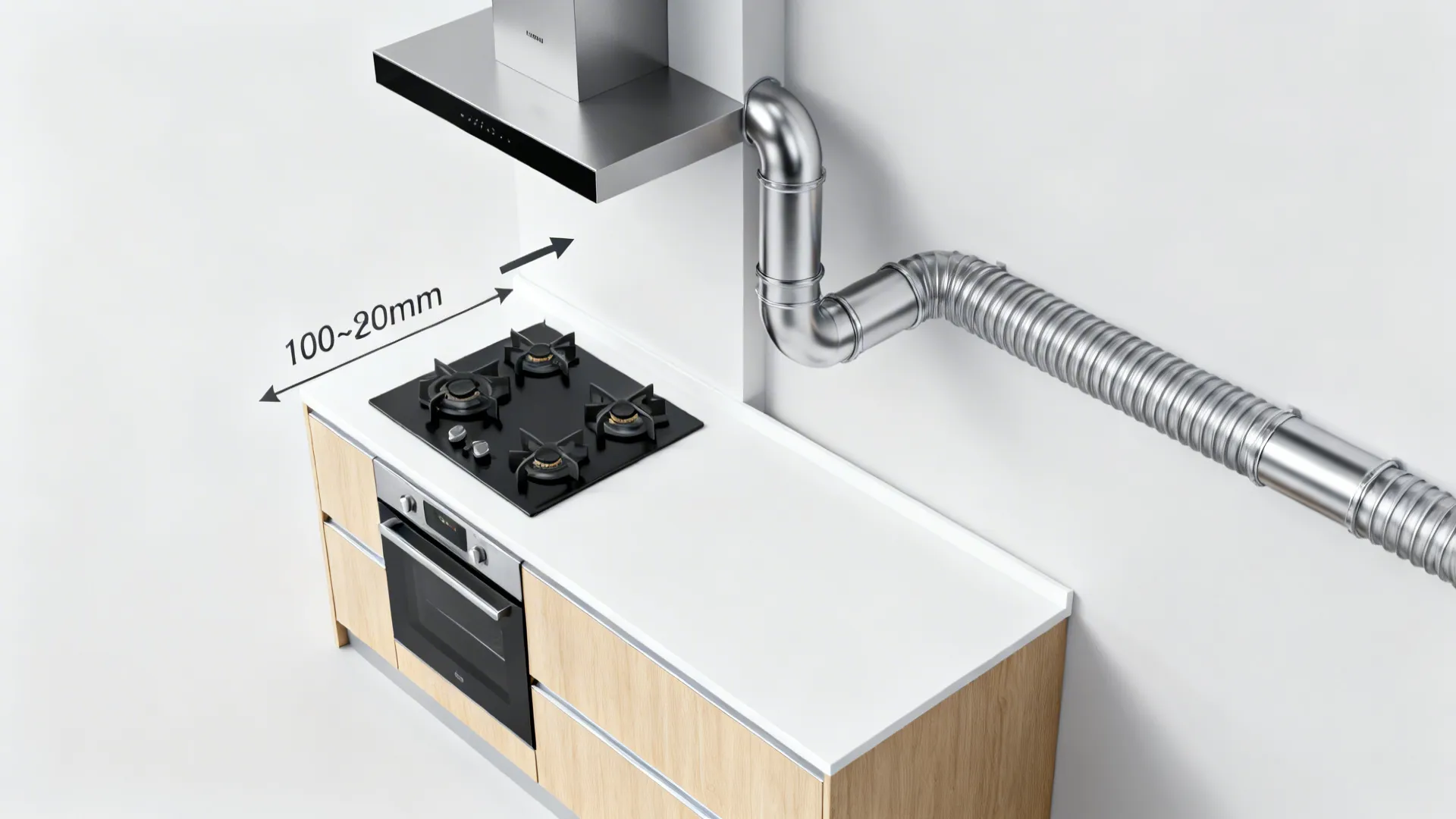

On tight walls, I often shift the cooktop 100–150 mm toward the duct path so the hood centerline aligns with the side exhaust. It reduces awkward elbows and keeps smoke rising directly into the canopy, especially for high-heat searing.

Pros

- A modest offset reduces turbulence and improves capture efficiency, particularly for high BTU burners. With side exhaust, fewer turns mean better static pressure and lower fan noise—a common long-tail request in small open kitchens.

- Aligning hood and duct centrelines also makes maintenance easier: fewer joints, fewer leaks, and better grease management over time.

Cons

- You may need to tweak drawer widths and pull spacing below the cooktop so handles don’t collide with the hood’s lower trim. I’ve reordered two fronts to keep ergonomics tidy—small compromise for airflow wins.

- If you cook with tall stock pots, double-check canopy height and reach. A too-high set to accommodate the offset can reduce capture when steam billows fast.

Tips / Case / Cost

- Keep hood mounting height 650–750 mm above the cooktop for most models; verify manufacturer specs. Use smooth-walled rigid duct instead of flex to reduce drag.

- For layout planning, I like sketching centerlines and clearances early, then testing pot height in a mock-up. To explore layouts that release more prep space around corners, I often reference L-shaped layout frees more counter area for clients considering small-kitchen chimney placement.

save pin

save pin

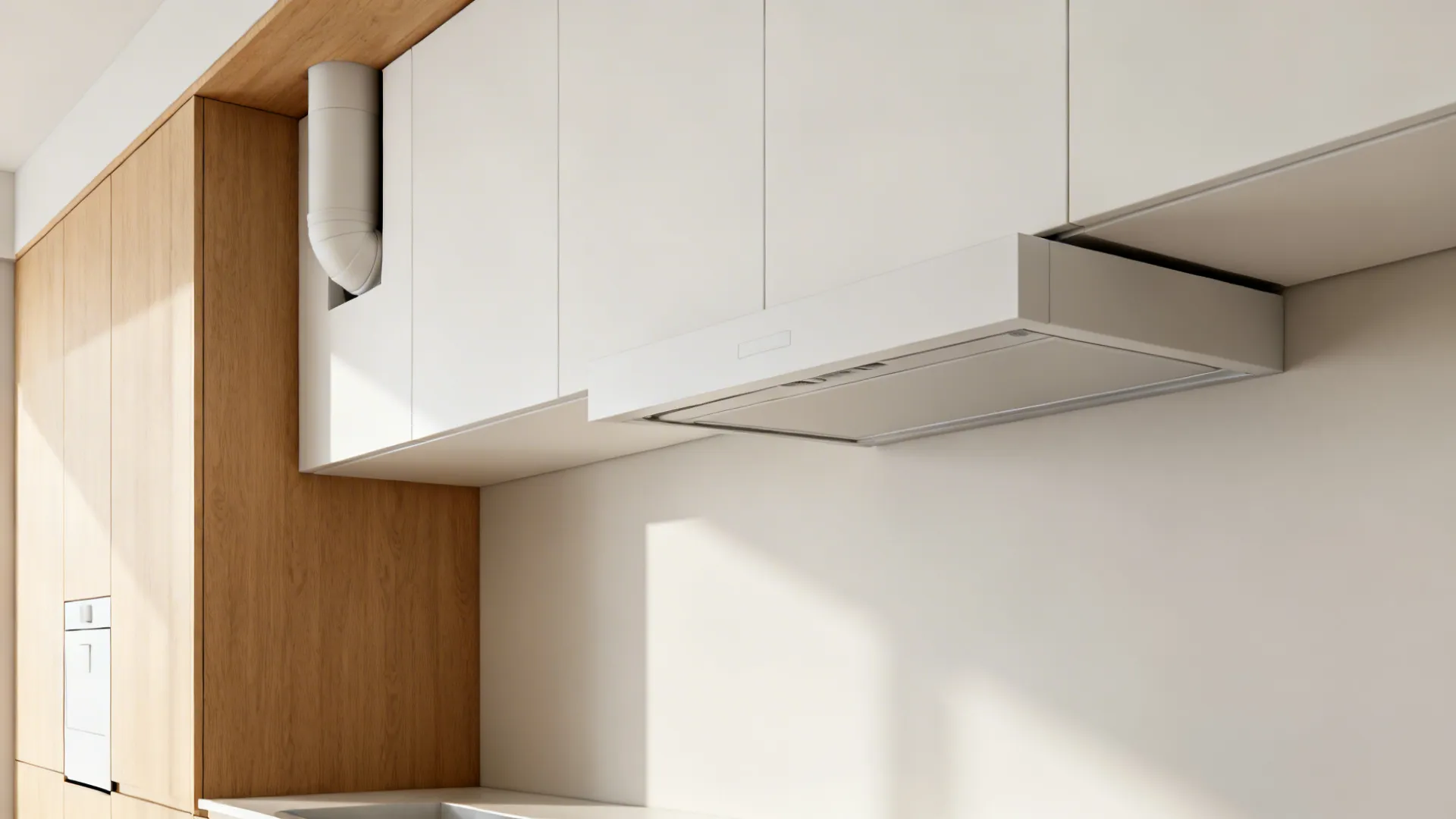

Integrated side duct in a minimalist overhead cabinet run

My Take

I’ve built slim overhead cabinets that swallow the lateral duct entirely while presenting a calm, continuous face—think slab doors, hidden grips, and a hood panel that aligns seamlessly. It’s my go-to for minimalist apartments.

Pros

- Concealing a side duct inside cabinetry protects the line, reduces visual clutter, and keeps the kitchen looking coherent. Paired with a side-exhaust chimney, you get real capture performance without sacrificing storage.

- With careful planning of carcass heights and a service void, you can maintain access for cleaning baffles and filters—ideal for long-tail needs like “small kitchen side-vent chimney with hidden duct.”

Cons

- Cabinet makers need exact specs; 5–10 mm tolerance matters. I’ve had one project where a late hood swap meant re-drilling panels—avoidable but annoying.

- More materials and custom work increase lead time. If you’re impatient (like me when deadlines loom), factor in 2–4 weeks extra for fabrication.

Tips / Case / Cost

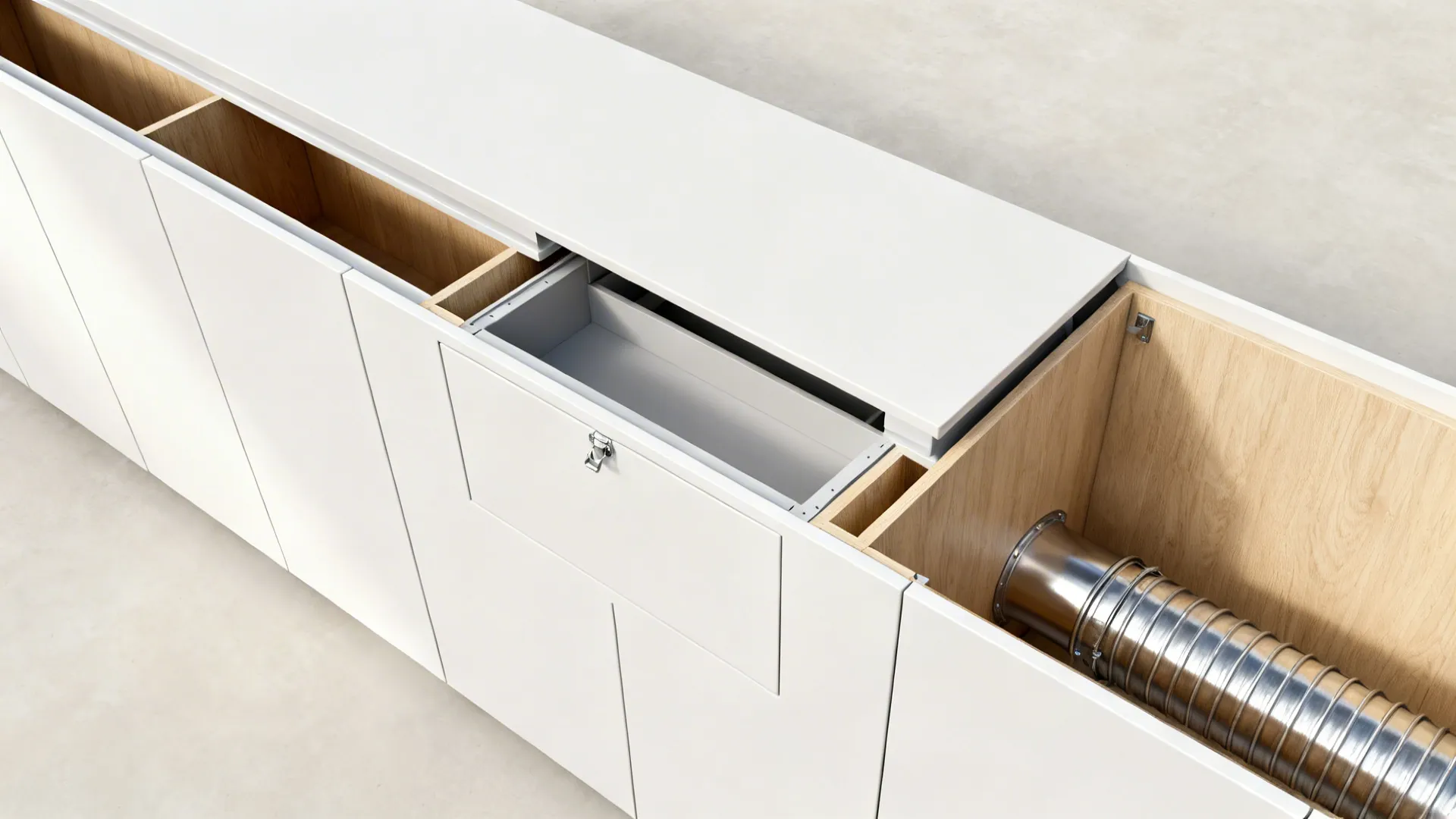

- Create a 60–80 mm service void above or behind the duct, and use inspection panels with push latches. Keep the duct straight for easier cleaning and noise control.

- Costs vary widely: custom overheads can add $1,200–$3,500 to a small kitchen, depending on finish and hardware. A good shop will pre-prime cutouts to resist humidity. For render previews of hidden duct ideas, I sometimes lean on wood accents creating a warm minimal vibe that pairs well with concealed systems.

save pin

save pin

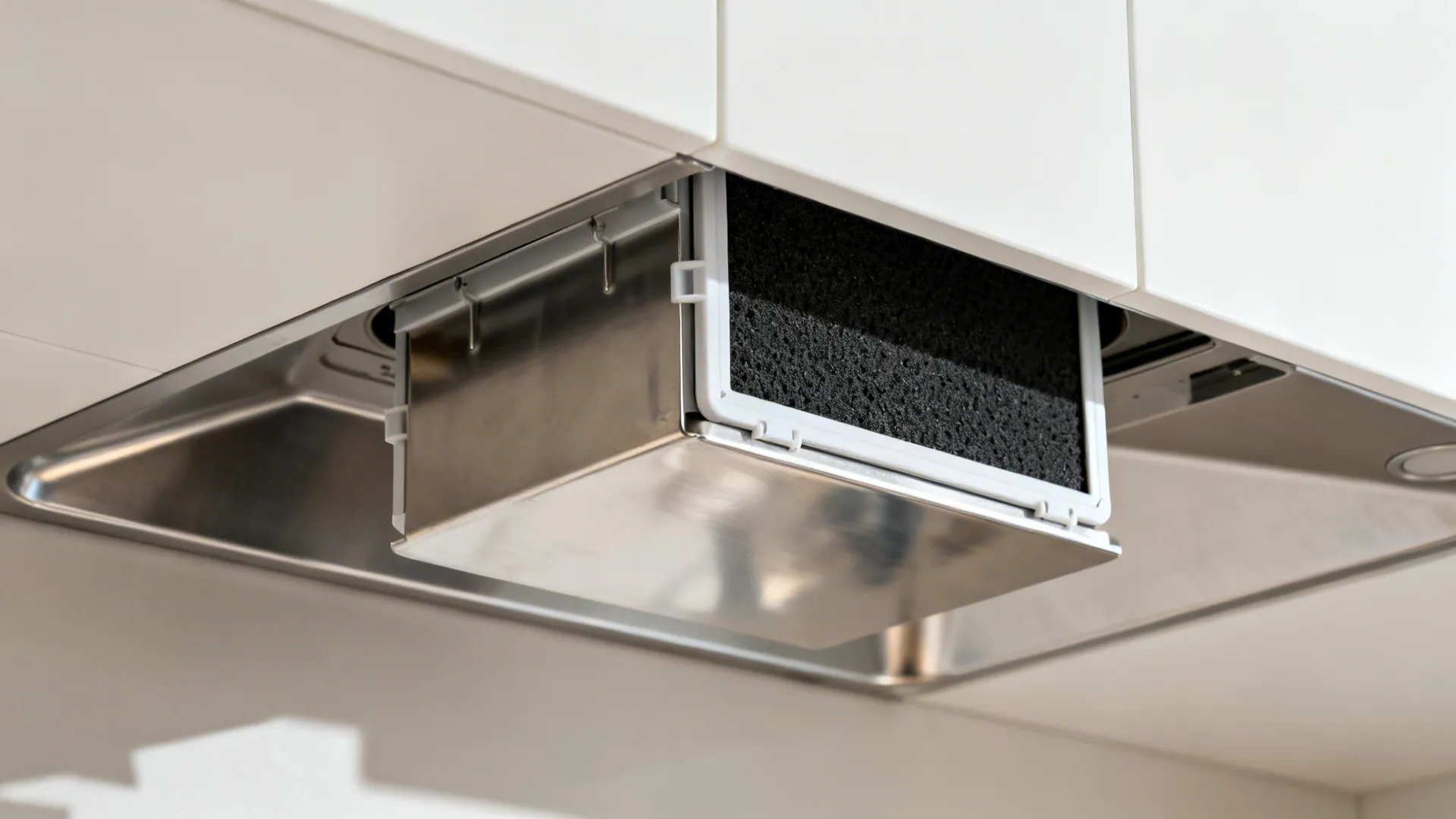

Recirculating hood plus side-assist duct for partial exhaust

My Take

In apartments where external venting is restricted, I’ve combined a high-quality recirculating hood (with charcoal filters) and a shorter side-assist duct that vents mild heat and lingering odors into a permitted shaft or utility zone. It’s a compromise that can work.

Pros

- You maintain code compliance while improving indoor air quality beyond standard recirc. Upgraded multi-stage carbon filters and a modest side run can lower grease-laden vapor and smell, key for “no external wall” long-tail scenarios.

- It’s often quieter and less visually intrusive, keeping the kitchen pleasant for conversation and late-night cooking.

Cons

- Capture and removal won’t match a full external side exhaust. If you’re a heavy fry cook, expect more frequent filter changes and occasional lingering aromas.

- Coordination with building management is vital; some shafts are off-limits. I’ve had to submit duct specs and airflow data more than once—it’s paperwork, but necessary.

Tips / Case / Cost

- Choose recirc models with washable stainless baffles plus deep-bed carbon; change filters every 3–6 months depending on use. Keep duct diameter adequate even for partial assist.

- Reference local codes. The International Residential Code (IRC) and manufacturer installation manuals define clearances and venting rules; always follow the hood’s rated duct size. For technical guidance on ventilation safety and indoor air quality, the U.S. EPA emphasizes source control and local exhaust where feasible (see EPA “Guide to Air Cleaners in the Home,” 2022).

save pin

save pin

Summary

A small kitchen doesn’t limit you; it pushes smarter design. Kitchen chimney design with side exhaust lets you shorten duct runs, preserve storage, and keep sightlines clean. From glass backsplashes to hidden cabinet ducts, there’s a solution for every space—and the right one respects airflow, code, and your cooking style.

If you like data, the U.S. EPA’s guidance on home air cleaners and local exhaust underscores why effective capture and filtration matter, especially in compact homes. So, which of these five design inspirations would you try first?

FAQ

1) What is kitchen chimney design with side exhaust?

It’s a range hood setup where the exhaust duct exits sideways through a wall or lateral chase rather than vertically. This can reduce duct length and bends, improving airflow and fitting compact kitchens.

2) Is side exhaust better than top exhaust?

It depends on layout. Side exhaust often means shorter runs with fewer elbows, helping static pressure and noise. Top exhaust works well if you have a straight ceiling route and minimal distance.

3) What duct size should I use for a side-exhaust chimney?

Follow the hood’s manual; many high-cfm models specify 150–200 mm (6–8 inch) rigid duct. Undersizing causes noise and weak capture. Keep elbows gentle and limited.

4) Can I install side exhaust in an apartment?

Check building rules. Some walls or shafts are restricted. If full venting isn’t permitted, consider a recirculating hood with enhanced carbon filters and, where allowed, a small side-assist duct.

5) How high should I mount the chimney above the cooktop?

Most manufacturers recommend 650–750 mm (25–30 inches), but verify your model. Gas cooktops may need more clearance. Proper height maintains capture efficiency.

6) Do glass backsplashes work with side ducting?

Yes. Tempered glass resists heat and wipes clean. Coordinate a slim valance to hide the lateral duct and maintain even LED lighting. For concept visuals, I like a warm minimalist kitchen with a reflective backsplash when exploring light and airflow balance.

7) What maintenance does a side-exhaust chimney need?

Clean baffles monthly if you fry often, replace carbon filters on recirc models every 3–6 months, and inspect duct joints annually. Use metal foil tape and rigid duct to minimize leaks.

8) Are there health or safety guidelines I should follow?

Yes. Effective local exhaust and proper filter use improve indoor air quality. The U.S. EPA’s “Guide to Air Cleaners in the Home” (2022) provides evidence-based recommendations; always comply with local code and manufacturer specs.
