Kitchen cupboard drawing with sizes: 5 expert ideas: How I plan kitchen cupboard drawings with sizes for smart, small-space layouts

I’ve spent over a decade turning tight kitchens into flexible, high-function rooms, and “kitchen cupboard drawing with sizes” is always where I start. Small spaces spark big creativity; when every millimeter is counted, design gets sharper. In this guide, I’ll share 5 design inspirations—backed by my field notes and expert data—to help you map accurate cupboard drawings with sizes you can actually build from.

On my last apartment remodel, the client had just 2.1 meters of wall to fit sink, hob, and pantry. We won by drawing to the hinge: precise clearances, toe-kicks, and appliance envelopes. If you’re working on a compact remodel, these five ideas will help you plan smart and avoid costly re-dos. Also, check how L shaped layout frees more counter space has worked in real projects I’ve seen—it’s a classic for a reason.

1) Minimal, modular widths that fit appliances precisely

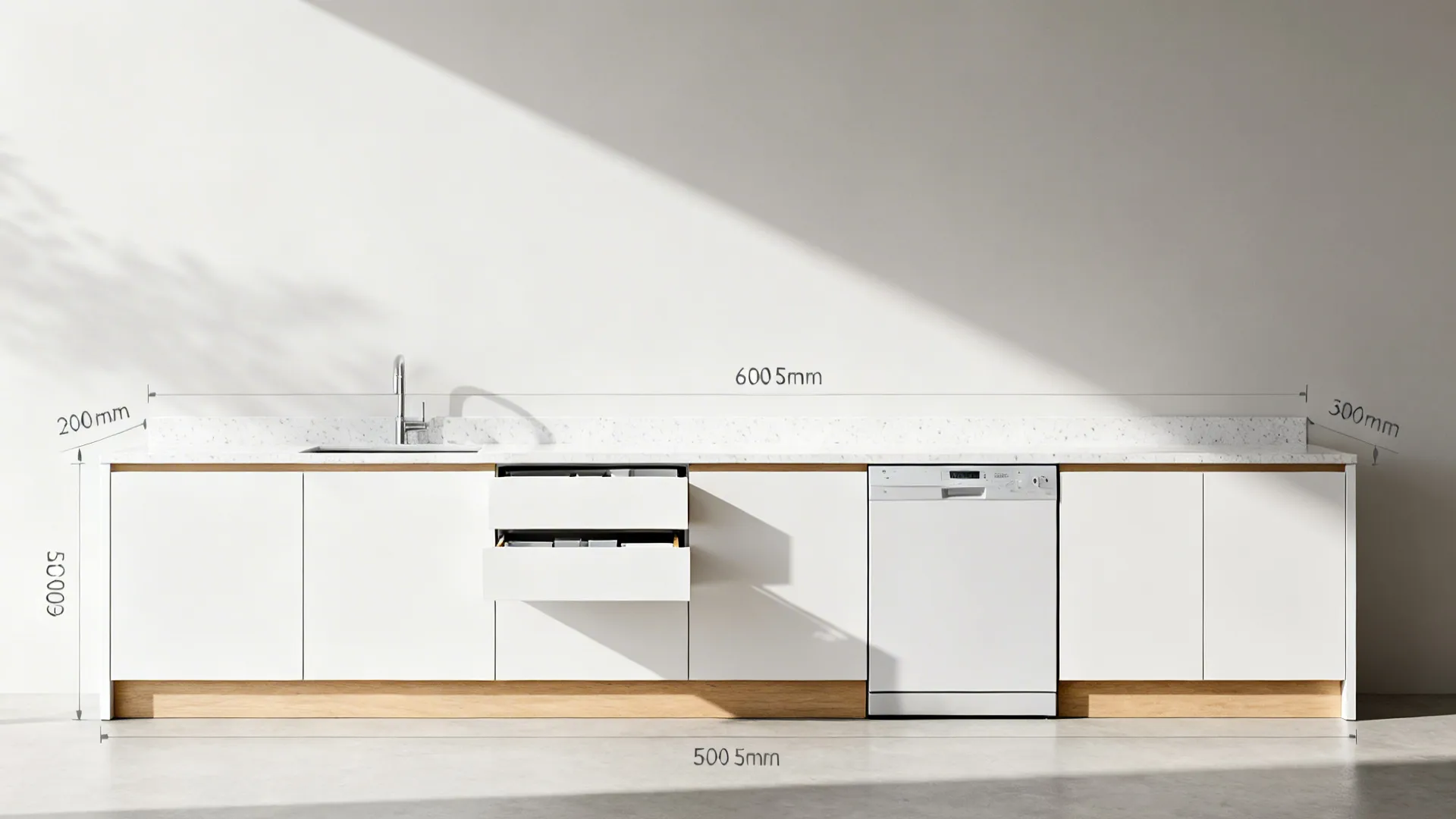

My Take: Early in my career, I tried to force a 500 mm base next to a 600 mm dishwasher—big mistake. Now I start from appliances, then let cupboard modules lock in. My favorite small-kitchen sequence is: 600 mm sink base, 450 mm pull-out, 600 mm dishwasher, 300 mm tray slot—tight but workable.

Pros: Modular widths (300/400/450/500/600 mm) simplify your kitchen cupboard drawing with sizes and reduce waste. It also aligns with common appliance envelopes and long-tail planning terms like standard base cabinet dimensions and dishwasher clearance, so trades know exactly what to expect. According to NKBA guidelines, typical base cabinet depth is 24 in/610 mm and height 34.5 in/876 mm before tops, which keeps ergonomics consistent.

Cons: Strict modules can feel limiting when a wall isn’t perfectly square. You might need fillers (30–60 mm) that look “meh” unless you integrate them as broom gaps or LED channels. And committing to a module before final appliance selection can backfire if a preferred oven needs extra ventilation space.

Tips/Costs: Lock appliances first. For European sizing, plan 600 mm for most major units; for US, allow 24–30 in and check manual venting requirements. Add a 50–75 mm services void behind bases for plumbing and electrics so the fronts align perfectly.

save pin

2) Vertical zoning: tall storage, mid-use, and daily reach

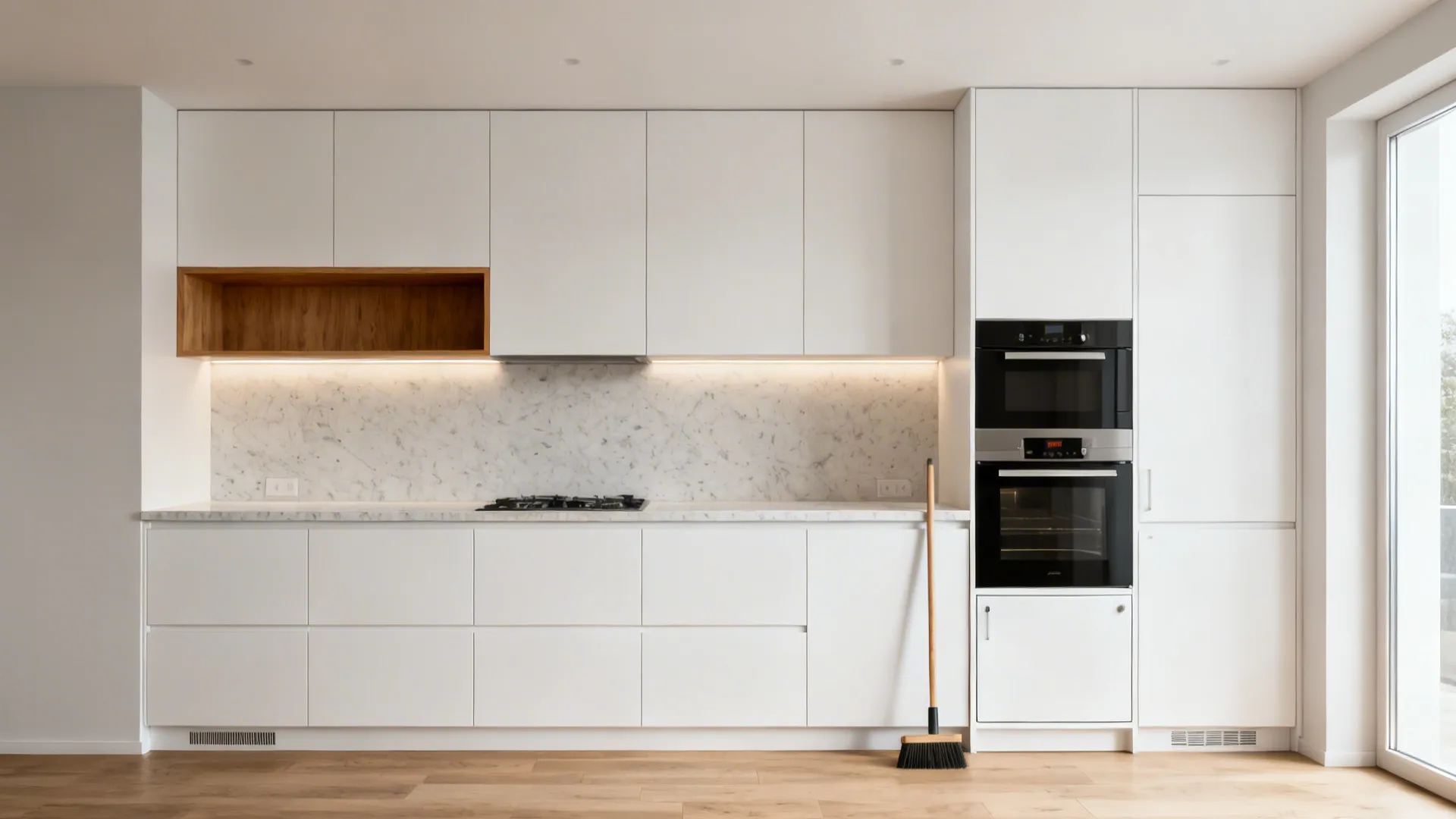

My Take: On a 2.4 m ceiling, I like a 100 mm toe-kick, 720 mm base carcass, 20–30 mm top, then 500–600 mm backsplash to upper. Upper cabinets at 700–900 mm high give breathing room without crowding. In one studio, a 2180 mm pantry wall (600 mm deep) changed life—breakfast to baking finally had a home.

Pros: Vertical zoning keeps heavy items low and daily items at eye to shoulder height, supporting ergonomic cabinet height and reach envelope keywords. You get more liters per footprint, which is critical in a small kitchen cupboard drawing with sizes. Research from the HSE and ergonomic studies supports keeping frequent-use items between 800–1500 mm from finished floor for reduced strain.

Cons: Tall units can dominate tiny rooms and create a tunnel feel. If your ceiling slopes or beams intrude, custom scribing may add cost. Also, deep tall cabinets become black holes without pull-outs—budget for interior accessories or expect chaos.

Tips/Case: I often break a tall run into 600 mm pantry + 600 mm oven tower + 450 mm broom. Use 550–570 mm interior depth in tall units to fit trays sideways. Mid-run open niches (300–350 mm high) lighten the wall visually while keeping spice/oil within reach.

save pin

3) Counter depth and aisle clearances that actually function

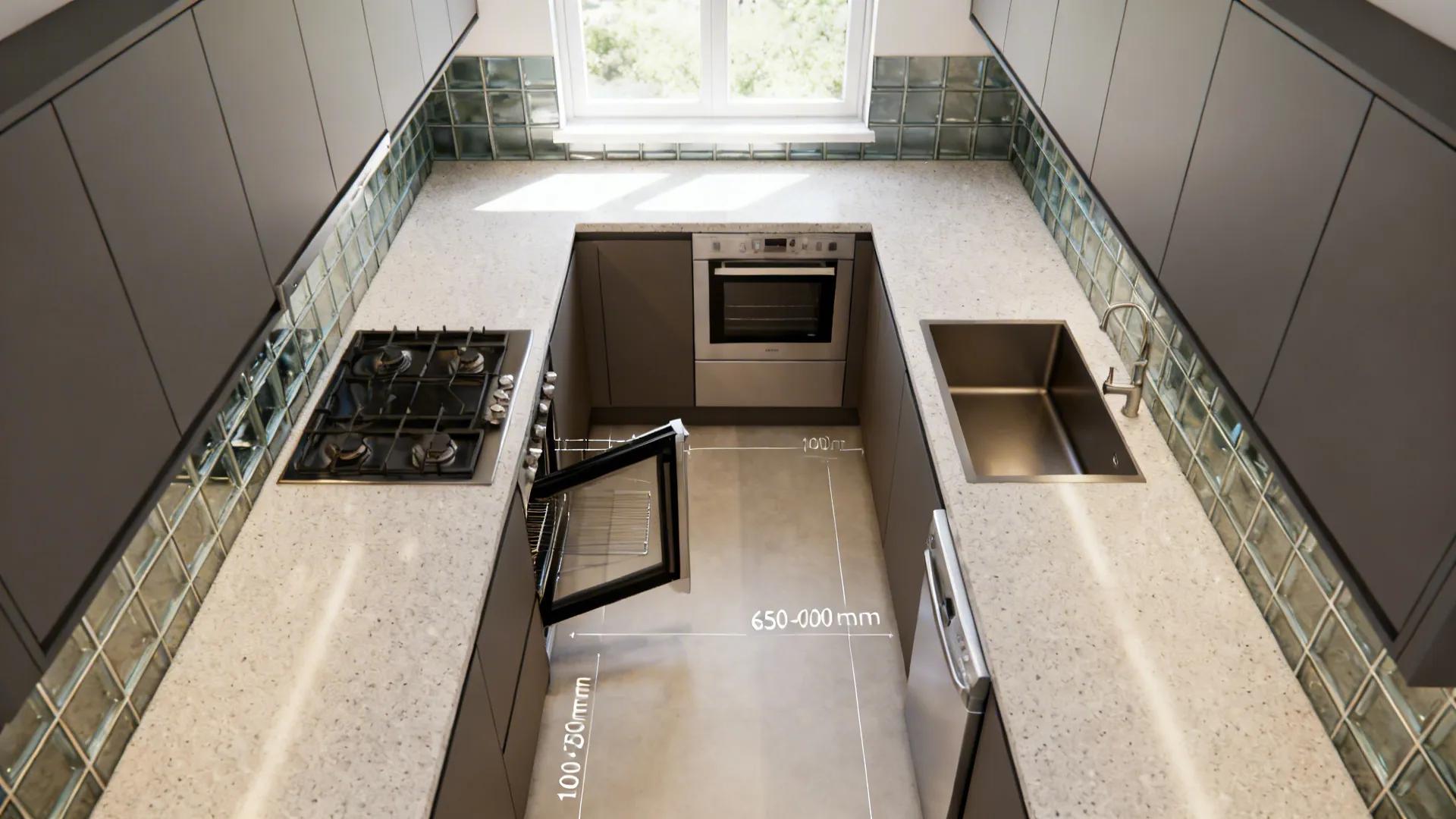

My Take: If there’s one sizing mistake I see most, it’s aisles. In a small galley, I target 1000–1050 mm clear between counters; 900 mm is the minimum I’ll accept if it’s a single-cook kitchen. I also love a 650 mm deep counter along a window wall to hide radiators and gain prep space.

Pros: Respecting aisle width and counter depth gives you real prep room and safe appliance doors—core to small kitchen layout planning. NKBA suggests 42 in (1067 mm) for a single-cook aisle and 48 in (1219 mm) for two cooks, and those numbers prevent “door fencing” between oven and dishwasher. Deeper counters (up to 700 mm) let uppers sit at 350 mm depth without feeling claustrophobic.

Cons: Pushing counters deeper can complicate standard 600 mm carcasses—expect custom panels or deeper worktops. Wider aisles can cost you a base cabinet if your room is narrow, so you’ll need smarter vertical storage to compensate.

Tips/Costs: For a 2400 mm room, aim for 600 + 1050 + 600 = 2250 mm; that leaves 150 mm for wall tolerance. Use a slimline 450 mm dishwasher to reclaim aisle if needed. Around mid-project, I revisit the plan with a quick 3D to check swing paths for oven, fridge, and bin pull-outs—no clashes allowed. Around this stage, I also point clients to examples where glass backsplash feels more airy when paired with deeper counters and careful lighting.

save pin

4) Pull-outs, corners, and inside-cabinet geometry

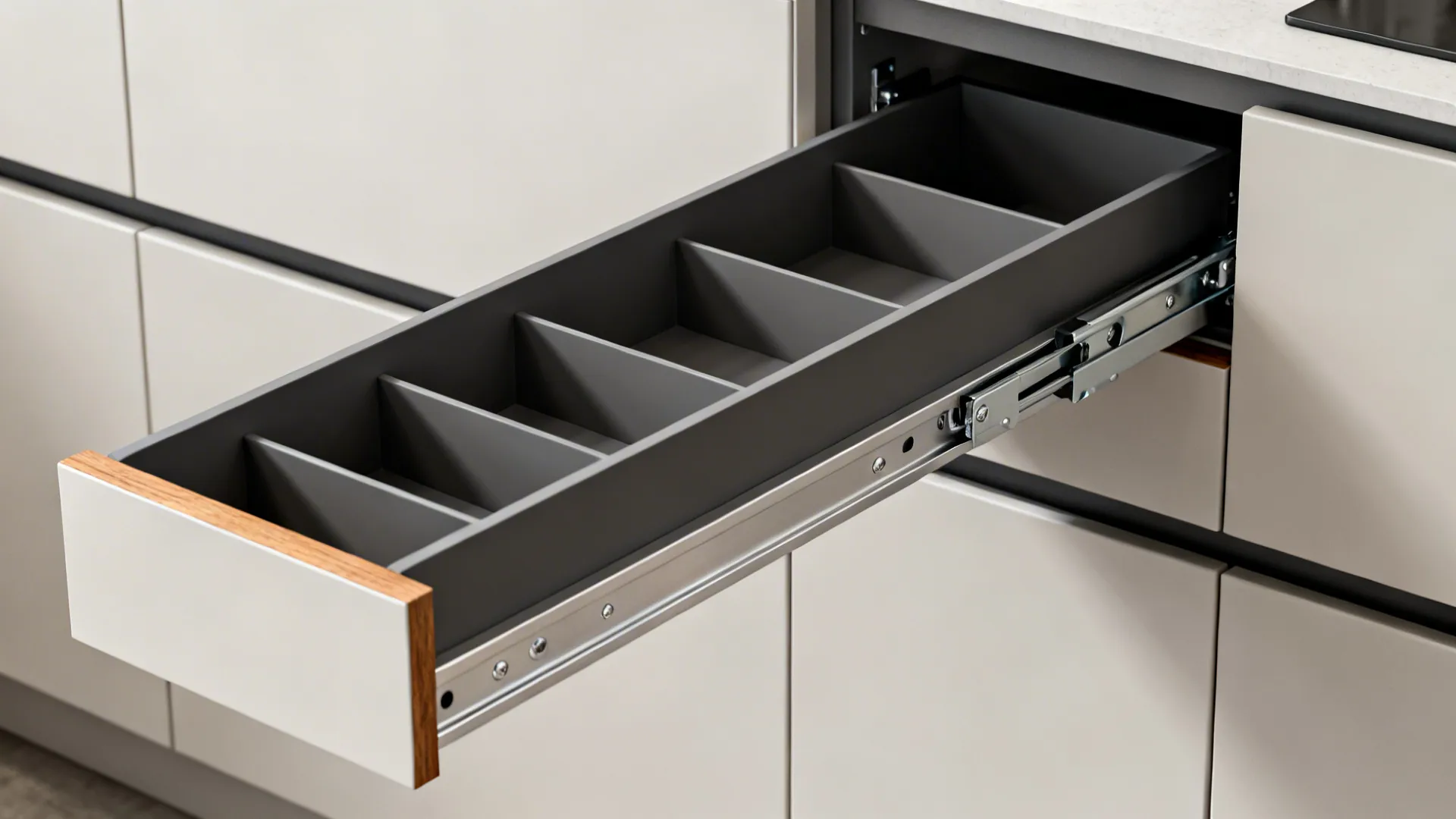

My Take: Corner cabinets are where good intentions go to hide. I prefer a blind corner with a 450–500 mm pull-out next to it, or a dead corner converted to open shelves. In a tiny rental I did, a 300 mm spice pull-out plus a 150 mm tray slot saved more frustration than a bulky carousel ever could.

Pros: Narrow pull-outs (150–300 mm) create high-density storage for oils, spices, and trays—ideal long-tail solutions like narrow base cabinet organizer. For blind corners, modern pull-out systems reclaim 70–80% of space, and soft-close runners keep the layout whisper-quiet. This approach makes your kitchen cupboard drawing with sizes more precise by assigning clear internal widths for baskets and bins.

Cons: Specialty hardware adds cost fast. Blind corner pull-outs can reduce usable width if mis-specified, and some systems need exact door swing clearances—measure twice, buy once. In rentals, tenants may overload narrow pull-outs, causing racking over time.

Tips/Case: If budget is tight, dead the corner and invest in a 600 mm drawer stack where you prep; you’ll use it 10x more. Standard internal drawer heights I spec: 80–100 mm (cutlery), 140–160 mm (utensils), 220–260 mm (pots). Keep heavy pans below 900 mm from floor for safe lifting.

save pin

5) Materials, finishes, and service voids that make installs smoother

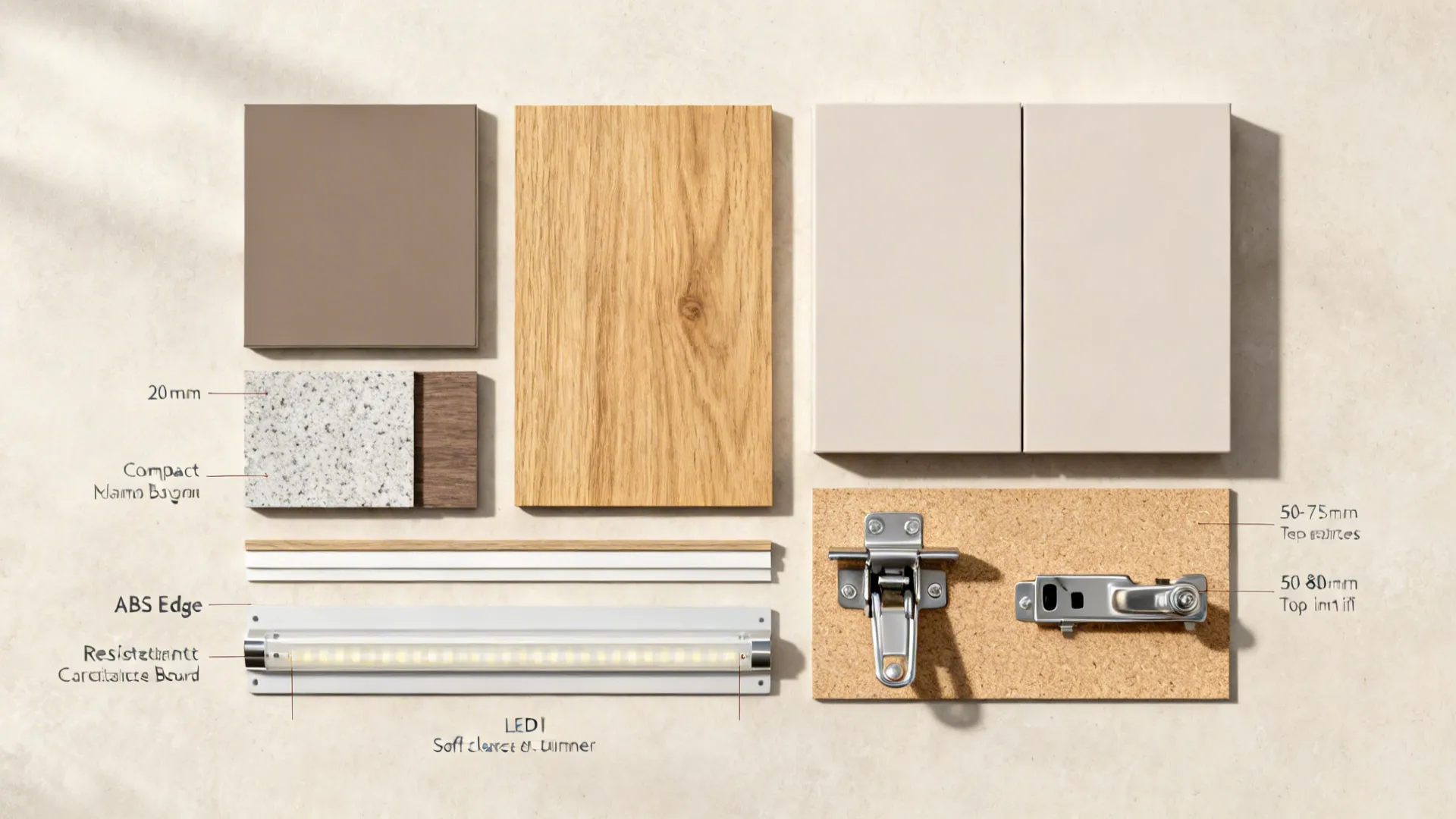

My Take: The cleanest installs I’ve done allowed 20 mm scribe gaps each side of a run, plus a 50–75 mm rear void for pipes. For looks, matte fronts hide fingerprints, and light wood grains warm compact kitchens without closing them in. When ceilings vary, I run a 50–80 mm top infill to keep lines straight.

Pros: Planning service voids, scribes, and infills in your kitchen cupboard drawing with sizes avoids site surprises—a long-tail must-have like cabinet scribe allowance. Matte laminates with ABS edges are cost-effective and resilient; paired with LED strips under uppers, you get task light without glare. The British Standard BS 6222 and similar guidance emphasize carcass durability and moisture resistance near sinks, which is vital for longevity.

Cons: Extra voids feel like “lost space” on paper, and clients sometimes push back. High-gloss looks stunning but shows every smudge and needs careful lighting angles. Real wood edges need maintenance in wet zones—engineered options perform better day to day.

Tips/Case: Budget 8–12% for hardware and moisture-proofing. On a recent 2.8 m run, we used a 10 mm compact laminate backsplash to gain 5 mm more faucet clearance. If you’re exploring alternate layouts, browse how wood textures create warmer vibes in compact kitchens and test light levels virtually before ordering materials.

save pin

How to read and set common cupboard sizes (quick reference)

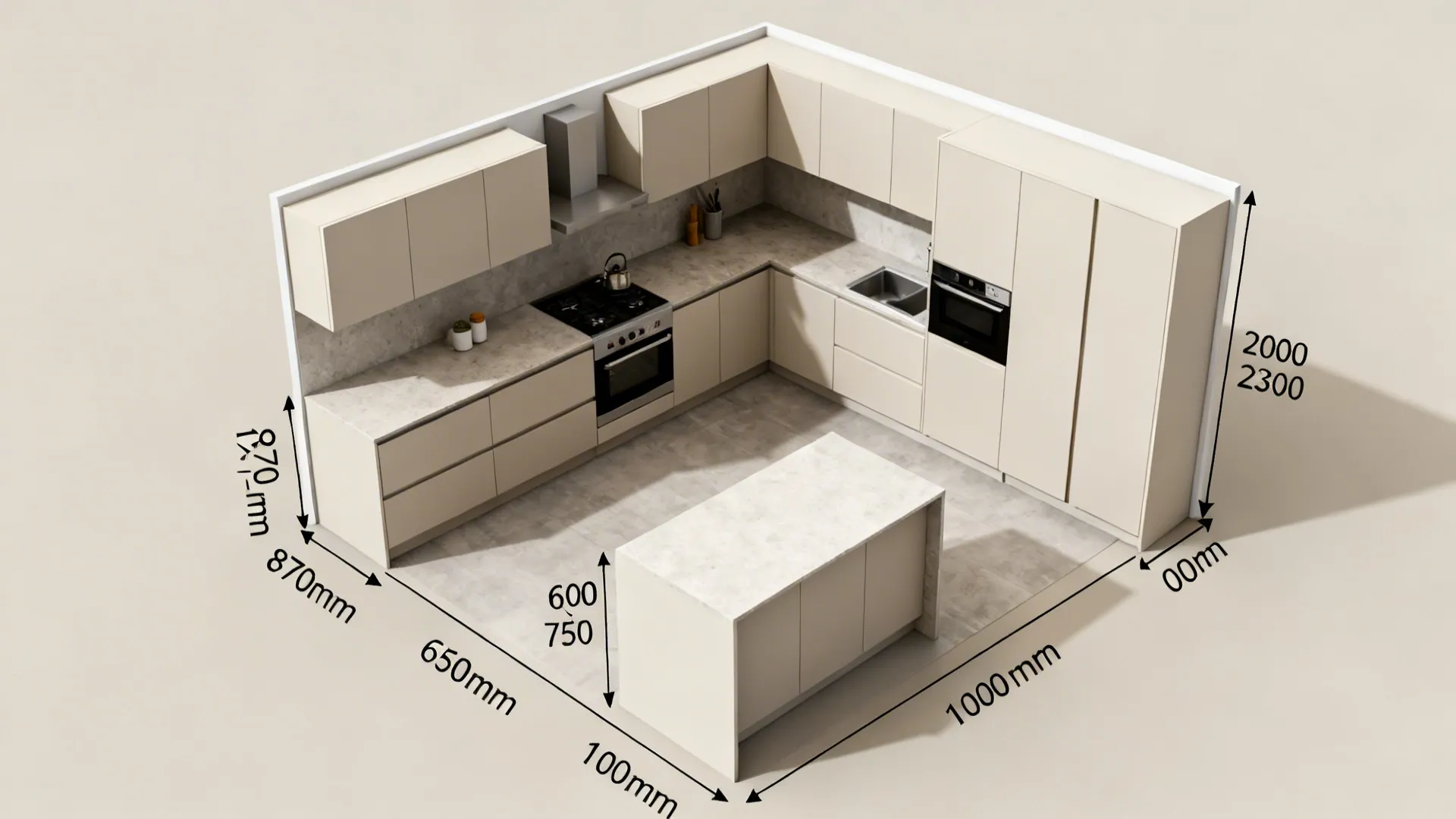

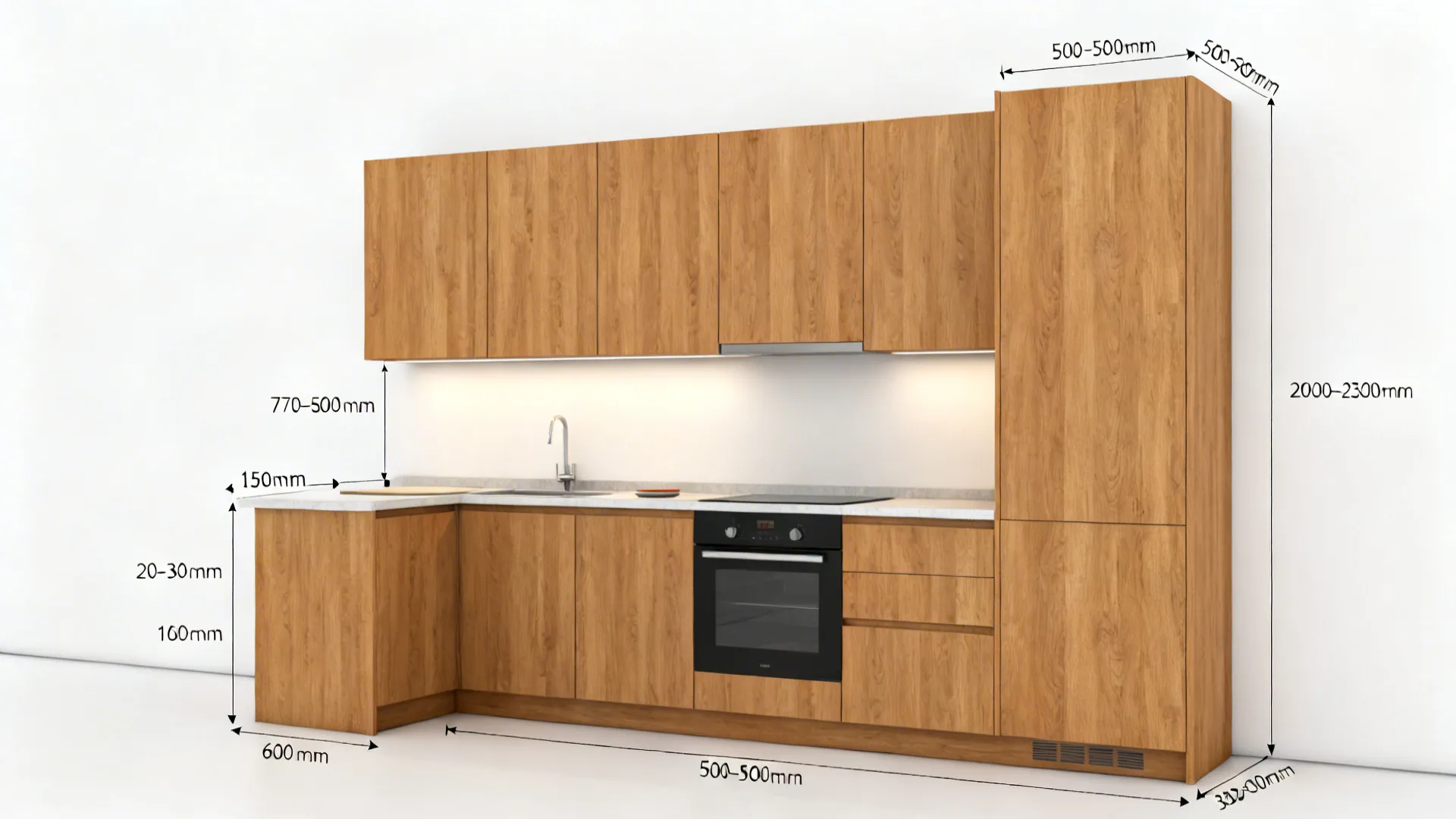

Base units: 870–900 mm total height (including 150 mm toe-kick and 20–30 mm countertop), 600 mm depth (carcass 560 mm typical). Widths: 300/400/450/500/600/800/900 mm, with 900 mm often for corner Ls or wide drawers.

Upper units: 350–400 mm depth, 700–900 mm height, mounted so bottom sits 500–650 mm above counter depending on backsplash and appliances.

Tall units: 2000–2300 mm high depending on ceiling, 600 mm deep standard, 300–450 mm for shallower pantries. Leave 20–50 mm scribe against walls/ceilings.

Clearances: Hob to hood: follow manufacturer, commonly 650 mm (electric) to 750 mm (gas). Oven door swing: allow 500–600 mm clear in front. Dishwasher: 600 mm width typical, 450 mm slimline; allow full door drop plus 500 mm stand-in zone.

Work triangle (compact): In small homes, I trade the classic triangle for a “prep corridor”: sink–prep–hob within 1200 mm linear, fridge within a 1500–1800 mm step. It reduces cross-traffic and suits single-cook spaces.

save pin

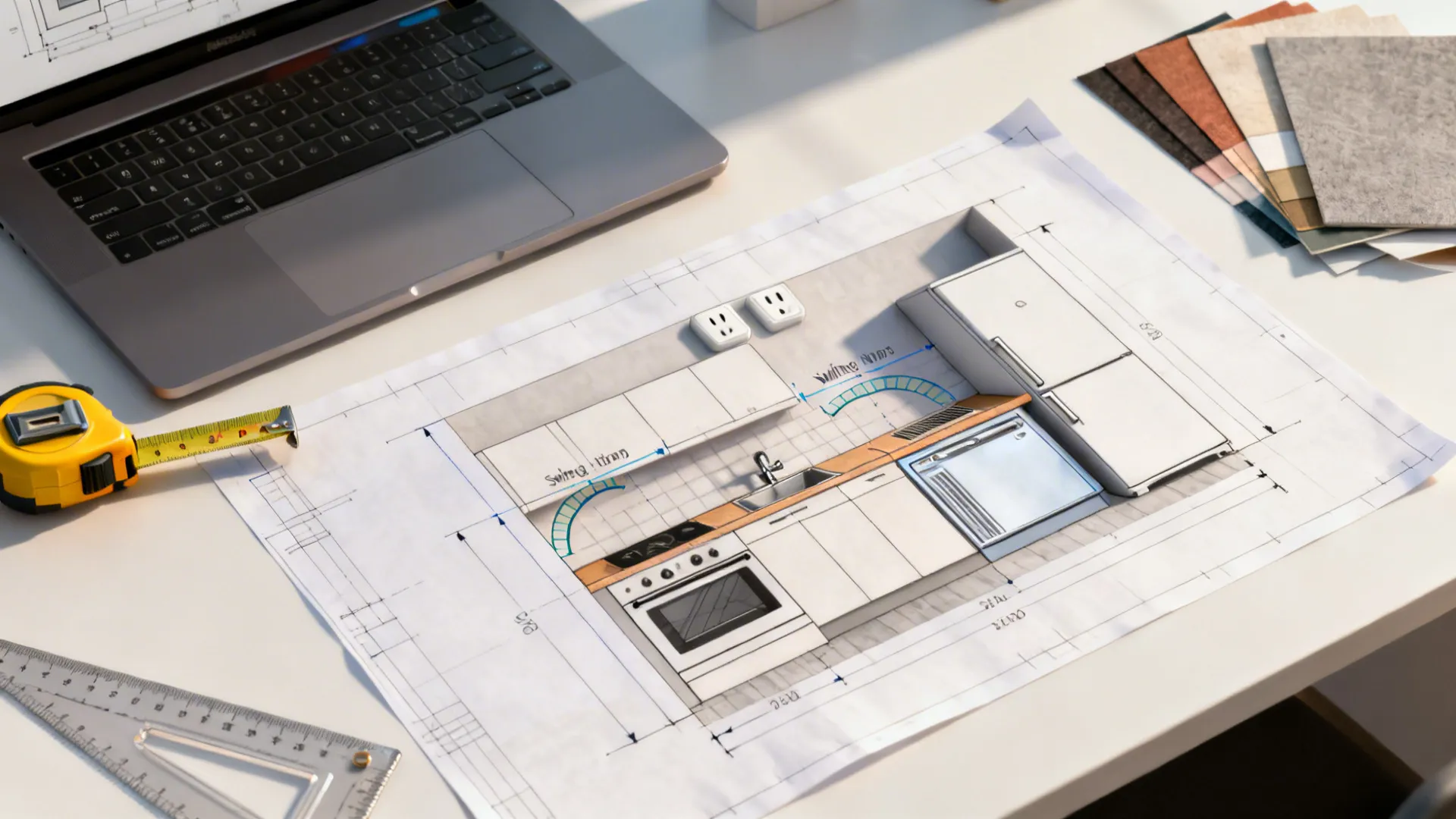

Drawing workflow I use for accurate measurements

1) Site measure: room length/width, all nibs, window heights, sill depths, pipe positions, and out-of-square checks. I jot diagonal measurements in each corner to confirm squareness.

2) Fix appliances: pick models and pull dimensions from the cut sheets. I tag required vent gaps and hinge clearances in the drawing.

3) Module layout: build runs with 300–900 mm widths, add fillers last. I keep a services layer for electrics, water, waste, gas, and ventilation.

4) Vertical set-out: decide base/upper/tall heights, toe-kick size, and backsplash height. I mark light switch and outlet positions above the counter run.

5) Internal storage: assign drawer heights and pull-outs so nothing clashes with plumbing. Place the bin under the sink or in the nearest 400–600 mm cabinet.

6) Clash check: swing paths for oven, fridge, dishwasher; check handle projections. I also test reach—top shelf no higher than 1850–1900 mm for most users.

7) Final sheet: dimension to the millimeter, include section cuts for tricky corners, and print a legend. Halfway through, I like validating key sizes using a quick layout sandbox, similar to how minimalist kitchen storage planning is mocked up before ordering.

save pin

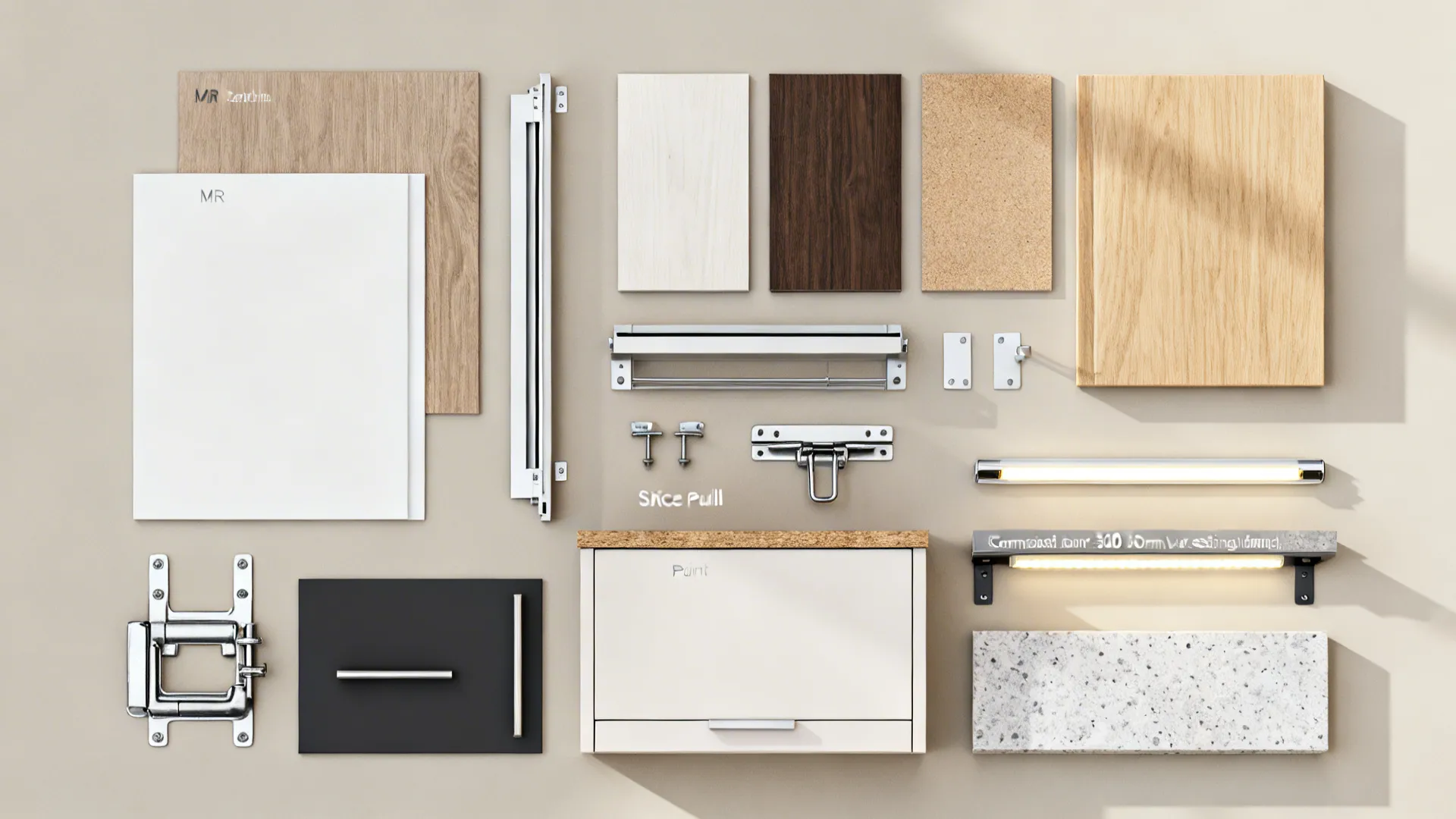

Material and budget guide for small kitchens

Carcasses: 16–18 mm melamine-faced particleboard or plywood; moisture-resistant (MR) in sink areas. Edge-band all sides for durability.

Fronts: Laminates or thermofoil for budget, painted MDF for mid, veneer or solid wood for premium. Matte finishes hide fingerprints best.

Hardware: Soft-close hinges and full-extension drawer runners. Pull-outs for spices (150–300 mm) and waste bins (400–600 mm).

Worktops: Laminate (budget), compact laminate/solid surface (mid), quartz/sintered stone (premium). Check overhangs: 20–30 mm standard; 300 mm for seating with brackets.

Lighting: 3000–3500K LEDs under uppers (5–7 W/m), and task lighting over the hob. Avoid glossy backsplashes directly under downlights to reduce glare.

Costs: For a 2.4–3.0 m run in a small apartment, expect $3,000–$8,000 for decent cabinetry and hardware, excluding appliances and tops. Add 10–15% contingency for site surprises like crooked walls or hidden pipes.

save pin

Codes and credible references worth checking

- NKBA Kitchen Planning Guidelines: aisle widths, clearances, and ergonomics—gold standard for layout basics.

- Manufacturer cut sheets: always the most accurate source for appliance envelopes and venting requirements.

- HSE/ergonomic literature: supports safe reach and lift zones to reduce strain in daily use.

- BS 6222 or local equivalents: cabinet construction and durability standards, especially for moisture resistance.

save pin

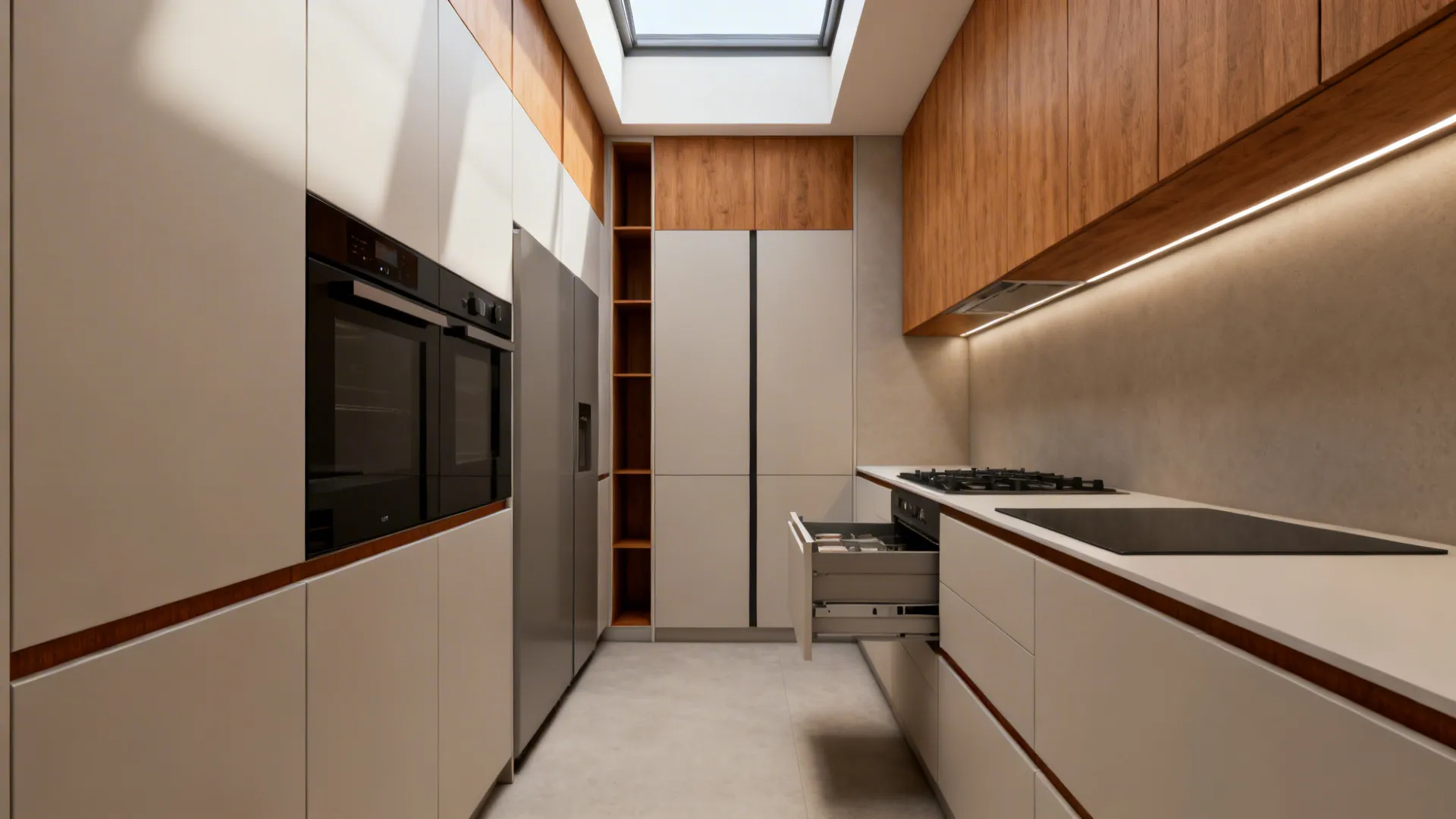

Wrapping up

A small kitchen doesn’t limit you—it asks you to design smarter. Accurate kitchen cupboard drawing with sizes makes every door swing, drawer glide, and prep step feel natural. As NKBA notes, when aisles and heights match human movement, tiny kitchens work like big ones. Which of these five ideas are you most excited to try in your next plan?

save pin

FAQ

1) What is the standard size for base kitchen cupboards?

Most base units are 870–900 mm high including toe-kick, 560 mm carcass depth with a 600 mm worktop, and widths in 300–900 mm increments. Always verify appliance cut sheets before locking widths.

2) How wide should kitchen aisles be in small spaces?

For single-cook kitchens, target about 1000–1050 mm; 900 mm is a workable minimum. The NKBA guideline of 42 in (1067 mm) is a reliable reference for comfort and safety.

3) What height should upper cabinets be above the counter?

Commonly 500–650 mm, depending on backsplash, small appliances, and user height. If you use a tall mixer or coffee machine, err toward 600–650 mm.

4) How do I size a pantry cupboard?

A 600 mm wide, 600 mm deep tall cabinet works well for bulk storage; shallow 300–450 mm pantries prevent items getting lost. Add pull-outs for visibility and assign shelf heights to item categories.

5) Should I use corner carousels or dead the corner?

In tiny kitchens, dead the corner and invest in wide drawers where you prep; it’s more efficient. If you must use a corner system, specify it early and confirm door swing and interior clearances in your drawing.

6) What’s the best depth for small-kitchen counters?

Standard 600 mm works, but 650–700 mm provides generous prep space and hides services. Just ensure uppers are set to avoid head bumps, and confirm appliance depth alignment.

7) Are there official guidelines I can trust?

Yes. The NKBA Kitchen Planning Guidelines cover aisles, work zones, and clearances; manufacturer manuals trump everything for appliances. Ergonomic sources like HSE support safe reach zones to minimize strain.

8) How can I quickly test a layout before ordering?

Create a scaled plan with appliance envelopes and check door swings and clearances. A quick 3D mockup helps spot clashes; if it’s helpful, review case studies like how L-shaped runs maximize counters to validate assumptions.
