Design trends in Hyderabad are shifting toward slimmer counter profiles, taller splash zones, and clean, low-maintenance finishes. Over the last decade designing compact homes here, I’ve learned that small kitchens trigger big creativity—especially when we nail the kitchen dado tiles height in drawings early. In this guide, I’ll share 5 design inspirations that I use in real projects, blending my on-site experience with expert data, so your drawings and reality align perfectly.

Quick note: if you love seeing how a minimalist storage line meets a clean backsplash in plan and section, here’s an example of “minimalist kitchen storage” translated to 3D—check out minimalist kitchen storage vibe for visualization ideas.

[Section: 灵感列表]

1) Raise the Dado to 750 mm Above Finished Floor (AFF) at Counter—Then Calibrate to 600 mm Above Countertop

My Take: In most Hyderabad apartments, I start with a standard counter height of ~850–900 mm AFF. For the backsplash, I draw the dado at 600 mm above countertop (total ~1450–1500 mm AFF), which comfortably shields splashes behind cooktops and sinks without visually crowding wall cabinets.

Pros: This height aligns with common Indian modular kitchen dimensions and simplifies coordination between sections and elevations, reducing site errors. It also supports under-cabinet lighting clearance and integrates neatly with long-tail needs like “full-height backsplash behind hob for grease protection.” Studies and vendor datasheets (e.g., Hettich/Blum cabinet guidelines) corroborate these typical modules for ergonomic reach and appliance clearances.

Cons: In very low-ceiling kitchens, a 600 mm splash can feel visually heavy below short wall cabinets. If your countertop thickness changes on-site, the fixed dimension from AFF may drift; always annotate from counter finished level in the drawings to avoid contractor confusion.

Tips / Cost: Mark both dimensions—“600 mm from FCL (Finished Countertop Level)” and total AFF—for clarity. If you switch from 18 mm to 30 mm countertop thickness, update the section so dado aligns with hood and wall unit bottoms.

save pin

2) Extend Dado to the Hood or Wall Cabinet Bottom for a Clean Datum

My Take: I love using the underside of wall cabinets or the hood as a datum. In drawings, I note: “Dado tiles up to 50–75 mm above the hob line; full height to underside of hood.” This resolves the awkward strip between tile and hood and makes cleaning easier.

Pros: A continuous backsplash minimizes grease traps and supports “full back wall coverage behind cooktop” in long-tail queries. Manufacturer guidance (e.g., Faber/ELICA hood clearance of ~650–750 mm above the hob per models and IS standards) means your dado naturally reaches that band, aligning design with safety recommendations.

Cons: Tiling up to the hood may raise tile area and cost by 10–20% on the cooktop wall. If the hood height is later adjusted, your tile edge may show—always specify a 20–30 mm tolerance band for final hood installation height.

Tips / Case: For compact kitchens where the hood sits higher, I draw a stainless or glass insert above tiles for a sleek finish. Midway through your plan set, it helps to visualize options like an “L 型布局释放更多台面空间” in 3D; here’s a planning example with strong countertop-to-wall transitions: L-shaped layout for more counter run.

save pin

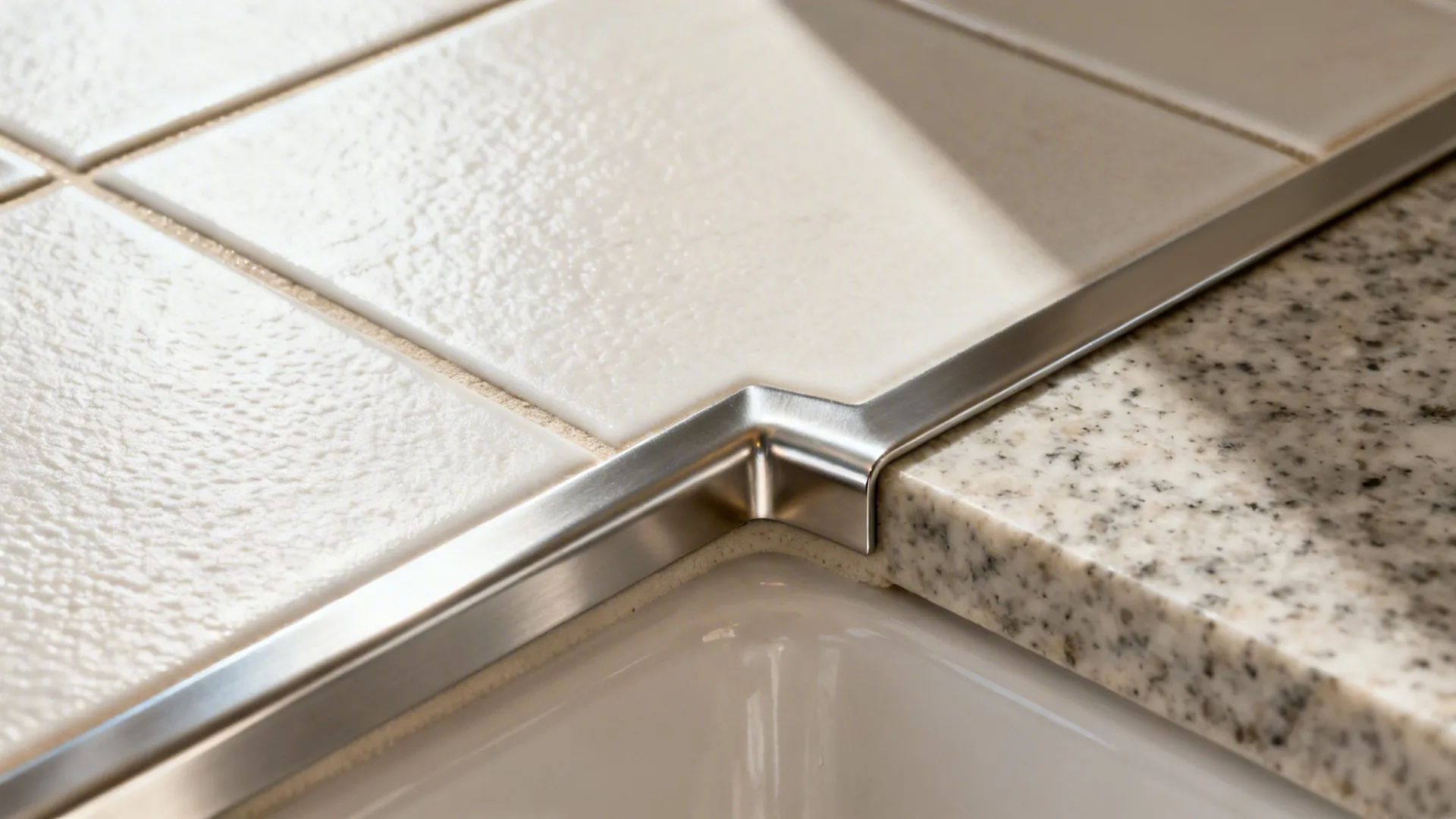

3) Full-Height Dado in Wet Zones: Sink Wall to 1,800–2,100 mm AFF

My Take: In Hyderabad, I often deal with high groundwater mineral content and hard water stains. To reduce repaint cycles near sinks, I take the dado higher on the sink wall—often to 1,800 mm AFF, or even full-height if the budget allows.

Pros: Taller tiles protect paint from splash-back and steam, especially for long-tail needs like “tall splash for heavy wash areas.” The Indian Plumbing Association suggests adequate splash protection on wet walls (and global guidelines like NKBA emphasize moisture control around sinks and dishwashers), which my drawings reflect with heightened dados that reduce maintenance.

Cons: Full-height tiles increase material and labor costs, and tall glossy tiles can reflect too much glare under strong LED task lights. If your ceiling is low, consider a satin finish or micro-texture to keep reflections comfortable.

Tips / Cost: If you’re cost-sensitive, run standard 600 mm above counter on dry runs and raise only the sink bay to 1,200–1,500 mm. Specify tile trim (profiles or miters) in detail D-03 so the transition is crisp.

save pin

save pin

4) Align Dado Height with Window Sills and Switchboards for a Seamless Grid

My Take: Small kitchens thrive on visual order. I often match the dado top to the nearest architectural line—window sill or bottom of switches—so the tile edge doesn’t slice through switch plates or bisect the sill. This nibble detail brings a big-city finish.

Pros: Integrating dado height with sill and switchboard avoids cuts and improves “tile layout planning around openings,” a common long-tail query in construction drawings. It also reduces awkward L-cuts and breakage, saving installation time and waste.

Cons: You may need to tweak window stool thickness or adjust switch heights by 20–30 mm to achieve alignment. Electricians and carpenters must coordinate early; otherwise, you risk late-stage rework and filled chases.

Tips / Case: In CAD, I create an elevation grid—tile module, sill height, switch center lines—and note the control datum (usually 1200, 1350, or 1500 mm AFF). For render checks, test a “glass backsplash for more openness” mockup; here’s a gallery that captures that vibe: glass backsplash feels more open.

save pin

5) Specify by Function: Cooktop Wall, Sink Bay, and Dry Runs Each Get Their Own Dado Height

My Take: I rarely use a one-size-fits-all height. My drawings annotate three zones: cooktop (to underside of hood), sink bay (1,200–1,800 mm AFF), and dry runs (600 mm above counter). Clients appreciate the logic and installers get a clear map.

Pros: Zone-based drawings reflect how people use kitchens, improving hygiene and lowering repaint cycles—classic long-tail: “dado height by function zones.” It also respects appliance clearances and future upgrades (like taller faucets or pot fillers).

Cons: Multiple heights can look busy in very small kitchens without strong horizontal lines. Solve this by keeping a single tile module and using a matching capping profile or painted band above tiles for visual unity.

Tips / Cost: Note tile module in drawings (e.g., 300×600 or 600×600) and indicate last full course height to avoid tiny slivers. I also add a remark: “Final height to align with site-measured countertop FFL,” because countertops often deviate ±5–10 mm.

[Section: 总结]

Here’s my bottom line: a small kitchen doesn’t limit you—smart drawings do the heavy lifting. When you set kitchen dado tiles height in drawings by function and datum, the space feels intentional and easy to maintain. For safety clearances over hobs and comfortable reaches, NKBA and appliance makers provide reliable bands you can cross-check. Which of these five ideas will you try first in your kitchen?

[Section: FAQ 常见问题]

save pin

FAQ

1) What is the standard kitchen dado tiles height in drawings for Hyderabad apartments?

Typically, 600 mm above the countertop (about 1450–1500 mm AFF) for general runs. Cooktop walls often extend to the underside of the hood per model clearances (~650–750 mm above hob).

2) Should sink walls have higher dado tiles than the rest?

Yes. In wet zones, I specify 1,200–1,800 mm AFF or even full-height to combat moisture and stains. It reduces repaint cycles and keeps grout lines cleaner.

3) Are there code-based rules for backsplash/dado height?

There’s no single binding code for the exact height, but NKBA planning guidelines and appliance manufacturers specify safe hood clearances, which indirectly set practical backsplash heights (see NKBA Kitchen Planning Guidelines).

4) How do I coordinate dado height with wall cabinets and the chimney hood?

Set the cabinet underside/hood line as a datum, then tile to that. Maintain the hood’s recommended clearance above the hob; many brands prescribe ~650–750 mm, so the dado usually meets or slightly exceeds that line.

5) What if my countertop thickness changes on-site?

Dimension the dado from the finished countertop level in drawings and re-verify after slab installation. Note both “from counter” and “AFF” so the tiler has a clear reference.

6) What tile size works best for consistent dado heights?

Common modules like 300×600 mm or 600×600 mm minimize slivers. Plan the top course so it terminates cleanly at the datum (hood or cabinet underside).

7) Is glass a good alternative for taller dados?

Yes—tempered back-painted glass or a glass backsplash offers a seamless look and easy cleaning. Ensure silicone and edge profiles are specified to prevent seepage.

8) Can I see a visual of different dado heights in a compact layout?

If you want to test L-shaped runs with varied splash heights, preview a layout planning gallery; for instance, an L-shaped concept can be explored here: compact L-shape visualization. Then translate those visuals into your CAD sections and elevations.
